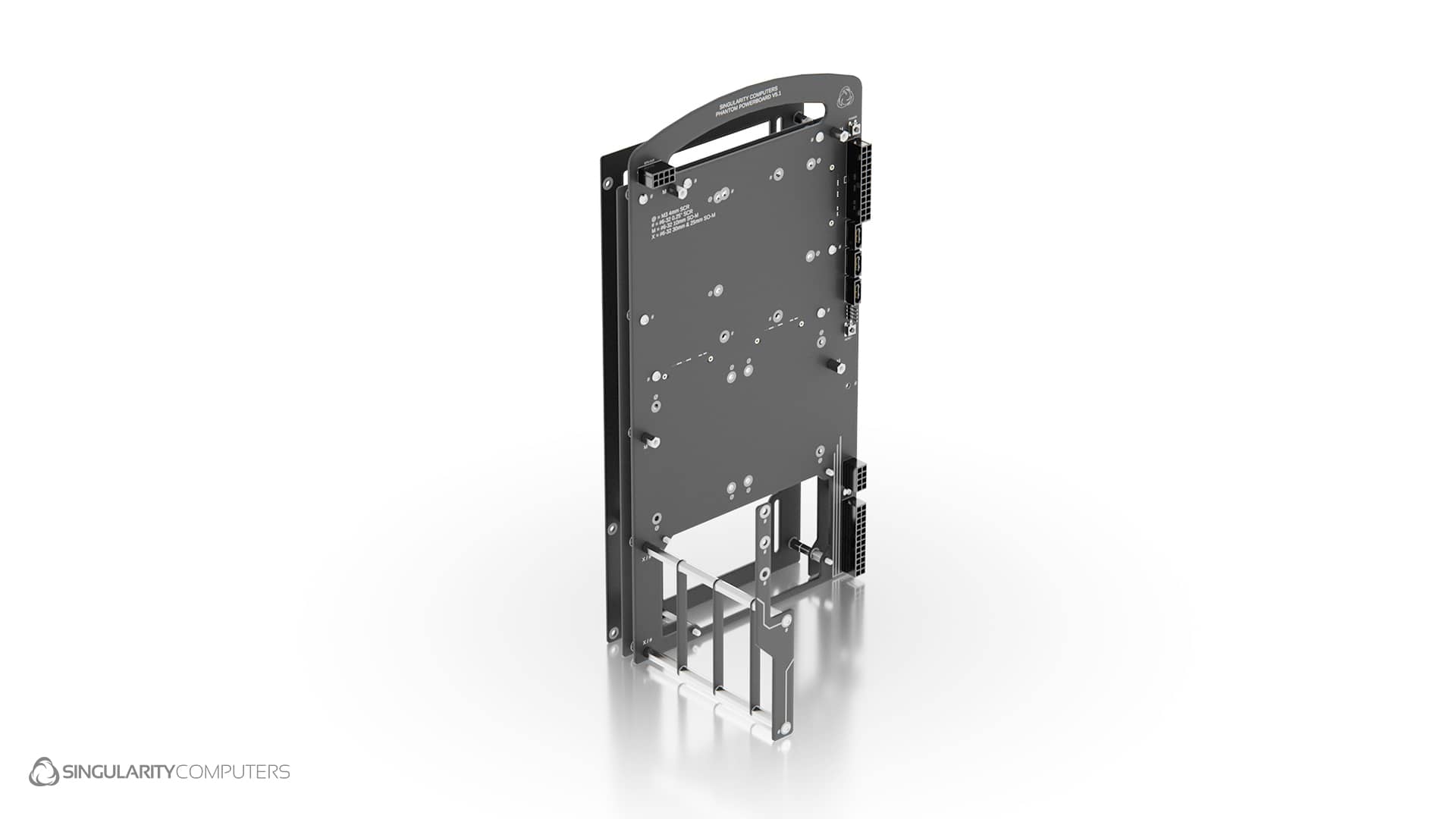

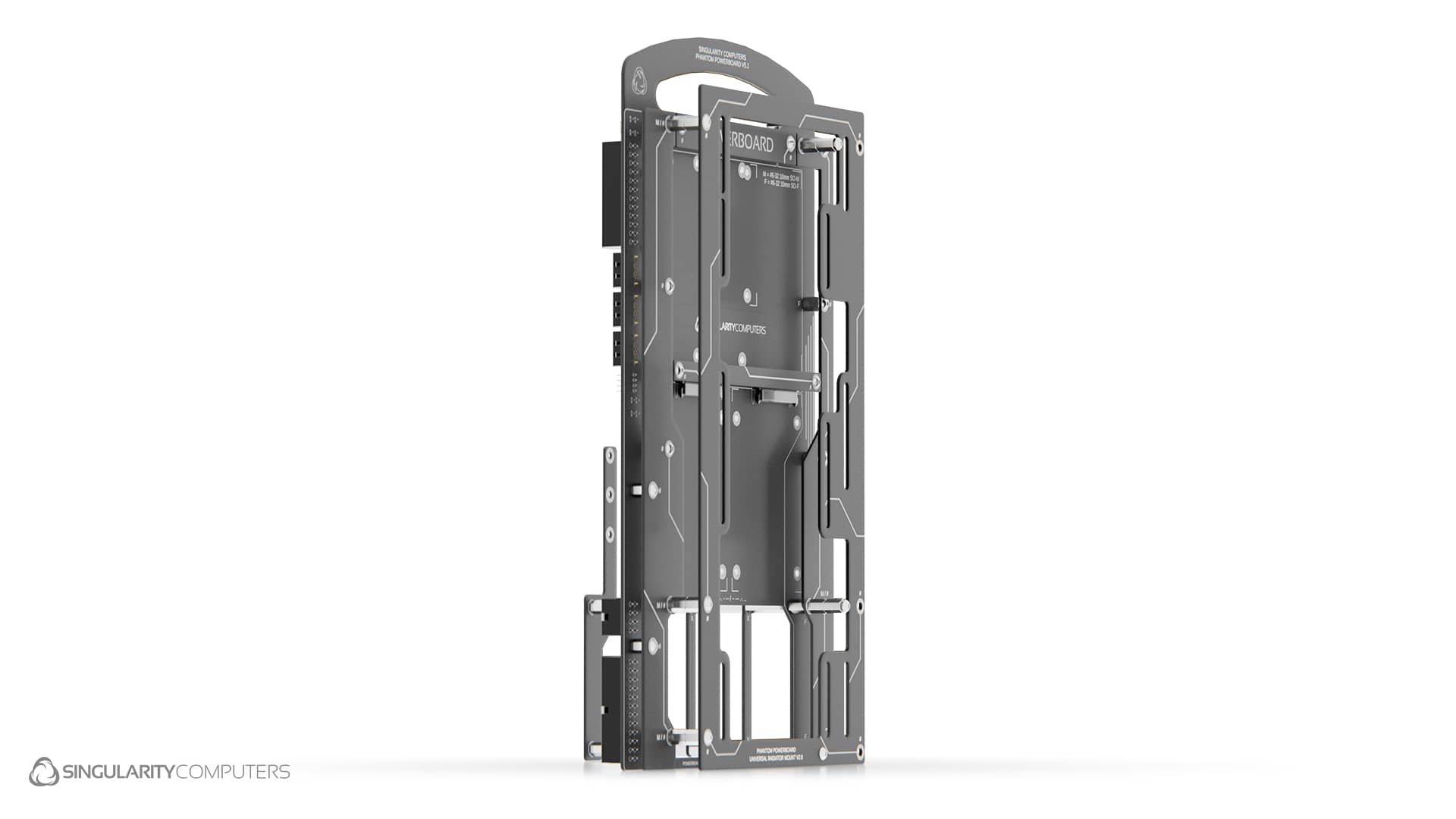

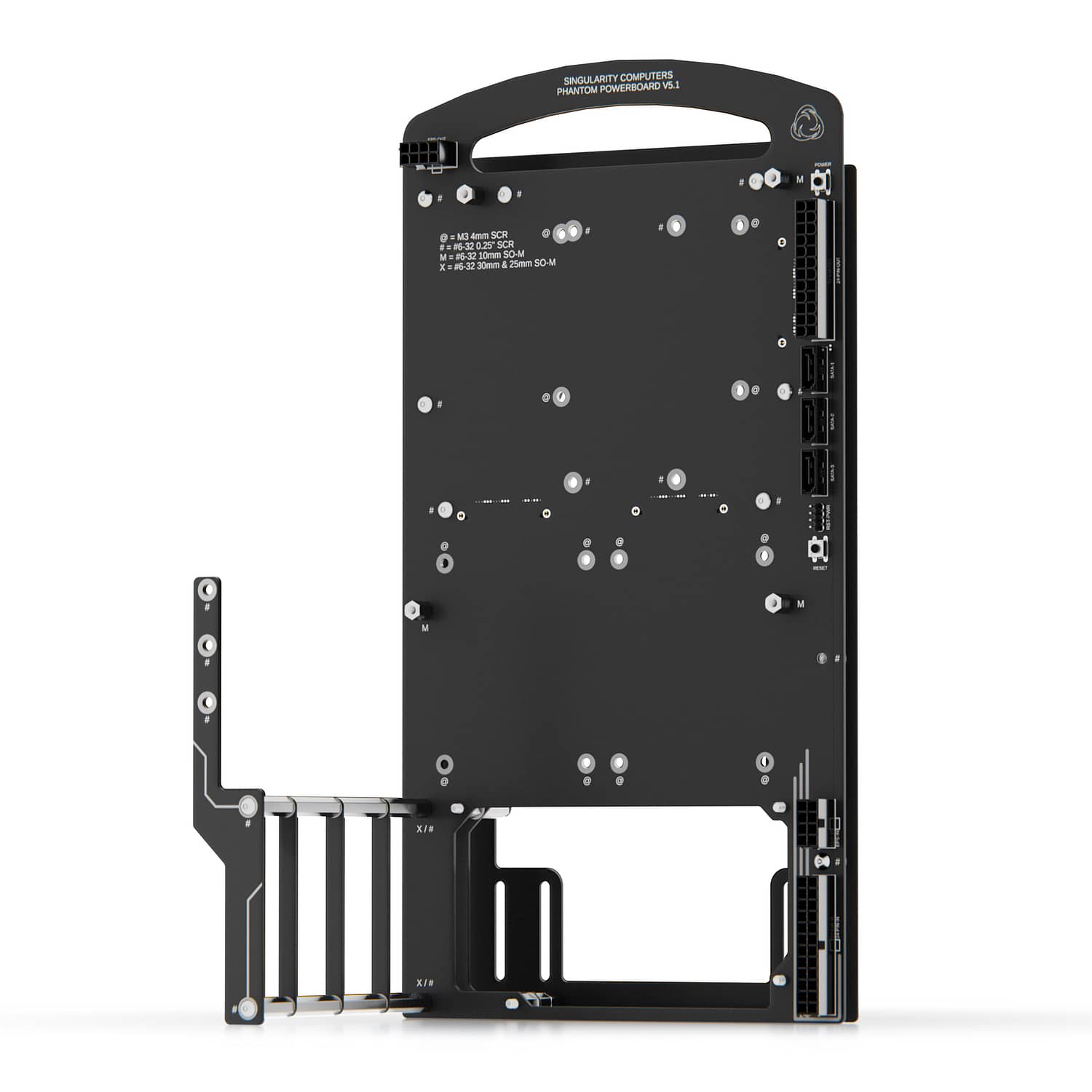

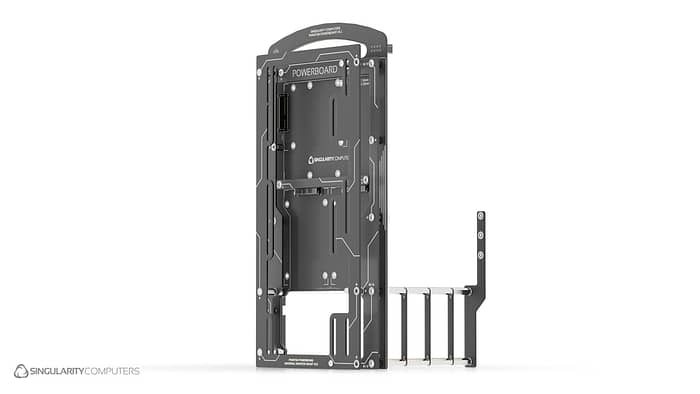

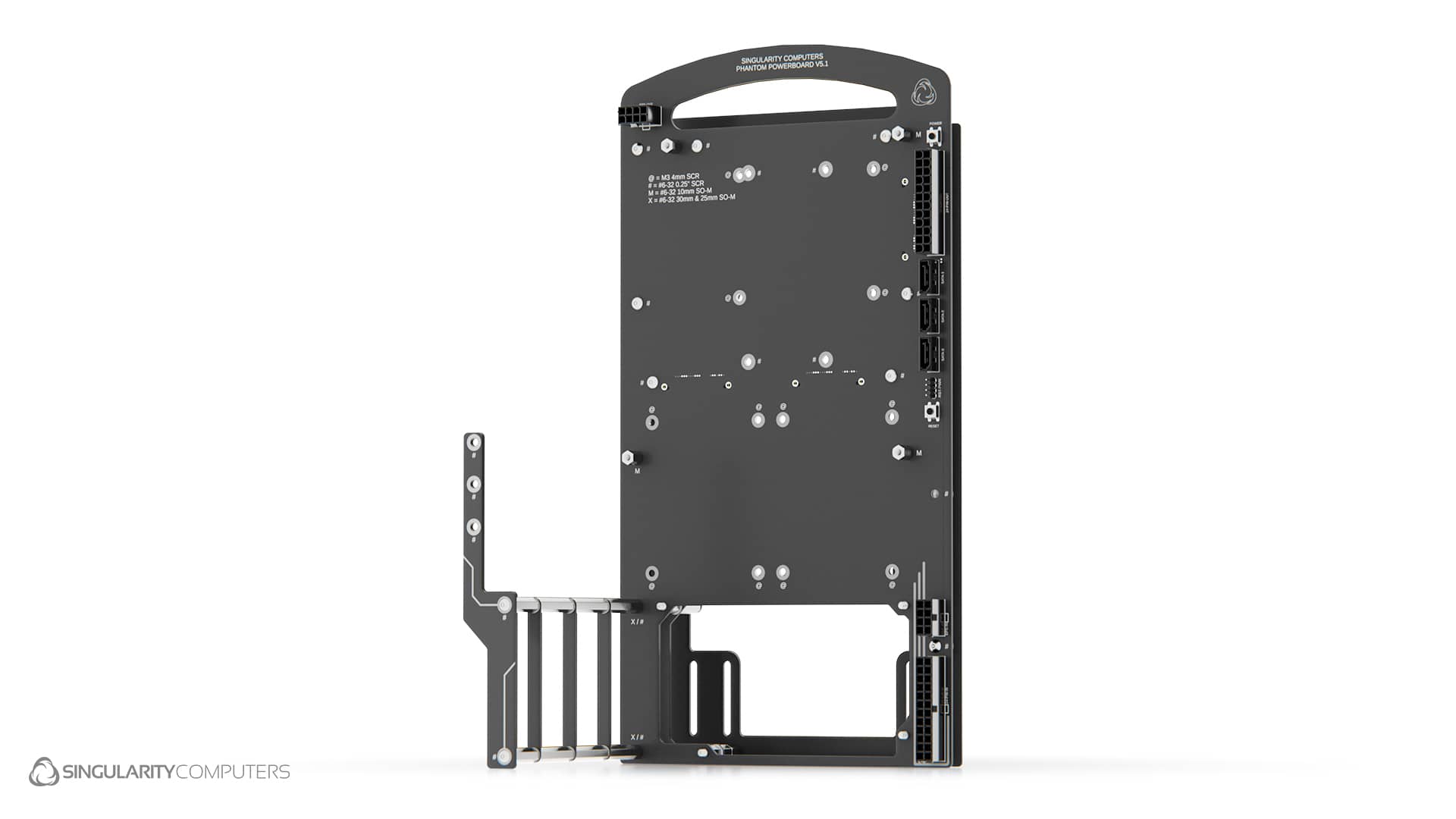

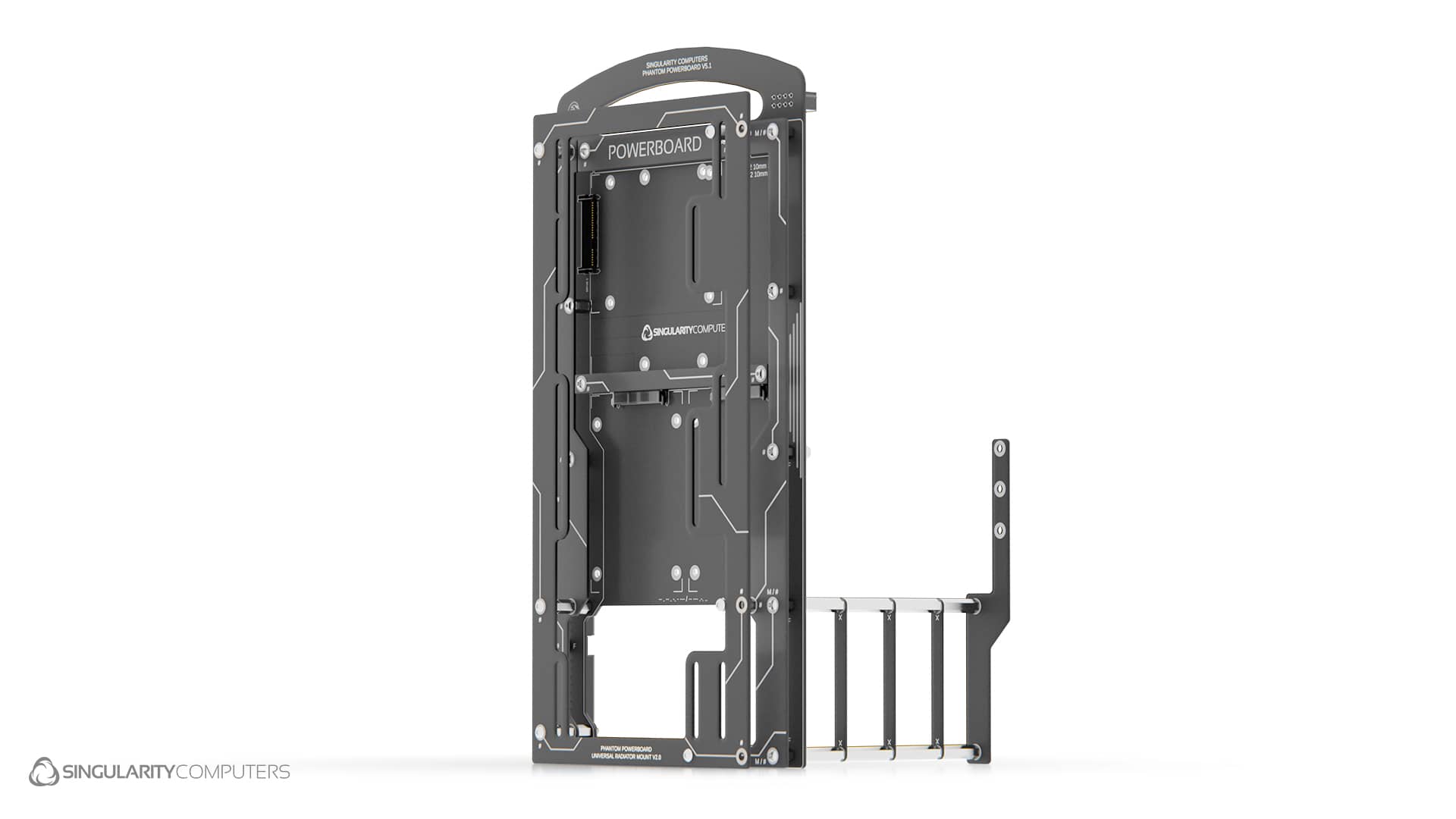

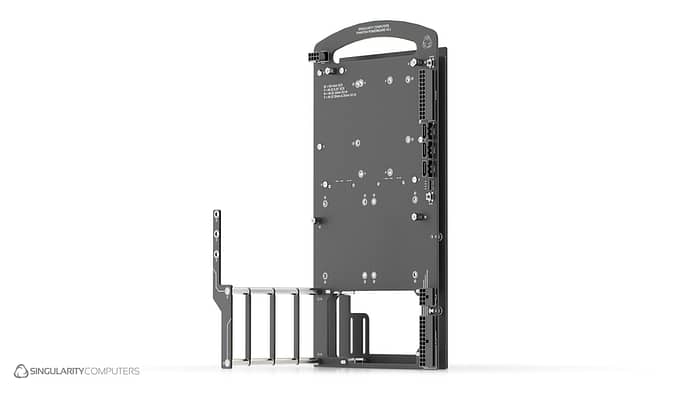

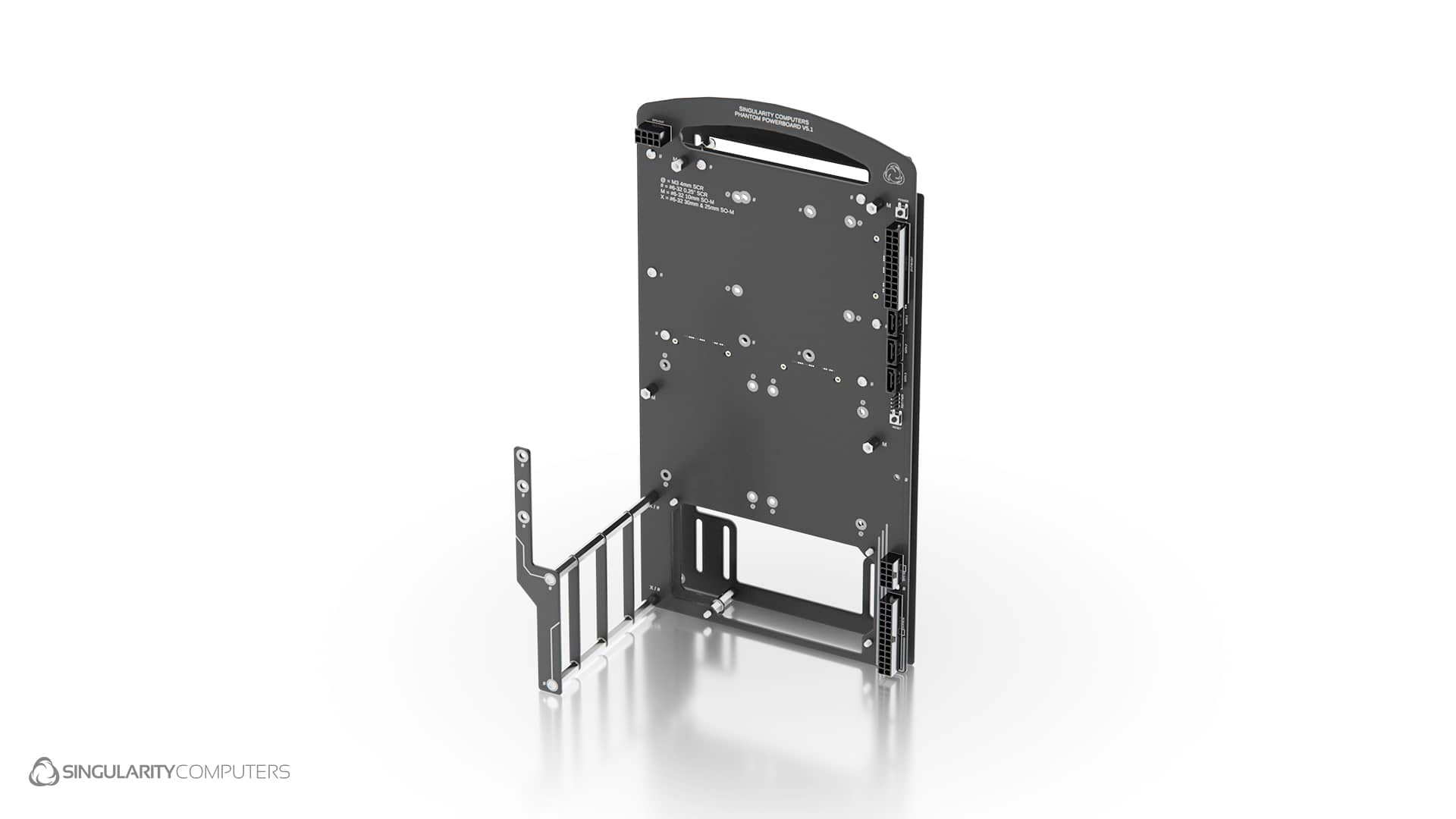

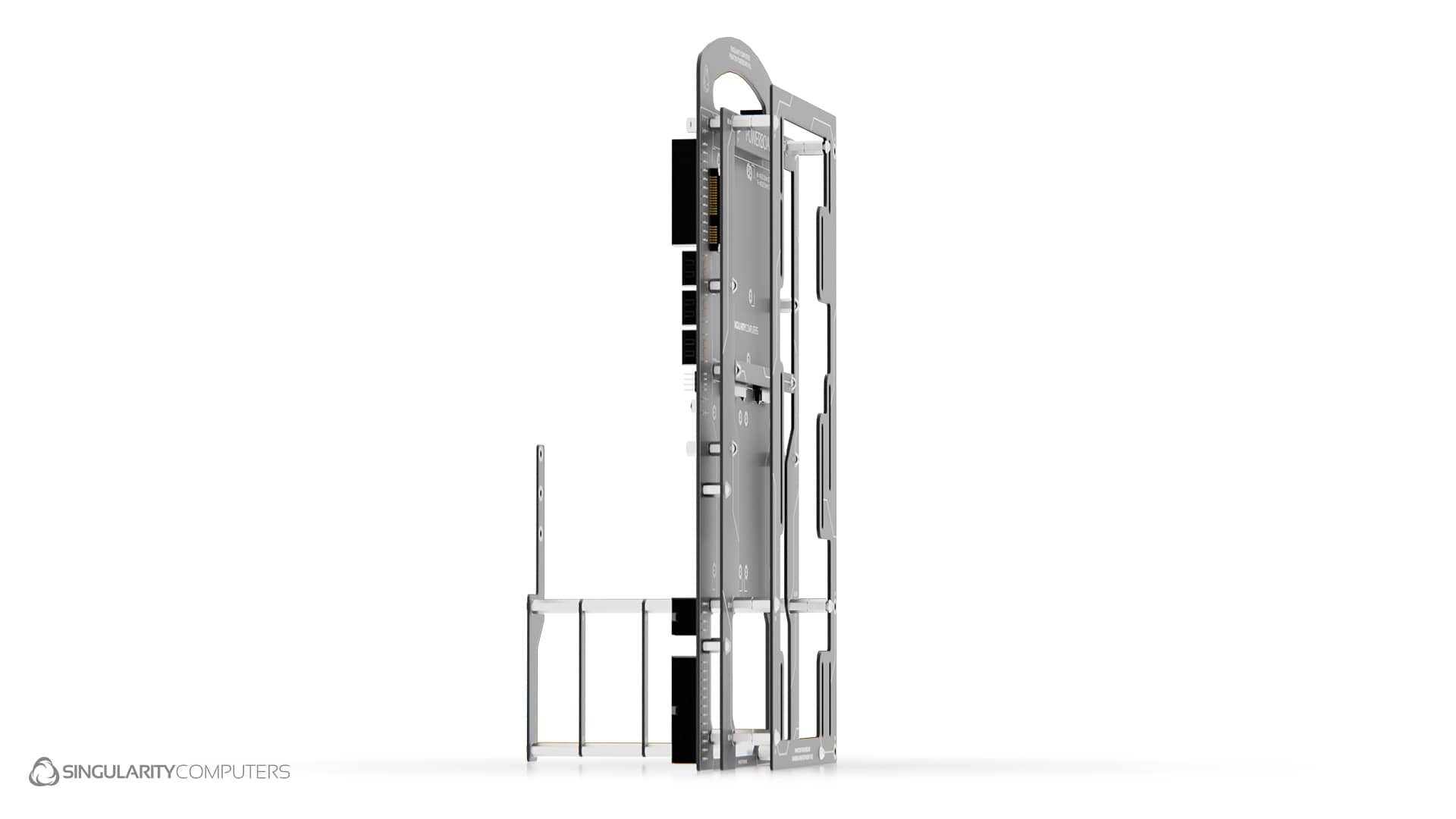

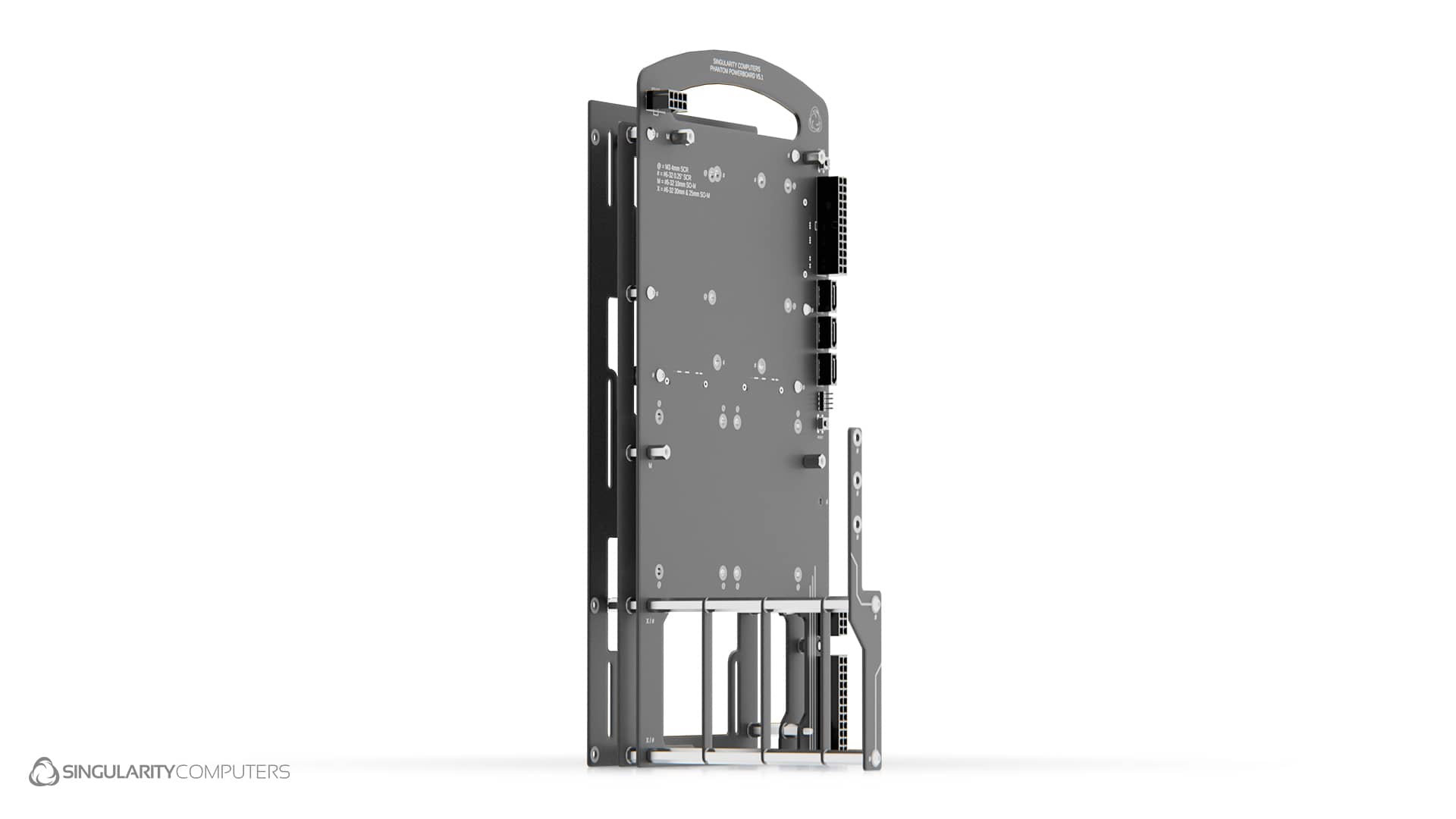

Phantom ITX/DTX Case
Phantom turns the Singularity Computers PowerBoard into the case itself. The goal was to create the most minimalistic case using PCB components only. Phantom does not aim to be the smallest Mini-ITX case, but to achieve maximum component density with unrestricted airflow. Phantom disappears amongst the components mounted to it, it is completely about component selection and will show off the skill of the builder. It fits ITX and DTX motherboards, 3+ slot graphics cards, ATX power supplies and 3x 2.5” drives, or 2x 2.5” and a 3.5” drive. Water-cooling is possible with the included universal radiator mount which fits 120mm, 140mm, 240mm, 280mm, 360mm, 420mm, 480mm and 560mm radiators. There is no limitation to radiator thickness and push pull fans will fit. All components are mounted directly onto the PowerBoard which acts as a rack as well as a power distribution plate. Phantom has the MB 24pin and EPS power integrated into the PowerBoard, along with Power and Reset buttons. There are integrated direct connect SATA power connections to avoid the need for SATA power cables. The built-in handle makes the system easy to transport by hand. There is no rear access needed to the case for cable management, all cables can be connected from the front. Black sleeved cables are included with the case.
The following cables are included with the product: 24pin x1, 8pin EPS x1.
Here
Optional PowerBoard PSU Cable Kit is available
Here
US$149.00
Singularity Computers PowerBoard:
Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821) a completely new take on computer cables and cable management. The idea first came about during the development of our first case Spectre 1.0. We were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It eliminates the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!
Specifications:
Case PowerBoard Components: x10 total. Stainless steel fasteners and stand offs.
Electronics Integration: Core Component Cables: 24pin x1. 8pin EPS x1. Power and Reset Buttons. 2.5”/ 3.5” SATA 3.0 6Gb/s Direct Mount x1. 2.5” SATA 3.0 6Gb/s Direct Mount x2
Cables: PowerBoard Linking Cables and PowerBoard PSU Cables available here.
Motherboard Form Factor: Mini-ITX & DTX.
PSU Compatibility: ATX.
Expansion Slots: x3.
Case Form Factor: SFF.
Package Dimensions: L: 395mmmm W: 430mm H: 40mm (Case is flat packed and requires assembly).
Package Weight: 2kg.
Case Dimensions: L: 135mm H: 360mm W: 190mm.
Case Weight: 1.5kg.
Storage: 3x 2.5” or x2 2.5” and 1x 3.5”.
Radiators: 120mm, 140mm, 240mm, 280mm, 360mm, 420mm, 480mm, 560mm. Radiator width is limited to 145mm width so Hardwarelabs radiators will not fit. No limitation on radiator thickness and push pull fans can be used.
Maximum GPU Length: Unlimited.
Maximum GPU thickness: 75mm.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: Unlimited.
Front Panel I/O: Power and Reset buttons.
Vertical GPU Mount: No.
Materials: PCB with stainless steel fasteners and stand offs.
Manufacturing Process: PCB.
Assembly: Flat packed and needs to be assembled by the customer.
Accessories: Hex Key: M3: x1.
