PowerBoard Linking Cable 12VHPWR-2x8pin PCIE 600W

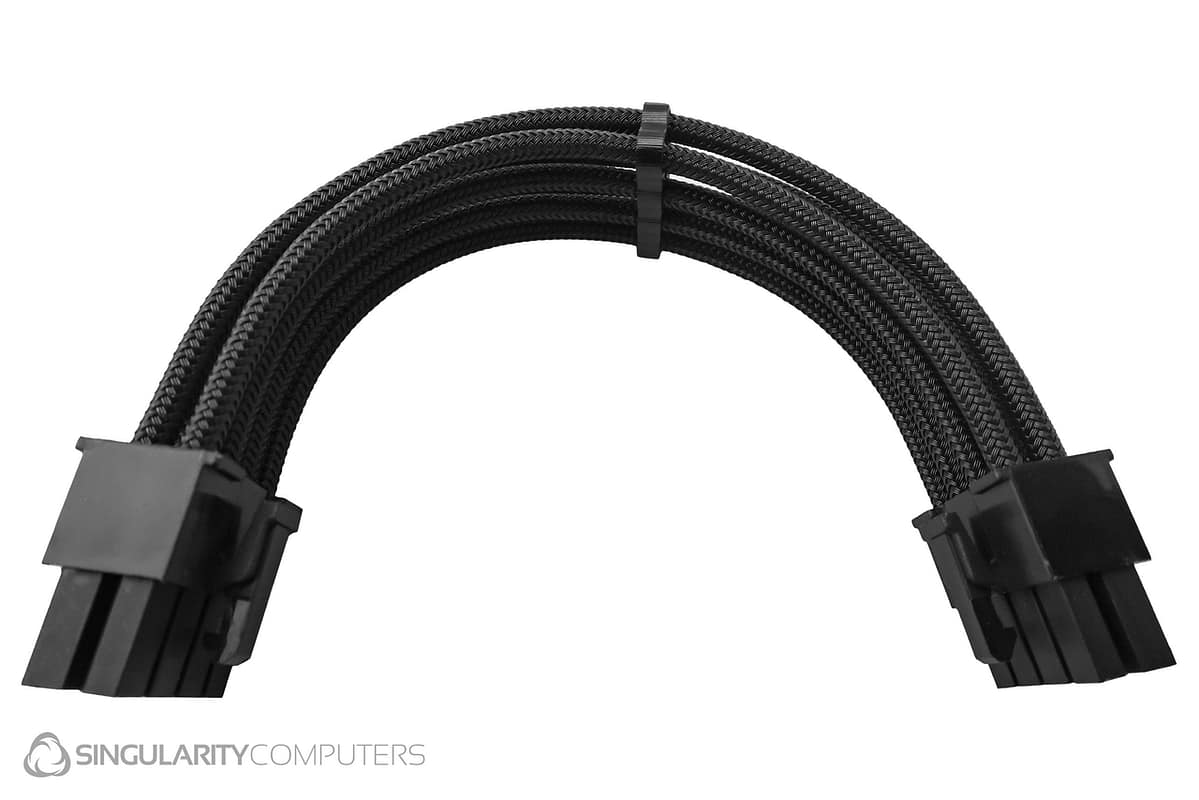

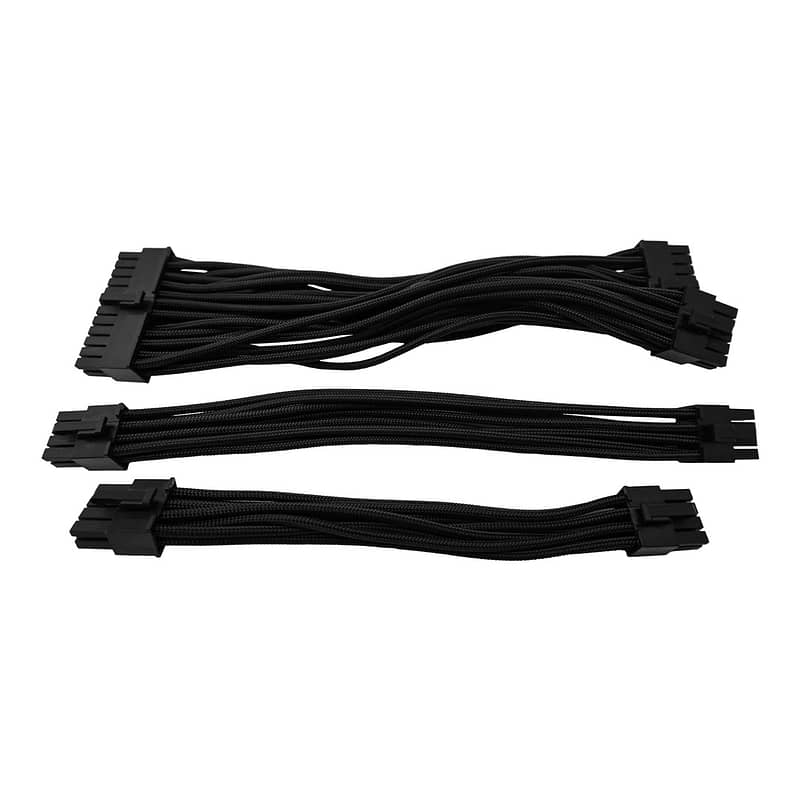

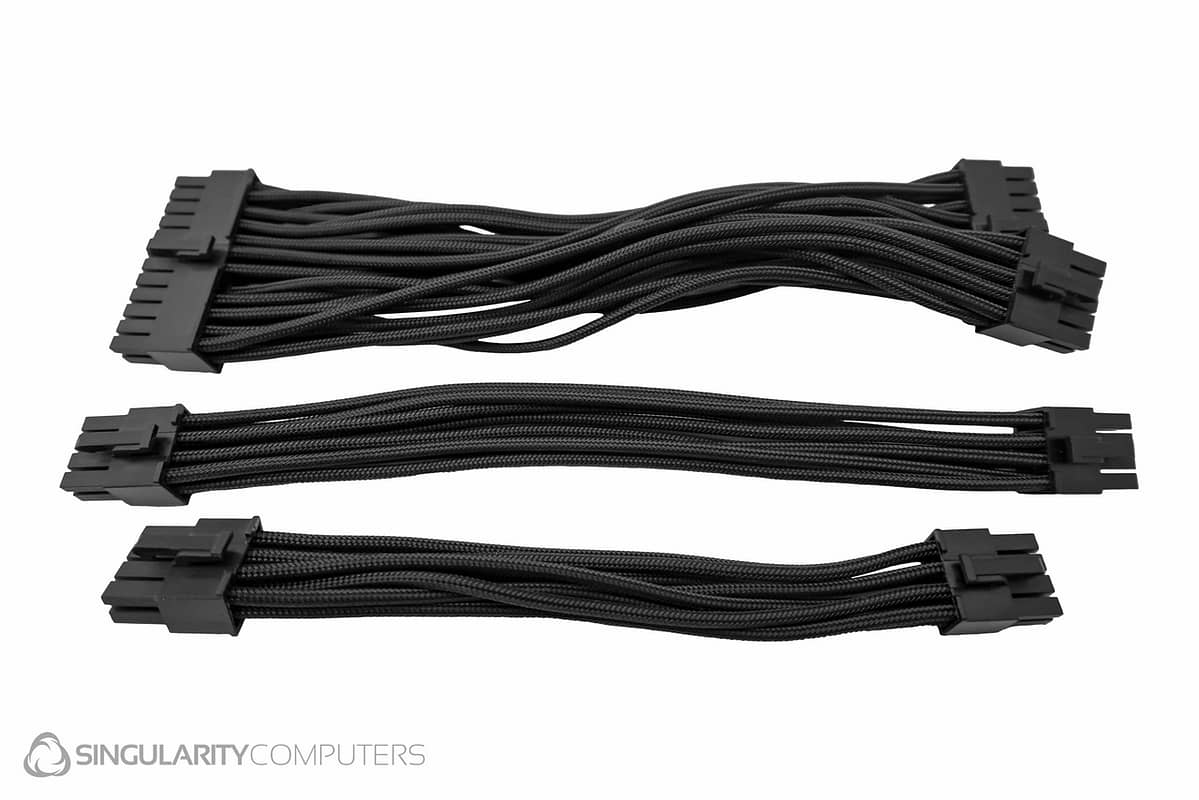

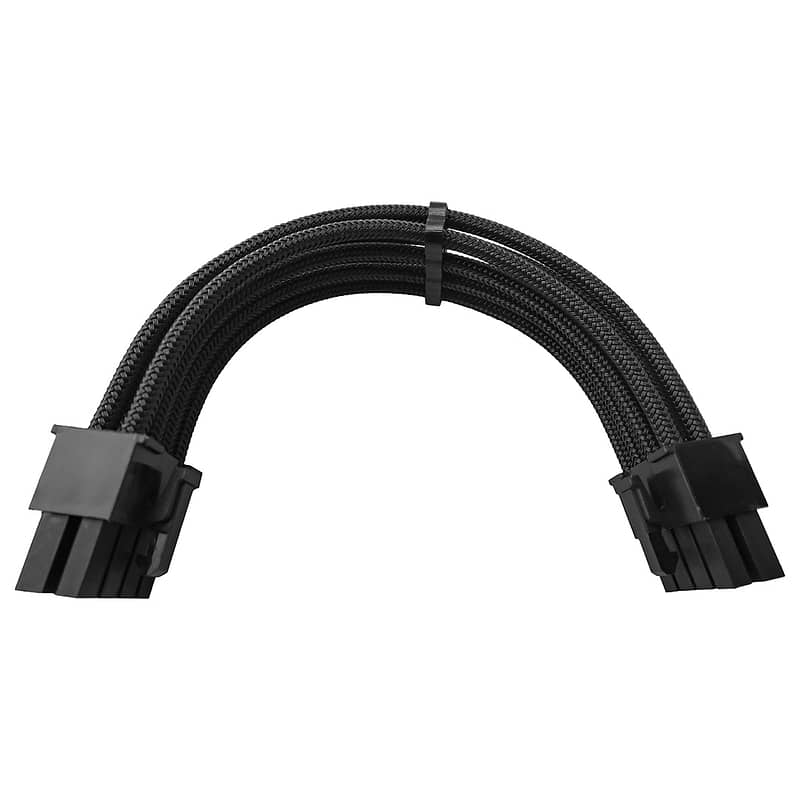

One of the benefits of the PowerBoard is that the cable lengths have been standardised and the cables are very short meaning they do not require any cable management. PowerBoard Linking Cables connect your motherboard and GPU to the PowerBoard, these are 1:1 extensions with female connections on both ends. PowerBoard PSU Cables connect your PSU to the PowerBoard and are the same as your stock PSU cables just shorter. These are high quality 16AWG Heatshrinkless Black Sleeved cables specifically designed for the PowerBoard. The 24pin and EPS are arched meaning the inner cable lengths are shorter than the outer cable lengths. Component connector positions vary so there is a small margin of excess length built into these cables to allow for this.

PowerBoard Linking Cable 12VHPWR-2x8pin PCIE 600W:

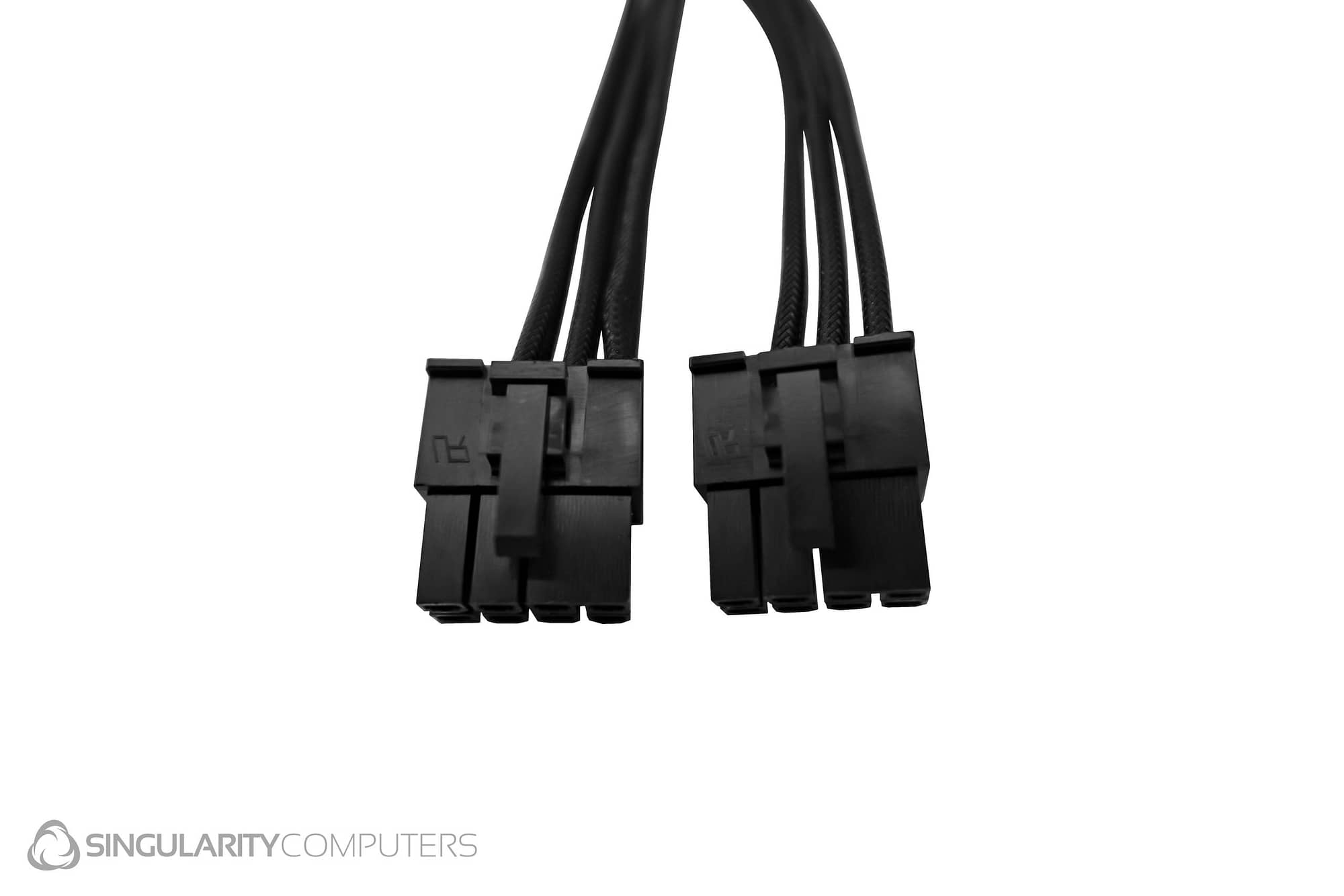

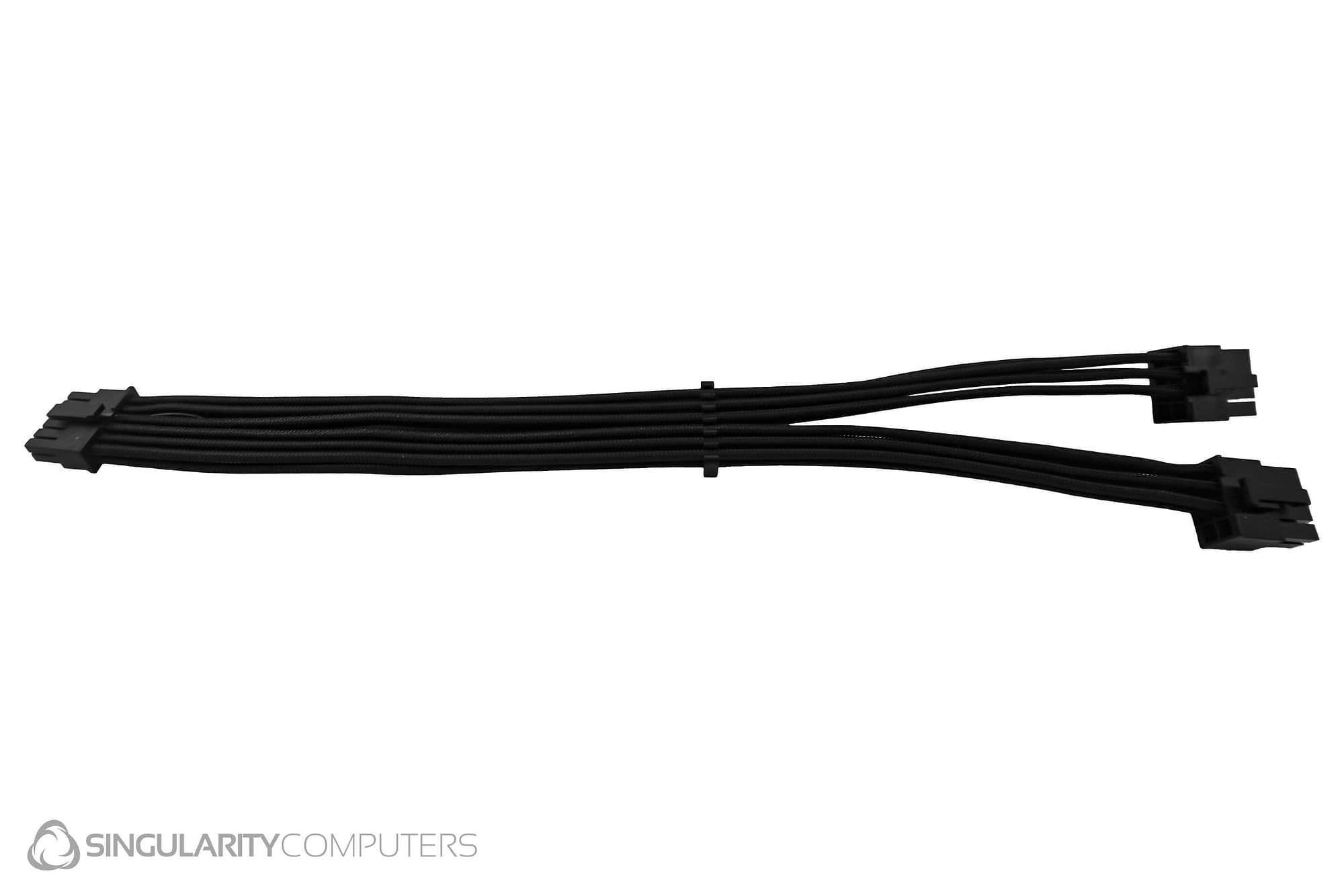

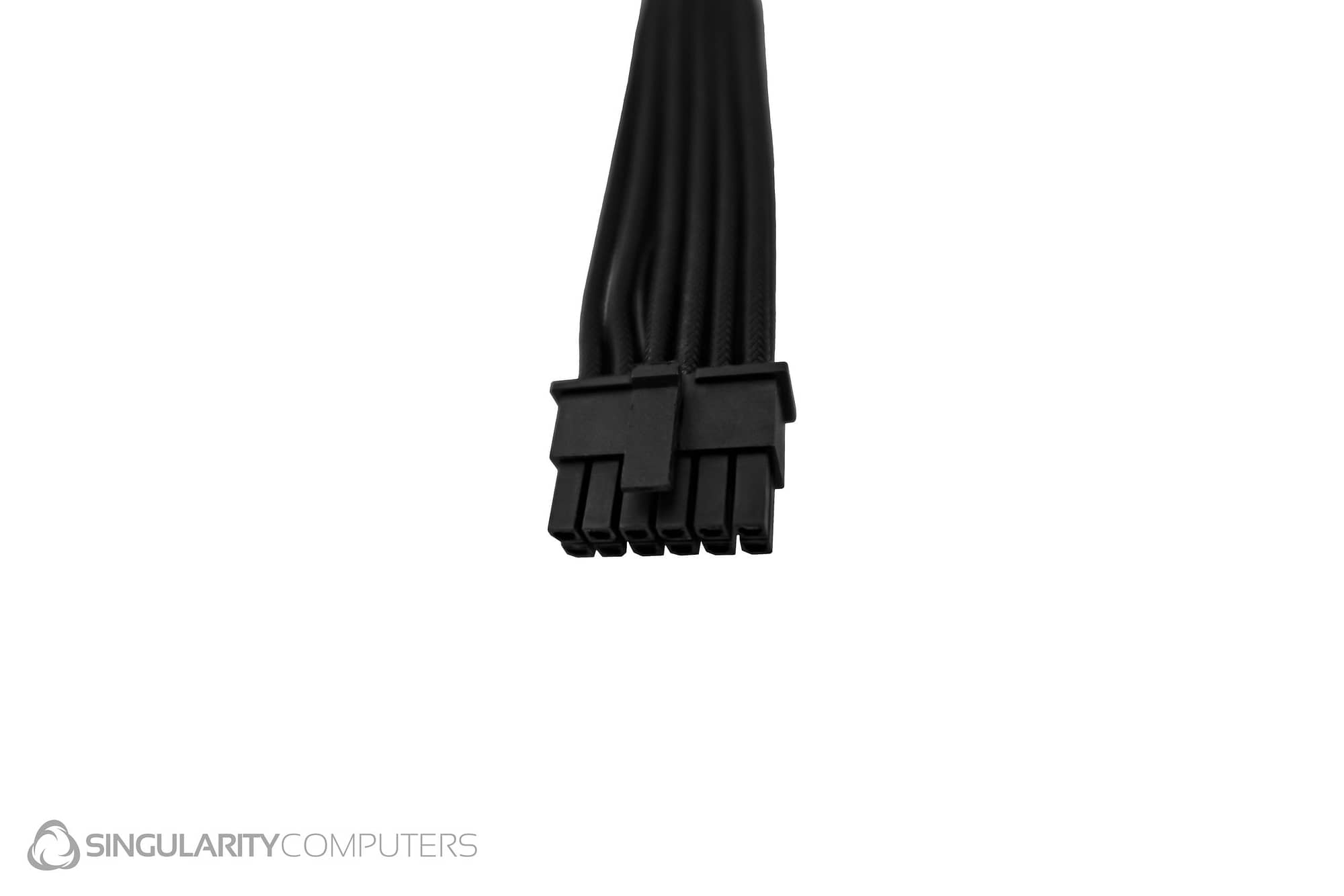

This cable is designed to run a 12VHPWR GPU from a PSU without 12VHPWR. It can be connected from the PowerBoard 8pin PCIE output connectors, to the GPU. 2 x 8pin PCIE is the equivalent amount of connections to a 12VHPWR connector but ATX pins are thicker so the bottleneck is not the 2 x 8pin PCIE it is the 12VHPWR connector. This cable will provide the full 600W to the GPU without limitation.


SKU: SC-PB-C-12VH-2PCIE Category:

Specifications & Included Items:
PowerBoard Linking Cable 12VHPWR-2x8pin PCIE 600W: 16AWG Black Sleeved.
Weight: 0.08kg.
Dimensions: L: 300mm x W: 20mm x H: 12mm.
Packaged Weight: 0.1kg.
Packaged Dimensions: L: 320mm x W: 30mm x H: 20mm.

This cable is designed to be used between the PowerBoard and GPU. It is for PSUs without 12VHPWR.

Experience Singularity:
We create the products we want in our builds based on our 15 years of experience building high end computers. All our designs begin with function, versatility is vital to increase the possibilities so that you can create the build you want to, something unique. Our products are premium, we do not hold back on quality to save cost. All our products use the most high-end available materials and manufacturing processes. Our vision is to continue to introduce unique and exciting ideas, to inspire and lead the industry.
