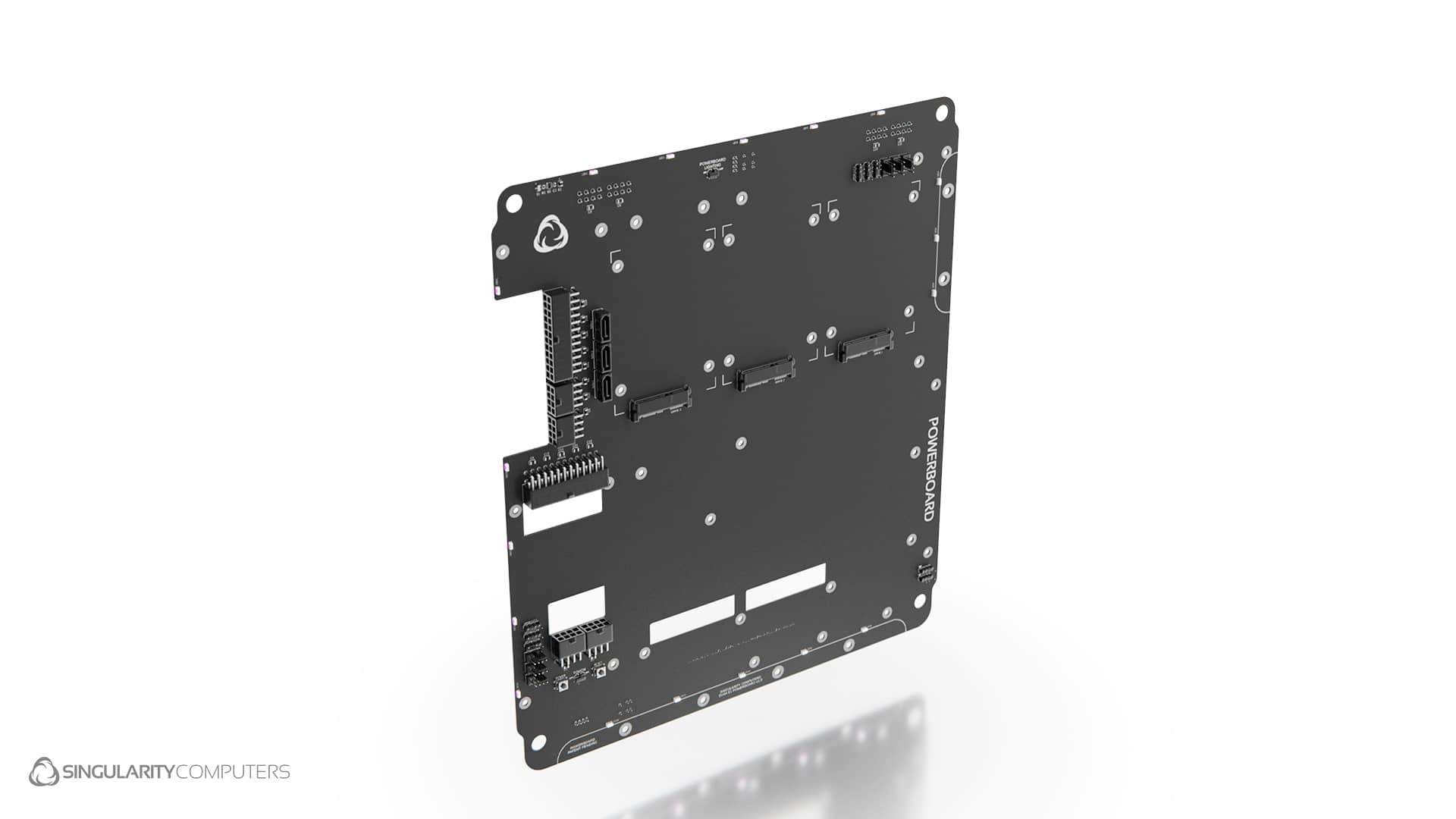

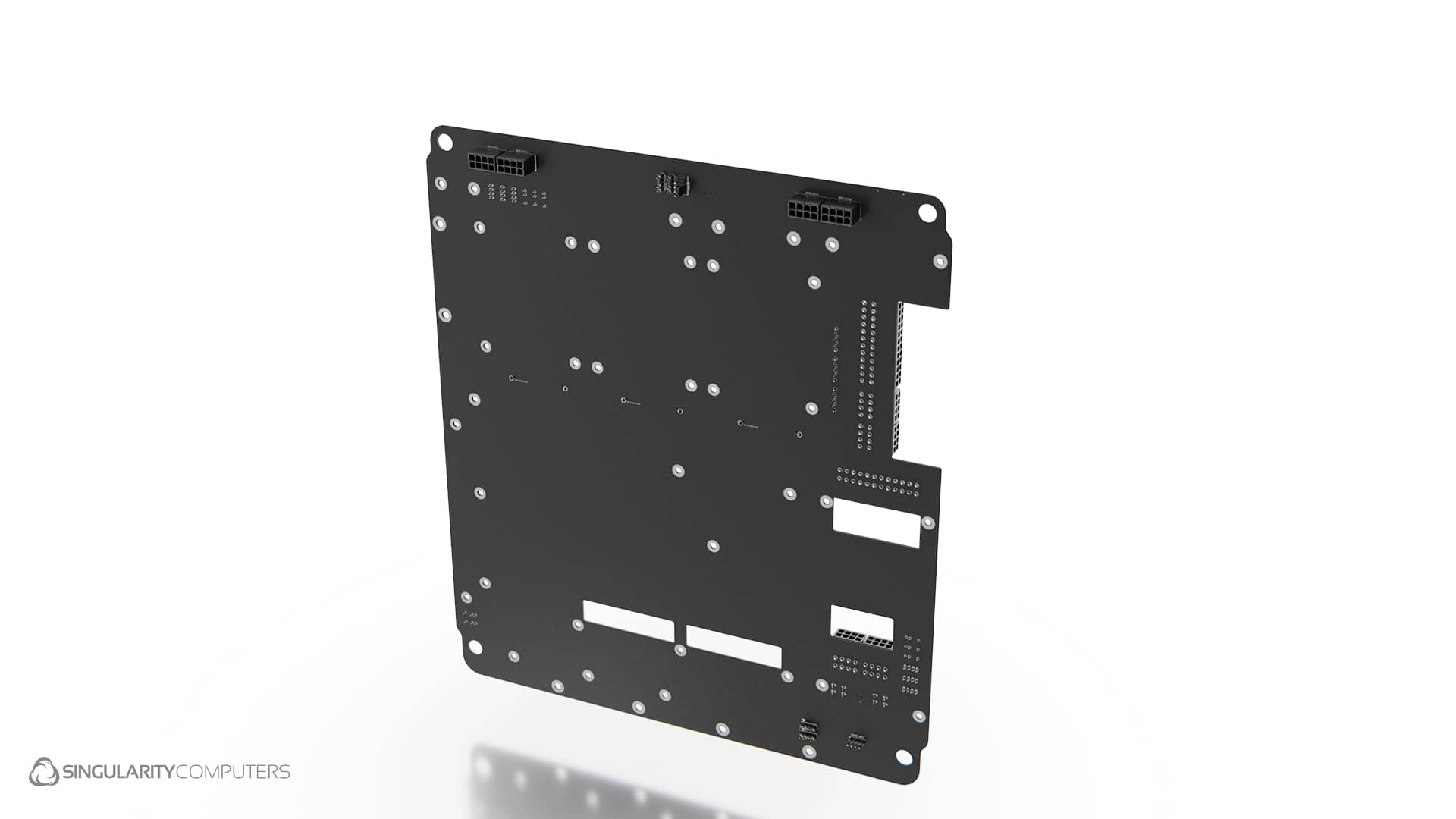

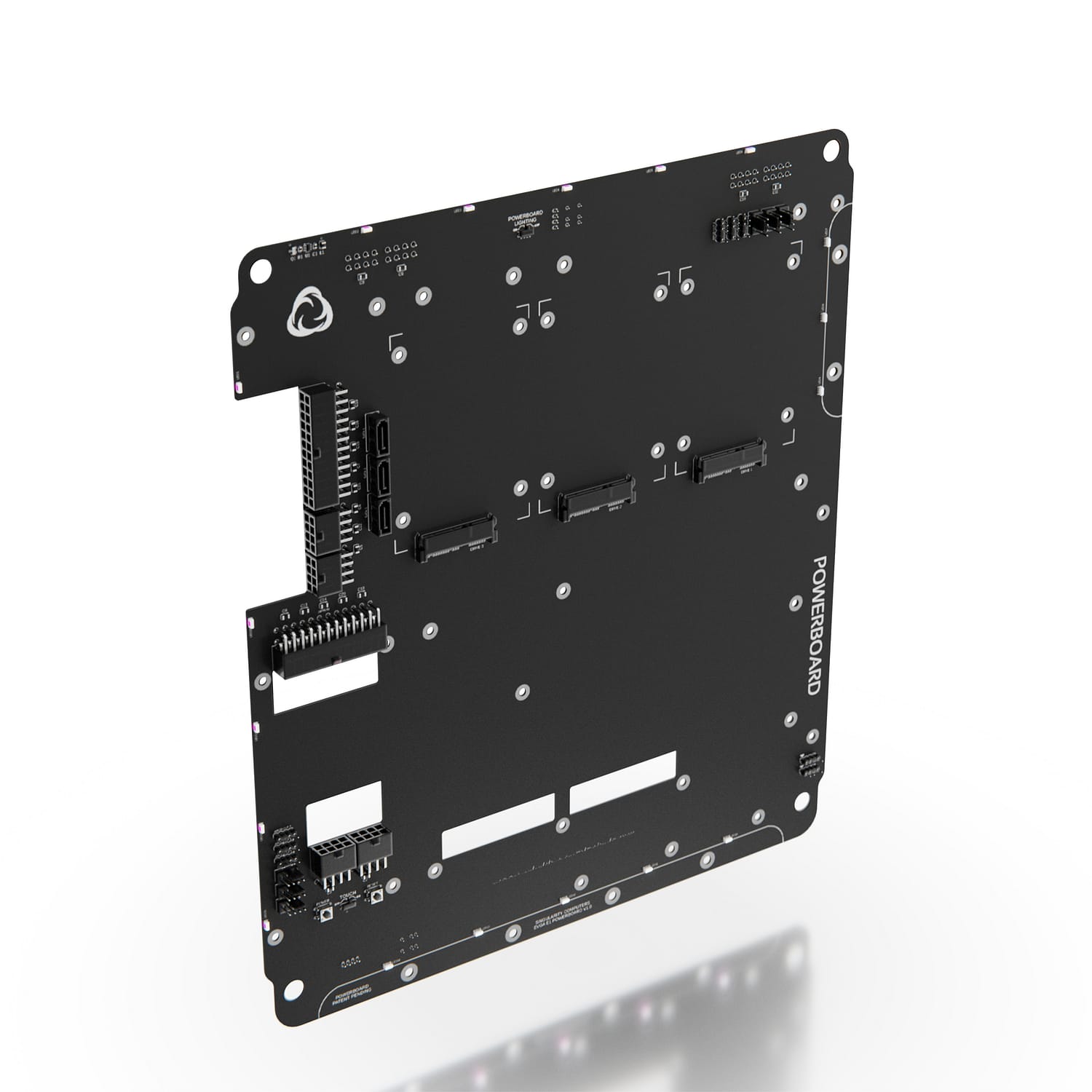

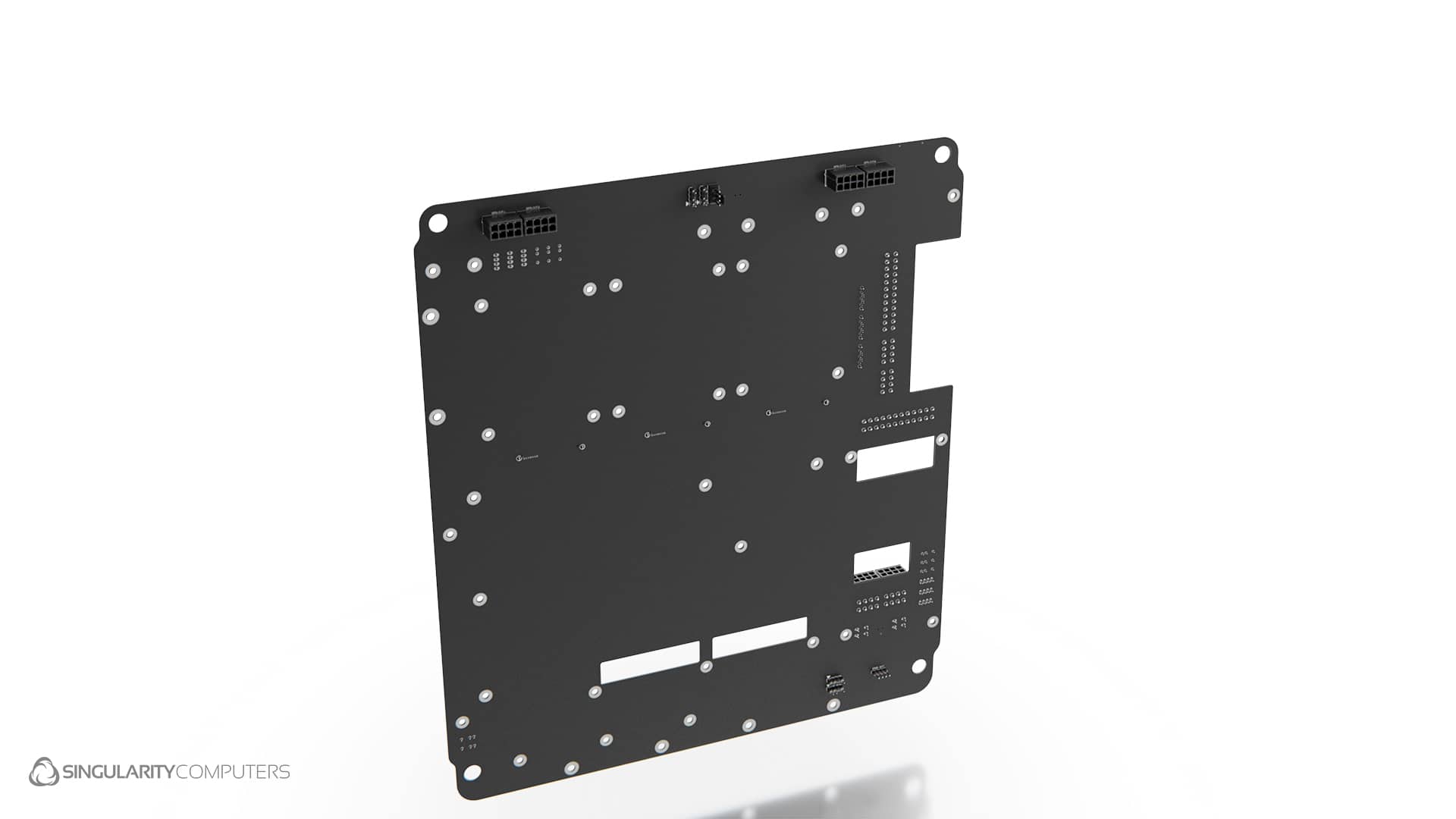

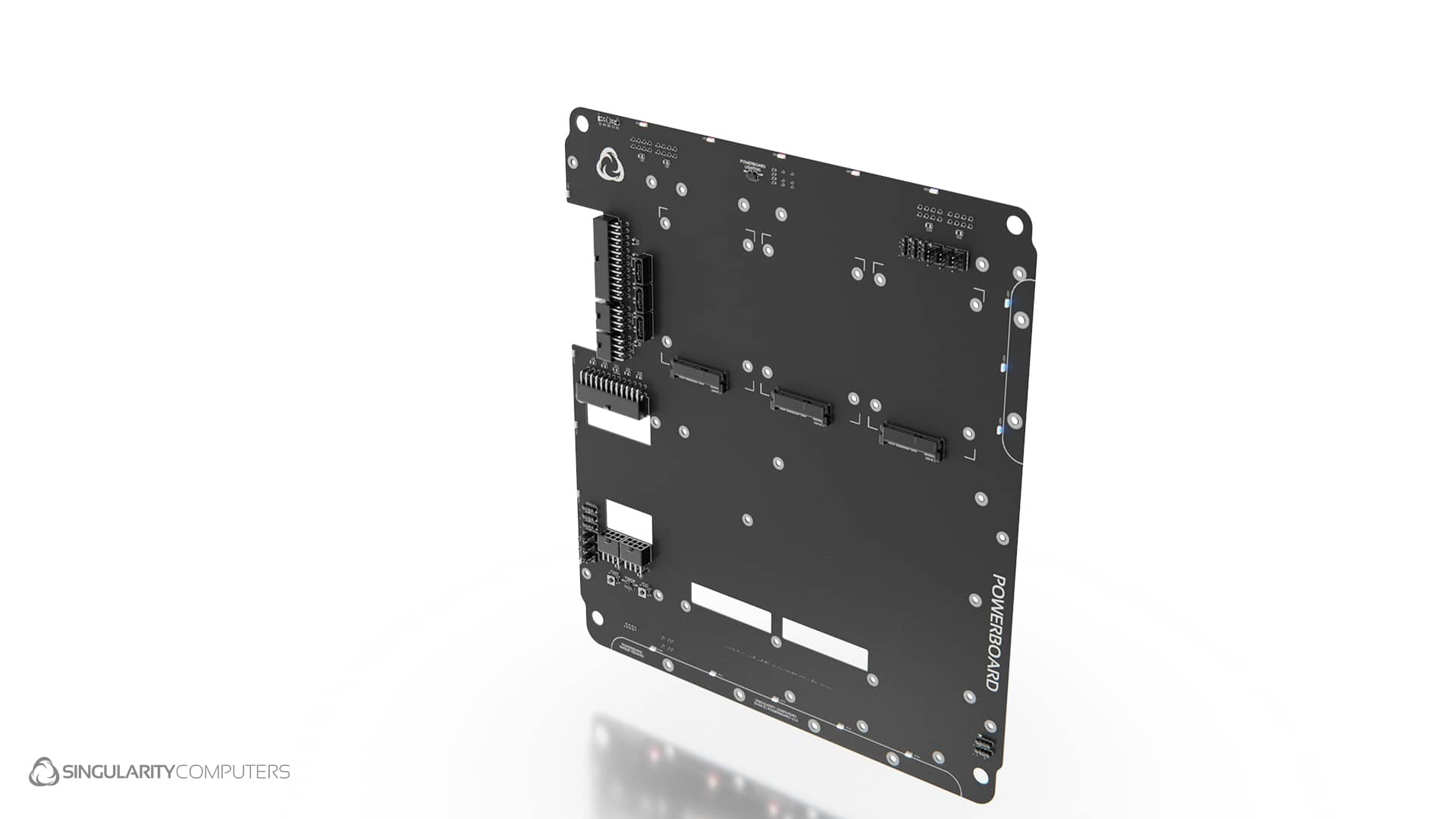

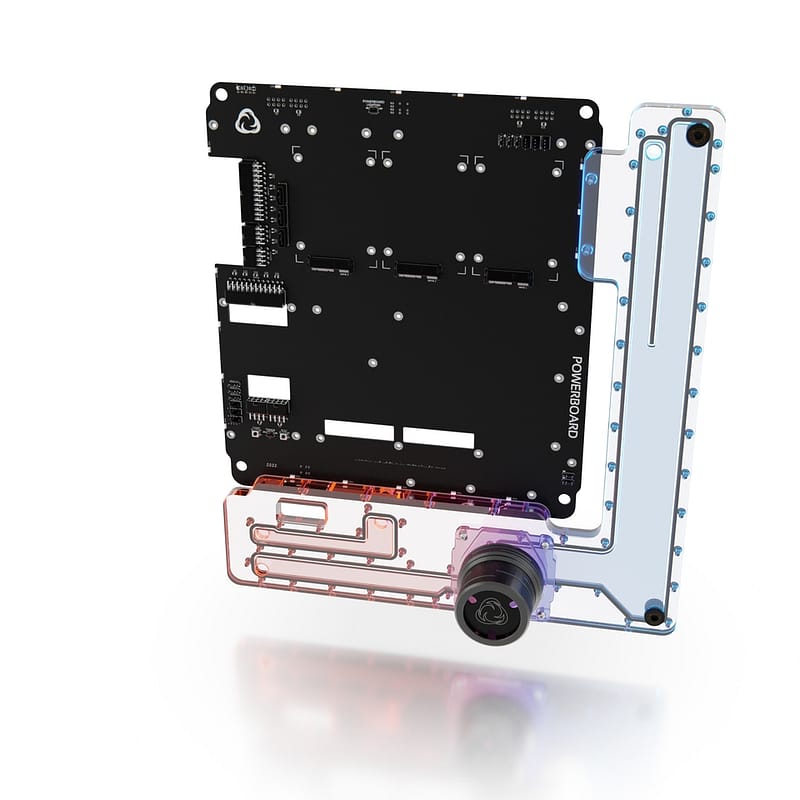

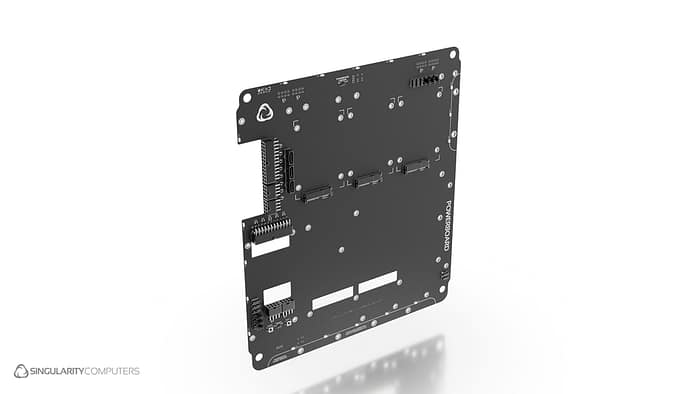

PowerBoard EVGA E1
The EVGA E1 is an extremely unique open case with a Carbon Fiber frame which benefits greatly from our PowerBoard. The E1 has very little in the way of cable management and all the cables are fully visible from both sides of the case. With the PowerBoard cable management is perfected becoming almost unnecessary. PWM and ARGB hubs are integrated reducing the clutter of more cables and hubs. There are three direct connect 2.5” SATA mounts meaning there is no need for SATA Power Cables. There are x18 integrated ARGB LEDs meaning extra LED strips are not necessary. The PowerBoard also has other integrated features such as a touch activated power button and extra power and reset buttons.
The following cables are included with the product: 24pin Inverted 15cm x1. 24 Inverted 10cm x1. 8pin EPS 15cm x2. 8pin EPS Inverted 10cm x2.
If other cables are required they are available
Here
Optional PowerBoard PSU Cable Kit is available
Here
US$349.00
Singularity Computers PowerBoard:
Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821) a completely new take on computer cables and cable management. The idea first came about during the development of our first case Spectre 1.0. We were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It integrates and routes the 24pin, EPS and PCIE cables very close to the components so that standardized short cables can be used. This means that cable management is no longer necessary. It integrates ARGB and PWM hubs and on some PowerBoards SATA. The PowerBoard also has integrated ARGB LEDs placed to light up the PowerBoard and/or surrounding components.
The purpose of the PowerBoard is to eliminate the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!
Specifications:
SC PowerBoard EVGA E1.
Electronics Integration:
Inputs: 24pin x1. 8pin EPS x2. PWM x1. ARGB x1. SATA x3.
Outputs: 24pin x1. 8pin EPS x6 (only two can be used at the same time but there are multiple outputs to suit different motherboards). SATA Direct Mount x3. PWM x6. ARGB x11. ARGB built in LEDs x18 and on/off switch. Power and Reset Buttons. Touch activated power button with on/off switch.
Cables: PowerBoard Linking Cables: 18AWG wire Black Sleeved. 24pin Inverted 15cm x1. 24 Inverted 10cm x1. 8pin EPS 15cm x2. 8pin EPS Inverted 10cm x2. RGB Extension Cable Black 50cm. PWM Fan Extension Cable Black Sleeved 50cm. Touch Activated Power Button Linking Cables x4.
PSU Cable Cover: Cast Acrylic. Laser Cut. Satin Black.
Product Dimensions: H: 395mm x W: 391.5mm x Thickness: 25mm.
Product Weight: 1kg.
Packaged Dimensions: W: 395mm x L: 430mm x H: 50mm.
Packaged Weight: 1.5kg.
Fasteners: Stainless steel.
Manufacturing Process: PCB. CNC Laser.
Materials: PCB. Cast Acrylic.
Features:
The PowerBoard is a PCB integrating 24pin, EPS, PWM and ARGB Hubs, SATA and Power and Reset Buttons. The SC PowerBoard EVGA E1 also has an integrated touch sensing Power Button. The PowerBoard has x18 ARGB LEDs positioned around the external perimeter to optimally light up the distribution plate and the build. The LEDs can be switched on or off. Essentially the PowerBoard is a distribution plate for cables, also integrating other features and functions. It is a new method for cables allowing standardization of cable lengths, and making cable management almost unnecessary. The SC PowerBoard EVGA E1 comes included with a standard set of black sleeved linking cables including 24pin x1, 8pin EPS x2, ARGB 50cm x1, PWM 50cm x1, and a cable set for the touch activated power button.
Installation:
Replaces the existing motherboard tray, please refer to user manual and documentation.
