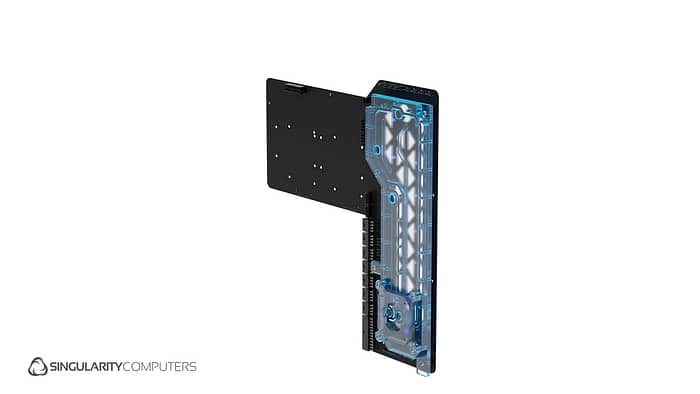

PowerBoard & Distribution Plate PC-O11D

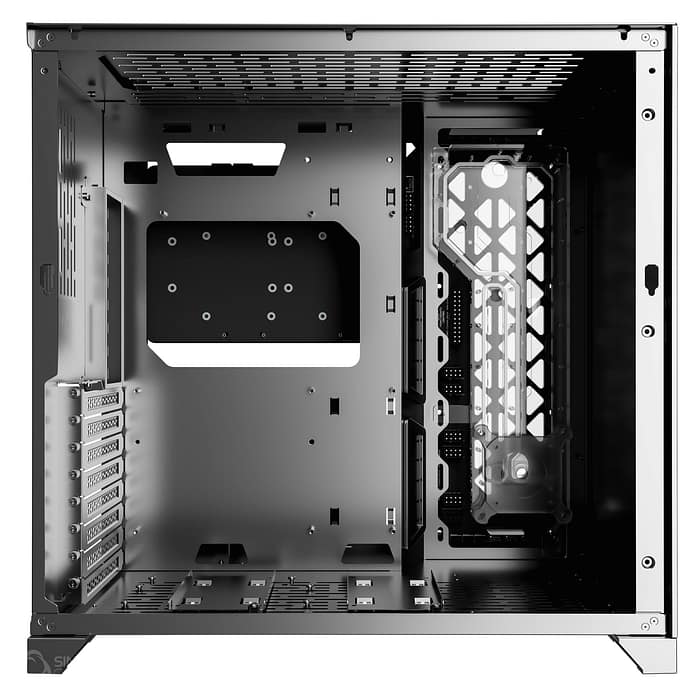

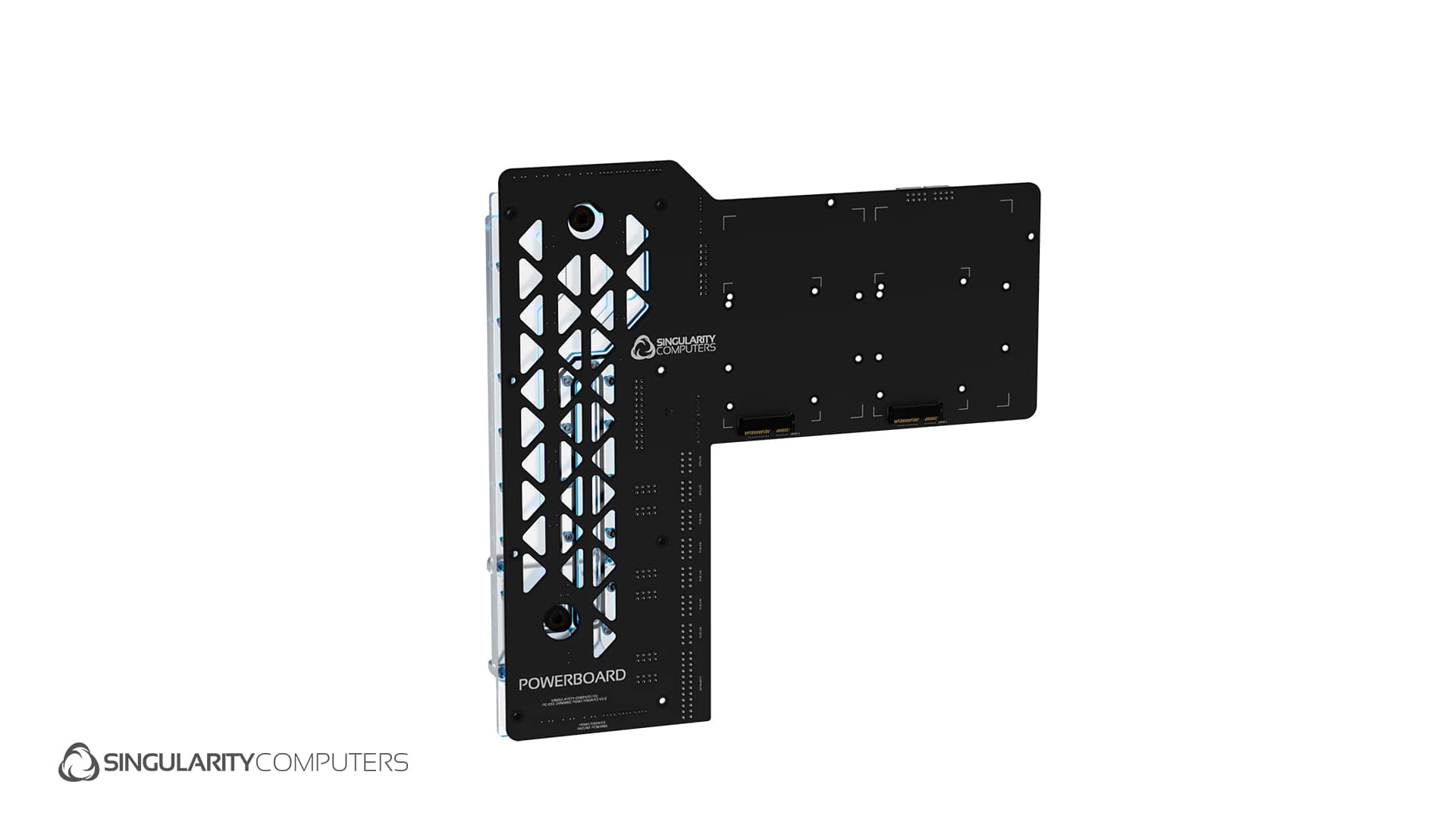

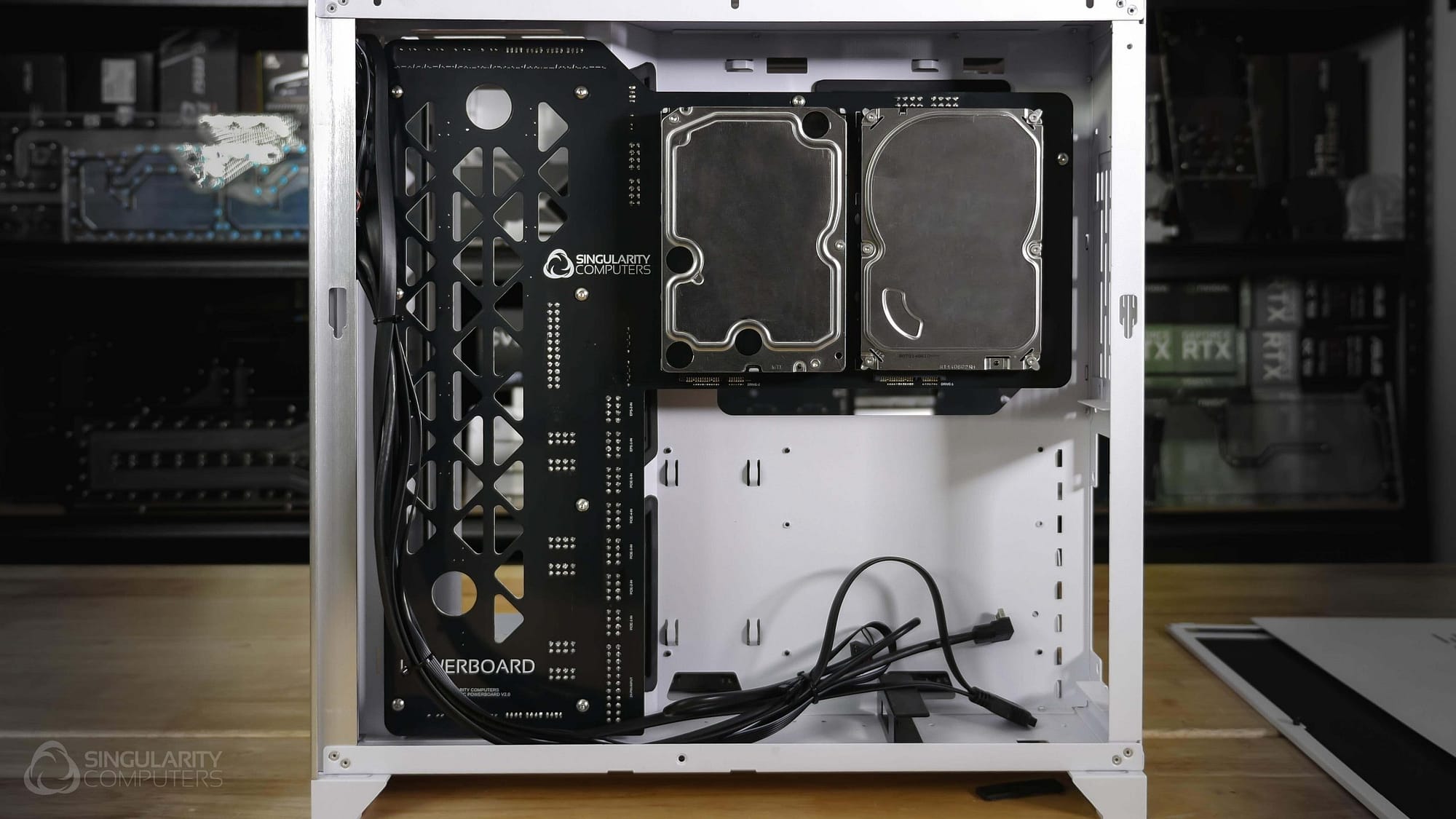

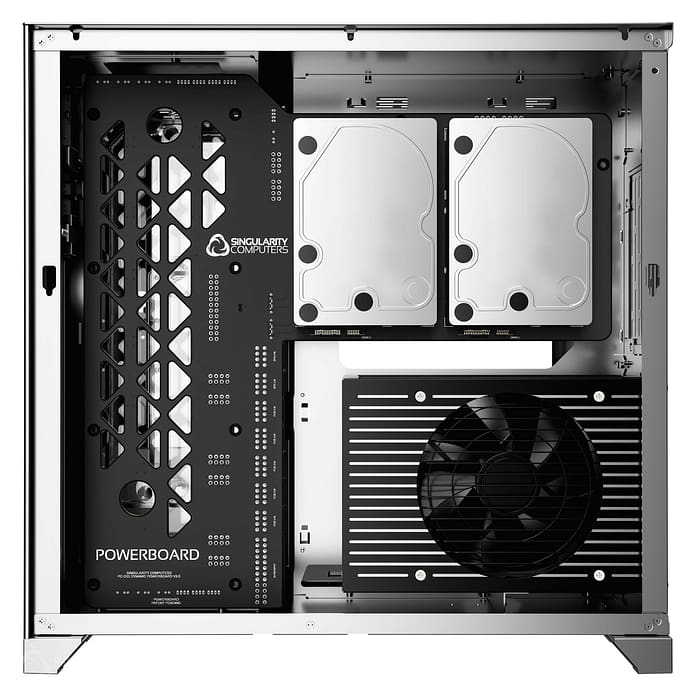

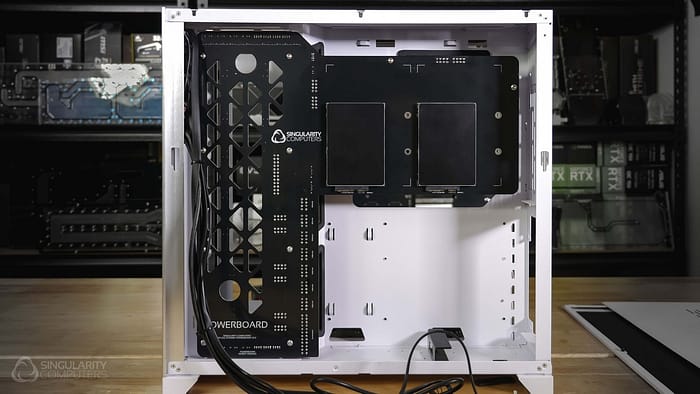

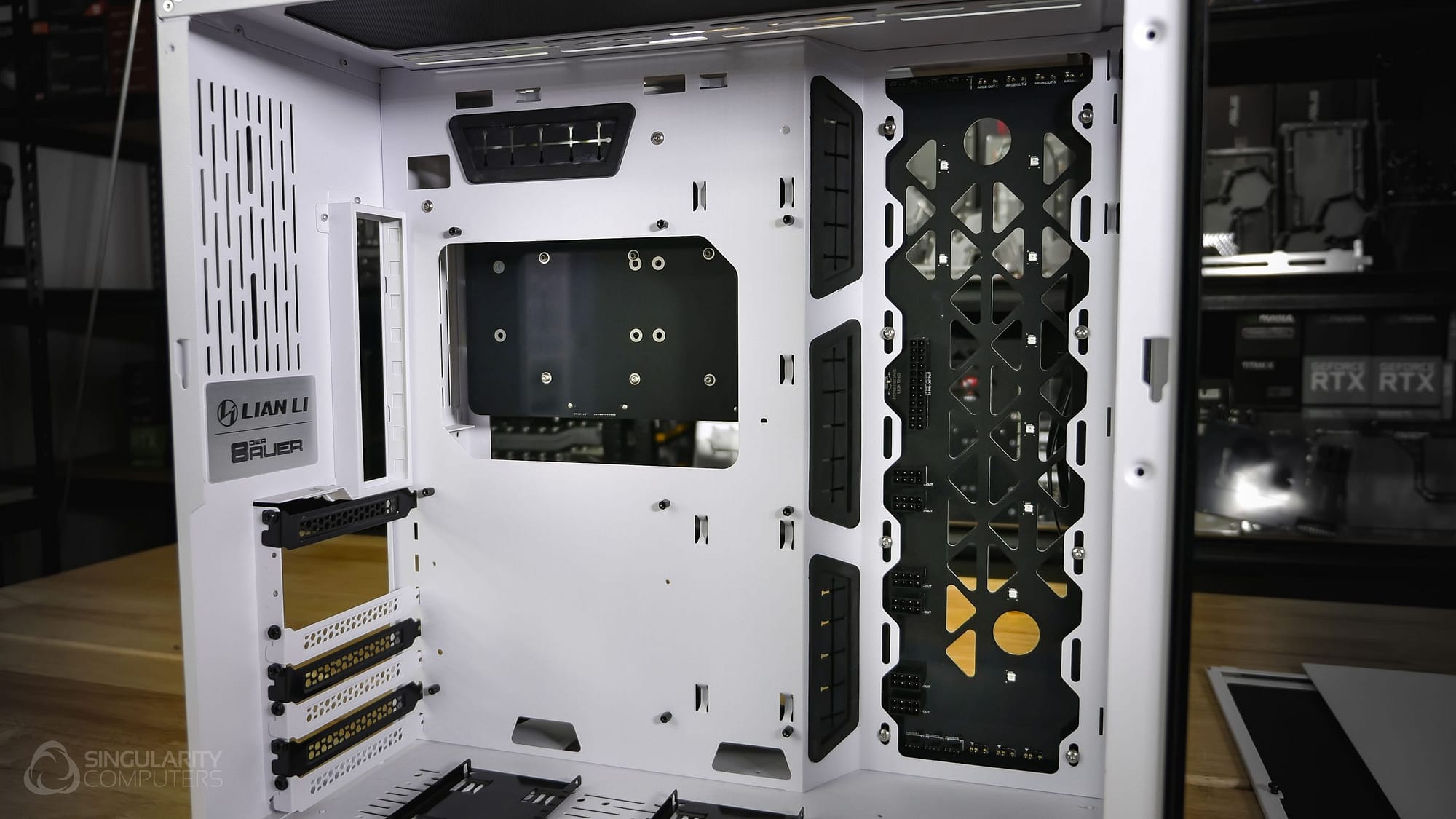

The PowerBoard PC-O11D fits onto the rear side of the motherboard tray in the Lian Li PC-O11D. It integrates 2x 2.5” or 3.5” drive mounting positions, ARGB and PWM hubs. It has integrated LEDs to light up the Distribution Plate. The Distribution Plate is a Pump and Reservoir Combination. It comes included with a DDC Pump Top so that a radiator can still fit into the bottom panel radiator mounting position of the Lian Li PC-O11D. The DDC Pump Top can be changed optionally to a D5 Pump Top available separately, but this will block the lower radiator mounting position.
Note: Motherboards with 90 degree 24pin, EPS and/or 6pin Supplementary connections will require PowerBoard Adaptors available here.
The following cables are included with the product: 24pin x1, 8pin EPS x2.
If other cables are required they are available
Here
Optional PowerBoard PSU Cable Kit is available
Here
For motherboards with 90 degree connectors adaptors are available
Here
US$499.00
Singularity Computers PowerBoard:
Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821) a completely new take on computer cables and cable management. The idea first came about during the development of our first case Spectre 1.0. We were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It integrates and routes the 24pin, EPS and PCIE cables very close to the components so that standardized short cables can be used. This means that cable management is no longer necessary. It integrates ARGB and PWM hubs and on some PowerBoards SATA. The PowerBoard also has integrated ARGB LEDs placed to light up the PowerBoard and/or surrounding components.
The purpose of the PowerBoard is to eliminate the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!
Connections:
24pin Input & Output.
8pin EPS Inputs x2 Outputs x4. (A total of 7 EPS and PCIE outputs can be used at the same time).
8pin PCIE Inputs x5 Outputs x6. (A total of 7 EPS and PCIE outputs can be used at the same time).
PWM Inputs x1 Outputs x7.
ARGB Inputs x1 Outputs x7.
SATA Data Inputs x2 Outputs x2.
Specifications:

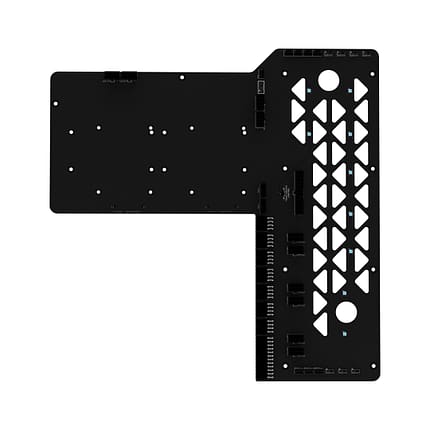

Singularity Computers PowerBoard PC-O11D.
Product Weight: 0.5kg.
Product Dimensions: H: 395mm x W: 391.5mm x Thickness: 16mm.
Packaged Dimensions: W: 395mm x L: 430mm x H: 40mm.
Packaged Weight: 1kg.
Fasteners:
6-32 x 0.25” Button Head Hex Black Steel: x8.
M3 x 4mm Button Head Hex Stainless Steel: x8.
M4 x 12mm Button Head Hex Stainless Steel: x4.
M4 x 6mm Button Head Hex Stainless Steel: x20.
M4 Female Stand Off Brass 10mm x 8.
M4 Female Stand Off Brass 50mm x 2.
M4 Male Threaded Standoff Brass 6.5mm (F) 10mm: x4.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3. 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1.

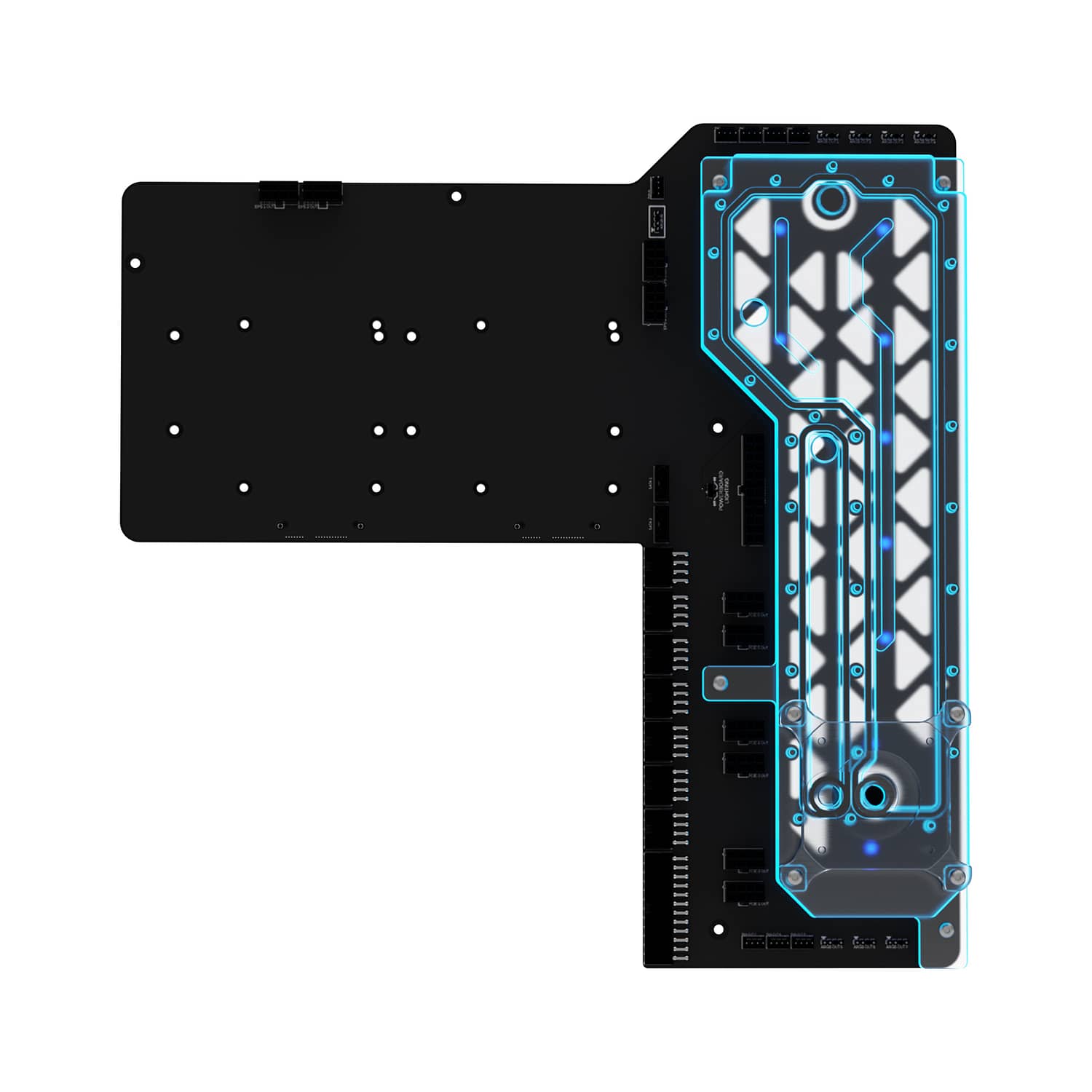

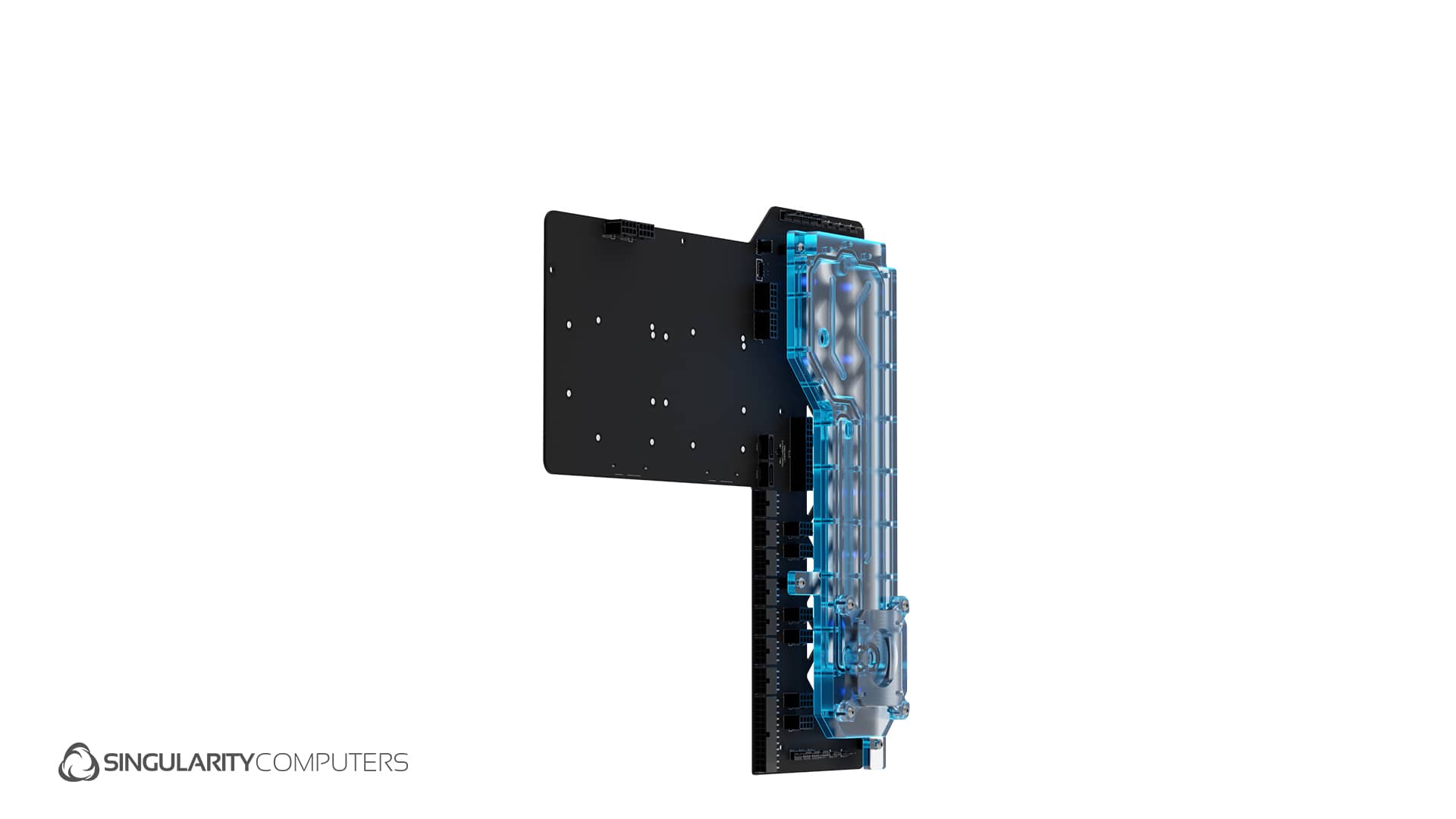

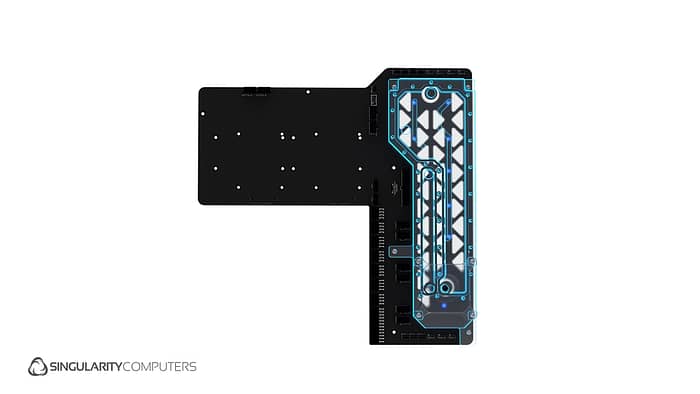

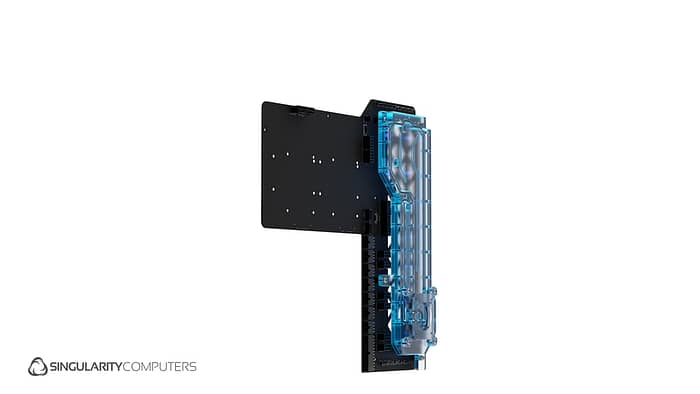

Singularity Computers PowerBoard PC-O11D Distribution Plate. CNC Machined Clear Cast Acrylic.
Integrated DDC Pump Top Included. Can be changed optionally to a D5 Pump Top available separately.
Product Weight: 2kg.
Product Dimensions: W: 120mm x L: 350mm x H: 60mm.
Packaged Dimensions: H: 300mm x W: 300mm x D: 100mm.
Packaged Weight: 2.5kg.
Installation:

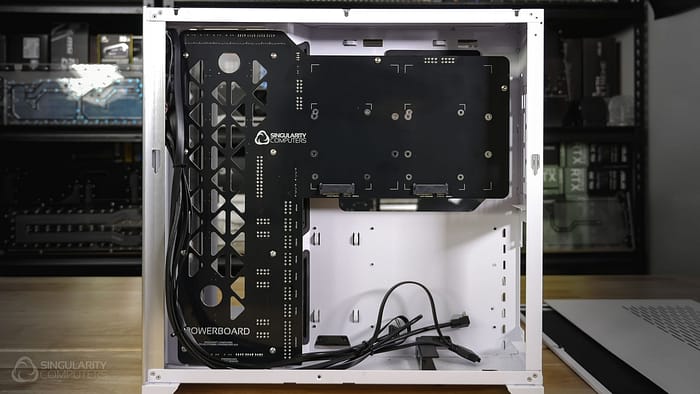

Installs onto the rear side of the motherboard tray, please refer to user manual and documentation.
Experience Singularity:
We create the products we want in our builds based on our 15 years of experience building high end computers. All our designs begin with function, versatility is vital to increase the possibilities so that you can create the build you want to, something unique. Our products are premium, we do not hold back on quality to save cost. All our products use the most high-end available materials and manufacturing processes. Our vision is to continue to introduce unique and exciting ideas, to inspire and lead the industry.
