SC Resonance 2.0 S ARGB DDC Reservoir Combo

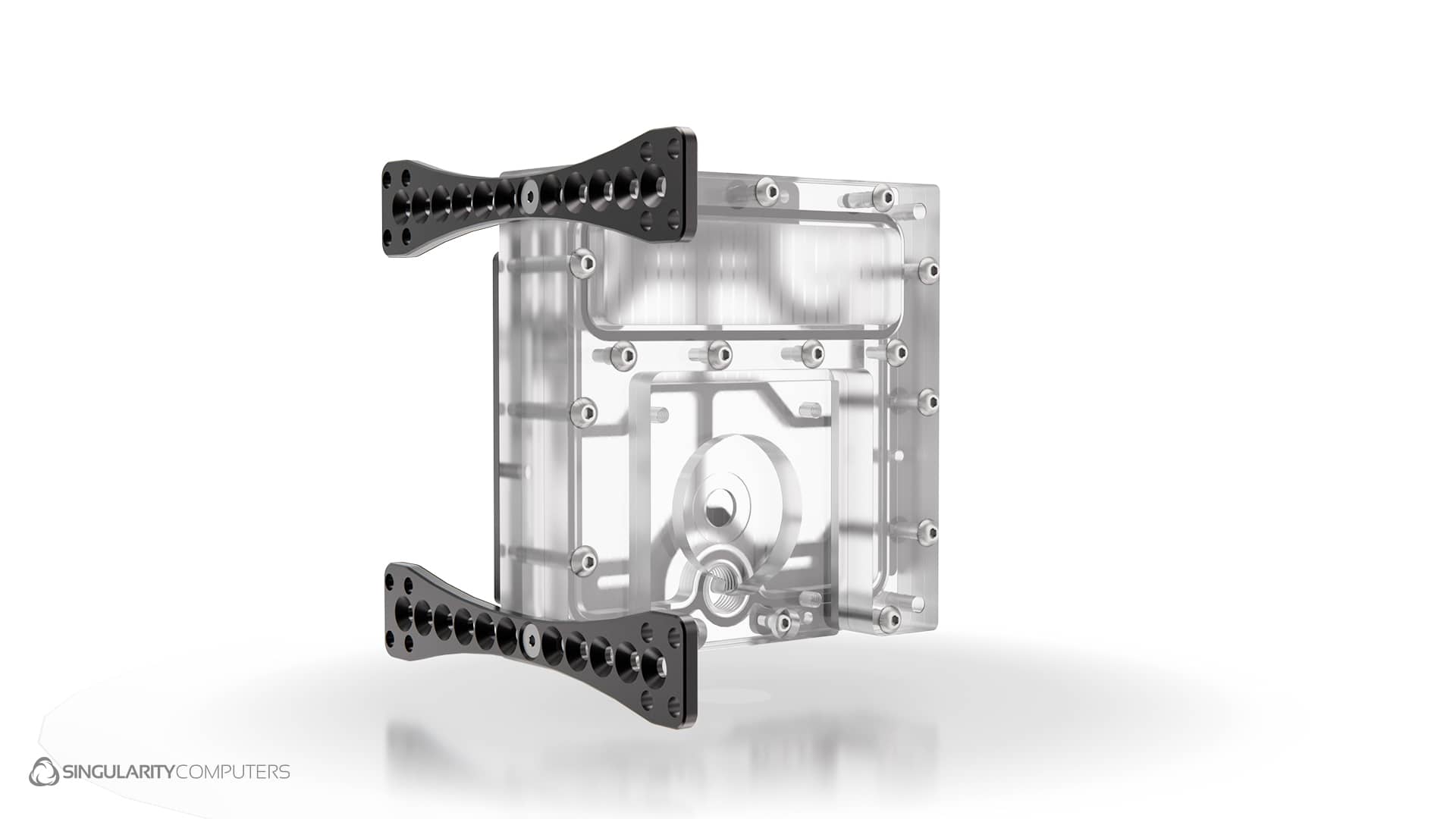

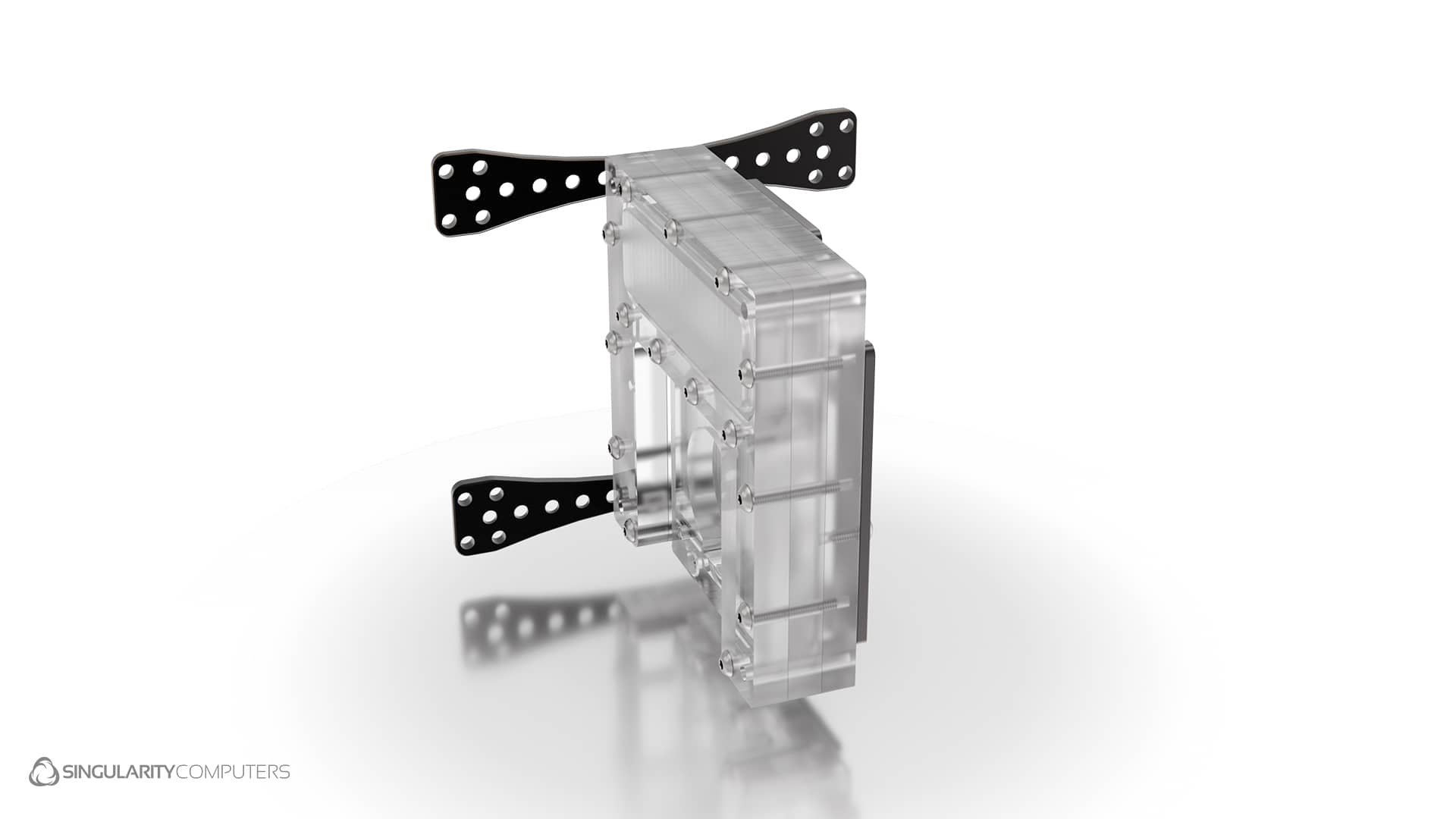

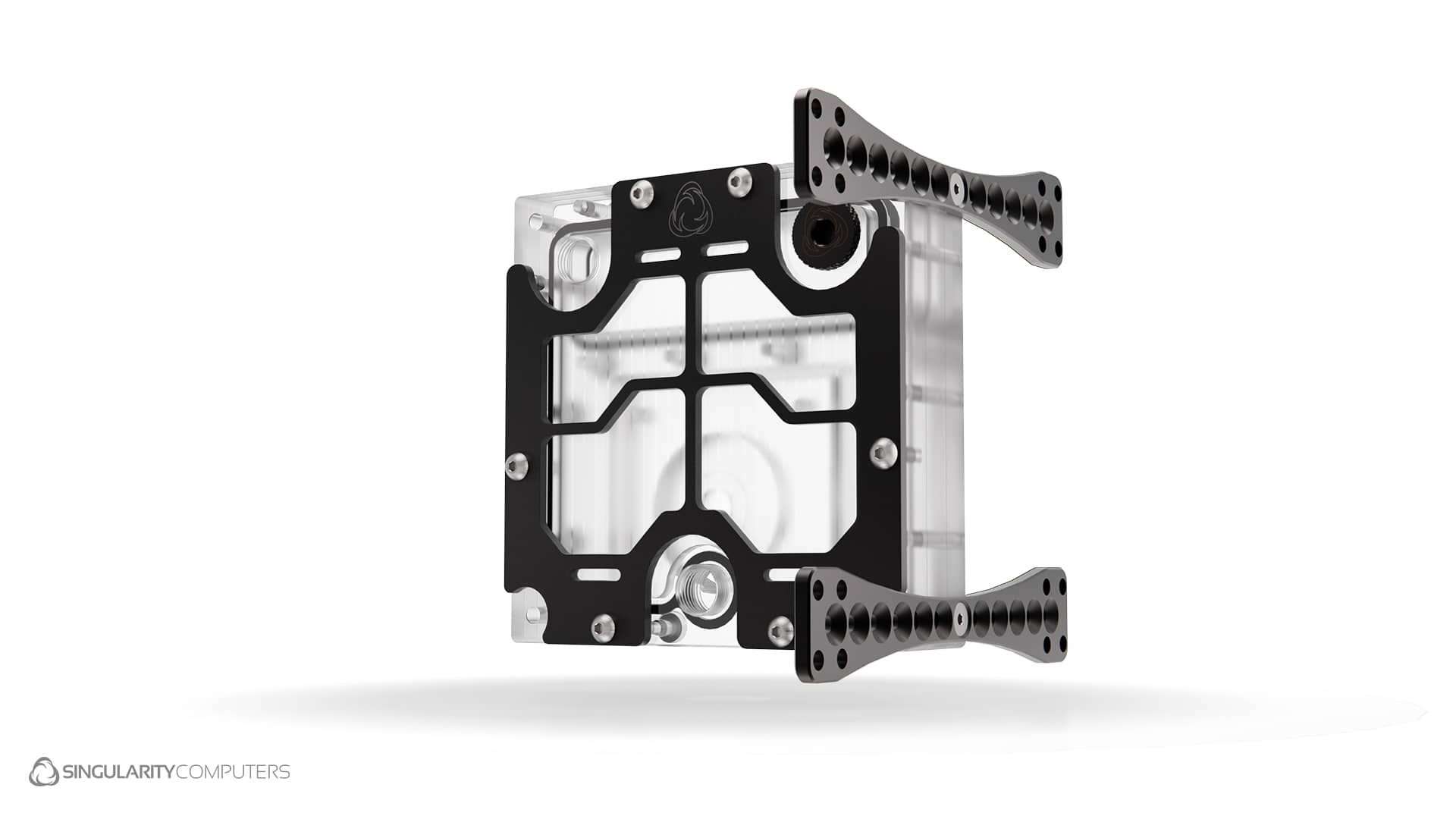

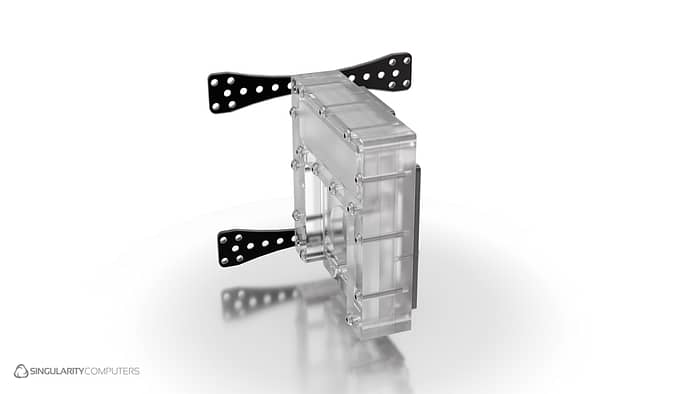

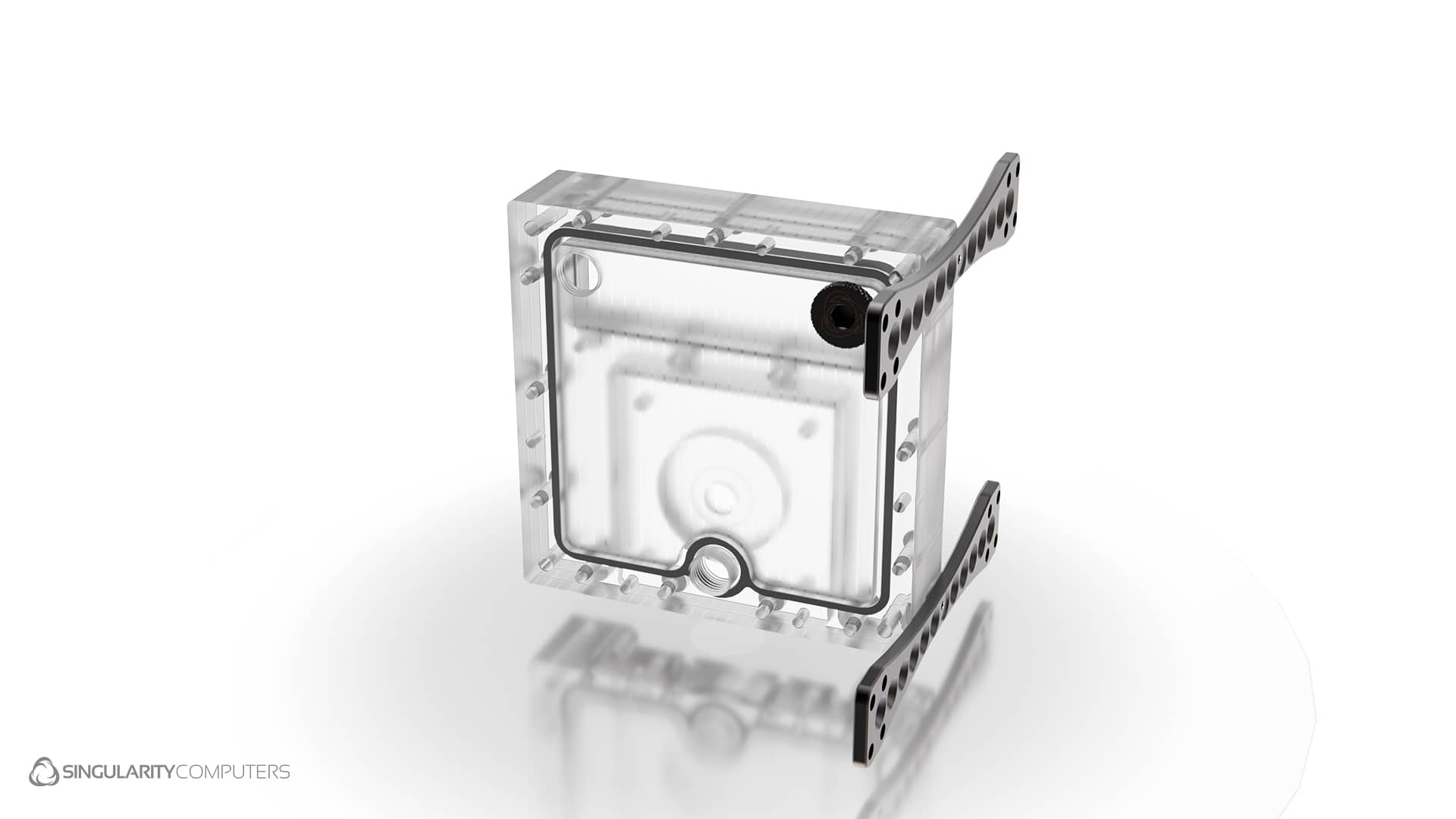

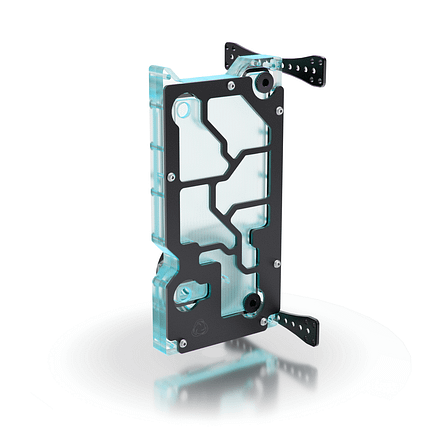

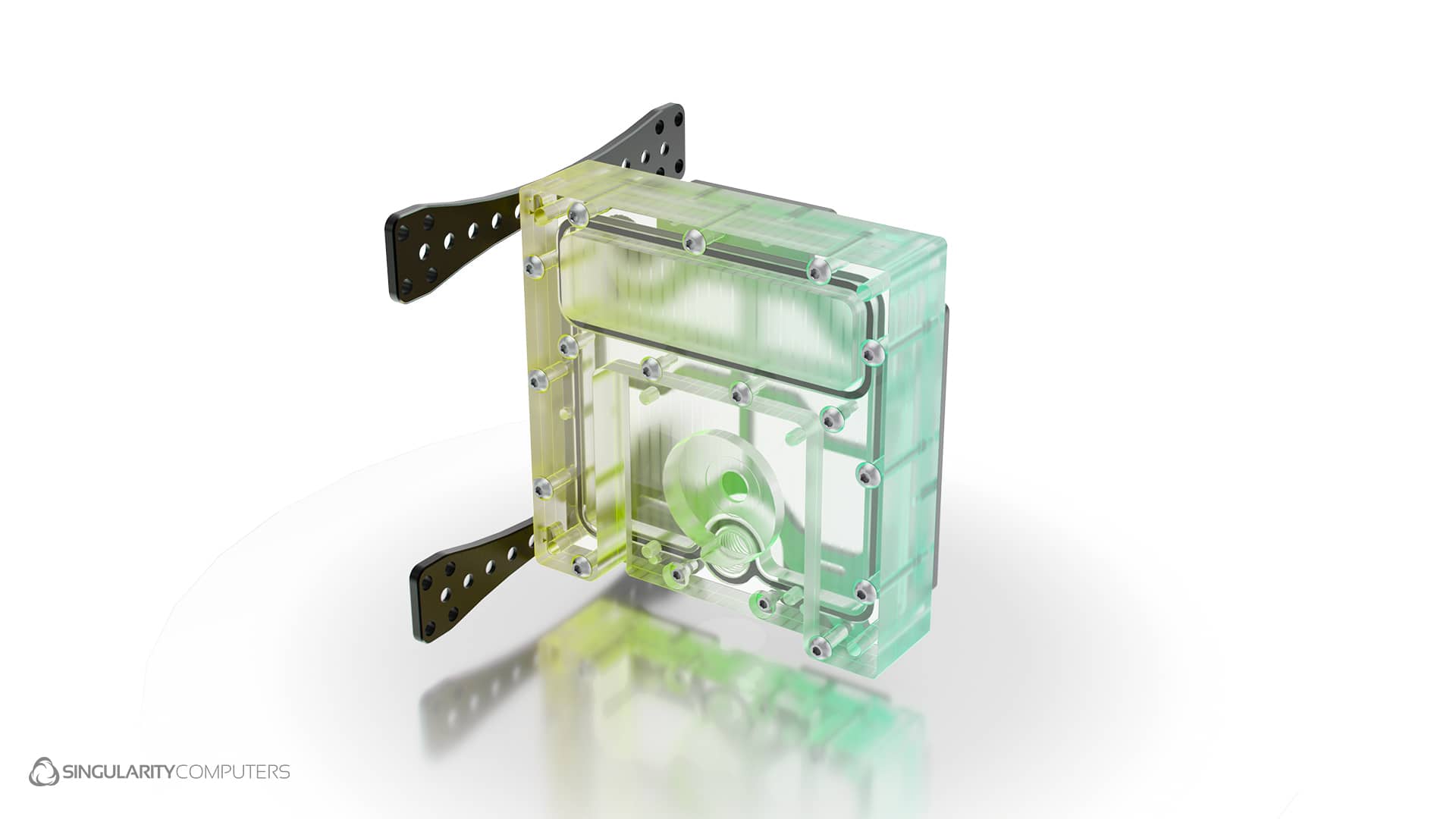

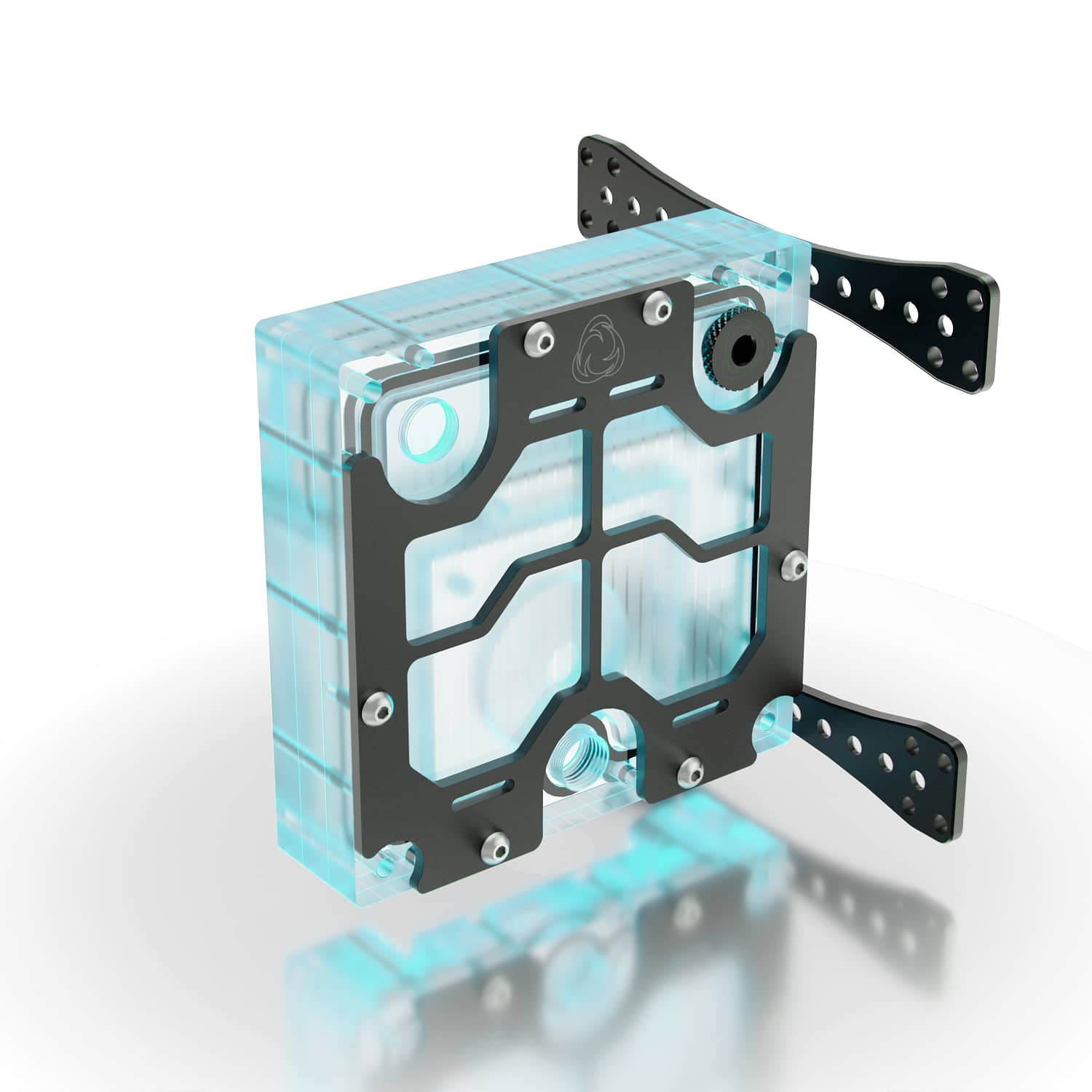

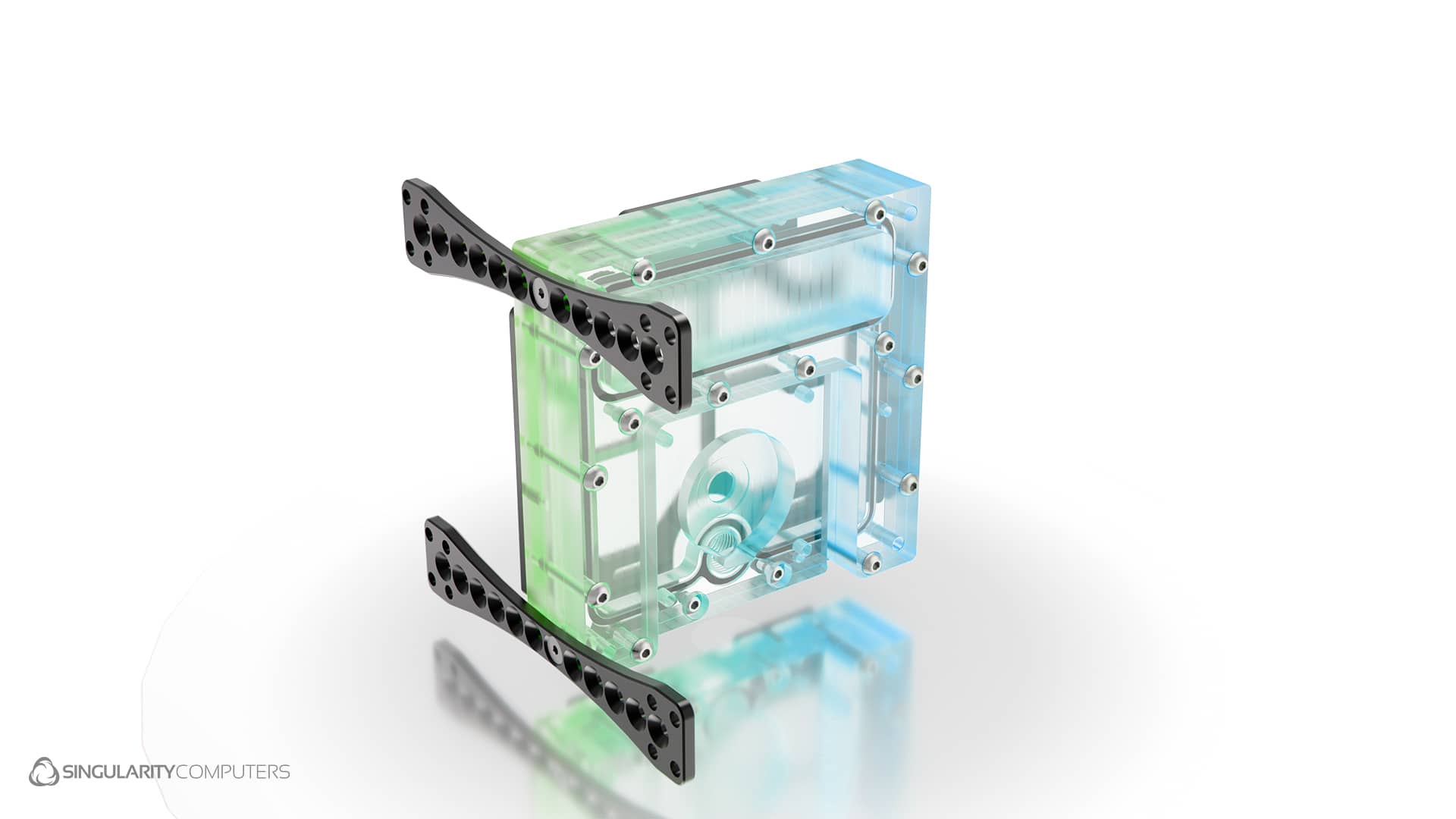

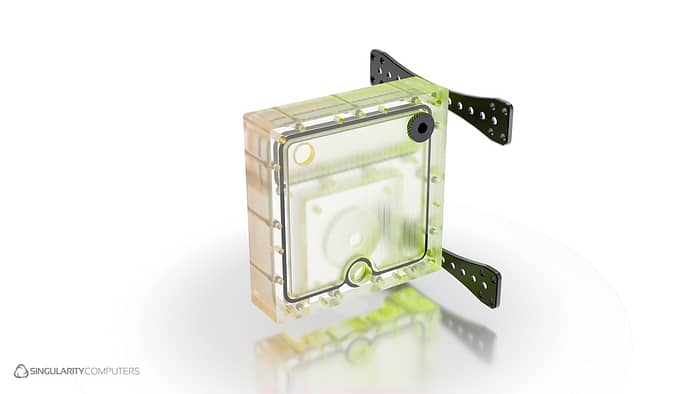

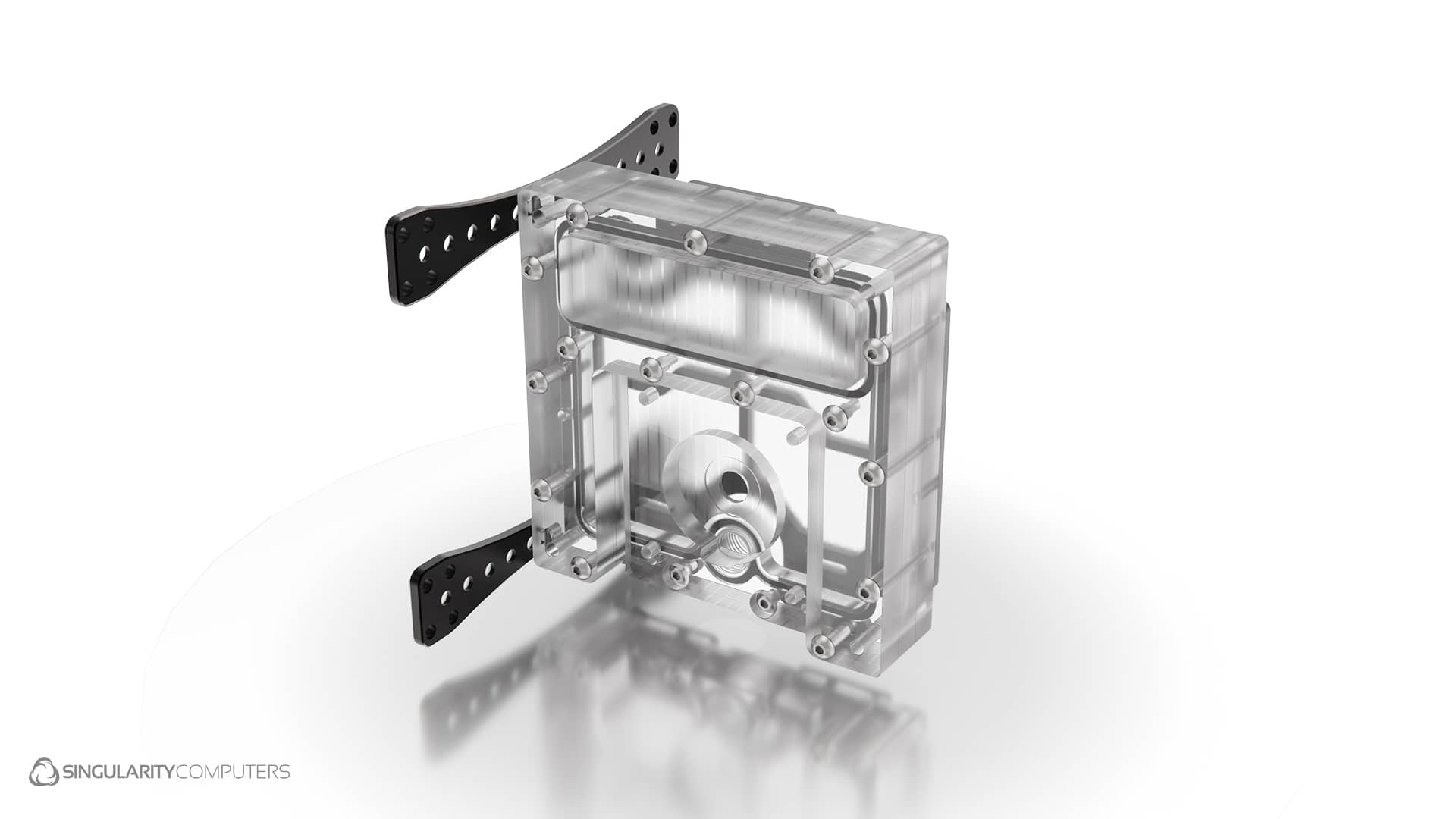

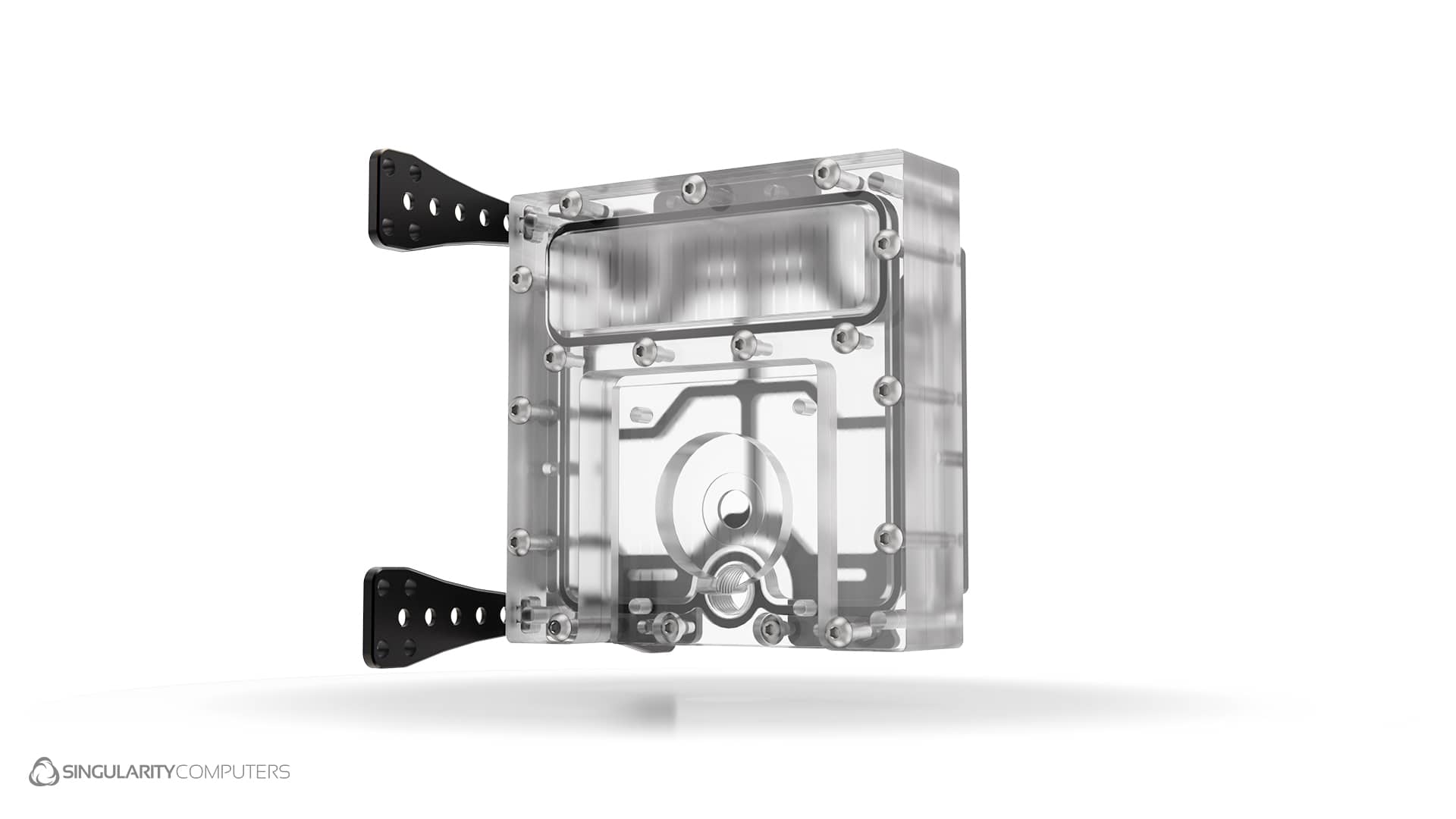

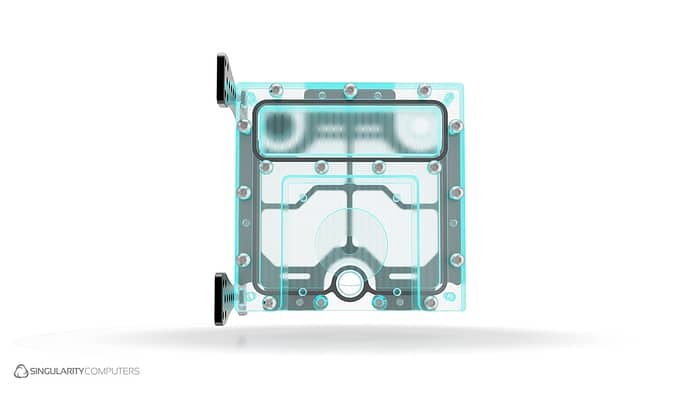

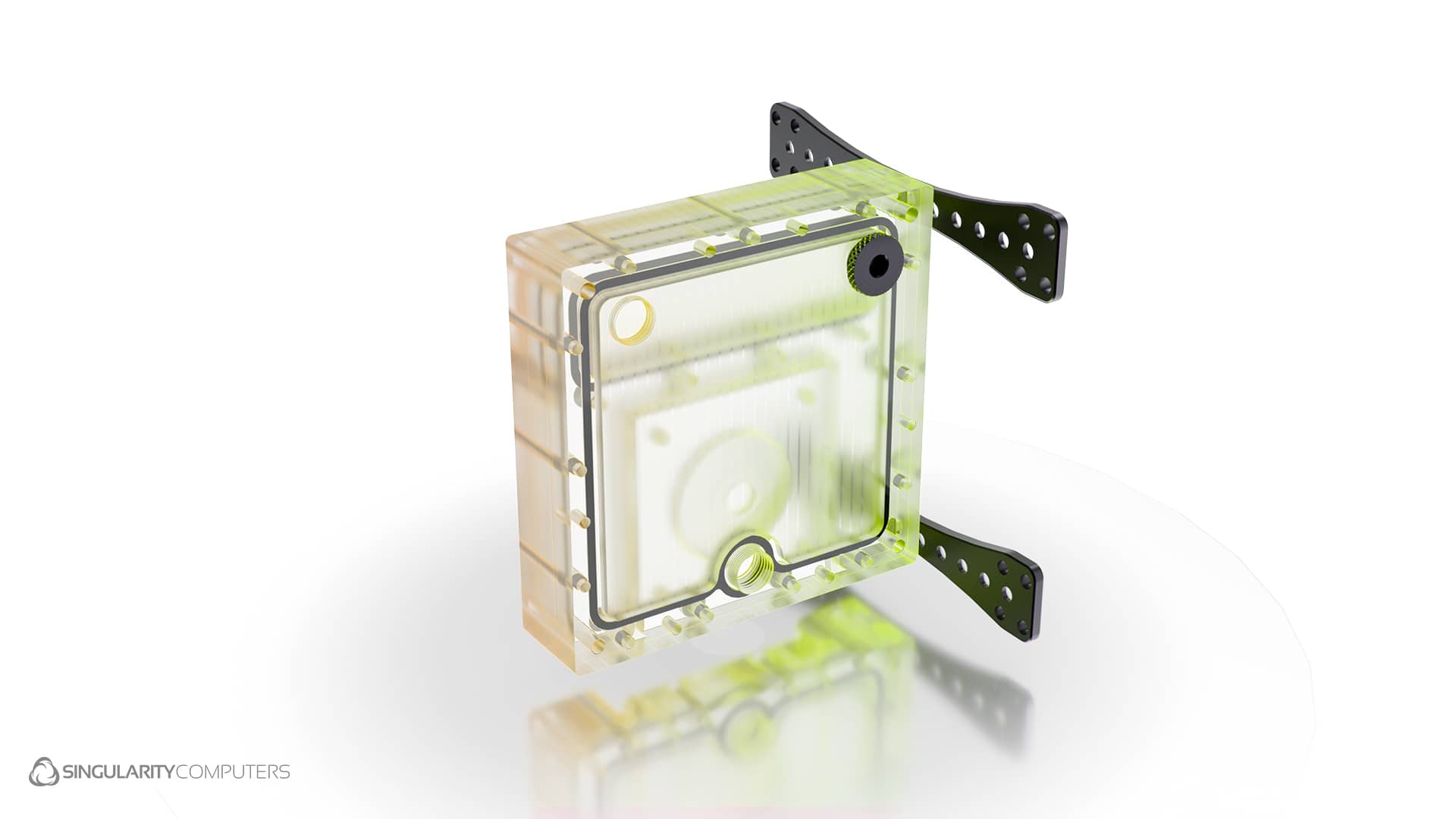

The SC Resonance 2.0 S ARGB DDC Reservoir Combo is a pump reservoir combo distribution plate designed for small to medium water-cooling loops. It comes included with an integrated DDC pump top. It is 120mm in height and width meaning that it is designed to be mounted onto a 120mm radiator, but it is also a good fit on a 140mm, 240mm or 280mm radiator. It is generally designed for SFF or compact mid tower case builds. The standard mounting orientation is side mounted so that the distribution plate is in full view with the pump facing towards the back. The distribution plate comes with a satin black cover which can be removed if more transparency is desired. It has a single inlet and outlet and a fill port. The lighting is ARGB addressable and is compatible with any motherboard or controller which uses standard ARGB connections. The back plate is universal for mounting onto 120mm or 140mm wide radiators, fans or fan mounting positions. The pump top is compatible with all DDC pumps.

Note: Pump/s not included.


Specifications & Included Items:
SC Resonance 2.0 S ARGB DDC Reservoir Combo.

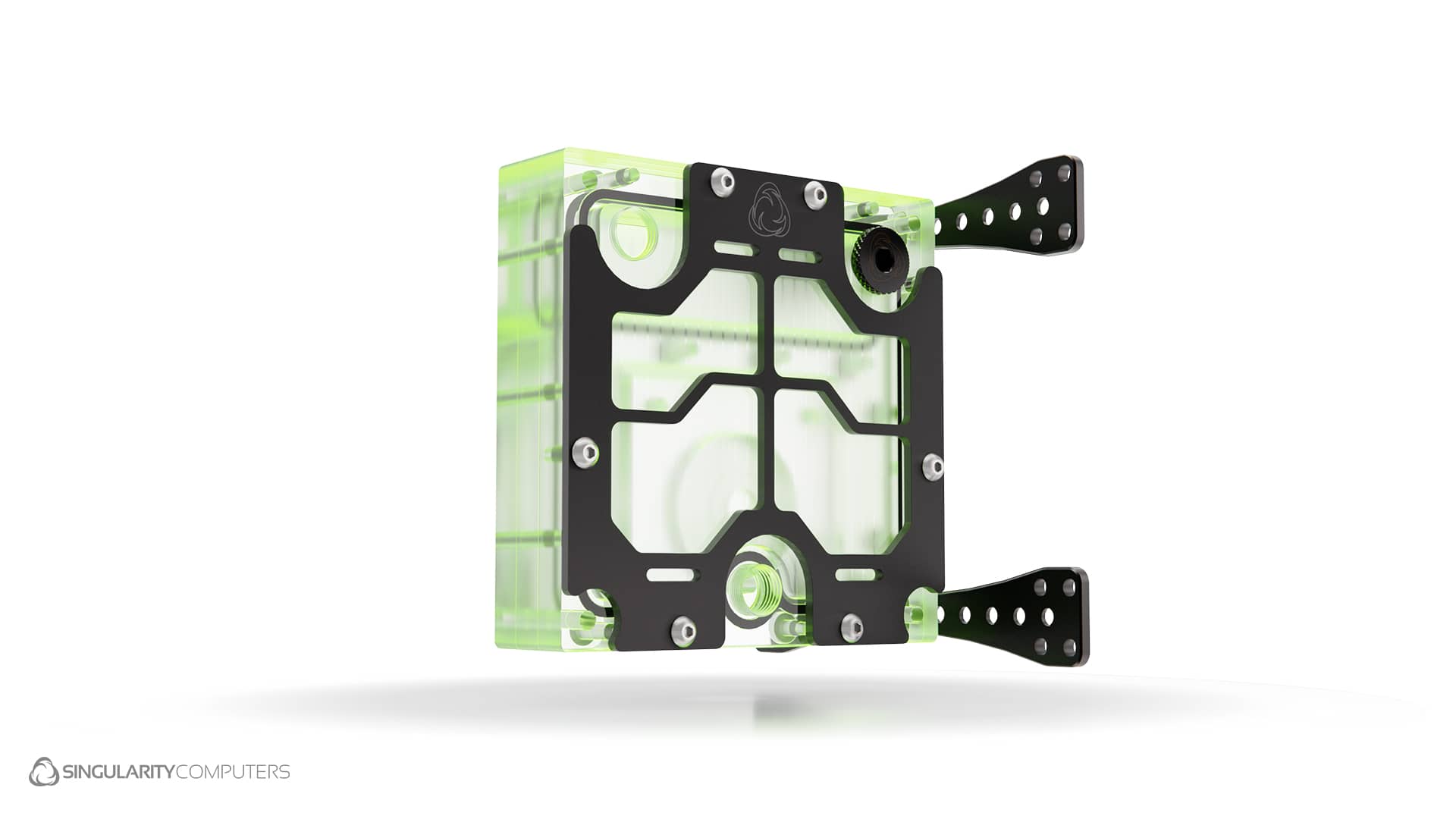

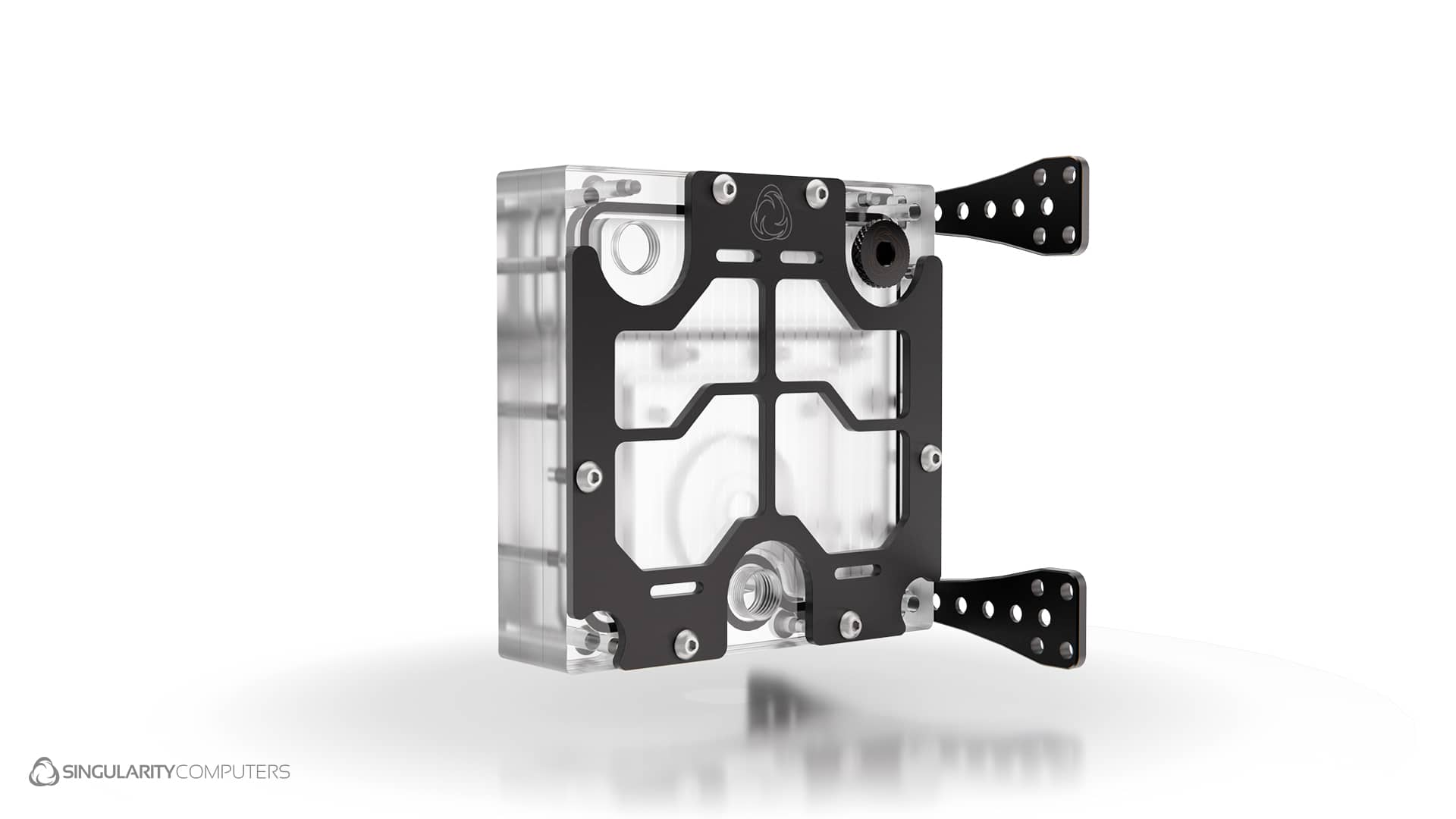

SC Universal Backplate: Black. Anodized. CNC Machined. x2.
LED Strip: ARGB 5V Addressable. 50cm Black Cable.
Stop Fittings x2: Brass. CNC Machined. Powder coated Black. Laser Etched.
Fasteners: M4 x 10mm CS x2. M4 x 40mm x4. M4 Nuts x4. M4 Spacer 5mm x4.
Weight: 0.39kg.
Dimensions: H: 240mm x W: 120mm x D: 58mm.
Packaged Weight: 0.42kg.
Packaged Dimensions: H: 290mm x W: 170mm x D: 108mm.

Compatible with all D5 Pumps including the Aquacomputer D5 Next. Mounts onto any 120mm or 140mm wide radiator, fans or fan mounting position. The standard mounting orientation is side mounted (See the manual).
