Shift 6pin PCIE 180 Degree Adaptor D+D
Singularity Computers Shift adaptors are designed for use with the PowerBoard, but can be used with any components or cables. The PCBs are custom designed with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling. SC Shift Adaptors provide a range of options for cleanly routing your cables.
Shift 180 Degree PCIE adaptors are designed to be used on your GPU to achieve cleaner cable runs. Shift 90 Degree adaptors are designed to be used with the PowerBoard and motherboards with 90-degree 24pin, 8pin EPS and 6pin PCIE connections. They solve the problem of the connectors being too close together to make a clean connection with sleeved cables, and the problem of the 180-degree flipped pin out.
Specifications & Included Items:
SC PCIE 180 Degree Adaptor: Black PCB and Connectors with white logos and printing.
Dimensions: H: 15mm x W: 19mm x L: 34mm.
Packaged Dimensions: H: 15mm x W: 45mm x L: 90mm.
Packaged Weight: 0.01kg.

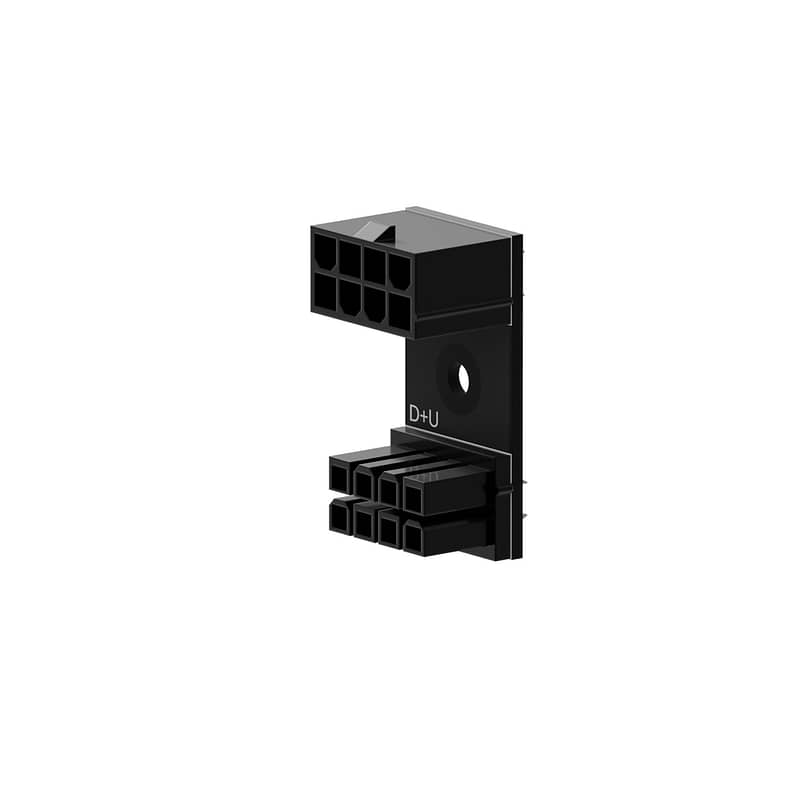

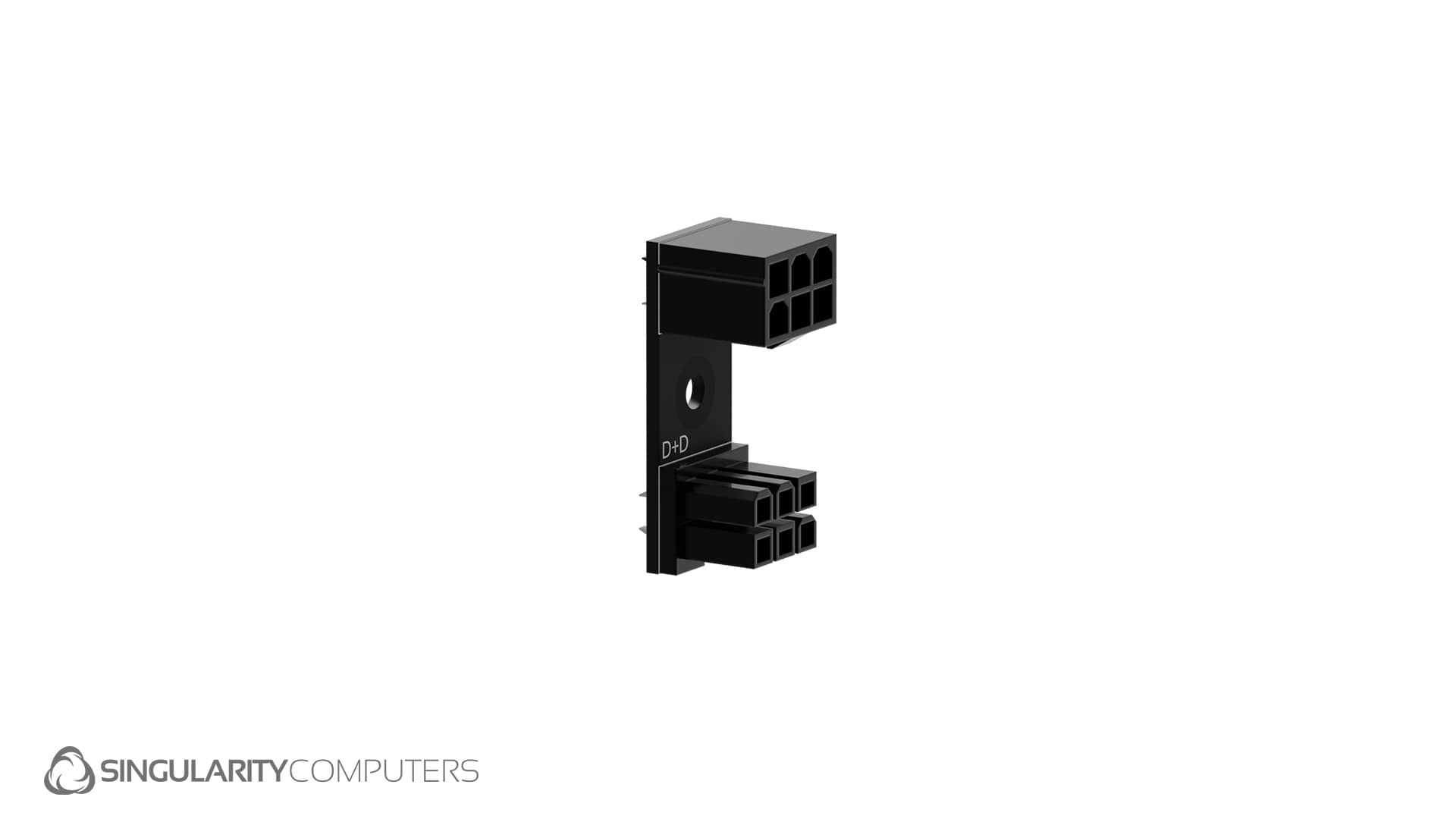

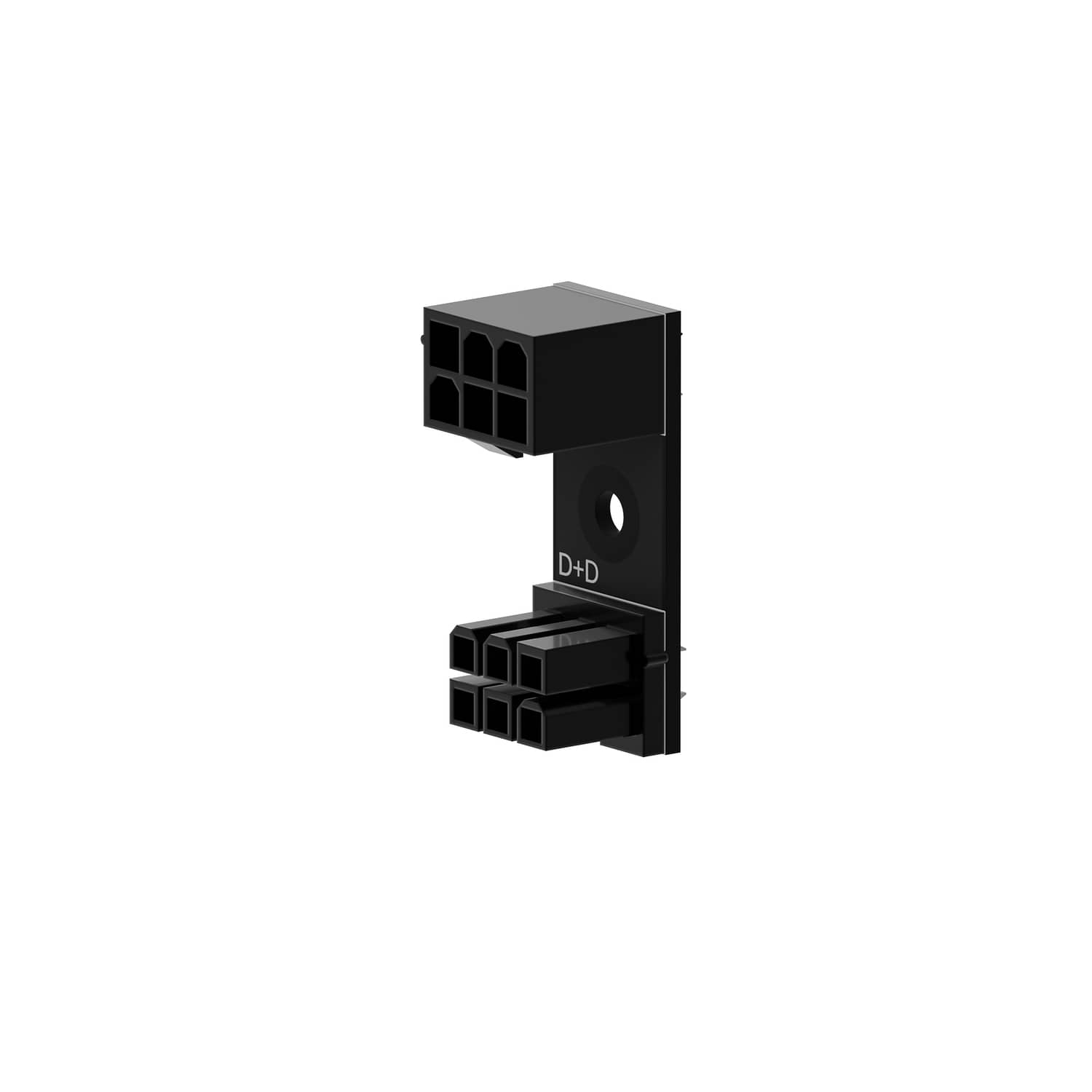

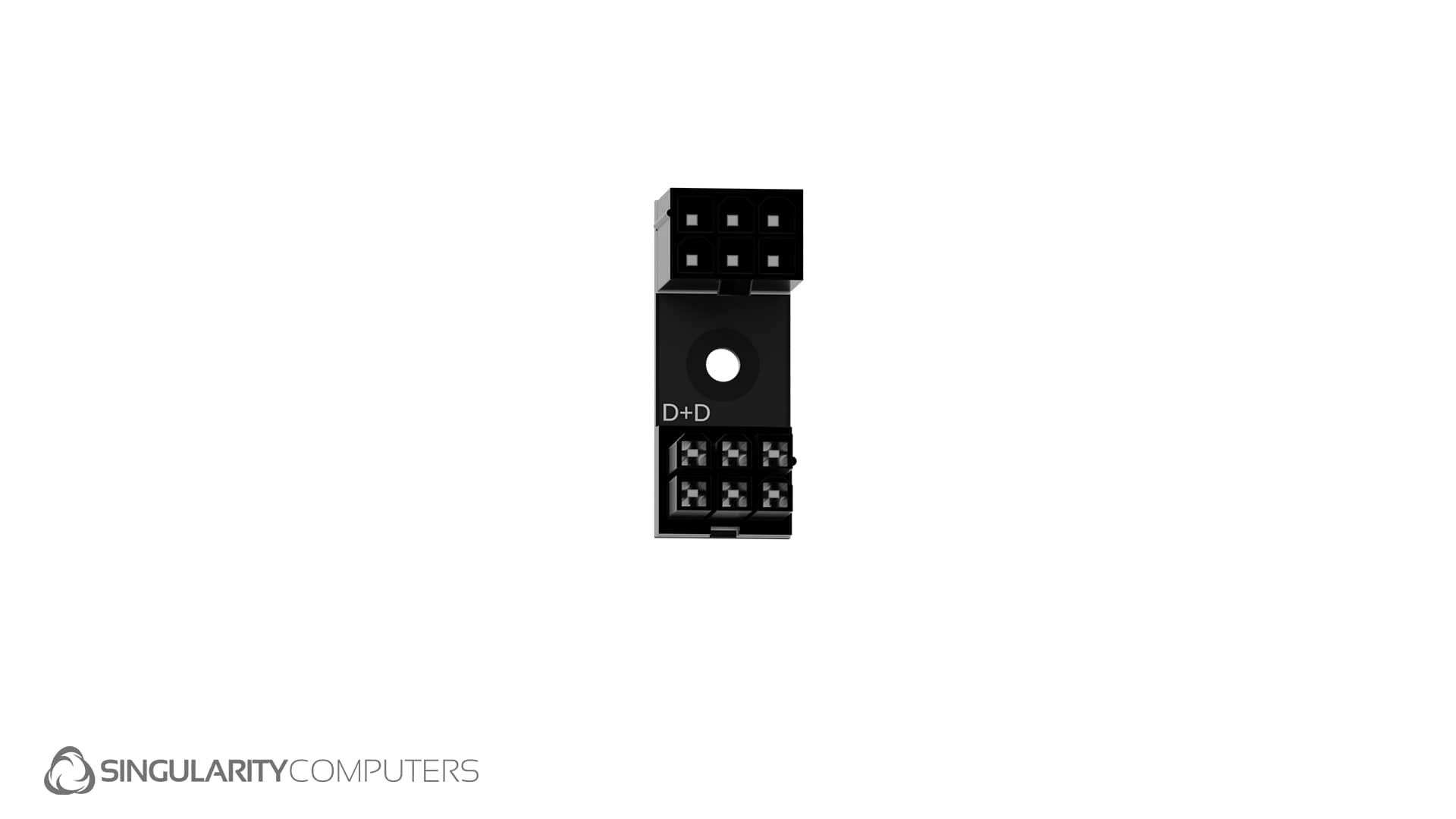

Install onto GPU PCIE connectors. There are 4 different types for 6pin PCIE and 8pin PCIE which have connectors with different orientations. U+U stands for Up Up meaning both connectors are facing up, D+D stands for Down Down meaning the connectors are both facing downwards etc.
When selecting the version you need, check which way the PCIE connectors on your GPU are facing and decide how you want to mount your GPU horizontally or vertically.
We create the products we want in our builds based on our 15 years of experience building high end computers. All our designs begin with function, versatility is vital to increase the possibilities so that you can create the build you want to, something unique. Our products are premium, we do not hold back on quality to save cost. All our products use the most high-end available materials and manufacturing processes. Our vision is to continue to introduce unique and exciting ideas, to inspire and lead the industry.
