Spectre 3.0 Enterprise

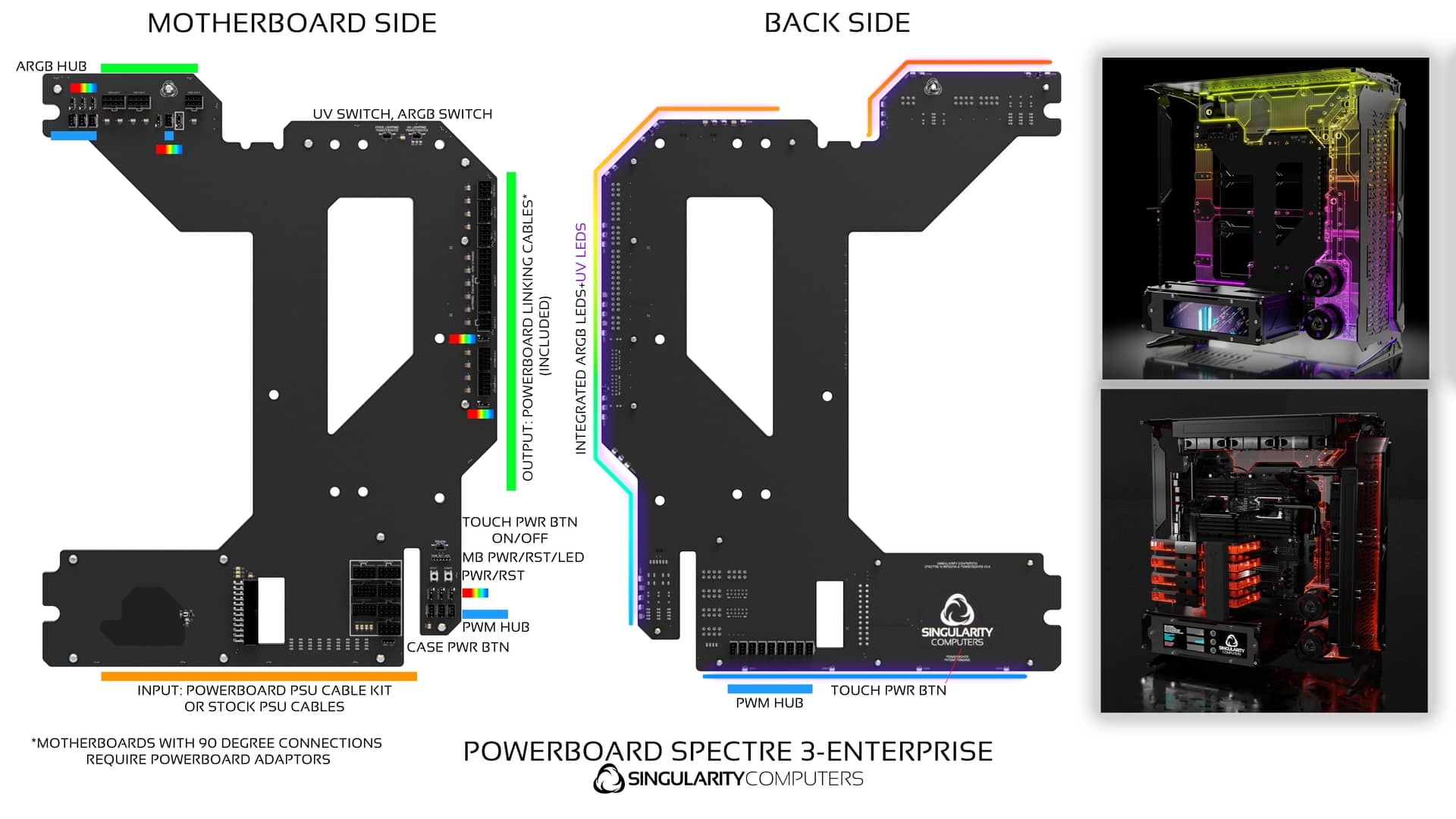

PowerBoard Info

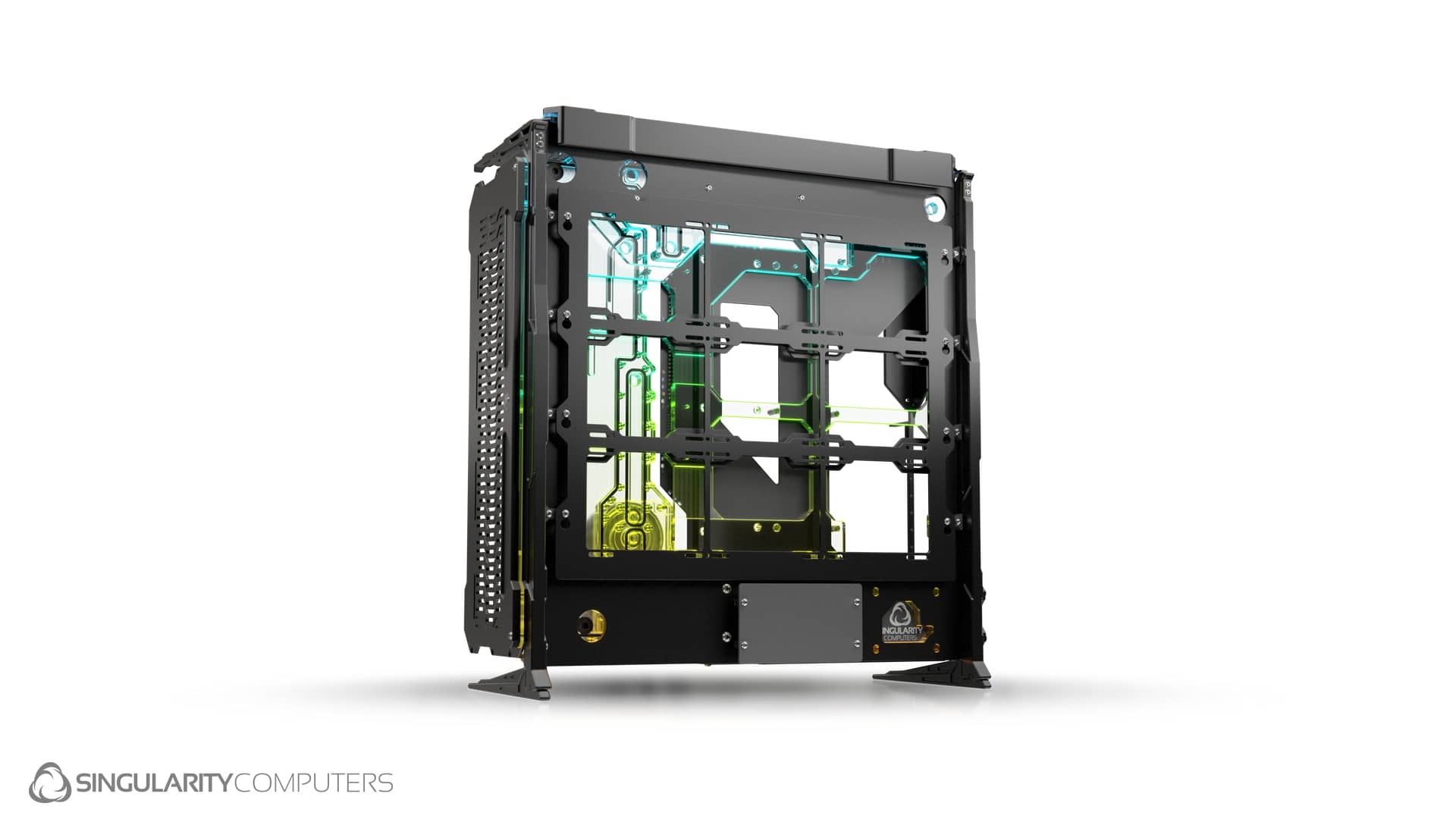

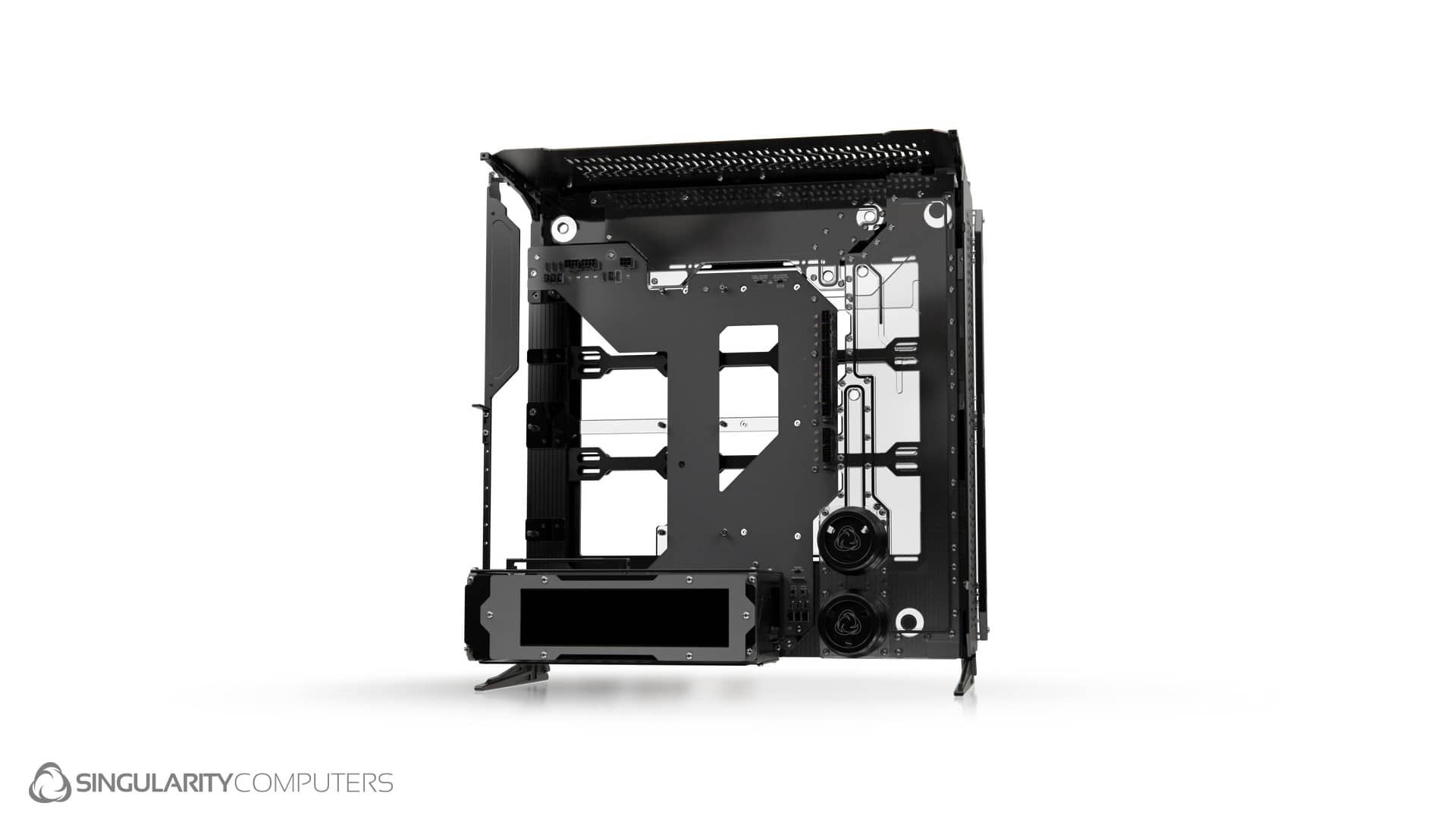

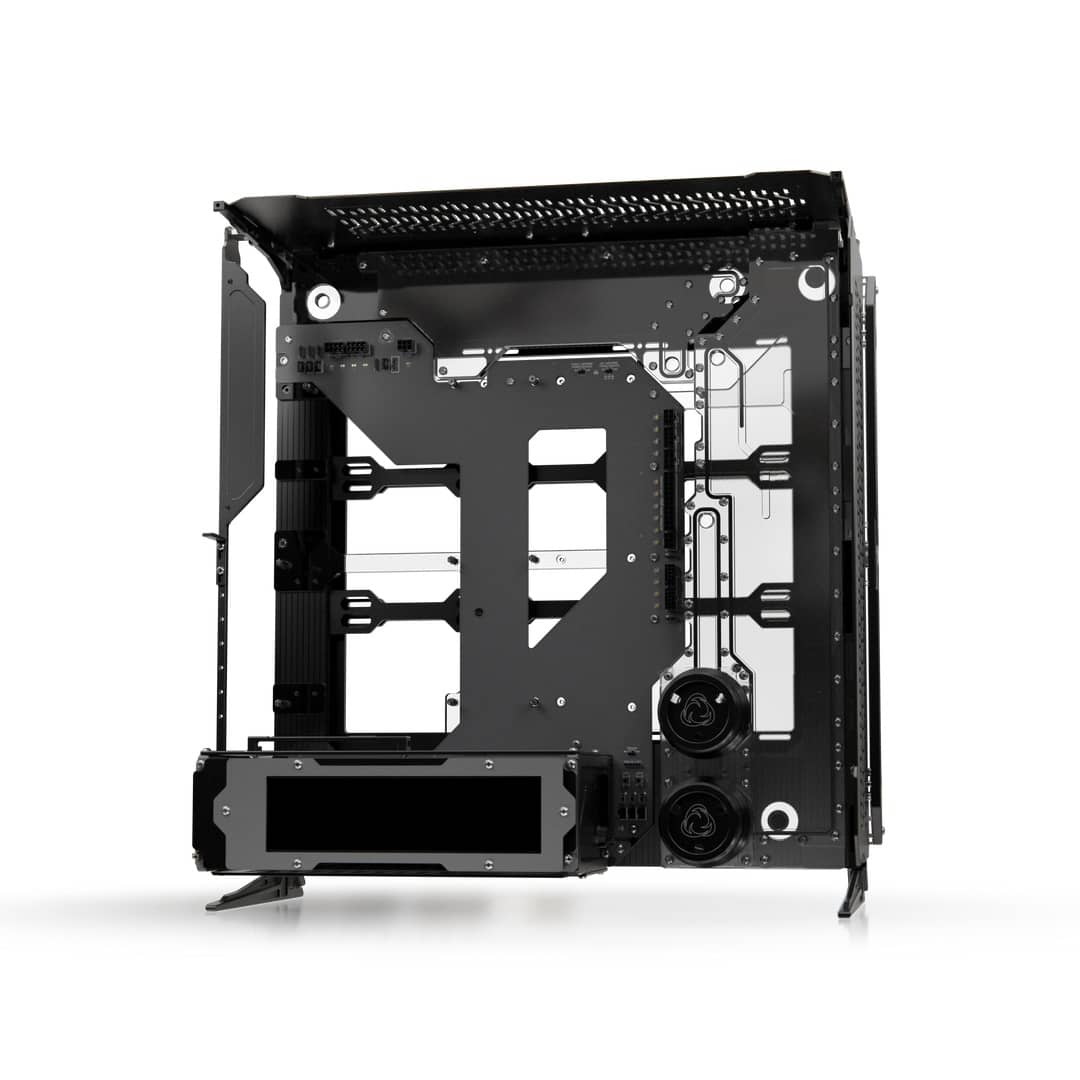

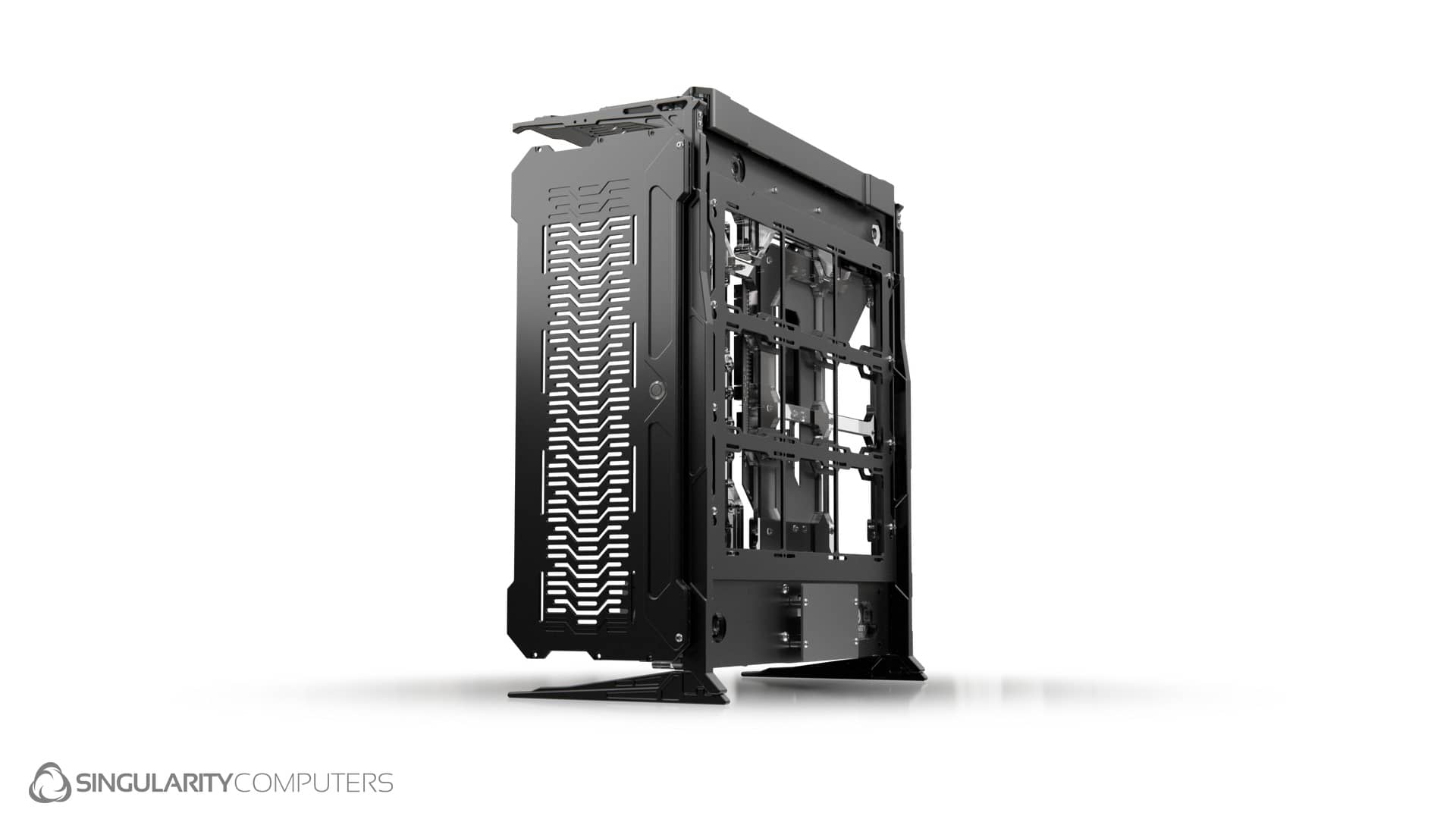

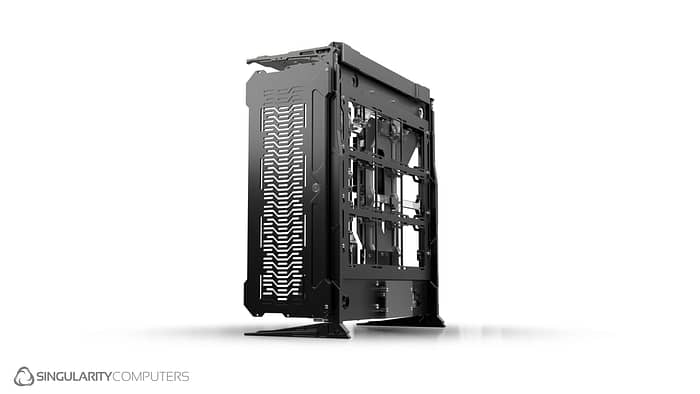

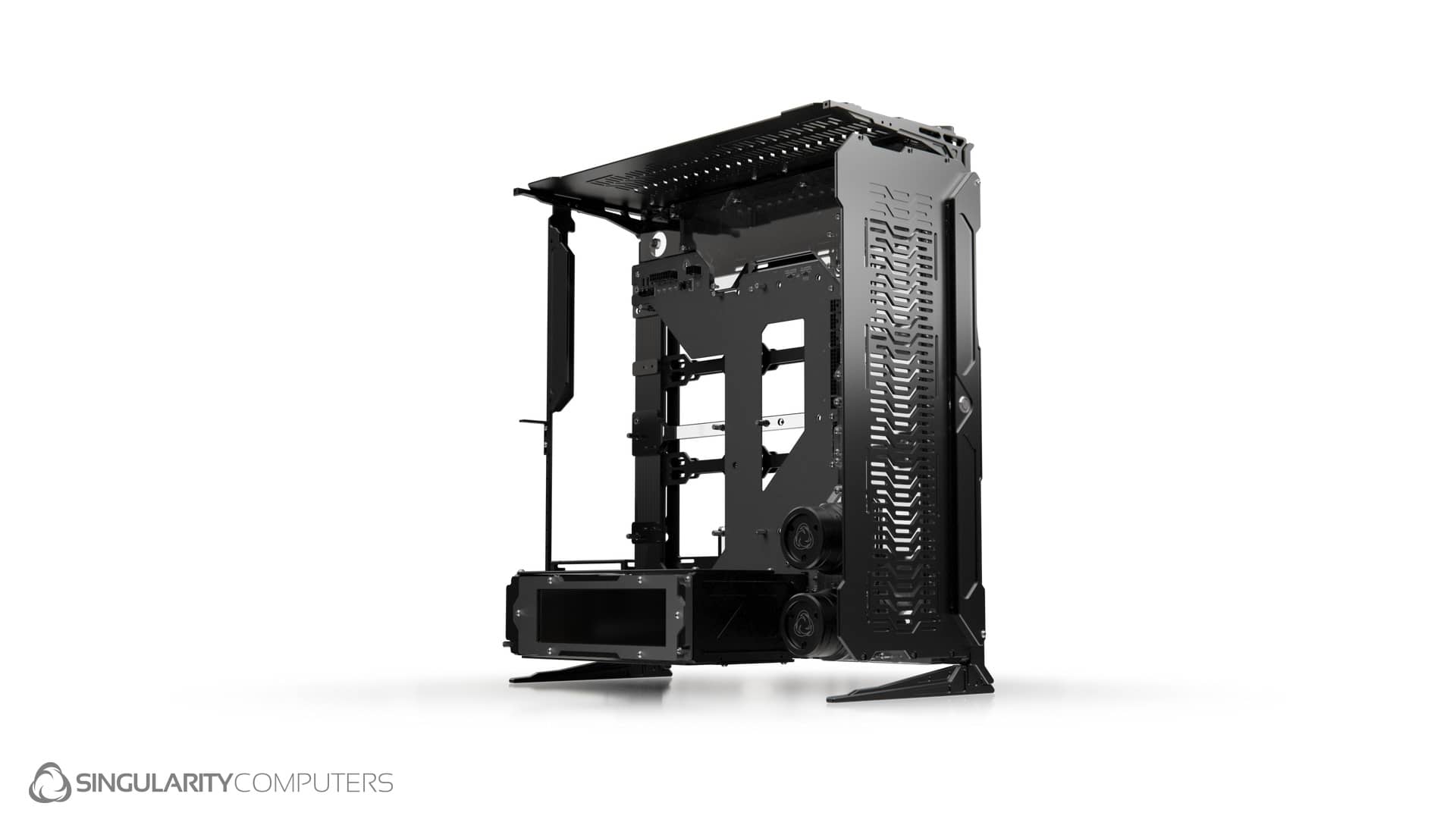

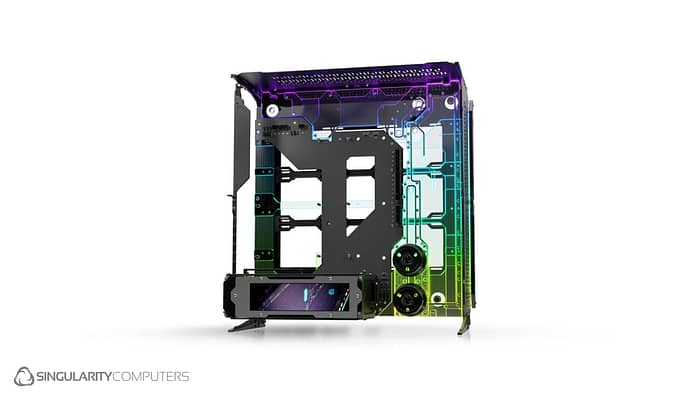

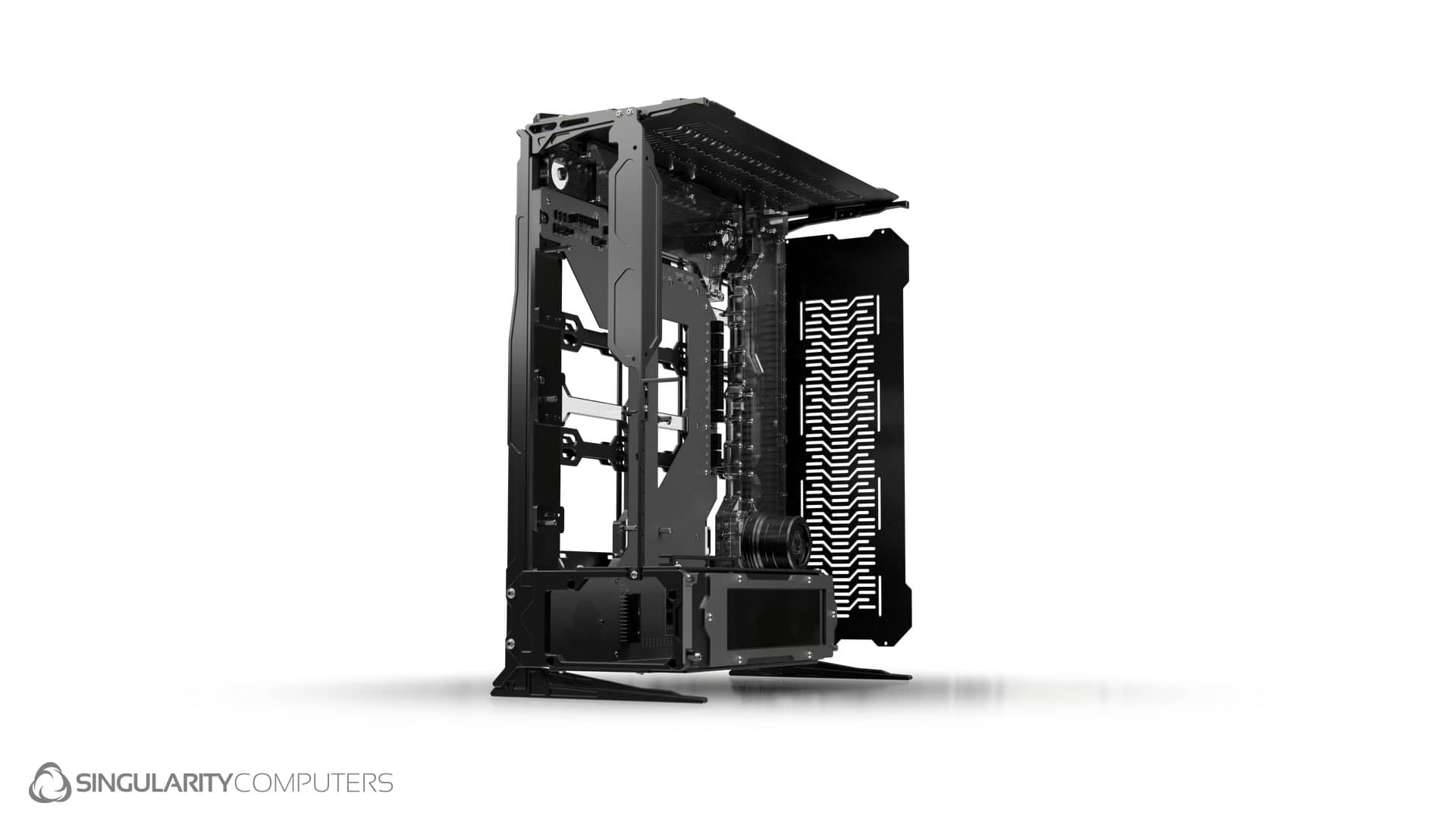

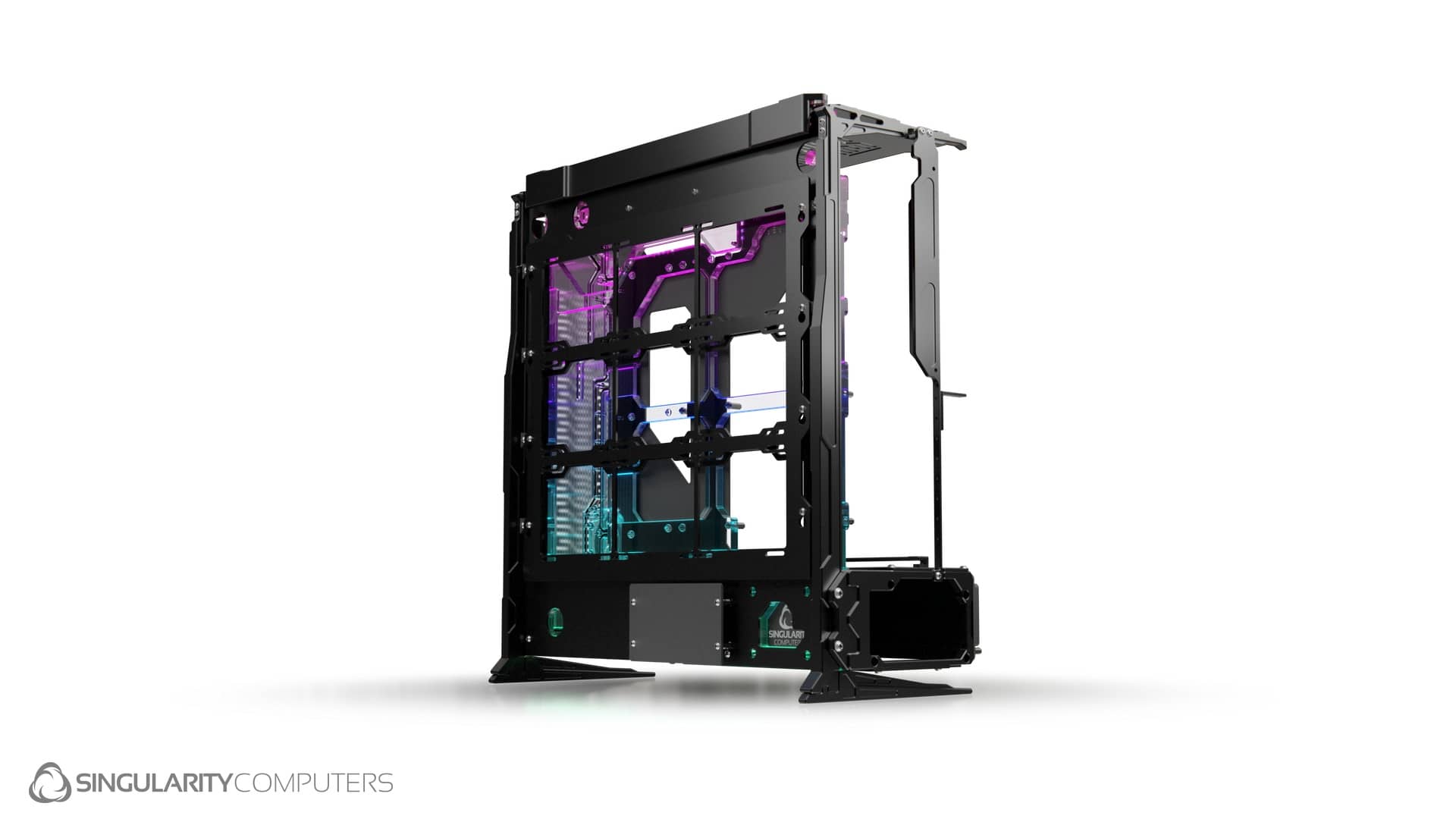

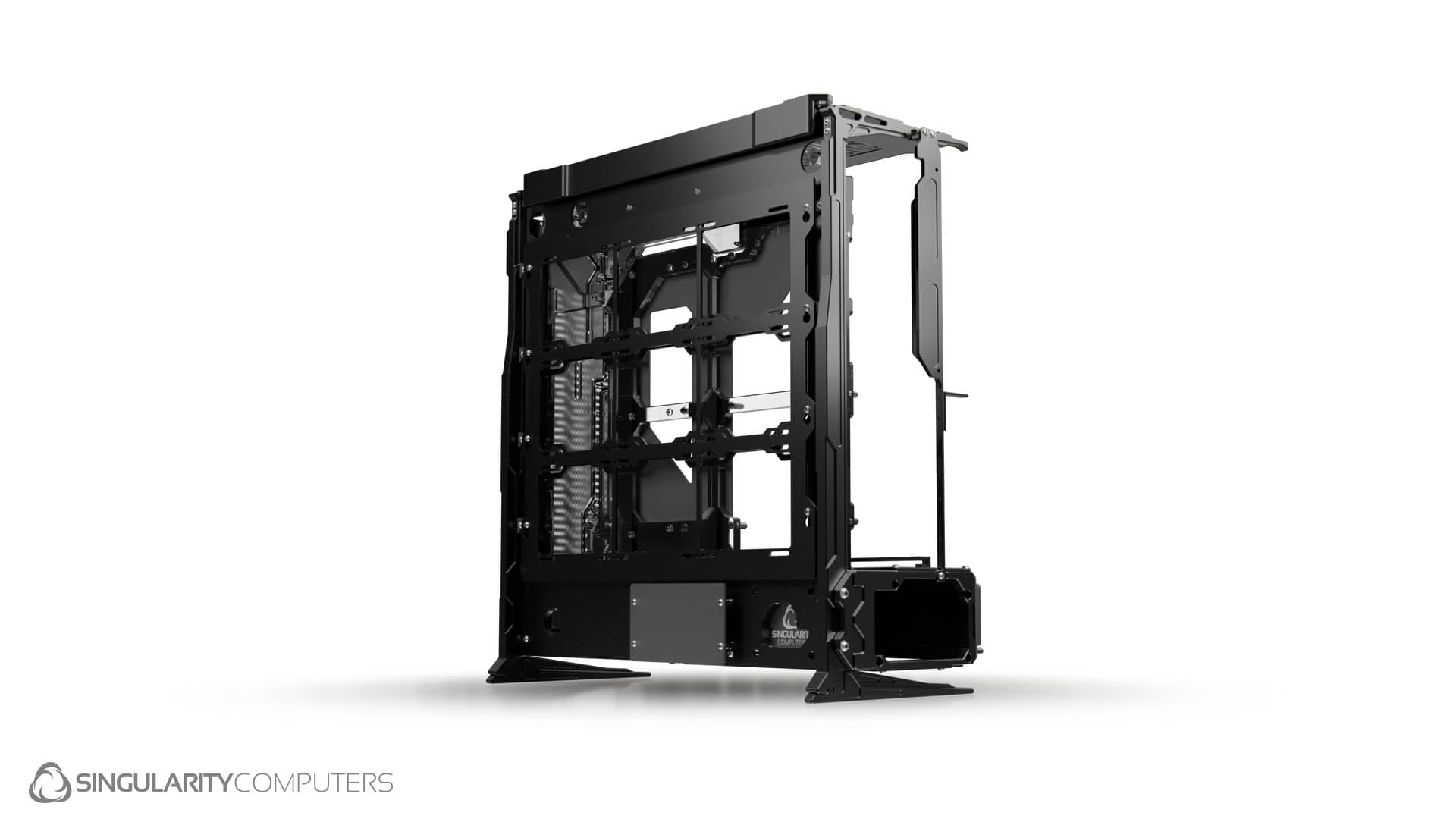

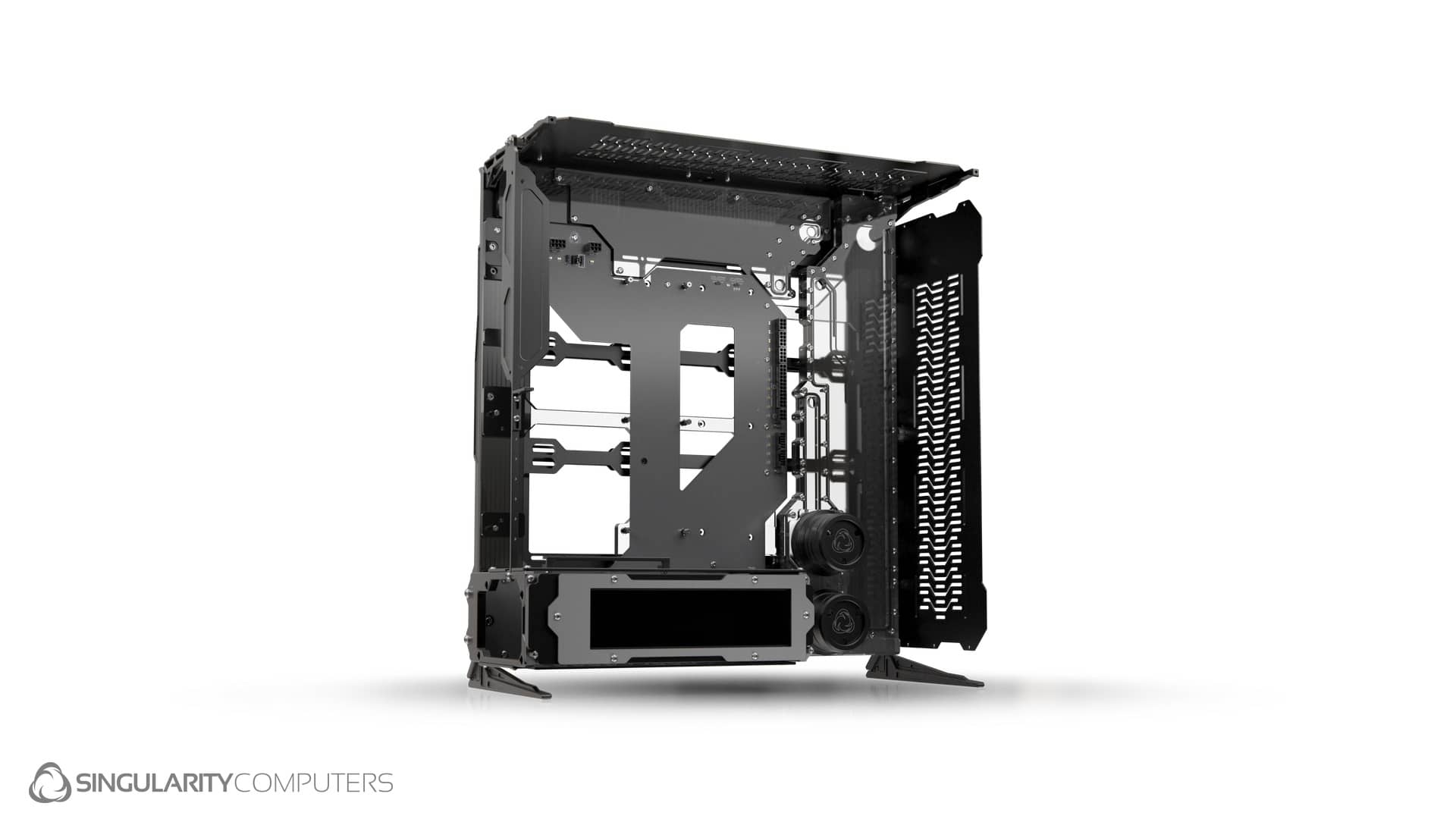

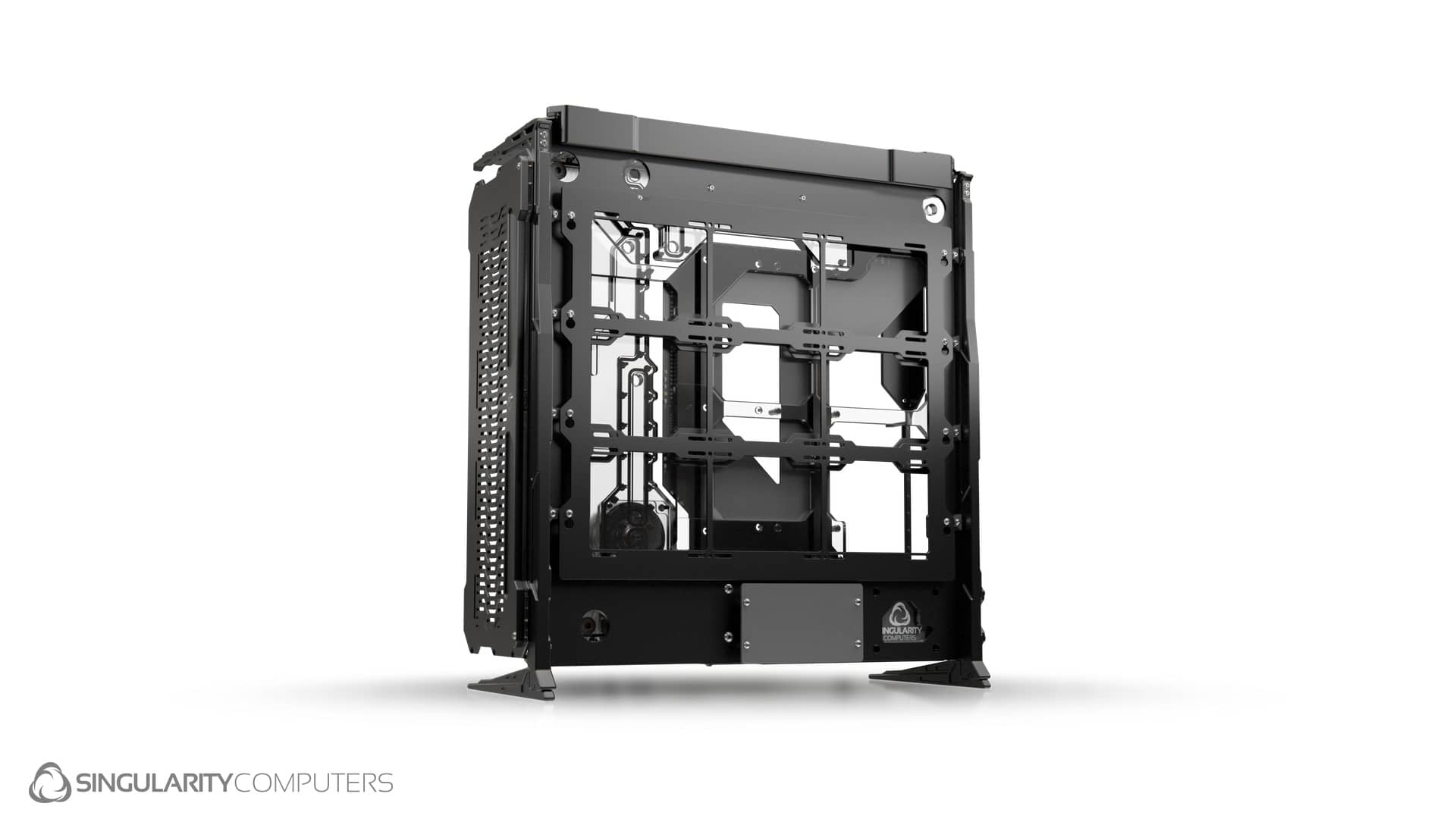

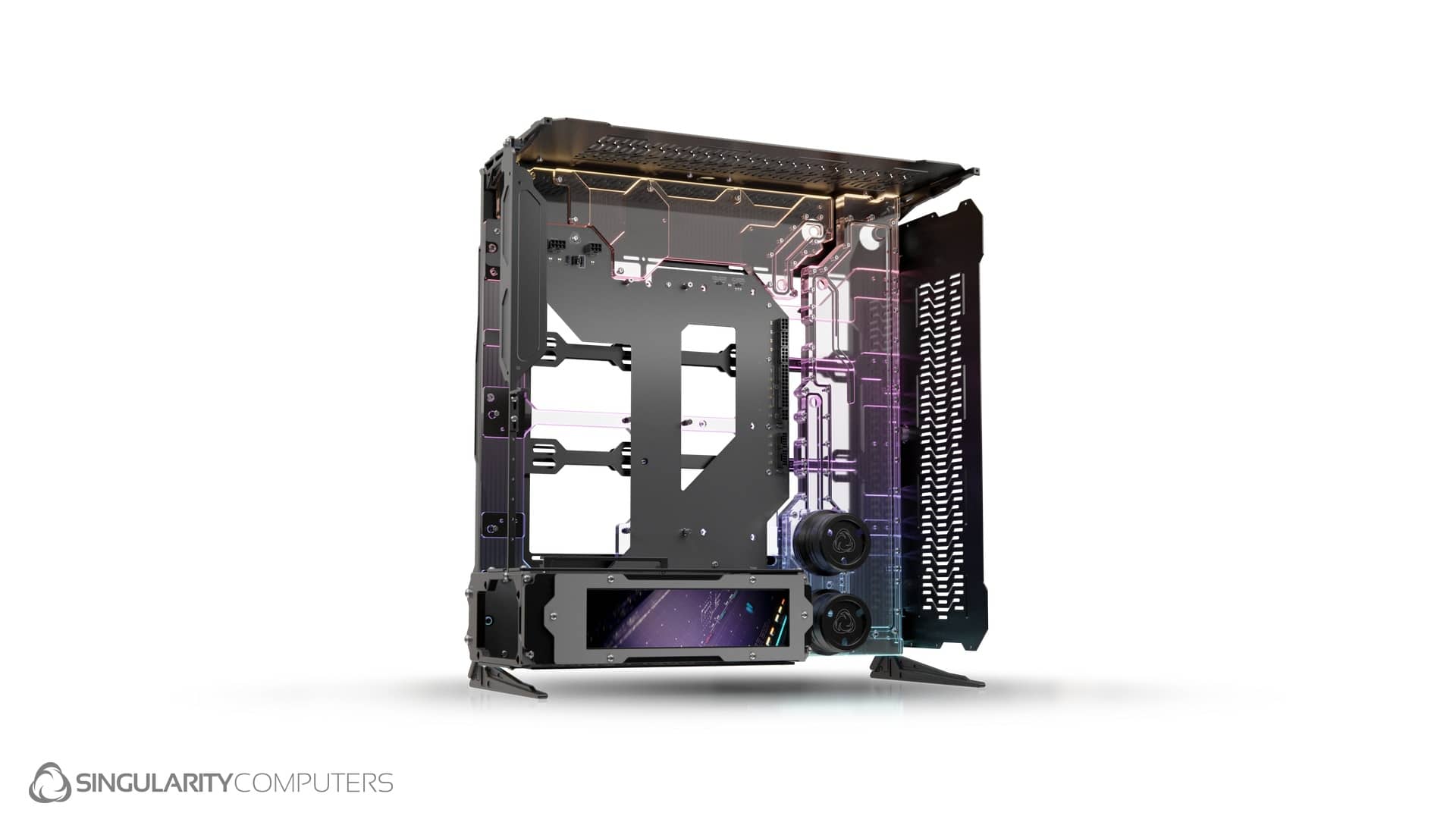

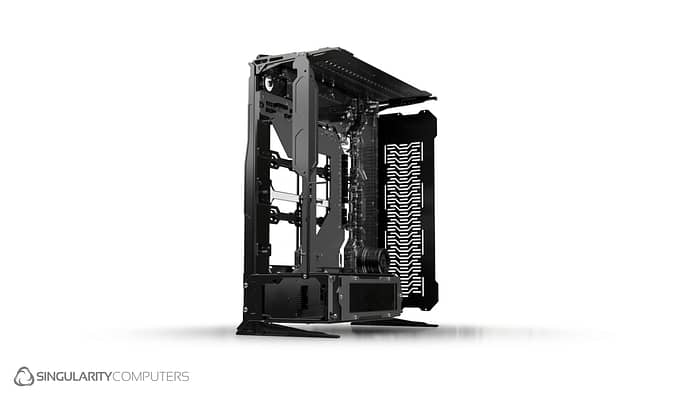

Spectre 3.0 Enterprise is designed for SSI-EEB and SSI-CEB motherboards with a specially designed Distribution Plate and PowerBoard to allow for these form factors. It can fit up to five 360mm radiators, the two internal radiators can be up to 60mm thick and the three external radiators have no thickness limitation. It can also fit a MO-RA3 360 externally. It has a Dual D5 Pump top for two D5 pumps in a single loop. The PowerBoard has been designed for high power output and has capacitors for increased power stability. The case is over engineered for maximum reliability. The case frame is built from CNC machined 6061 billet aluminum. The Distribution Plates are built from CNC machined cast acrylic and uses gaskets instead of O-Rings and dense fastener spacing to handle higher pressure. The case can be used just with the internal two 360mm radiators or the radiators can be scaled up with the addition of the external radiator/s. It comes included with a 1920×480 60Hz IPS screen which is mounted on the side of the PSU Shroud.

Note: Spectre 3.0 Enterprise does not have PowerBoard Linking Cables included because SSI-EEB and SSI-CEB form factors have a large variety of connector locations. To order custom cables please contact us at support(at)singularitycomputers.com and let us know which motherboard you will use. Or if you are using ATX or EATX motherboards you can order standard PowerBoard Linking Cables
Optional PowerBoard PSU Cable Kit is available
For motherboards with 90 degree connectors adaptors are available

Note: Pump/s not included.


SKU: SC-S3-ENT Category:

Integrated Reservoir, Dual D5 Pump Top, Pump Cover x2, Fill Port, Drain Port, Parts of water-cooling loop. Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pumps: (Not included): Compatible with all D5 pumps.

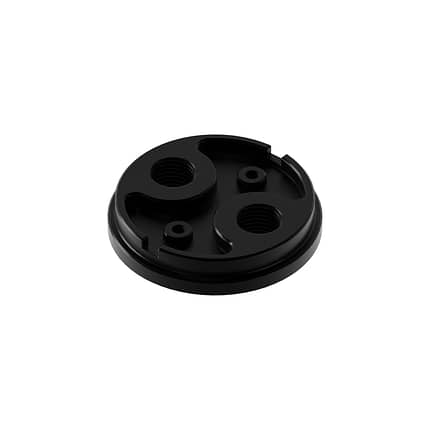

Pump Covers: Protium 3.0 Black x2.
Connections: 24pin x1. 8pin EPS x4. 6pin Supplementary x2. 12VHPWR x2.
Hubs: PWM: x6. ARGB: x9.
LEDs: x20 Integrated ARGB 90-degree LEDs and x15 UV 90-degree LEDs facing around the internal and external perimeter of the PowerBoard. There are two switches on the PowerBoard one switches the ARGB on or off and the other switches the UV on or off.
Touch sensing Power Button. Extra Power and Reset Buttons.
Screen: 1920×480 60Hz IPS (Cables are included).
PowerBoard LED on/off switch.
Cables: PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1. Touch Power Button Cables: Power, Reset, LED +/- Black 20cm. Screen cables: Mini HDMI to HDMI Black 1m (Signal). USB-A to USB Micro-B 0.9m (Power).
LED Strips: x3 50cm ARGB LED Strips with 50cm cables.
Accessories: Hex Keys: M3: x1. M4: x1. M6: x1. Stop Fittings: x2. 5v ARGB LED Strip 50cm: x2.
Motherboard Form Factor: SSI EEB, SSI CEB, XL-ATX, EATX, ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Mid Tower.
Package Dimensions: L: 640mm W: 620mm H: 110mm (Case is flat packed and requires partial assembly).
Package Weight: 20kg.
Case Dimensions: L: 545mm H: 595mm W: 254mm.
Case Weight: 18kg.
Storage: 6x 2.5”. x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x4 are inside of the PSU Shroud.
Radiators: 360mm x5, x2 internally and x3 mounted externally to the rear panel. Internal radiators are limited to 60mm thick with a single set of 25mm fans or push/pull fans with 40mm radiators. External radiators have no thickness limitation and push/pull can be used. The case is also compatible with the MO-RA3 360.
Maximum GPU Length: 500mm.
Maximum GPU Height: 170mm in standard orientation. Unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 220mm (Space allowed for cables inside of PSU shroud).
Front Panel I/O: No Front I/O. Vandal Switch 16mm white LED.
Vertical GPU Mount: x2 with 3 slot (60mm) spacing. x1 is included. 2nd Vertical GPU Mount available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.|
