Spectre 3.0 Integra Proxima Elite Dual Loop Side Panel

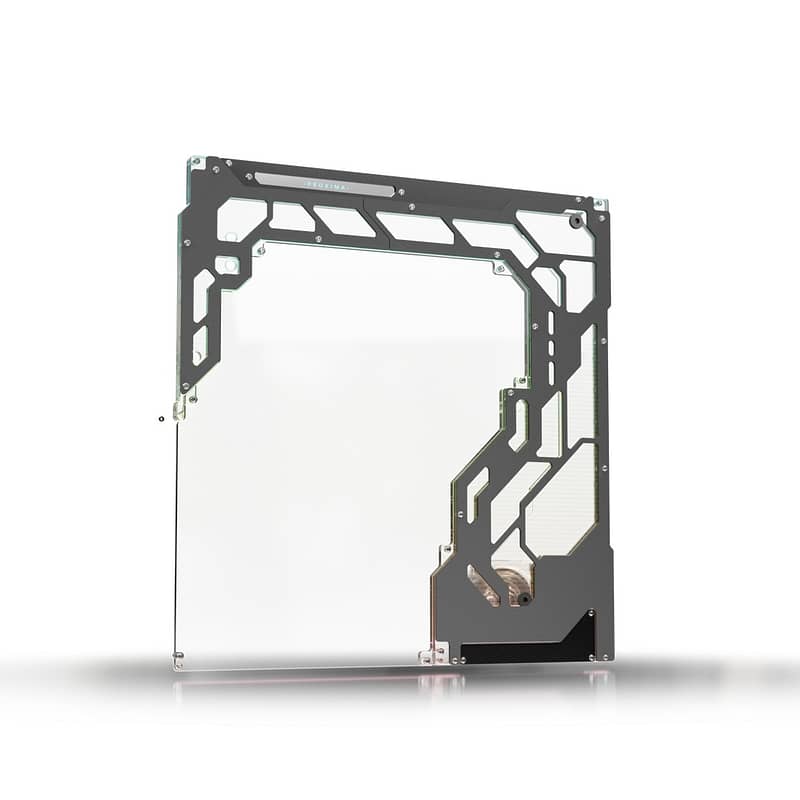

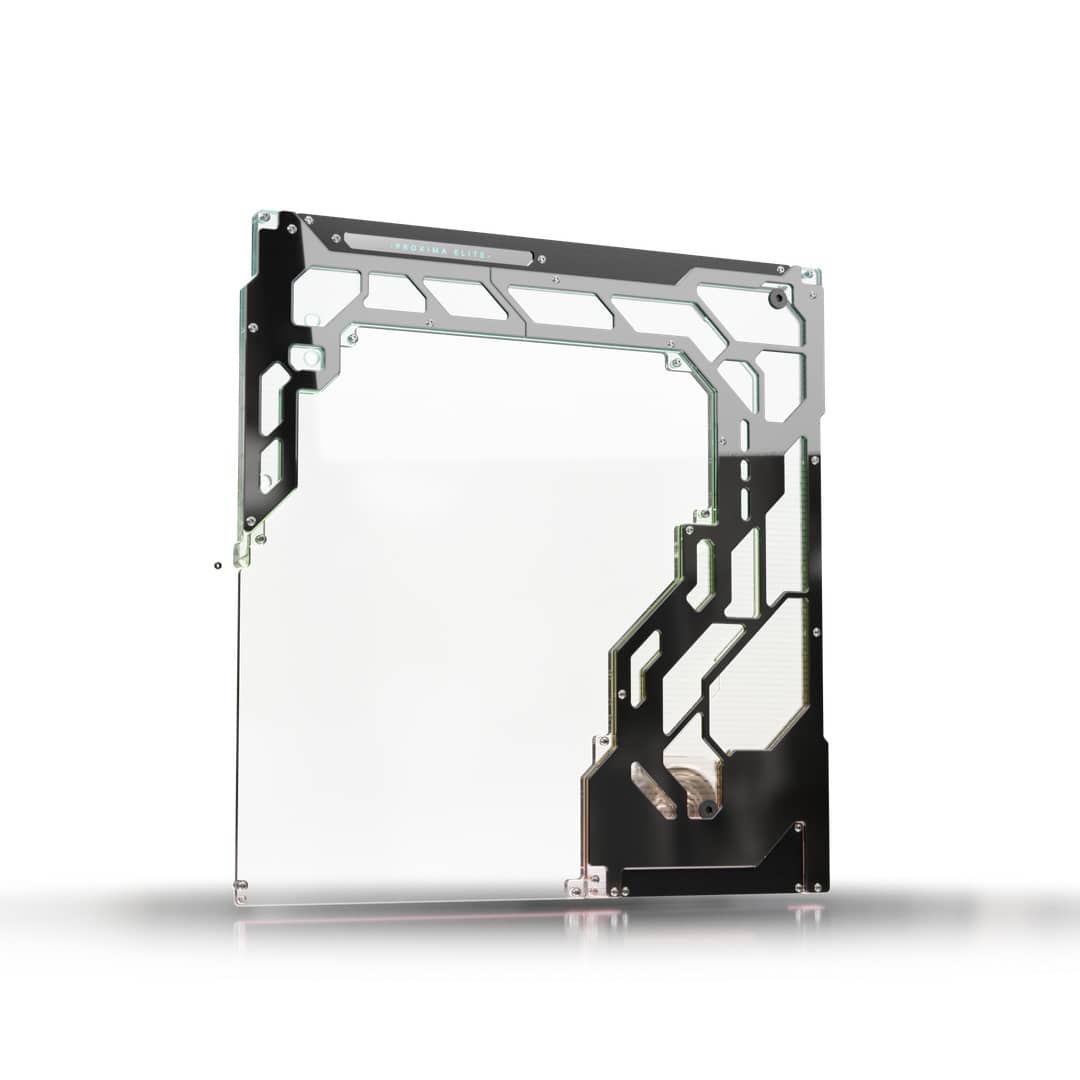

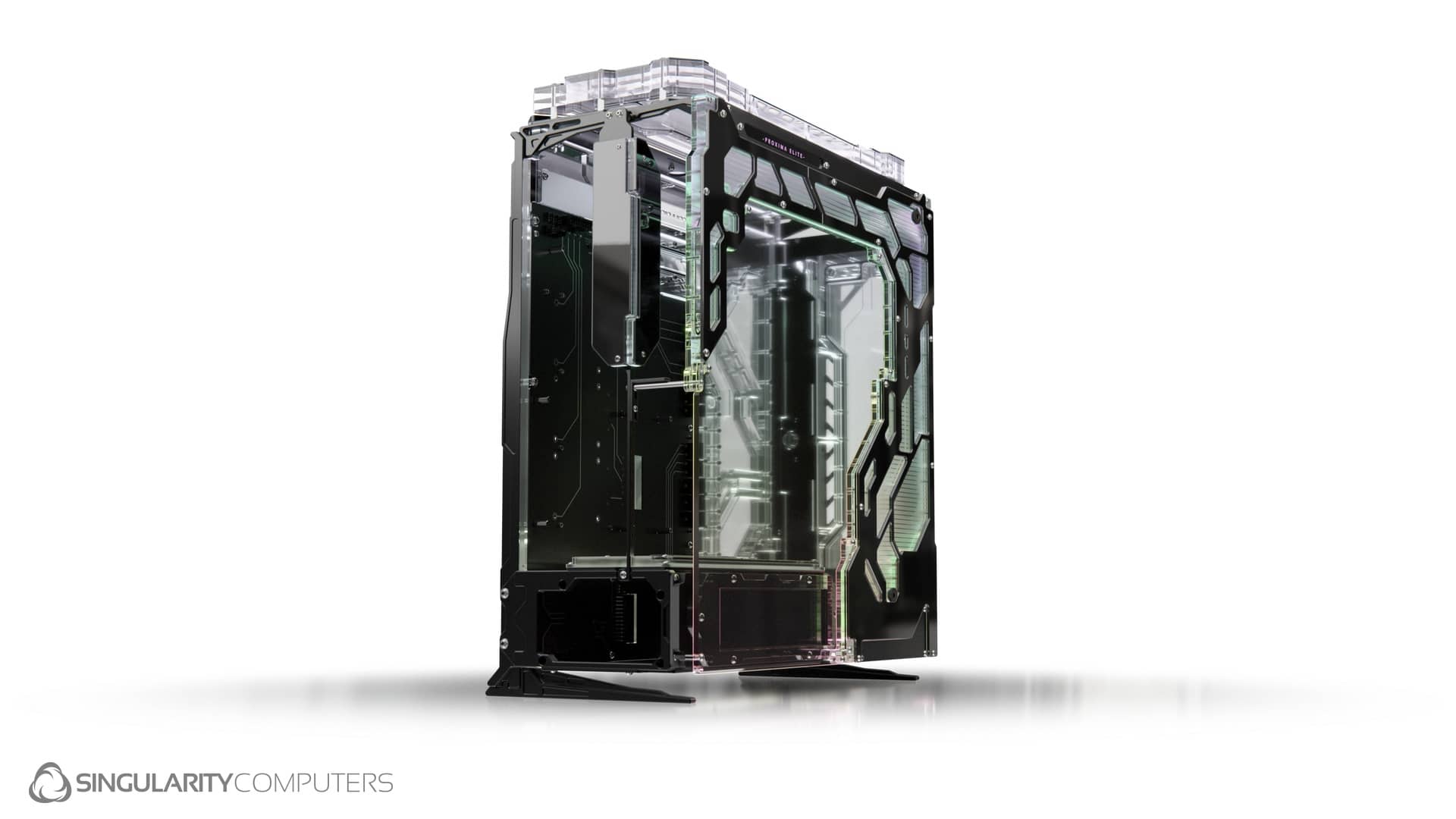

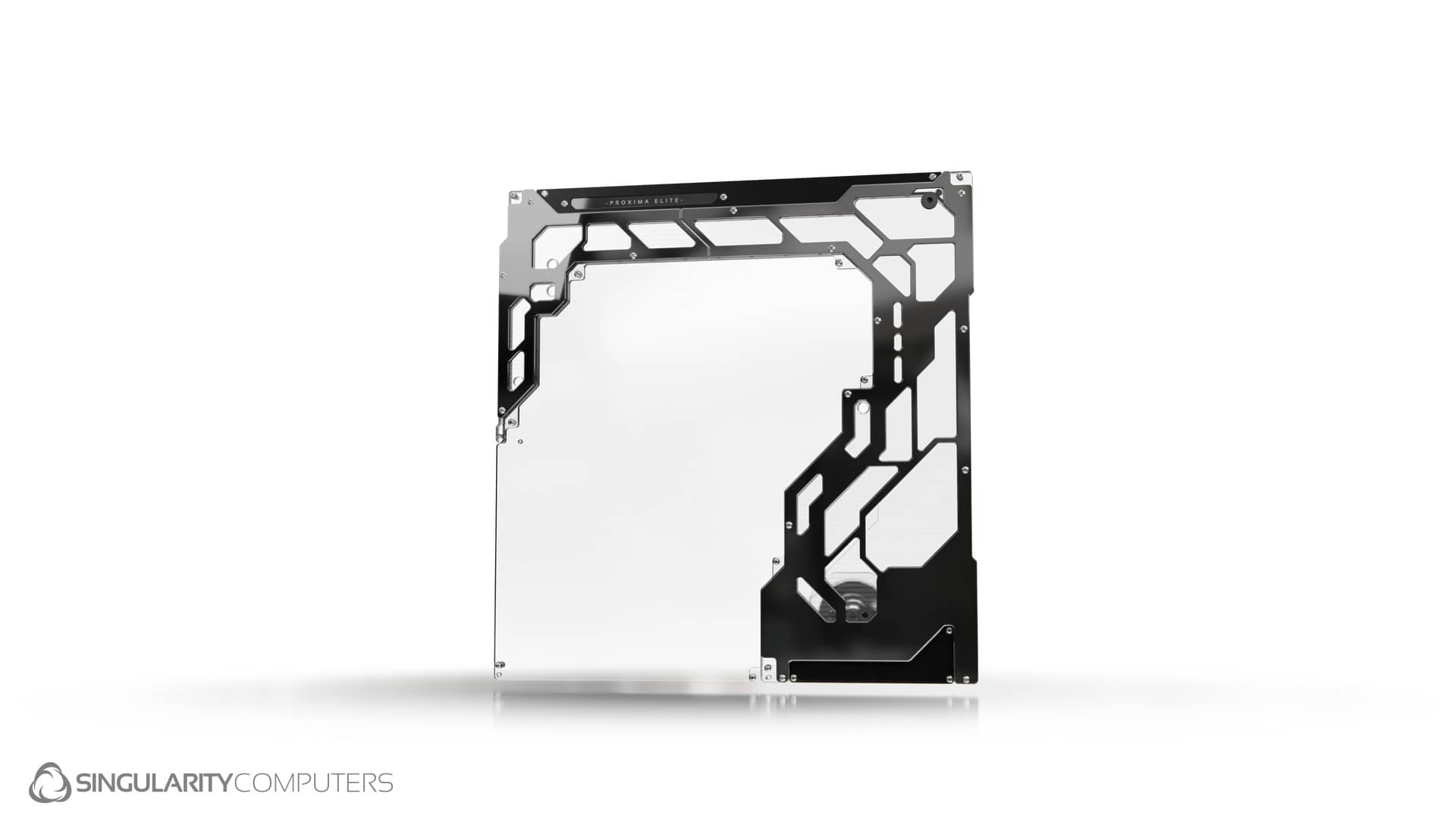

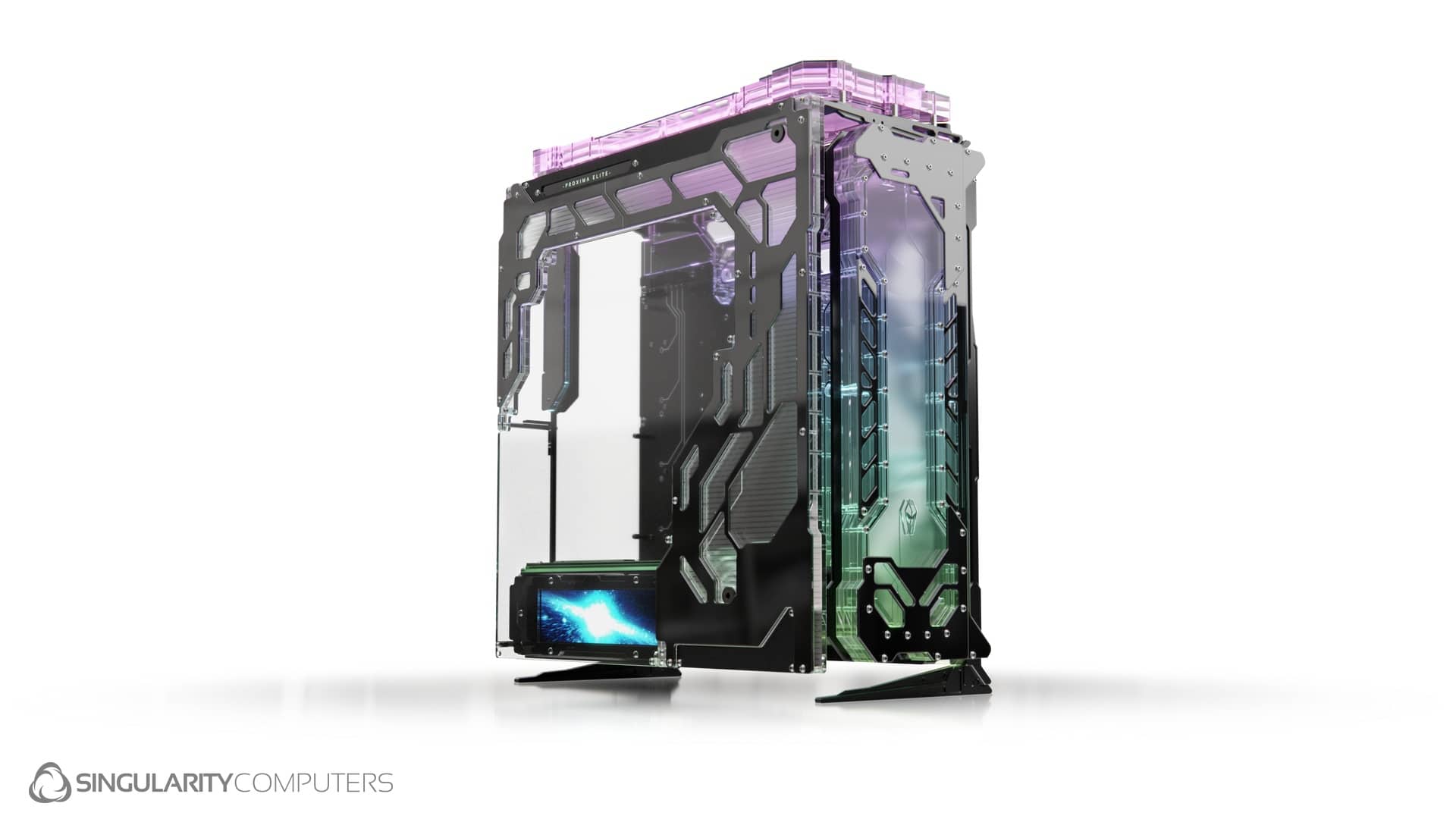

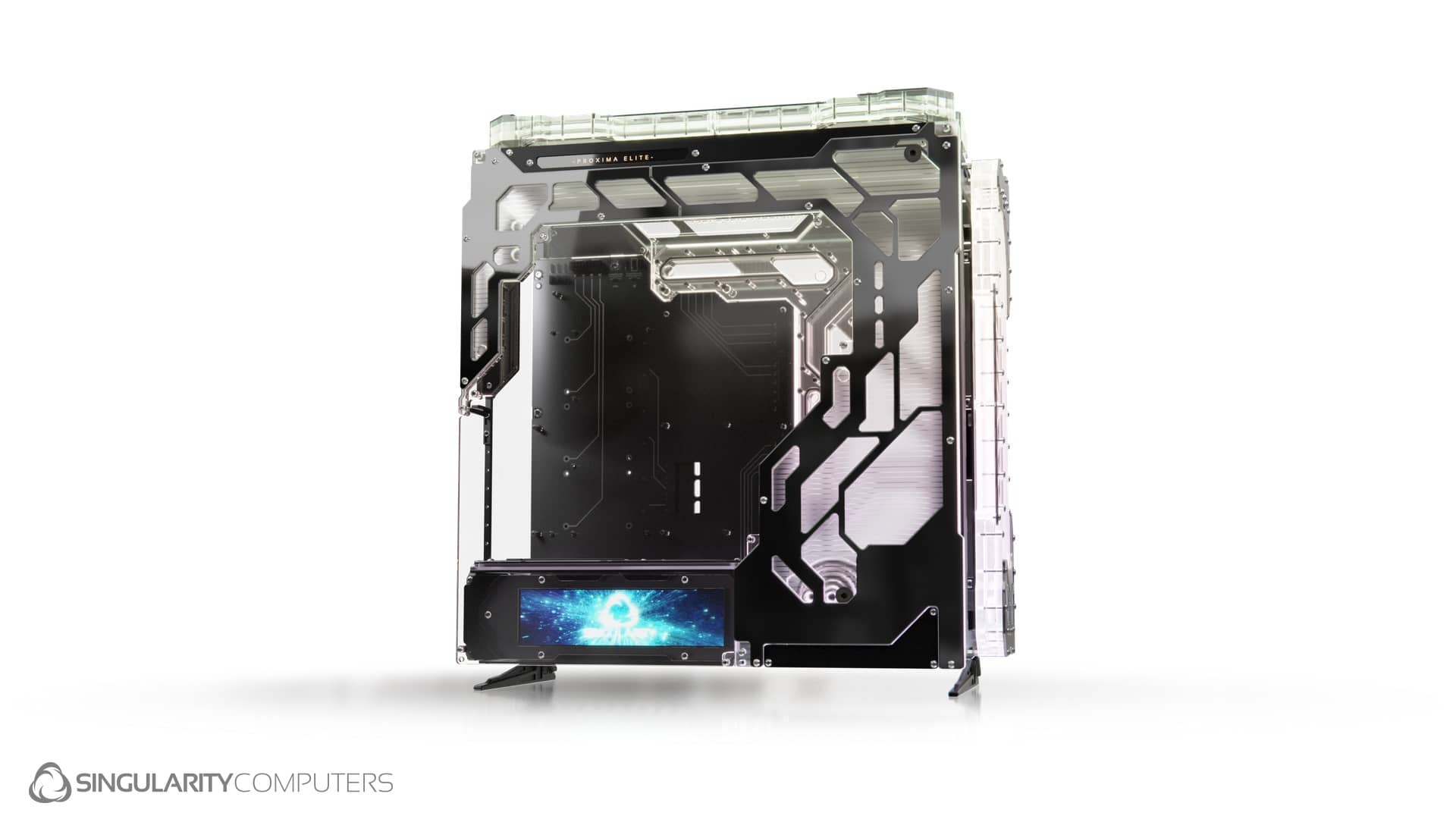

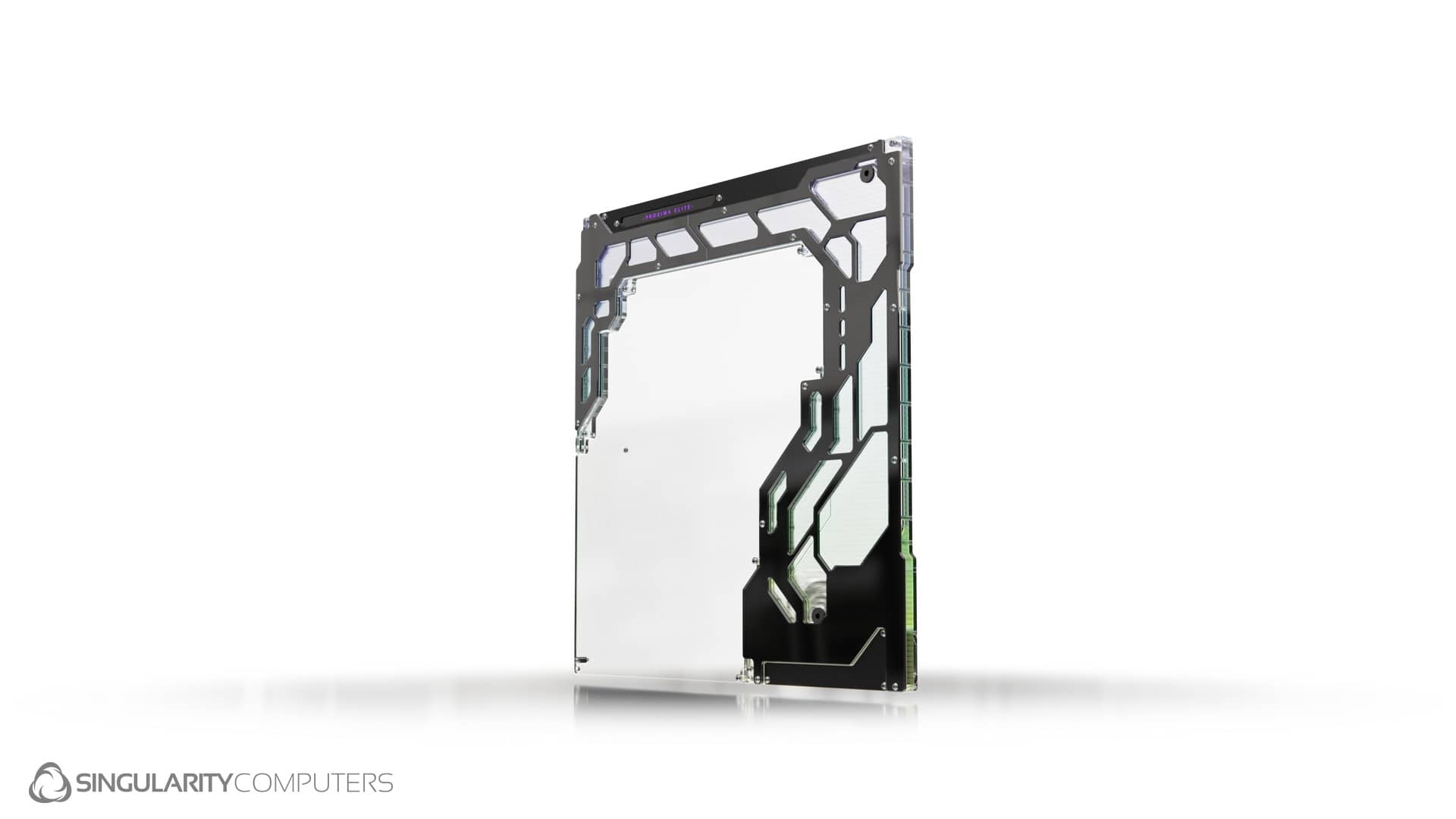

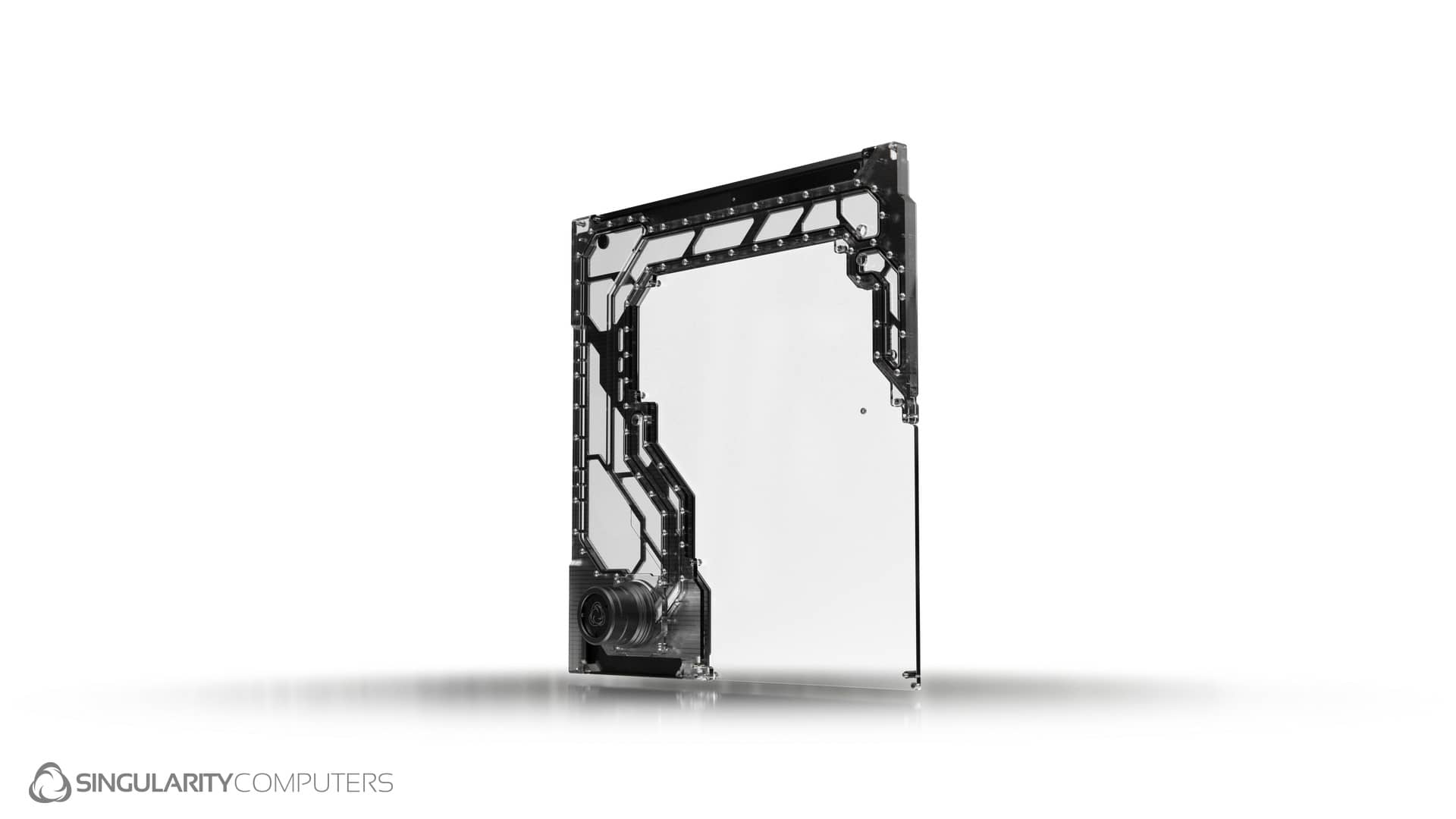

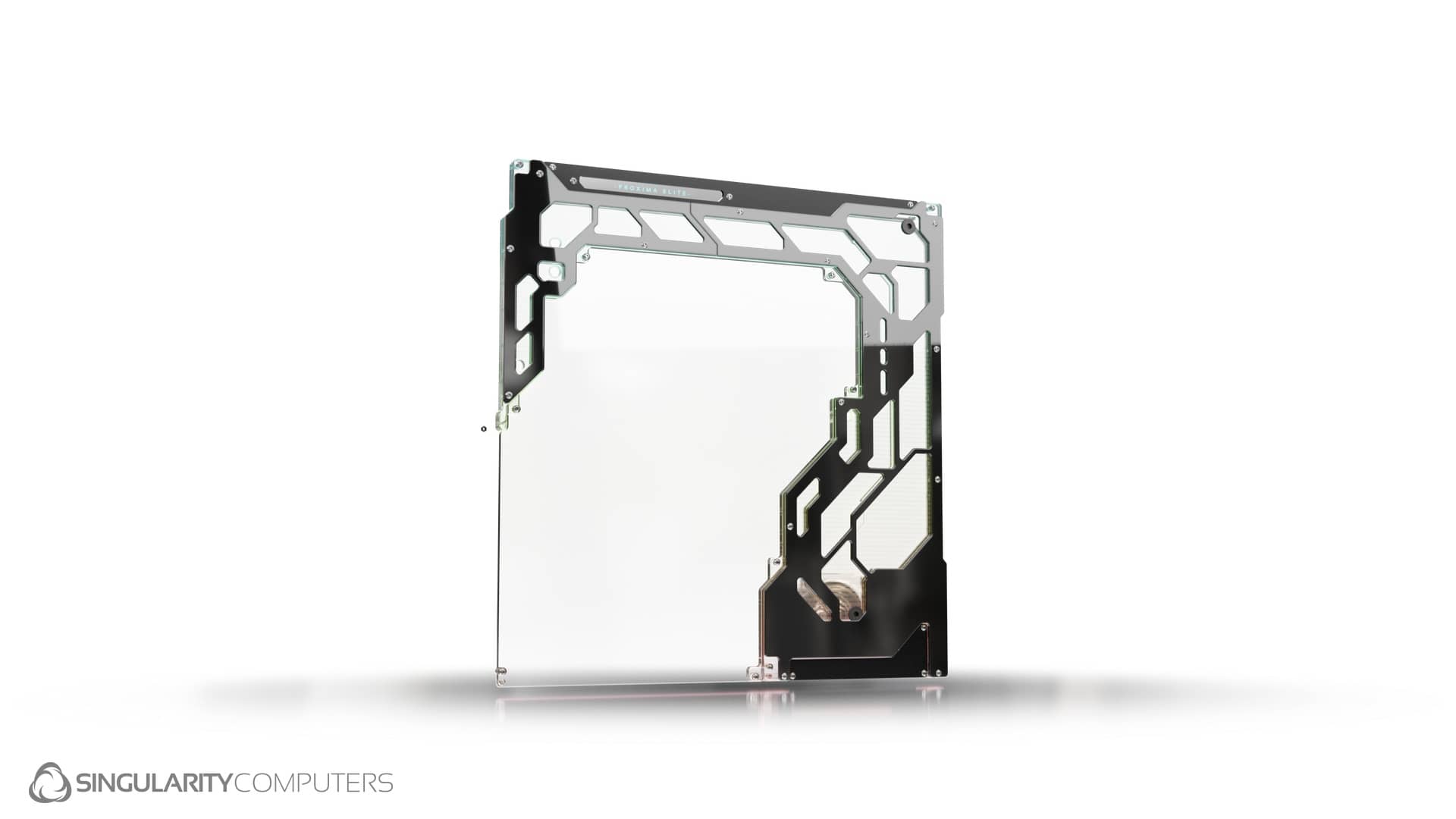

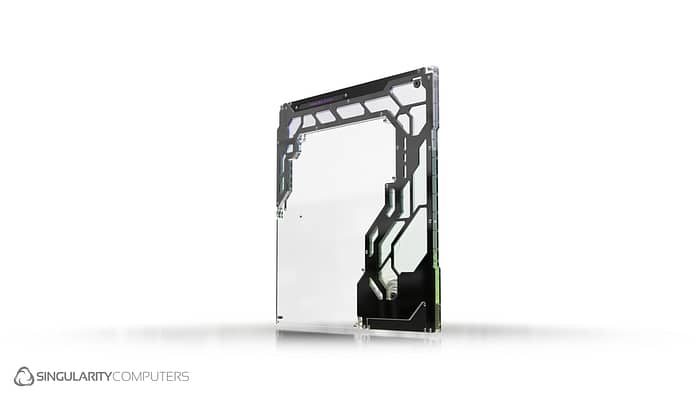

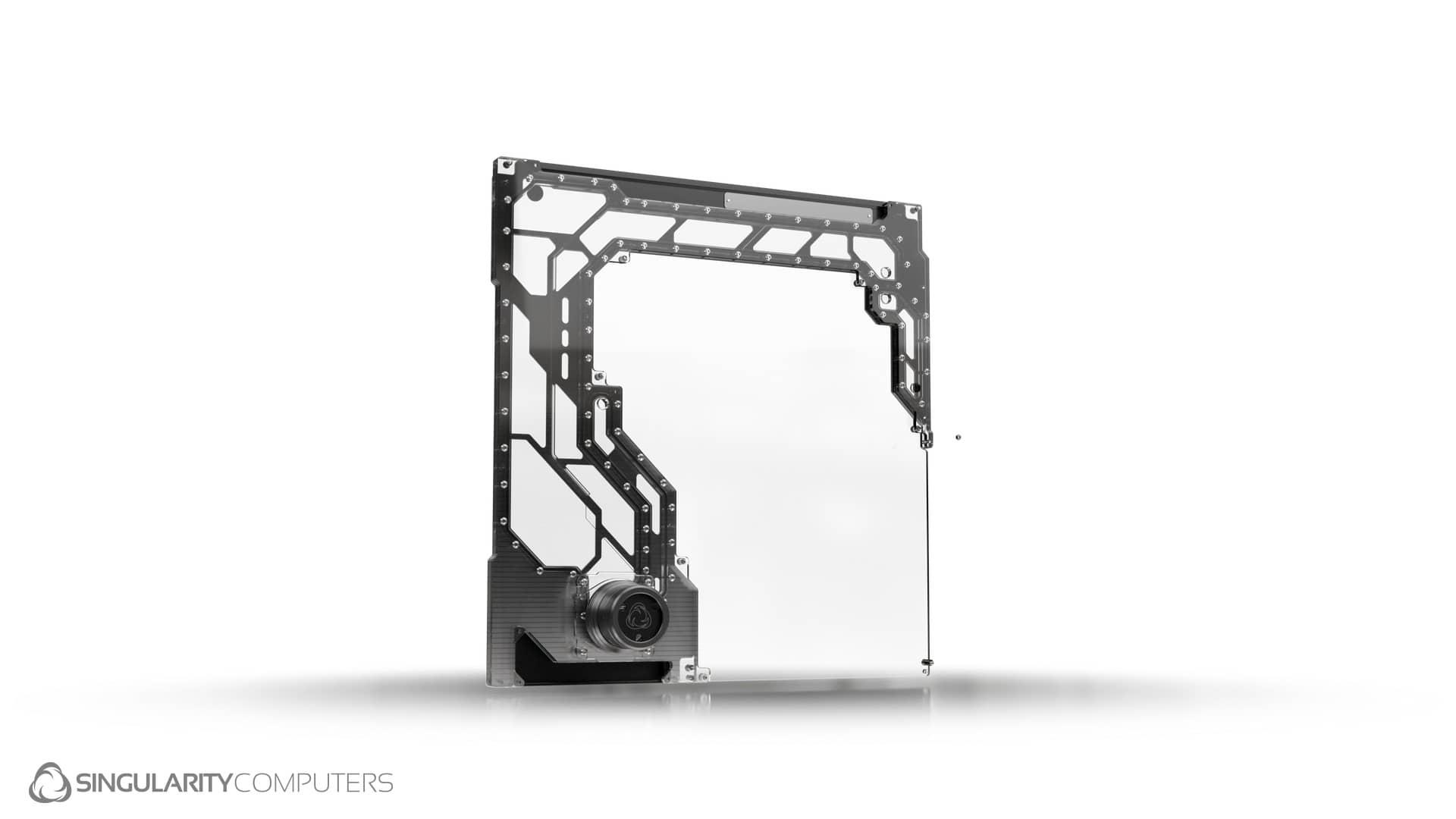

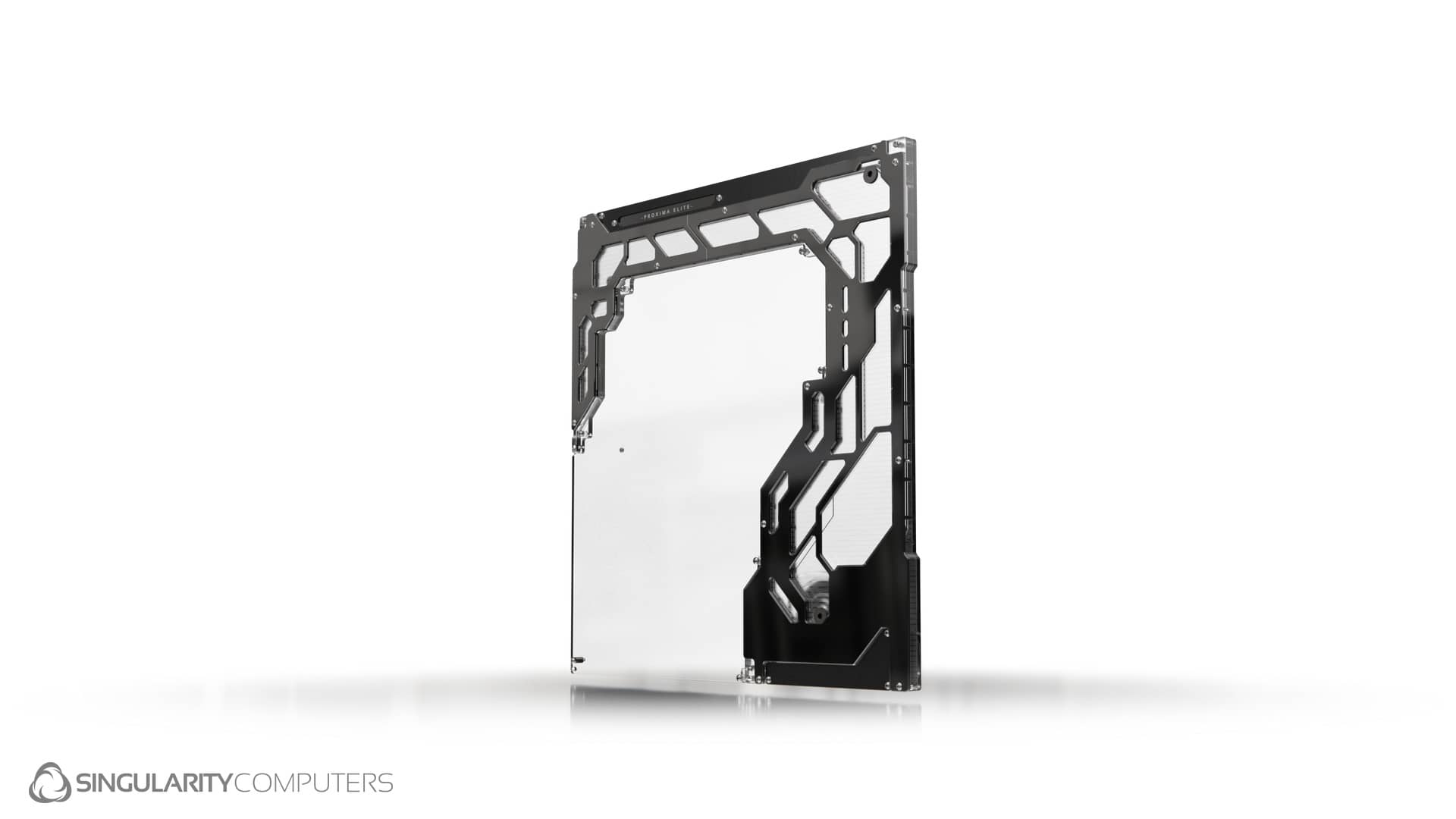

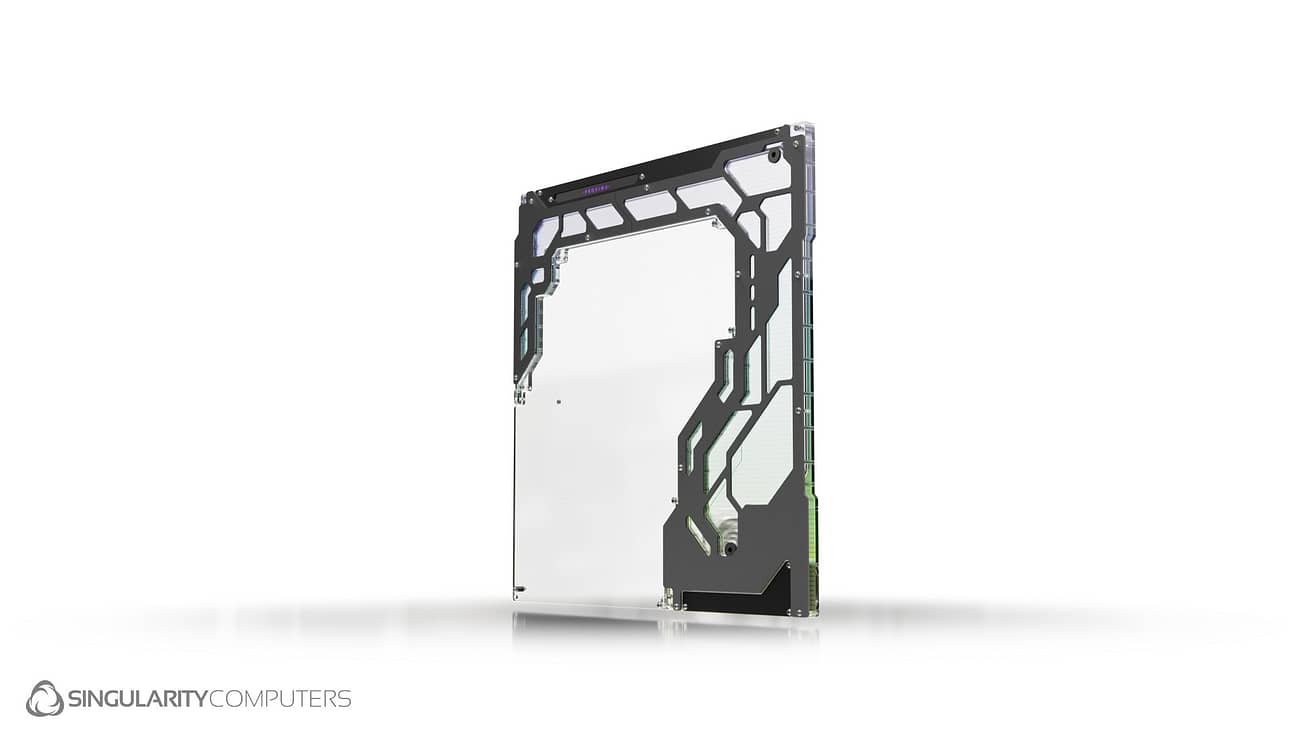

The Spectre 3.0 Integra Proxima Elite Dual Loop Side Panel is an addon specifically designed for Spectre 3.0 Integra Proxima Elite Limited Edition with a matching dark chrome cover and Proxima Elite logo. Essentially it is a mirror image of the main distribution plate, but with some port location and design changes to allow for one loop to be used for the CPU, and the other loop for the GPU/s. It is a replacement for the side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the most important parts of the build. The distribution plate section only covers the sides of the radiators and fans. It has an extra removable side panel so that it is easy to gain access to the case for loop building while the Spectre 3.0 Dual Loop Side Panel is installed. It has an integrated D5 pump top, Protium 3.0 Pump Cover and two ARGB LED strips which come pre-installed. There are 4 ports which are positioned for the GPU loop and top radiator, and a fill and drain port. The main case distribution plate layout works perfect for the CPU loop connected to the front radiator. The Spectre 3.0 Dual Loop Side Panel can be used in dual loops, single loop series or parallel.


SKU: SC-S3-PROX-EL-DL-SP Categories: ,

Integrated Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all D5 pumps.
D5 Pump Cover: Protium 3.0.
LED Strips: x2 50cm 5V ARGB LED Strips with 50cm cables.
Package Dimensions: L: 536mm H: 578mm W: 180mm.
Package Weight: 4kg.
Product Dimensions: L: 486mm H: 528mm W: 130mm.
Product Weight: 3kg.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.

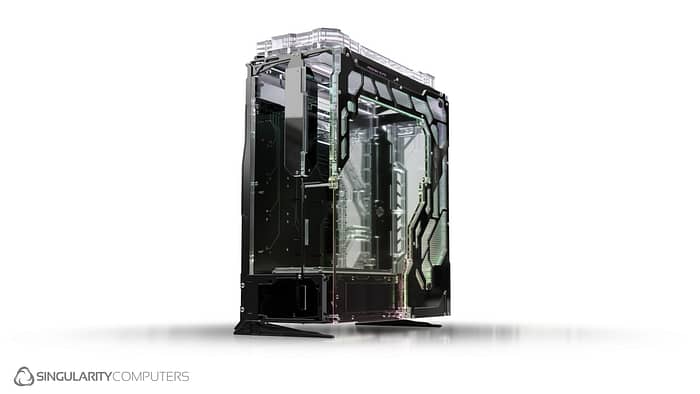

Compatible with all Spectre 3.0 case versions including limited editions. Installs onto the Spectre 3.0 Side Panel Window Mounts like the stock side panel but with longer fasteners which are included. It also attaches to the top rear IO mounting hole using an included stand off and fasteners. The distribution plate layout is designed for a single loop, dual loops, series, or parallel.  For dual loops the main distribution plate of the case can be used for the CPU loop with the front radiator, and the Spectre 3.0 Dual Loop Side Panel can be used for the GPU loop with the top radiator. There are many ways to route the tube for a single loop, series or parallel.
