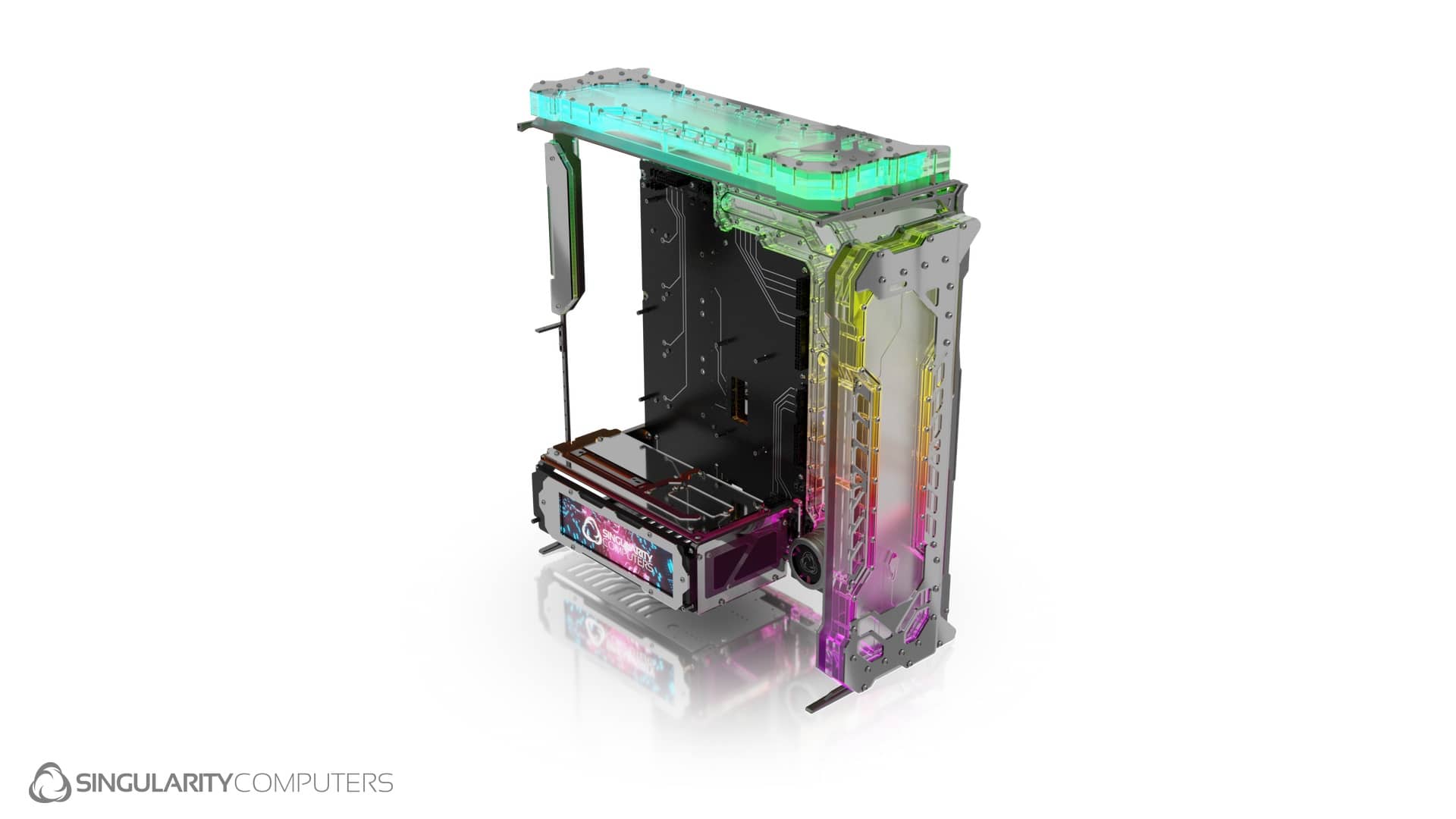

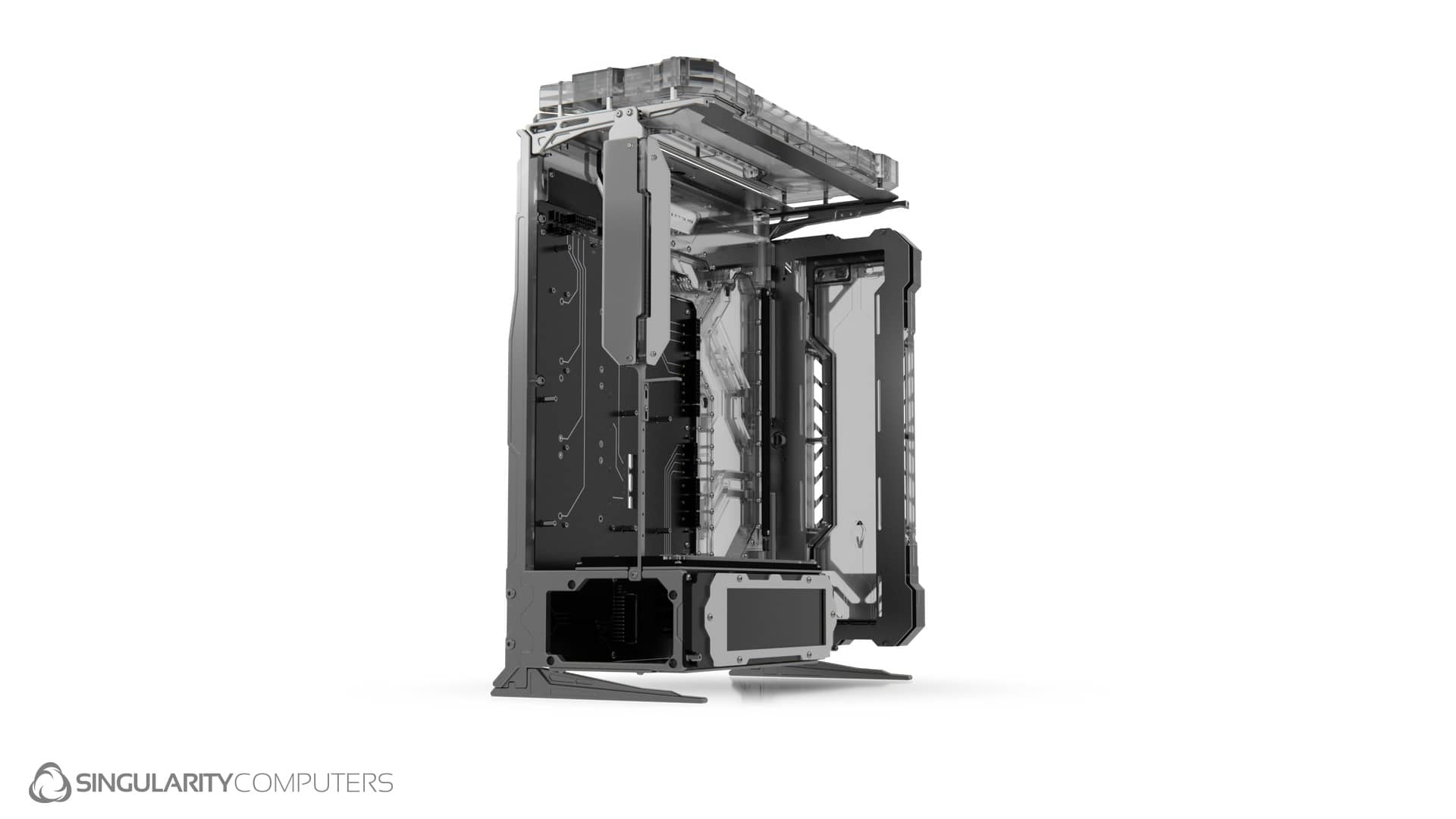

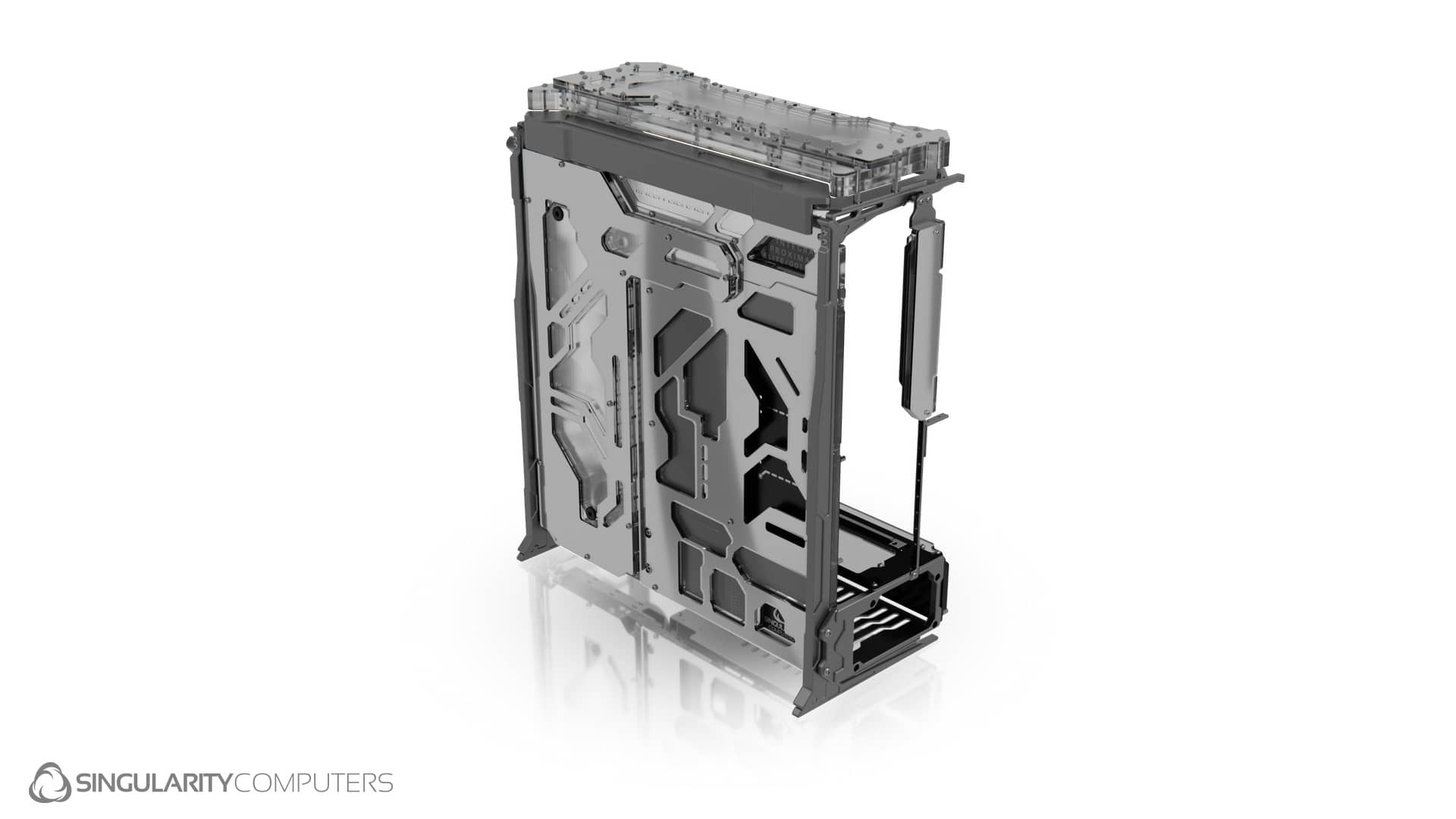

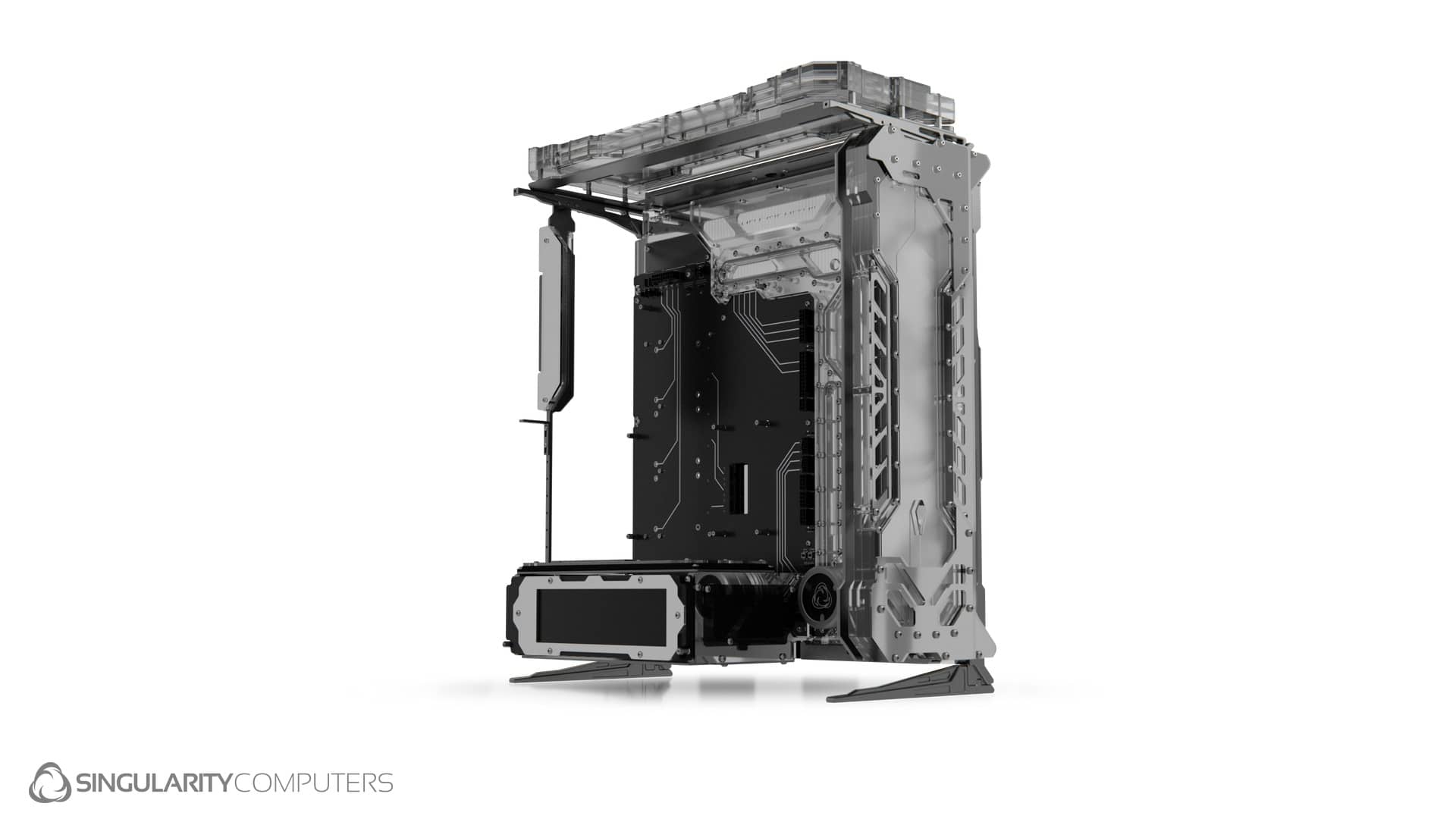

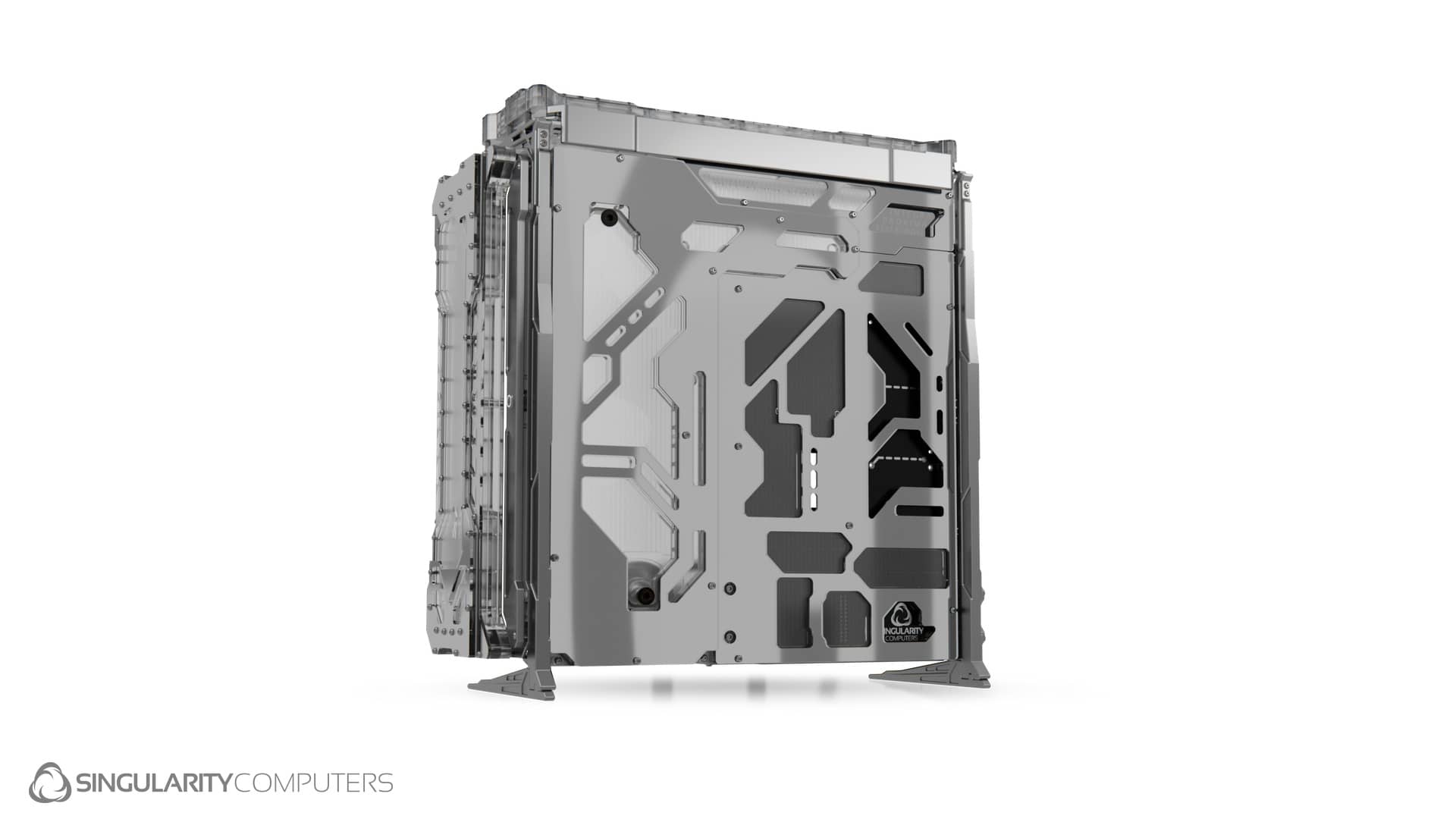

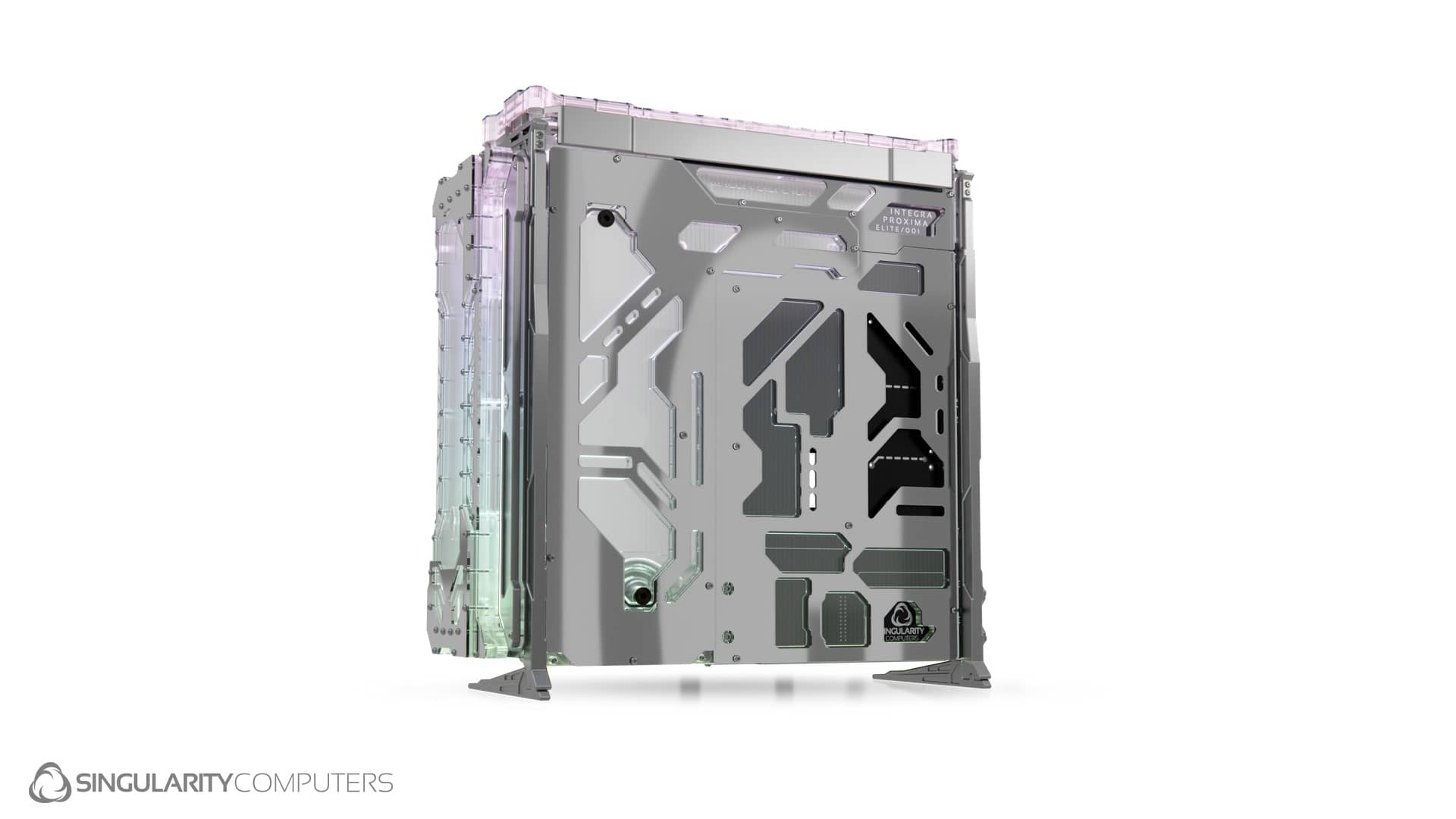

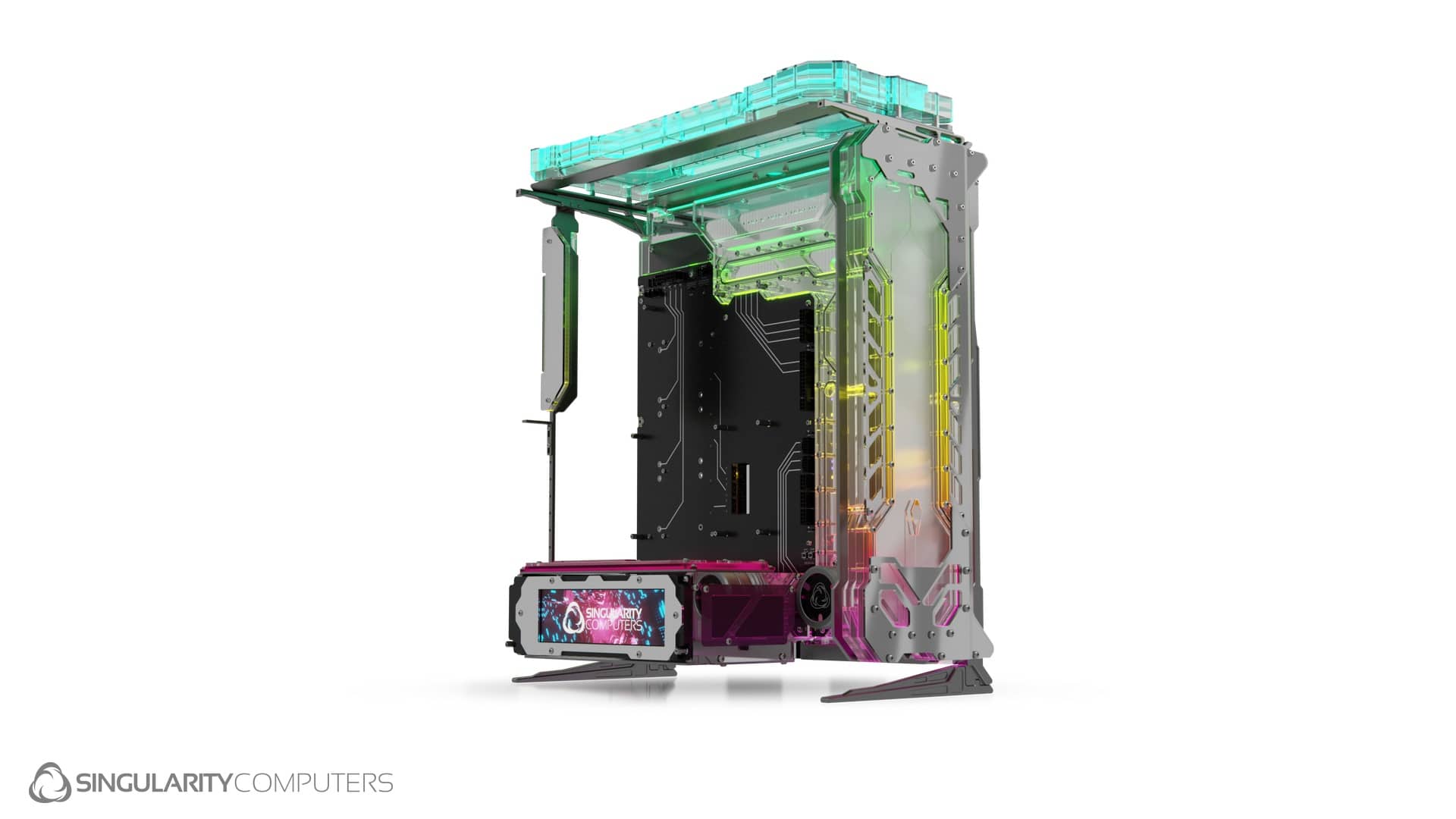

Spectre 3.0 Integra Proxima Elite Limited Edition Silver

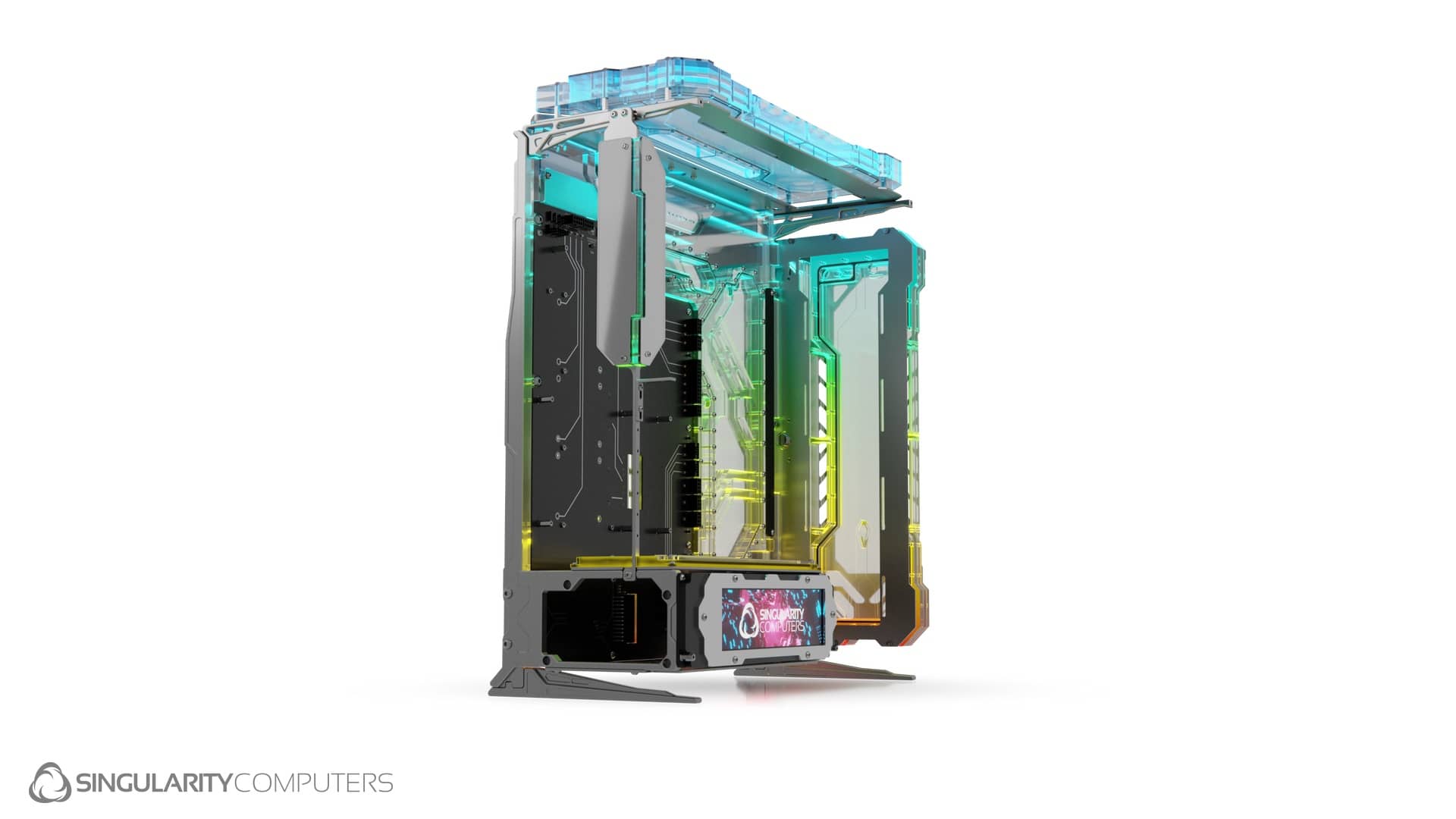

The next generation of Spectre has arrived in the form of a Cyberpunk themed limited edition. The distribution plate is a new design with triple layers throughout all fluid routes for improved flow and aesthetics. The PowerBoard has been redesigned for increased power delivery with all choke points removed. The layout has been changed to improve connector locations, and three direct connect SATA 2.5” drive positions have been added which are accessible from the back of the distribution plate. The PowerBoard has integrated capacitors for noise and ripple, and includes both ARGB and UV LEDs with a switch to use both at the same time, or one or the other. The CNC machined 6061 aluminum case frame components has been redesigned to improve strength and aesthetics with some unnecessary components being removed increasing integration. There is an IPS 1920×480 60Hz screen included on the PSU side shroud. There are glowing panels on the PSU Top Shroud, PSU Front Shroud and Rear IO Panel. The front and/or top panel distribution plates now have two flow layers allowing the coolant to flow up one side and down the other. It has increased fluid flow, airflow, and volume.

The following cables are included with the product: 24pin x1, 8pin EPS x2. You can select either 12VHPWR or 8pin PCIE x3 below.

PowerBoard Custom Cable Information



To connect from the PowerBoard to the GPU
The default cables provided are 8pin PCIE x3

SKU: SC-S3-INT-PROX-EL-S Category:

Frequently bought together

For 8 items

PowerBoard Cables are available
Optional PowerBoard PSU Cable Kit is available
For motherboards with 90 degree connectors adaptors are available

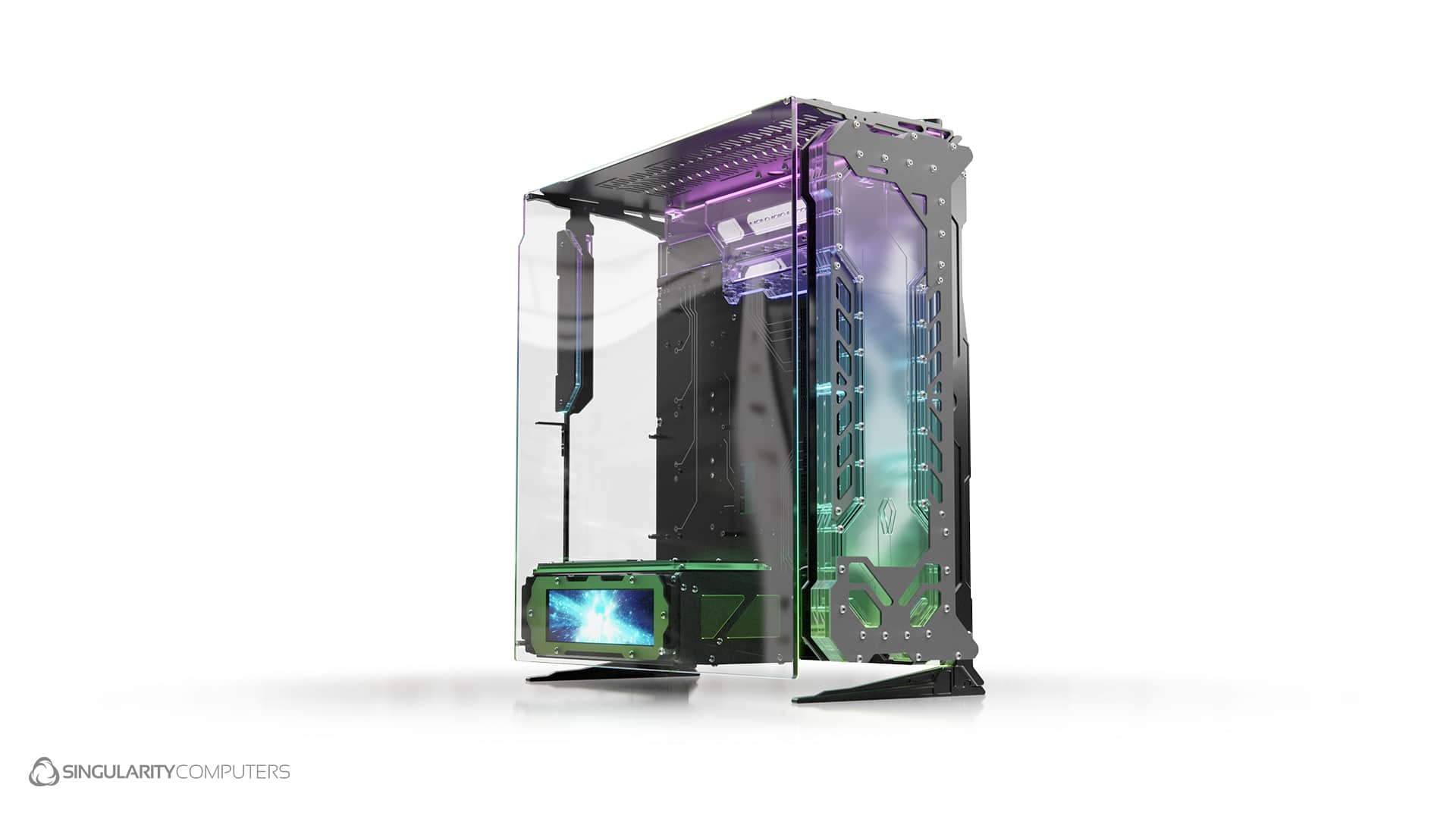

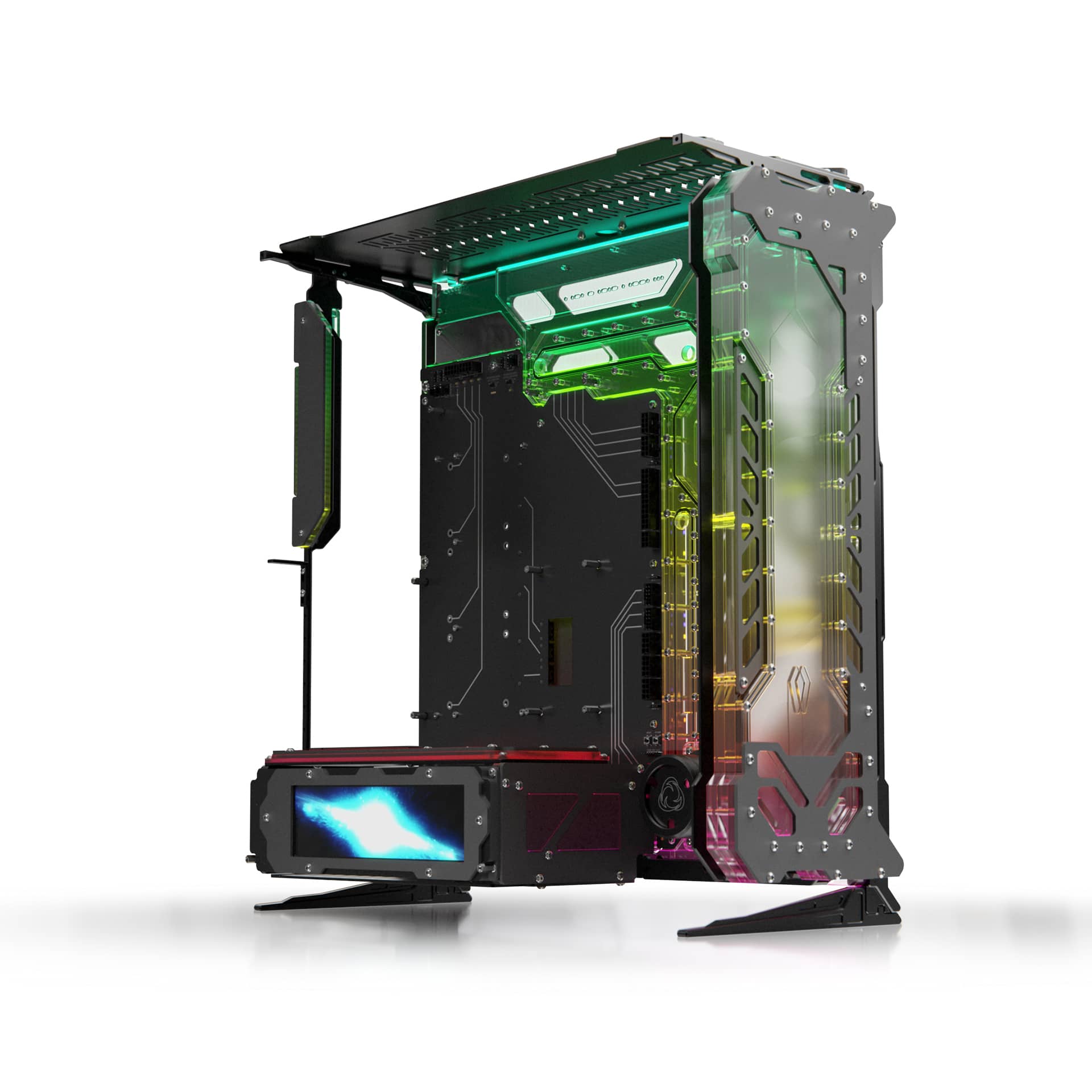

Spectre 3.0 Integra Proxima Elite Limited Edition.
Limited to 6 cases.
Spectre 3.0 Integra Proxima Elite Limited Edition White & Silver
Limited to 6 Cases.

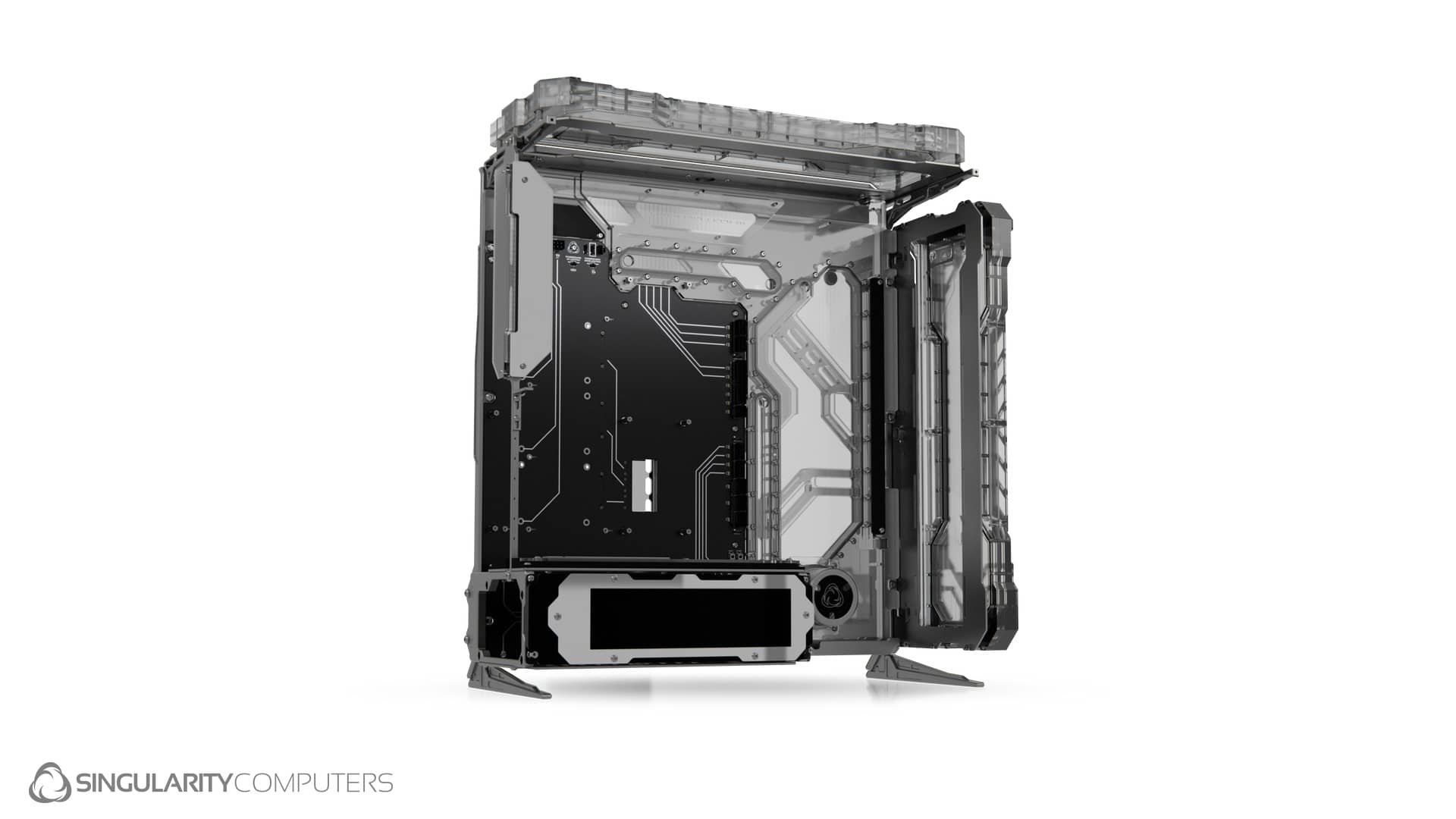

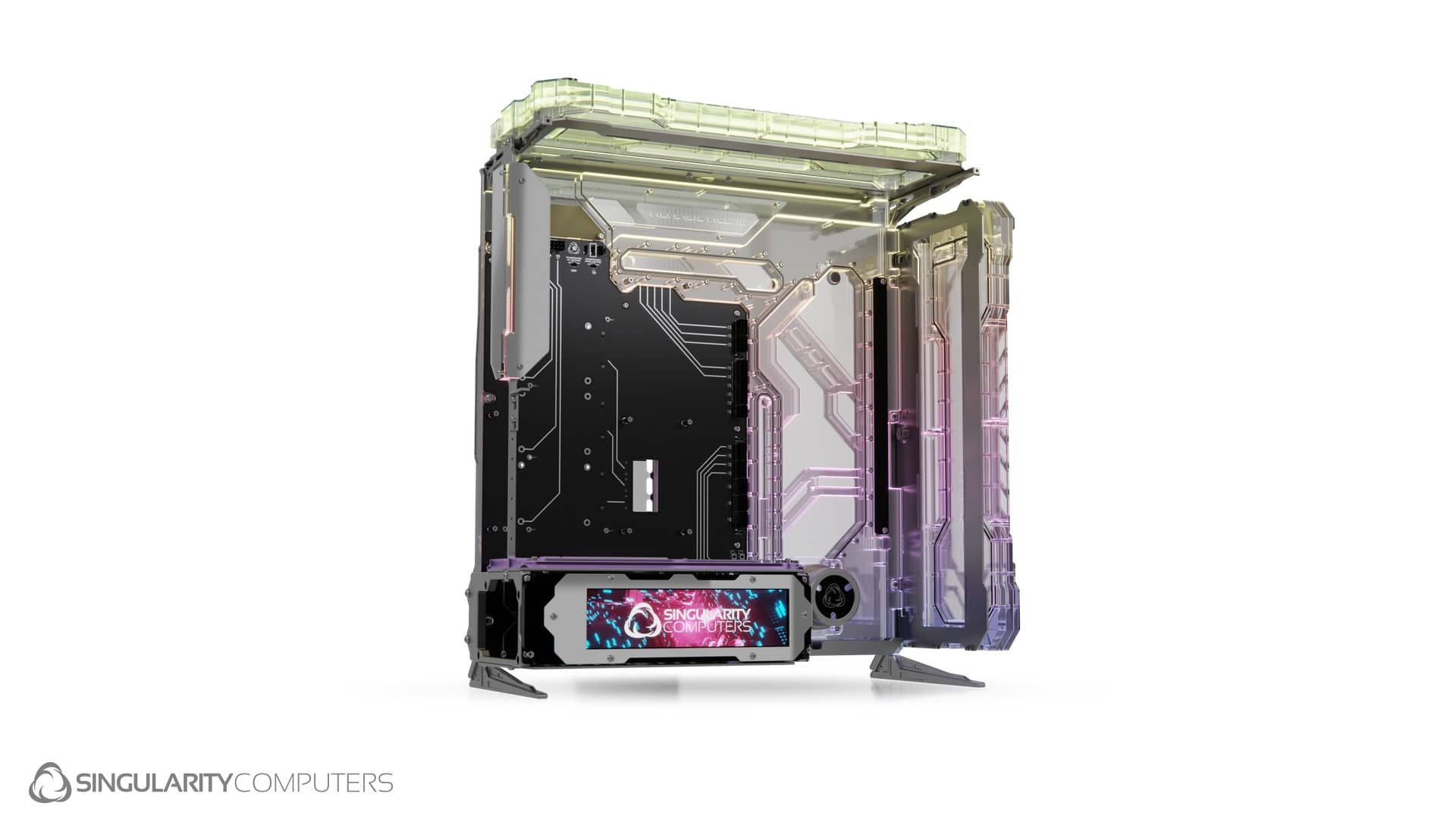

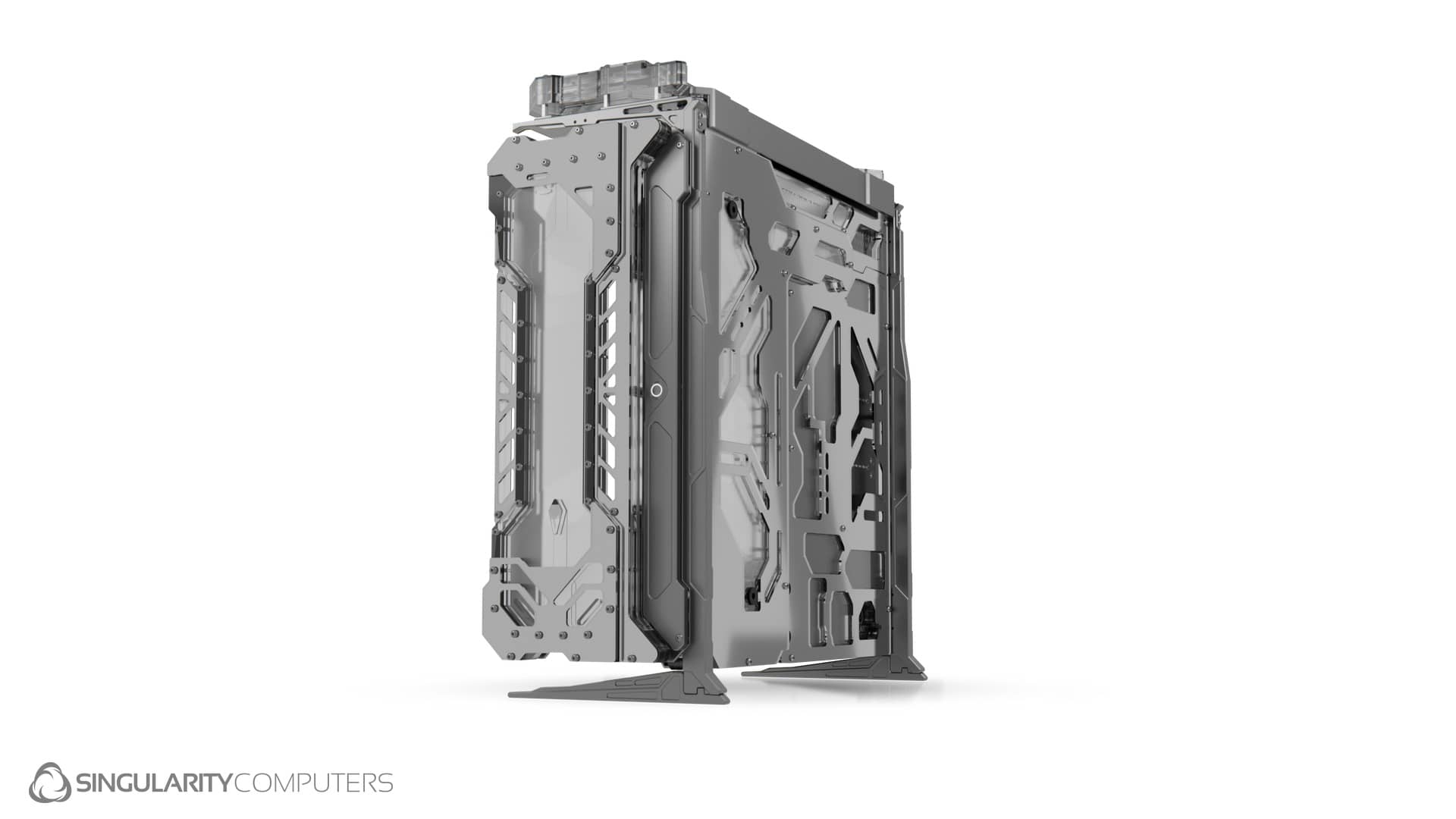

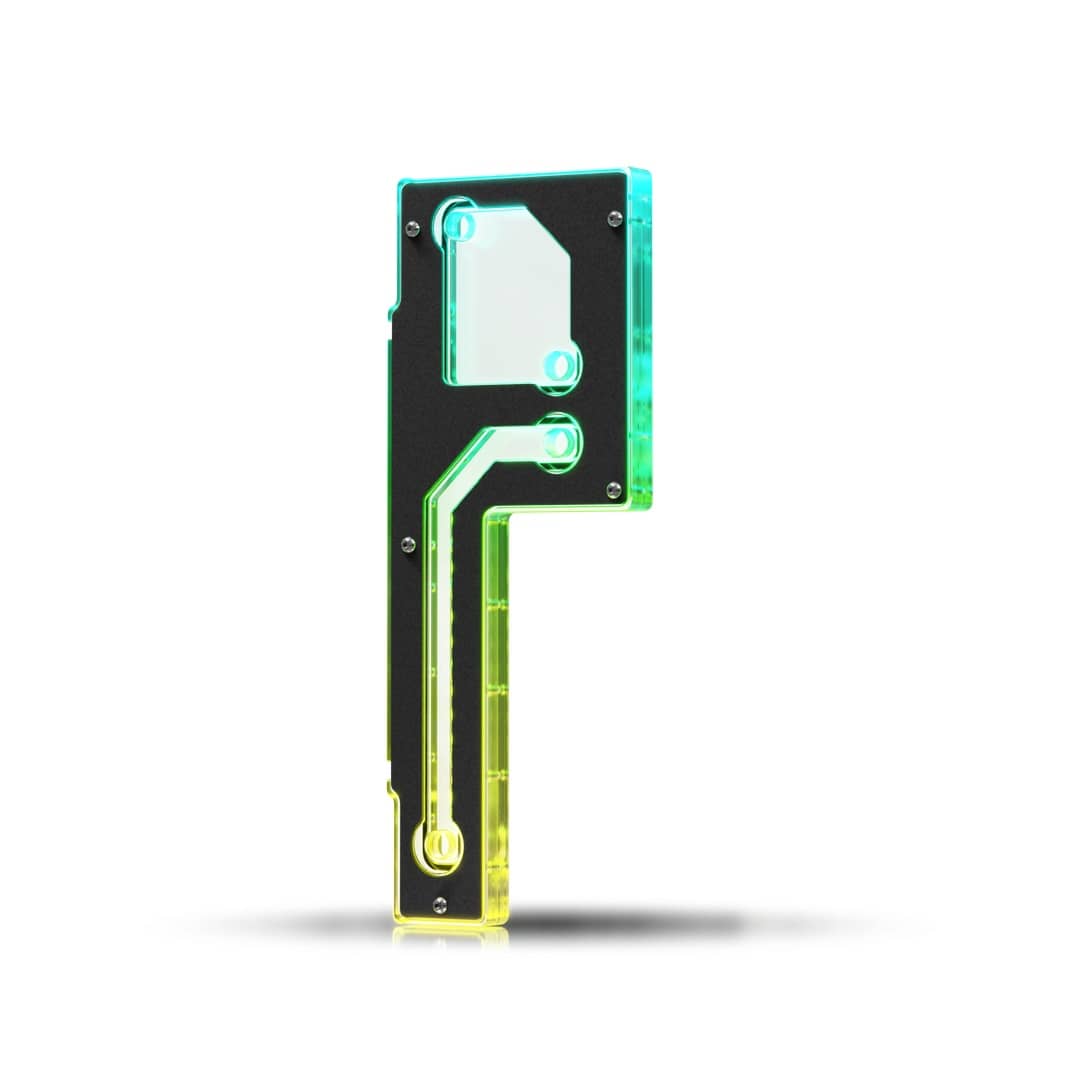

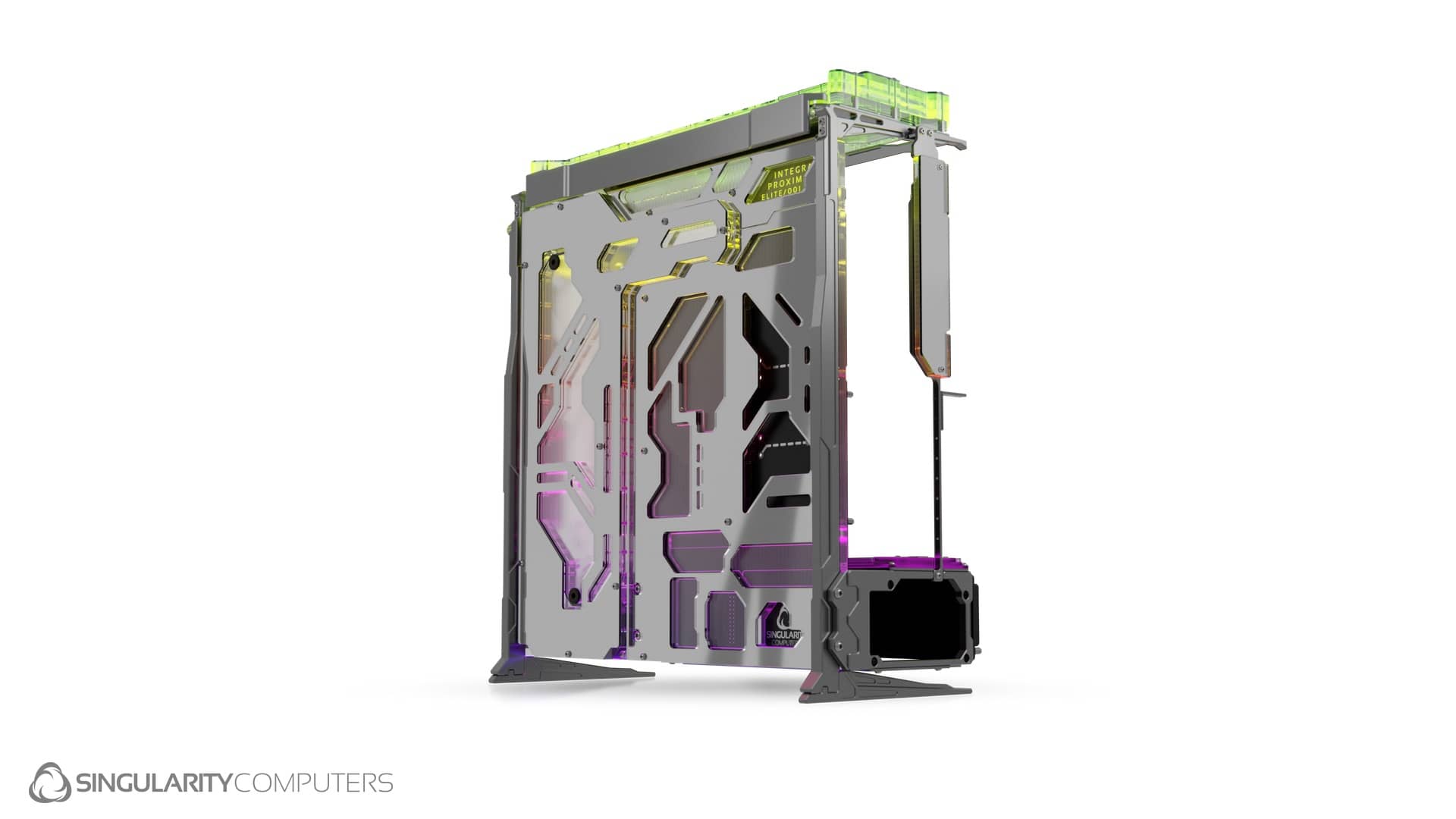

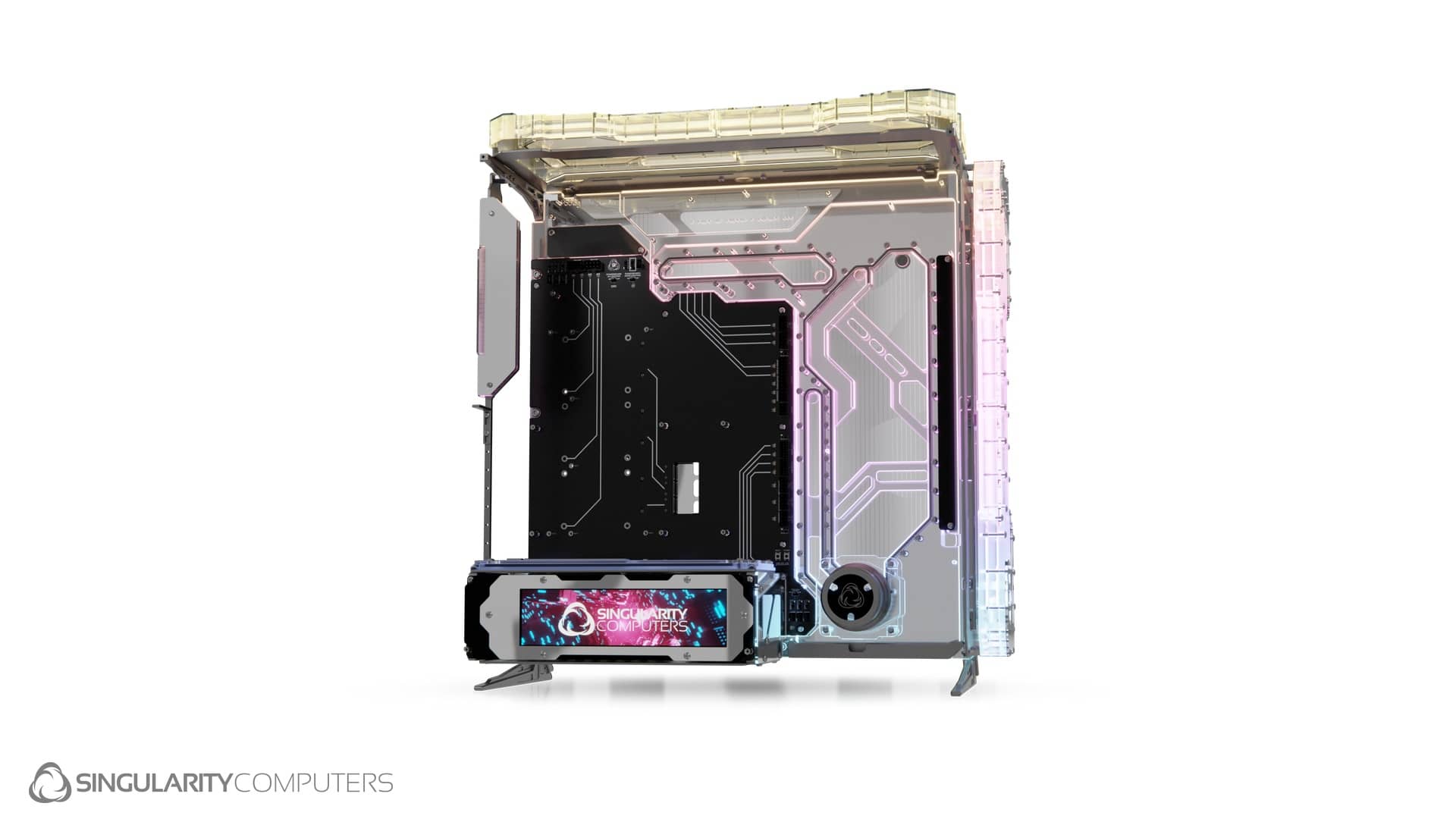

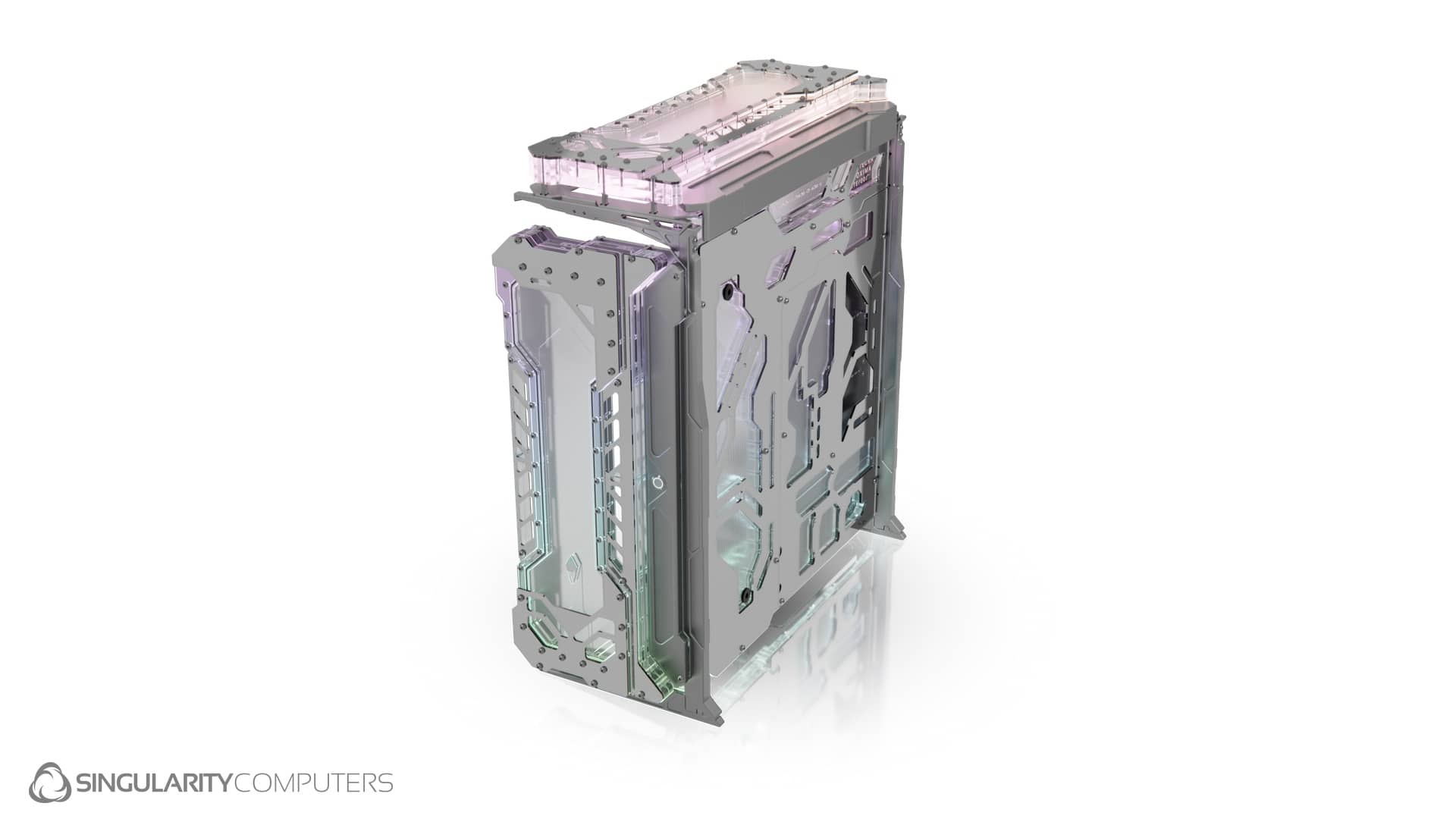

Spectre 3.0 Integra Proxima Elite Limited Edition Silver has silver metal components and silver mirror covers on the distribution plate facing both towards the back and towards the front. This creates unmatched lighting effects because the forward facing silver mirror reflects the glowing distribution plate in front of it, and the components in the build. There are also silver mirror cover panels on the PSU Top Shroud, PSU Front Shroud and Rear IO Panel. The case comes included with two Spectre 3.0 Proxima Elite Radiator Distribution Plates, one on the front panel and one on the top panel. They are a special version exclusively for Spectre 3.0 Proxima Elite Limited Edition Silver which have silver mirror cover panels.

Integrated Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all D5 pumps.
Pump Cover: Protium 3.0 D5 Pump Cover.
Connections: 24pin x1. PCIE 8pin x 3. 8pin EPS x4. PCIE 6pin Supplementary x1. 12VHPWR x2.
Hubs: PWM: x6. ARGB: x7 (Single input for all output connectors).
LEDs: x27 Integrated ARGB 90-degree LEDs and x18 UV 90-degree LEDs around the external perimeter of the PowerBoard. There are two switches on the PowerBoard one switches the ARGB on or off and the other switches the UV on or off (both can be on or off at the same time).
Touch sensing Power Button. Power and Reset Buttons.
PowerBoard direct mount 3x 2.5” SATA 3.0 6Gb/s accessible from the back of the distribution plate.
Screen: IPS 1920×480 60Hz.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3. 18AWG Black Headshrinkless Sleeve. PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1. Screen cables: Mini HDMI to HDMI Black 1m (Signal). USB-A to USB Micro-B 0.9m (Power). Touch Power Button Cables: Power, Reset, LED +/- Black 20cm.
LED Strips: Total included x8: 50cm ARGB LED Strips with 50cm cables x3. 30cm ARGB LED Strips x3 with 50cm cables (preinstalled). 50cm LED Strips x2 (preinstalled).
Motherboard Form Factor: XL-ATX (Up to: 285mm Wide & 343.5mm High). E-ATX, ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Mid Tower.
Package Dimensions: L: 640mm W: 620mm H: 110mm (Case is flat packed and requires partial assembly).
Package Weight: 25kg.
Case Dimensions: L: 545mm H: 595mm W: 254mm.
Case Weight: 23kg.
Storage: 10x 2.5”. x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x4 are inside of the PSU Shroud. X3 are on the PowerBoard behind the PSU.
Radiators: 360mm x 60mm with x1 set of standard 25mm fans. Or 360mm x 40mm with x2 sets of standard 25mm fans (Push/Pull).
Maximum GPU Length: 500mm.
Maximum GPU Height: 170mm in standard orientation. Unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 220mm (Space allowed for cables inside of PSU shroud).
Front Panel I/O: No Front I/O. Vandal Switch 16mm white LED.
Vertical GPU Mount: x2 with 3 slot (60mm) spacing. x1 is included. 2nd Vertical GPU Mount available separately.

Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
