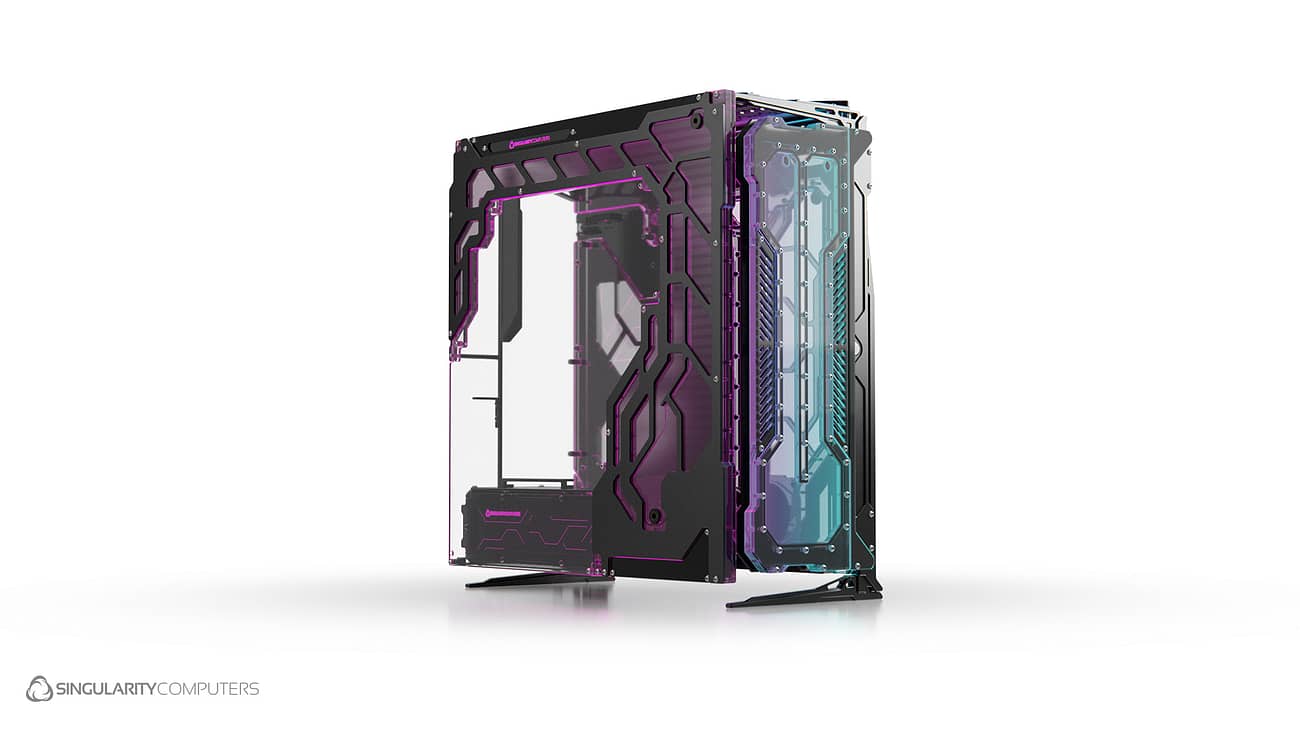

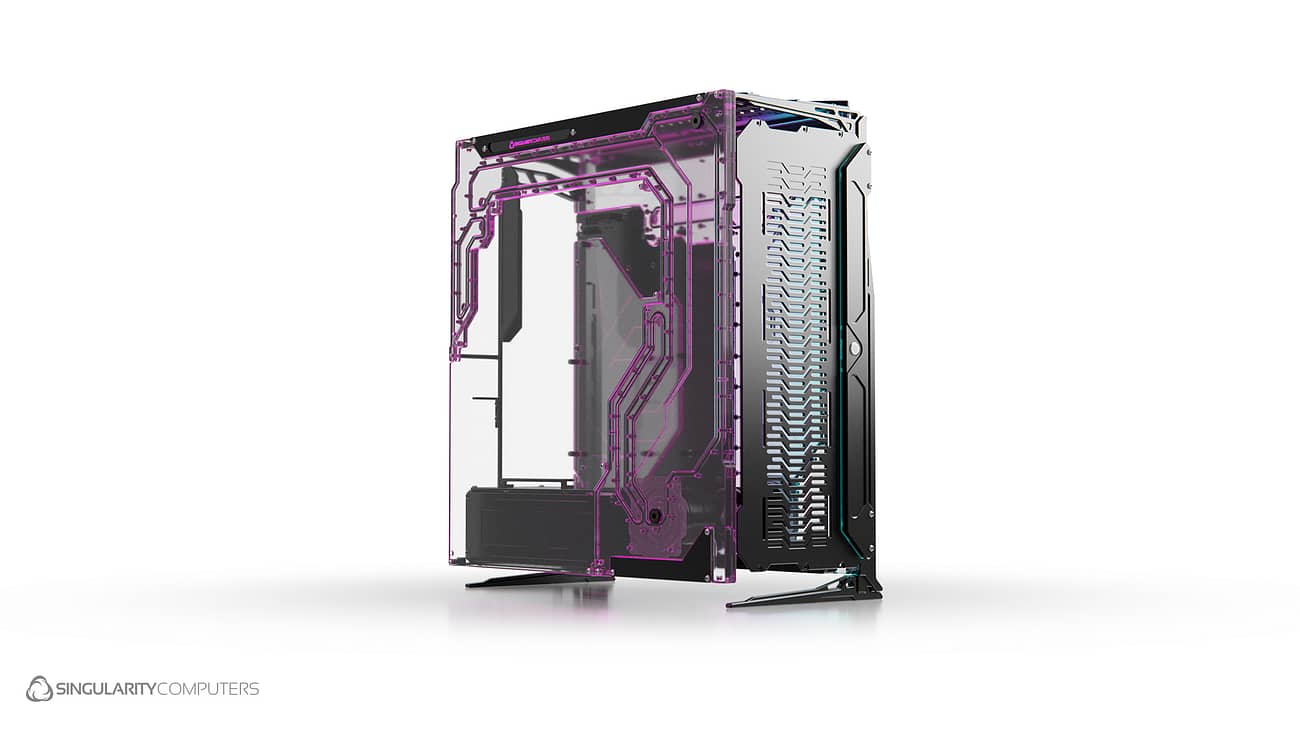

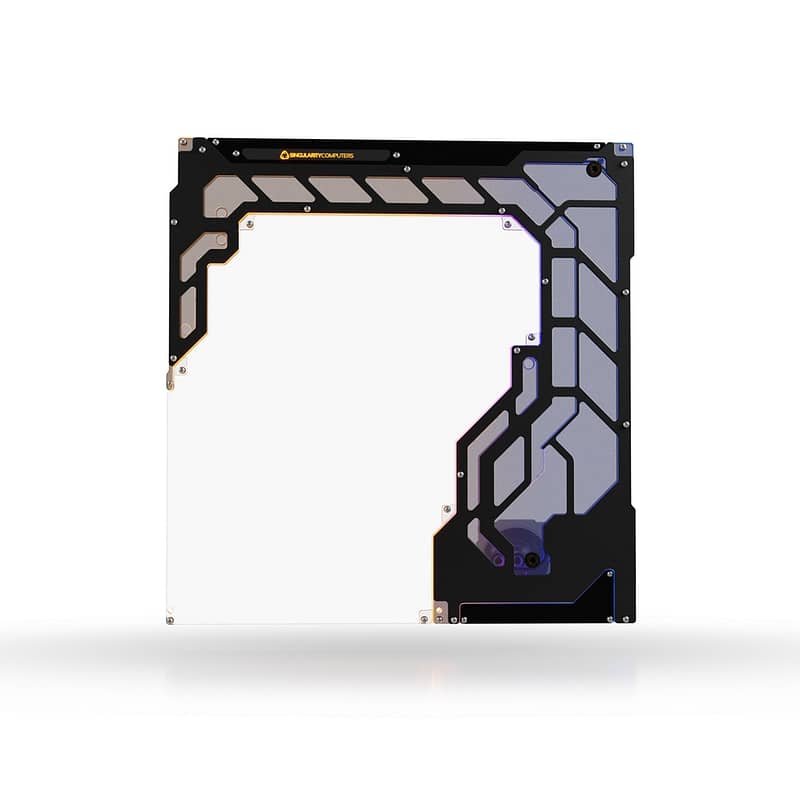

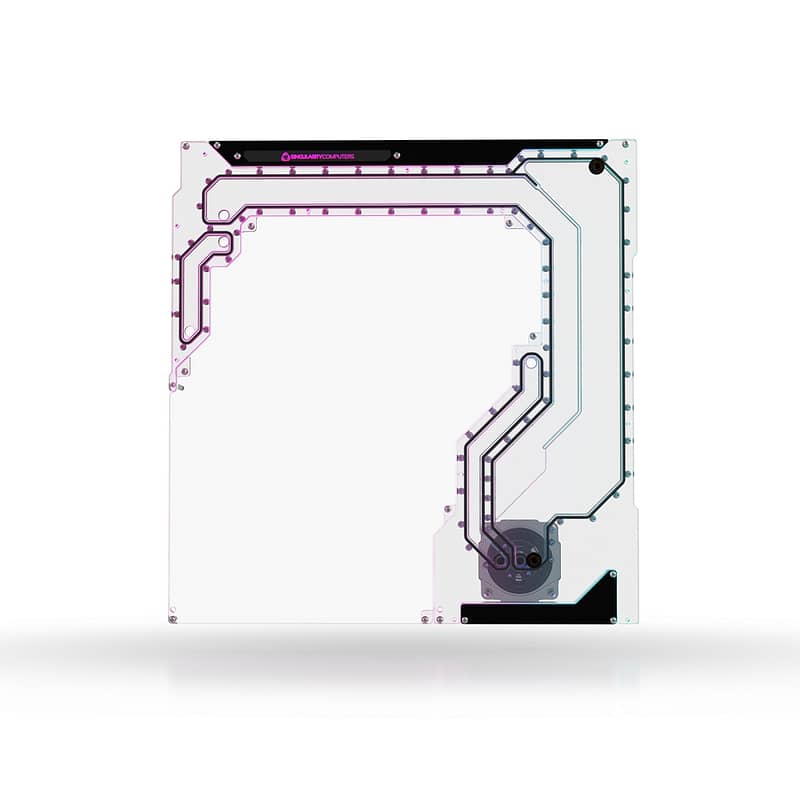

Spectre 3.0 Dual Loop Side Panel Dark
US$629.00

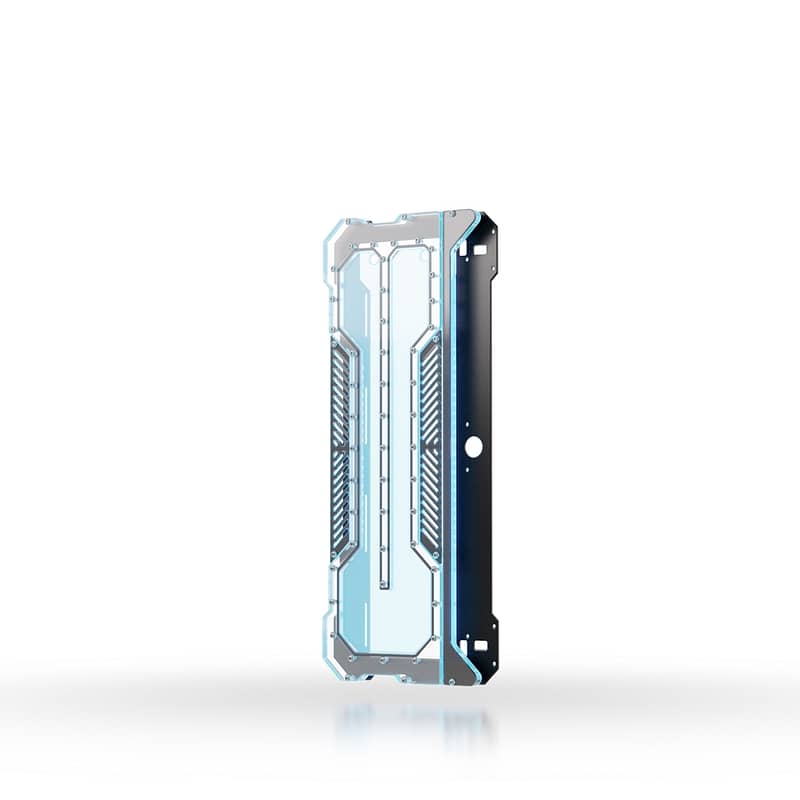

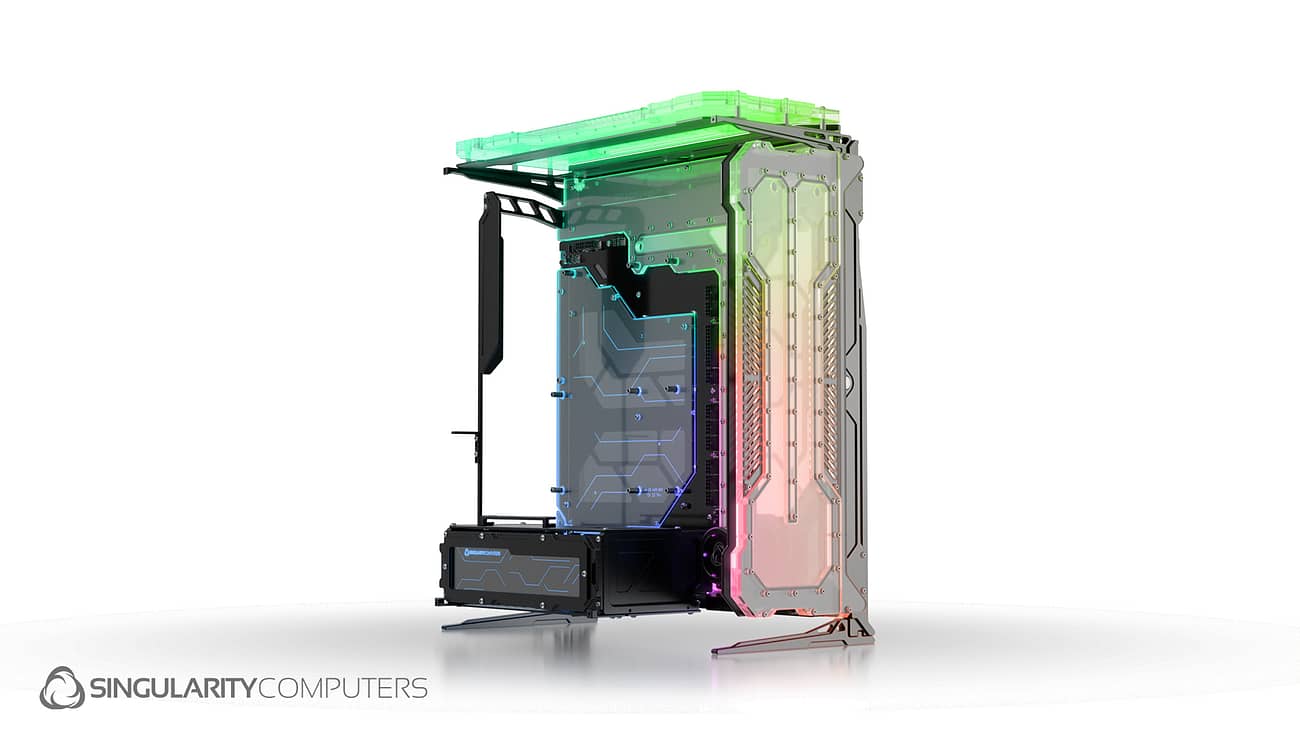

Spectre 3.0 Integra Elite Black
US$449.00

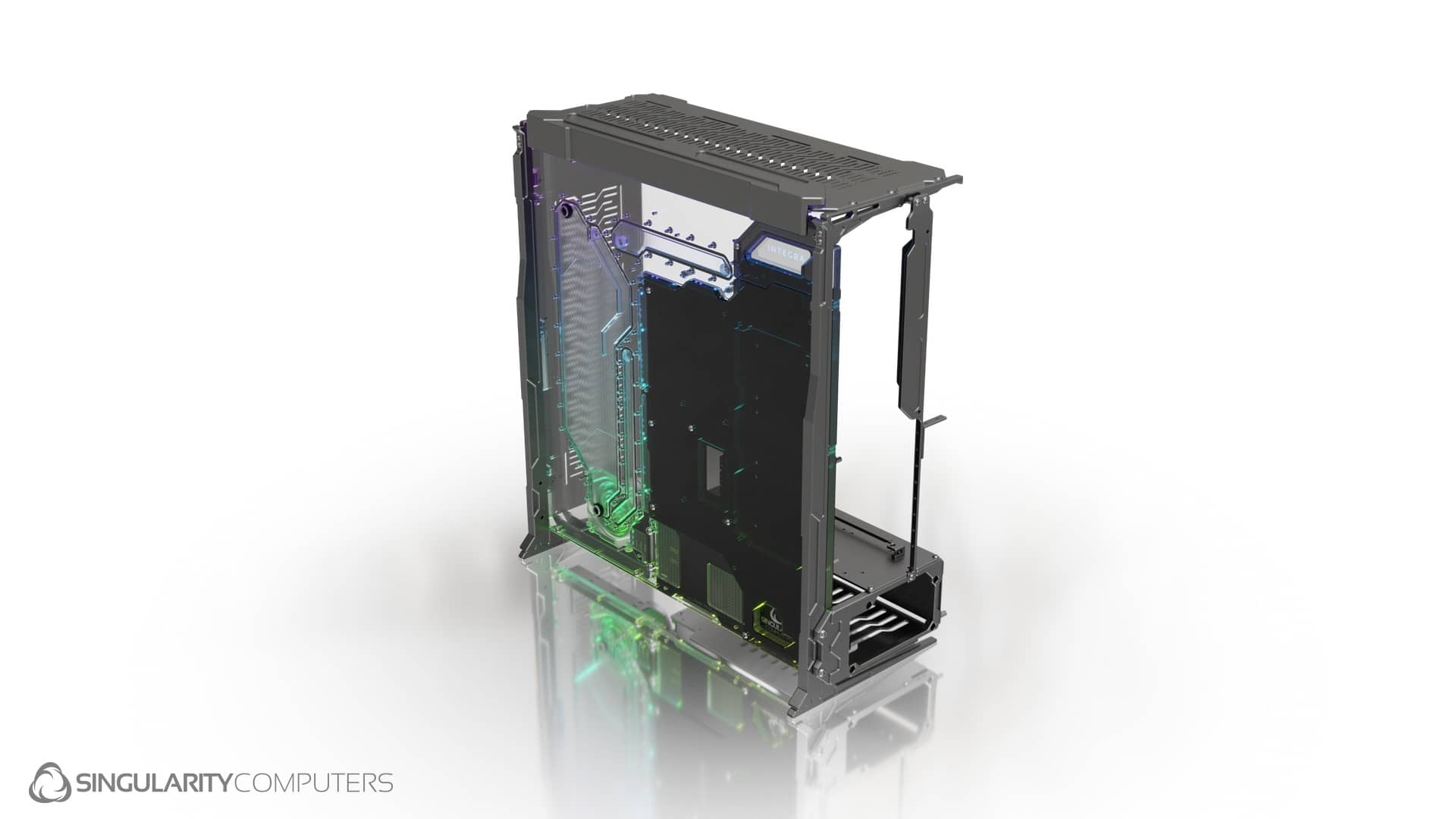

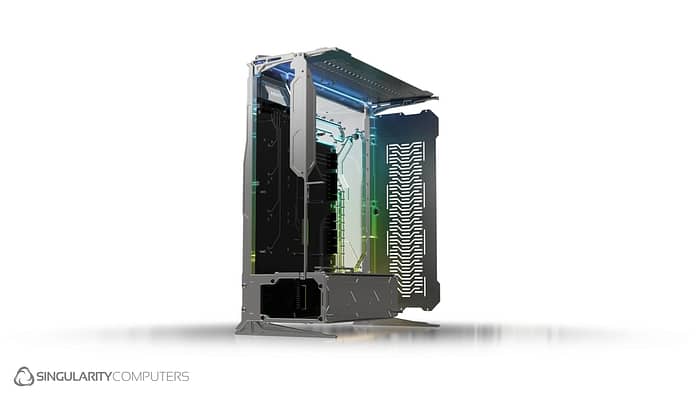

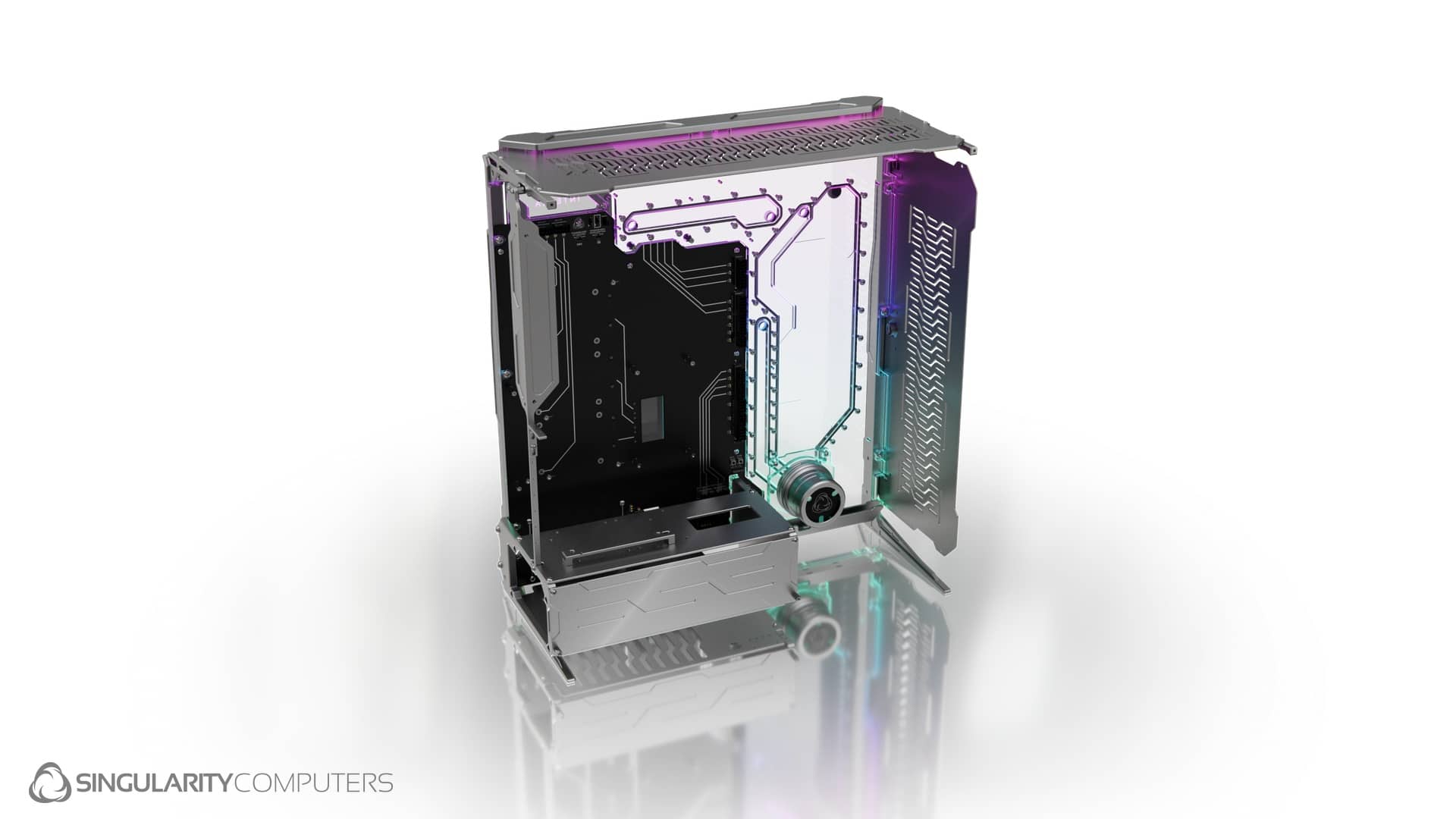

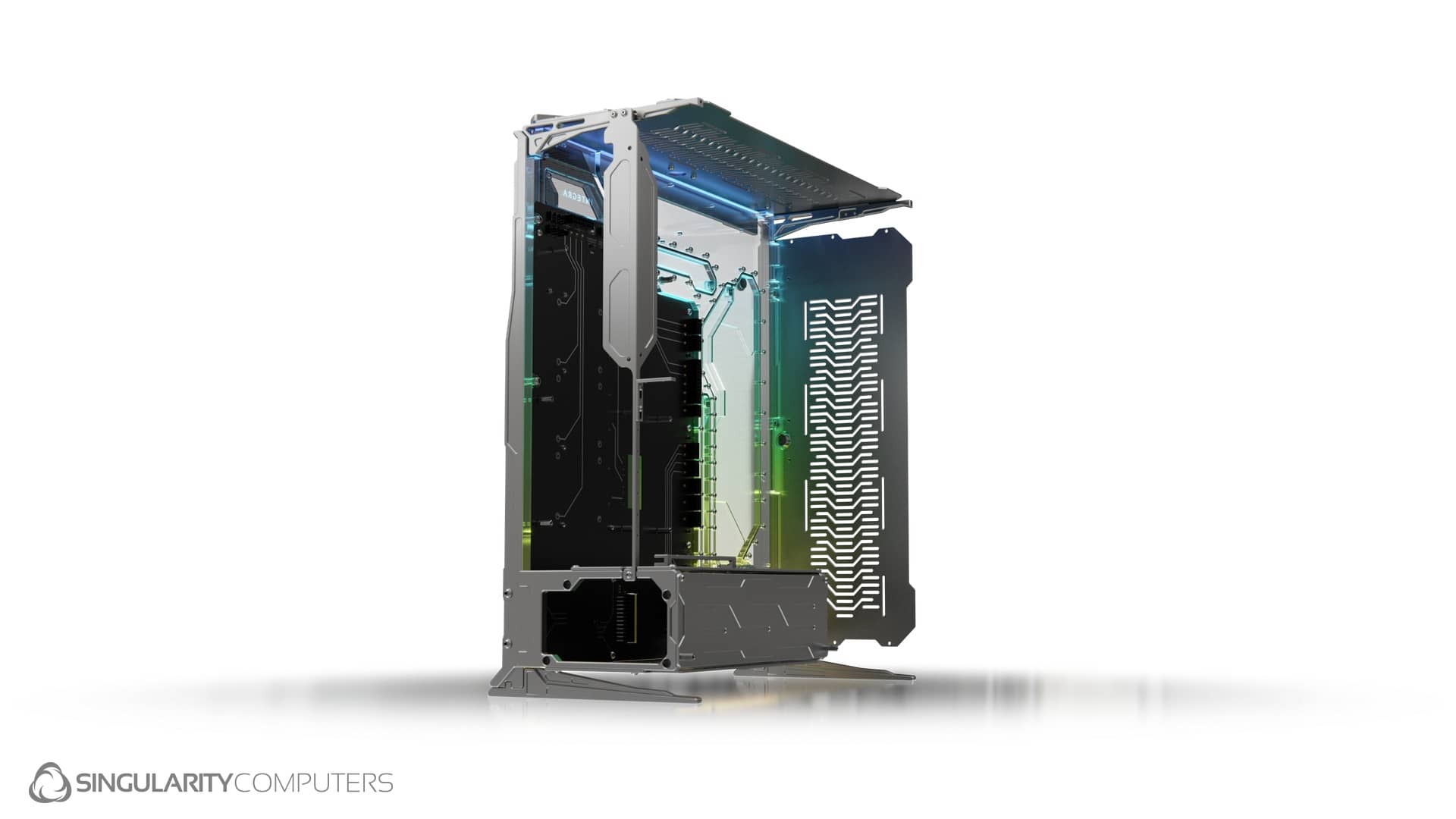

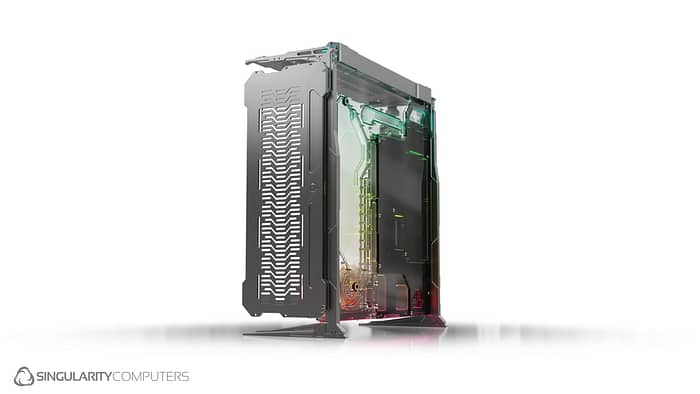

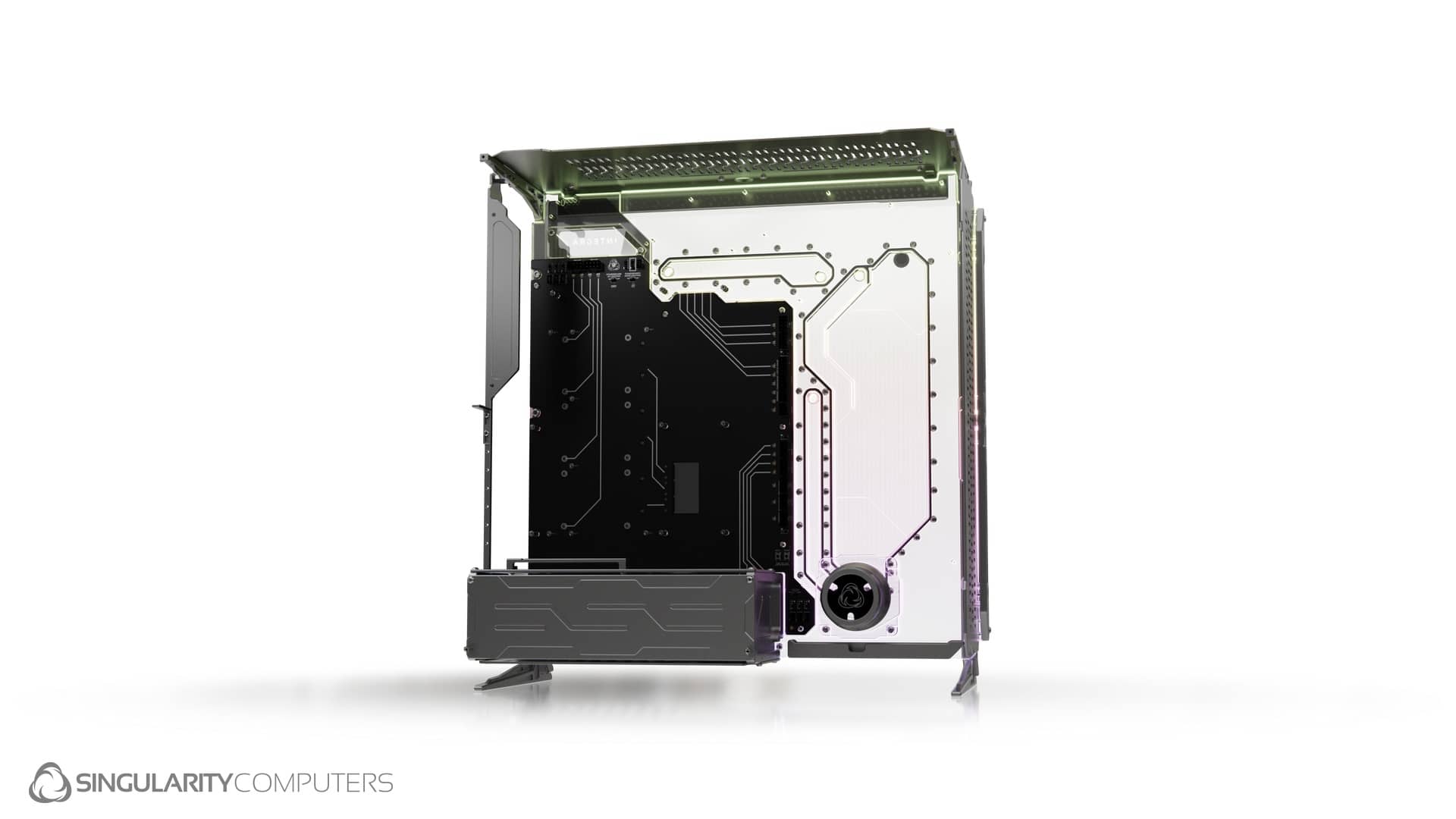

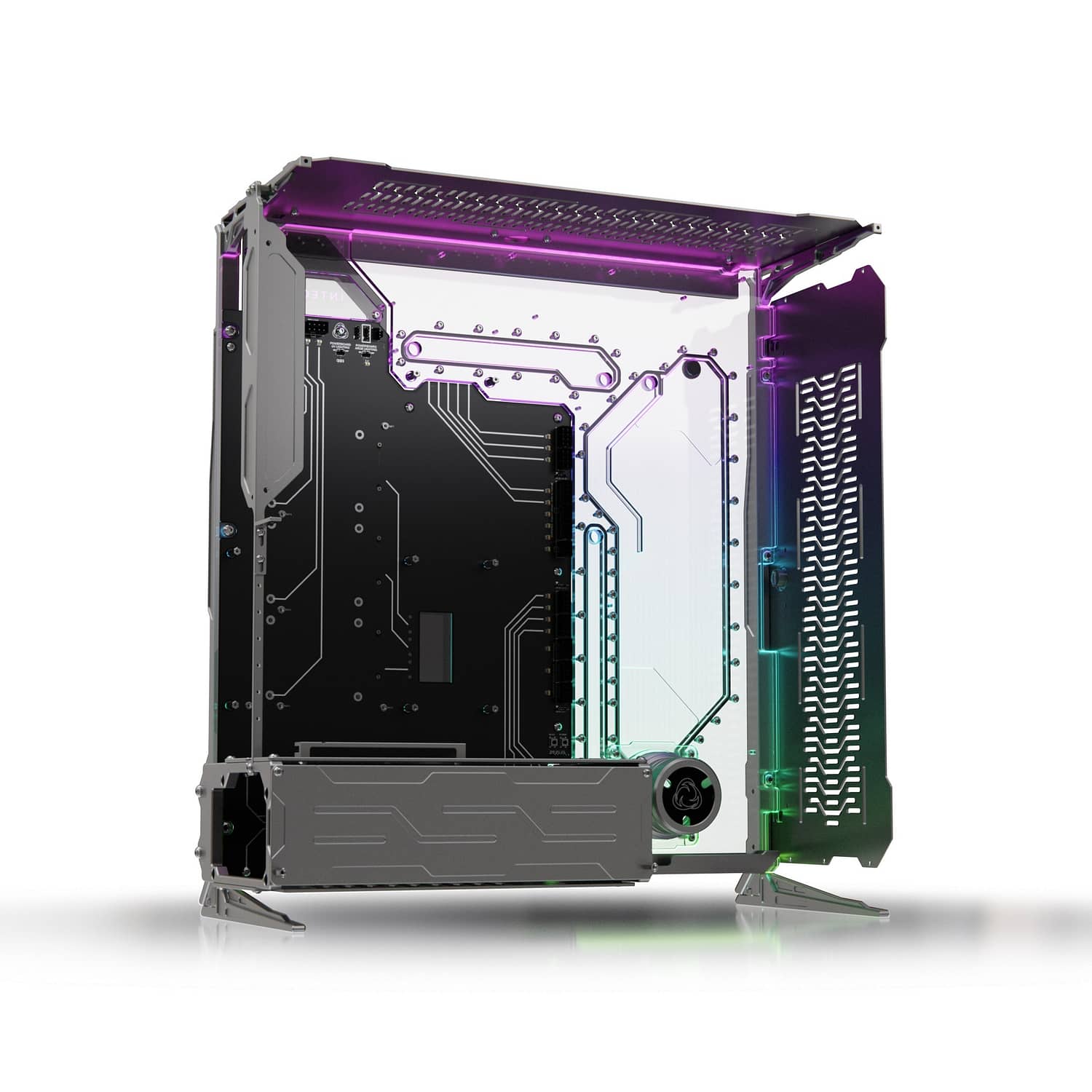

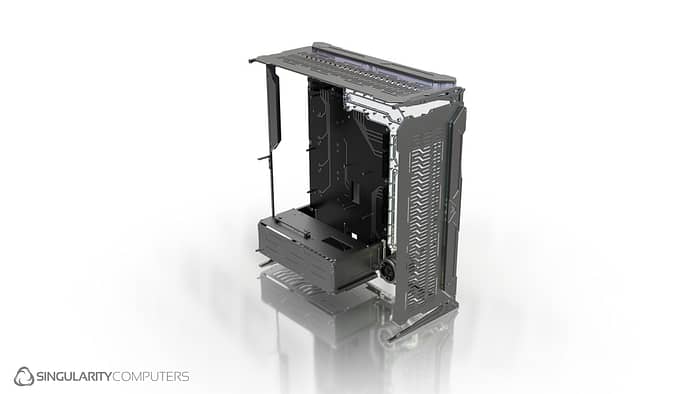

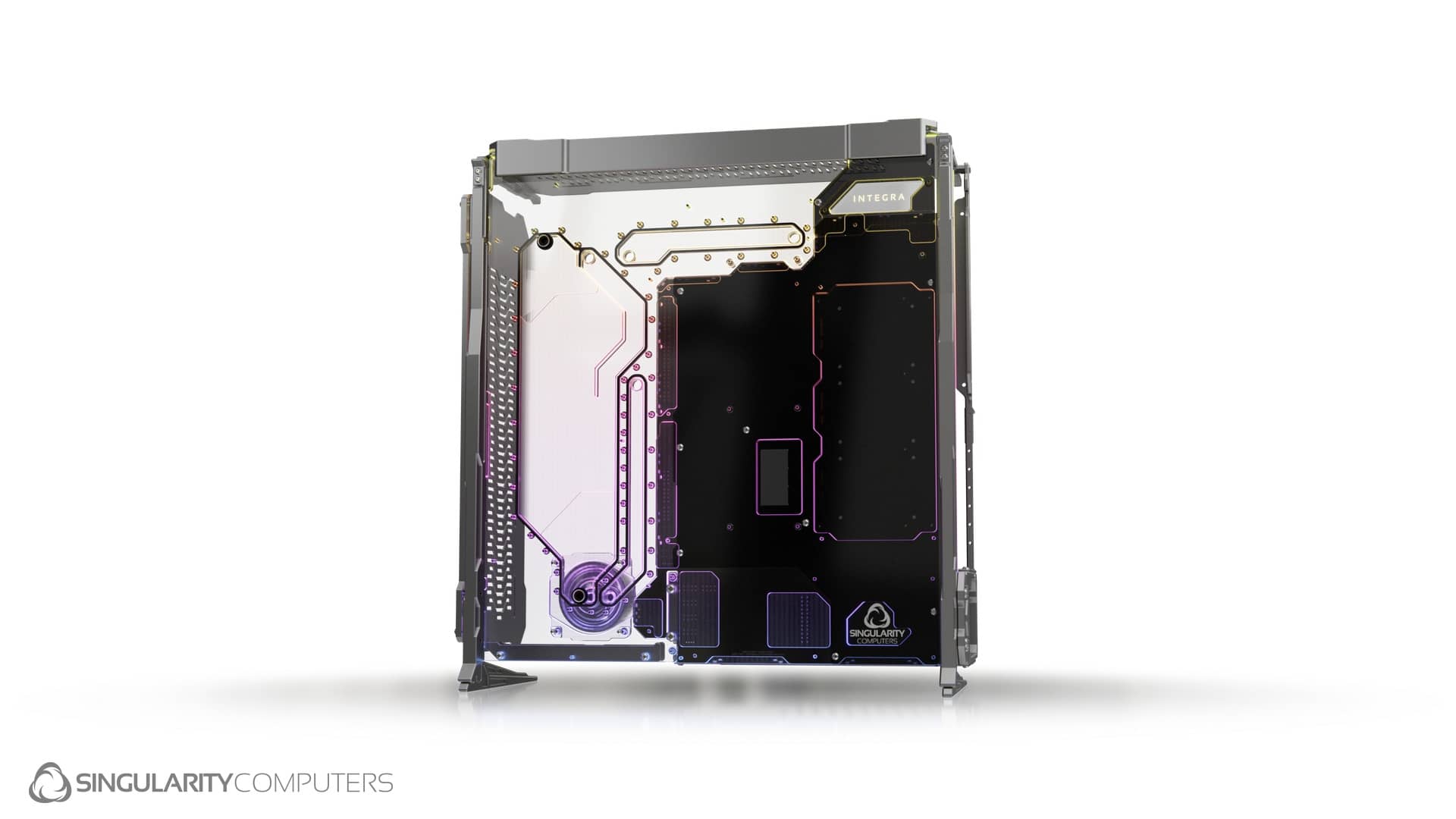

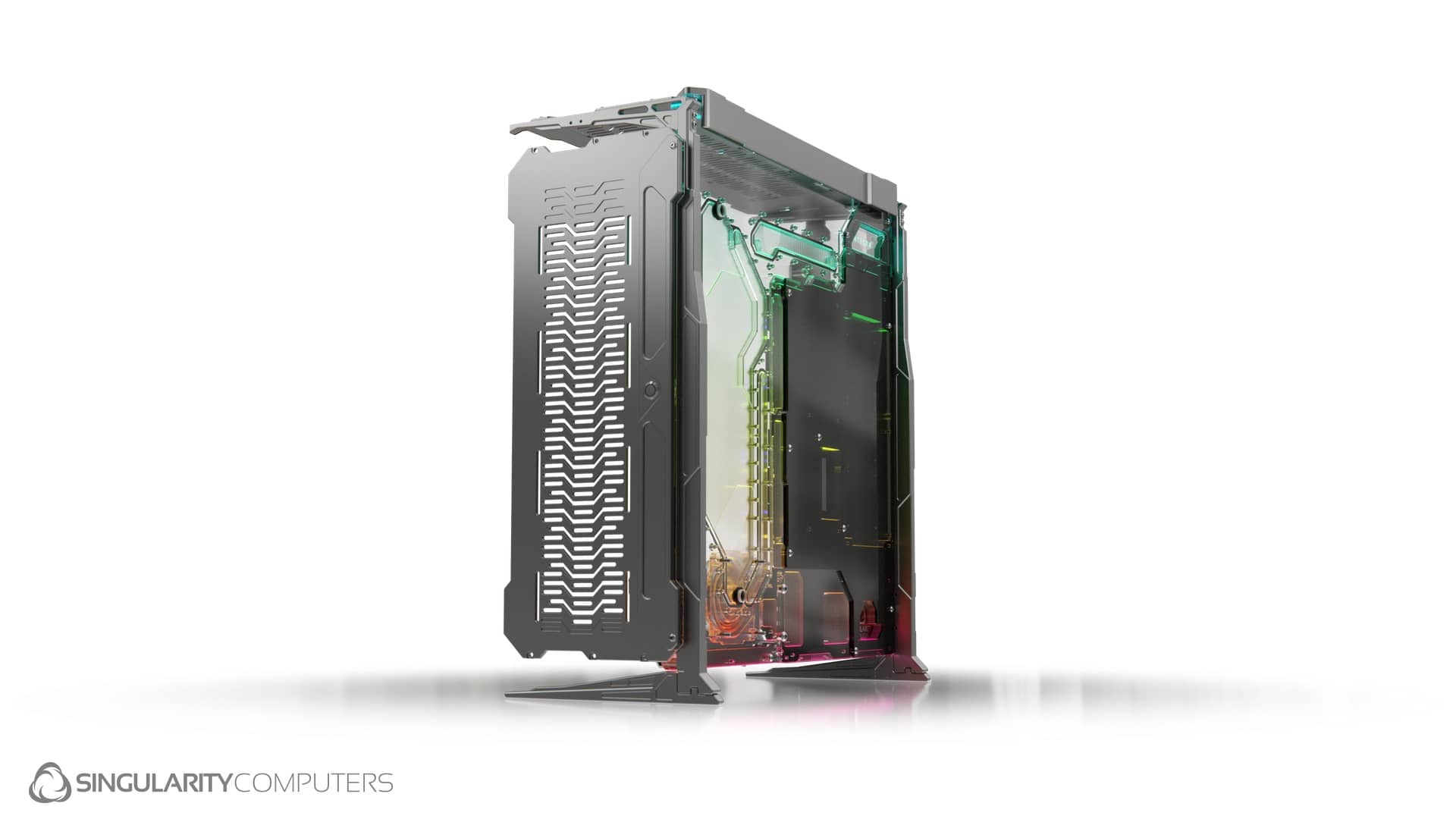

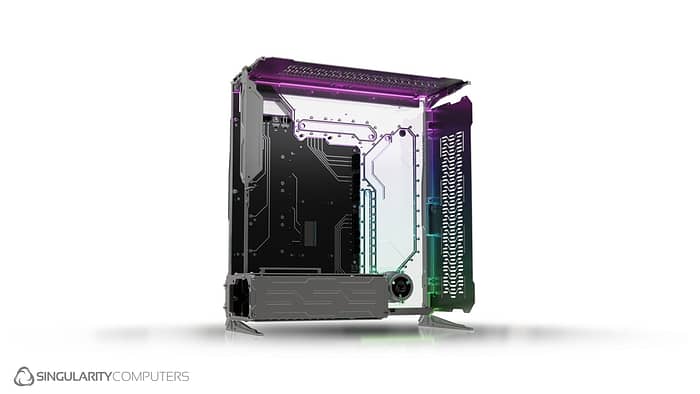

Spectre 3.0 Integra Silver

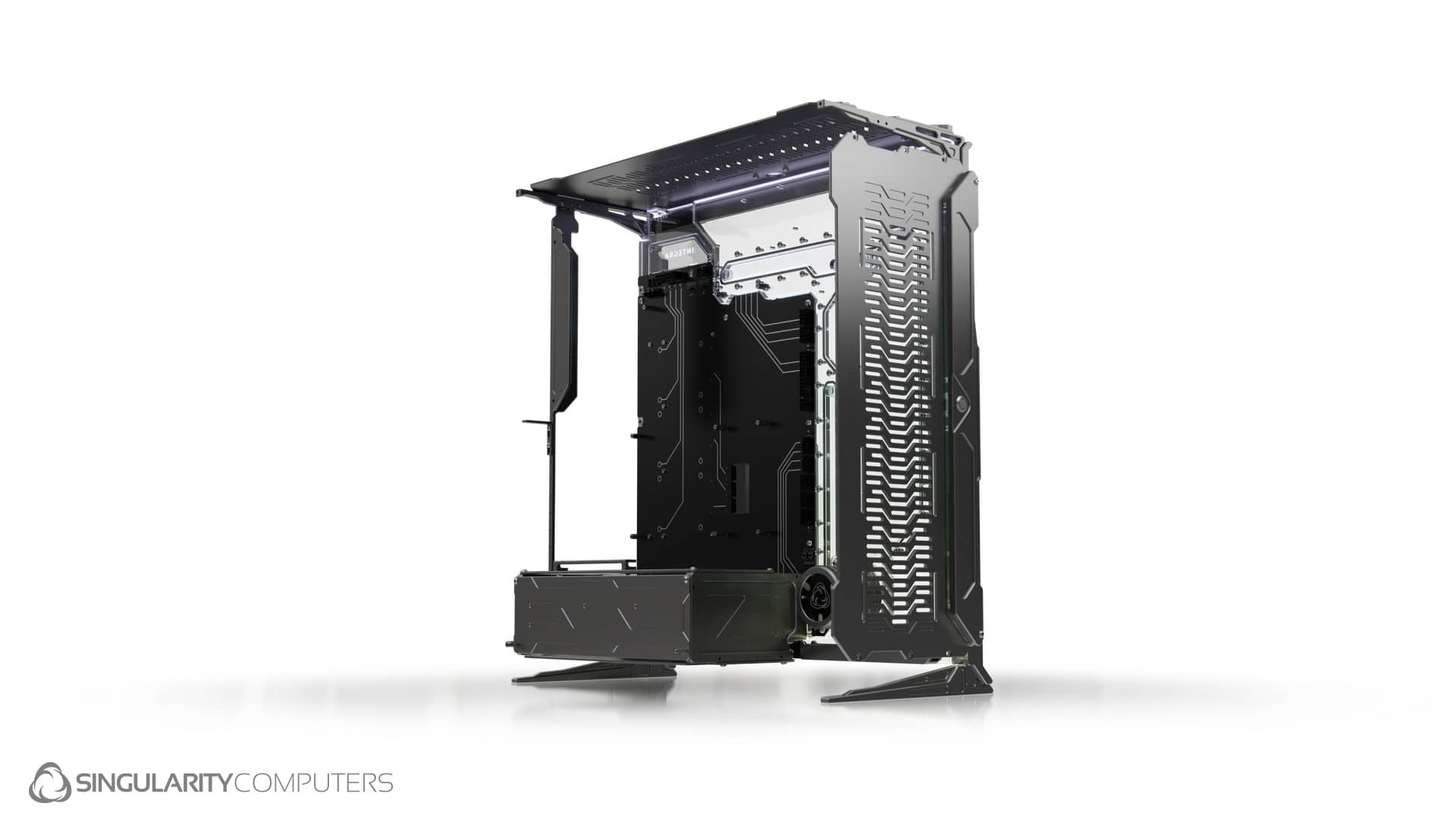

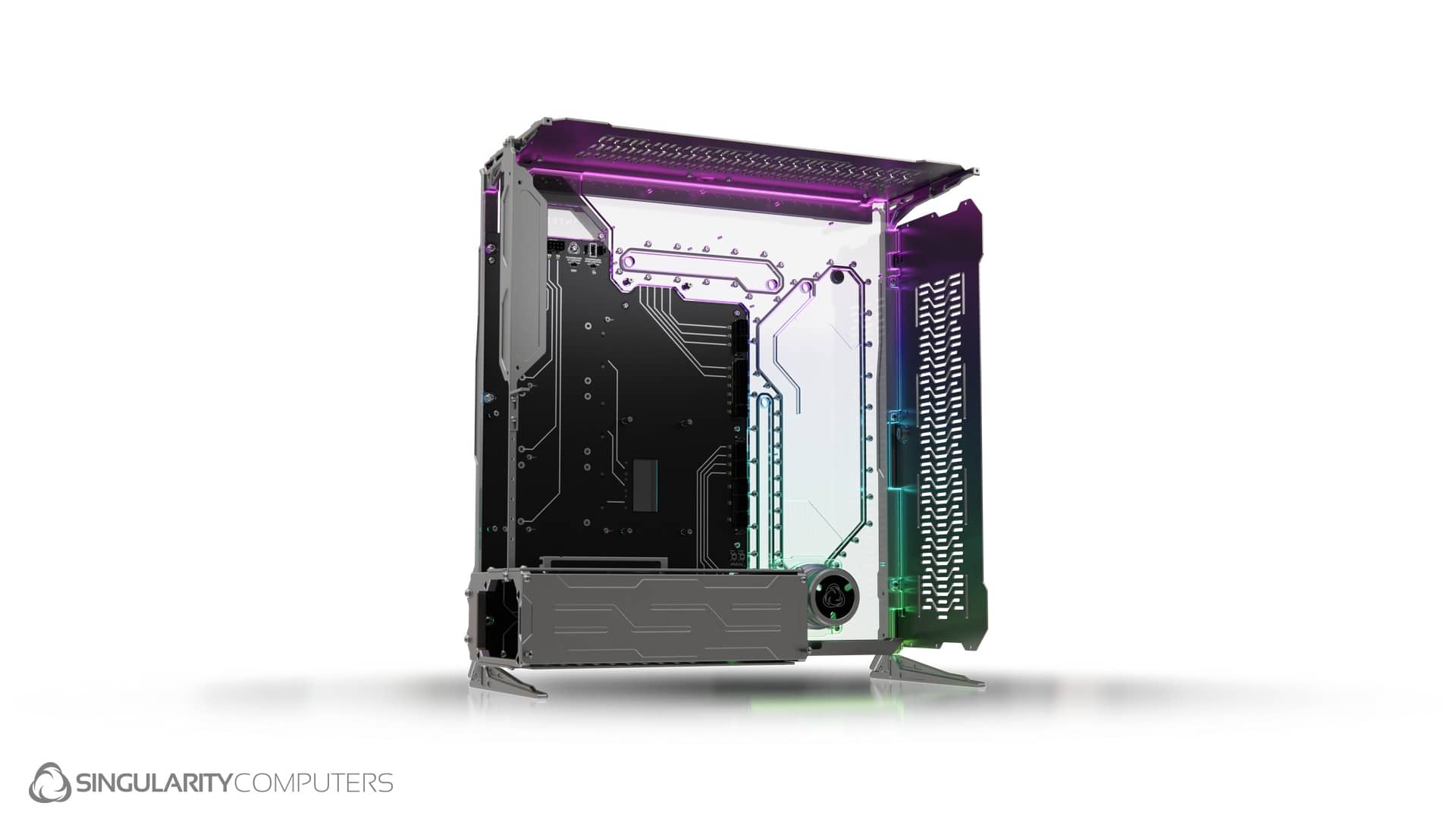

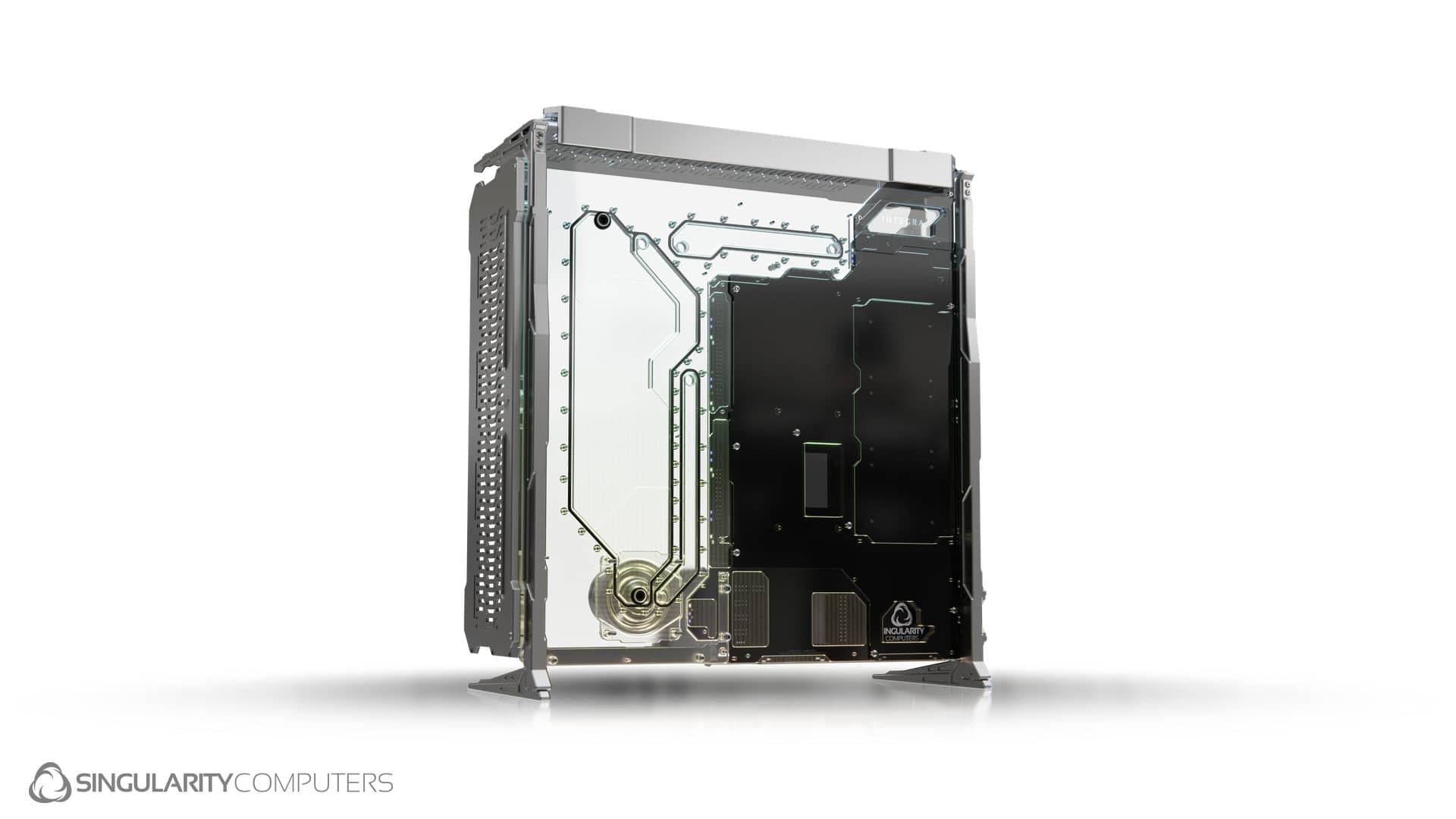

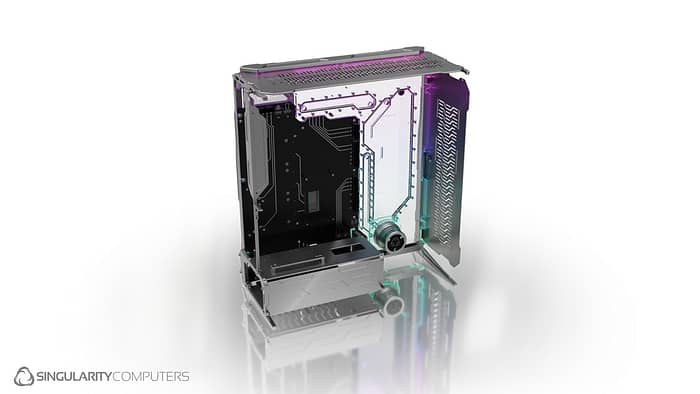

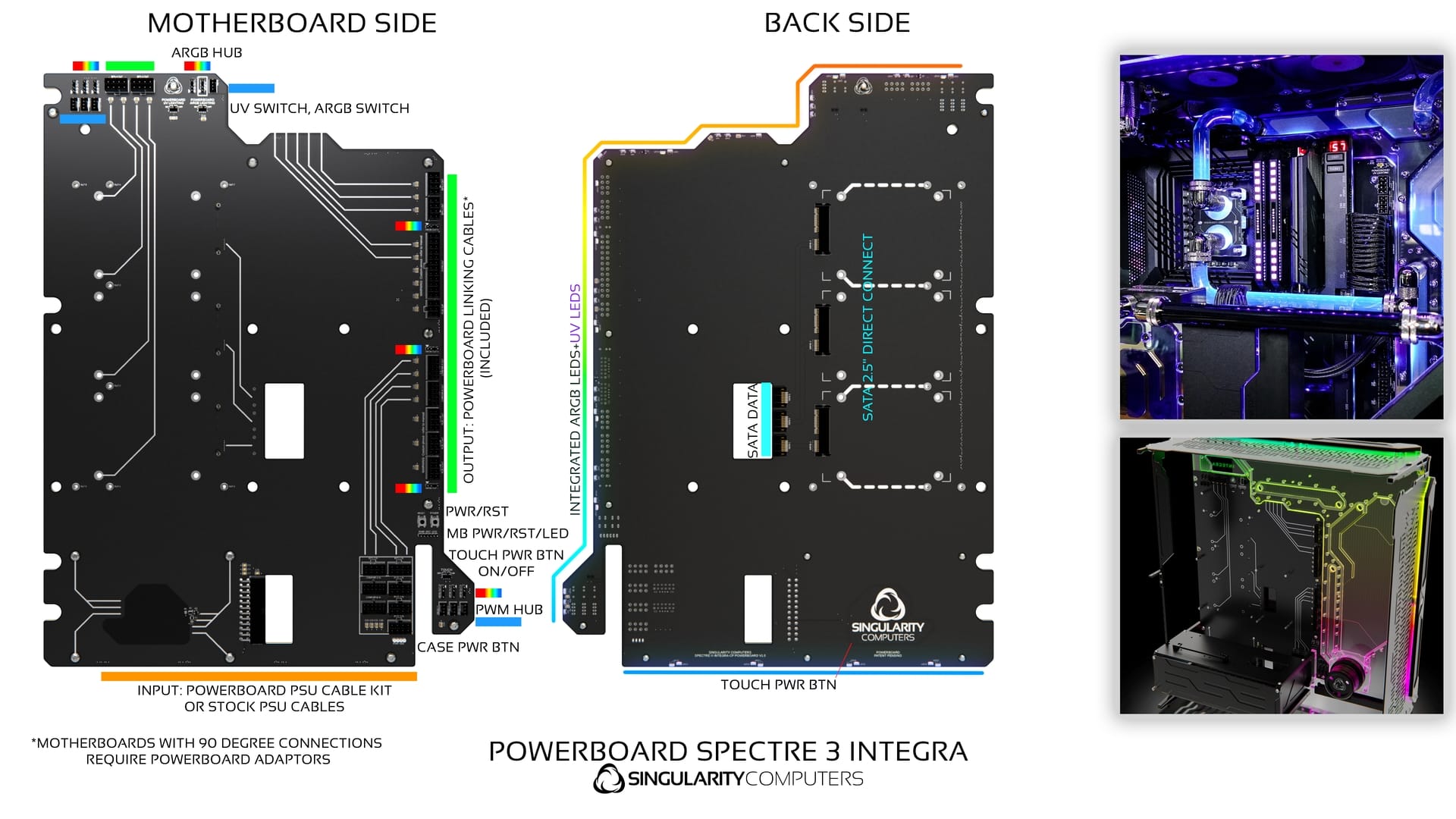

Spectre 3.0 Integra has much of the water-cooling loop integrated along with a fully integrated solution/replacement for cables with the Singularity Computers PowerBoard. The reservoir, pump top, pump cover, fill and drain ports and part of the cooling loop are integrated. Previously we have created PowerBoards for existing cases, but for Integra we have developed the PowerBoard and case together. This means that both have become far more streamlined, meaning more features and compatibility. The PowerBoard supports the most high-end components and features built in filter capacitors, more integrated LEDs facing inwards and outwards, integrated direct connect SATA, power, and reset buttons, and a touch activated power button. There is now no rear access needed to the case due to the PowerBoard, all cables can be connected from the front and little to no cable management is required. A standard set of black sleeved linking cables are included with the case. Integra has integrated PowerBoard LEDs facing inwards towards the motherboard tray and outwards towards the distribution plate. There are two separate sets of LEDs for ARGB or UV, and they can be switched on or off, or from UV to ARGB via two switches on the PowerBoard.
Note: Motherboards with 90 degree 24pin, EPS and/or 6pin Supplementary connections will require PowerBoard Adaptors available here.
The following cables are included with the product: 24pin x1, 8pin EPS x2. You can select either 12VHPWR or 8pin PCIE x3 below.
If other cables are required they are available
Here
Optional PowerBoard PSU Cable Kit is available
Here
For motherboards with 90 degree connectors adaptors are available
Here
Note: Pump/s not included.
US$1,599.00
Specifications:
Integrated Reservoir, D5 Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop. Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all D5 pumps.
Pump Cover: Protium 3.0.
Connections: 24pin x1. PCIE 8pin x 3. 8pin EPS x4. PCIE 6pin Supplementary x1. 12VHPWR x2.
Hubs: PWM: x6. ARGB: x7 (Single input for all output connectors).
LEDs: x27 Integrated ARGB 90-degree LEDs and x18 UV 90-degree LEDs around the external perimeter of the PowerBoard. There are two switches on the PowerBoard one switches the ARGB on or off and the other switches the UV on or off (both can be on or off at the same time).
Touch sensing Power Button. Power and Reset Buttons.
PowerBoard direct mount 3x 2.5” SATA 3.0 6Gb/s accessible from the back of the distribution plate.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3. 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
Touch Power Button Cables: Power, Reset, LED +/- Black 20cm.
LED Strips: x3 50cm 5V ARGB LED Strips with 50cm cables.
Accessories: Hex Keys: M3: x1. M4: x1. M6: x1. Stop Fittings: x2. 5v ARGB LED Strip 50cm: x2.
Motherboard Form Factor: XL-ATX, EATX, ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x8.
Case Form Factor: Mid Tower.
Package Dimensions: L: 640mm W: 620mm H: 110mm (Case is flat packed and requires partial assembly).
Package Weight: 18kg.
Case Dimensions: L: 545mm H: 595mm W: 254mm.
Case Weight: 16kg.
Storage: 7 x 2.5”. x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x4 are inside of the PSU Shroud. x1 is on a direct mount on the PowerBoard.
Radiators: 360mm x2. Up to 60mm thick with a single set of 25mm fans or push/pull fans with 40mm thick radiators.
Maximum GPU Length: 500mm.
Maximum GPU Height: 170mm in standard orientation. Unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 220mm (Space allowed for cables inside of PSU shroud).
Front Panel I/O: No Front I/O. Vandal Switch 16mm white LED.
Vertical GPU Mount: x2 with 3 slot (60mm) spacing. x1 is included. 2nd Vertical GPU Mount available separately.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.|
