Home » Shop » Spectre Integra-M Dual Loop Side Panel

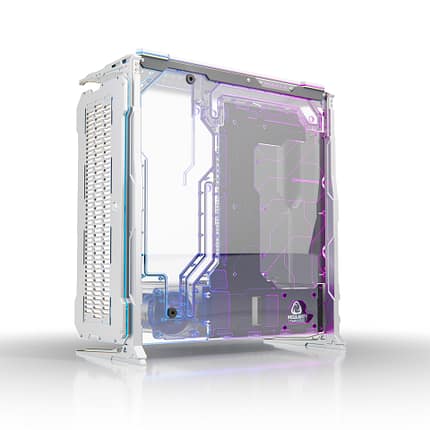

Spectre Integra-M Silver Case $999.00
Back to products

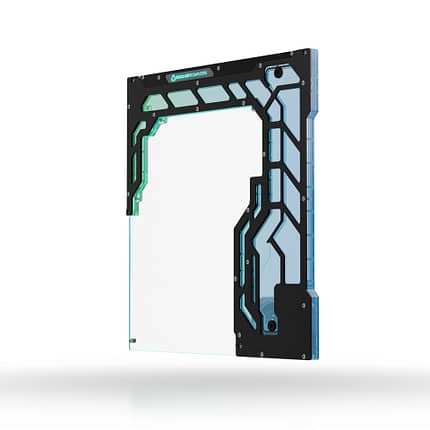

Spectre Integra-M Dual Loop Side Panel Dark $439.00

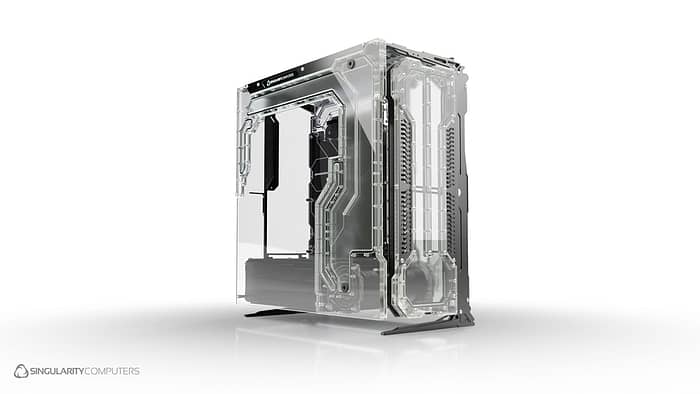

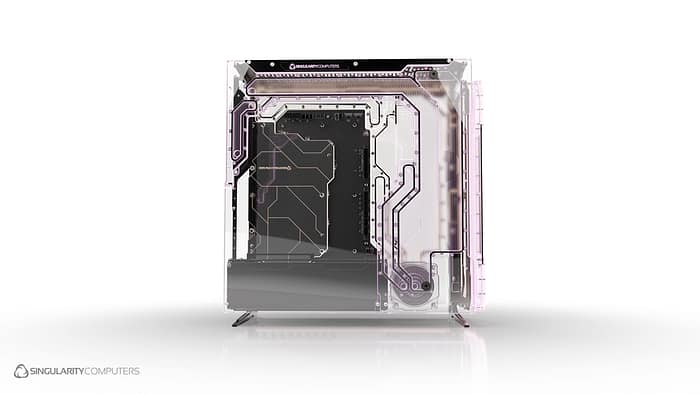

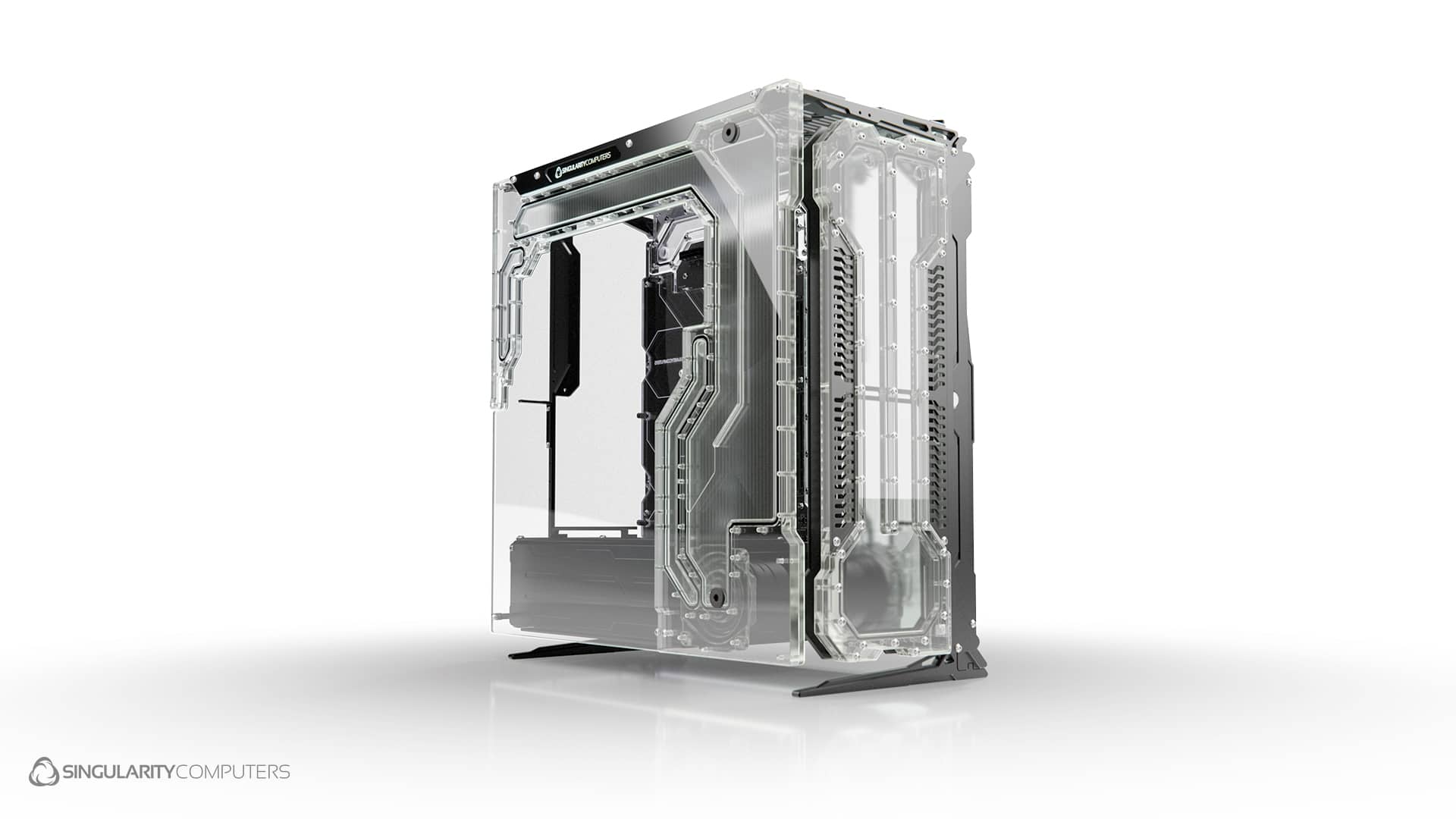

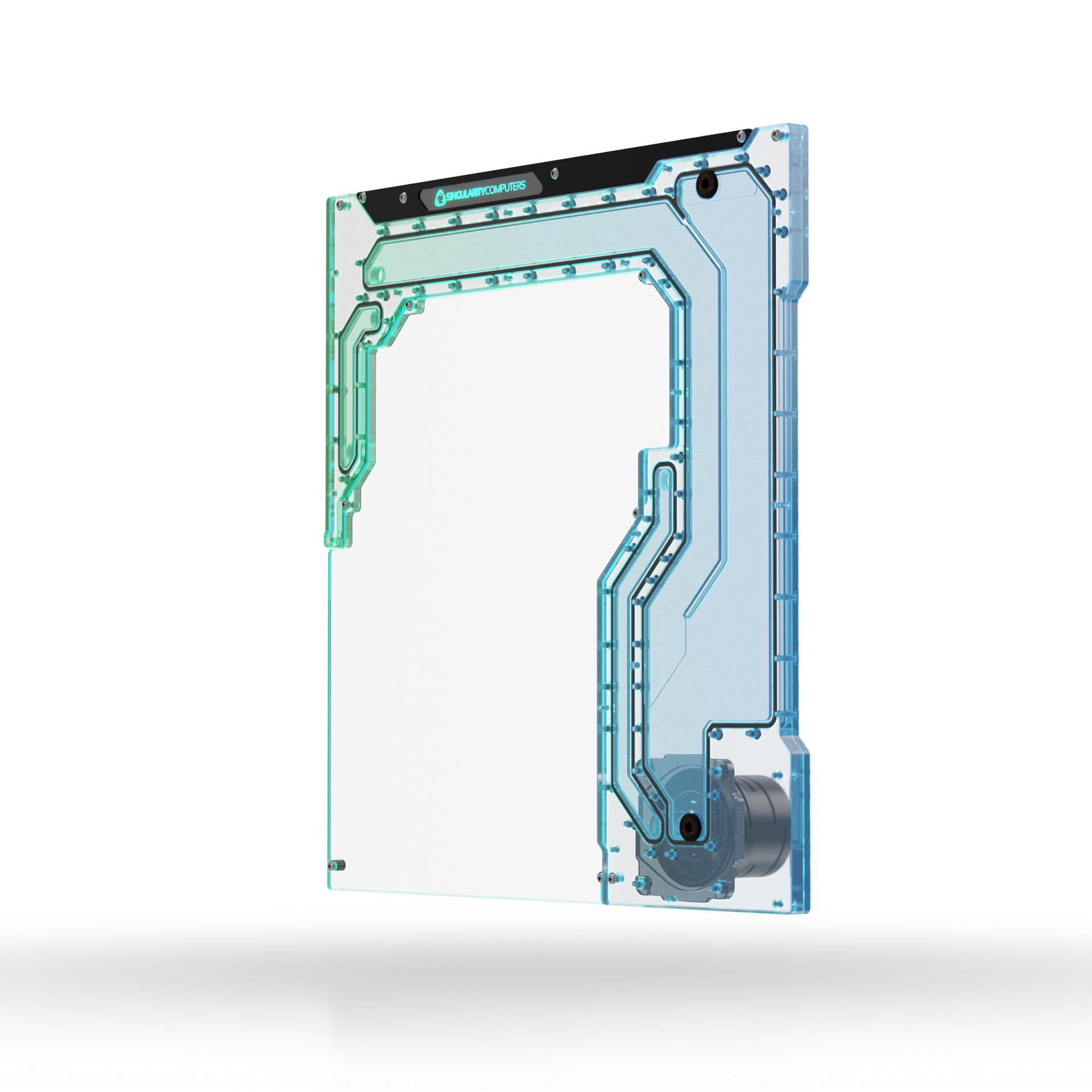

Spectre Integra-M Dual Loop Side Panel

$399.00

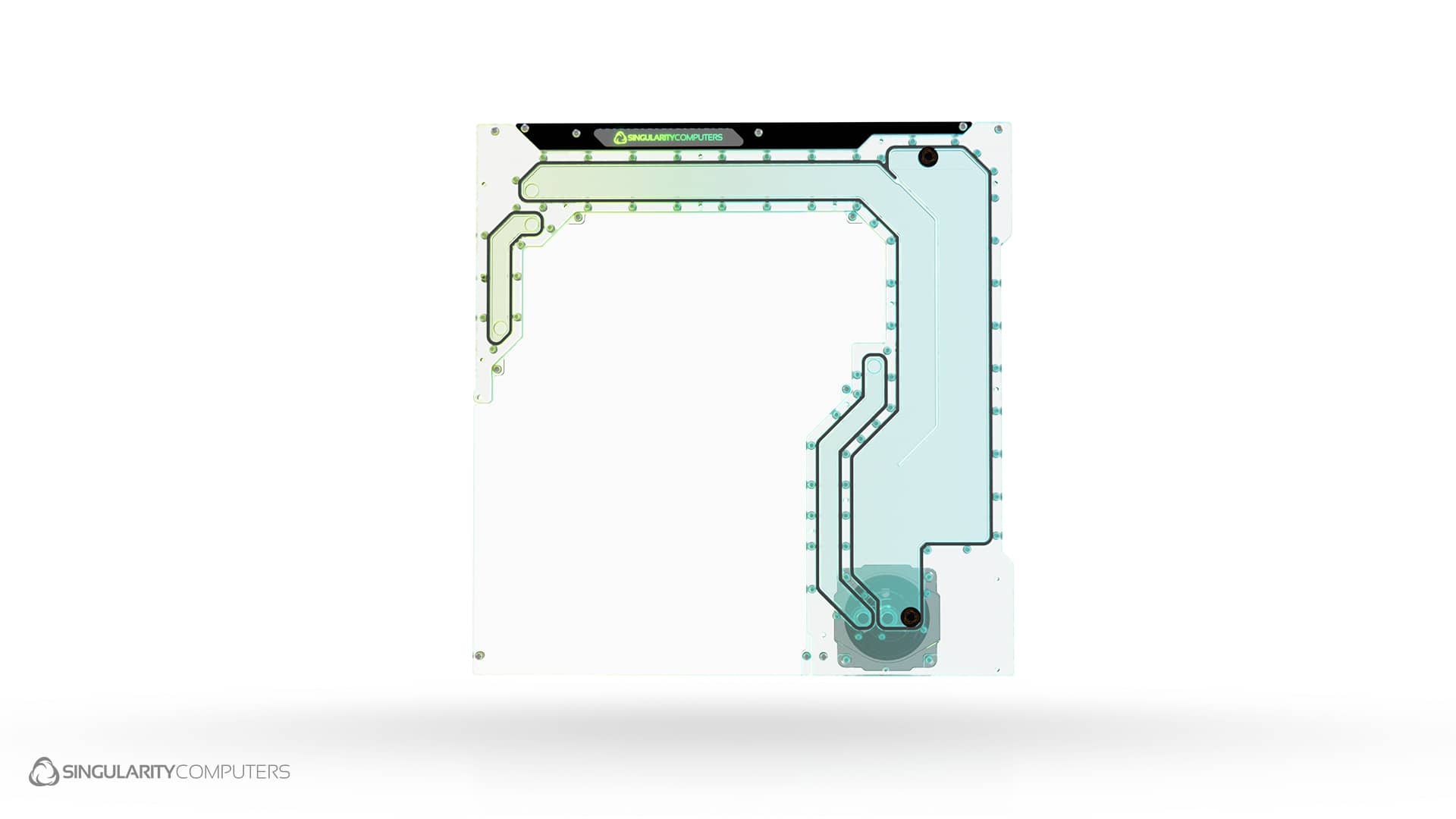

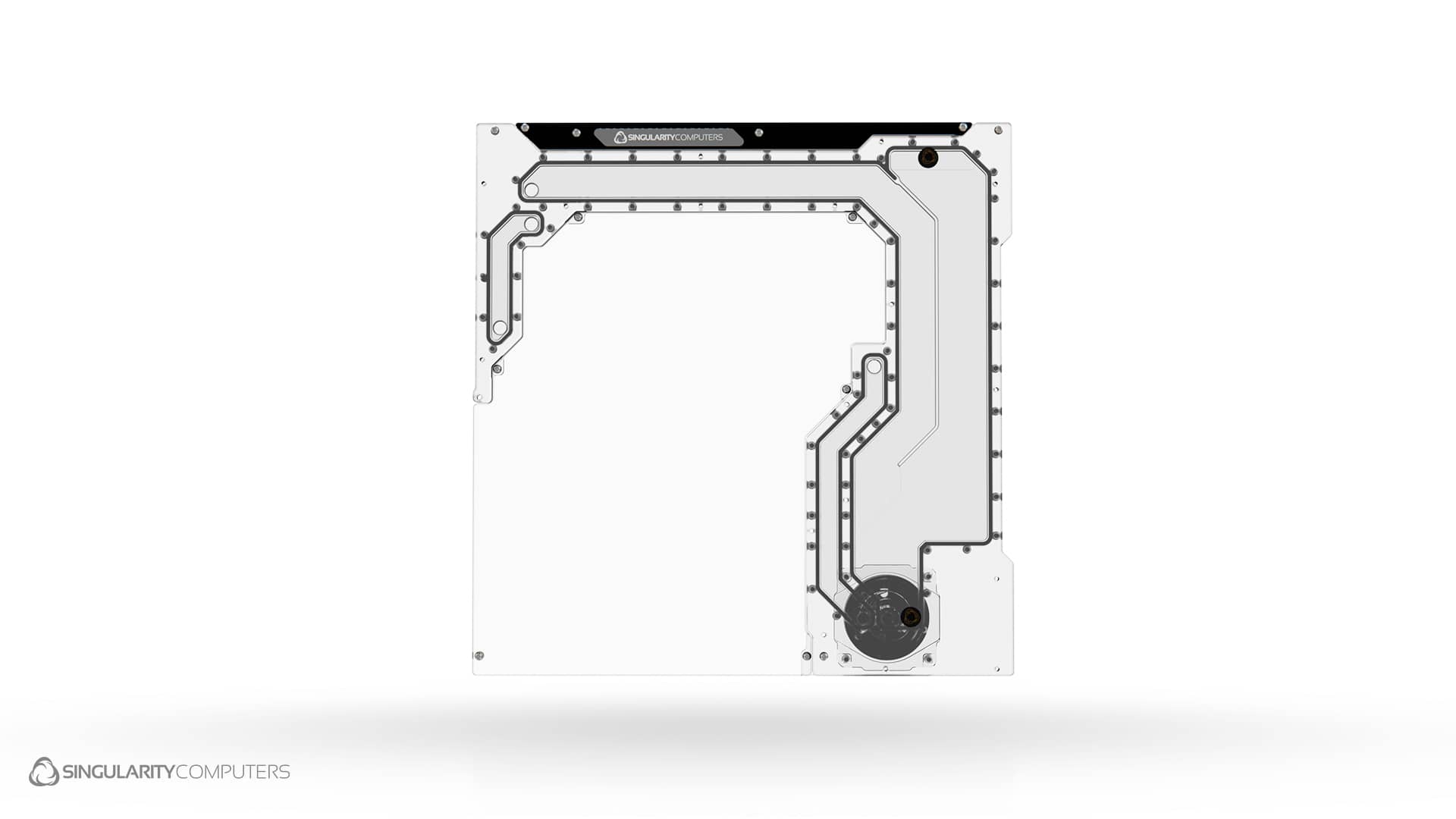

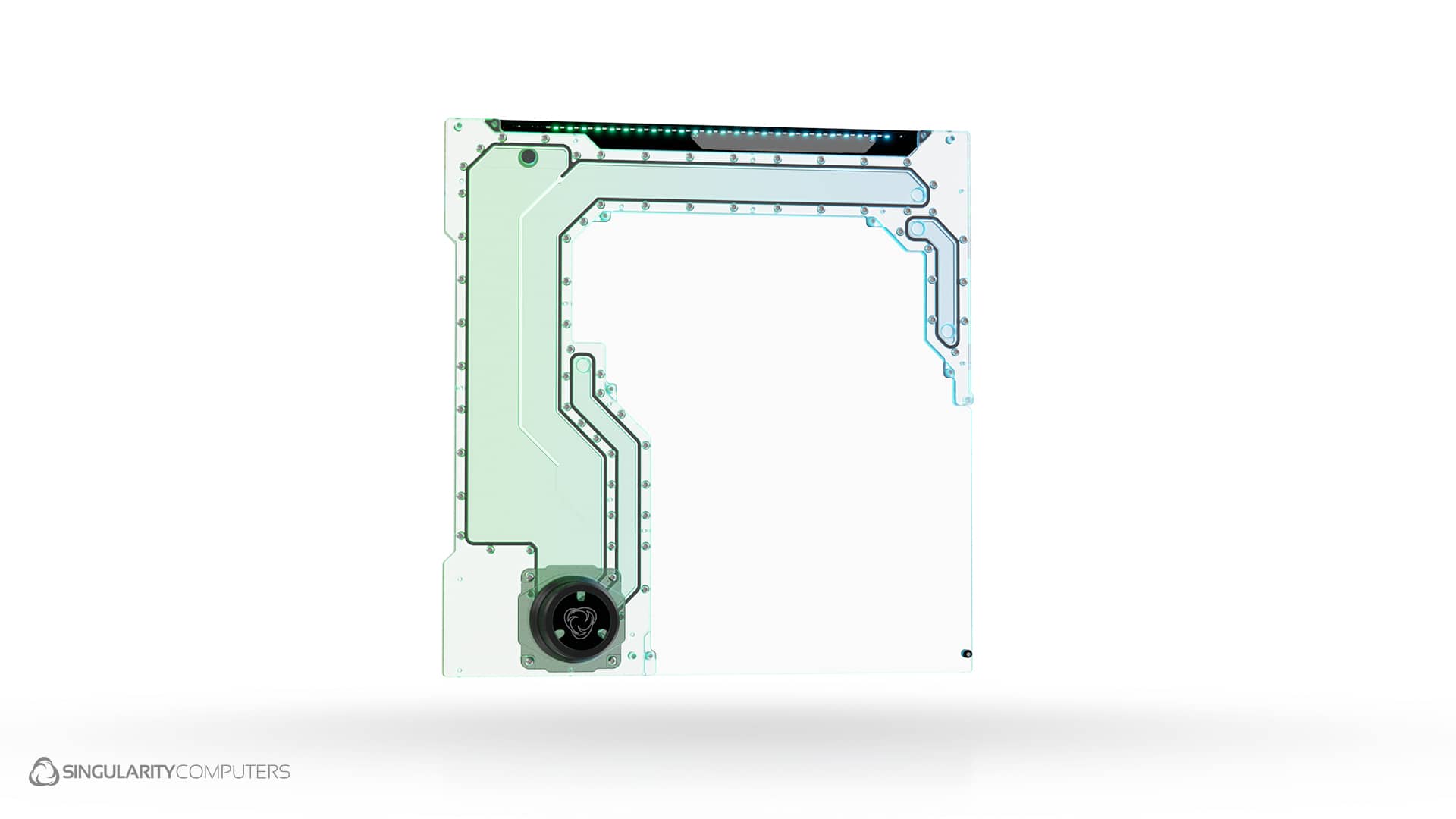

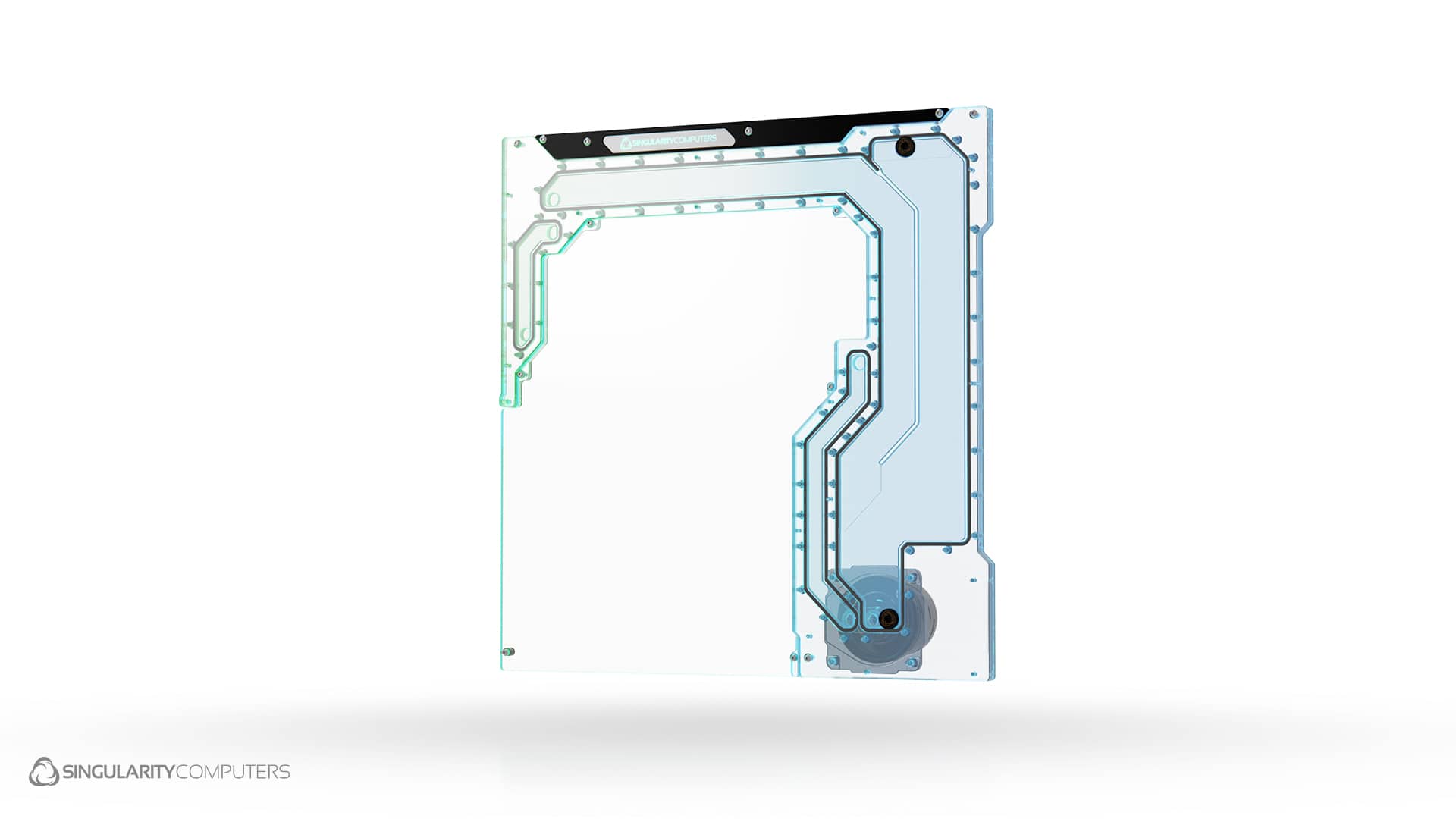

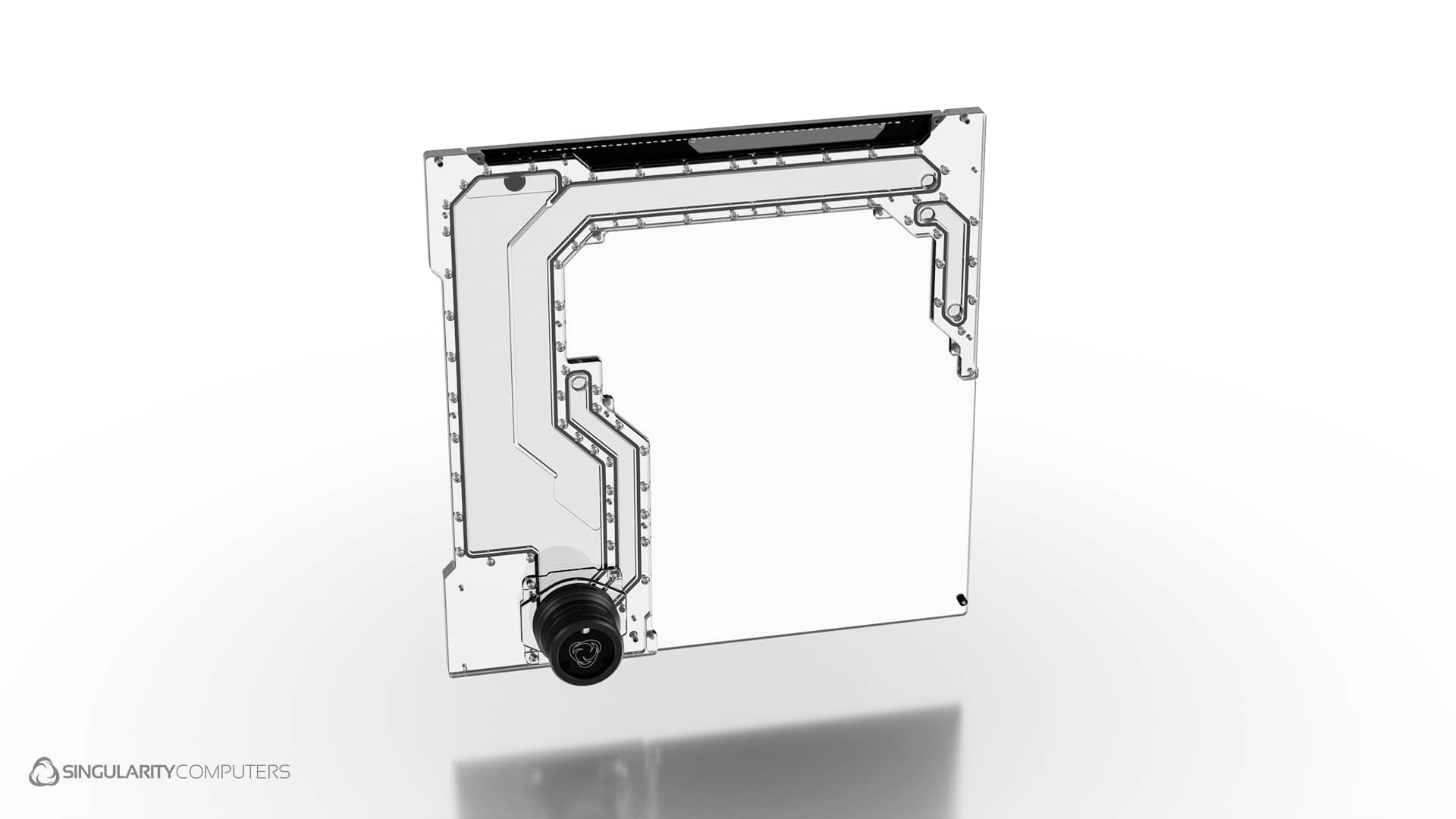

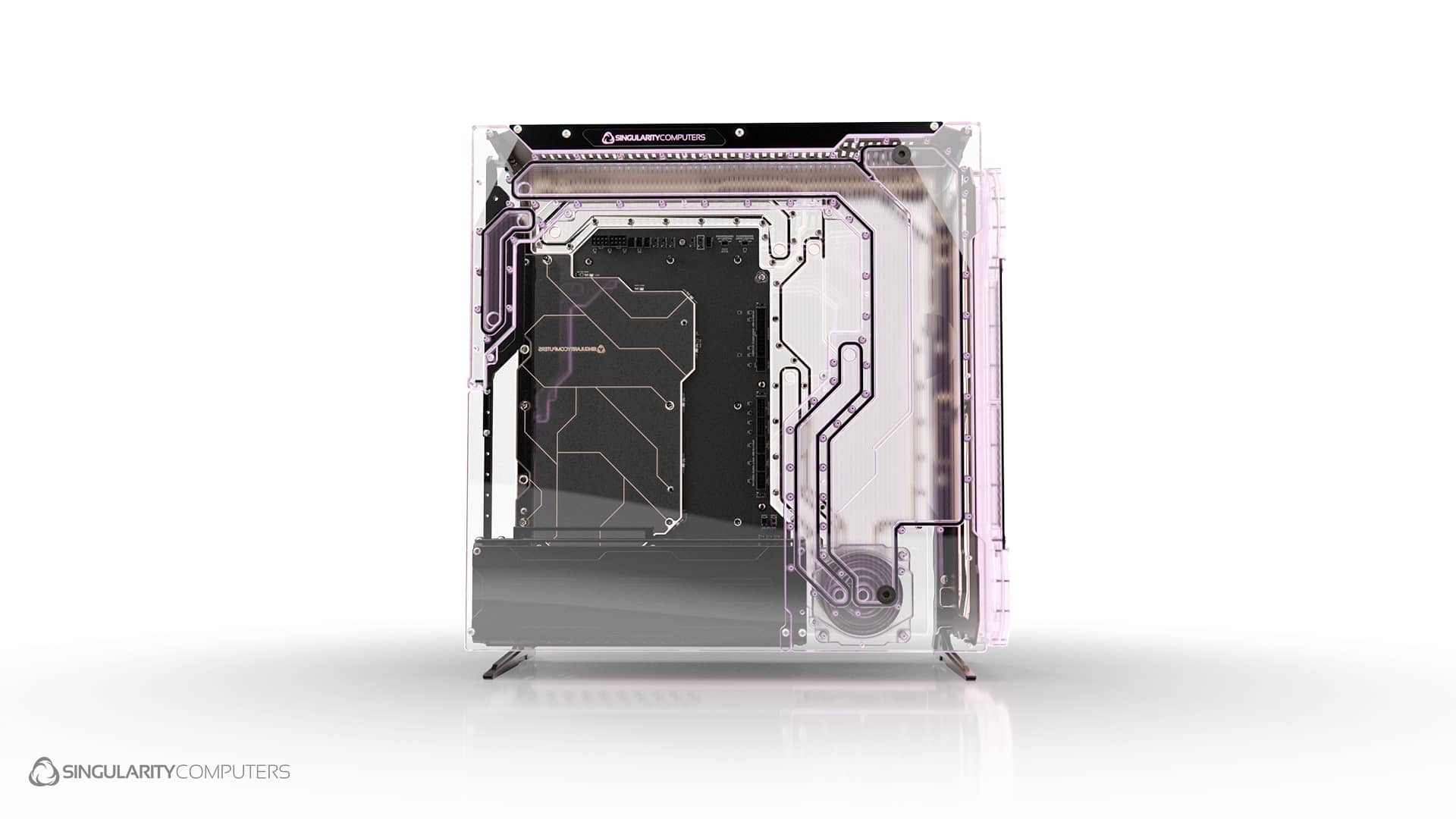

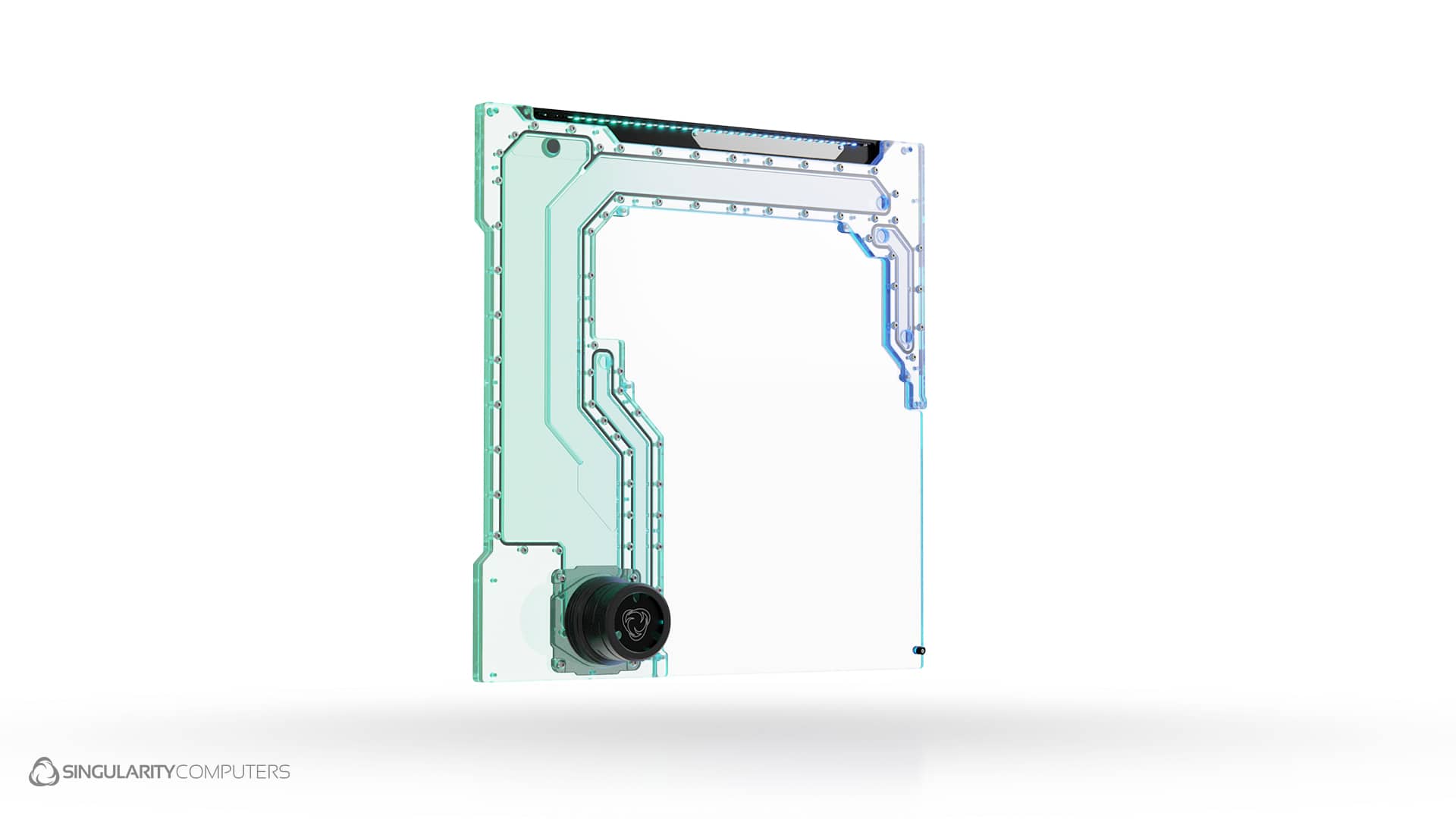

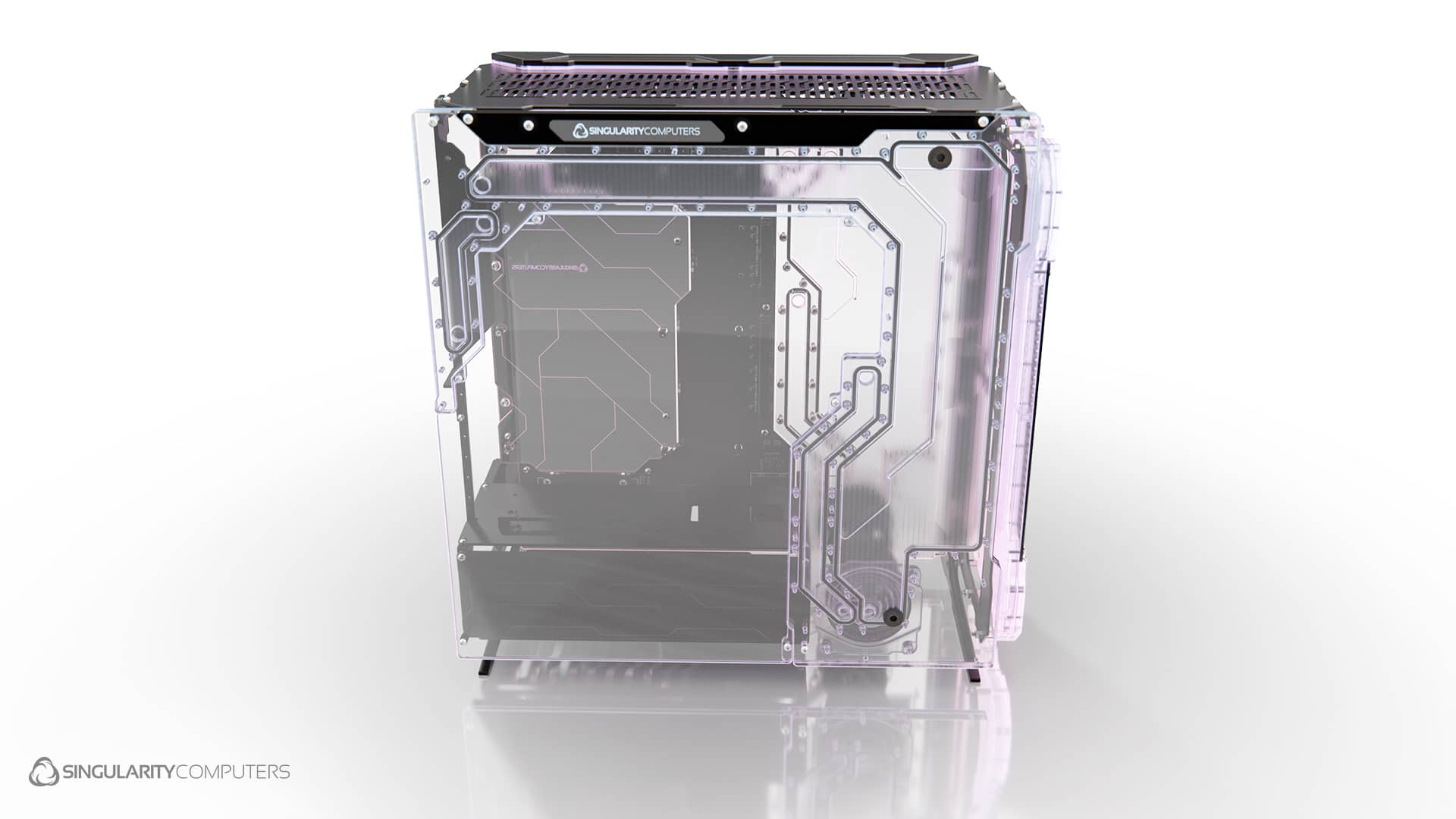

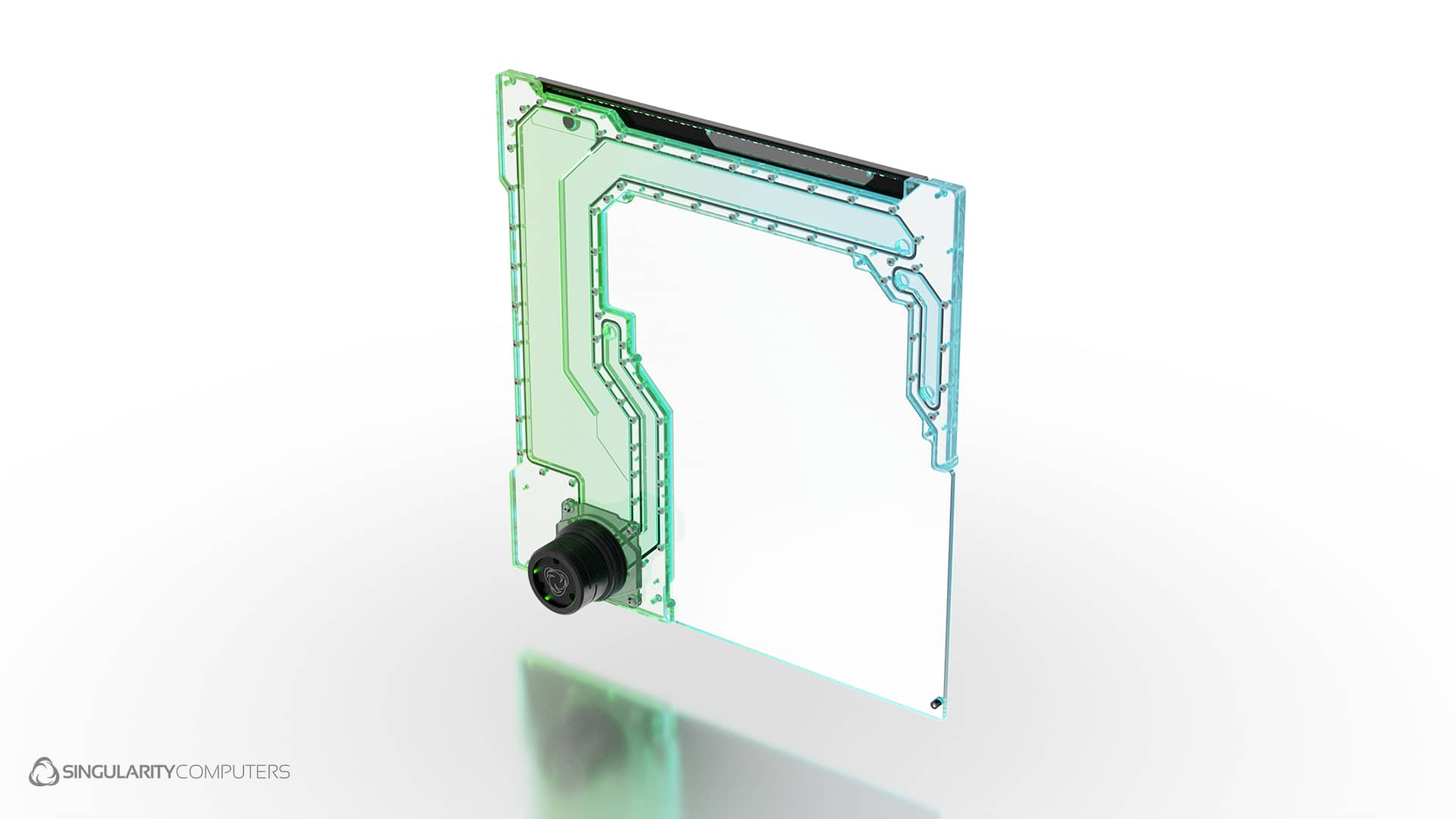

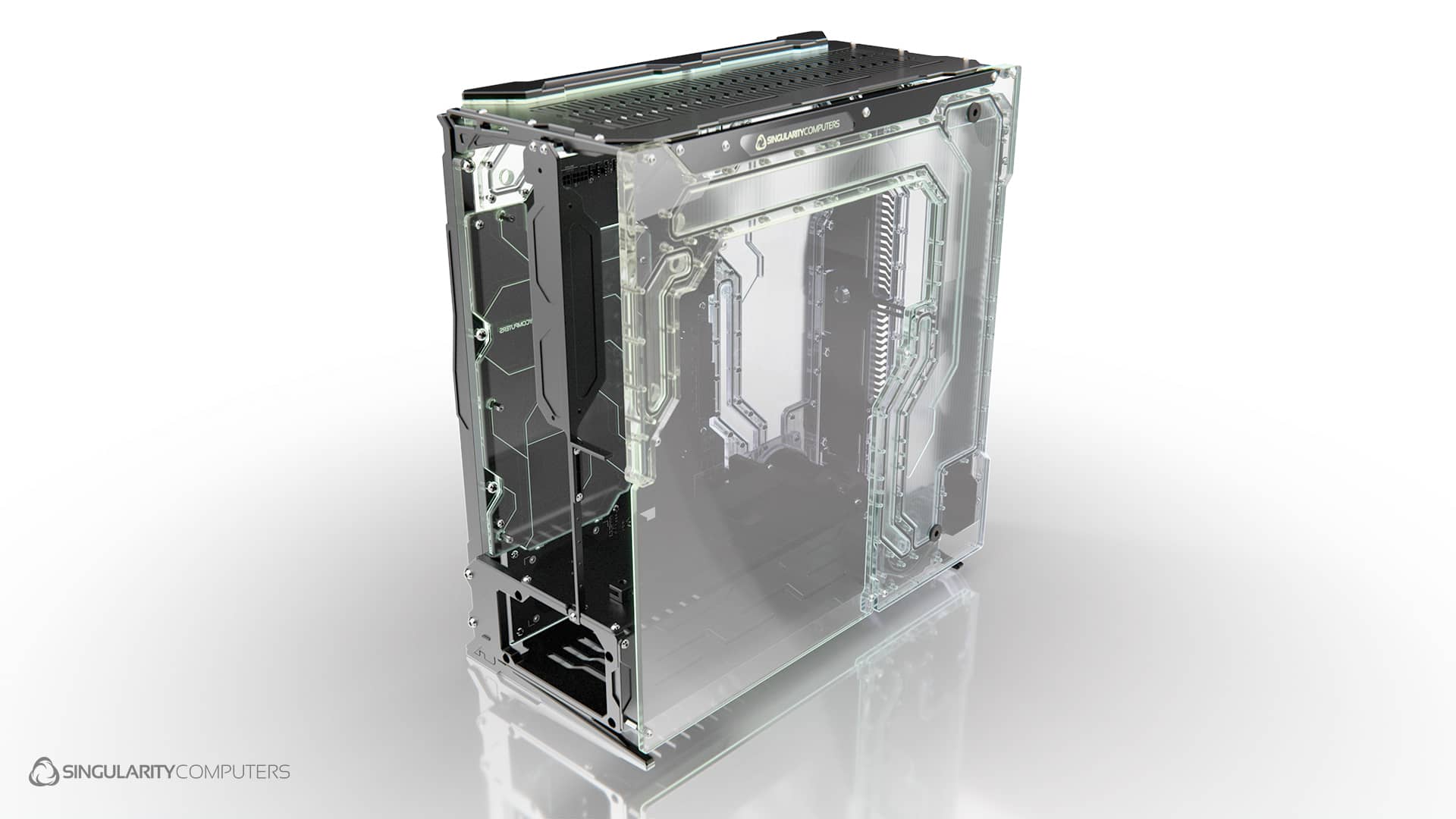

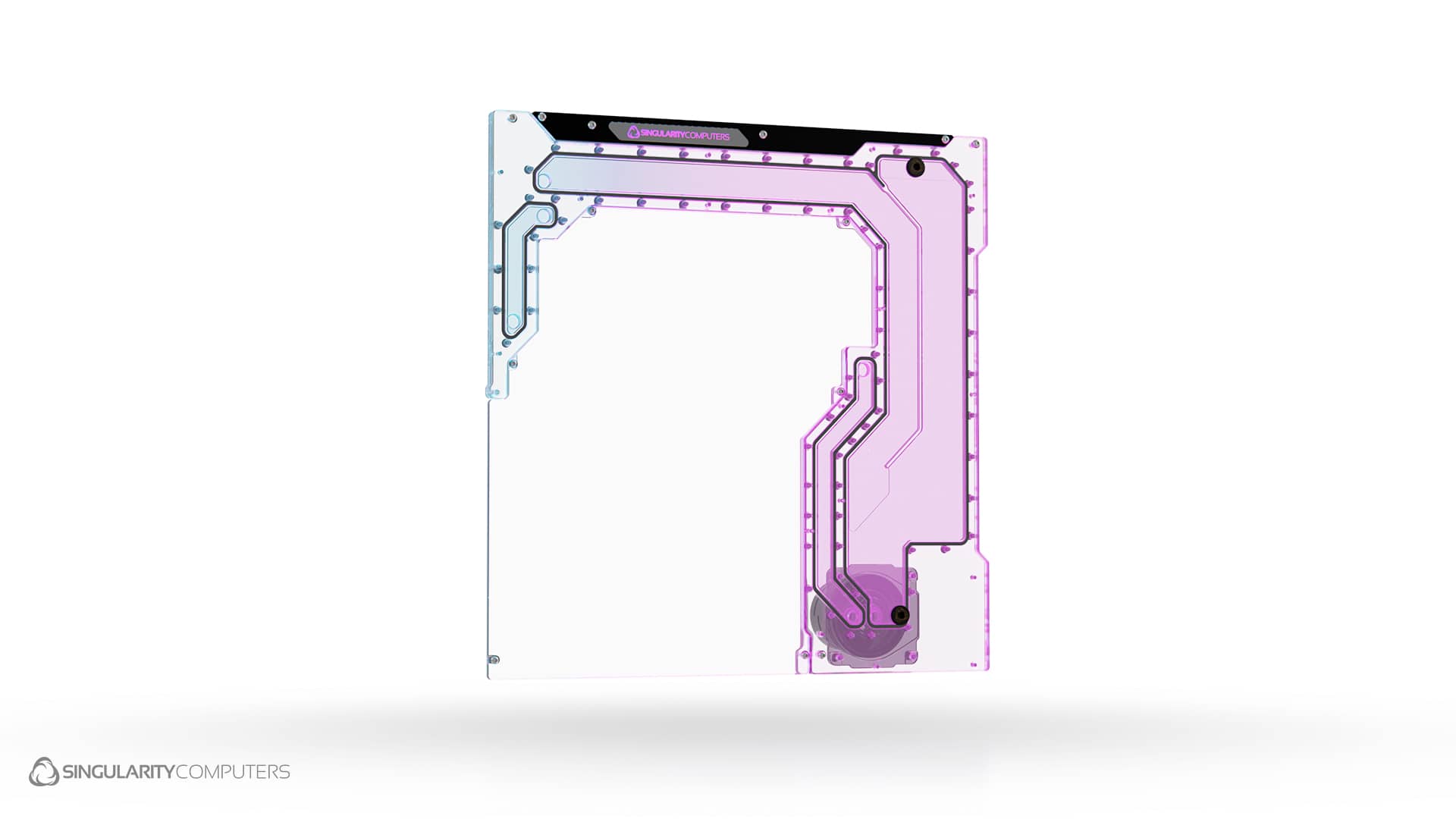

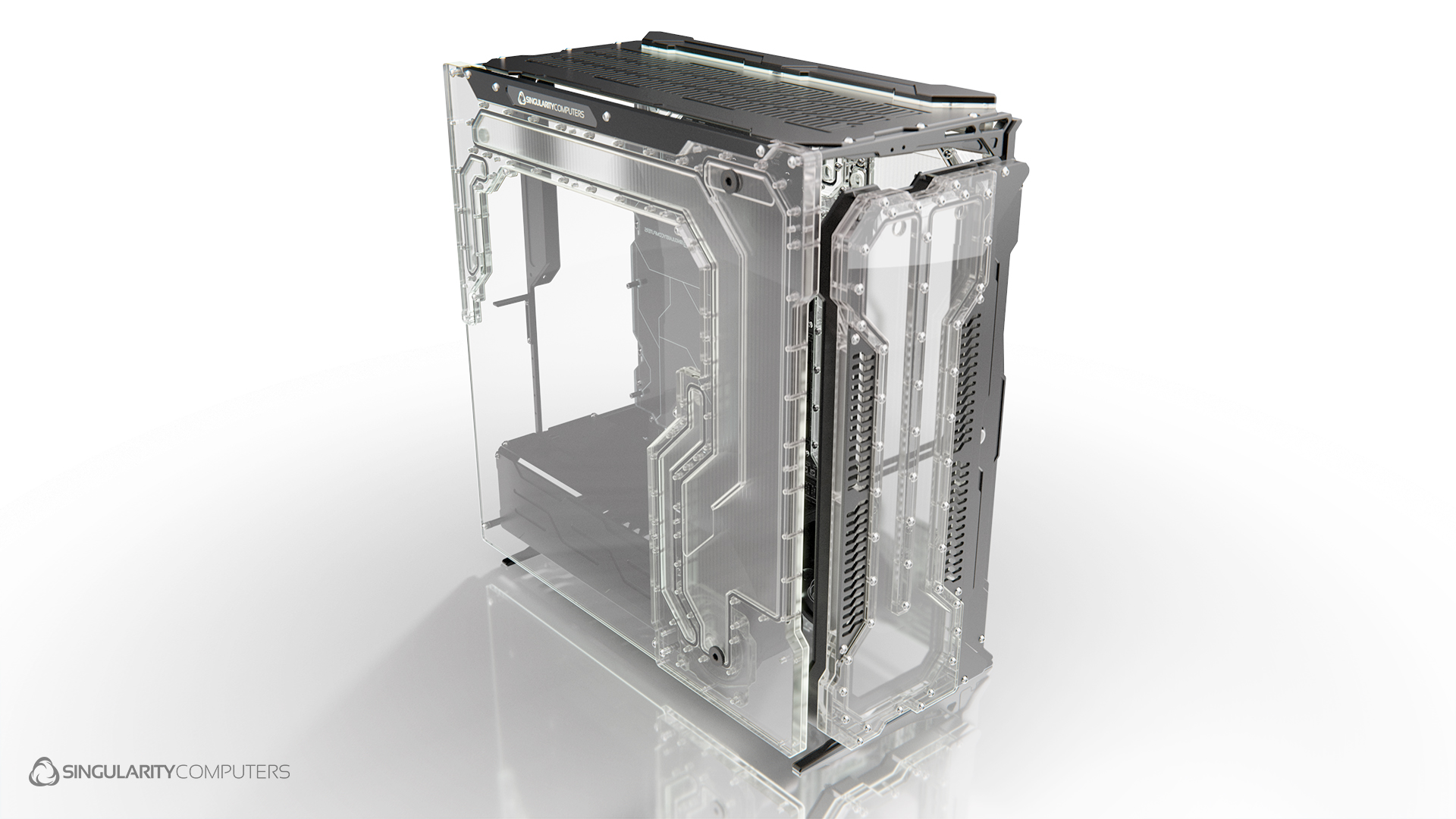

The Spectre Integra-M Dual Loop Side Panel is an addon for any version of Spectre Integra-M including Spectre Integra-MA. Essentially it is a mirror image of the main distribution plate, but with some port location and design changes to allow for one loop to be used for the CPU, and the other loop for the GPU/s. It is a replacement for the side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the most important parts of the build. The distribution plate section only covers the sides of the radiators and fans. It has an extra removable side panel so that it is easy to gain access to the case for loop building while the Spectre 3.0 Dual Loop Side Panel is installed. It has an integrated D5 pump top, Protium 3.0 Pump Cover and two ARGB LED strips which come pre-installed. There are 4 ports which are positioned for the GPU loop and top radiator, and a fill and drain port. The main case distribution plate layout works perfect for the CPU loop connected to the front radiator. The Spectre 3.0 Dual Loop Side Panel can be used in dual loops, single loop series or parallel. The Spectre 3.0 Dual Loop Side Panel is built from two layers of clear acrylic. We have also created Spectre 3.0 Dual Loop Side Panel Dark which is built from a grey tinted layer of acrylic, a clear layer and a satin black cover layer.

— OR —

— OR —

Add to wishlist
SKU: SC-SINT-M-DL-SP Category: Spectre Integra-M Case
Share:
  • Description
Description

Specifications:
Integrated Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all D5 pumps.
D5 Pump Cover: Protium 3.0.
LED Strips: x2 50cm 5V ARGB LED Strips with 50cm cables.
Package Dimensions: L: 536mm H: 578mm W: 180mm.
Package Weight: 4kg.
Product Dimensions: L: 486mm H: 528mm W: 130mm.
Product Weight: 3kg.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.

Installation:

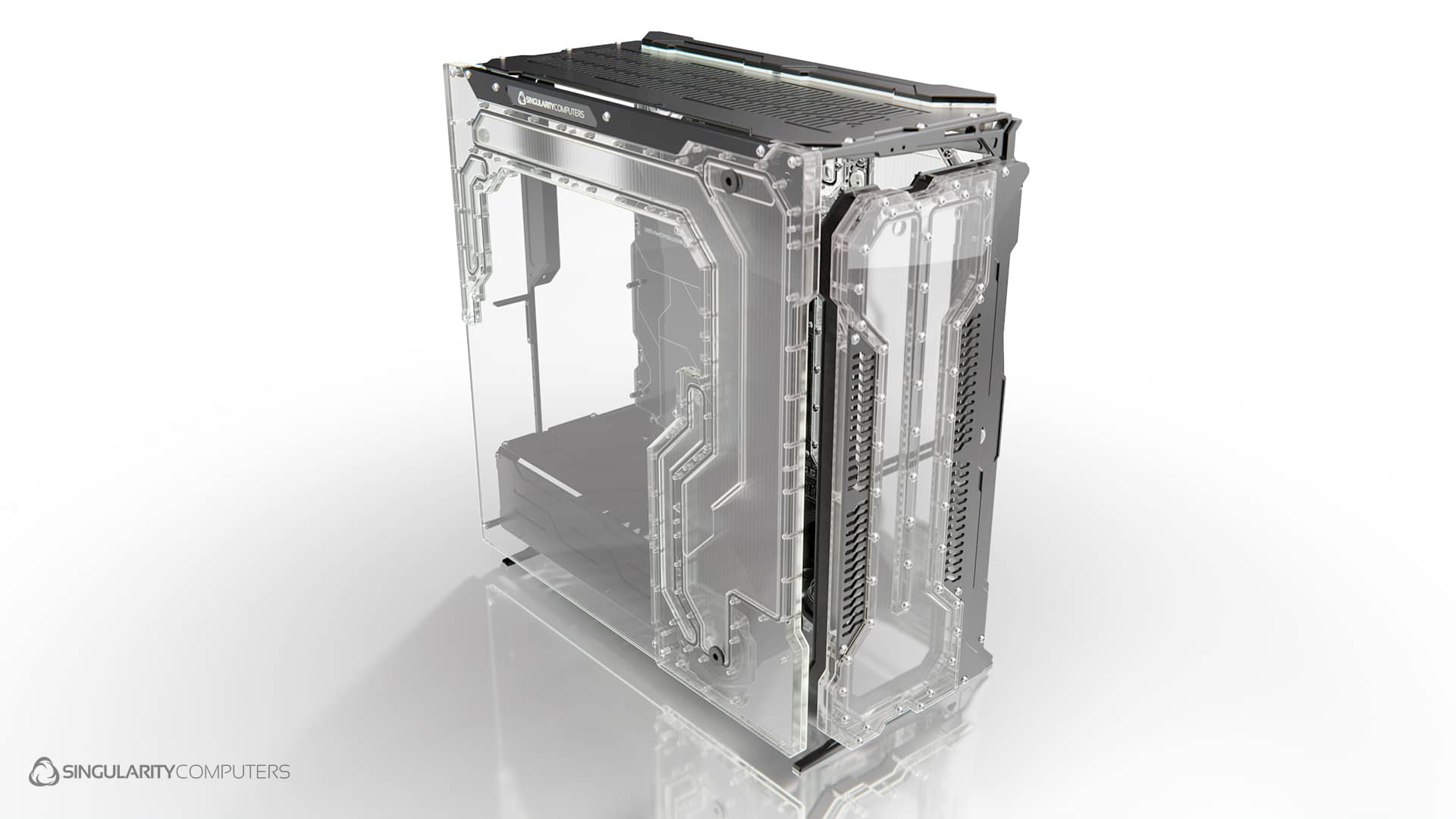

Compatible with all Spectre 3.0 case versions including limited editions. Installs onto the Spectre 3.0 Side Panel Window Mounts like the stock side panel but with longer fasteners which are included. It also attaches to the top rear IO mounting hole using an included stand off and fasteners. The distribution plate layout is designed for a single loop, dual loops, series, or parallel.  For dual loops the main distribution plate of the case can be used for the CPU loop with the front radiator, and the Spectre 3.0 Dual Loop Side Panel can be used for the GPU loop with the top radiator. There are many ways to route the tube for a single loop, series or parallel.

Design & Engineering:
We have been building high end water-cooled systems for over 15 years. Our approach to product development begins with a need for our own builds and so the origin is always function. From there we start to build ideas around this function and the aesthetics and everything else follows. The original ideas for our products came from years of building highly customized, high end water-cooled systems and trying to reduce the exceptionally long build times and complexity. Our approach to development is hands on, we are using and testing our own products every day.

Manufacturing & Quality:
Almost all components of the Spectre Integra-M Dual Loop Side Panel are CNC machined from a solid block of material. There is no hidden or back side, and this also goes for the components being installed. Due to this we selected the most high-end materials manufacturing process. The Distribution Plate is machined on a CNC router built from thick sheets of cast acrylic. It is hand assembled with silicone gaskets and stainless-steel fasteners, and pressure tested. The metal components are machined with Extreme Precision from solid blocks of 6061 aluminum on a CNC mill then sand blasted and anodized.

Related products

Quick view
Add to wishlist
Add to cart

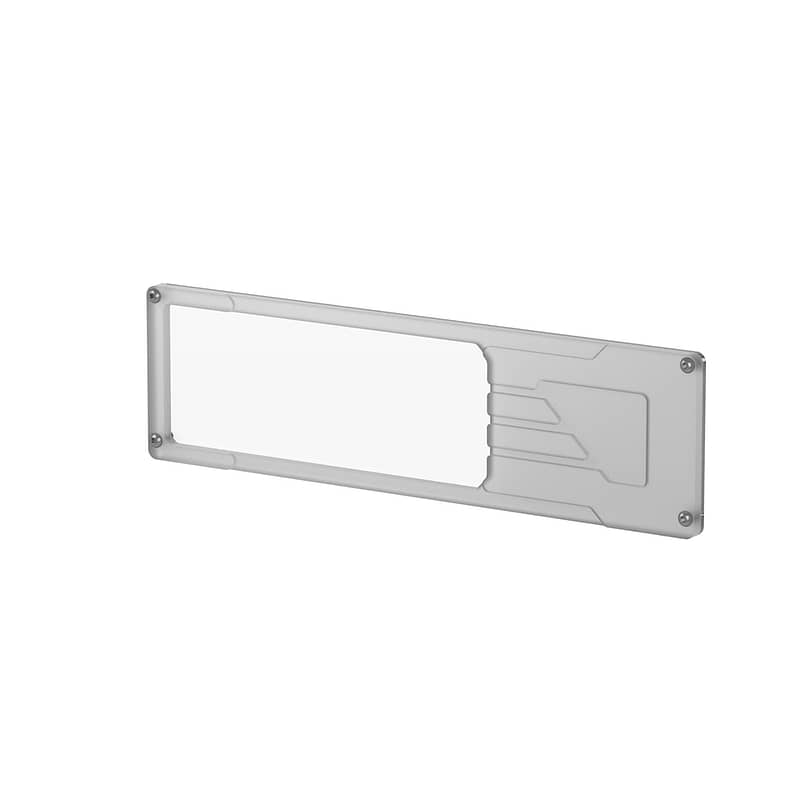

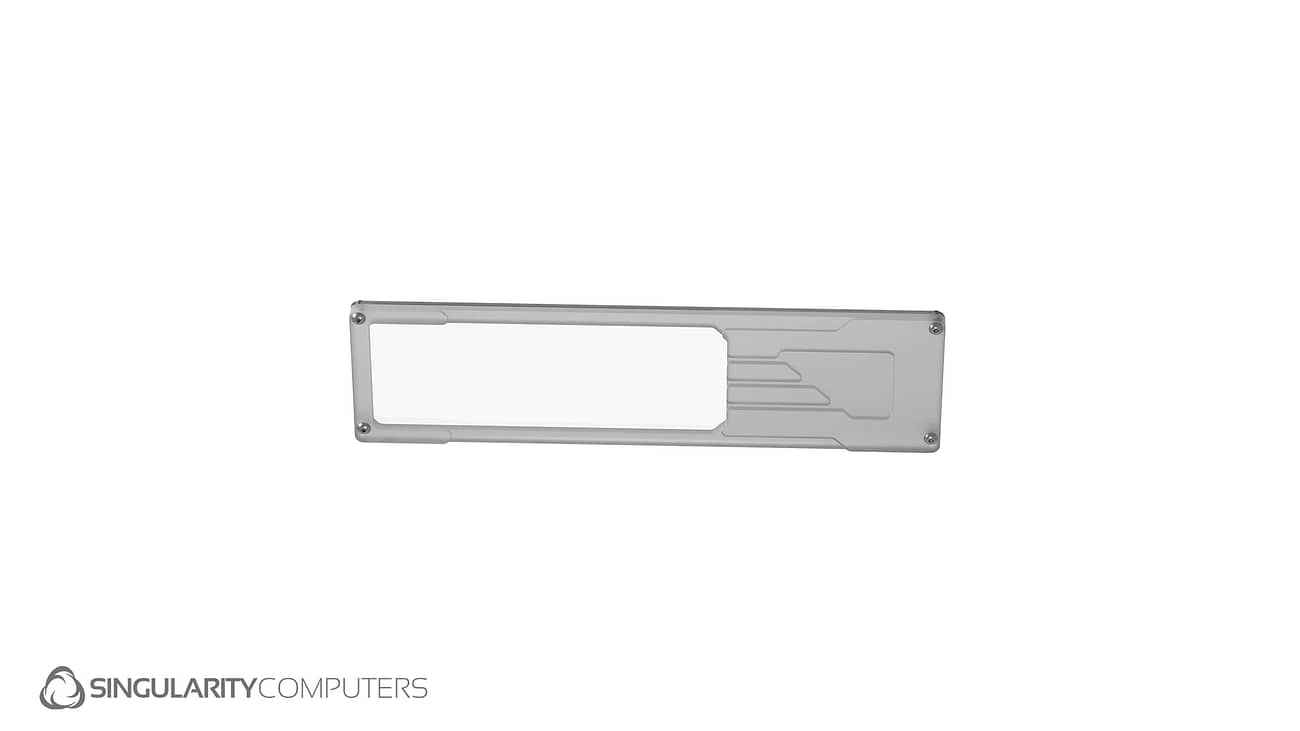

SC Spectre 3.0 Windowed PSU Shroud Frosted

Spectre, Spectre 3.0 Integra Case, Spectre Integra-M Case, Spectre Integra-MA Case
$59.00
Quick view
Add to wishlist
Select options

Spectre Integra-M Dual Loop Side Panel Dark

Spectre Integra-M Case
$439.00
Quick view
Add to wishlist
Add to cart

Spectre 3.0 Windowed PSU Shroud Black

Spectre, Spectre 3.0 Integra Case, Spectre Integra-M Case, Spectre Integra-MA Case
$59.00
Quick view
Add to wishlist
Add to cart

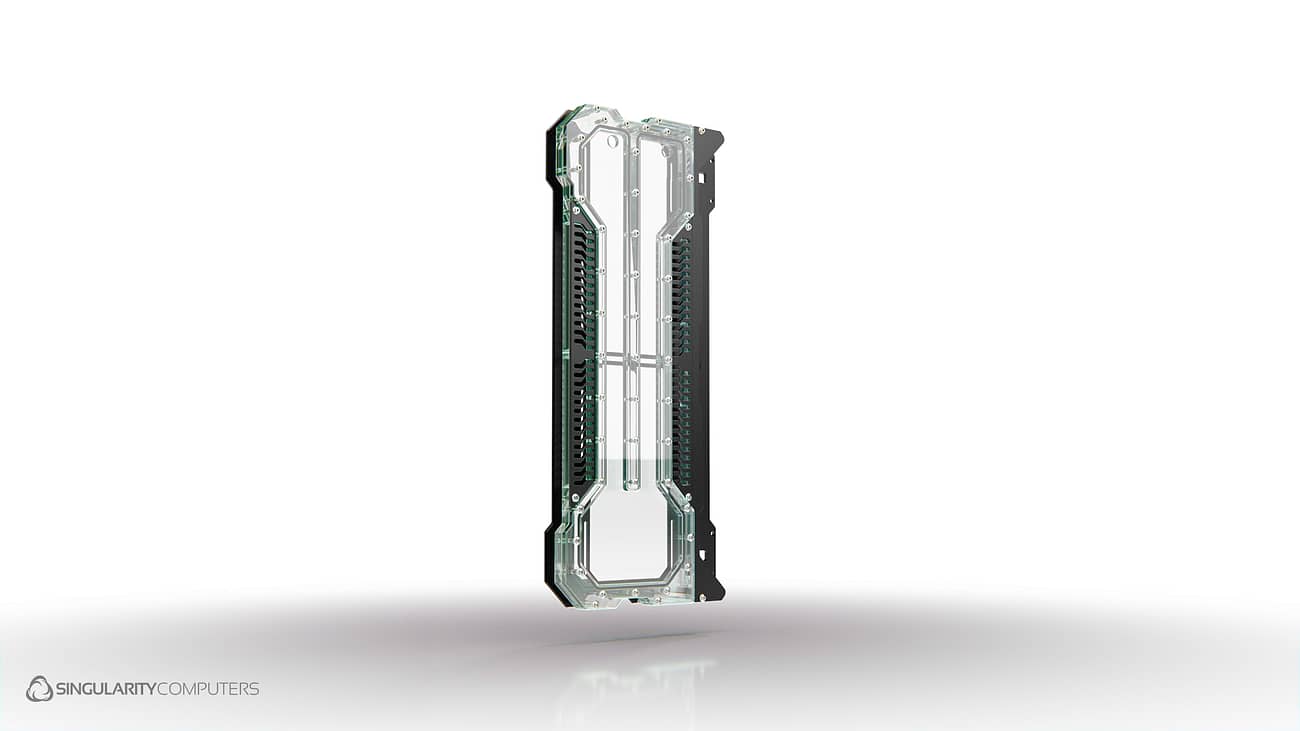

Spectre Integra-M Elite Dark

Spectre Integra-M Case
$419.00
Hot
Quick view
Add to wishlist
Add to cart

Spectre PSU Shroud Screen

Spectre, Spectre 3.0 Integra Case, Spectre Integra-M Case, Spectre Integra-MA Case
$189.00
Quick view
Add to wishlist
Add to cart

Spectre Integra-M Silver Case

Spectre Integra-M Case
$999.00
Quick view
Add to wishlist
Add to cart

Spectre Integra-M Elite Silver

Spectre Integra-M Case, Spectre Integra-MA Case
$399.00
Quick view
Add to wishlist
Add to cart

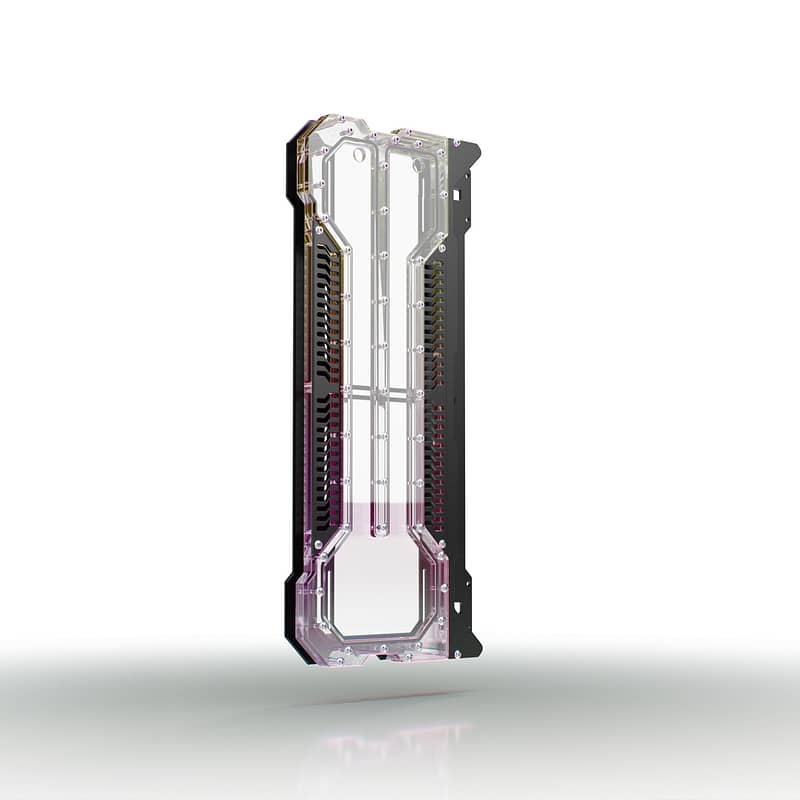

Spectre Integra-M Elite Black
