Spectre Integra-M Elite Dark

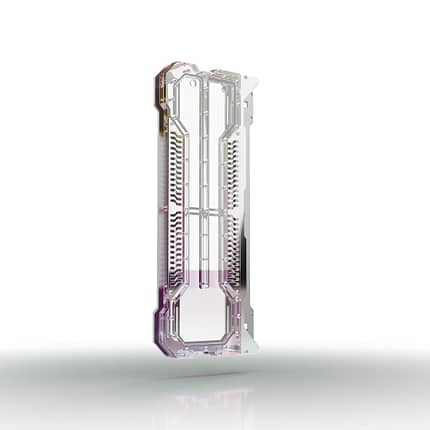

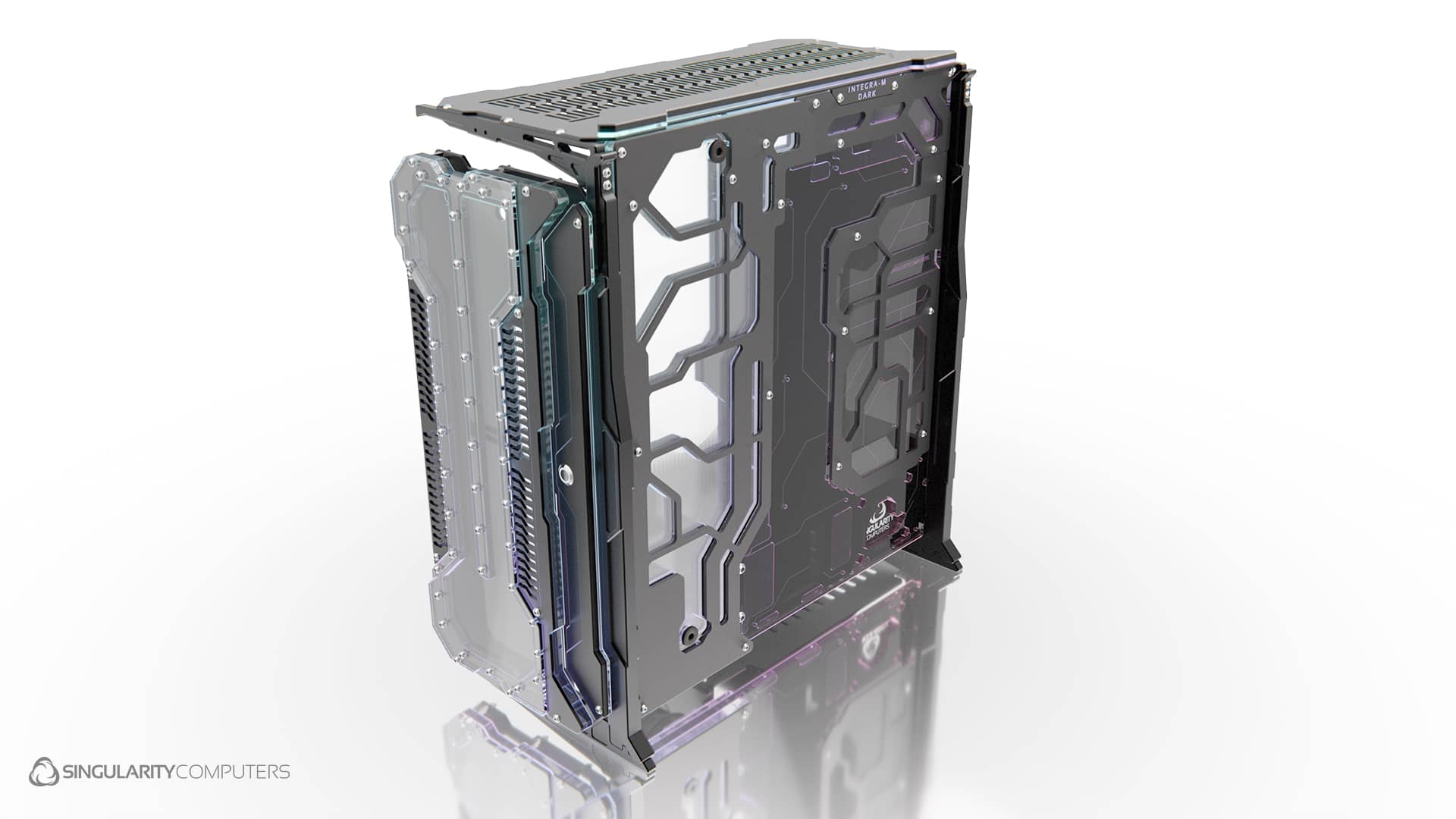

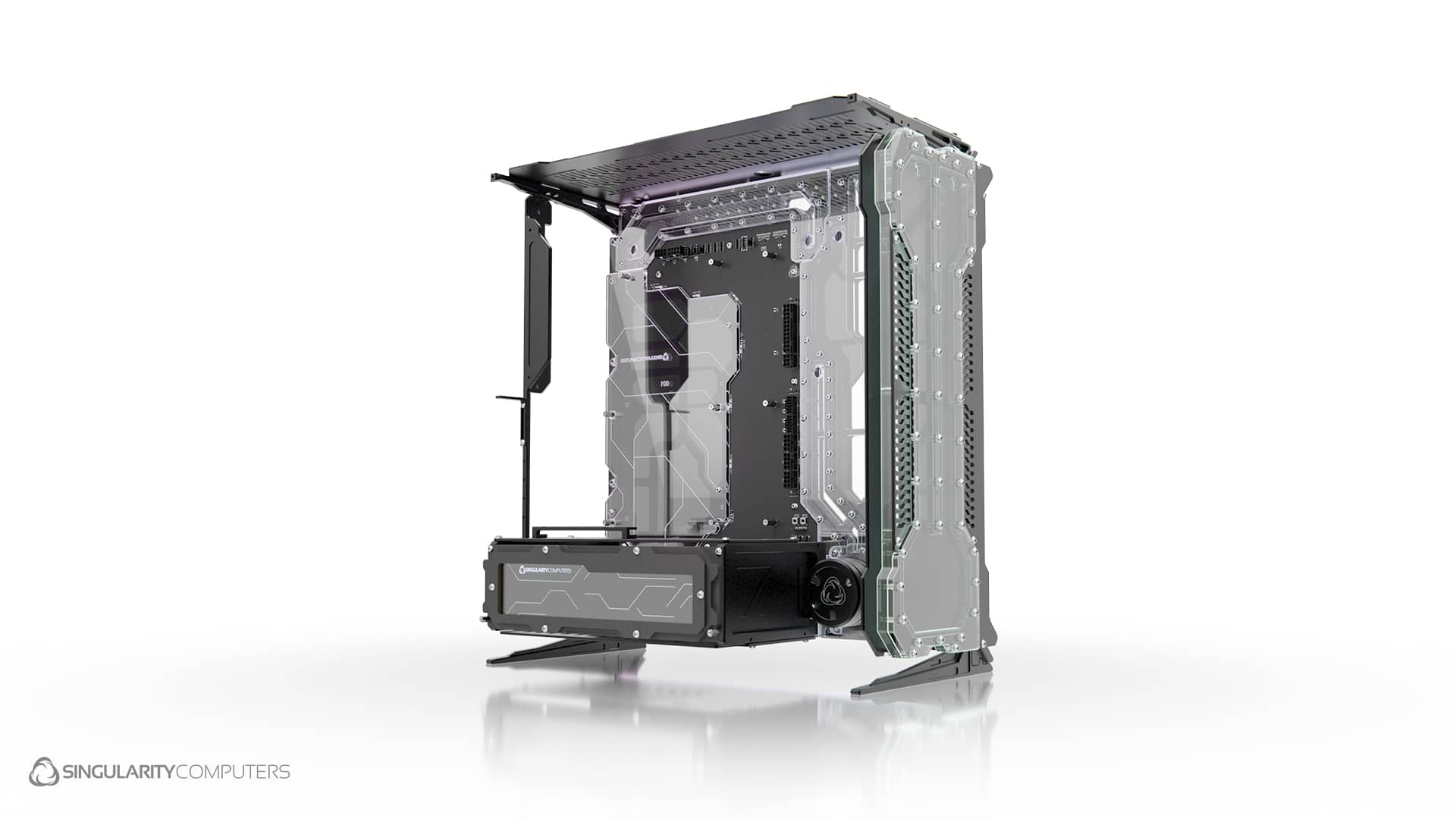

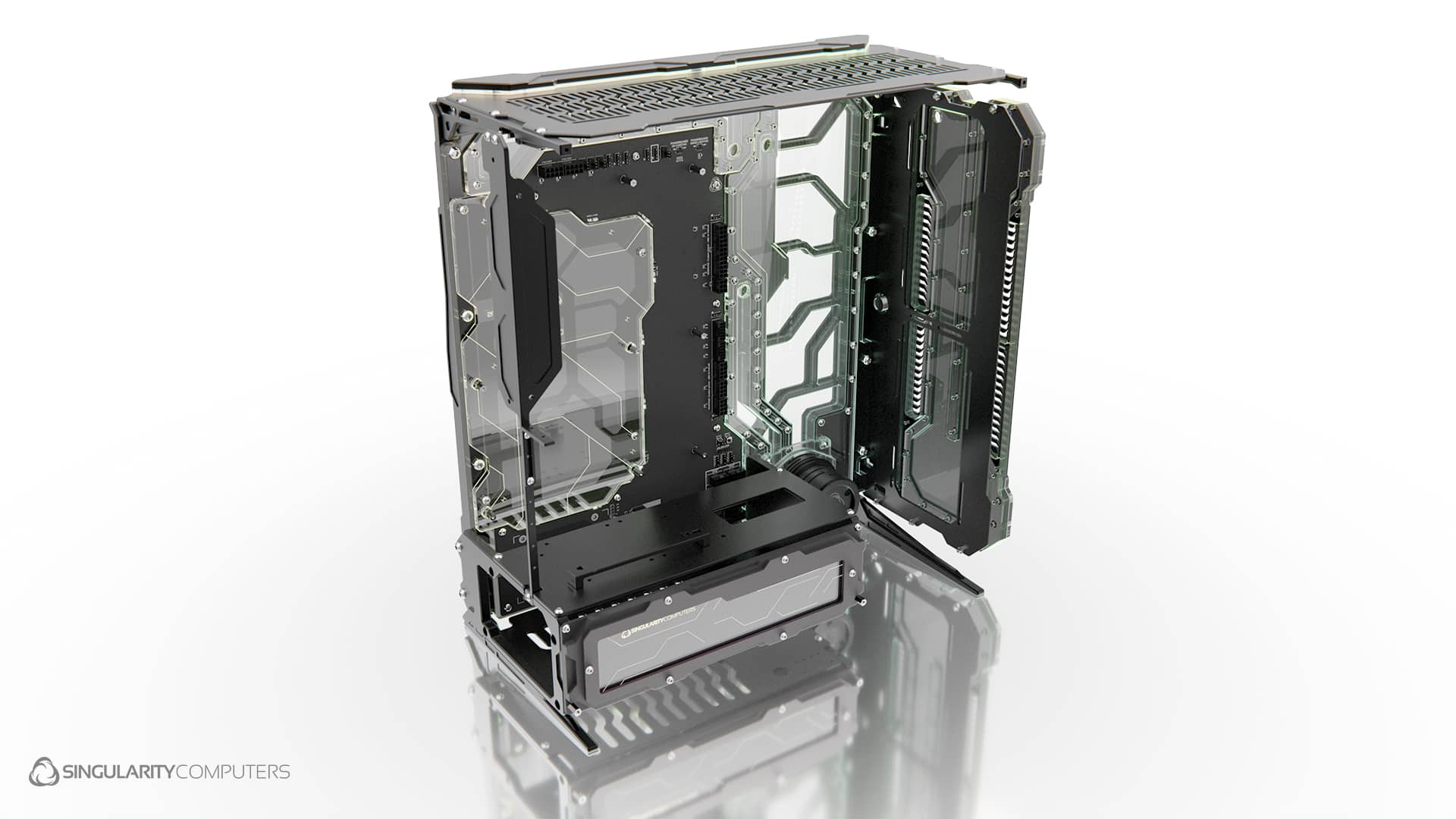

Spectre Integra-M Elite replaces the front and/or top radiator panel with a distribution plate on Spectre Integra-M and Spectre Integra-MA. This enhances the transparent ‘Spectral’ look of the case, further showing off the coolant and internal components. It is mostly an aesthetic feature although it does increase fluid volume. Spectre 3.0 Integra Elite has one inlet and one outlet, when installed on the front panel the ports are at the top, and when installed on the top panel the ports are at the back so that they are close to the ports on the main case distribution plate. Connections can be made to the water-cooling components in the build and the Spectre 3.0 main distribution plate. Radiators can still be attached and there is ventilation around the perimeter of the distribution plate and through the ventilated sections on the front. There is an LED strip positioned on the edge of the distribution plate and an included ARGB 5V Addressable 50cm LED strip. Spectre 3.0 Integra Elite is compatible with all versions of Spectre 3.0 including limited edition.
Spectre Integra-M Elite Dark.

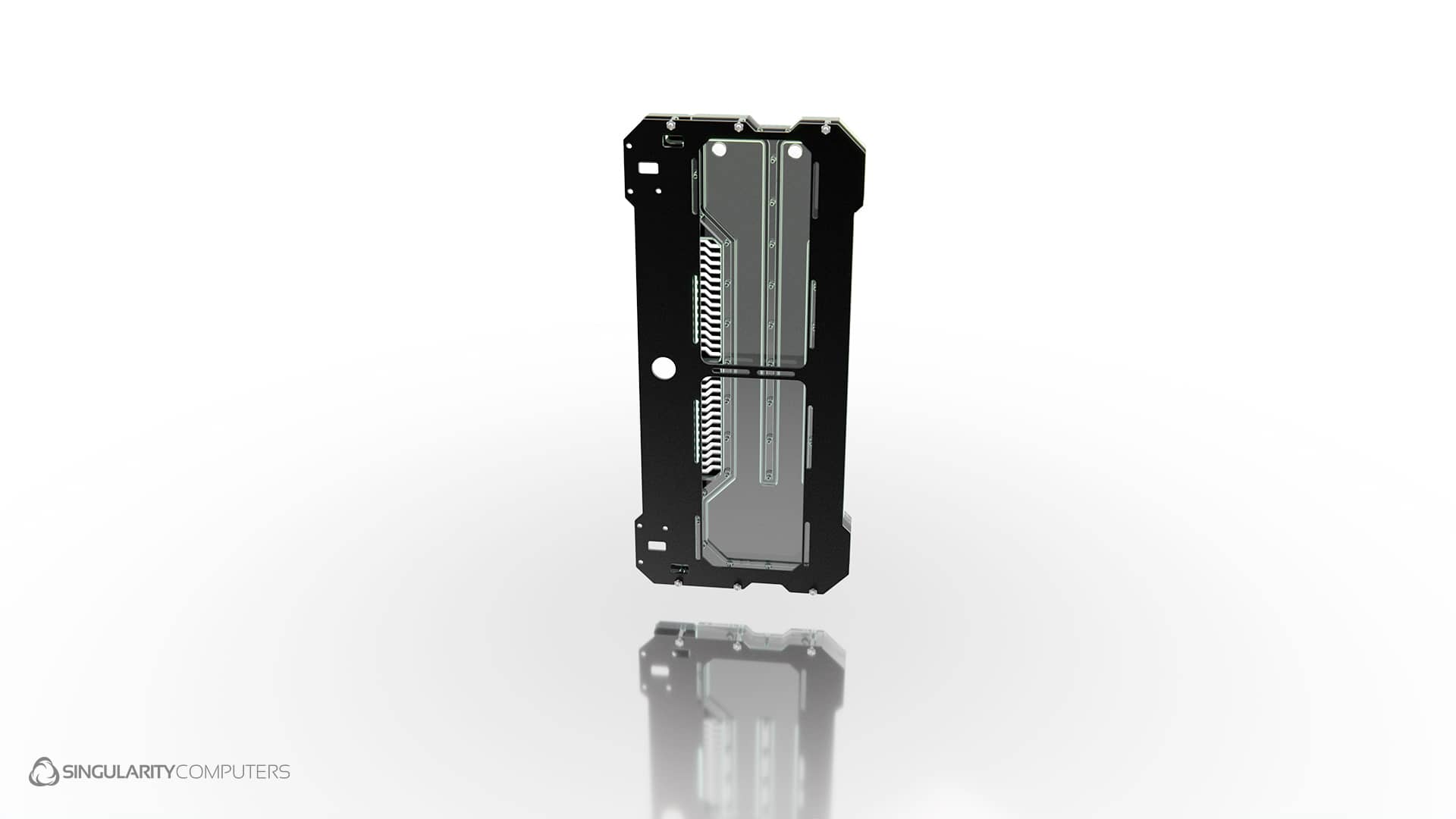

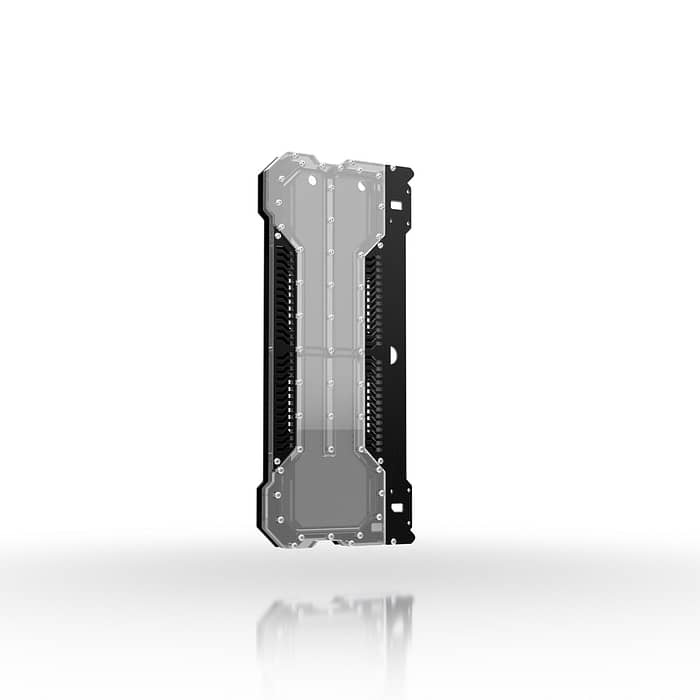

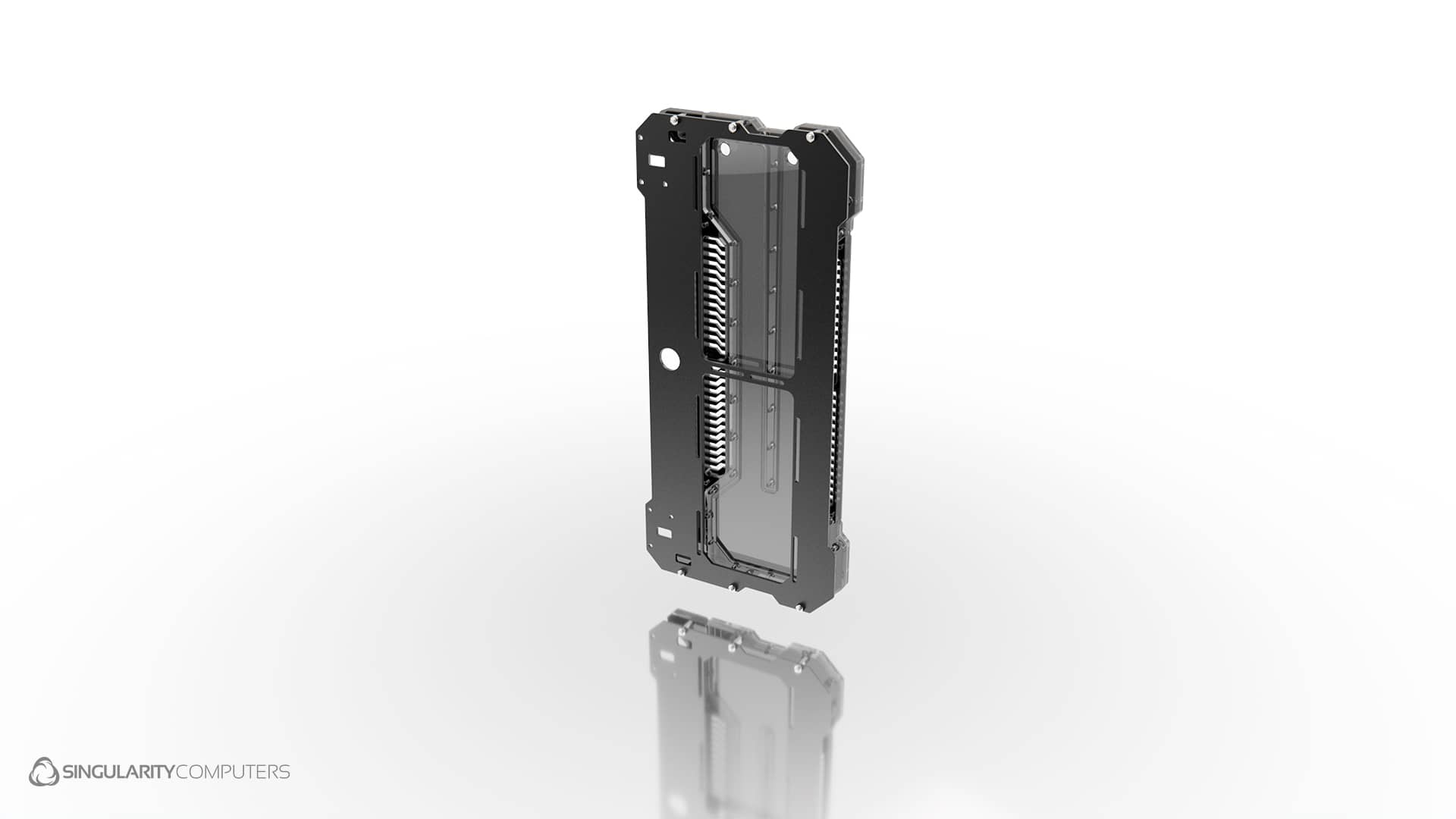

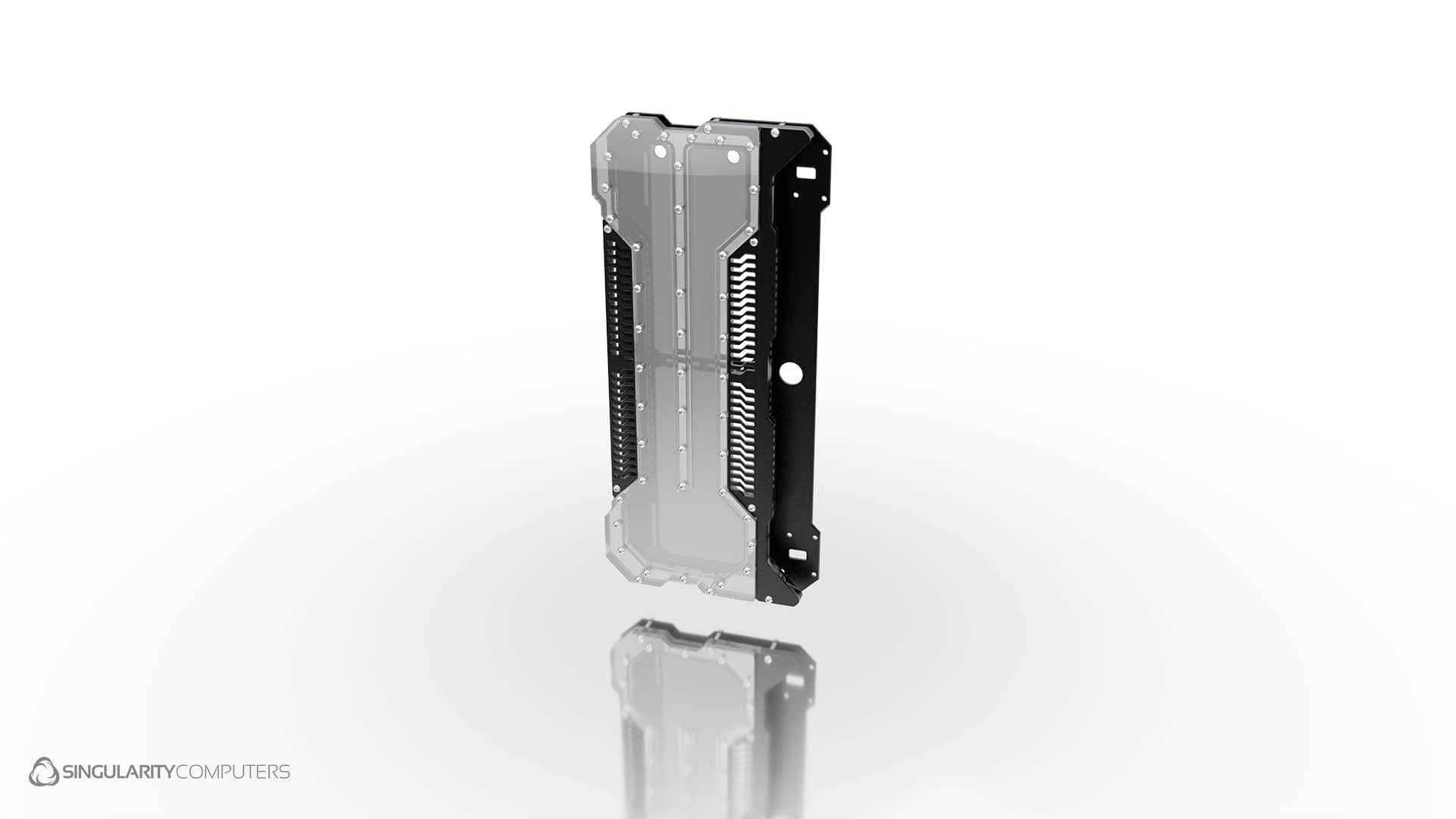

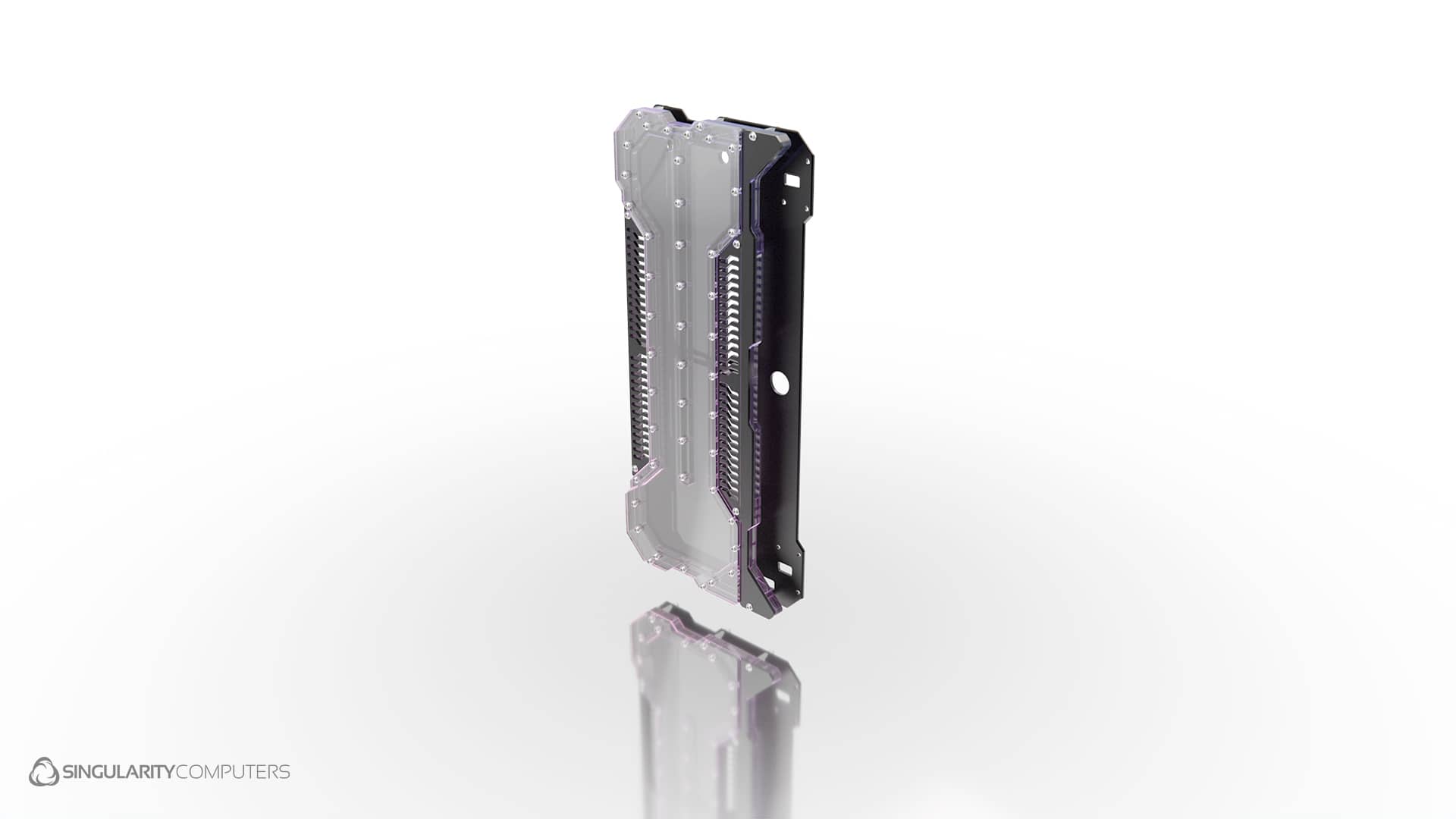

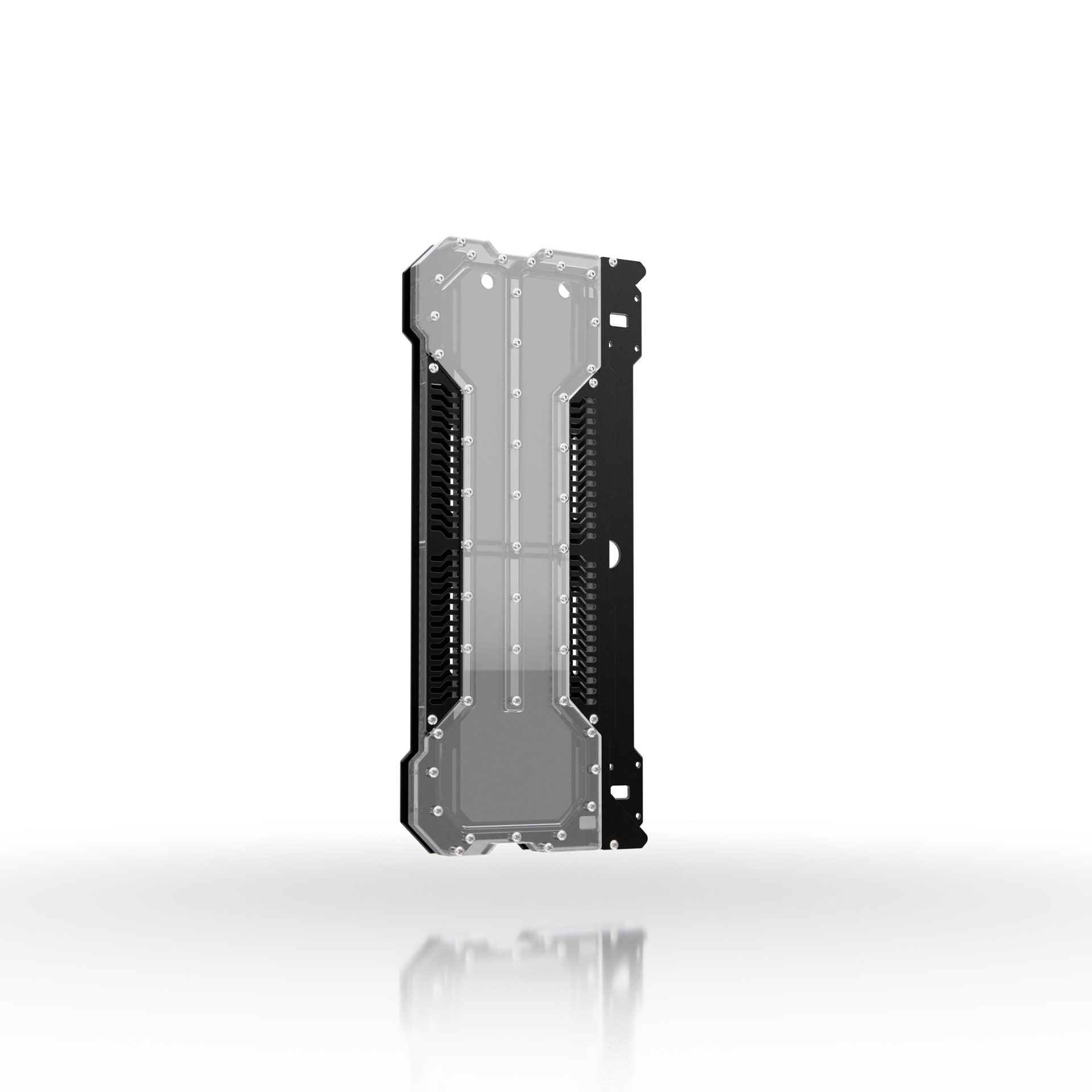

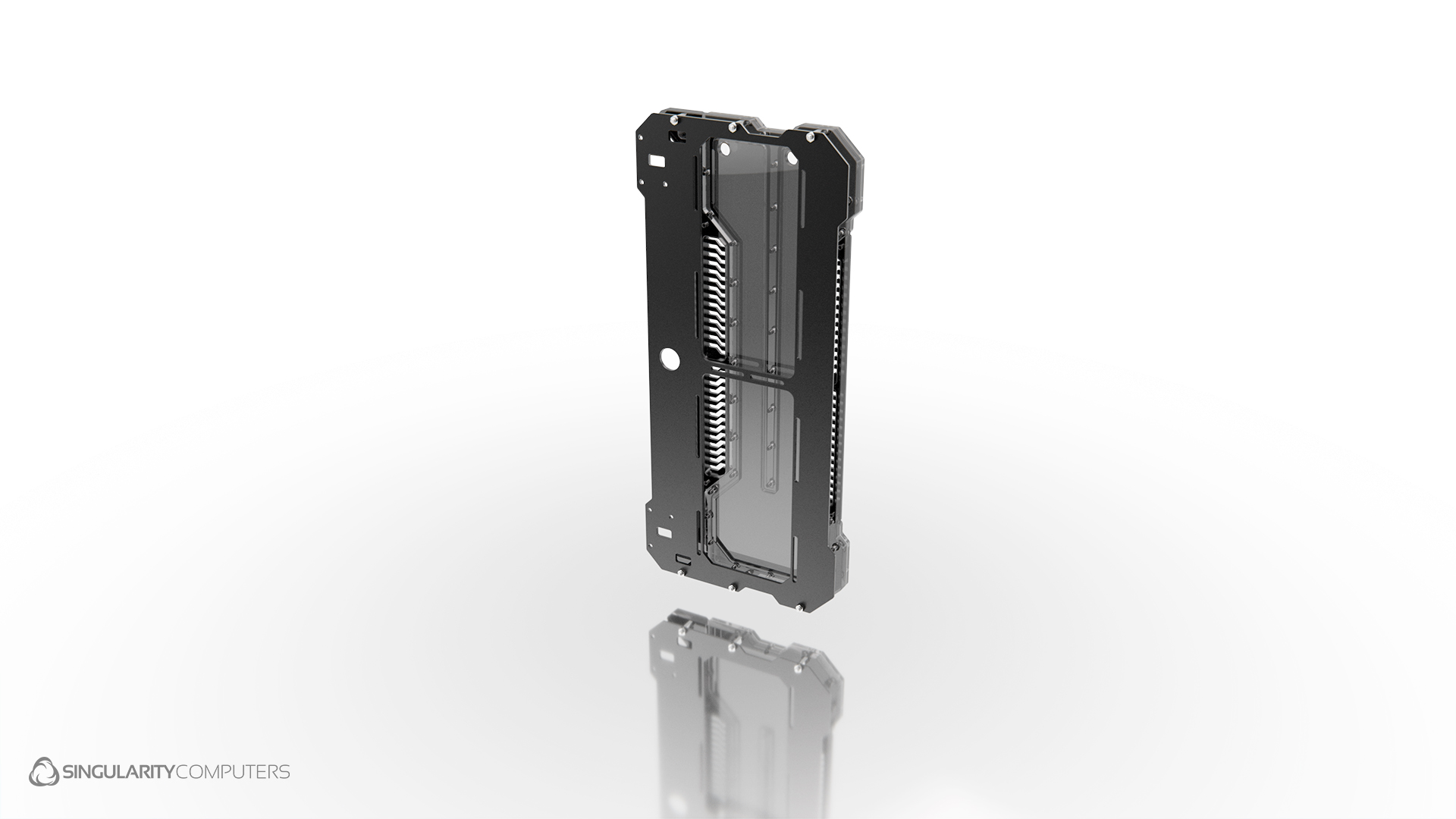

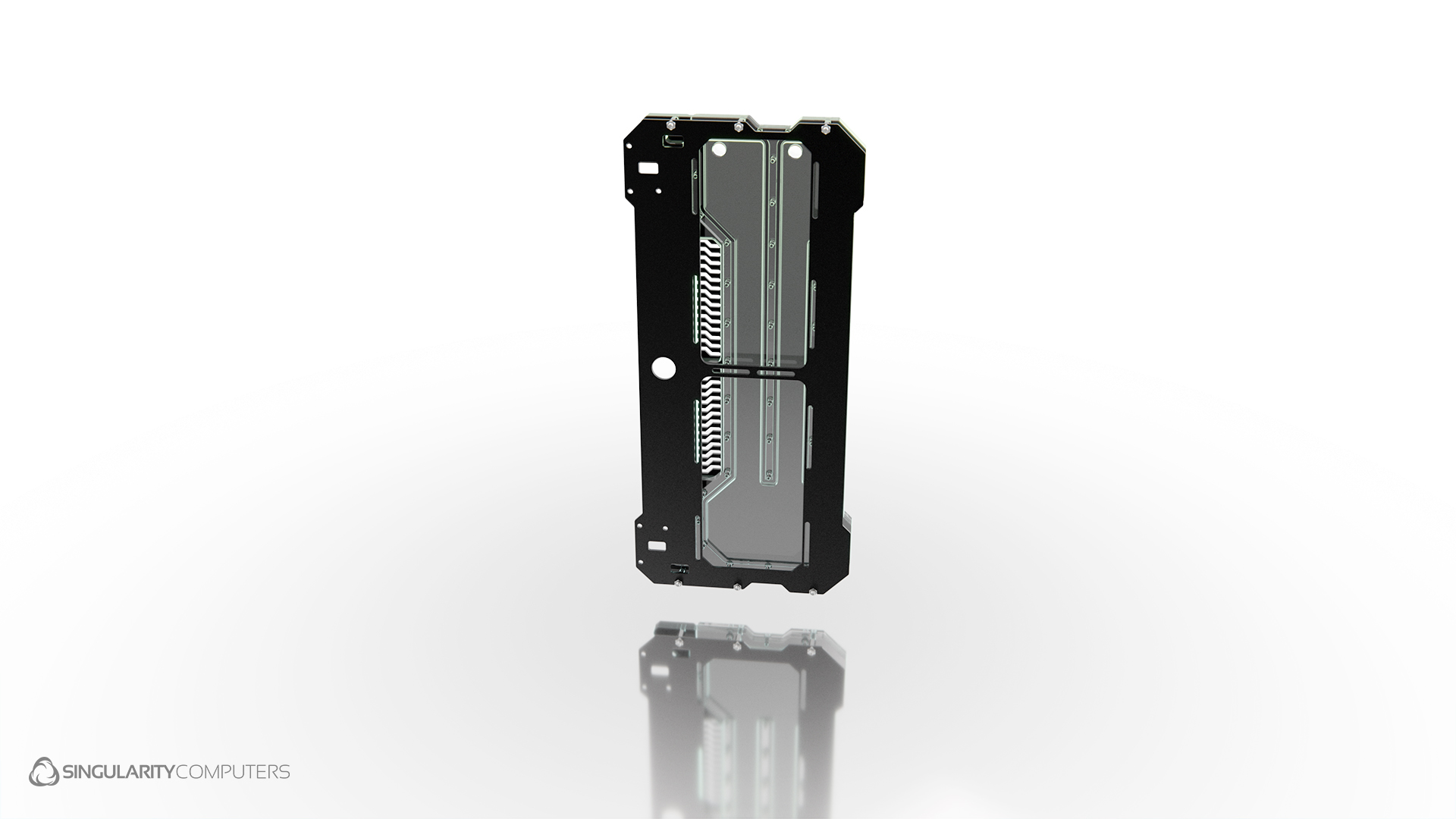

Spectre Integra-M Elite has a two-layer distribution plate. The Dark version has the main distribution plate layer in grey tinted acrylic instead of clear like the standard version. The cover layer is still transparent like the standard version so it will pick up the light from the LED strip, but the dark layer behind it will pick up less of the light. Spectre 3.0 Integra-M Elite Dark was designed for Spectre 3.0 Integra-M Dark which also has grey tined acrylic on the main distribution plate layer.
Note: When using Spectre Integra-M Elite Dark on the front and top panels the radiator thickness for both radiators is limited to 30mm.
Manufacturing Process: CNC Mill. CNC Router. Laser Cutter.
Materials: 6061 Aluminum Anodized. Cast Acrylic.
Gaskets: Silicone Black.
Fasteners: Stainless Steel Silver.
Ports: x2 G1/4” BSPP. 1x Inlet. 1x Outlet.
5V ARGB UV LED Strip 50cm.
Assembly: Assembled by hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Packaged Weight: 2.5kg.
Packaged Dimensions: 50mm x 300mm x 80mm.
The Spectre 3.0 Integra Elite Distribution Plate installs the same way as the stock front and top panels. The distribution plate needs to be removed from the radiator mounting panel so that the radiator can be installed. Connections can be made to the water-cooling components in the build, and the Spectre 3.0 main distribution plate in any order provided that the Elite has flow coming in and going out. The radiators can be attached normally and have the same adjustment as the stock Spectre 3.0 front and top panels.
