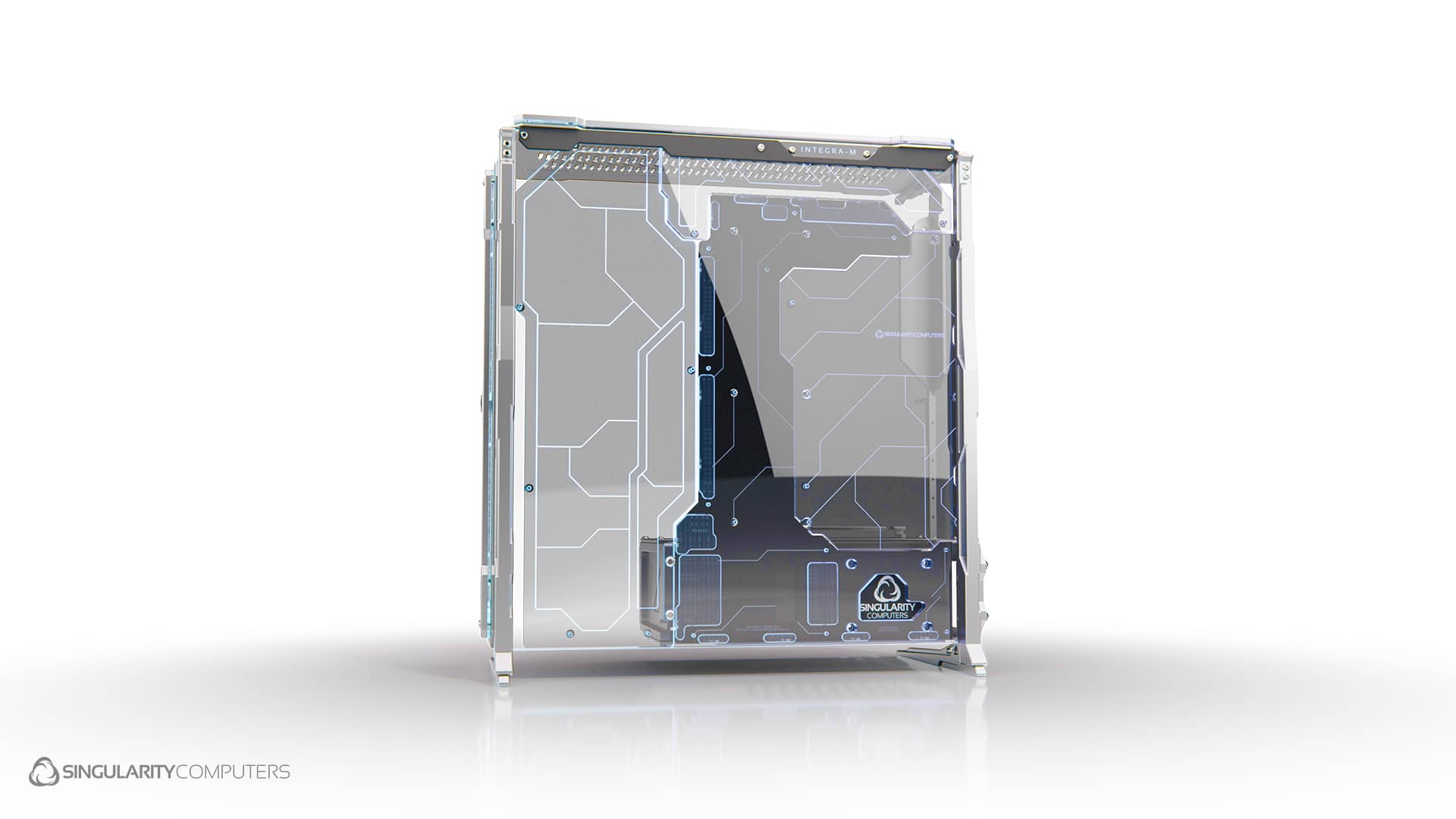

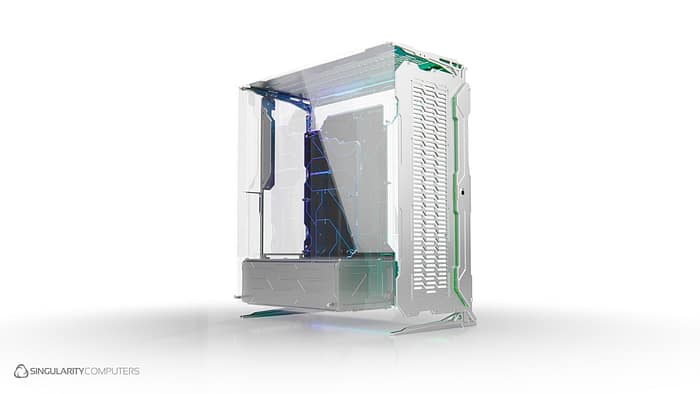

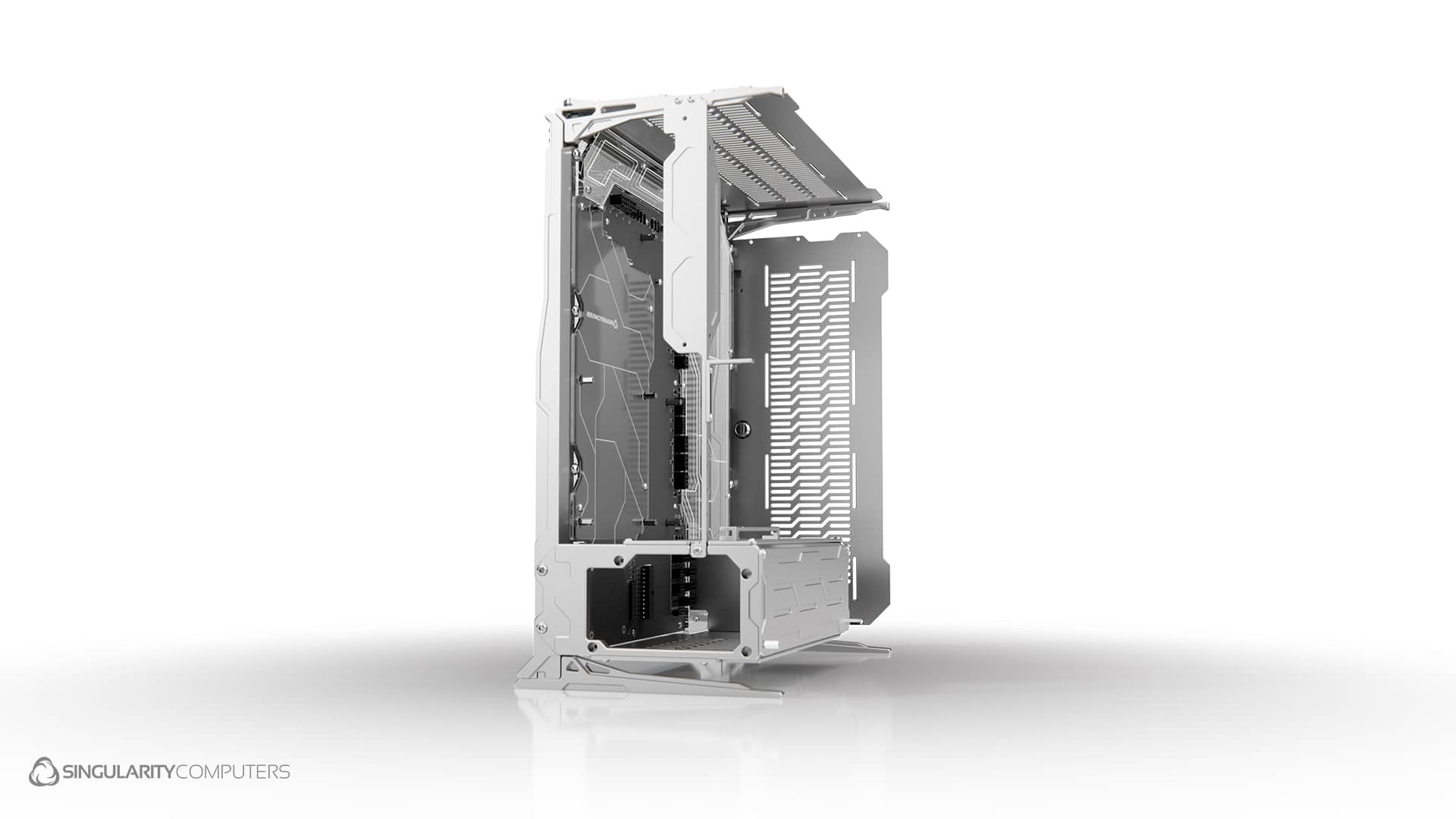

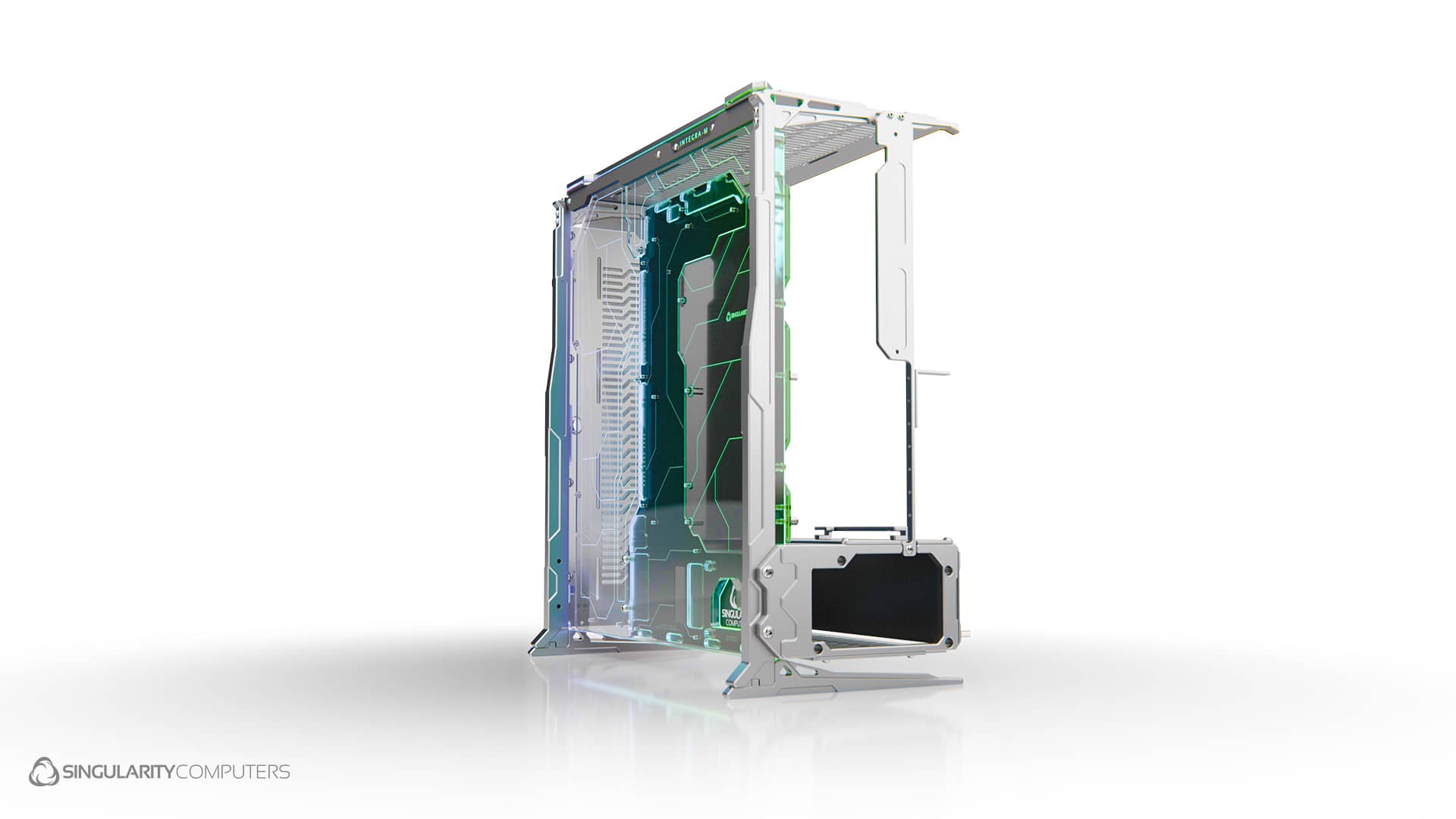

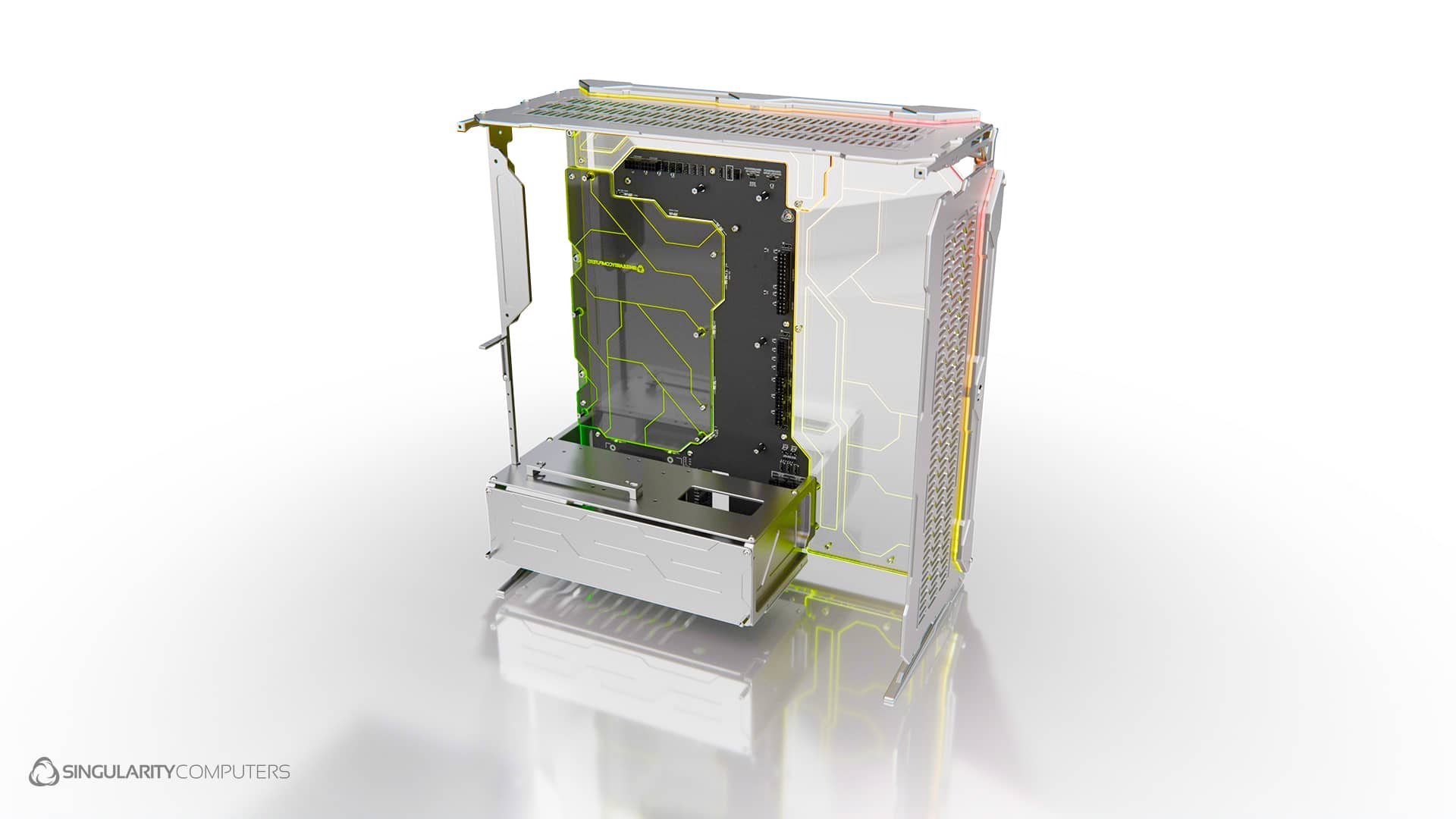

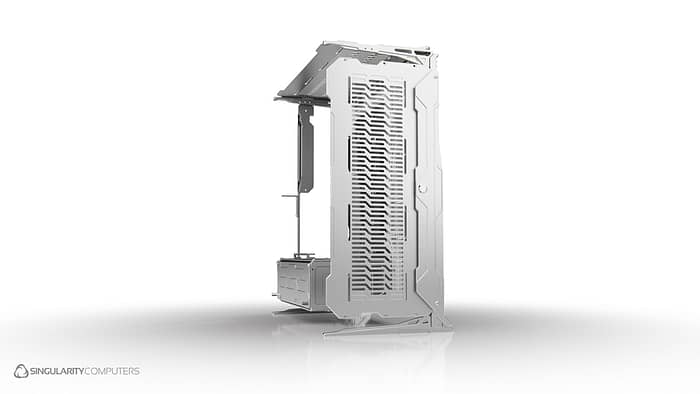

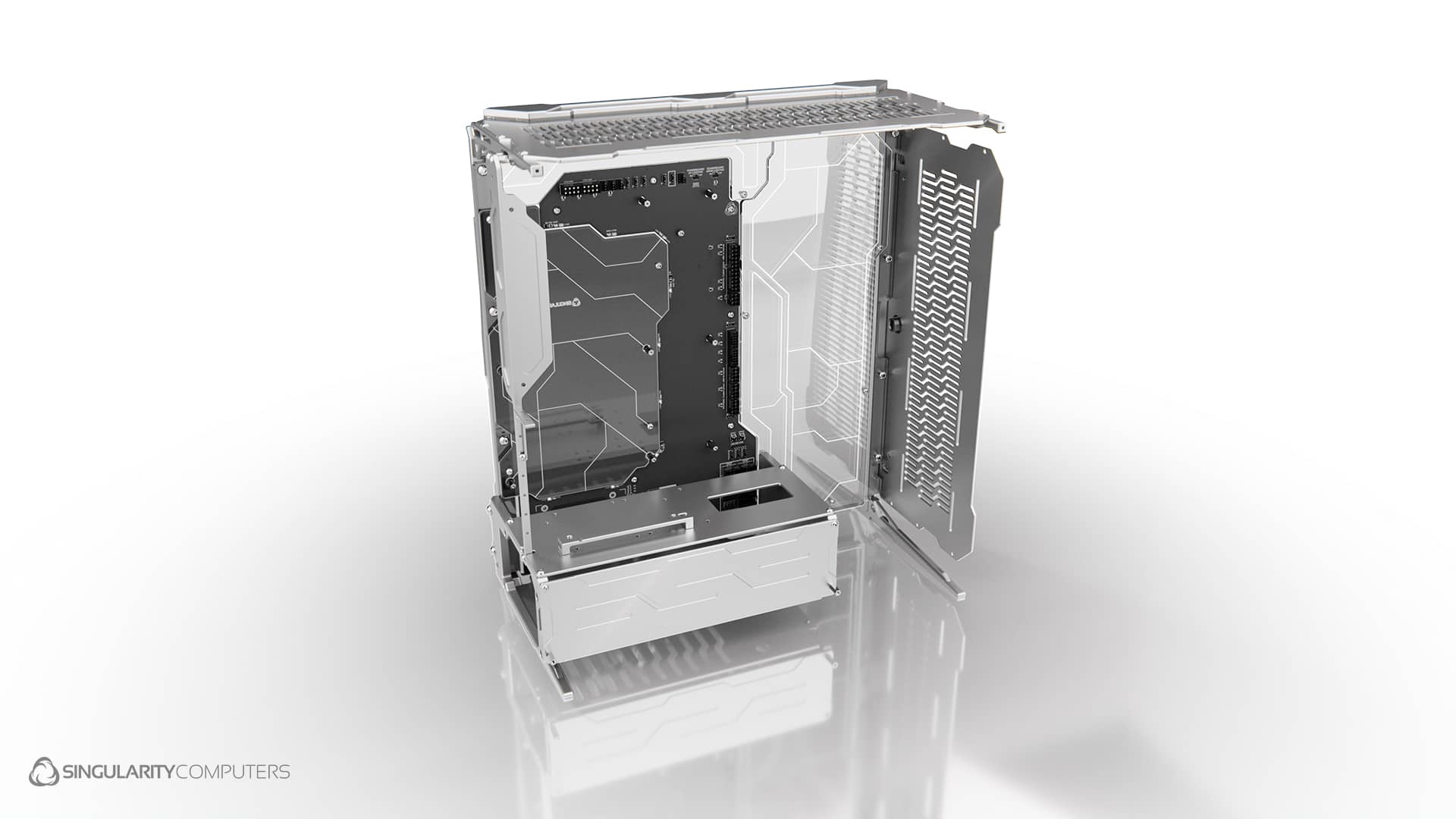

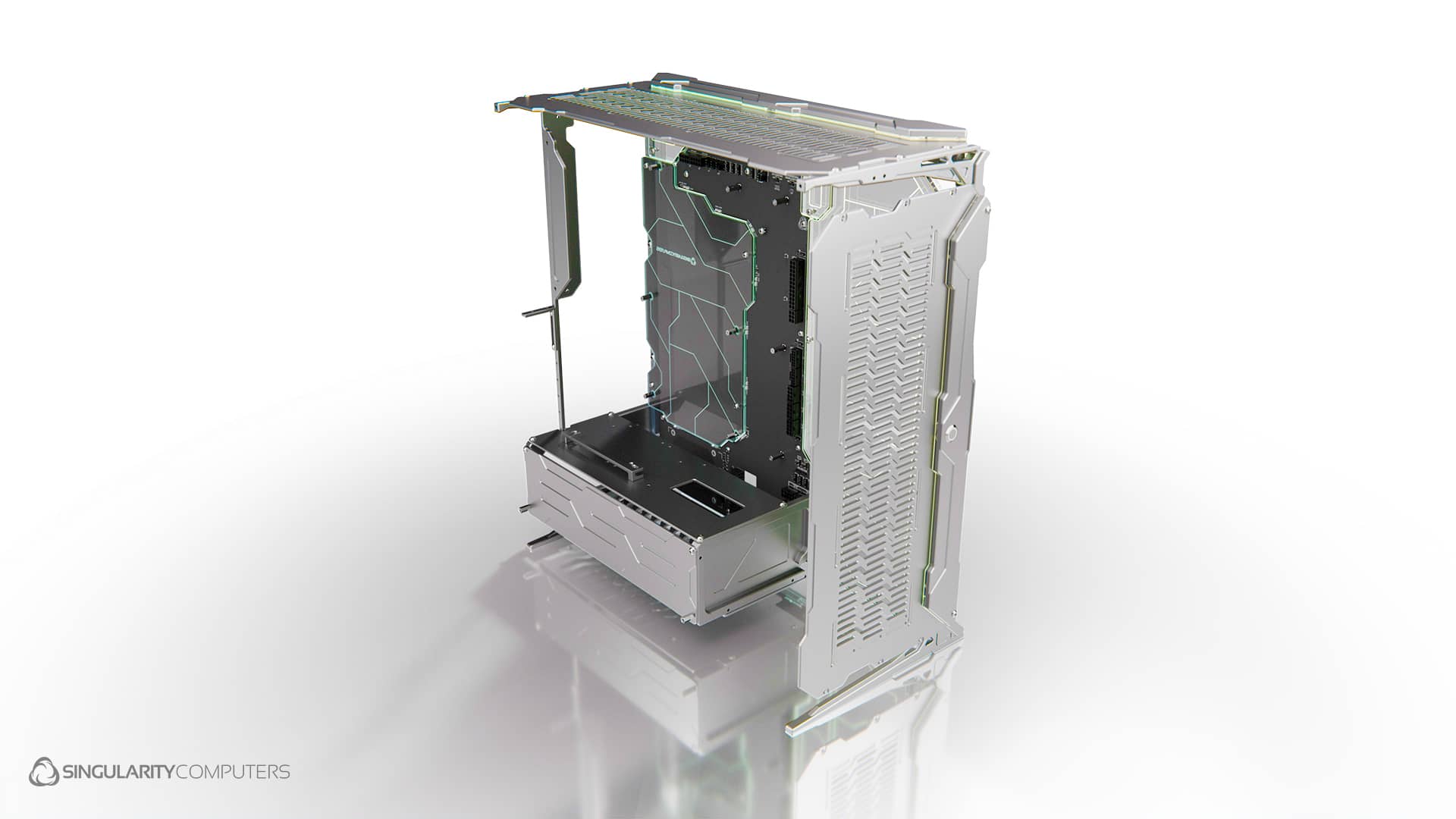

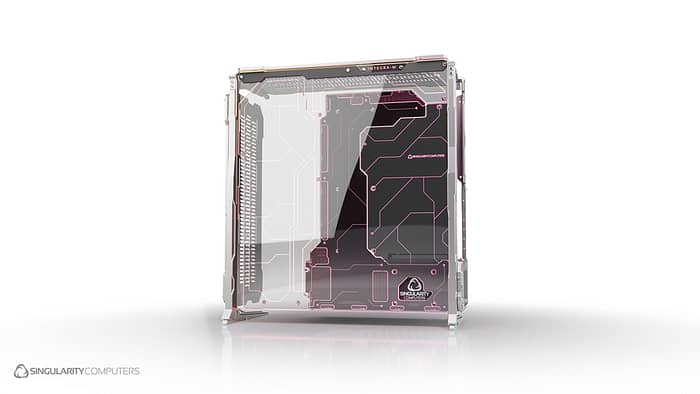

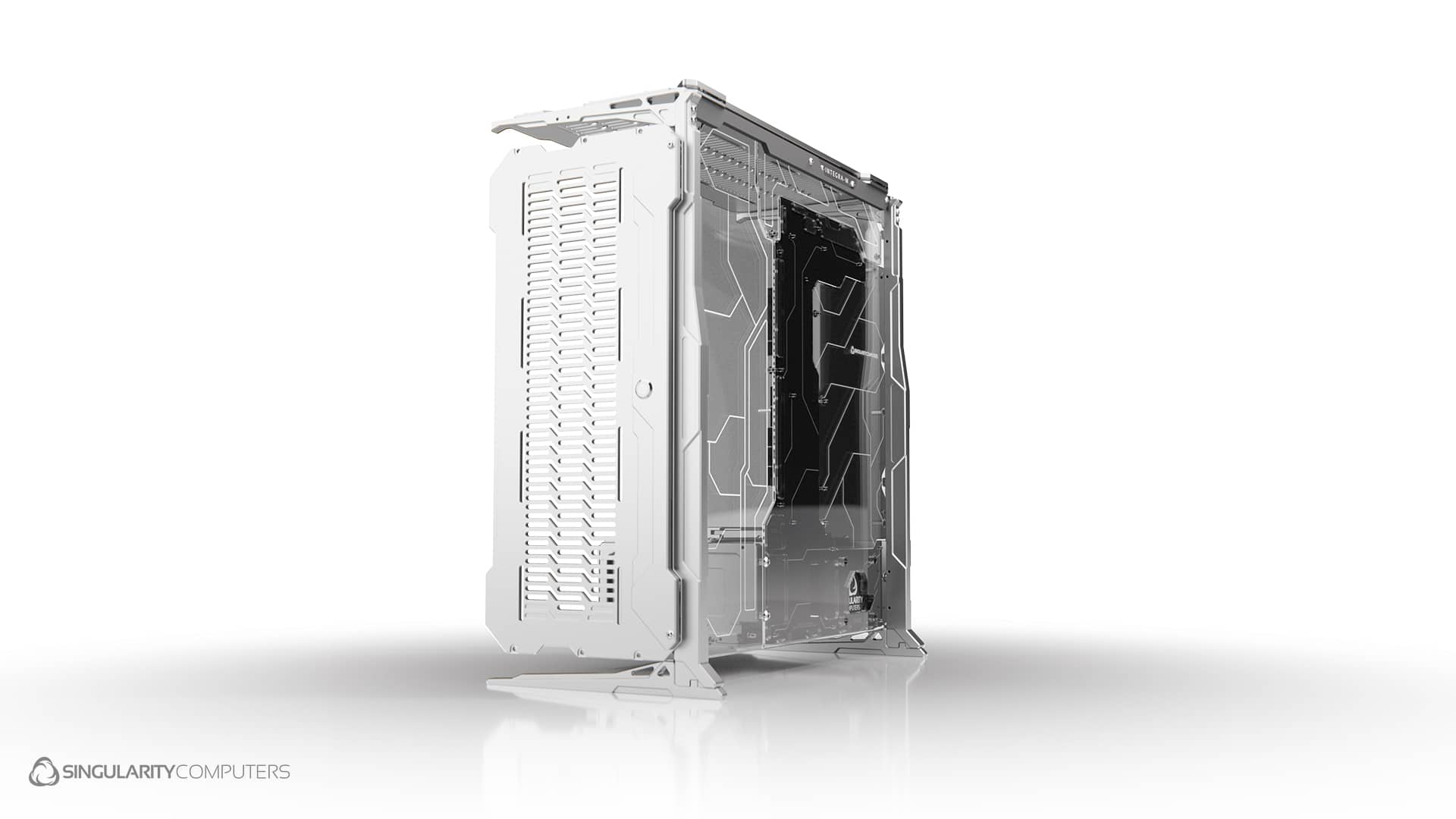

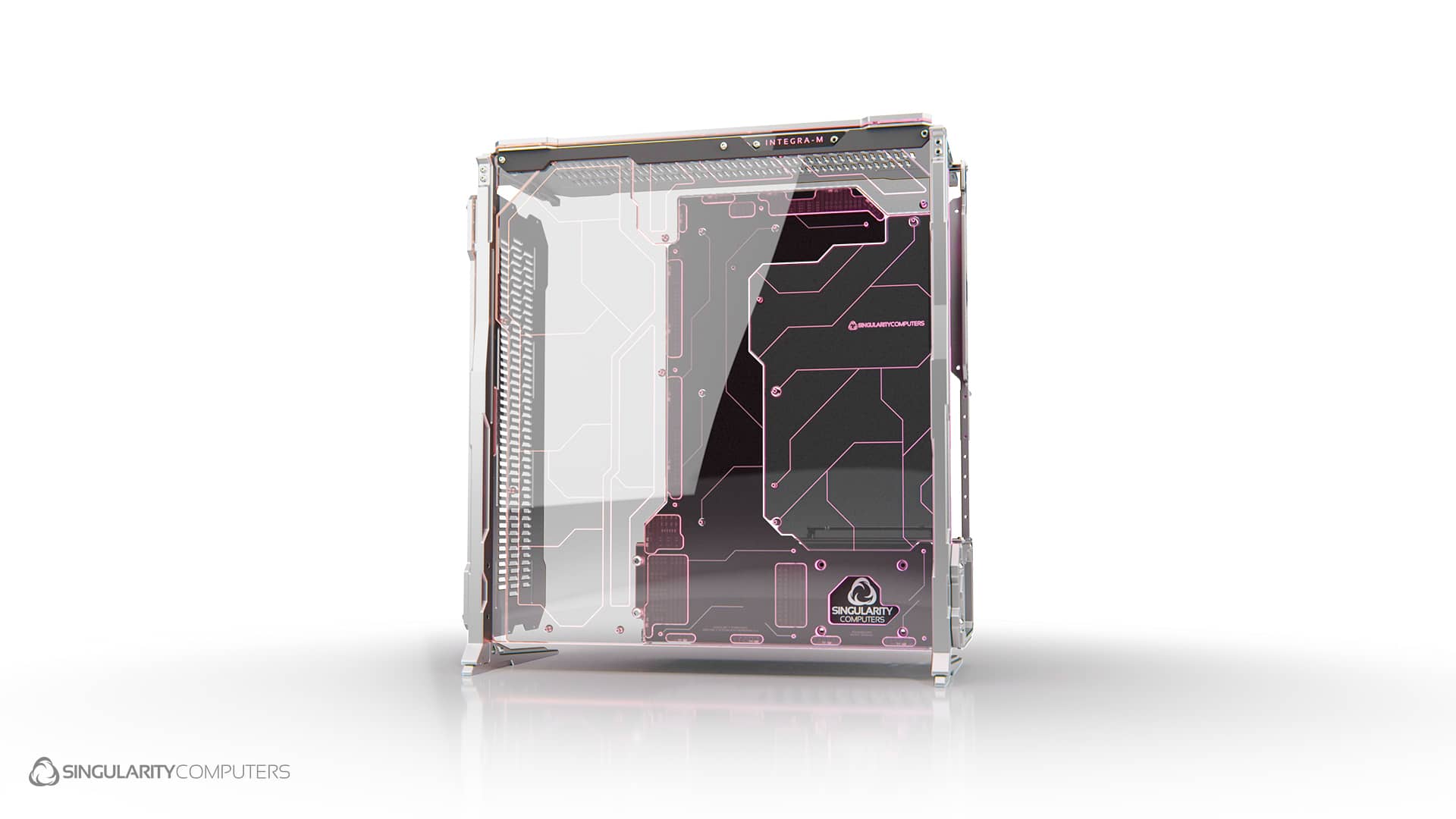

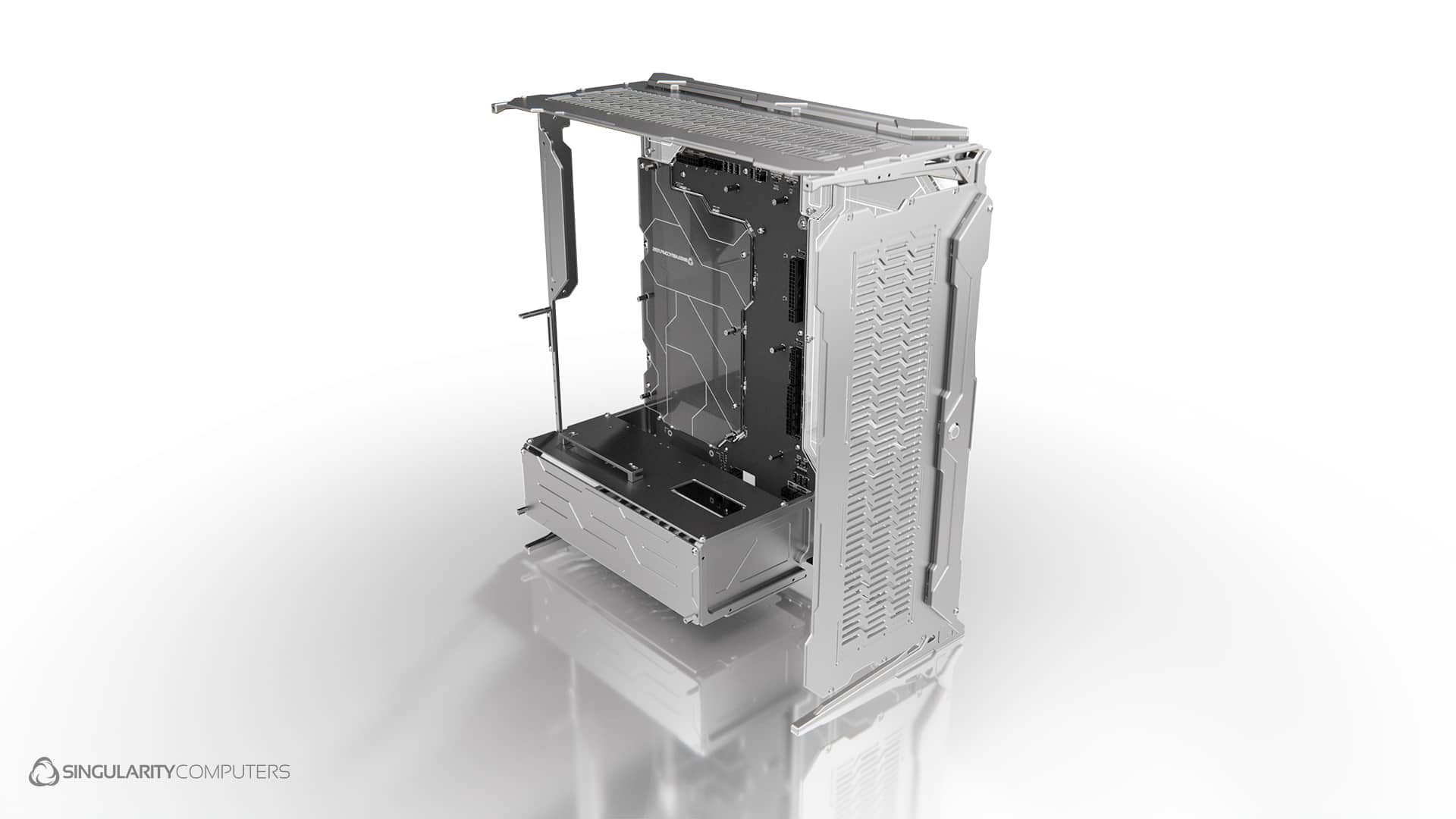

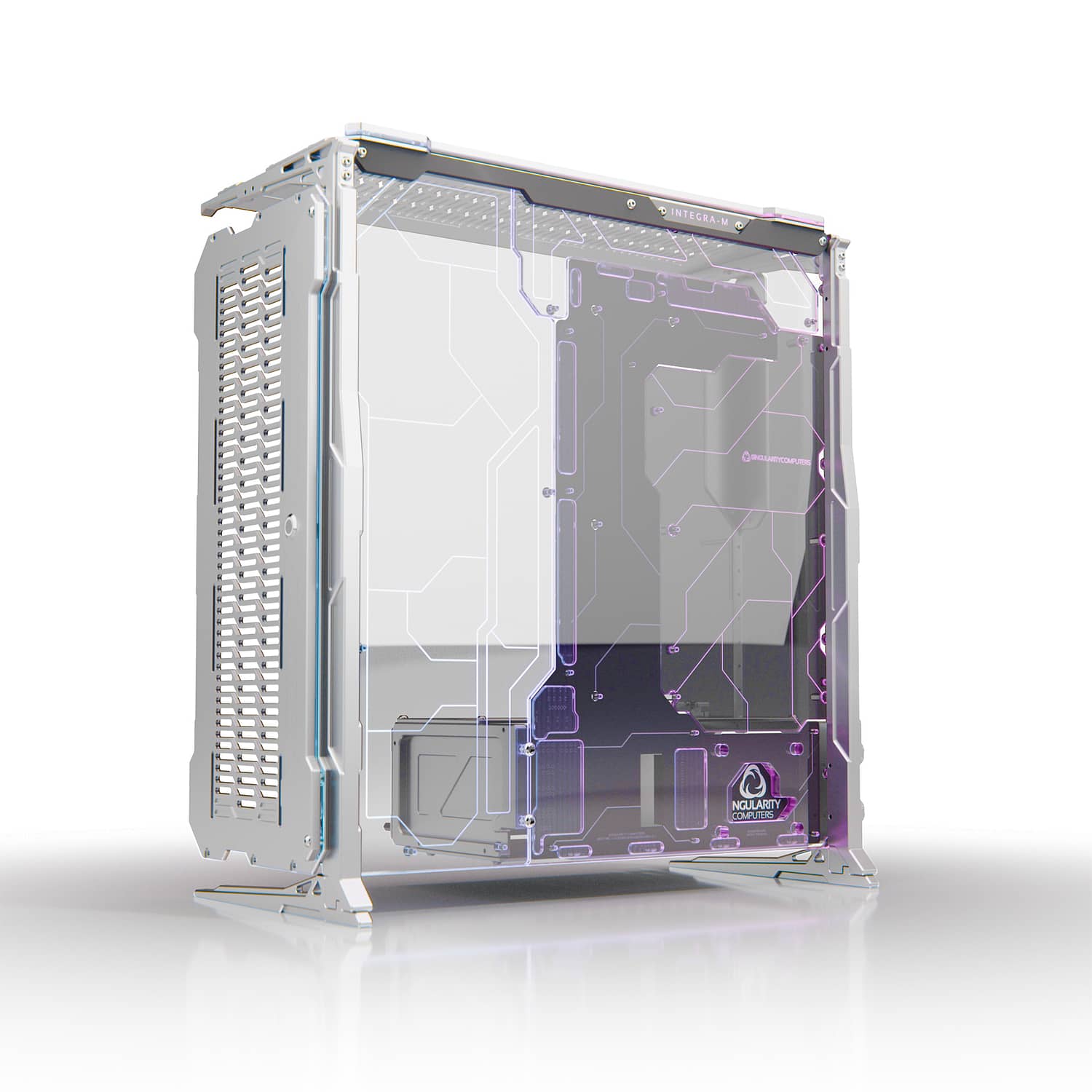

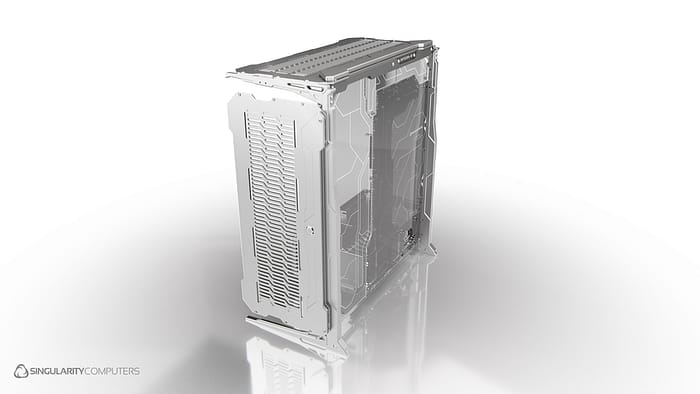

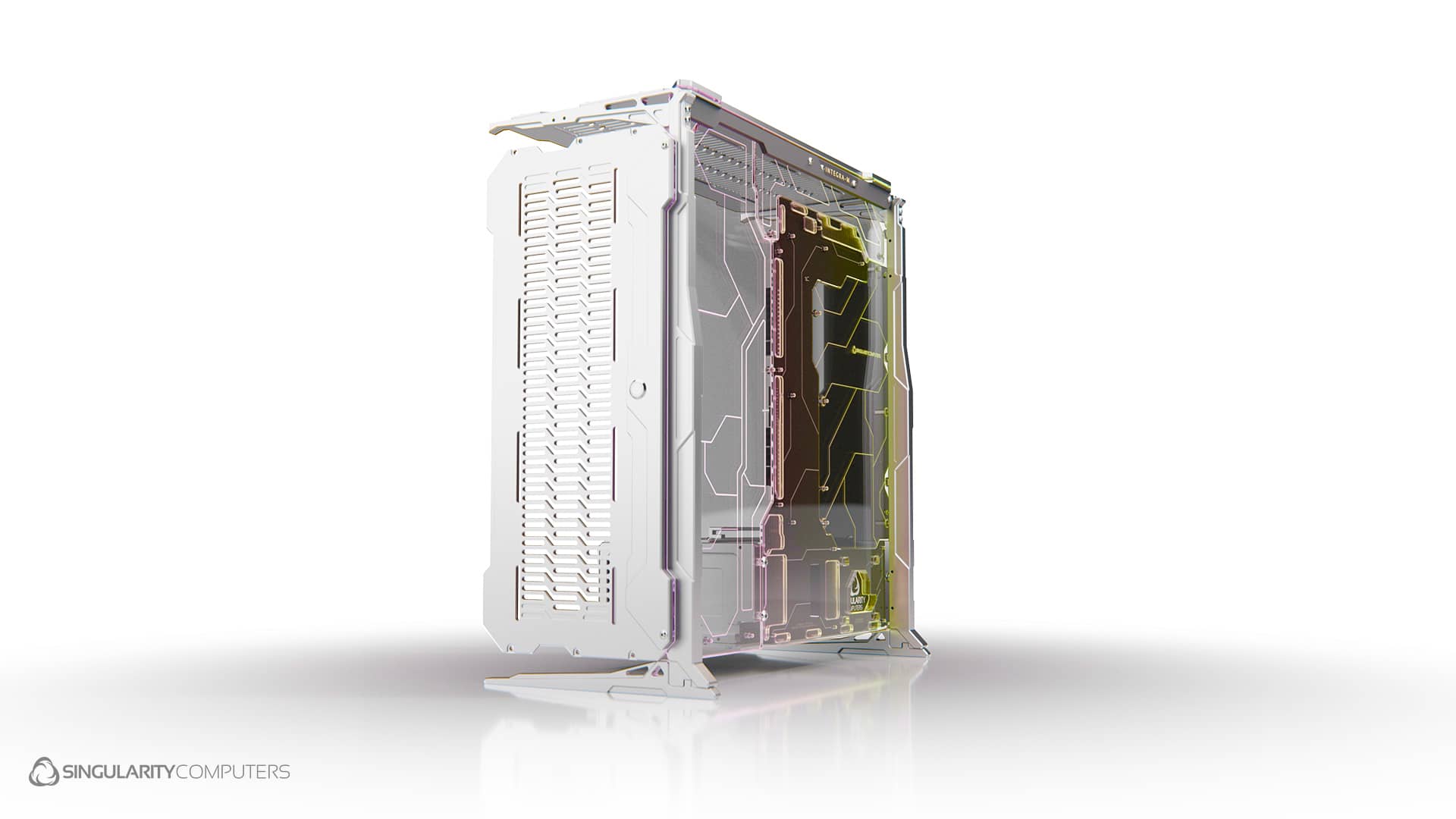

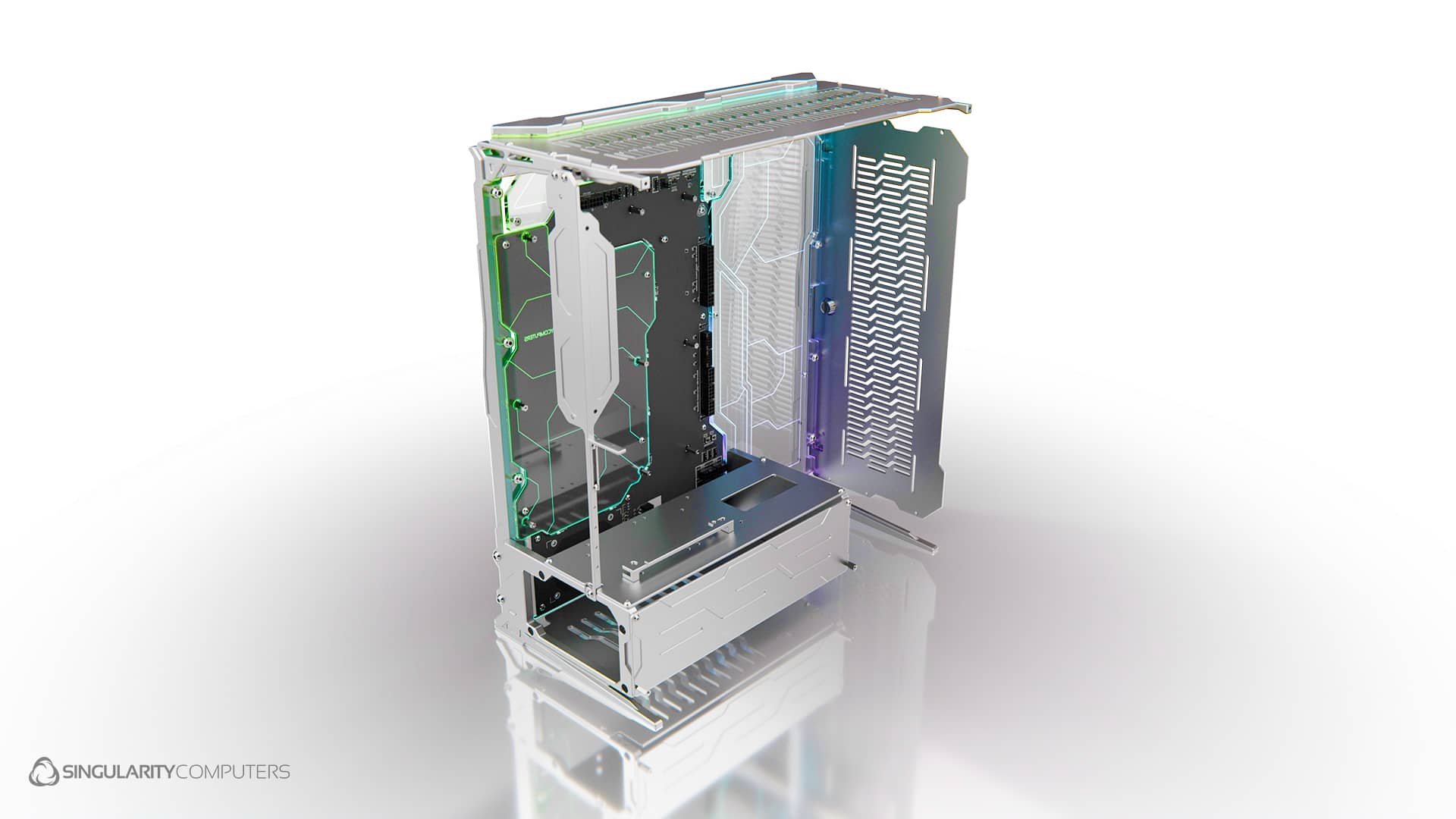

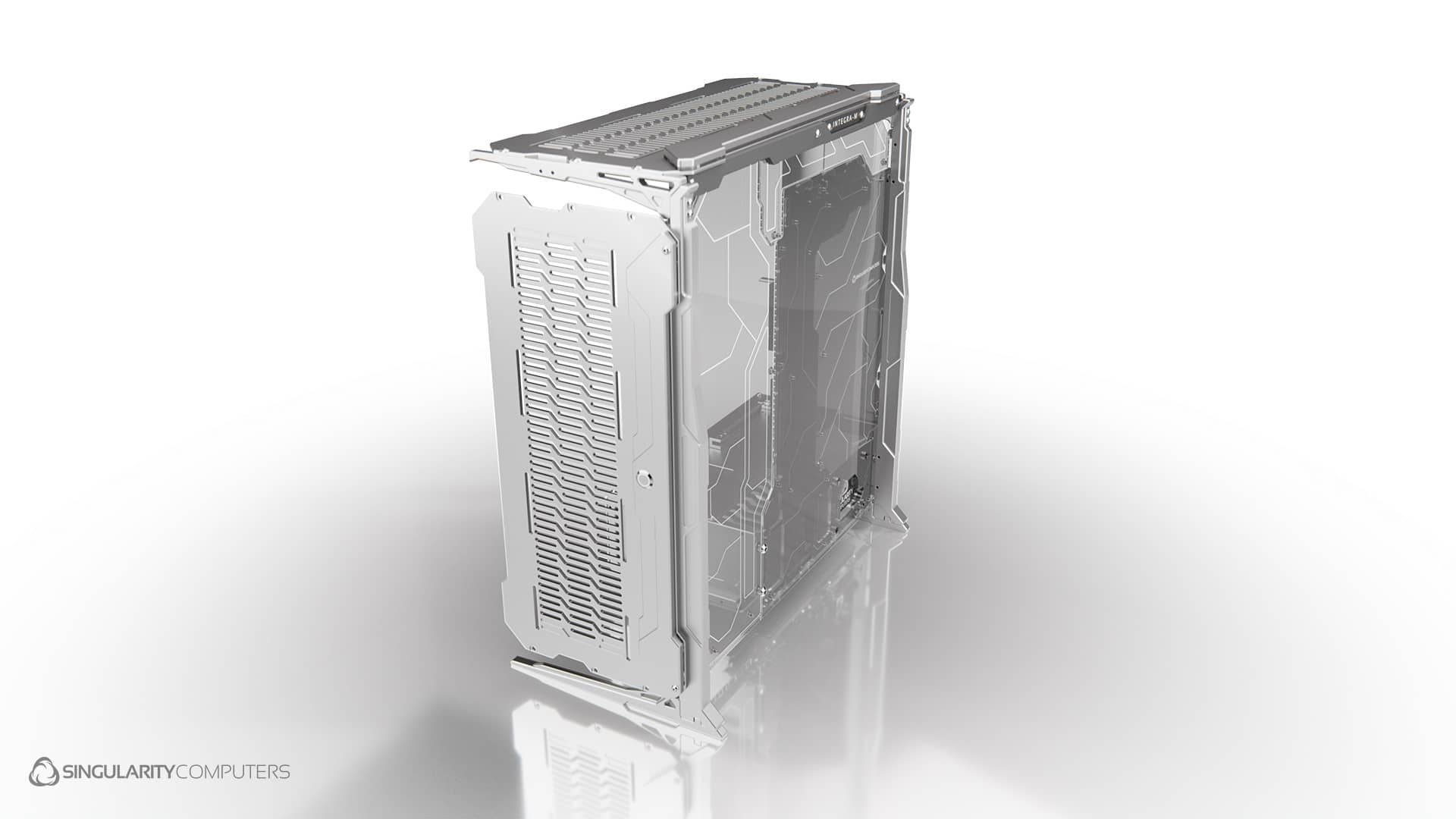

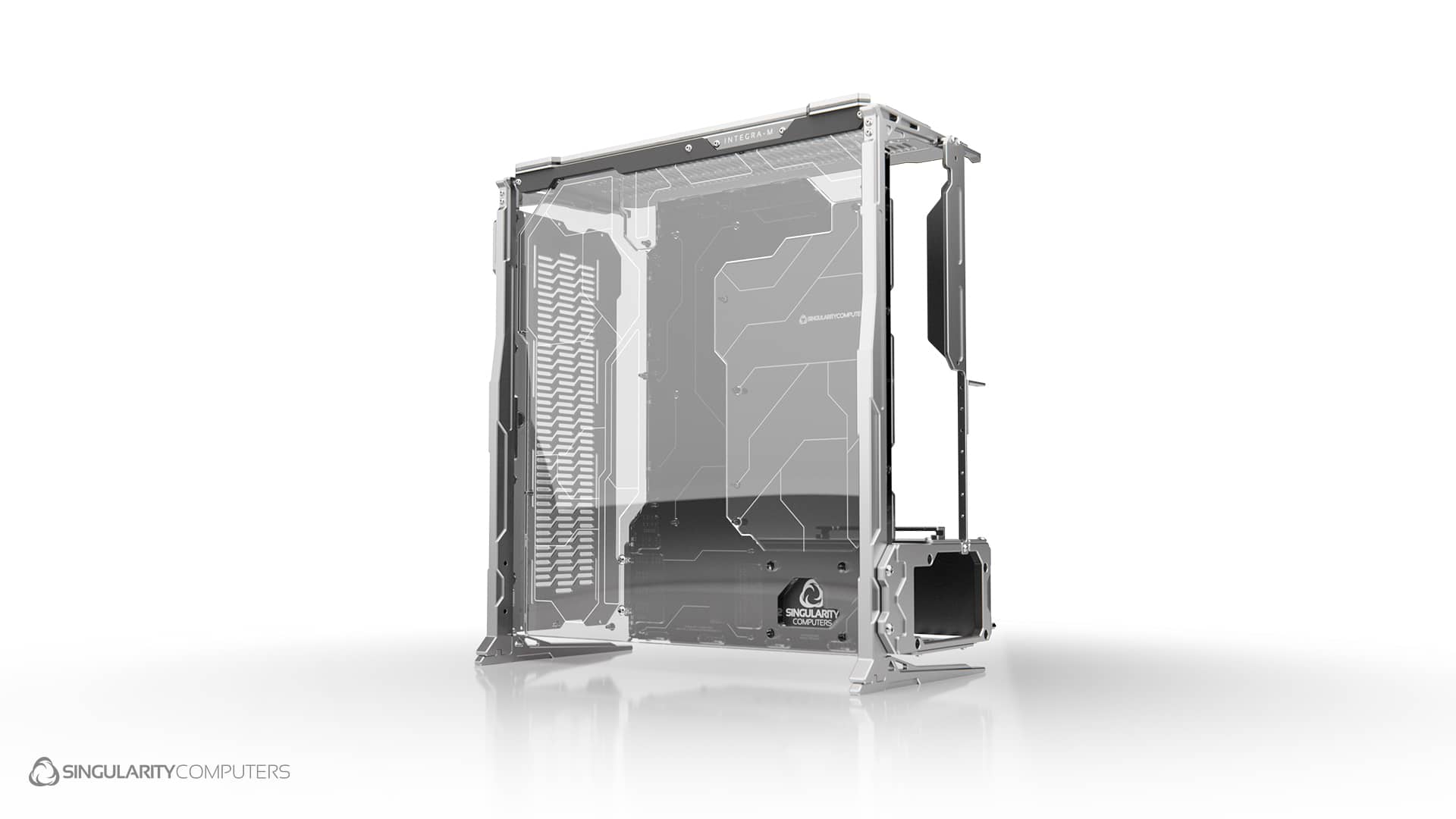

Spectre Integra-MA Silver Case

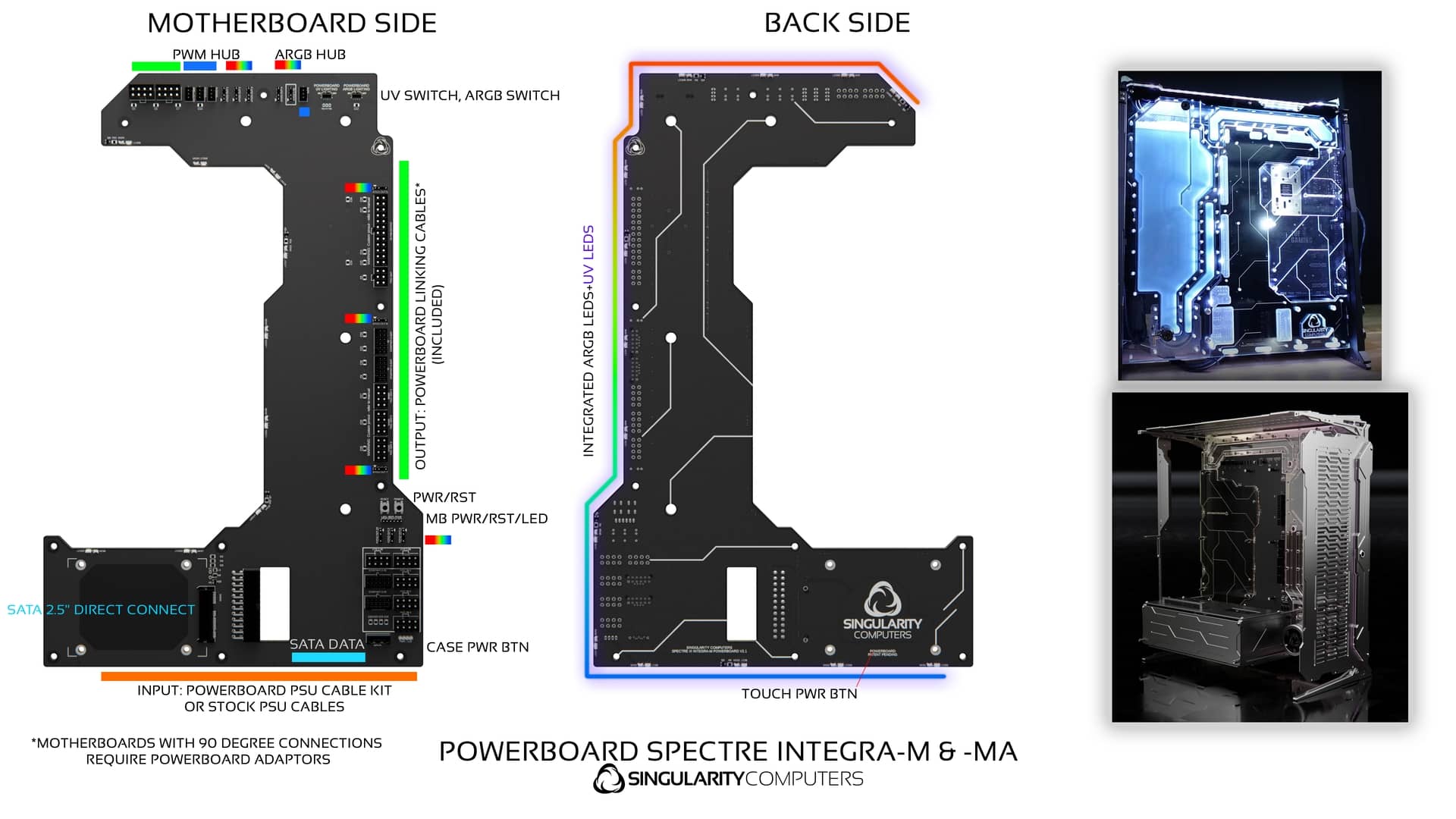

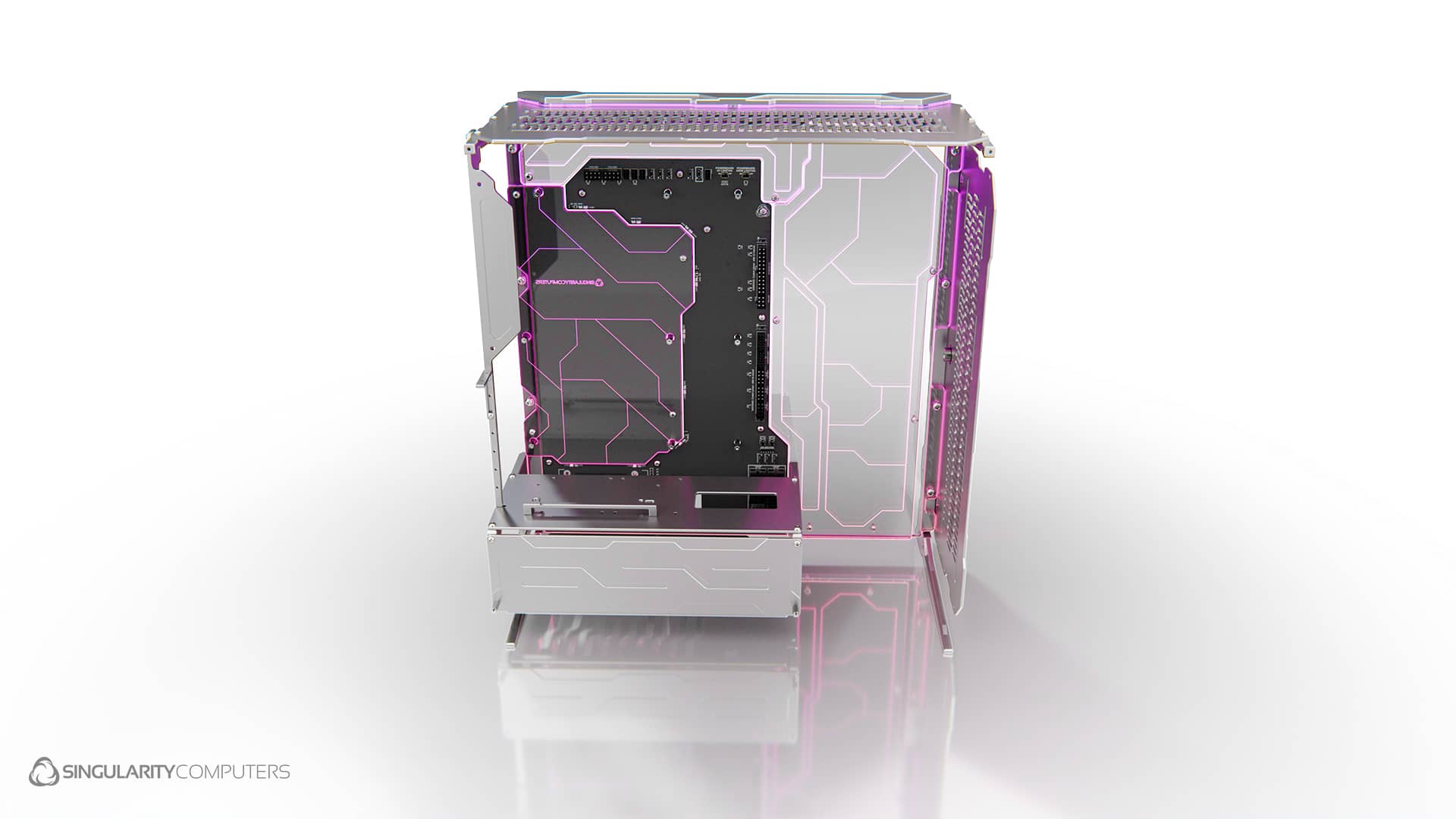

Spectre Integra-MA has a fully integrated solution/replacement for cables with the Singularity Computers PowerBoard. The PowerBoard supports the most high-end components and features built in filter capacitors, more integrated LEDs facing inwards and outwards, integrated direct connect SATA, power, and reset buttons, and a touch activated power button. There is now no rear access needed to the case due to the PowerBoard, all cables can be connected from the front and little to no cable management is required. A standard set of black sleeved linking cables are included with the case. Integra-MA has integrated PowerBoard LEDs facing inwards towards the motherboard tray and outwards towards the acrylic back plate. There are two separate sets of LEDs for ARGB or UV, and they can be switched on or off, or from UV to ARGB via two switches on the PowerBoard.
The following cables are included with the product: 24pin x1, 8pin EPS x2. You can select either 12VHPWR or 8pin PCIE x3 below.
If other cables are required they are available
Optional PowerBoard PSU Cable Kit is available
For motherboards with 90 degree connectors adaptors are available
Connections: 24pin x1. 8pin EPS x2. PCIE 8pin x3. 12VHPWR x2. 6pin PCIE MB Supplementary x1.
Hubs: PWM: x3. ARGB: x10 (Single input for each).
LEDs: x24 Integrated ARGB 90-degree LEDs and x24 UV 90-degree LEDs facing around the internal and external perimeter of the PowerBoard. There are two switches on the PowerBoard one switches the ARGB on or off and the other switches the UV on or off.
Touch sensing Power Button. Extra Power and Reset Buttons. PowerBoard LED on/off switch.
PowerBoard 2.5” SATA 3.0 6Gb/s Direct Mount x1.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3. 18AWG Black Headshrinkless Sleeve. PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1. Touch Power Button and extra Power and Reset Button Cables 20cm x4.
LED Strips: x2 50cm ARGB LED Strips with 50cm cables. (Attach to case panels on specific mounting points for front and top panel glow).
Accessories: Hex Keys: M3: x1. M4: x1. M6: x1. Microfiber Cloth: x1. Stop Fittings: x2.
5v ARGB LED Strip 50cm: x2.
Motherboard Form Factor: ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x7.
Case Form Factor: Mid Tower.
Package Dimensions: L: 640mm W: 620mm H: 110mm (Case is flat packed and requires partial assembly).
Package Weight: 12kg.
Case Dimensions: L: 486mm H: 528mm W: 245mm.
Case Weight: 10kg.
Storage: 7x 2.5”. x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x4 are inside of the PSU Shroud. x1 is on the PowerBoard behind the PSU.
Radiators: 360mm x 40mm with x1 set of standard 25mm fans.
Maximum GPU Length: 410mm with radiator installed.
Maximum GPU Height: 170mm in standard orientation. Unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 220mm (Space allowed for cables inside of PSU shroud).
Front Panel I/O: No Front I/O. Vandal Switch 16mm white LED.
Vertical GPU Mount: x2 with 3 slot (60mm) spacing. x1 is included. 2nd Vertical GPU Mount Available Separately Here. Riser cable not included, compatible with Linkup PCIE 4.0 Riser Cables.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
