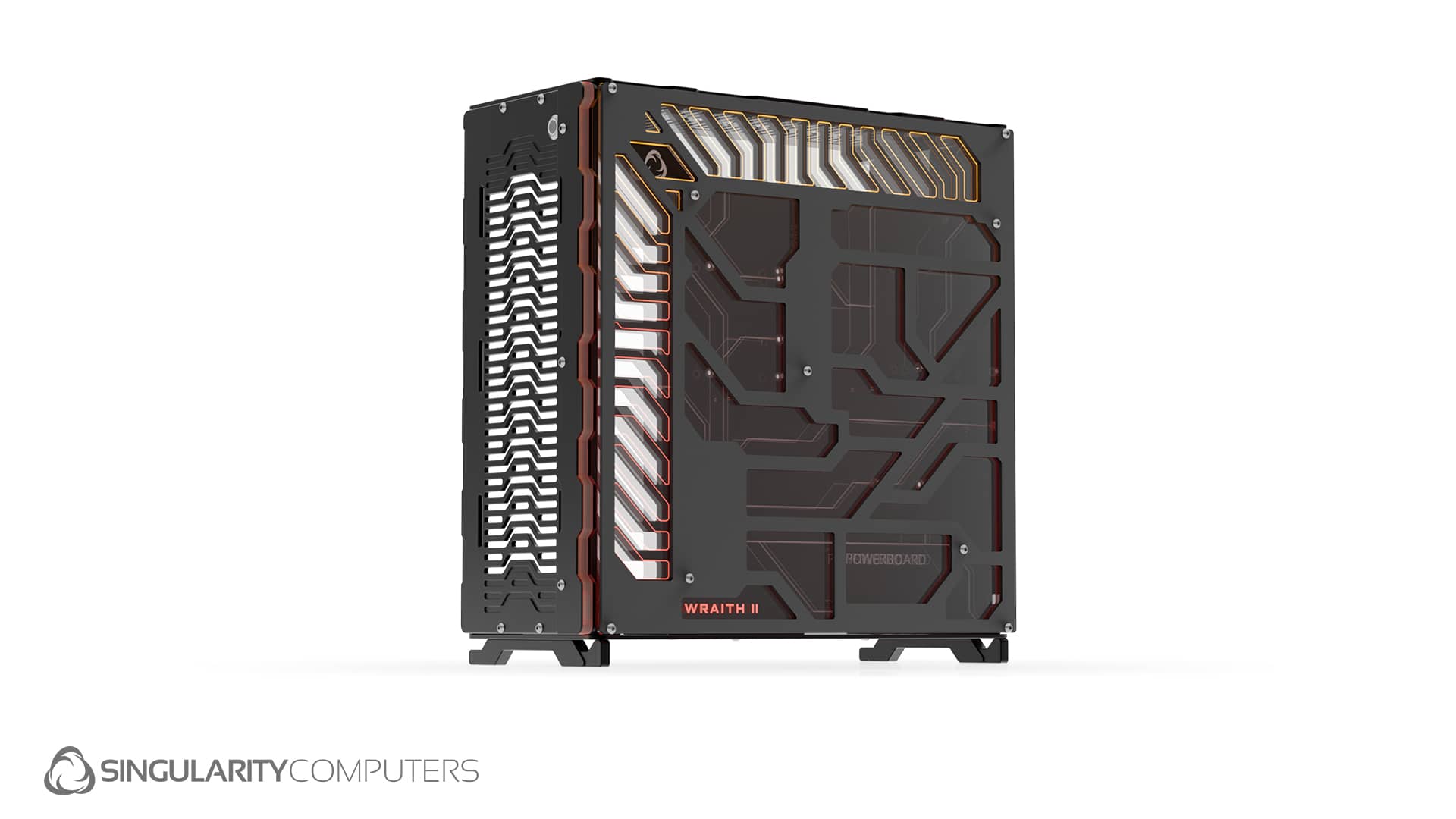

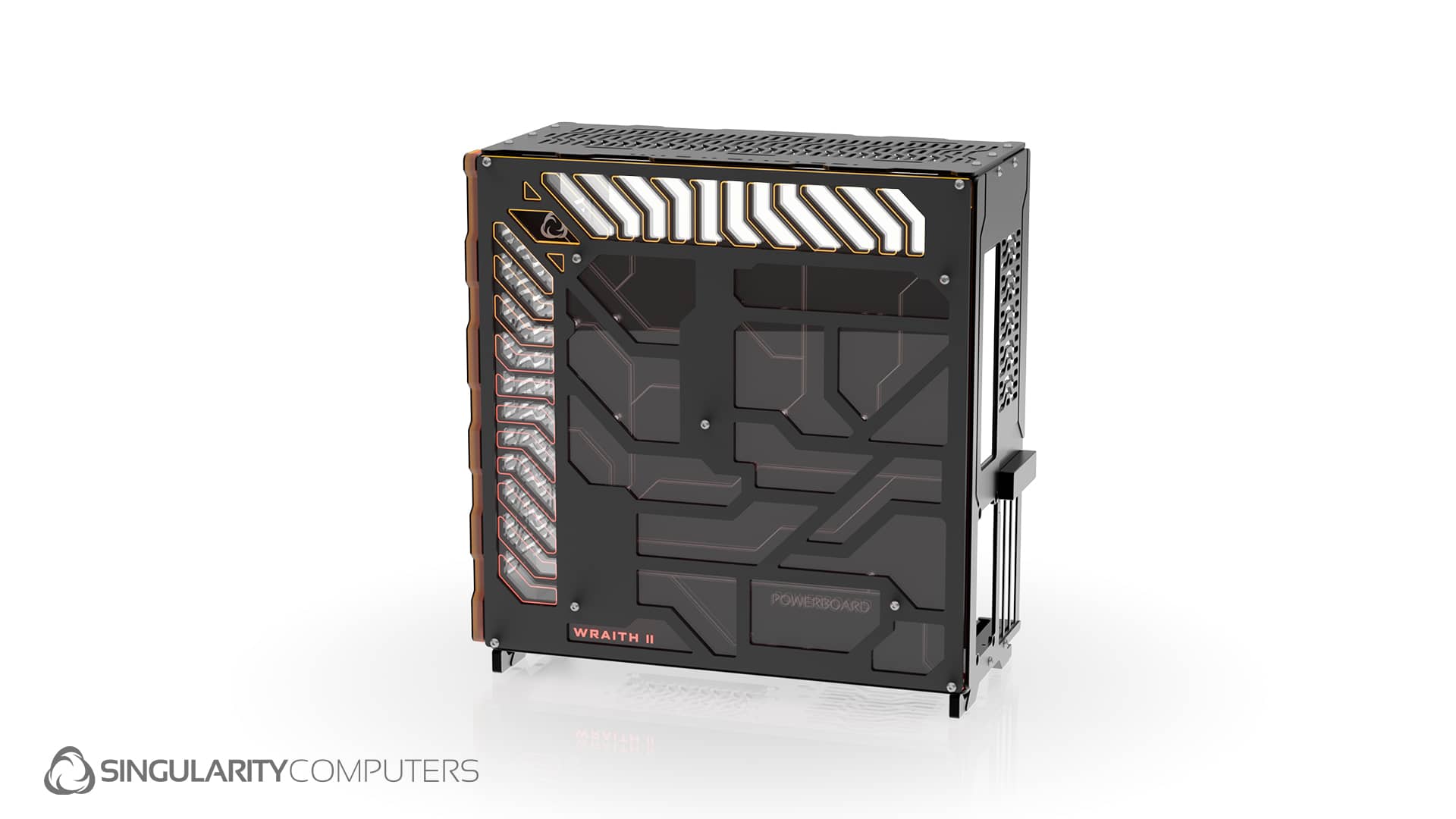

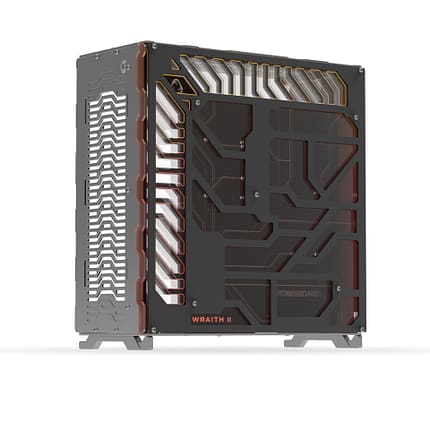

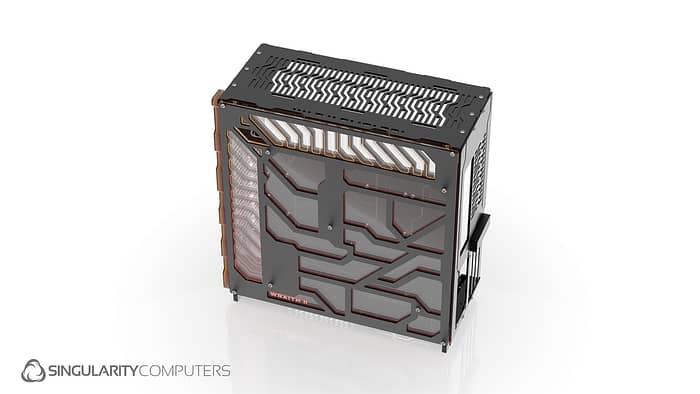

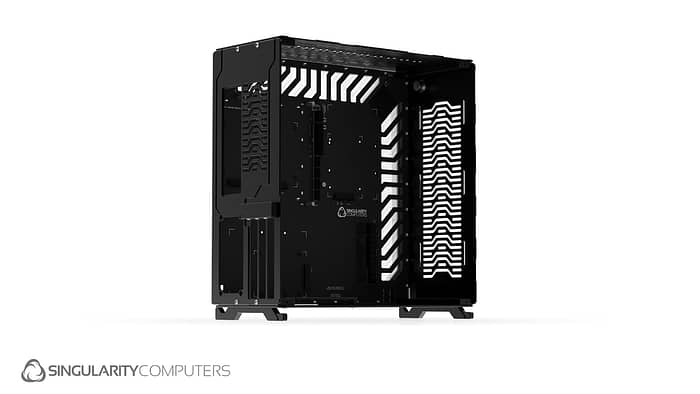

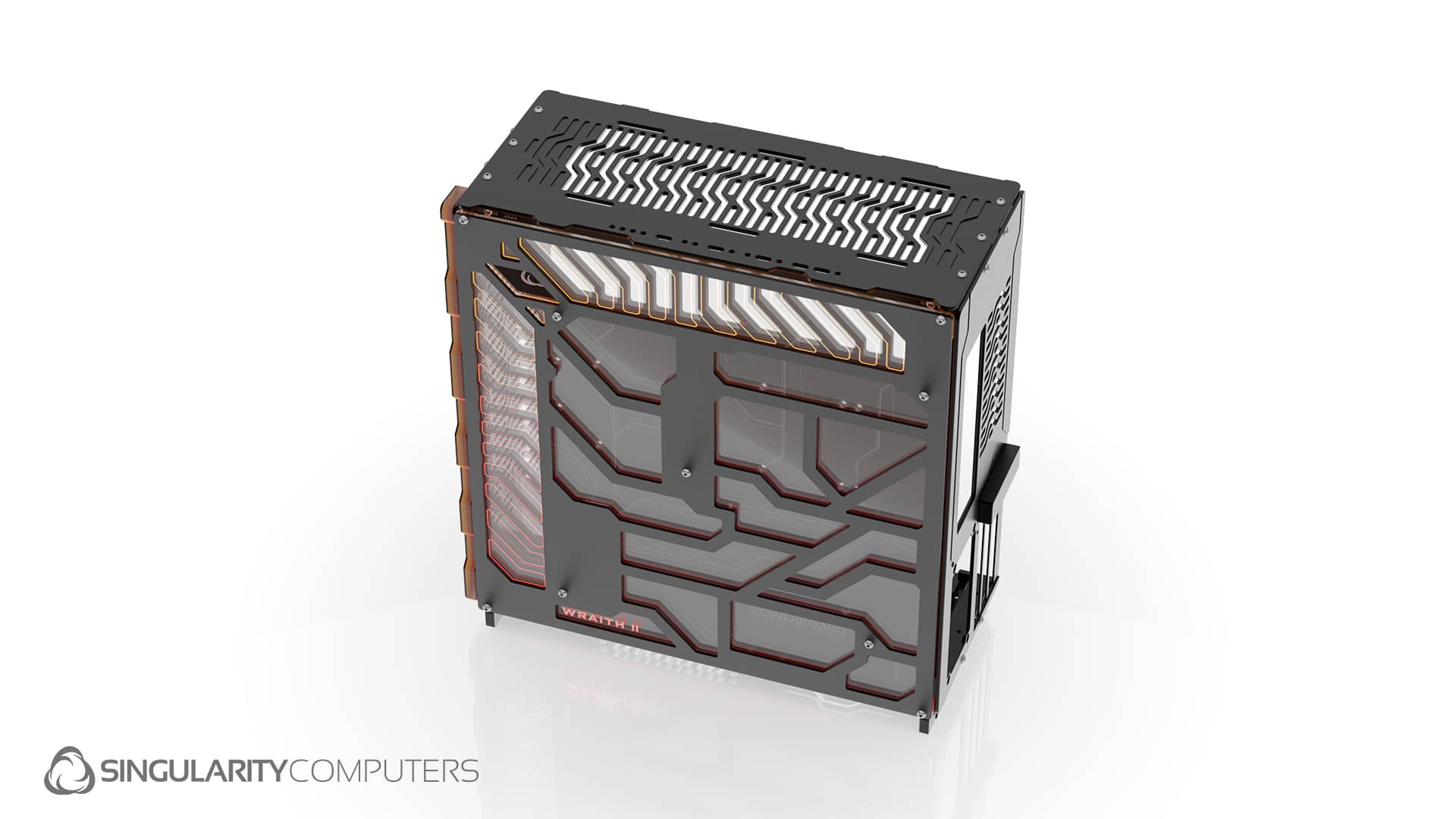

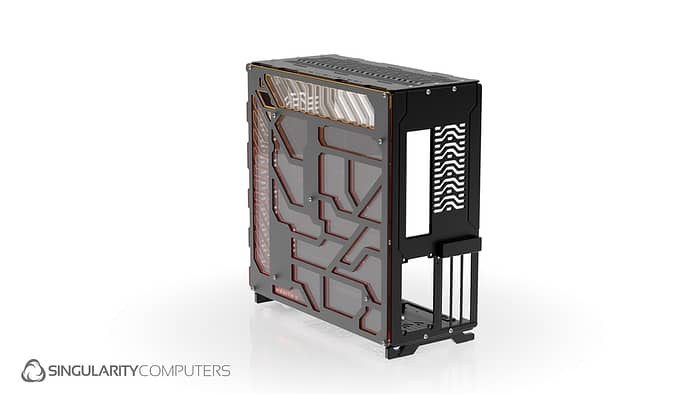

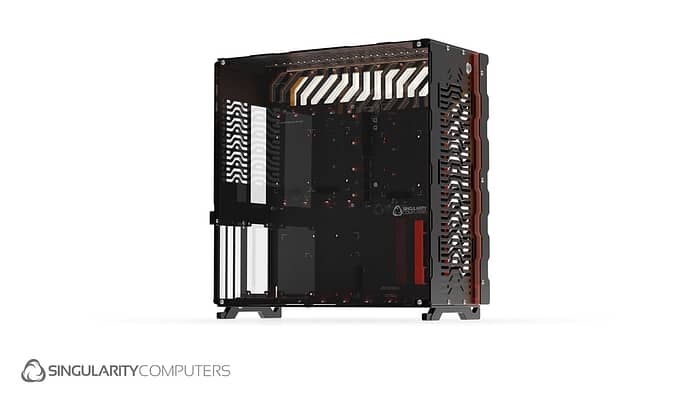

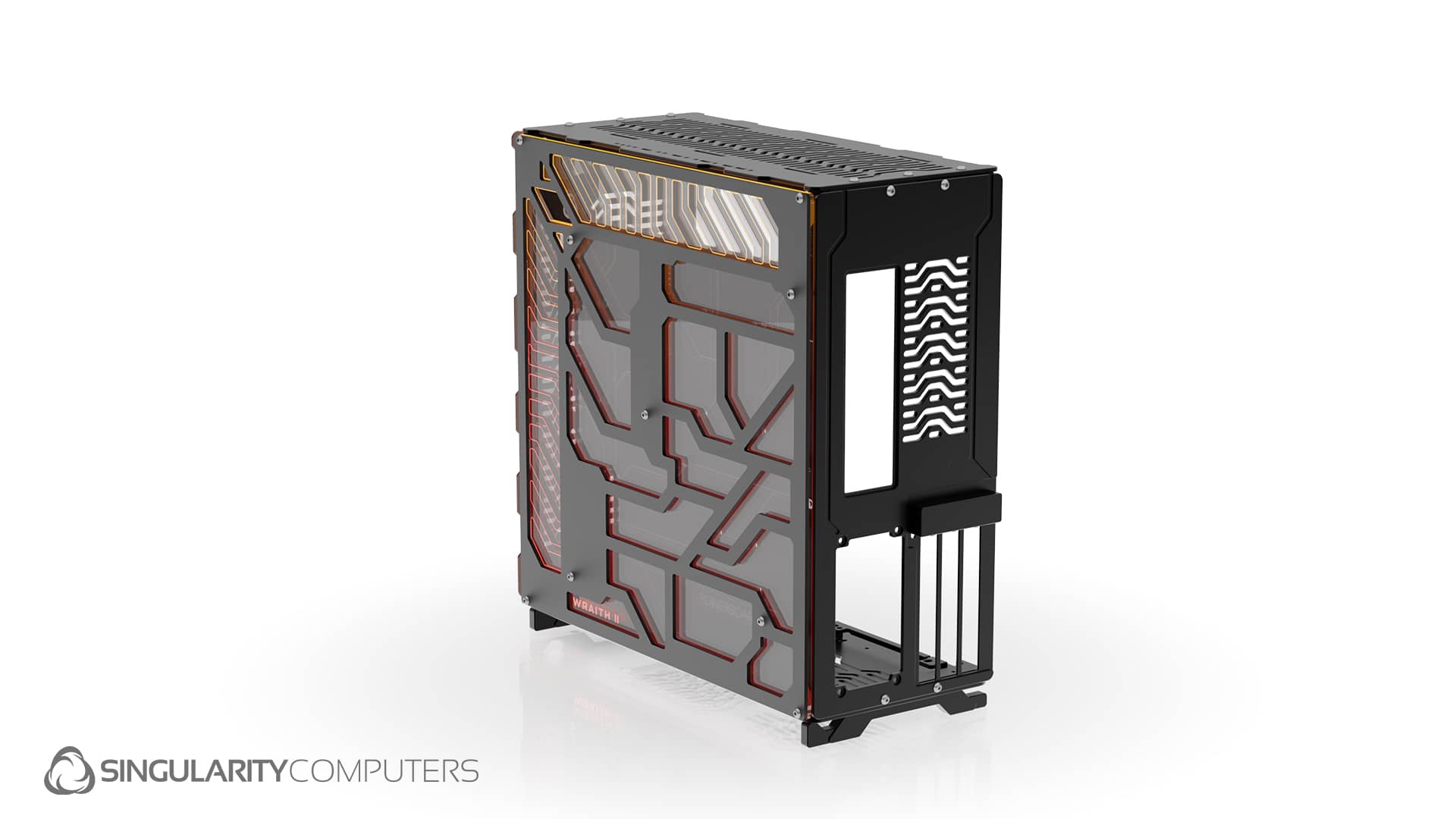

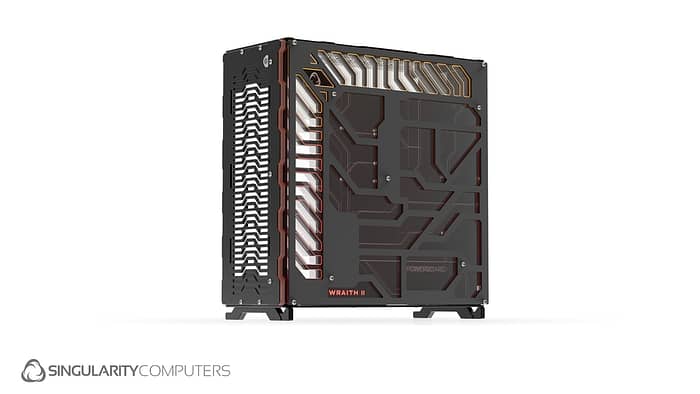

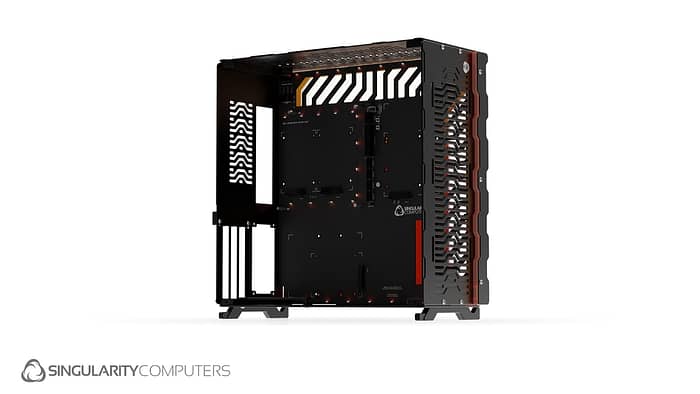

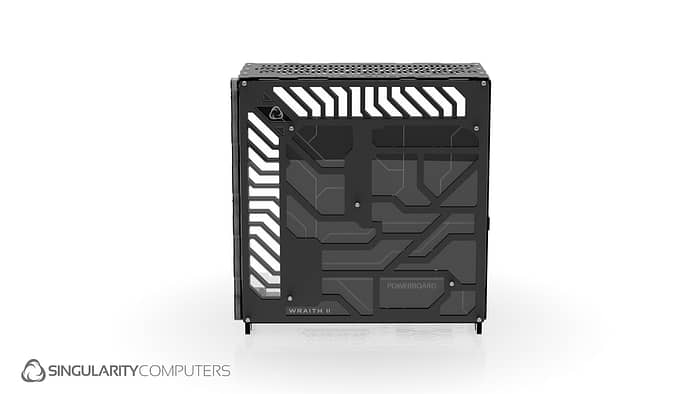

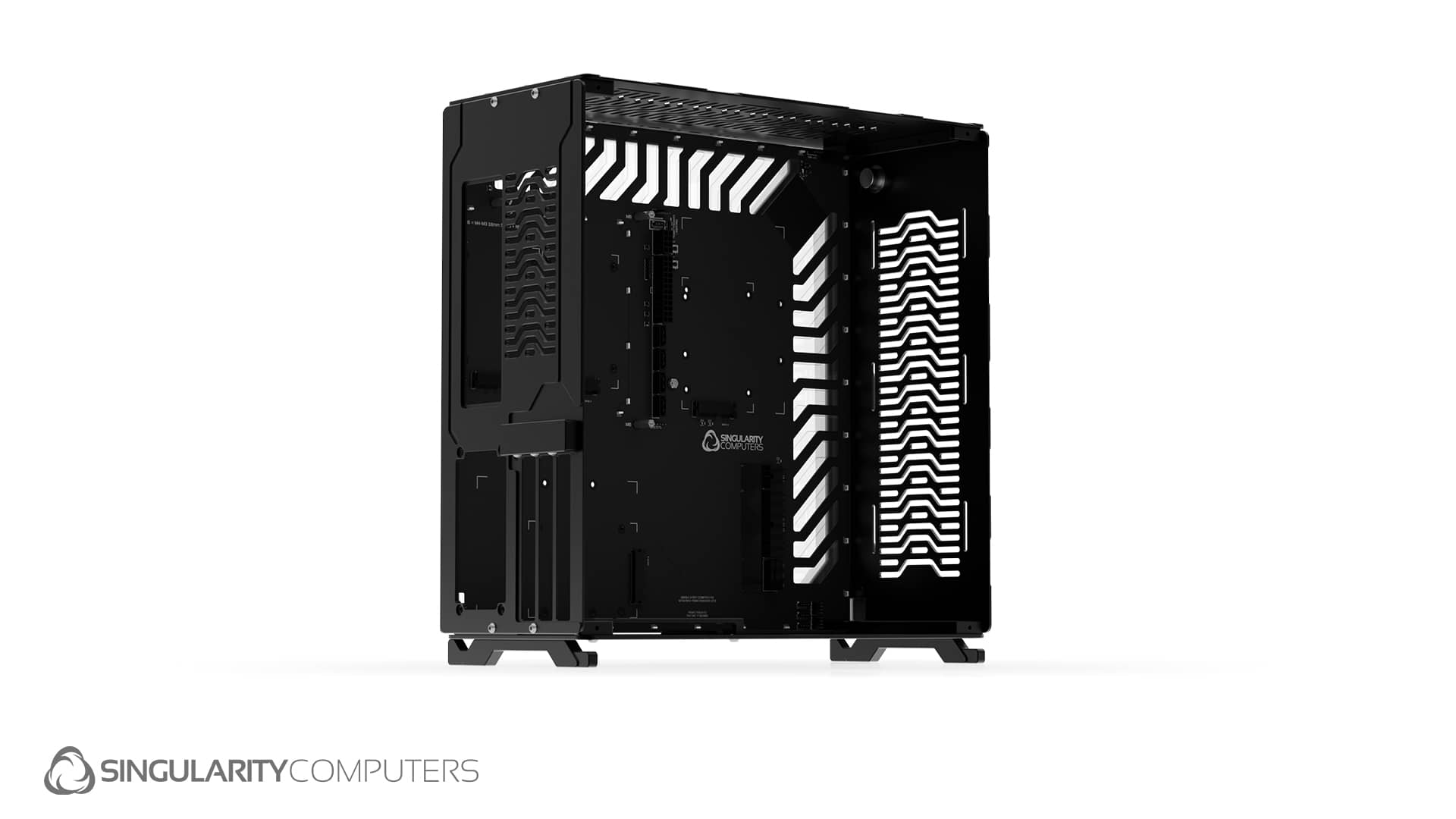

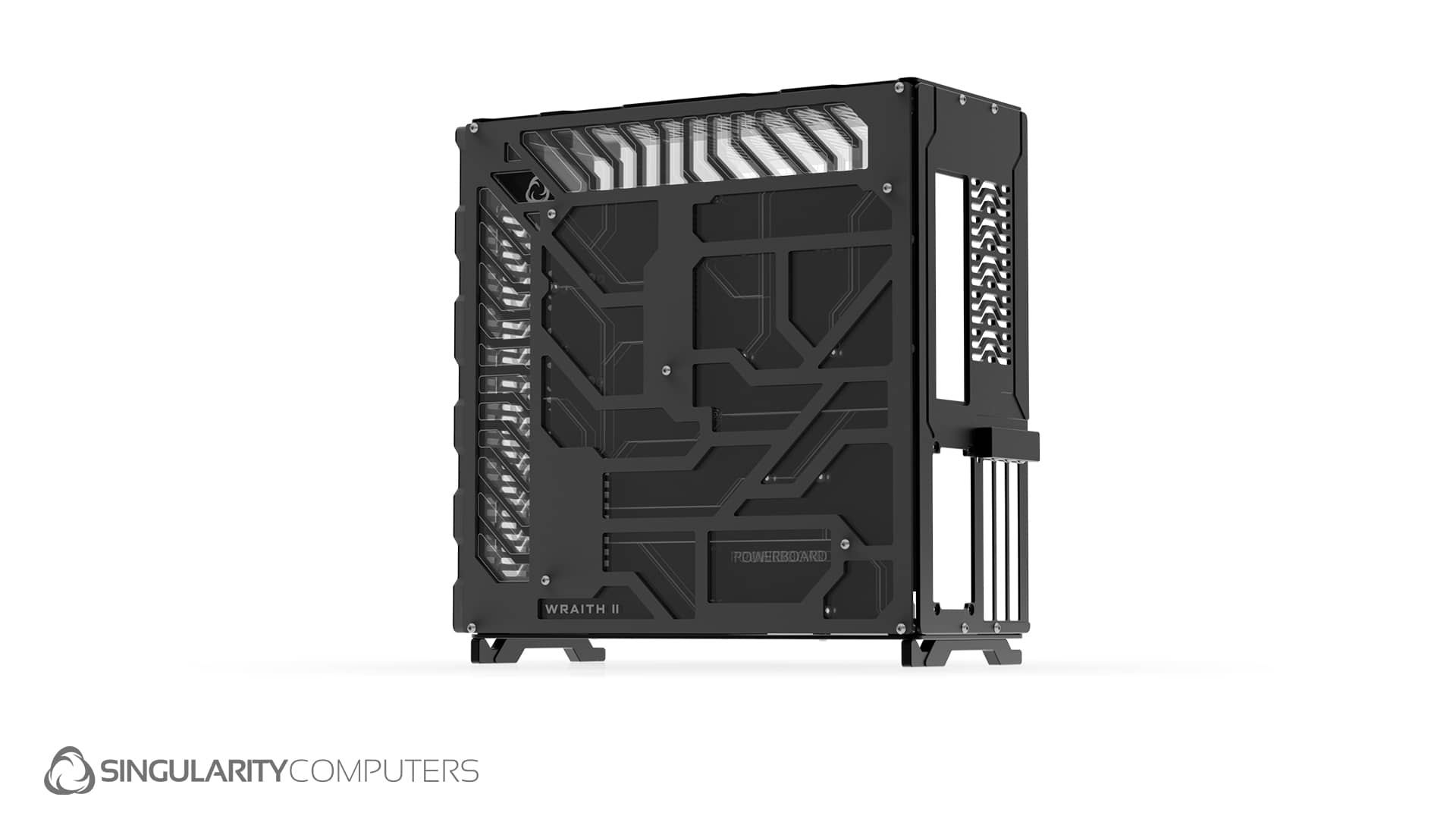

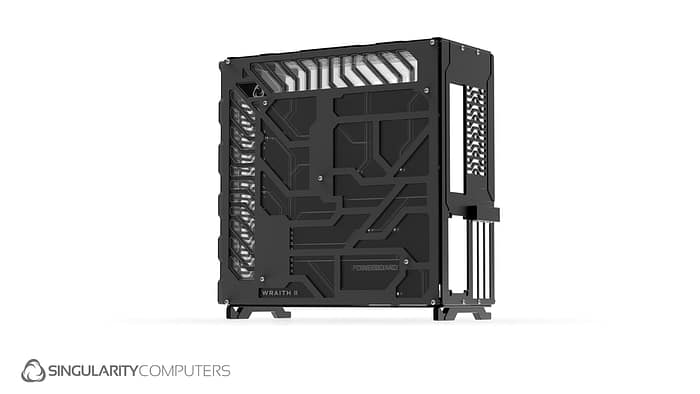

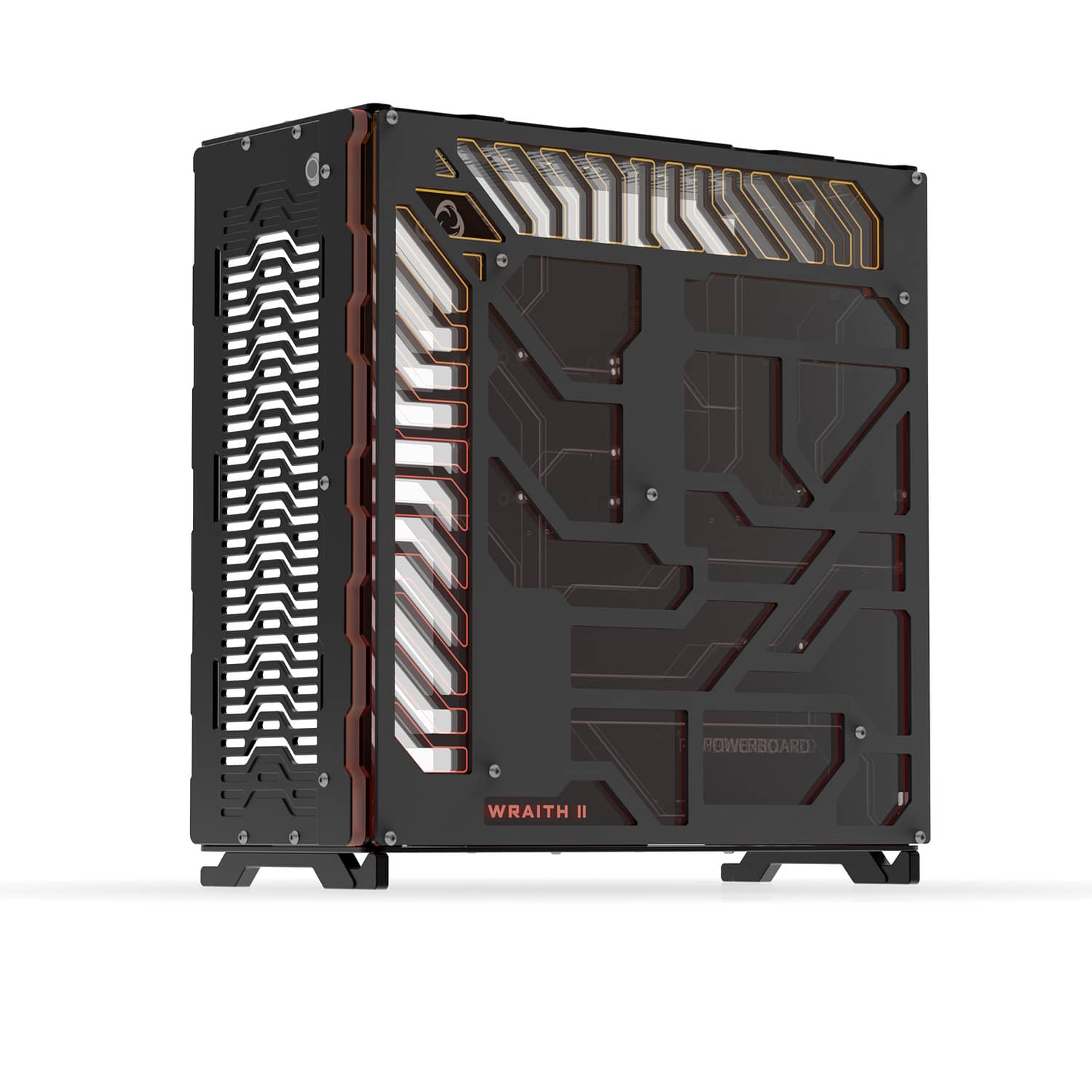

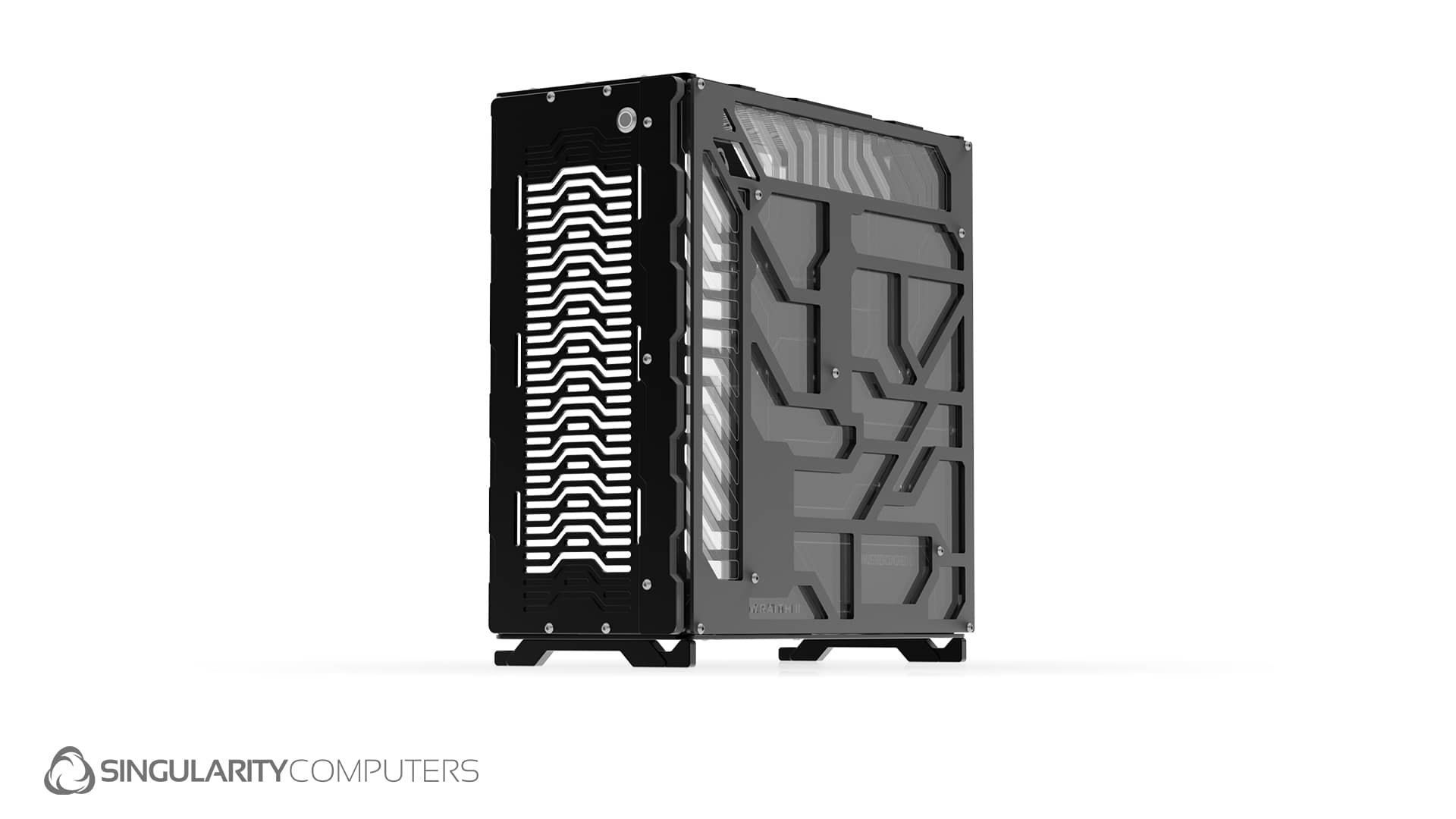

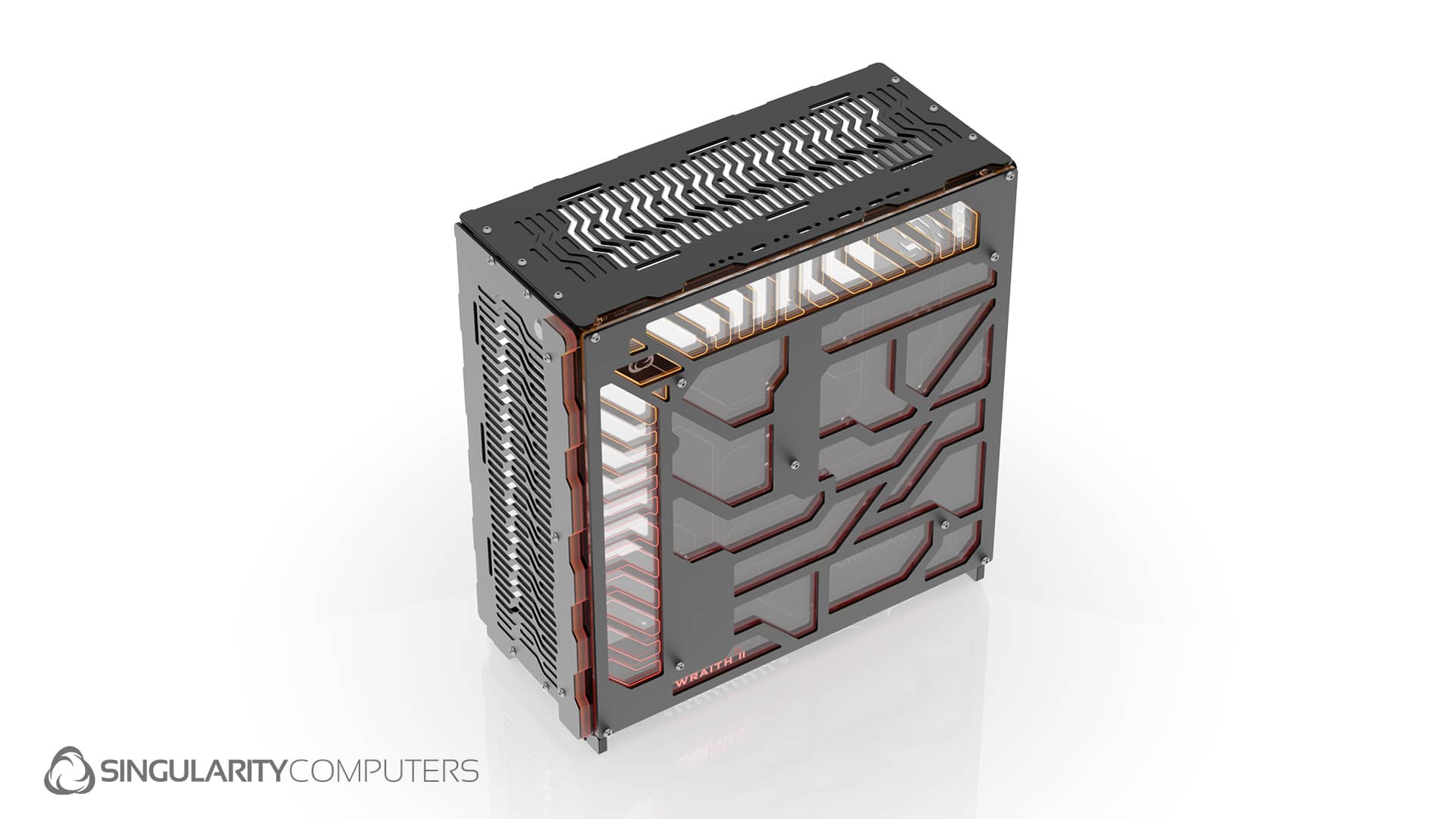

Wraith 2.0 Volta Black Case

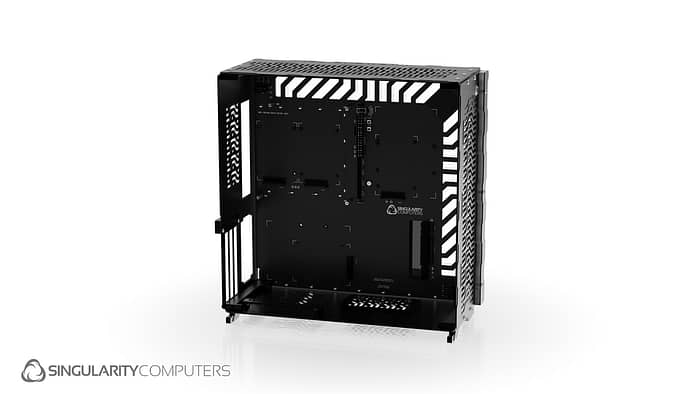

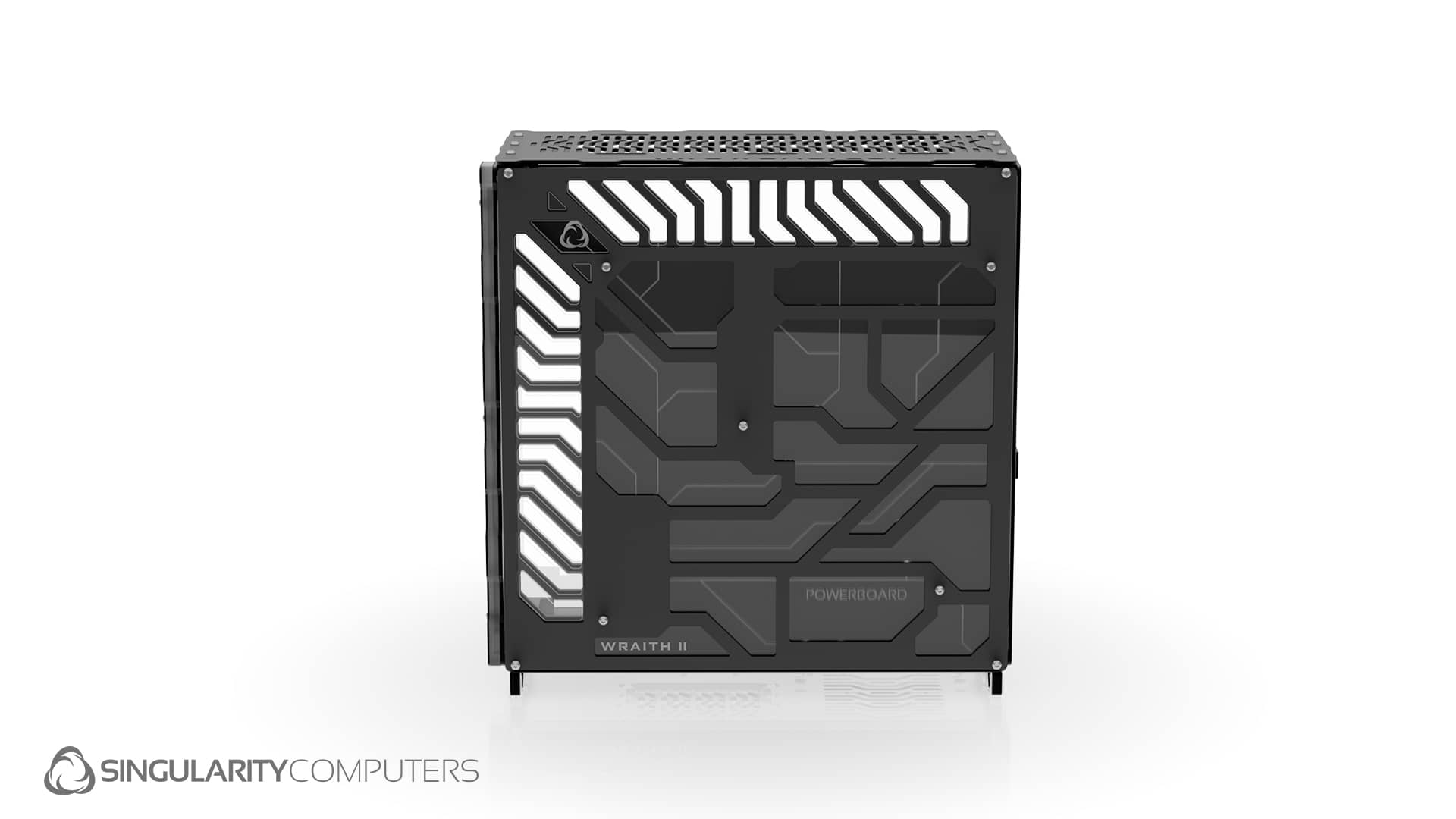

The Singularity Computers PowerBoard is essentially a distribution plate for cables. In Wraith 2.0 Volta is fully integrated replacing the entire rear wall of the case. Behind it are two acrylic covers, one clear with laser etching and another satin black cover. The PowerBoard integrates the 24pin and 8pin EPS, PWM & ARGB Hubs, direct connect SATA 2.5” and 3.5”. It also has integrated ARGB LEDs around the perimeter and under the motherboard, a touch activated power button, power and reset buttons and an on/off switch for the ARGB LEDs. The PowerBoard reduces cable clutter meaning there is more space for liquid cooling components and loop building. Volta fits a high-end water-cooled cooled system with 2x 240mm radiators, the largest GPUs, any size SFX-L PSU and pump and reservoir. There are two PSU locations depending on the configuration you prefer, the rear PSU location allows larger pump/reservoir combos to be used and the front PSU position allows more 3.5” drives to be installed.
The following cables are included with the product: 24pin x1, 8pin EPS x1.
If other cables are required they are available
Here
Optional PowerBoard PSU Cable Kit is available
Here
US$599.00
Specifications:
Connections: 24pin x1. EPS x2. PWM x4. ARGB x 7. SATA 2.5” x4. SATA 3.5” x2 (removes x2 2.5” when used).
Touch activated Power Button. Power & Reset Buttons. LED on/off switch.
x37 ARGB LEDs on front side around perimeter and under motherboard.
Cables: PowerBoard Linking Cables: 24pin x1. 8pin EPS x1. 18AWG Black Headshrinkless Sleeve. PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1.
Motherboard Form Factor: Mini-ITX, Mini-DTX
Case Dimensions: 407mm x 407mm x 170mm (including legs)
Package Dimensions: 450mm x 500mm x 120mm
Case Weight: 4kg
Case Packaged Weight: 5kg.
Expansion Slots: x3.
Storage: 2.5″ x5 (x2 are 2.5” or 3.5”). 3.5” x3 (2 are 2.5” or 3.5”).
PSU Compatibility: SFX, SFX-L. Unlimited Length.
Radiator Top: 240mm x30mm.
Radiator Front: 240mm x30mm.
Maximum GPU Length: 300mm.
Maximum GPU Thickness: 3 slots.
Maximum GPU Width: Unlimited.
Maximum CPU Cooler Height: 130mm.
Front Panel I/O: Vandal Switch 16mm.
Vertical GPU Mount: Included Singularity Computers PCIE 4.0 Bracket and Riser Cable.
Materials: 6061 Anodized Aluminum, Cast Acrylic, Stainless Steel.
Manufacturing Process: CNC Router, CNC Mill, CNC Lathe.
