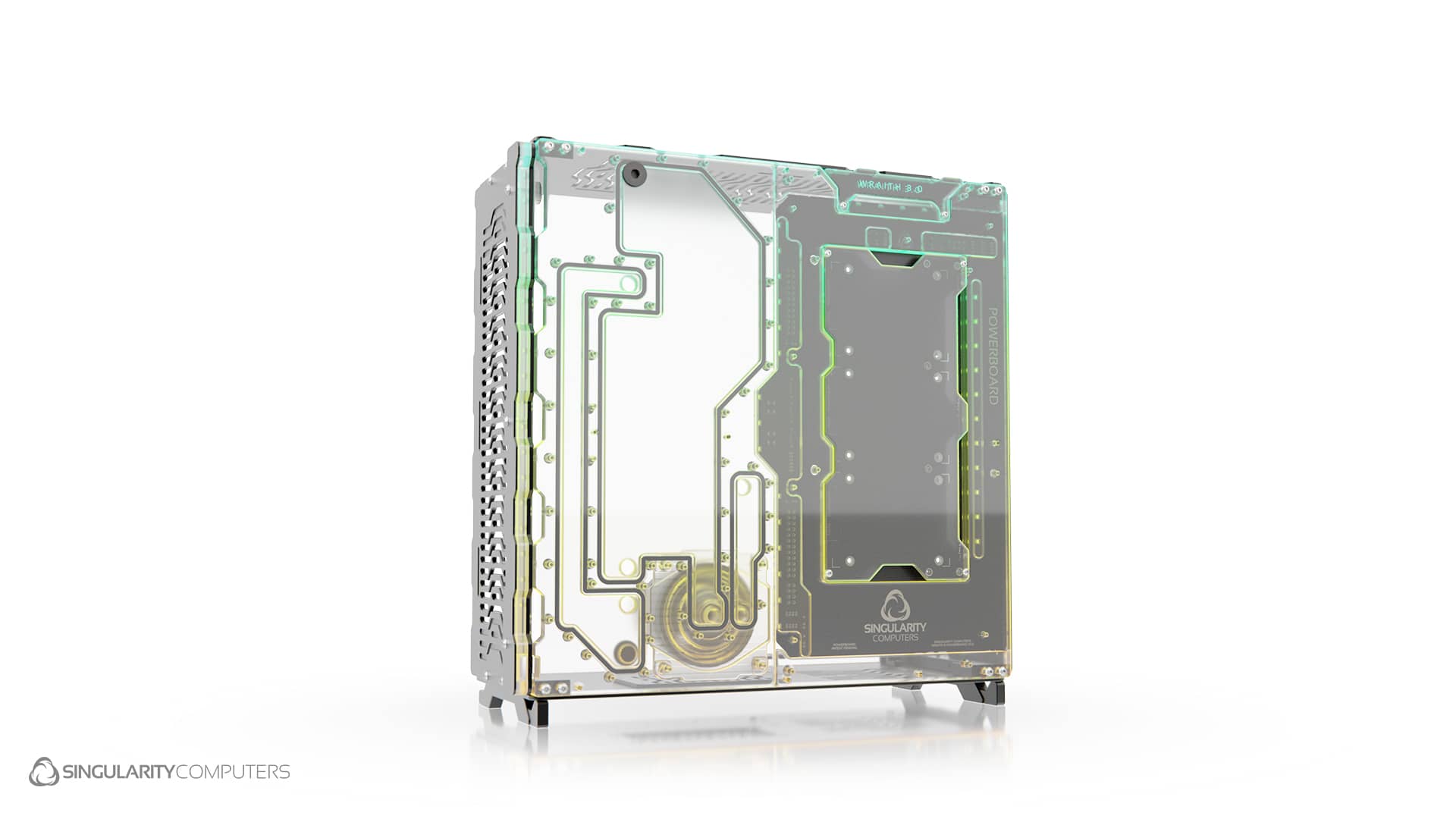

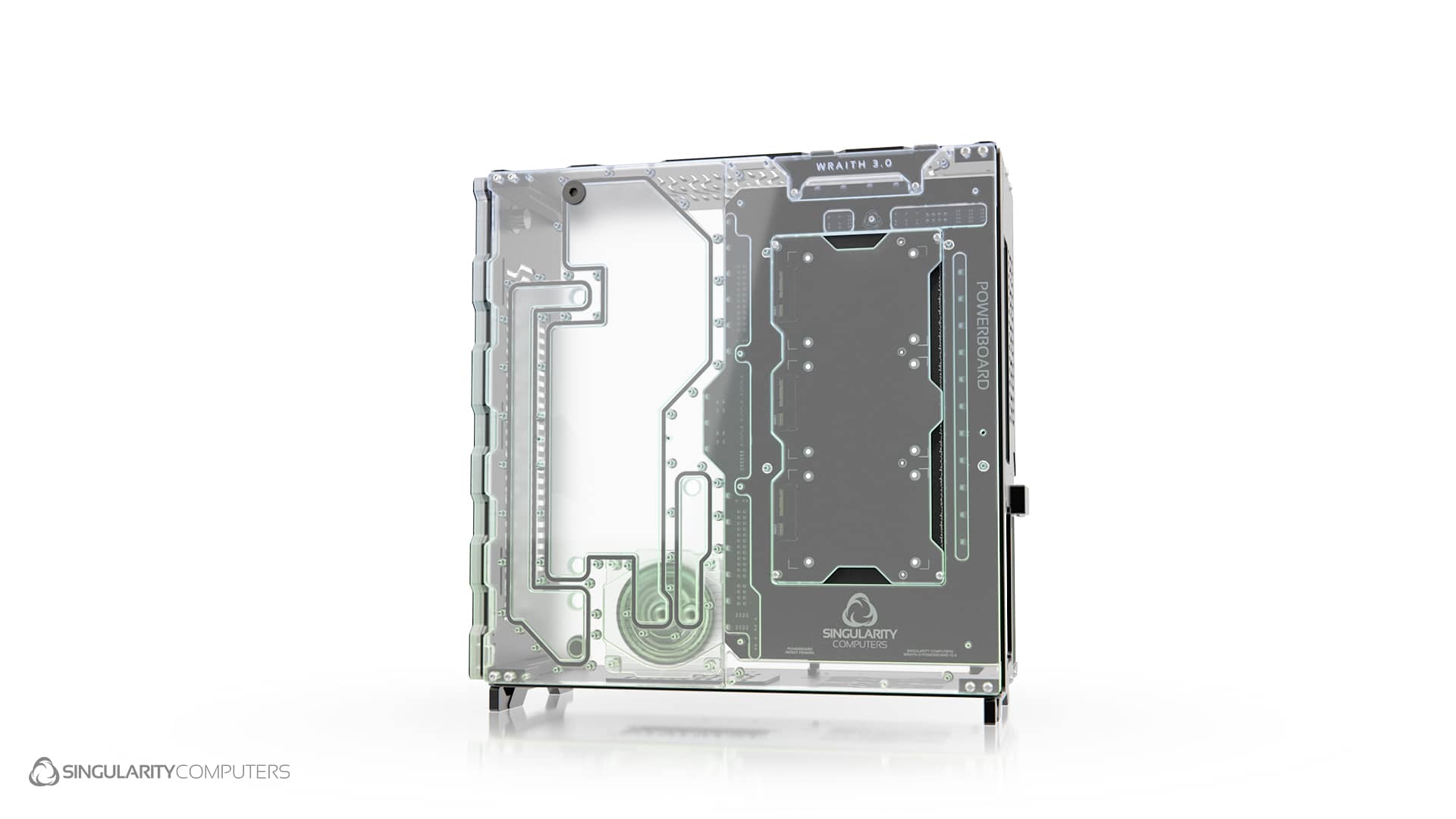

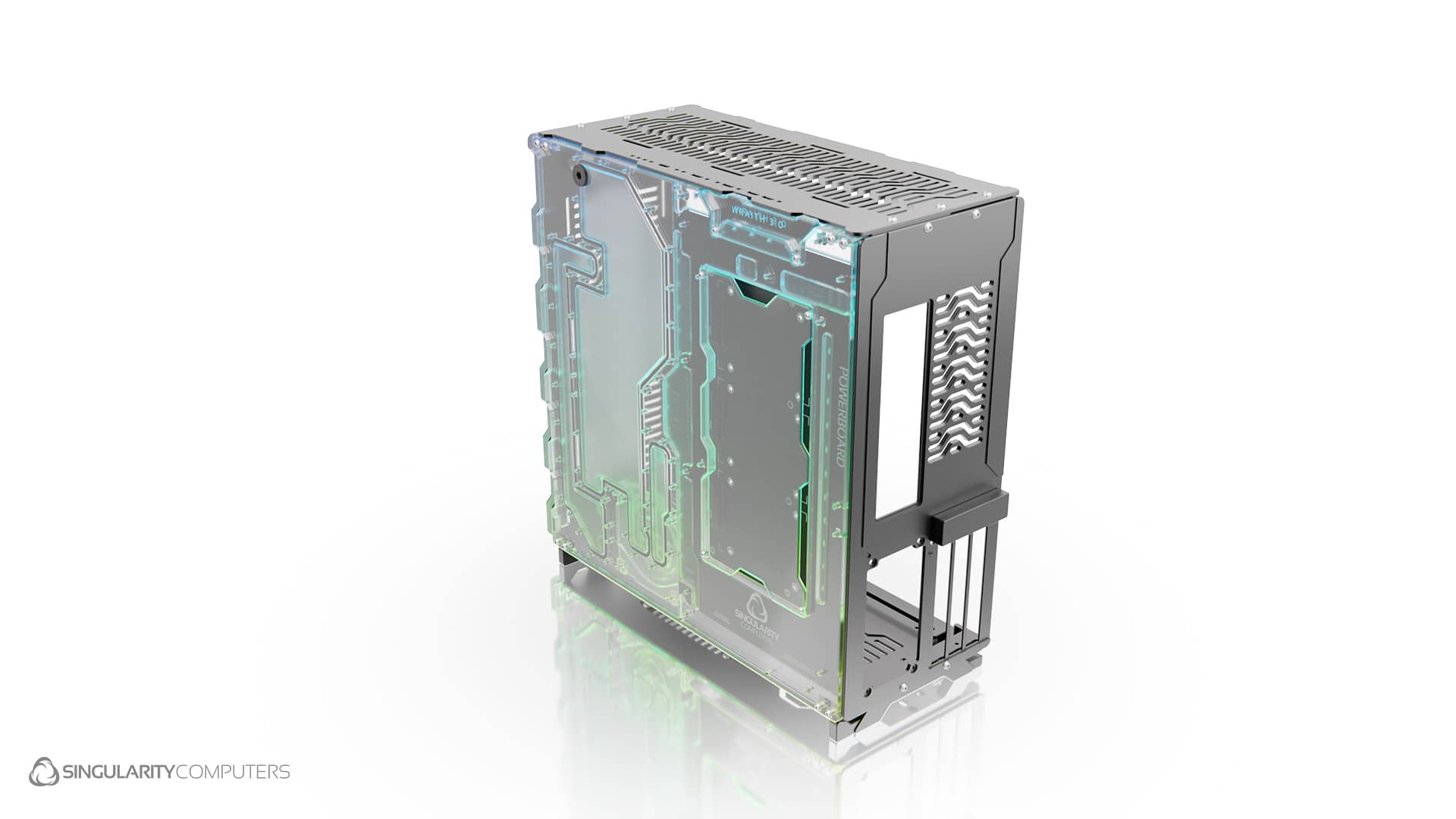

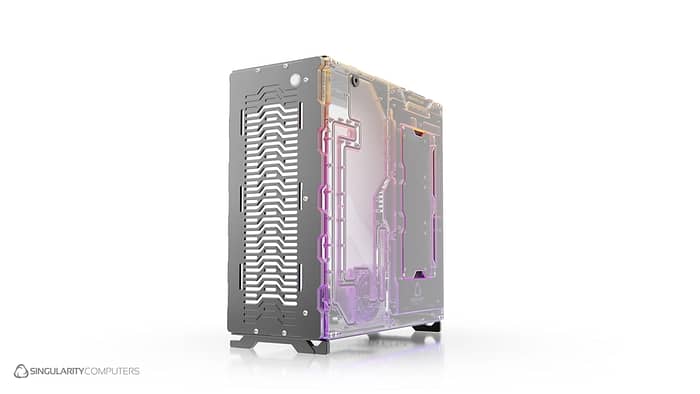

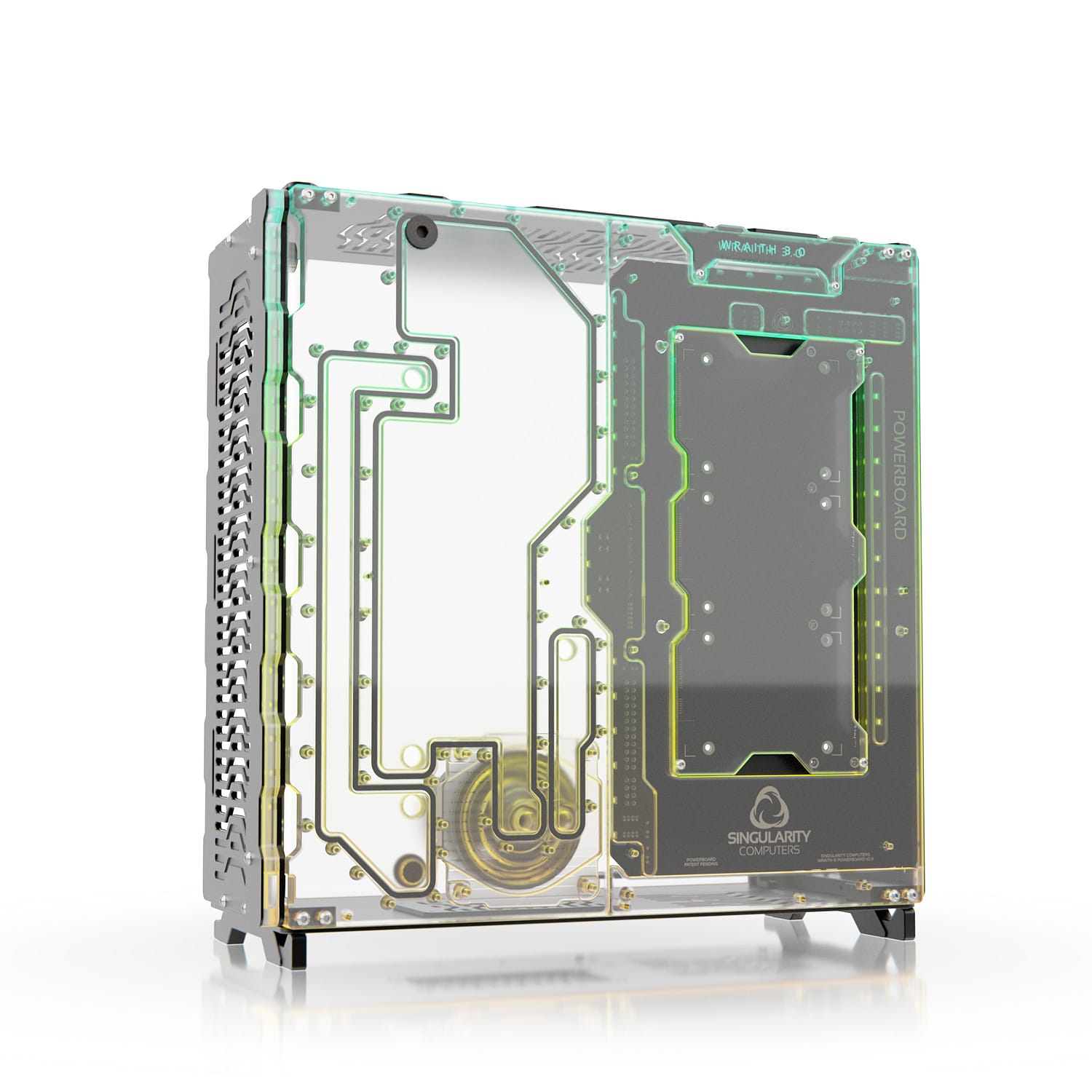

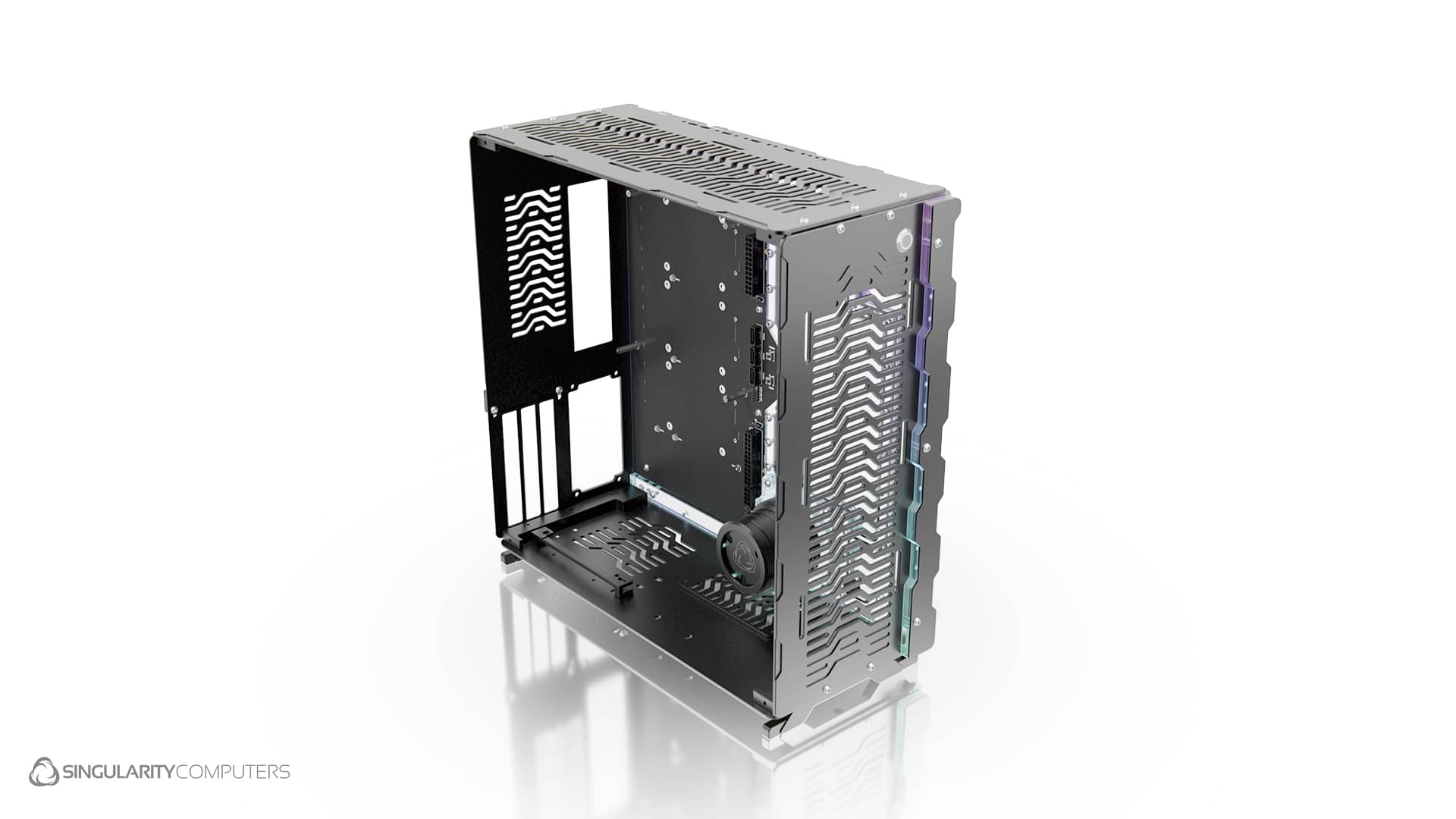

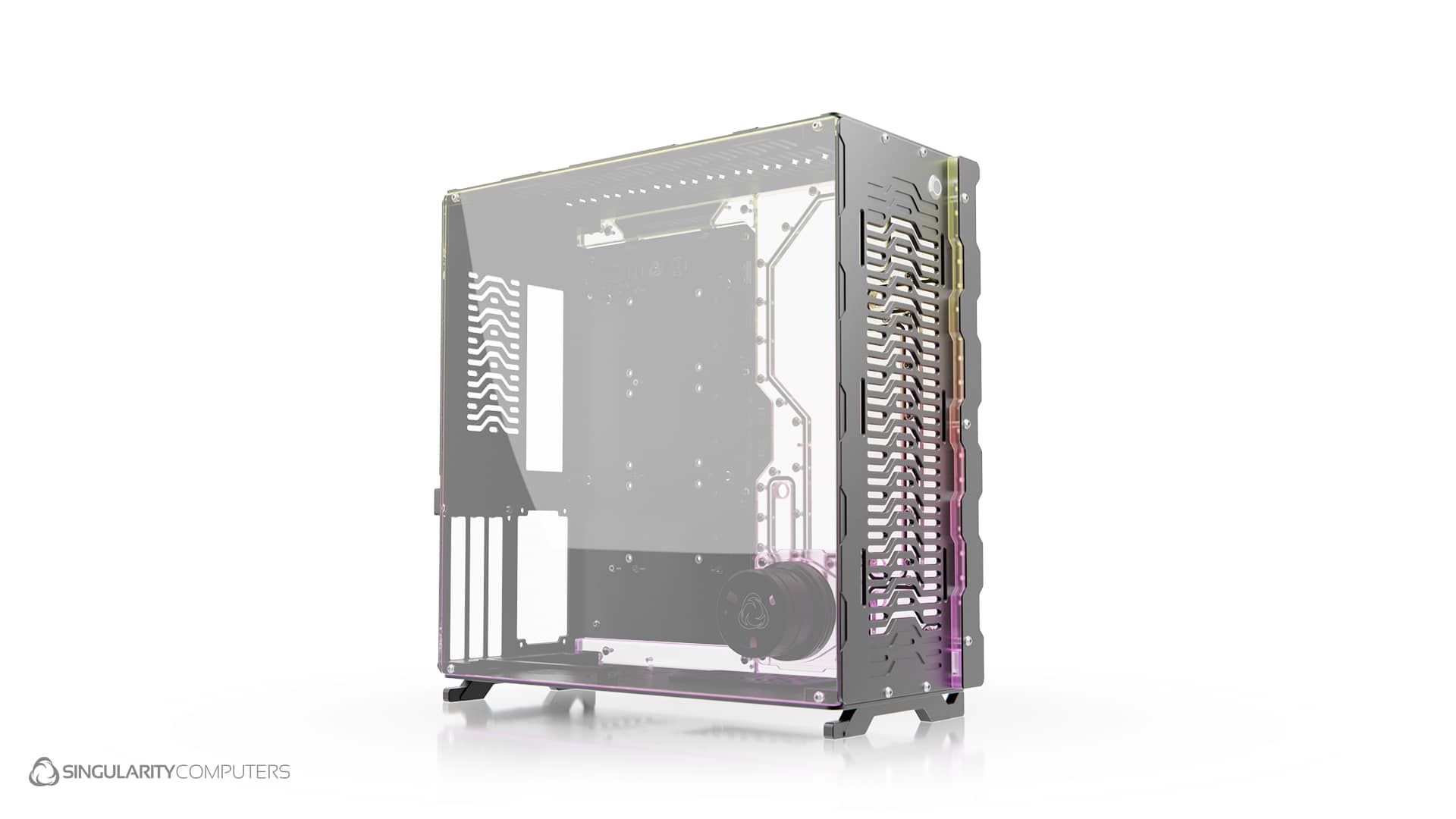

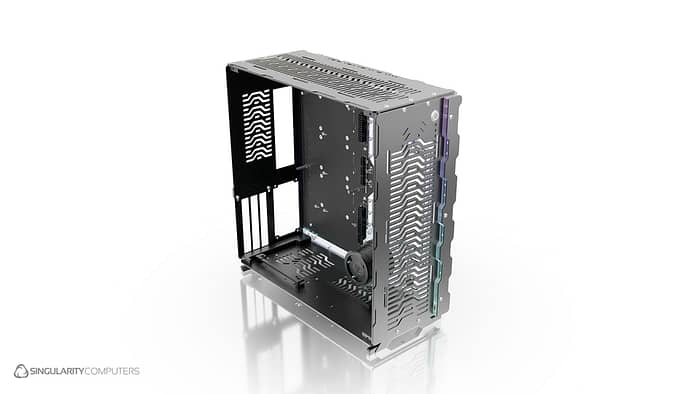

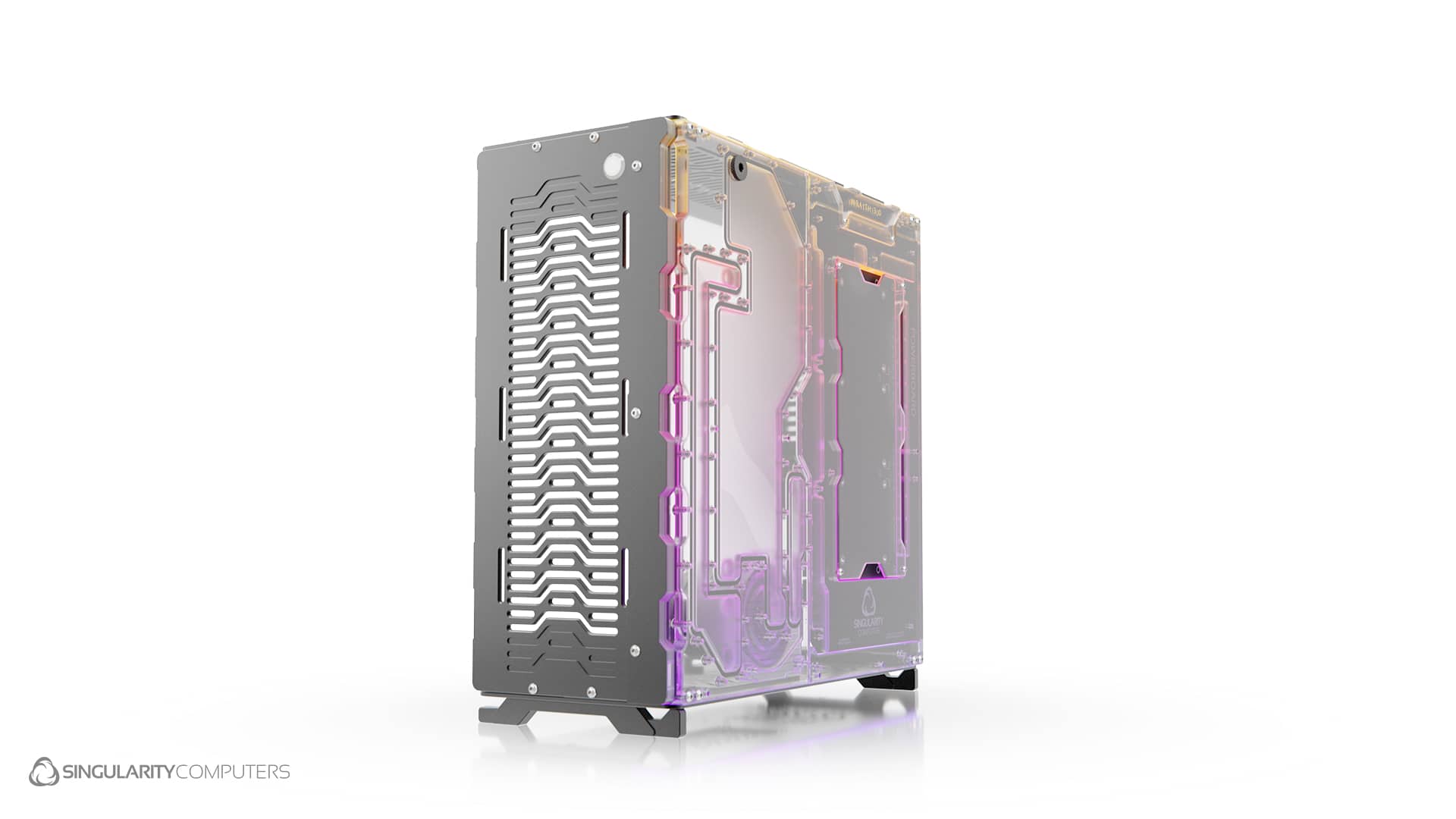

Wraith 3.0 Black Case

Features:

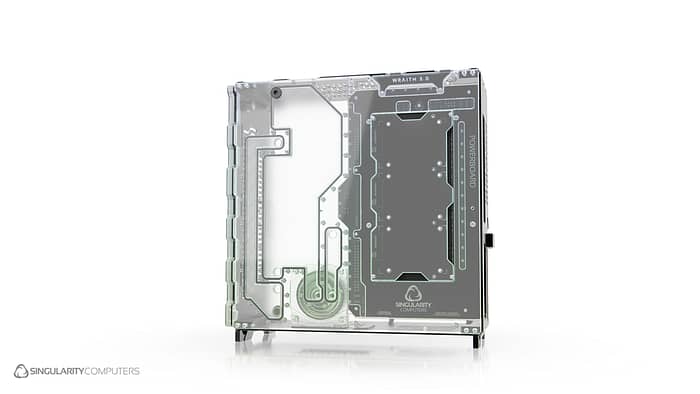

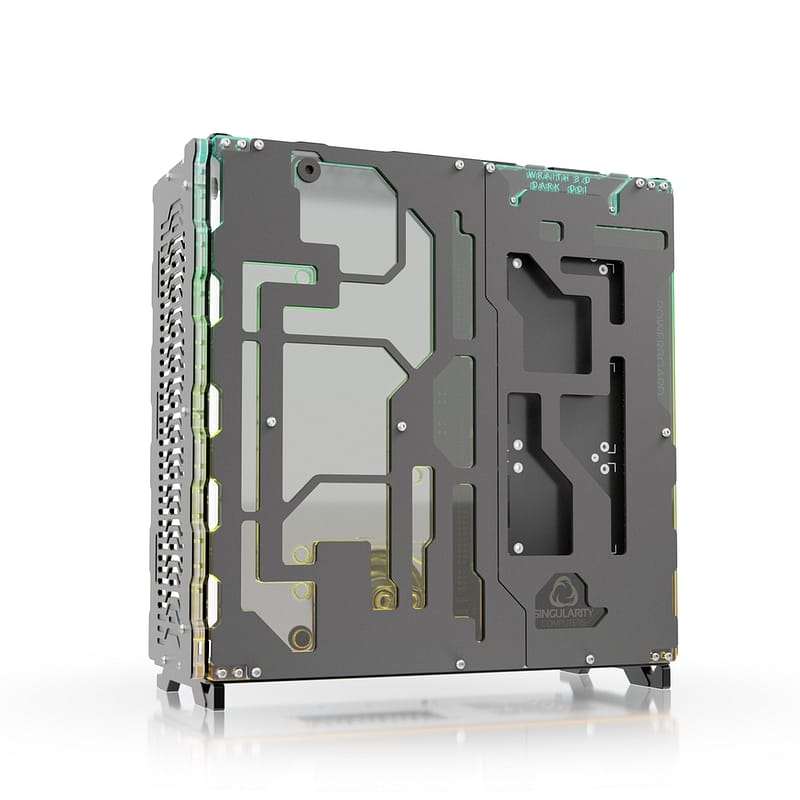

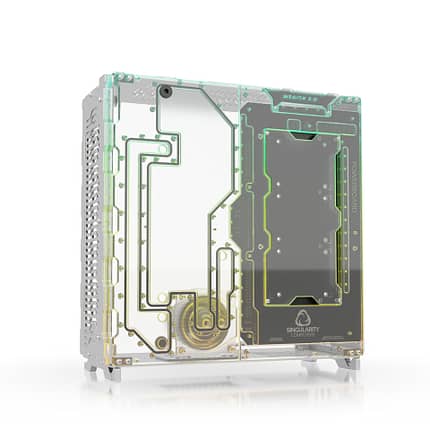

Integrated Reservoir, D5 Pump Top, D5 Pump Cover, Fill Port, Drain Port, parts of the cooling loop.
With the pump, reservoir, fill and drain ports and half of the water-cooling loop integrated there is less assembly to be done. Also, less fittings and tube are needed.
A large portion of the case cost is due to the integration; these are components you do not have to purchase for your build. The pump top, pump cover, reservoir, less fittings, and tube.
With the integration we did not just develop a case, we also developed all the integrated components. This meant that we could focus more on optimisation than would normally be possible. The integrated loop routes in Wraith allow for more flow than 16mm tubes. The pump top was designed for the D5 pump, maximising flow to and from the distribution plate. The reservoir was designed to remove air as quickly as possible making the loop easier to fill. The fill port is at the highest point on the back for the case and the drain point at the lowest point.

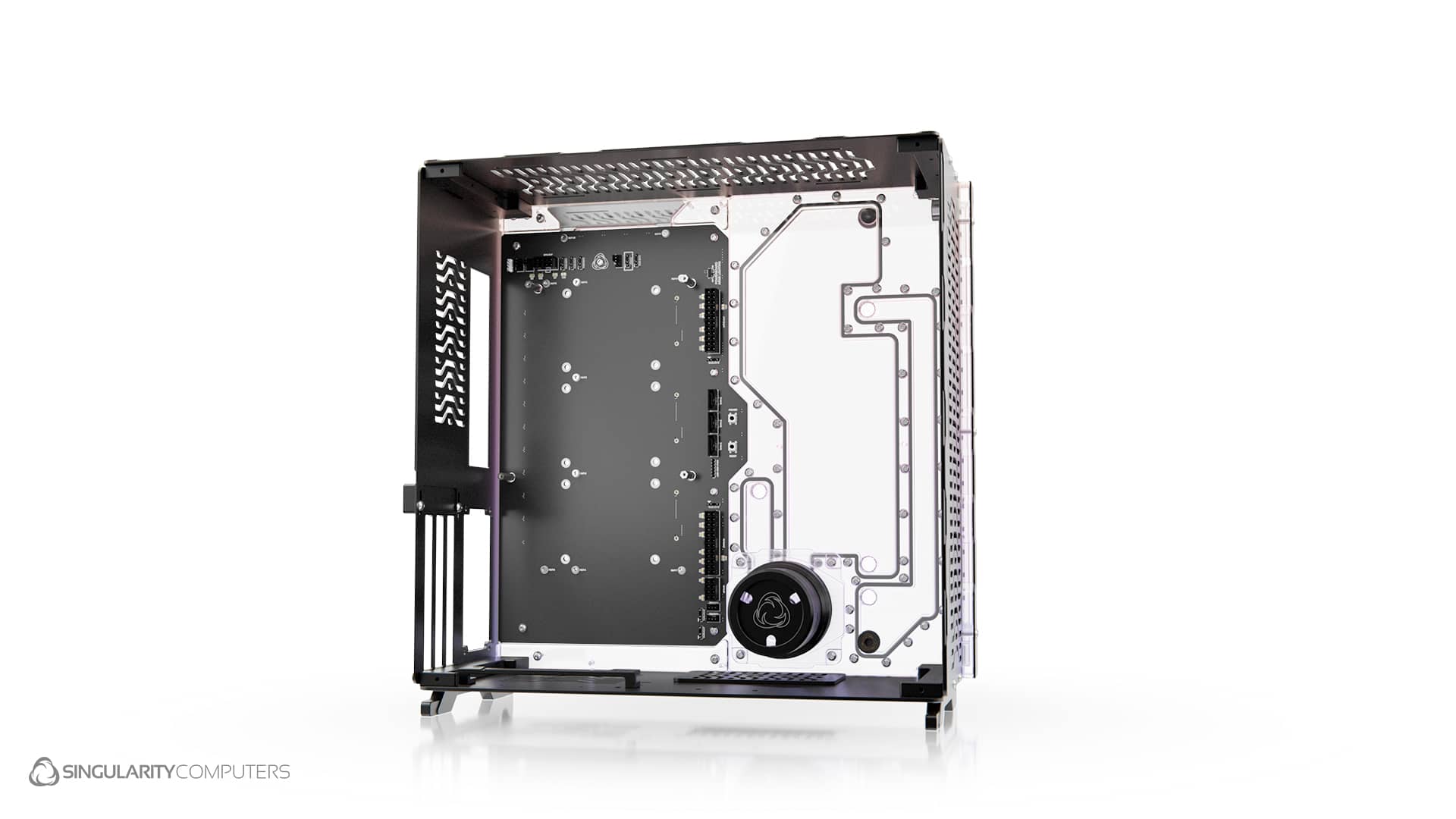

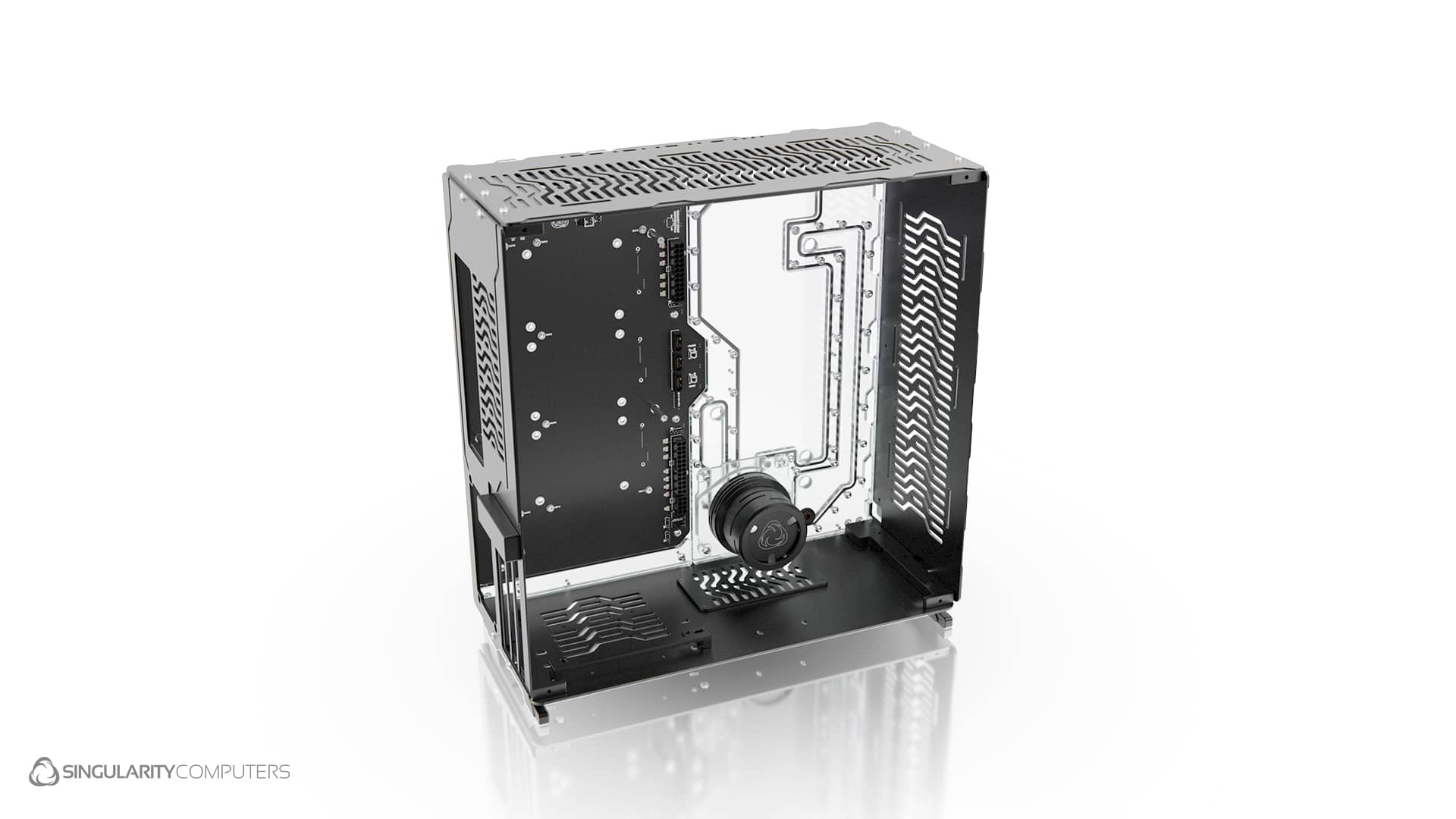

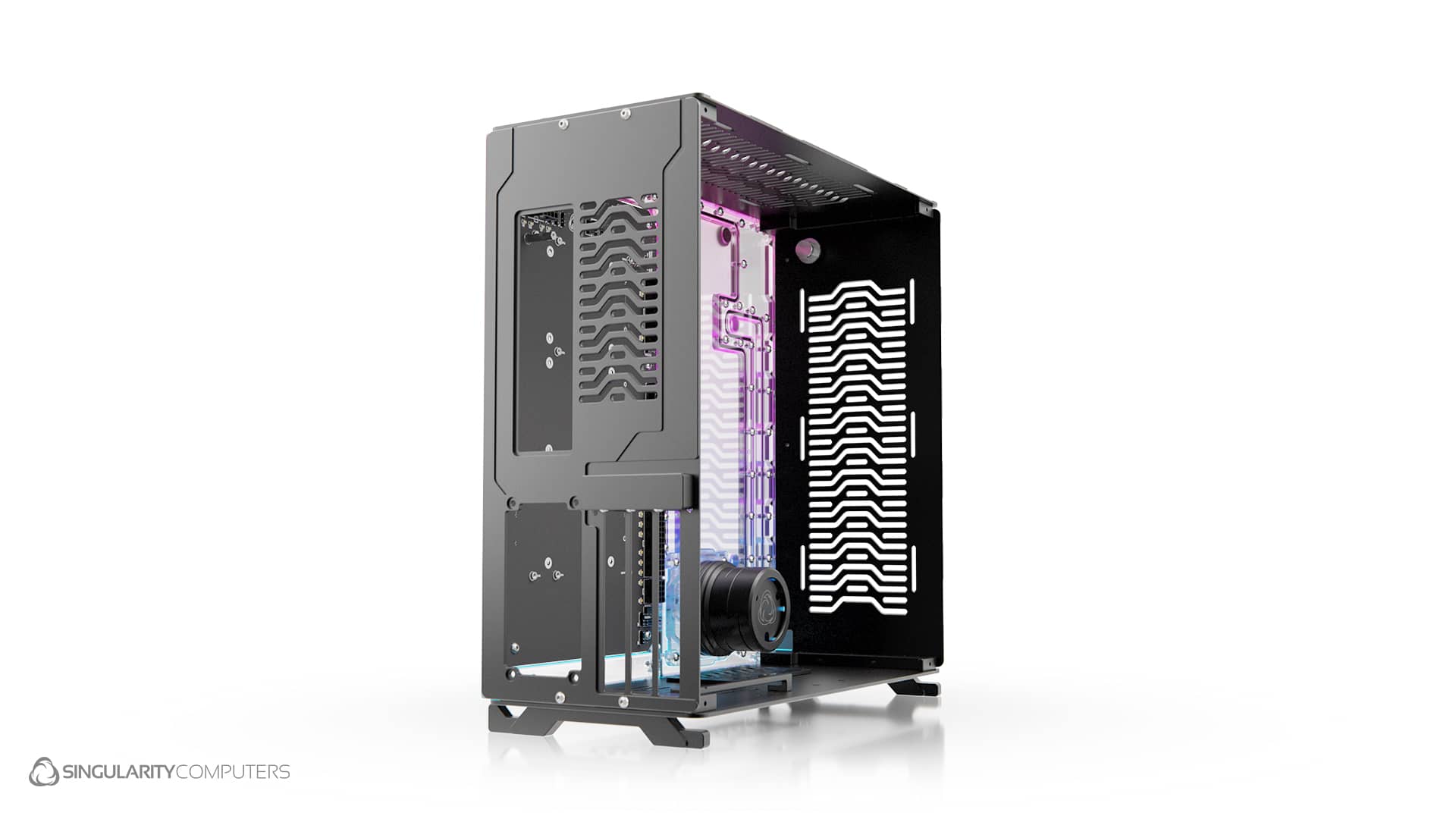

Despite its compact size Wraith 3.0 is designed to fit a high-end liquid cooled build. It can fit the largest high-end GPUs and the largest SFX-L PSUs. For the water-cooling system it can fit 2x 240mm radiators 30mm thick with a single set of fans and the D5 pump.
The radiator mounting panels have a large range of adjustment to help with port alignment to the distribution plate.
Wraith 3.0 has 4x 2.5” drive positions and 1x 3.5”.

Design & Engineering:
We have been building high end water-cooled systems for over 15 years. Our approach to product development begins with a need for our own builds and so the origin is always function. From there we start to build ideas around this function and the aesthetics and everything else follows. The original ideas for our products came from years of building highly customized, high end water-cooled systems and trying to reduce the exceptionally long build times and complexity. Our approach to development is hands on, we are using and testing our own products every day.

Manufacturing & Quality:
Almost all components of Spectre Integra-M are CNC machined from a solid block of material. There is no hidden or back side, and this also goes for the components being installed. Due to this we selected the most high-end materials manufacturing process. The Distribution Plate is machined on a CNC router built from thick sheets of cast acrylic. It is hand assembled with silicone gaskets and stainless-steel fasteners, and pressure tested. The metal components are machined with extreme precision from solid blocks of 6061 aluminum on a CNC mill then sand blasted and anodized.
