Wraith 3.0 Dark Case

PowerBoard Info

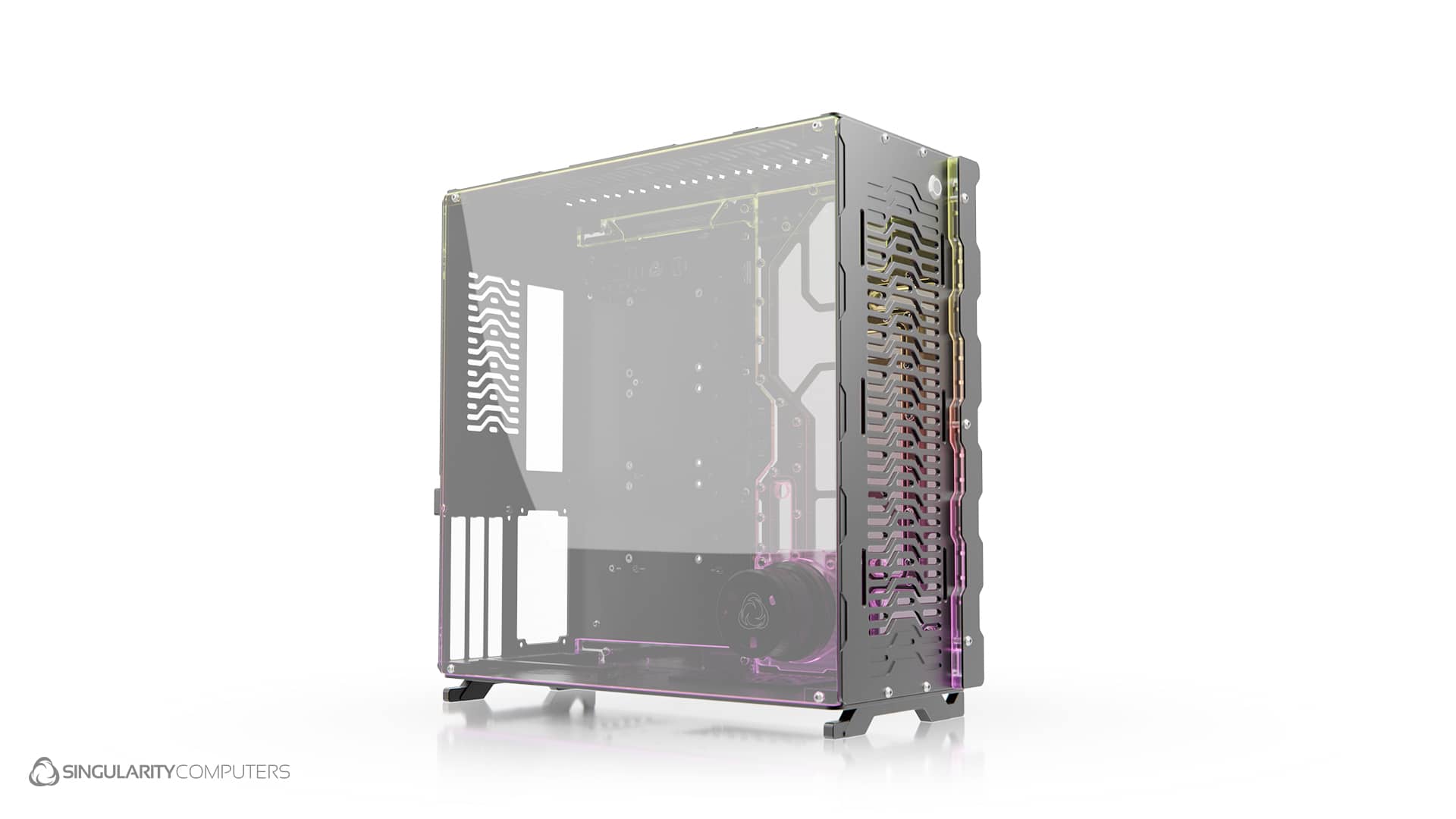

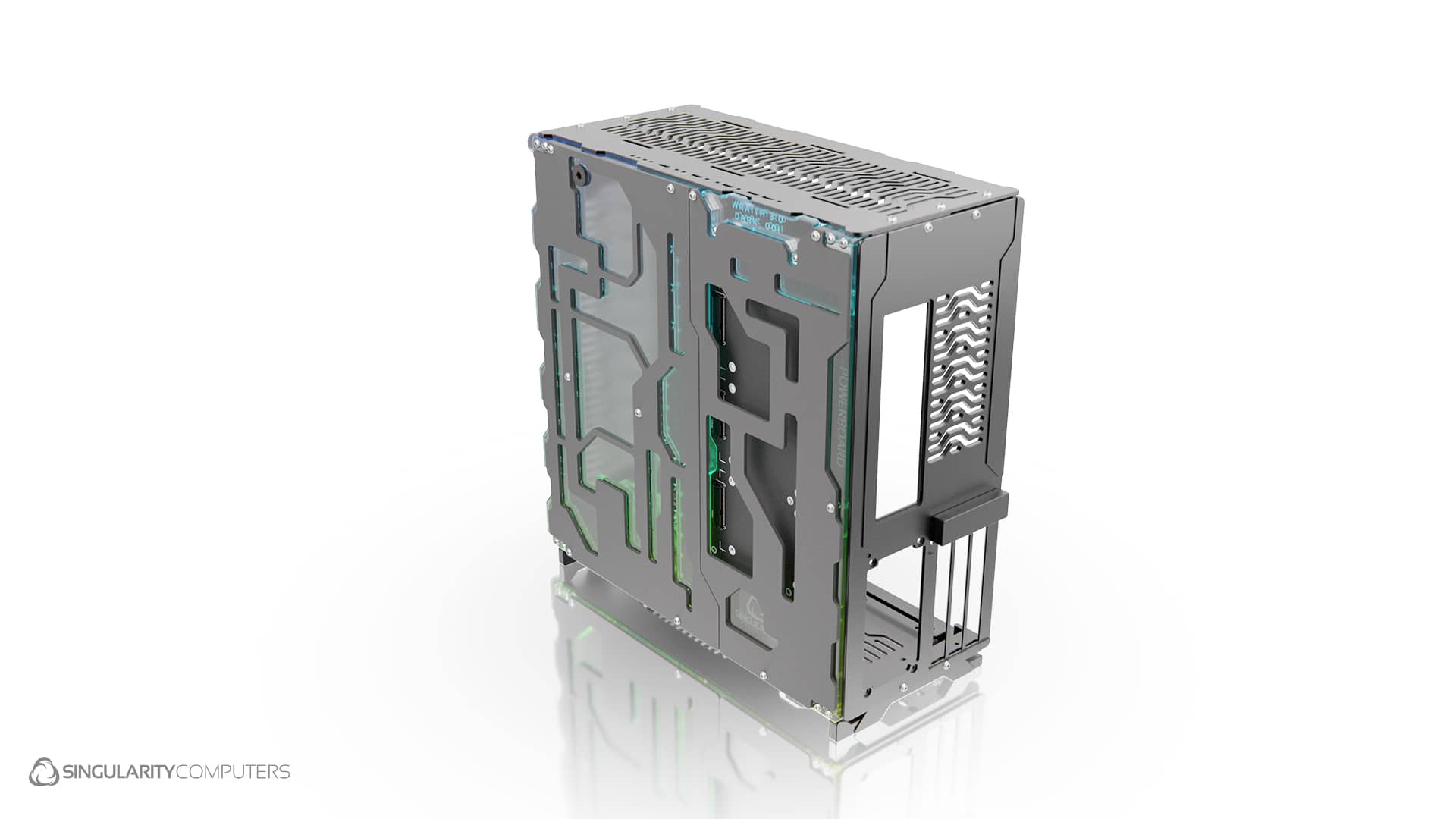

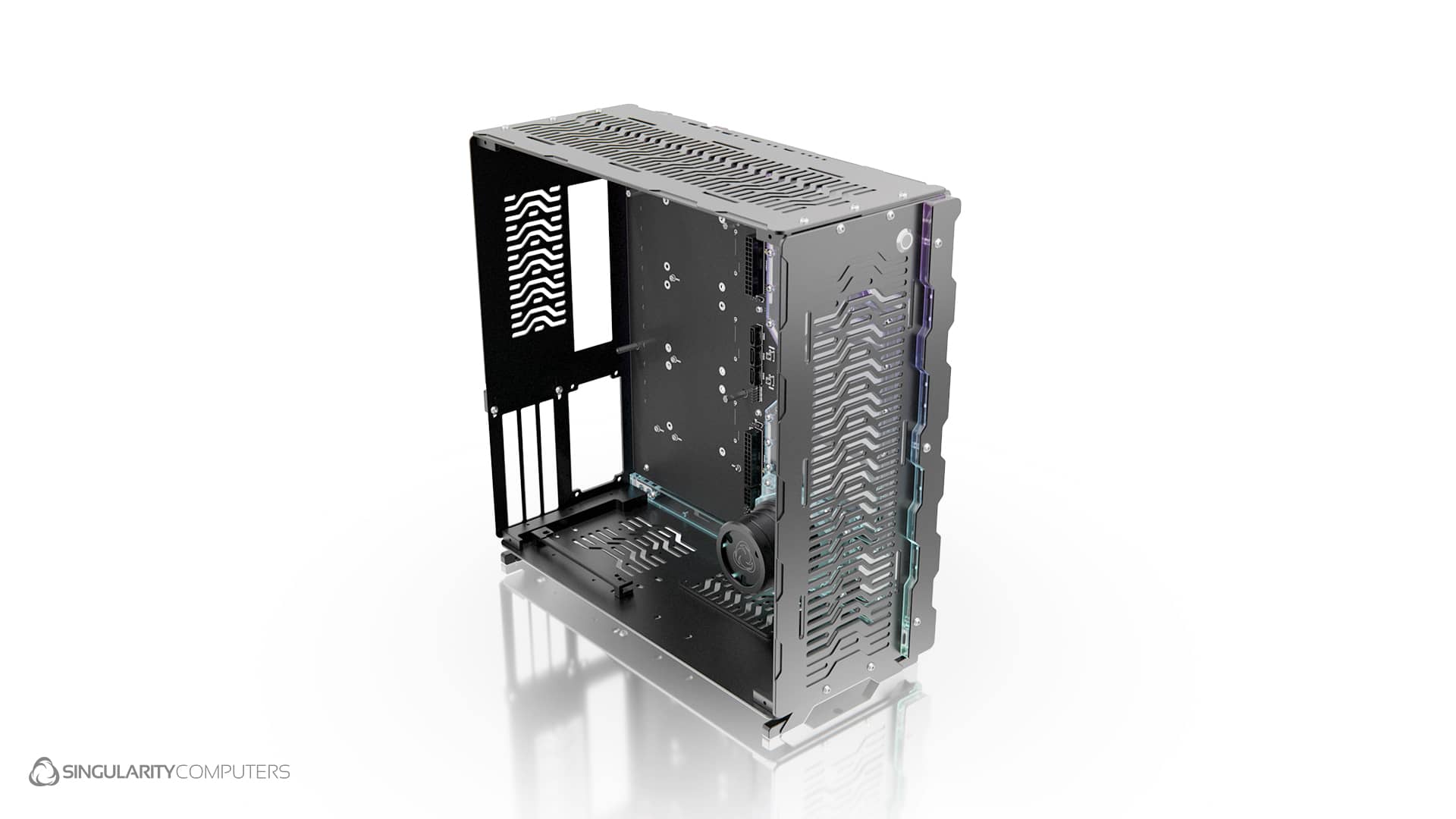

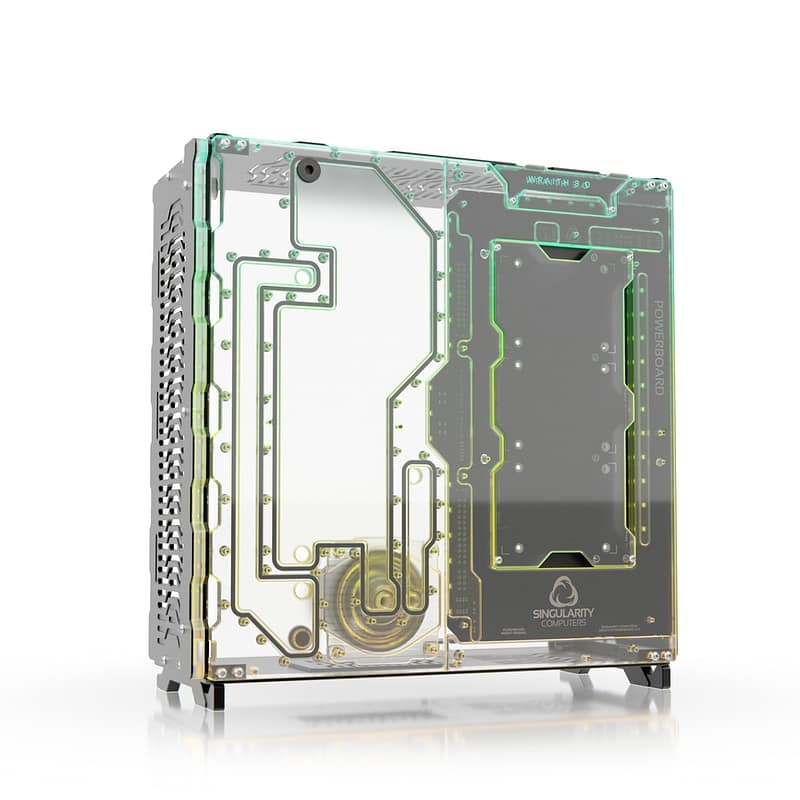

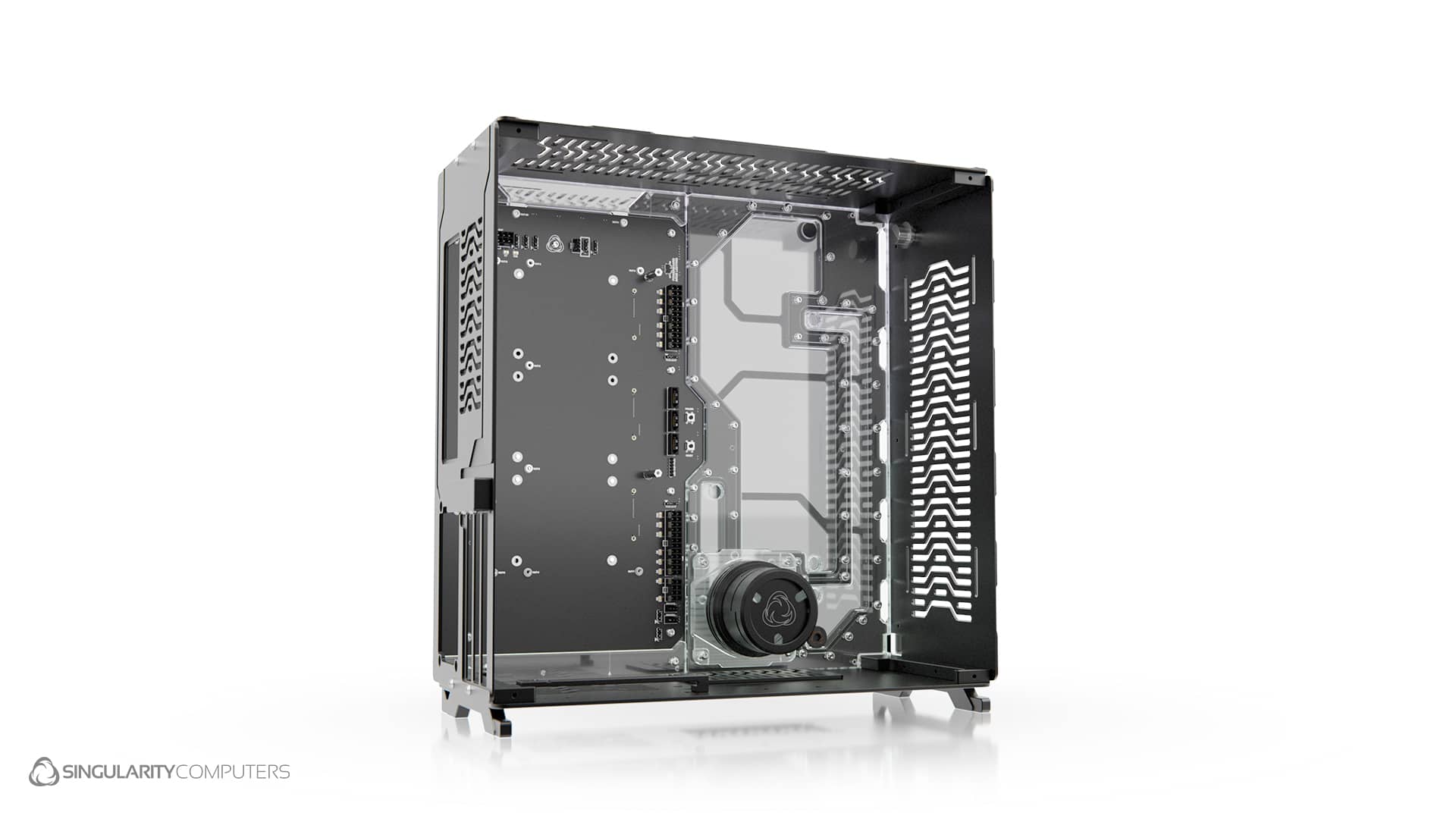

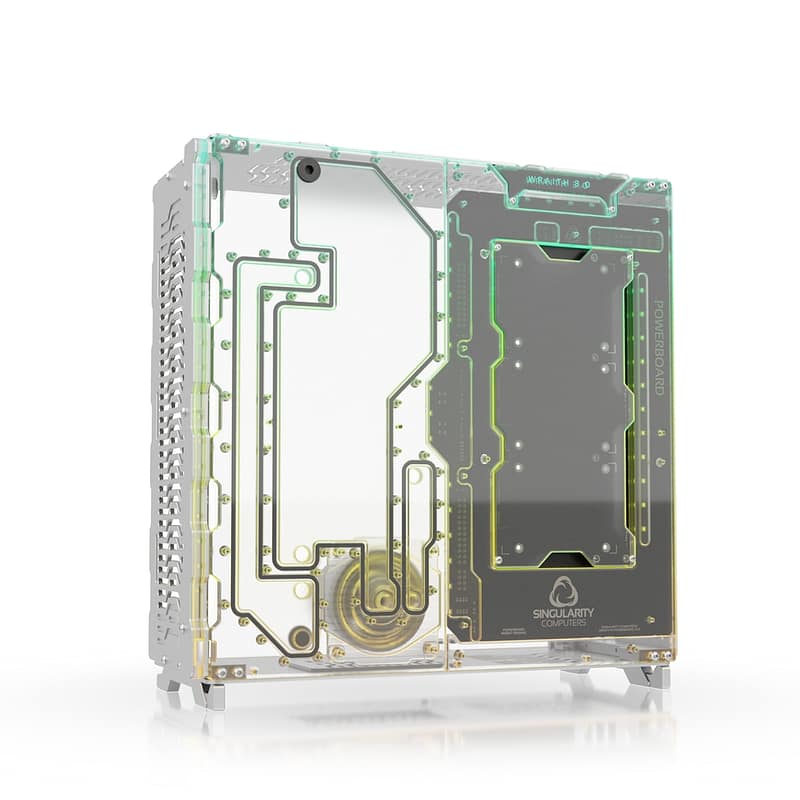

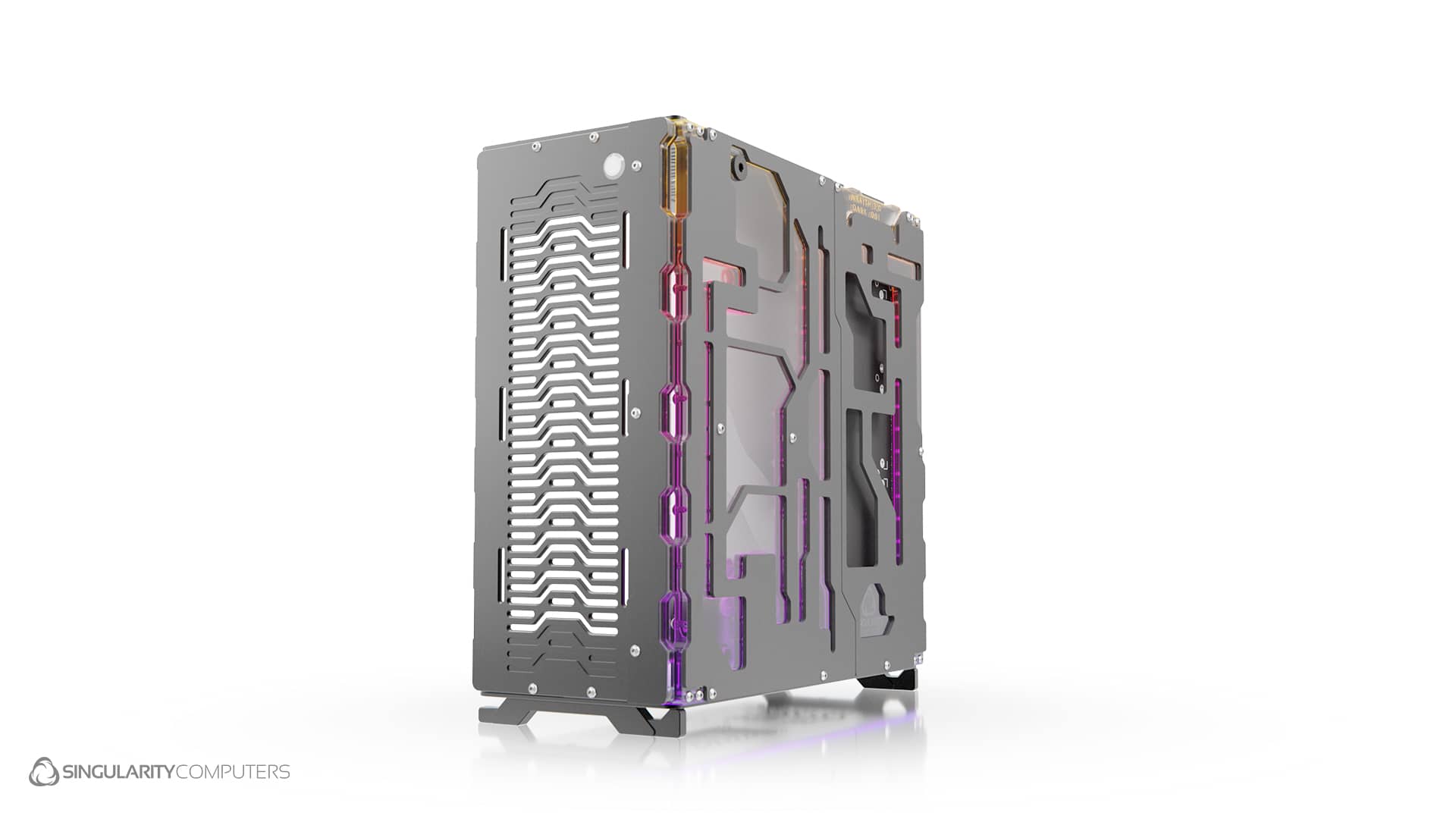

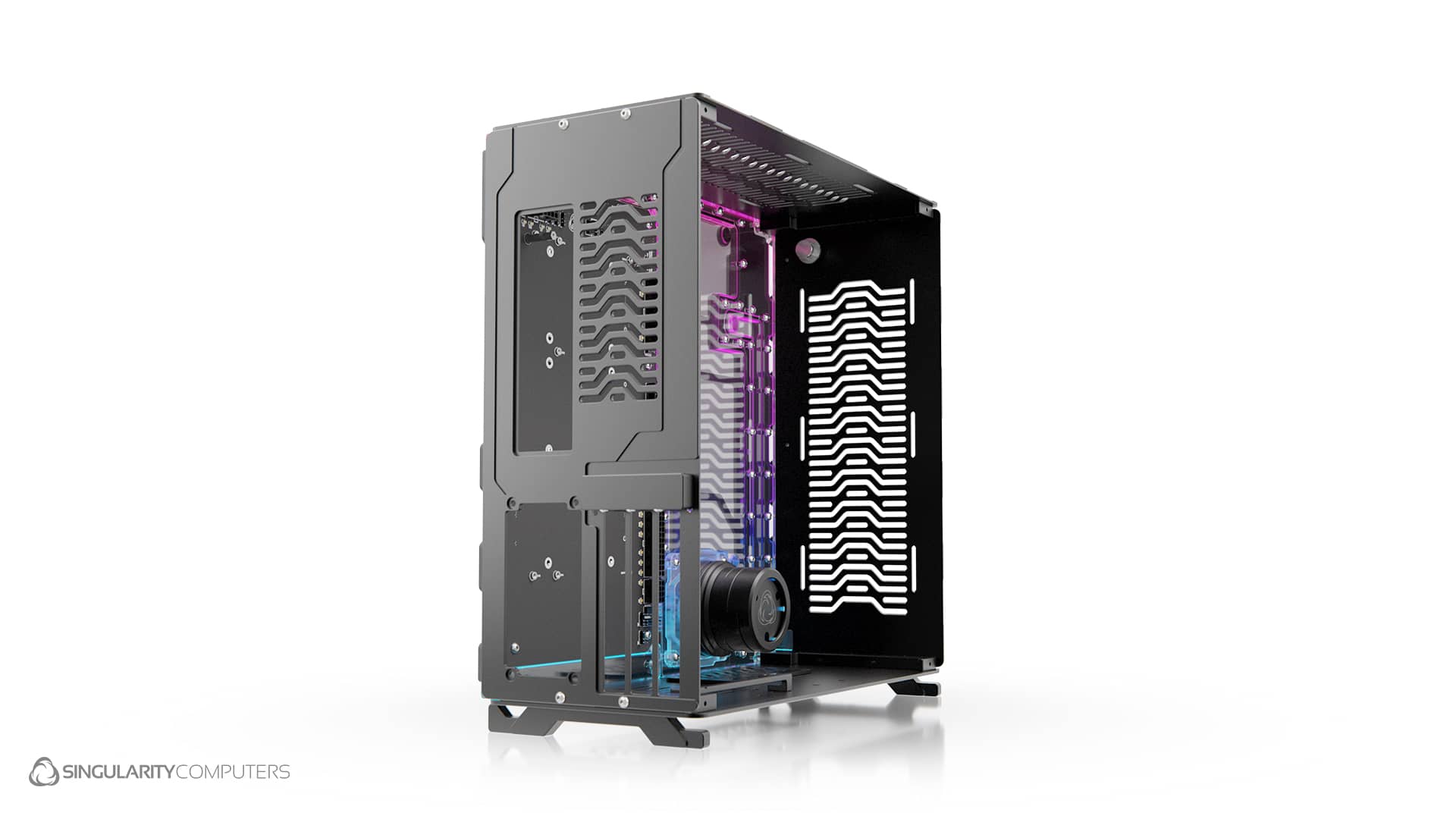

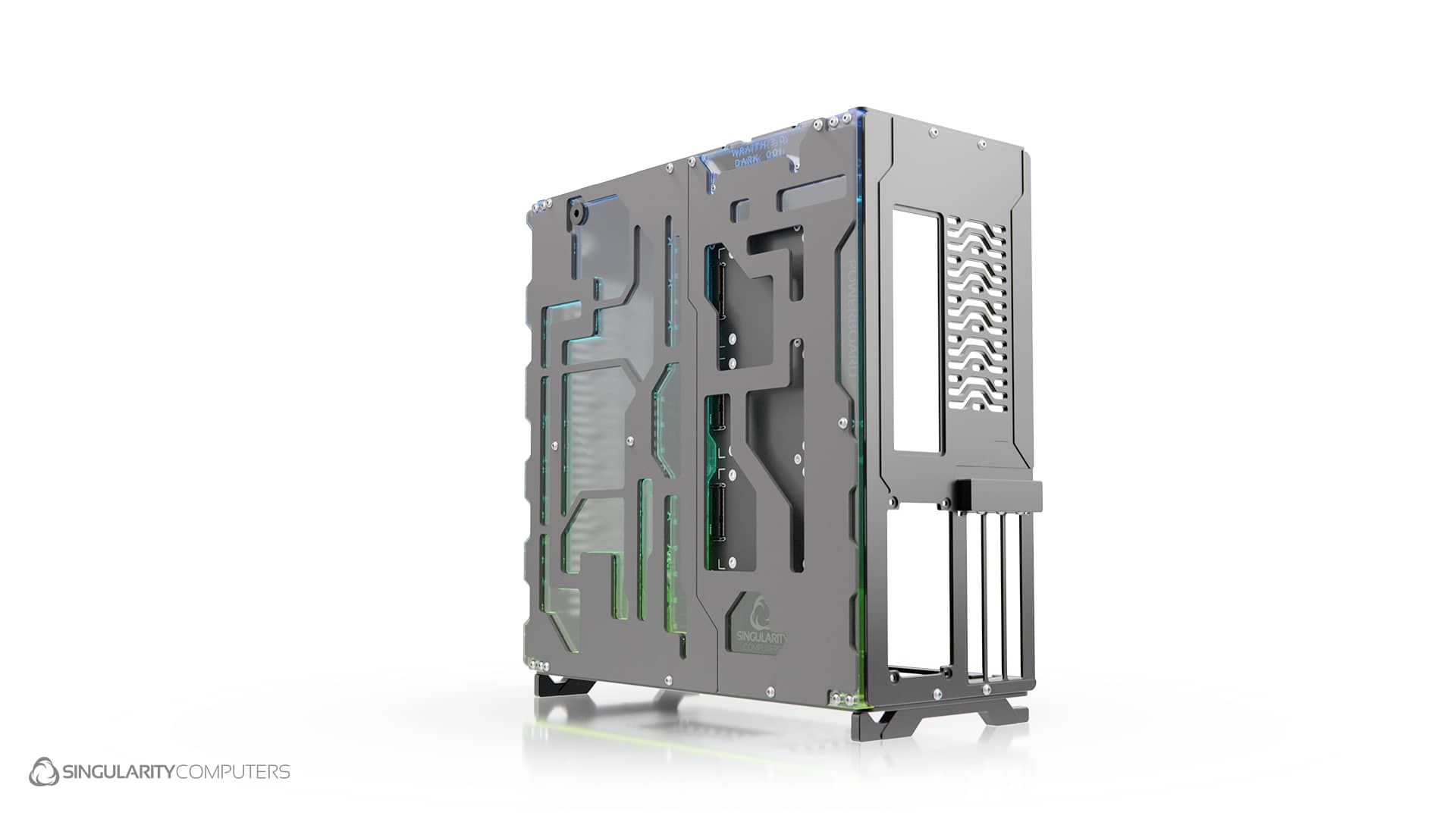

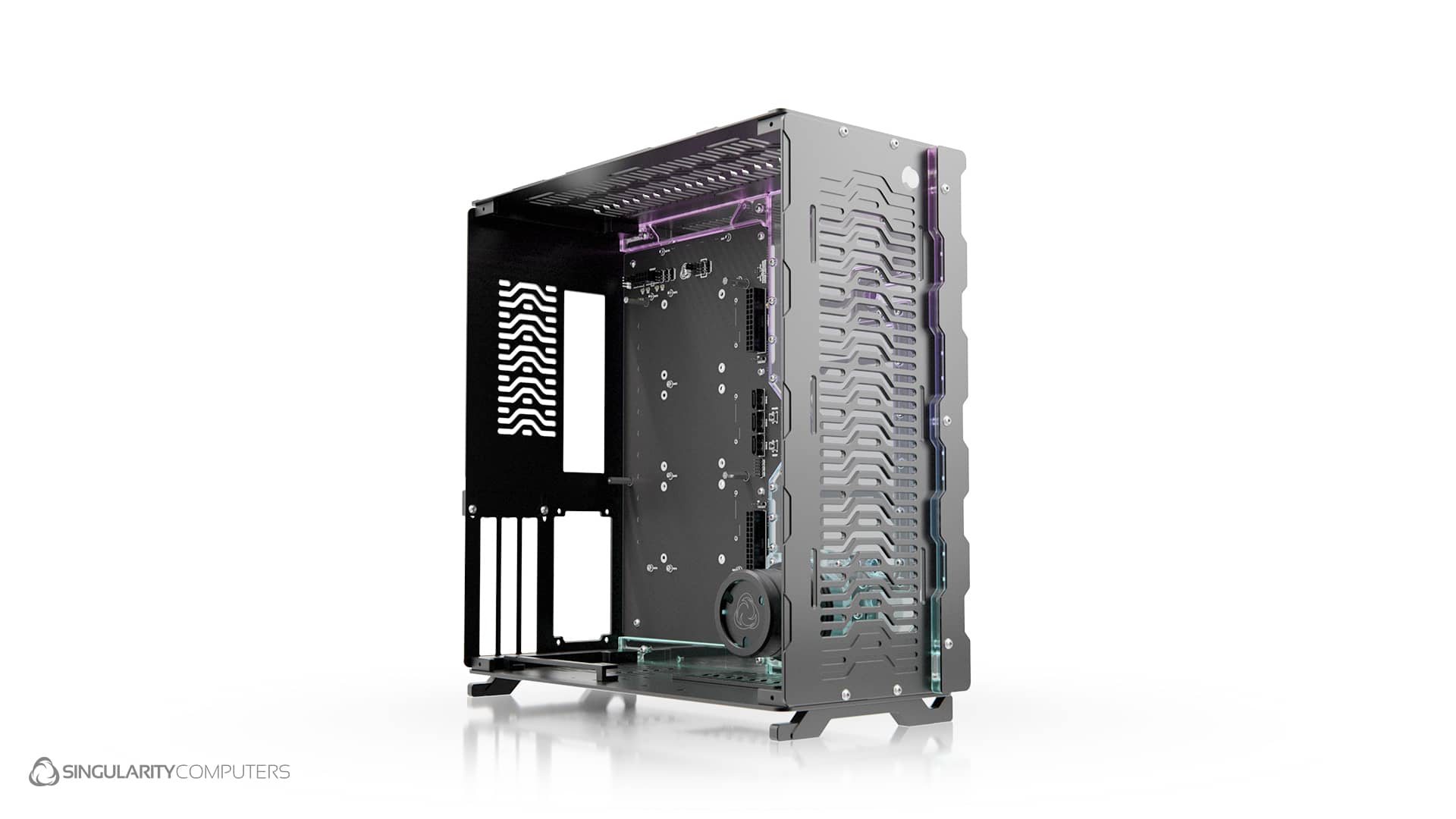

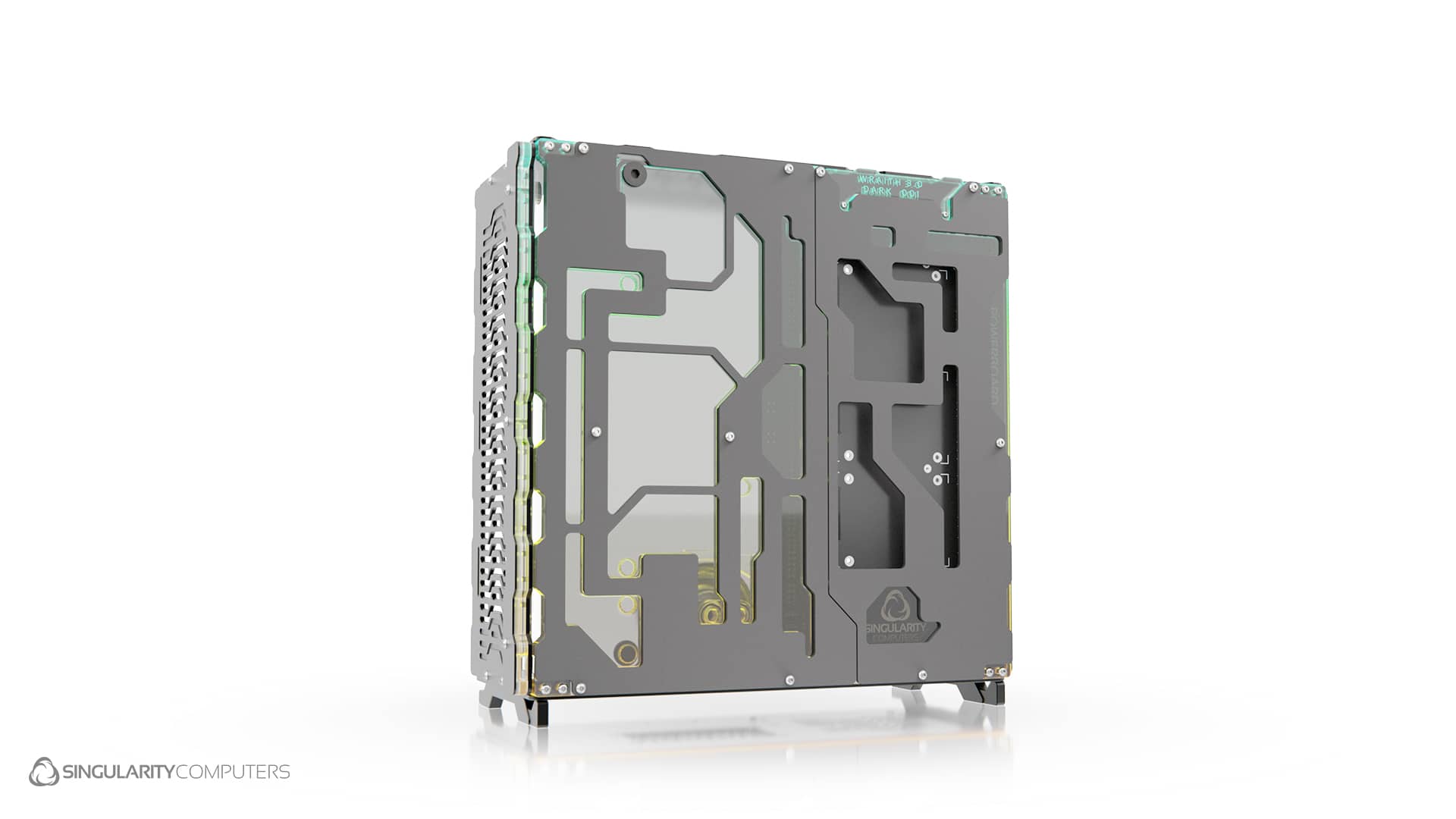

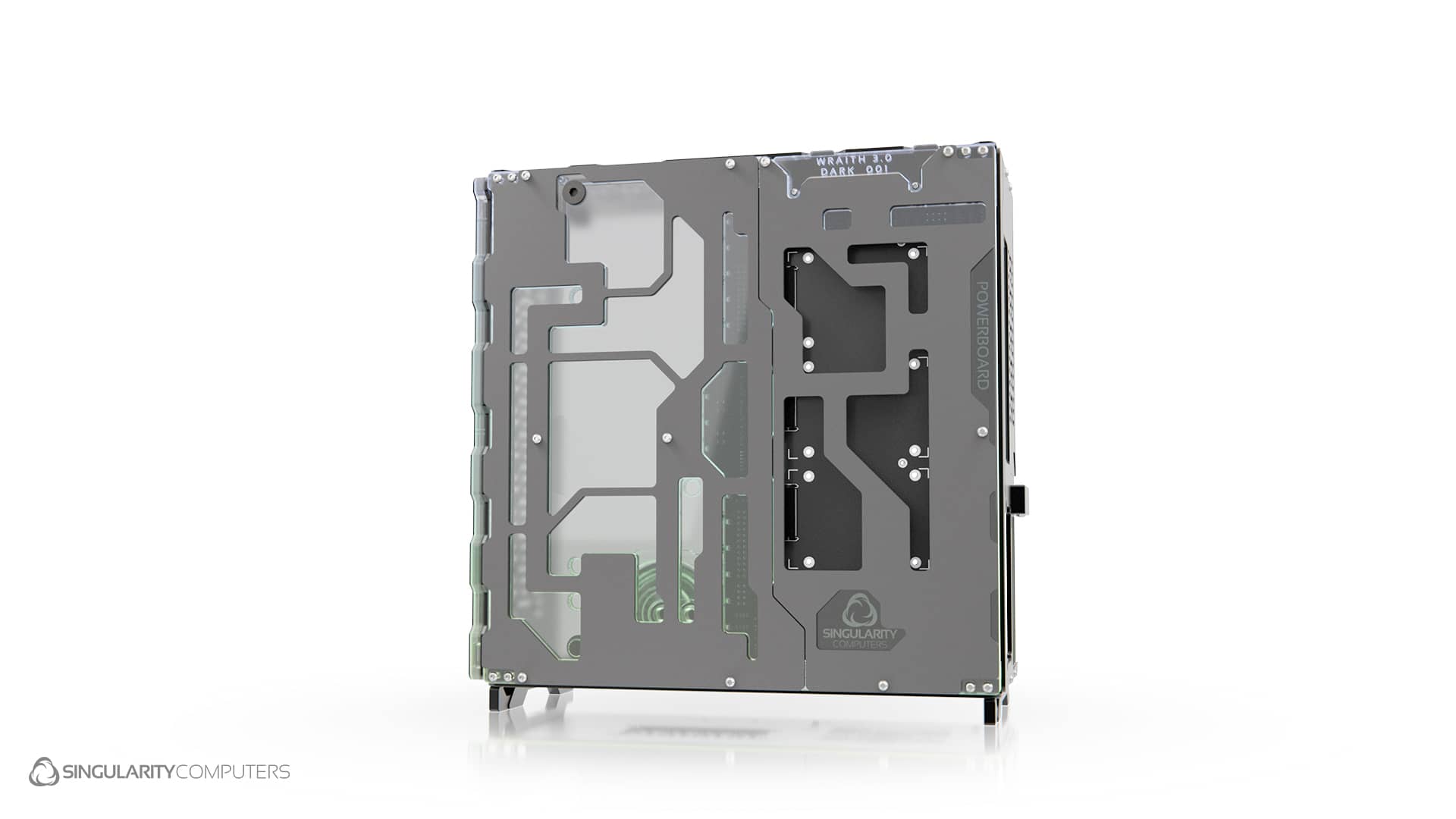

Wraith 3.0 is a compact case capable of housing a high-end water cooled system. It fits ITX and DTX motherboards, SFX-L PSUs, the largest GPUs, and 2x 240mm 30mm thick radiators. The case is specifically designed for water-cooling with a distribution plate which integrates a reservoir, D5 pump top, D5 pump cover, fill and drain ports, and parts of the cooling loop. It also has a Singularity Computers PowerBoard which integrates the 24pin, EPS, PWM & ARGB hubs, and it has integrated ARGB LEDs which light up the distribution plate.

The following cables are included with the product: 24pin x1, 8pin EPS x1.
If other cables are required they are available
Optional PowerBoard PSU Cable Kit is available

Note: Pump/s not included.


SKU: S3-W3-Dark Category:

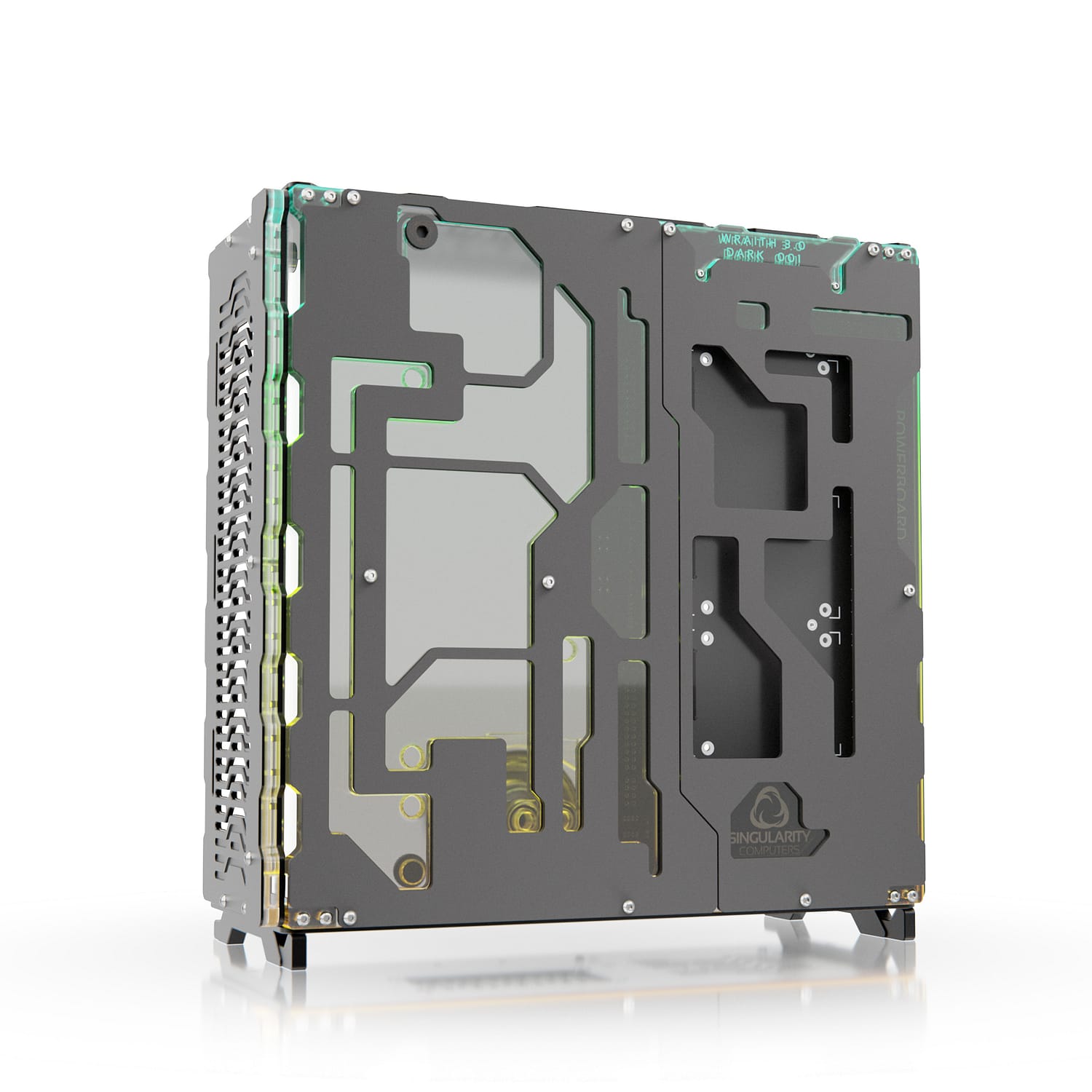

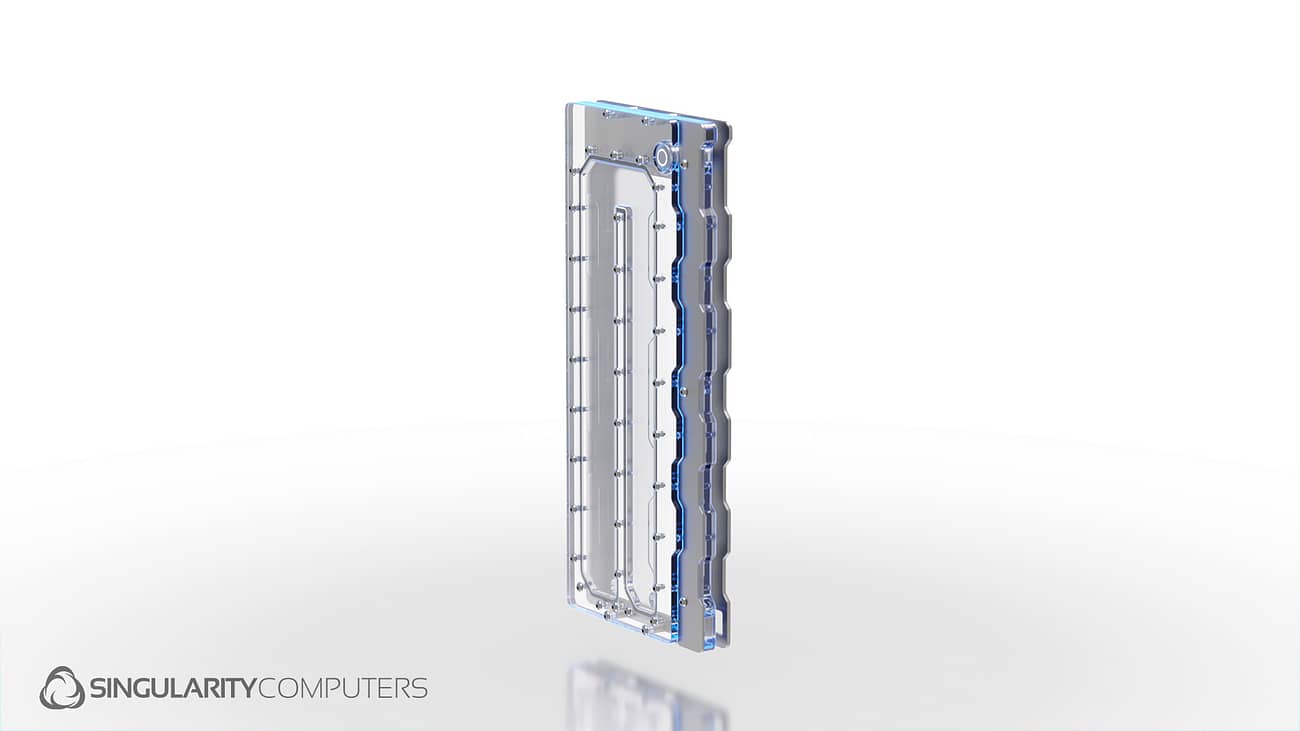

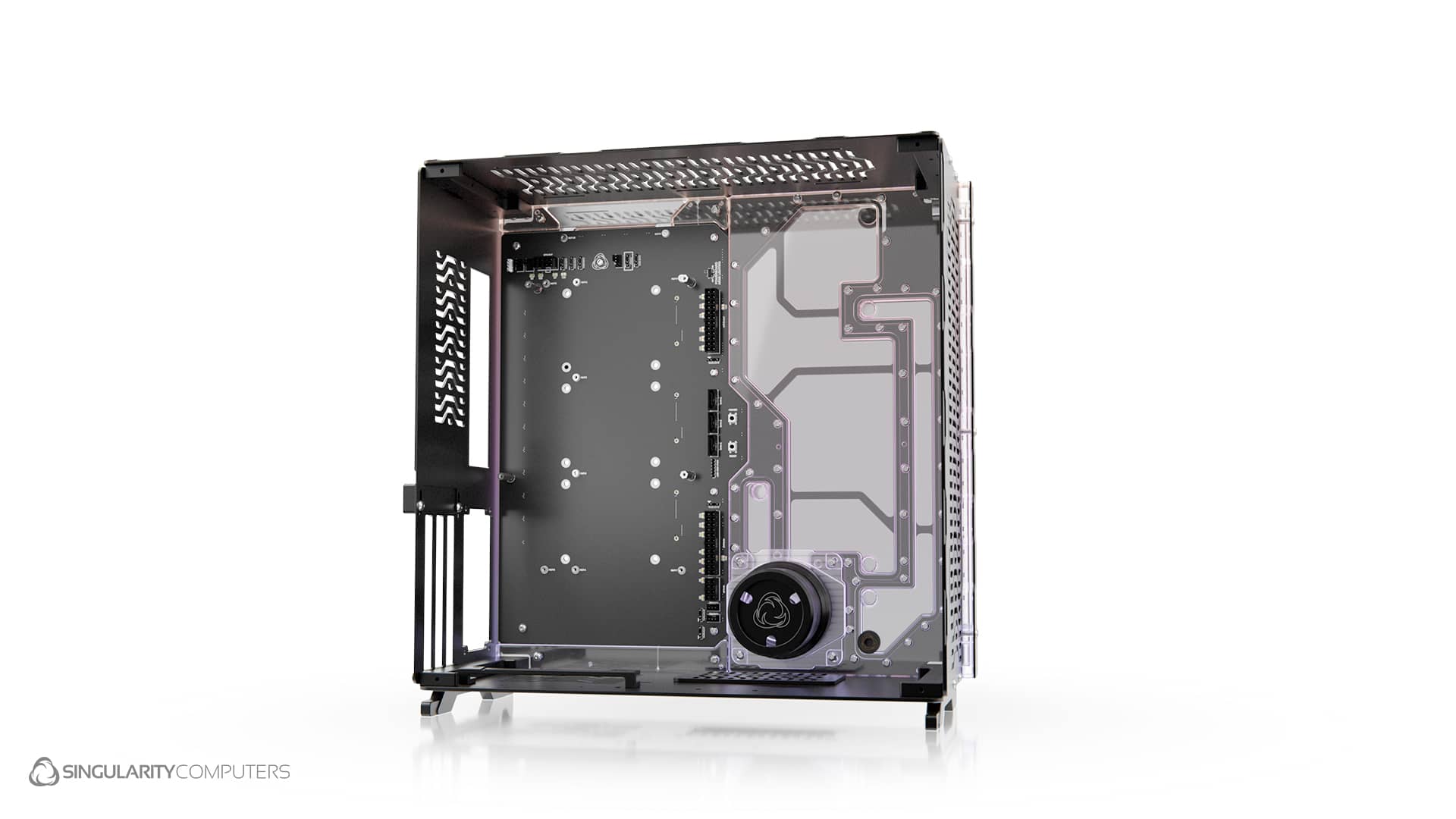

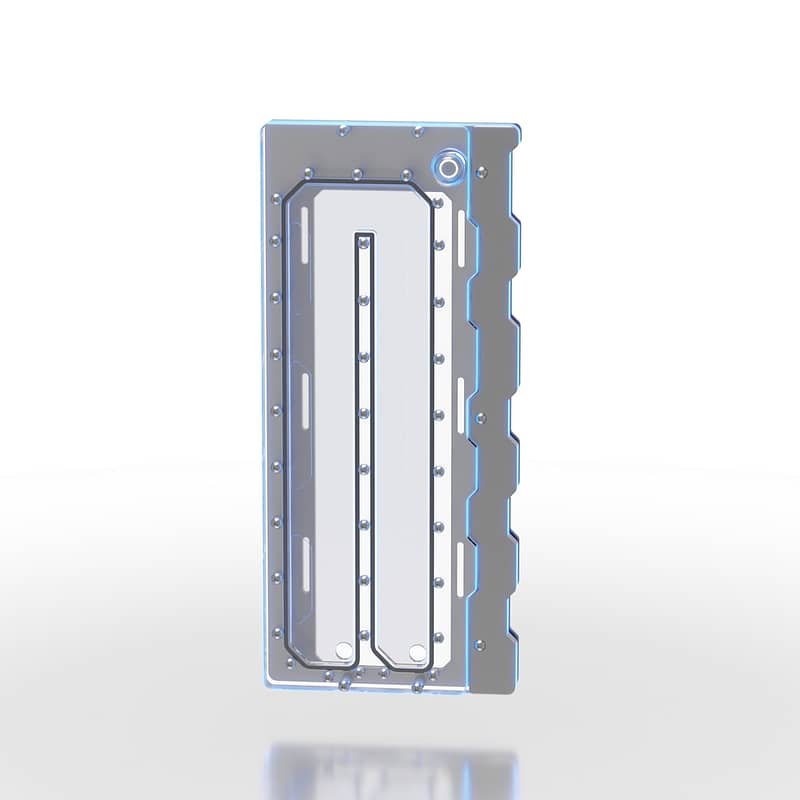

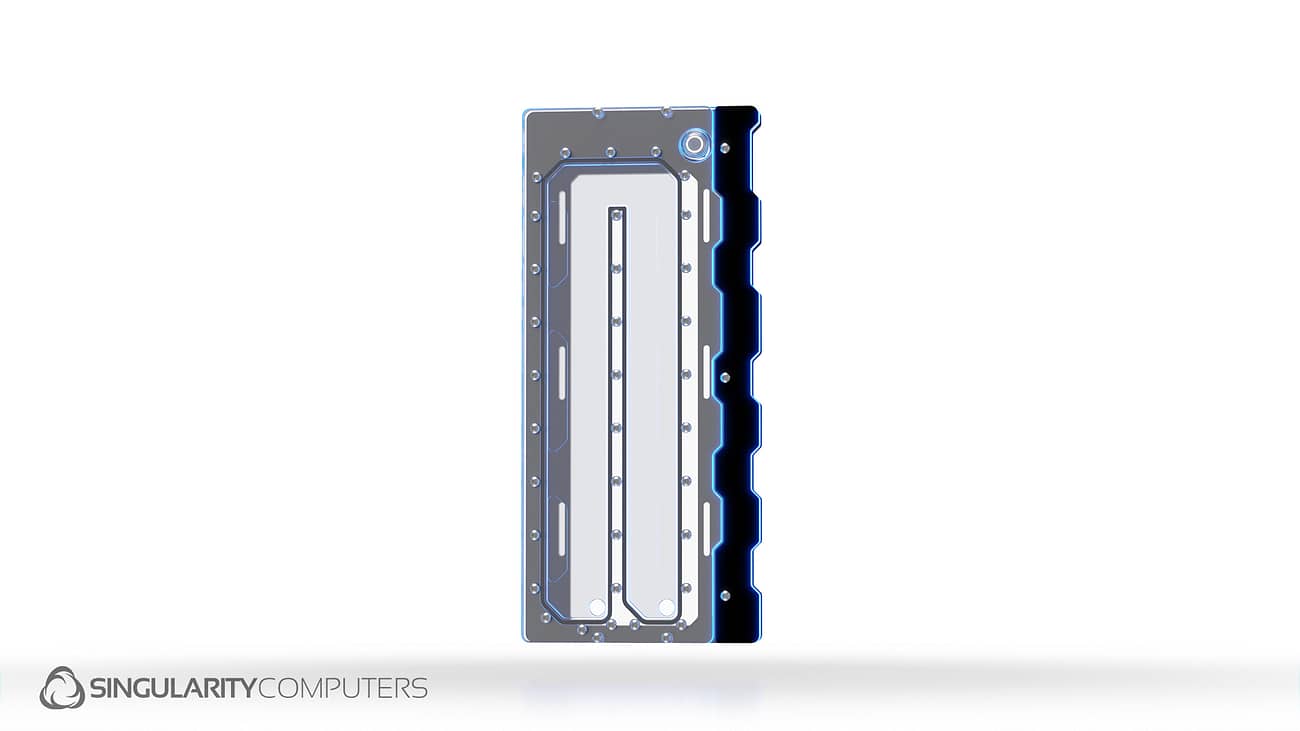

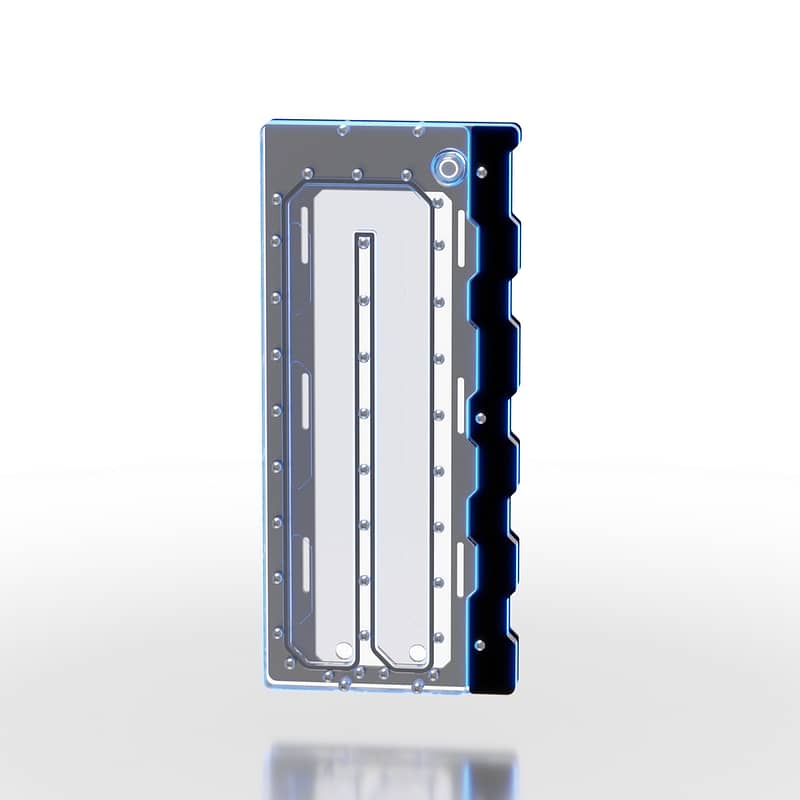

Integrated Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop. Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all D5 pumps.
Integrated Connections: 24pin x1. 8pin EPS x1. Hubs: PWM: x4. ARGB: x8. PowerBoard 2.5” SATA 3.0 6Gb/s Direct Mount x3.
LEDs: x26 Integrated ARGB 90-degree LEDs.
Extra Power and Reset Buttons. PowerBoard LED on/off switch.
Cables: PowerBoard Linking Cables: 24pin x1. 8pin EPS x2. 18AWG Black Headshrinkless Sleeve. PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1.
LED Strips: 30cm ARGB LED Strip with 50cm cable x1.
Stop Fittings: G1/4″ with hex. Brass, Black Powder coated, Laser Etched x2.
Motherboard Form Factor:Mini-ITX, Mini-DTX.
Case Dimensions: 407mm x 407mm x 170mm.
Package Dimensions: 450mm x 500mm x 120mm.
Case Weight: 7kg.
Case Packaged Weight: 8kg.
Expansion Slots: x3.
Storage: 2.5″ x9, 3.5” x1.
PSU Compatibility: SFX, SFX-L (Maximum length available).
Radiator Top: 240mm x30mm.
Radiator Front: 240mm x30mm.
Maximum GPU Length: 300mm.
Maximum GPU Thickness: 3 slots.
Maximum GPU Width: Maximum length available.
Maximum CPU Cooler Height: 130mm
Front Panel I/O: Vandal Switch 16mm.
Vertical GPU Mount: Included Singularity Computers PCIE 4.0 Bracket and PCIE 4.0 Riser Cable.
Materials: 6061 Anodized Aluminum, Cast Acrylic, Stainless Steel.
Manufacturing Process: CNC Router, CNC Mill, CNC Lathe.
