Wraith 3.0 Elite Front – Black

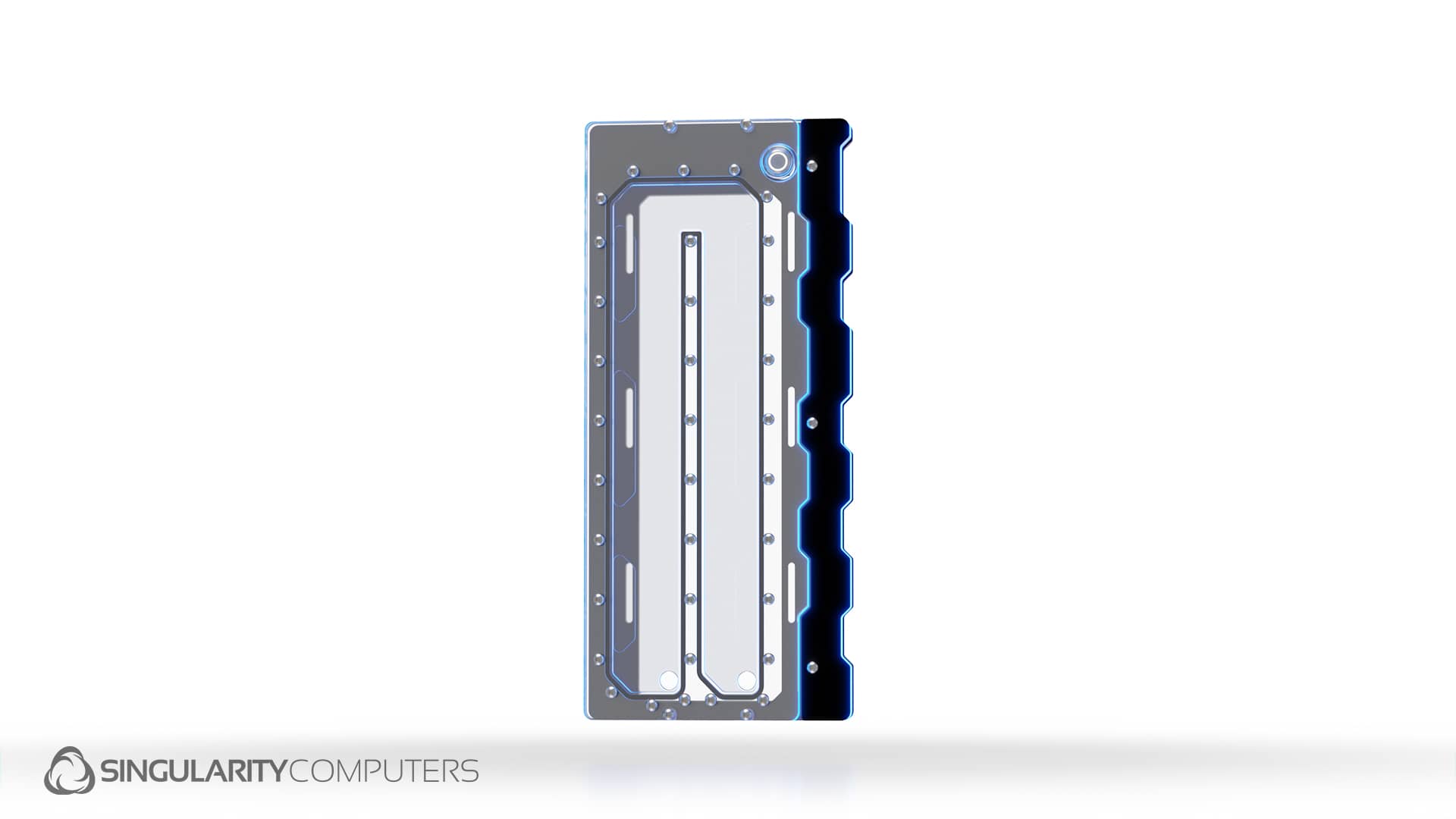

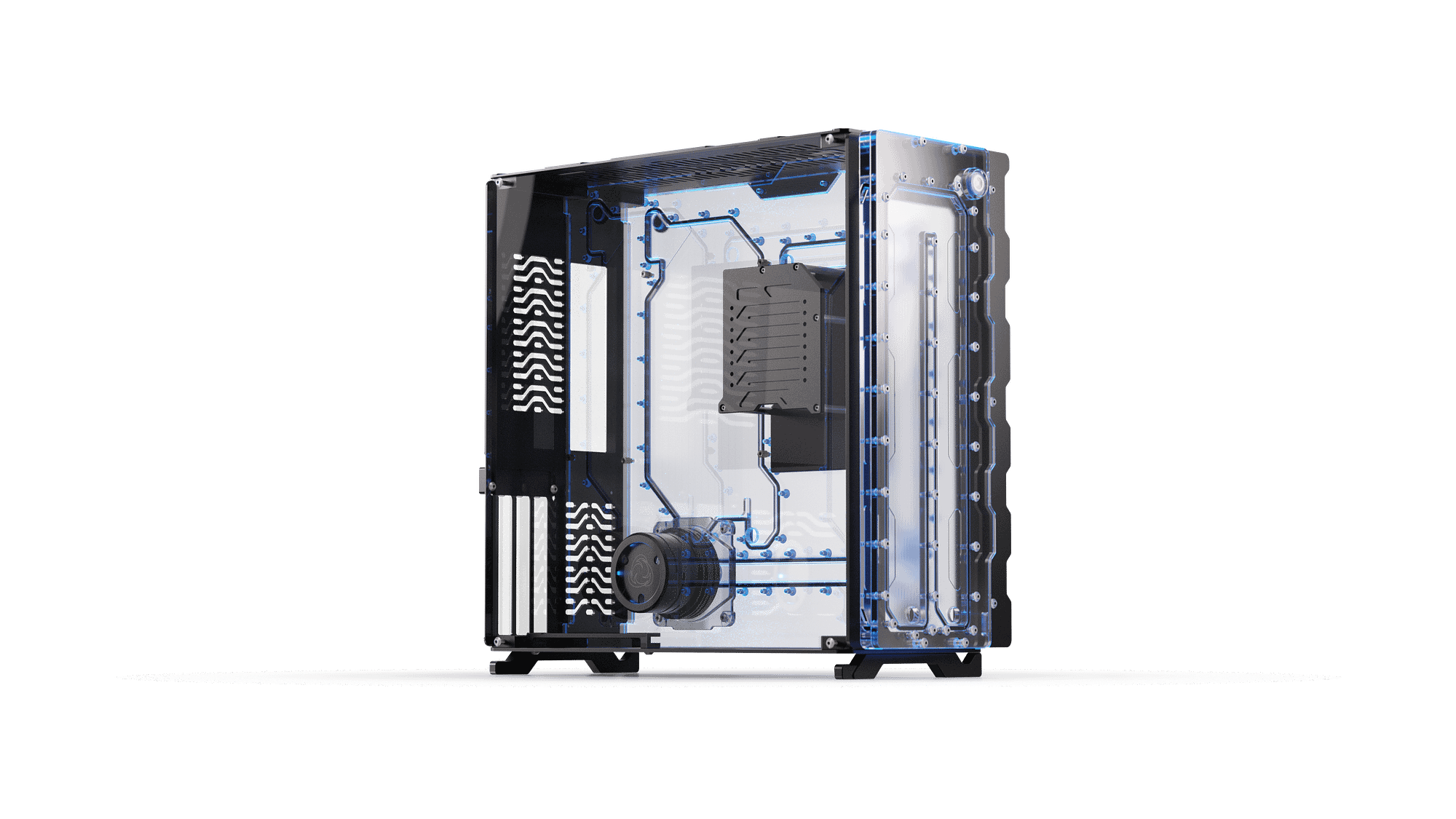

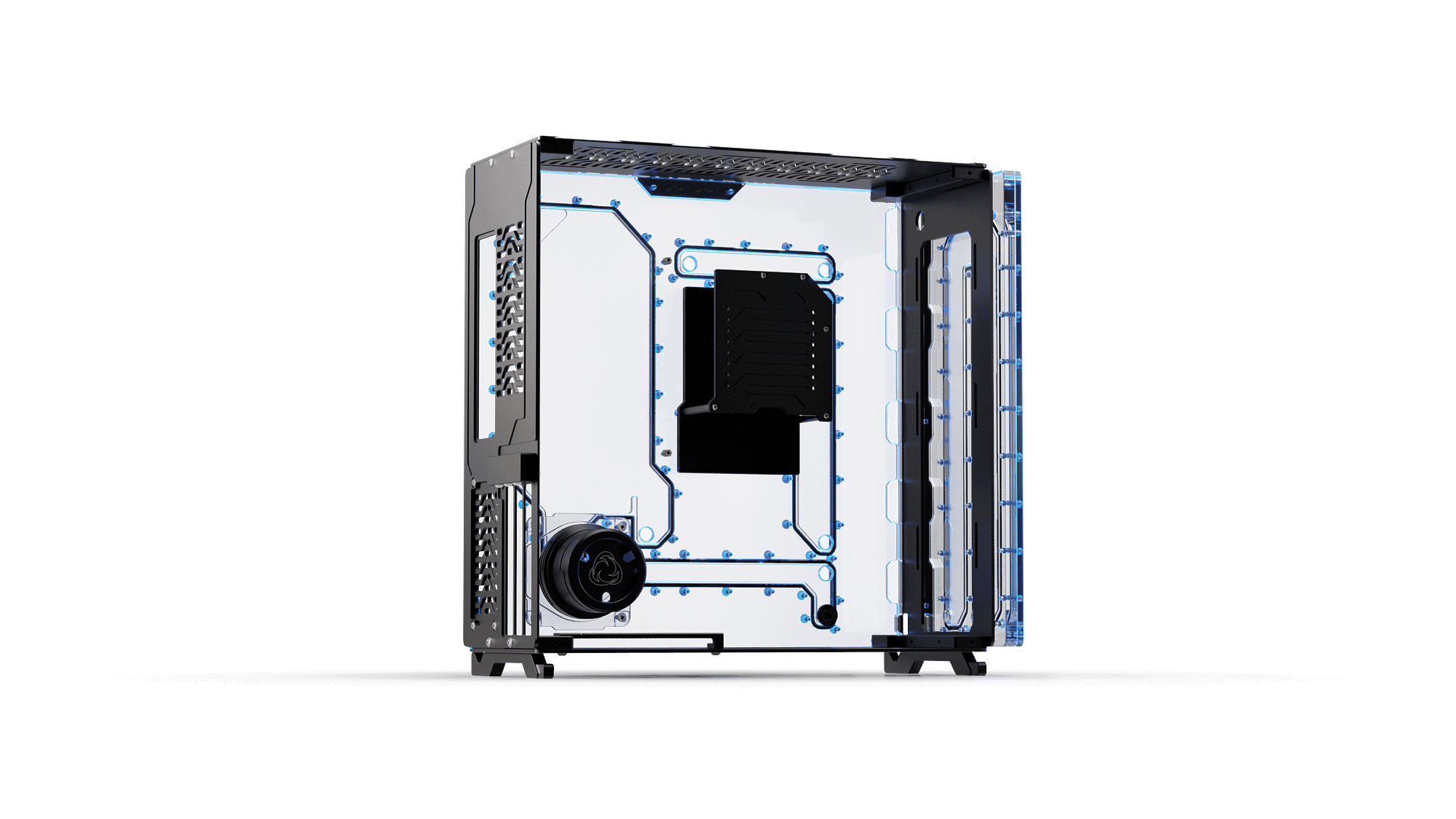

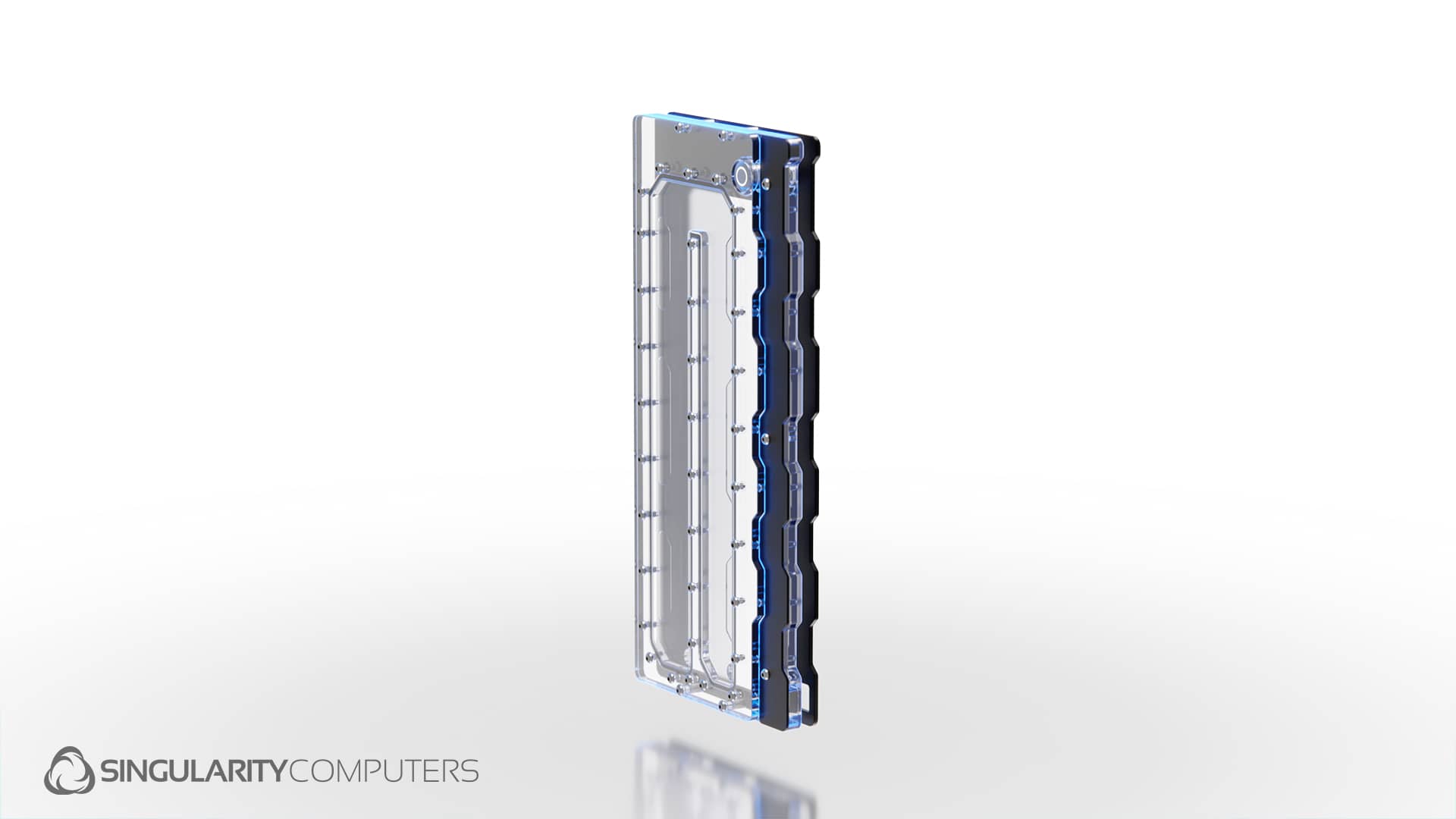

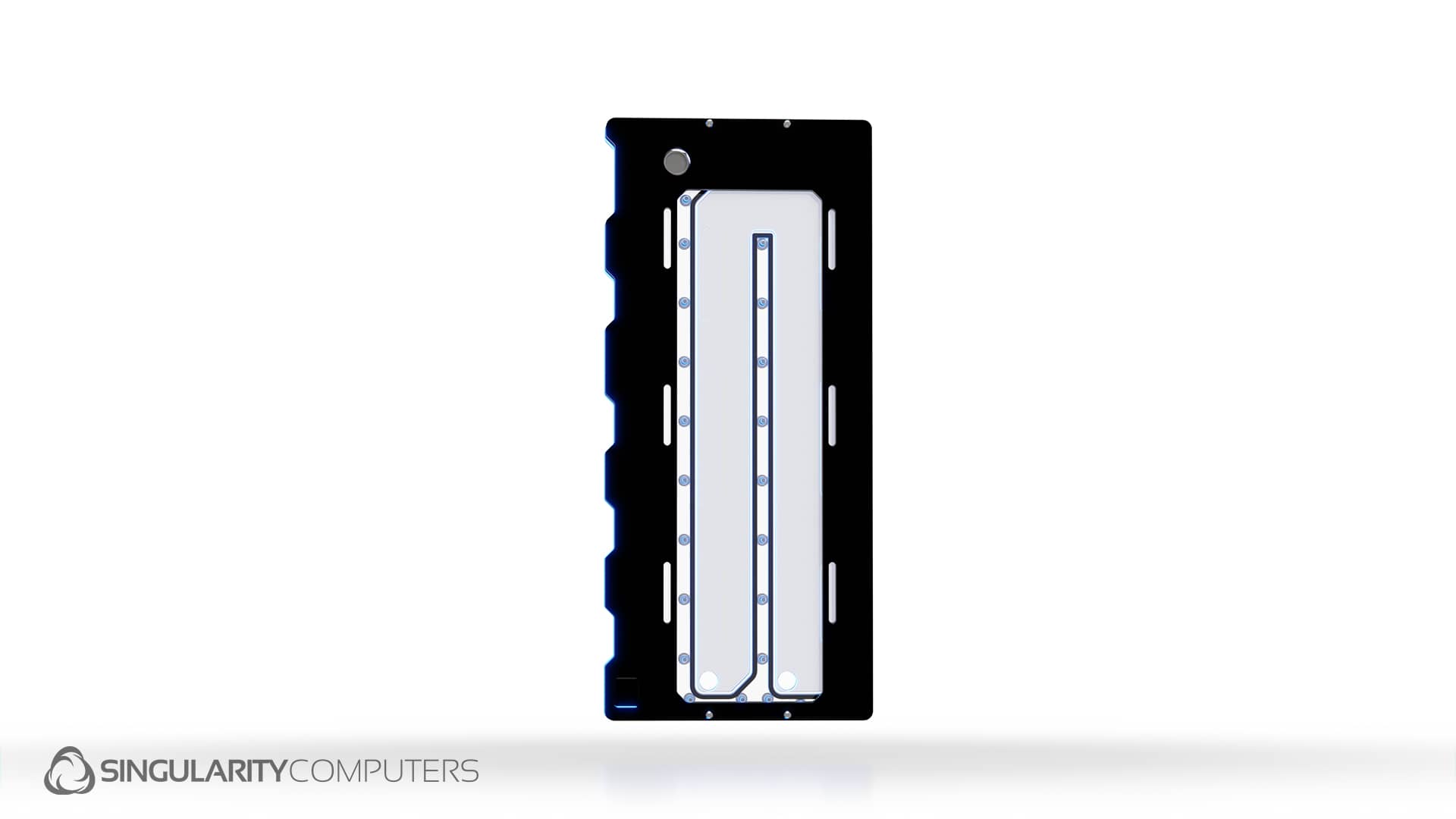

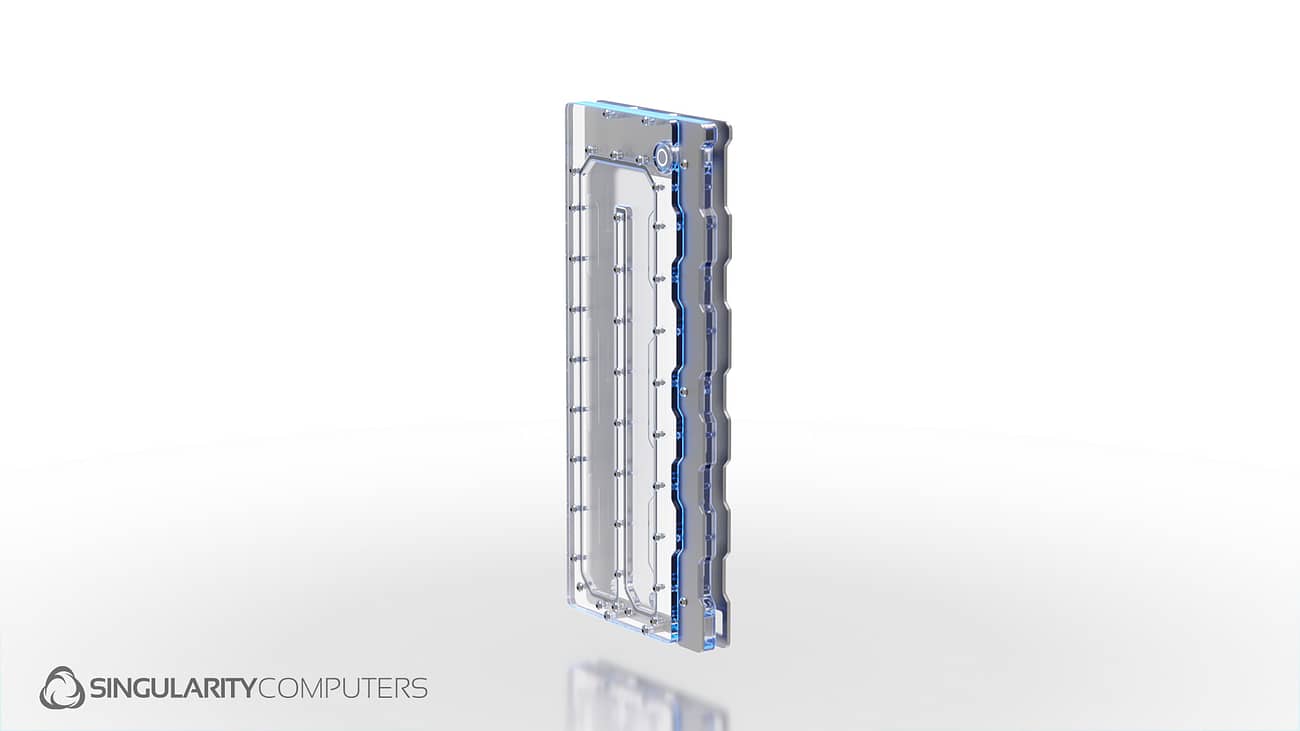

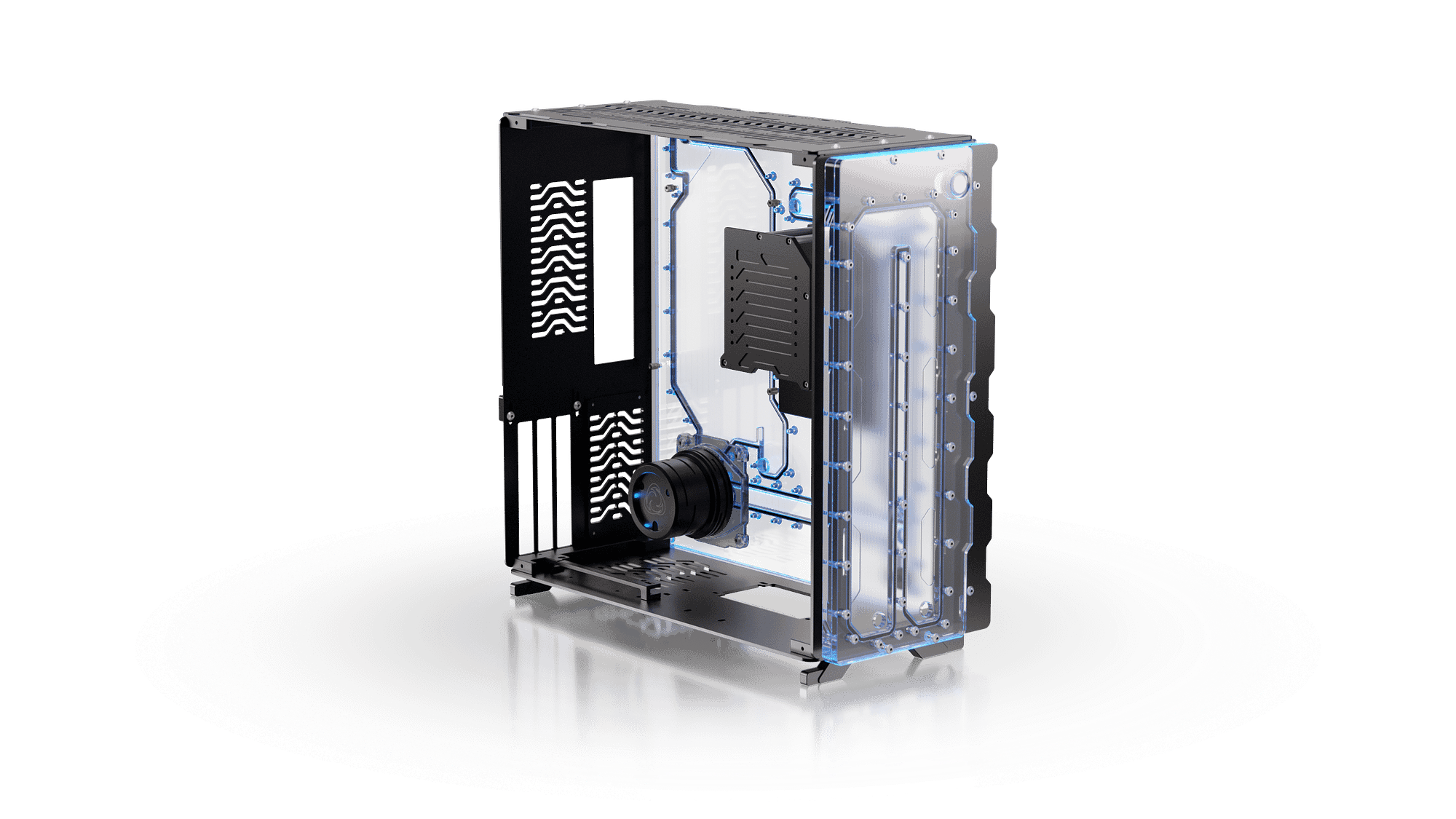

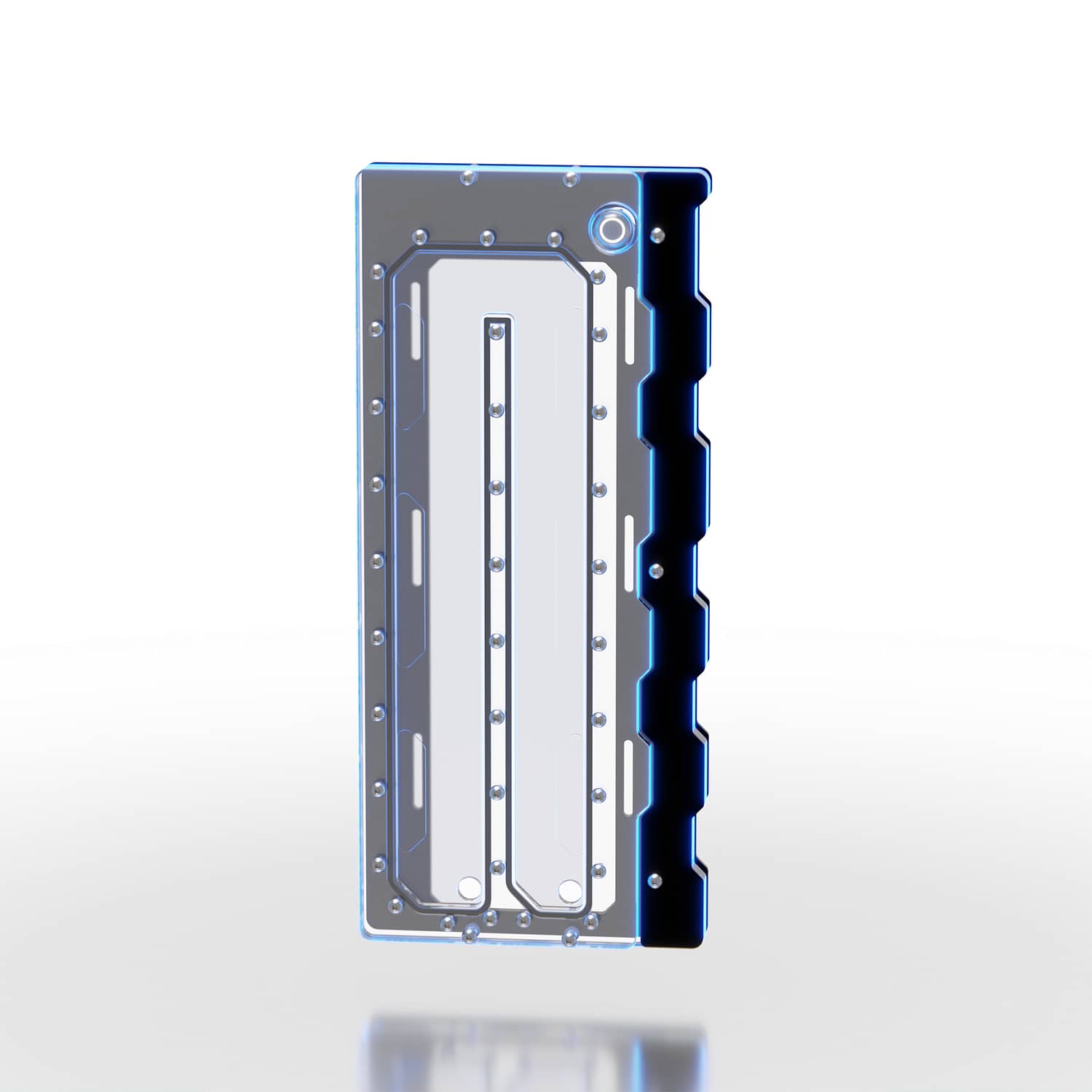

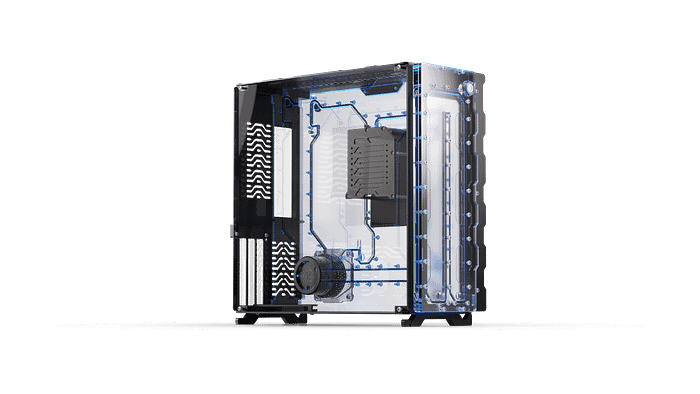

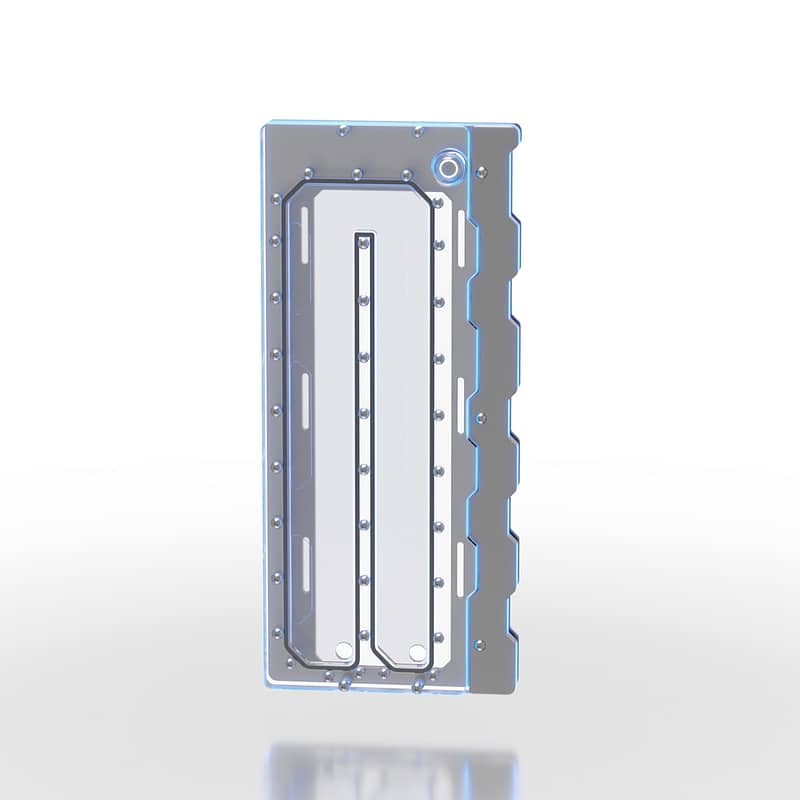

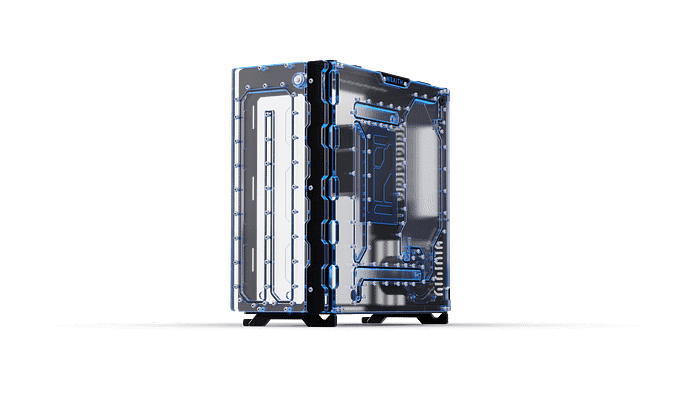

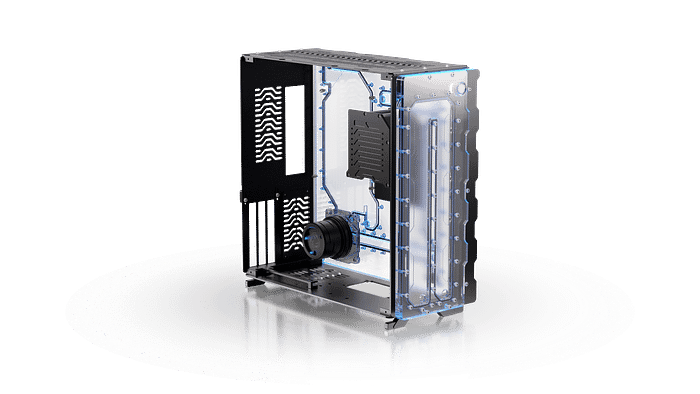

Wraith 3.0 Elite replaces the front panel of Wraith 3.0 with a distribution plate. This enhances the transparency of the case showing off more of the coolant and internals. The distribution plate has two ports, an inlet and outlet. When installed on the front panel the ports are at the bottom. Connections can be made to and from either the radiators, other components in the build, or the Wraith 3.0 main distribution plate. A front radiator can still be attached even when Wraith 3.0 Elite is installed. There are spacers for airflow all the way around the perimeter of the distribution plate.


SKU: SC-WRAITH3-ELITE-BK Categories: ,

Wraith 3.0 Elite: Distribution Plate: CNC Machined Cast Acrylic. Radiator Mount: 6061 Powdercoated Aluminium.
5V ARGB LED Strip: x1
Weight: 1.2kg.
Dimensions: 407mm x 170mm x 30mm.
Package weight: 1.3kg.
Packaged dimensions: 450 x 200 x 50mm.
Manufacturing Process: CNC Mill, CNC Router, Laser Cutter.
Materials: 6061 Aluminum Anodized. Cast Acrylic.
Gaskets: Silicone.
Fasteners: Stainless Steel.
Ports: x2 G1/4” BSPP. 1x Inlet. 1x Outlet.
Assembly: Assembled by hand.
Testing: Factory pressure tested.

Wraith 3.0 Elite is backwards compatible with Wraith 2.0. It installs the same way as the stock front panel but with longer fasteners which are included. For the water-cooling loop connections can be made to and from the radiator, other components in the build, or the Wraith 3.0 main distribution plate. The radiator can be installed normally while the distribution plate section is removed from the radiator mounting panel, and has the same adjustment as it does on the stock front panel.
