For more than 20 years we have been working on perfecting water-cooling. All our experience and ideas are collectively in our designs. With our hands on approach and constant testing we are always advancing.

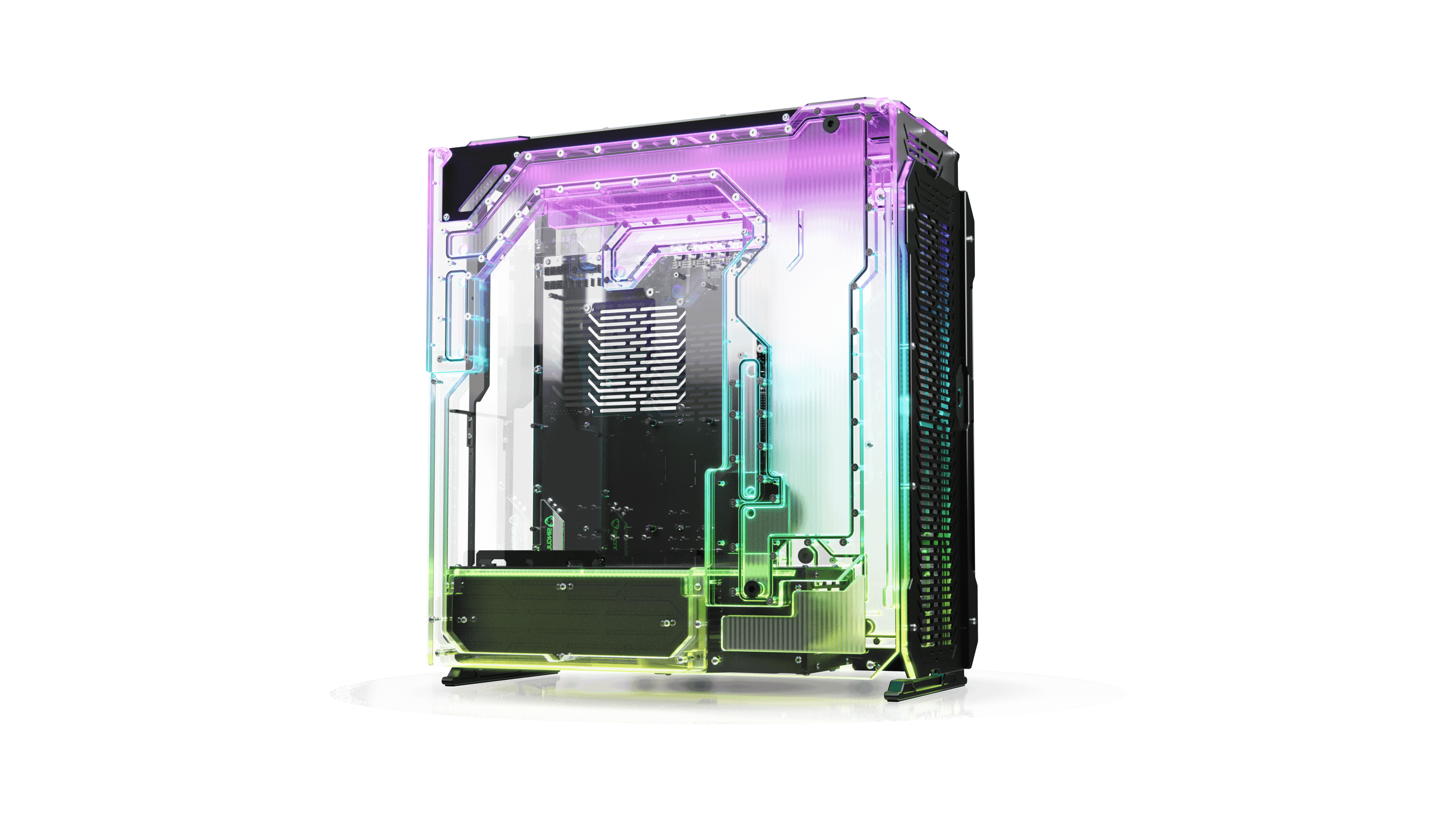

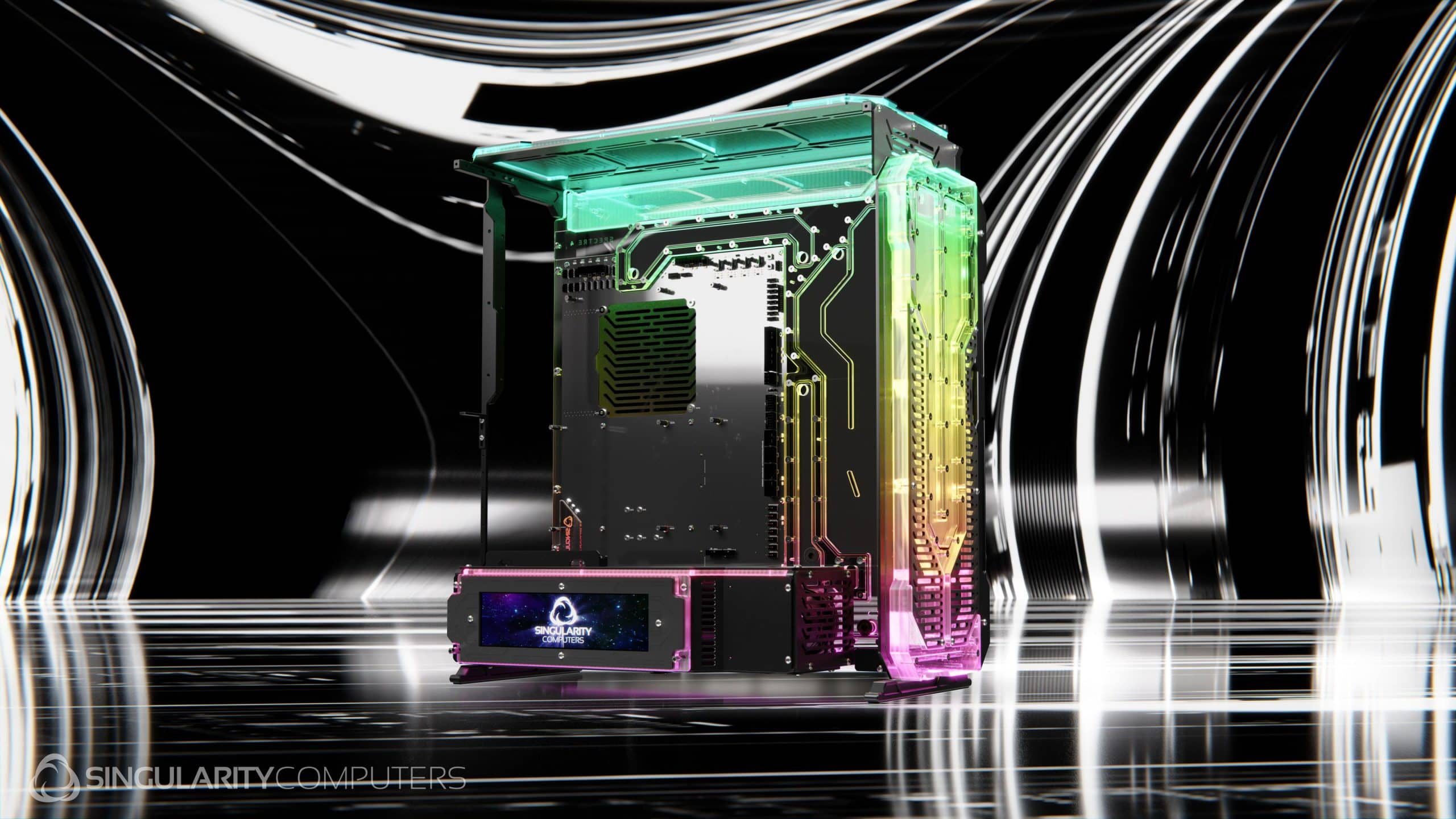

Spectre 4 Water-cooling Case

Spectre 4 is designed specifically for those who are passionate about water-cooling. It has more water-cooling features than any case on the market, which have been designed and developed from our 20 years of experience building high-end water-cooled systems.

    Water-cooling Integration

    For Spectre 4 Water-cooling Case we have created a new distribution plate design which is thicker, has more fluid volume and has stainless steel countersunk M4 fasteners. The distribution plate integrates a D5 pump, reservoir, and parts of the loop. This integration means that less fittings and tube need to be used, reducing build time and complexity.

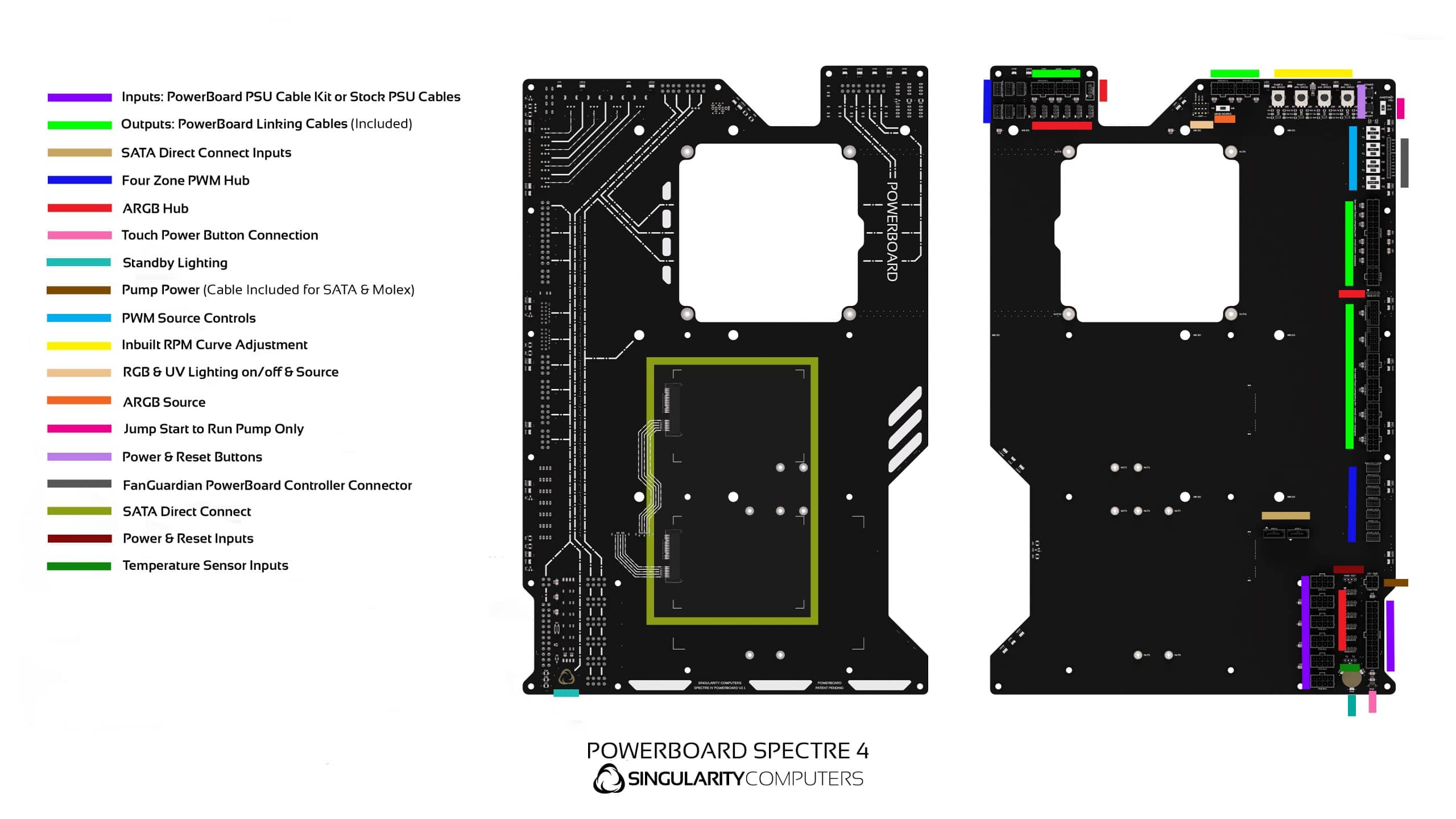

    PowerBoard Integration

    The PowerBoard is essentially a distribution plate but for cables. It is a PCB which optimizes the connector locations to standardize cables and remove the need for cable management. On the Spectre 4 PowerBoard we have many new features including multi zone PWM hubs, dedicated pump PWM, pump power connectors, PSU jump start, RPM curve adjustment, temperature-based RPM control, standby lighting and improved lighting.

      SPECTRE 4 VERSIONS

       Spectre 4Spectre 4 AevumSpectre 4 Aevum ChromeSpectre 4 Aevum DarkSpectre 4 Aevum GoldSpectre 4 Aevum ValhallaSpectre 4 EnterpriseSpectre 4 QuantumSpectre 4-MSpectre 4-M Dark
      Distribution Platesx1x2x2x2x2x3x1x2x1x2
      Distribution Plate Layersx2x4x4x4x4x4x2x2x3x3
      PowerBoardYesYesYesYesYesYesYesYesYesYes
      Motherboard Form FactorUp to E-ATXUp to E-ATXUp to E-ATXUp to E-ATXUp to E-ATXUp to E-ATXUp to E-ATX, SSI-EEB, SSI-CEBUp to E-ATX, SSI-EEB, SSI-CEBUp to E-ATXUp to E-ATX
      IO Slots8888888877
      Radiators2x 360mm/420mm2x 360/420mm2x 360/420mm2x 360/420mm2x 360/420mm2x 360/420mm2x 360mm/420mm + 3x 360mm or MO-RA32x 360mm/420mm + 3x 360mm or MO-RA32x 360mm2x 360mm
      Radiator Thickness60mm60mm60mm60mm60mm60mm60mm60mm45mm45mm
      Pump/sD5D5D5D5D5D5 2x D5 2x D5D5D5
      ReservoirYesYesYesYesYesYesYesYesYesYes
      Case Dimensions610mm x 245mm x 560mm610mm x 245mm x 600mm610mm x 245mm x 600mm610mm x 245mm x 600mm610mm x 245mm x 600mm610mm x 245mm x 600mm610mm x 245mm x 560mm610mm x 245mm x 560mm486mm x 245mm x 528mm506mm x 245mm x 528mm
      1920x480 60Hz ScreenNoYesYesYesYesYesYesYesNoYes
      Limited EditionNoYesYesYesYesYesNoNoNoNo
      Individually NumberedNoYesYesYesYesYesNoYesYesYes
      Rear CPU Socket FanYesYesYesYesYesYesNoNoYesYes
      Dust FiltersYesYesYesYesYesYesYesYesNoNo
      Multi Zone PWMYesYesYesYesYesYesYesYesYesYes
      Dedicated Pump PWMYesYesYesYesYesYesYesYesYesYes
      Dedicated Pump PowerYesYesYesYesYesYesYesYesYesYes
      Temperature Based RPM ControlYesYesYesYesYesYesYesYesYesYes
      RPM Curve AdjustmentYesYesYesYesYesYesYesYesYesYes
      PSU Jump StartYesYesYesYesYesYesYesYesYesYes
      PSUsx1x1x1x1x1x1x1 (2nd can be added with optional addon)x1 (2nd can be added with optional addon)x1x1
      Water-cooling Loopsx1 (2nd can be added with Dual Loop Side Panel)x1 (2nd can be added with Dual Loop Side Panel)x1 (2nd can be added with Dual Loop Side Panel)x1 (2nd can be added with Dual Loop Side Panel)x1 (2nd can be added with Dual Loop Side Panel)x2x1 (2nd can be added with Dual Loop Side Panel)x1 (2nd can be added with Dual Loop Side Panel)x1 (2nd can be added with Dual Loop Side Panel)x1 (2nd can be added with Dual Loop Side Panel)
      ColorBlackBlack & GraphiteSilver MirrorBlack & Grey TintedGoldWhiteBlackBlack and Silver or Black and GoldSilverBlack & Grey Tinted
      Drivesx3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mountedx3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mountedx3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mountedx3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mountedx3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mountedx3 x2.5” and x1 2.5”/3.5” -2 2.5” if GPU/s vertically mountedx2 2.5” if GPU/s not vertically mountedx2 2.5” if GPU/s not vertically mountedx2 x2.5”x2 x2.5”
      PCB Covers with integrated ARGBNoNoYesYesYesNoNoYesYesYes
      Personalised etched name and serial numberNoNoYesYesYesNoNoYesNoNo
      Shop Now

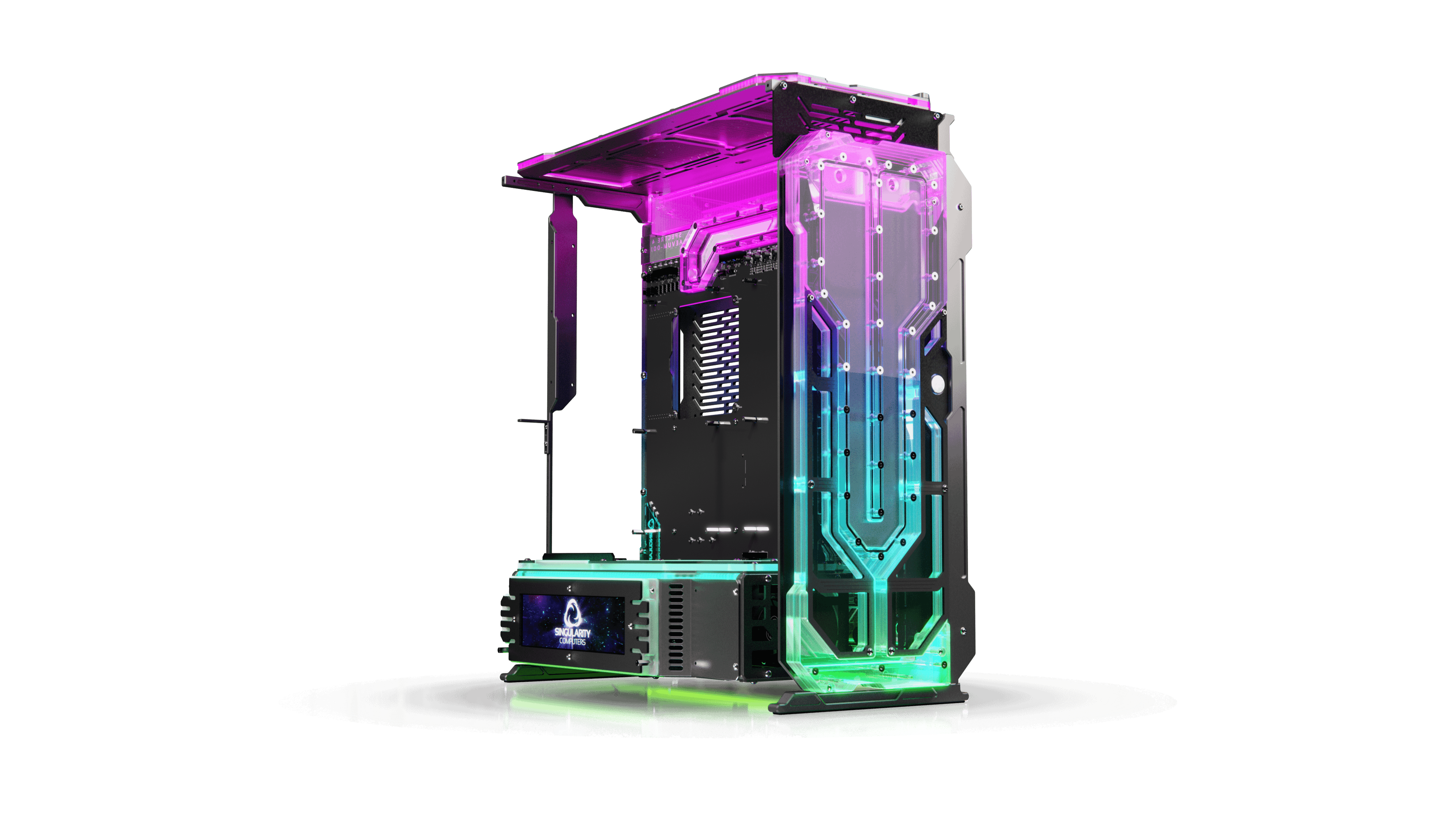

        Spectre 4 Aevum Limited Edition Water-cooling Case

        Aevum is a Time and Space themed limited edition (time being the 4th dimension). It is a heavily upgraded version of Spectre 4 with a new graphite anodizing color. The distribution plate is far more detailed and has a completely different design with more intricate machining particularly in the reservoir area. The rear covers and PSU shroud panels also have a more detailed design with extra glowing LED sections. Additionally, it comes included with an Aevum version of the front distribution plate and a 1920×480 60Hz IPS screen mounted on the PSU Shroud.

        Spectre 4 Add-ons

        There are a number of different add-ons for Spectre 4 to enhance its function and improve aesthetics. The Dual Loop Side Panel gives you a second separate loop on the opposite side of the case to the main distribution plate, it includes another reservoir, D5 pump top and parts of the loop. Spectre 4 Elite is a distribution plate for the front and/or top panel of the case which increases fluid volume and improves the aesthetics. The Spectre 4 PSU Shroud Screen is a 1920x480 60Hz IPS screen which can be mounted on the PSU Shroud.
