For almost 20 years Singularity Computers have been working on perfecting water-cooling. All our experience and ideas are collectively in our designs and our focus has been particularly on cases. We set out to create the perfect case for high-end water-cooling. With our hands on approach, constant testing, and product development we are always advancing.

Integration

Our vast experience building high end water-cooled systems lead us to the unique idea behind our cases which is integration. There are two aspects to our integration, the water-cooling system via a distribution plate and the electronics via the PowerBoard.

Distribution Plate

We have integrated the water-cooling system into the rear wall of the case using a large distribution plate. With the reservoir, pump top and parts of the loop already integrated these parts do not have to be installed which decreases the complexity of building a water-cooled system.

Spectre versions

	Spectre 3.0 Integra	Spectre 3.0 Integra Proxima Limited Edition	Spectre 3.0 Enterprise	Spectre Integra-M	Spectre Integra-M Dark	Spectre Integra-MA
Distribution Plates	x1	Up to x3	x2	x1	x1	No
Distribution Plate Layers	x2	x4	x2	x2	x4	NA
PowerBoard	Yes	Yes	Yes	Yes	Yes	Yes
Motherboard Form Factor	Up to E-ATX	Up to E-ATX	Up to EEB & CEB	Up to ATX	Up to ATX	Up to ATX
IO Slots	8	8	8	7	7	7
Radiators	2x 360mm	2x 360mm	5x 360mm or 2x 360mm + MO-RA360	2x 360mm	2x 360mm	2x 360mm
Radiator Thickness	60mm	60mm	2x 60mm. 3x Unlimited.	40mm	40mm	40mm
Pump/s	D5	D5	2x D5	D5	D5	None
Reservoir	Yes	Yes	Yes	Yes	Yes	Yes
Case Dimensions	545mm x 595mm x 254mm	581mm x 631mm x 254mm	545mm x 595mm x 254mm	486mm x 528mm x 245mm	486mm x 528mm x 245mm	486mm x 528mm x 245mm
1920x480 60Hz Screen	No	Yes	Yes	No	No	No
Limited Edition	No	Yes	No	No	No	No
Individually Numbered	No	Yes	No	No	Yes	No

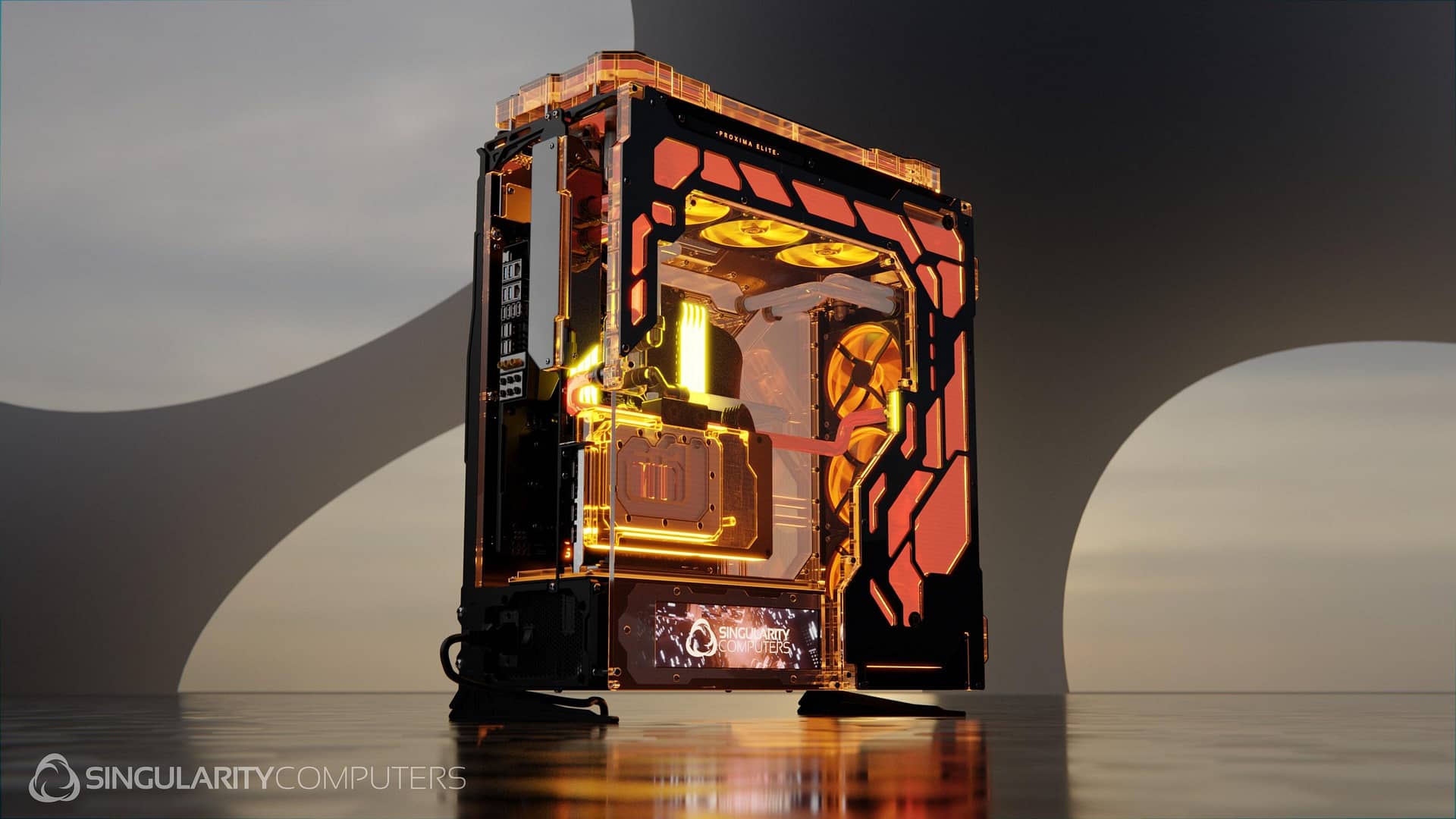

Spectre 3.0 Integra Proxima Limited Edition

The limited-edition versions of Spectre allow us to increase the rate of development. Each limited-edition Spectre version introduces our latest new technologies. It is an opportunity for us to not hold back and do something more creative, pushing the boundaries of what is possible. Each limited edition has a theme which defines aesthetics.

Spectre 3.0 Integra

Spectre 3.0 Integra is the same size as the limited-edition versions and fits the same components. It is the standard version of Spectre so it has less machining and aesthetic detail compared to the limited edition versions. It has a dual layer distribution plate instead of triple layer and comes included with standard front and top panels instead of distribution plates.

Spectre 3.0 Enterprise

Spectre 3.0 Enterprise is designed for larger motherboards including SSI-EEB and SSI-CEB. It has two integrated D5 pump tops unlike other Spectre versions which have one. It fits up to x5 360mm radiators or x2 360mm radiators and a MO-RA360.

Spectre Integra-M

Spectre Integra-M is a compact ATX version of Spectre which is 25% smaller than Spectre 3.0 versions. It is limited to ATX motherboards and 40mm thick 360mm radiators. It comes in three versions. Spectre Integra-M has a PowerBoard and distribution plate.

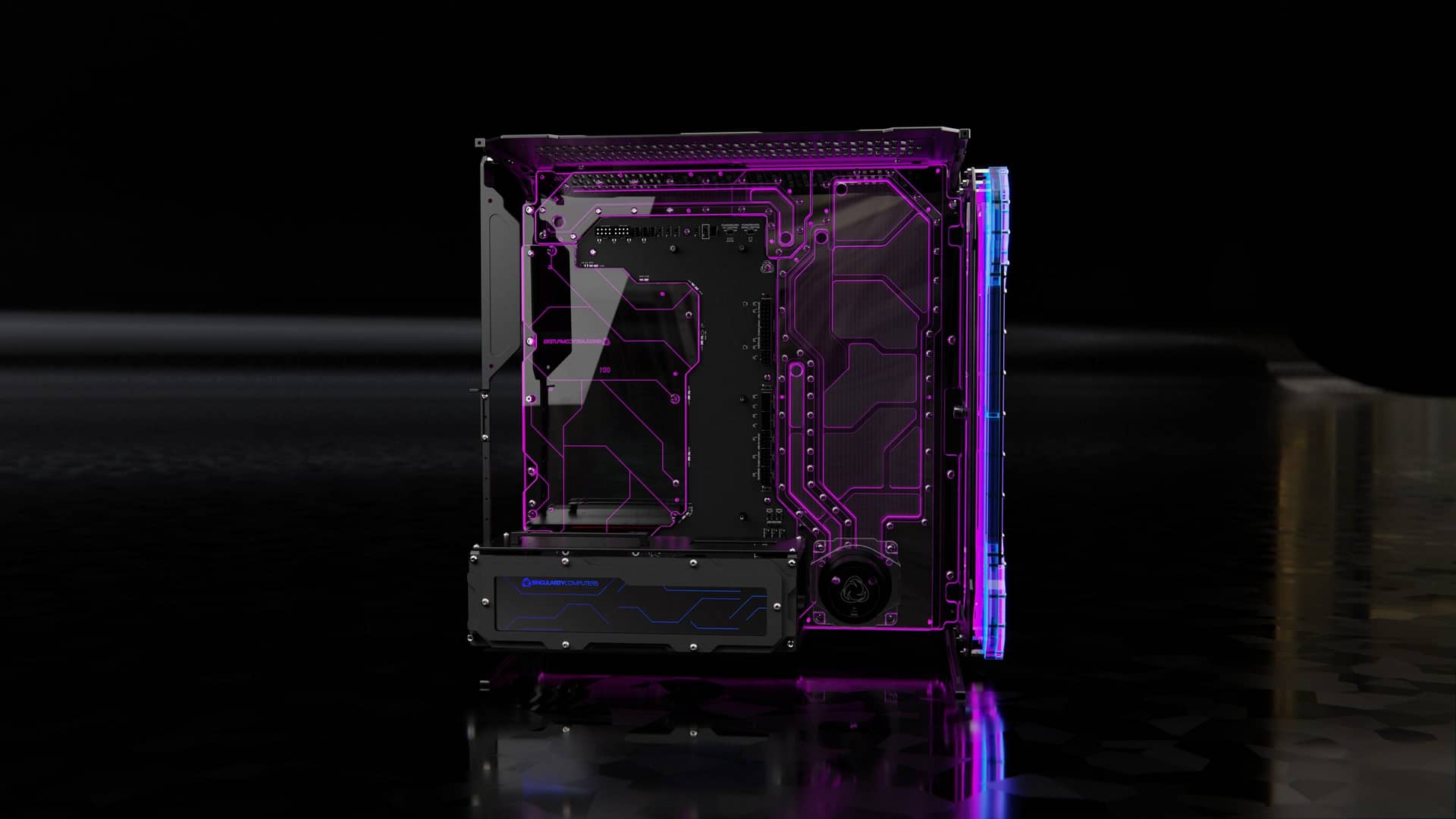

Spectre Integra-M Dark

Spectre Integra-M Dark is a space and fighter aircraft themed version of Spectre Integra-M. The distribution plate is triple layered with far more detailed machining and a rear cover layer. Each case is individually numbered.

Spectre Integra-MA

Spectre Integra-MA which has no distribution plate but still includes a PowerBoard.

Spectre Add-ons

For all versions of Spectre there are multiple Add-ons available including the Spectre 3.0 Elite or Radiator Distribution Plate which fits onto the front and/or top panels and the Dual Loop Side Panel which replaces the side panel window and gives you a second completely separate water-cooling loop.
