Absolute Vortex
Order processing time 1-2 days.

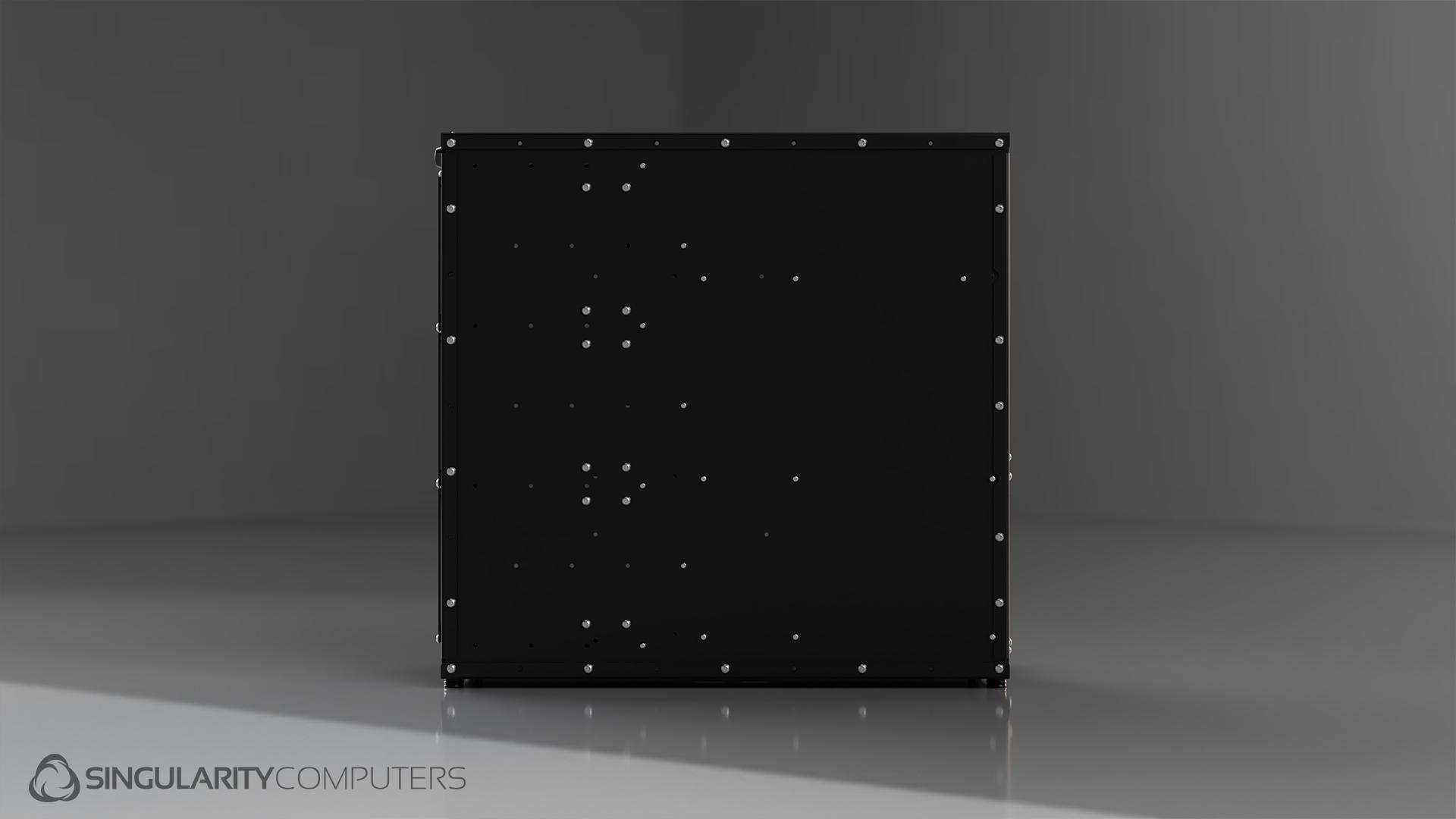

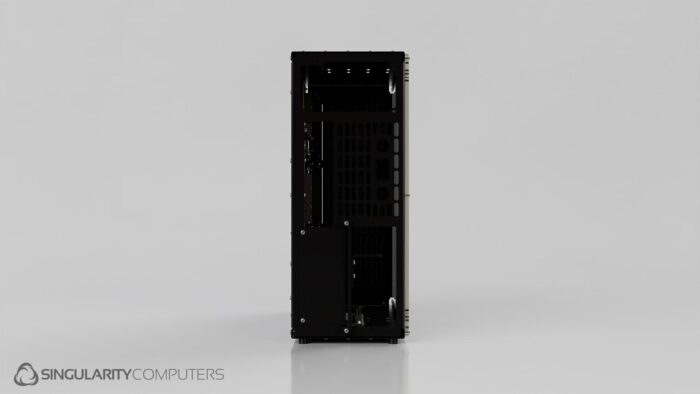

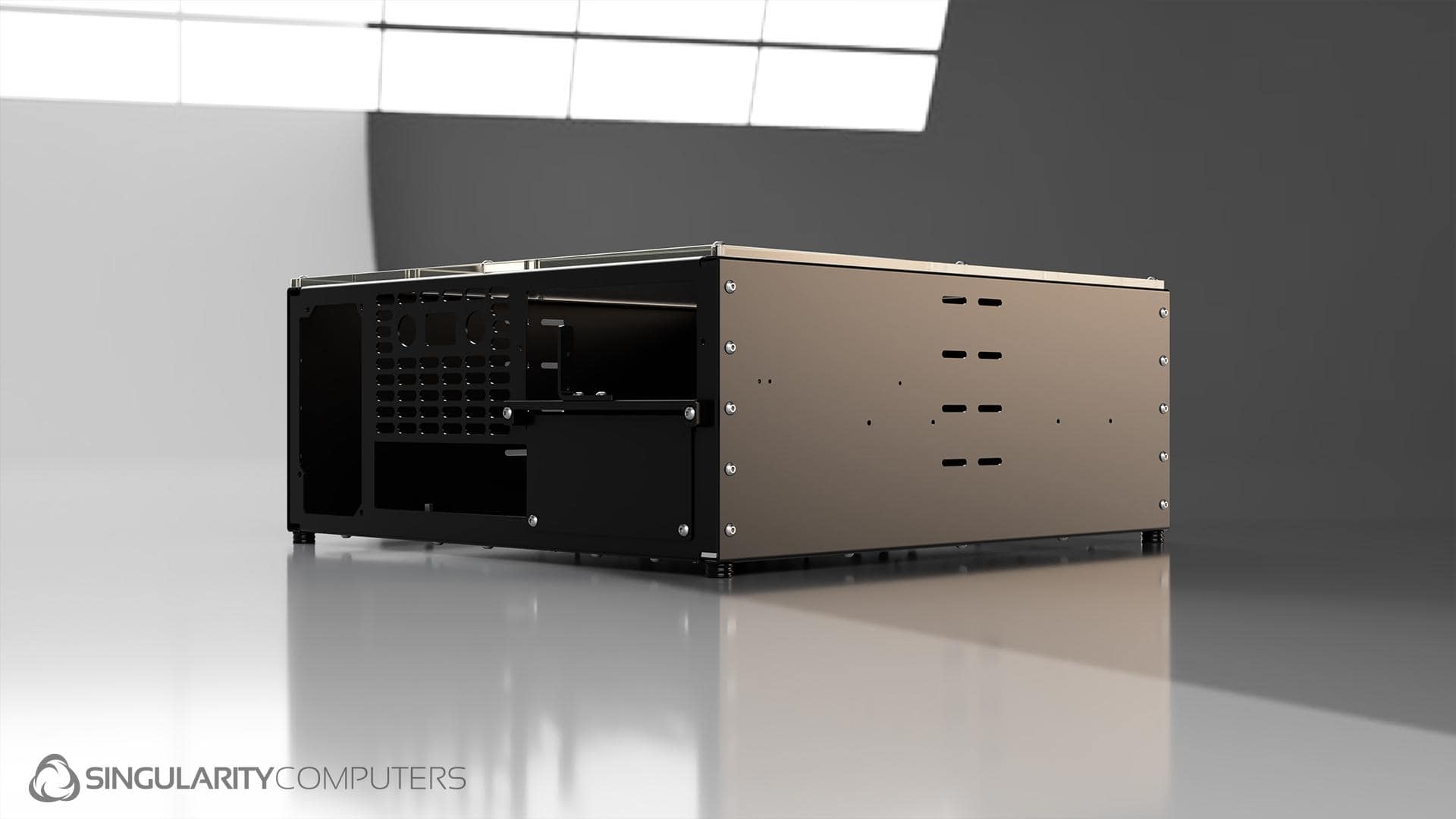

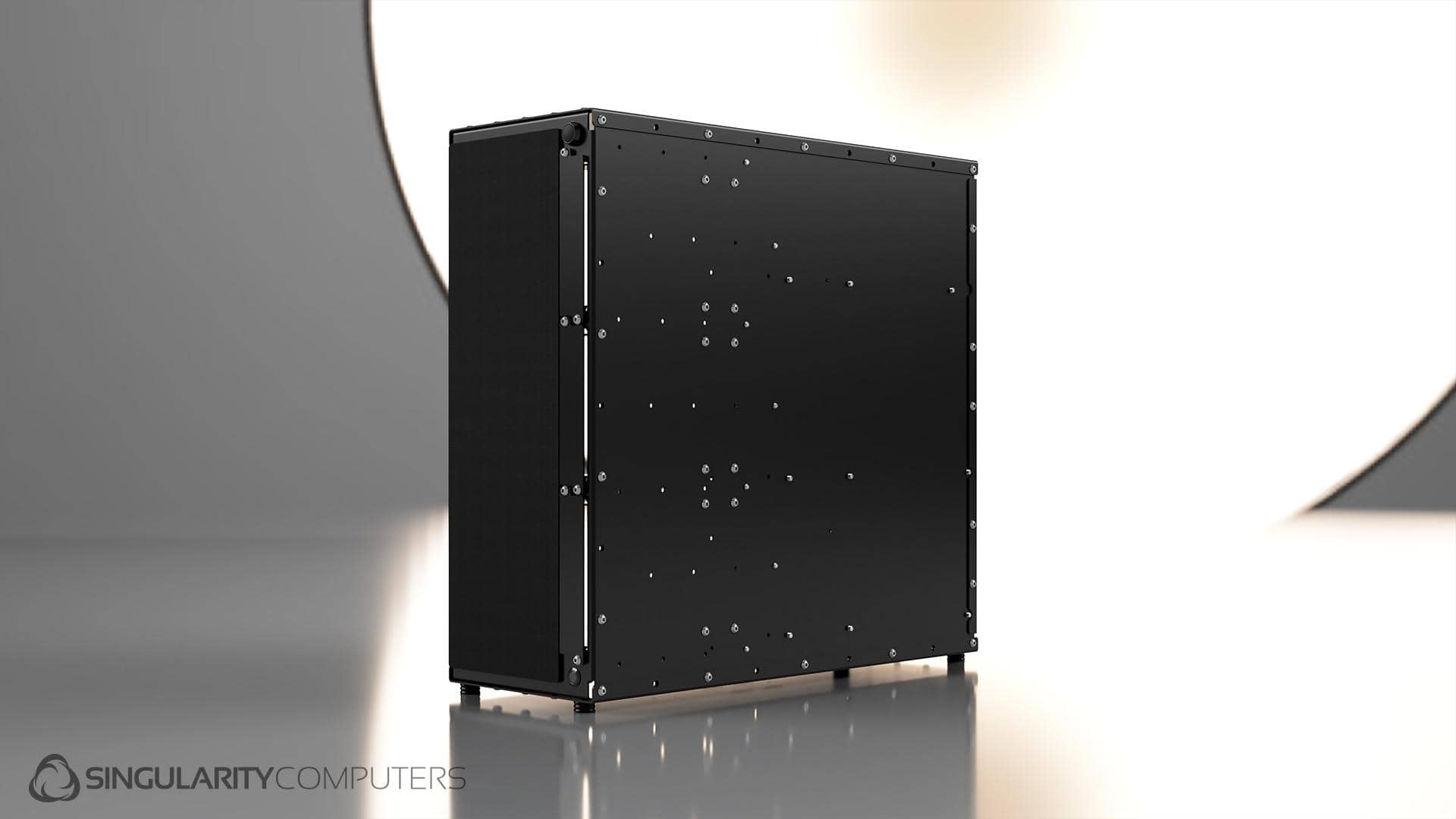

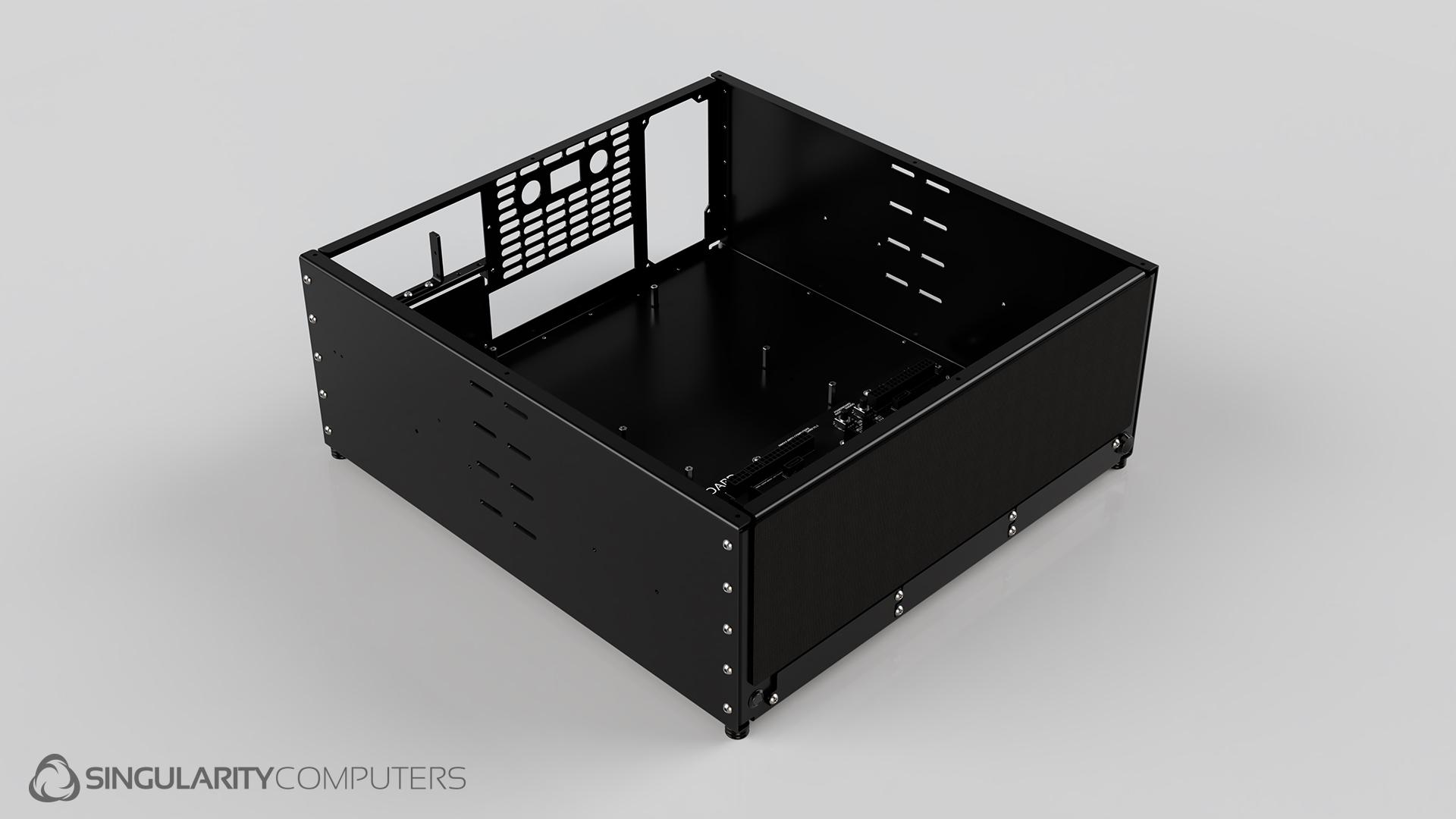

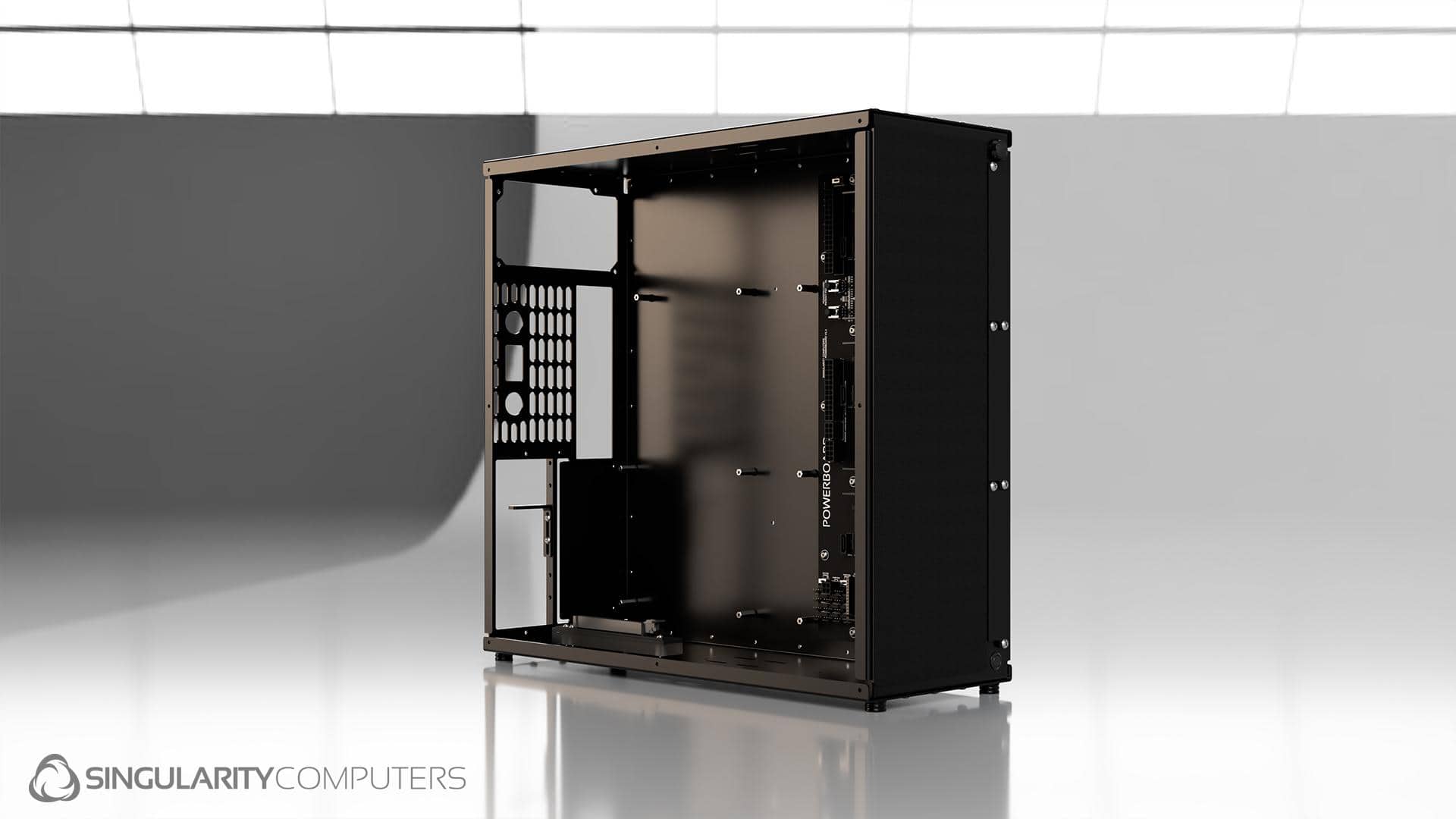

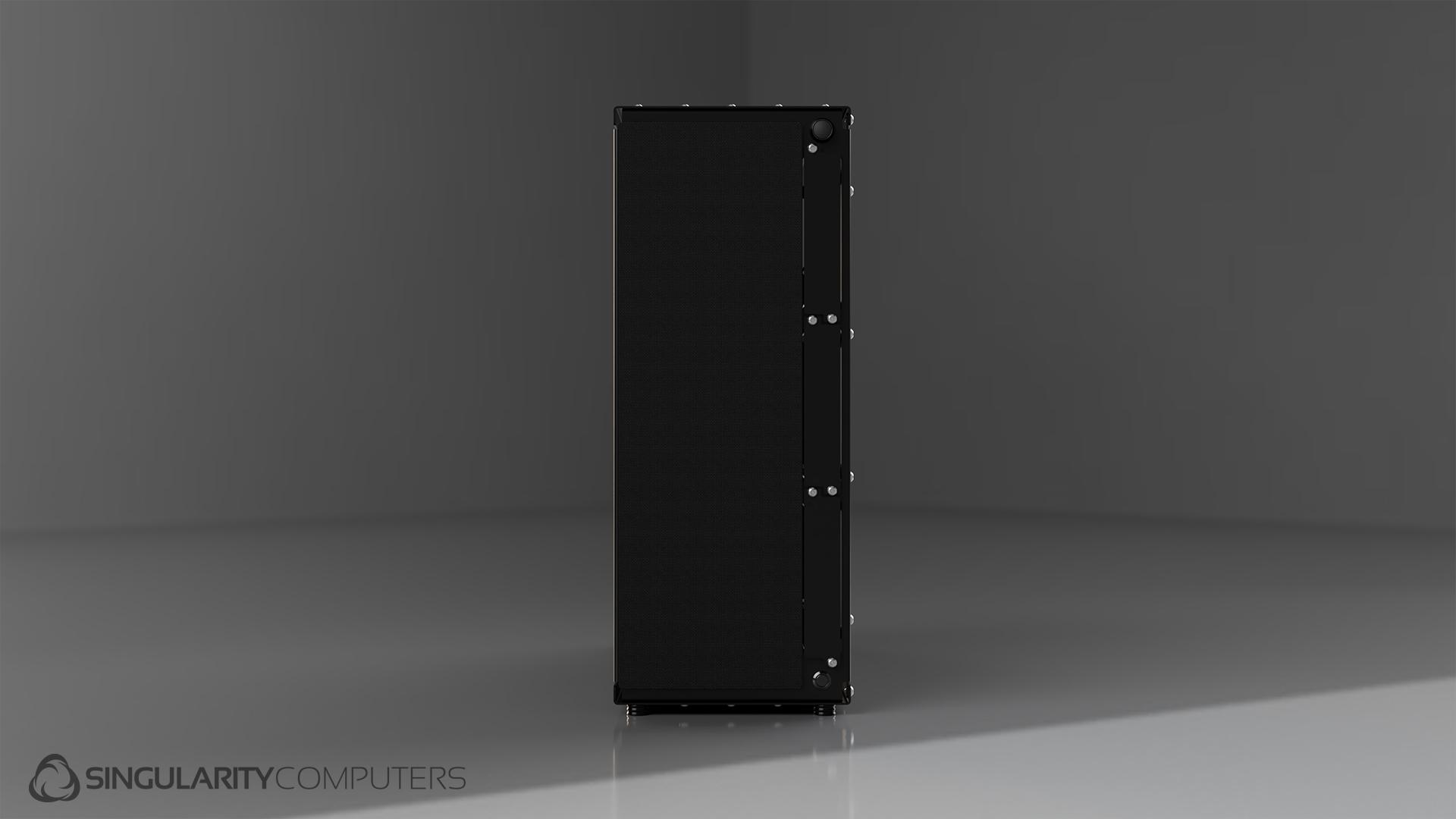

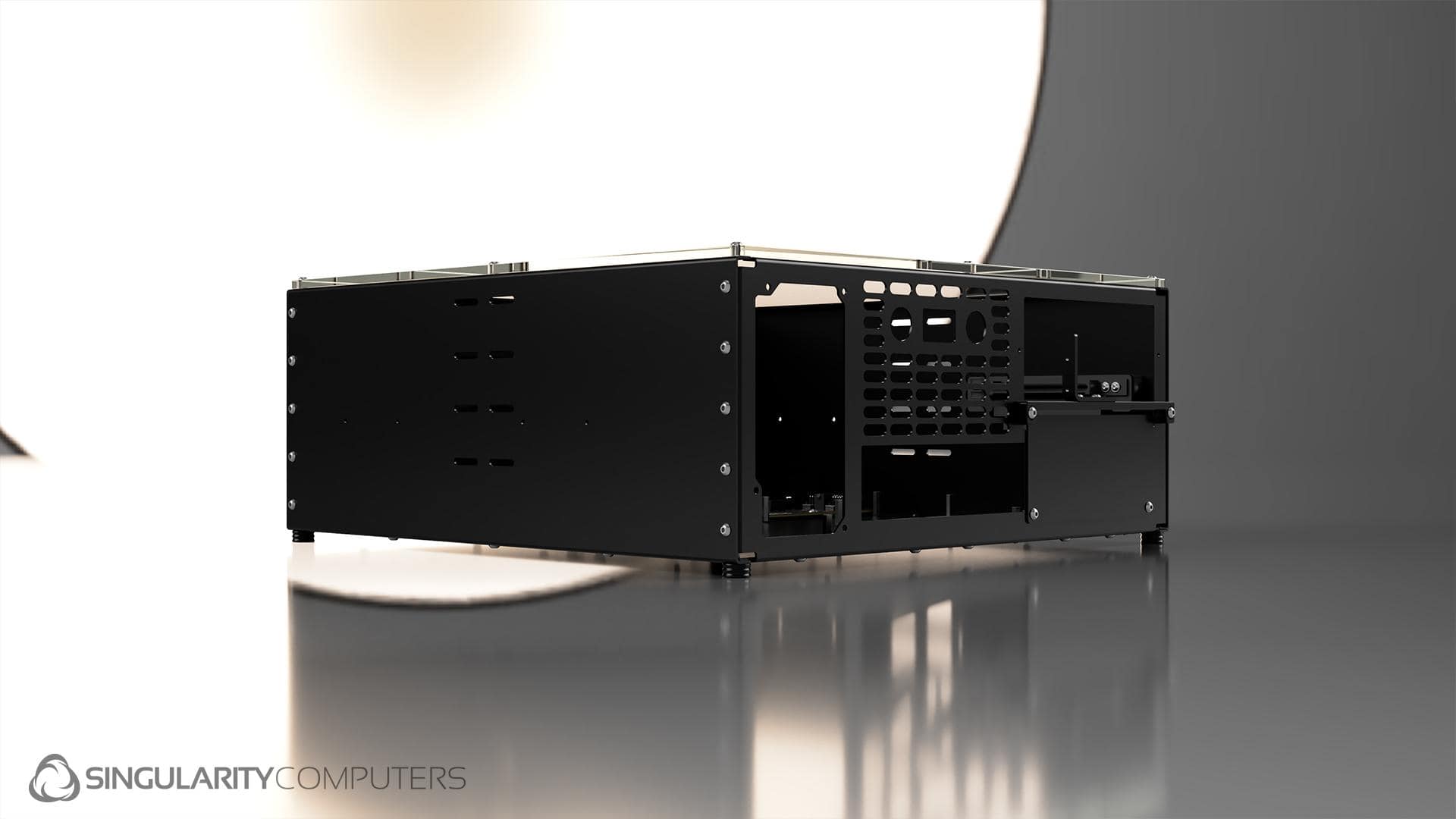

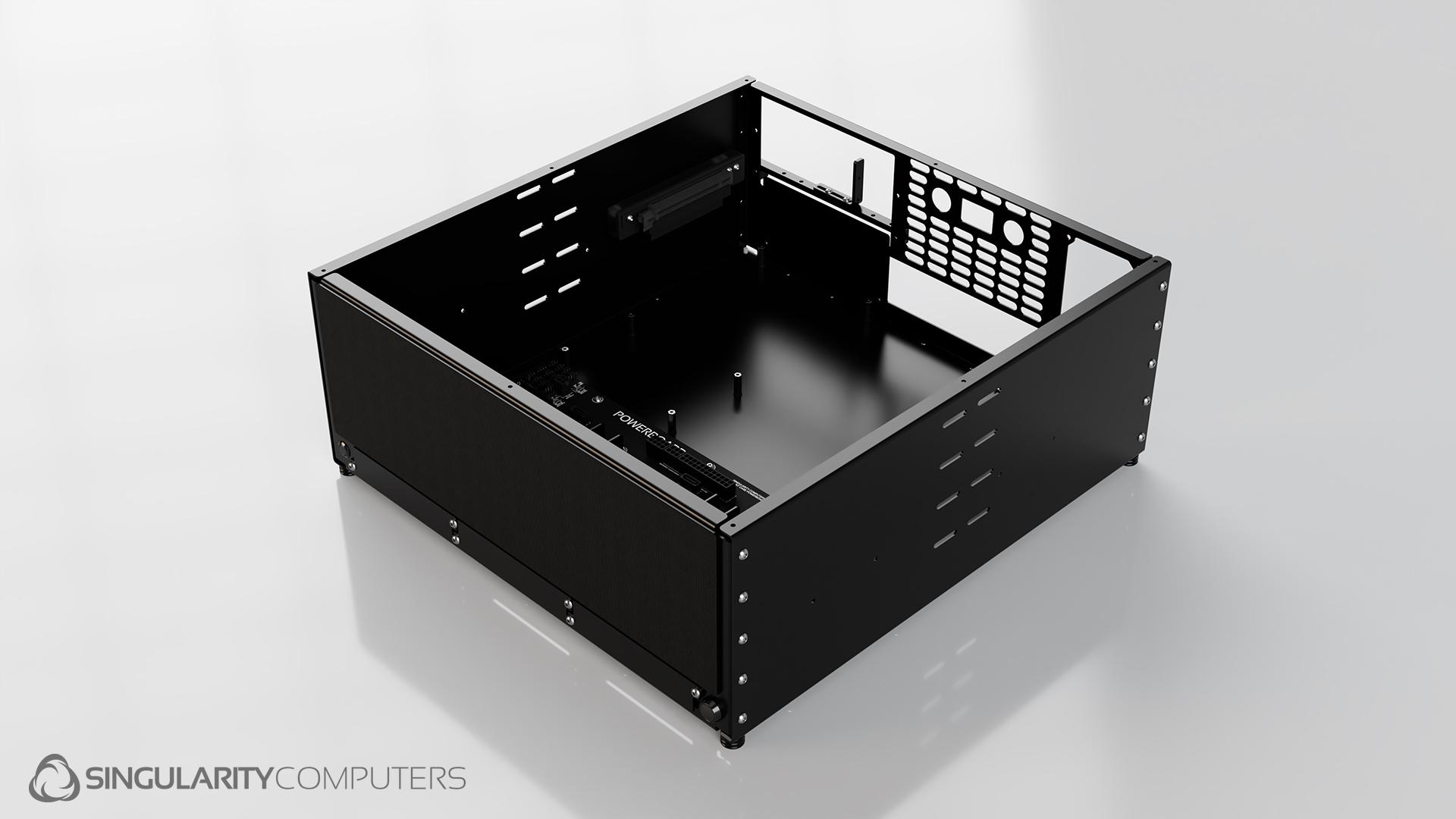

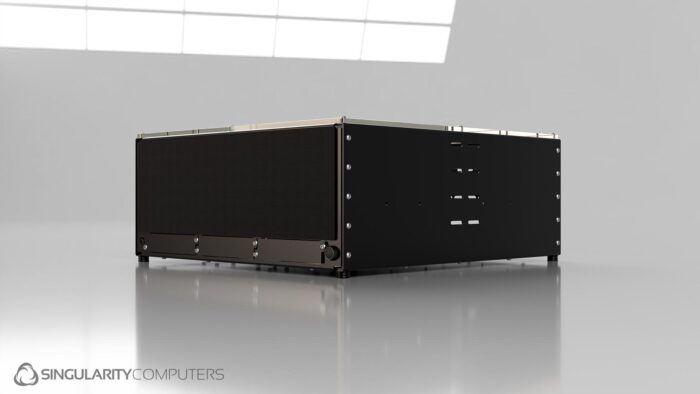

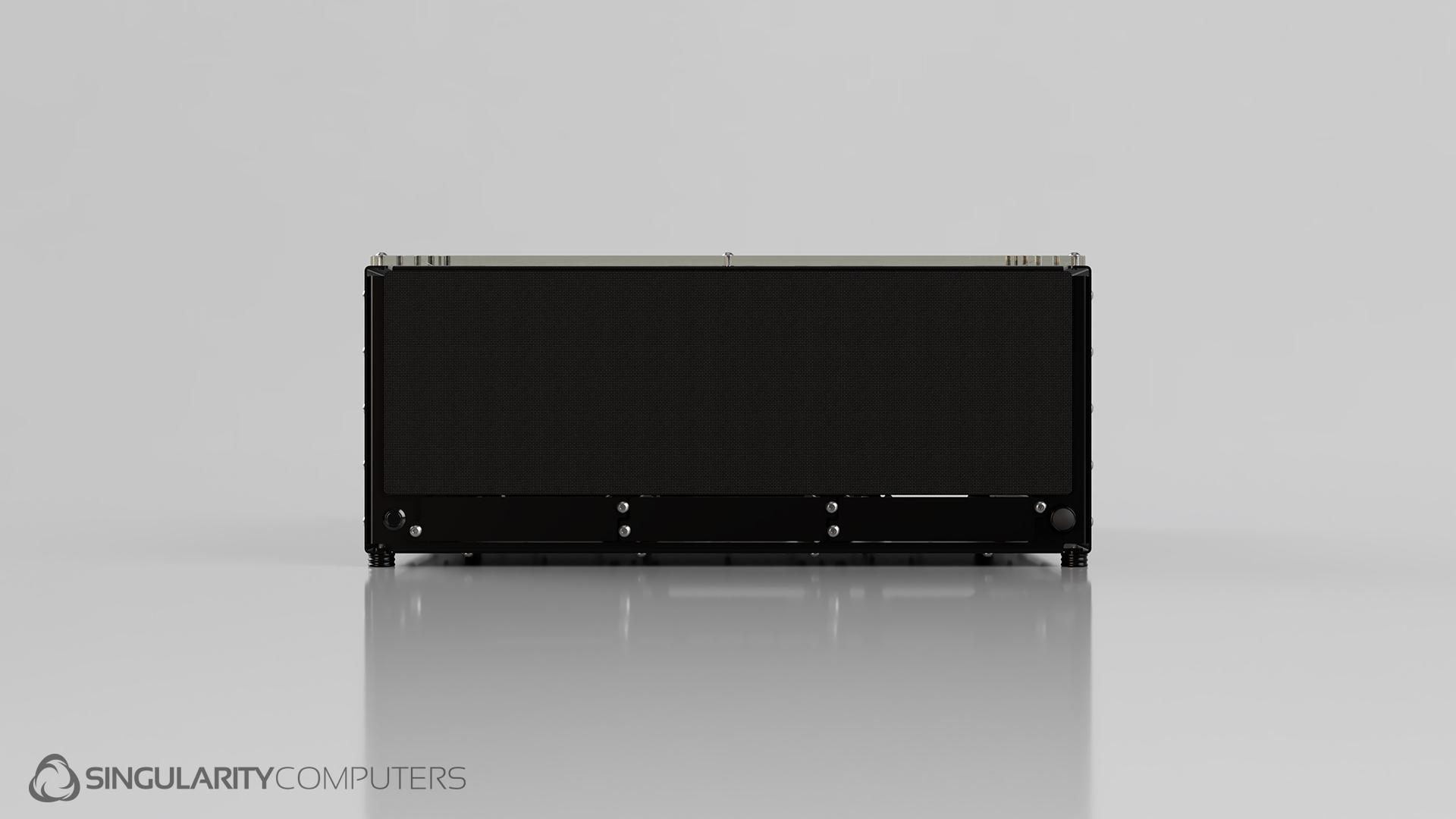

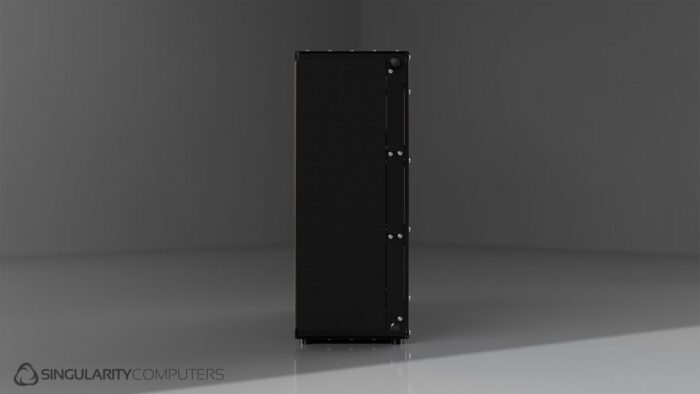

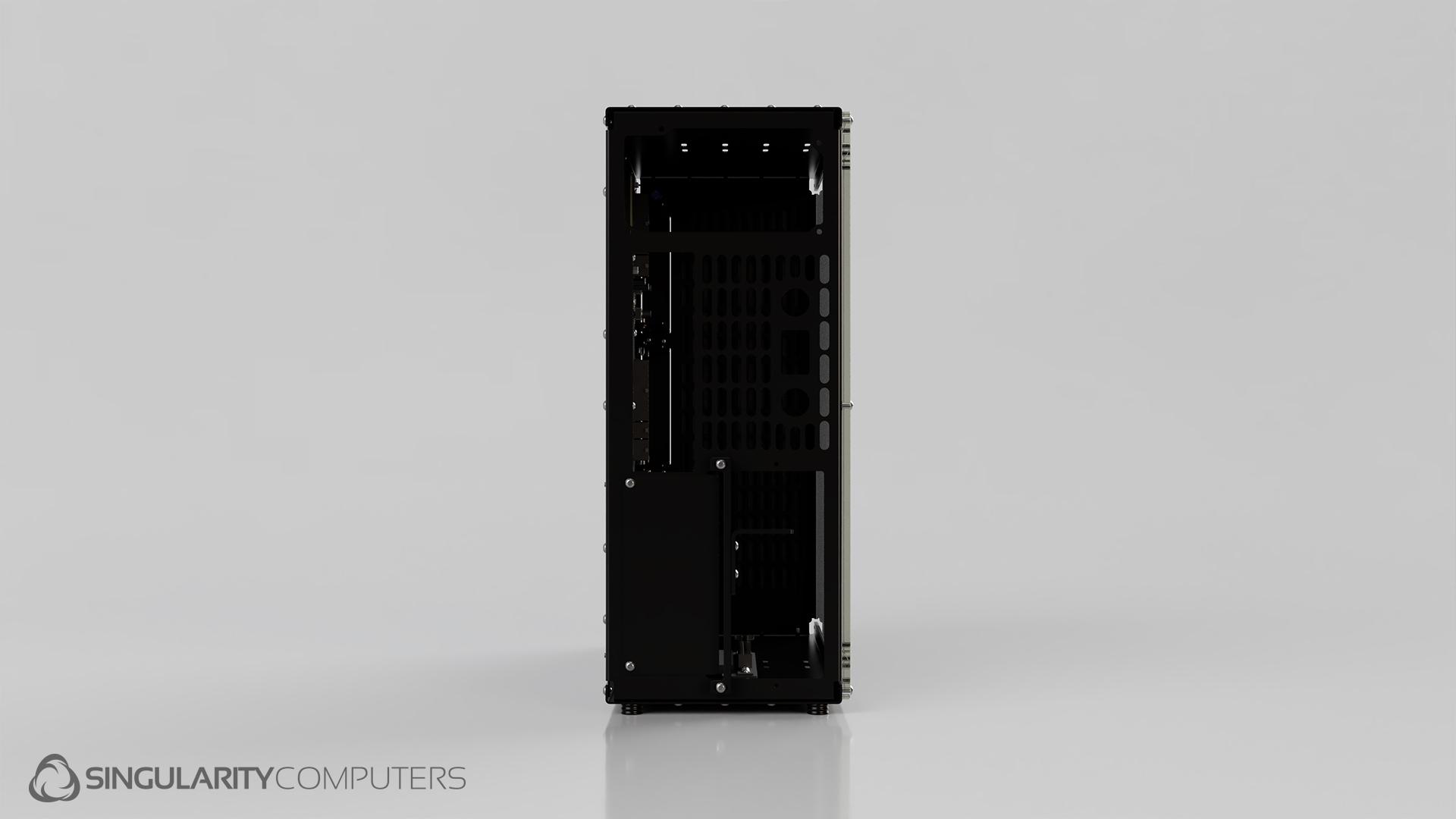

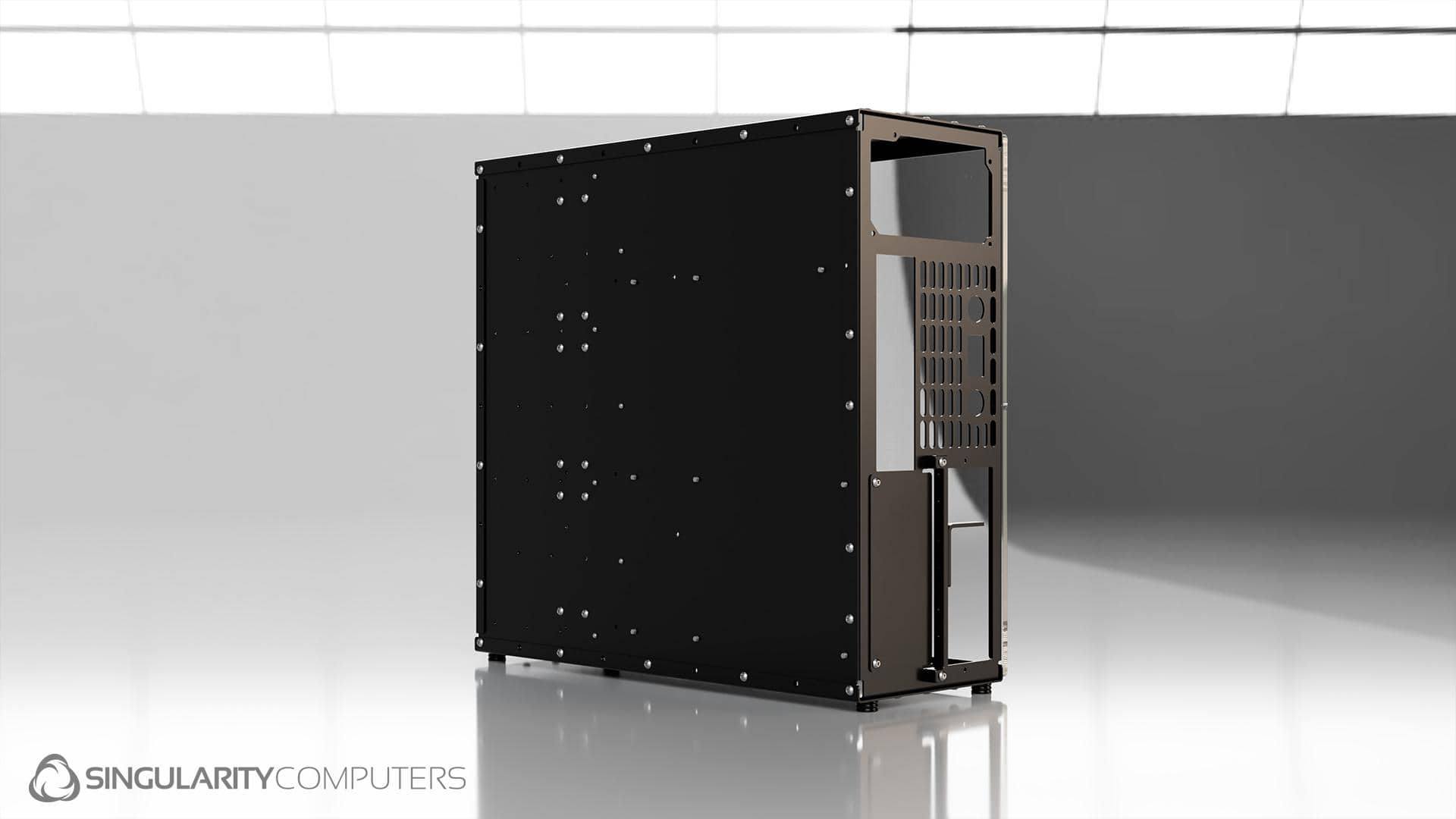

Absolute Vortex can be used in three different orientations including horizontal. It is based on our SC 4U Rack Case and constructed from folded steel which is black powdercoated. It fits 1x 360mm radiator on the front, motherboards up to the SSI-EEB form factor, ATX power supplies, 3x SATA drives, 7x PCIE expansion slots. It has a PowerBoard with the 24pin and 8pin EPS built in, PWM hub with temperature-based RPM control, connection for the FanGuardian PowerBoard Controller, PSU jump start feature and more. features like PSU jump-start button and temperature-based fan and pump speed control and the 12pin header to connect a FanGuardian display module and more.
Pump not included. Compatible with any D5 Pump.
US$299.00
Specifications ▼
Absolute Vortex Case: Steel powder coated. 6061 and 5052 Aluminum. CNC Machined and folded. Anodized.

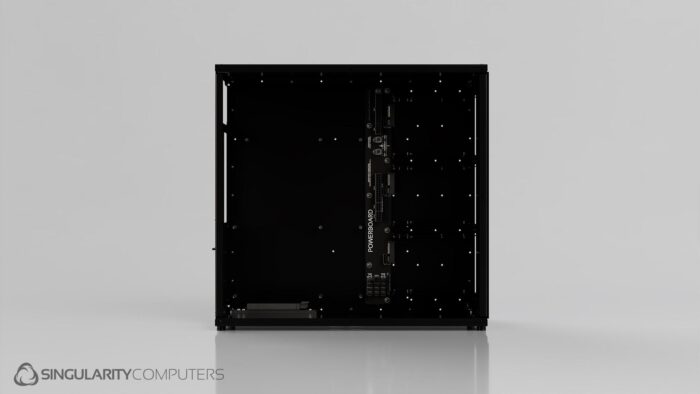

SC Rack Case PowerBoard: PCB.
Fasteners: Stainless Steel.
Motherboard: ITX, DTX, ATX, EATX, SSI-EEB (up to 330mm wide).
The PowerBoard can be relocated for wider-than-ATX motherboards.
PSU: ATX (up to 220mm long).
Expansion slots: x7.
Radiators: 1x 360mm.
Fans: 3x 120mm.
Drive mounts: Total of 3x 3.5” drive mounts with a slide-in rail system. Drives are only supported with ATX motherboards due to space limitations.
External Water-cooling Passthroughs: x2 to connect external radiators.
Dimensions: L: 460.8mm x W: 430mm x H: 172.3mm.
Weight: 8kg.
Packaged Dimensions: L: 450mm x W: 450mm x H: 150mm.
Packaged Weight: 9kg.
Electronics Integration:
Connectors: 24pin x1.
Hubs: PWM Fan Hubs x1 with 6x outputs. Pump input x1 and outputs x2. The fan and pump output have coolant temperature-based PWM control or can be switched to motherboard PWM control. The built-in PWM control on the PowerBoard is independent of the motherboard and no software is needed.
PWM Control: 2x potentiometers to set the minimum PWM speed.
Temperature sensor inputs: x1. Compatible with any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
Power and Reset Buttons.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header to connect a FanGuardian display module.
PSU jump-start switch to run the pump(s) without booting so that you can run only the pump for filling the loop.
Installation:
See installation manual at the link above.
Addon Information ▼
PowerBoard PSU Cable Kit Shift Motherboard 24pin 90 Degree Adaptor
PowerBoard PSU Cable Kit: Designed to be connected from the PSU to the PowerBoard. Stock PSU cables will work with the PowerBoard on the input side but this is a short, clean, black sleeved cable set which can be used instead. This is a custom cable set which is specifically designed for your PSU.
Shift Motherboard 24pin 90 Degree Adaptor: Singularity Computers Shift adaptors are designed for use with the PowerBoard, but can be used with any components or cables. The PCBs are custom designed with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling. SC Shift Adaptors provide a range of options for cleanly routing your cables. Shift 180 Degree PCIE adaptors are designed to be used on your GPU to achieve cleaner cable runs. Shift 90 Degree adaptors are designed to be used with the PowerBoard and motherboards with 90-degree 24pin, 8pin EPS and 6pin PCIE connections. They solve the problem of the connectors being too close together to make a clean connection with sleeved cables, and the problem of the 180-degree flipped pin out.
