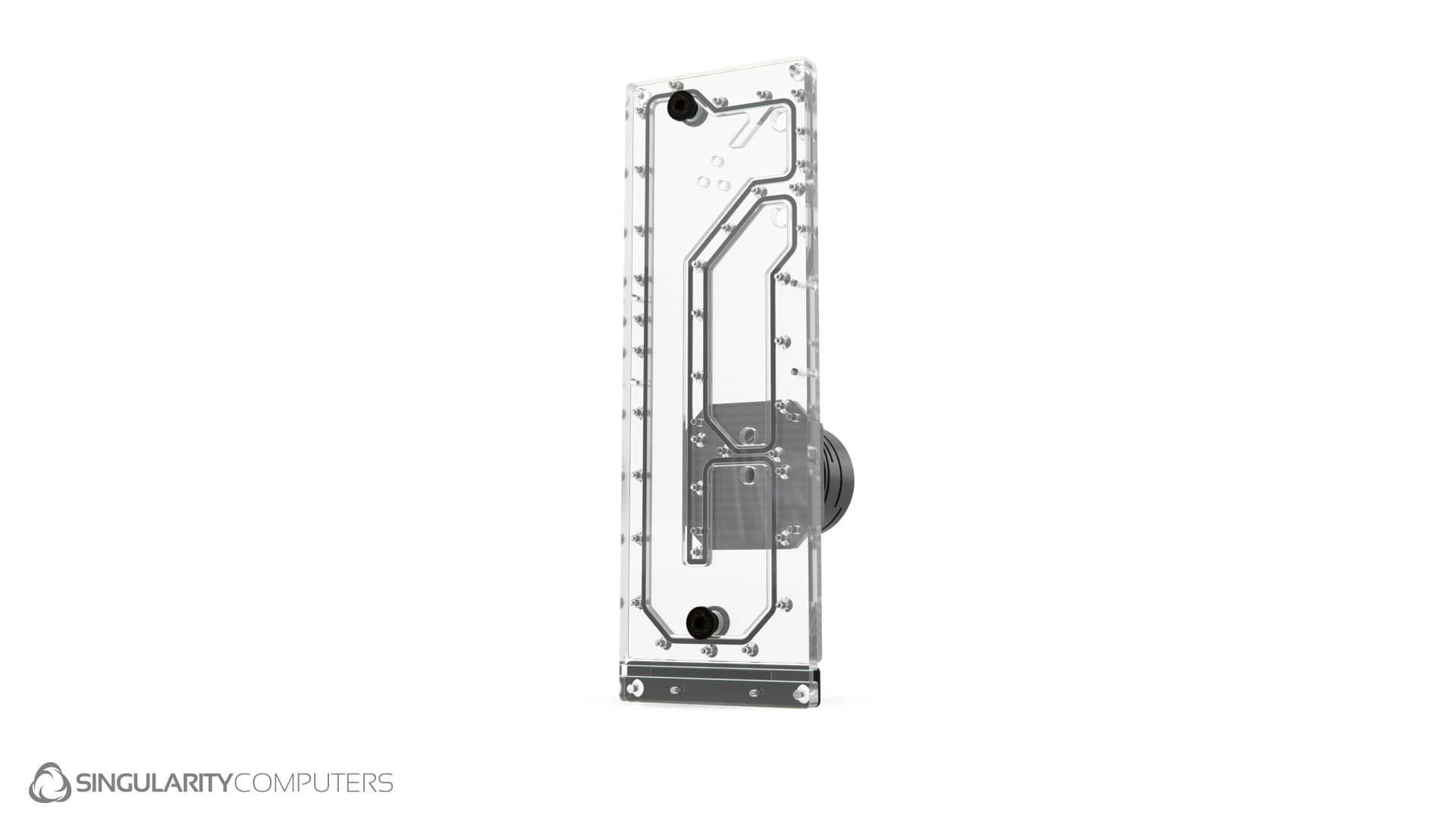

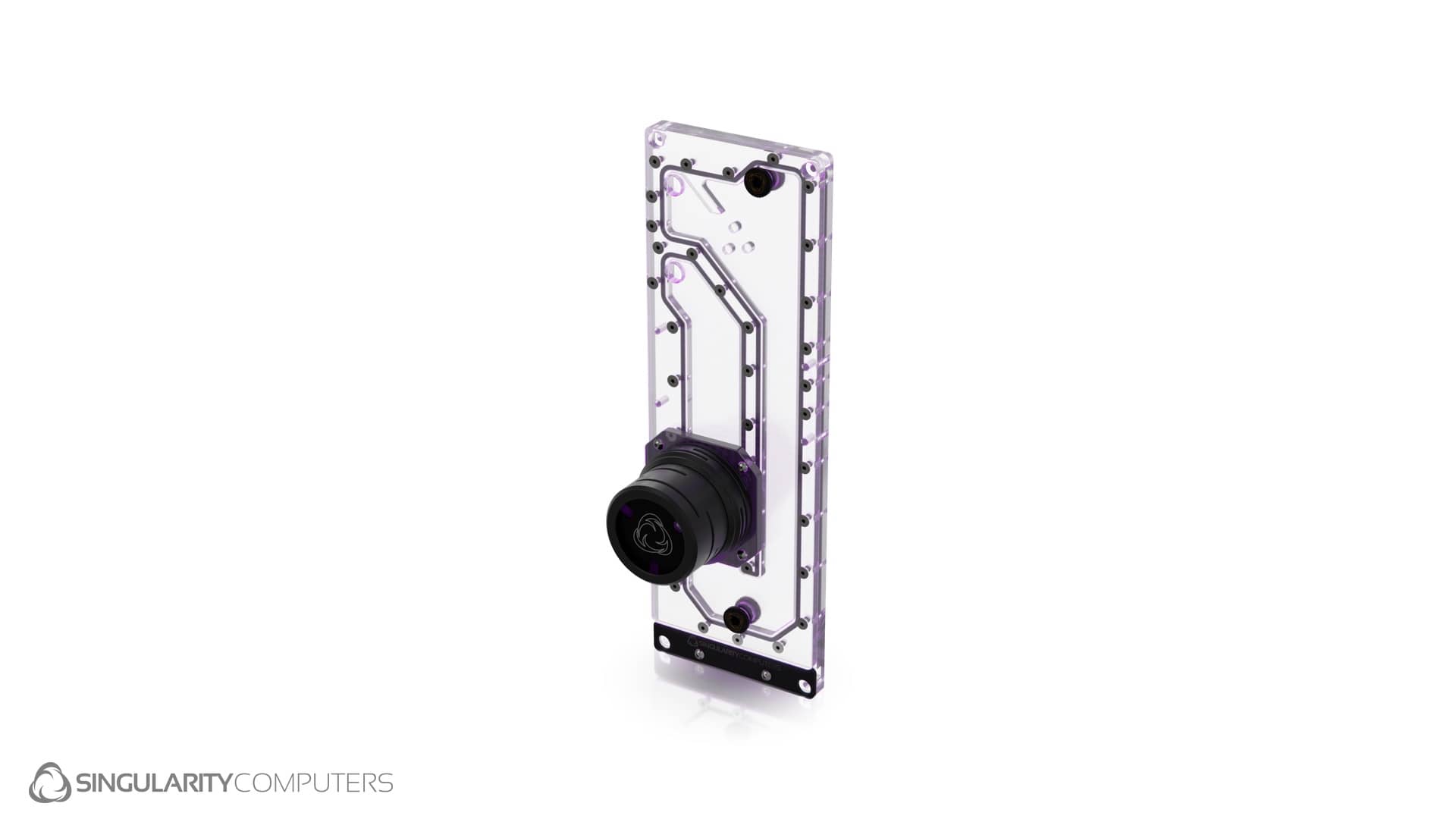

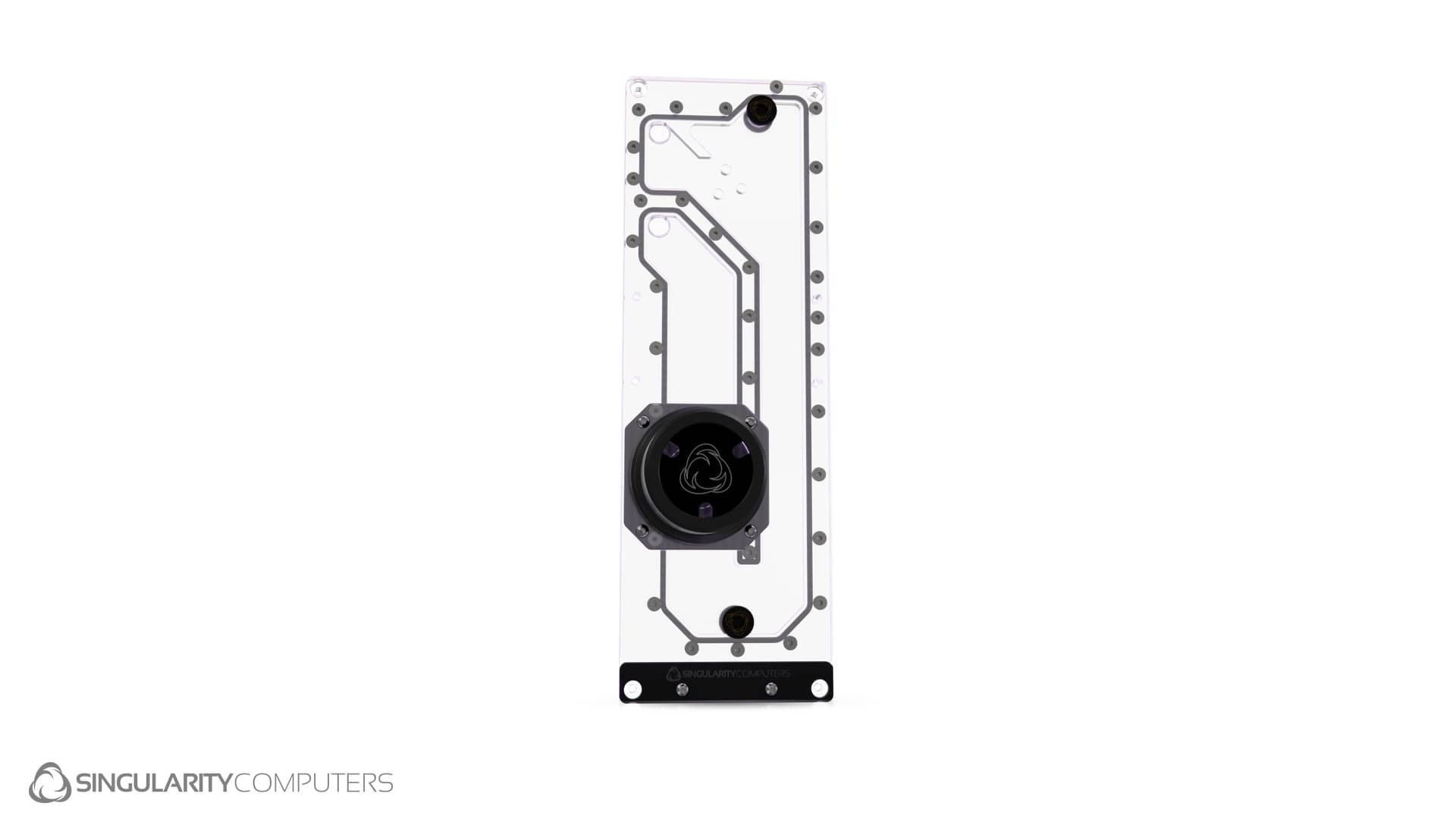

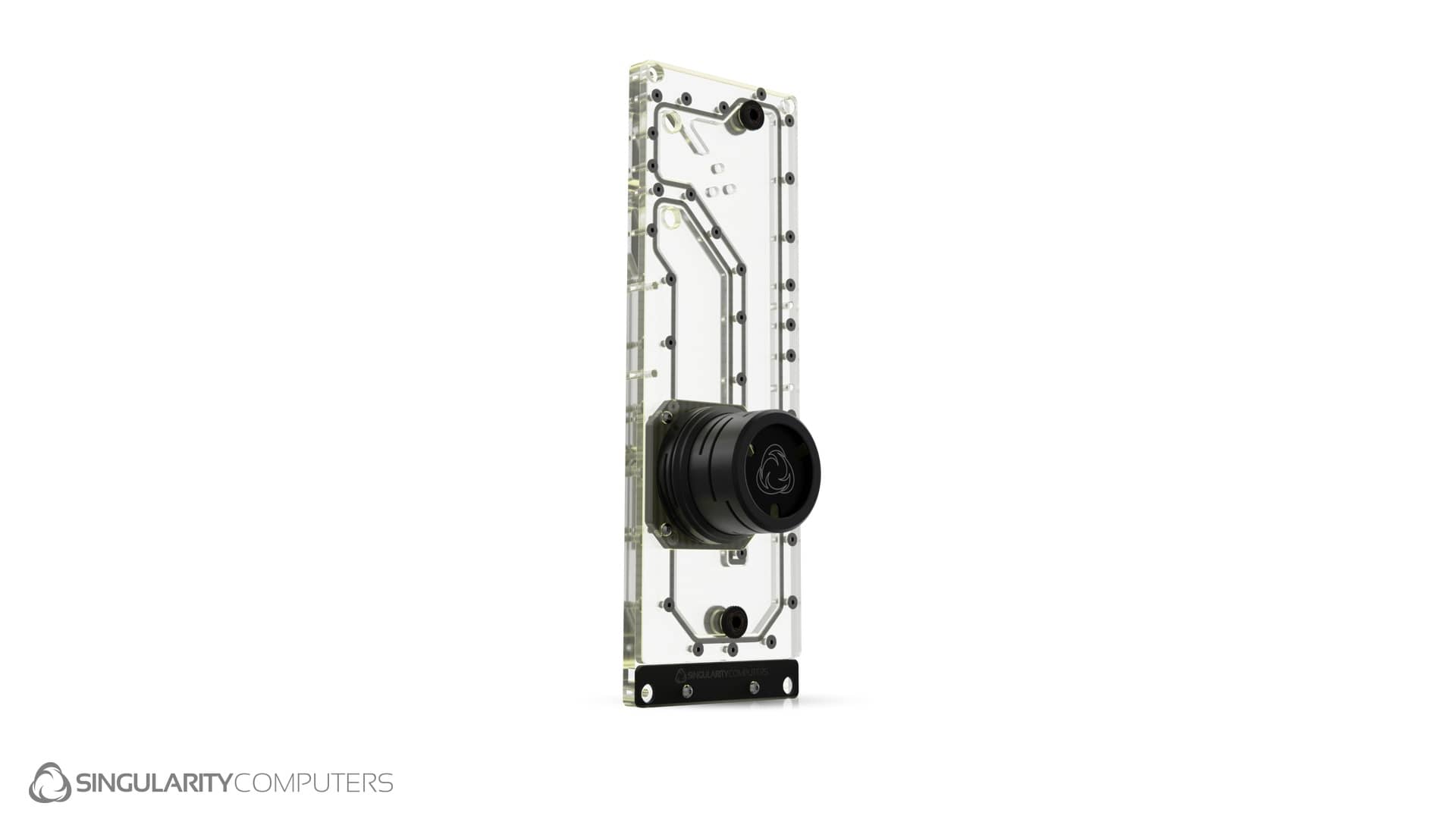

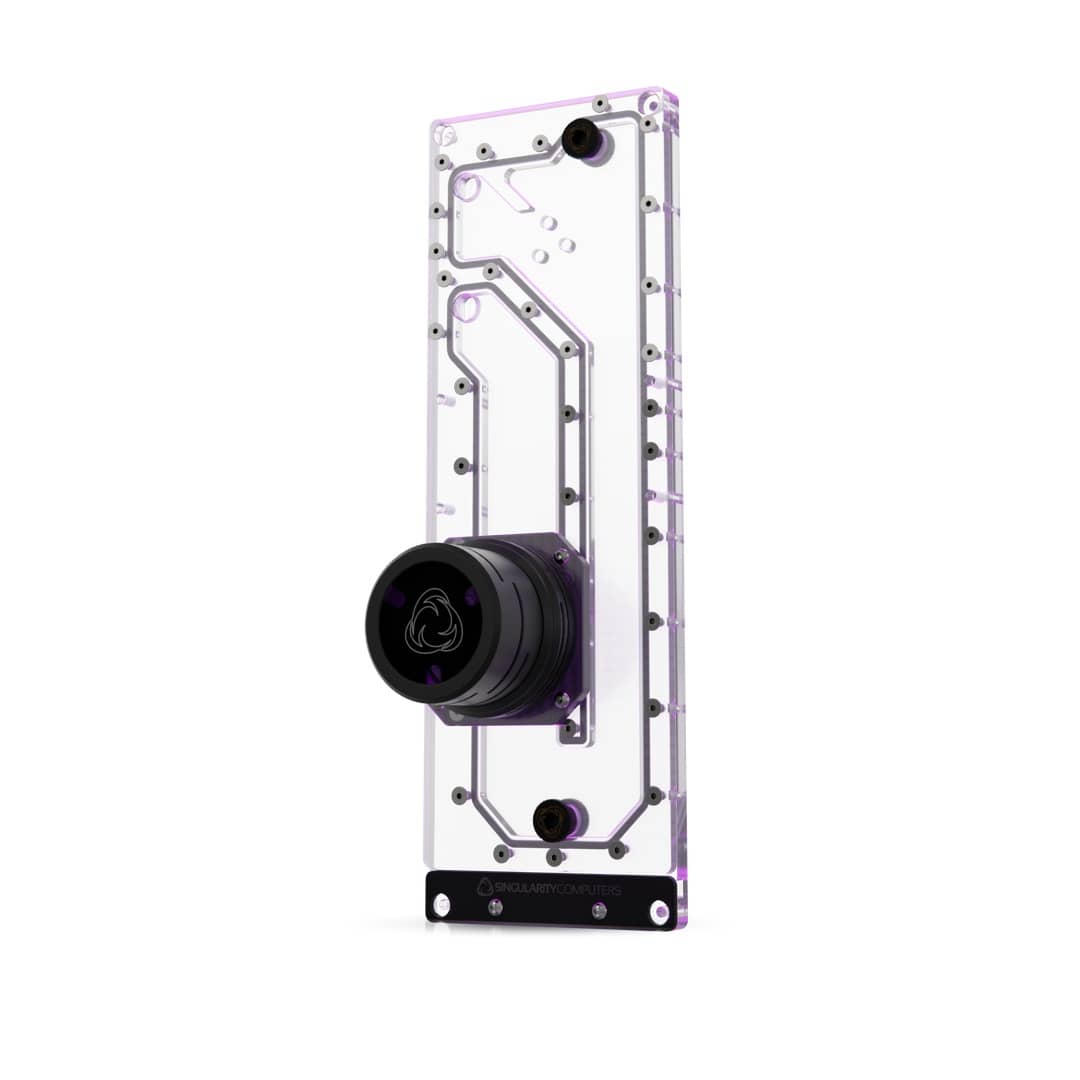

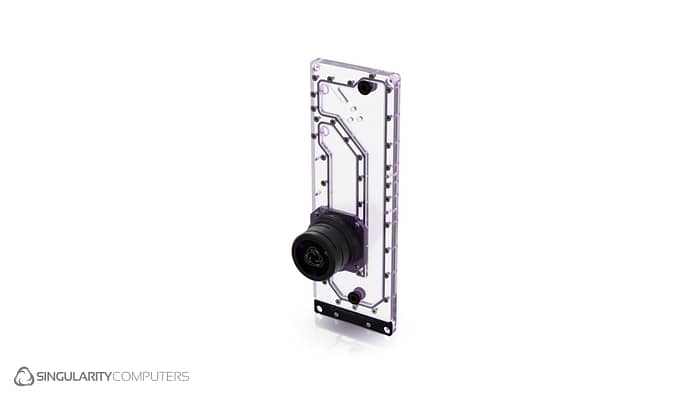

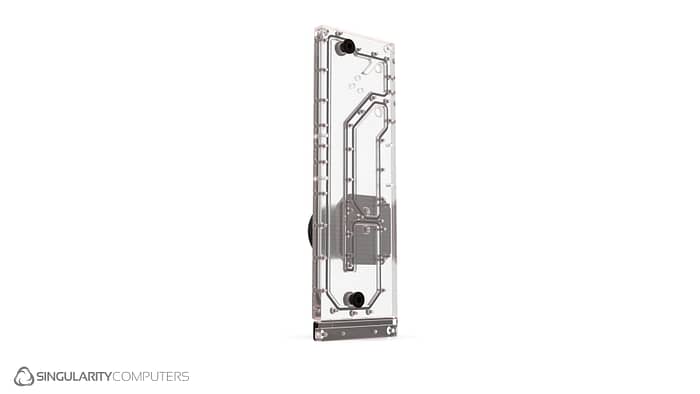

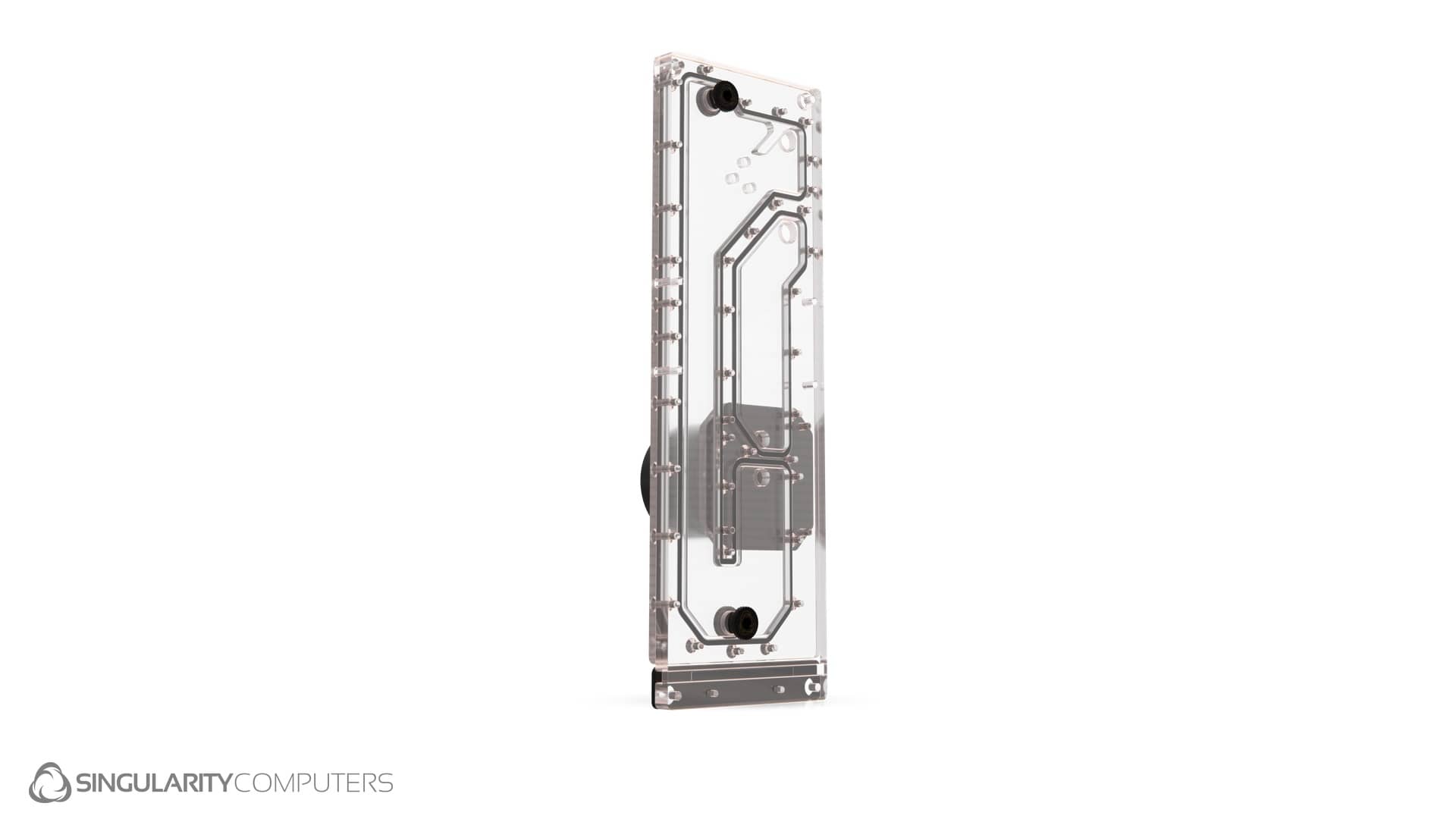

Asus Hyperion GR701 D5 Reservoir Distribution Plate

In stock

Order processing time 1-2 days.

  • Designed for the Asus Hyperion GR701 360mm radiator mount
  • Mounts to the right of the motherboard with the ARGB case panel behind it
  • Integrated reservoir, D5 pump top and pump cover
  • Fill and drain ports for easy system maintenance
  • CNC-machined clear cast acrylic with durable gasket seals
  • Integrated ARGB LED strip with customizable cover
  • Includes Back Plate to conceal the rear of the distribution plate
  • Hand assembled with stainless steel fasteners

Manuals

US$249.00

For mounting to a radiator mount select ‘Standard mounting’. For mounting to fans select ‘Fans’. For mounting to a radiator select the fastener size your radiator uses.

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$19.92 Silver Mirror +US$19.92 Gold Mirror +US$19.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x4 (optional) USD $16
None Yes +US$16.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Asus Hyperion GR701 D5 Reservoir Distribution Plate
    US$249.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182005569 SKU: SC-ASH-D5R-DIST Category:

Description

Read More +Read Less − full description

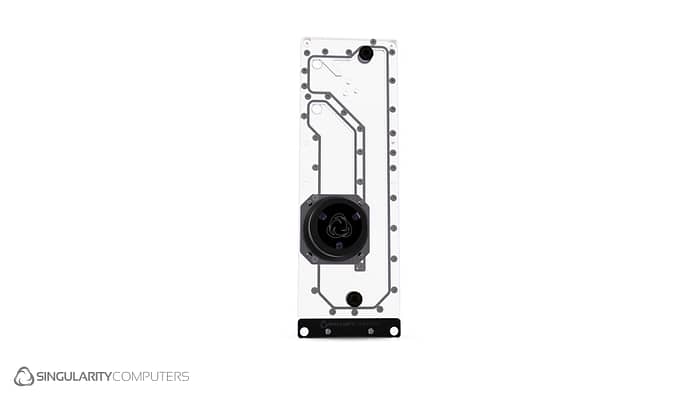

The Asus Hyperion GR701 D5 Reservoir Distribution Plate mounts to the right of the motherboard on the 360mm radiator mount. The ARGB case panel can be mounted behind it. It has an integrated reservoir, D5 pump top, D5 Pump Cover, Fill and Drain Ports. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners. It has an integrated ARGB LED strip with a cover, there is also a Back Plate included to cover the rear side of the Rear Distribution Plate, select from the colour options below for the covers.

Specifications

Asus Hyperion GR701 D5 Reservoir Distribution Plate.
Asus Hyperion GR701 D5 Reservoir Distribution Plate Back Cover (select color/finish above).
Integrated D5 Pump Top.
Integrated Reservoir.
D5 Pump Cover CNC Machined Aluminum (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 360mm x W: 120mm x H: 110mm.
Weight: 1kg.
Packaged Dimensions: L: 420mm x W: 170mm x H: 150mm.
Packaged Weight: 2kg.

Installation:
Installs to the right of the motherboard on the 360mm radiator mount. The ARGB Panel can be installed behind it.
