Caselabs SMA8 Dual Loop Distribution Plate Set

Order processing time 1-2 days.

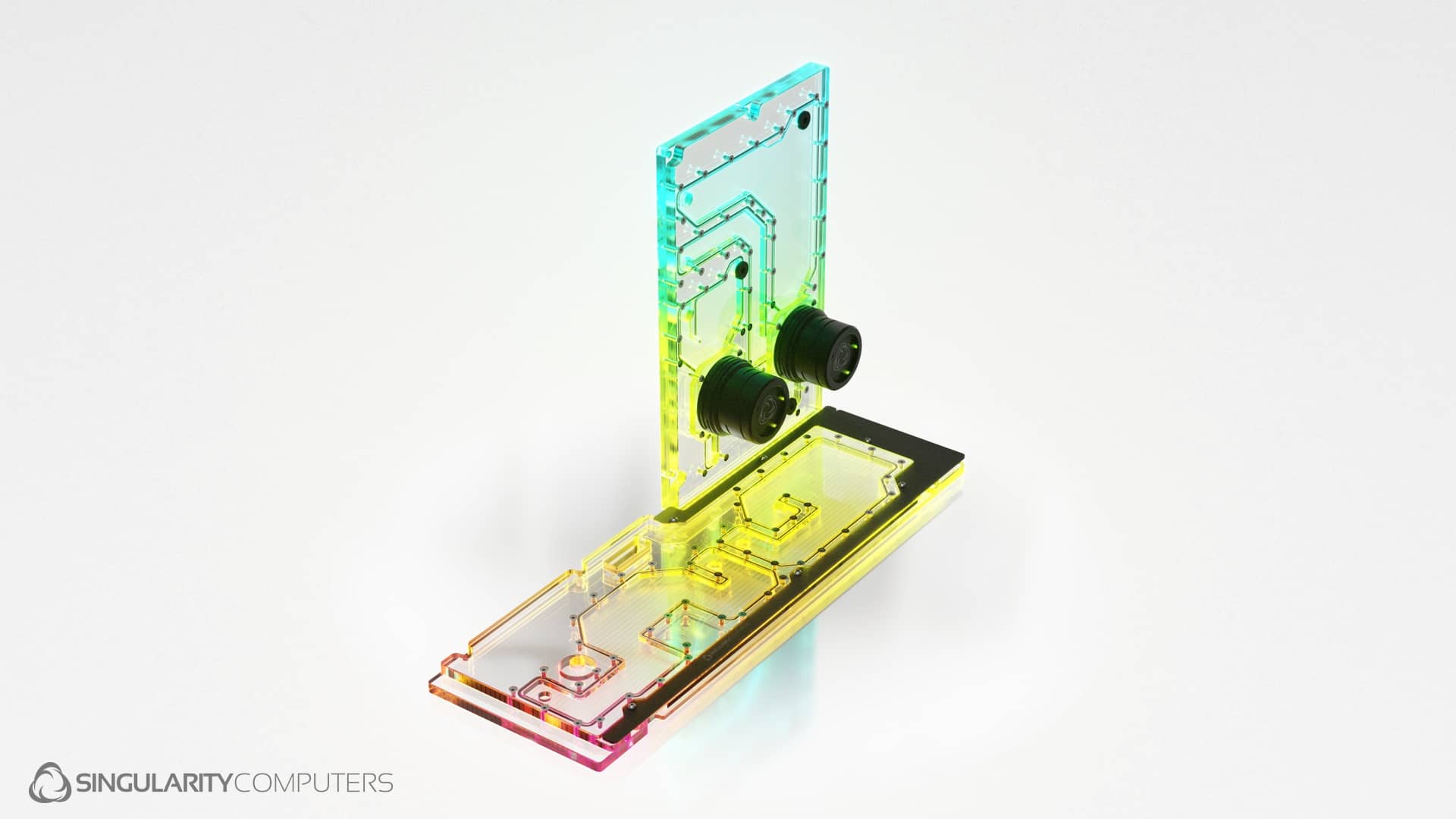

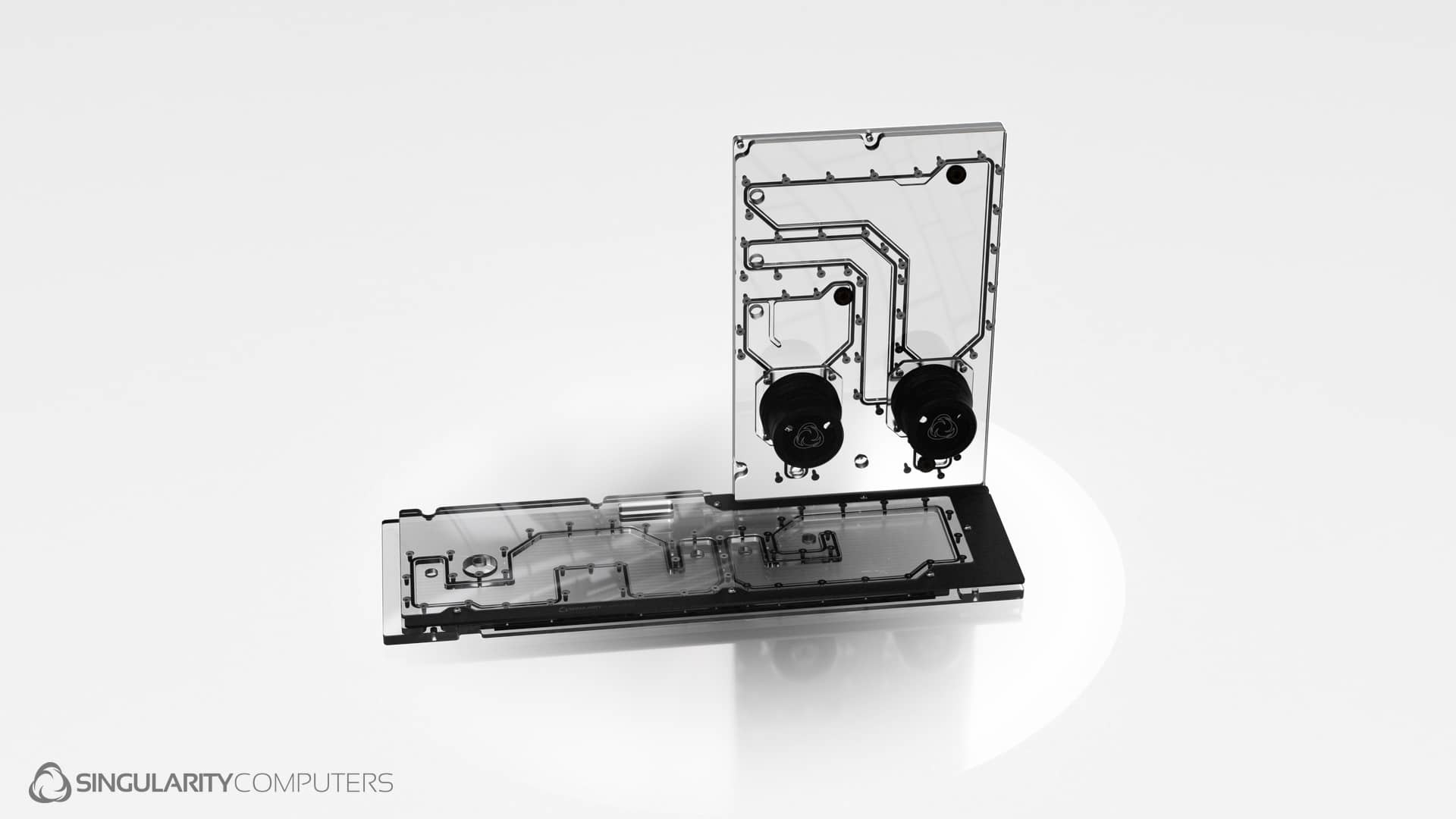

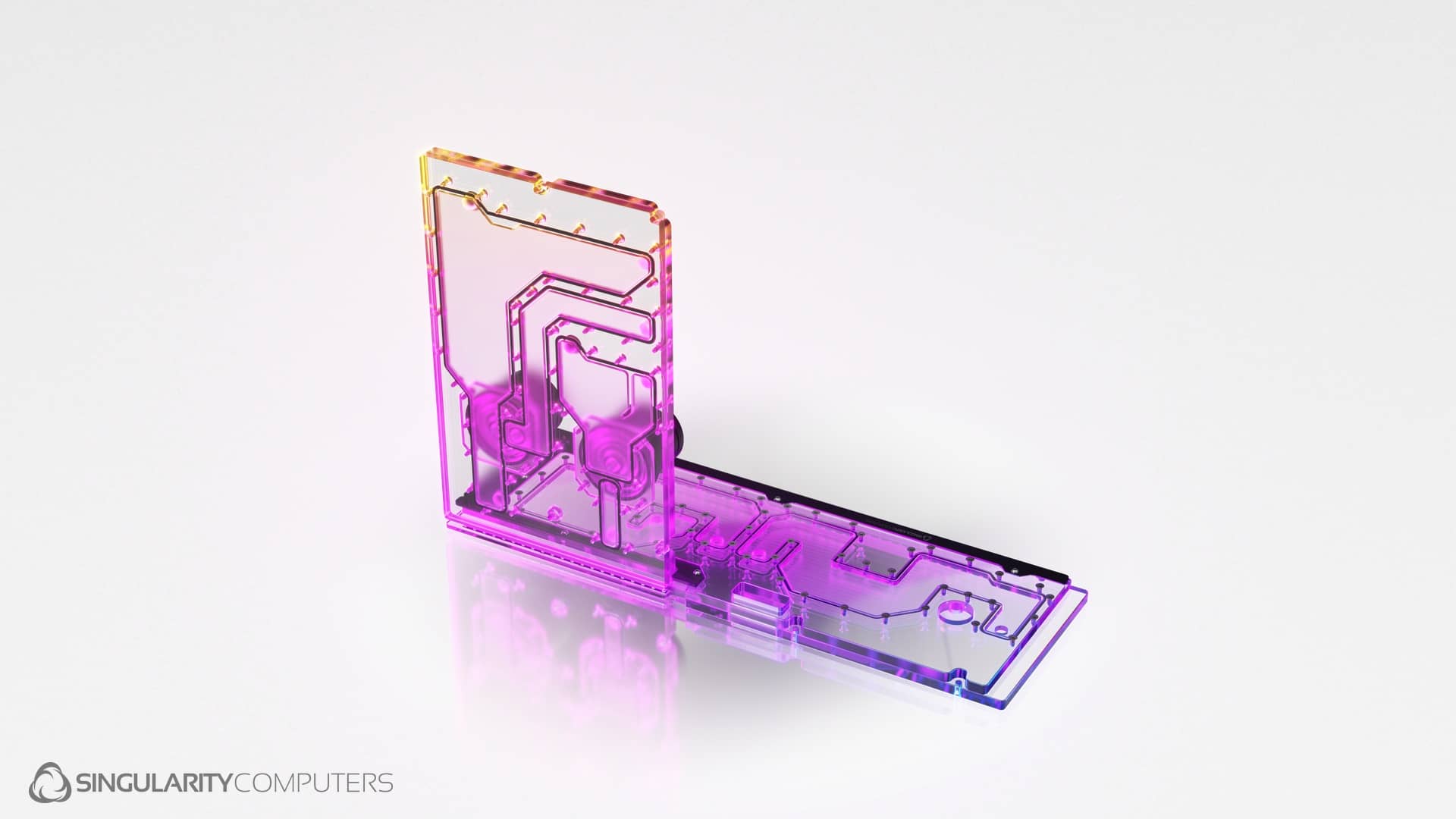

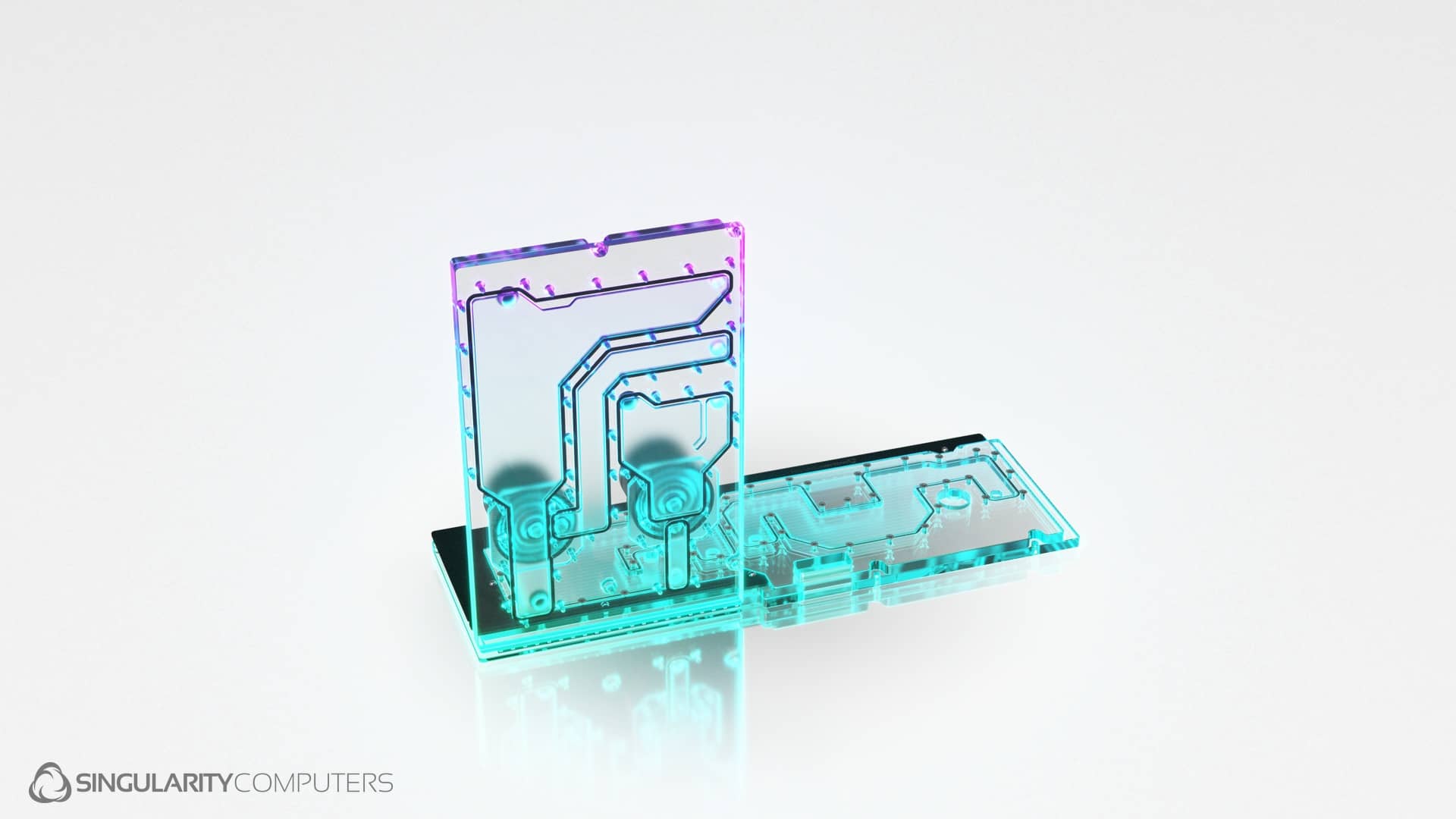

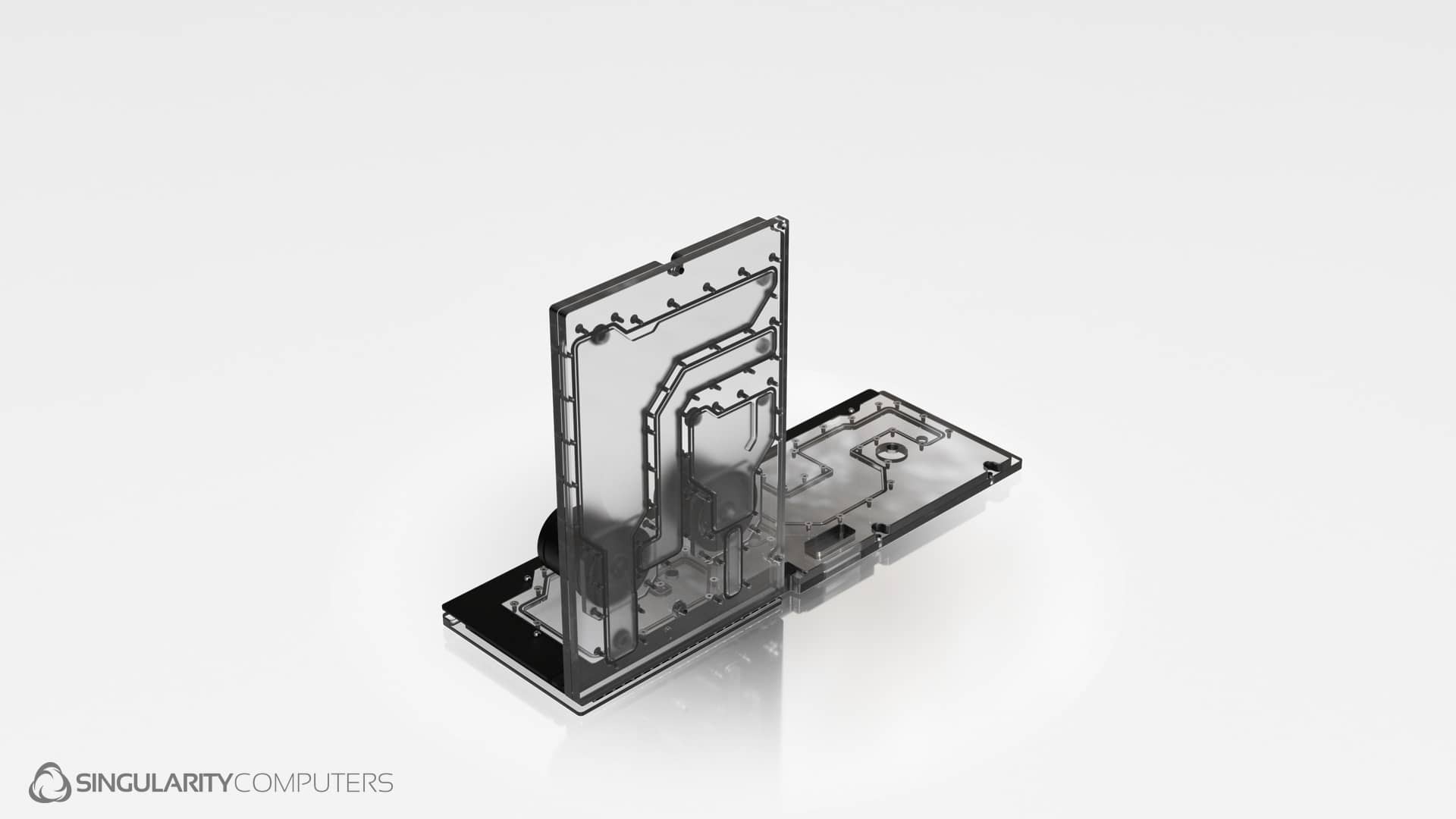

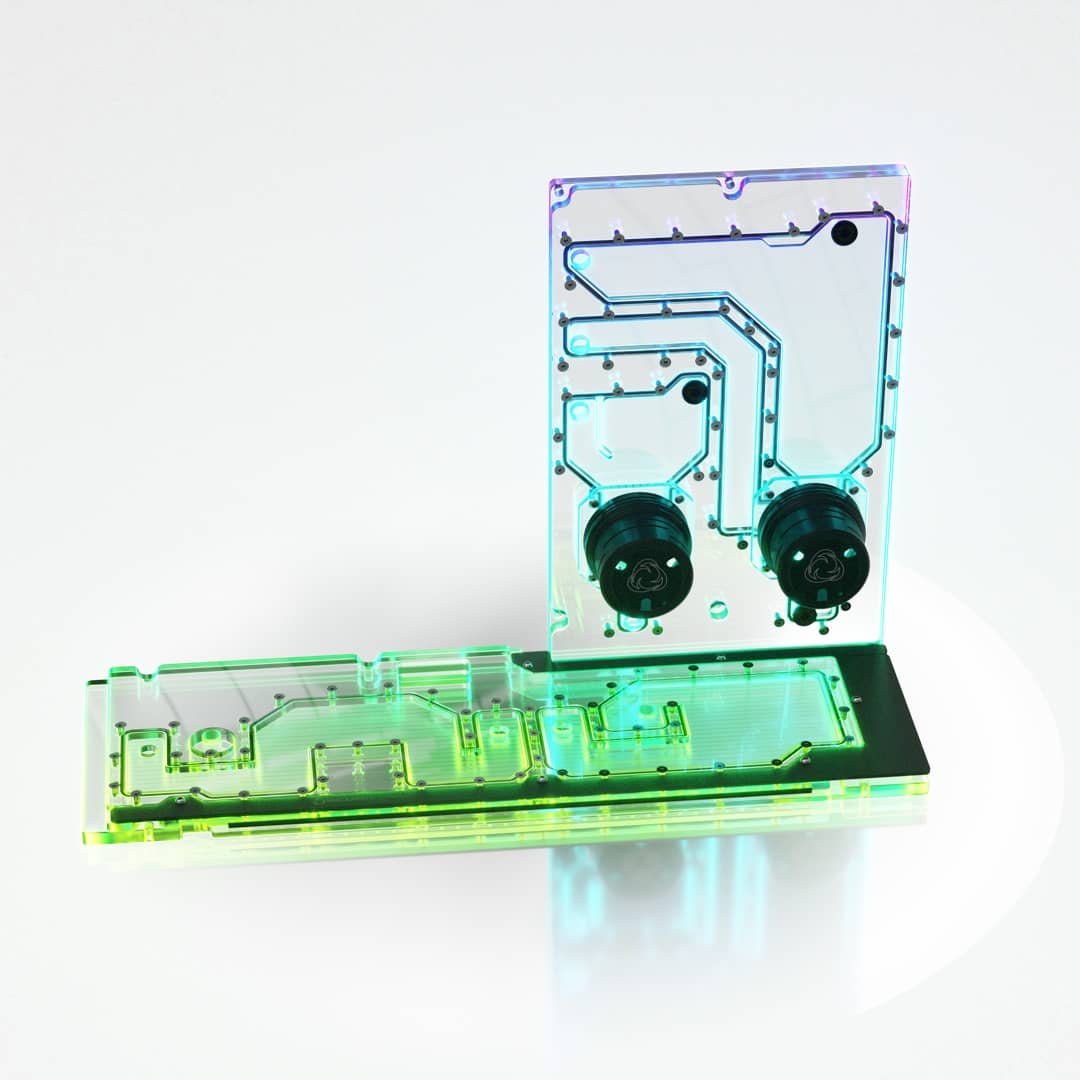

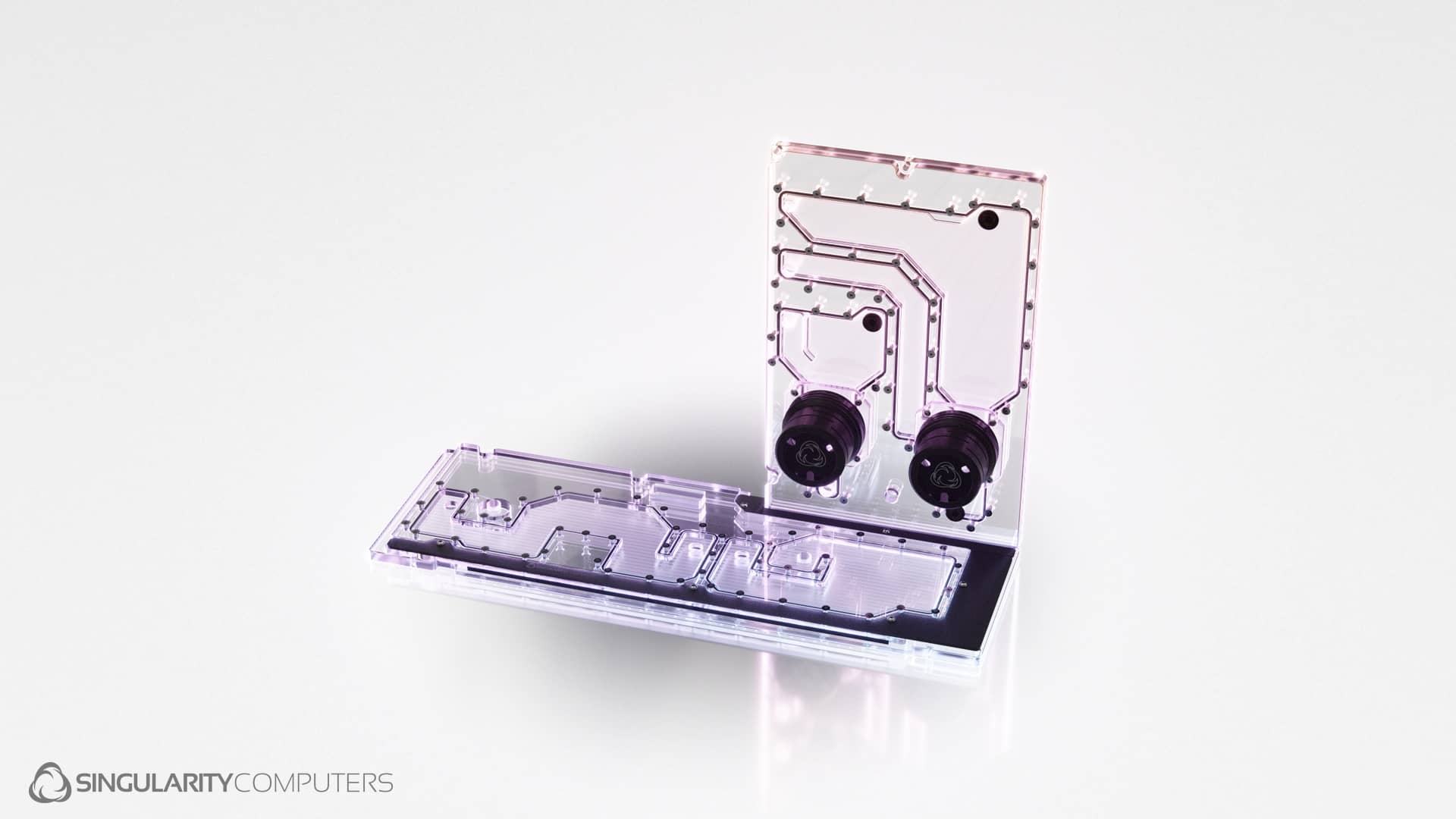

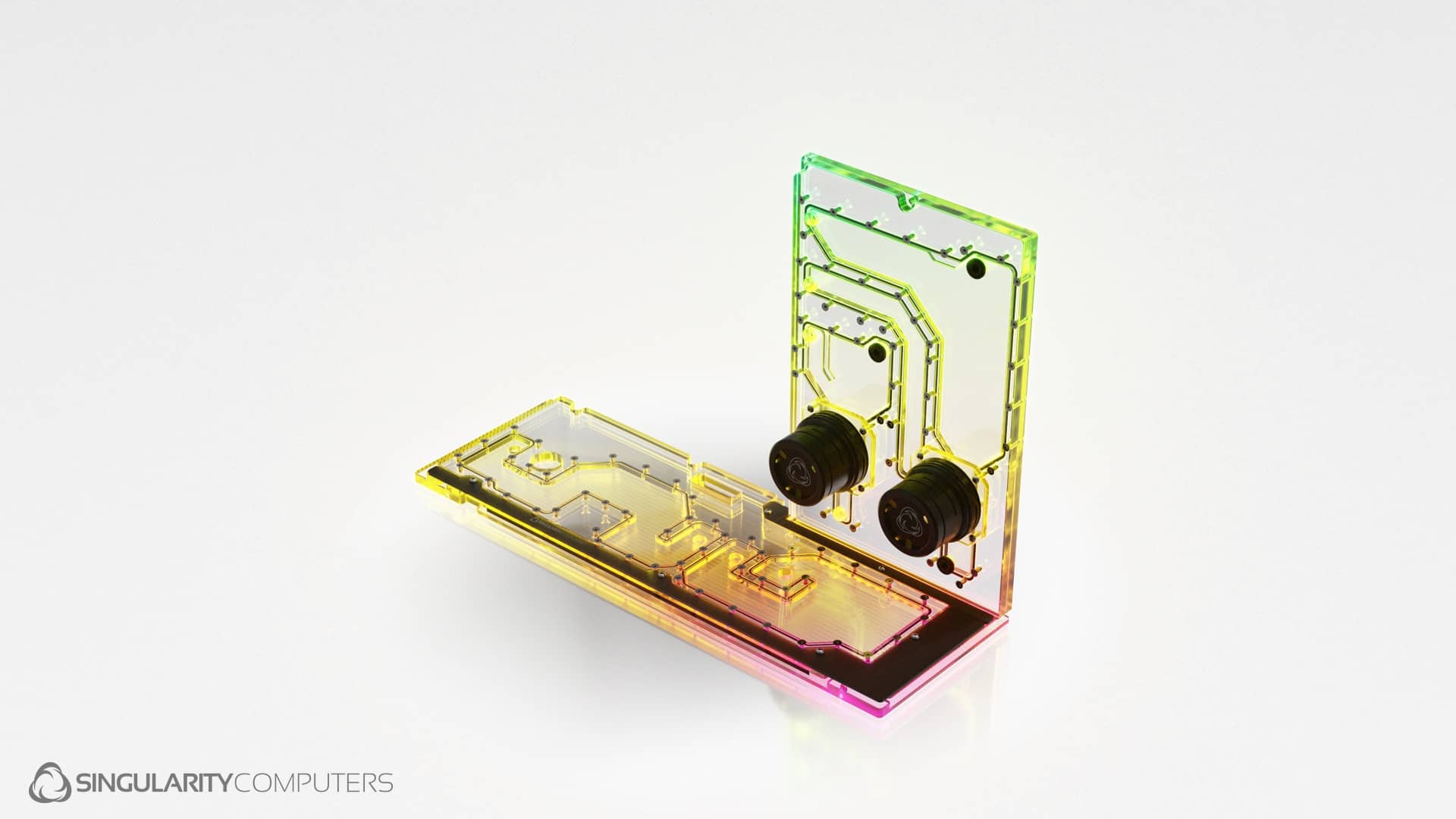

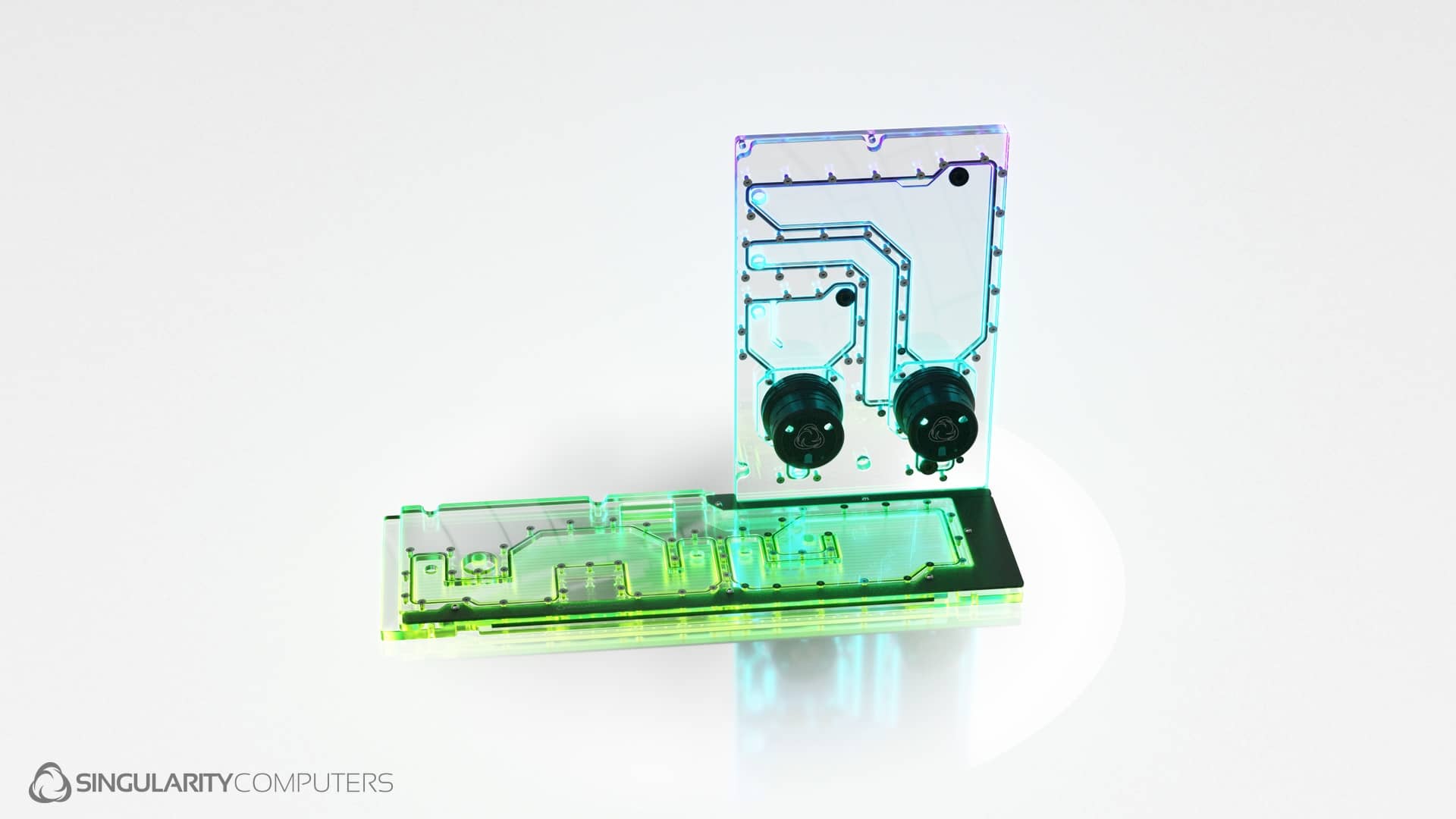

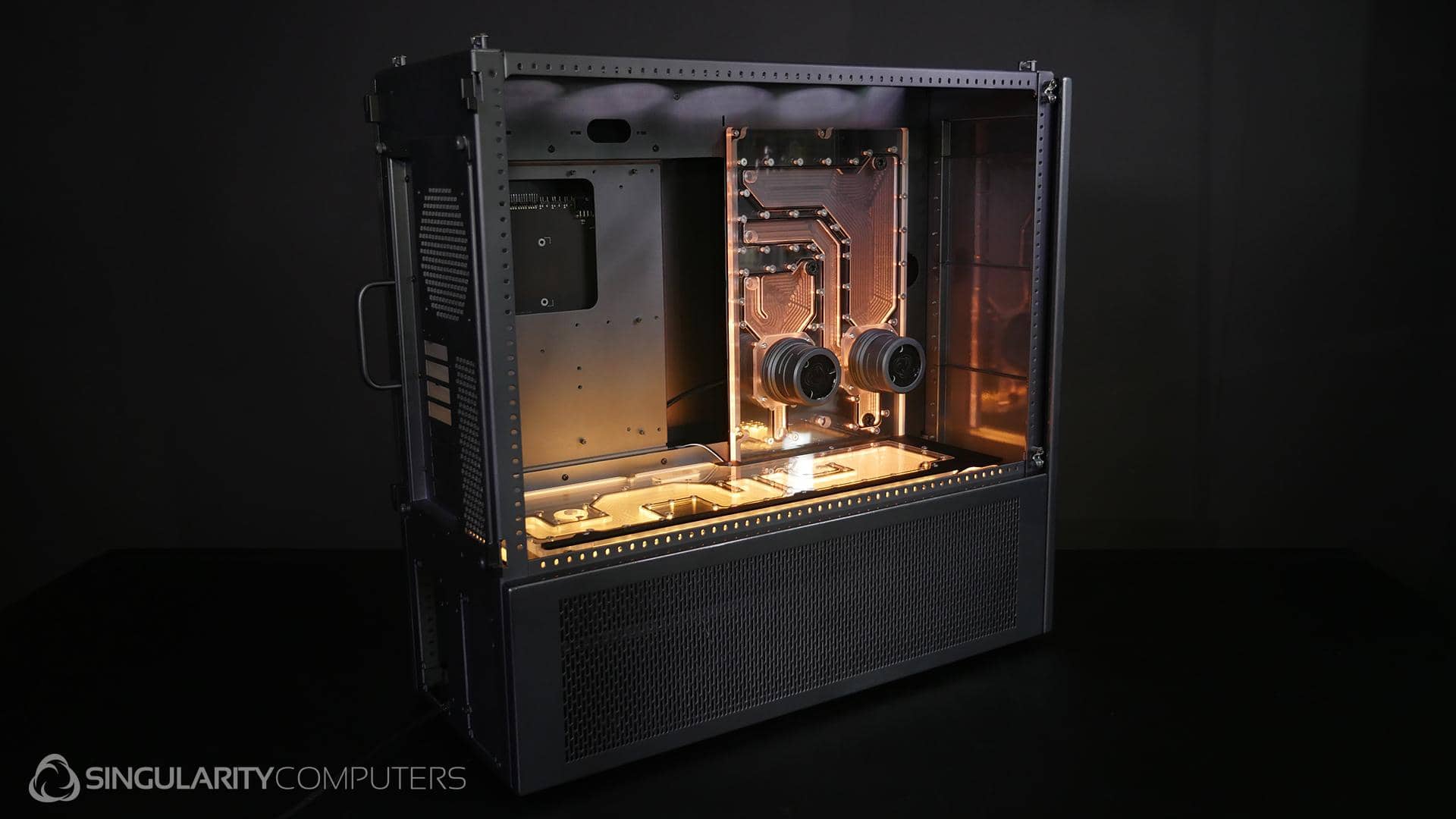

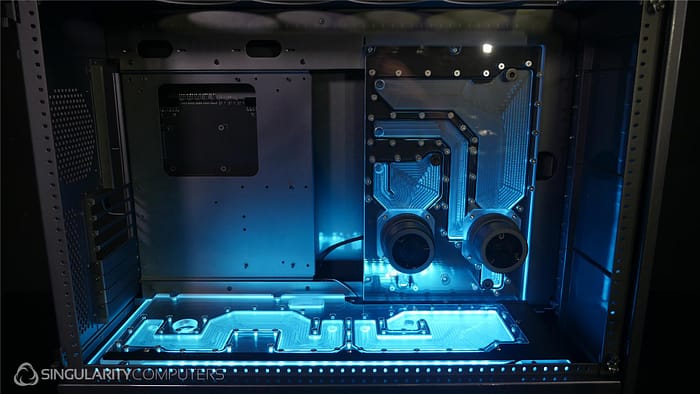

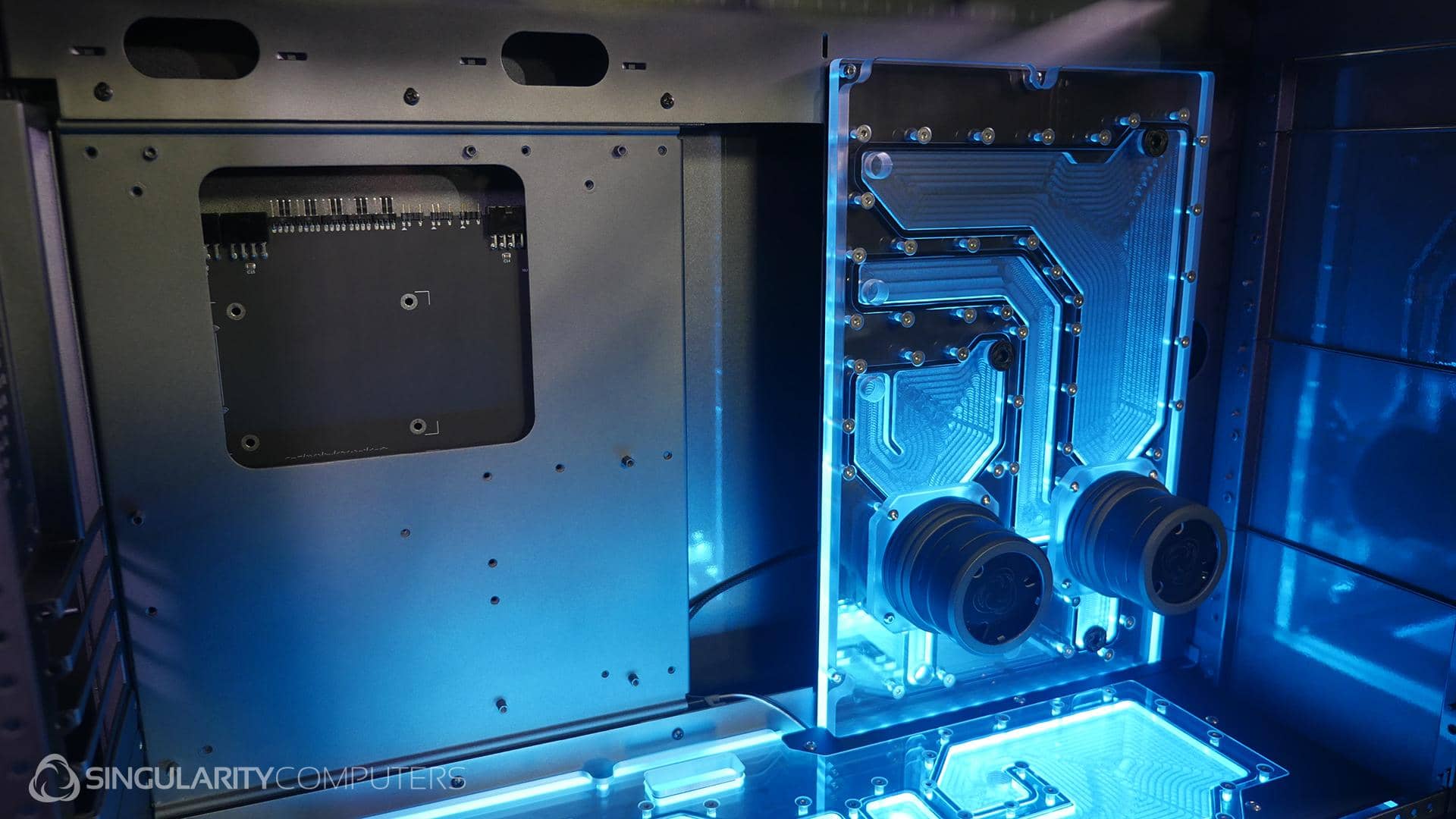

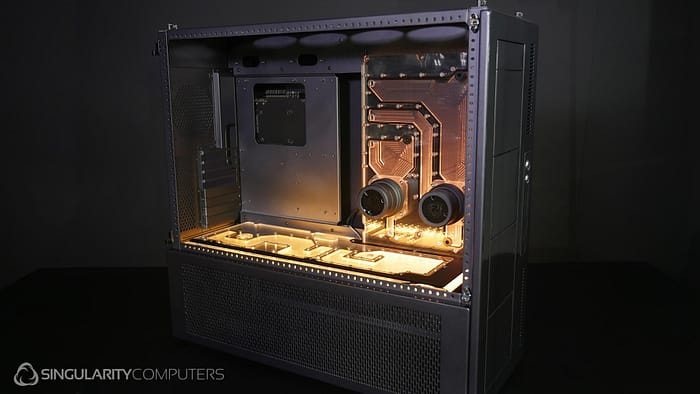

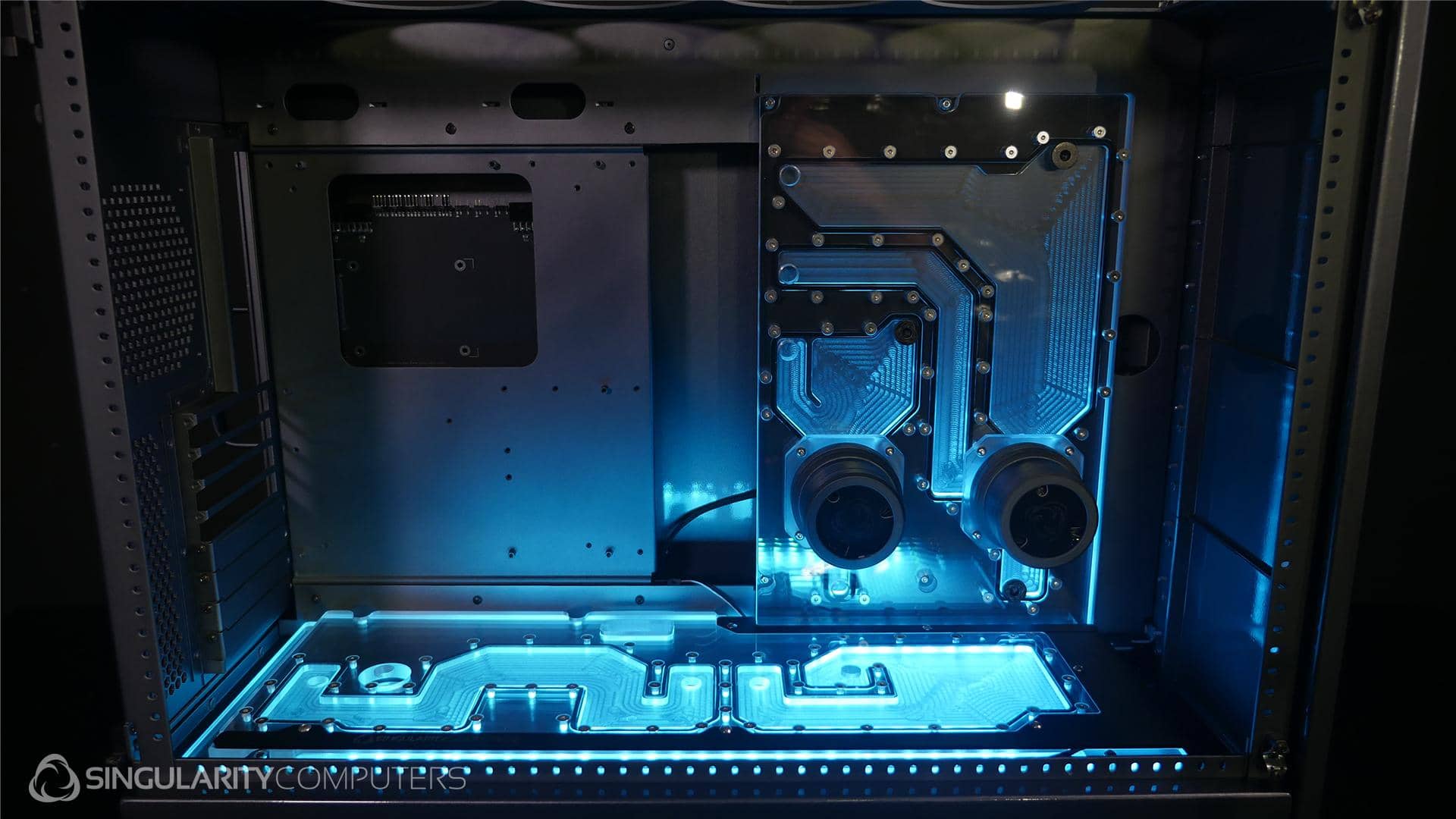

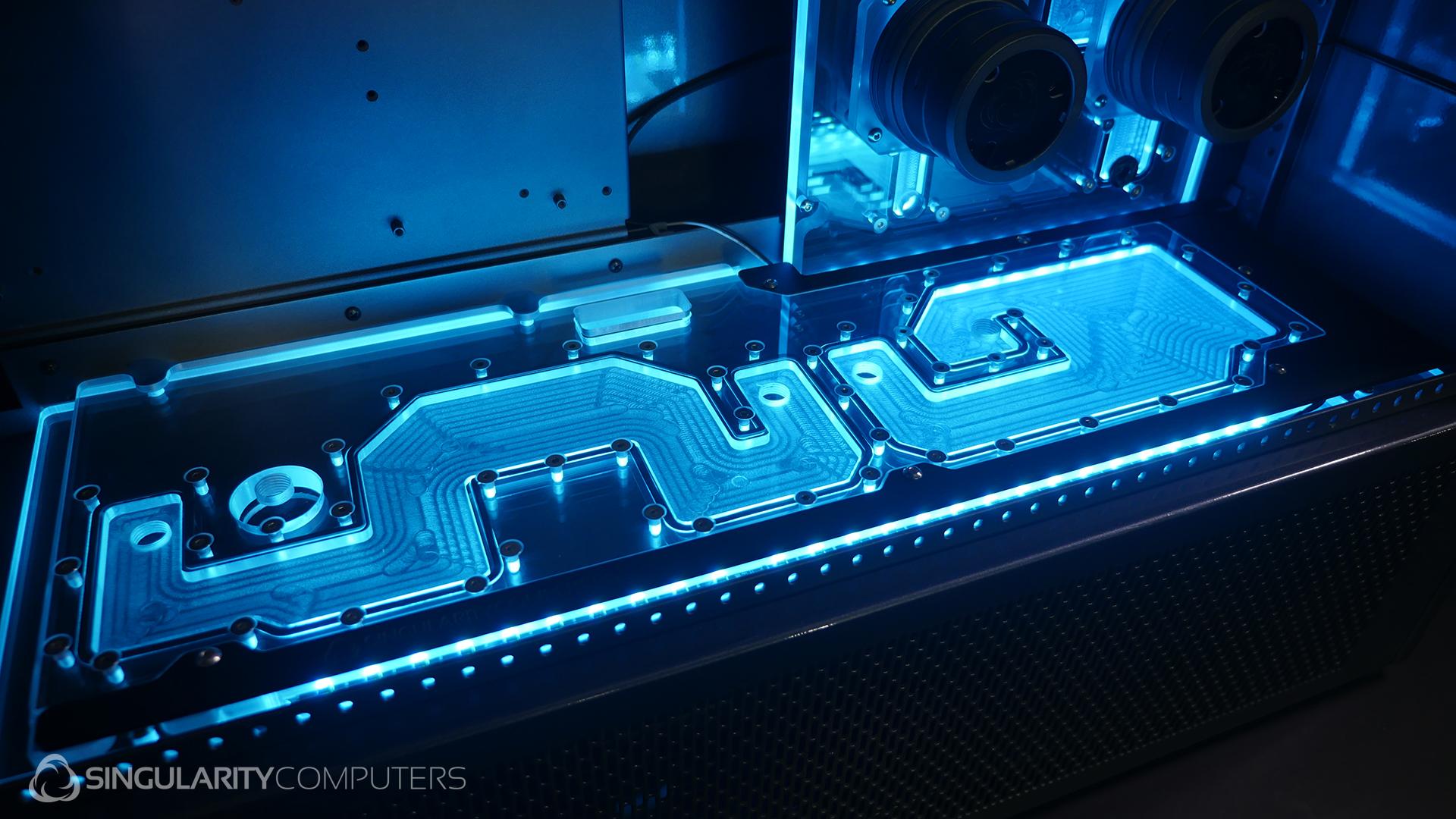

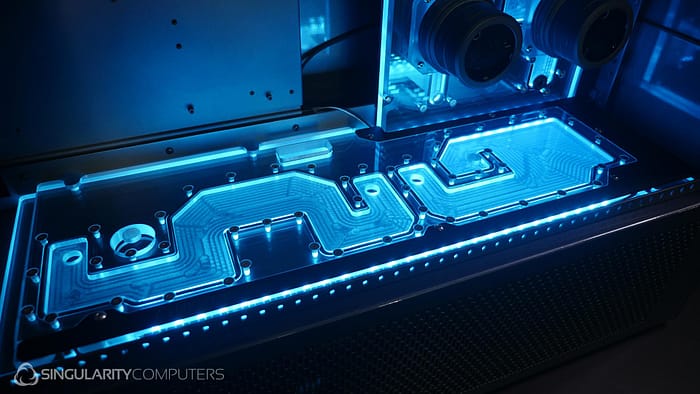

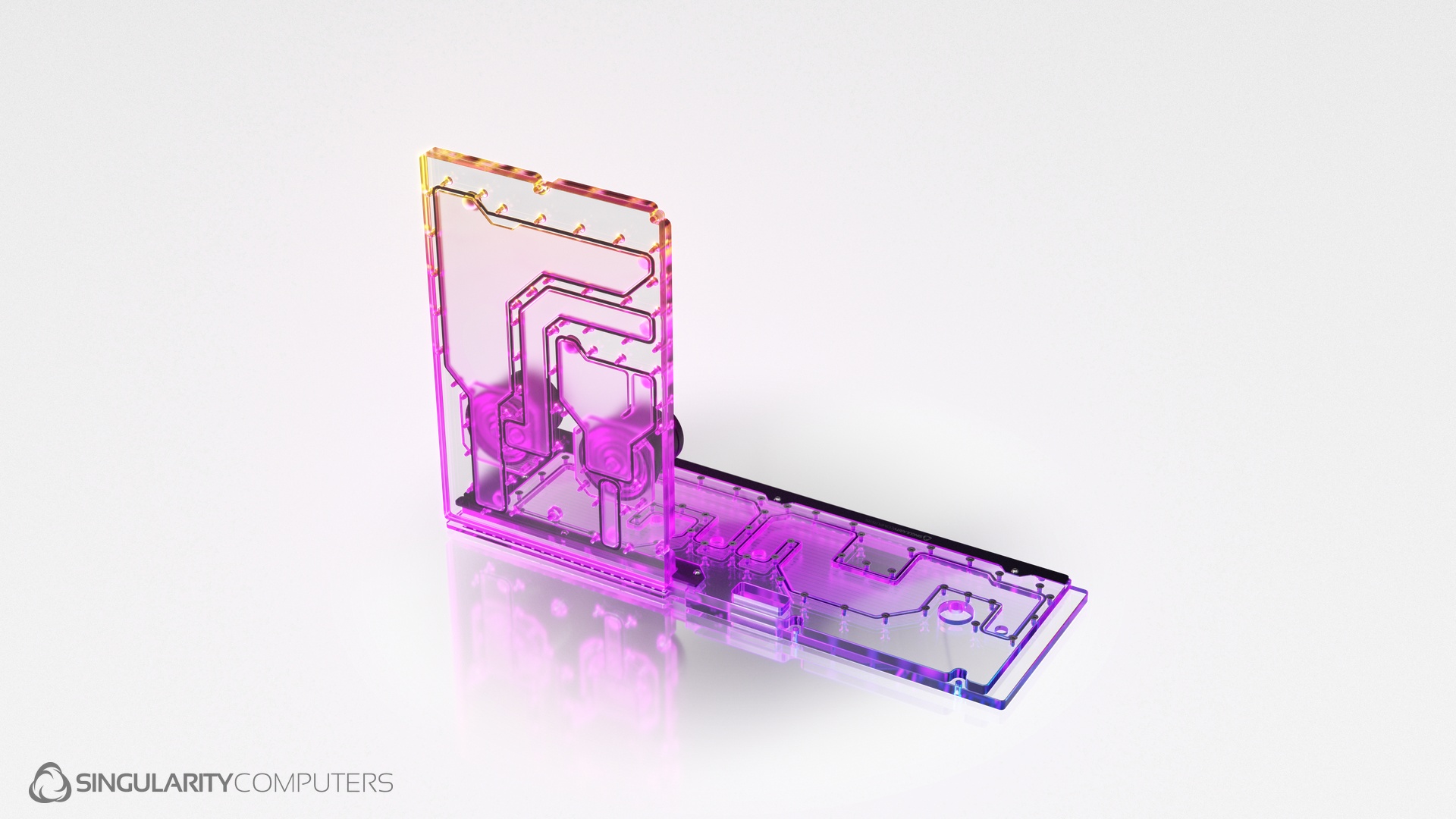

Horizontal and Vertical Distribution Plate Set for any version of the Caselabs SMA8. This is a dual loop distribution plate set. The Vertical Distribution Plate mounts to the right of the motherboard and has two integrated reservoirs and D5 pump tops. The Horizontal Distribution Plate mounts below the motherboard on the mid plate and is for the GPU loop and lower radiators. The distribution plates are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. There are two integrated ARGB LED strips with covers, there are also a Back Plates included to cover the rear side of the Rear Distribution Plate, select from the colour options below for the covers.

Pumps not included. Compatible with any D5 Pumps.

Build Gallery

US$249.00 US$599.00Price range: US$249.00 through US$599.00

Select Acrylic Cover and Back Plate Color/Finish Options

The distribution plate will remain transparent, this colour option is for the covers and back plates.

None Satin Black Gloss Black Gloss White Carbon Mirror +US$47.92 Silver Mirror +US$47.92 Gold Mirror +US$47.92 Satin Black
Select Acrylic Cover and Back Plate Color/Finish Options

The distribution plate will remain transparent, this colour option is for the covers and back plates.

None Satin Black Gloss Black Gloss White Carbon Mirror +US$28.72 Silver Mirror +US$28.72 Gold Mirror +US$28.72 Satin Black
Select Acrylic Cover and Back Plate Color/Finish Options

The distribution plate will remain transparent, this colour option is for the covers and back plates.

None Satin Black Gloss Black Gloss White Carbon Mirror +US$19.92 Silver Mirror +US$19.92 Gold Mirror +US$19.92 Satin Black

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

Select D5 Retention Ring Colour x2 (included)

CNC milled anodized retention ring.

None Black Silver Black
D5 Pump Cover Options x2 (optional) USD $78

CNC milled anodised pump cover with ARGB lights and Singularity Computers Logo.

None Black +US$78.00 Silver +US$78.00
D5 Pump x2 (optional) USD $189

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$189.00
Stop Fitting x2 (optional) USD $8

Include stop fittings for all extra ports aside from the inlet and outlet.

None Yes +US$8.00
Add to wishlist
SKU: N/A Category:

Manual

Gallery

Specifications:

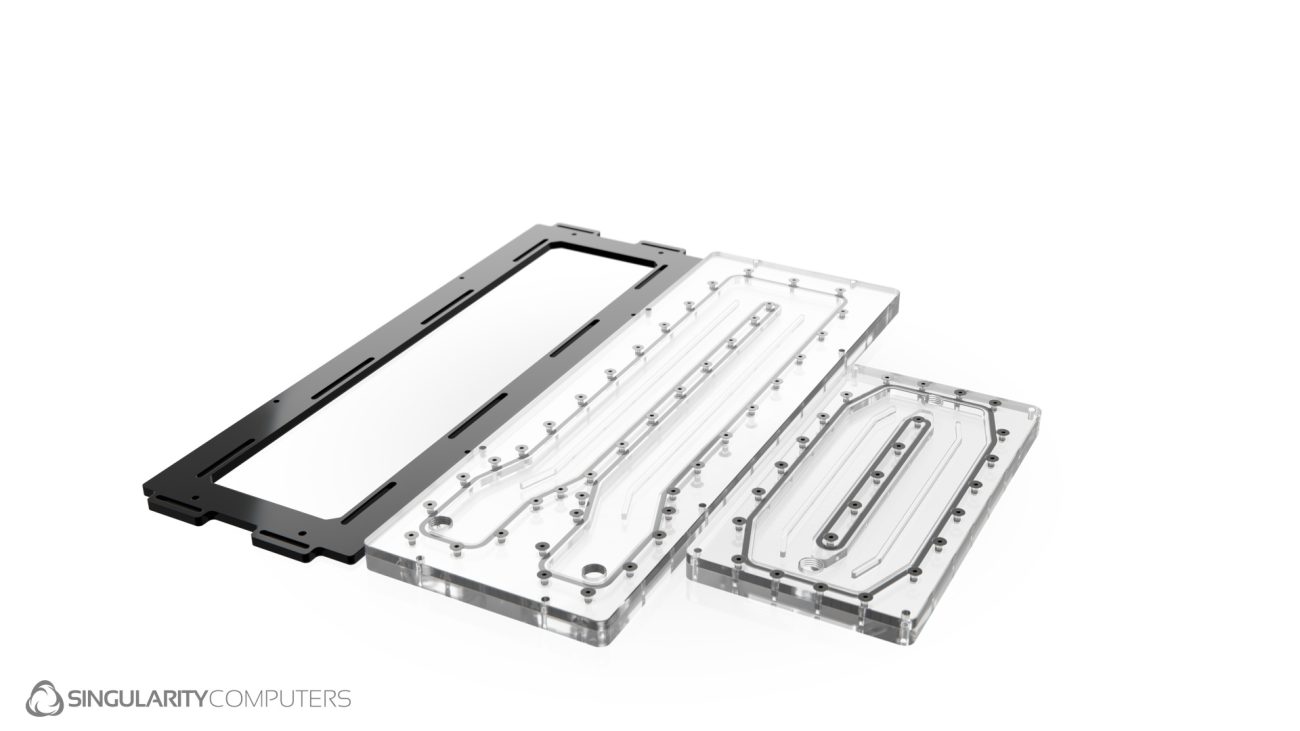

Caselabs SMA8 Dual Loop Distribution Plate Set. The set can be purchased together or they can be purchased separately (select above).
Caselabs SMA8 Dual D5 Reservoir Distribution Plate.
Caselabs SMA8 Dual D5 Reservoir Distribution Plate Back Cover (select color/finish above).
Caselabs SMA8 Mid Distribution Plate.
Caselabs SMA8 Mid Distribution Plate Back Cover (select color/finish above).
Integrated Reservoirs: x2.
Integrated Pump Tops: D5 x2.
D5 Pump Cover CNC Machined Anodized Aluminum x2 (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable x2.
Dimensions:
Caselabs SMA8 Dual D5 Reservoir Distribution Plate: L: 380mm x W: 246mm x H: 90mm.
Caselabs SMA8 Mid Distribution Plate: L: 565mm x W: 190mm x H: 10mm.
Weight:
Caselabs SMA8 Mid Distribution Plate: 3kg.
Caselabs SMA8 Dual D5 Reservoir Distribution Plate: 3kg.
Packaged Dimensions:
Caselabs SMA8 Dual Loop Distribution Plate Set: L: 600mm x W: 400mm x H: 100mm.
Caselabs SMA8 Dual D5 Reservoir Distribution Plate: L: 500mm x W: 300mm x H: 100mm.
Caselabs SMA8 Mid Distribution Plate: L: 600mm x W: 300mm x H: 100mm.
Packaged Weight:
Caselabs SMA8 Dual Loop Distribution Plate Set: 8kg.
Caselabs SMA8 Dual D5 Reservoir Distribution Plate: 4kg.
Caselabs SMA8 Mid Distribution Plate: 4kg.
Fasteners: Stainless Steel.
D5 O-Rings: Silicone Clear x2.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.

Installation:

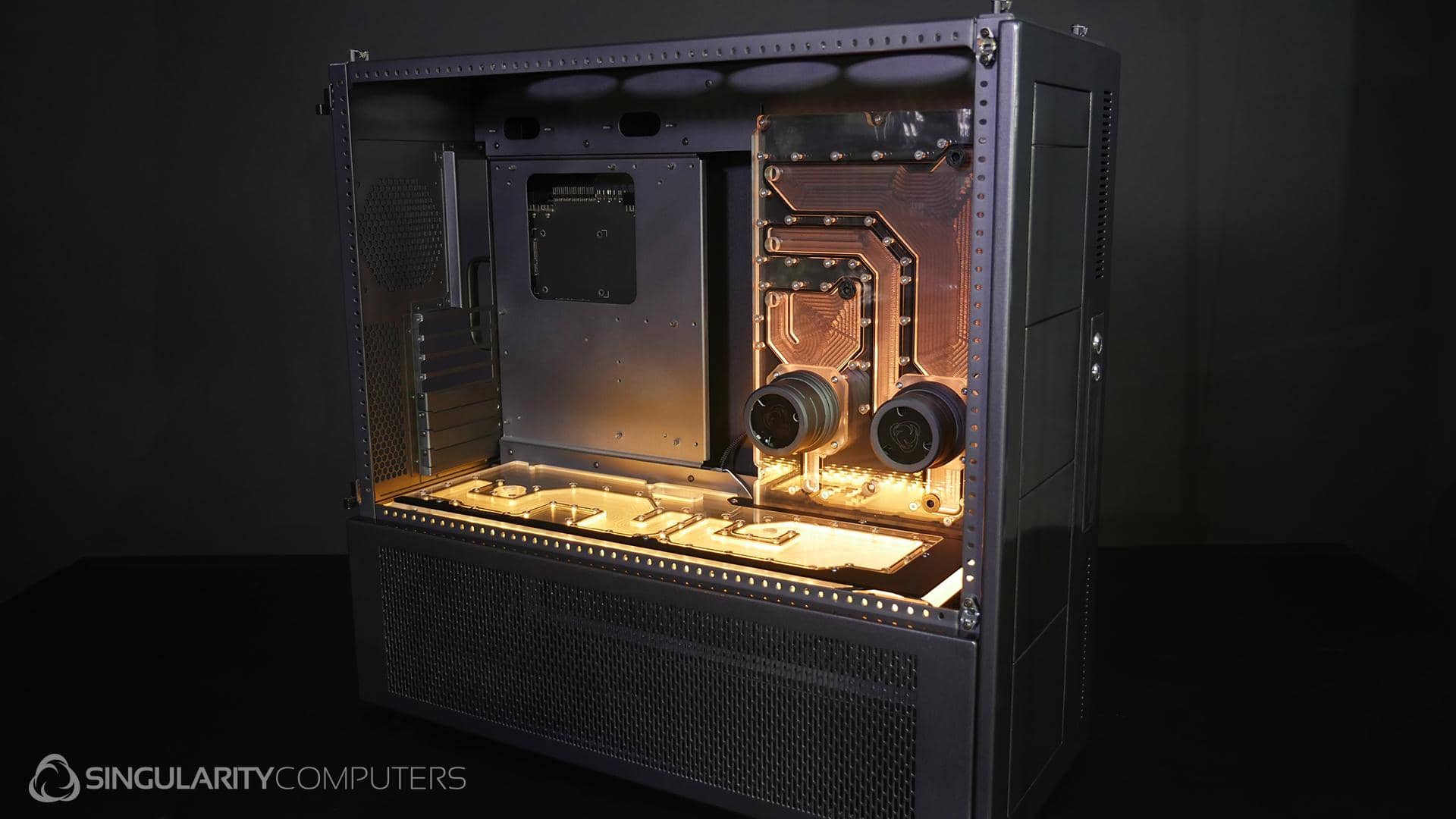

This distribution plate set includes a horizontal distribution plate which installs on to the mid plate of the SMA8 below the motherboard and a vertical distribution plate which mounts to the reservoir mounting area next to the motherboard. Mounting holes need to be added to the case.
