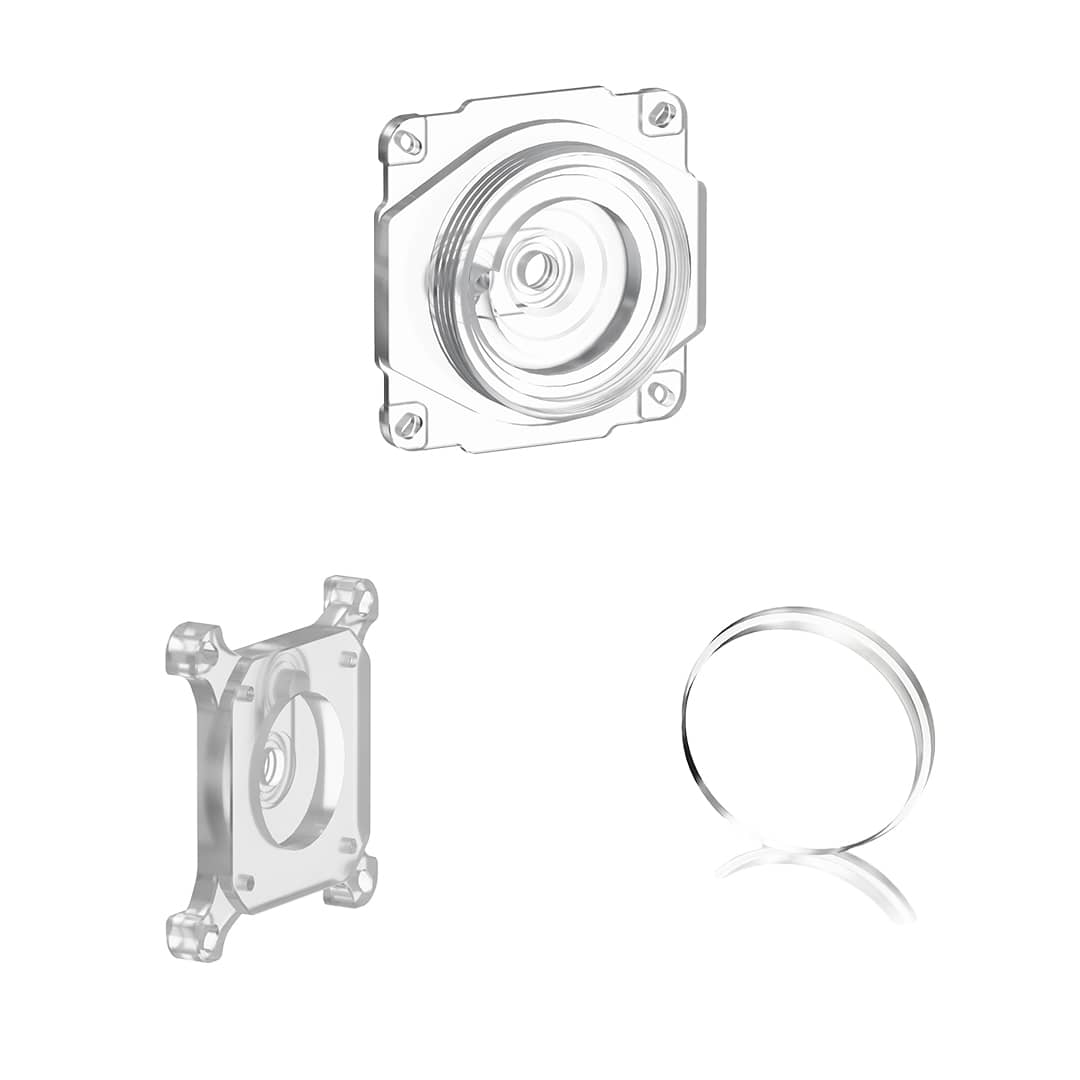

Distribution Plate Pump Tops

US$15.00 US$39.00Price range: US$15.00 through US$39.00

Enter the Distribution plate or Case you will mount the Pump Top to and we will provide the correct fasteners

Manual

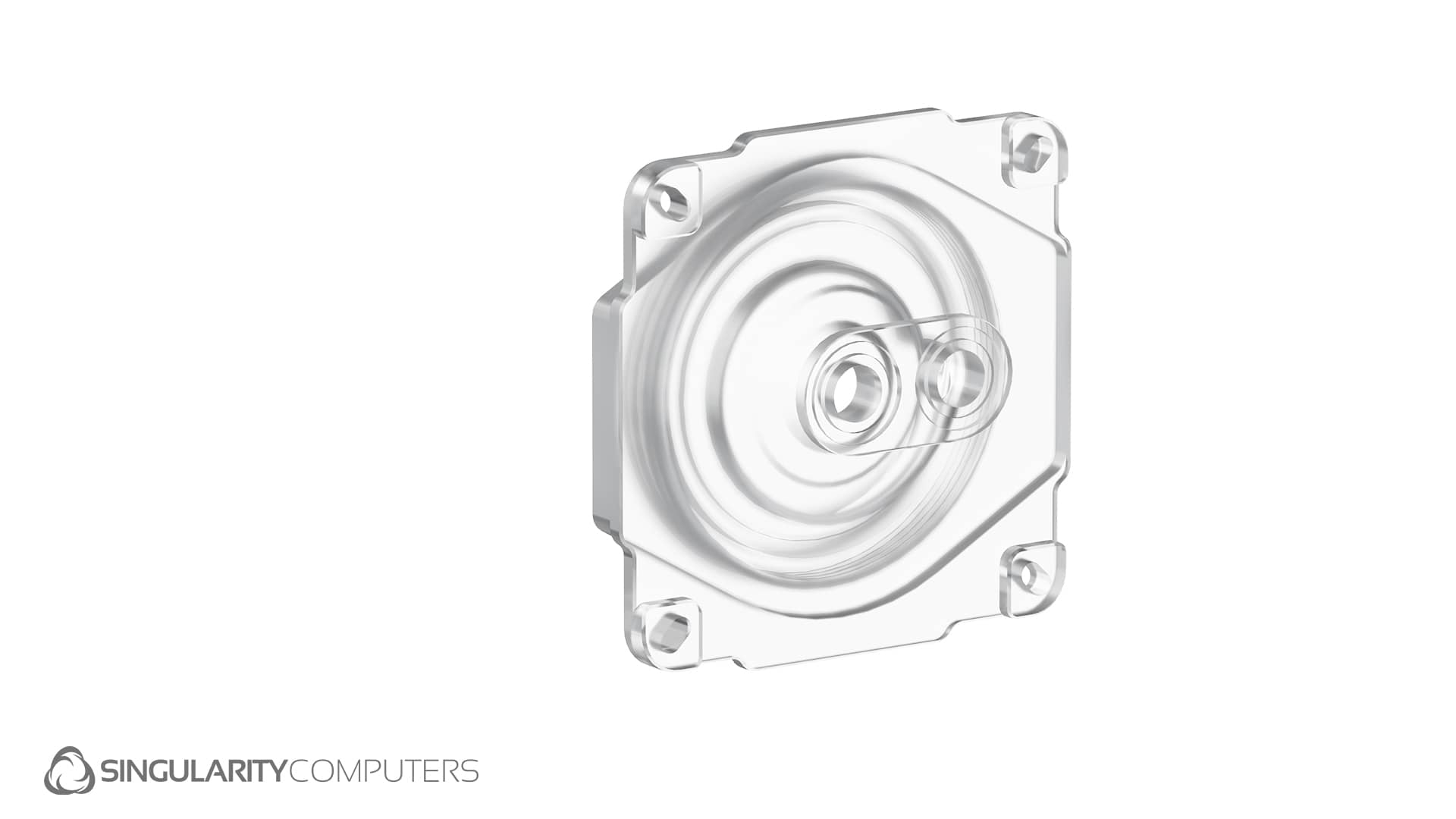

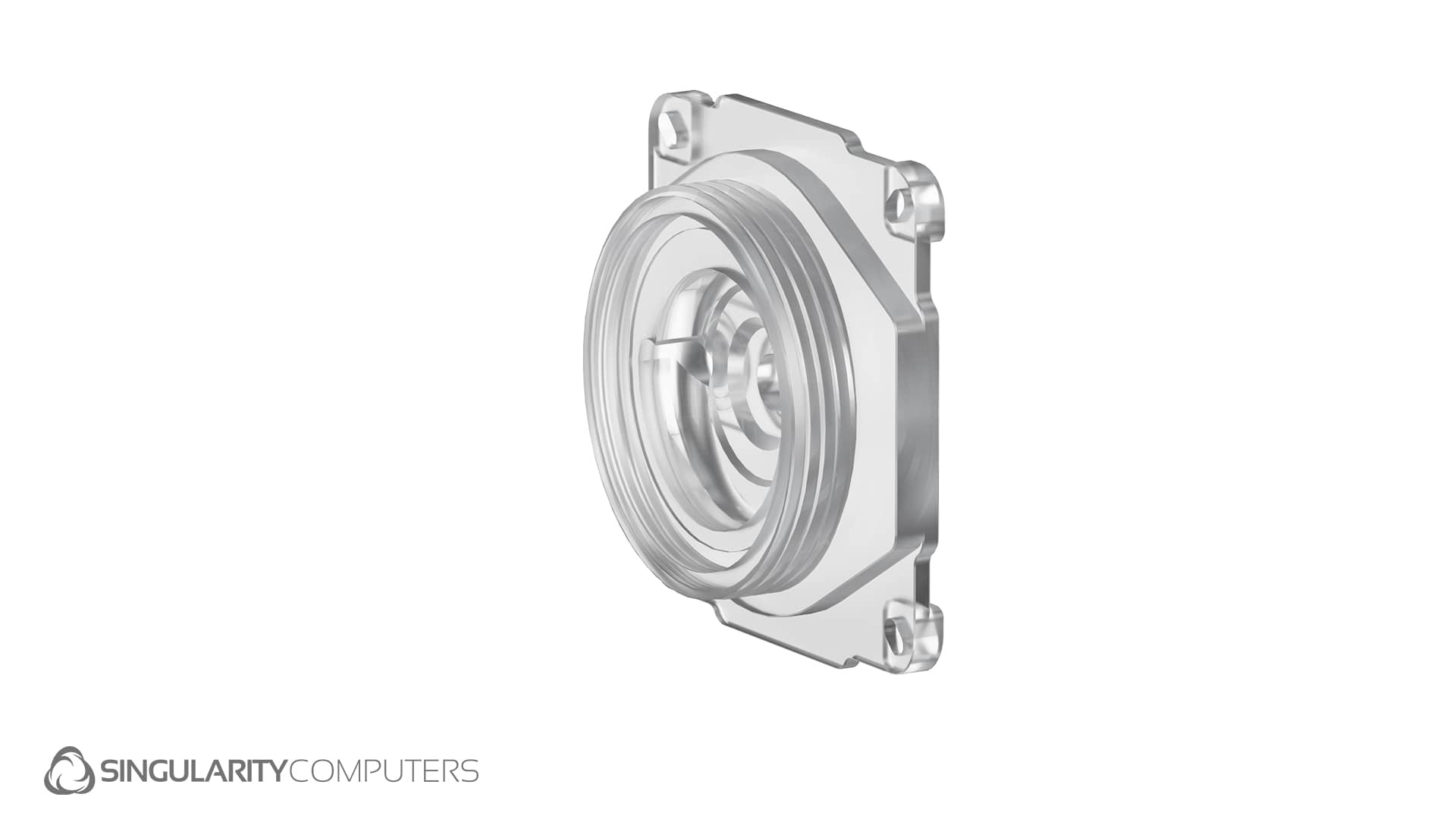

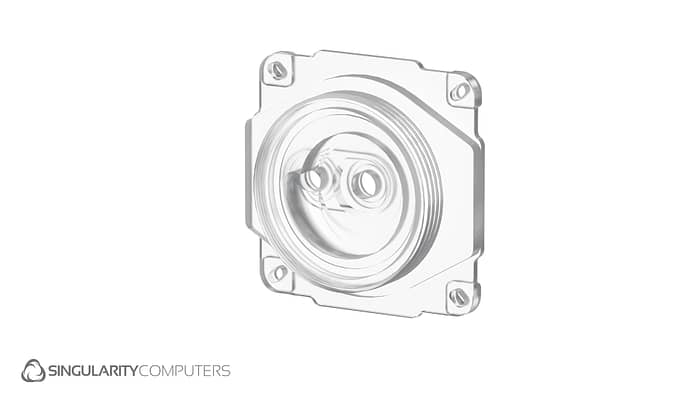

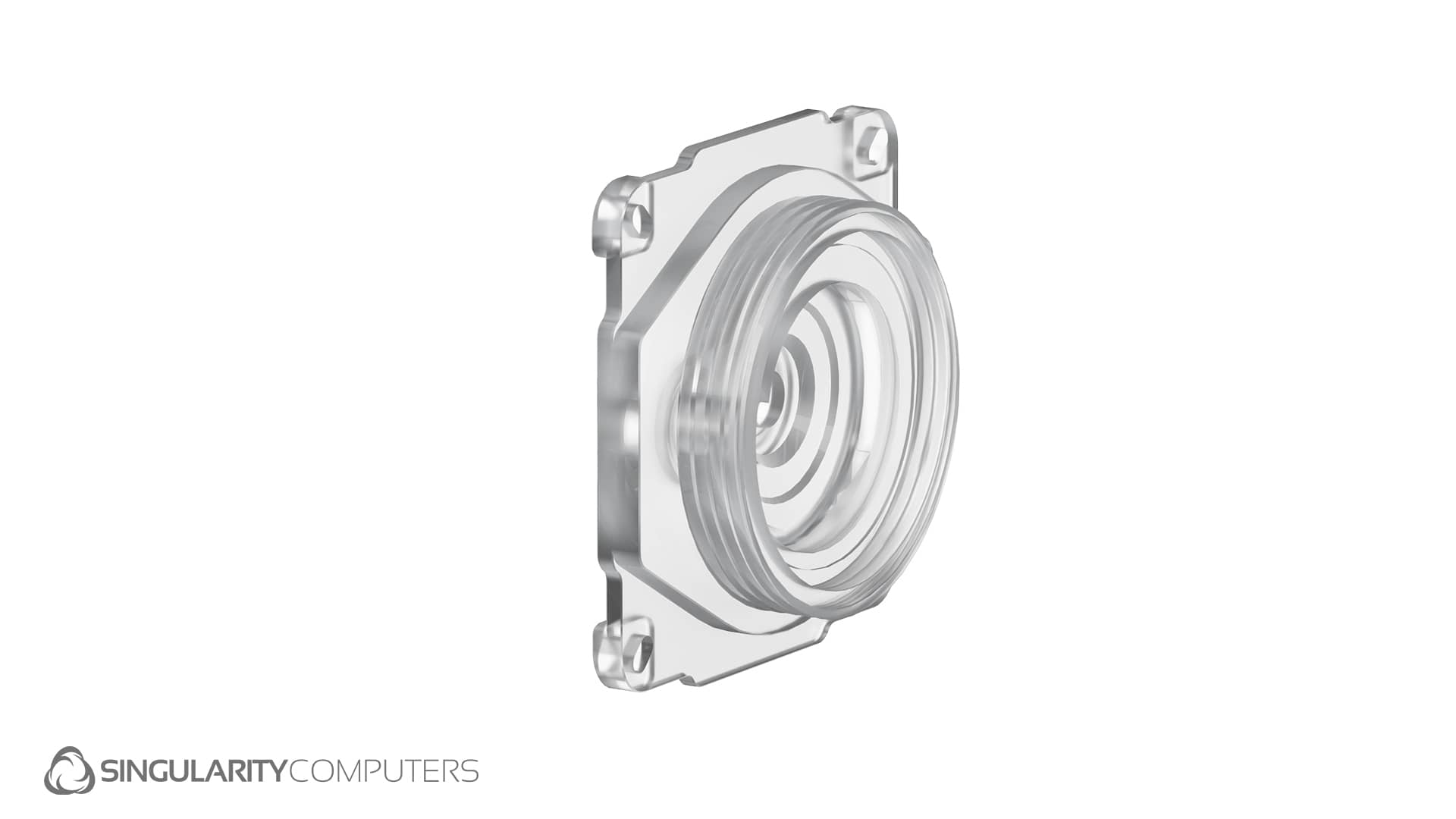

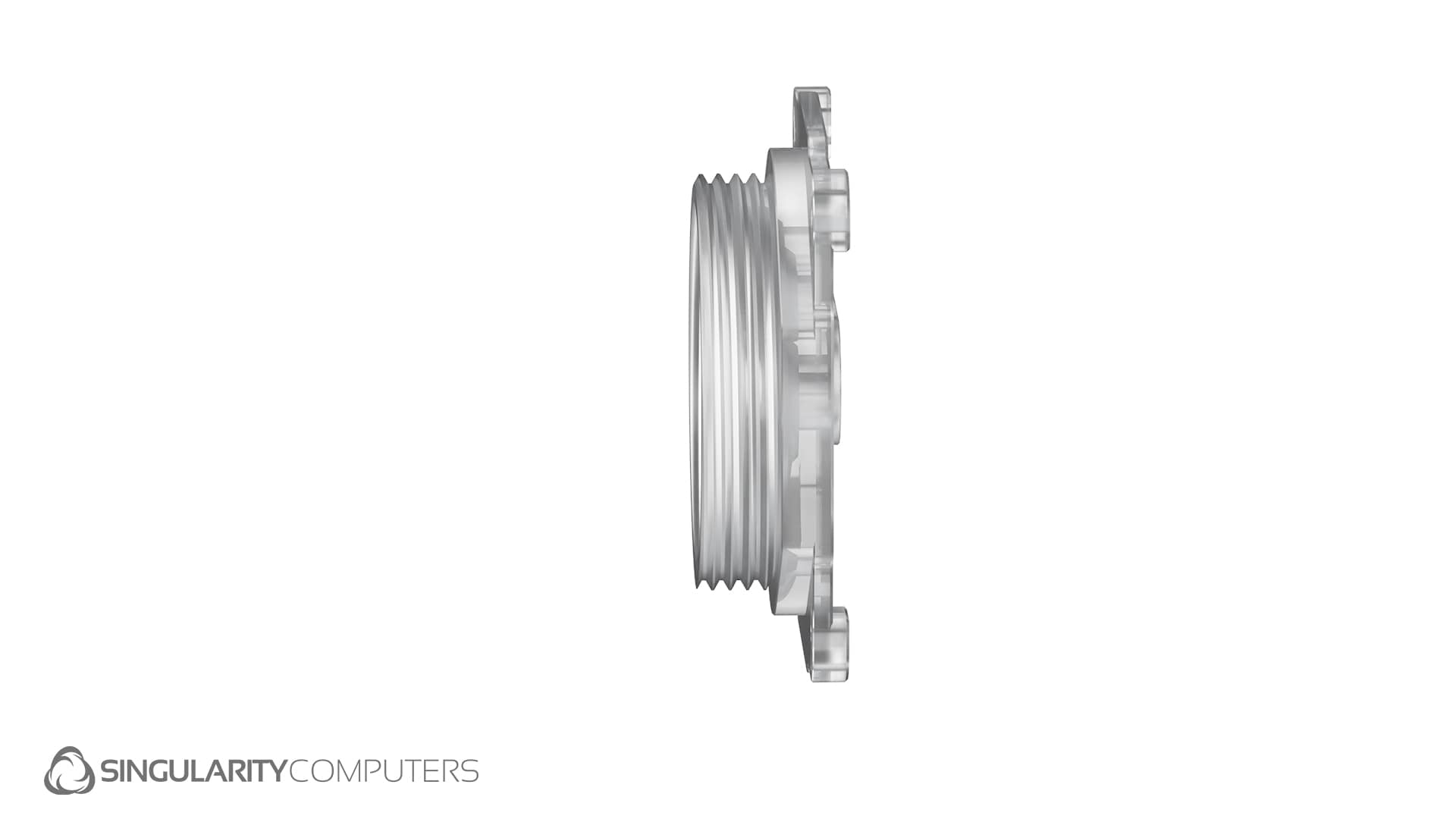

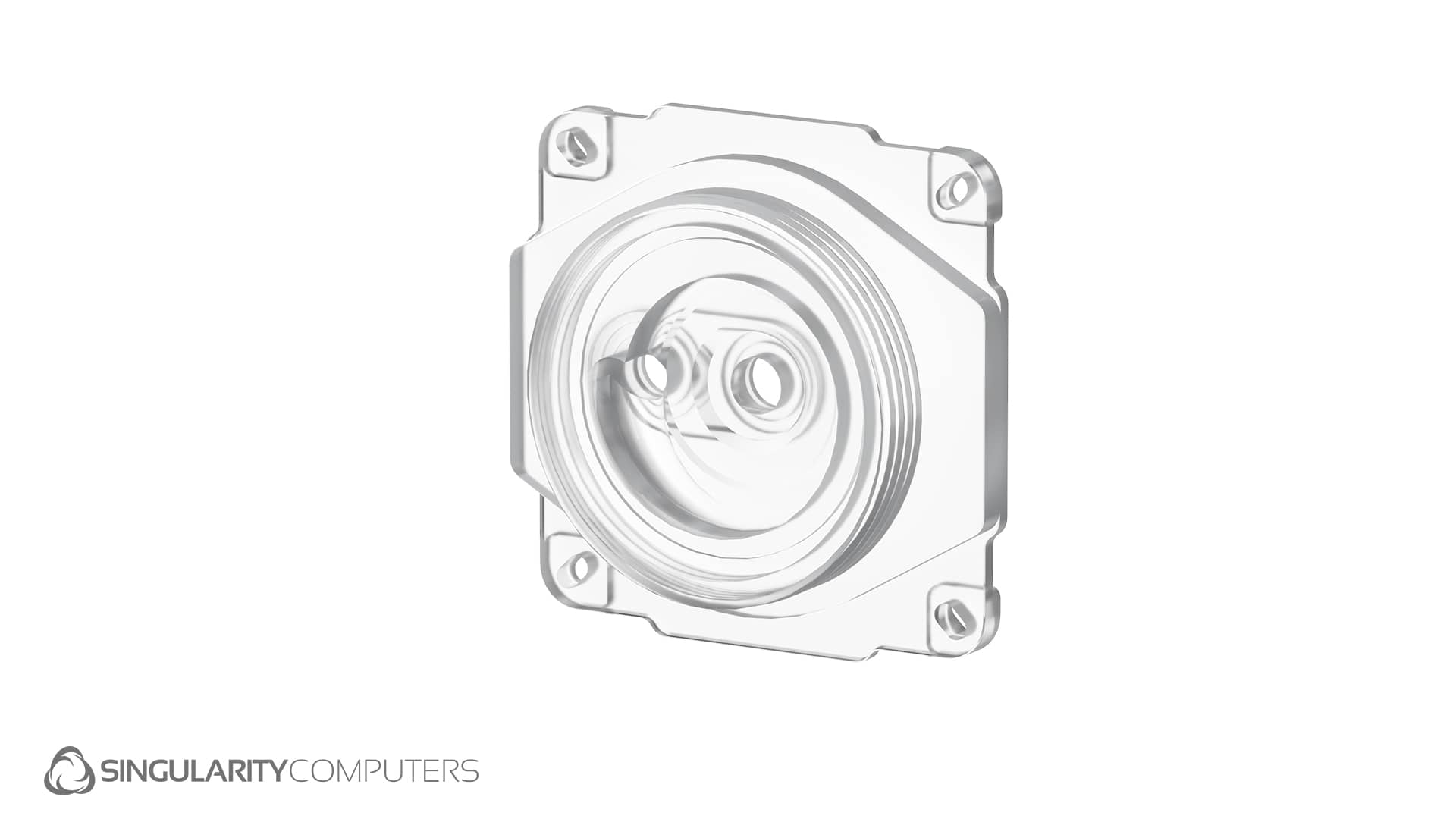

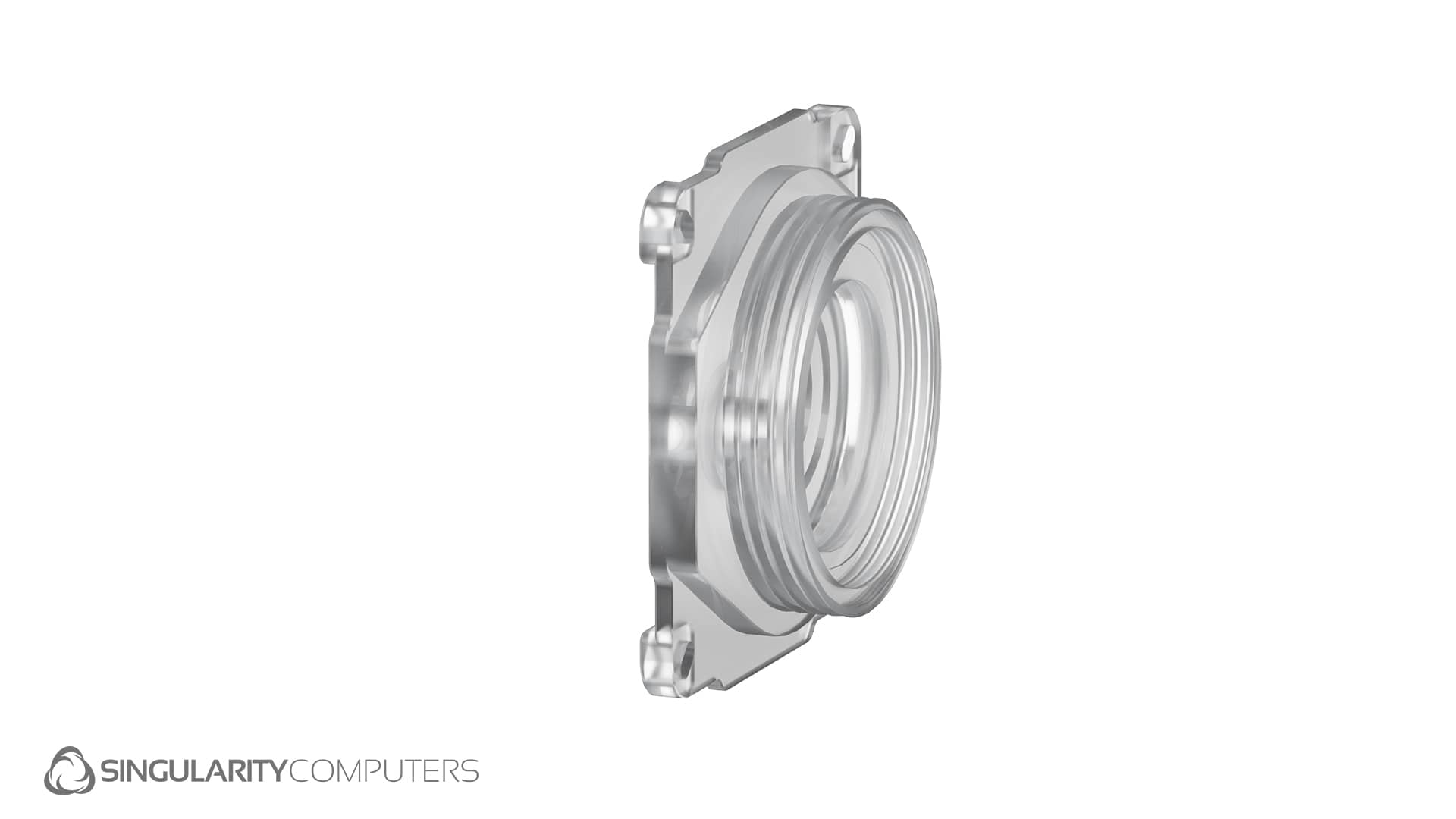

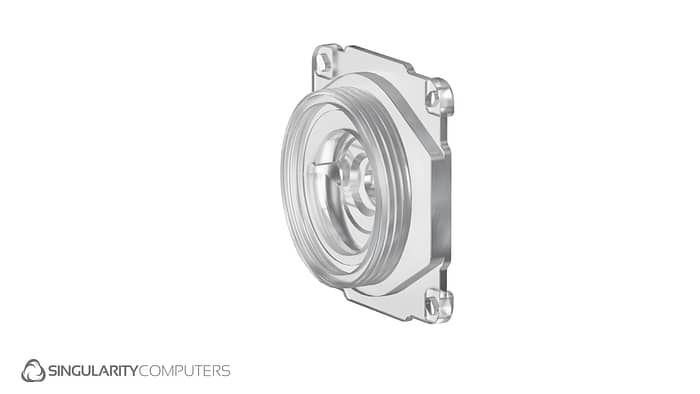

D5 Distribution Plate Pump Top

Specifications:
D5 Distribution Plate Pump Top. Clear Cast Acrylic. CNC Machined.
Gaskets: Silicone Black: x5. D5 O-Ring Silicone Clear: x1.
Dimensions: L: 94mm x W: 94mm x H: 24mm.
Weight: 0.05kg.
Packaged Dimensions: L: 120mm x W: 120mm x H: 30mm.
Packaged Weight: 0.06kg.

Compatibility:
All Singularity Computers Distribution Plates with integrated pump tops except products which already include a DDC Pump Top. Compatible with any D5 Pump but it is only compatible with any version of the Protium D5 Pump Cover.

Installation:
Different fastener lengths are required depending on the product you are installing the pump top onto which is why fasteners are not included. If you are mounting the pump top onto a Singularity Computers product, use the fasteners which came with that product for the pump top. The pump top is designed for M4 fasteners. Make sure to install the gaskets onto the back pump top before installing it onto the distribution plate. The larger gasket goes around the ports and the smaller ones go on the four corner mounting holes. Also install the larger clear O-Ring into the O-Ring groove before you install the pump.

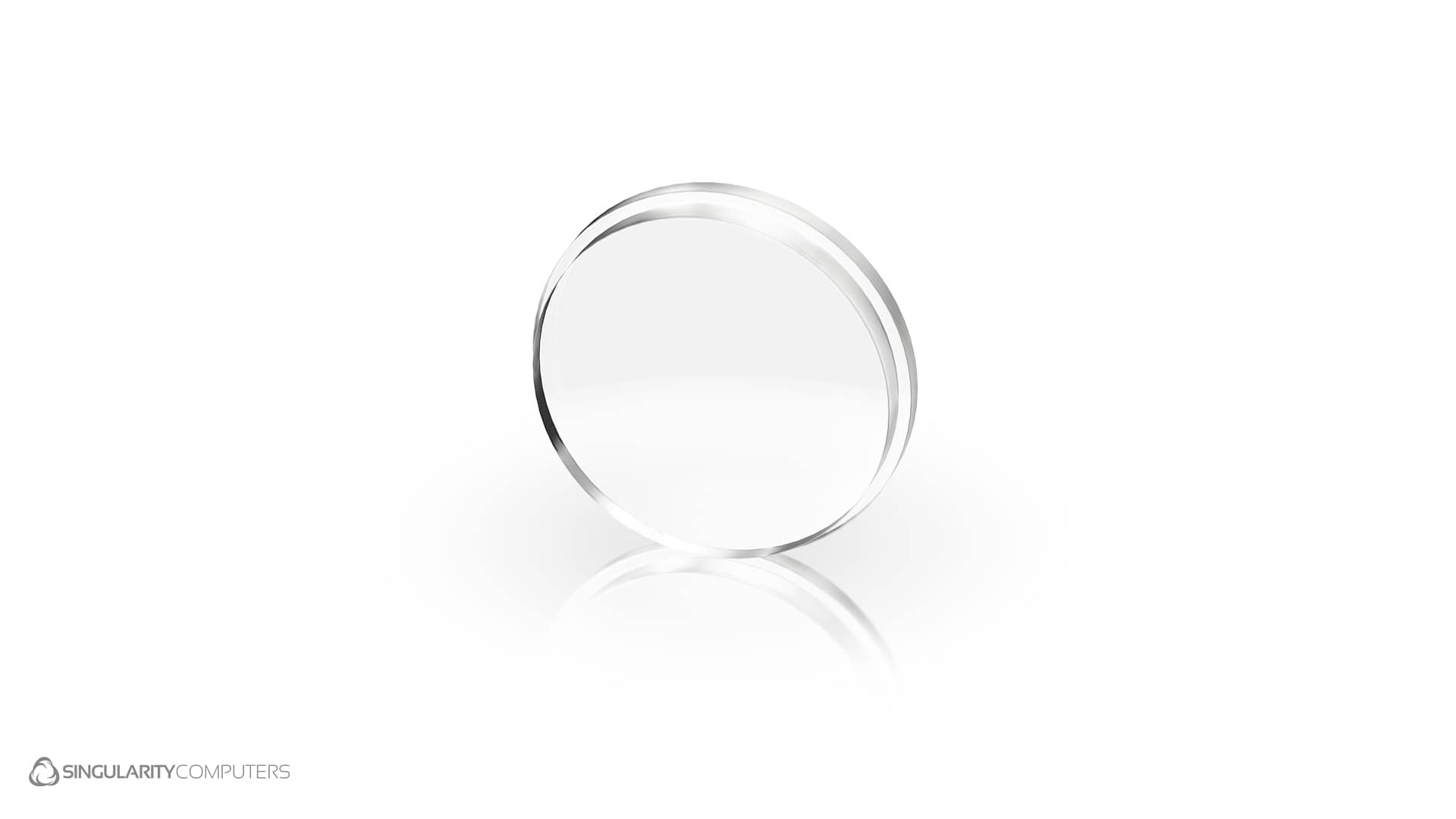

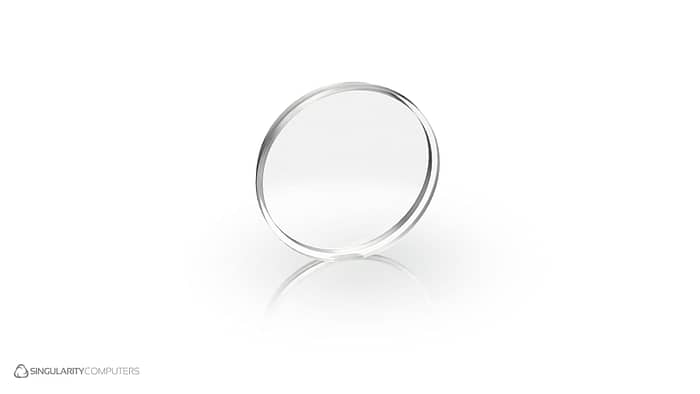

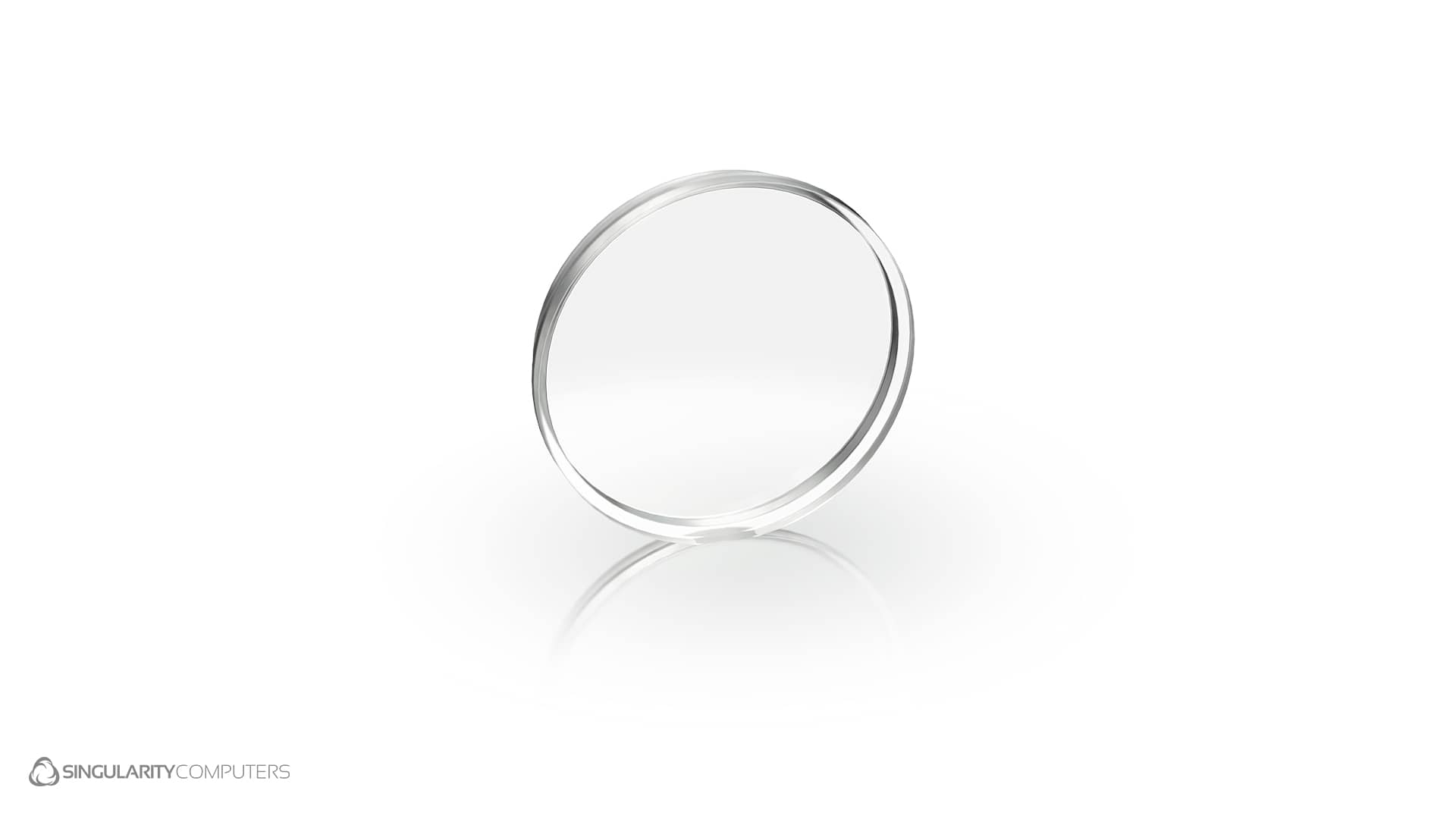

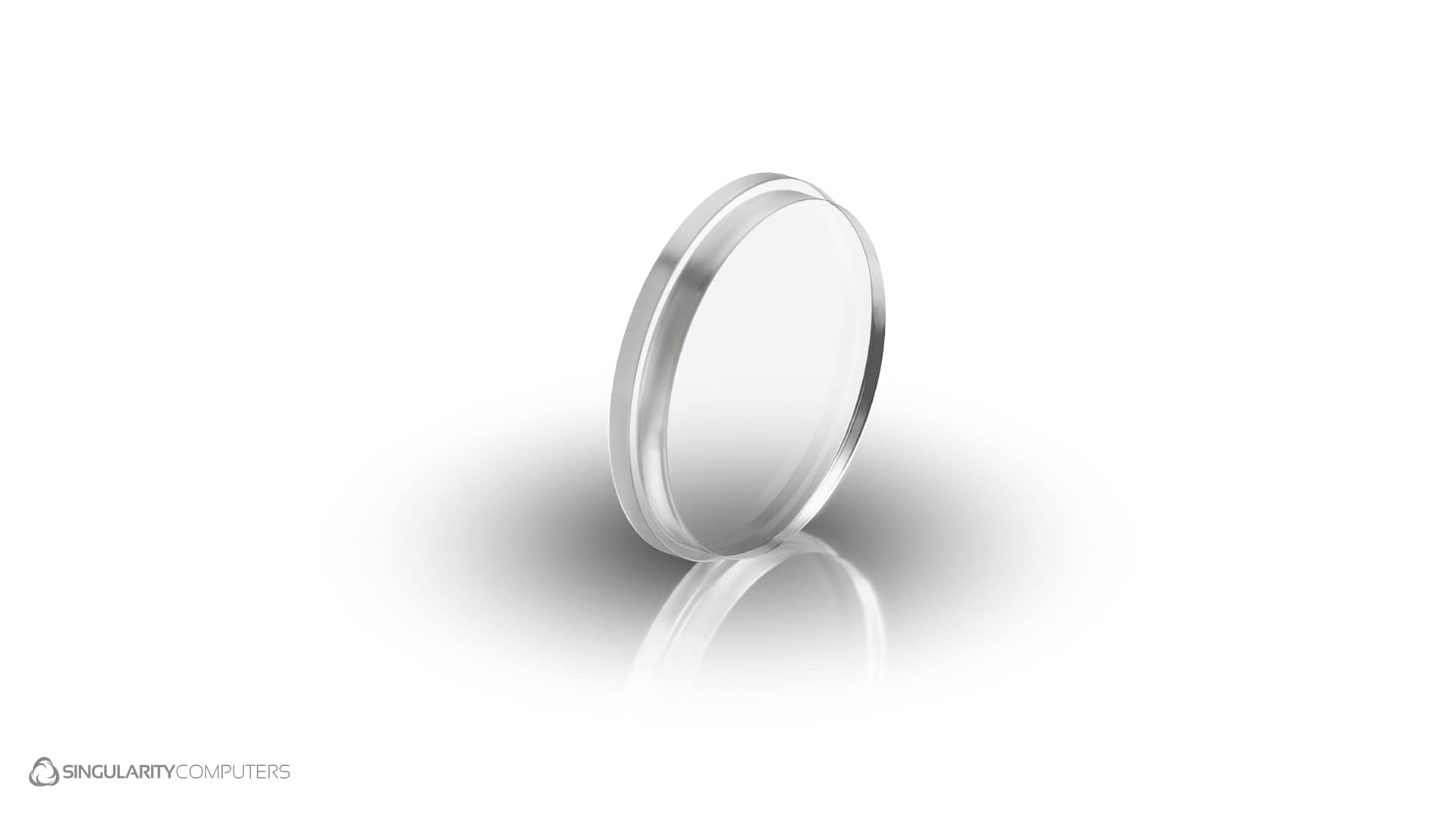

D5 Pump Plate

Specifications:
D5 Pump Plate. Clear Cast Acrylic. CNC Machined.
D5 O-Ring Silicone Clear x1.
Product Dimensions: L: 70mm x W: 70mm x H: 10mm.
Packaged Dimensions: L: 100mm x W: 100mm x H: 10mm.
Product Weight: 0.05kg.

Compatibility: Only compatible with the Singularity Computers D5 Distribution Plate Pump Top.

Installation:
Installs into any version of the Singularity Computers D5 Pump Top. Make sure to install the D5 O-Ring into the O-Ring Groove before installing the D5 Pump Plate.

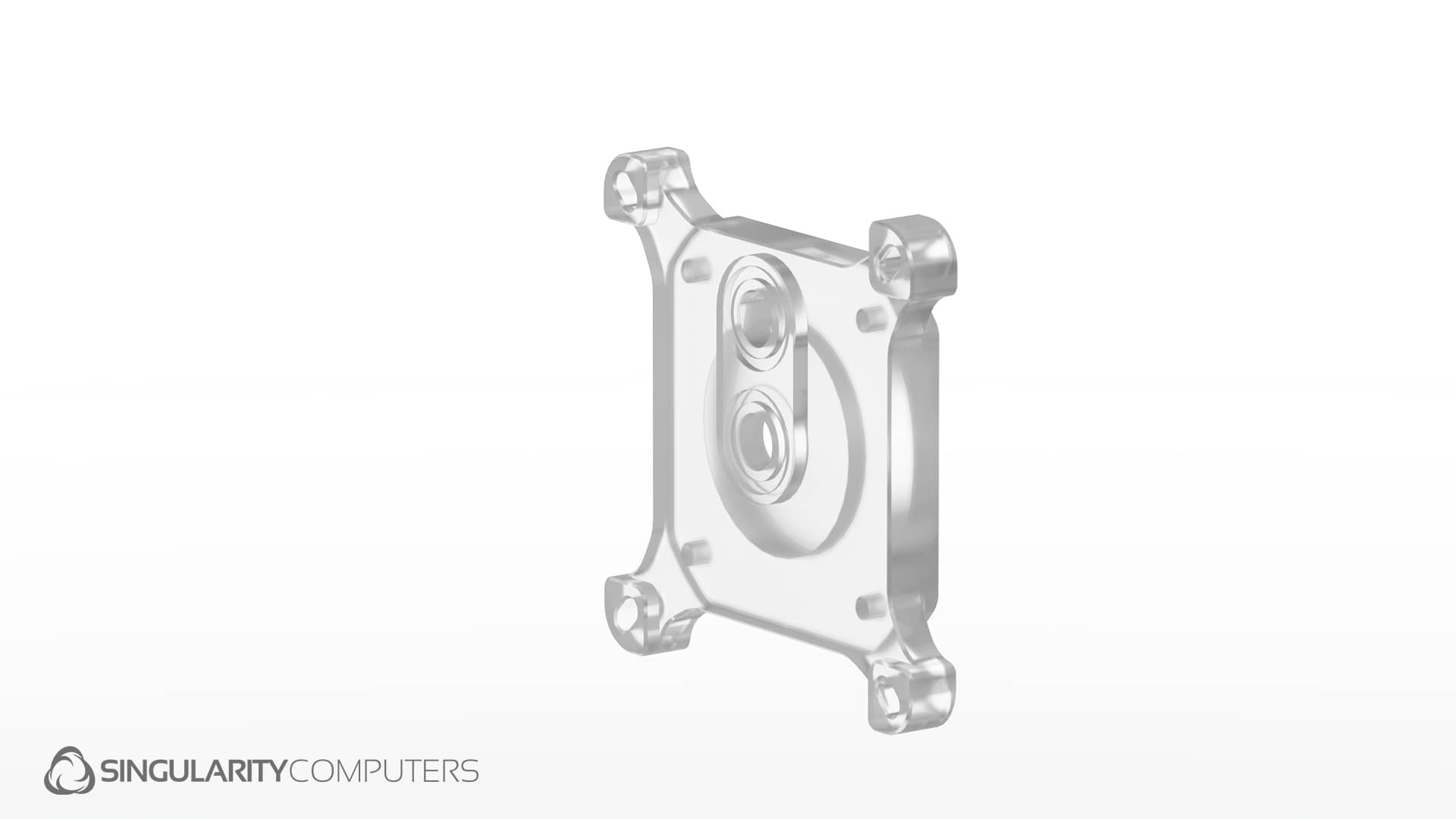

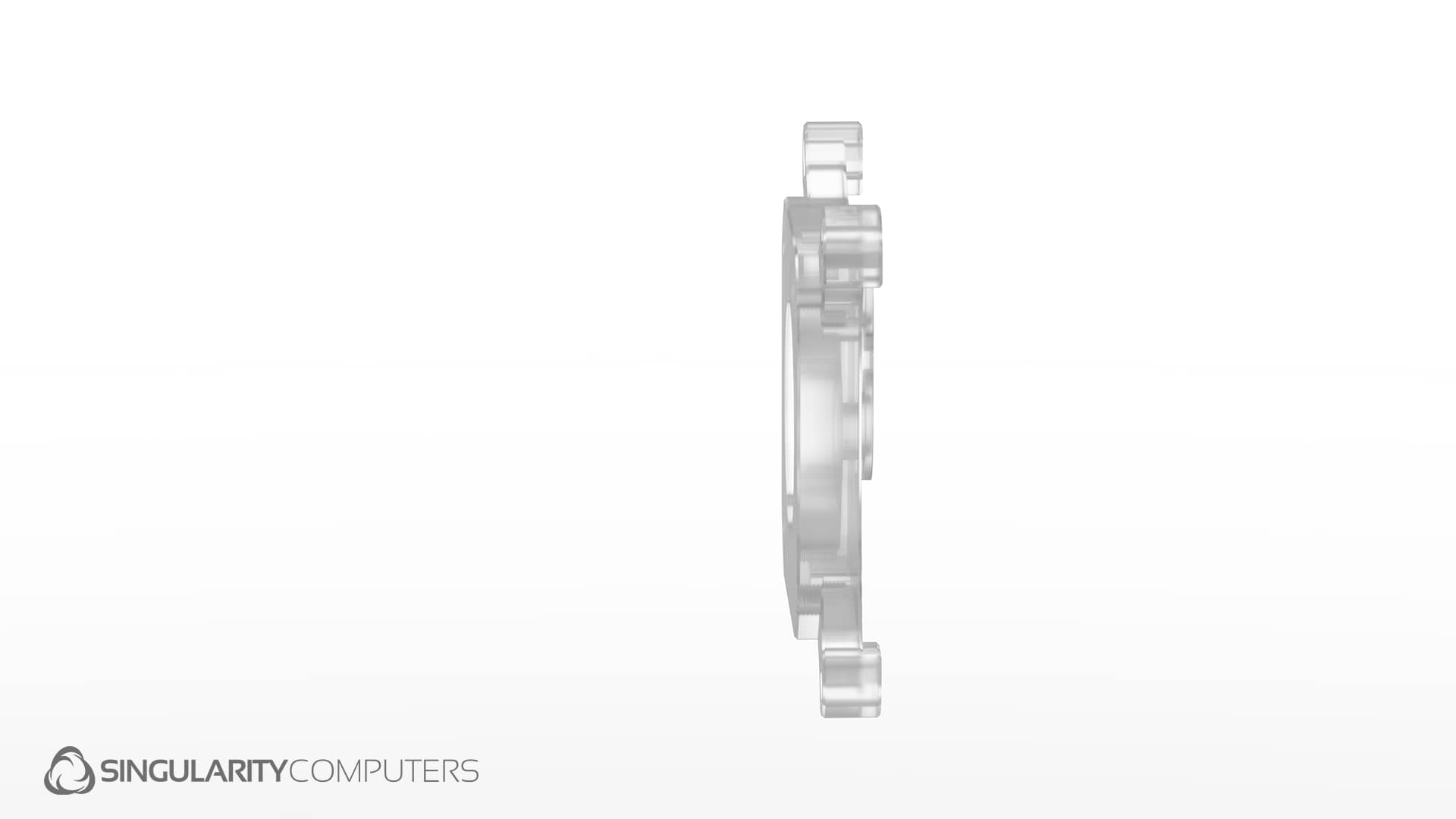

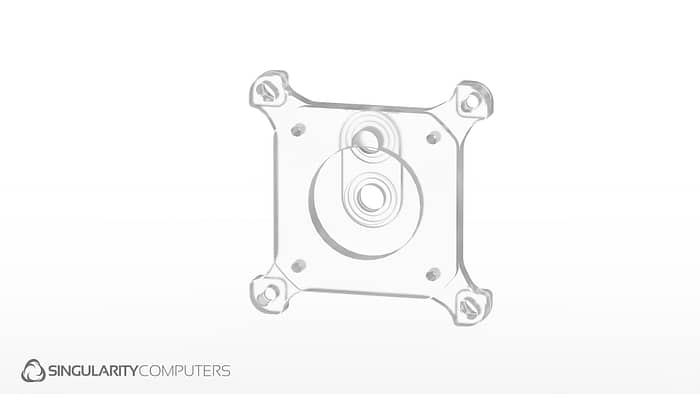

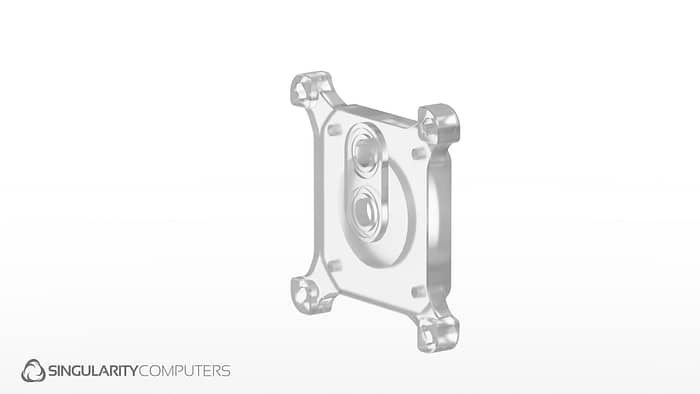

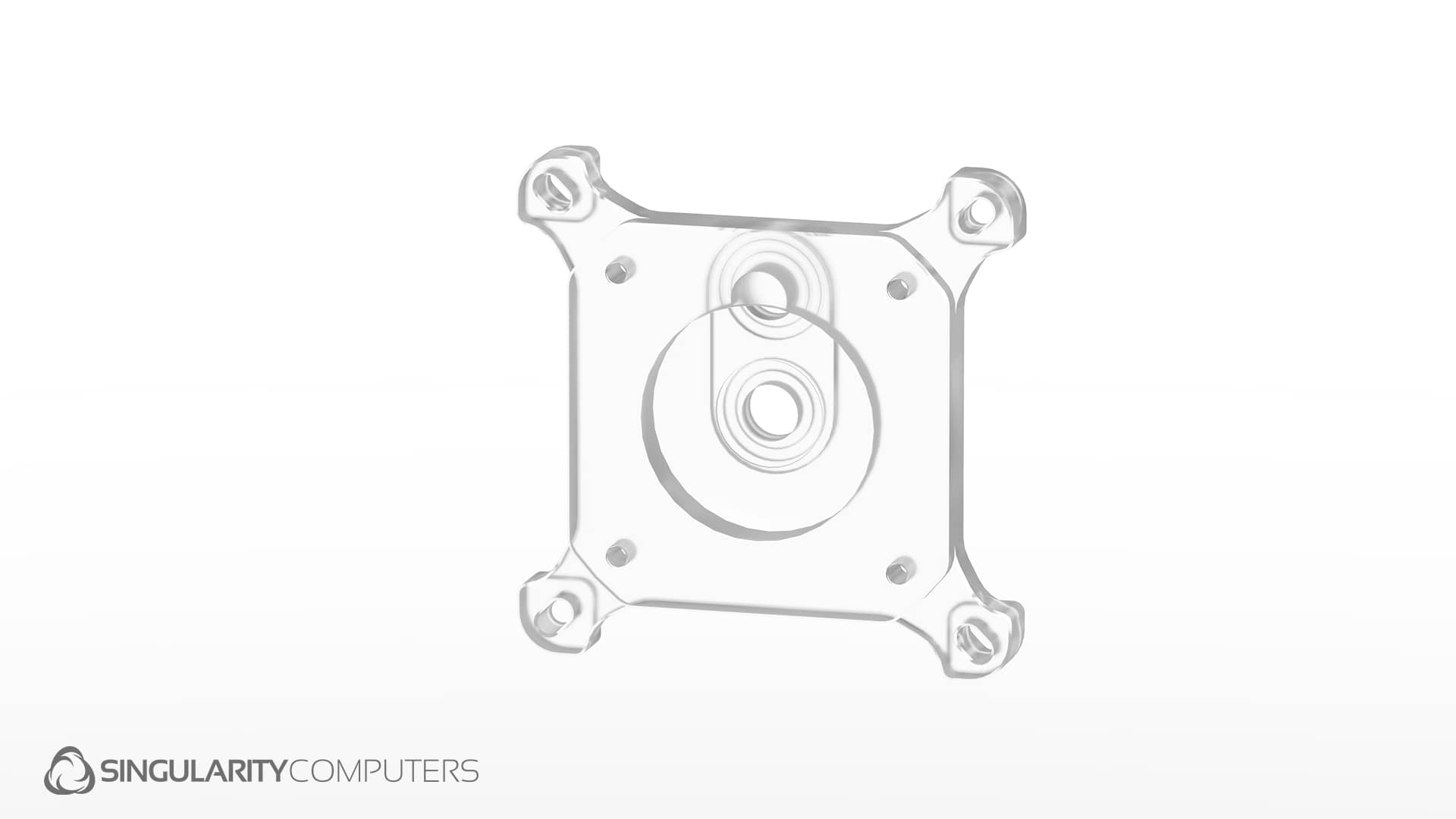

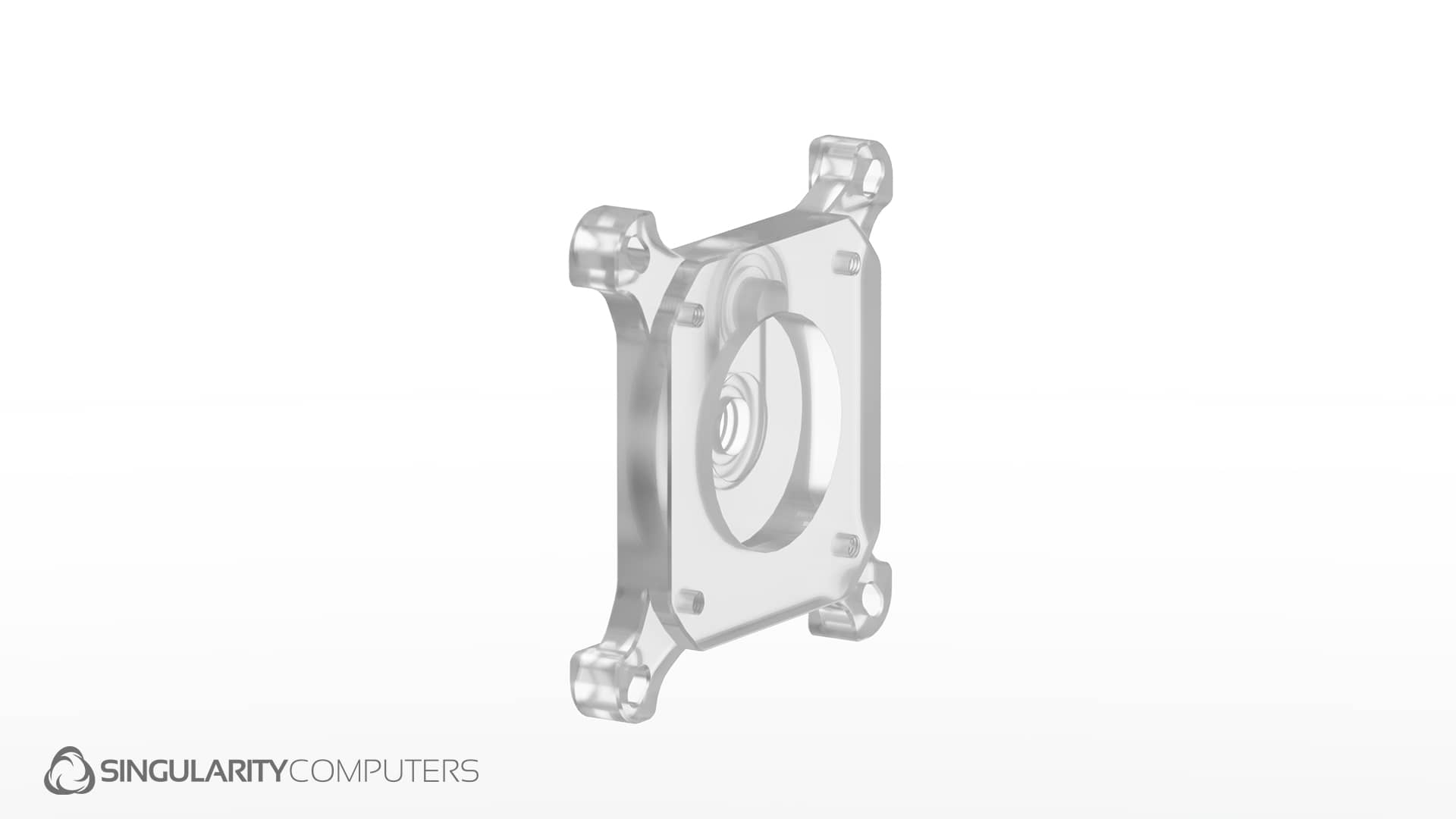

DDC Distribution Plate Pump Top

Specifications:
DDC Distribution Plate Pump Top. Clear Cast Acrylic. CNC Machined.
O-Rings: Silicone Black: x2.
Dimensions: L: 88mm x W: 88mm x H: 14mm.
Weight: 0.05kg.
Packaged Dimensions: L: 120mm x W: 100mm x H: 15mm.
Packaged Weight: 0.06kg.

Compatibility:
All Singularity Computers Distribution Plates with integrated pump tops except products which already include a DDC Pump Top. Compatible with any DDC pump or pump cover.

Installation:
Different fastener lengths are required depending on the product you are installing the pump top onto which is why fasteners are not included. The pump top is designed for M4 fasteners. Make sure to install the 2x small black O-Rings onto the back of the pump top before installing it onto the distribution plate. Install the DDC pump using the O-Ring, Fasteners and Pump Cover which came included with the pump. Custom DDC pump covers can also be used.
