Fractal North Distribution Plate Set

In stock

Order processing time 1-2 days.

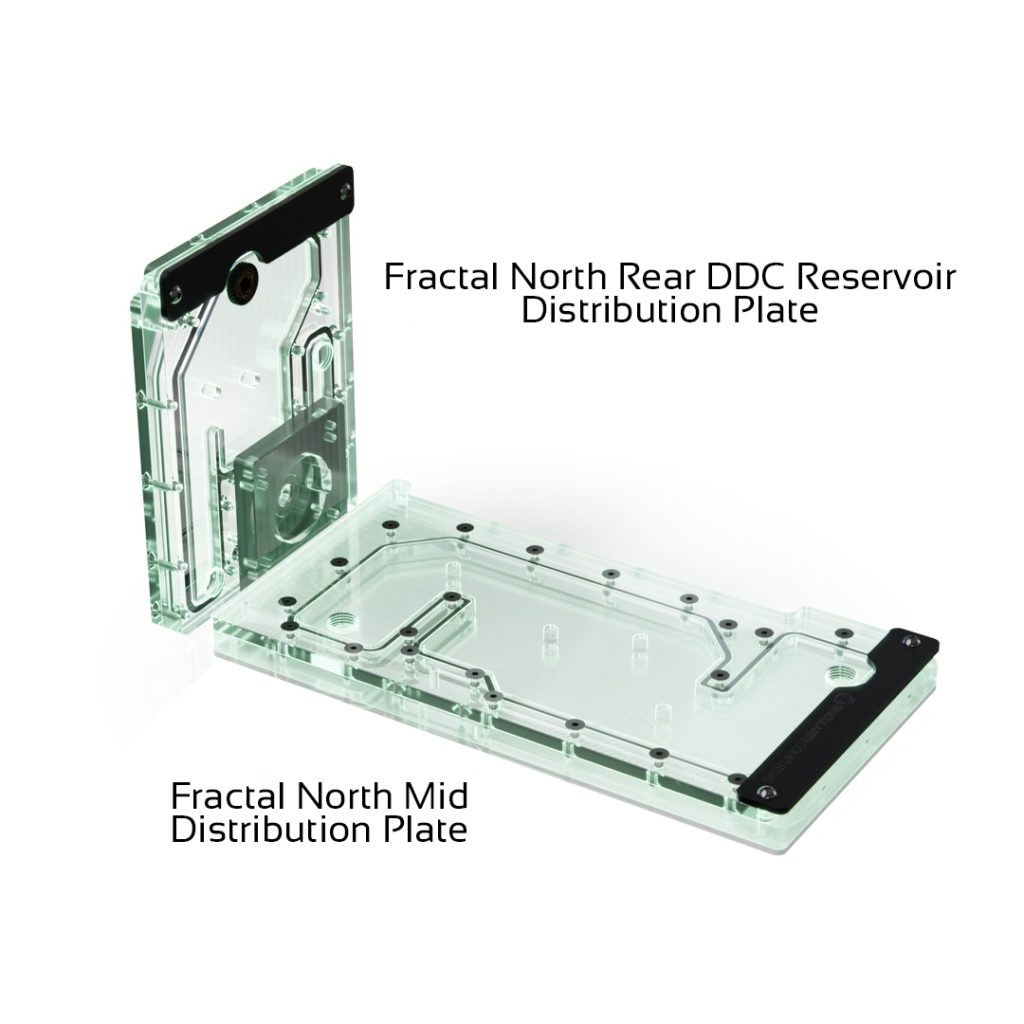

  • Two-piece distribution plate set for Fractal North and North XL
  • Includes vertical rear-mounted distribution plate and horizontal PSU shroud distribution plate
  • Vertical plate with integrated DDC pump top and reservoir
  • Horizontal plate mounts below the motherboard on the PSU shroud
  • CNC-machined clear cast acrylic with durable gasket seals
  • Two integrated ARGB LED strips with customizable covers
  • Includes Back Plates to conceal the rear of the distribution plates
  • Hand assembled with stainless steel fasteners

Manuals

US$99.00 US$199.00Price range: US$99.00 through US$199.00

Select Acrylic Cover and Back Plate Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$15.92 Silver Mirror +US$15.92 Gold Mirror +US$15.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers and back plates.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select Acrylic Cover and Back Plate Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$7.92 Silver Mirror +US$7.92 Gold Mirror +US$7.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers and back plates.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

DDC Pump Cover Black (optional) USD $39
None Yes +US$39.00

DDC Pump Cover
The Singularity Computers DDC Pump Cover is built from CNC machined anodized aluminum. It covers the DDC to improve aesthetics, but it also has a built in heatsink for extra cooling of the pump motor which is known to run hot and is not cooled by the coolant. The DDC Pump Cover has a Singularity Computers logo on the base. It is compatible with all DDC Pumps and Pump Tops.

Stop Fitting (optional) USD $4
None Yes +US$4.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Fractal North Distribution Plate Set
    US$99.00 US$199.00Price range: US$99.00 through US$199.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
SKU: N/A Category:

Description

Read More +Read Less − full description

Horizontal and Vertical Distribution Plate Set for the Fractal North and Fractal North XL. The Vertical Distribution Plate mounts onto the rear panel above the expansion slot and next to the motherboard IO, it has an integrated DDC pump top and a reservoir. The Horizontal Distribution Plate mounts below the motherboard on top of the PSU shroud. The distribution plates are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. There are two integrated ARGB LED strips with covers, there are also Back Plates included to cover the rear side of the Rear Distribution Plates, select from the colour options below for the covers.





Specifications

Fractal North Distribution Plate Set. The set can be purchased together or they can be purchased separately (select above).
Fractal North Mid Distribution Plate.
Fractal North Mid Distribution Plate Cover.
Fractal North Rear DDC Reservoir Distribution Plate.
Fractal North Rear DDC Reservoir Distribution Plate Cover.
Integrated Pump Top: DDC.
Integrated Reservoir.
Integrated LED Strip: ARGB 5V with 50cm cable x2.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions & Weight:
Fractal North Distribution Plate Set: L: 200mm x W: 120mm x H: 50mm. 2kg.
Fractal North Mid Distribution Plate: L: 200mm x W: 120mm x H: 26mm. 1kg.
Fractal North DDC Reservoir Distribution Plate: L: 120mm x W: 26mm x H: 50mm. 1kg.
Packaged Dimensions & Weight:
Fractal North Distribution Plate Set: L: 300mm x W: 200mm x H: 50mm. 2kg.
Fractal North Mid Distribution Plate: L: 300mm x W: 200mm x H: 50mm. 1kg.
Fractal North DDC Reservoir Distribution Plate: L: 200mm x W: 150mm x H: 50mm. 1kg.

Installation:
Compatible with the Fractal North and Fractal North XL. This distribution plate set includes a horizontal distribution plate which installs onto the top of the PSU shroud, and a vertical distribution plate which installs onto the rear panel above the expansion slots.
