HAVN HS420 D5 Reservoir Elite Distribution Plate

Name: HAVN HS420 D5 Reservoir Elite Distribution Plate
SKU: SC-HAVN-DIST-EL
Availability: InStock

Order processing time 1-2 days.

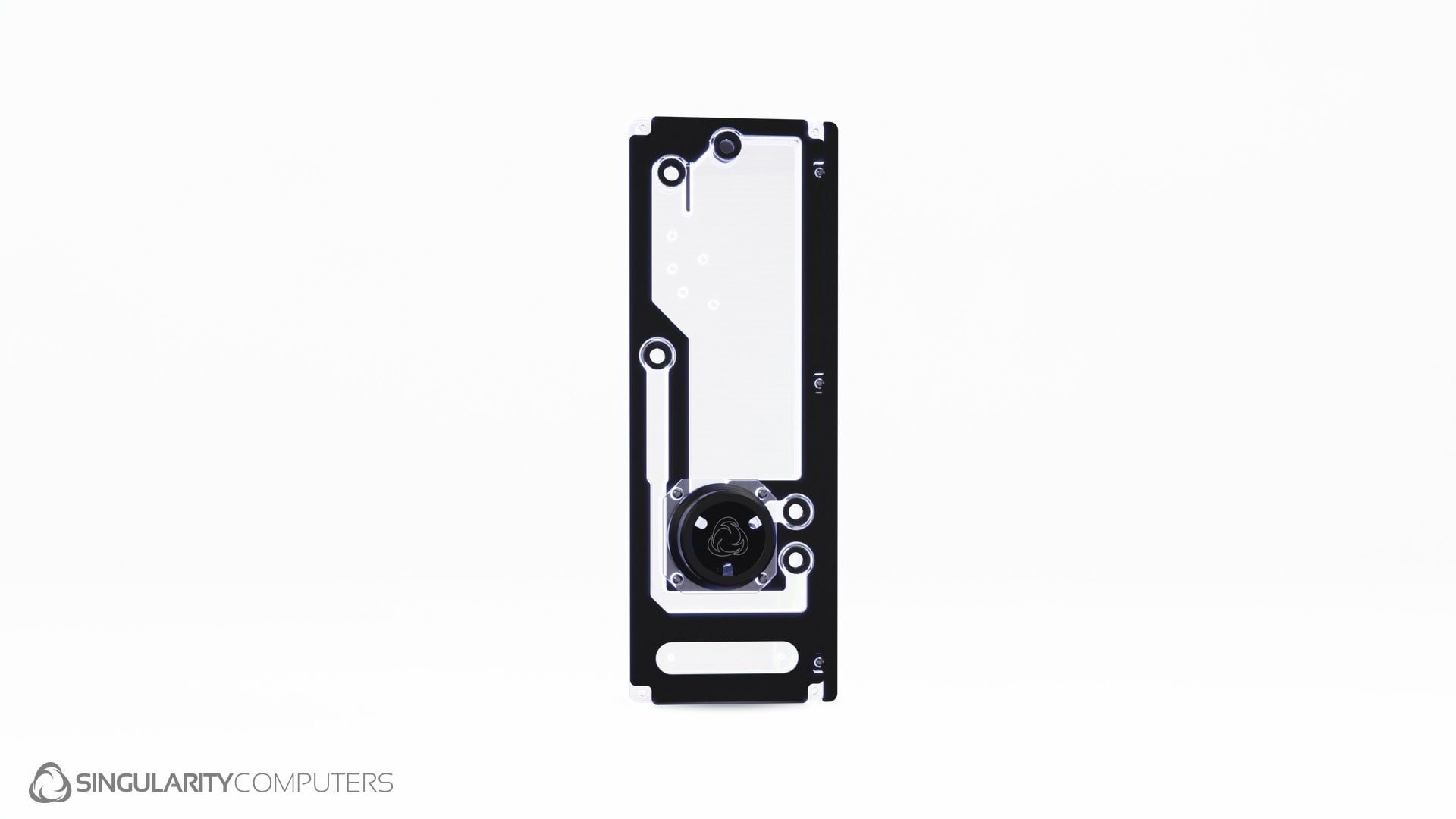

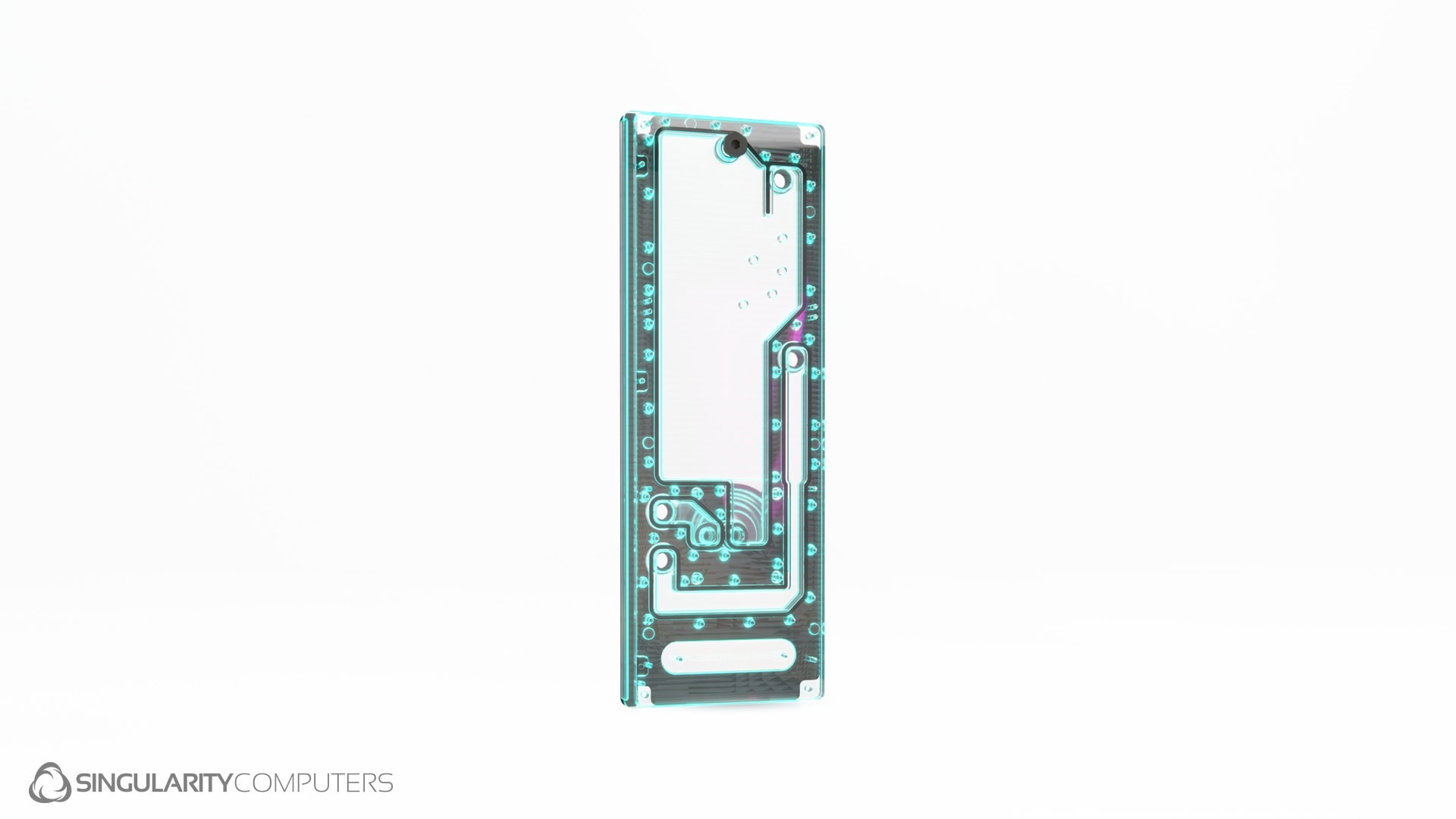

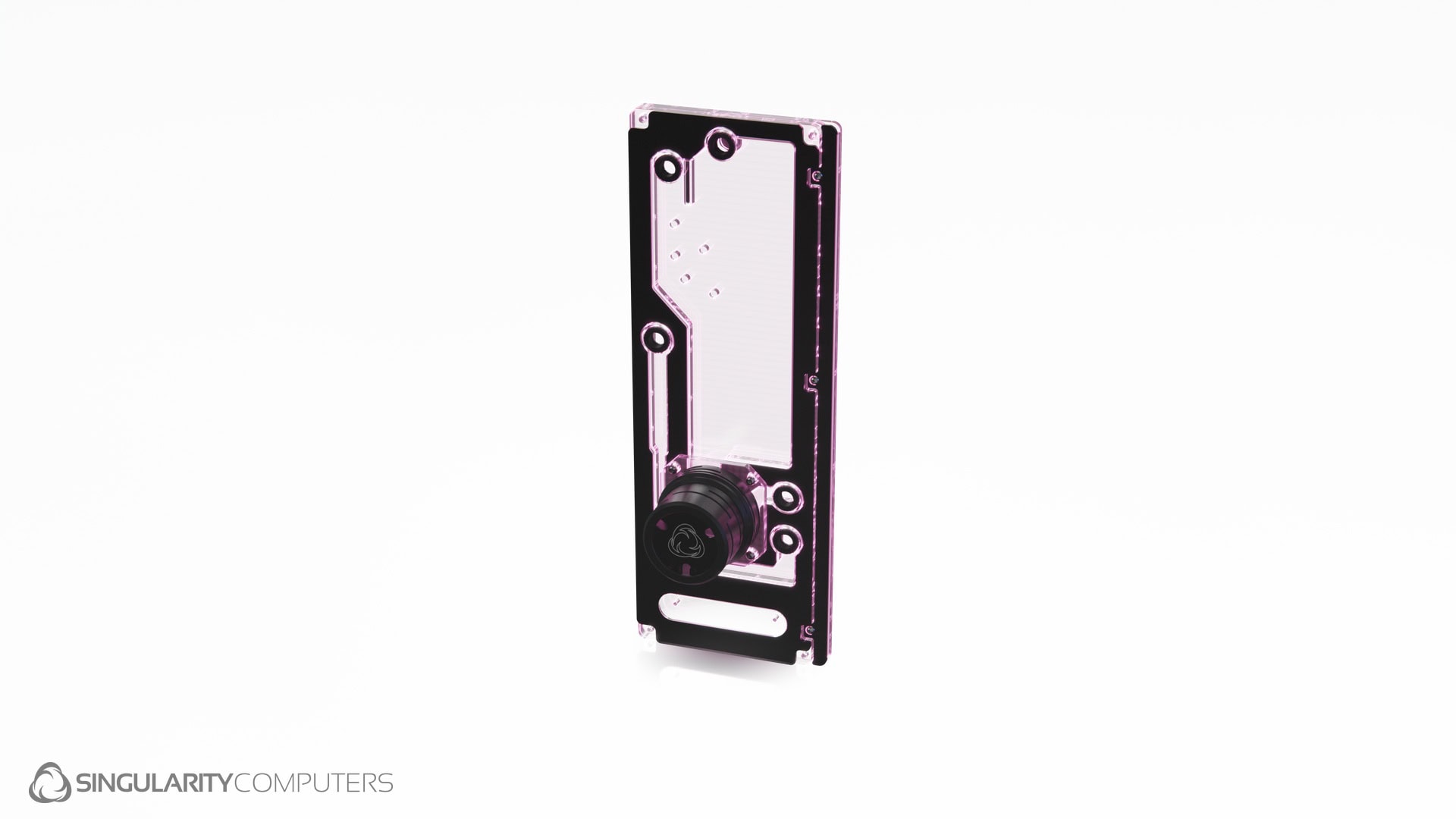

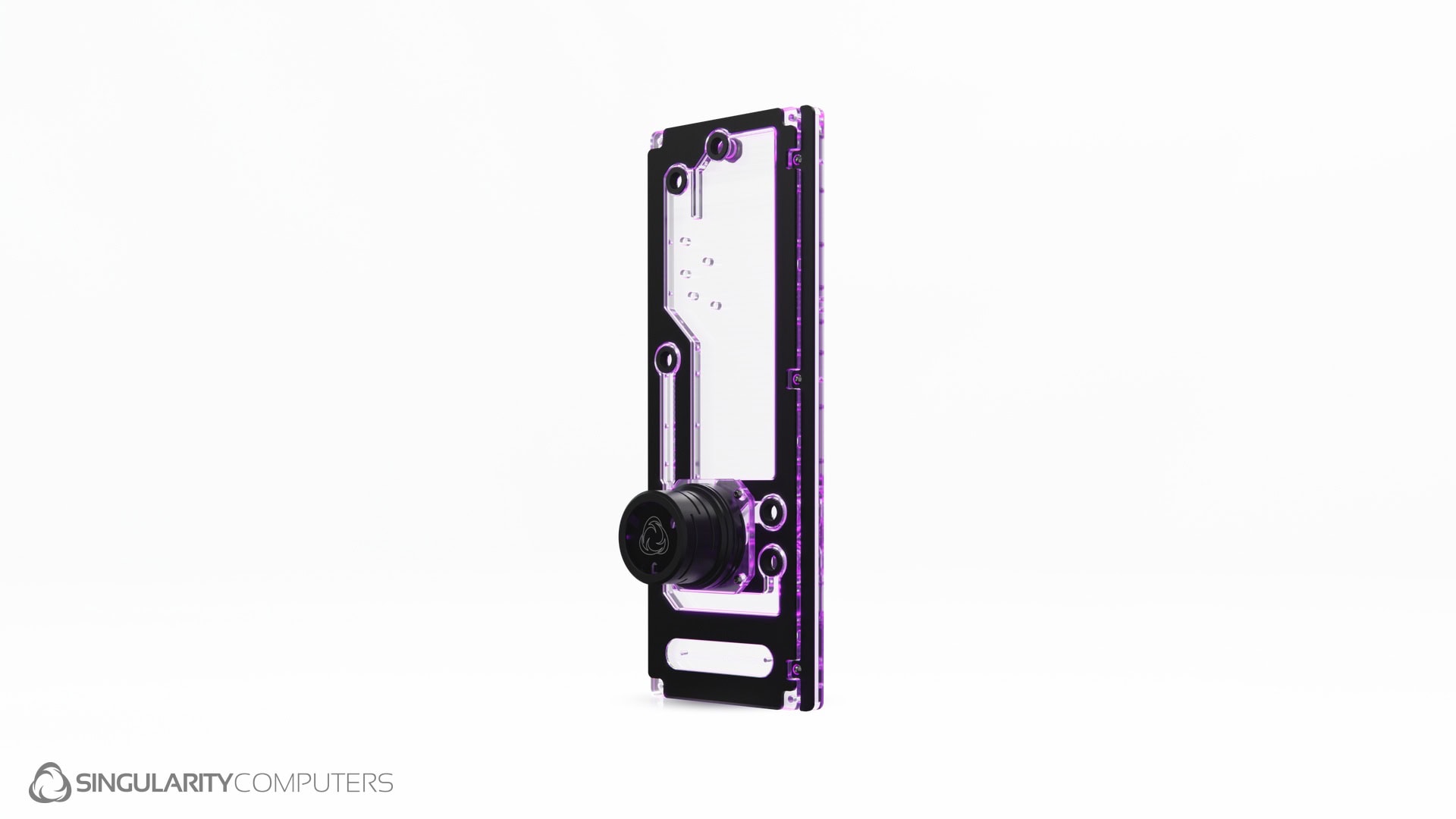

The HAVN HS420 D5 Reservoir Elite Distribution Plate fits onto any 420mm radiator mount but is specifically designed for the HAVN HS420. It is intended to be used instead of a radiator or fans but it could be used in combination with them if stand-offs or spacers were used for airflow. It has an integrated reservoir, D5 pump top, D5 Pump Cover, Fill and Drain Ports. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners. It has an integrated ARGB LED strip with an Accent Cover. There is also an optional Back Plate included to cover the rear side of the Rear Distribution Plate, so that you can’t see the case panel behind it. Select from the different color options below for the Accent Covers and Back Plates.
The Elite version has no visible fasteners and has a full distribution plate cover which covers the main fasteners and gaskets. It also has brass G1/4” thread inserts instead of threads directly in the acrylic, which makes the threads much more durable. Different colors and finishes can be selected from the options below.

Pumps not included. Compatible with any D5 Pumps.

Build Gallery

US$349.00

Select Mounting (included)

If you are mounting to a radiator select which type your radiator uses. If you are mounting to standard 25mm fans or to a radiator with fans in between select the options ‘radiator/fans’. If you are not mounting to a radiator select ‘Standard Mounting’ which is for mounting to a radiator mount.

Personalised Laser Etching (optional)

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

Select D5 Retention Ring Colour (included)

CNC milled anodized retention ring.

Black

Select D5 Pump Cover Options (optional) USD $39

CNC milled anodised pump cover with ARGB lights and Singularity Computers Logo.

D5 Pump (optional) USD $98

D5 Pump 1500LPH 3.7m head pressure.

Add to wishlist

EAN: 9362188003084 SKU: SC-HAVN-DIST-EL Categories: HAVN, New Products

Description

Manual

Gallery

Specifications:
HAVN HS420 D5 Reservoir Elite Distribution Plate.
Protium 3.0 ARGB D5 Pump Cover (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 420mm x W: 140mm x H: 110mm.
Weight: 2.2kg.
Packaged Dimensions: L: 420mm x W: 170mm x H: 150mm.
Packaged Weight: 2.5kg.

Installation:
Installs onto any 420mm radiator mount, but it is specifically designed to be installed on the vertical 420mm radiator mount in the HAVN HS420. Can be installed onto a radiator mount, radiator or fans.
