Hyte Y70 Distribution Plate Set Limited Edition

In stock

Order processing time 1-2 days.

  • Limited Edition redesigned distribution plate set for Hyte Y70
  • Includes Pump Reservoir and Horizontal Distribution Plates
  • Integrated PCB covers with LEDs for improved lighting and aesthetics
  • Updated port locations for improved component alignment
  • Optimized fitment for the Hyte Y70 Touch Infinite Display
  • Single-loop design with optimized routing when both plates are used
  • Integrated pump top and reservoir on the rear-mounted plate
  • CNC-machined clear cast acrylic with durable gasket seals
  • Can be used together or as individual distribution plates
  • Hand assembled with stainless steel fasteners

Note: Compatible with Hyte Y70 Touch Infinite.

Manuals

US$179.00 US$399.00Price range: US$179.00 through US$399.00

Limited to 200
Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x2 (optional) USD $8
None Yes +US$8.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Stop Fitting (optional) USD $4
None Yes +US$4.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

  • 1x Hyte Y70 Distribution Plate Set Limited Edition
    US$179.00 US$399.00Price range: US$179.00 through US$399.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
SKU: N/A Category:

Description

Read More +Read Less − full description

The Hyte Y70 Distribution Plate Set Limited Edition is a re designed version of our Hyte H70 Distribution Plate set which includes PCB covers with integrated LEDs for improved lighting and aesthetics. The design of both distribution plates has also been updated to improve port locations for better port alignment to components. The designs have also been changed for improved fitment, also with the Hyte Y70 Touch Infinite Display.

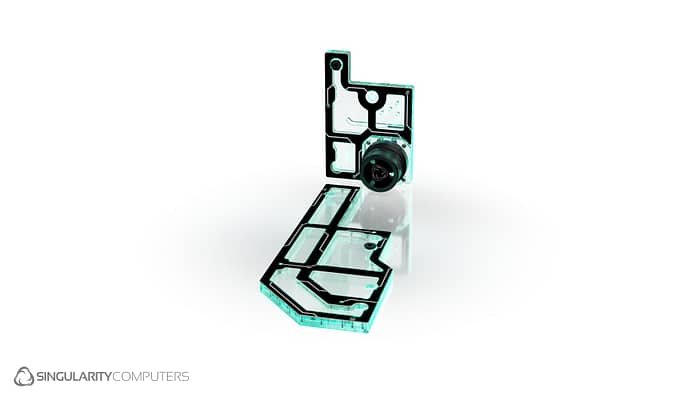

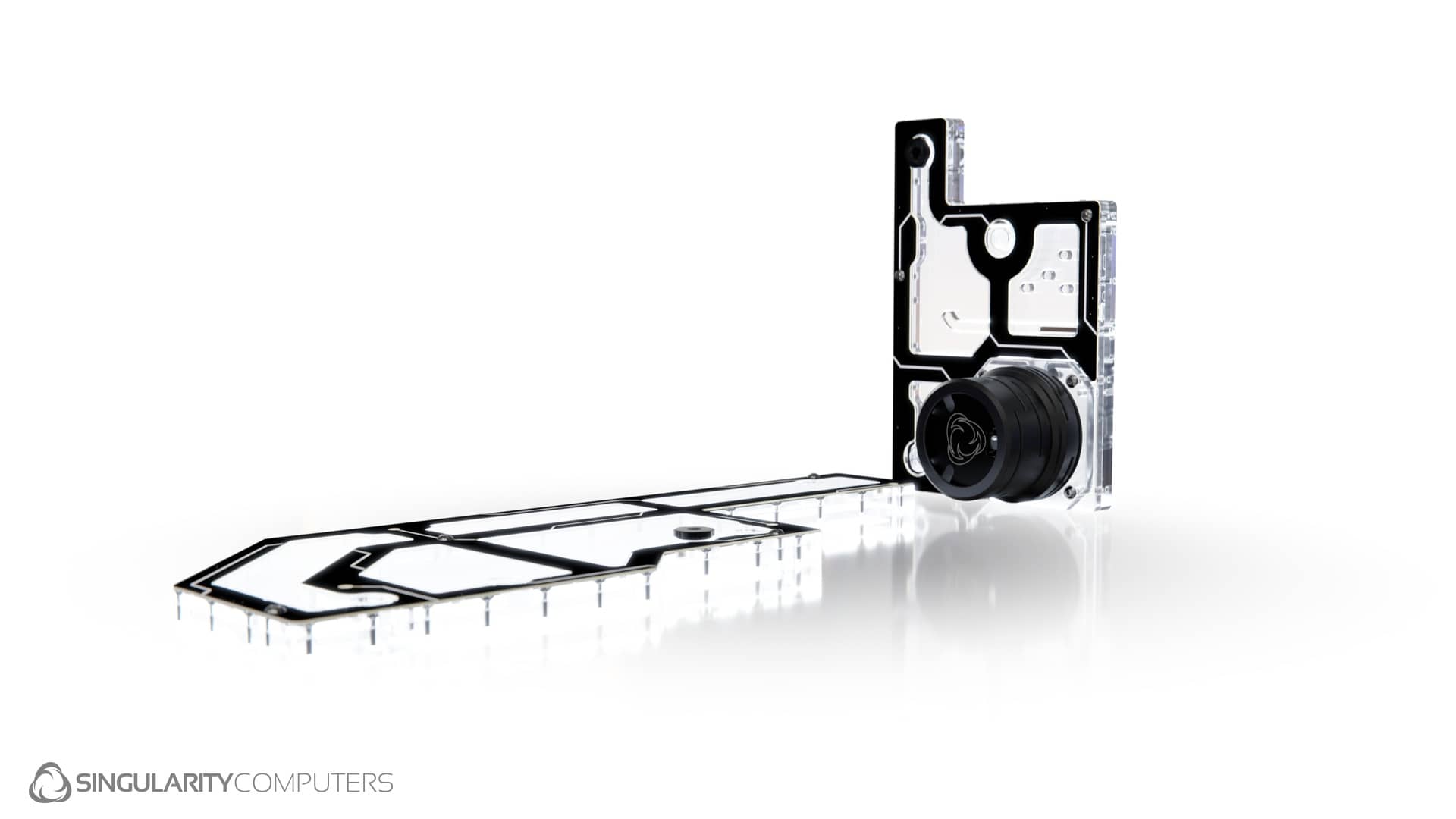

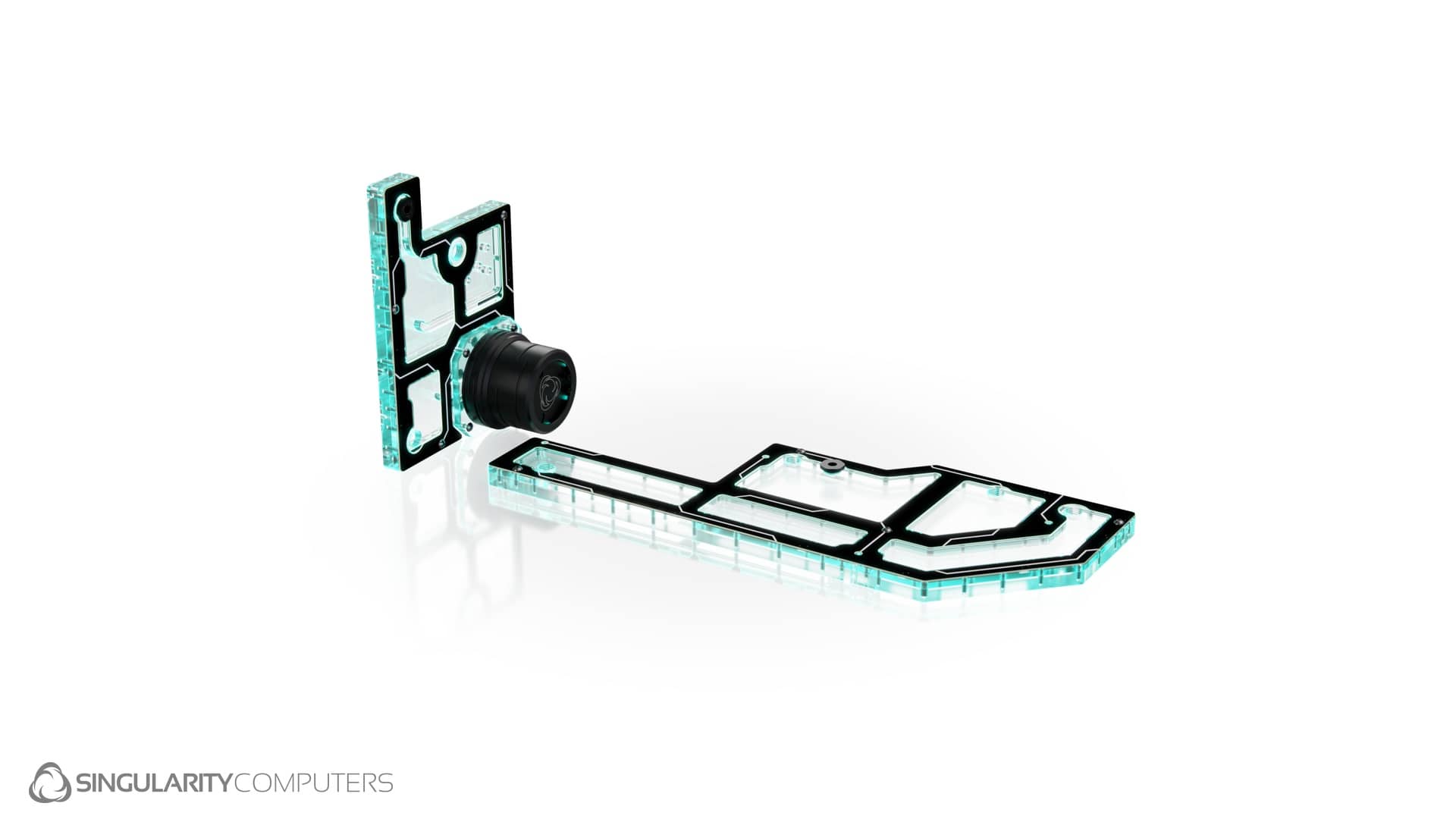

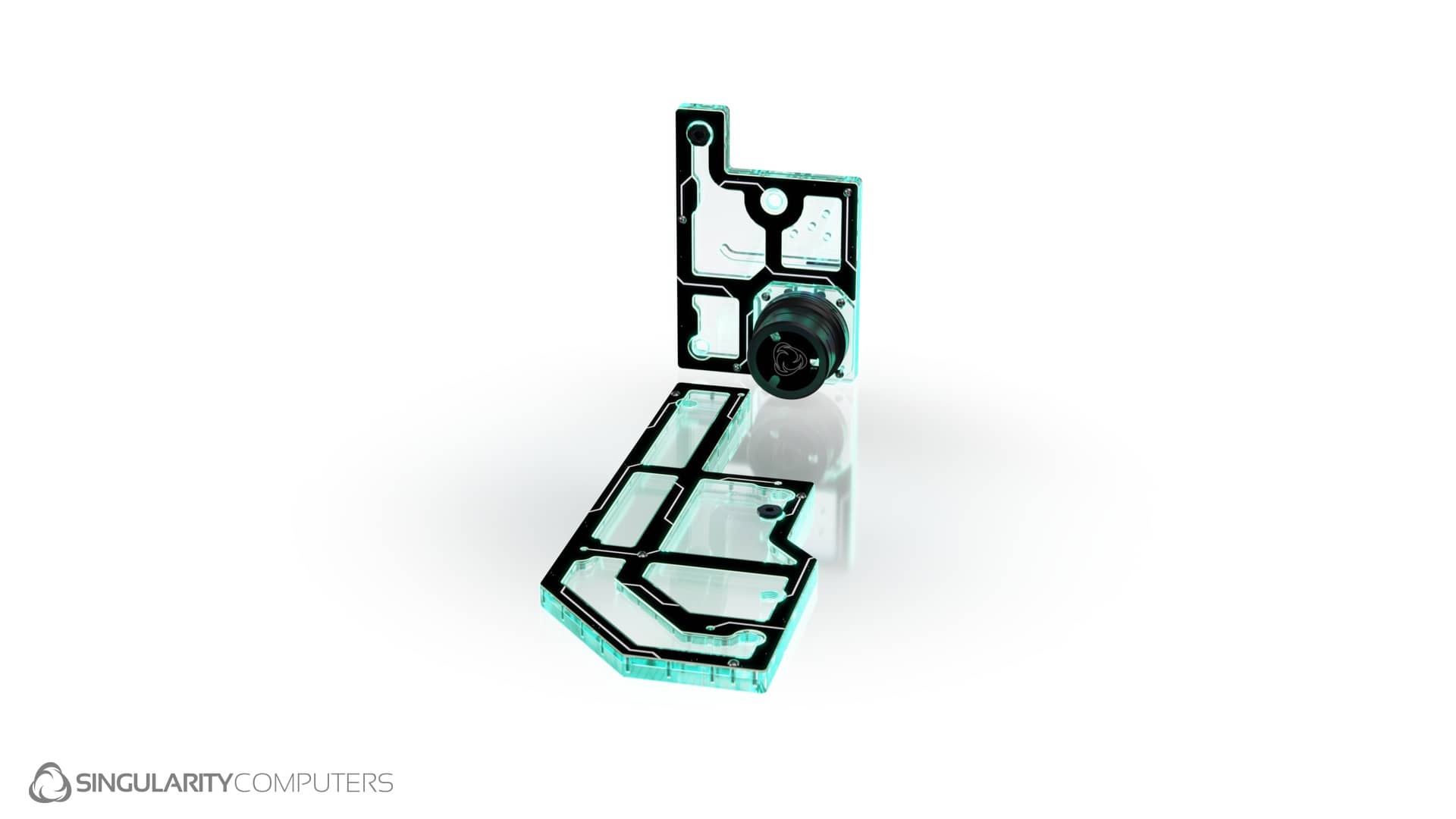

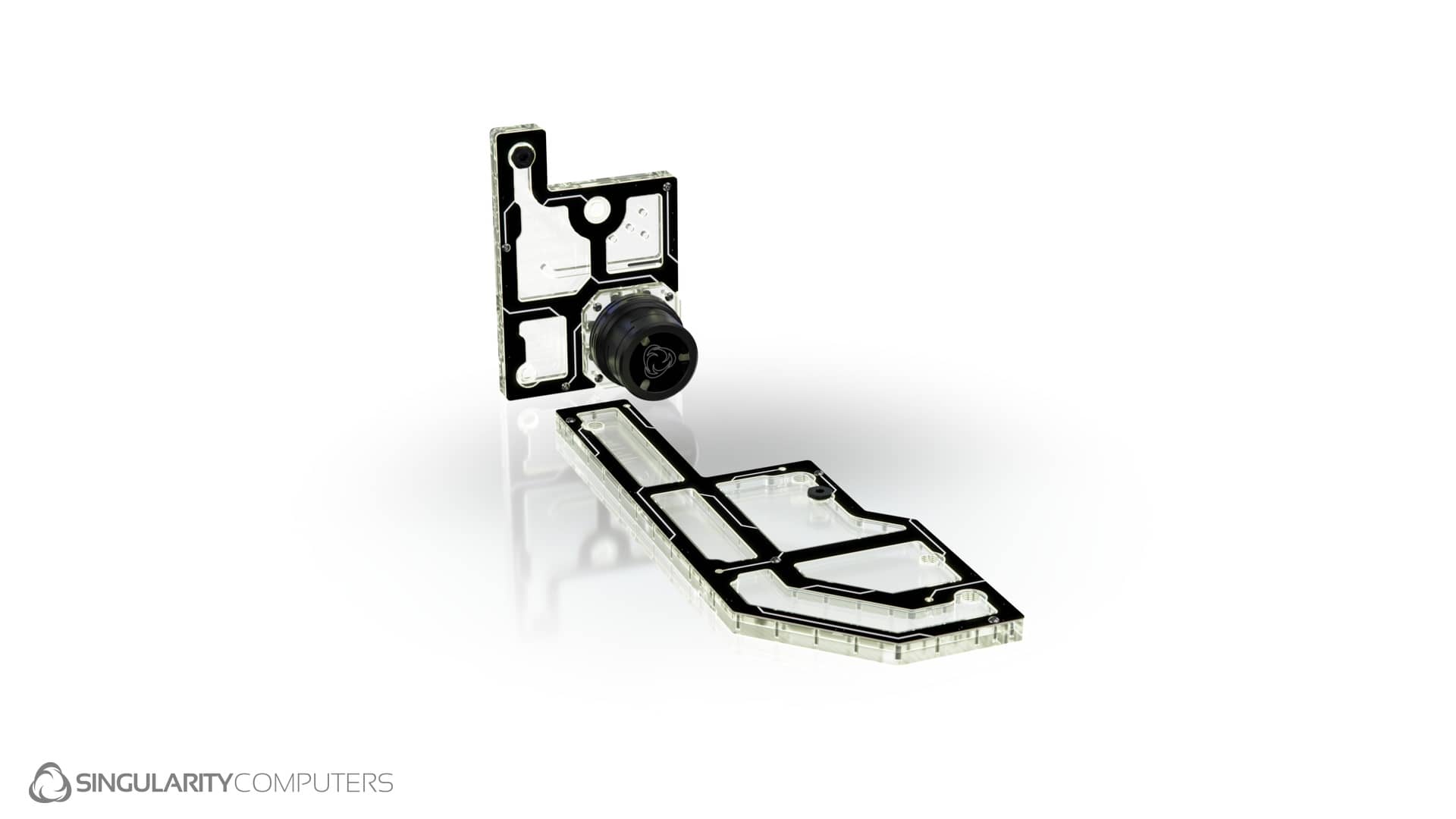

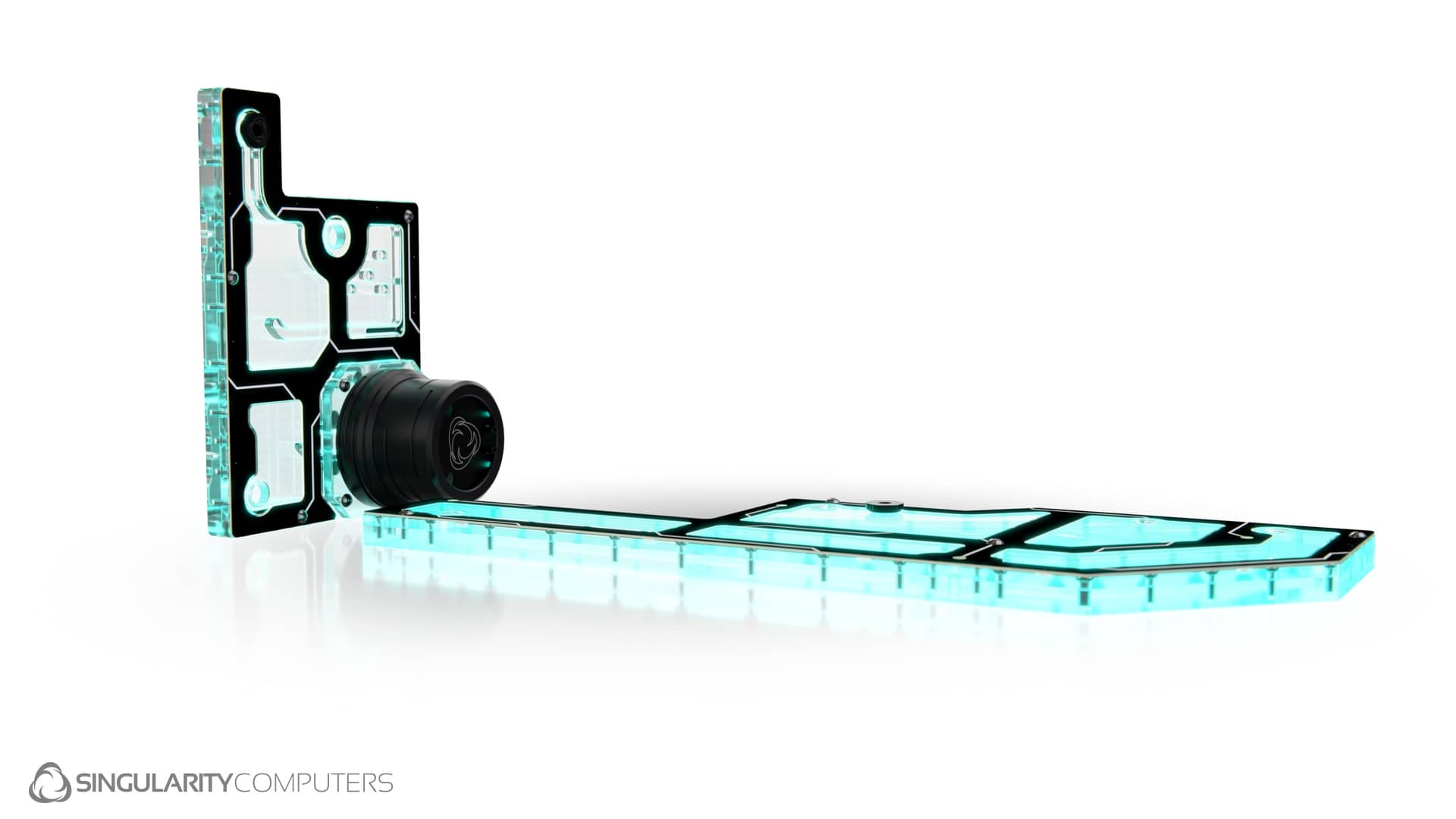

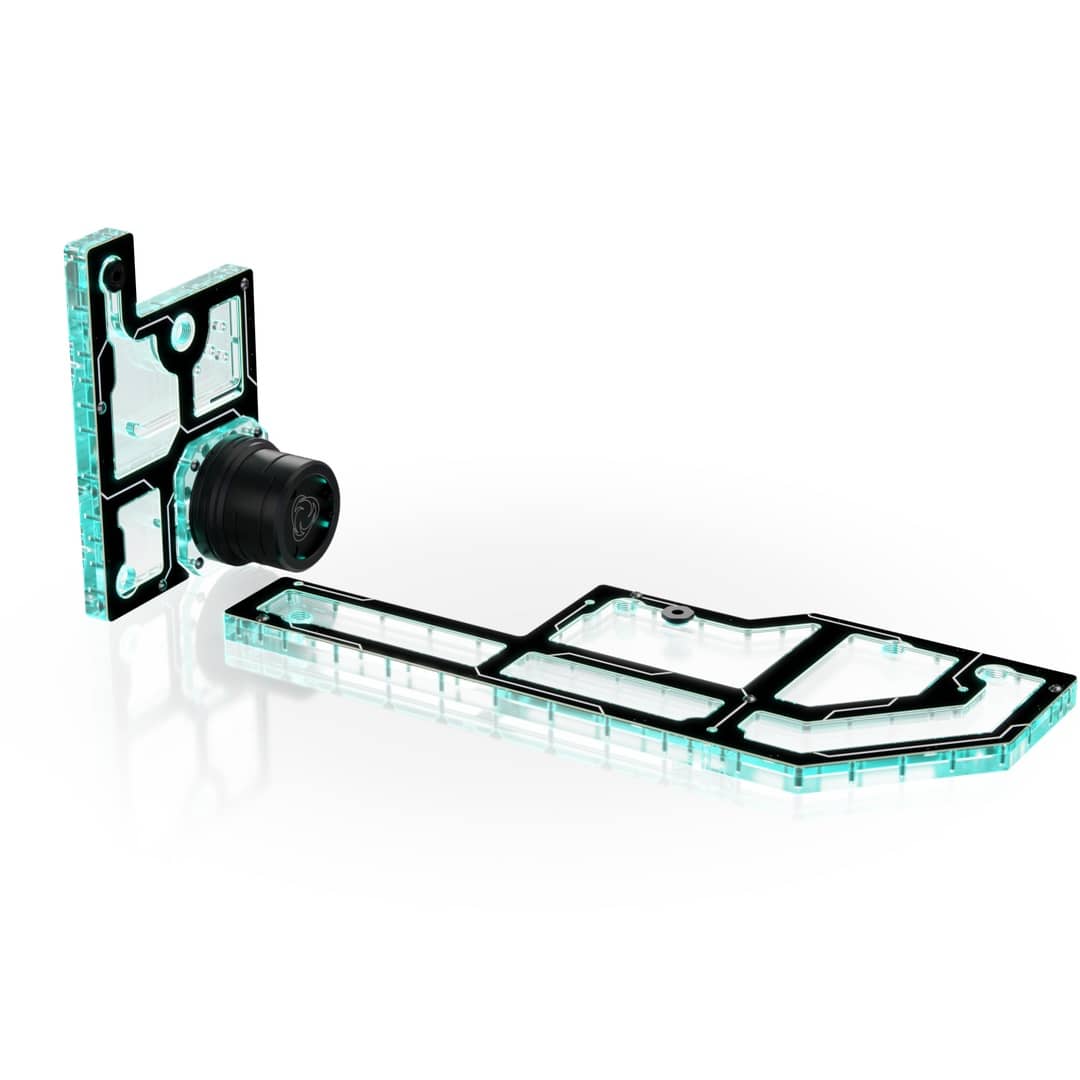

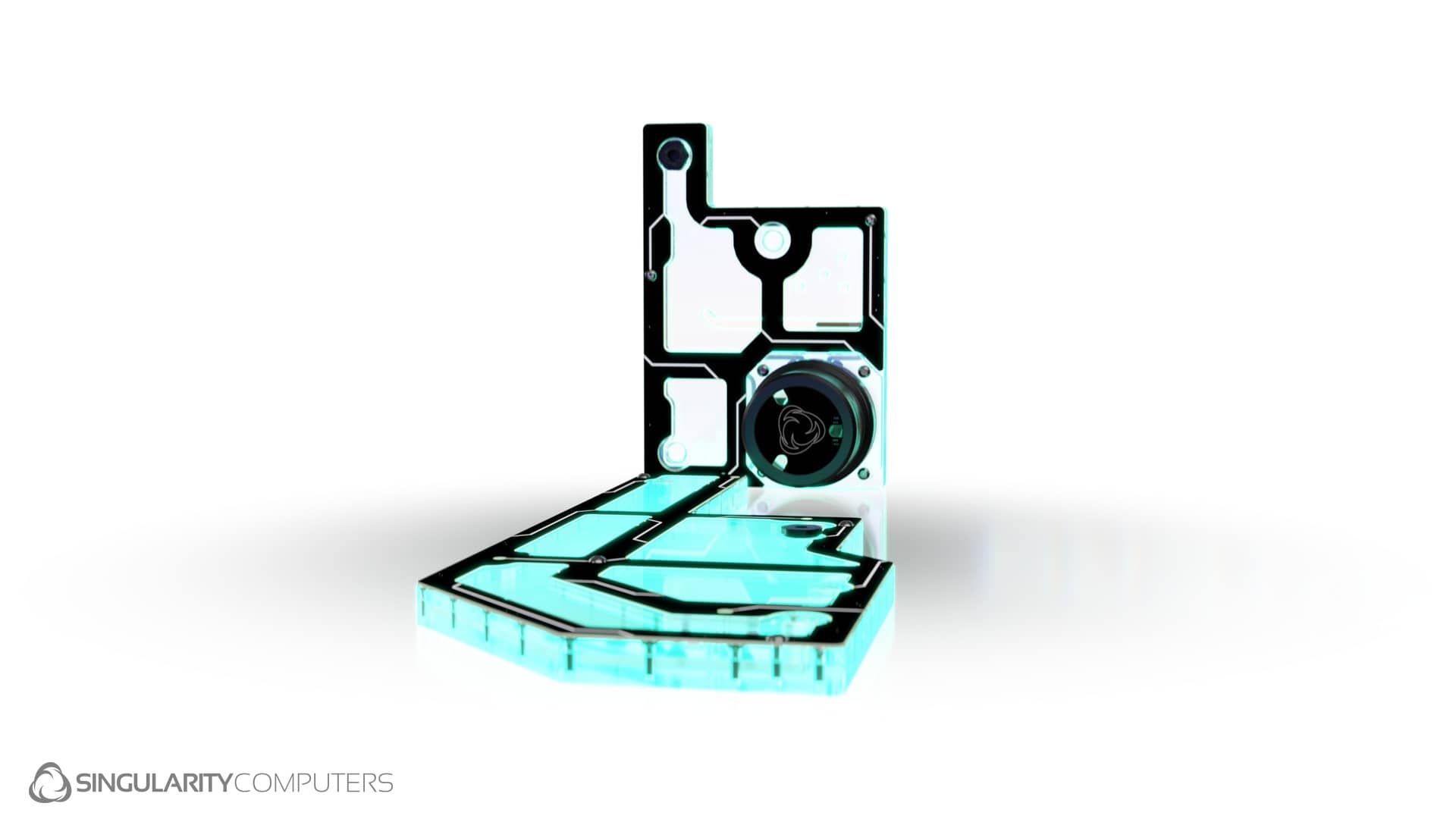

This distribution plate set includes the Hyte Y70 Pump Reservoir Distribution Plate Limited Edition and the Hyte Y70 Horizontal Distribution Plate Limited Edition. This is a single loop distribution plate set. Both distribution plates can be used together or separately but the loop route is optimal if they are used together. The Pump Reservoir Distribution Plate mounts onto the rear panel and has an integrated pump top and reservoir. The Horizontal Distribution Plate mounts below the motherboard on the bottom panel. The distribution plates are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners.



Specifications

Hyte Y70 Distribution Plate Set Limited Edition. The set can be purchased together or separately (select above).
Hyte Y70 Pump Reservoir Distribution Plate Limited Edition.
Hyte Y70 D5 Reservoir Distribution Plate Cover.
Hyte Y70 Horizontal Distribution Plate Limited Edition.
Integrated ARGB LED PCB on each distribution plate with 30cm black cable.
Fasteners: Stainless Steel. M4 8mm x4, M4 Washers x4. M4 22mm x4, M4 Washers x4, M4 Nuts x4.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions & Weight:
Hyte Y70 Distribution Plate Set: L: 400mm x W: 250mm x H: 100mm. 5kg.
Hyte Y70 Pump Reservoir Distribution Plate: L: 200mm x W: 100mm x H: 50mm. 2kg.
Hyte Y70 Horizontal Distribution Plate: L: 400mm x W: 100mm x H: 50mm. 3kg.
Packaged Dimensions & Packaged Weight:
Hyte Y70 Distribution Plate Set: L: 400mm x W: 300mm x H: 100mm. 5kg.
Hyte Y70 Pump Reservoir Distribution Plate: L: 300mm x W: 200mm x H: 50mm. 2kg.
Hyte Y70 Horizontal Distribution Plate: L: 400mm x W: 300mm x H: 50mm. 3kg.

Installation:
This distribution plate set includes a horizontal distribution plate which installs onto the bottom panel of the Hyte Y70 below the motherboard, and a vertical distribution plate which mounts to the rear panel of the case. Both distribution plates mount to existing holes on the case, there are no modifications needed.
