Lian Li DAN A3 Side D5 Reservoir Distribution Plate

In stock

Order processing time 1-2 days.

  • Designed for Lian Li DAN A3 side panel installation
  • Integrated reservoir and D5 pump top
  • CNC-machined clear cast acrylic construction
  • Edge-lit LED strip for enhanced aesthetics
  • Removable window for easy loop installation and maintenance

Manuals

US$249.00

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Distribution Plates

Lian Li DAN A3 Front Distribution Plate (optional) USD $199
None Yes +US$199.00

Lian Li DAN A3 Front Distribution Plate
Front Panel Distribution Plate for the Lian Li A3 mATX Case. It attaches to the front panel replacing the original front panel. It mounts to existing holes on the case so there is no need for modifications. It has an integrated reservoir but no pump top so a pump will need to be installed somewhere else in the water-cooling loop. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. Hand assembled with stainless steel fasteners. There is an integrated ARGB LED strip with an Accent Cover. There is also a Back Plate included to cover the inside of the Distribution Plate, so that you can’t see the case panels behind it.

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gold Mirror +US$16.00 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Water Cooling

Select D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x2 (optional) USD $8
None Yes +US$8.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Stop Fitting x3 (optional) USD $12
None Yes +US$12.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Lian Li DAN A3 Side D5 Reservoir Distribution Plate
    US$249.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188003190 SKU: SC-A3-S-DIST Categories: ,

Description

Read More +Read Less − full description

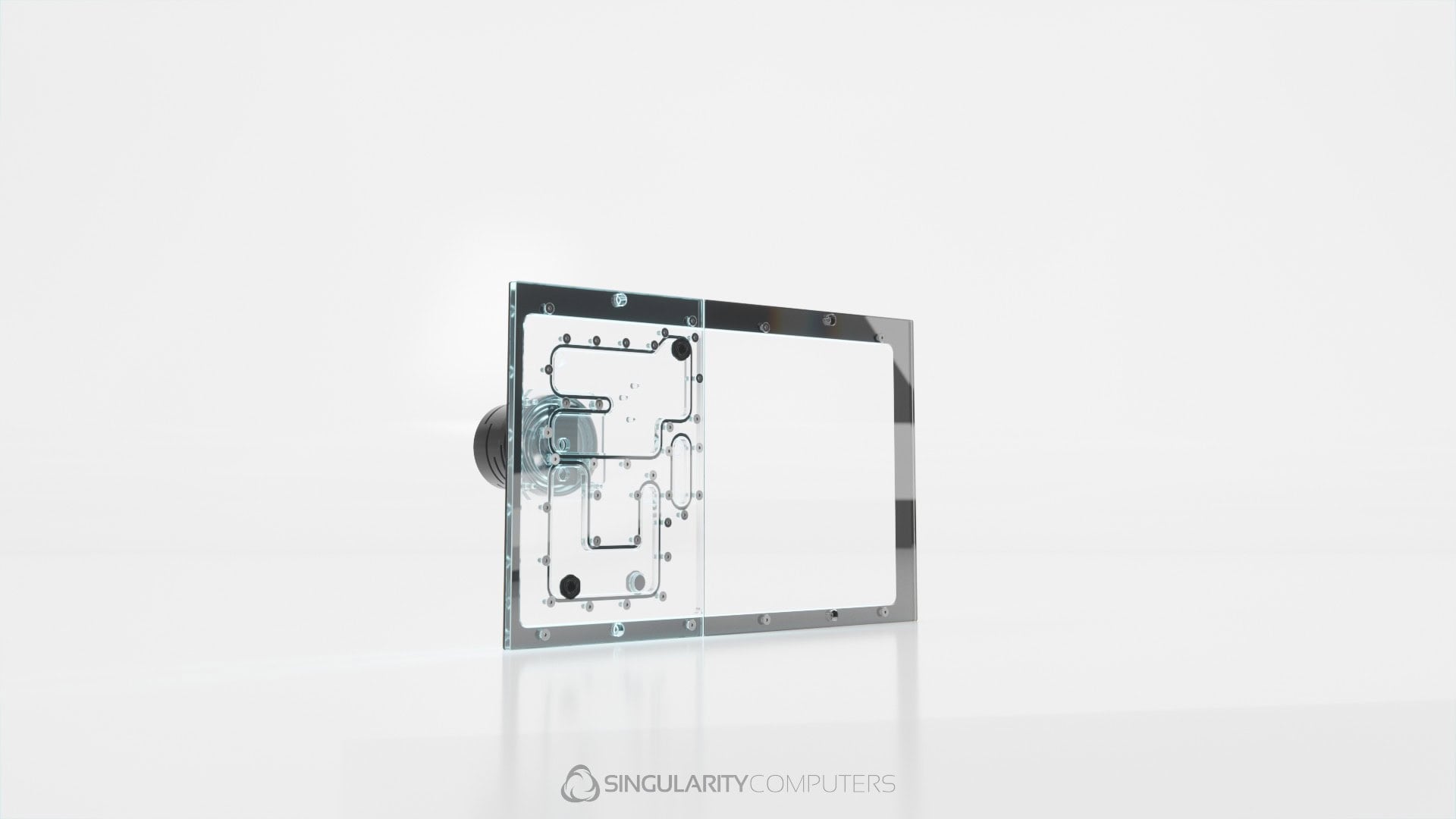

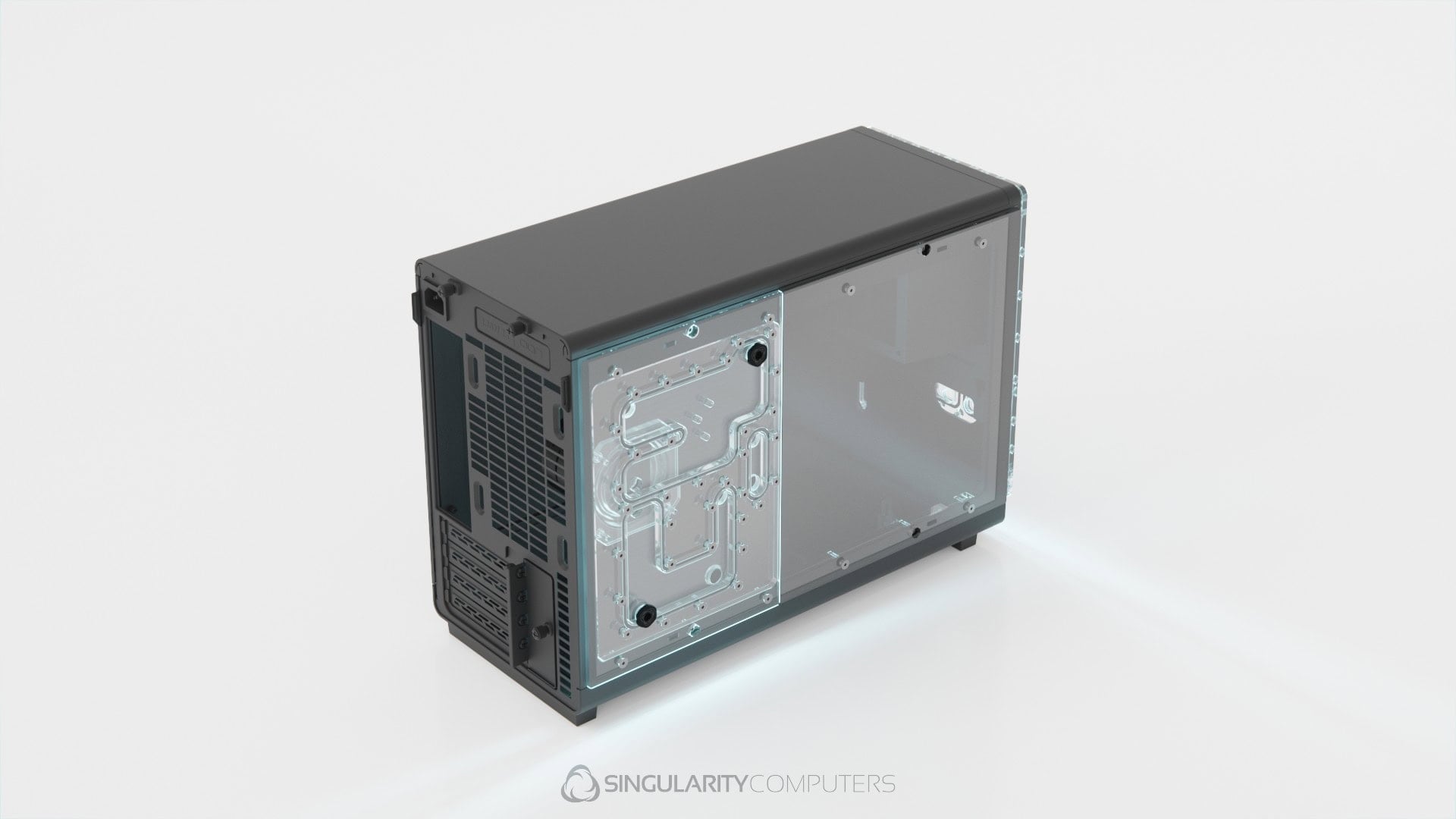

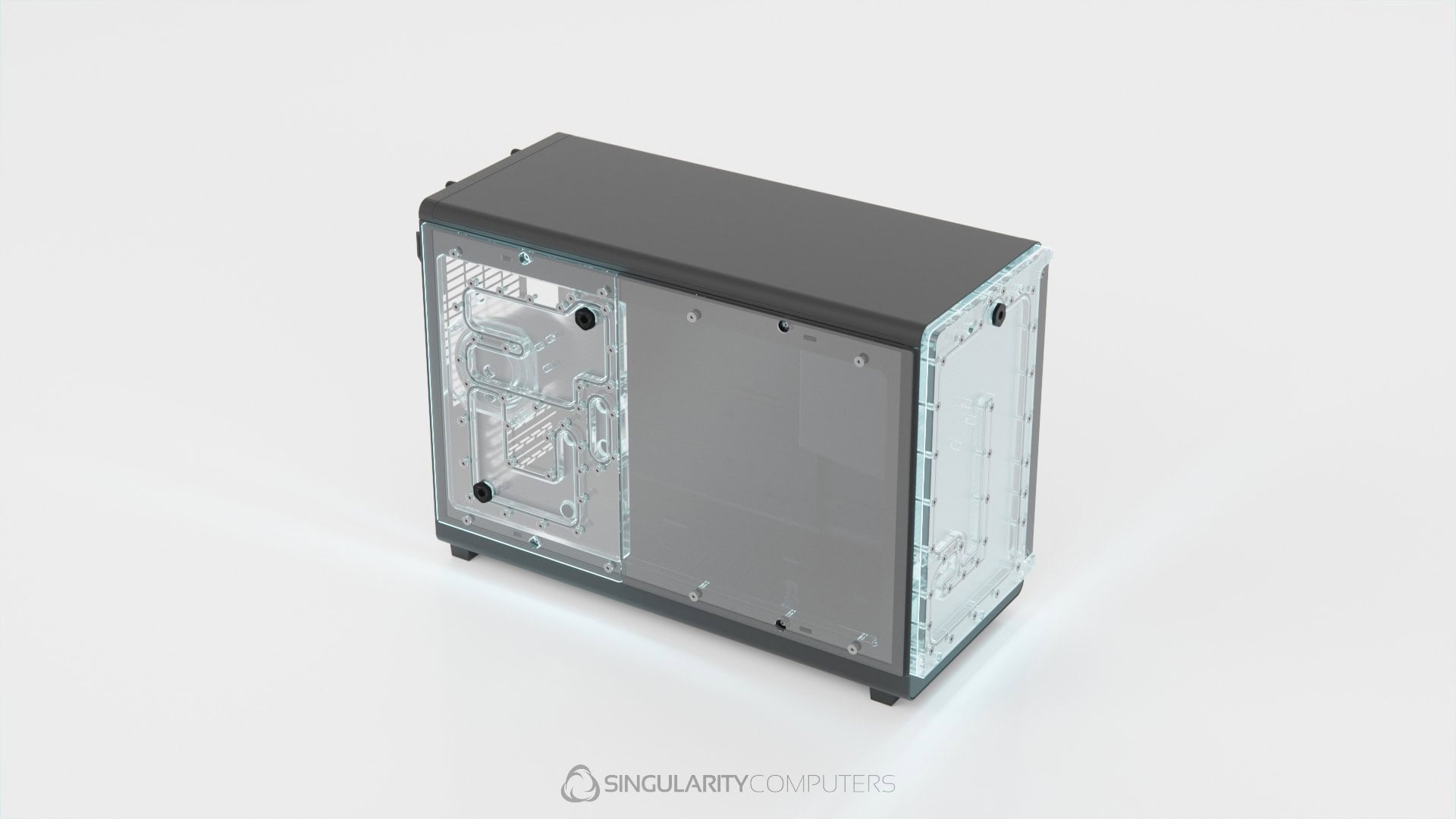

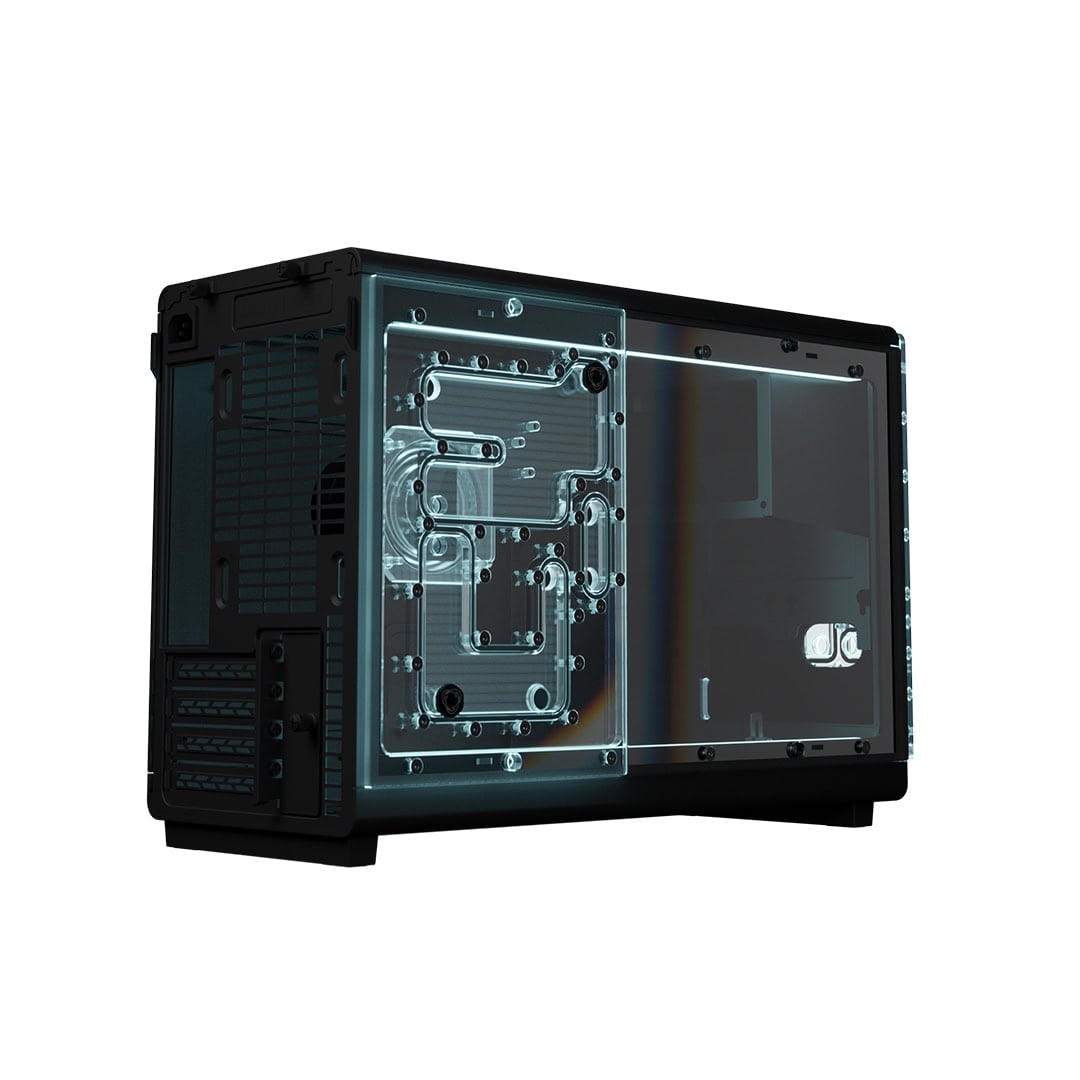

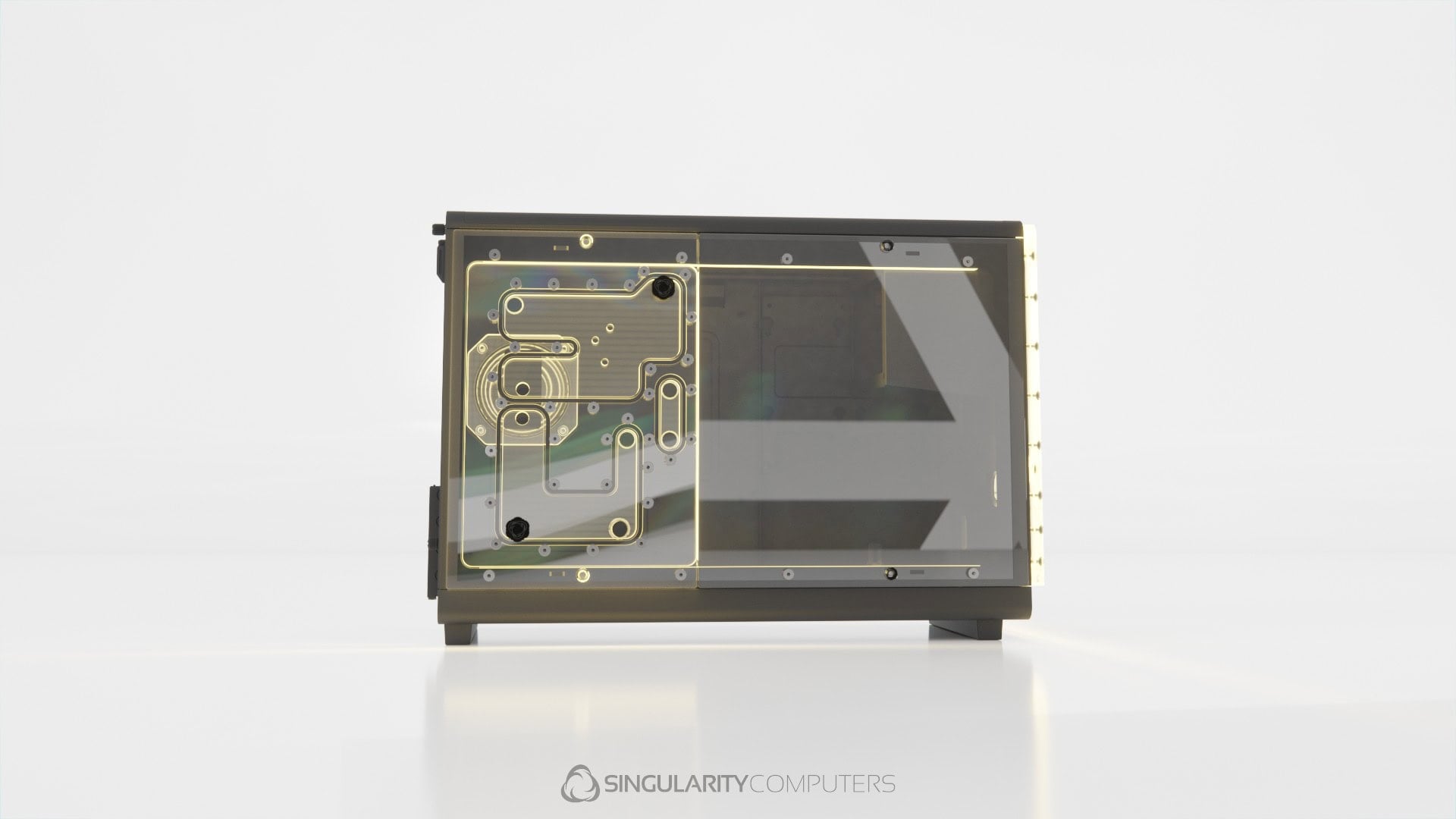

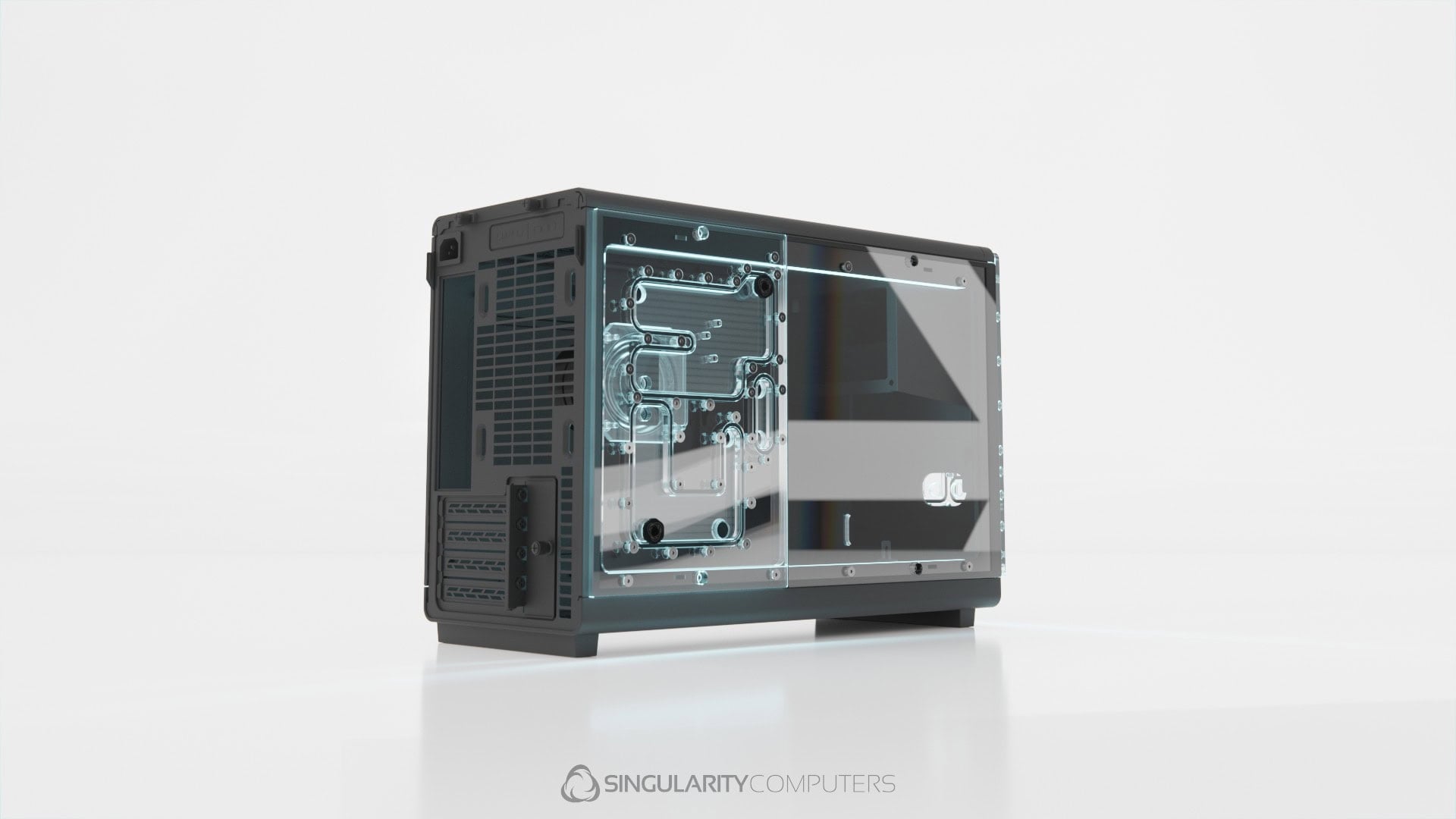

The Lian Li DAN A3 Side D5 Reservoir Elite Distribution Plate fits onto the side of the Lian Li DAN A3 Case in the place of the stock side panel window. It has an integrated reservoir and D5 pump top. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners. It has a LED strip which can be installed onto the case to edge light the distribution plate. There is a window which can be removed on the distribution plate so that the system can be built and the water-cooling loop can be connected to it.



Specifications

Lian Li DAN A3 Side D5 Reservoir Distribution Plate.
Protium 3.0 ARGB D5 Pump Cover (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 443mm x W: 321.5mm x H: 100mm.
Weight: 3.5 kg.

Installation:
Installs onto the Lian Li DAN A3 in the place of the stock side panel window. Remove the window from the distribution plate to work on the build.
