NZXT H9 Flow Front D5 Reservoir Distribution Plate

Name: NZXT H9 Flow Front D5 Reservoir Distribution Plate
SKU: SC-NZXTH9F-FD5
Availability: InStock

Order processing time 1-2 days.

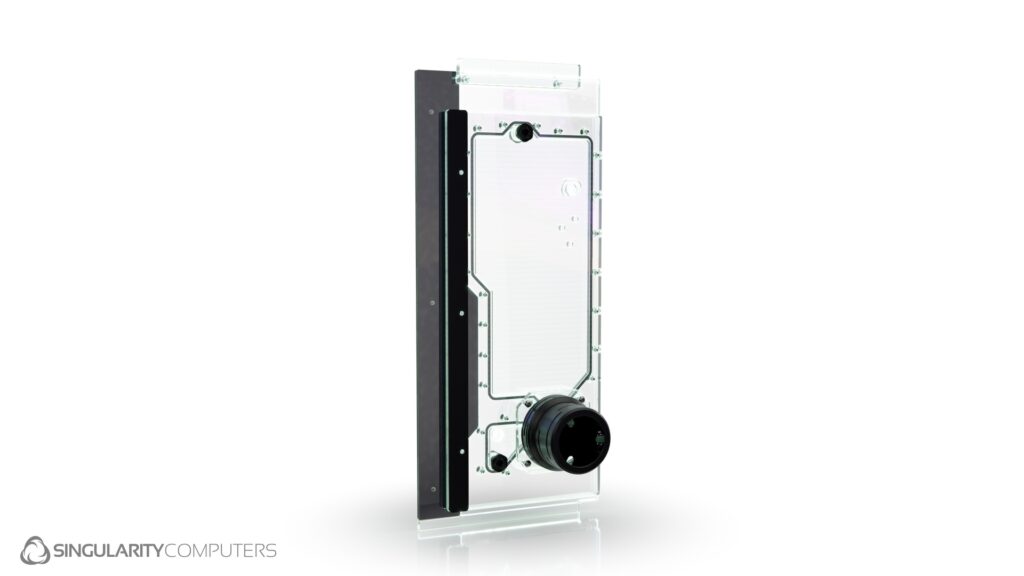

Front Panel Distribution Plate for the NZXT H9 Flow. It attaches to the front panel and replaces the original glass. It mounts without modifications to the case. It has an integrated reservoir and D5 pump top. This distribution plate can be used on its own, it does not require other distribution plates. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. Hand assembled with stainless steel fasteners. There is an integrated ARGB LED strip.

Pump not included. Compatible with any D5 Pump.

Build Gallery

US$249.00

Select D5 Retention Ring Colour (included)

CNC milled anodized retention ring.

Black

Select D5 Pump Cover Options (optional) USD $39

CNC milled anodised pump cover with ARGB lights and Singularity Computers Logo.

D5 Pump (optional) USD $98

D5 Pump 1500LPH 3.7m head pressure.

Stop Fitting x4 (optional) USD $16

Include stop fittings for all extra ports aside from the inlet and outlet.

Add to wishlist

EAN: 9351182004982 SKU: SC-NZXTH9F-FD5 Category: NZXT

Description

Manual

Gallery

Specifications:
NZXT H9 Flow Front D5 Reservoir Distribution Plate.
Integrated Reservoir.
Integrated Pump Top D5.
D5 Pump Cover CNC Machined Anodized Aluminum (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 460mm x W: 211mm x H: 36mm (without pump top or cover).
Weight: 3kg.
Packaged Dimensions: L: 500mm x W: 350mm x H: 50mm.
Packaged Weight: 3.5kg.

Installation:
Install onto the front panel of the NZXT H9 Flow. Replaces the existing glass panel and attaches to existing mounting holes.
