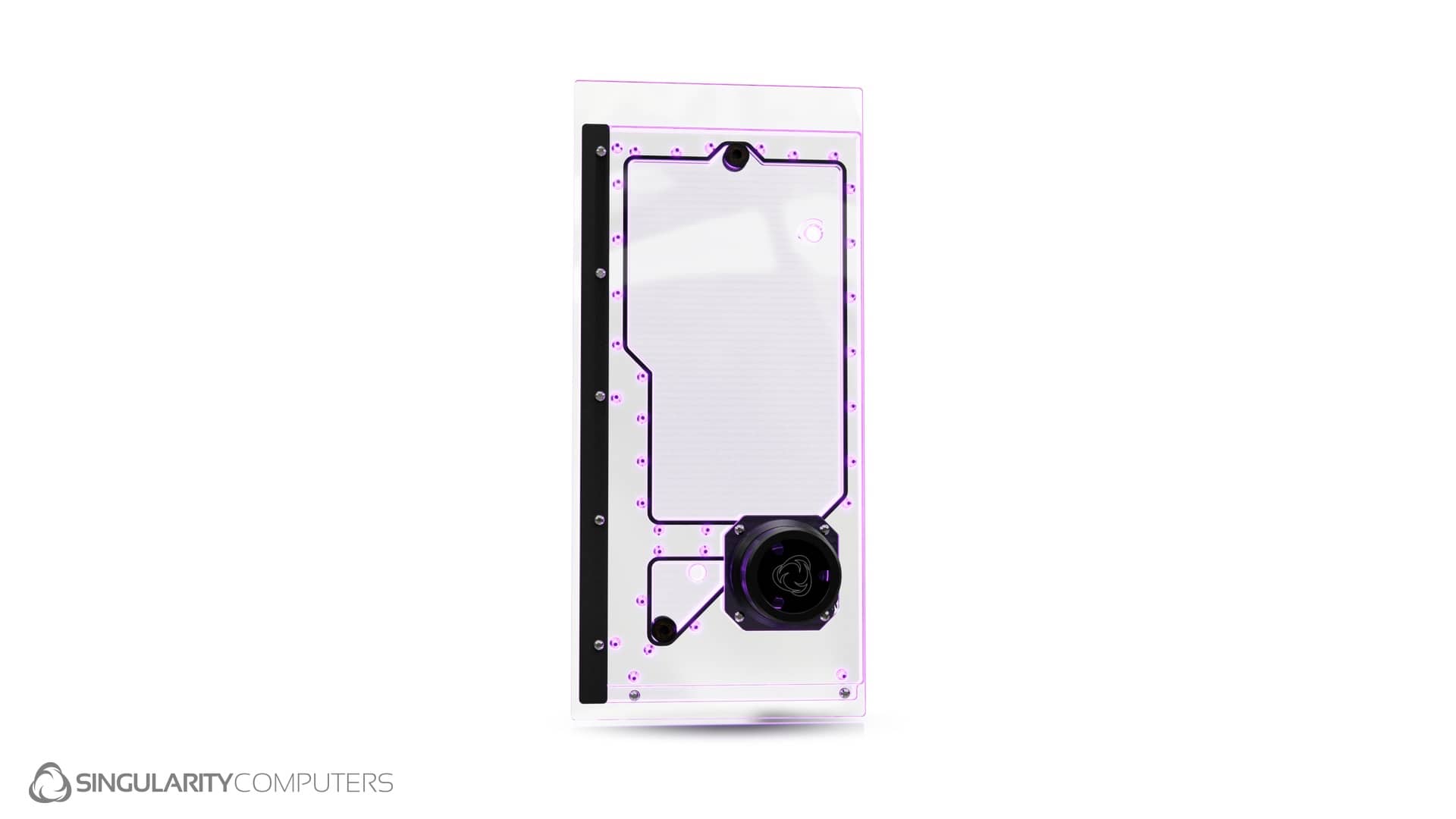

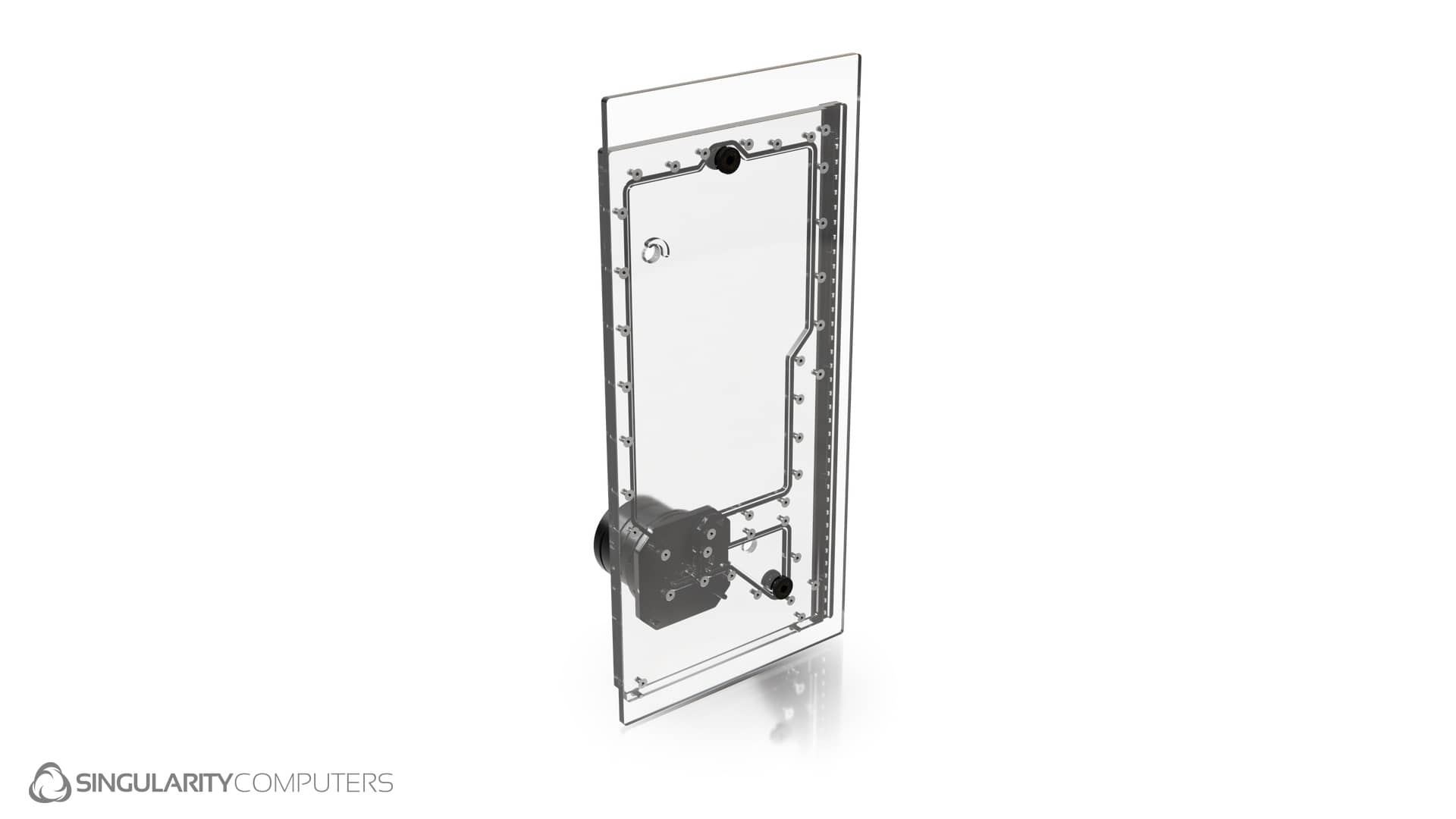

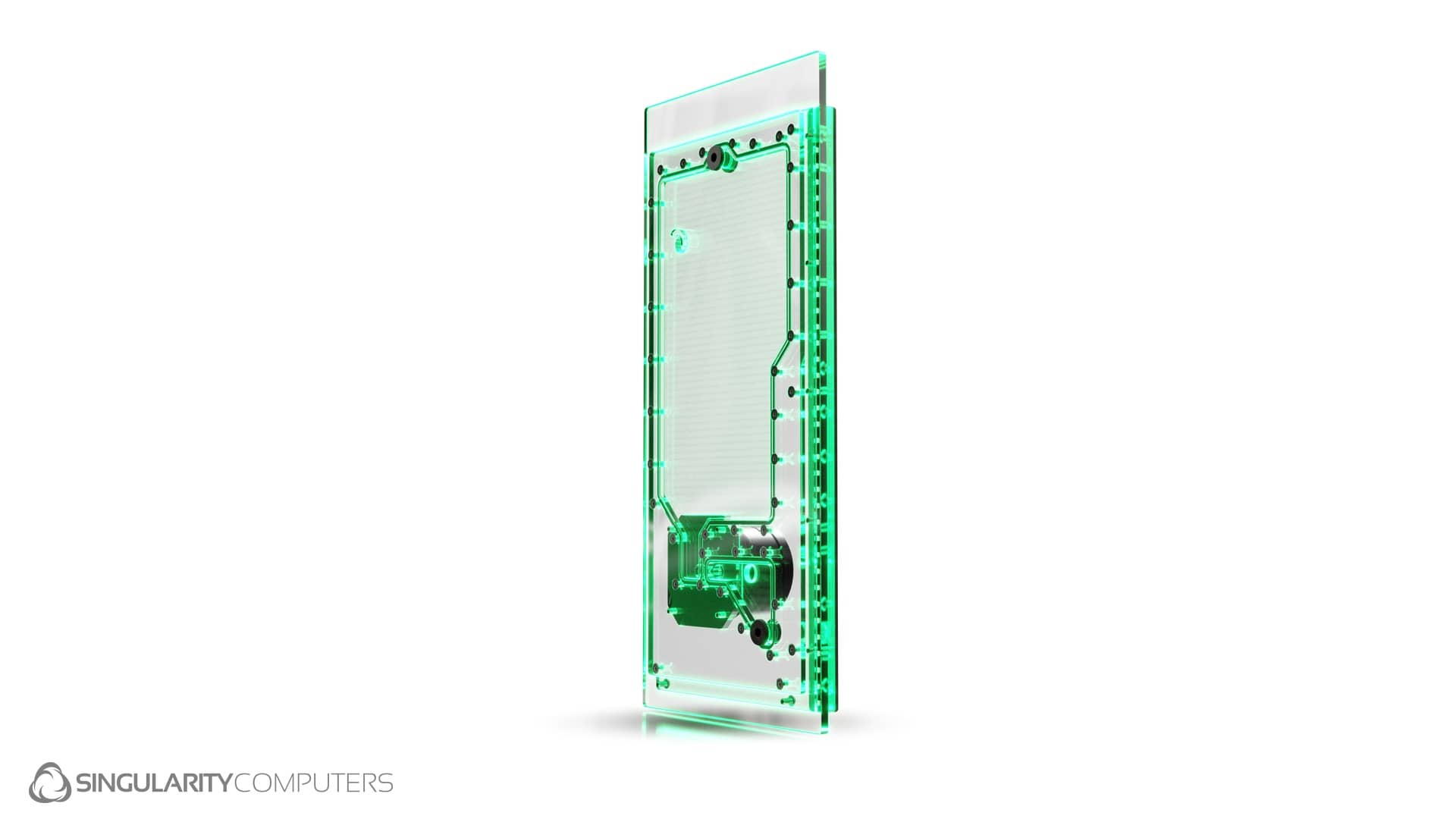

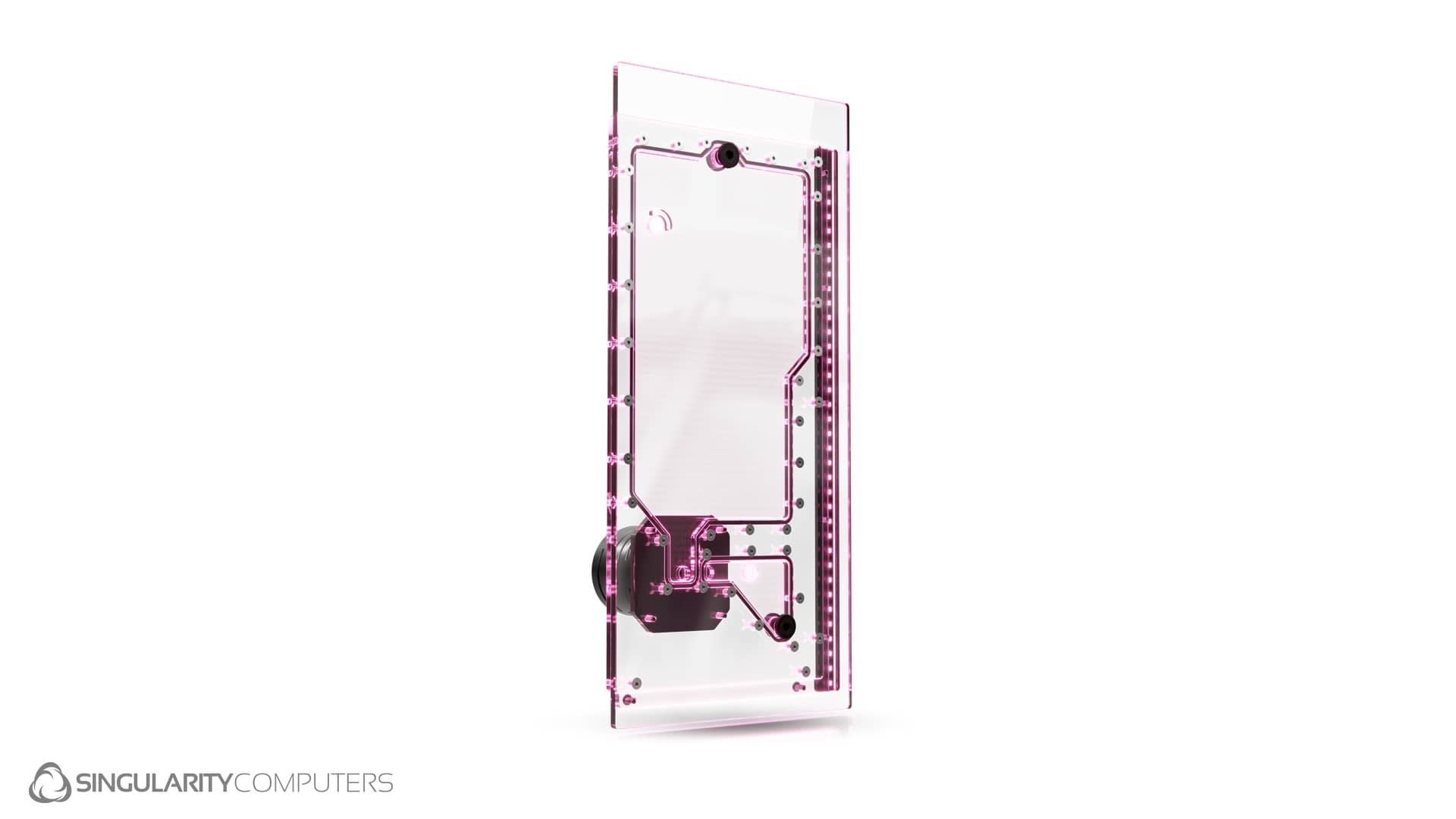

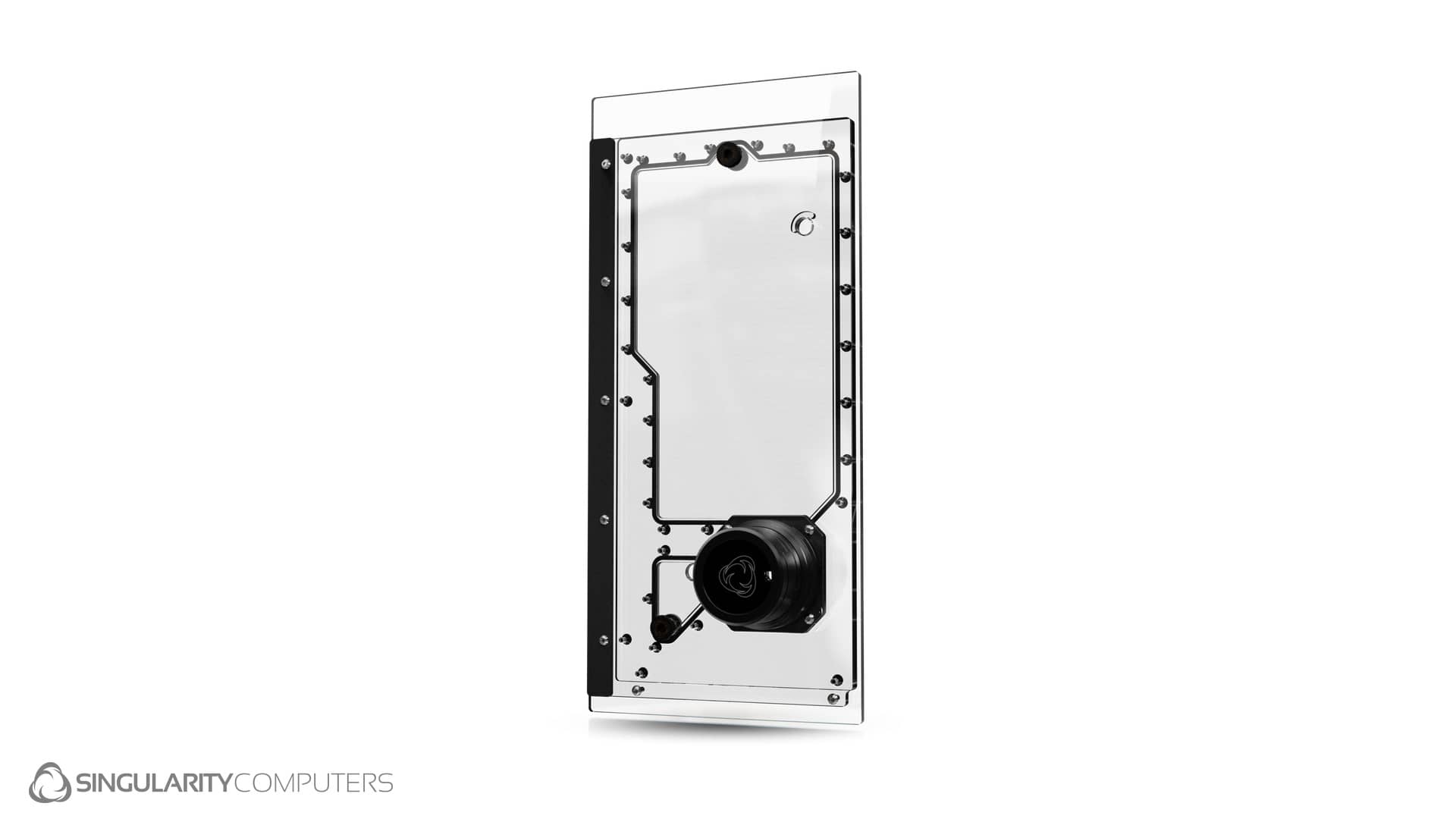

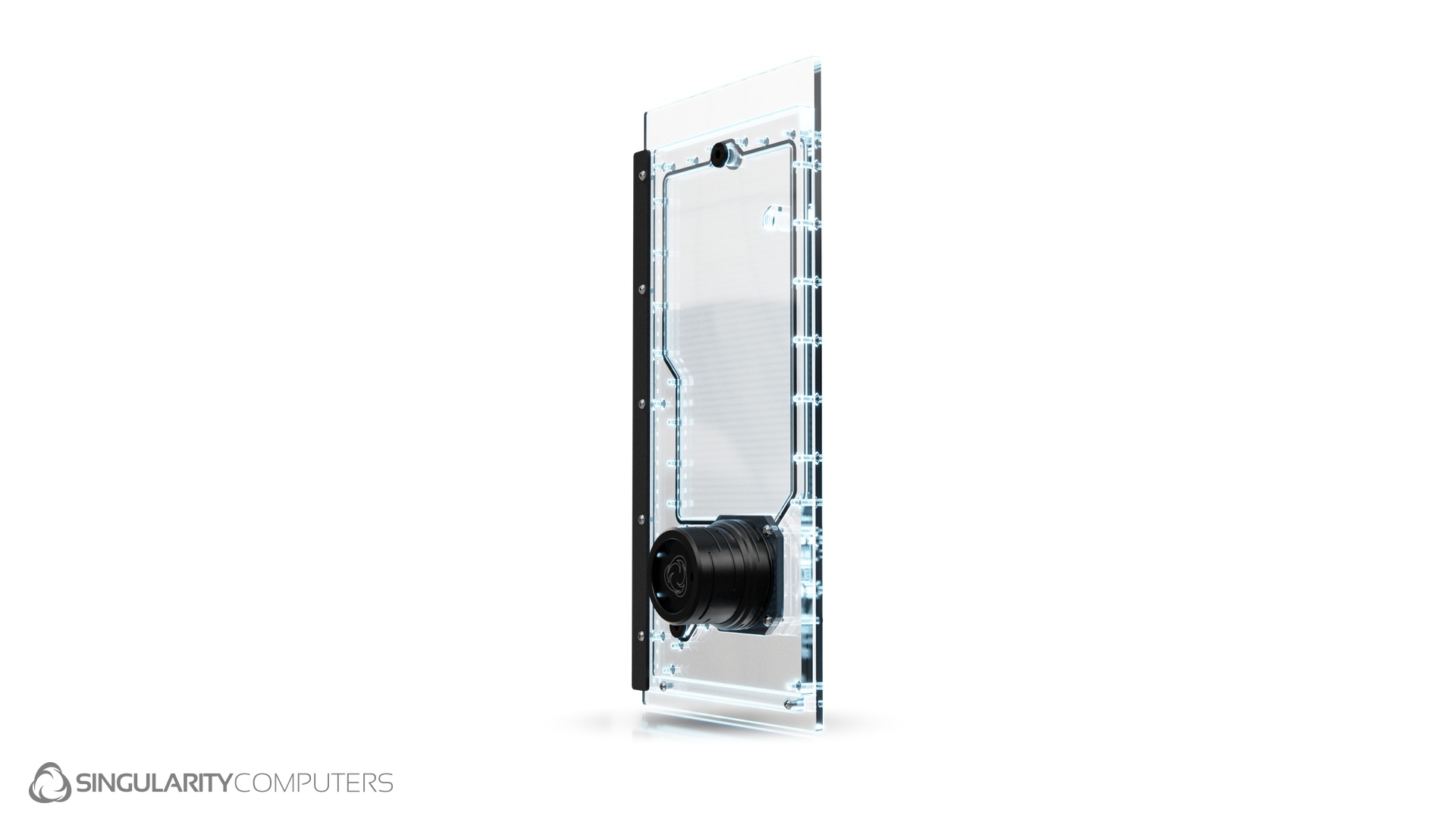

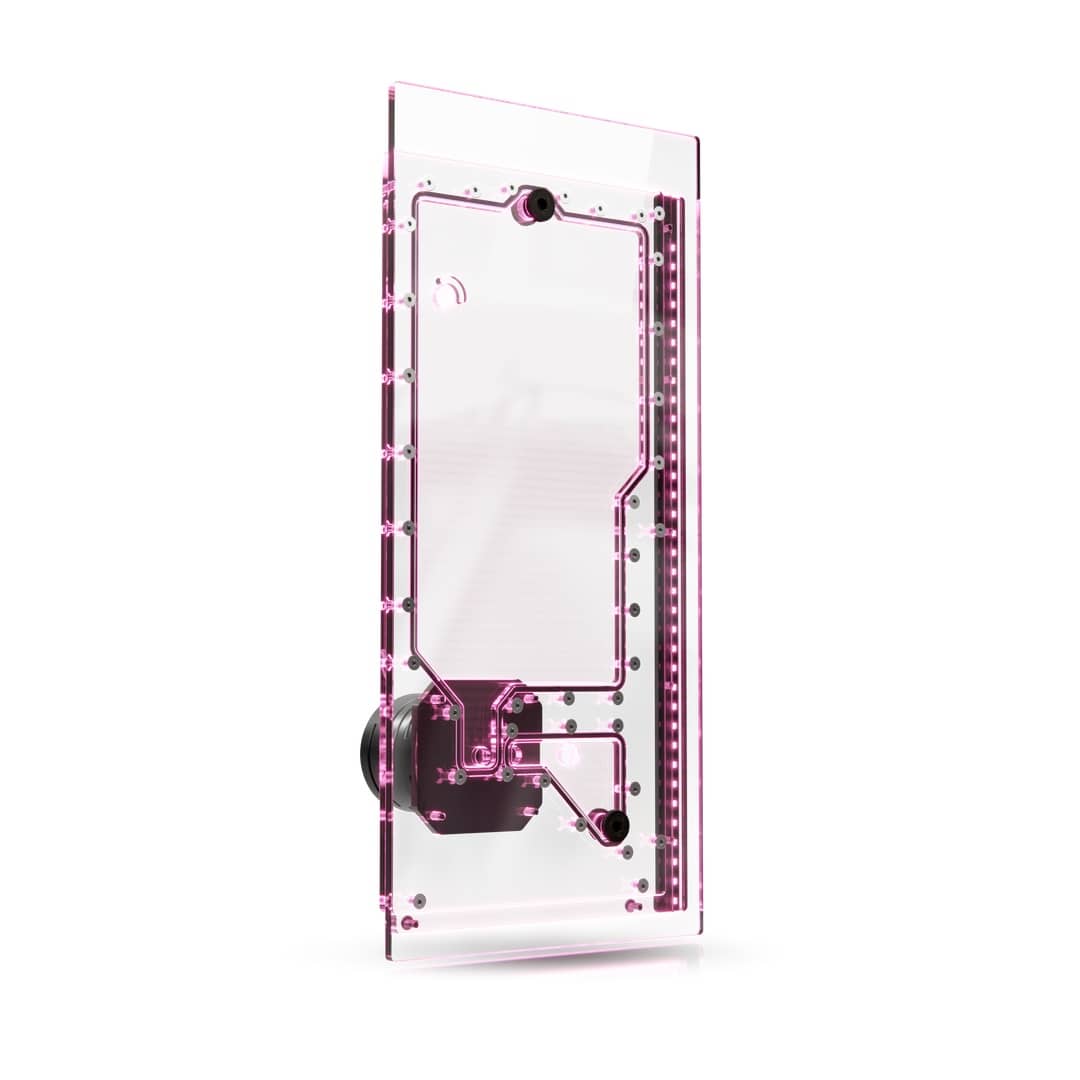

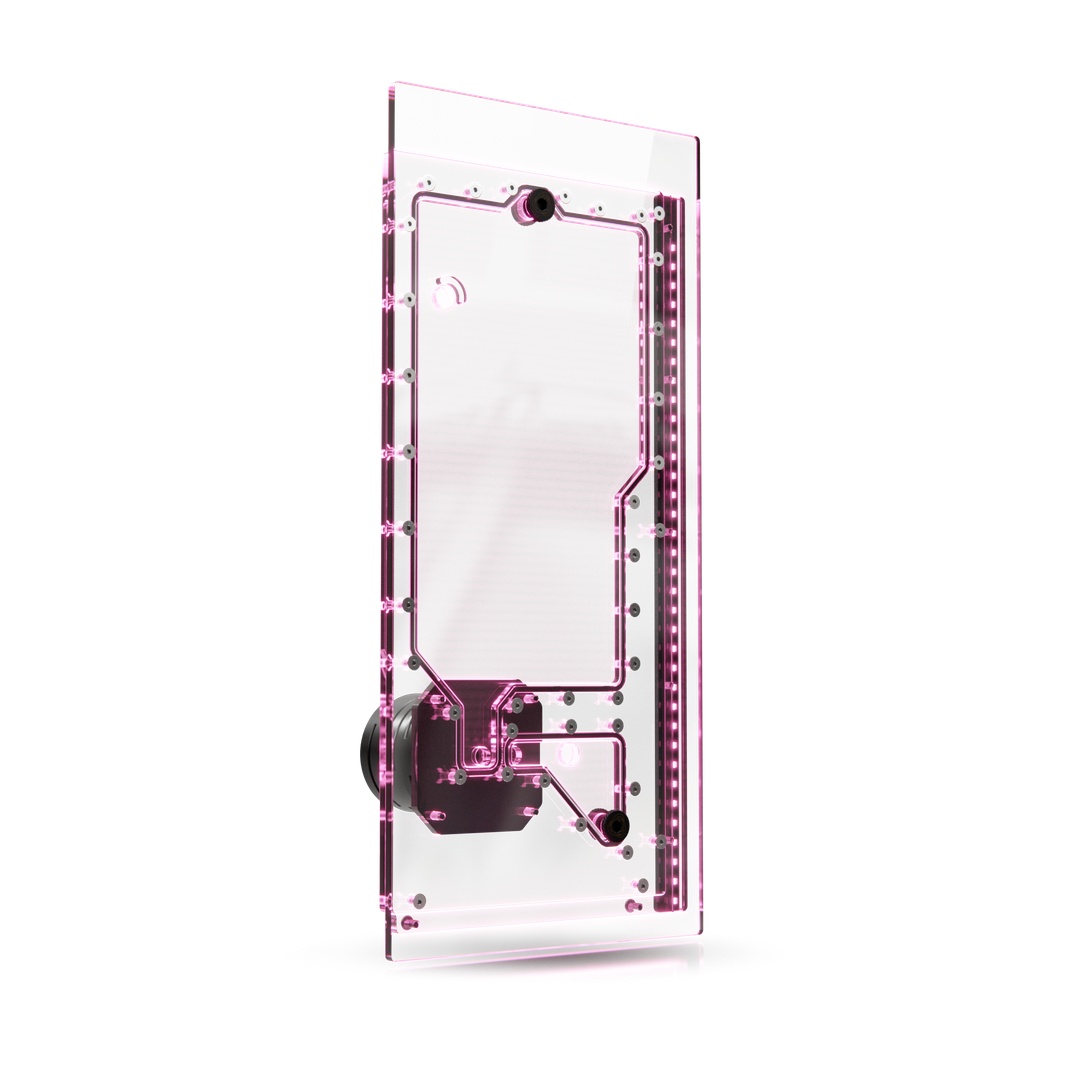

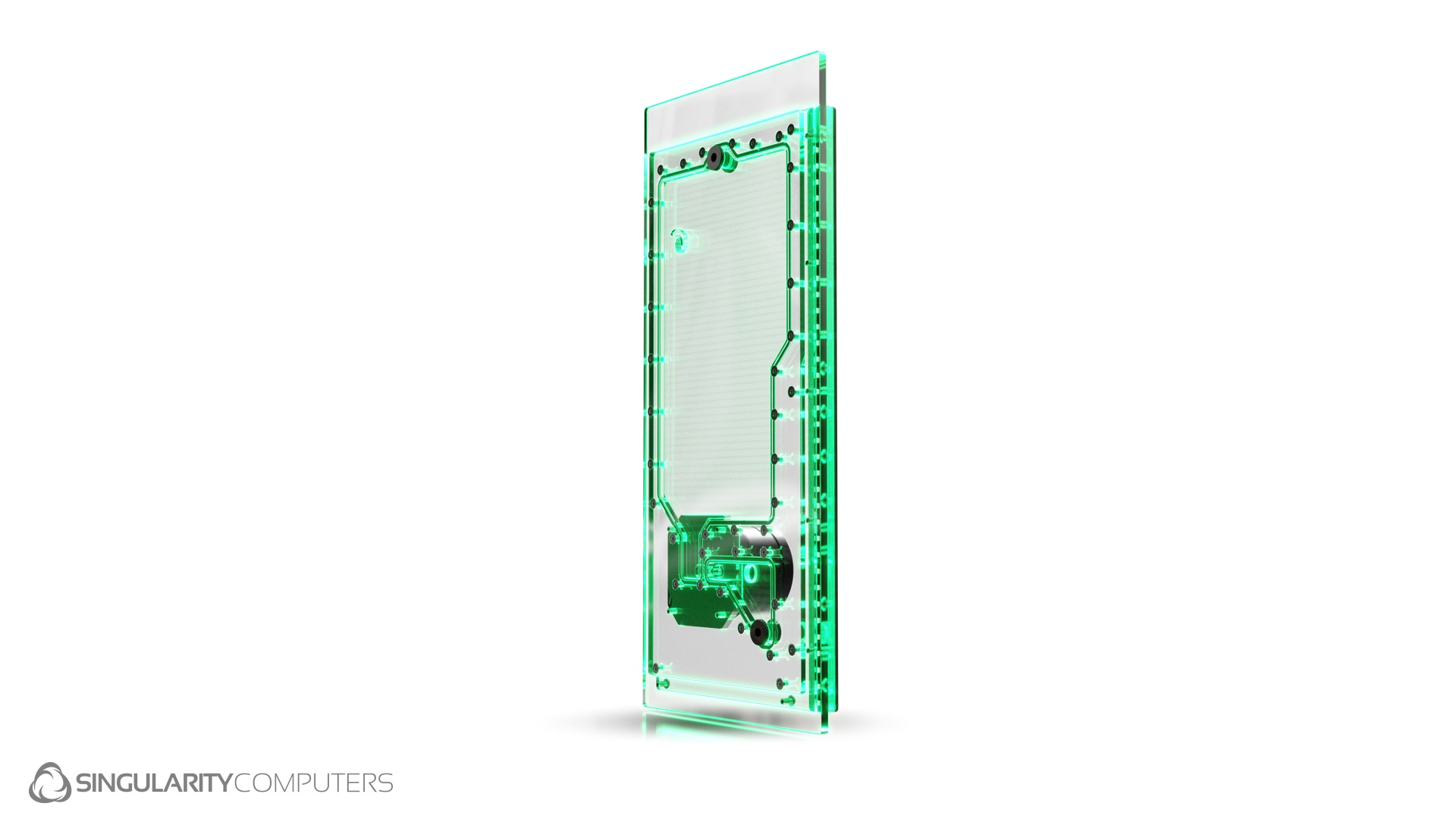

NZXT H9 Front D5 Reservoir Distribution Plate

Front Panel Distribution Plate for the NZXT H9. It attaches to the front panel and replaces the original glass. It mounts without modifications to the case. It has an integrated reservoir and D5 pump top. This distribution plate can be used on its own, it does not require other distribution plates. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. Hand assembled with stainless steel fasteners. There is an integrated ARGB LED strip.

Pump not included. Compatible with any D5 Pump.

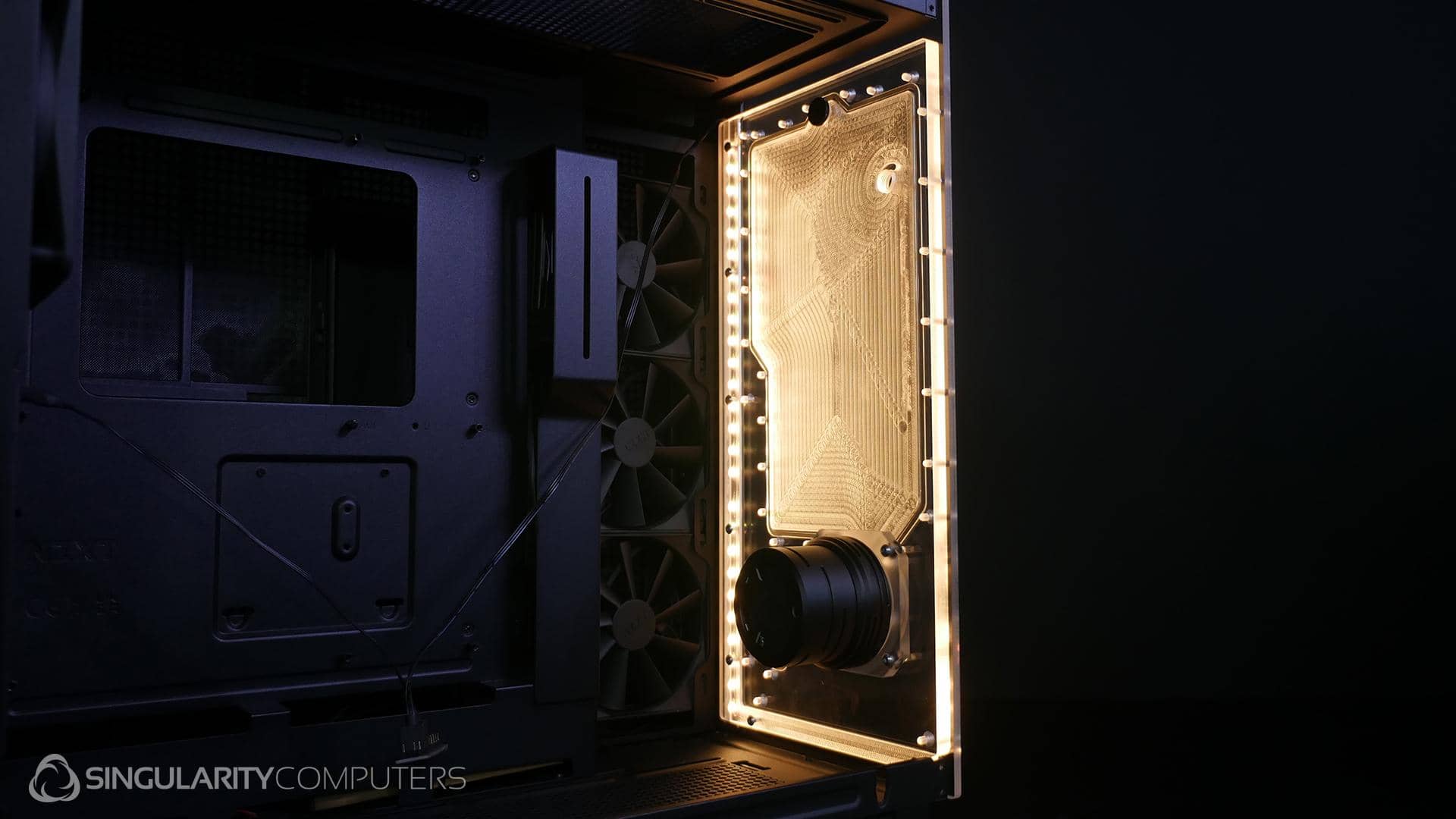

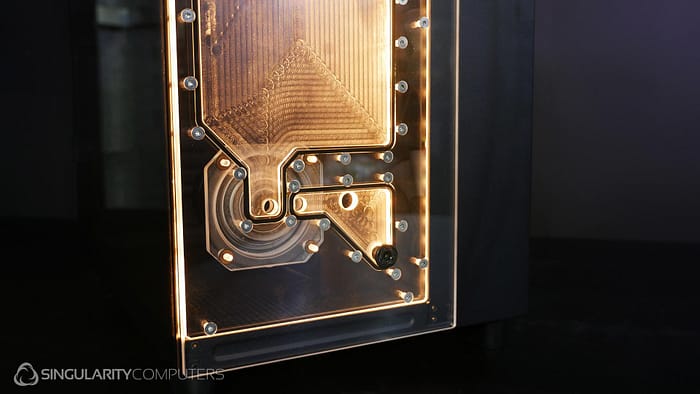

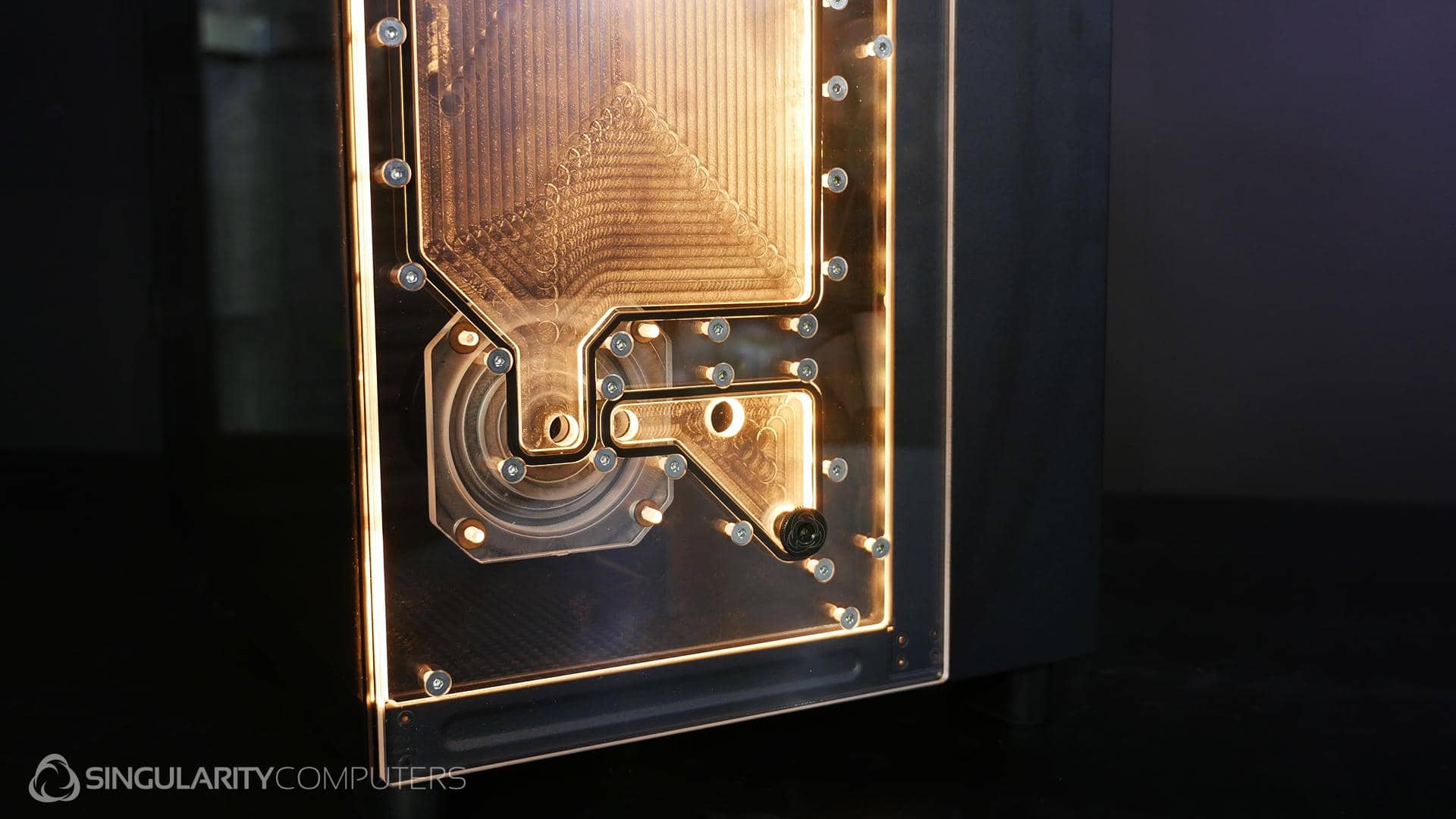

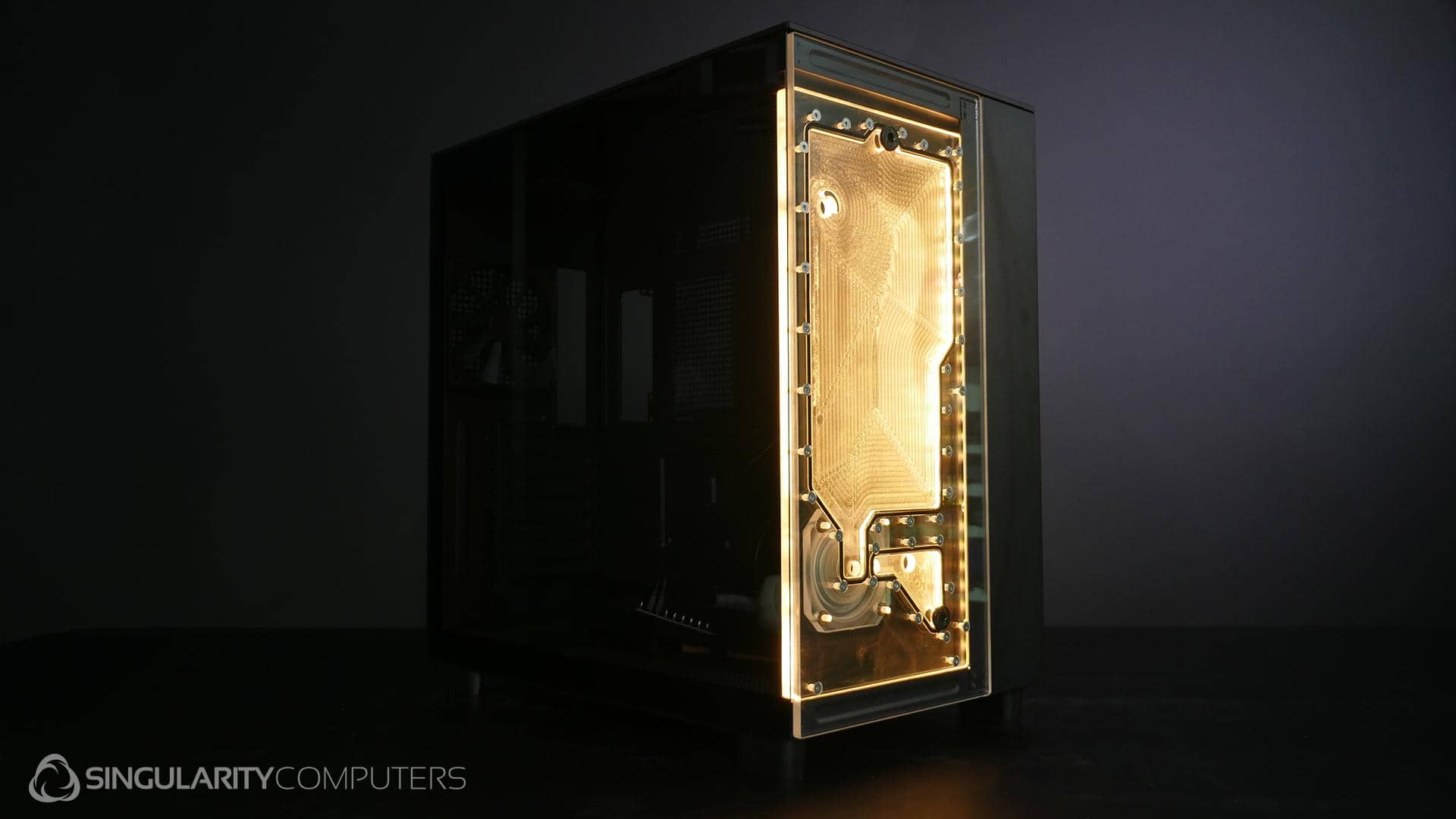

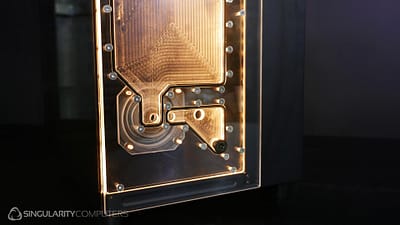

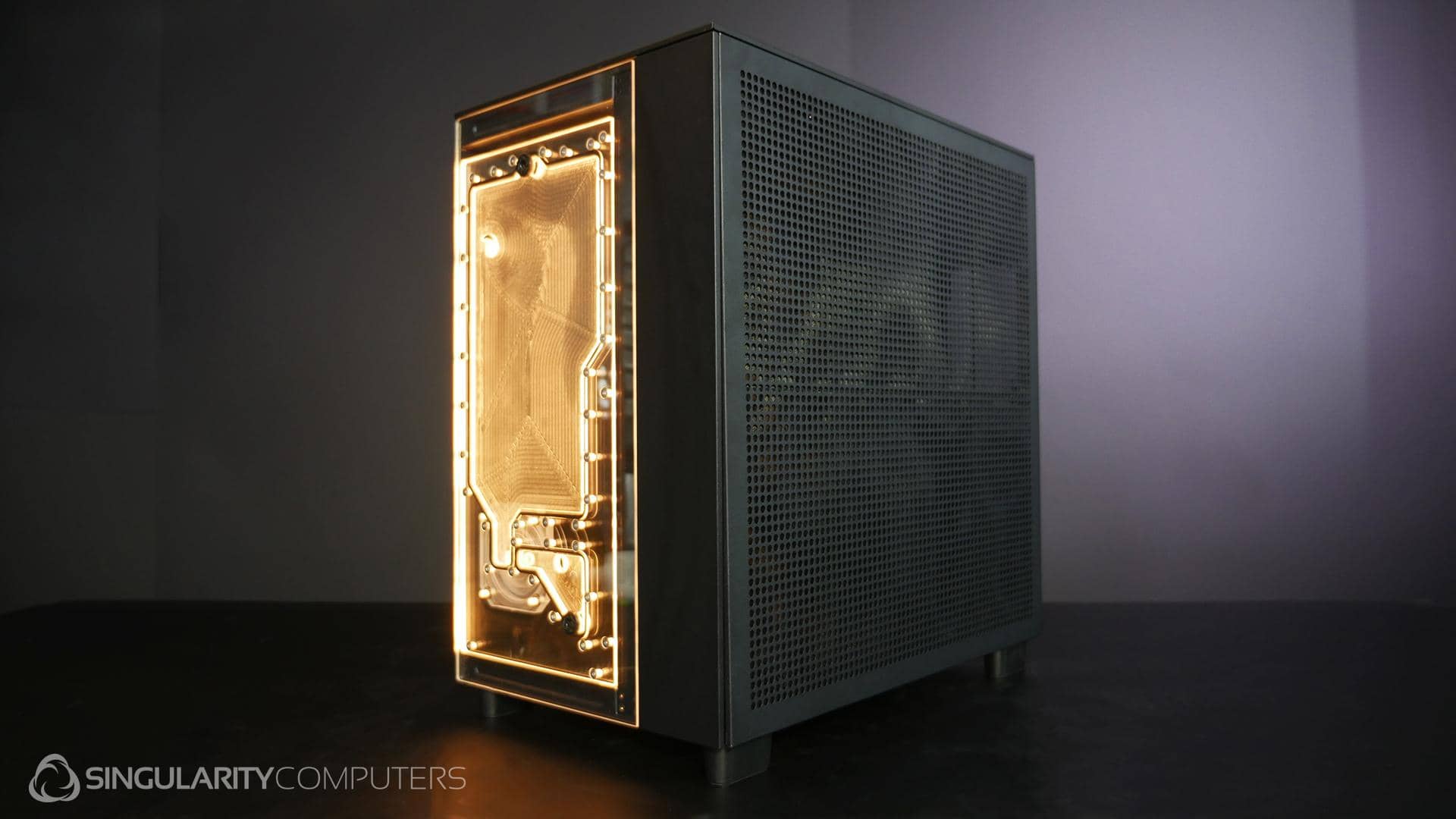

Build Gallery

US$249.00

CNC milled black anodised pump cover with ARGB lights and Singularity Computers Logo.

Black Silver Black

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$94.00
EAN: 9351182004982 SKU: SC-NZXTH9F-FD5 Category:

Manual

Gallery

Specifications:
NZXT H9 Front D5 Reservoir Distribution Plate.
Integrated Reservoir.
Integrated Pump Top D5.
D5 Pump Cover CNC Machined Anodized Aluminum (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 460mm x W: 211mm x H: 36mm (without pump top or cover).
Weight: 3kg.
Packaged Dimensions: L: 500mm x W: 350mm x H: 50mm.
Packaged Weight: 3.5kg.

Installation:
Install onto the front panel of the NZXT H9. Replaces the existing glass panel and attaches to existing mounting holes.
