Plasma 2 CPU Water-block

Plasma 2 comes in multiple versions and is compatible with Intel LGA1700/1851 and AMD AM5 CPUs The Standard and DDC versions are also compatible with AM4 CPUs. The compact versions mount to the CPU retention bracket system using stand offs which are exactly the right length to achieve the correct mounting tension. The standard versions mount using the standard CPU cooler mounting systems for Intel and AMD. We have also created a version which has an integrated DDC pump top. This version is ideal for SFF builds and other compact scenarios. For the Compact and Standard versions, you can select from a range of different tops including Nickel and various Acrylic and Acetal colors. You can also select from various colors for the Acrylic Top cover. For the DDC version you can select between various Acrylic and Acetal color options. The non DDC Acrylic versions have an integrated PCB with ARGB LEDs. The DDC and Standard versions are also compatible with AMD AM4 CPUs.

See Add-on images below.

Use distilled water at your own risk, coolant is recommended.

Build Gallery

US$89.00

‘Compact’ mounts directly to the CPU retention bracket holes. ‘Standard’ mounts to the standard CPU cooler mounting holes. ‘DDC’ has an integrated DDC Pump Top.

Material options for the water-block top, the base is nickel plated copper.

Material options for the water-block top, the base is nickel plated copper.

Acrylic color options for the water-block top, the base is nickel plated copper.

Acetal color options for the water-block top, the base is nickel plated copper.

Color/Finish option for the cover which fits over the Water-block Top.

EAN: 9351182005934 SKU: SC-PL2 Category:

Manual

Gallery

Specifications:
Plasma 2 CPU Water-block.
Acrylic versions: Nickel Plated CNC Machined Copper Cold Plate. CNC Machined Clear Cast Acrylic Top. Laser Cut Cast Acrylic Cover.
Acetal versions: Nickel Plated CNC Machined Copper Cold Plate. CNC Machined Clear Cast Acetal Top. Laser Cut Cast Acrylic Cover.
Nickel versions: Nickel Plated CNC Machined Copper Cold Plate and Top.

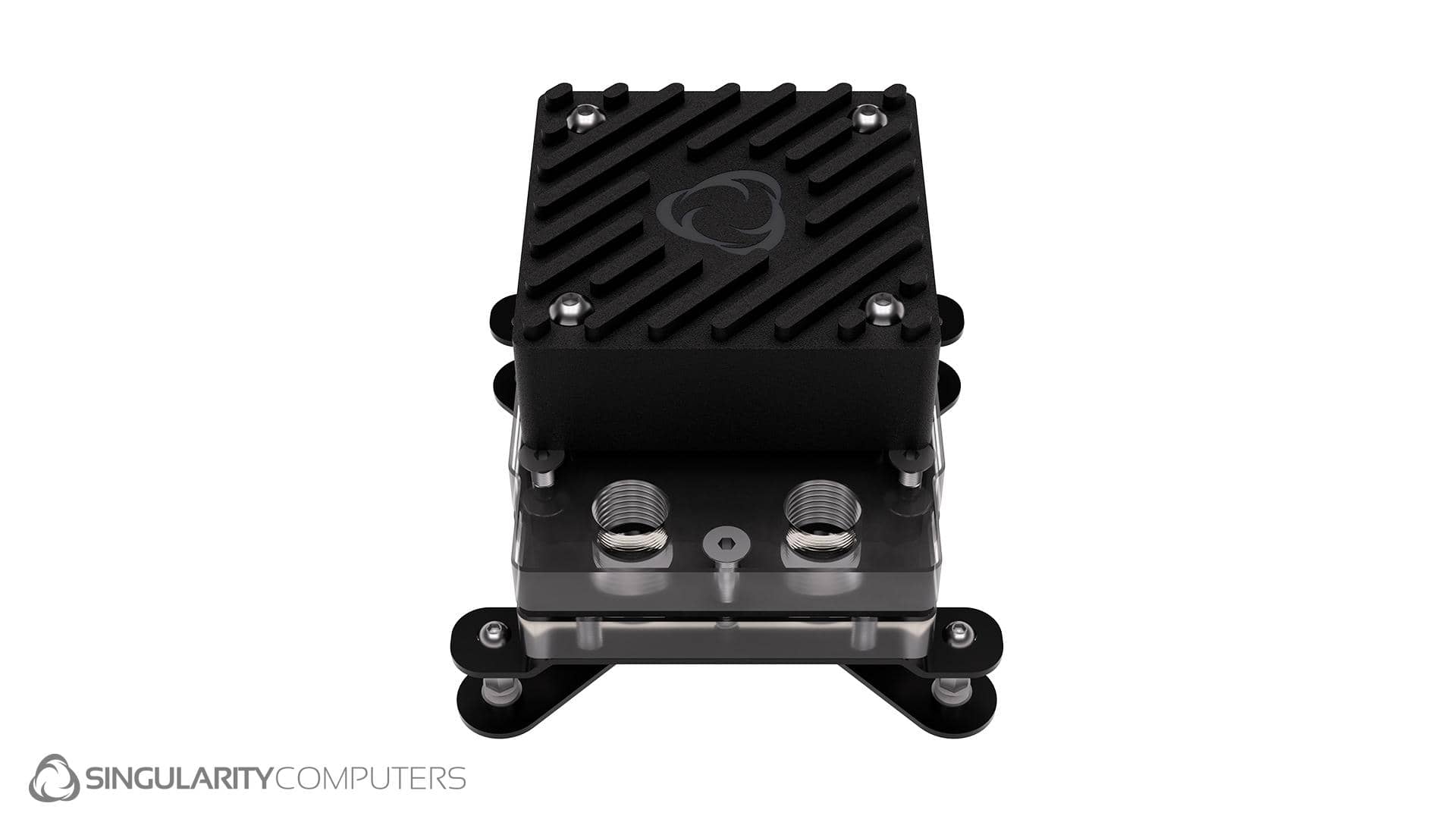

DDC versions: Nickel Plated CNC Machined Copper Cold Plate. CNC machined Clear Cast Acrylic or Acetal Top. CNC Machined Aluminum DDC Cover (not in contact with coolant).
Clear Silicone Gasket. Stainless Steel Fasteners. G1/4” Threads x2.
PCB with integrated ARGB LEDs (only non DDC Acrylic versions, not including Black Acrylic).
Packaged Dimensions: L: 100mm x W: 100mm x H: 100mm.
Packaged Weight: 0.5kg.

Installation:

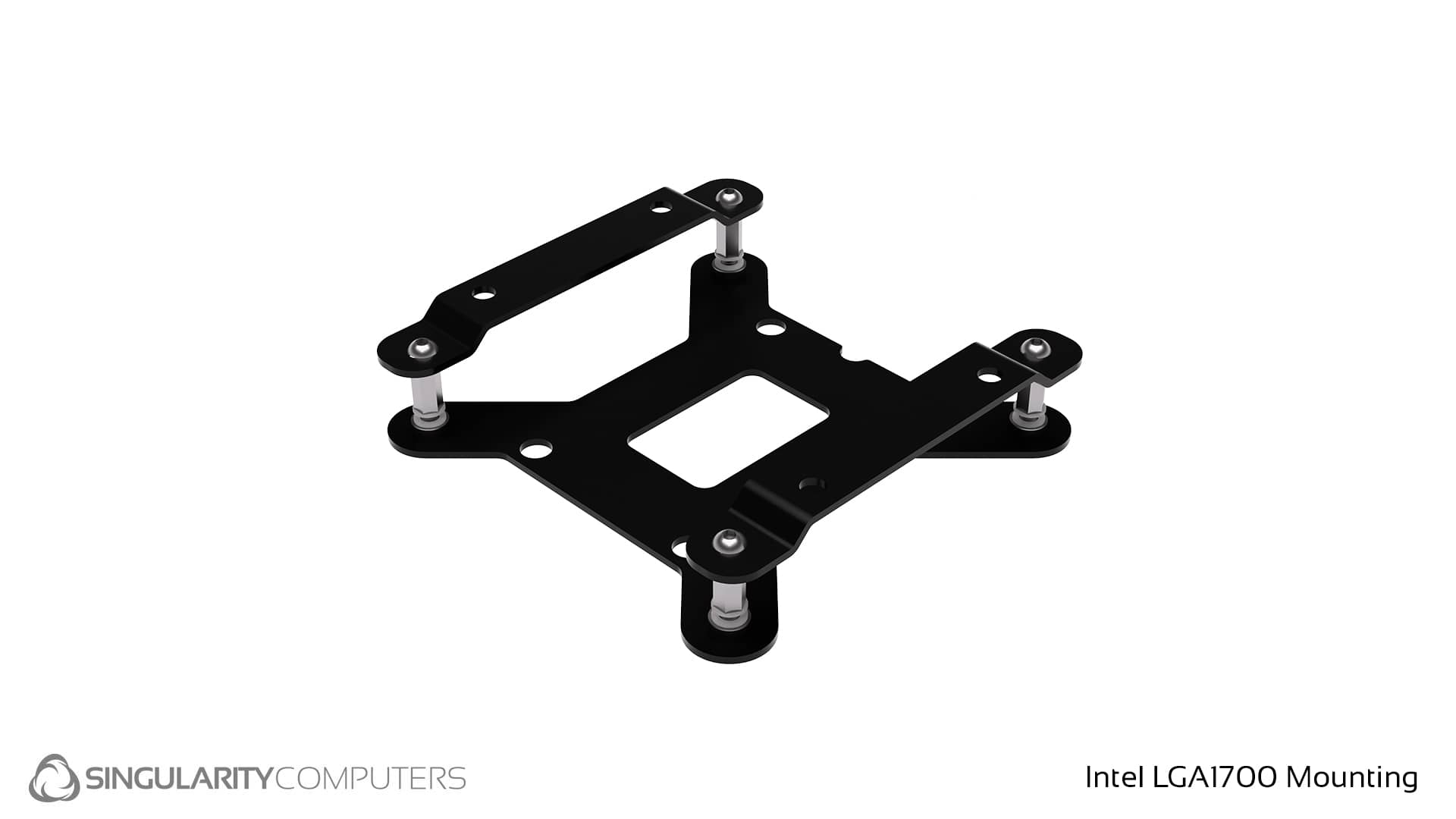

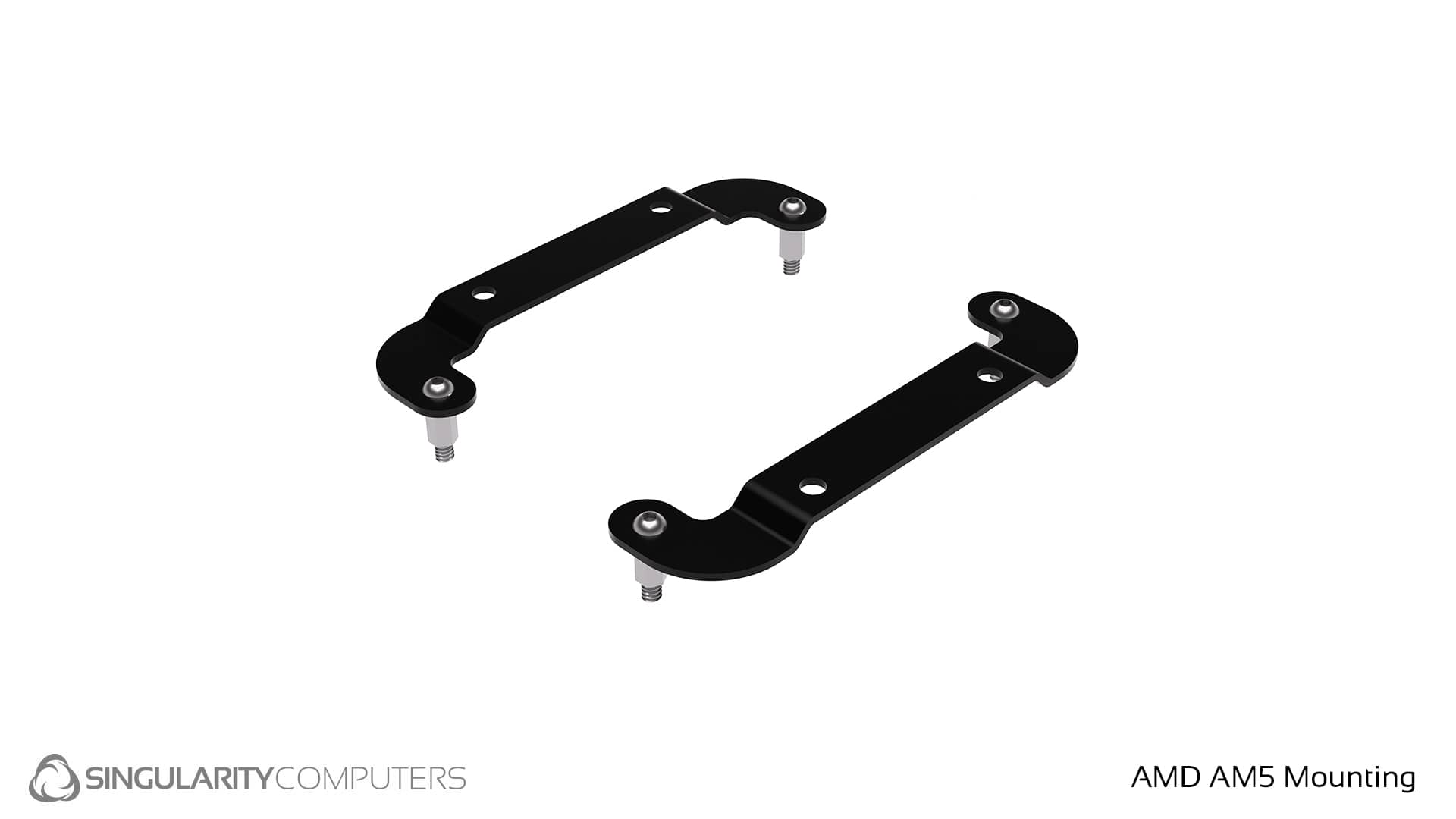

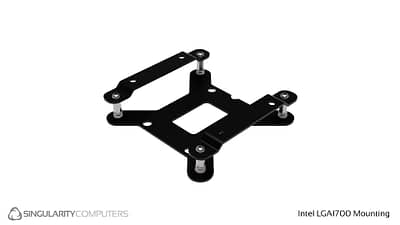

Compatible with intel LGA1700, LGA1851 and AM5 CPUs. The Standard and DDC versions are also compatible with AM4 CPUs Please see documentation.

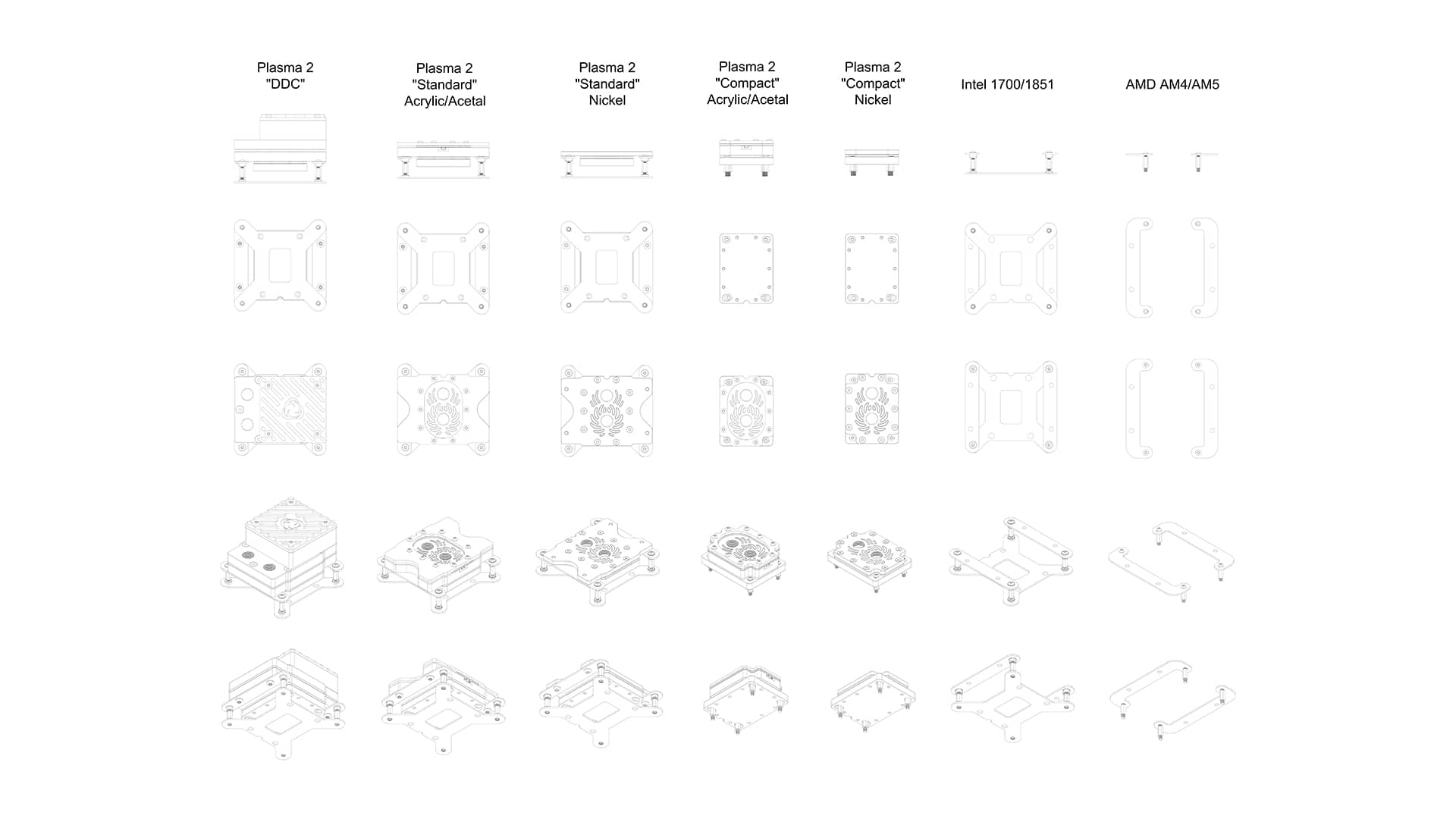

Plasma 2 Variants

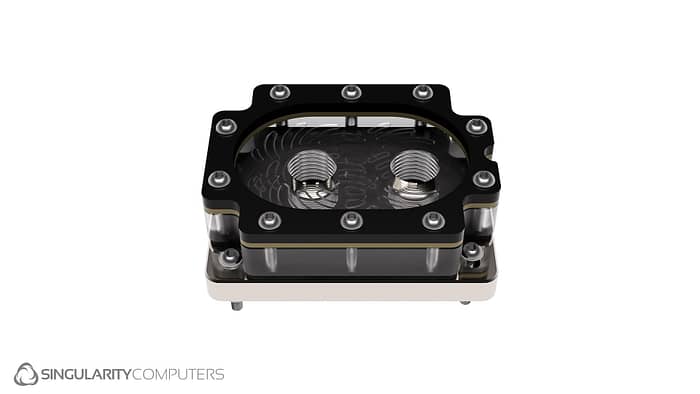

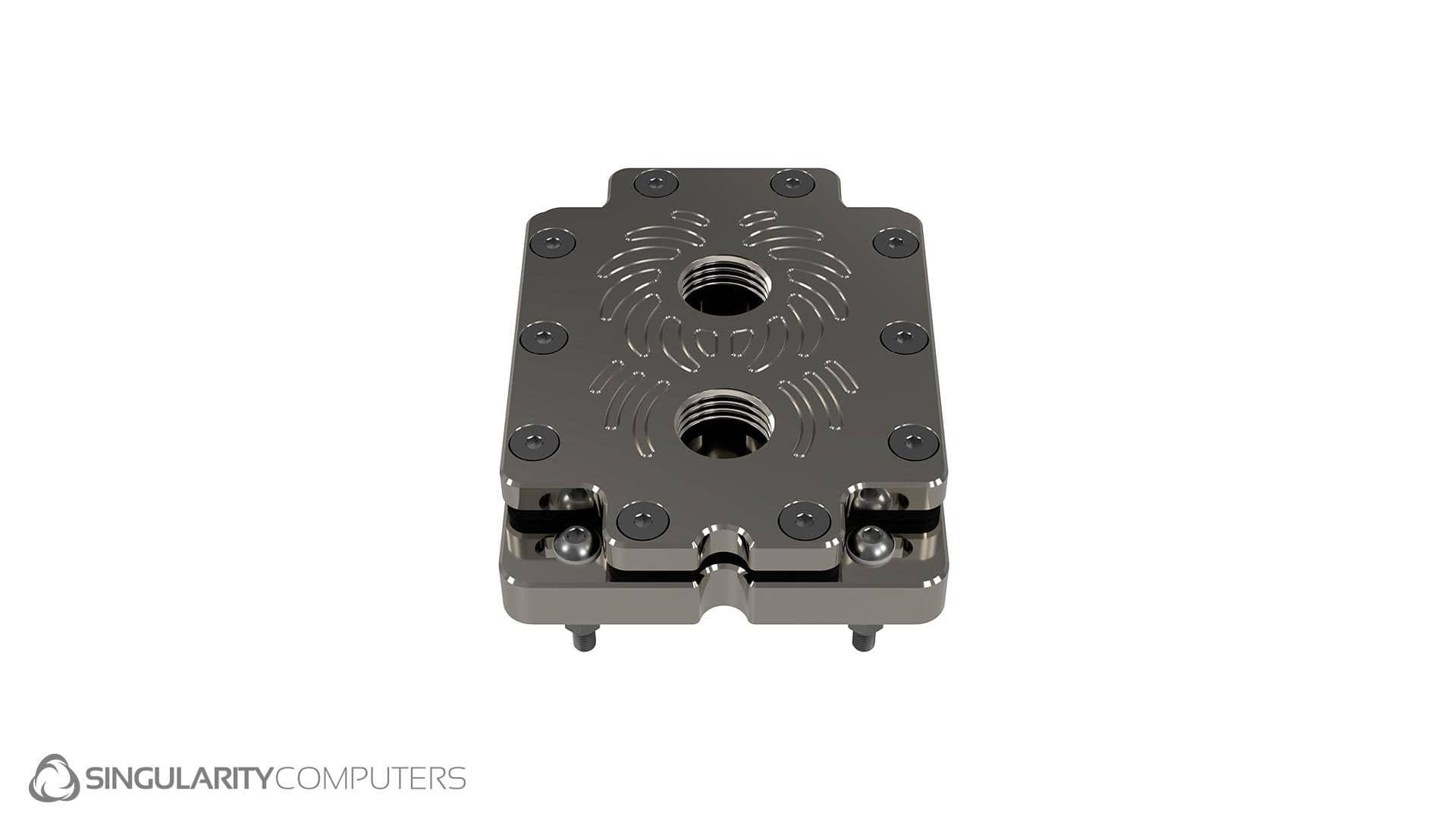

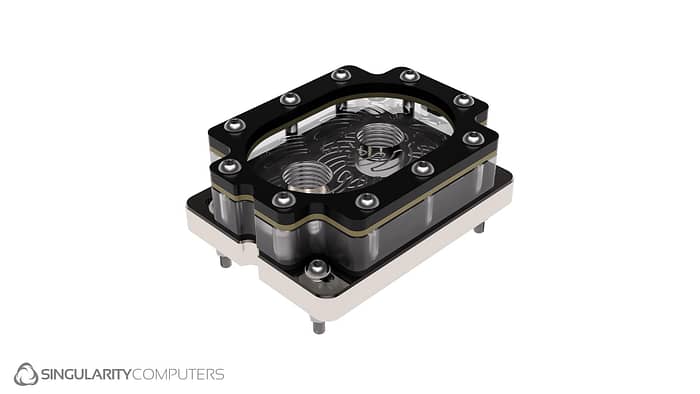

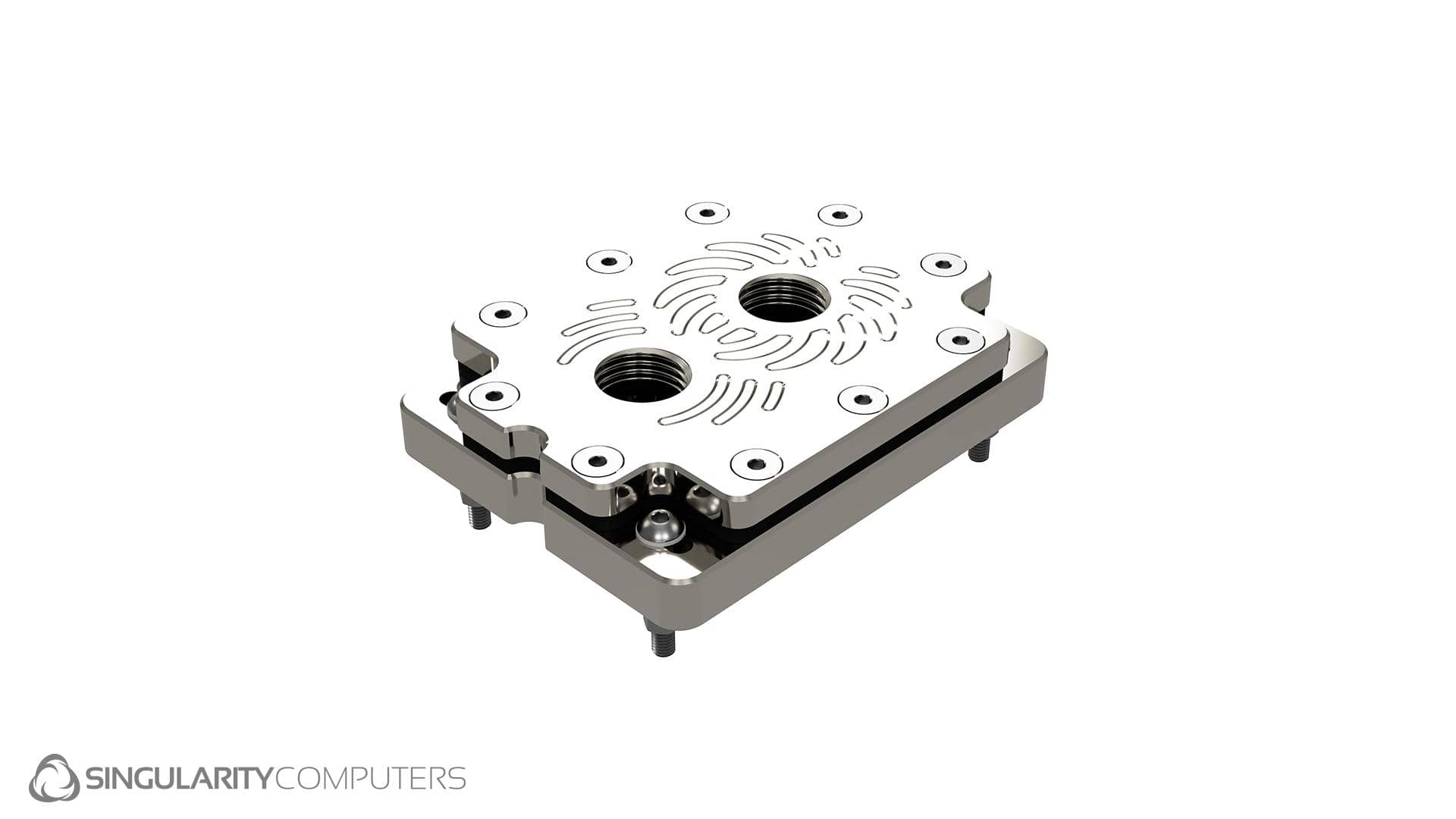

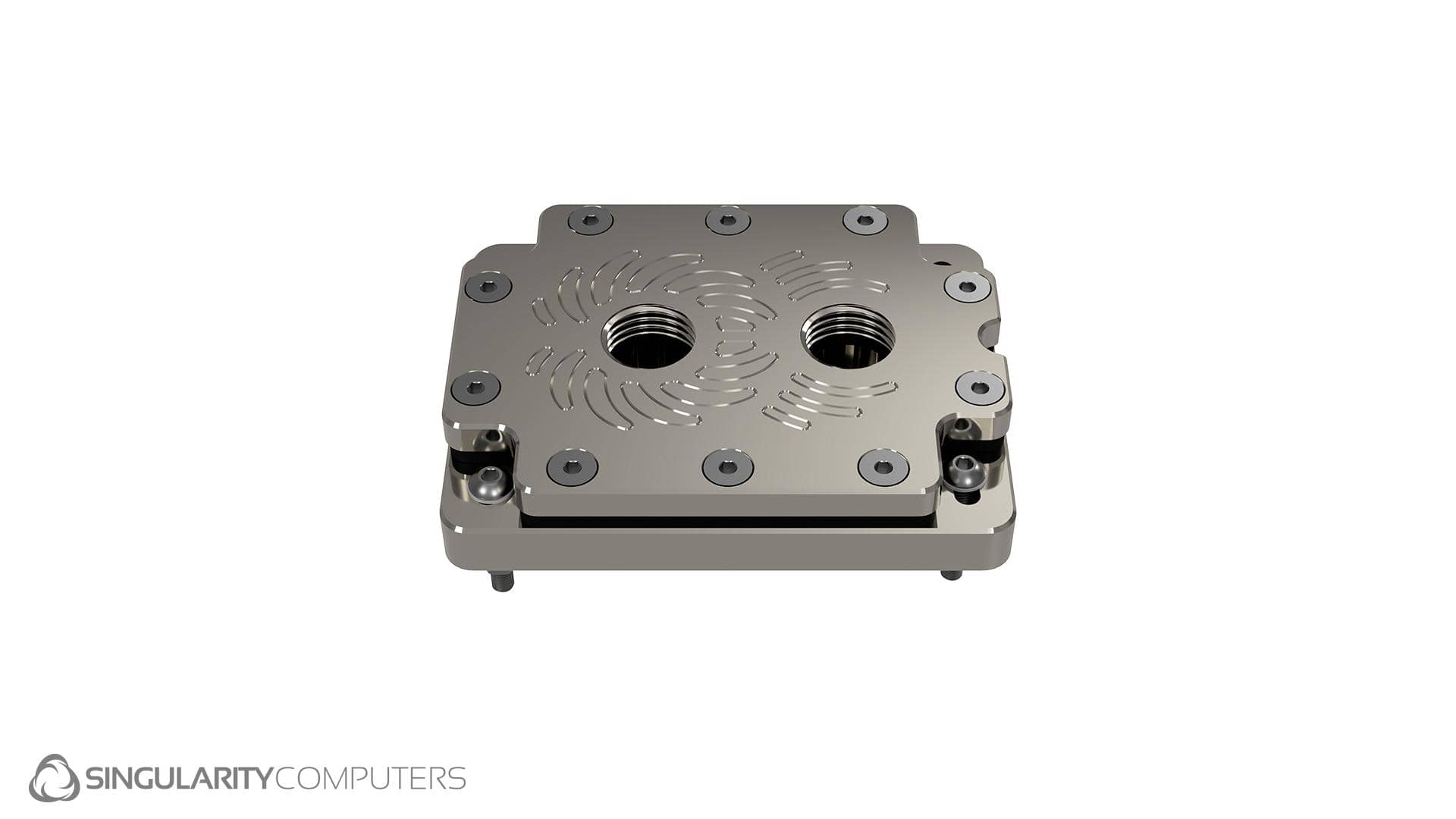

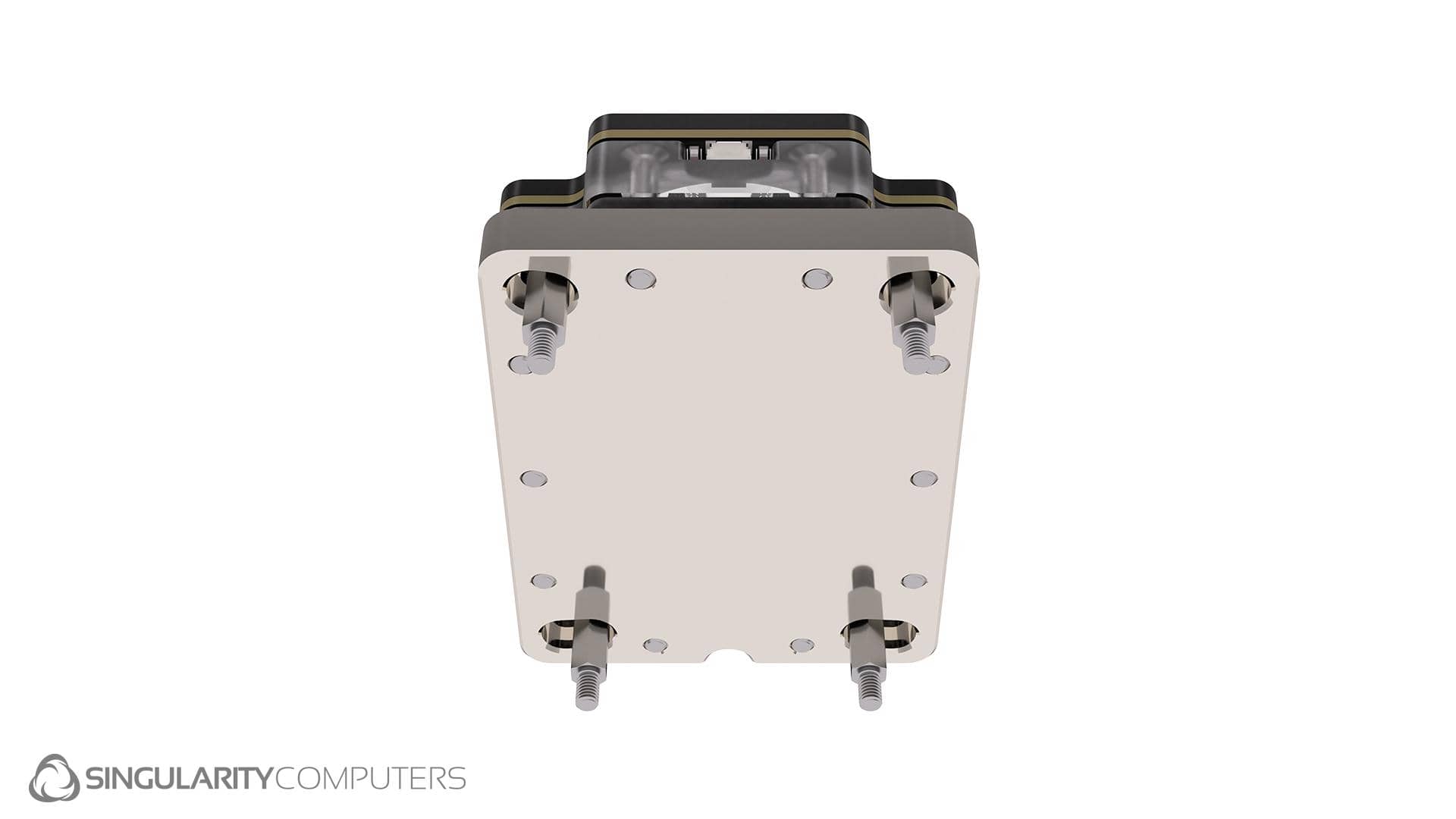

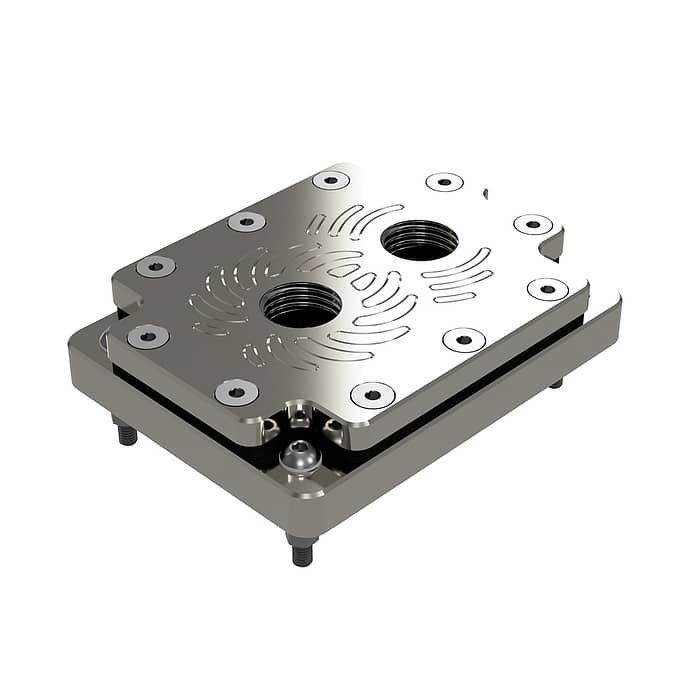

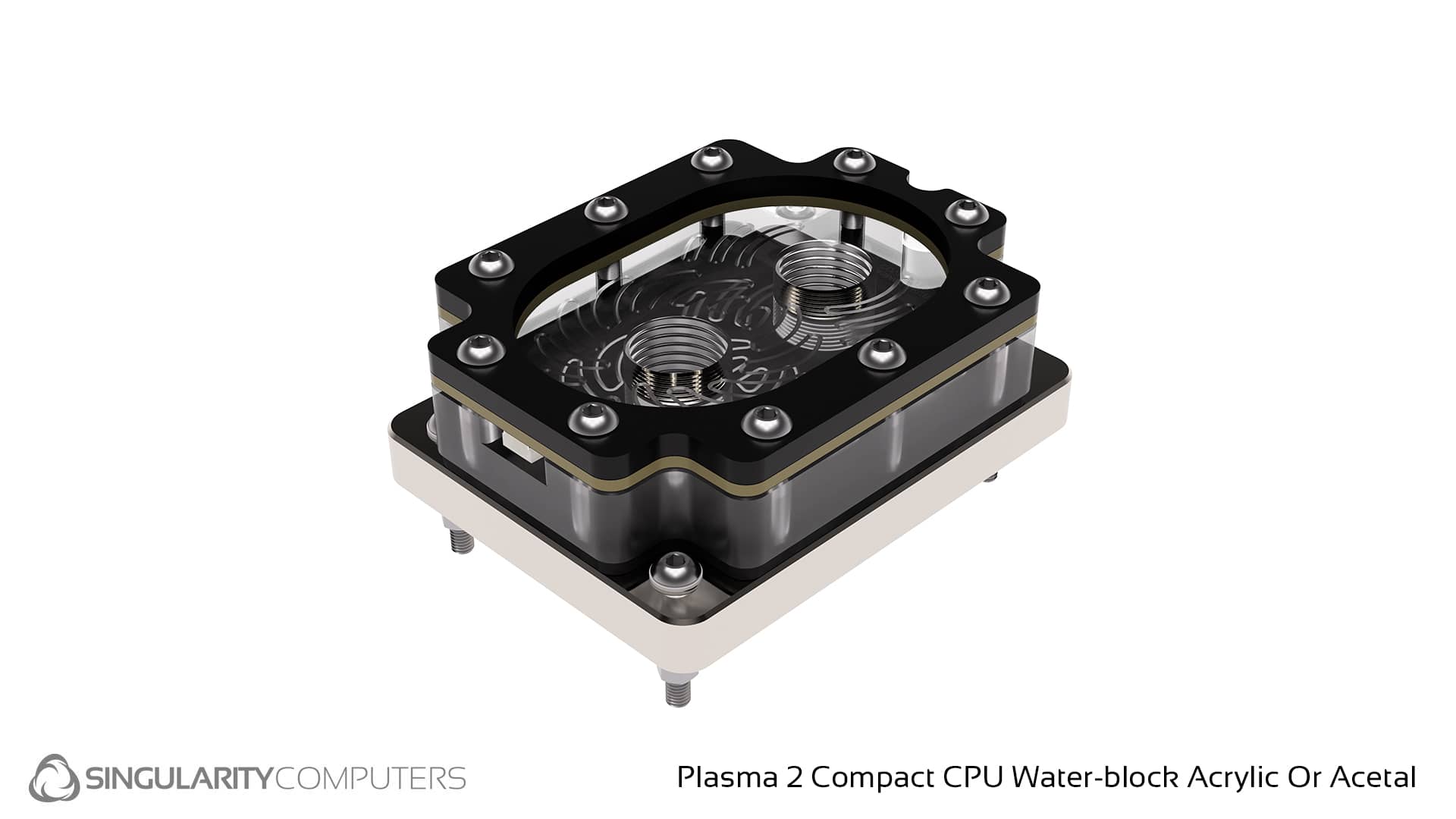

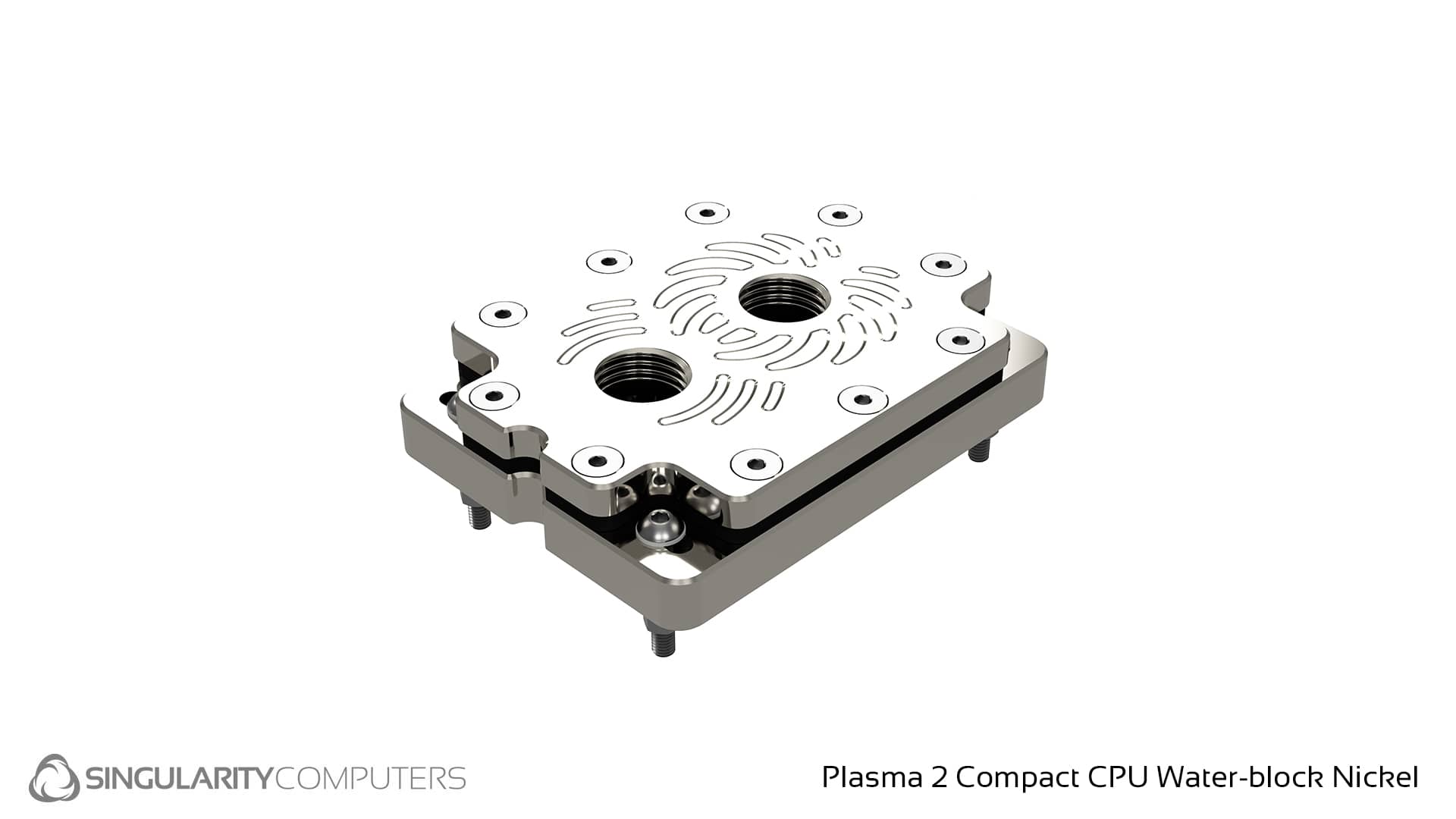

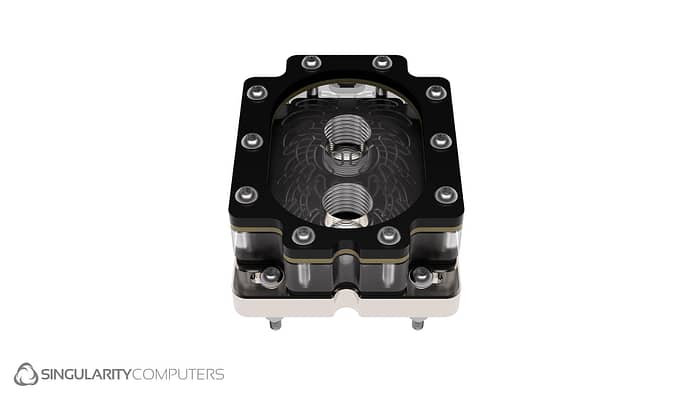

Plasma 2 Compact CPU Water-block:

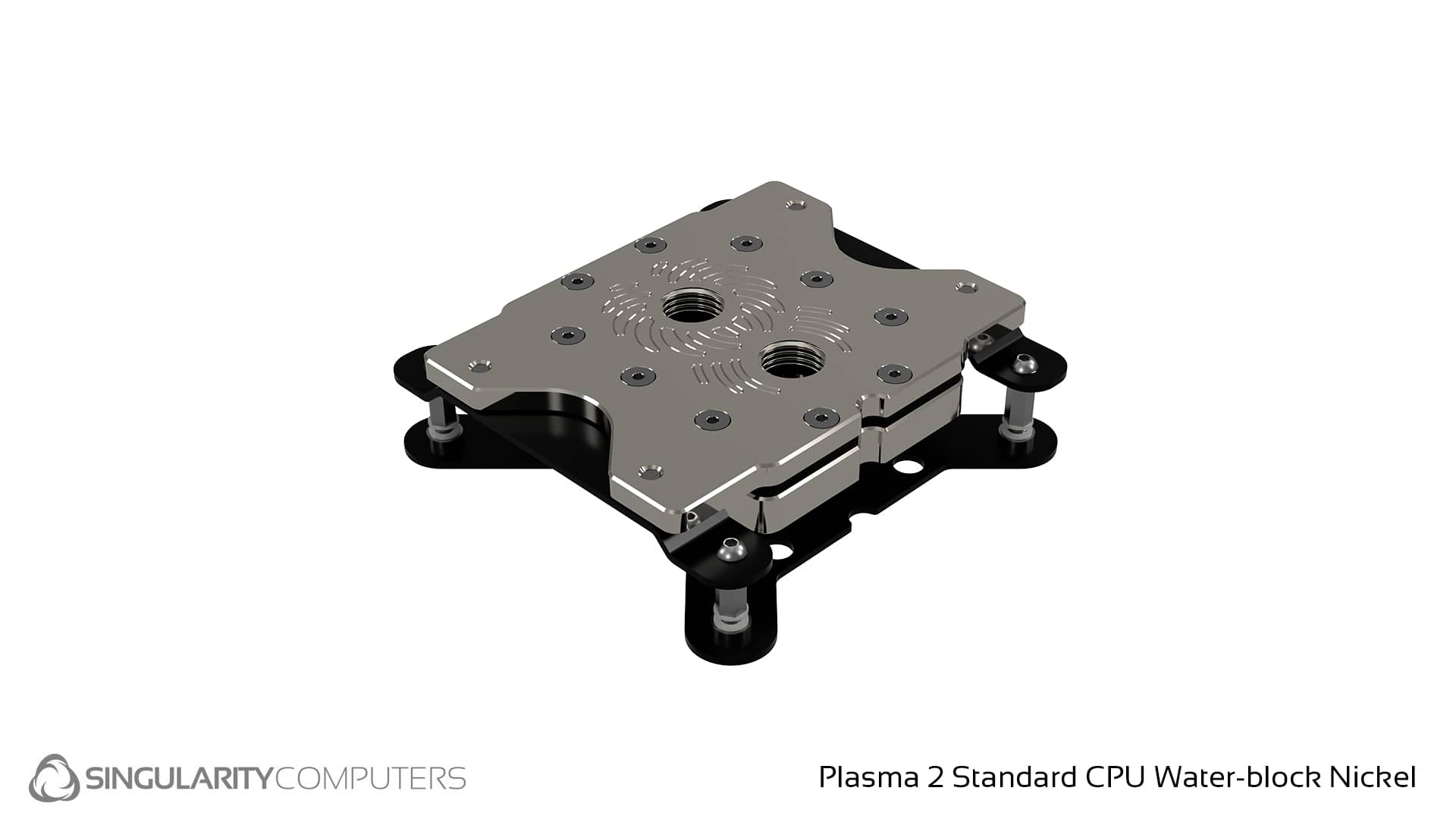

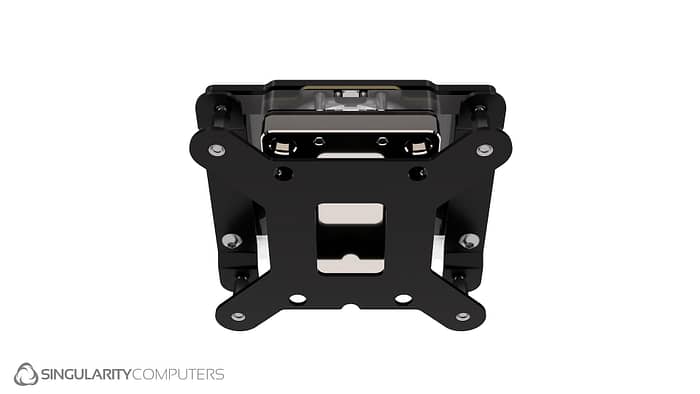

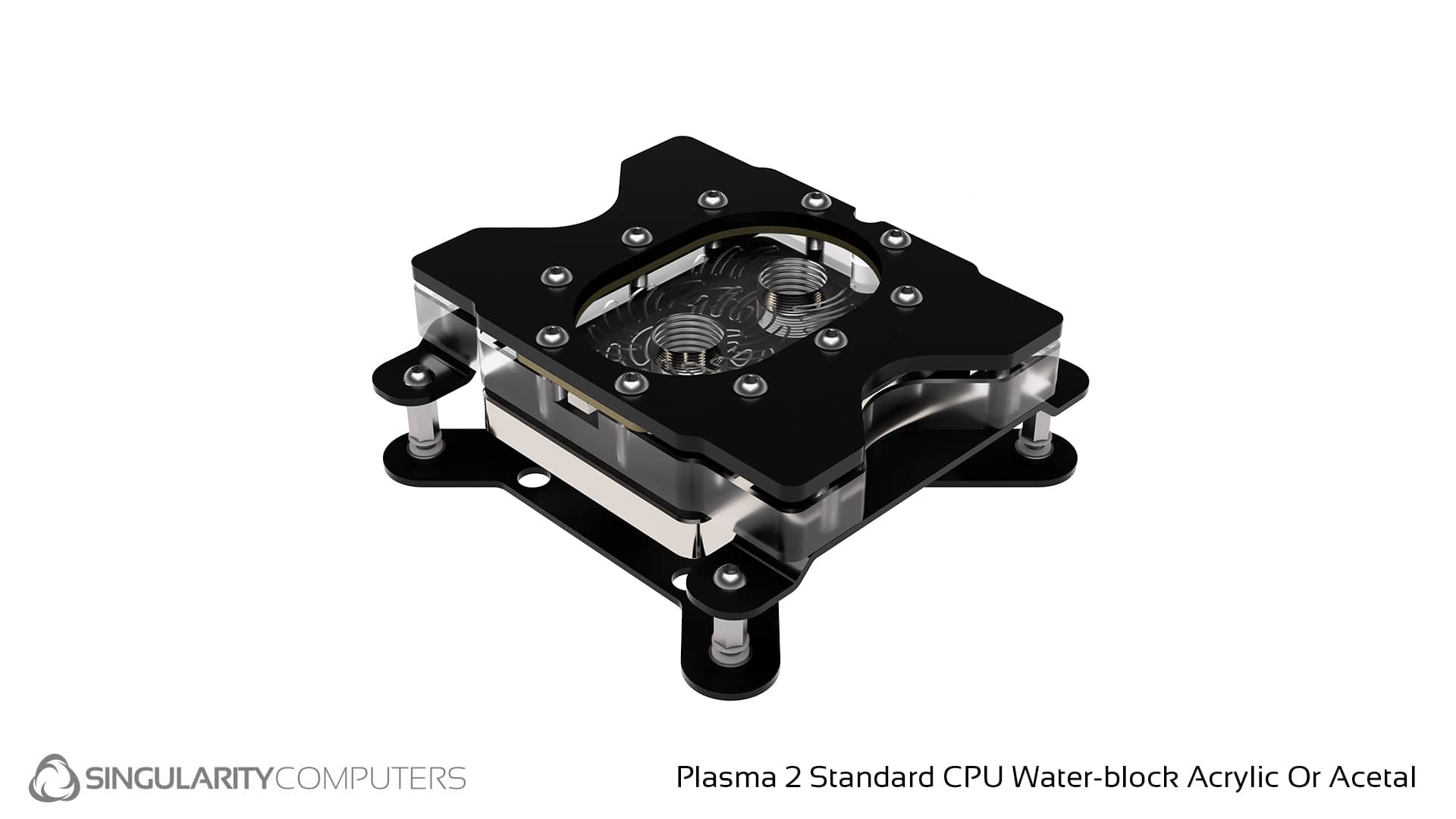

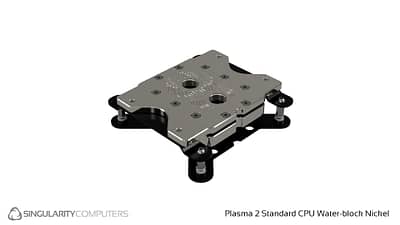

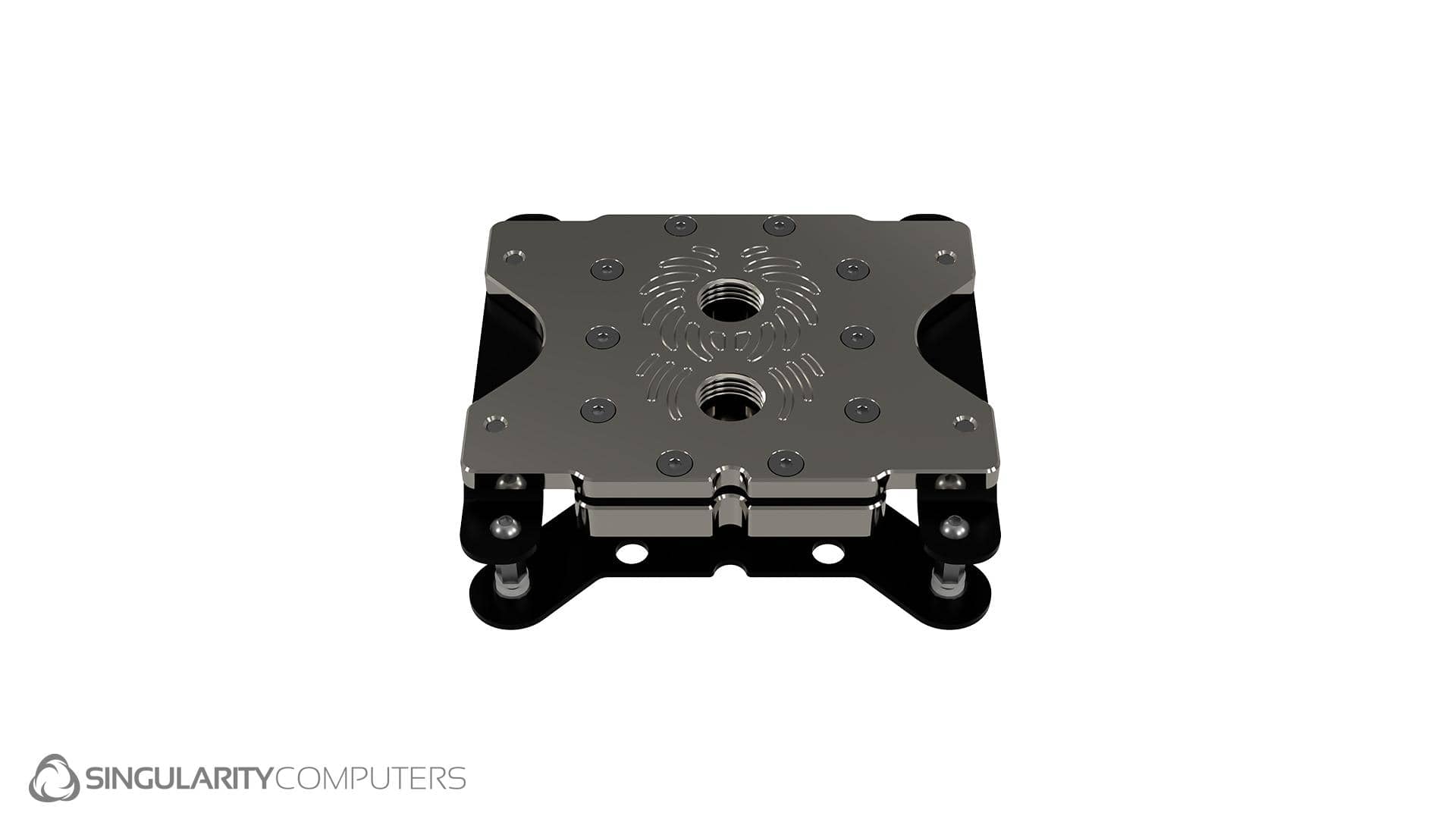

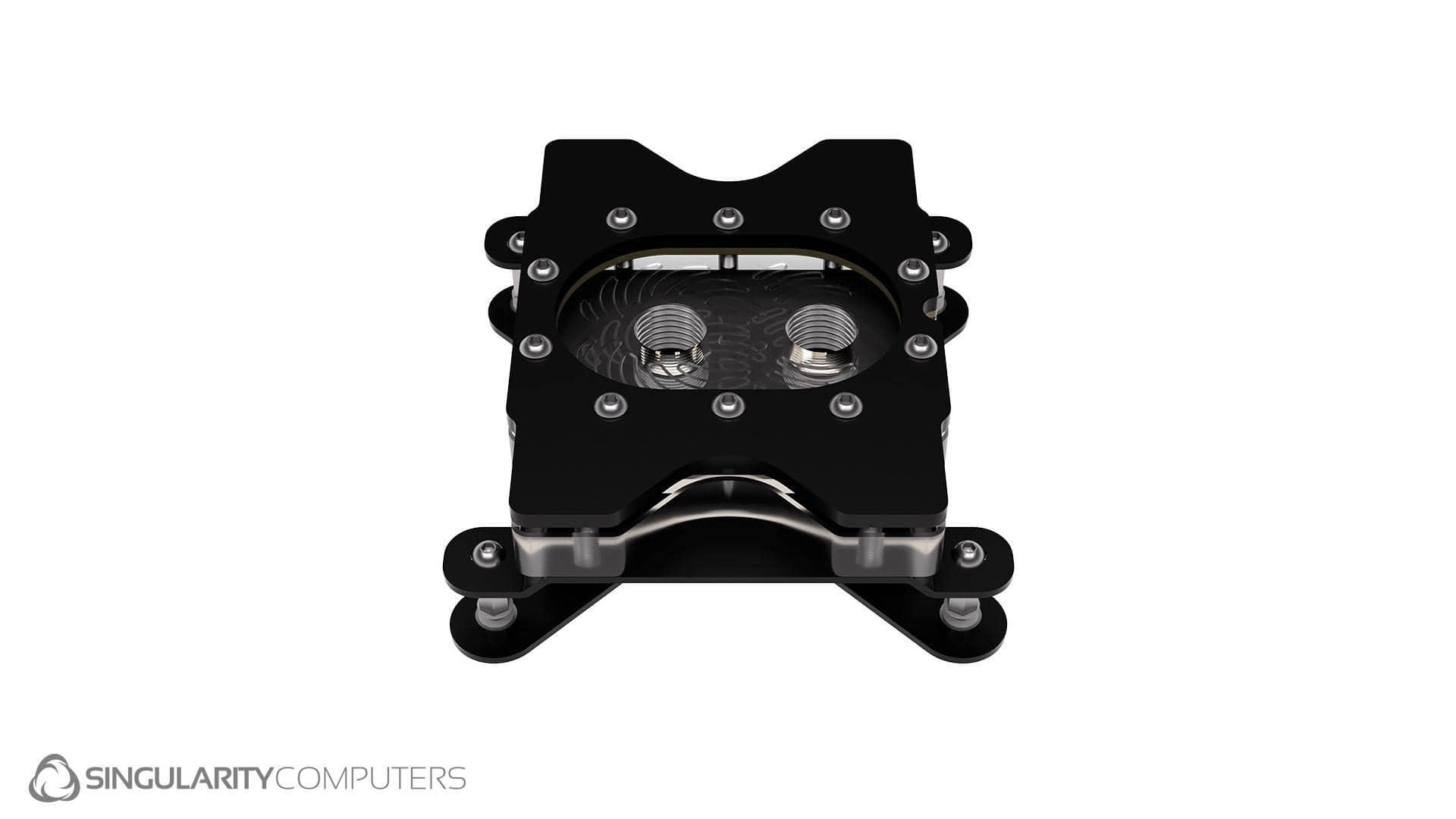

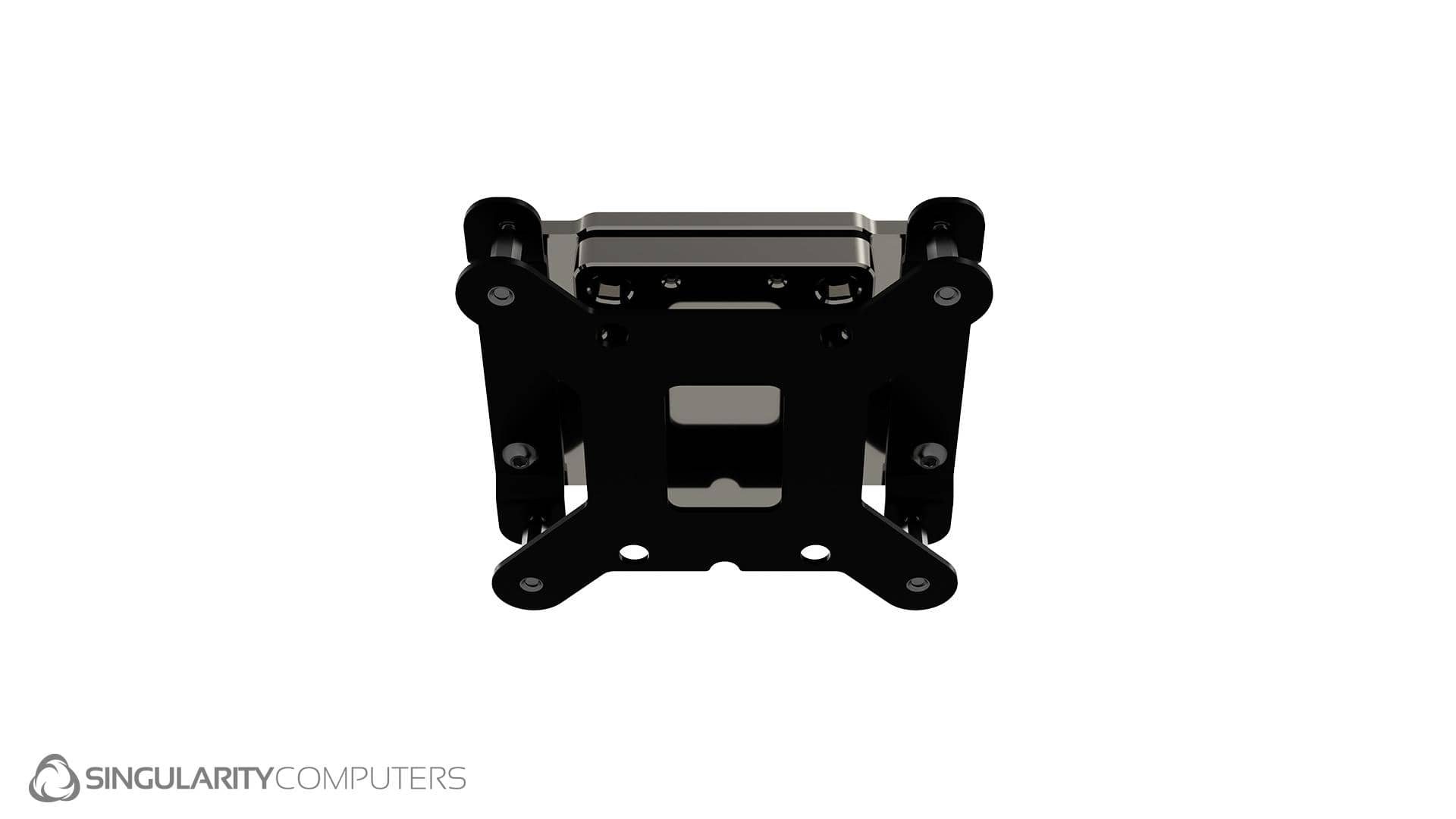

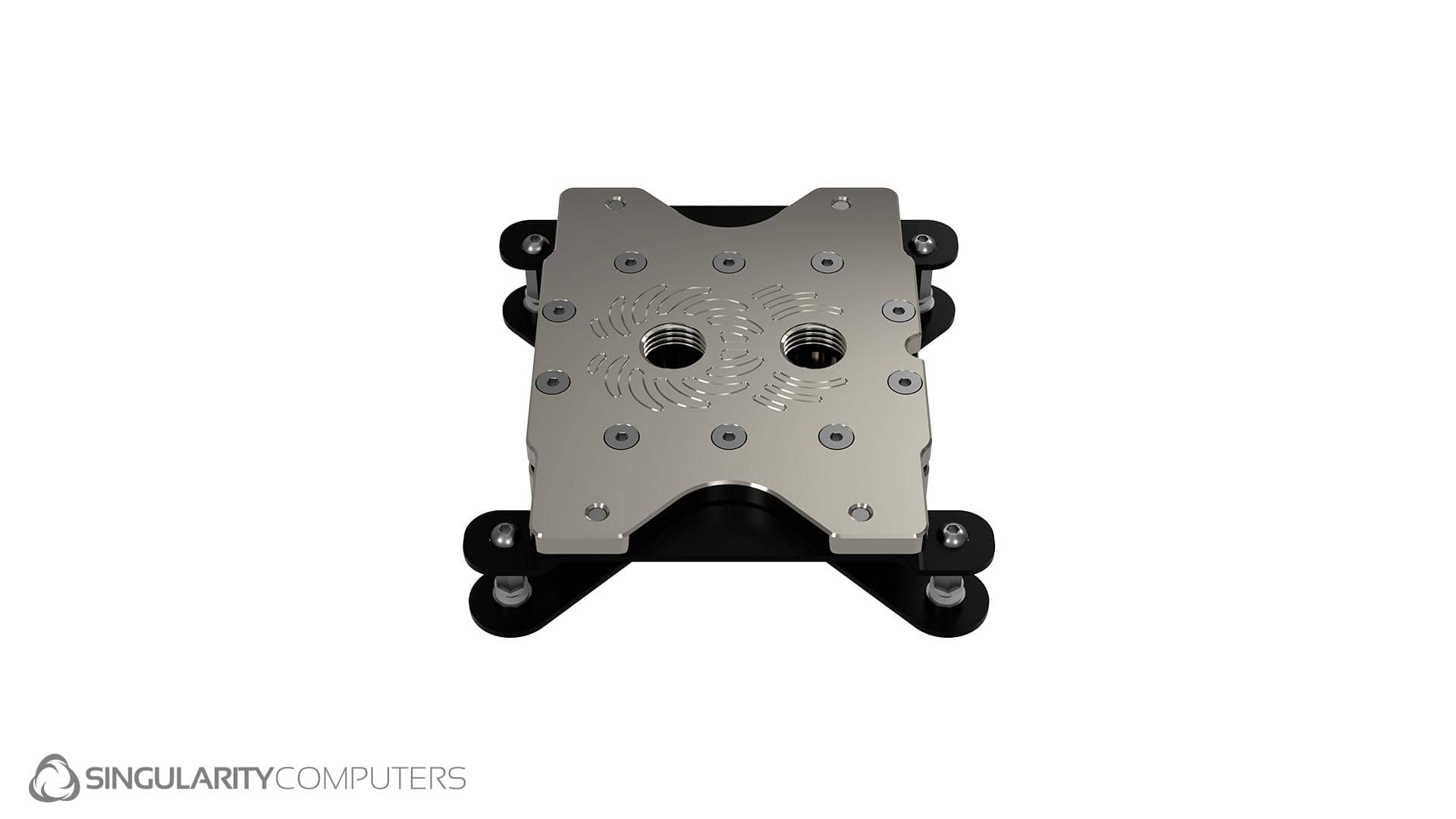

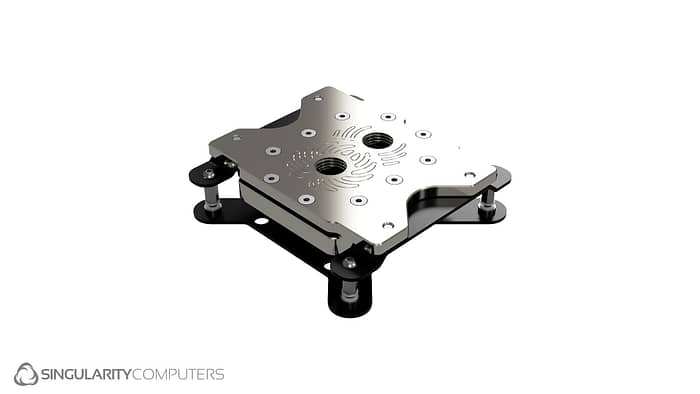

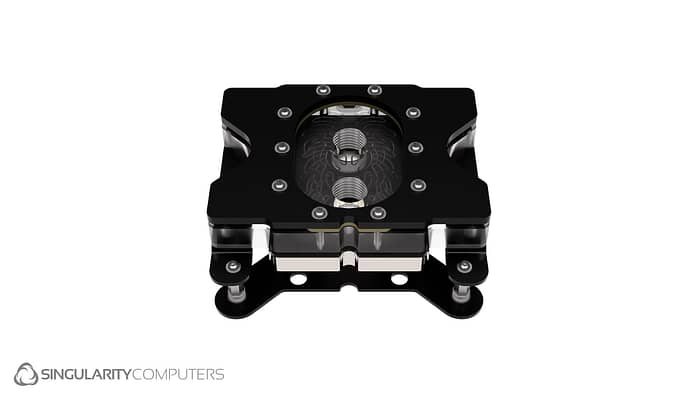

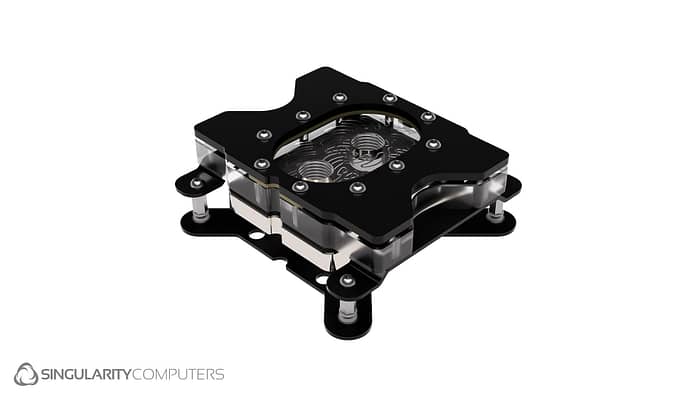

Plasma 2 Standard CPU Water-block

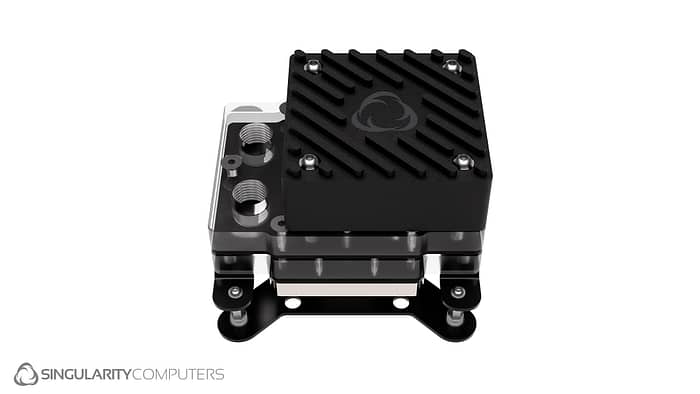

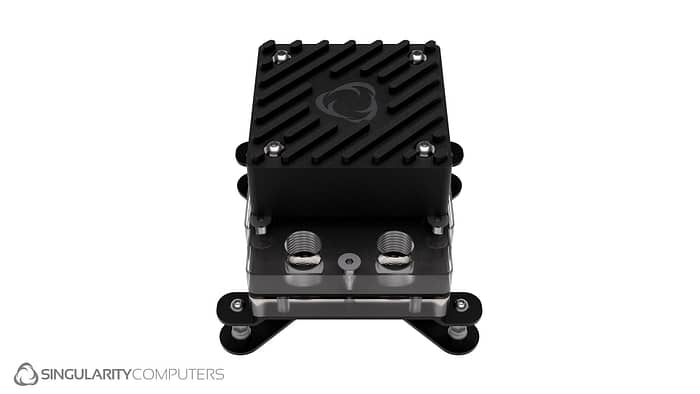

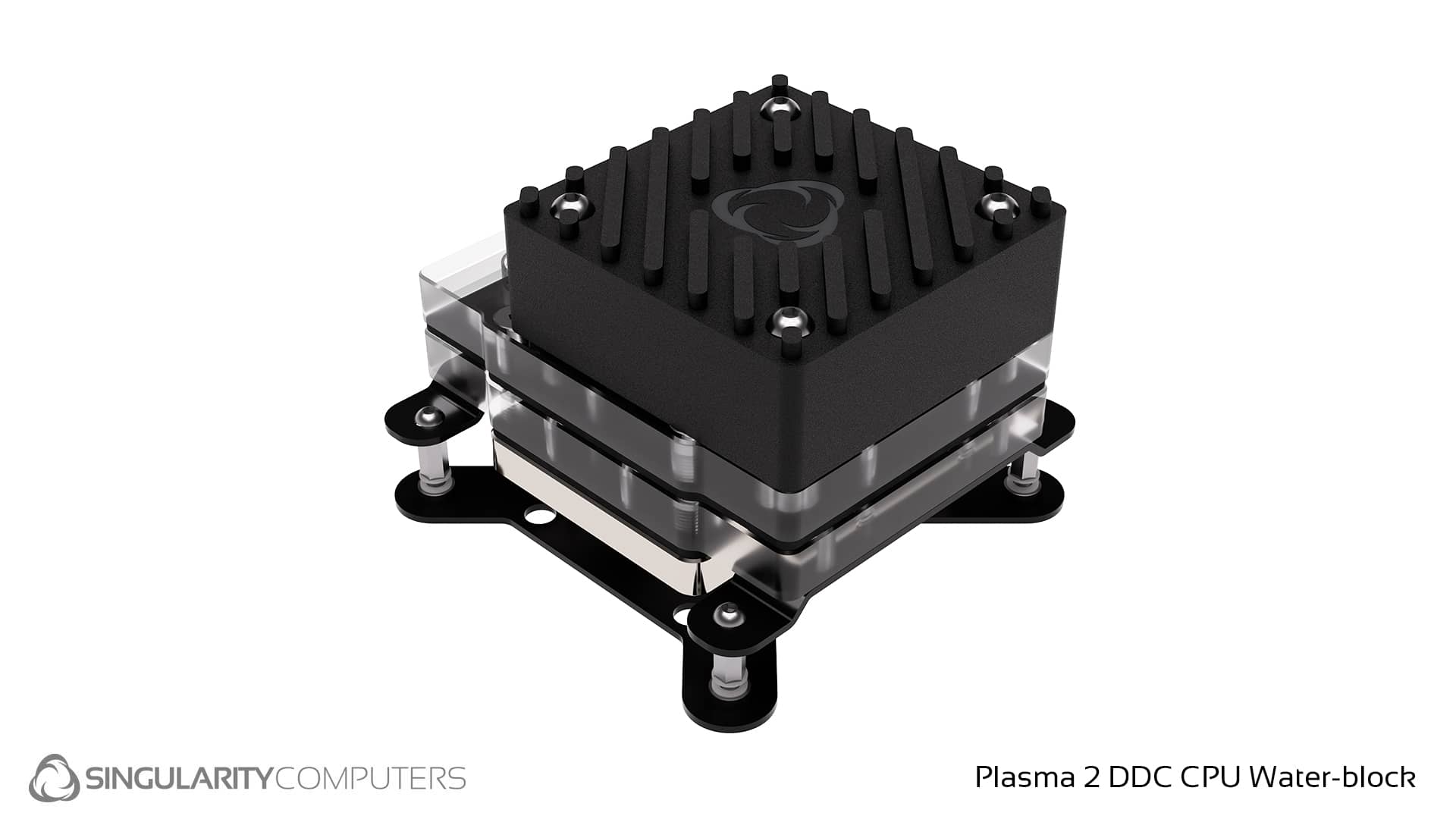

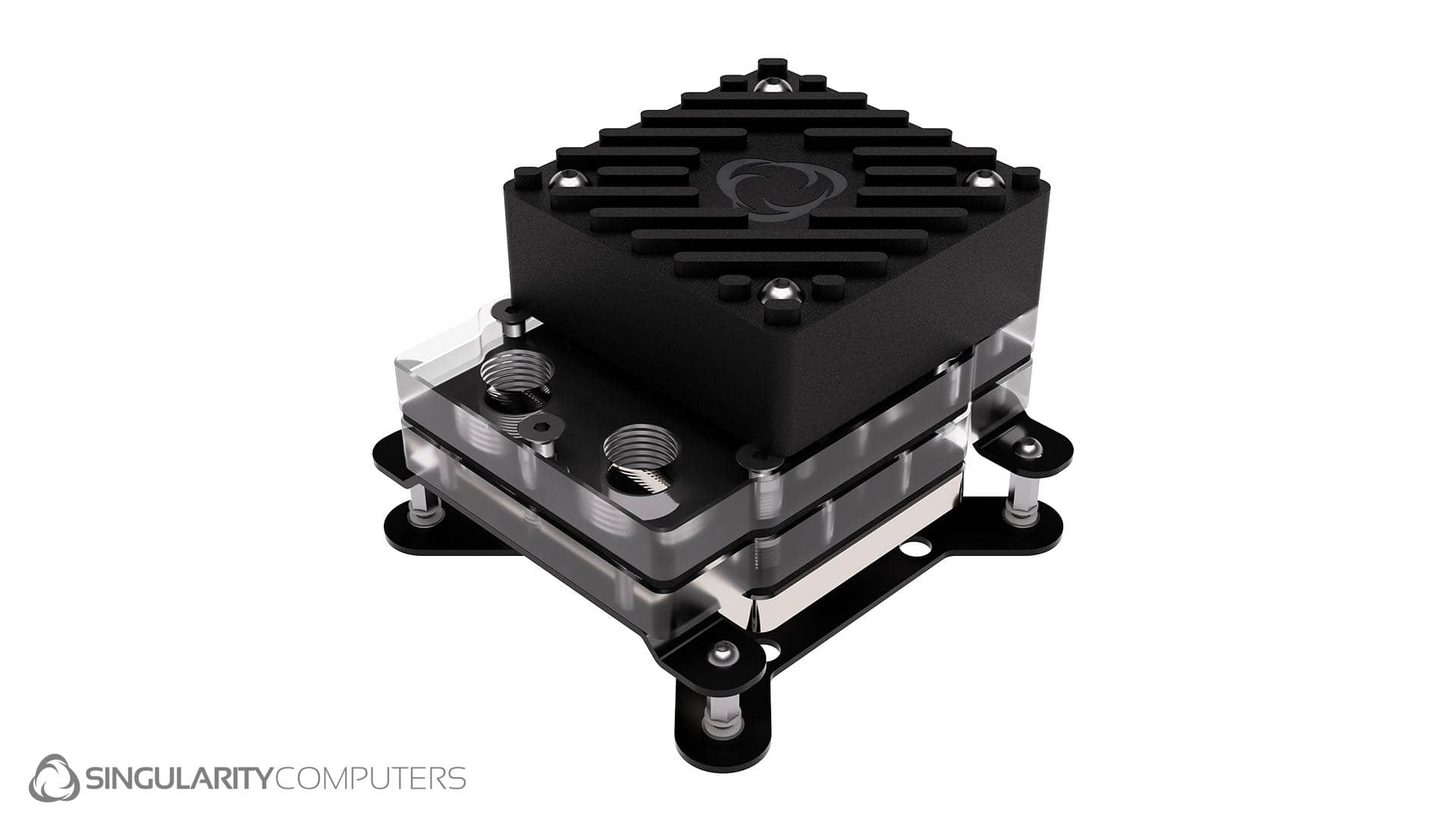

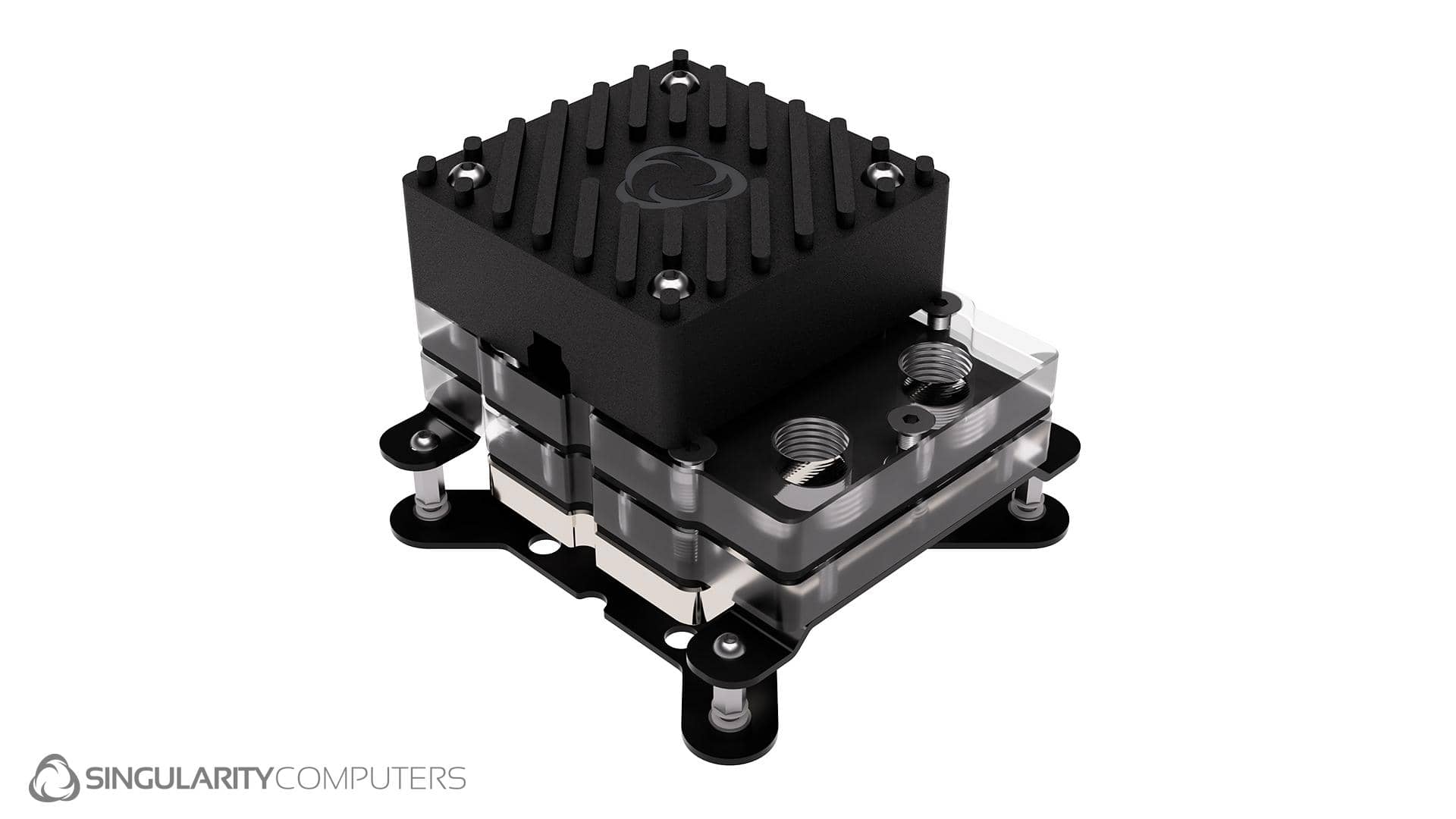

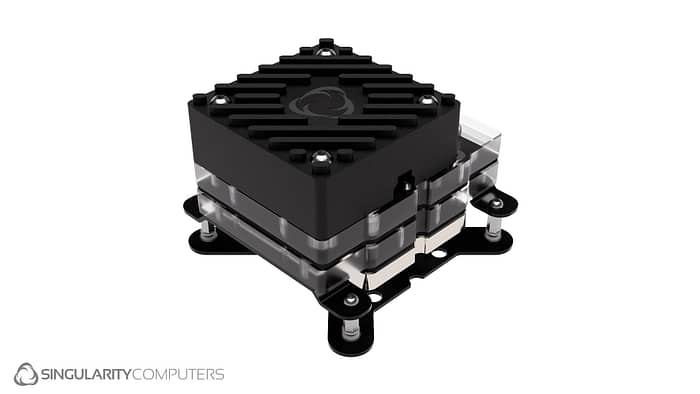

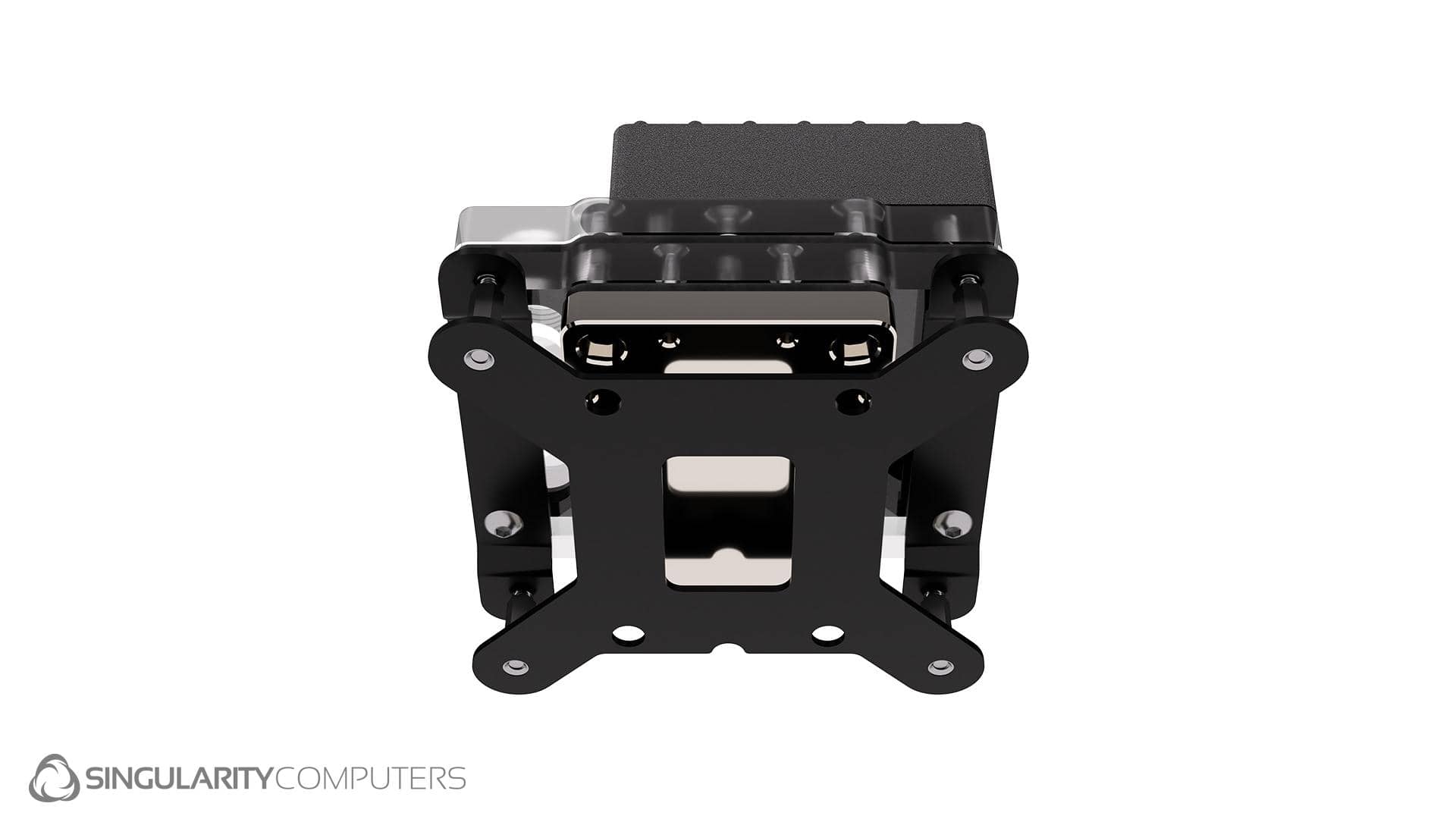

Plasma 2 DDC CPU Water-block

AMD and Intel
