PowerBoard Linking Cables Motherboard

In stock

Order processing time 1-2 days.

  • Standardized short-length cables designed for PowerBoard systems

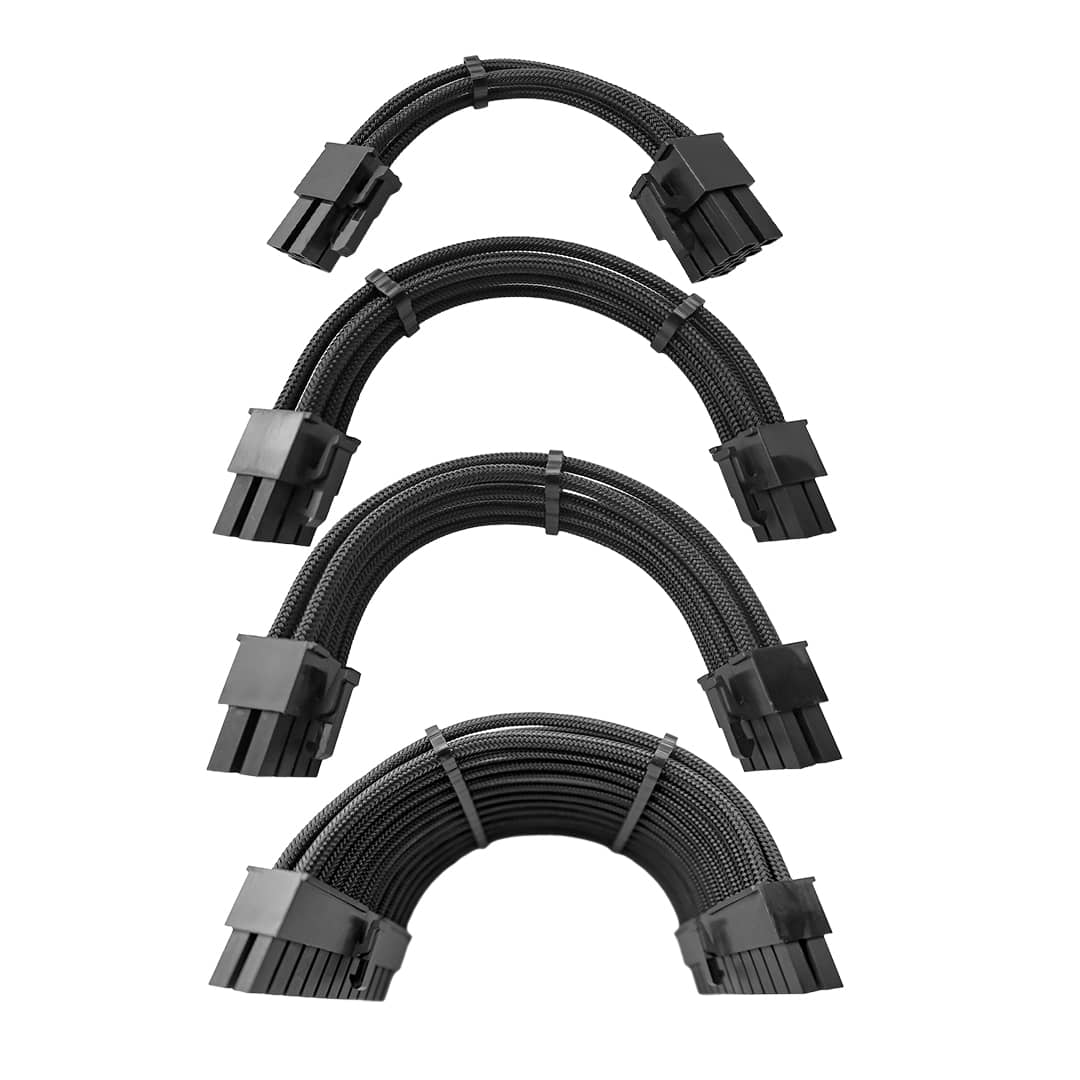

  • Linking Cables connect motherboards and GPUs directly to the PowerBoard
  • PSU Cables connect the PSU to the PowerBoard using stock-style connections
  • High-quality 18AWG heatshrinkless black sleeved construction
  • Arched 24-pin and EPS cables for clean, compact routing
  • Designed with built-in length tolerance for different component connector positions

Manuals

US$4.40 US$24.00Price range: US$4.40 through US$24.00

  • 1x PowerBoard Linking Cables Motherboard
    US$4.40 US$24.00Price range: US$4.40 through US$24.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
SKU: N/A Category:

Description

Read More +Read Less − full description

One of the benefits of the PowerBoard is that the cable lengths have been standardised and the cables are very short meaning they do not require any cable management. PowerBoard Linking Cables connect your motherboard and GPU to the PowerBoard, these are 1:1 extensions with female connections on both ends. PowerBoard PSU Cables connect your PSU to the PowerBoard and are the same as your stock PSU cables just shorter. These are high quality 18AWG Heatshrinkless Black Sleeved cables specifically designed for the PowerBoard. The 24pin and EPS are arched meaning the inner cable lengths are shorter than the outer cable lengths. Component connector positions vary so there is a small margin of excess length built into these cables to allow for this.

Specifications

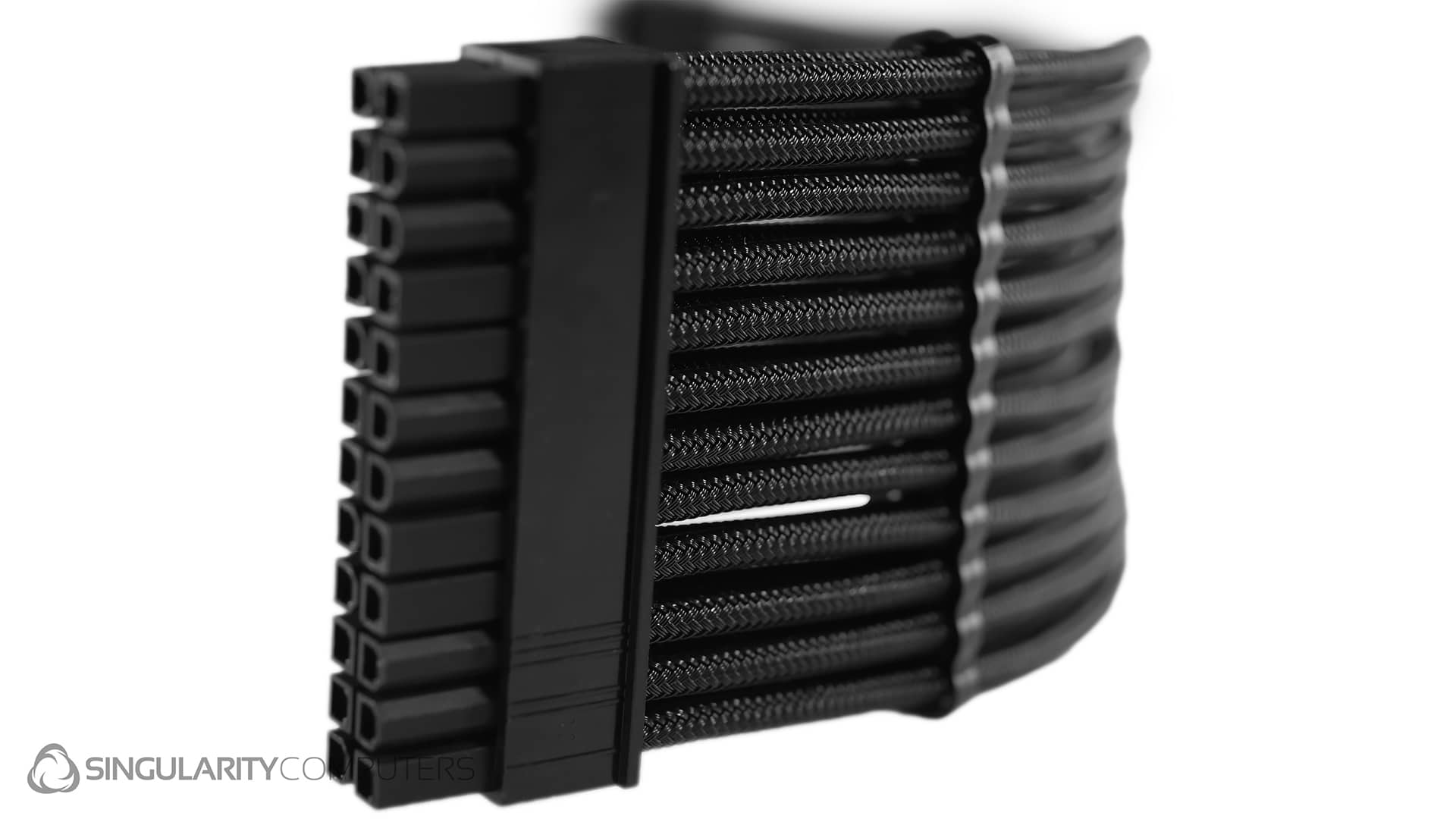

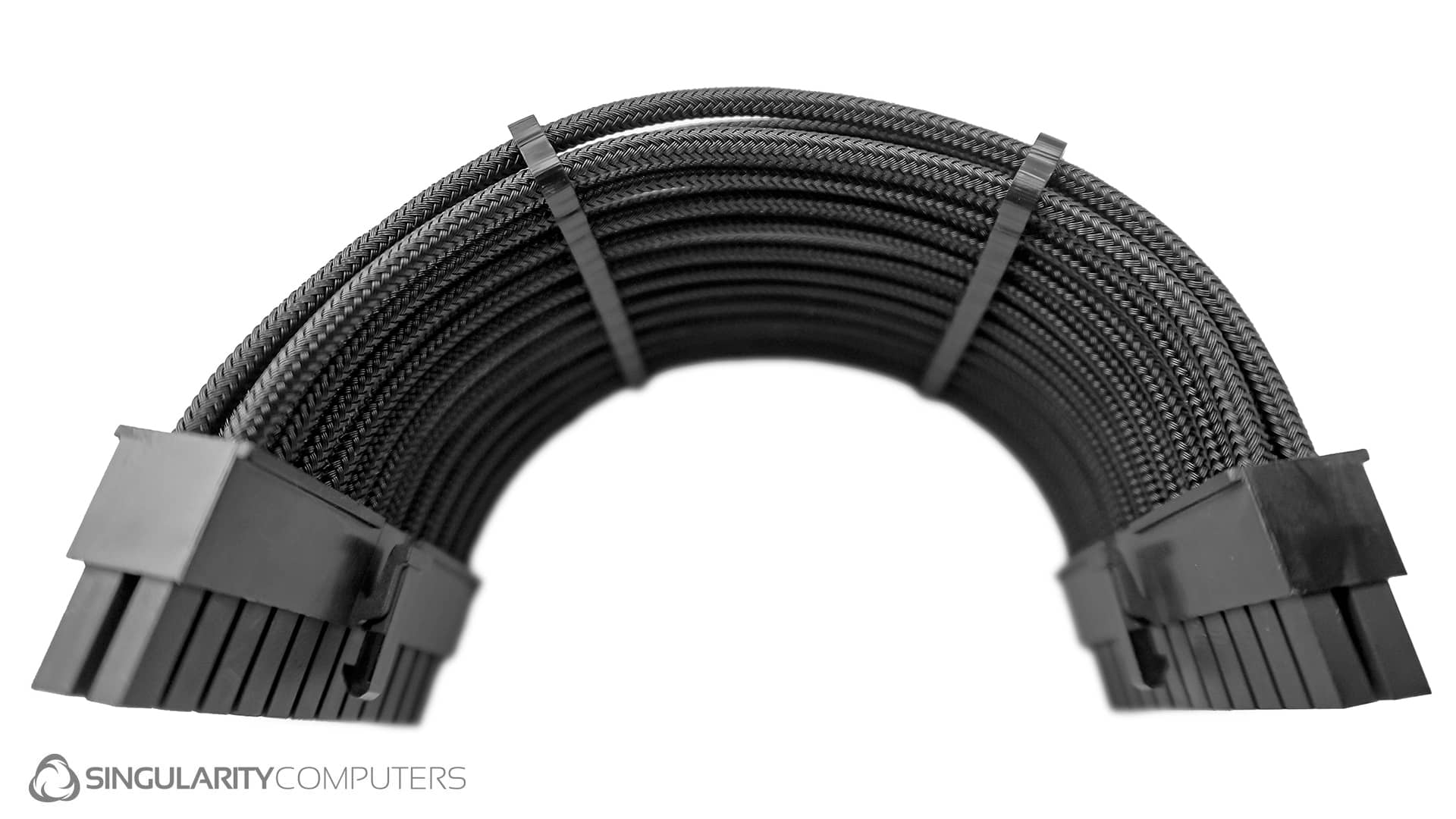

PowerBoard Linking Cable 24pin
Specifications:
PowerBoard Linking Cable 24pin. 18AWG. Black Sleeved.
Dimensions: L: 100mm or 150mm x W: 50mm x H: 12mm.
Weight: 0.08kg.
Packaged Dimensions: L: 180mm x W: 55mm x H: 20mm.
Packaged Weight: 0.1kg.
Installation:
This cable is designed to connect from the PowerBoard to the Motherboard. The PowerBoard Linking Cable 24pin is included with all PowerBoards and cases with PowerBoards. For motherboards with 90-degree 24pin, EPS or supplementary 6pin you will need SC Shift Adaptors.

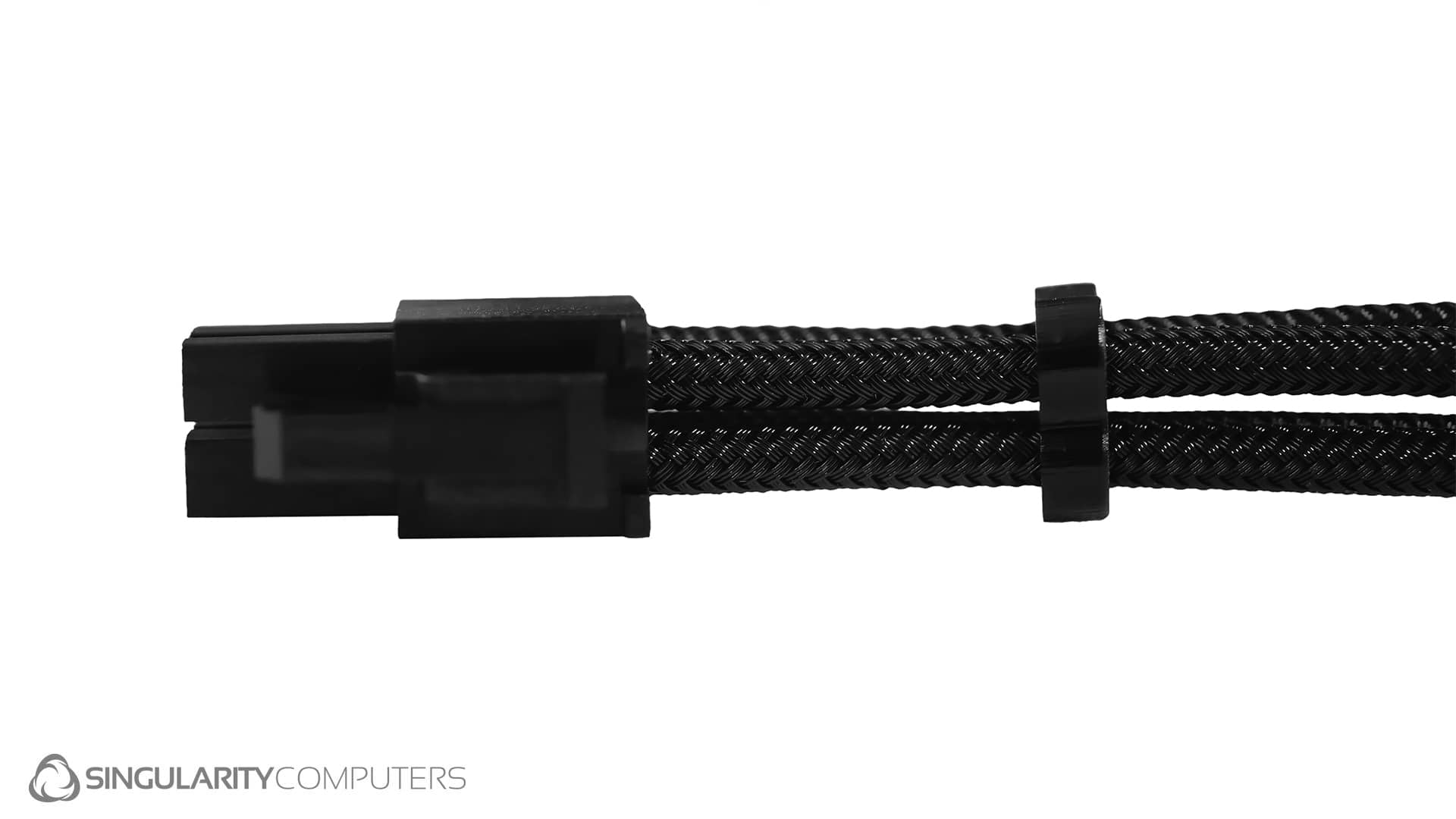

PowerBoard Linking Cables 4pin EPS
Specifications:
PowerBoard Linking Cable 4pin EPS. 18AWG. Black Sleeved.
Dimensions: L: 100mm or 150mm x W: 20mm x H: 12mm.
Weight: 0.05kg.
Packaged Dimensions: L: 180mm x W: 25mm x H: 20mm.
Packaged Weight: 0.07kg.
Installation:
Designed to be connected from the PowerBoard to the Motherboard. This cable is not included with the standard PowerBoard Linking Cable Sets which come with every PowerBoard and case with a PowerBoard. For motherboards with 90-degree 24pin, EPS or supplementary 6pin you will need SC Shift Adaptors.

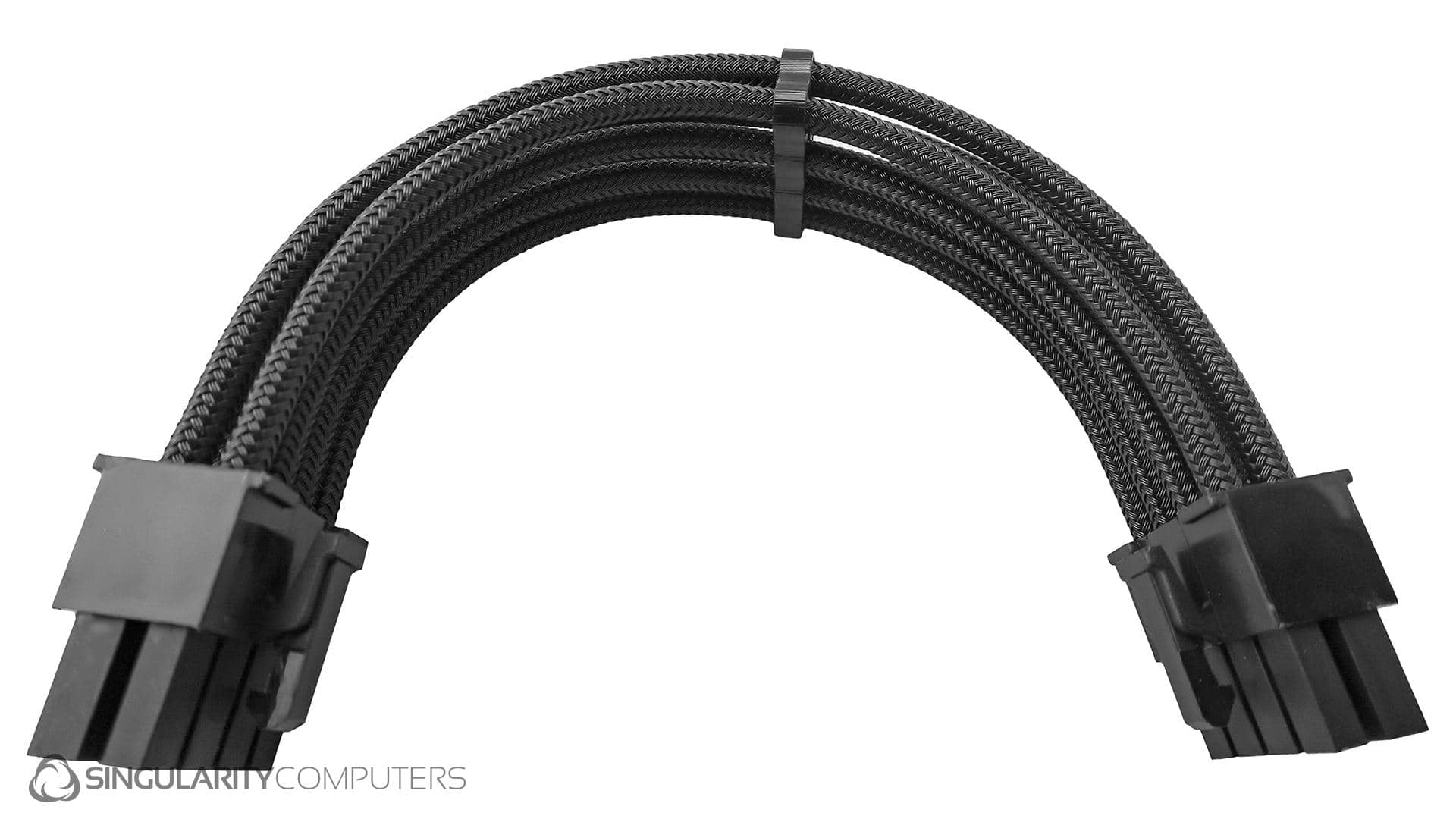

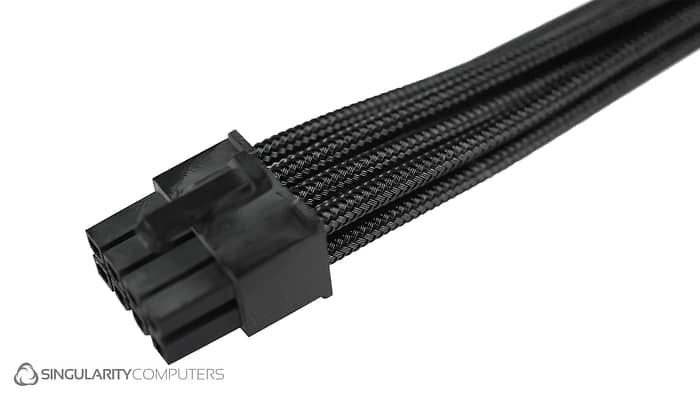

PowerBoard Linking Cables 8pin EPS
Specifications:
PowerBoard Linking Cable 8pin EPS. 18AWG. Black Sleeved.
Dimensions: L: 100mm or 150mm x W: 50mm x H: 12mm.
Weight: 0.08kg.
Packaged Dimensions: L: 180mm x W: 55mm x H: 20mm.
Packaged Weight: 0.1kg.
Installation:
This cable is designed to connect from the PowerBoard to the Motherboard. The PowerBoard Linking Cable 8pin EPS is included with all PowerBoards and cases with PowerBoards. For motherboards with 90-degree 24pin, EPS or supplementary 6pin you will need SC Shift Adaptors.

PowerBoard Linking Cables Motherboard Supplementary
Specifications:

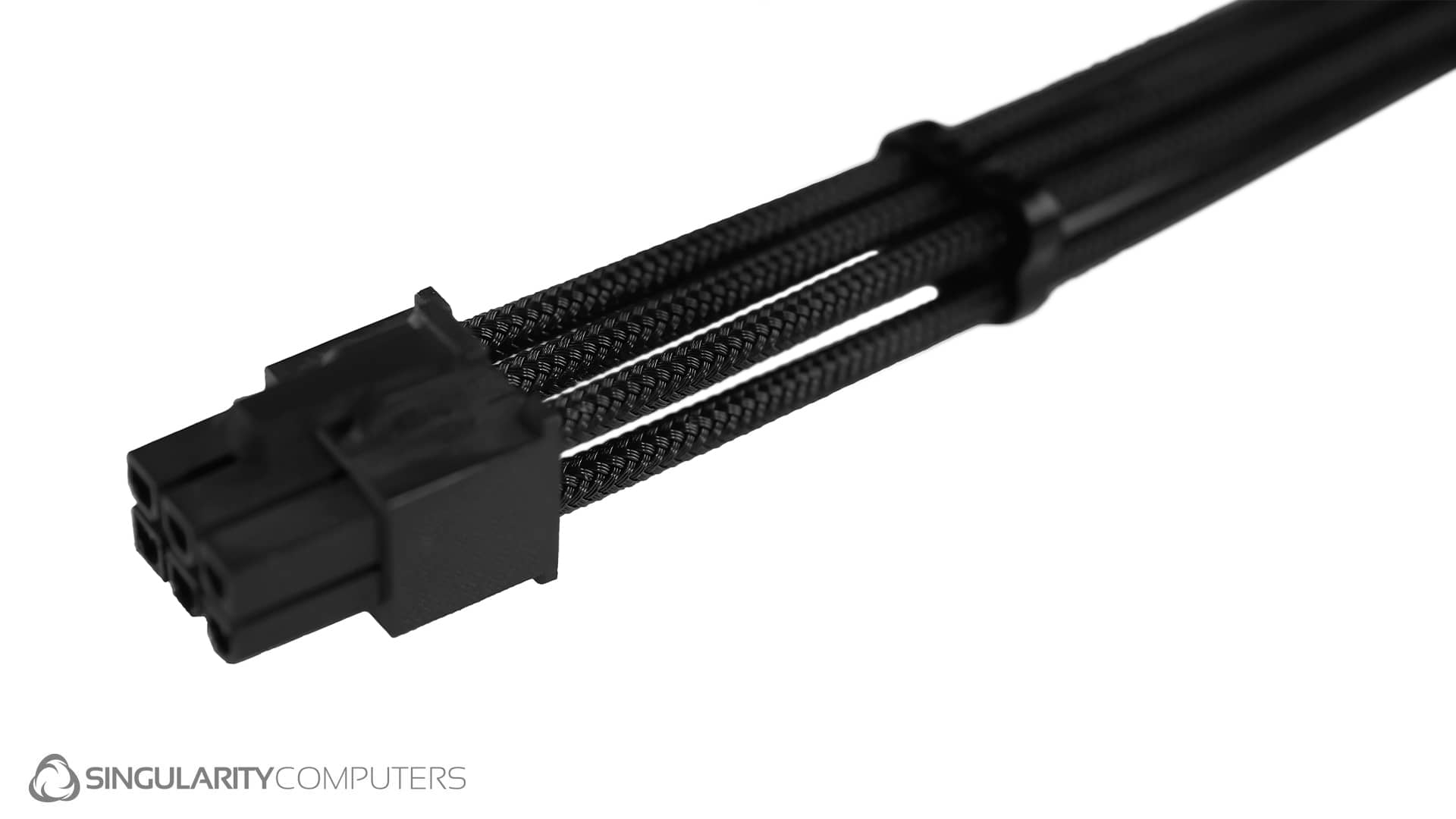

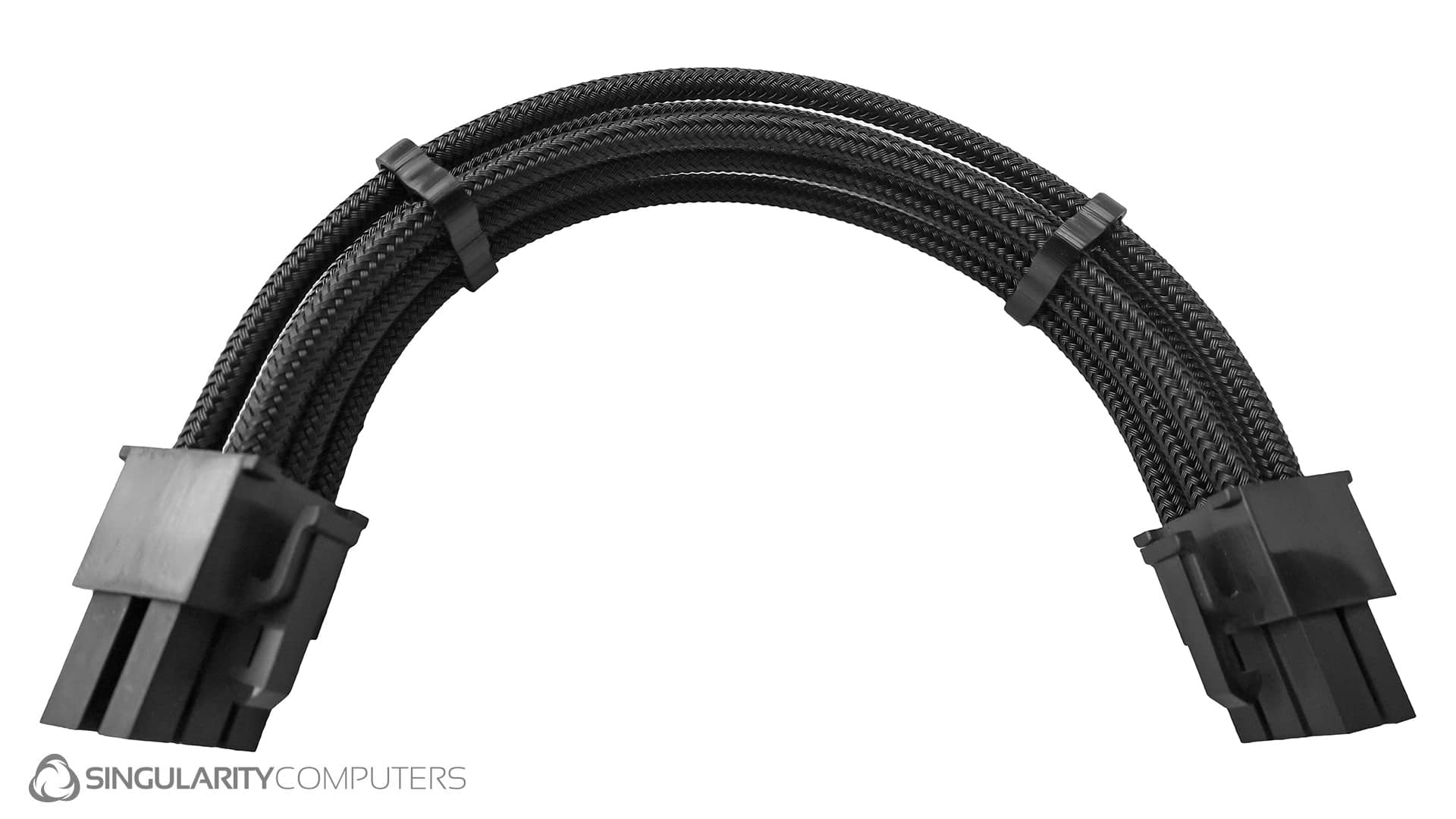

PowerBoard Linking Cable Motherboard Supplementary 6pin PCIE.
PowerBoard Linking Cable Motherboard Supplementary 8pin PCIE.
18AWG. Black Sleeved.
Dimensions: L: 100mm or 150mm x W: 20mm x H: 12mm.
Weight: 0.05kg.
Packaged Dimensions: L: 180mm x W: 25mm x H: 20mm.
Packaged Weight: 0.07kg.
Installation:
Designed to be connected from the PowerBoard to the Motherboard. This cable is for 6pin or 8pin PCIE supplementary power connections on some motherboards. This cable is not included with the standard PowerBoard Linking Cable Sets which come with every PowerBoard and case with a PowerBoard. For motherboards with 90-degree 24pin, EPS or supplementary 6pin you will need SC Shift Adaptors.
