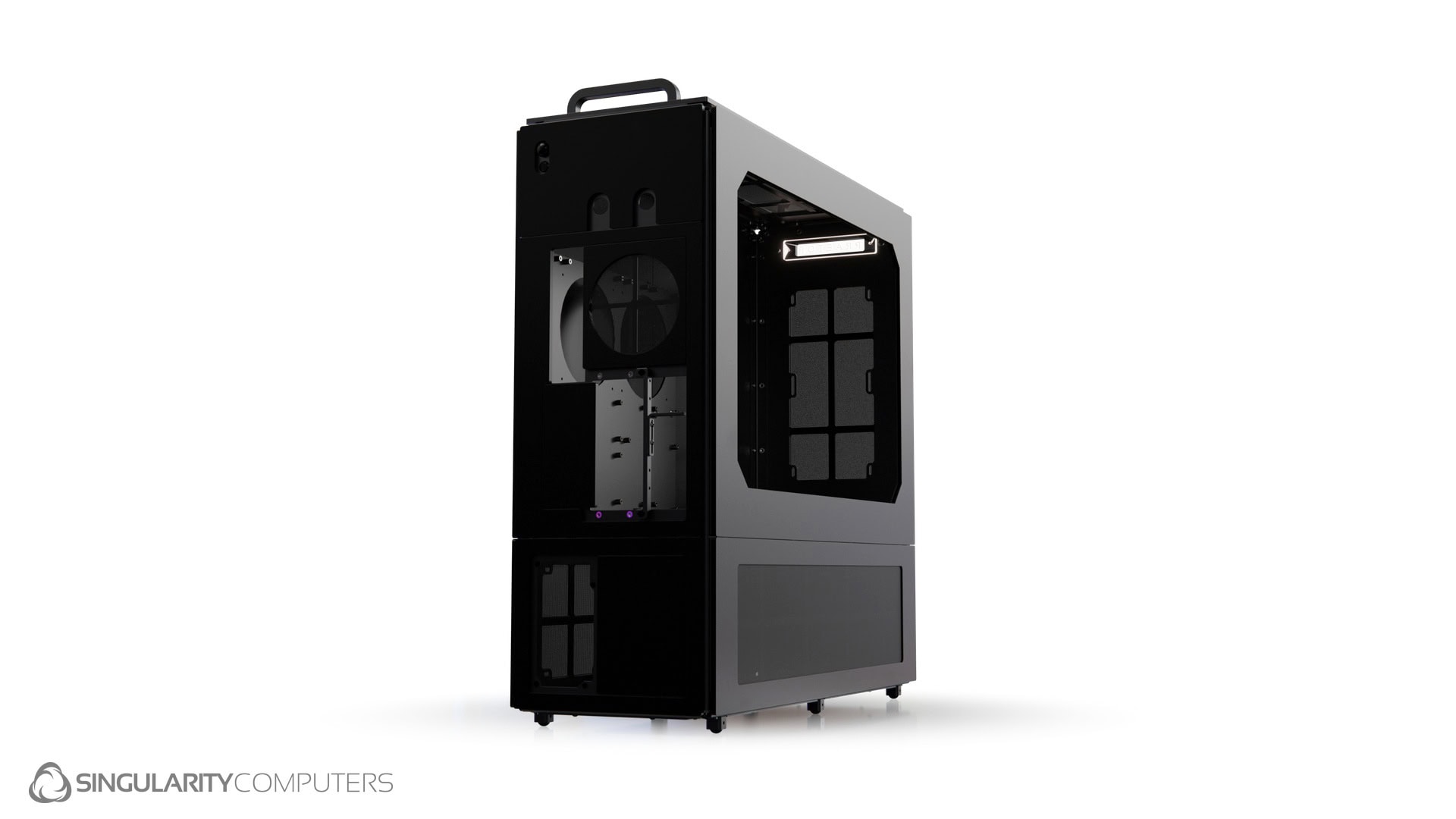

Praetor Workstation Case

In stock

Order processing time 1-2 days.

  • Large workstation case supporting dual systems
  • Supports up to two 560mm and one 280mm radiators
  • Supports dual ATX PSUs and up to 5x 3.5” HDDs
  • ATX, E-ATX, BTF and SSI motherboard compatibility
  • Secondary ITX motherboard with four mounting locations
  • 7 expansion slots with support for two vertical GPU mounts
  • Optional distribution plates for clean loop routing and dual loops
  • Vertical dual-loop distribution plate with 2x D5 reservoir combos
  • CNC-machined anodized black aluminum and satin black acrylic construction

Note: PowerBoard coming soon.

Manuals

Current price is: US$1,199.20. Original price was: US$1,499.00.

MotherBoard Tray (included)
ATX/E-ATX BTF Motherboard Tray E-ATX/SSI Motherboard Tray E-ATX/SSI Motherboard Tray

Praetor E-ATX/SSI Motherboard Tray

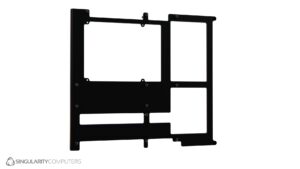

Motherboard tray compatible with ATX and E-ATX, BTF compatible. Fits a 140mm fan to cool the CPU socket (removes BTF compatibility).

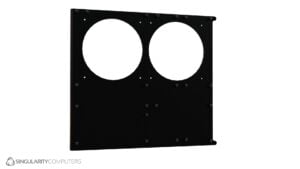

Motherboard tray compatible with SSI and XL-ATX motherboards. Fits 2x 140mm fans to cool the rear of the CPU socket/s and motherboard.

Optional Add-Ons

Enhance your purchase with these recommended extras

Distribution Plates

Distribution Plate Top (optional) USD $149
None Yes +US$149.00

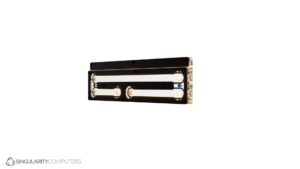

Praetor Distribution Plate Top
Fits above the motherboard and cleans up the loop route particularly in combination with the other distribution plates.

Select Top Plate Acrylic Cover Color/Finish Options
None Black Satin Gloss Black Gloss White Carbon Mirror +US$11.92 Silver Mirror +US$11.92 Gold Mirror +US$11.92 Black Satin

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Distribution Plate Vertical (optional) USD $499
None Yes +US$499.00

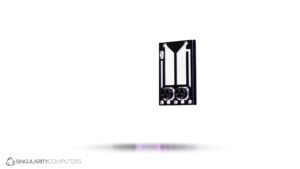

Praetor Distribution Plate Vertical
Fits to the right of the motherboard and adds dual loops each with a D5 Reservoir Combo.

Select Vertical Plate Acrylic Cover Color/Finish Options
None Black Satin Gloss Black Gloss White Carbon Mirror +US$39.92 Silver Mirror +US$39.92 Gold Mirror +US$39.92 Black Satin

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour x2 (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

D5 Pump Cover Options x2 (optional) USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Distribution Plate Horizontal (optional) USD $399
None Yes +US$399.00

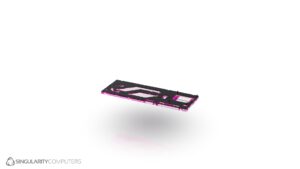

Praetor Distribution Plate Horizontal
Fits on the Mid Plate, cleans up the loop route particularly in combination with the Vertical Distribution Plate.

Select Horizontal Plate Acrylic Cover Color/Finish Options
None Black Satin Gloss Black Gloss White Carbon Mirror +US$31.92 Silver Mirror +US$31.92 Gold Mirror +US$31.92 Black Satin

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Mounting

GPU Mounting (optional) USD $19-$179
None Vertical GPU Mount x1 +US$99.00 Vertical GPU Mount x2 +US$179.00 Horizontal GPU Mount Short x1 +US$19.00

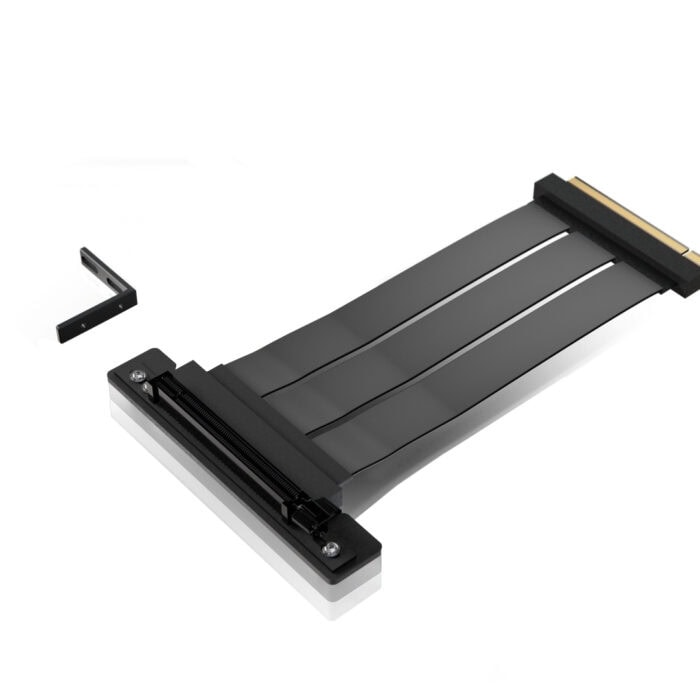

Vertical GPU Mount
Praetor has 7 expansion slots by default, these are extra addon GPU mounting options. The Horizontal GPU Mount Short is for dual systems if an ITX motherboard is mounted under the GPU.
Vertical GPU Mount x1: To allow for ITX motherboard when using dual systems.

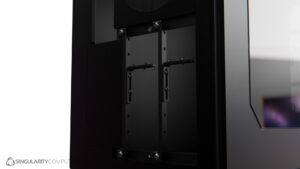

Vertical GPU Mount x2: Mounts two GPUs vertically with PCIE 5.0 Riser Cables.
Horizontal GPU Mount x1.: To allow for ITX motherboard to be mounted in rear location when using dual systems. There are 4 mounting locations for the ITX motherboard, it will need to be mounted in one of the front two locations to install more than one GPU.

  • 1x Praetor Workstation Case
    Current price is: US$1,199.20. Original price was: US$1,499.00.

Subtotal excludes shipping & tax

Free shipping over US$2,000 | 30% Off Storewide With Coupon SCA30
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188002797 SKU: SC-PRAET-WC Categories: ,

Description

Read More +Read Less − full description

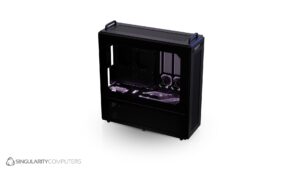

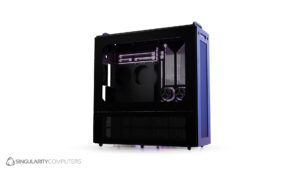

Praetor is a large workstation case which fits up to 2x 560mm and a 280mm radiator, dual ATX PSUs and dual systems. Motherboard support is ATX and E-ATX including BTF, and also SSI depending which motherboard tray is selected. The second motherboard is ITX mounted on the mid plate and there are four different mounting locations. The case has 7x expansion slots, support for 2x Vertical GPU mounts and fits up to 5x 3.5” HDDs. It has distribution plate addons which include a vertical distribution plate for dual loops which has 2x D5 Reservoir Combos and a horizontal and top distribution plate which clean up the loop route. The case is built from CNC machined anodized black aluminium and satin black acrylic. The distribution plate addons are built from CNC machined and laser cut cast acrylic.





Specifications

Motherboard Form Factor: ATX, E-ATX or SSI. (Select motherboard tray above).
ATX/E-ATX motherboard tray has BTF support or fits a 140mm fan to cool the rear of he CPU socket, both cannot be used simultaneously. SSI motherboard tray fits 2x 140mm fans to cover the rear of the CPU socket/s and motherboard.
Dual Systems ITX. Second motherboard ITX removes the ability to install a vertical GPU and requires a second PSU which reduces 1x 560mm size to 420mm with a PSU 160mm or shorter and to 280mm with a PSU longer than 160mm. The ITX motherboard can be install in 4 different locations across the mid plate. Only the left two locations are compatible with the Vertical Distribution Plate. Dual Systems is compatible with the Horizontal Distribution Plate but it reduces the mounting locations for the ITX motherboard to x1 and removes all 3.5" drive mounting locations.
Expansion Slots: x7.
Vertical GPU: Optional x1 or x2 Vertical GPU Mounts with PCIE 5.0 Risers.
Case Form Factor: Full Tower Workstation Case.
Storage: Up to 5x 3.5" HDD. Installing dual system ITX motherboard reduces this to x3. The Horizontal Distribution Plate removes all 3.5" mounting locations.
Radiators: 2x 560mm and 280mm with 100mm of thickness for radiators and fans. 1x 560mm, 1x 420mm and 1x 280mm if the PSU is 160mm or shorter. 1x 560mm and 2x 280mm if the PSU is longer than 160mm.
PSU: Dual ATX PSUs.
Front Panel I/O: No Front I/O. Power and Reset Buttons.
Materials: 6061 Aluminum Anodized Black. Cast Acrylic. Stainless Steel.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Laser.
Case Dimensions: L: 715mm x W: 265mm x H: 755mm (with handles).
Case Weight: 15kg.
Packaged Dimensions: L: 800mm x W: 300mm x H: 800mm.
Packaged Weight: 17kg.
