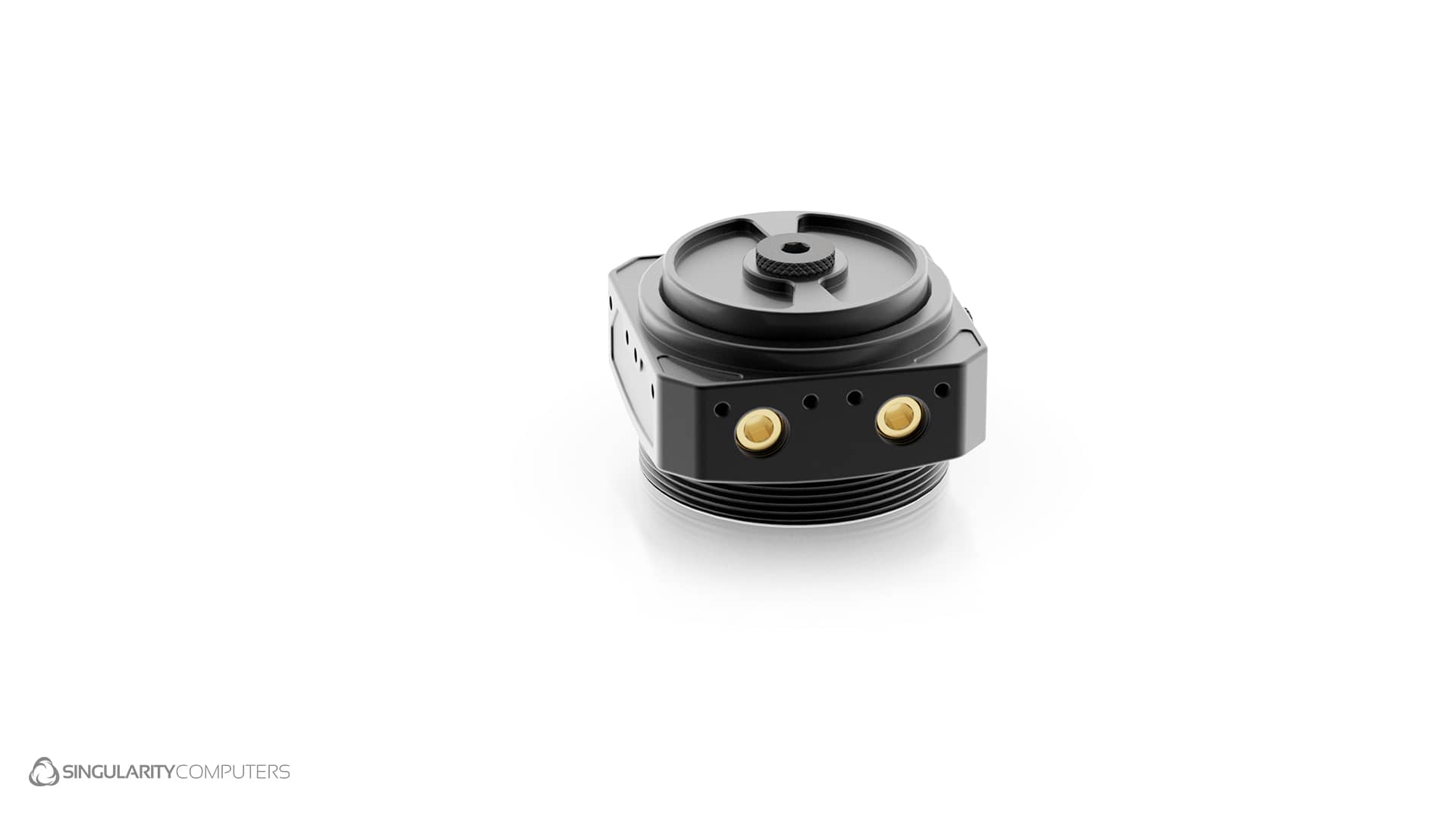

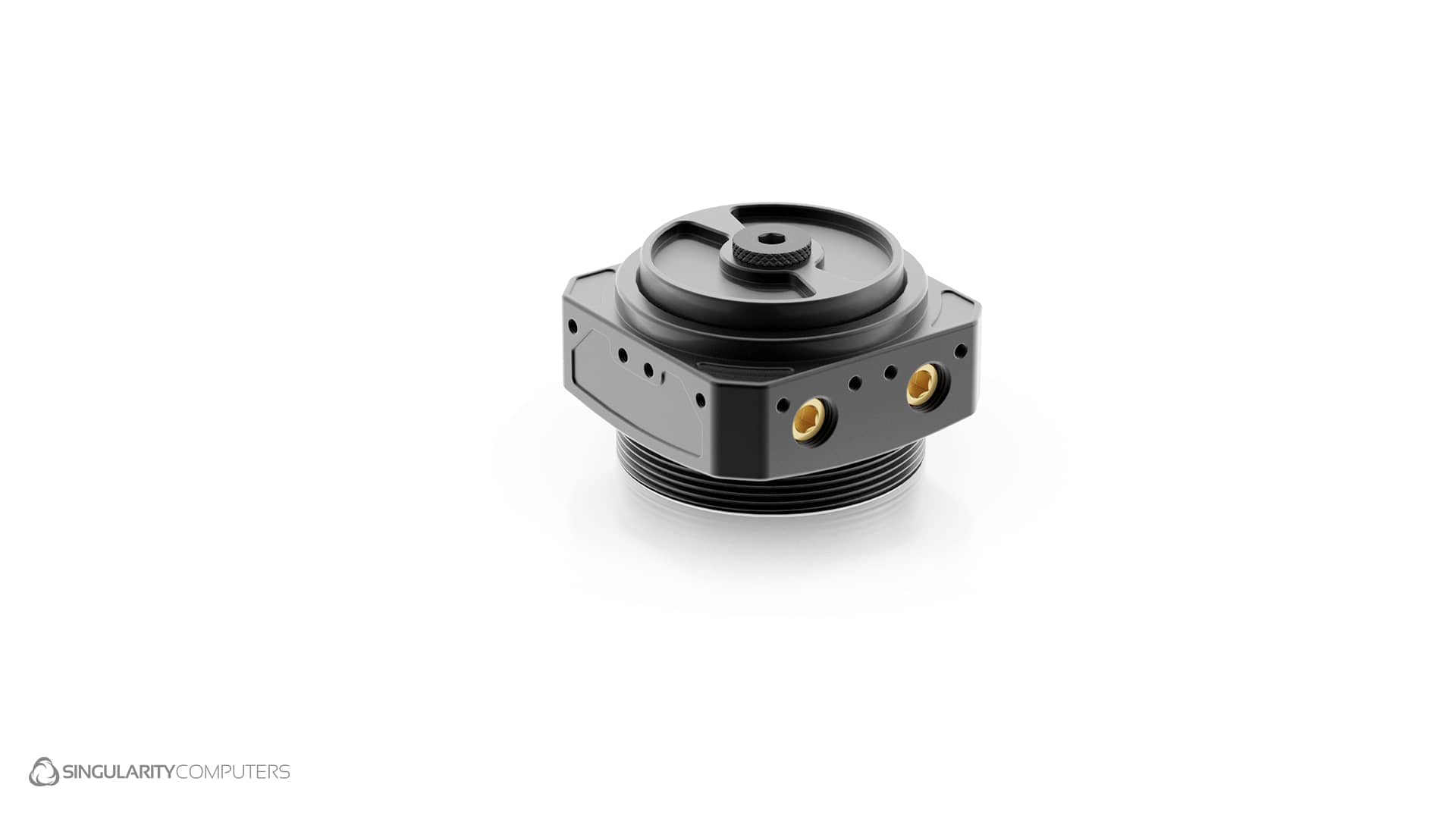

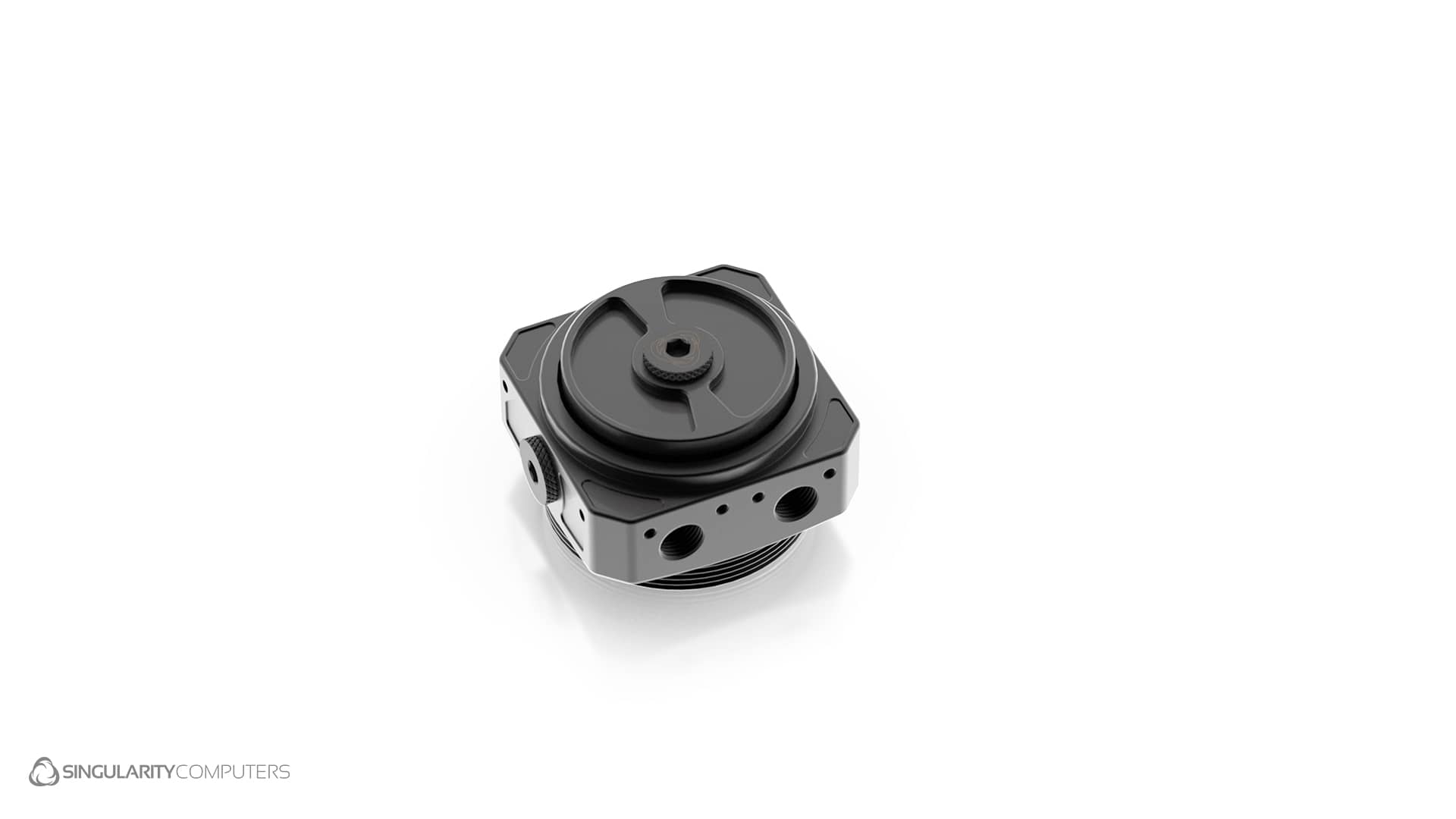

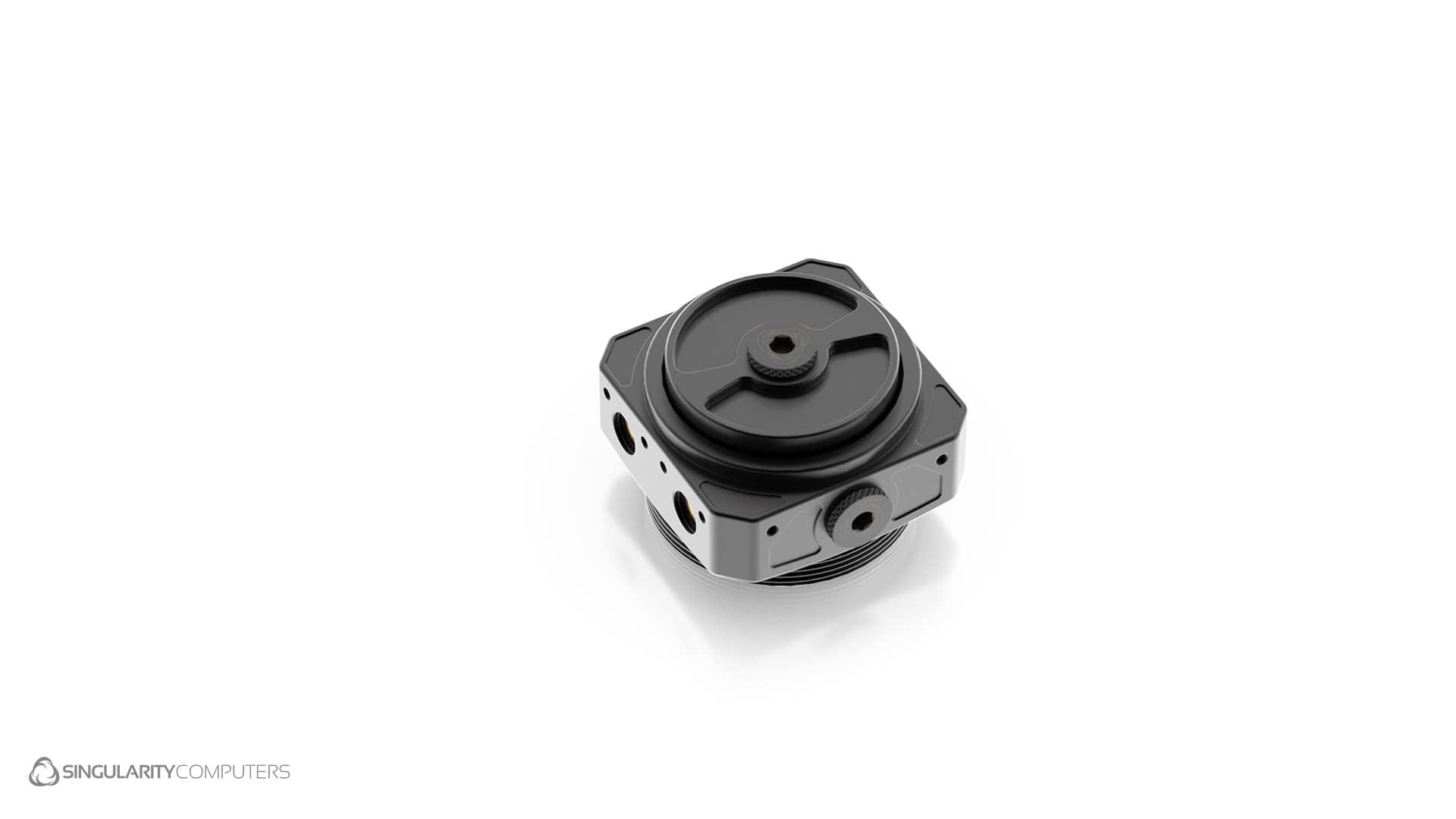

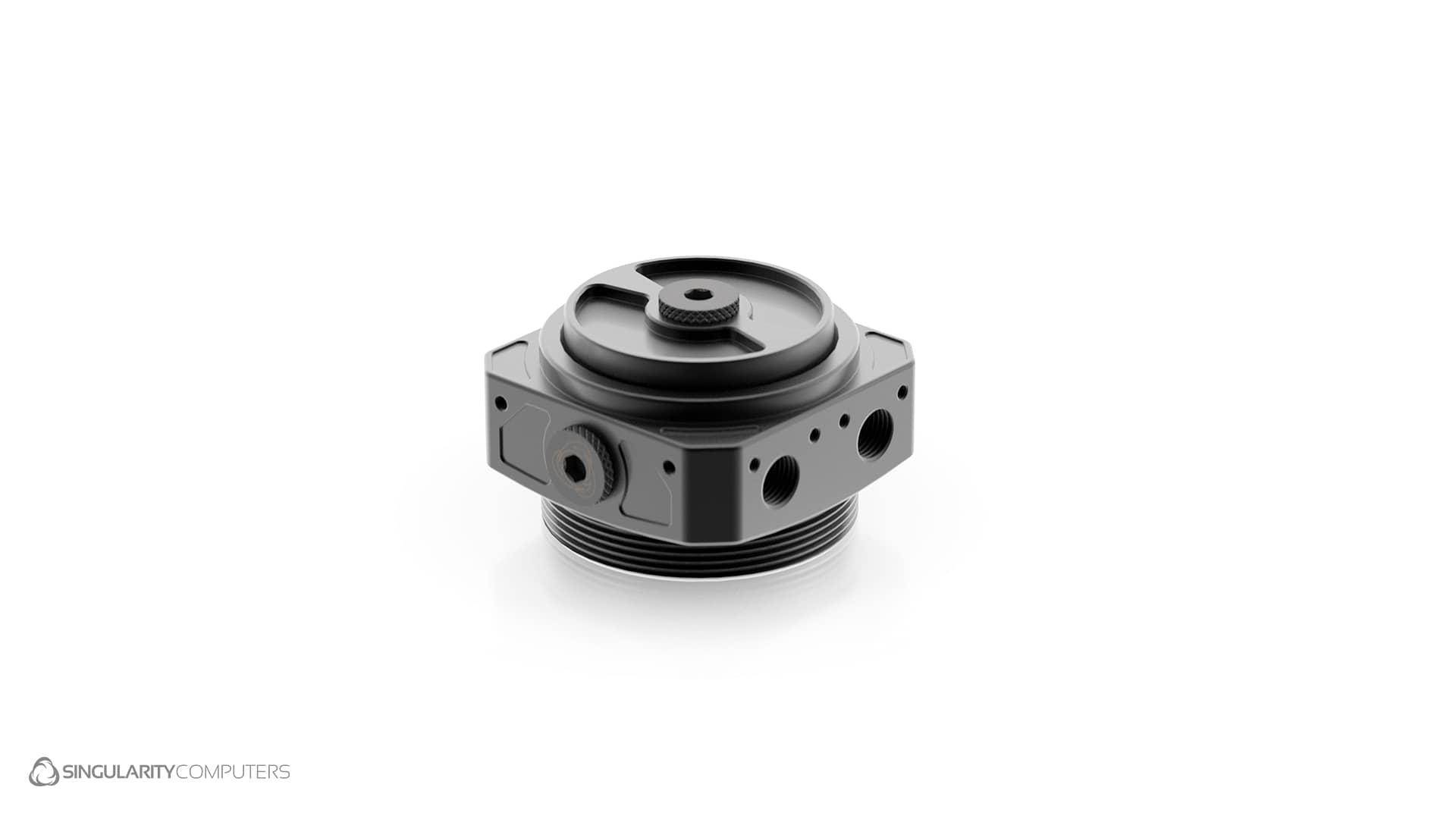

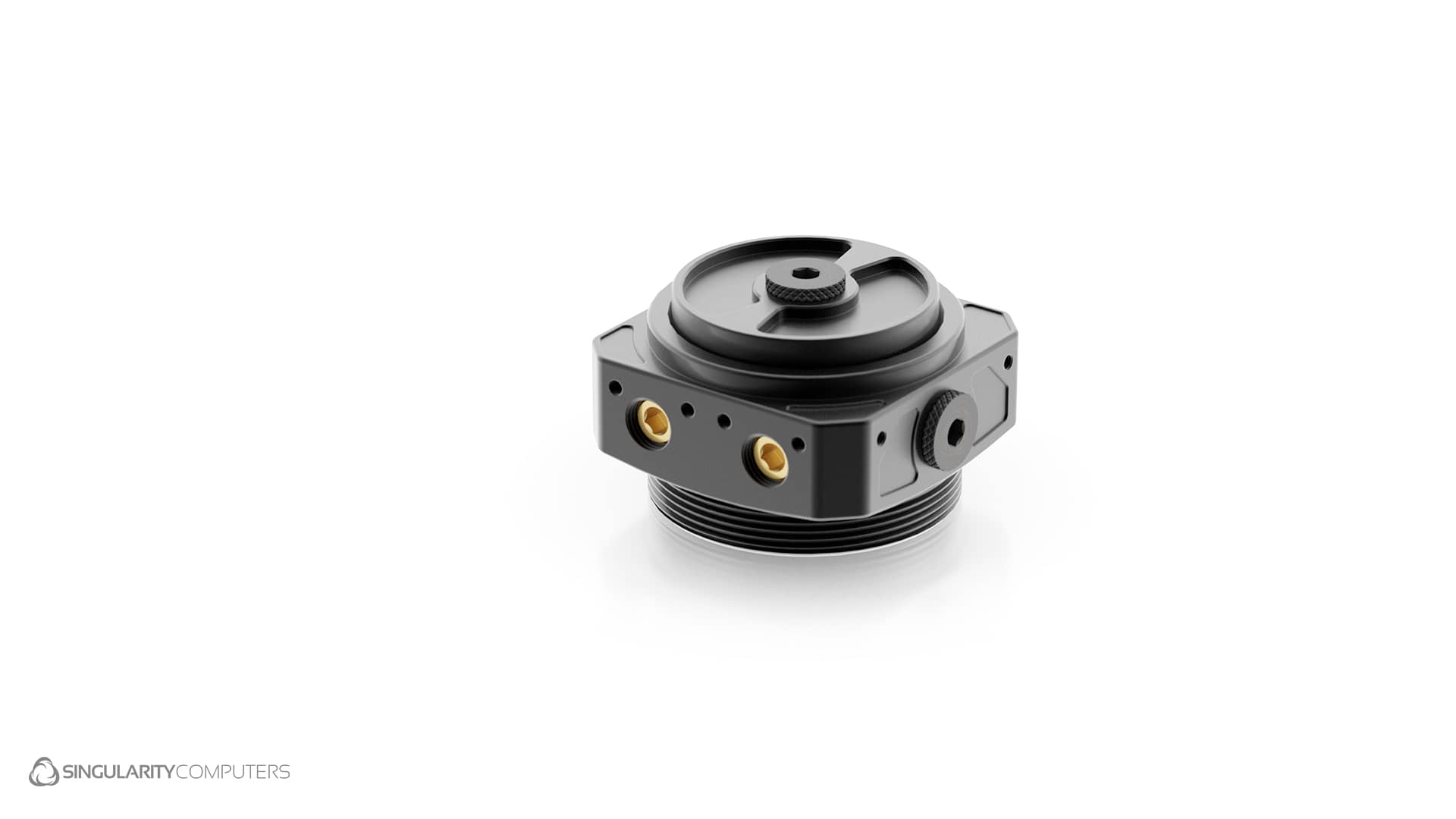

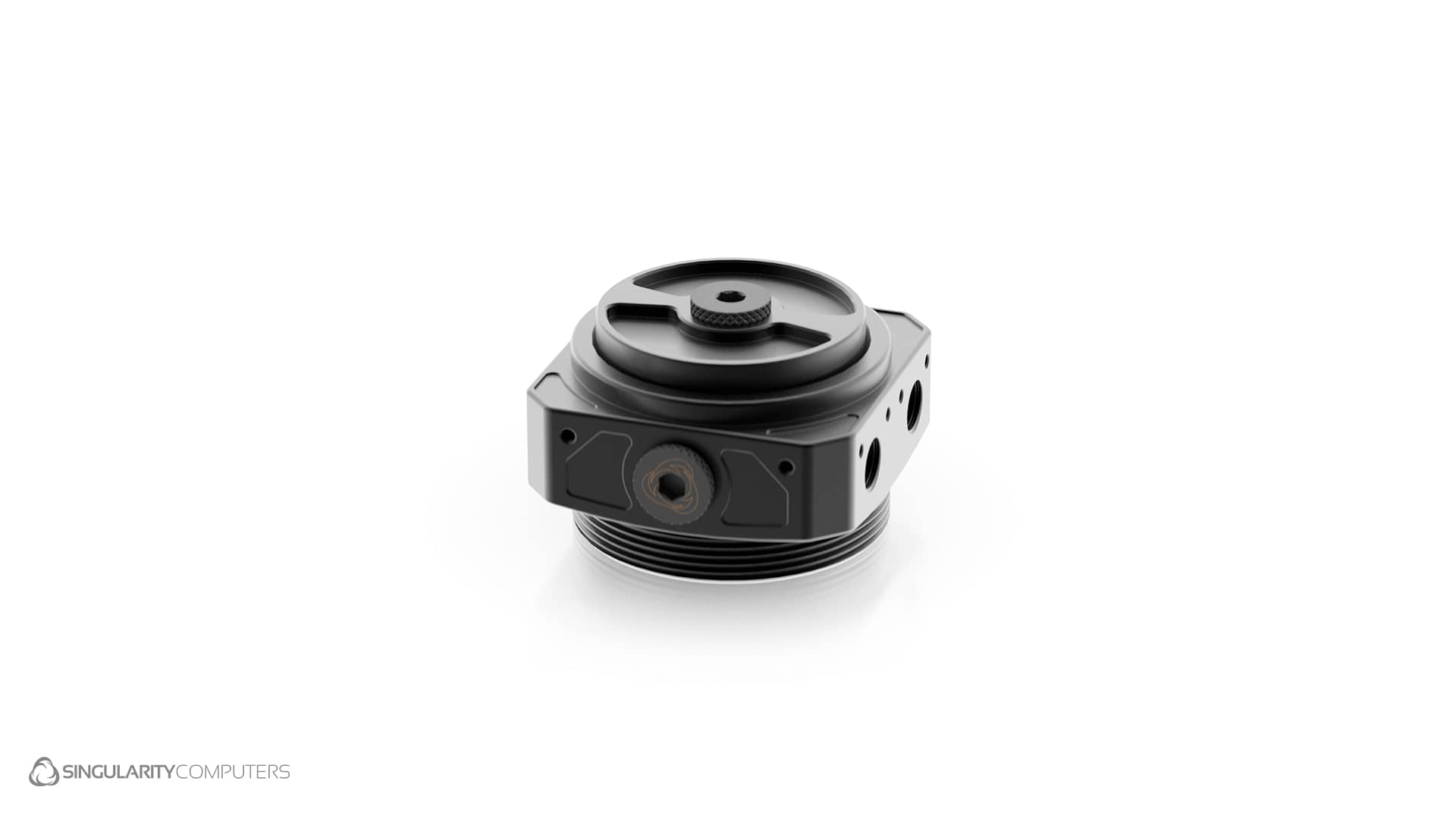

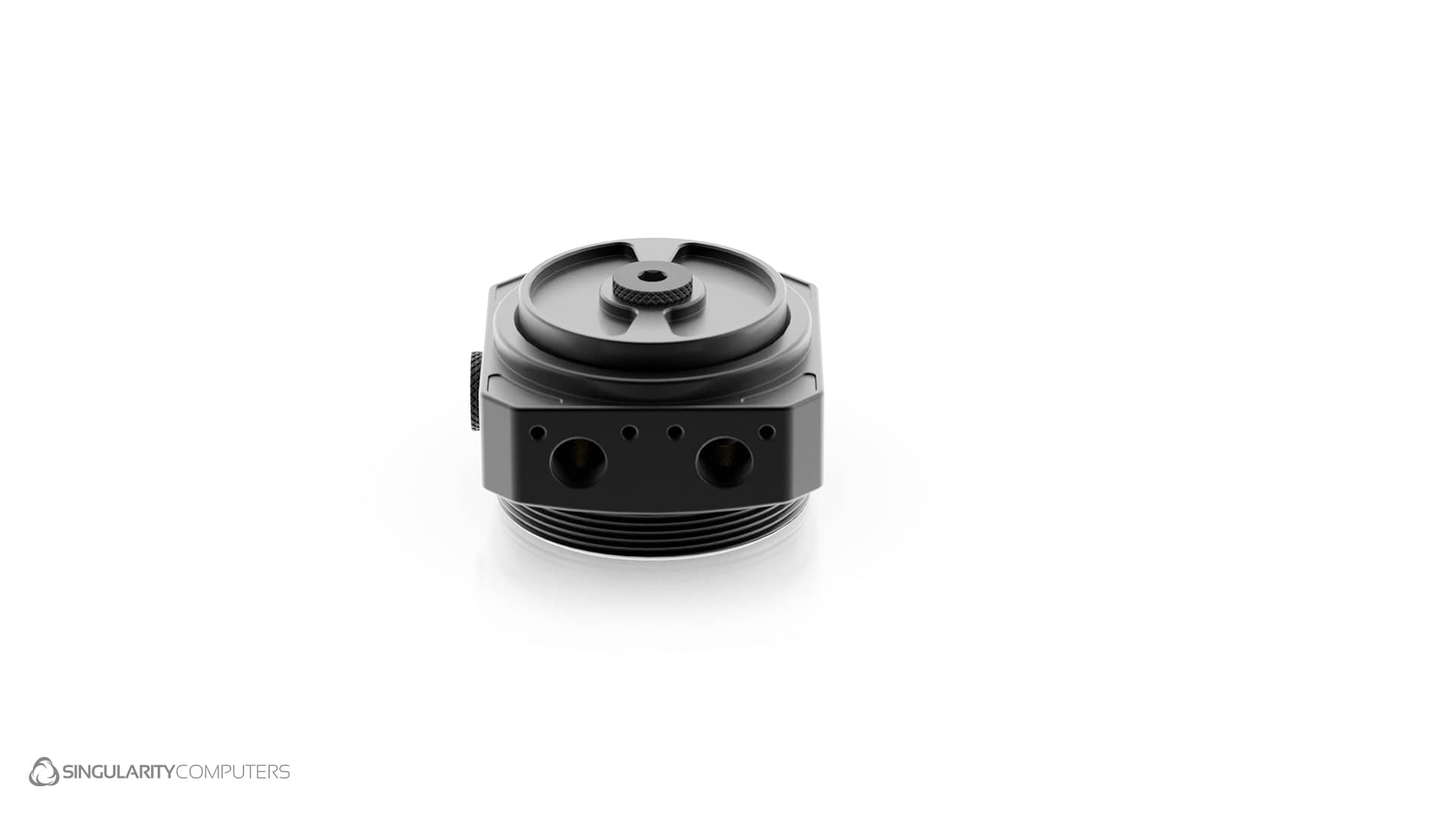

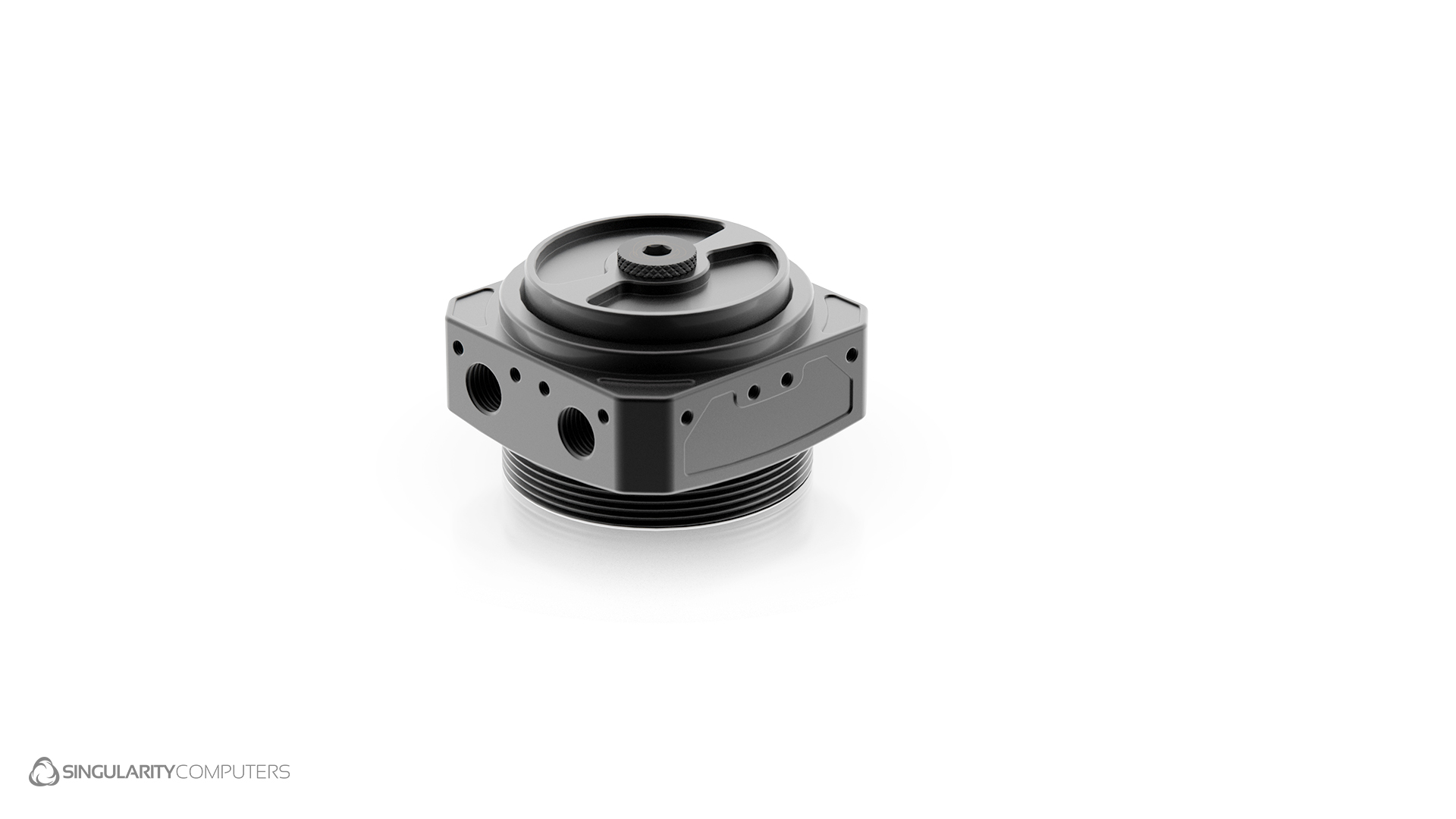

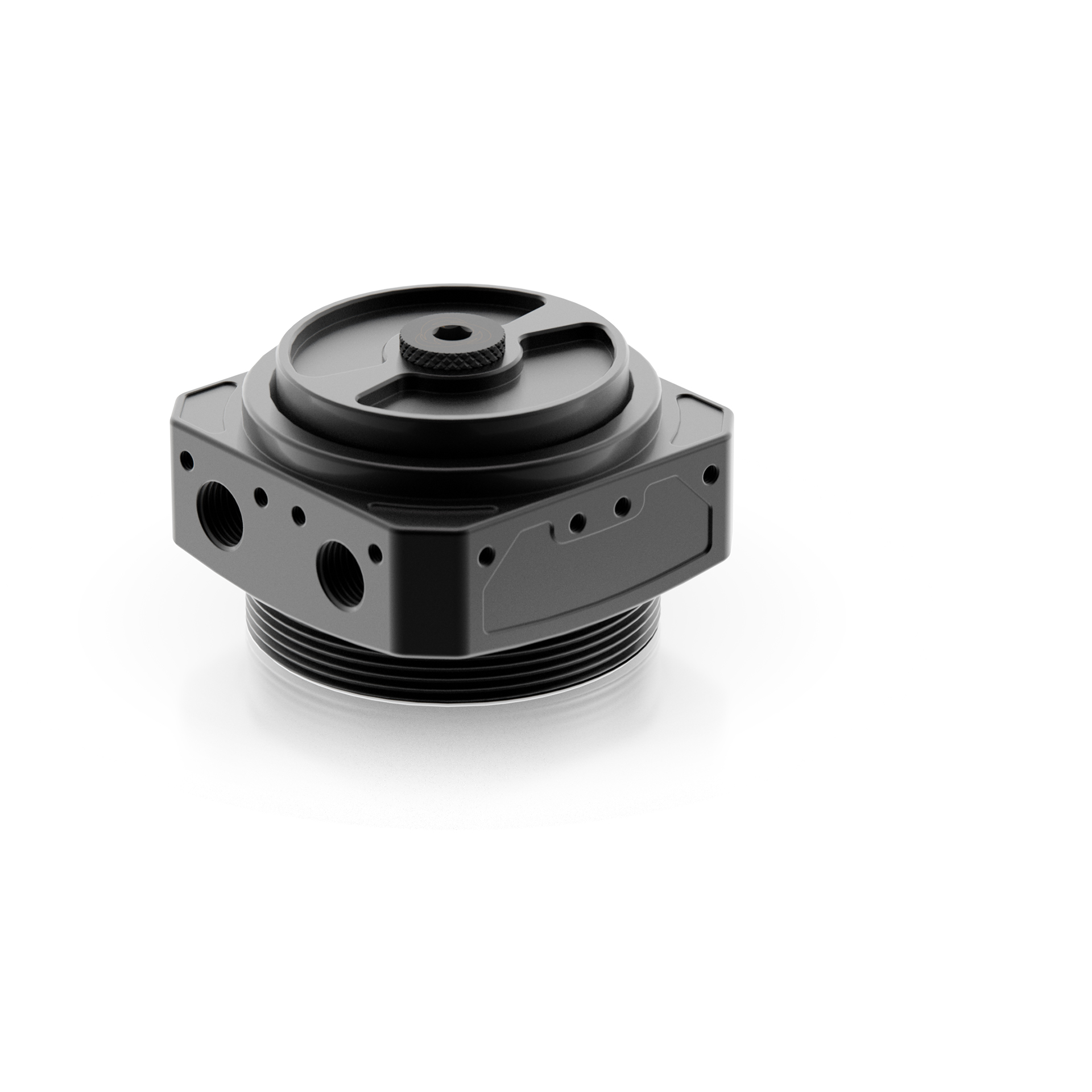

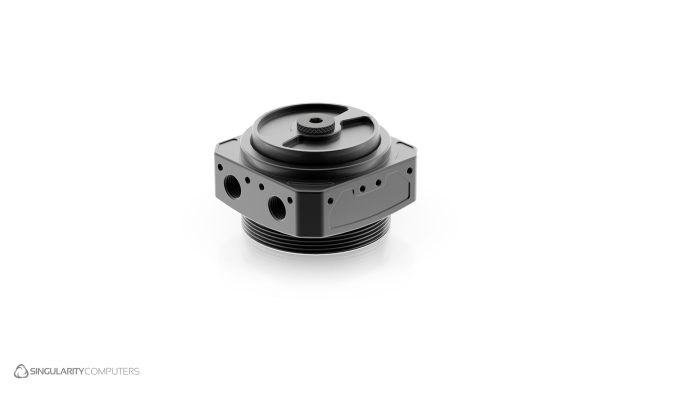

Protium 3.0 D5 Pump Top Acetal

The SC Protium 3.0 D5 Pump Top achieves a whole new level of versatility and features. There are 3 outlet ports and 3 inlet ports. It has ports on three sides and on the top the top. It comes included with a lid for stand-alone use which can be removed so that the pump top can be used in a pump/reservoir combo. It comes in Clear Acrylic or Black Acetal. It can be mounted from 4 different sides with 360-degree mounting using the SC Universal Backplate. ARGB/DRGB lighting can be added with the Protium 3.0 ARGB Ring.

Note: Backwards compatible with Protium 1.0 and 2.0 components.


SKU: SC-P3-D5T-AL Category:

Specifications & Included Items:
SC Protium 3.0 Pump Top: Clear Cast Acrylic or Acetal. CNC Machined.
O-Rings: Silicone 70 Durometer White x2 (D5 x1. Reservoir x1). Nitrile 50 Durometer Black G1/4” x2. 8mm x2.
Stop Fittings x2: Brass. CNC Machined. Powder coated Black. Laser Etched.
Stop Plugs: x2: Brass. CNC Machined.
Fasteners: M4 x 6mm Stand Offs Brass x2. M4 x 8mm CS x2.
Weight: 0.3kg.
Dimensions: H: 103mm x W: 76mm D: 79mm.
Packaged Weight: 0.35kg.
Packaged Dimensions: H: 120mm x W: 85mm x D: 90mm.

There are M4 mounting holes on 4 sides of the pump top. These mounting holes are configured for the SC Universal Backplate which is designed to mount to 120mm and 140mm wide radiators, fans or fan mounting positions.
