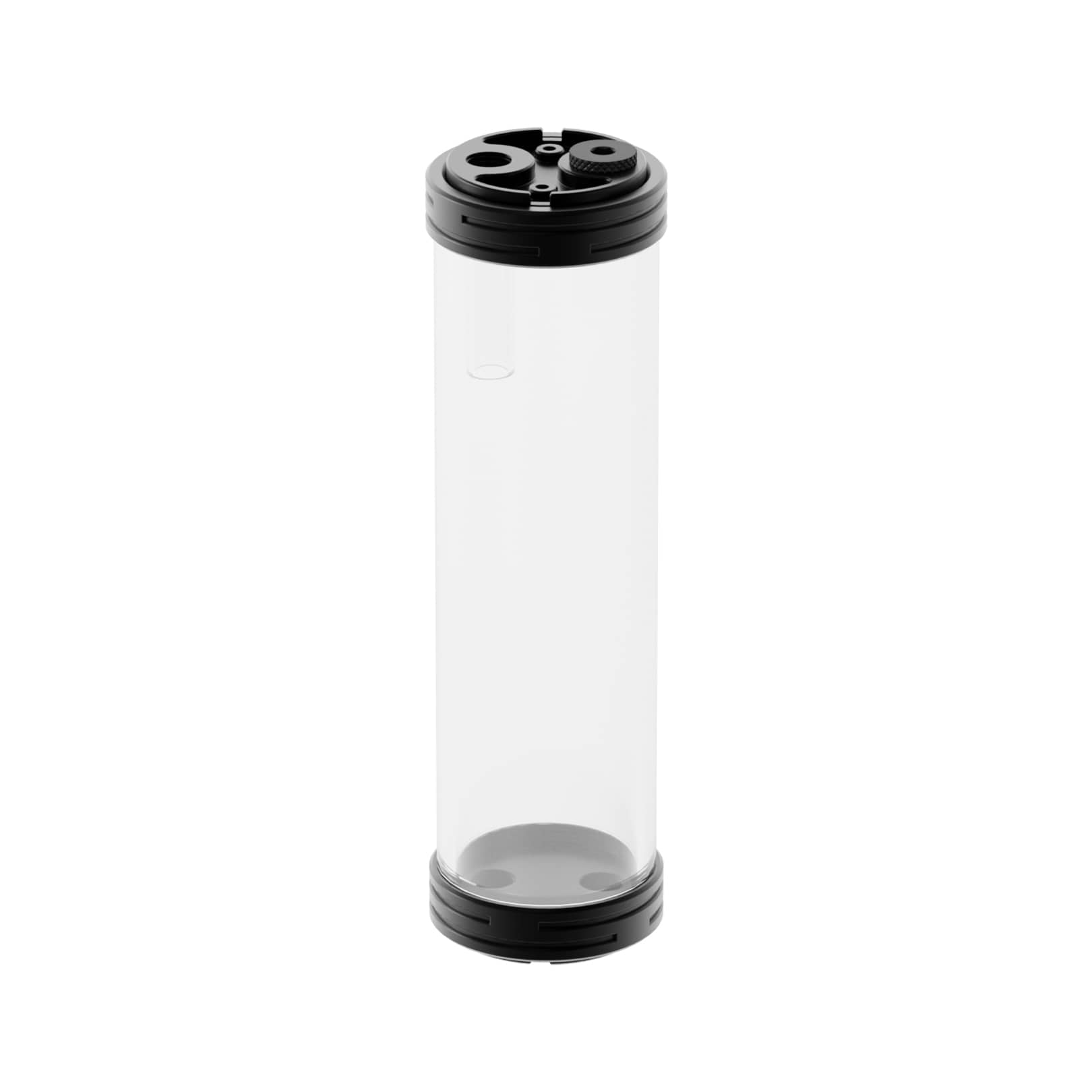

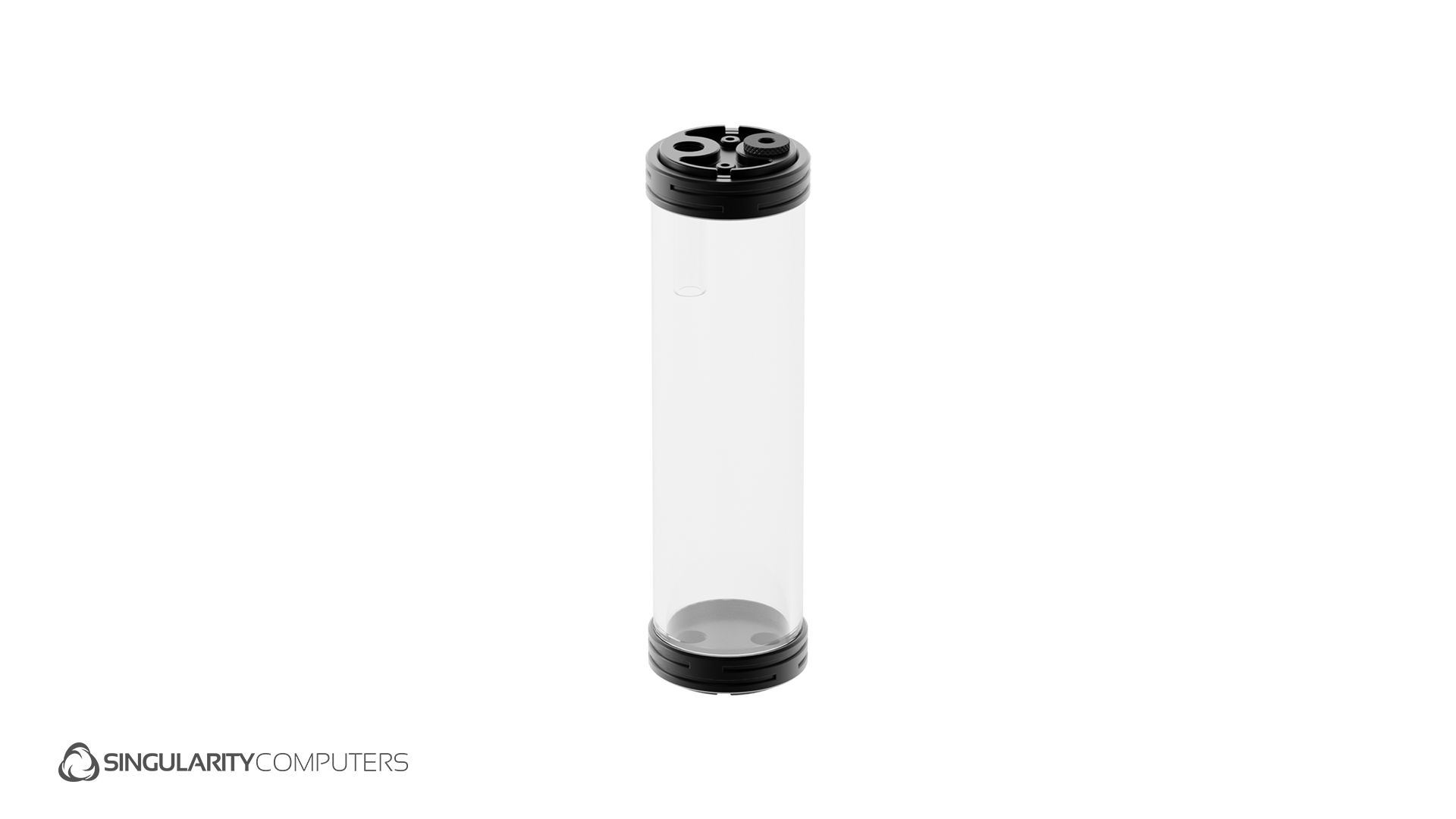

Protium 3.0 Reservoir 200mm Acetal Black

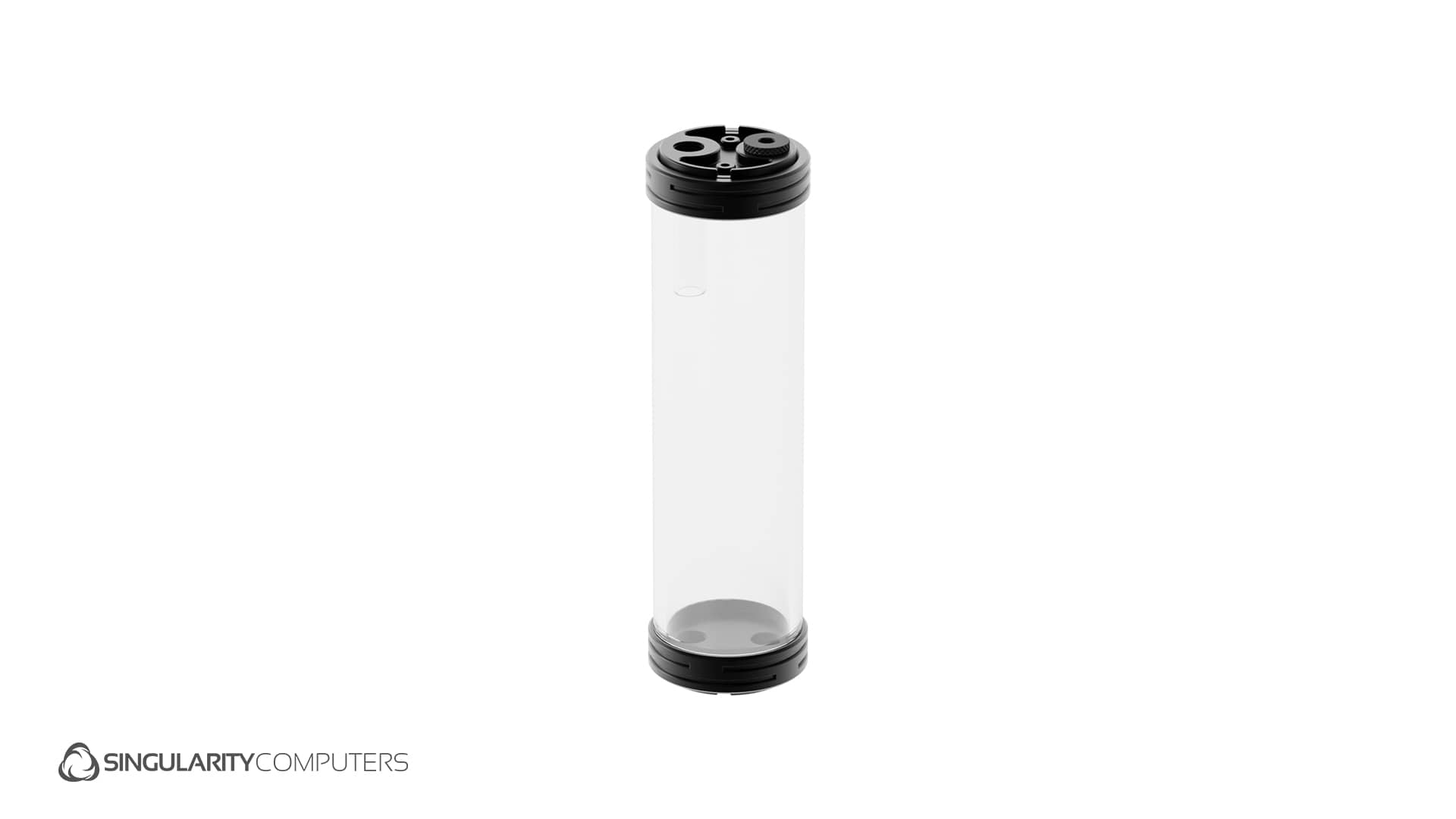

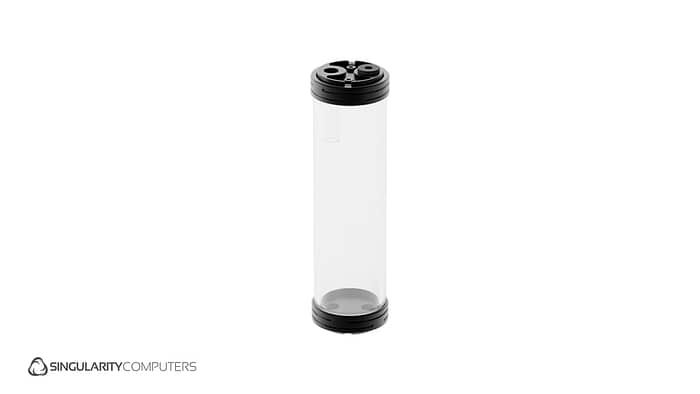

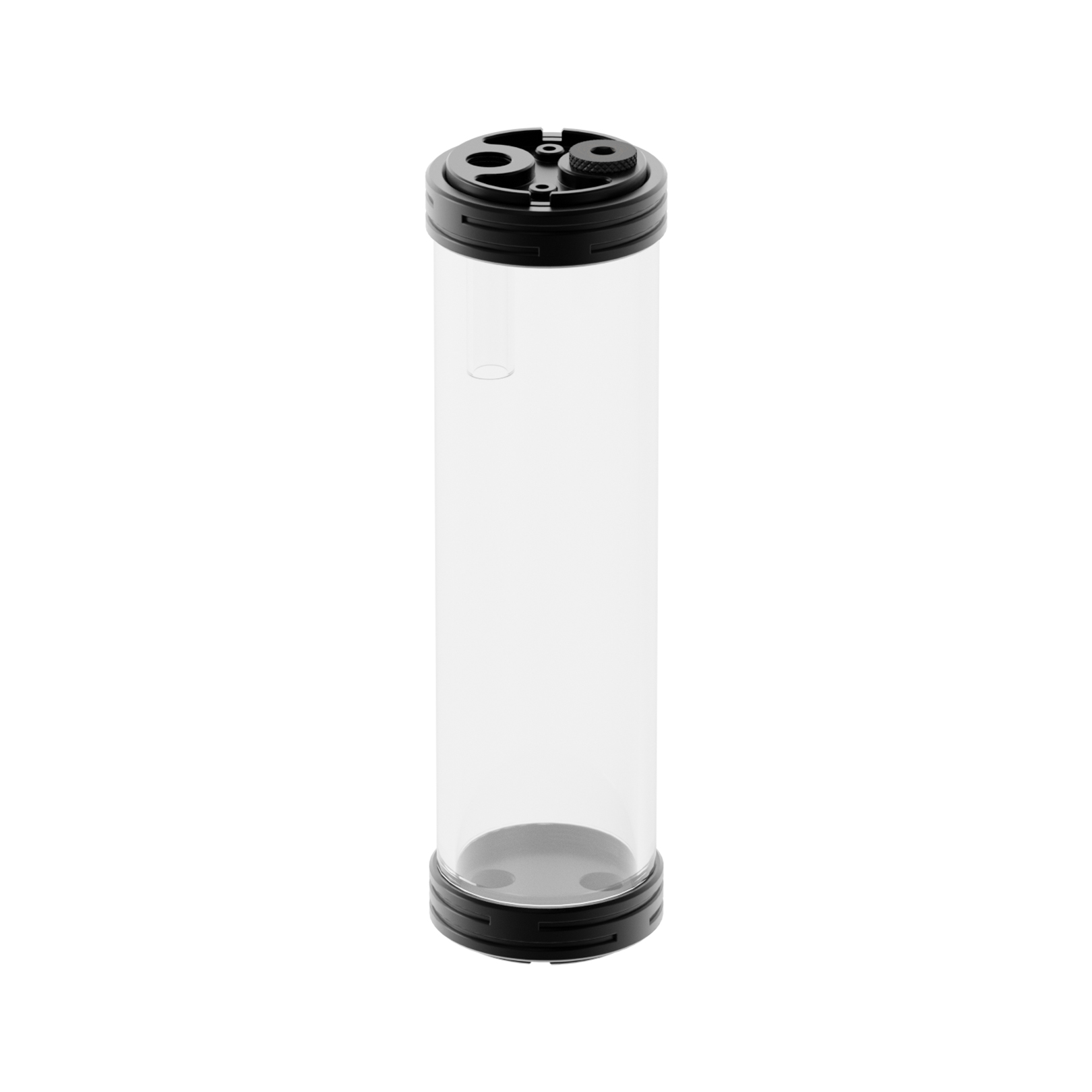

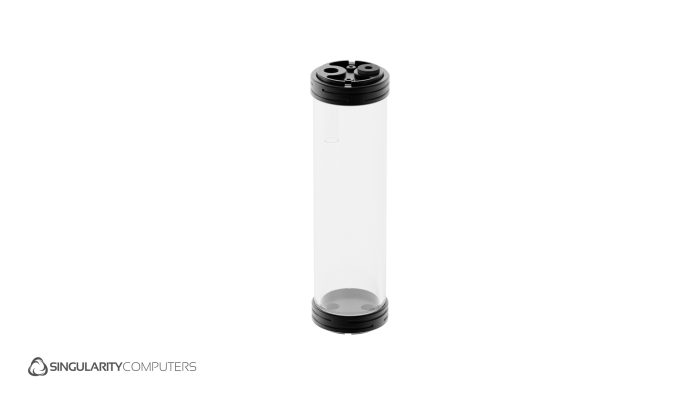

The SC Protium 3.0 Reservoir 200mm comes in three different colors/materials, Clear Acrylic with Black or Silver metal and Black Acetal with Black Metal. It uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. The retention rings are built from CNC machined anodized aluminum and do not contact the fluid.

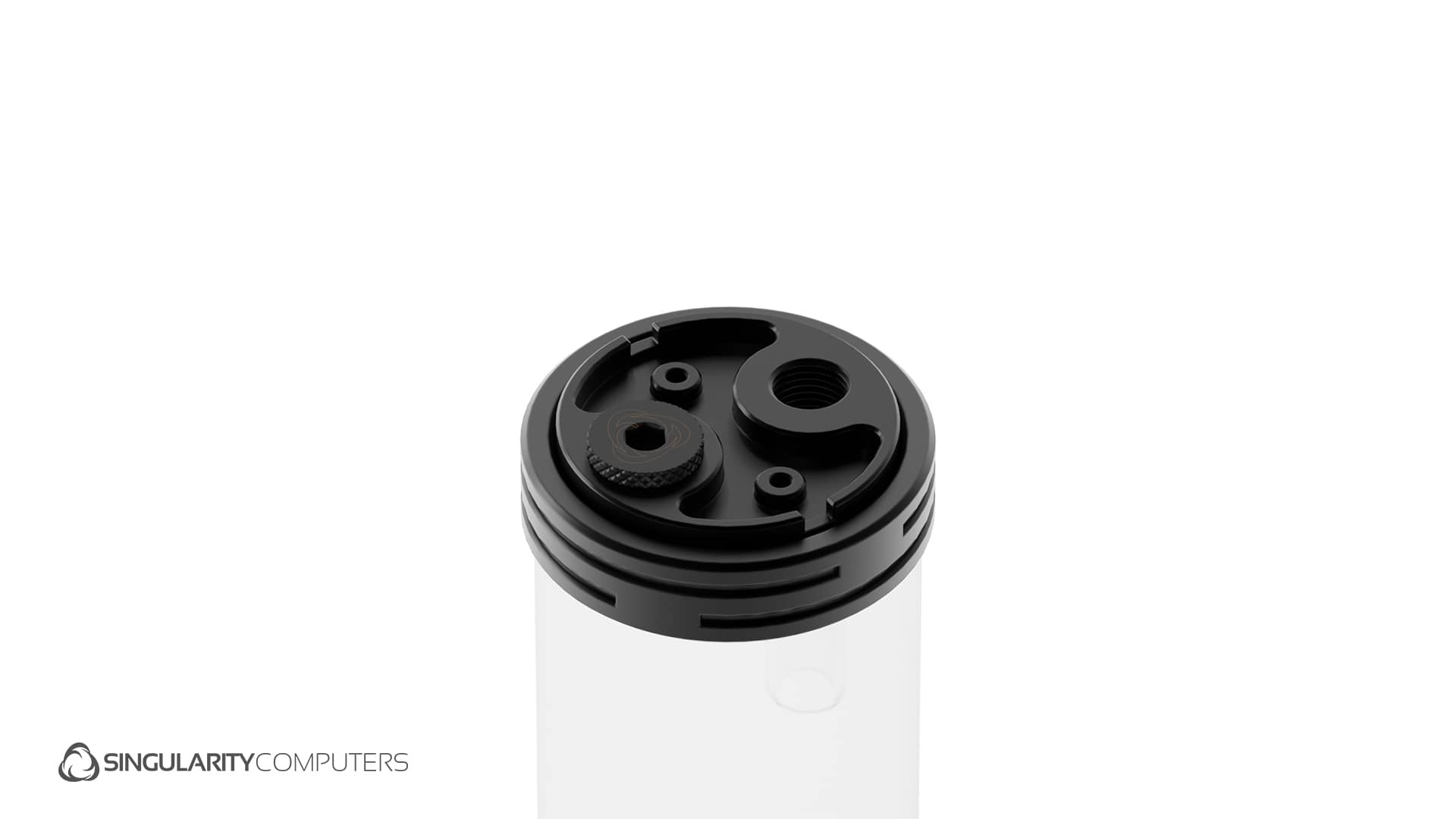

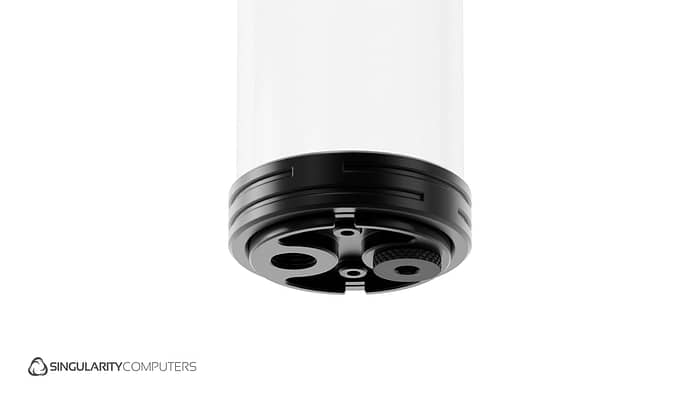

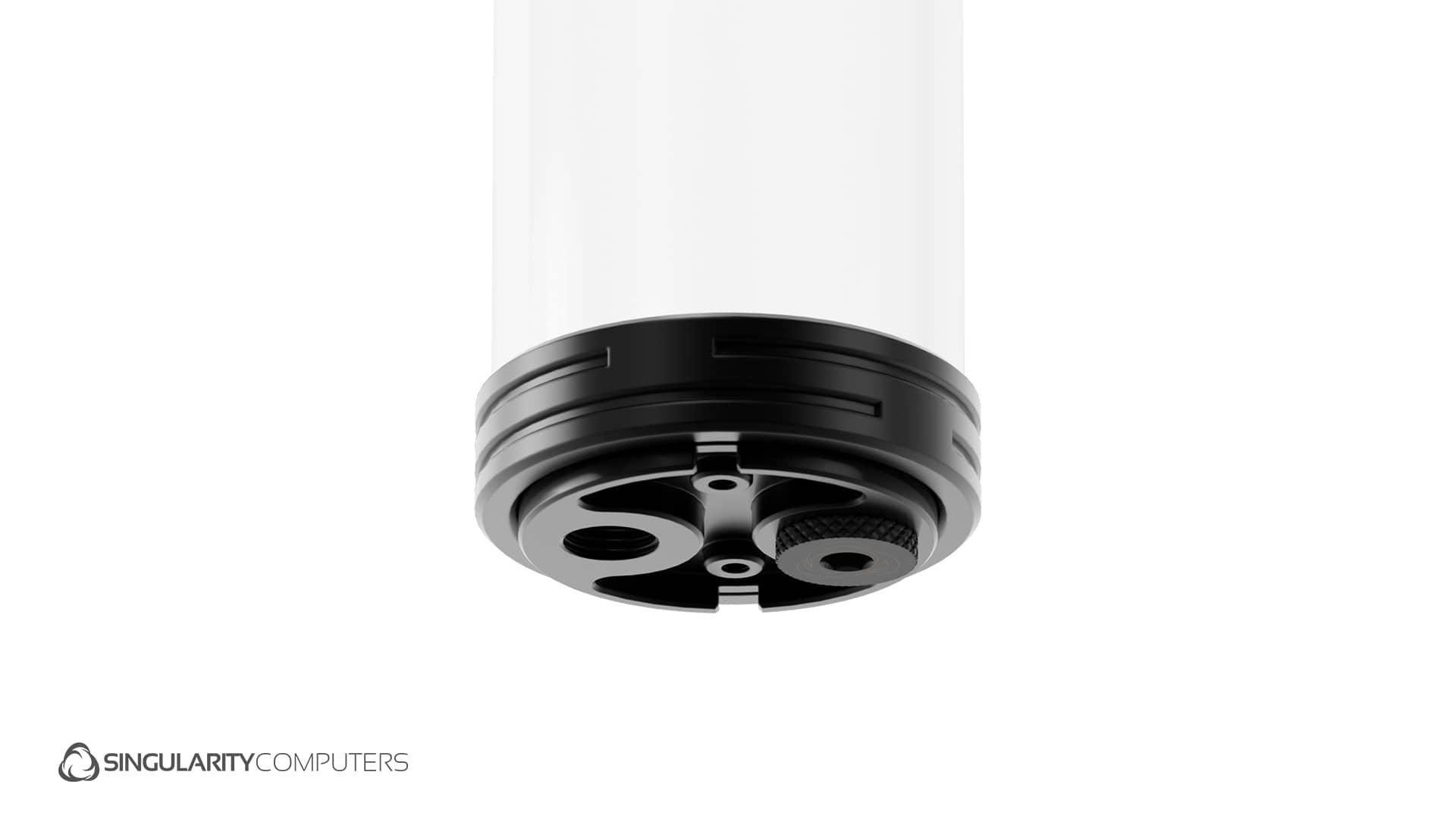

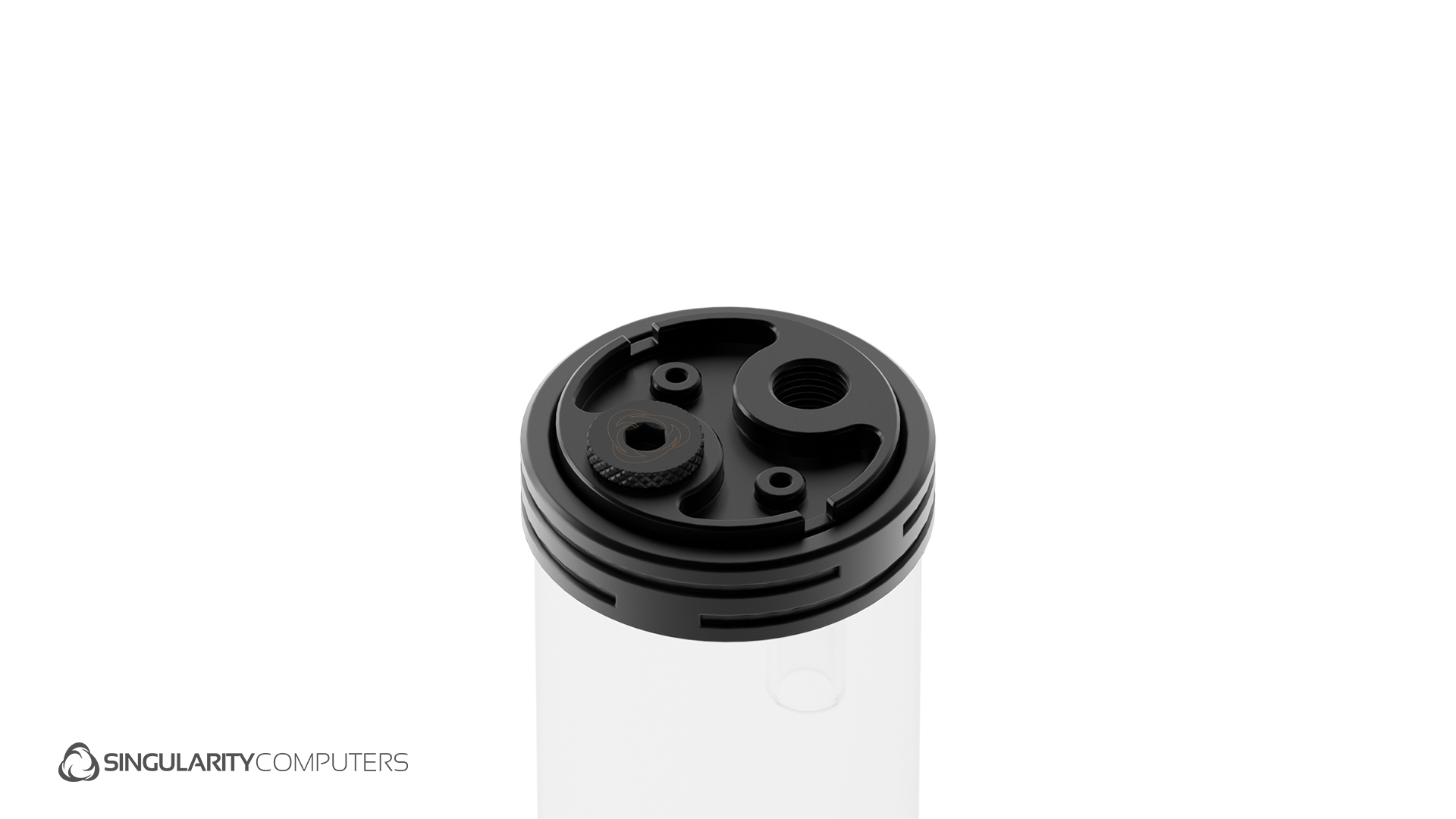

The reservoir has 4 ports with a dual port cap on each end. The caps have a recessed top to catch any fluid in the case of an overflow, and this also acts as a mounting position for the integrated ARGB/DRGB LEDs. The LEDs are on a custom PCB which positions them to make the entire reservoir glow, and the coolant inside. A second LED PCB can also be added which is available separately.
Specifications & Included Items:
SC Protium 3.0 Reservoir 200mm includes:
SC Protium 3.0 Reservoir Retention Rings x2: Aluminum. Black or Silver Anodized. CNC Machined.
SC Protium 3.0 Reservoir Caps x2: Clear Cast Acrylic or Black Acetal. CNC Machined.
SC Protium 3.0 Reservoir Tube: Clear Cast Acrylic: Length: 200mm. Diameter: 60mm. CNC Machined.
Protium 3.0 Inlet Tube: Clear Cast Acrylic.
SC Protium 3.0 ARGB Cover: 1.6mm PCB Black: Addressable ARGB/DRGB 5V: 6 LEDs. Black 500mm Cable.
M4 x 6mm Stainless Steel Fasteners.
O-Rings: Silicone 70 Durometer White x2. Buna 50 Durometer Black G1/4” x2.
Stop Fittings x2: Brass. CNC Machined. Powder coated Black. Laser Etched.
Dimensions: H: 222mm (Not including stop fittings). Diameter: 64mm (Retention Rings).
Packaged Weight: 0.45kg.
Packaged Dimensions: H: 270mm x W: 85mm x D: 85mm.
Install into a position above the pump. SC Ethereal Single or Ethereal Dual can be used for mounting. The included inlet tube needs to be positioned on the top inlet to prevent air re-circulation.
