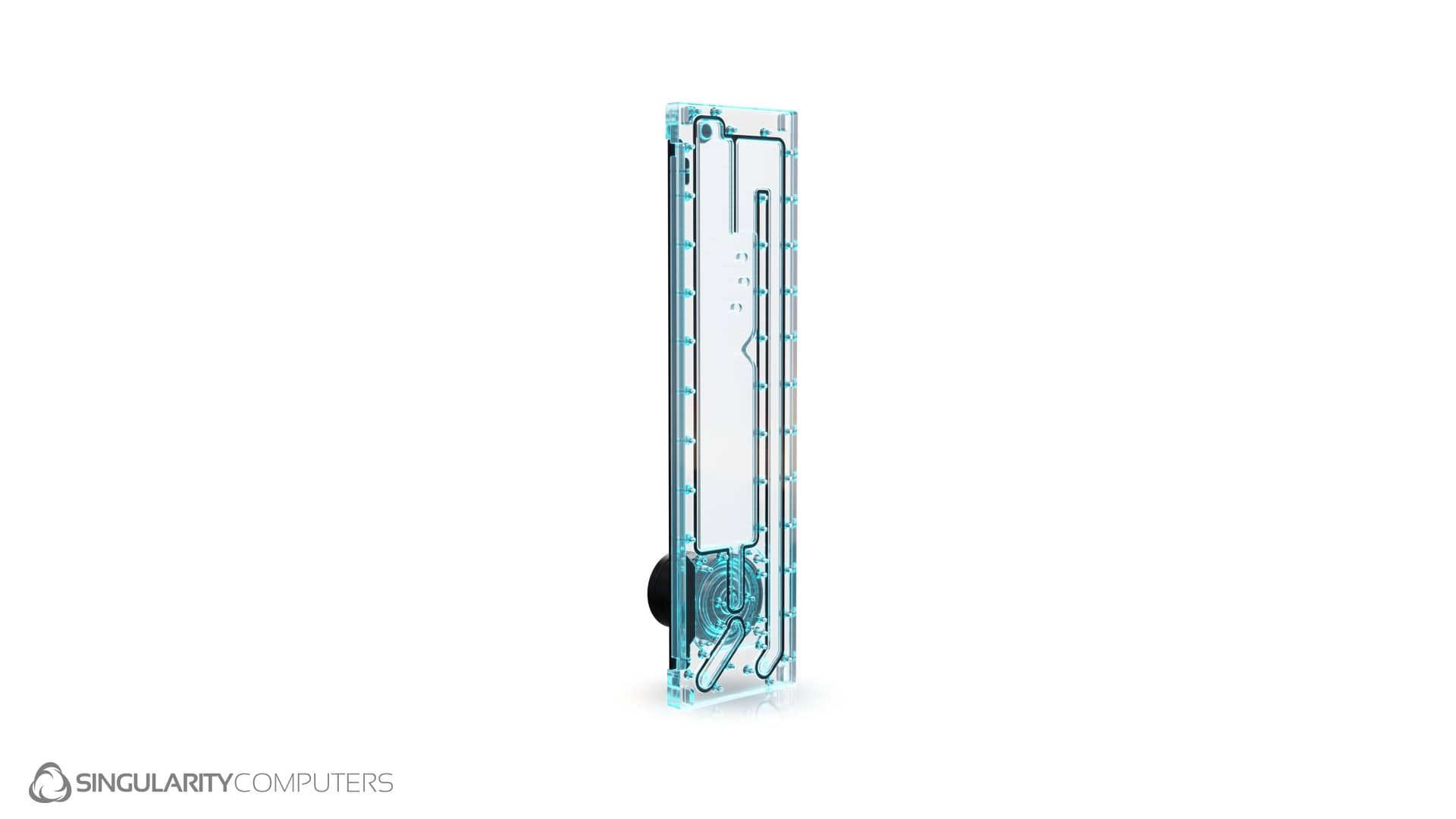

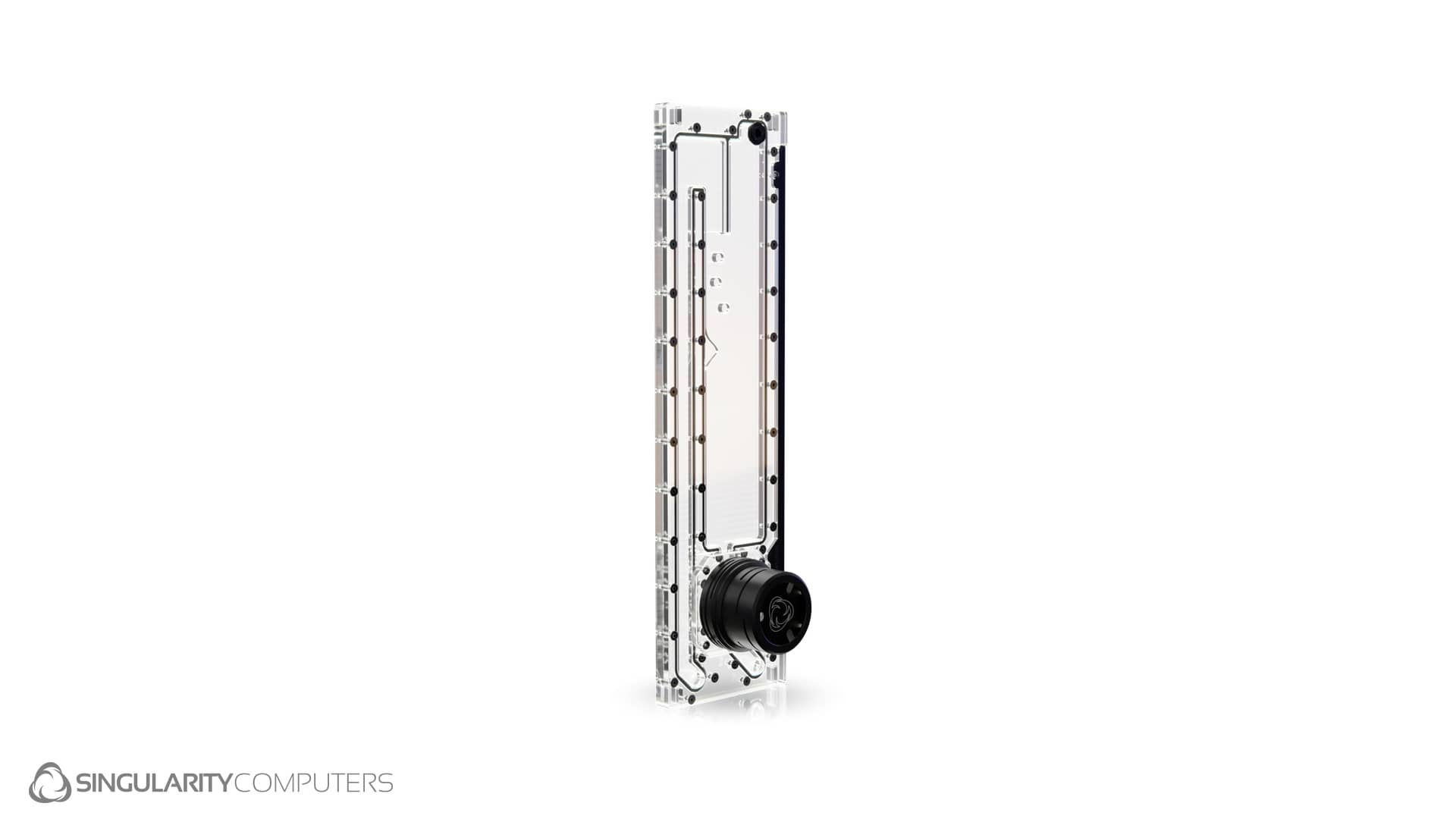

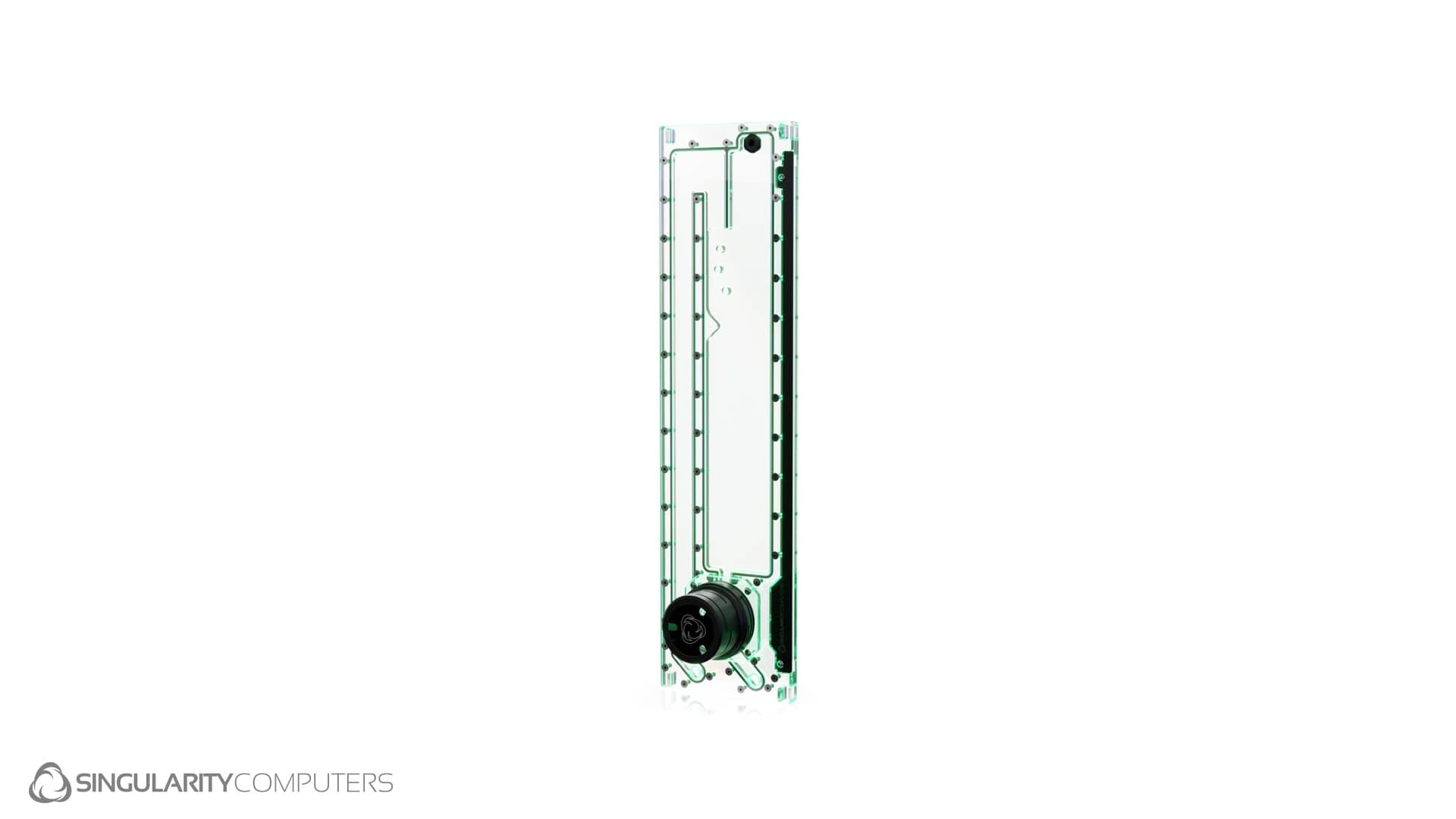

Radiator Distribution Plates

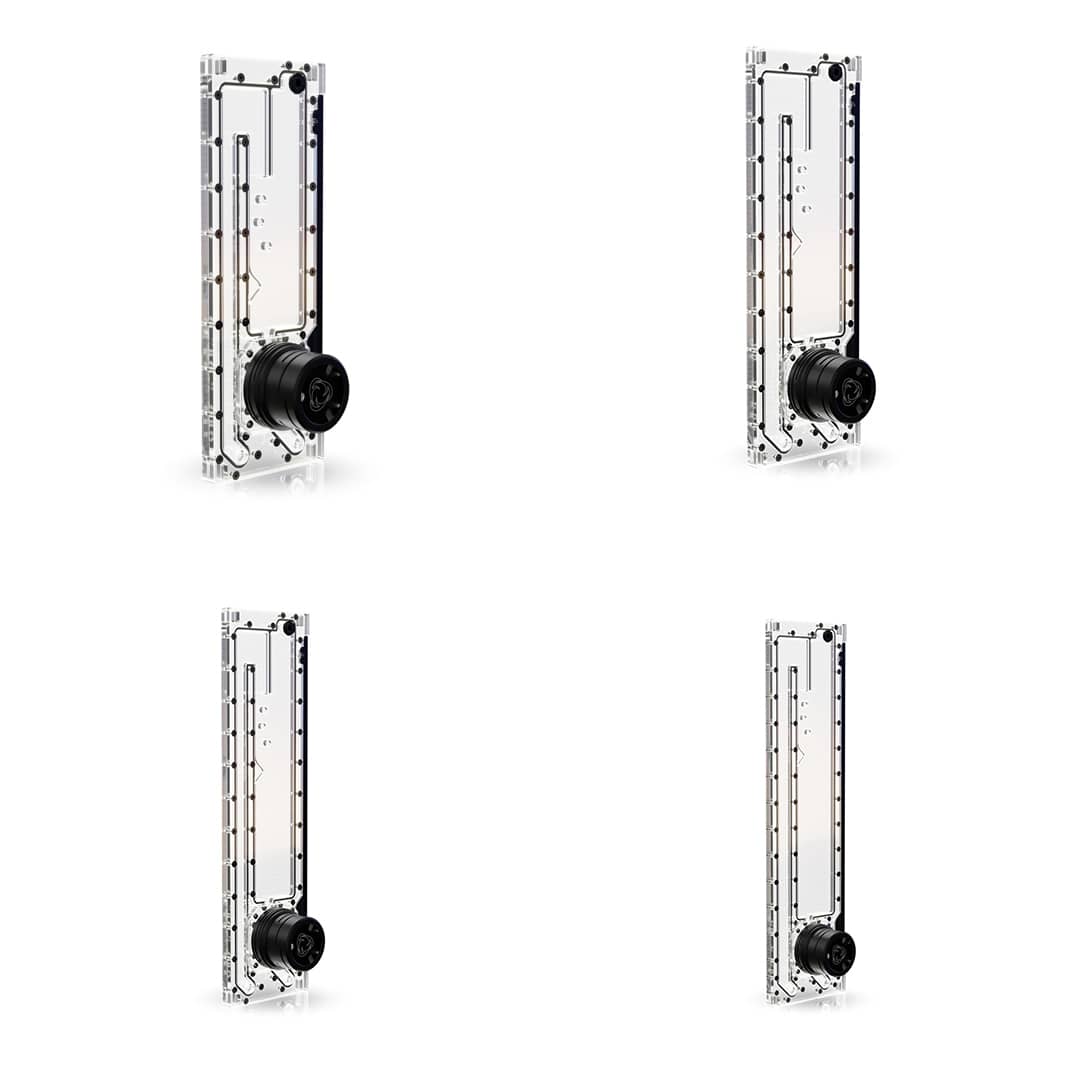

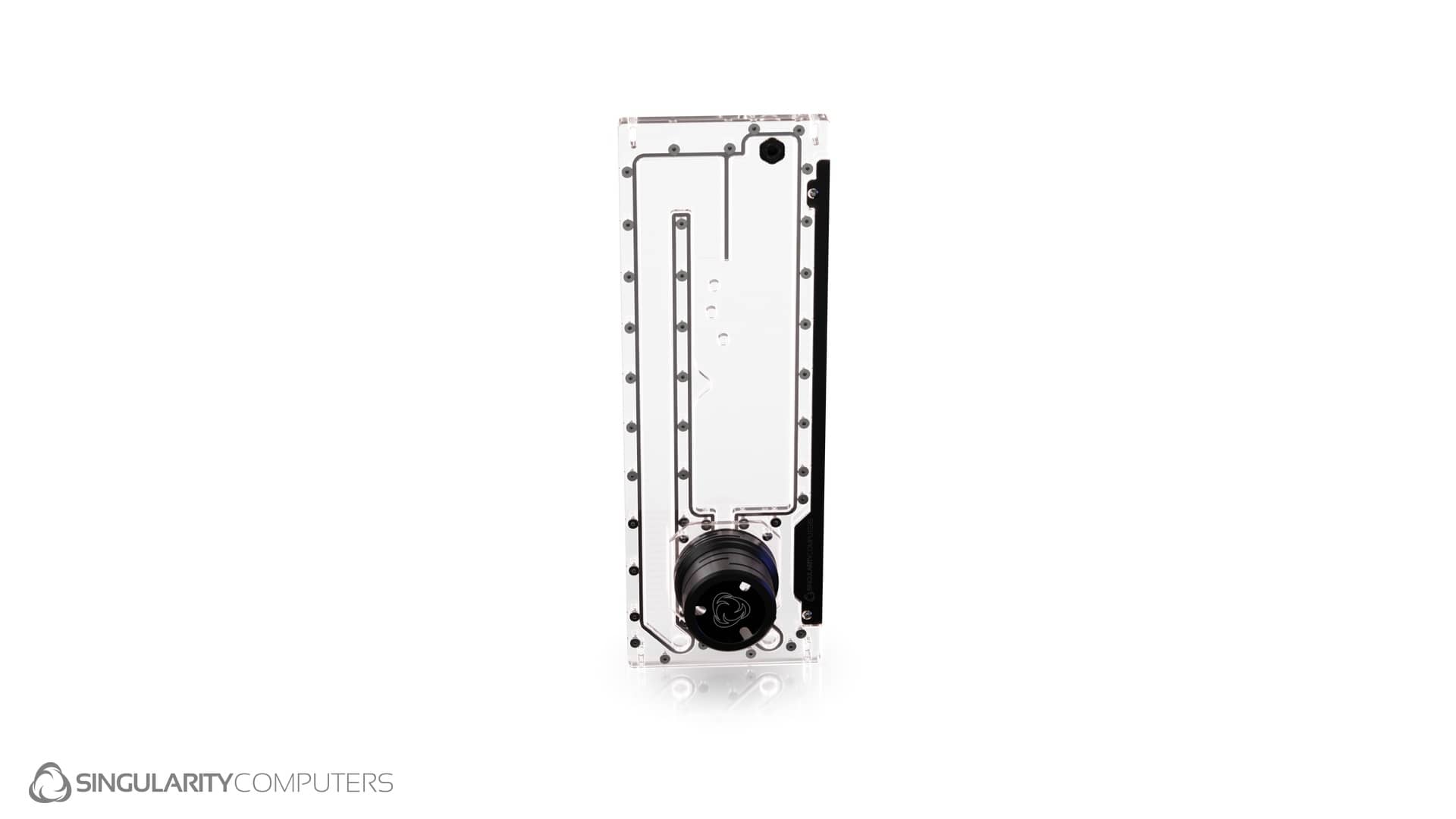

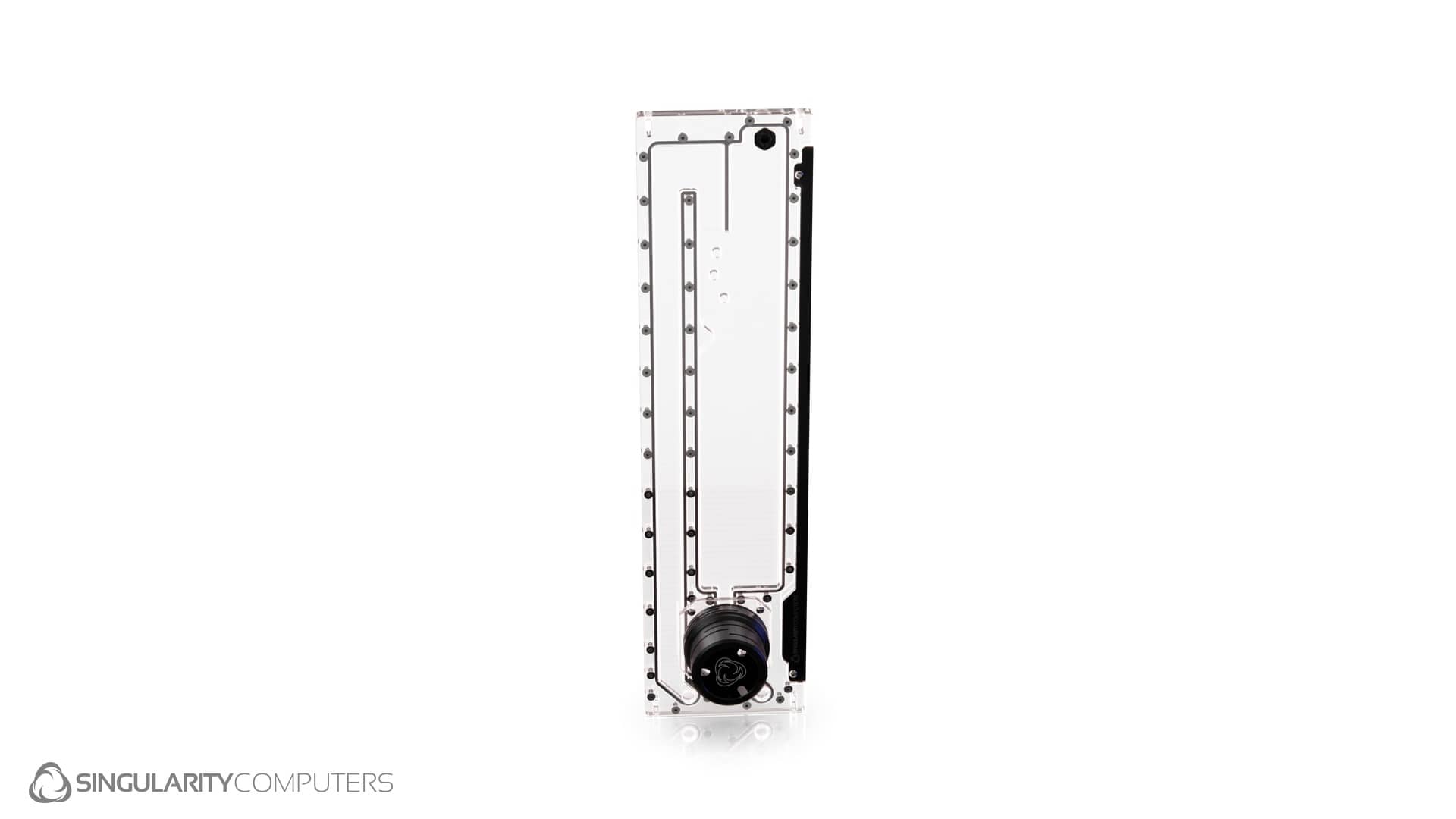

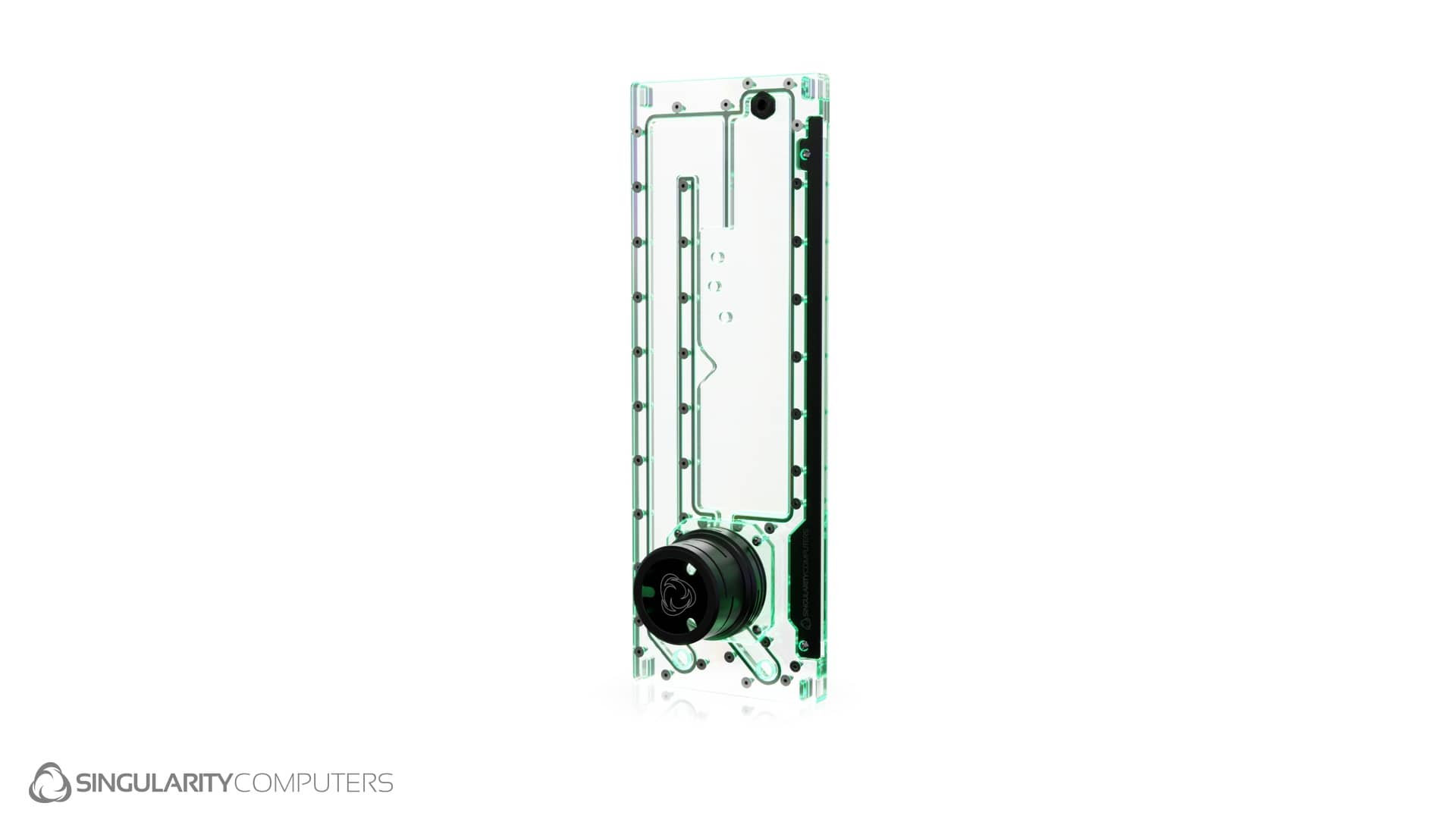

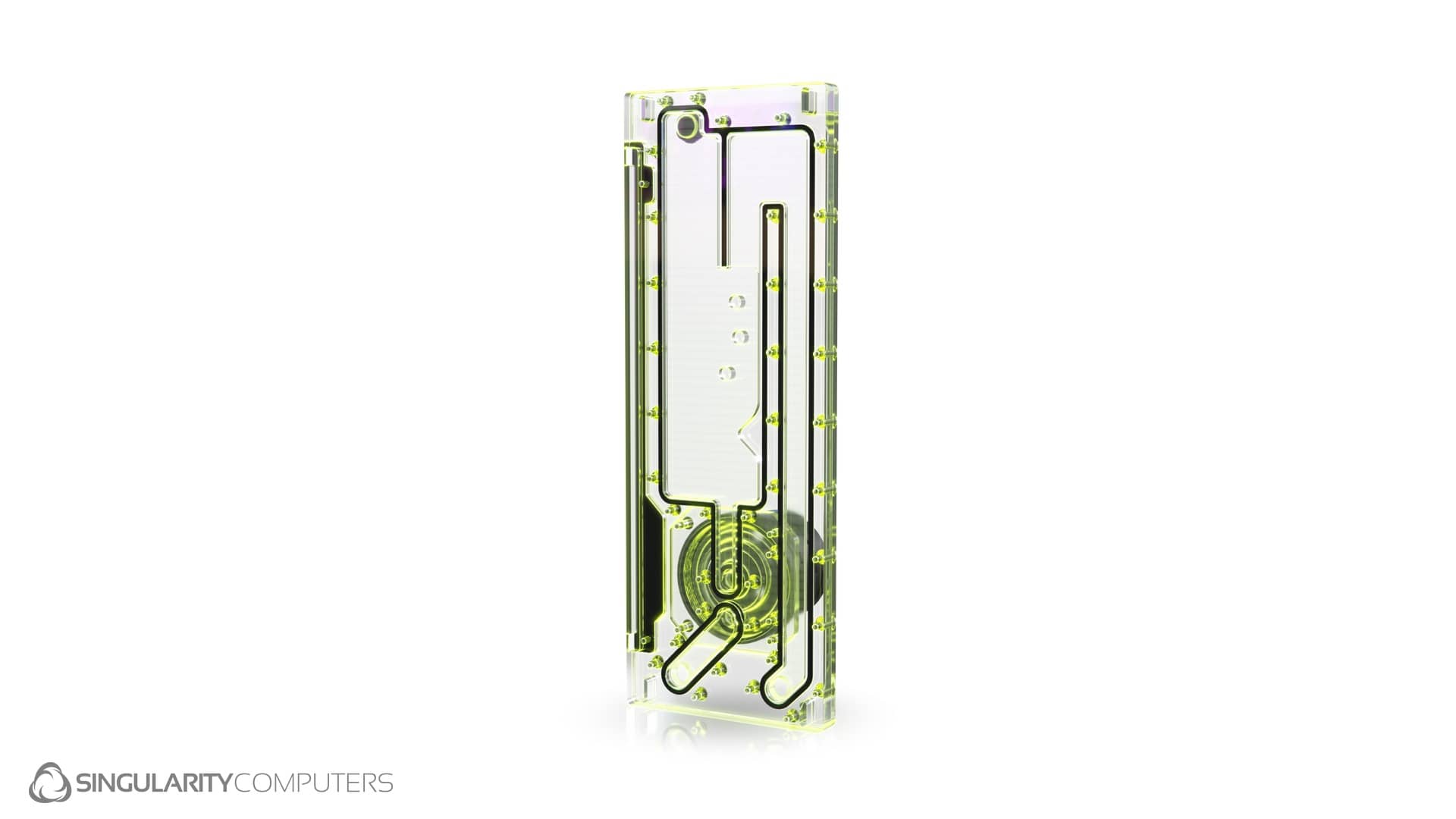

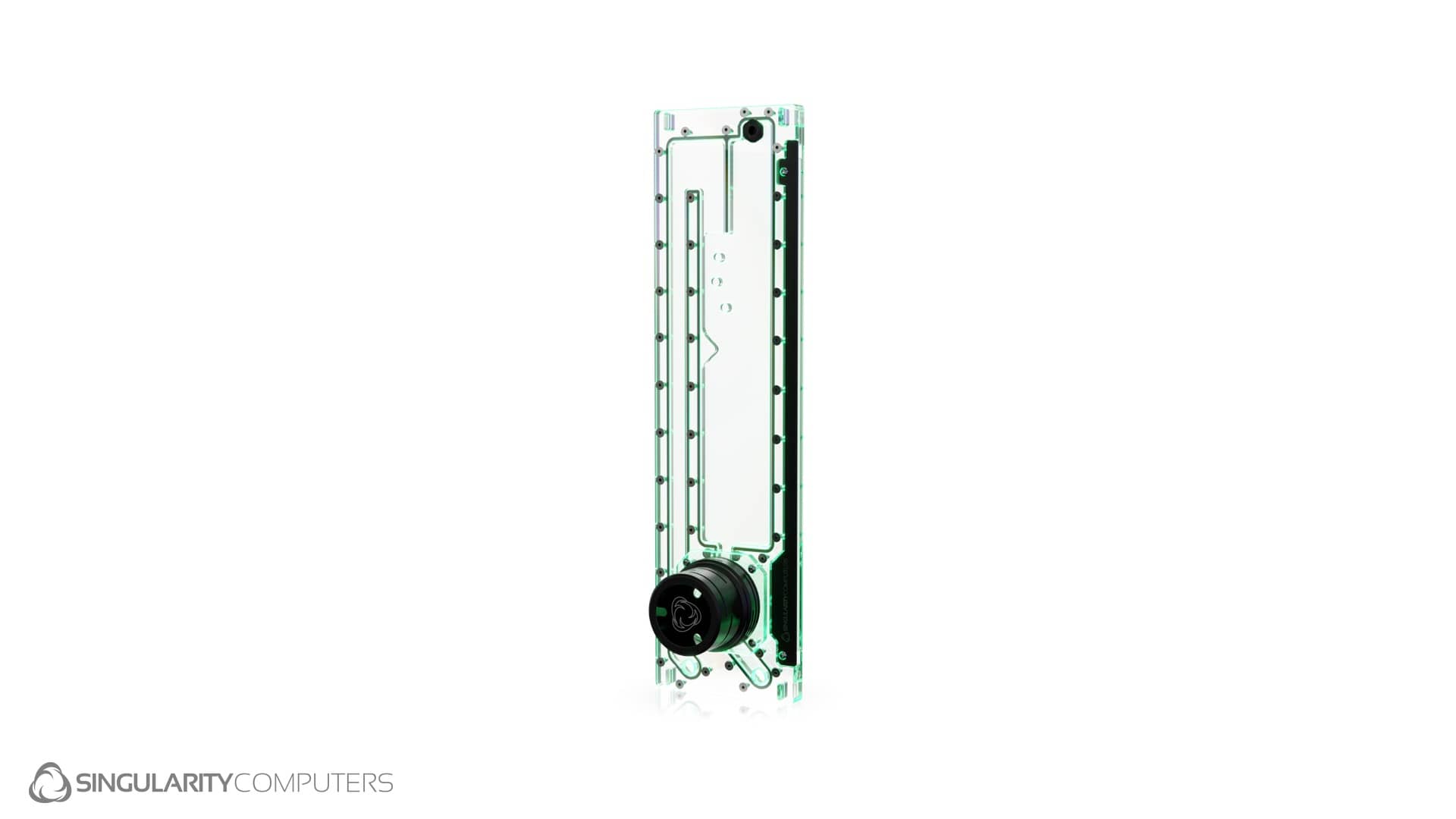

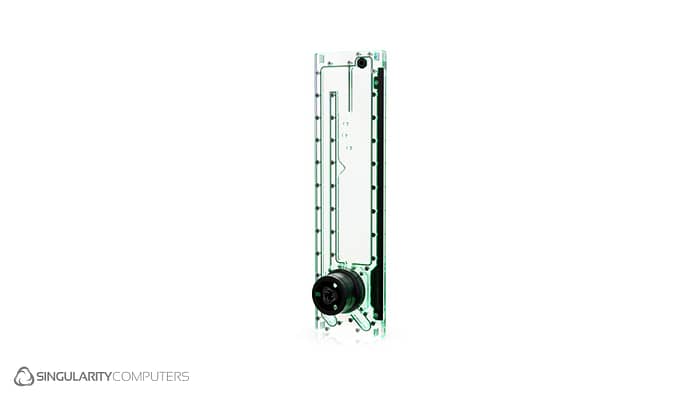

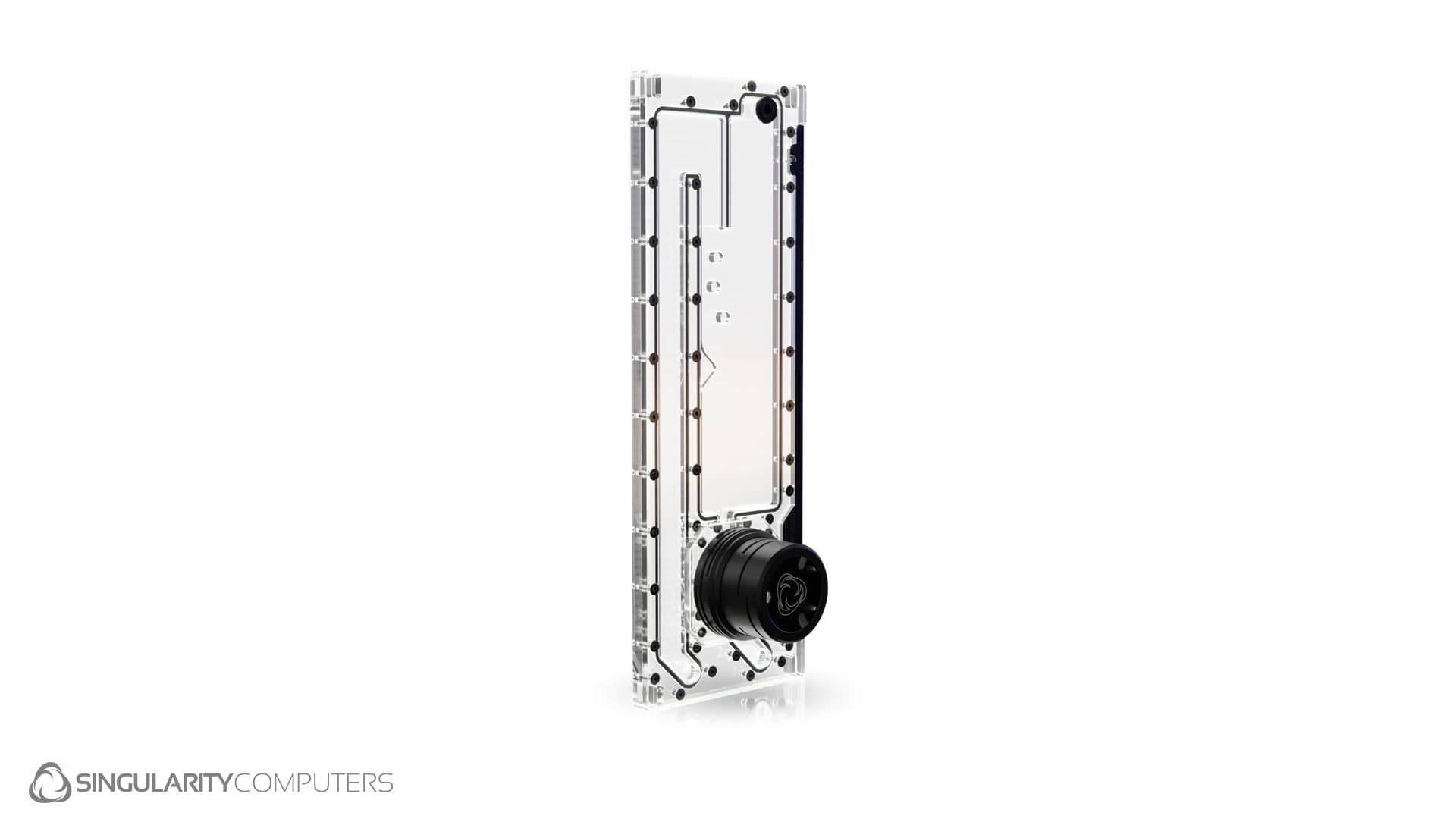

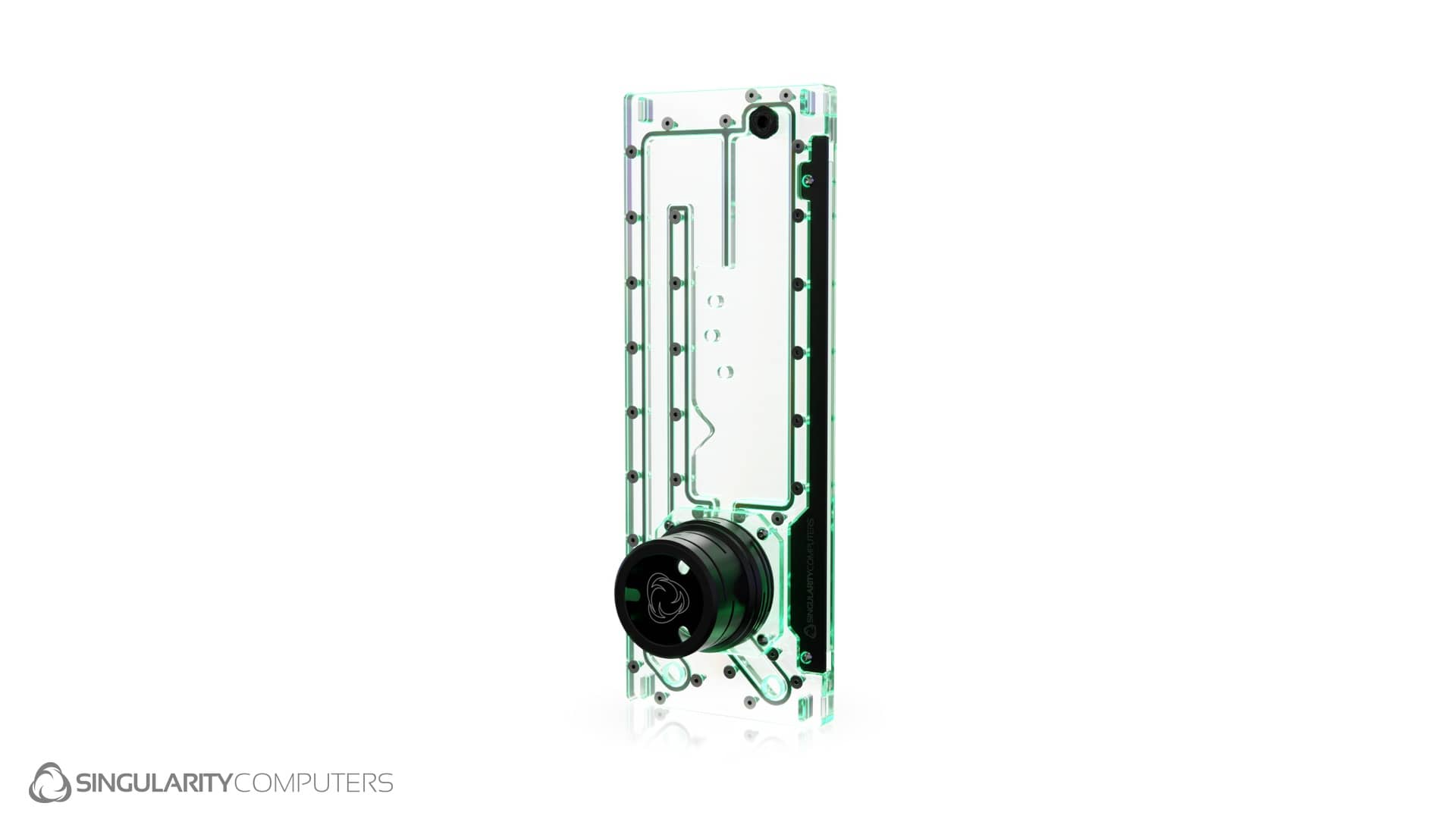

The Singularity Computers Radiator Distribution Plate comes in 360mm, 420mm, 480mm and 560mm versions. It is designed to be an external water-box/water-cooling system. It is a D5 reservoir combo which mounts onto a radiator with stand-offs. With the SC Radiator Distribution Plate attached to a radiator you can build a full external water-cooling system as extra support for your system or if you don’t have radiators, fans, pump and reservoir inside of your system.
It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners. It has an integrated ARGB LED strip with an Accent Cover. Select from the different color options below for the Accent Covers and Back Plates.

Pumps not included. Compatible with any D5 Pumps.

Build Gallery

US$279.00 US$349.00Price range: US$279.00 through US$349.00

The distribution plate will remain transparent, this colour option is for the covers.

Satin Black Gloss Black Gloss White Carbon Mirror +US$14.00 Silver Mirror +US$14.00 Gold Mirror +US$14.00 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.

Satin Black Gloss Black Gloss White Carbon Mirror +US$15.00 Silver Mirror +US$15.00 Gold Mirror +US$15.00 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.

Satin Black Gloss Black Gloss White Carbon Mirror +US$16.00 Silver Mirror +US$16.00 Gold Mirror +US$16.00 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.

Satin Black Gloss Black Gloss White Carbon Mirror +US$17.00 Silver Mirror +US$17.00 Gold Mirror +US$17.00 Satin Black

CNC milled black anodised pump cover with ARGB lights and Singularity Computers Logo.

Black Silver Black

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$94.00
SKU: N/A Categories: ,

Manual

Gallery

Specifications:
Distribution Plate. Clear Cast Acrylic. CNC Machined.
D5 Pump Cover CNC Machined Aluminum (select color above).
Integrated D5 Pump Top.
Integrated Reservoir.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Product Weight & Dimensions:

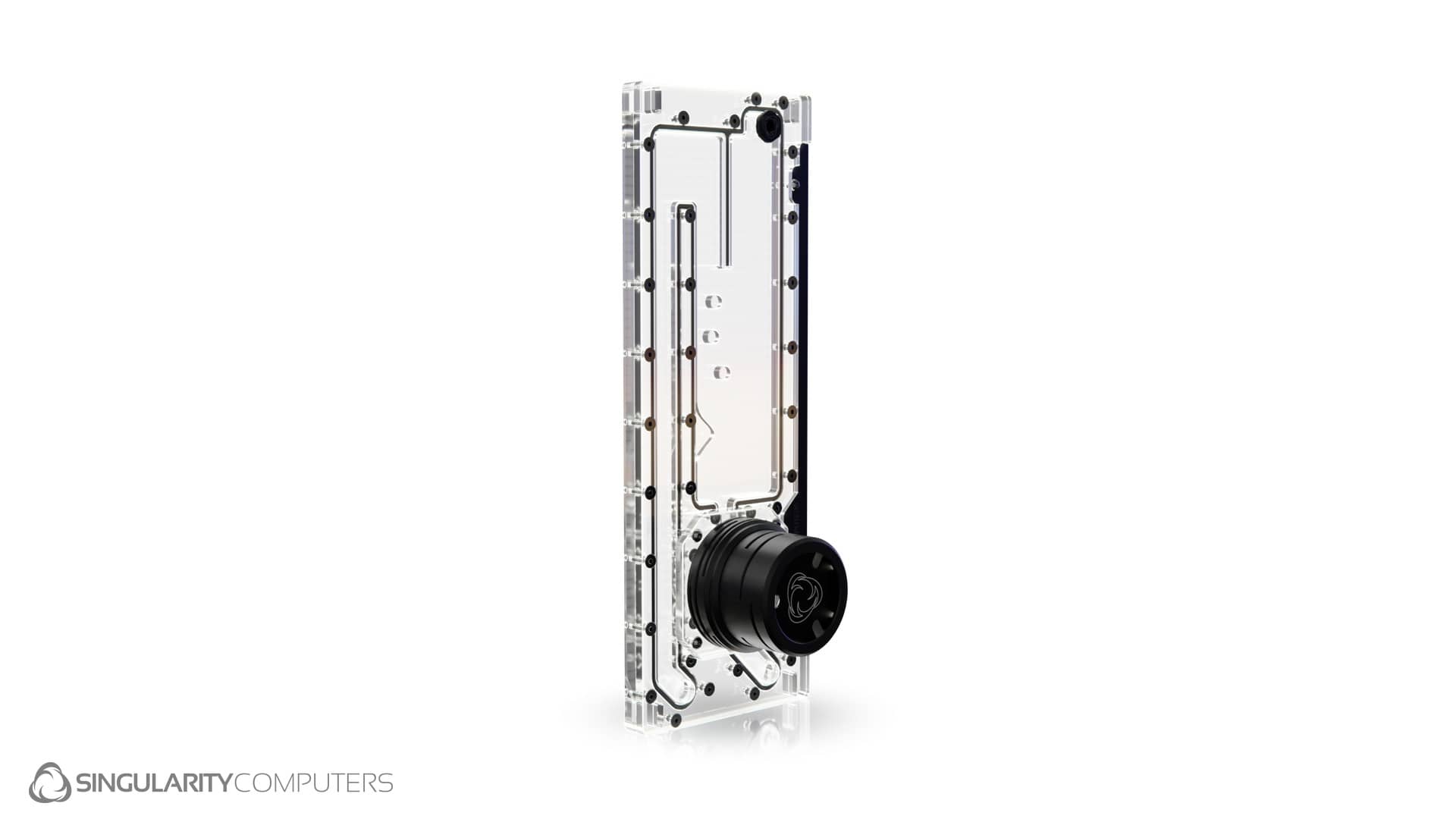

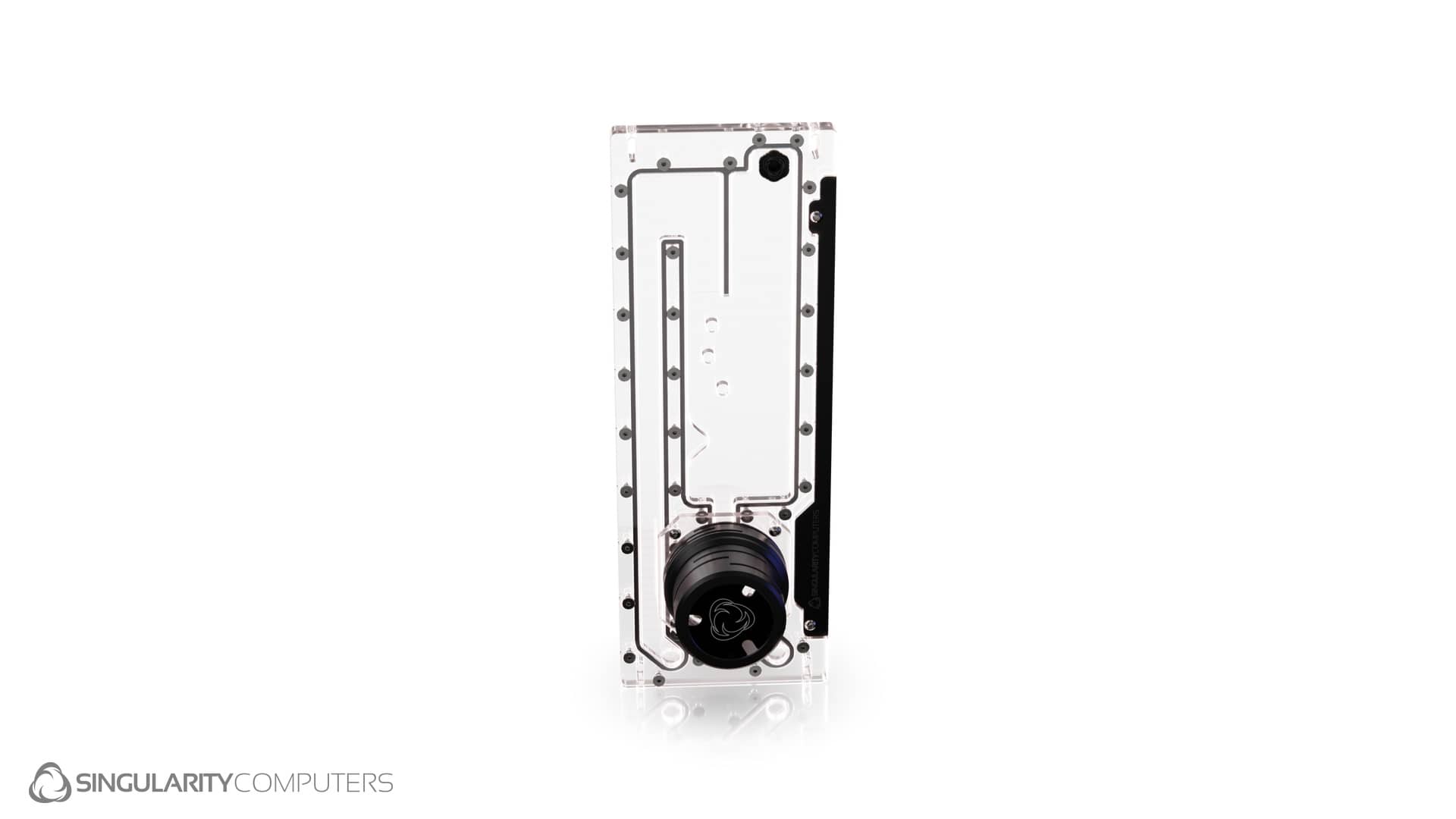

360mm Radiator Distribution Plate: L: 360mm x W: 120mm x H: 31mm (not including pump cover). 3kg.

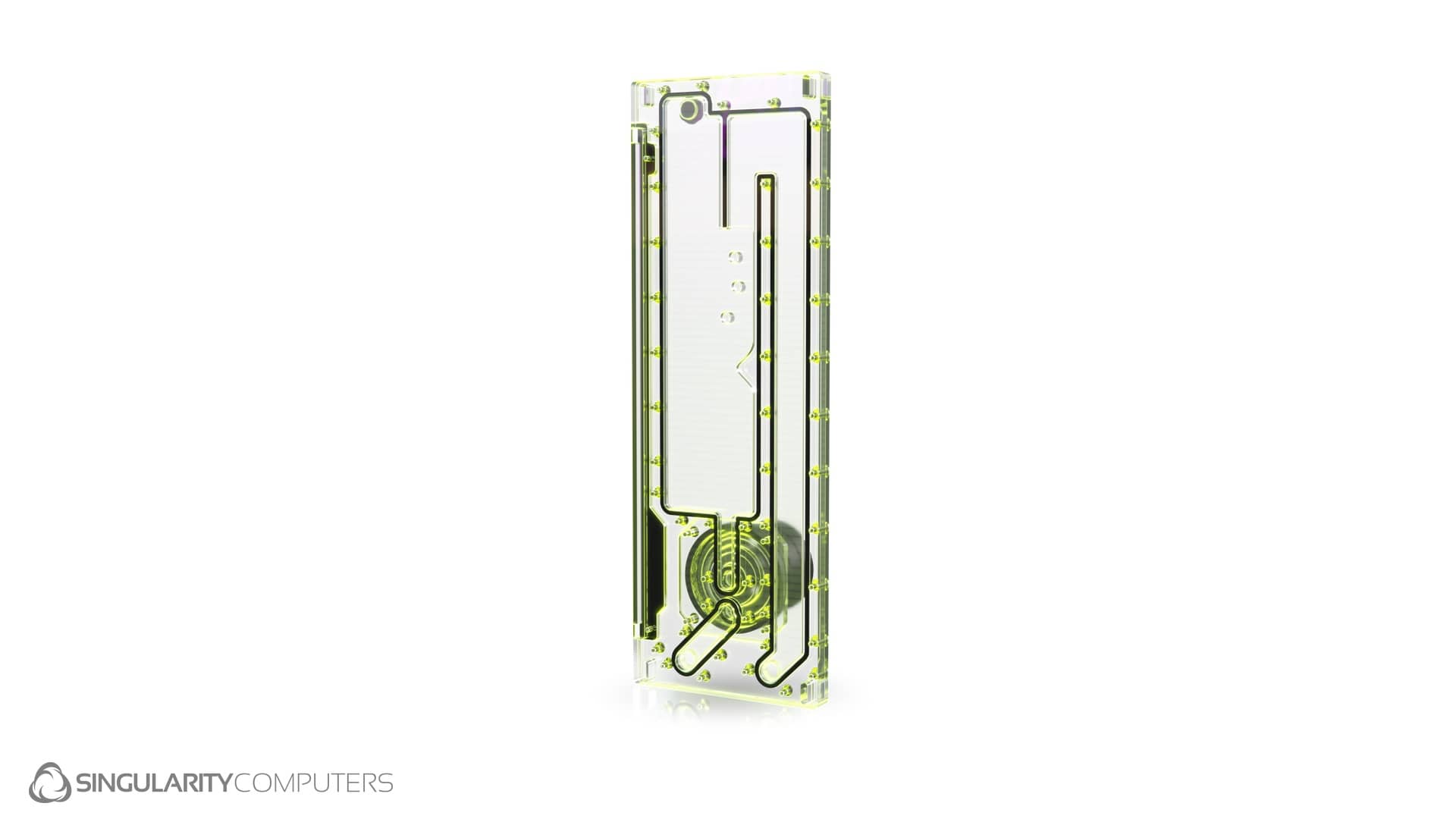

420mm Radiator Distribution Plate: L: 420mm x W: 140mm x H: 31mm (not including pump cover). 3.2kg.

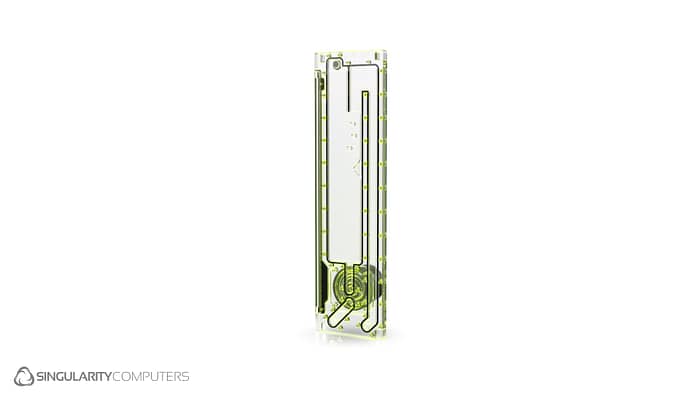

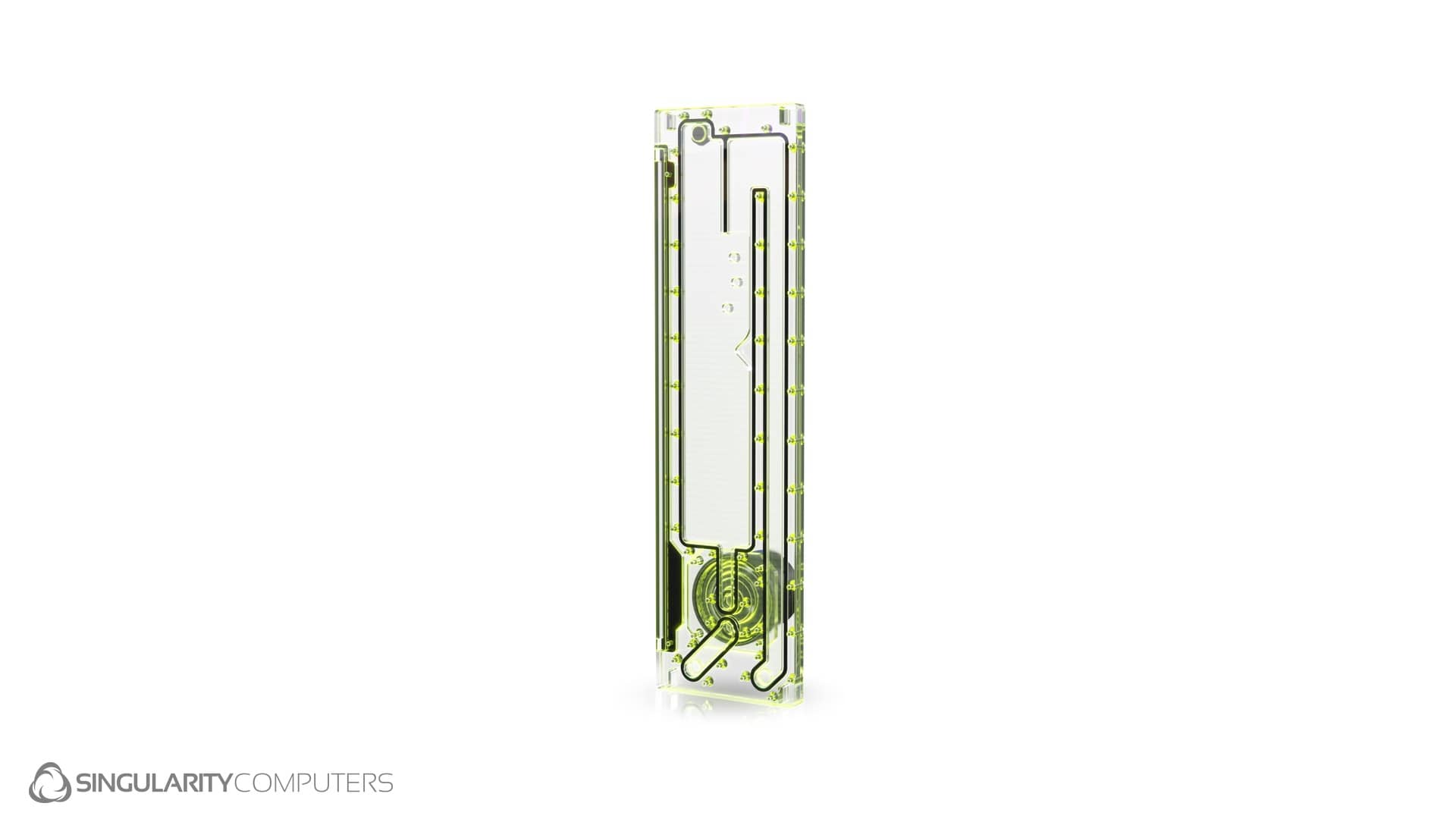

480mm Radiator Distribution Plate: L: 480mm x W: 120mm x H: 31mm (not including pump cover). 3.5kg.

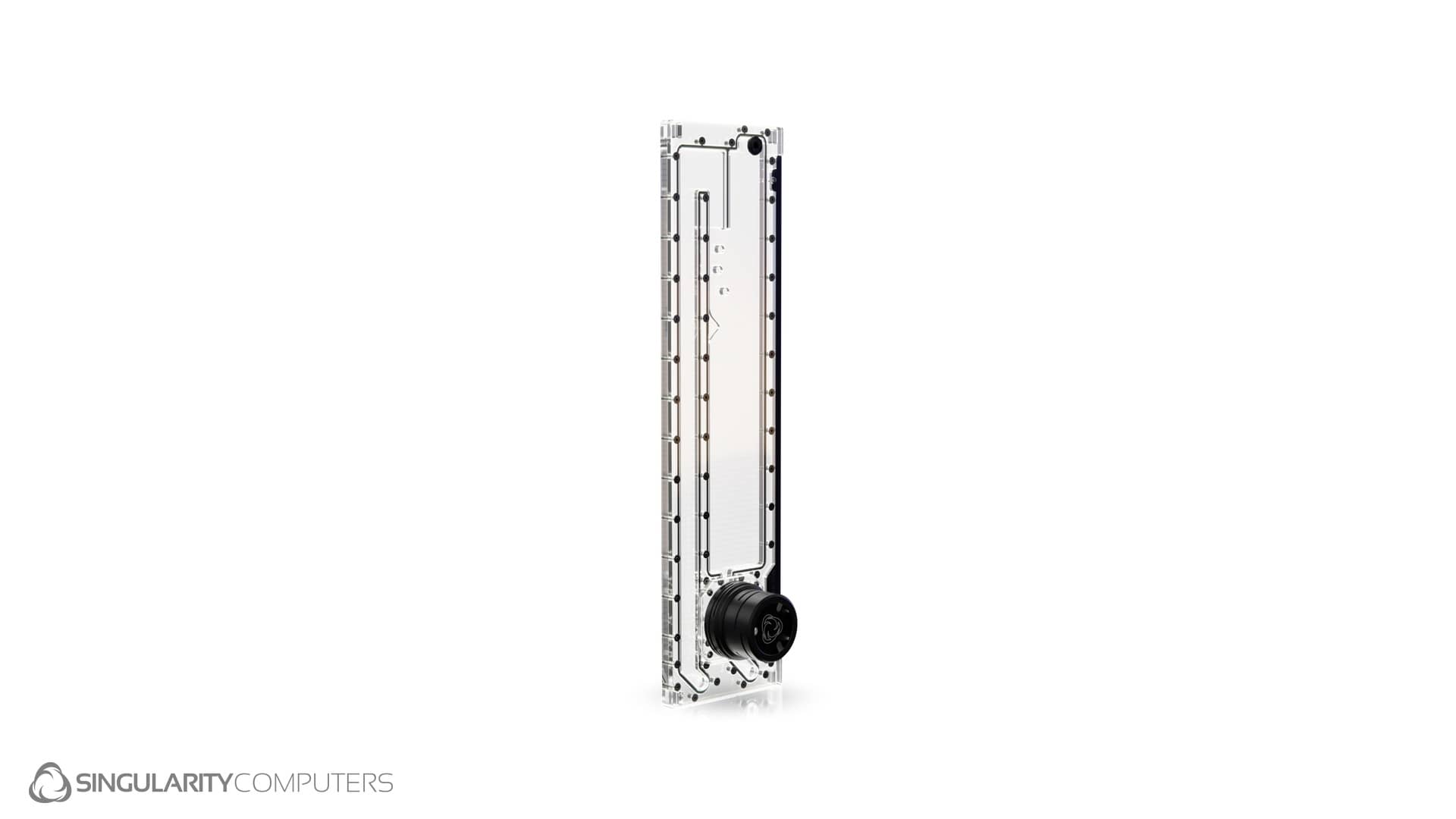

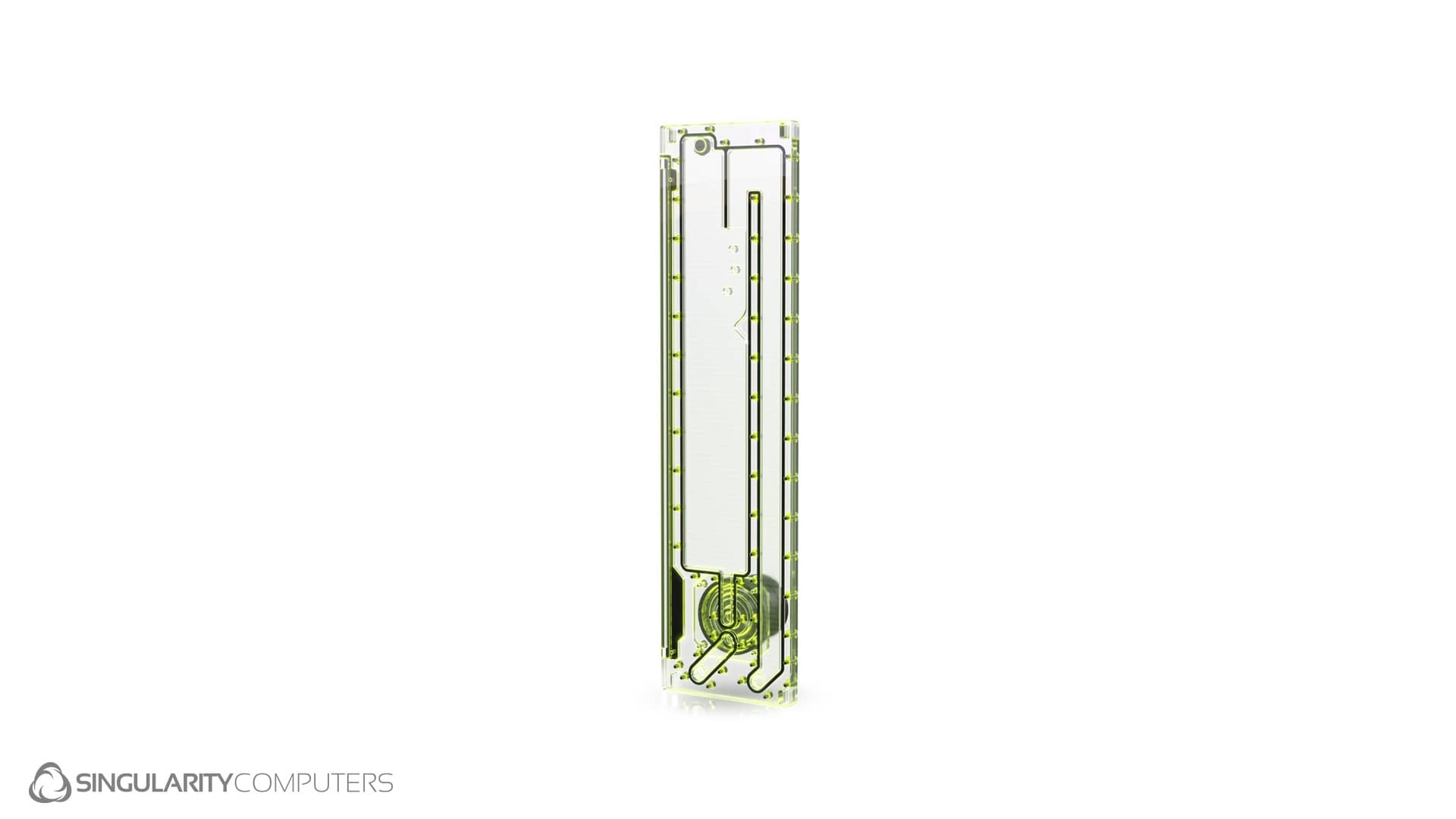

560mm Radiator Distribution Plate: L: 560mm x W: 140mm x H: 31mm (not including pump cover). 4kg.
Packaged Weight & Dimensions:
360mm Radiator Distribution Plate: L: 420mm x W: 150mm x H: 31mm (not including pump cover). 3.5kg.
420mm Radiator Distribution Plate: L: 460mm x W: 200mm x H: 31mm (not including pump cover). 3.7kg.
480mm Radiator Distribution Plate: L: 520mm x W: 150mm x H: 31mm (not including pump cover). 4kg.
560mm Radiator Distribution Plate: L: 620mm x W: 200mm x H: 31mm (not including pump cover). 4.5kg.

Installation:
Installs into the radiator using stand offs to allow for airflow. See manual link above.
