Shift 8pin PCIE 180 Degree Adaptors

In stock

Order processing time 1-2 days.

  • Custom-designed cable routing adaptors with dual-layer PCB
  • 180° PCIe adaptors for cleaner GPU cable runs
  • 90° adaptors for PowerBoard and 90° motherboard connections
  • Solves tight connector spacing for sleeved cables
  • Corrects 180° flipped pin-out orientation
  • Black PCB and connectors with white logos and labelling

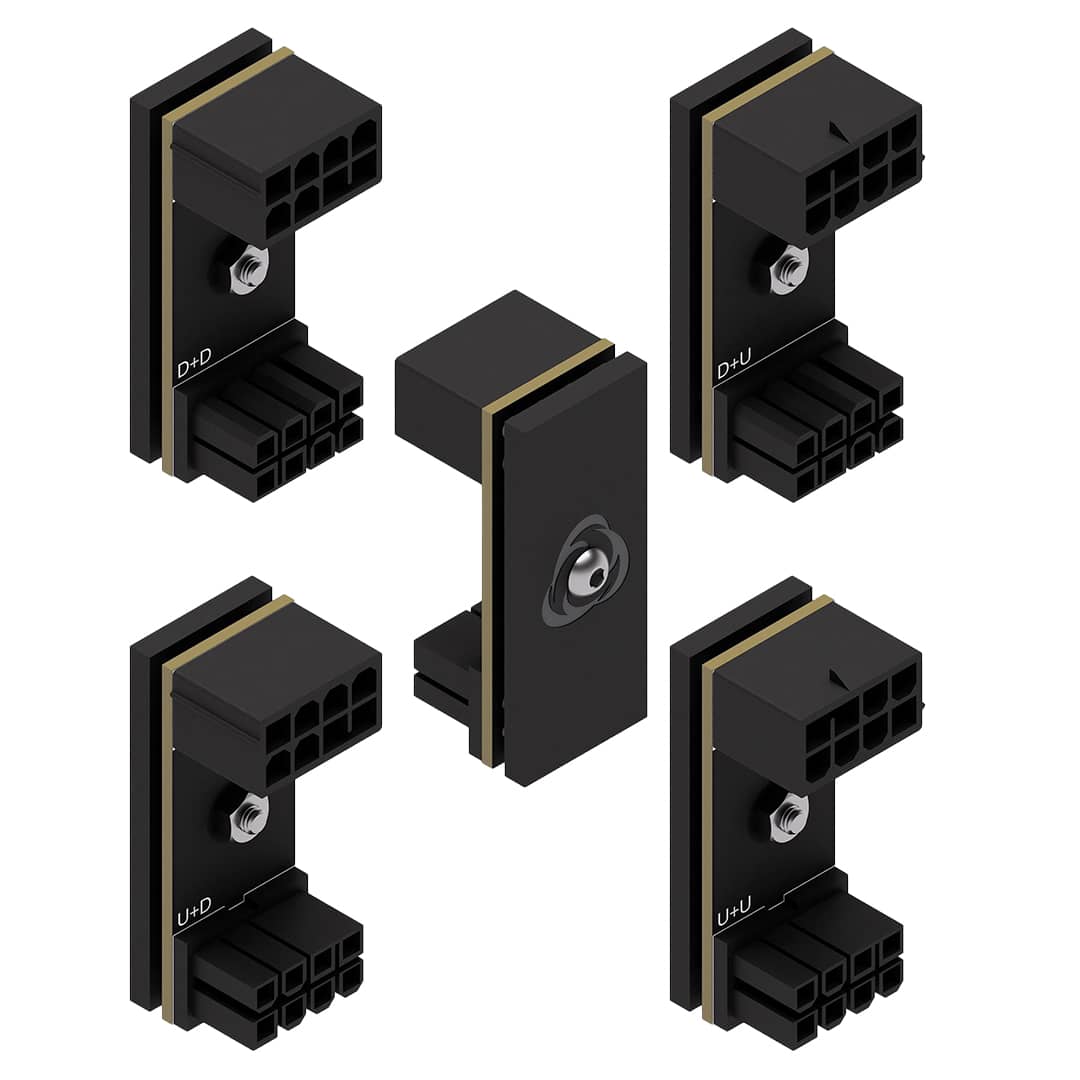

Note: U+U, D+D, D+U, U+D refers to the direction the connectors face on each end of the adaptors. Check your components to figure out which direction you need the connectors to face for the adaptor to work for your configuration.

Manuals

US$14.90

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
SKU: N/A Categories: ,

Description

Read More +Read Less − full description

Singularity Computers Shift adaptors are designed for use with the PowerBoard, but can be used with any components or cables. The PCBs are custom designed with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling. SC Shift Adaptors provide a range of options for cleanly routing your cables.
Shift 180 Degree PCIE adaptors are designed to be used on your GPU to achieve cleaner cable runs. Shift 90 Degree adaptors are designed to be used with the PowerBoard and motherboards with 90-degree 24pin, 8pin EPS and 6pin PCIE connections. They solve the problem of the connectors being too close together to make a clean connection with sleeved cables, and the problem of the 180-degree flipped pin out.

Specifications

Shift 8pin PCIE 180 Degree Adaptor U+U. Black PCB and Connectors with white logos and printing.
Dimensions: L: 34mm x W: 19mm x H: 15mm.
Weight: 0.01kg.
Packaged Dimensions: L: 90mm x W: 45mm x H: 15mm.
Packaged Weight: 0.01kg.

Installation:

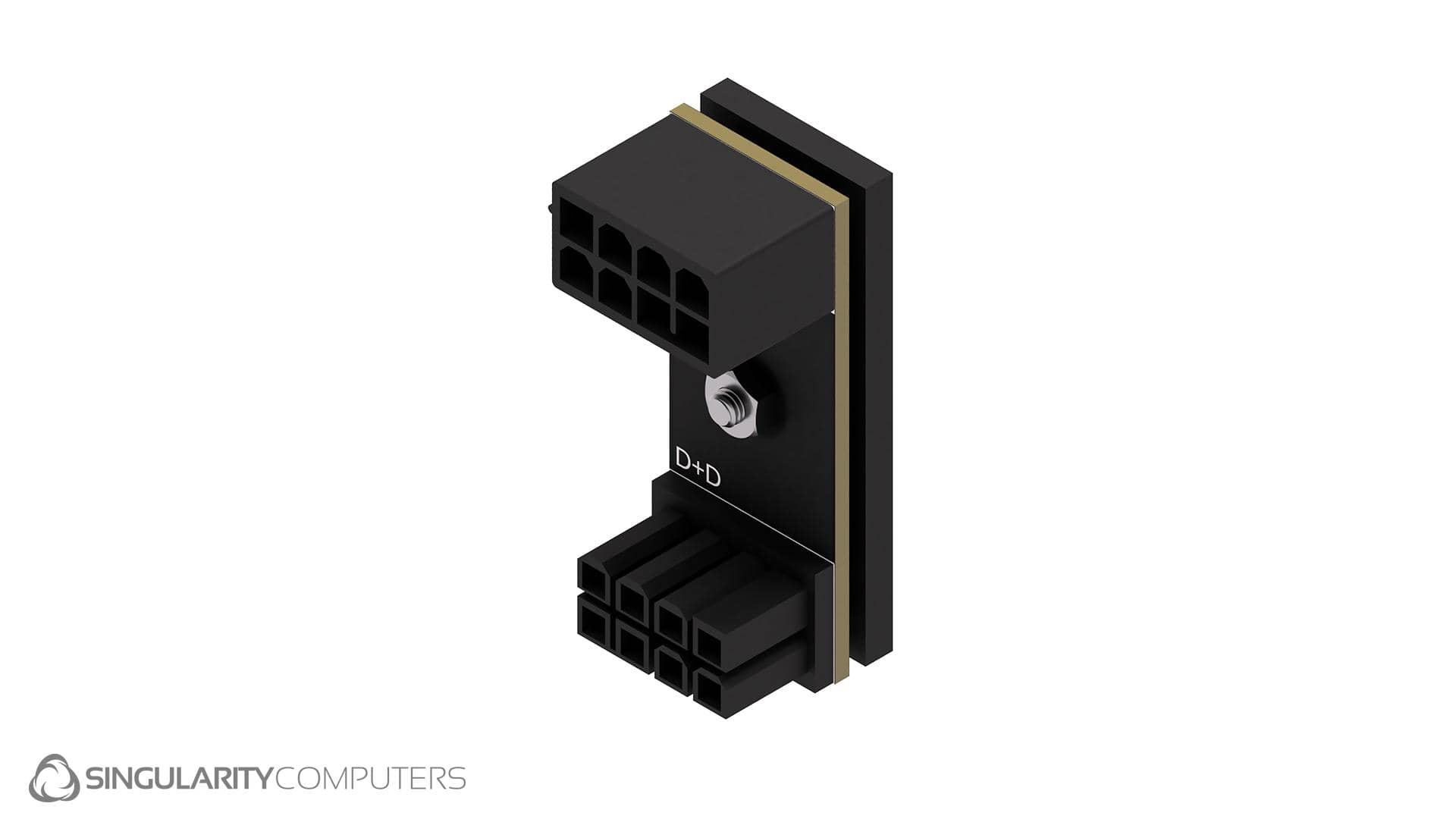

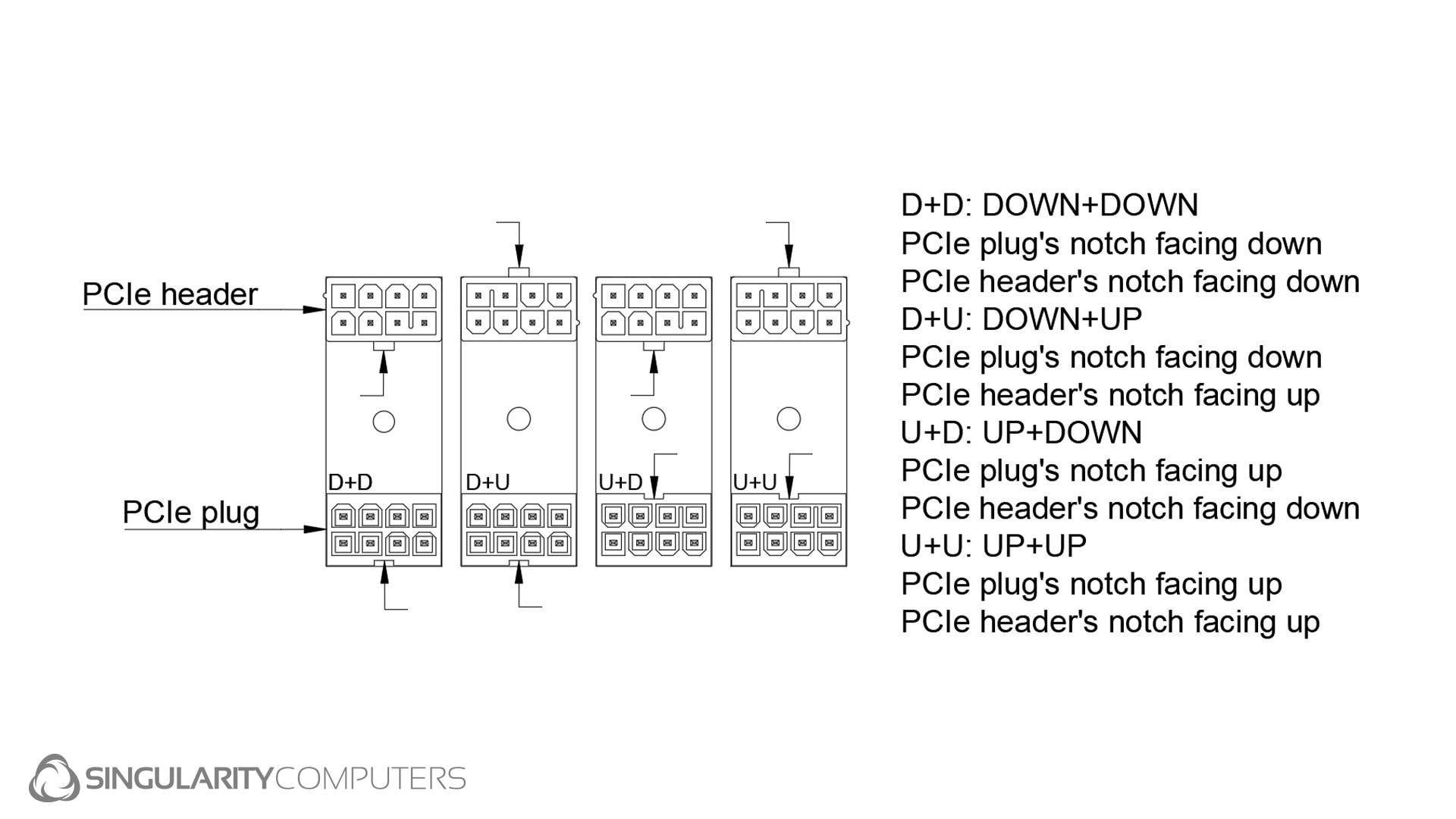

Install onto GPU PCIE connectors. There are 4 different types for 6pin PCIE and 8pin PCIE which have connectors with different orientations. U+U stands for Up Up meaning both connectors are facing up, D+D stands for Down Down meaning the connectors are both facing downwards etc.
When selecting the version you need, check which way the PCIE connectors on your GPU are facing and decide how you want to mount your GPU horizontally or vertically.
