Spectre 2nd Vertical GPU Mount – Black
Order processing time 1-2 days.

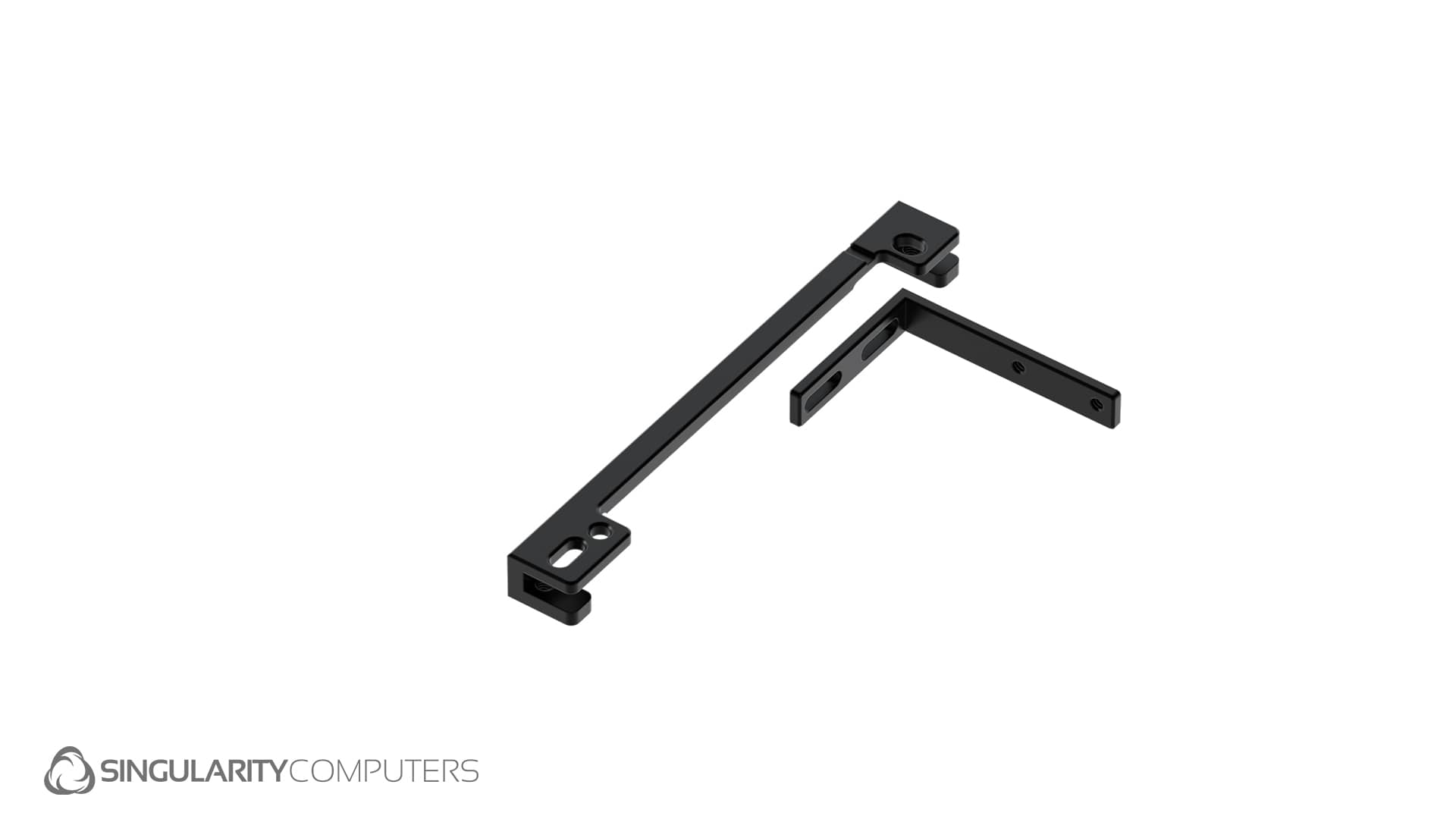

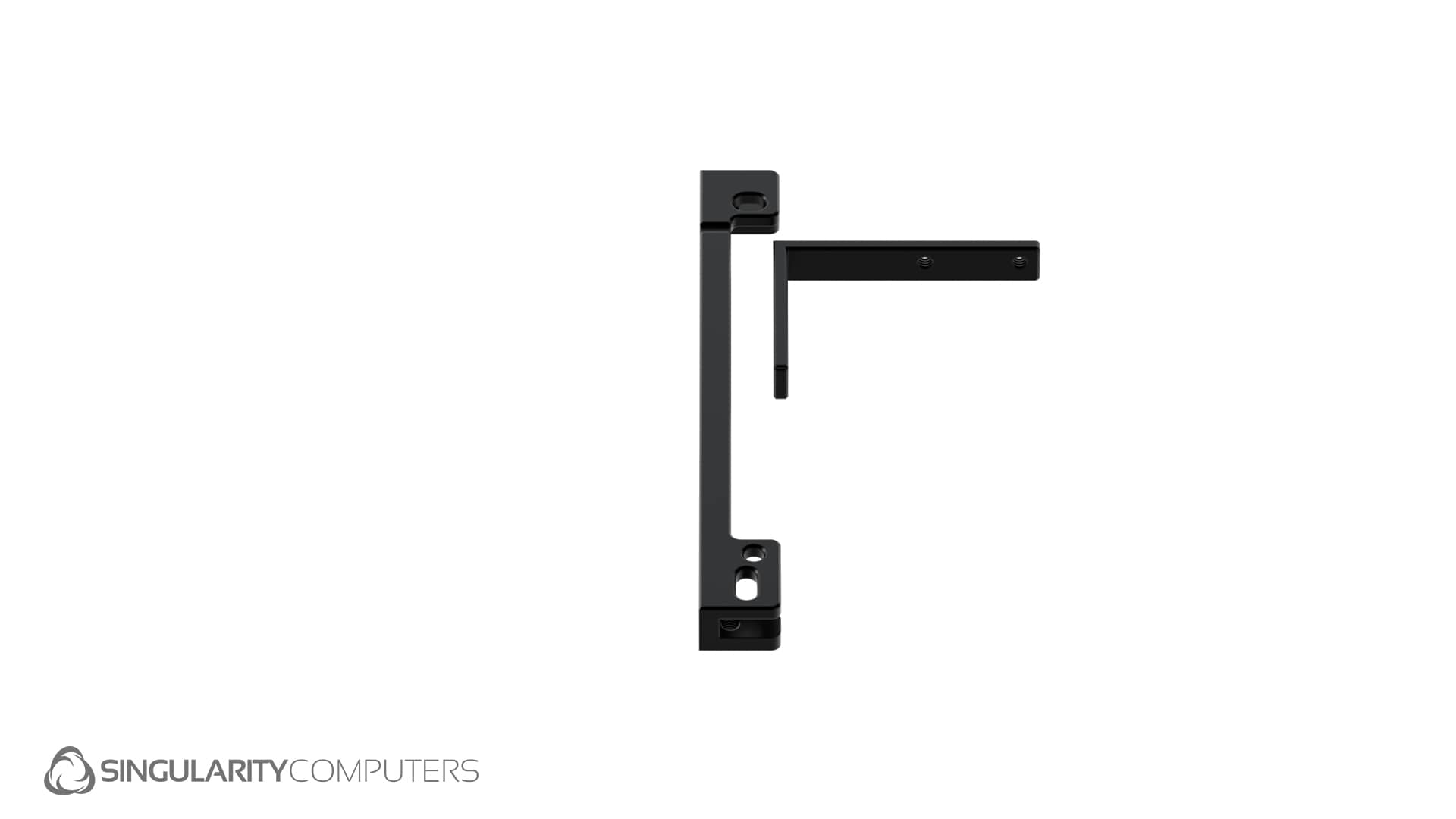

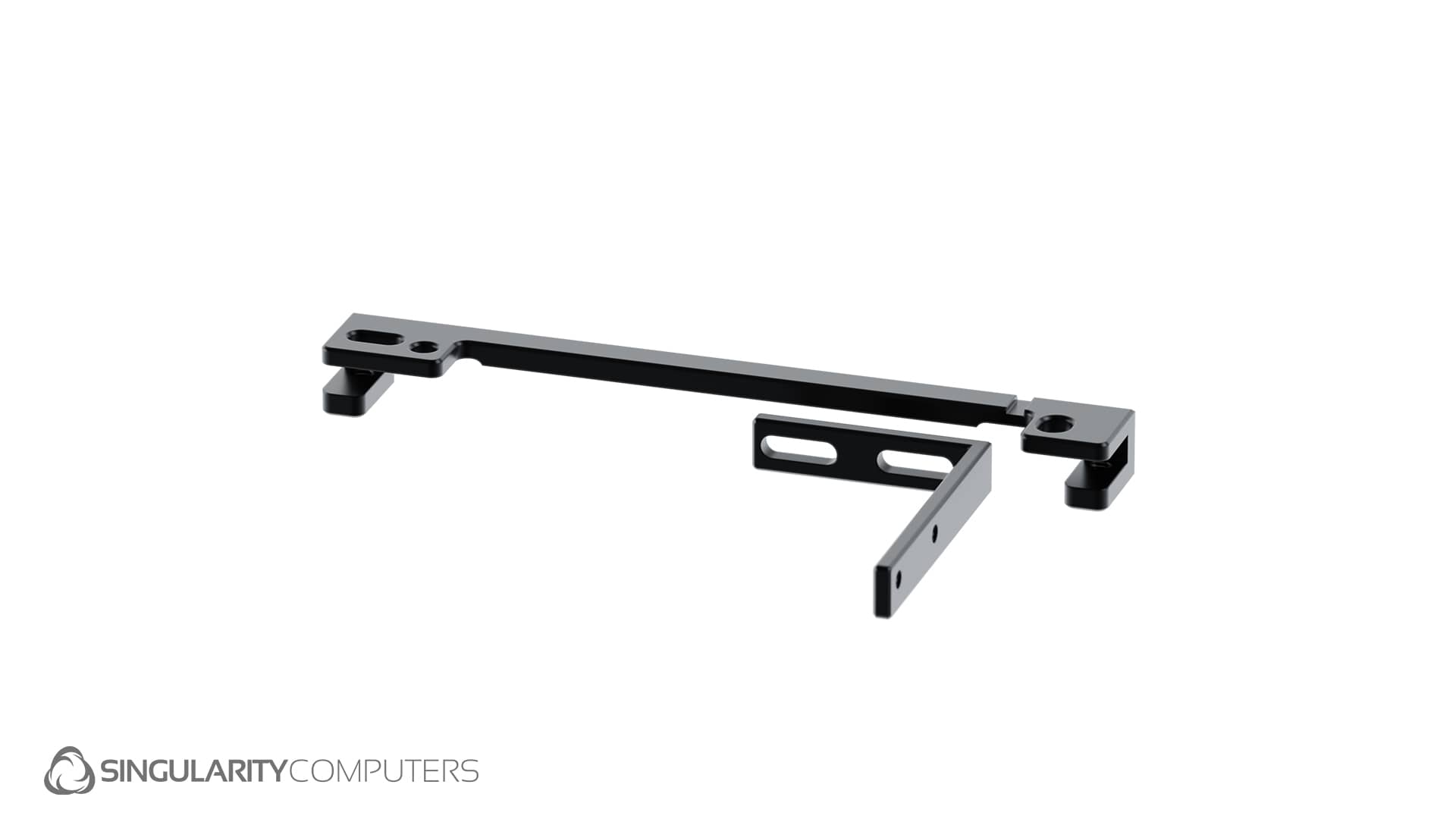

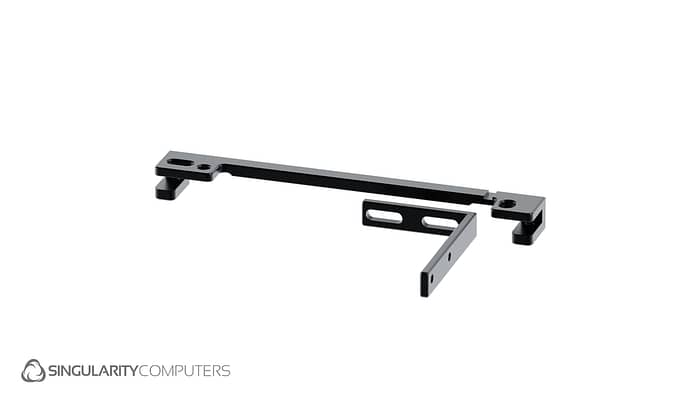

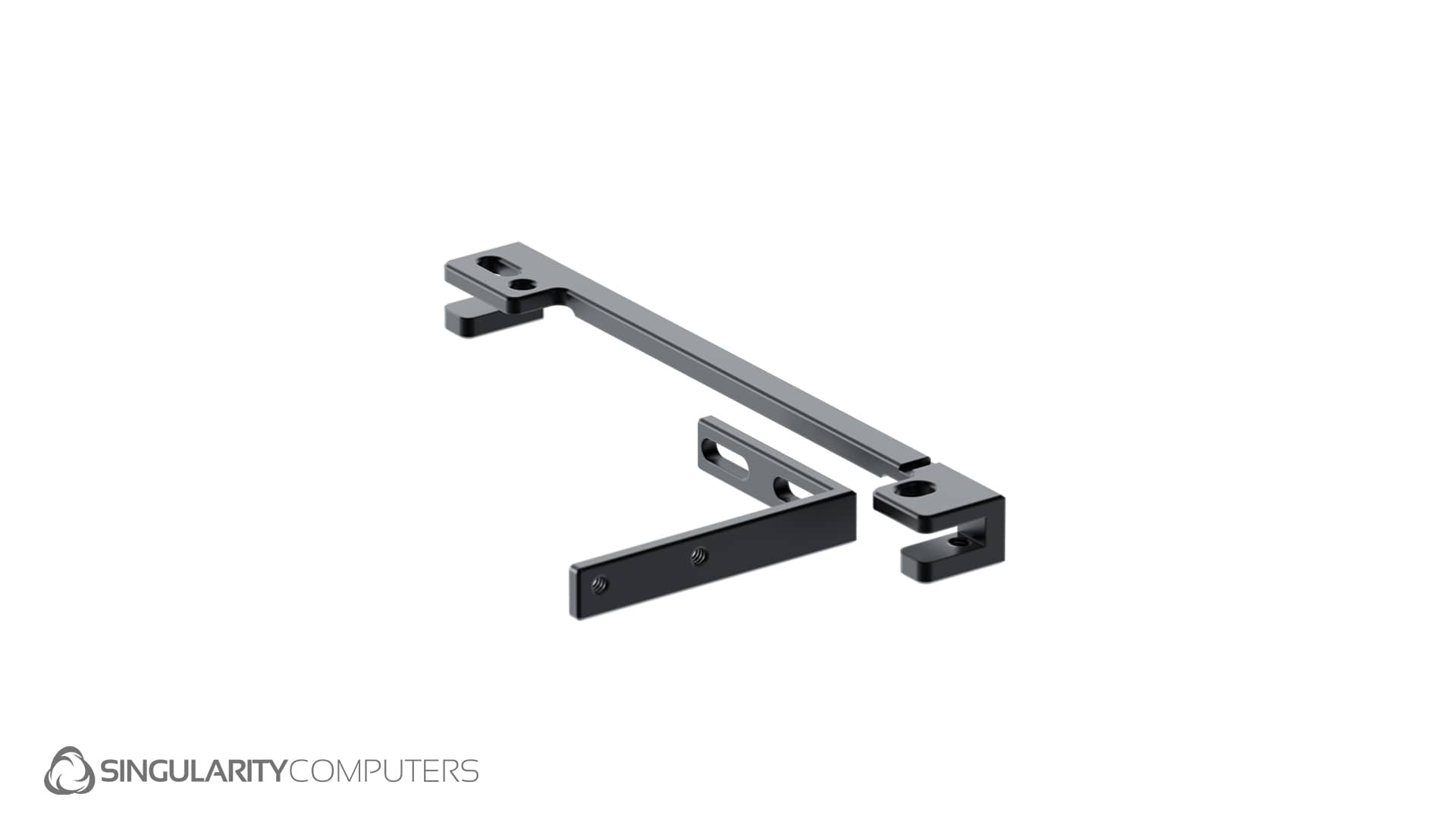

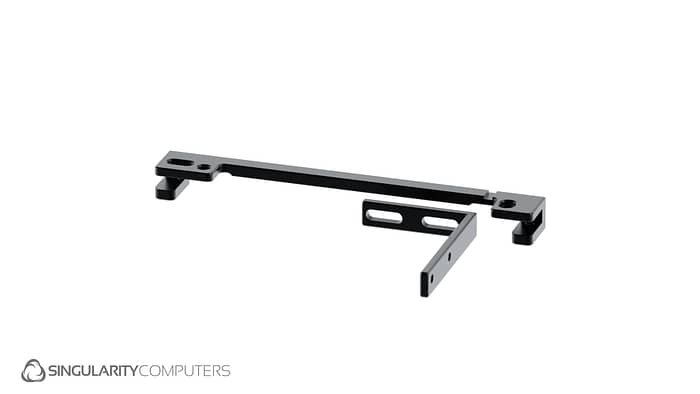

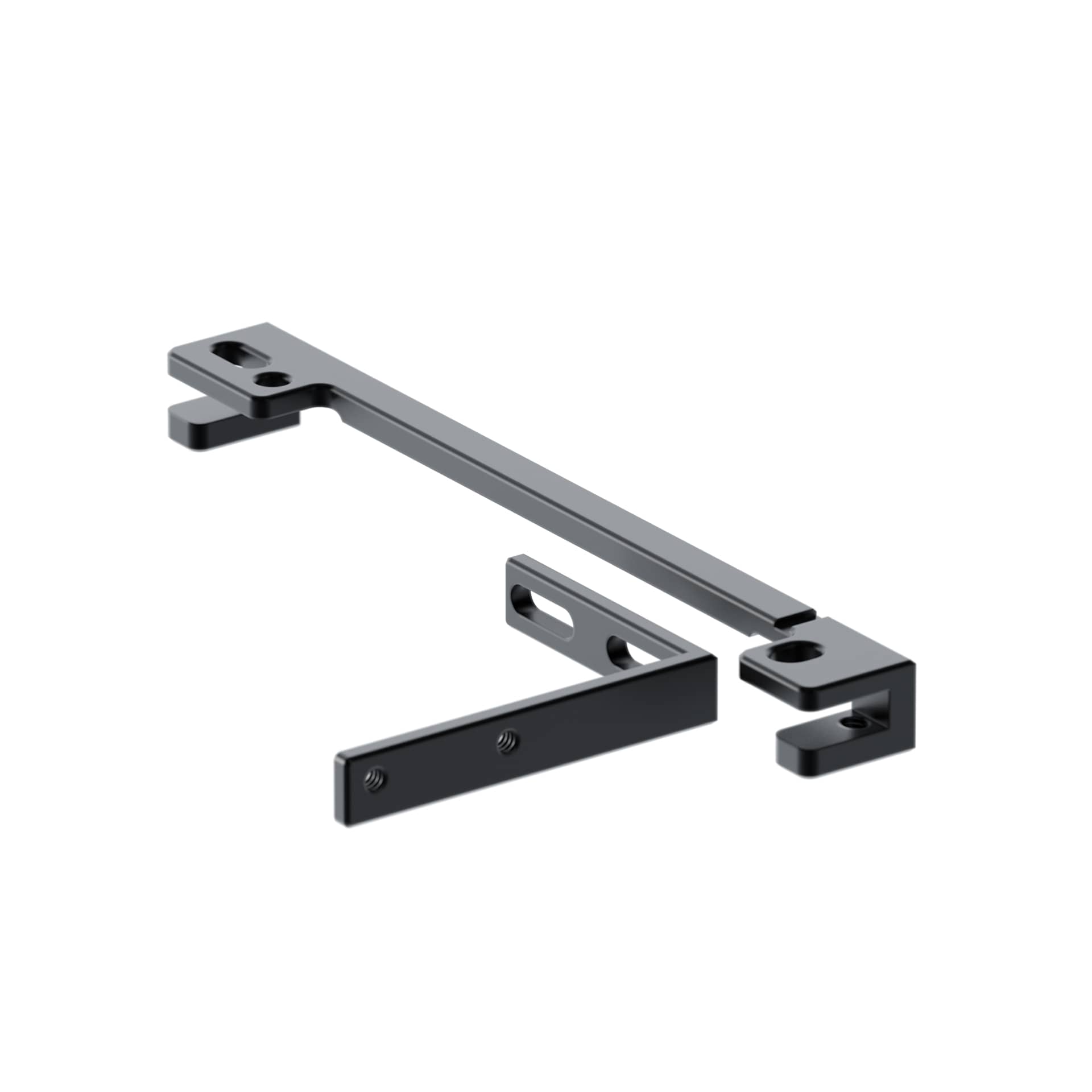

Spectre fits dual vertically mounted GPUs and the Spectre 3.0 2nd Vertical GPU Bracket is for mounting the second GPU which mounts closest to the motherboard. This mount does not come included with the case. It is compatible with all versions of Spectre.
US$24.90
Specifications:
SC Vertical GPU Bracket PCIE 4.0: 6061 Aluminum. CNC Machined. Anodized.
SC Vertical GPU 1st Angle Bracket: 6061 Aluminum. CNC Machined. Anodized.
Fasteners: Stainless Steel: M3 x 10mm x 2. M3 Nuts x2. M3 Washers x6. 6-32 x 0.25” x2. 6-32 x 0.5″ x2. 6-32 Nuts.
Dimensions: L: 135mm x W: 15mm x H: 12mm.
Weight: 0.02kg.
Packaged Dimensions: L: 150mm x W: 100mm x H: 15mm.
Weight: 0.025kg.
Installation:
Install the Singularity Computers PCIE 4.0 Riser Cable with the included fasteners. Follow the case manual for installation into the case.
Adjustment of the Riser Cable position on the Bracket may be required as you are installing your GPU.
