Spectre 4 Aevum Dual Loop Side Panel

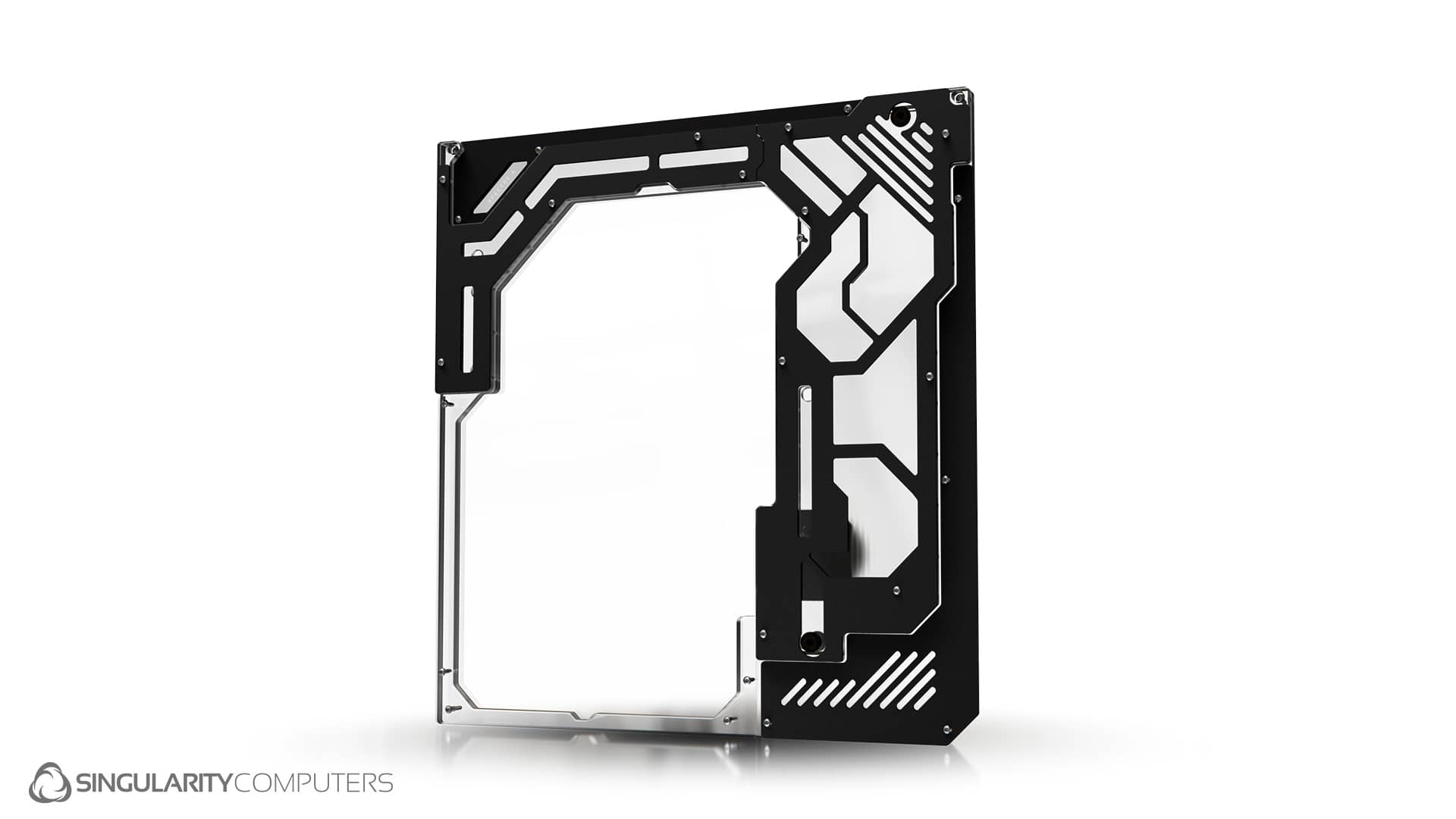

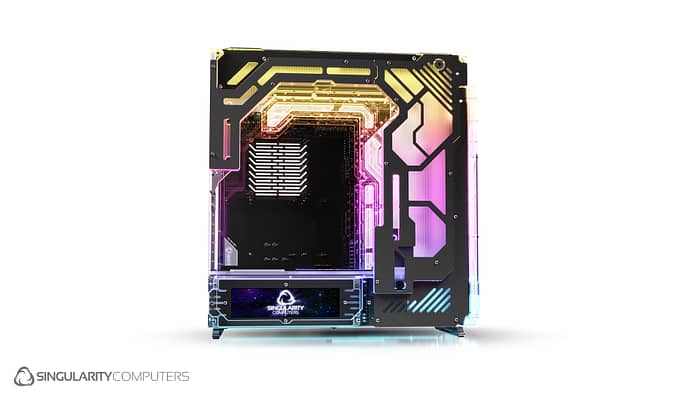

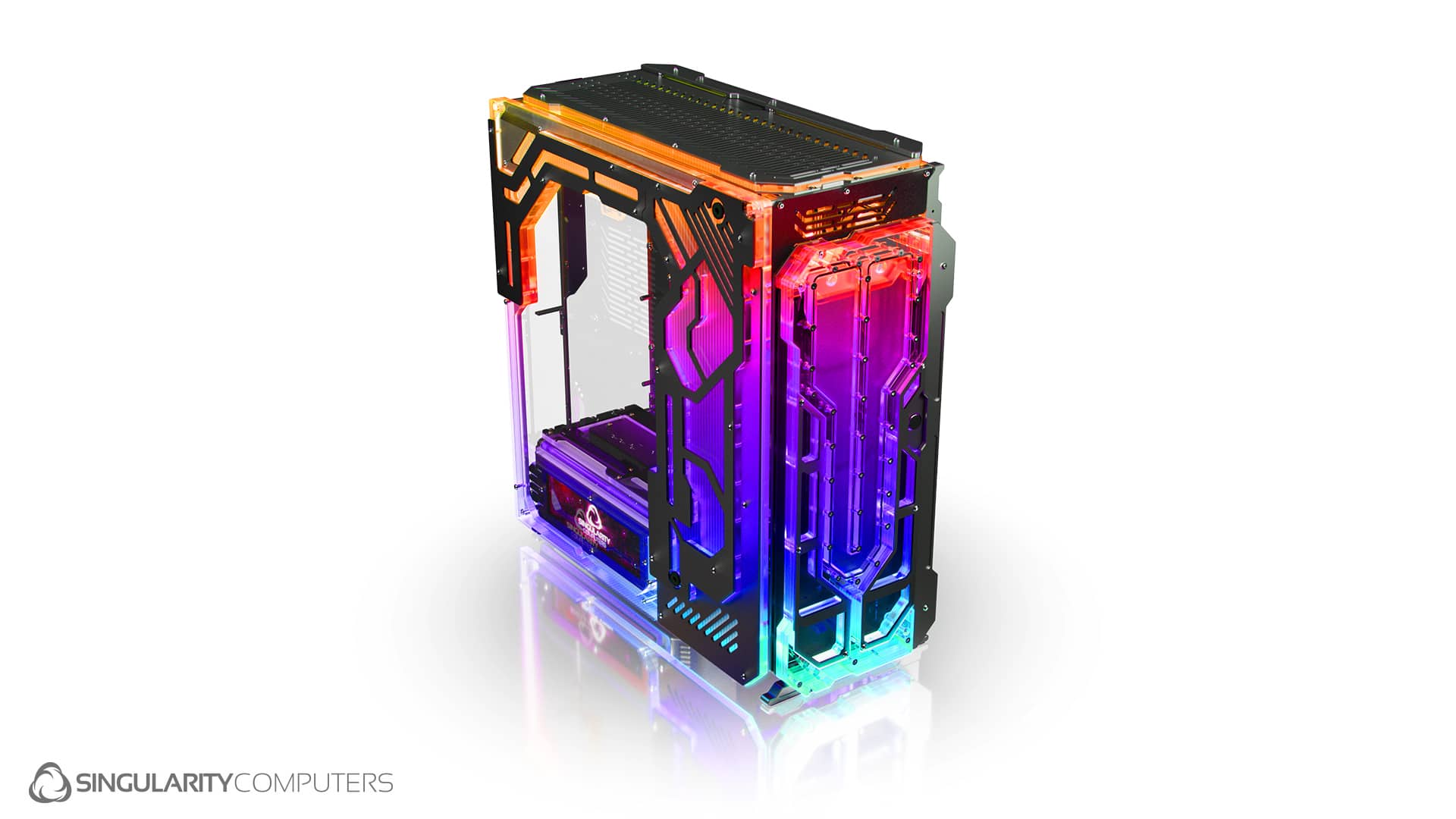

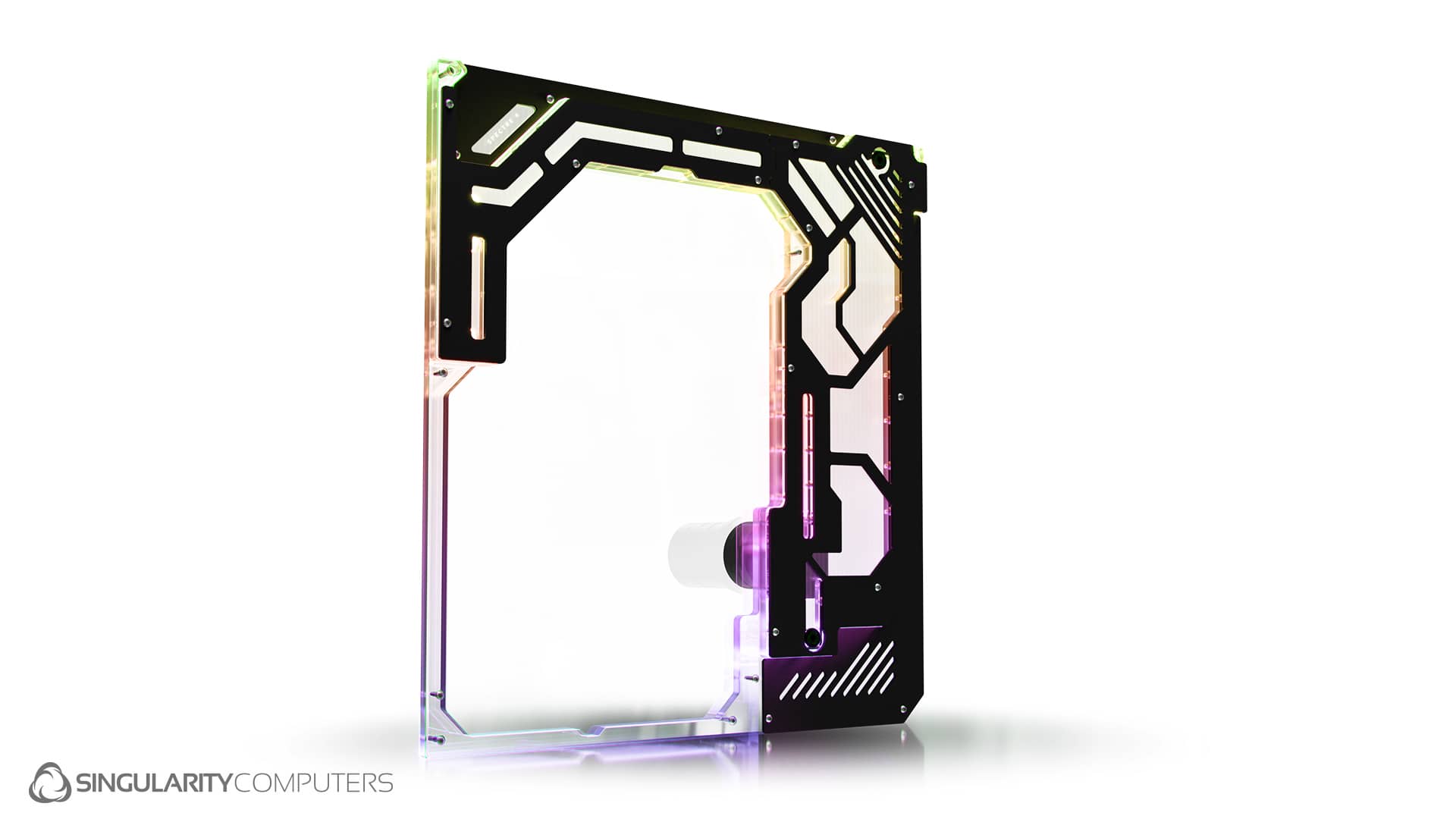

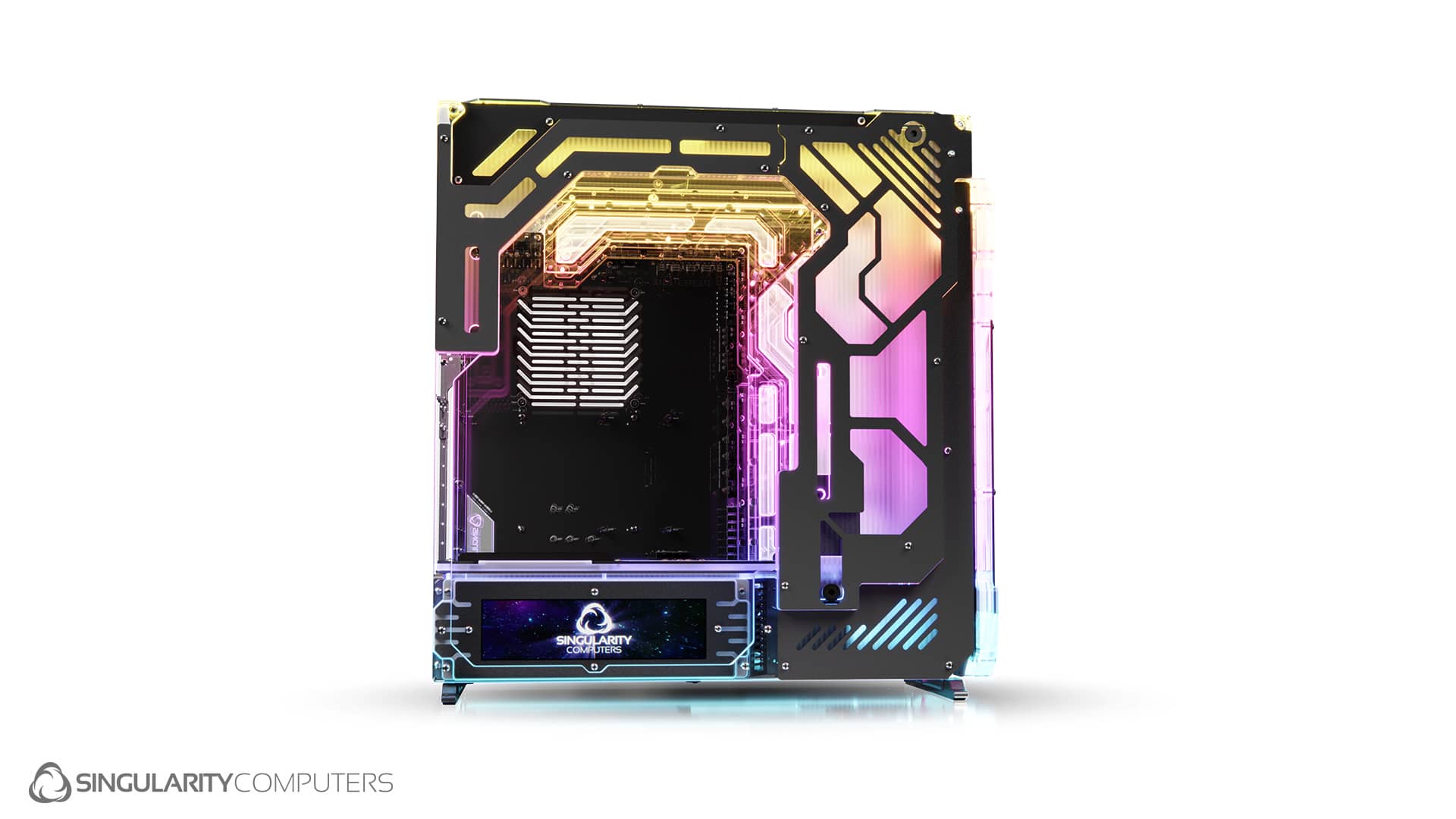

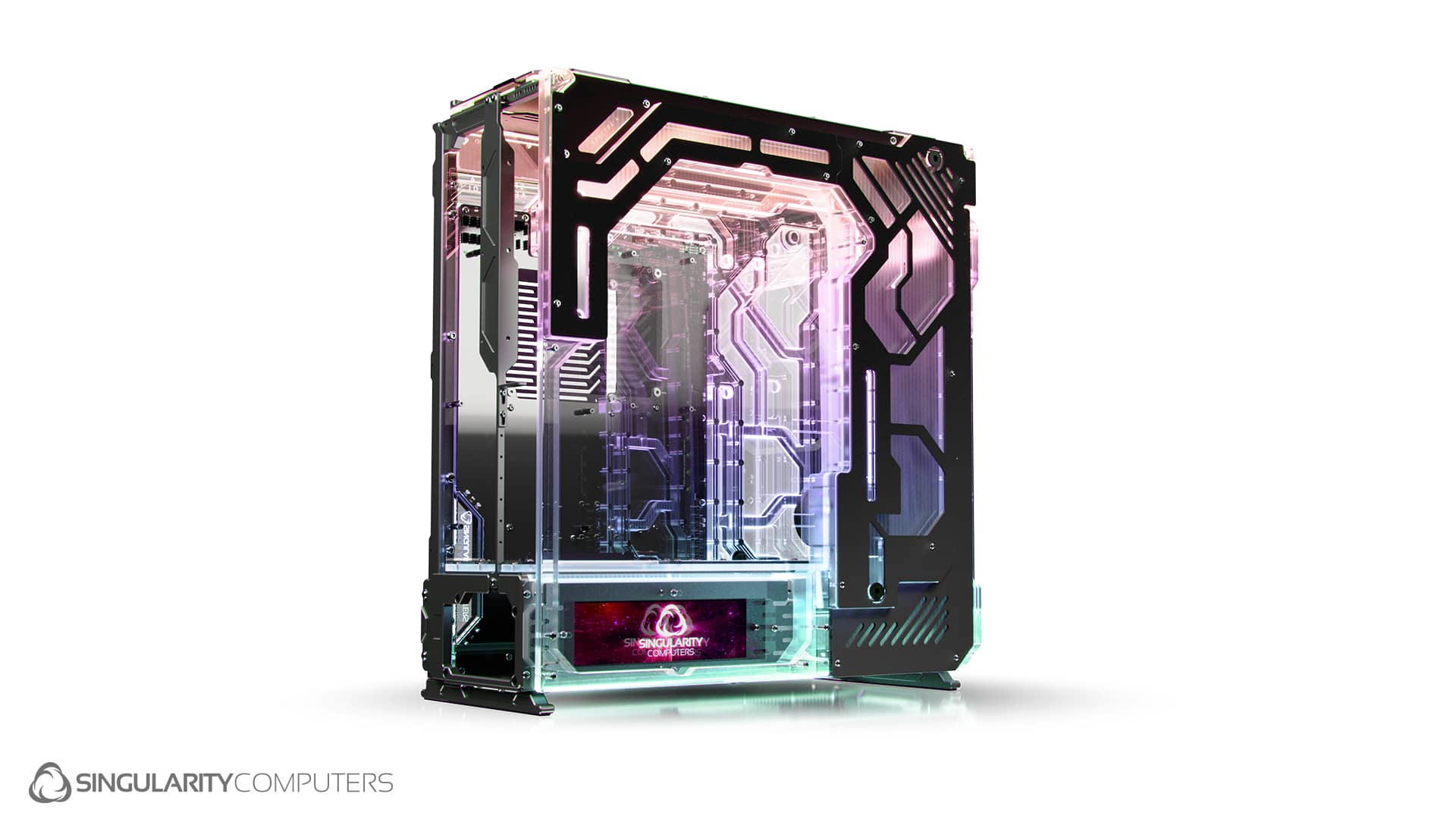

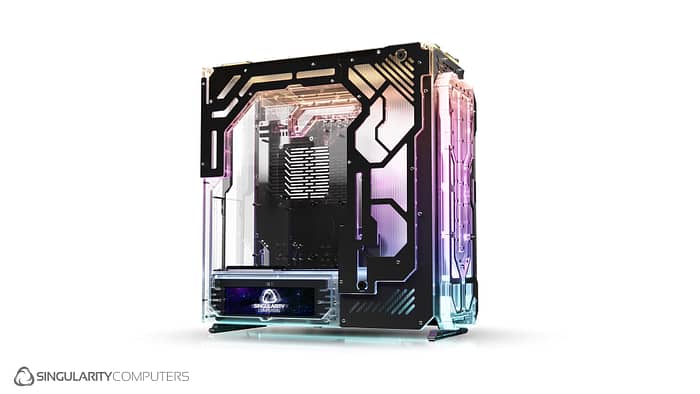

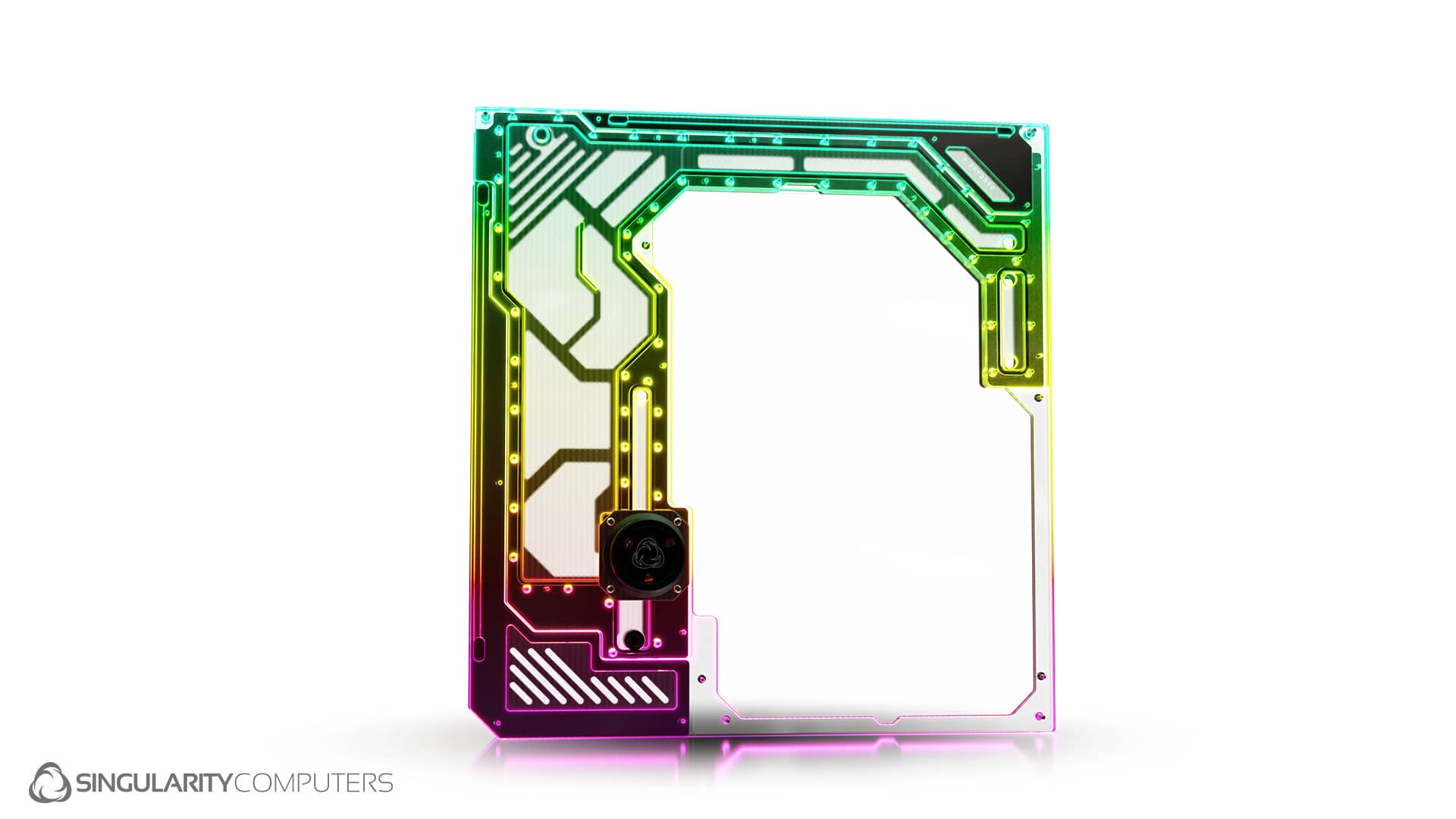

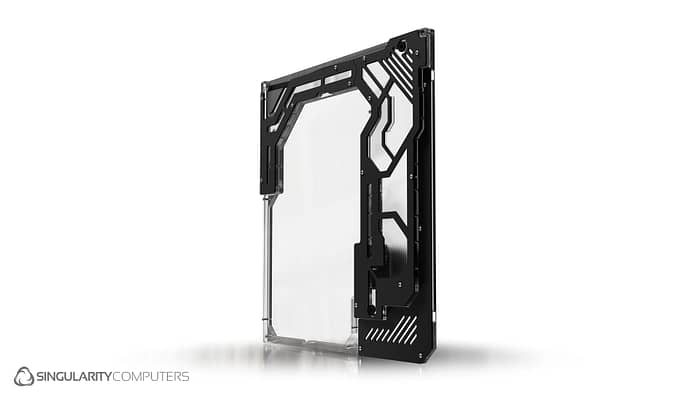

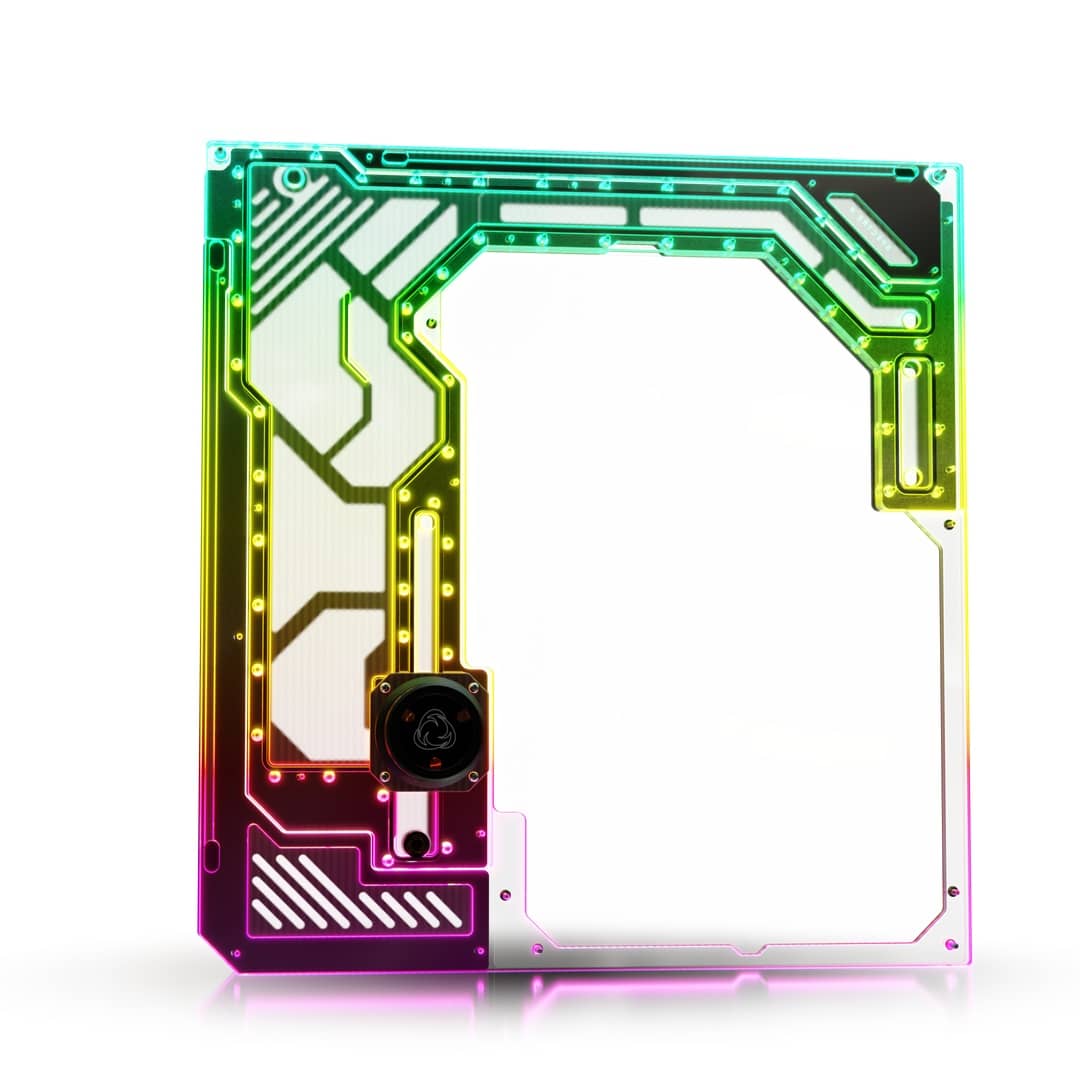

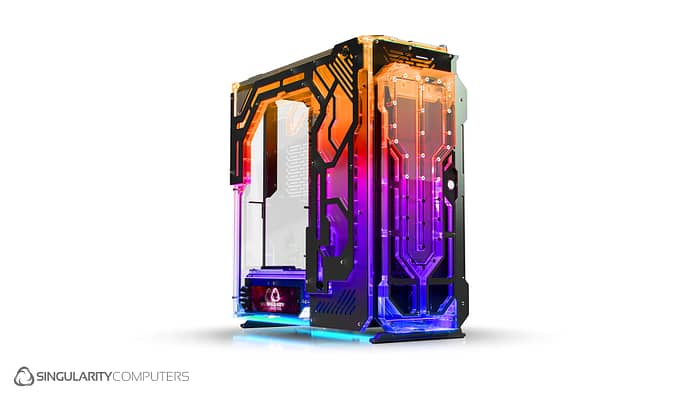

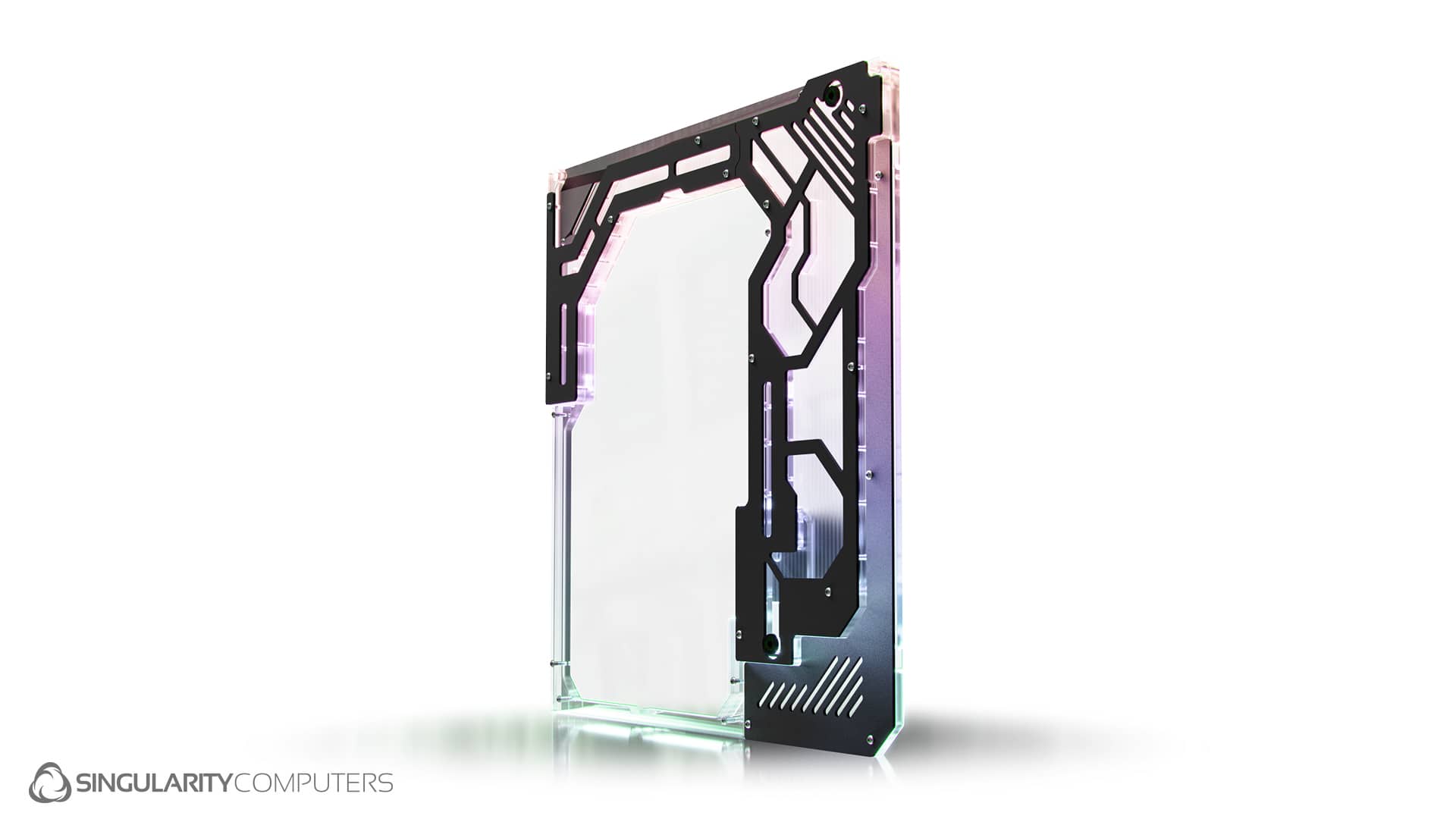

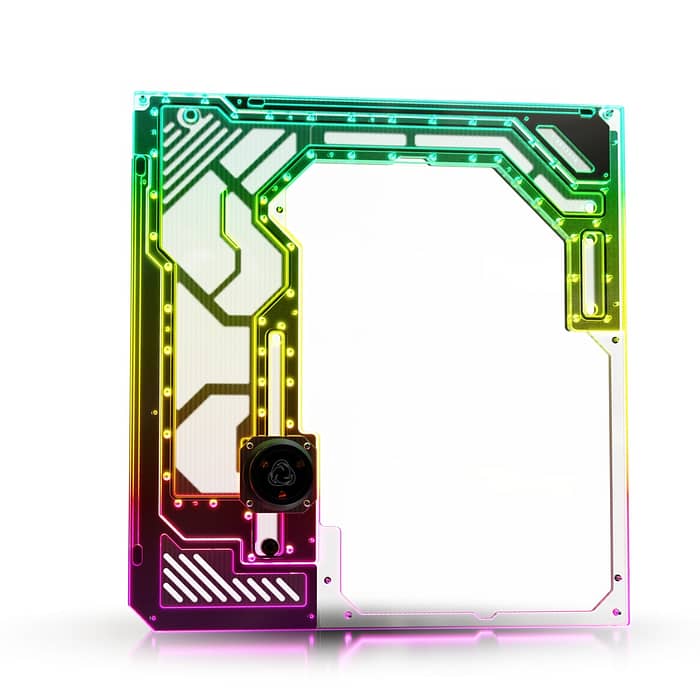

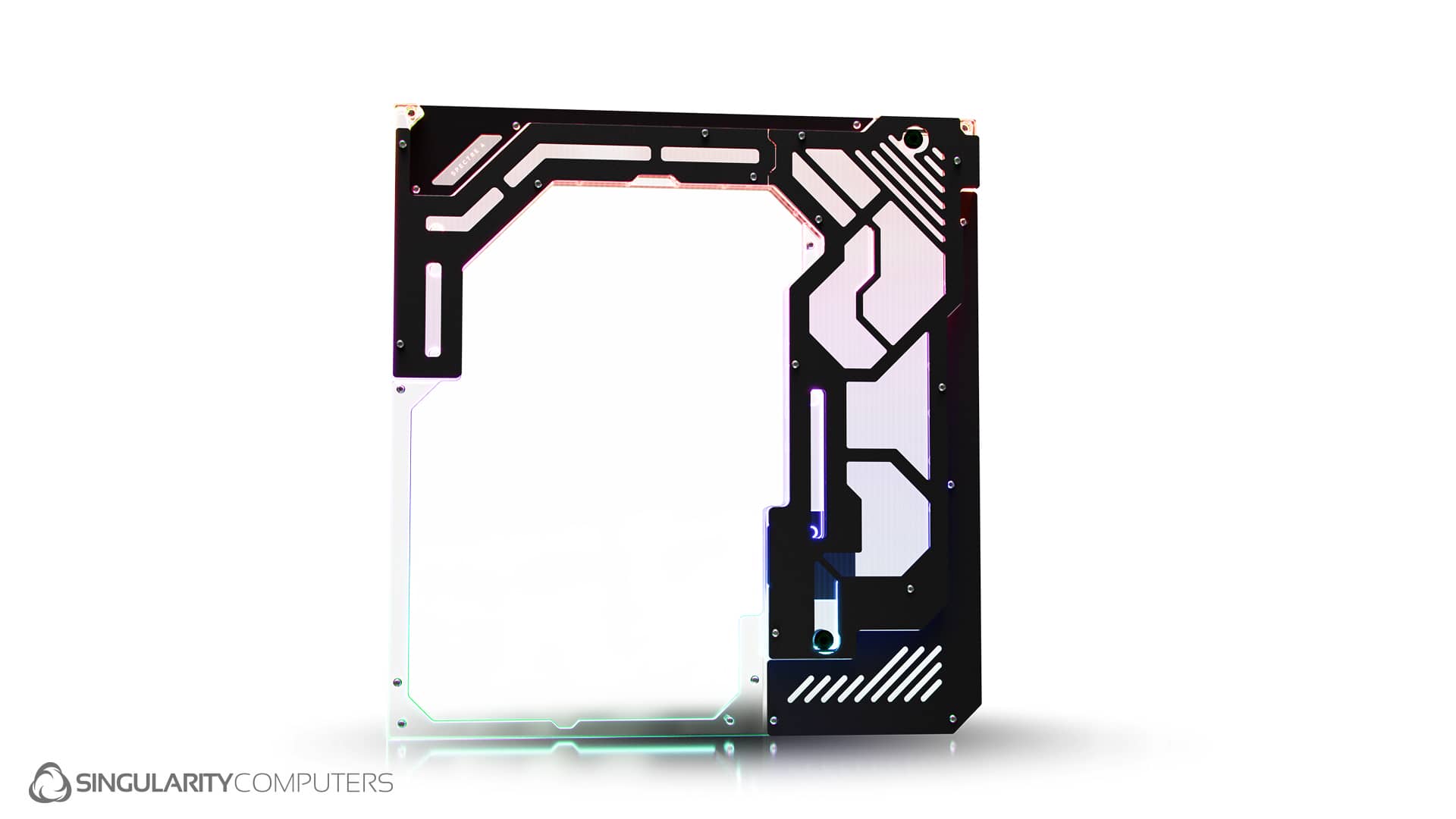

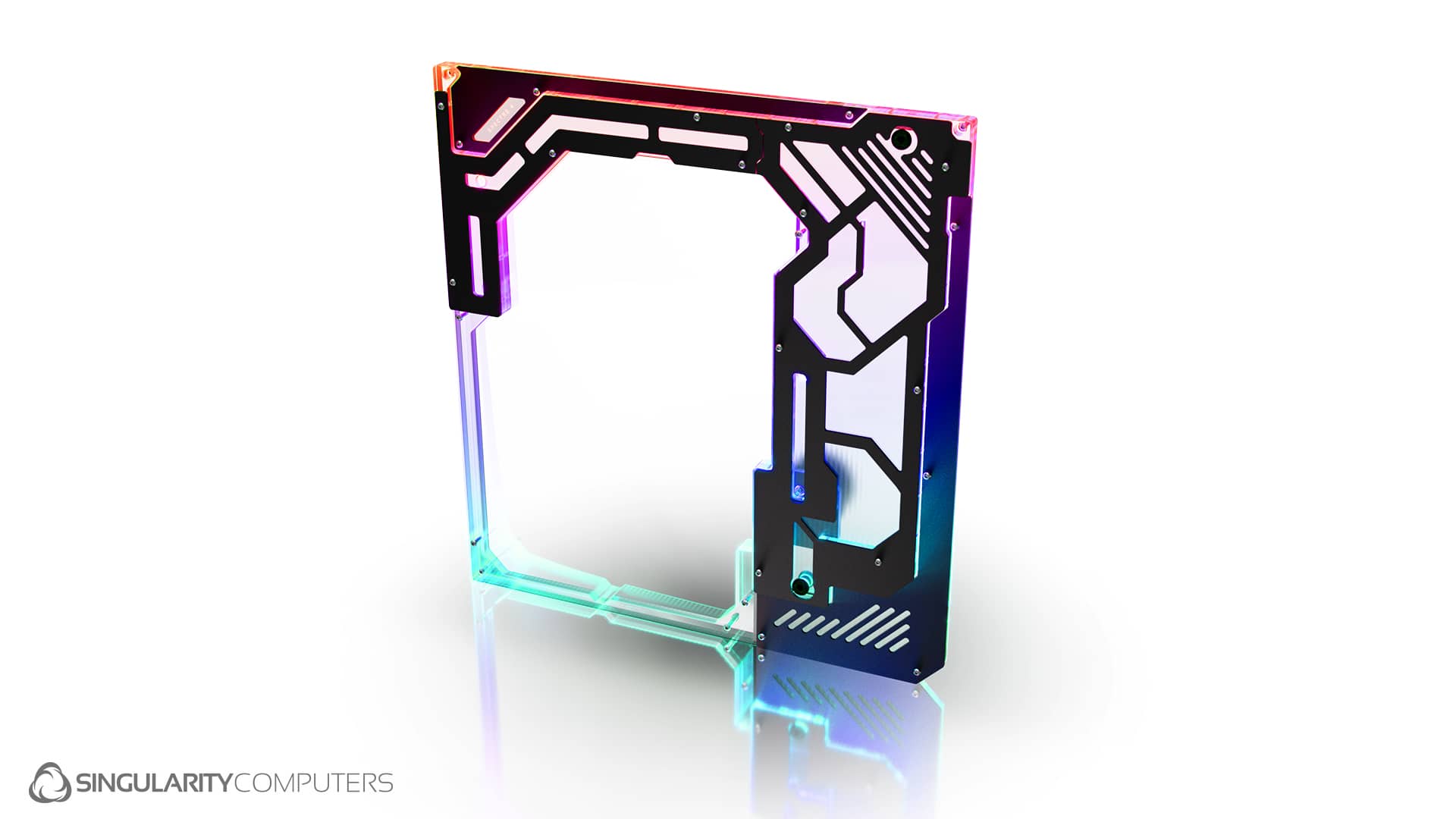

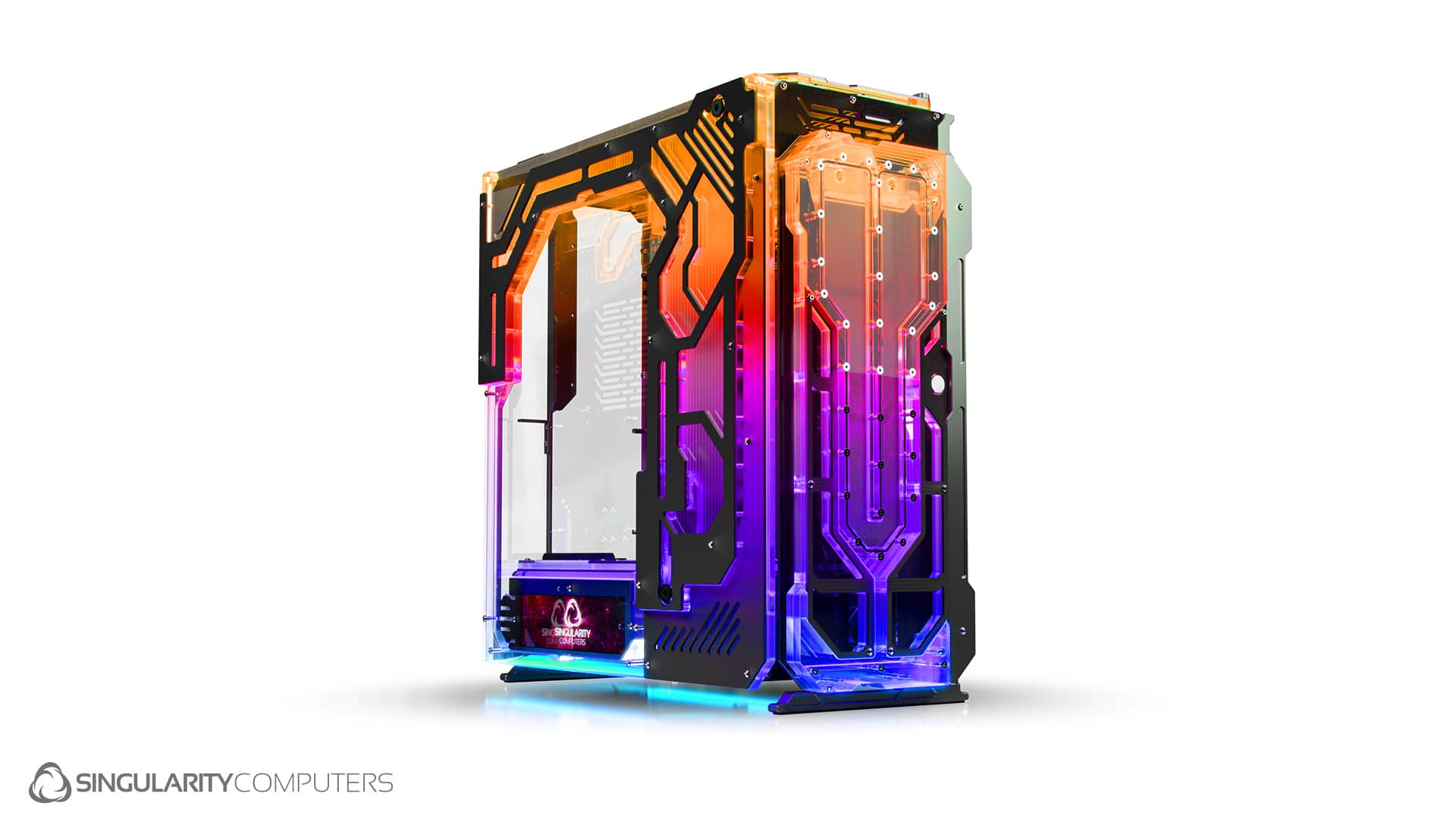

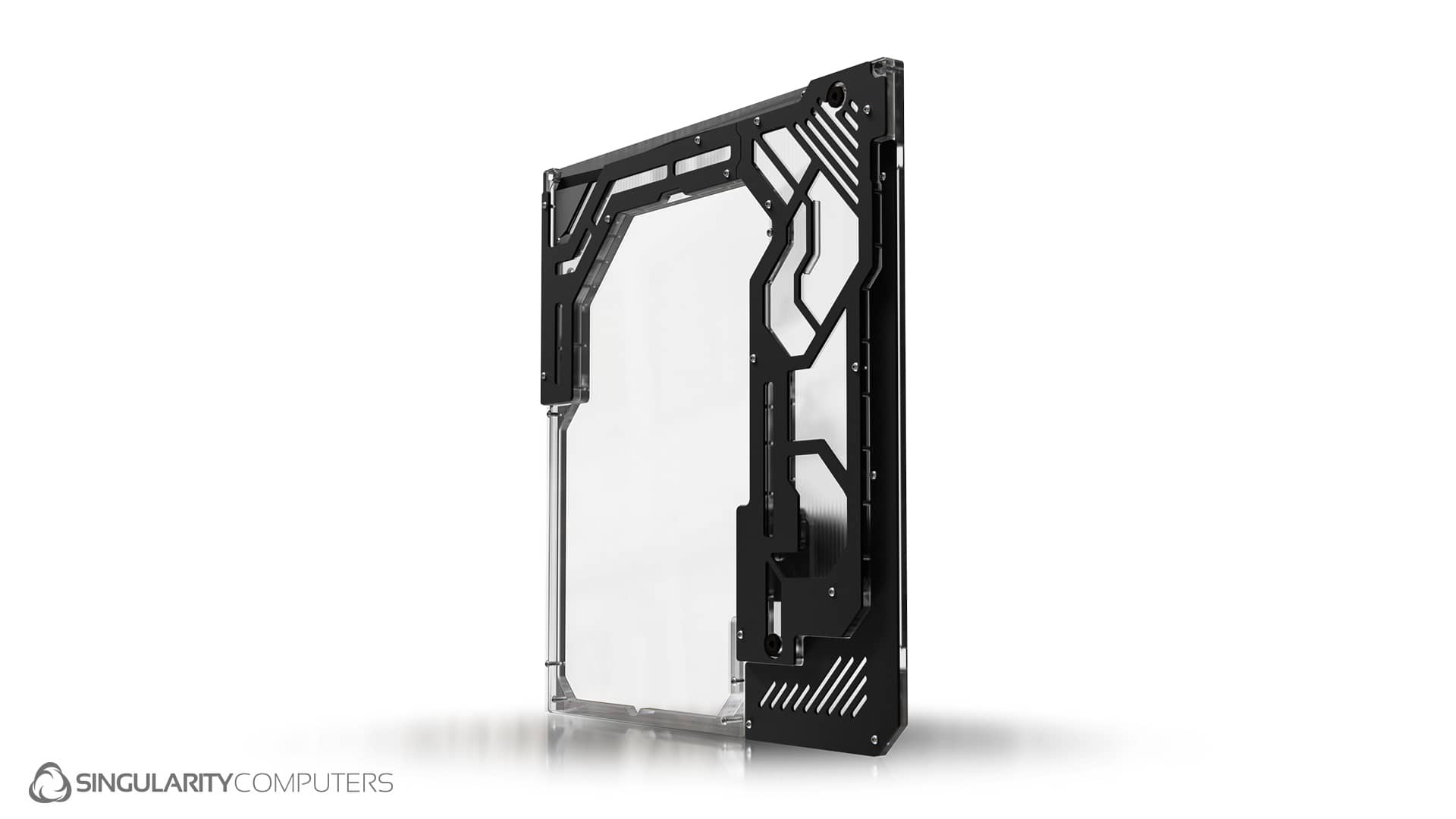

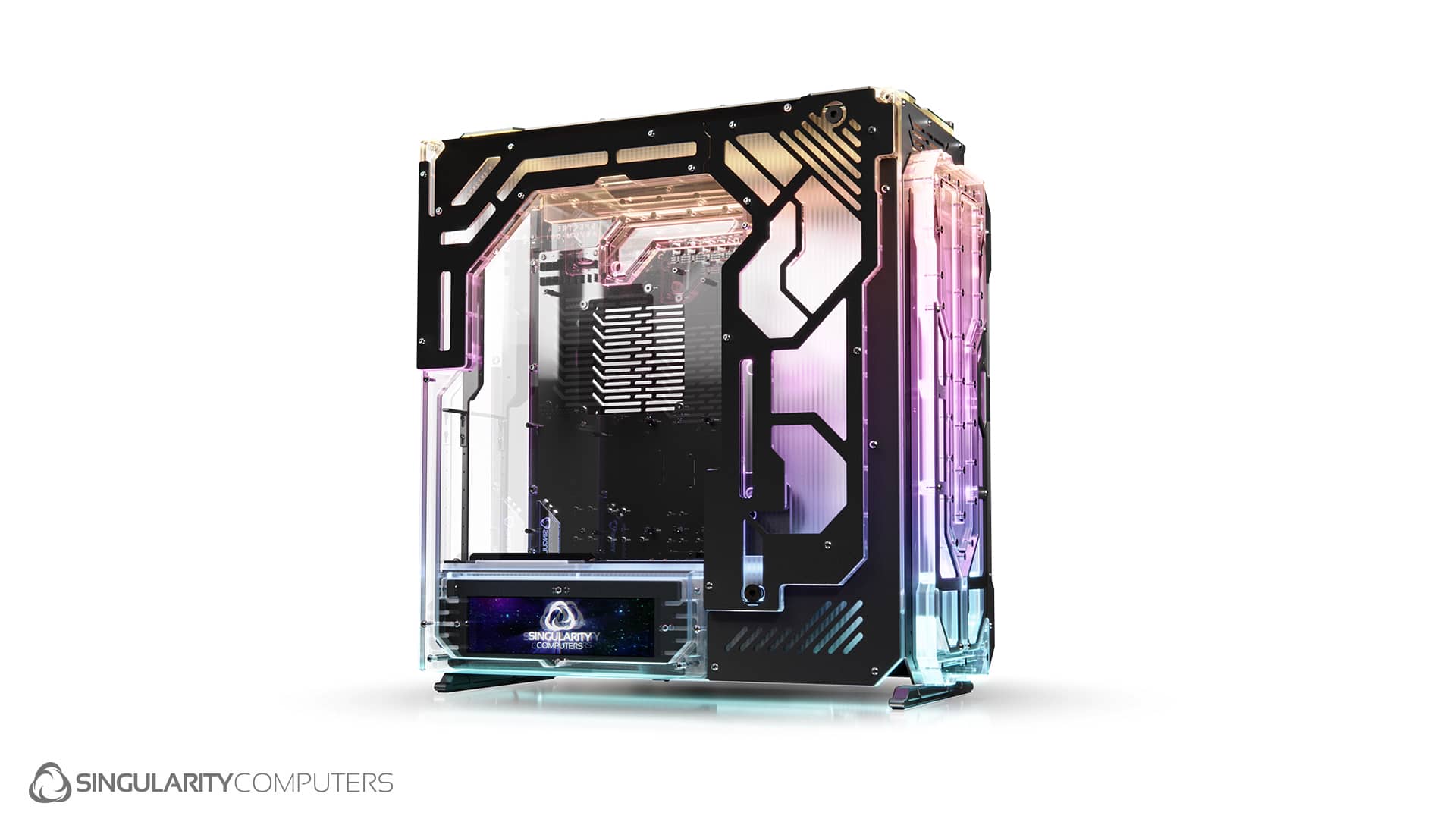

The Spectre 4 Aevum Dual Loop Side Panel is designed for Spectre 4 Aevum Limited Edition Water-cooling Case. It mirrors parts of the main distribution plate, but some port locations are different so that the Dual Loop Side Panel can be used for the GPU loop and the main case distribution plate for the CPU loop. It is a replacement for the stock side panel window and mounts directly onto the side panel window mounts. It is designed to be as open as possible so that you can still see the important parts of the build. It has a removable side panel window so that it is easy to gain access to the case to build the system while the Dual Loop Side Panel is attached. It has an integrated D5 pump top, D5 Pump Cover and two ARGB LED strips which come pre-installed. There are 4 ports which are positioned for the GPU loop and top radiator, and a fill and drain port. The port layout has been designed for two separate loops, but it can be used for dual loops, single loop, series or parallel.

Pump not included. Compatible with any D5 Pump.

Build Gallery

US$699.00

D5 Pump 1500LPH 3.7m head pressure.

None Yes +US$94.00
EAN: 9351182004852 SKU: SC-SPEC4-AEV-DLSP Category:

Manual

Gallery

Specifications:
Spectre 4 Aevum Dual Loop Side Panel.
Protium 3.0 D5 Pump Cover.
Water-cooling Integration:
 Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x7 G1/4” BSPP. 1x Fill Port. 2x Drain Ports (x1 inside & x1 outside).
Pump: (Not included): Compatible with all D5 pumps.
LED Strips: x2 50cm ARGB LED Strips with 50cm cables (pre-installed).
Materials: Cast Acrylic. 6061 Aluminum. PCB.
Fasteners: Stainless Steel.
Gaskets: Silicone.
Manufacturing Process: CNC Router, CNC Lathe, CNC Mill, PCB.
Assembly: Distribution Plate Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Dimensions: L: 540mm x W: 23mm x H: 615mm (without pump top or pump).
Weight: 2.5kg.
Packaged Dimensions: L: 600mm x W: 130mm x H: 600mm.
Packaged Weight: 3kg.

Installation: Installs in the location of the stock side panel window.
