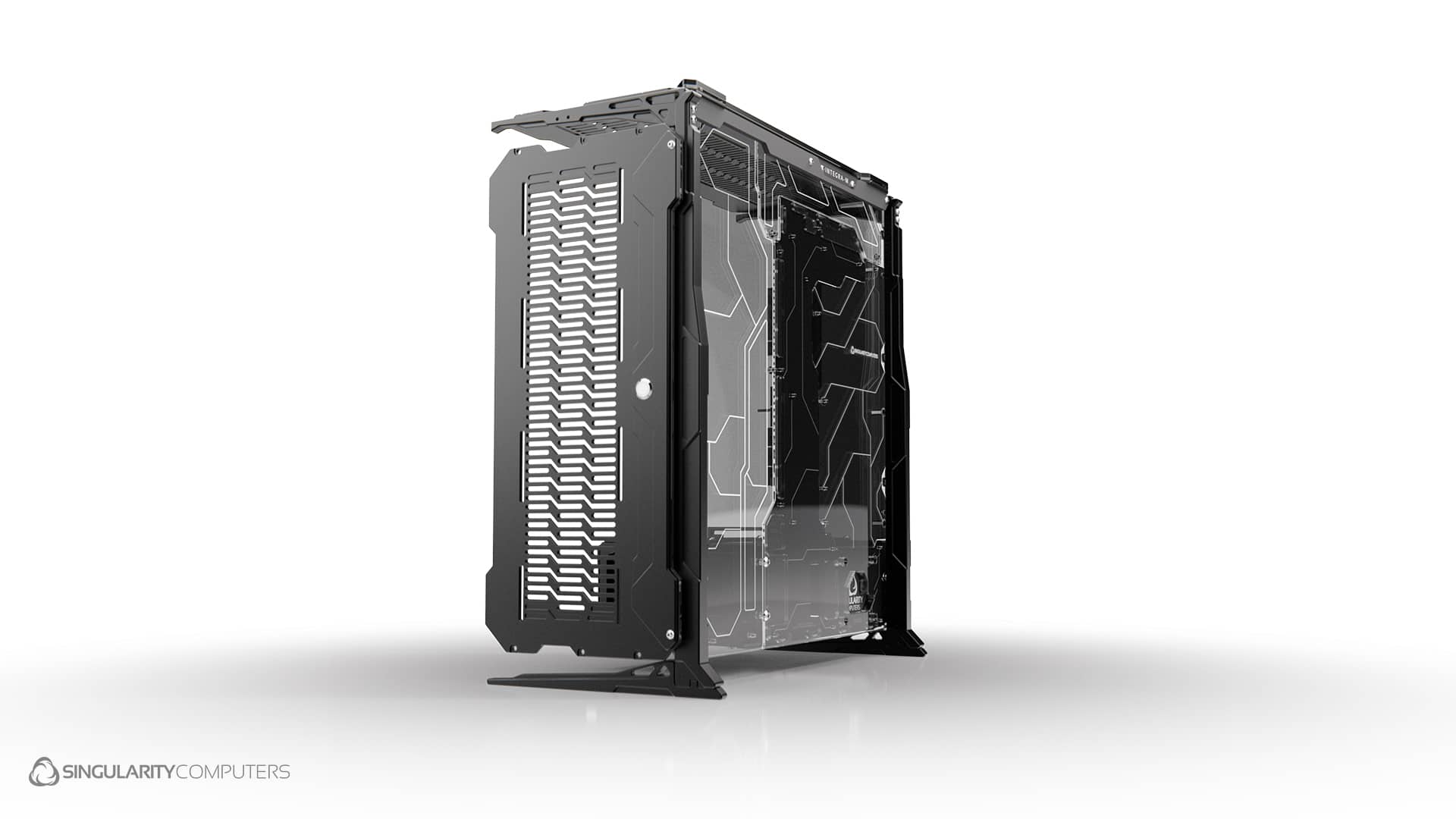

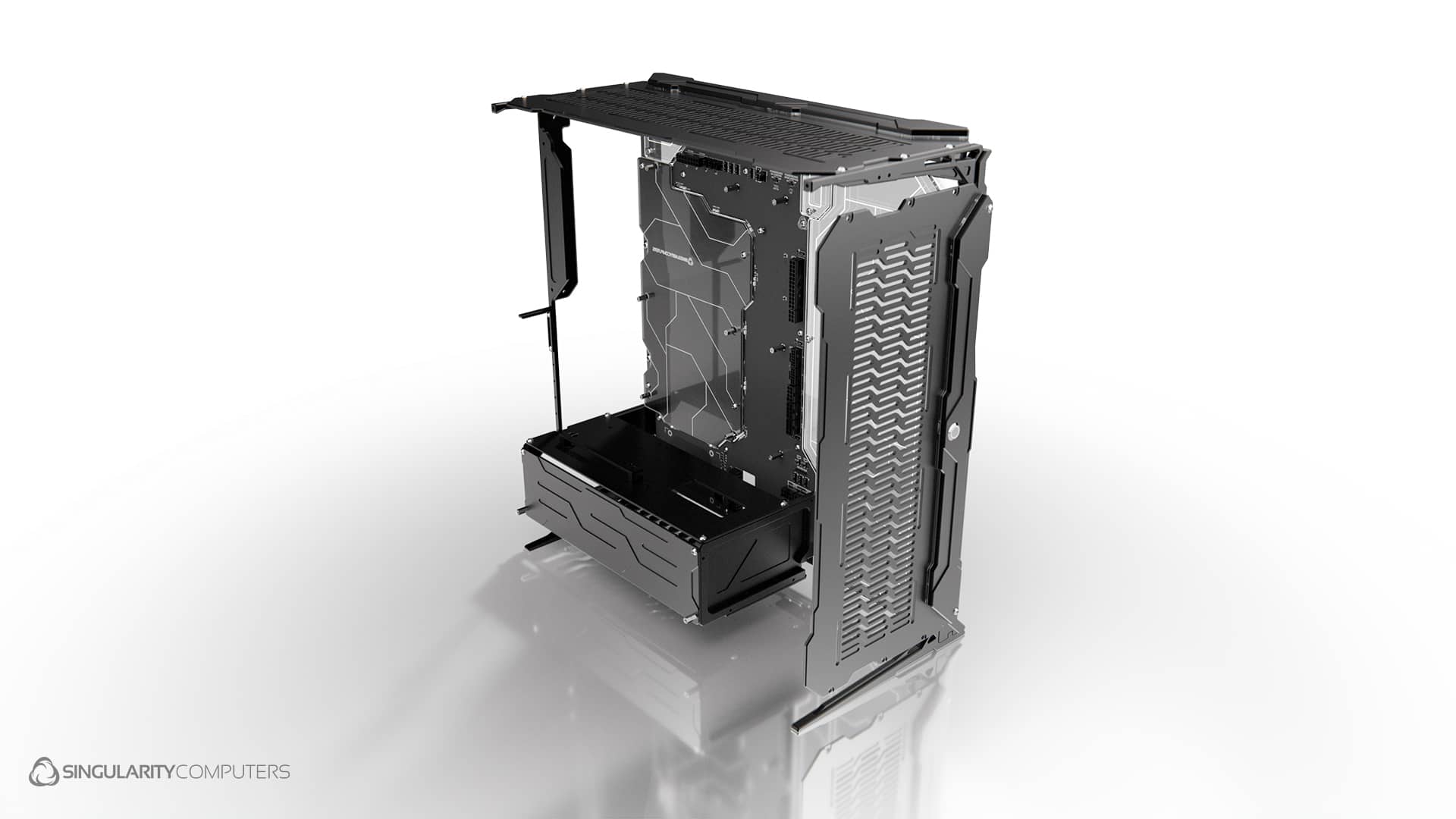

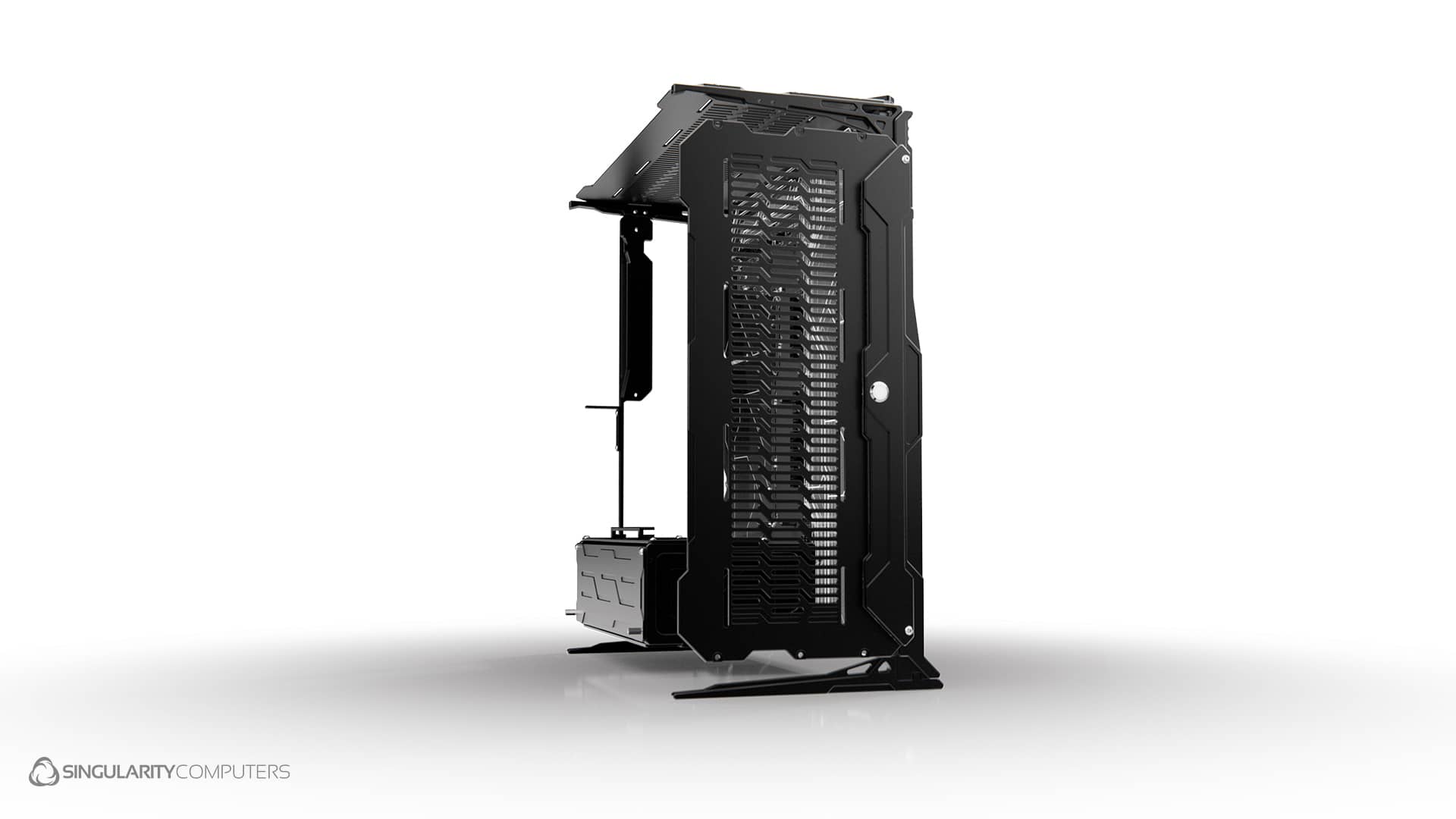

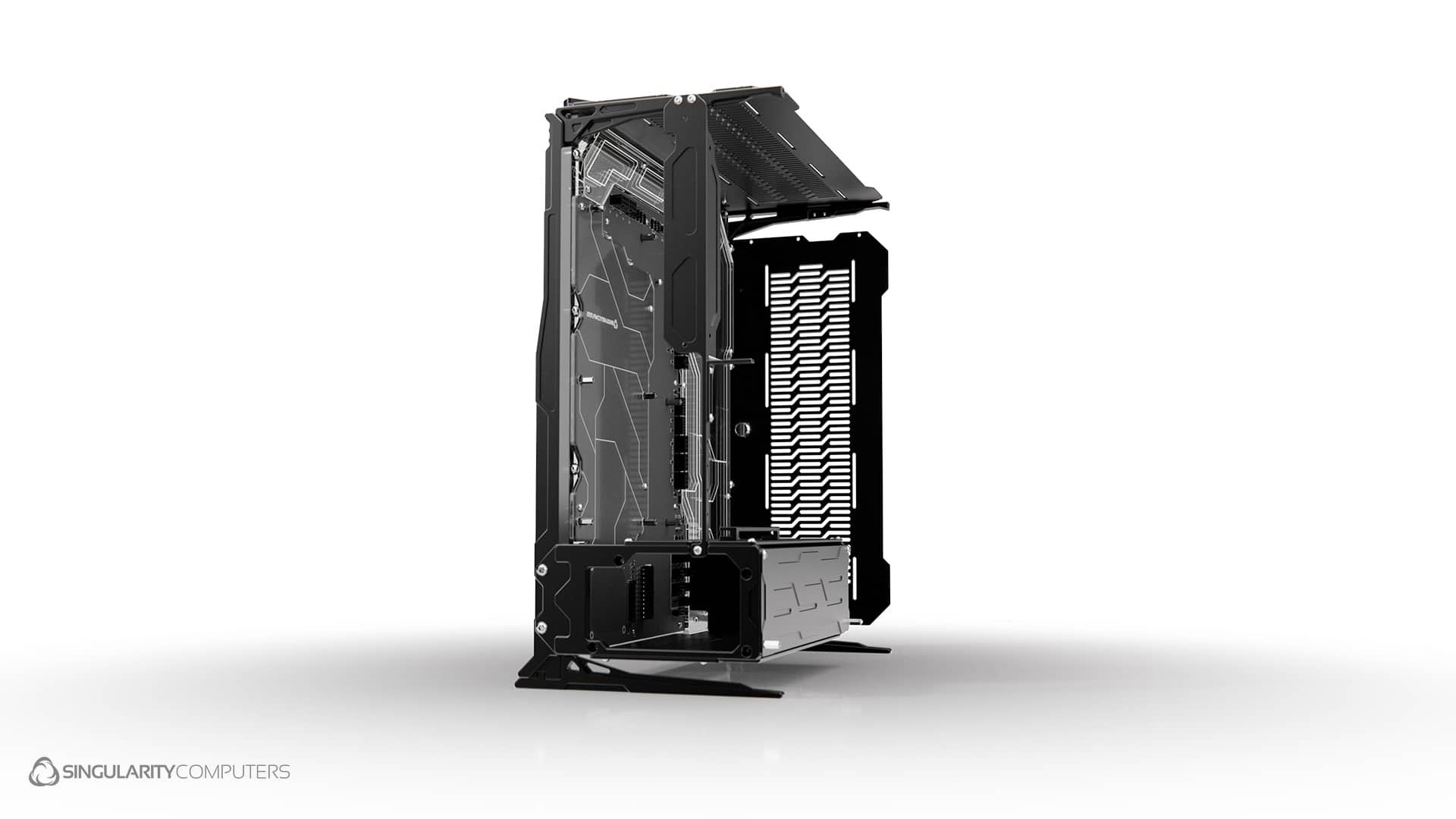

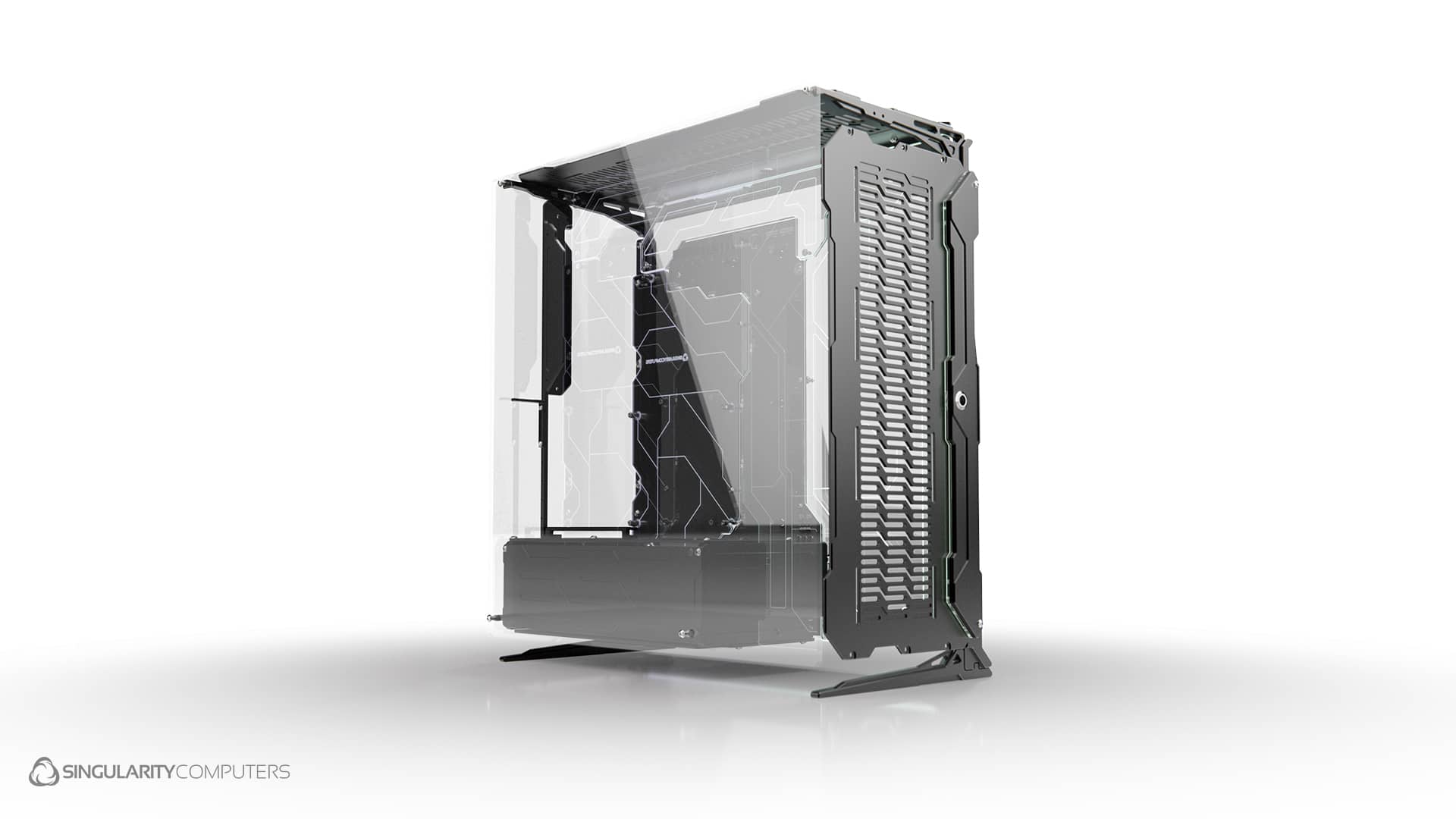

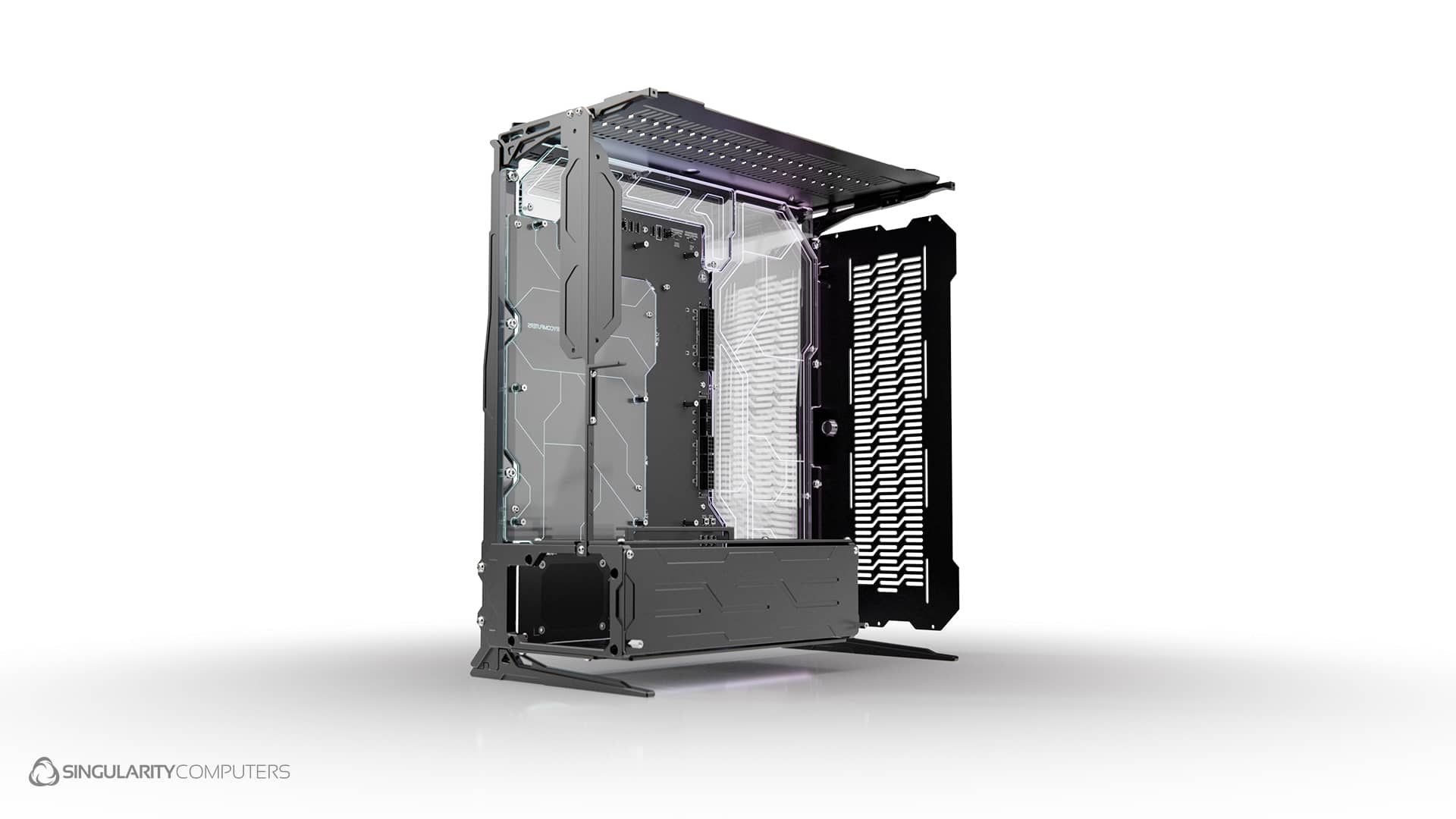

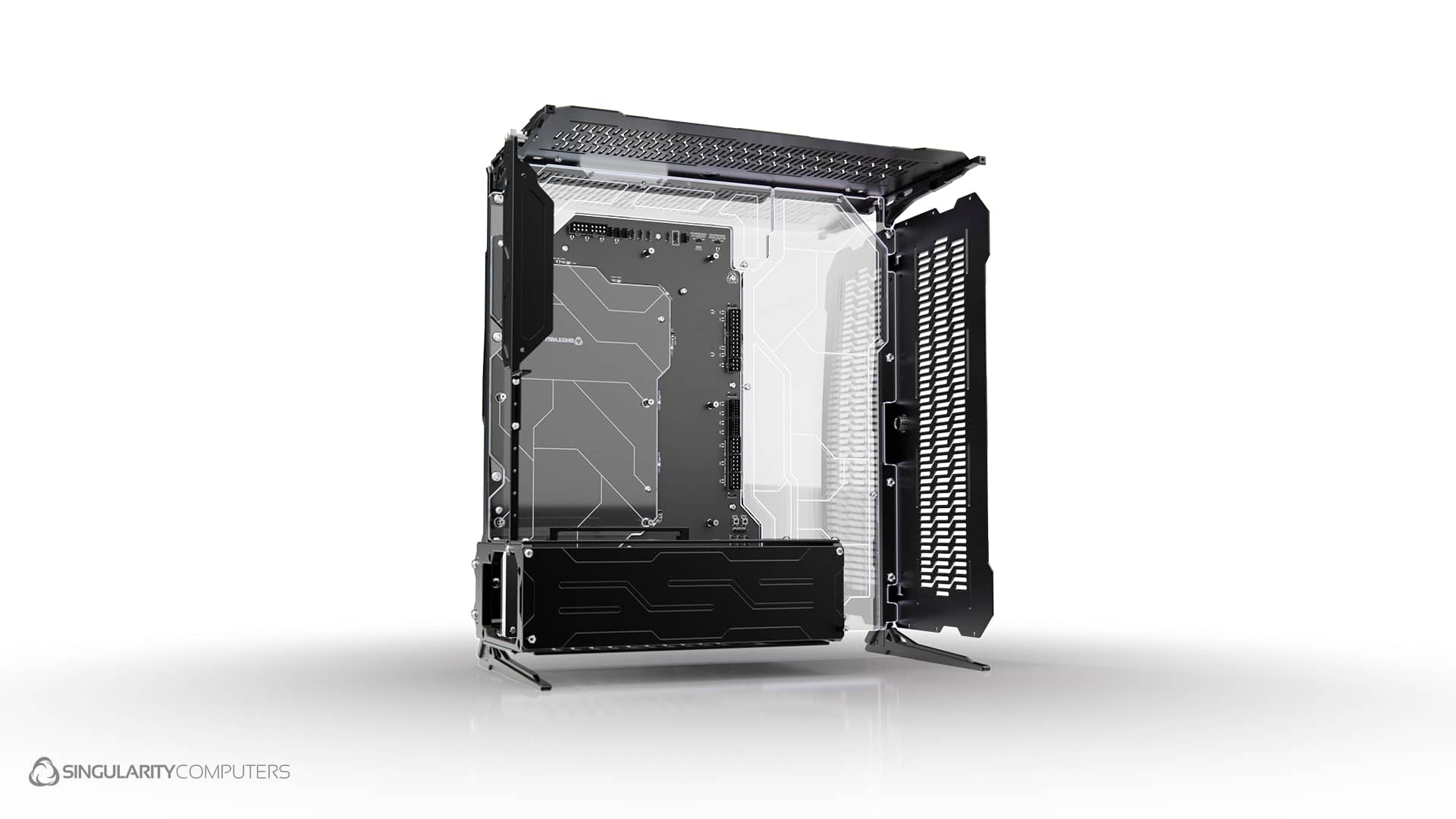

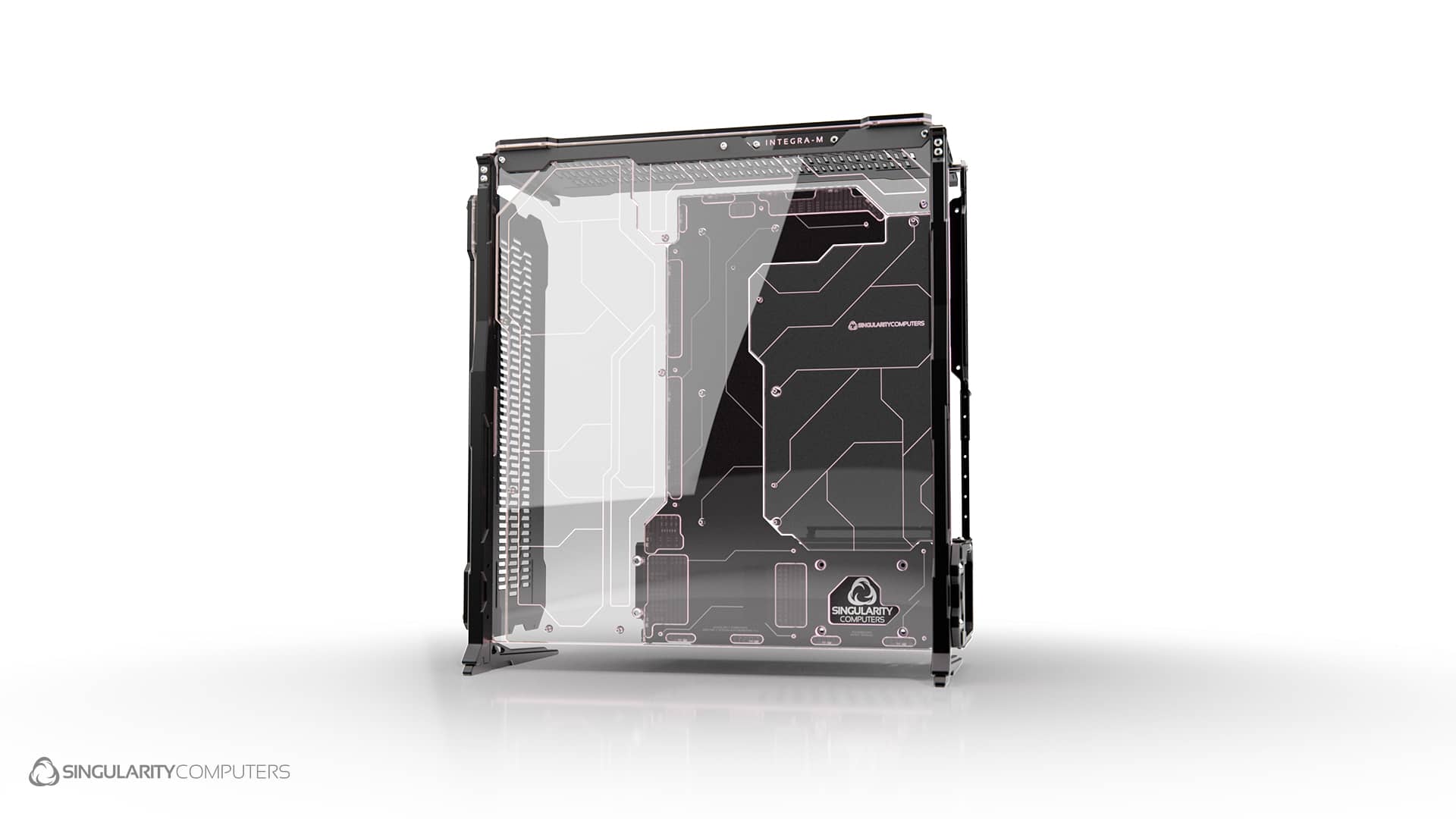

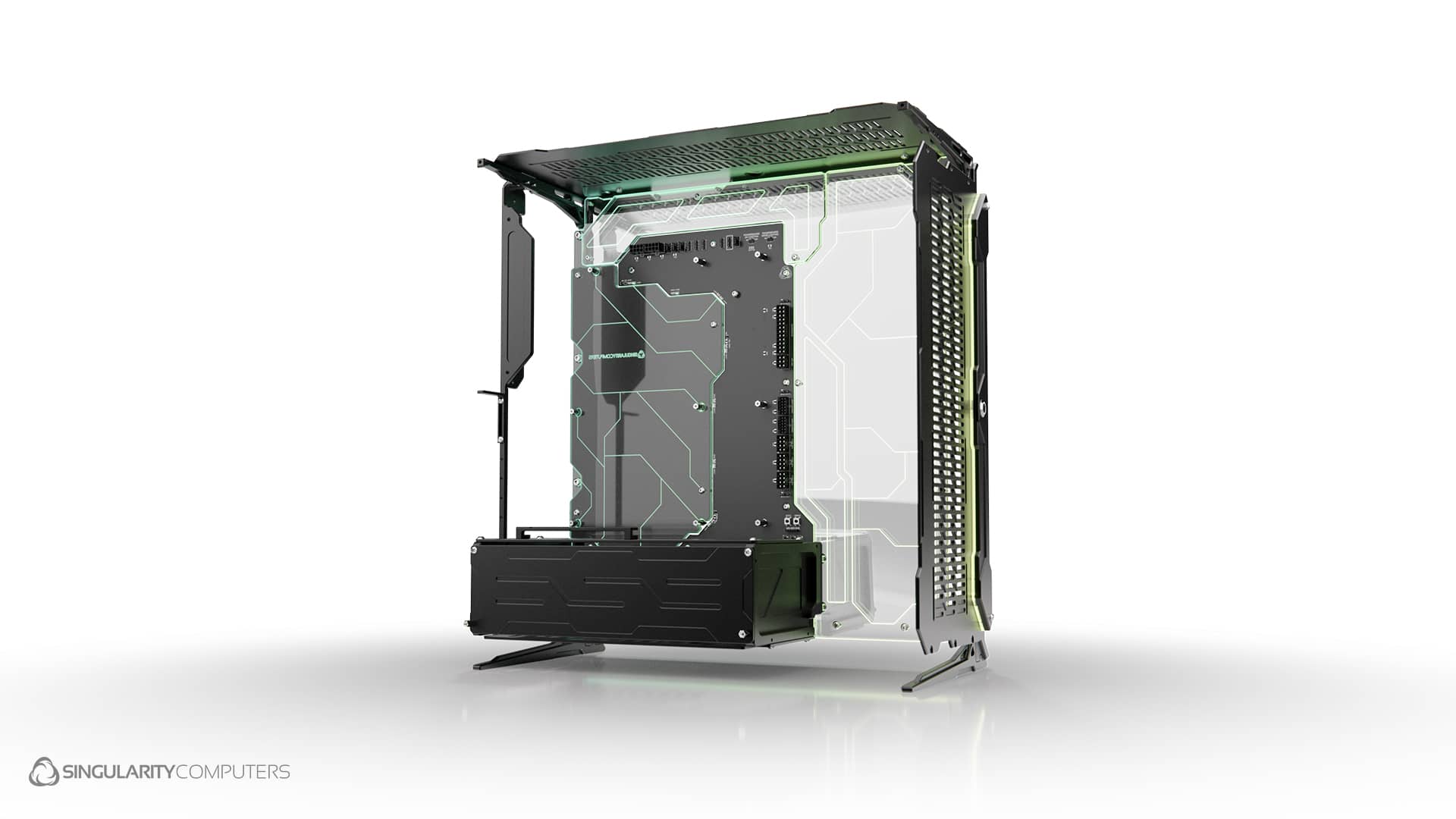

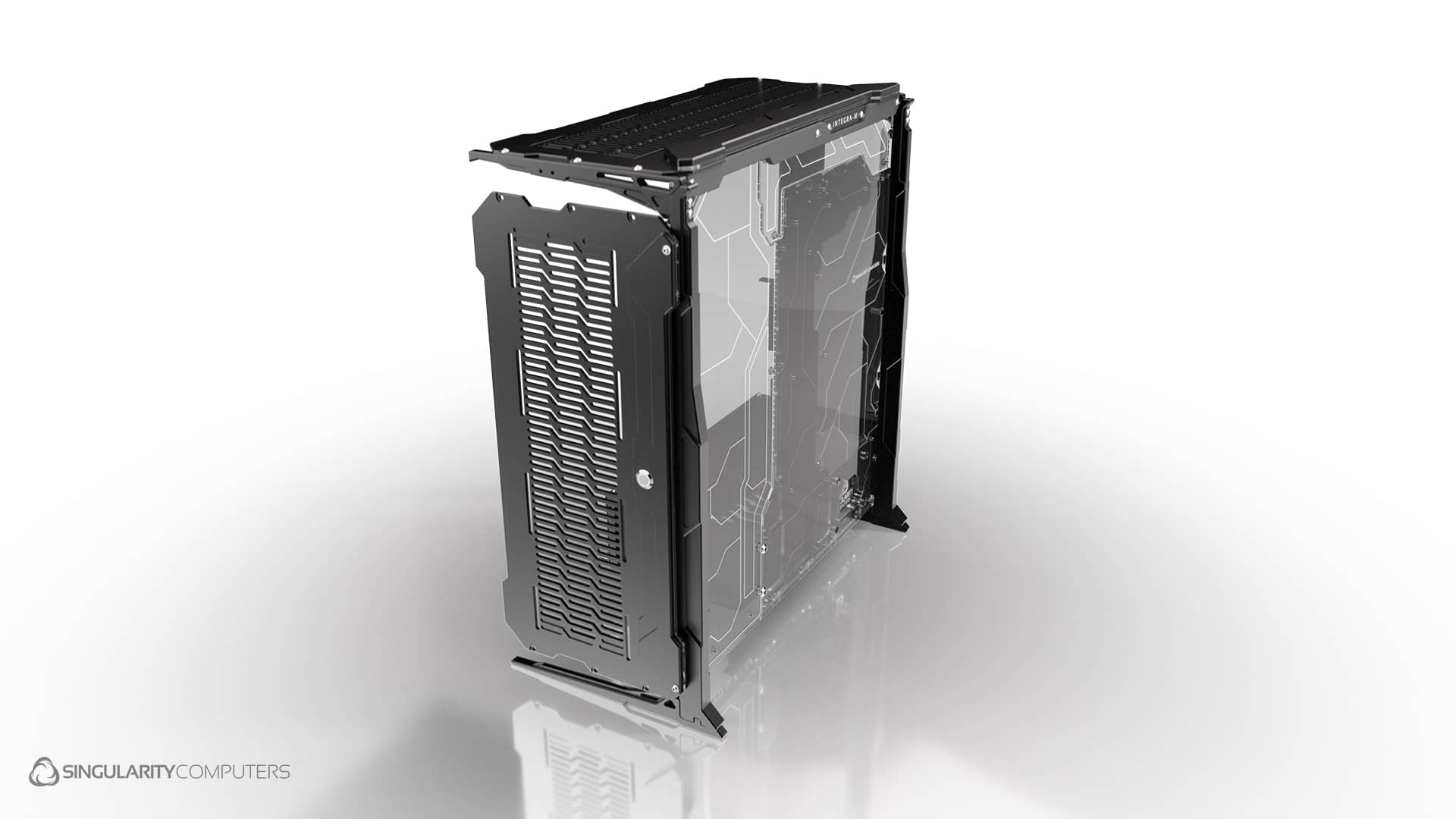

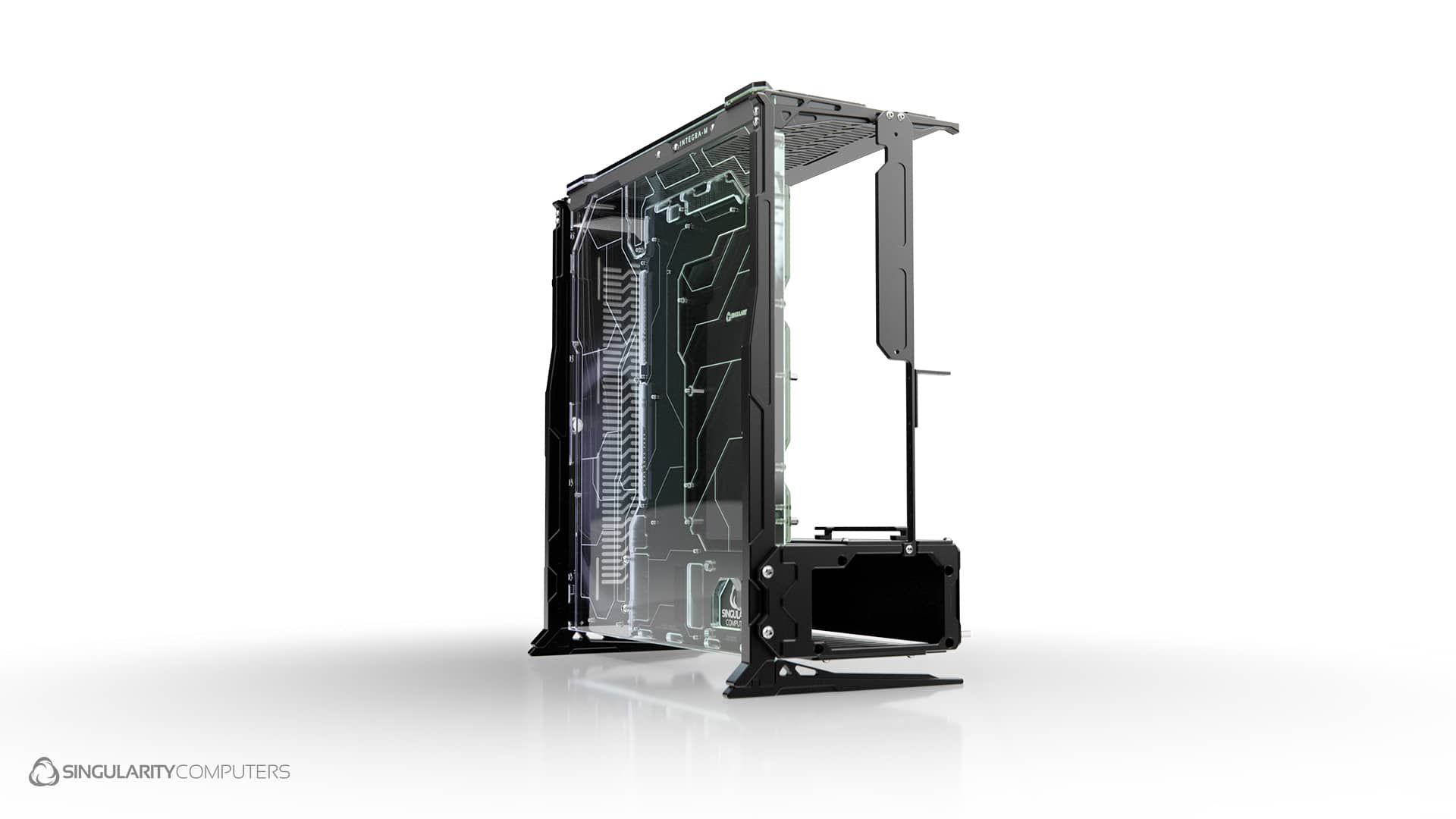

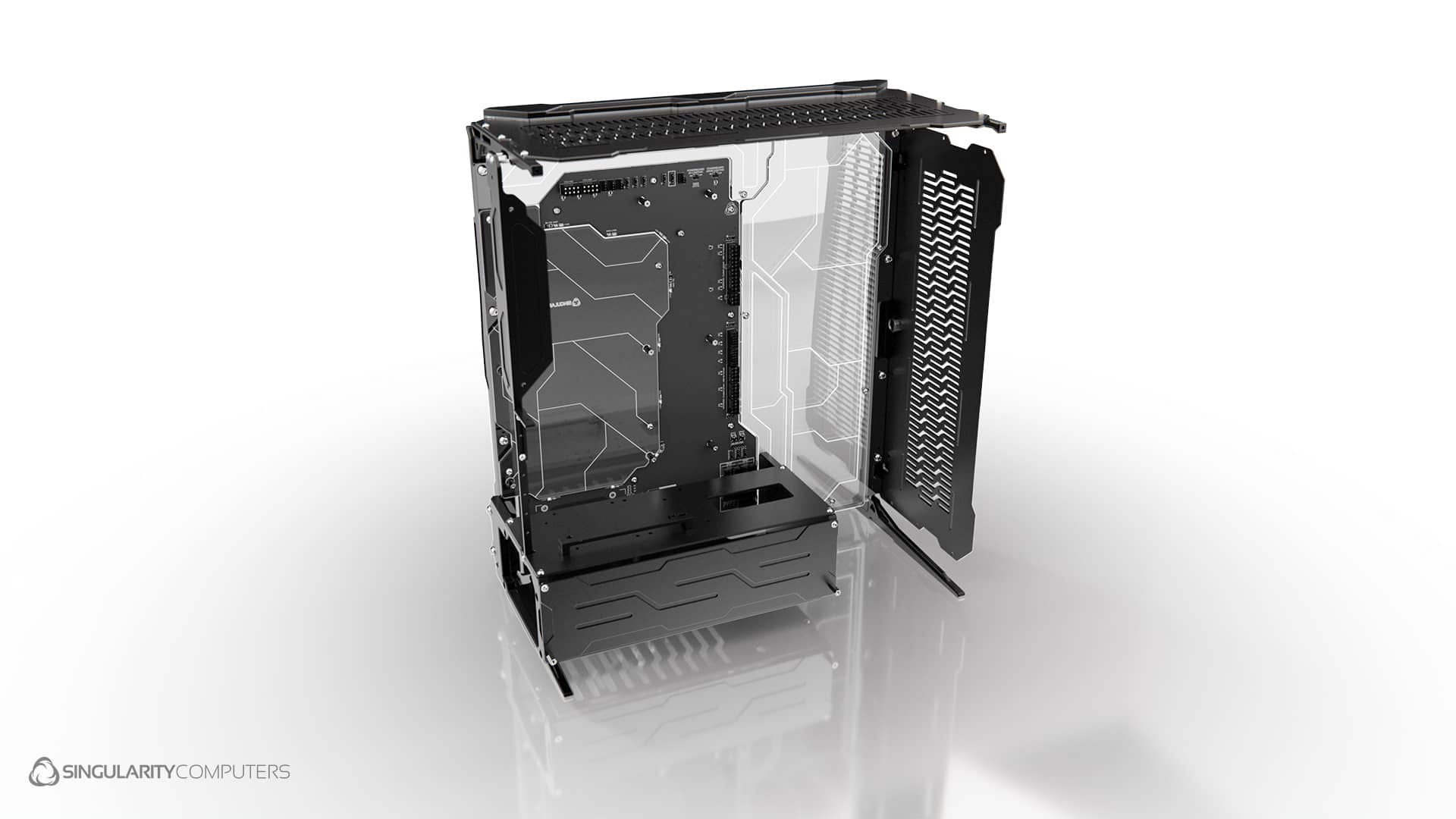

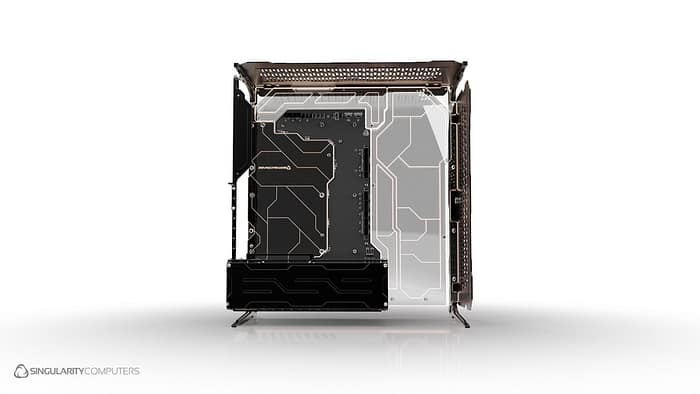

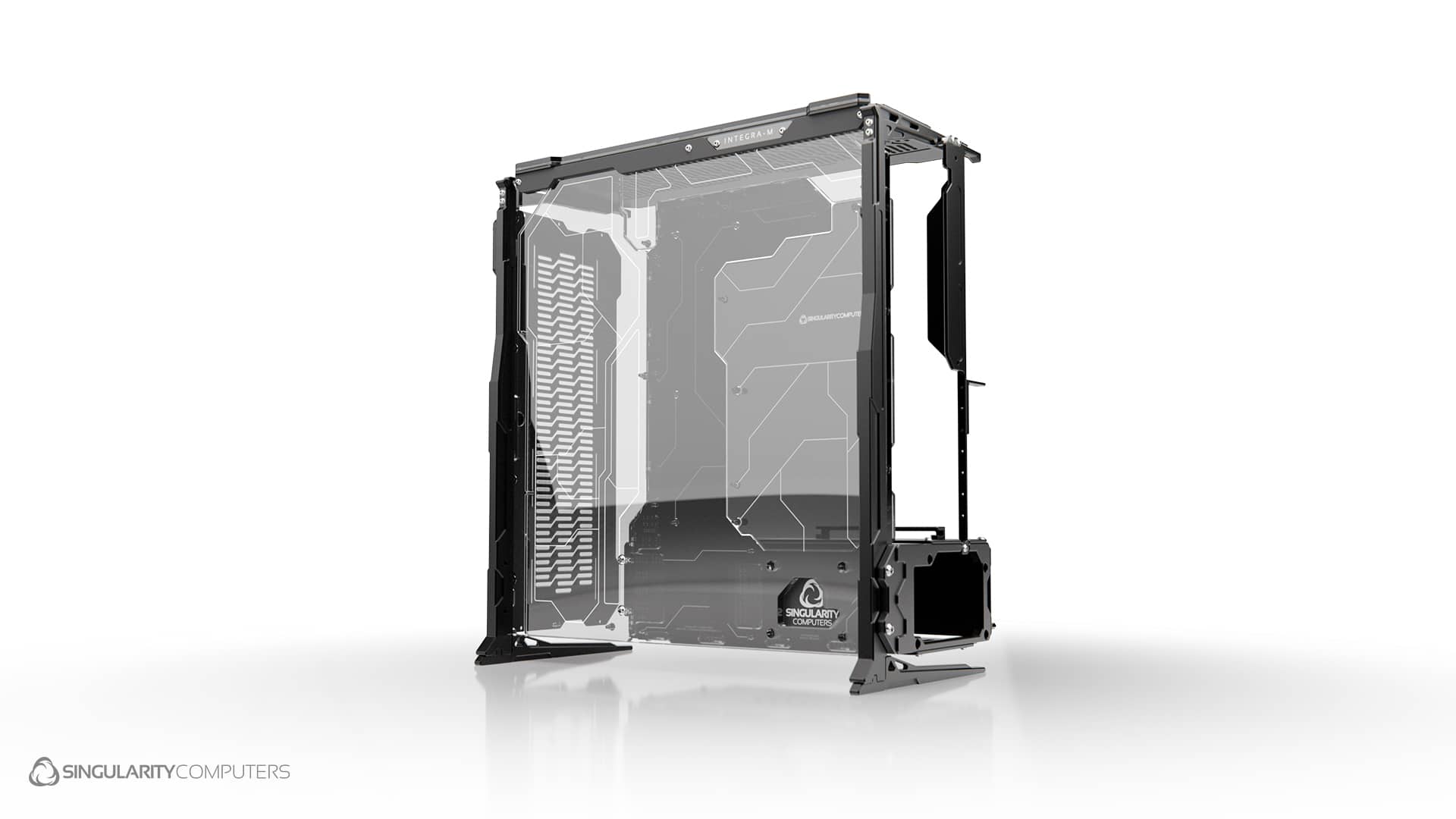

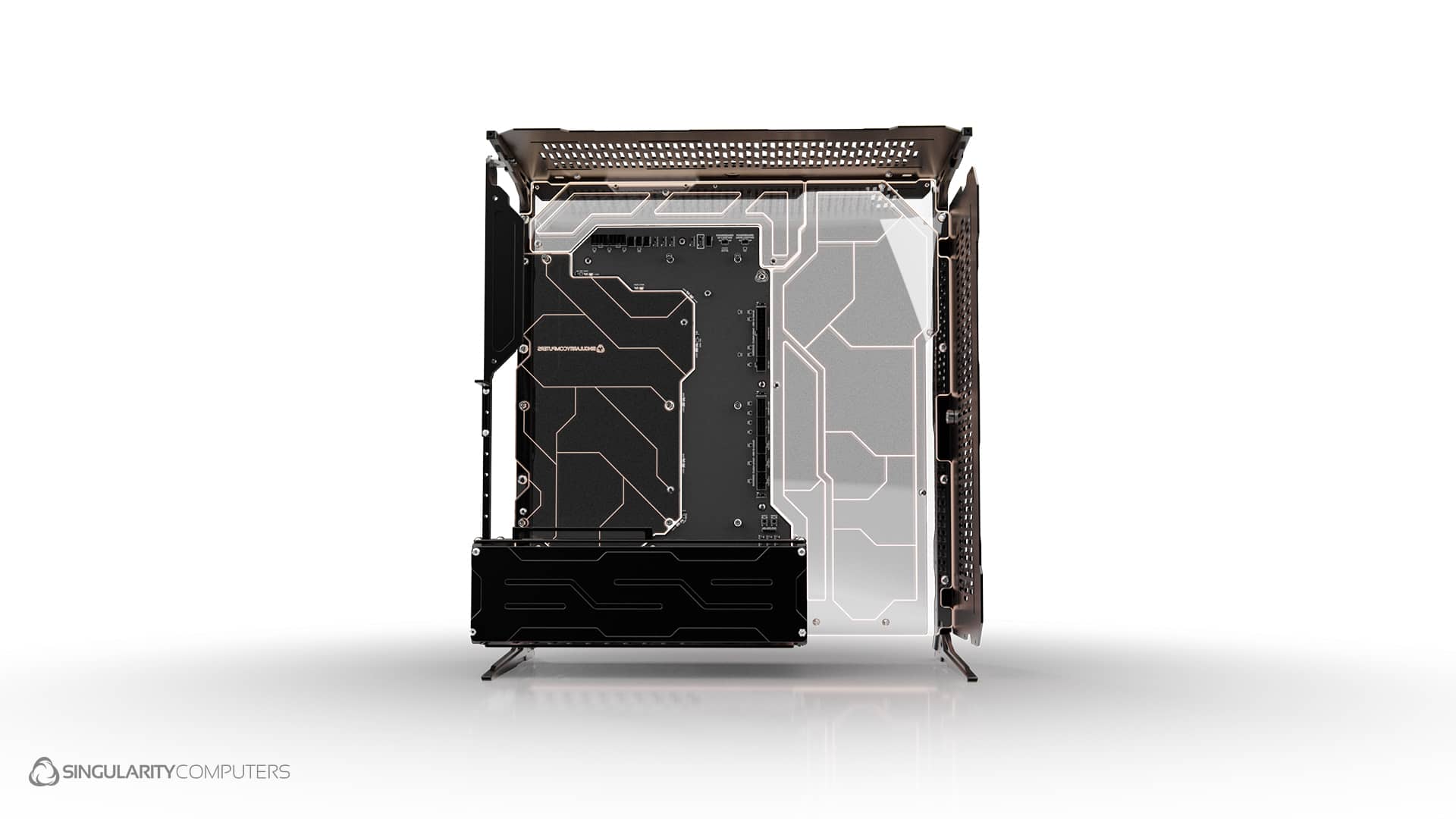

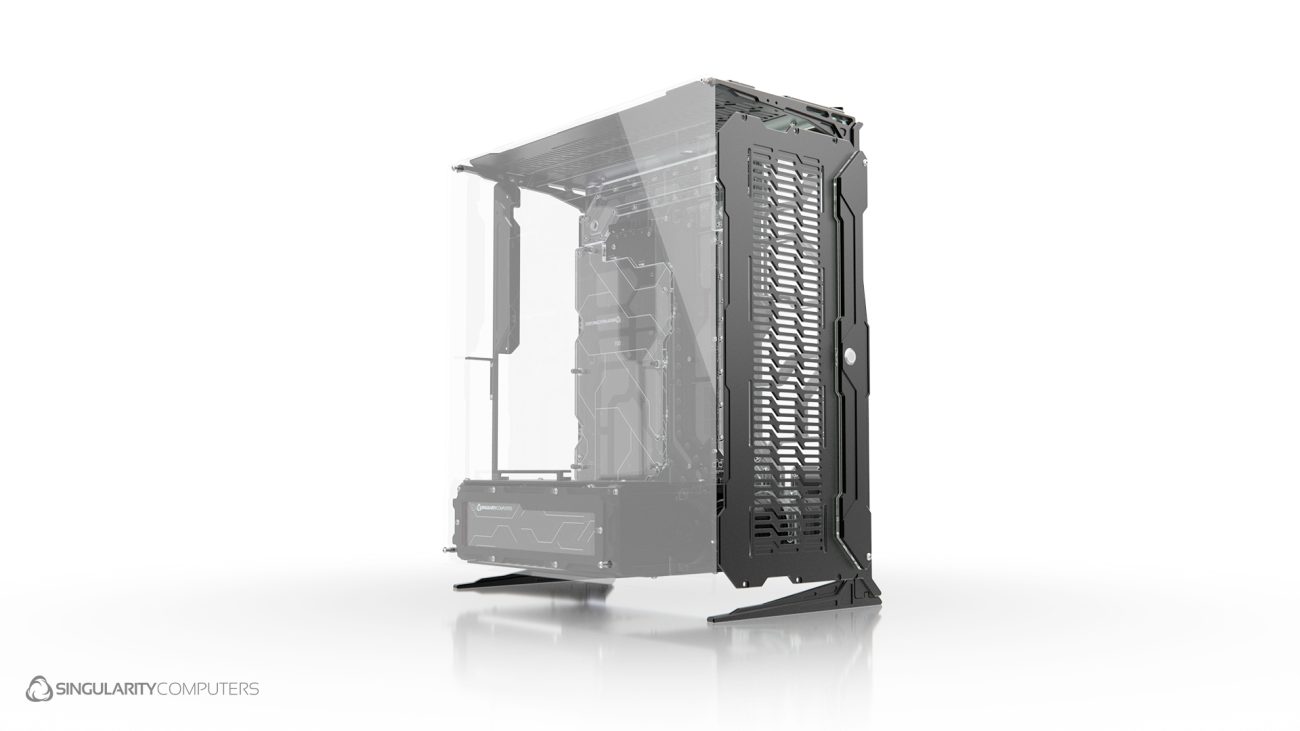

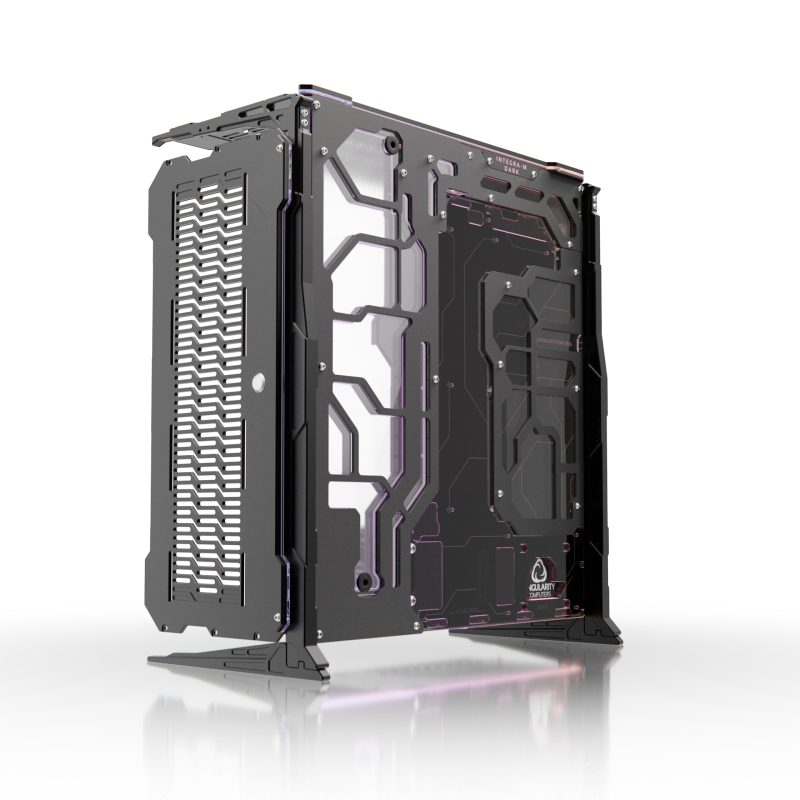

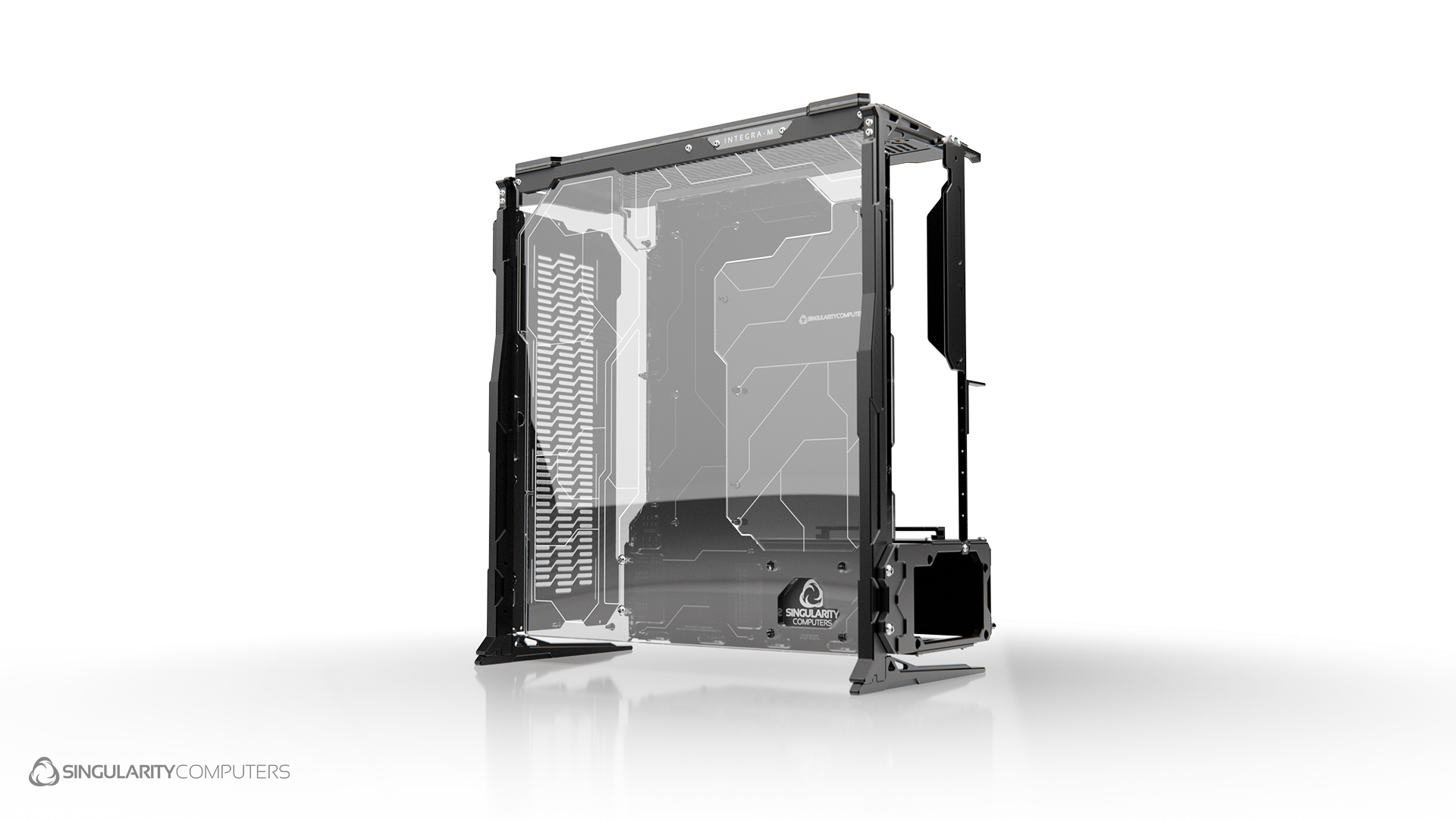

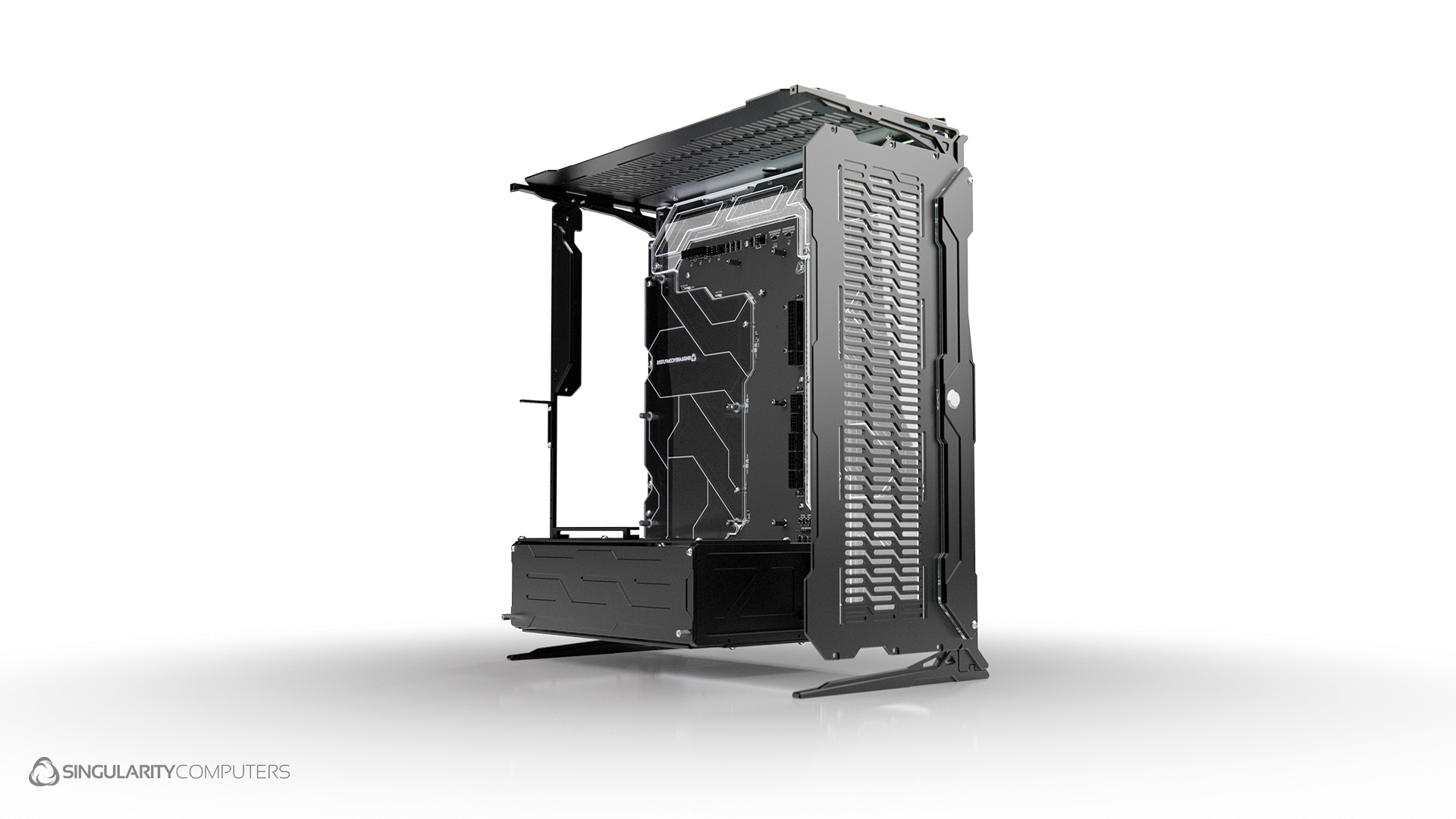

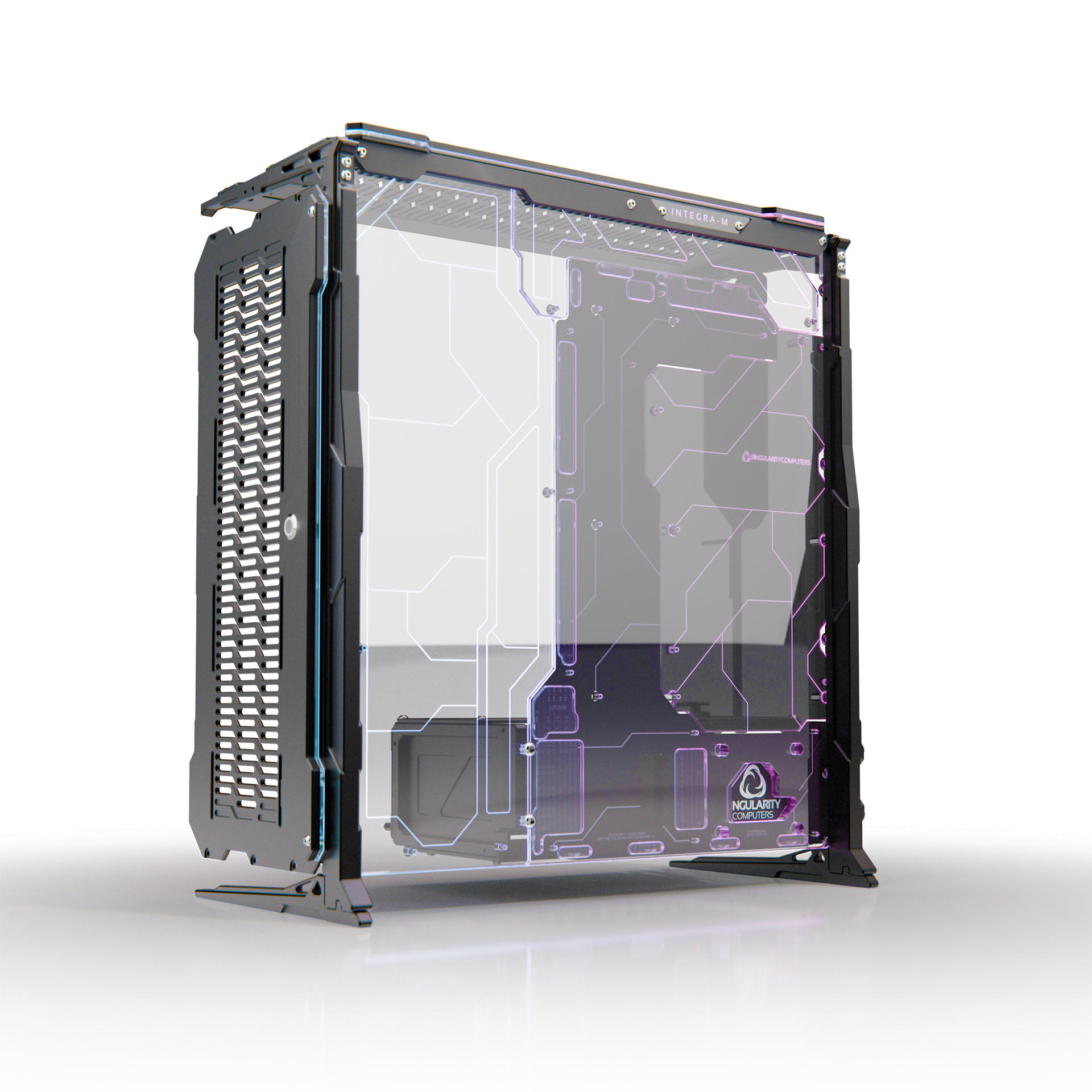

Spectre Integra-MA Black Case
Spectre Integra-MA has a fully integrated solution/replacement for cables with the Singularity Computers PowerBoard. The PowerBoard supports the most high-end components and features built in filter capacitors, more integrated LEDs facing inwards and outwards, integrated direct connect SATA, power, and reset buttons, and a touch activated power button. There is now no rear access needed to the case due to the PowerBoard, all cables can be connected from the front and little to no cable management is required. A standard set of black sleeved linking cables are included with the case. Integra-MA has integrated PowerBoard LEDs facing inwards towards the motherboard tray and outwards towards the acrylic back plate. There are two separate sets of LEDs for ARGB or UV, and they can be switched on or off, or from UV to ARGB via two switches on the PowerBoard.
Note: Motherboards with 90 degree 24pin, EPS and/or 6pin Supplementary connections will require PowerBoard Adaptors available here.
The following cables are included with the product: 24pin x1, 8pin EPS x2. You can select either 12VHPWR or 8pin PCIE x3 below.
If other cables are required they are available
Optional PowerBoard PSU Cable Kit is available
For motherboards with 90 degree connectors adaptors are available
Connections: 24pin x1. 8pin EPS x2. PCIE 8pin x3. 12VHPWR x2. 6pin PCIE MB Supplementary x1.
Hubs: PWM: x3. ARGB: x10 (Single input for each).
LEDs: x24 Integrated ARGB 90-degree LEDs and x24 UV 90-degree LEDs facing around the internal and external perimeter of the PowerBoard. There are two switches on the PowerBoard one switches the ARGB on or off and the other switches the UV on or off.
Touch sensing Power Button. Extra Power and Reset Buttons. PowerBoard LED on/off switch.
PowerBoard 2.5” SATA 3.0 6Gb/s Direct Mount x1.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3. 18AWG Black Headshrinkless Sleeve. PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1. Touch Power Button and extra Power and Reset Button Cables 20cm x4.
LED Strips: x2 50cm ARGB LED Strips with 50cm cables. (Attach to case panels on specific mounting points for front and top panel glow).
Accessories: Hex Keys: M3: x1. M4: x1. M6: x1. Microfiber Cloth: x1. Stop Fittings: x2.
5v ARGB LED Strip 50cm: x2.
Motherboard Form Factor: ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x7.
Case Form Factor: Mid Tower.
Package Dimensions: L: 640mm W: 620mm H: 110mm (Case is flat packed and requires partial assembly).
Package Weight: 12kg.
Case Dimensions: L: 486mm H: 528mm W: 245mm.
Case Weight: 10kg.
Storage: 7x 2.5”. x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x4 are inside of the PSU Shroud. x1 is on the PowerBoard behind the PSU.
Radiators: 360mm x 40mm with x1 set of standard 25mm fans.
Maximum GPU Length: 410mm with radiator installed.
Maximum GPU Height: 170mm in standard orientation. Unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 220mm (Space allowed for cables inside of PSU shroud).
Front Panel I/O: No Front I/O. Vandal Switch 16mm white LED.
Vertical GPU Mount: x2 with 3 slot (60mm) spacing. x1 is included. 2nd Vertical GPU Mount Available Separately Here. Riser cable not included, compatible with Linkup PCIE 4.0 Riser Cables.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.

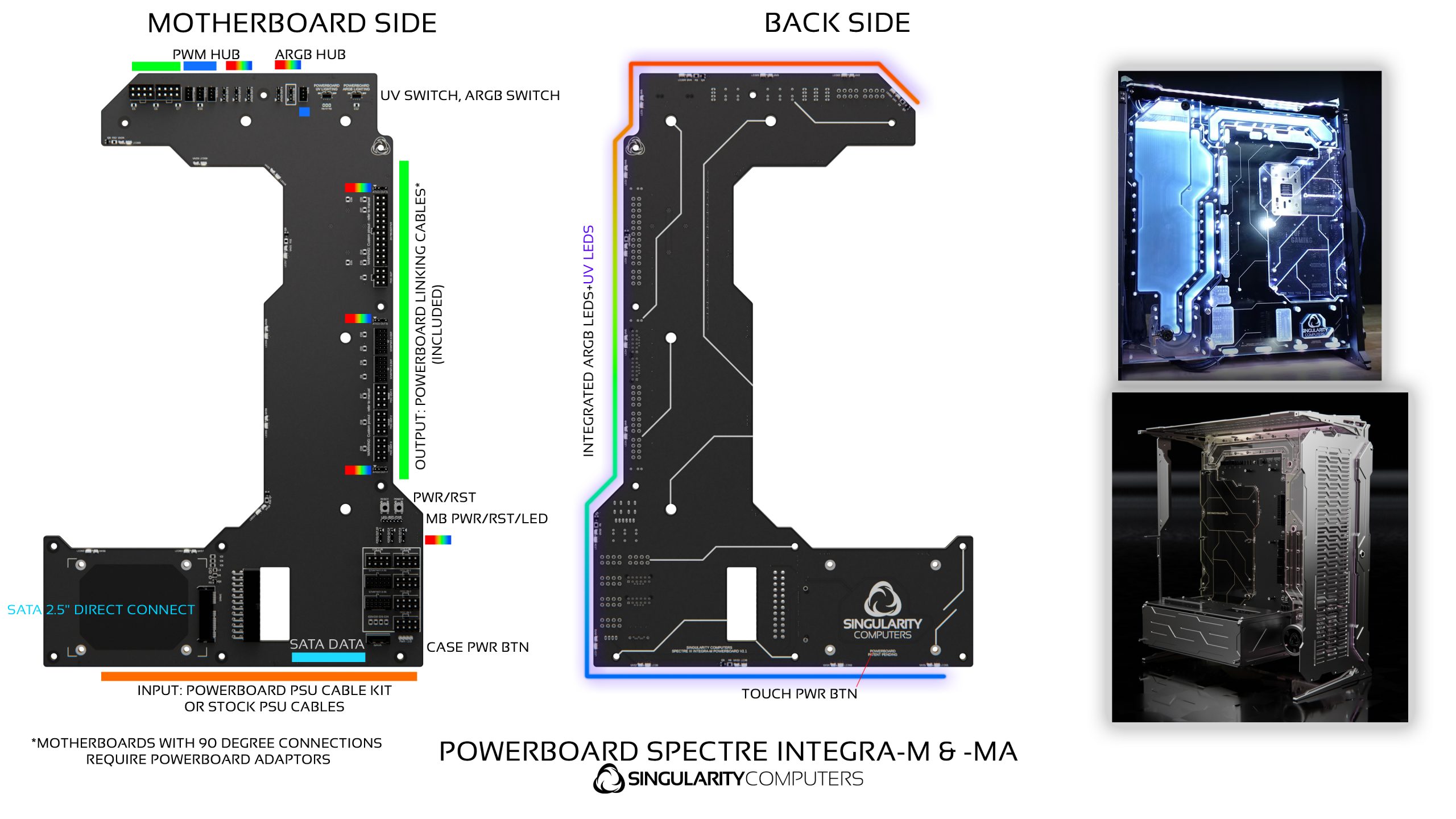

The PowerBoard is a PCB integrating 24pin, EPS, PCIE, 12VHPWR, PWM and ARGB Hubs, SATA and Power and Reset Buttons. The Spectre Integra-MA PowerBoard also has an integrated touch sensing Power Button. The PowerBoard has x24 ARGB and x24 UV LEDs positioned around the external and internal perimeter to optimally light up the acrylic. Essentially the PowerBoard is a distribution plate for cables also integrating other features and functions. It is a new method for cables allowing standardisation of cable lengths and making cable management no longer necessary. Spectre Integra-MA comes included with a standard set of black sleeved linking cables including 24pin x1, 8pin EPS x2, 8pin PCIE x3 meaning that these cables don’t have to be purchased separately.
With the core component cables, PWM and ARGB hubs all integrated there is less assembly to be done. No cable management is necessary for the core component cables thanks to the PowerBoard.
We didn’t just develop a case, we also developed all the integrated components. This meant that we could focus more on optimisation than would normally be possible.
Spectre Integra-MA fits up to ATX motherboards and has 7 expansion slots. It is designed to fit the largest and most high-end GPUs horizontally or vertically mounted. For the water-cooling system it can fit x2 360mm radiators up to 40mm thick. The PowerBoard has been designed for extremely high-power output and includes capacitors for power stability.
The radiator mounting panels have a large range of adjustment to help with port alignment to the distribution plate.
Spectre Integra-M has 7x 2.5” Drive positions. Two are on the top of the PSU shroud, four inside of the PSU shroud and there is one integrated on the PowerBoard. The two on top of the PSU shroud cannot be used with vertically mounted GPUs.
Design & Engineering:
We have been building high end water-cooled systems for over 15 years. Our approach to product development begins with a need for our own builds and so the origin is always function. From there we start to build ideas around this function and the aesthetics and everything else follows. The original ideas for our products came from years of building highly customized, high end water-cooled systems and trying to reduce the exceptionally long build times and complexity. Our approach to development is hands on, we are using and testing our own products every day.
Manufacturing & Quality:

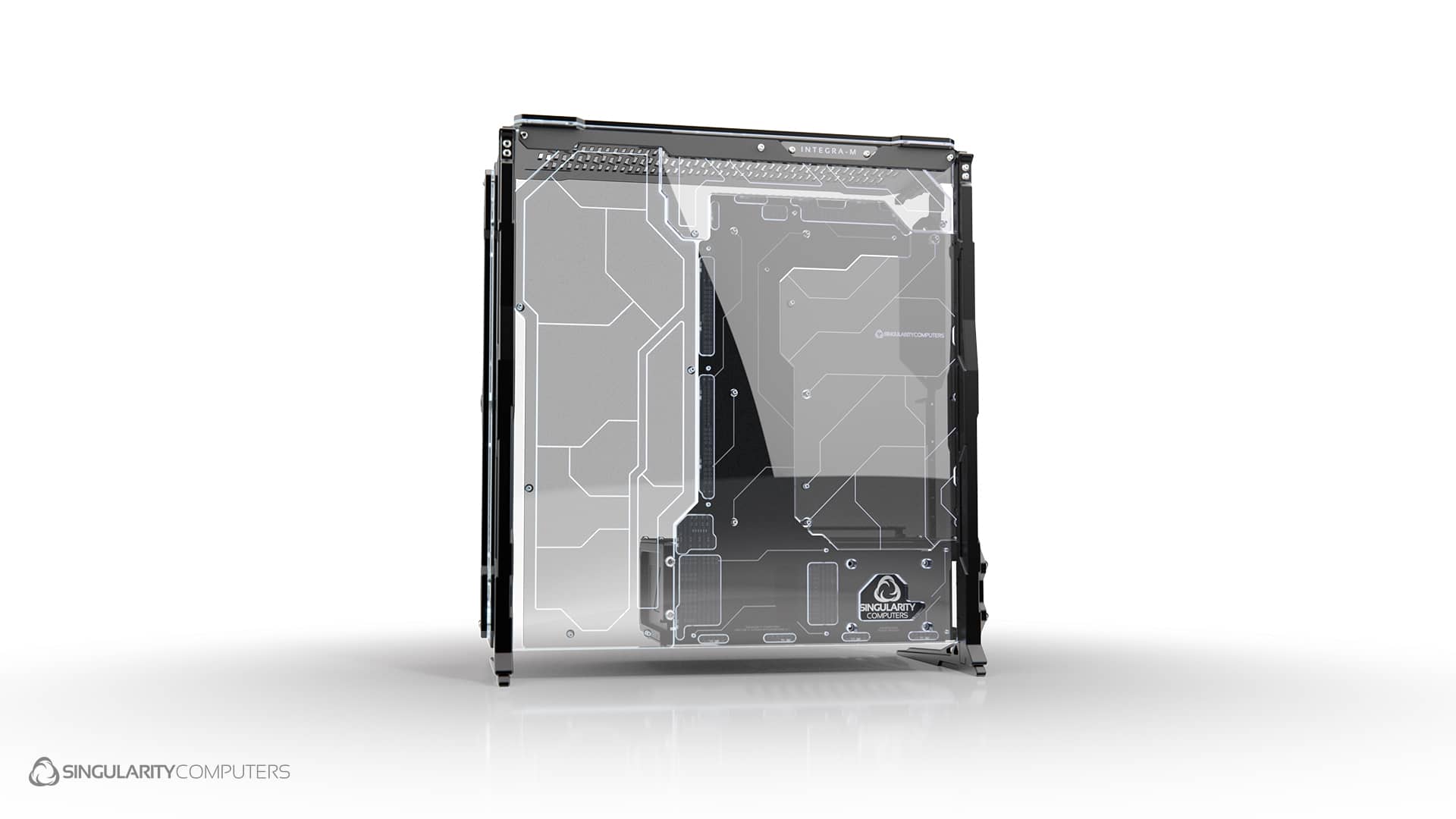

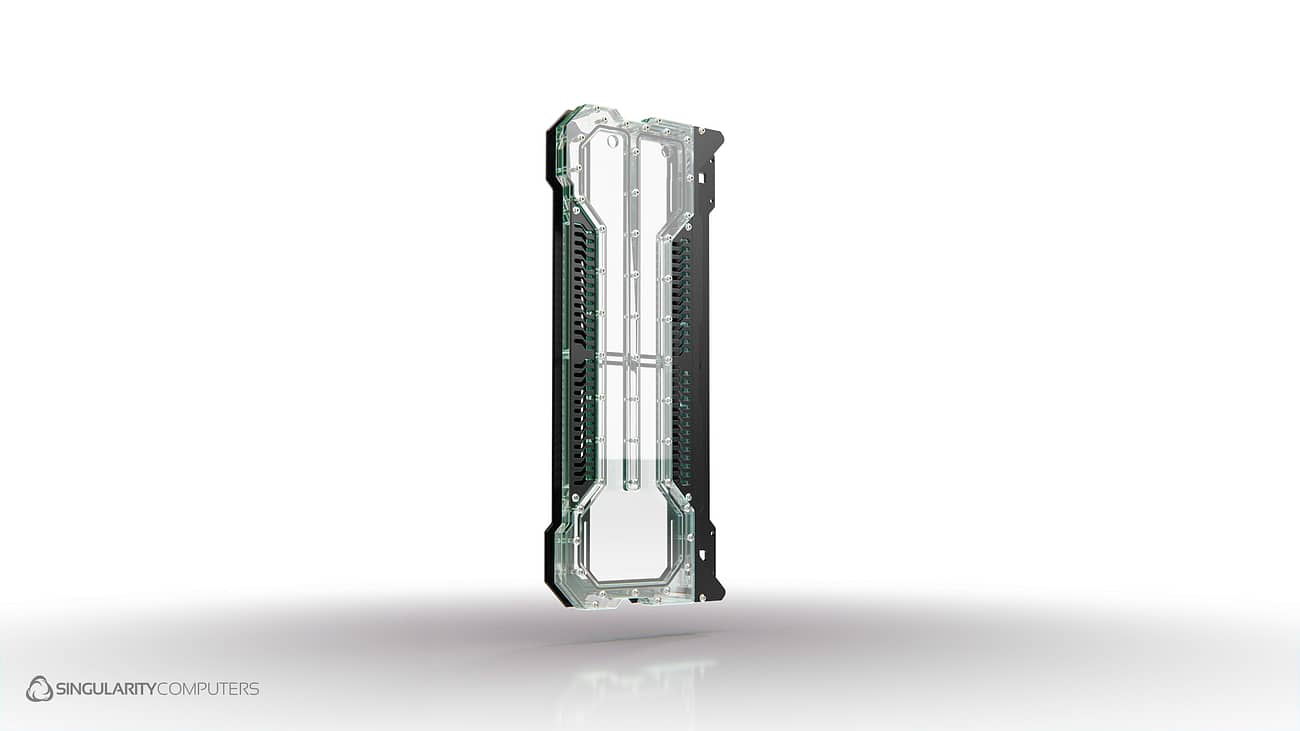

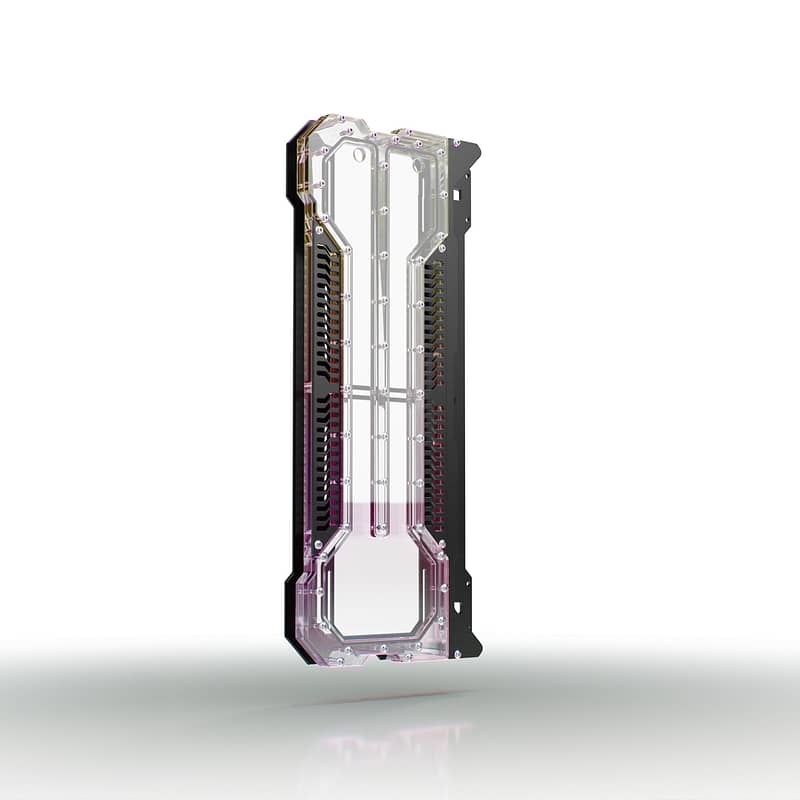

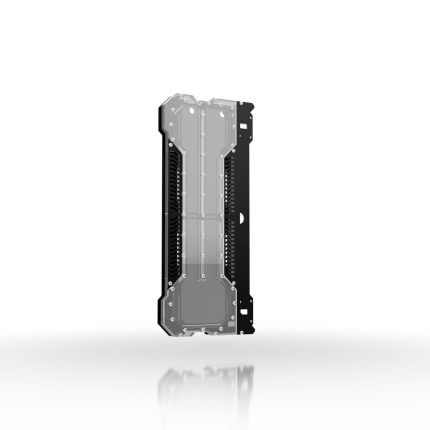

Almost all components of Spectre Integra-MA are CNC machined from a solid block of material. There is no hidden or back side, and this also goes for the components being installed. Due to this we selected the most high-end materials manufacturing process. The Distribution Plate is machined on a CNC router built from thick sheets of cast acrylic. It is hand assembled with silicone gaskets and stainless-steel fasteners, and pressure tested. The metal components are machined with extreme precision from solid blocks of 6061 aluminum on a CNC mill then sand blasted and anodized.
