Stream-S ITX Water-cooling Case

In stock

Order processing time 1-2 days.

  • SFF water-cooling focused case
  • Integrated front distribution plate with pump and reservoir
  • Supports 2x 240mm radiators, full-size GPU and 2x 2.5” drives
  • PowerBoard connects directly to the PSU for clean, compact power delivery
  • Flexible PCBs connect the PowerBoard directly to the motherboard and GPU
  • Eliminates traditional main power cables and cable management
  • Extremely clean and compact cable routing for SFF builds
  • Compatible with ASUS Loki series PSUs only

Manuals

Current price is: US$399.00. Original price was: US$499.00.

Stream-S PowerBoard Options.

Select Case Colour Options
None Black Satin Gloss Black Gloss White Carbon Mirror +US$49.00 Silver Mirror +US$49.00 Gold Mirror +US$49.00 Black Satin

Top panel and rear panel covers (see image below).
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select GPU Cables (included)
None 8pin PCIE x3 12V2x6/PCIE 5.1 12V2x6/PCIE 5.1

12V2x6/PCIE 5.1
Black sleeved cables which connect from the PowerBoard to the GPU.

Select Pump Top (included)
None D5 +US$49.00 DDC DDC

D5 Pump Top
Select the integrated pump top for the distribution plate.

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Distribution Plates

Stream-S Distribution Plate Set (optional) USD $98
None Yes +US$98.00

Stream-S Distribution Plate Set
The Distribution Plates will be matched in colour to your case colour selection. The Stream-S distribution plate set provides two extra distribution plates which can be mounted to the bottom and rear panels of the case. There is an LED strip positioned on the edge of each of the distribution plates so that they glow. These distribution plates are mainly aesthetic additions and don’t add extra functions. They are built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. They are hand assembled with stainless steel fasteners. There is an integrated ARGB LED strip.

Water Cooling

D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00 Black(+US$39.00)

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

DDC Pump Cover Black (optional) USD $39
None Yes +US$39.00

DDC Pump Cover
The Singularity Computers DDC Pump Cover is built from CNC machined anodized aluminum. It covers the DDC to improve aesthetics, but it also has a built in heatsink for extra cooling of the pump motor which is known to run hot and is not cooled by the coolant. The DDC Pump Cover has a Singularity Computers logo on the base. It is compatible with all DDC Pumps and Pump Tops.

SC Fittings Package Stream-S (optional) USD $153.60
None Yes +US$153.60

SC Fittings Package Stream-S
All the fittings needed to build the water-cooling system into this case.
Included Fittings:
– 16mm Hardline Compression: x6.
– 90 Degree Rotary: x6.
– Extension Fitting 20mm: x2.
– Extension Fitting 15mm: x2.
– Telescopic Large: x1.
– Low Profile Drain Valve: x1.

SC Cerakote Fittings Package Stream-S (optional) USD $57.6
None Armour Black +US$57.60 Cobalt +US$57.60 Gold +US$57.60 Midnight Bronze +US$57.60 Polar Blue +US$57.60 Ruby Red +US$57.60 Shimmer Aluminum +US$57.60 Sniper Grey +US$57.60 Stormtrooper White +US$57.60

SC Cerakote Fittings Package Stream-S
Tough heat treated Ceramic coating available in various colours. Order processing time 1 week.

Case Accessories

Stream-S Window Screen (optional) USD $199
None Yes +US$199.00

Stream-S Window Screen
Side Panel Window for Stream-S which includes a 1920×480 60Hz IPS Display. It is fully visible through the Stream-s side panel window and sits partially in front of the GPU. It is compatible with Stream-S and Stream-SA. The screen is powered by an included black 0.9m USB-A cable and the signal is from an included black 1m HDMI cable.

  • 1x Stream-S ITX Water-cooling Case
    Current price is: US$399.00. Original price was: US$499.00.

Subtotal excludes shipping & tax

All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182004708 SKU: SC-STREAM-S Category:

Description

Read More +Read Less − full description

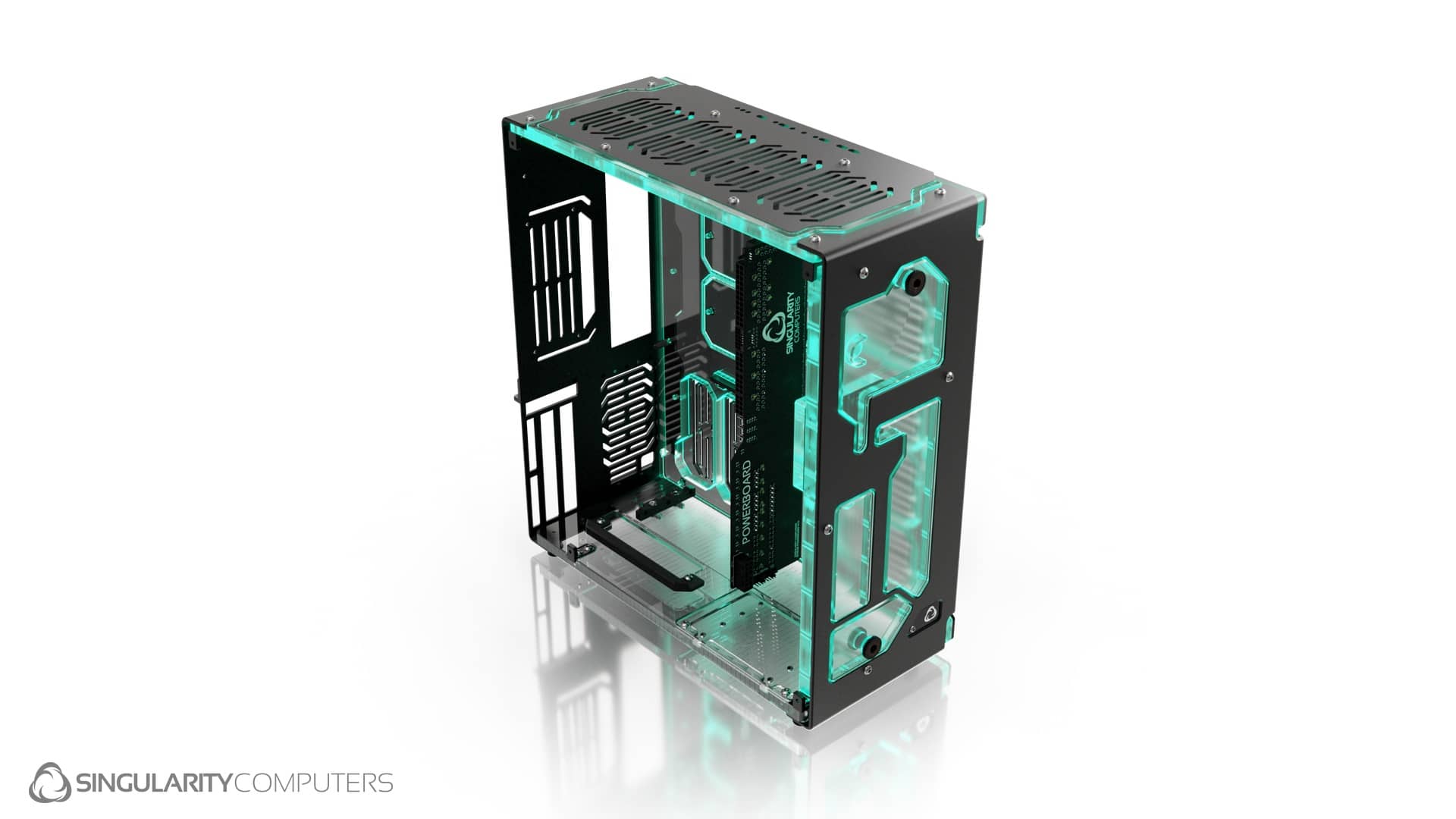

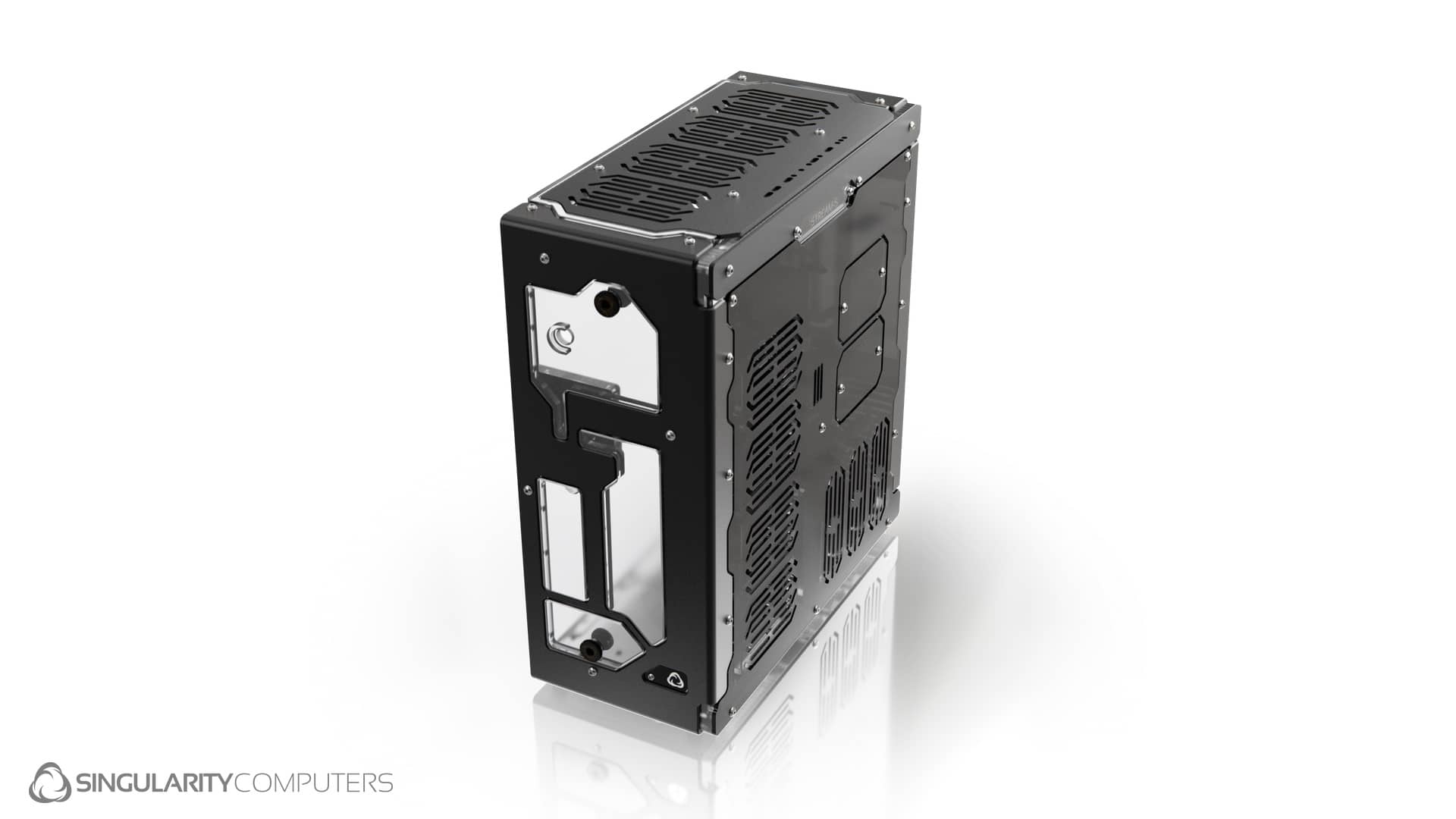

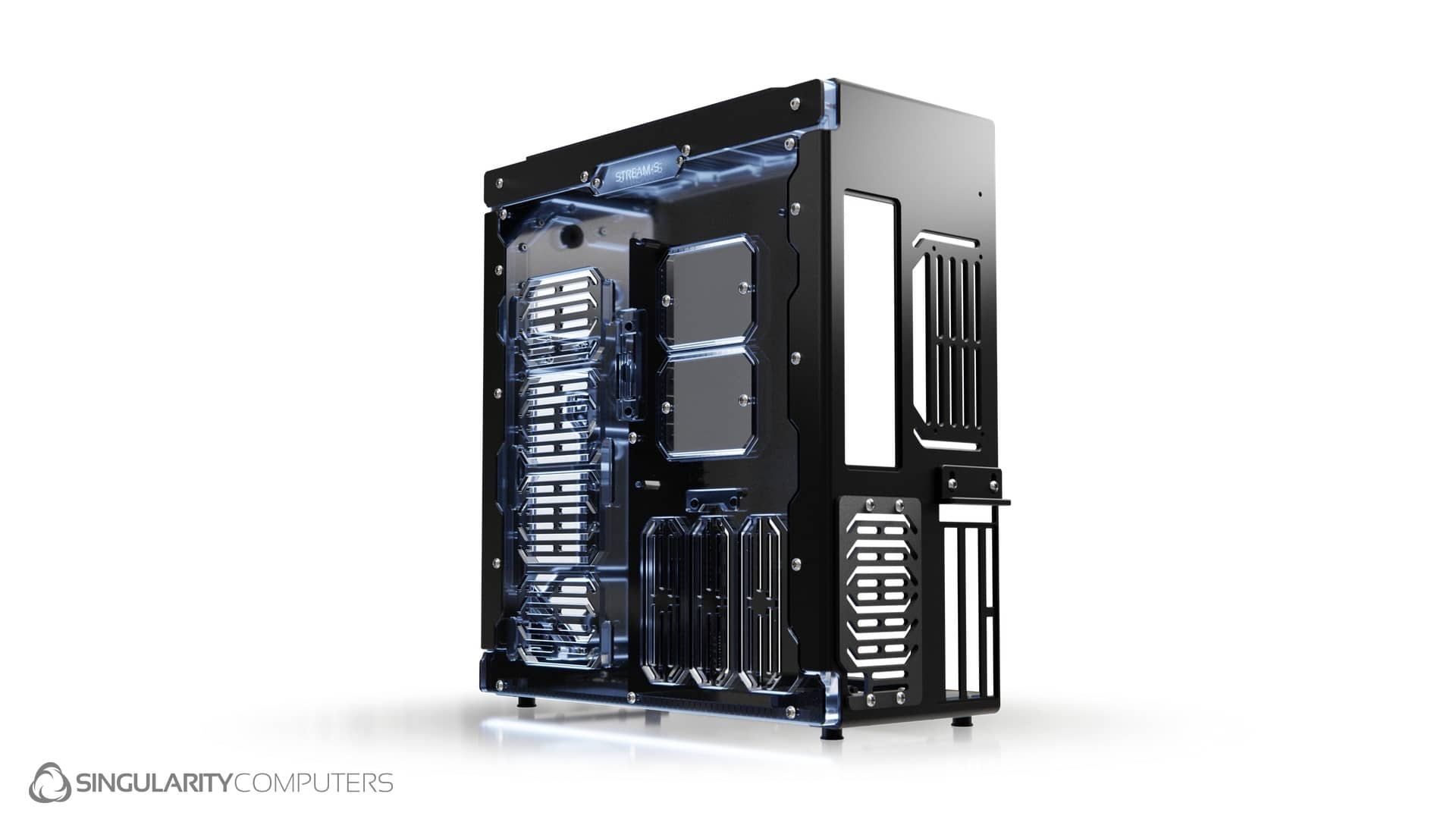

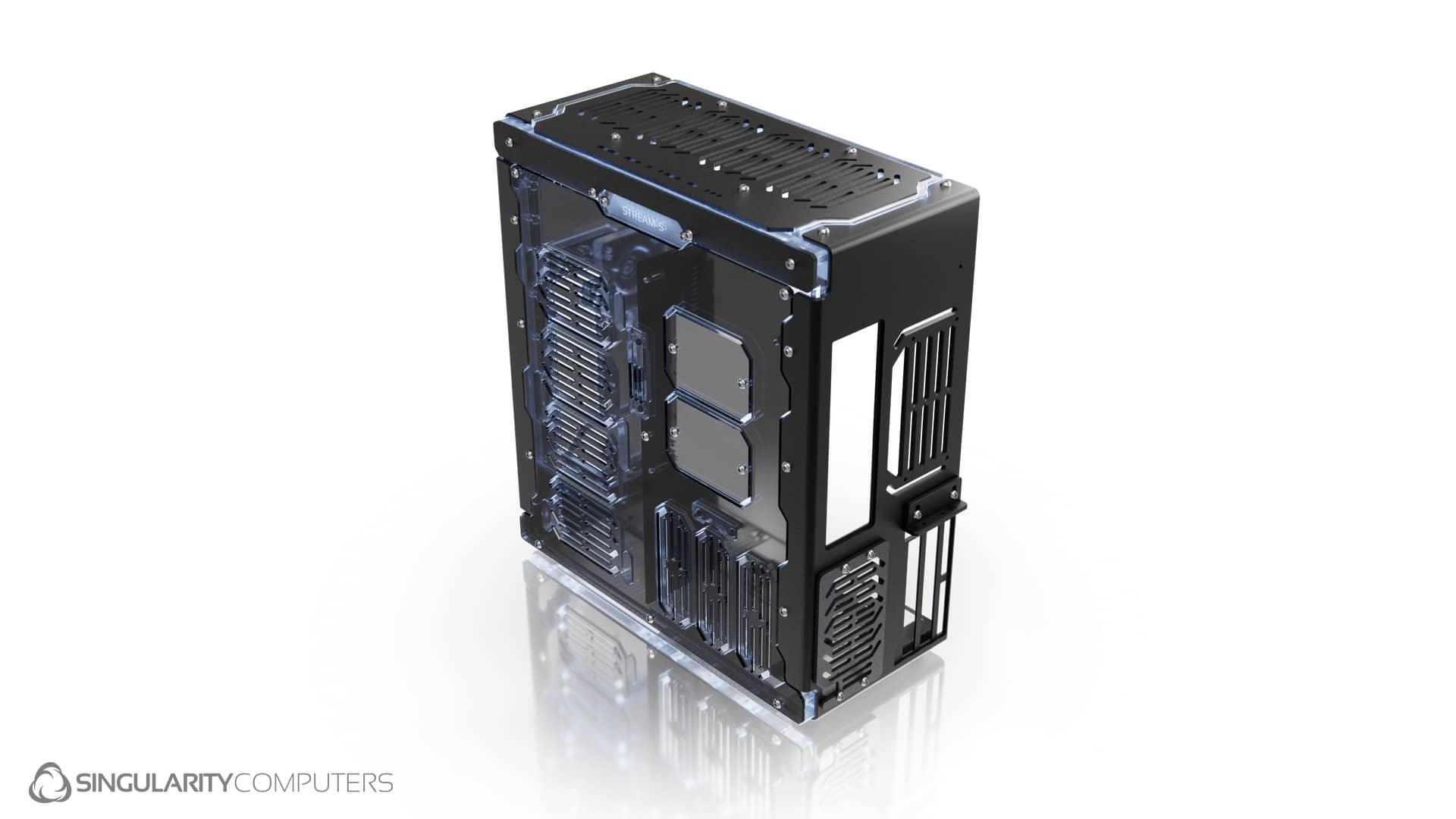

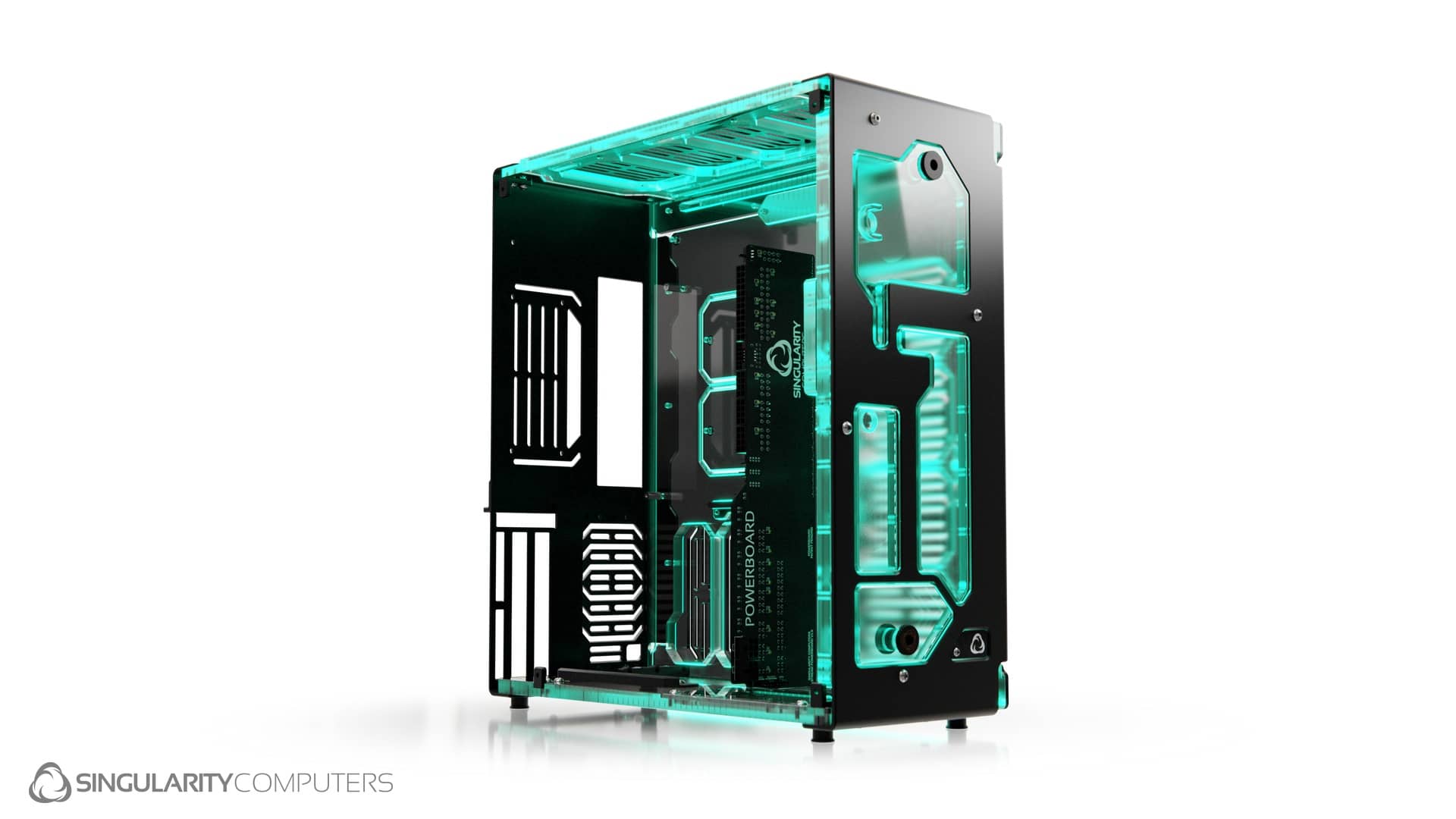

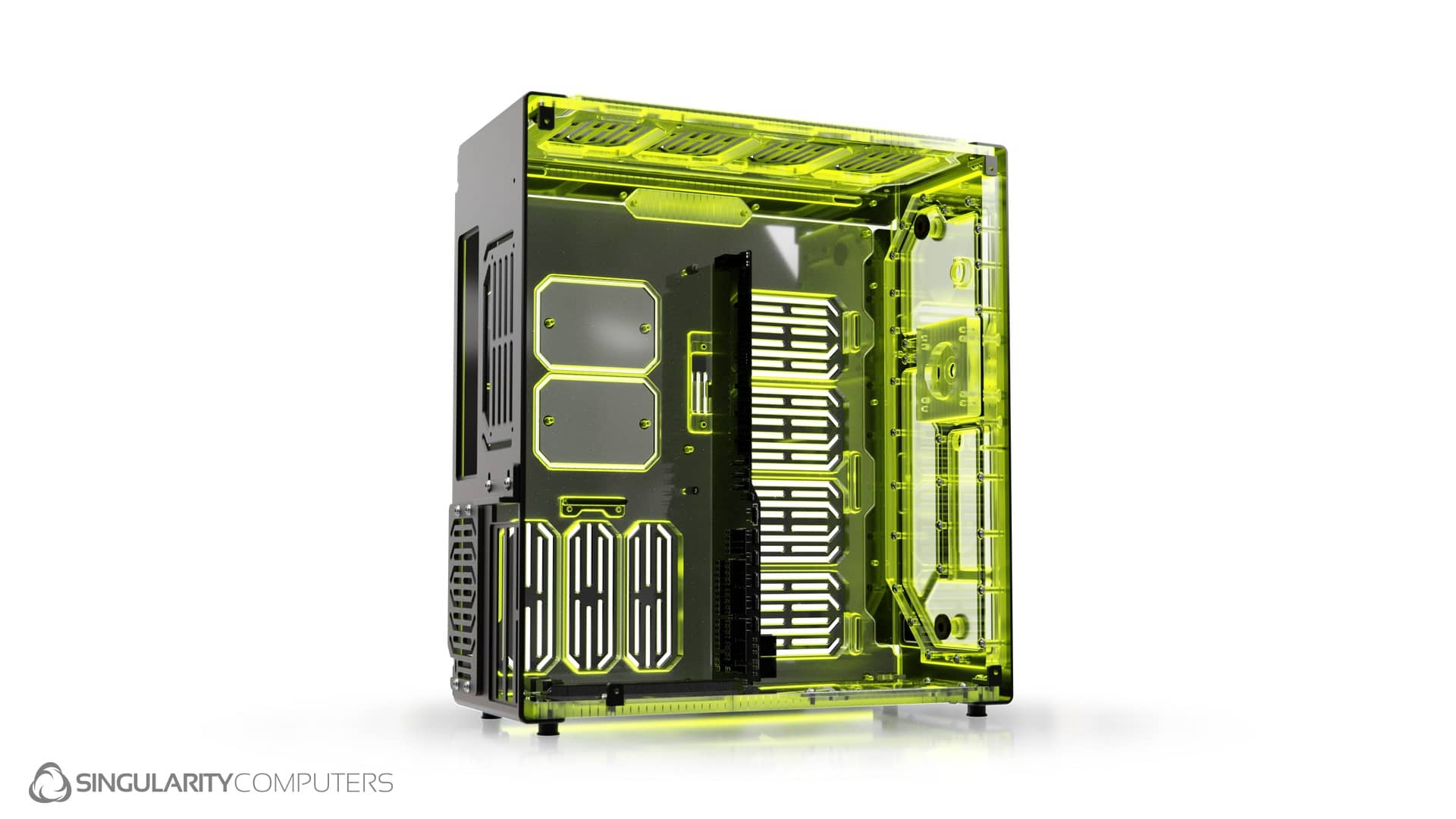

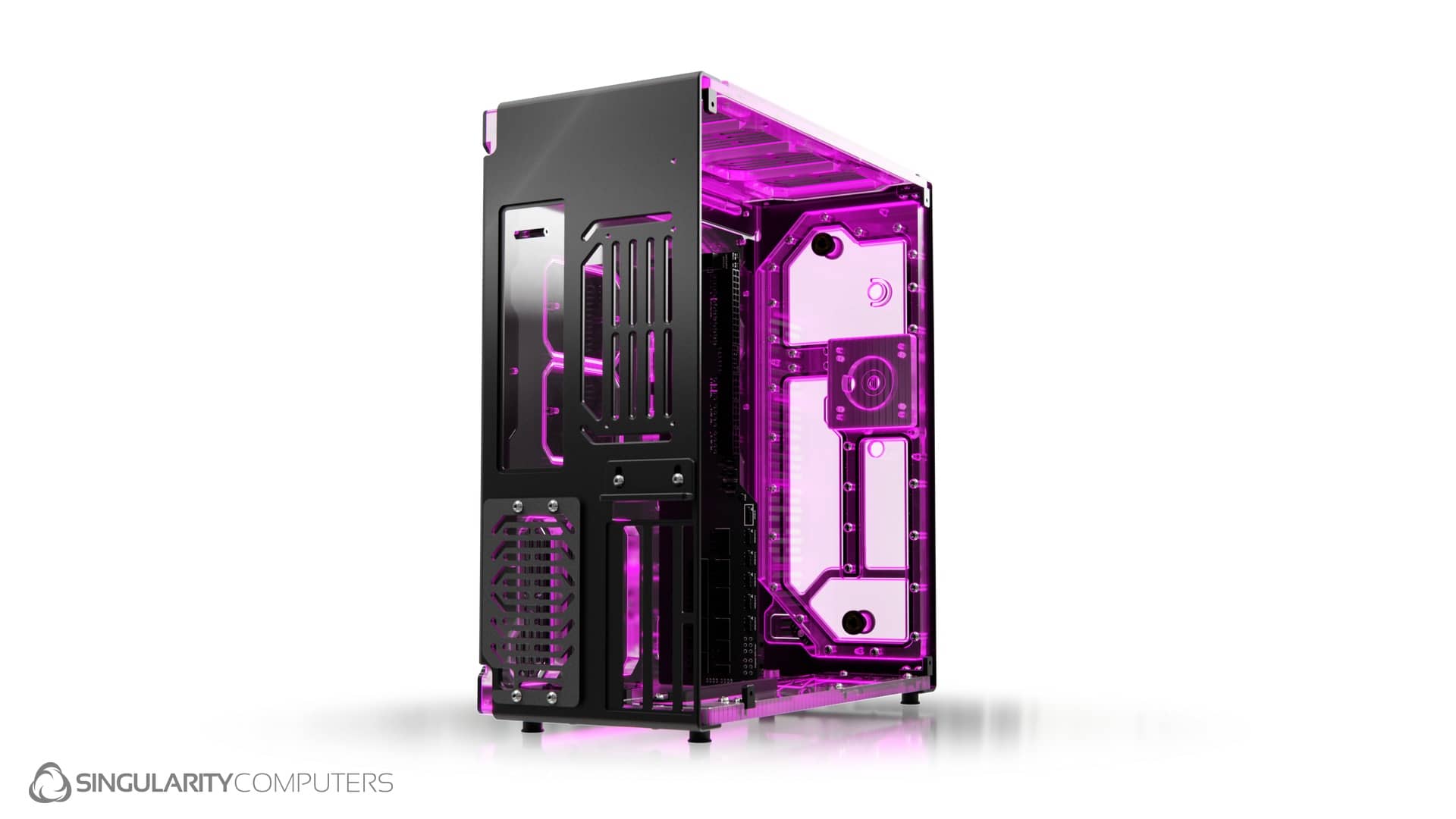

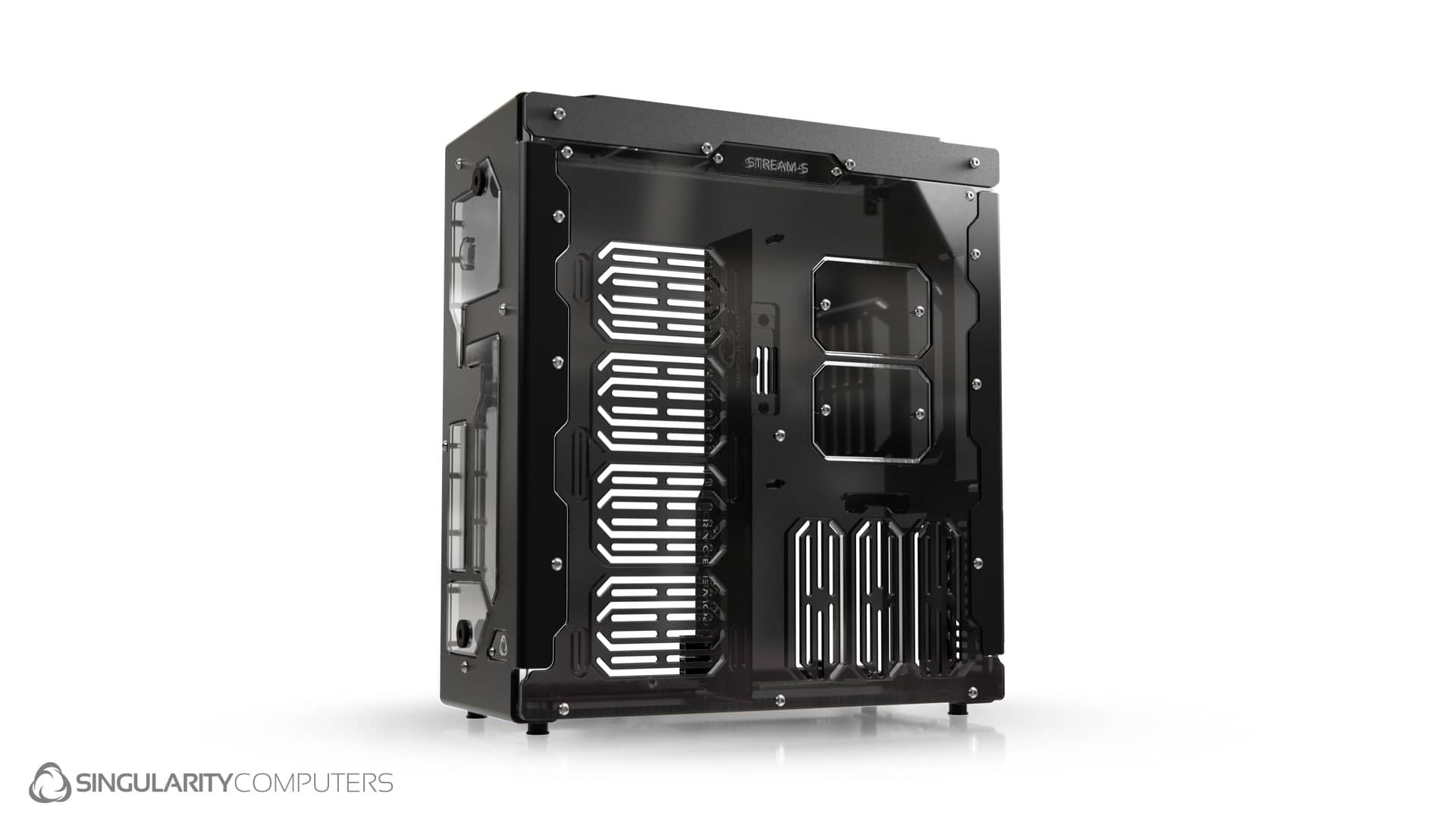

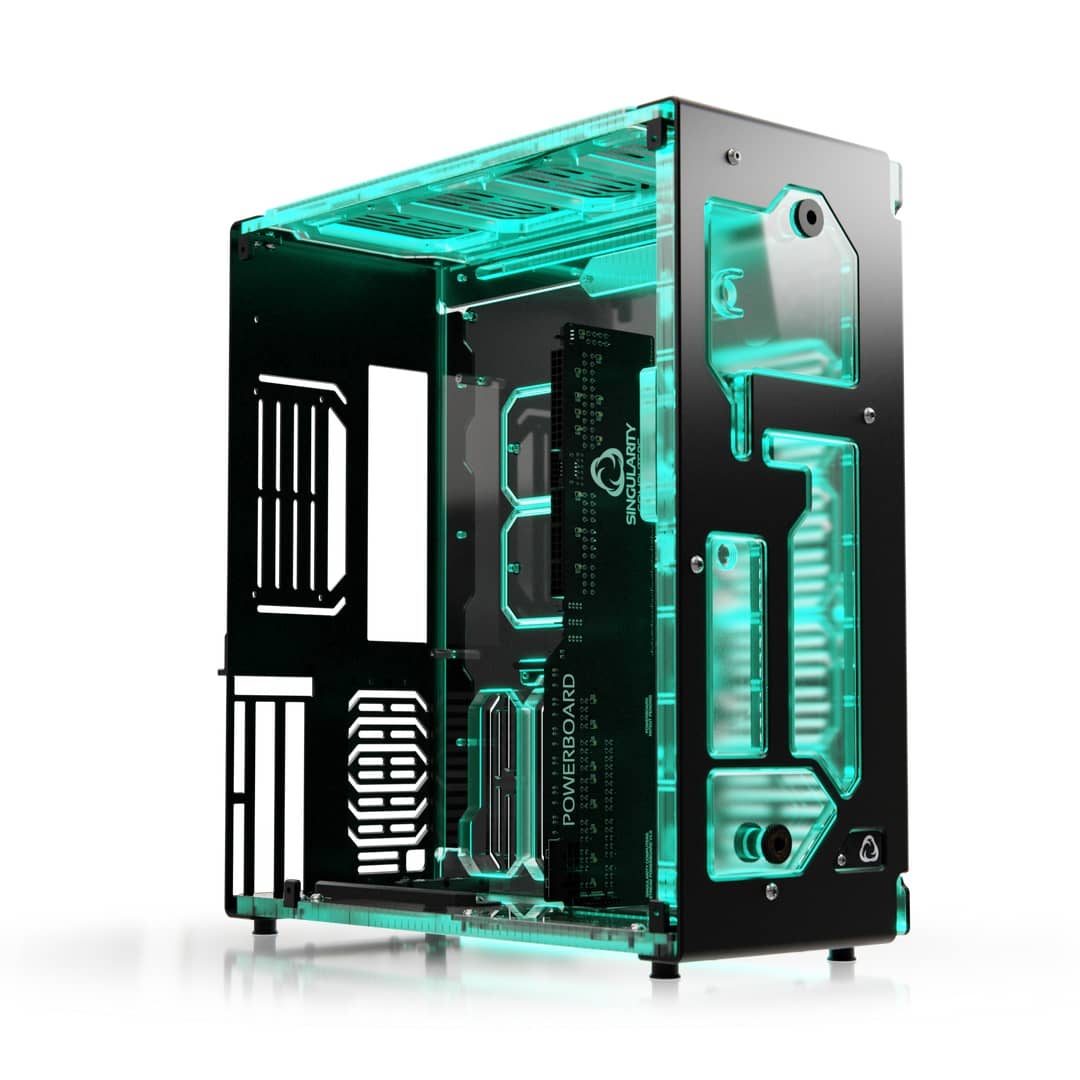

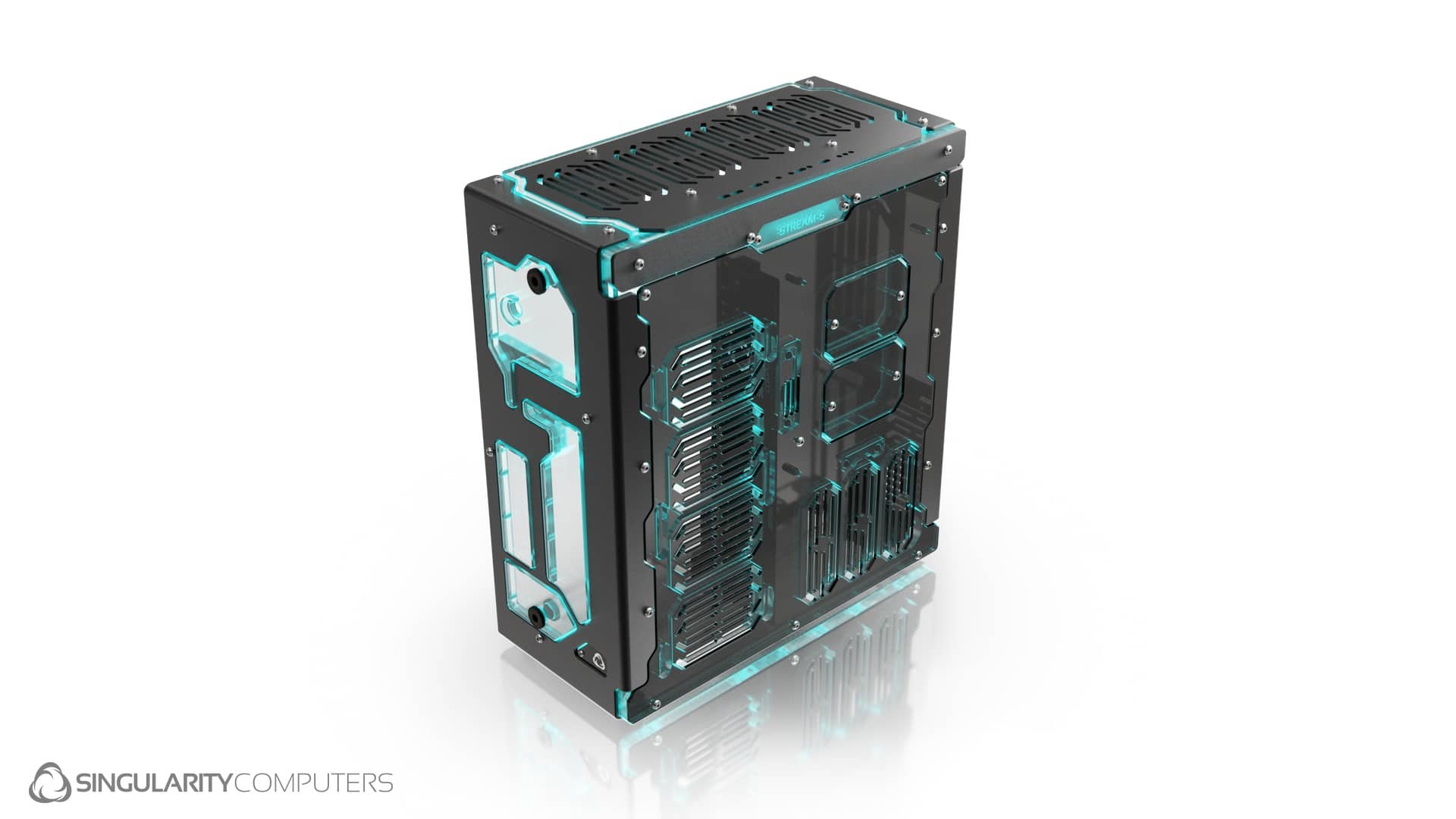

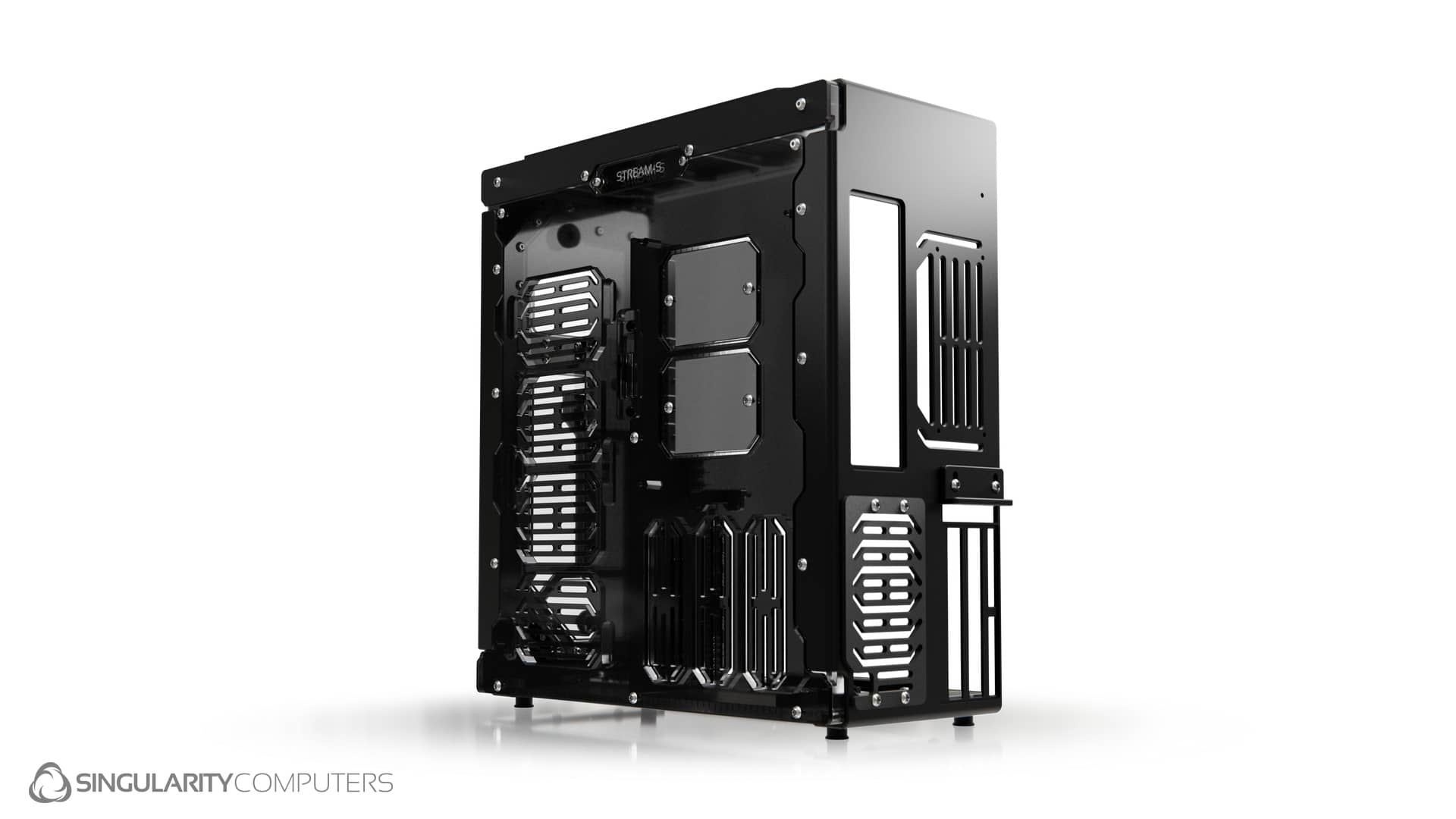

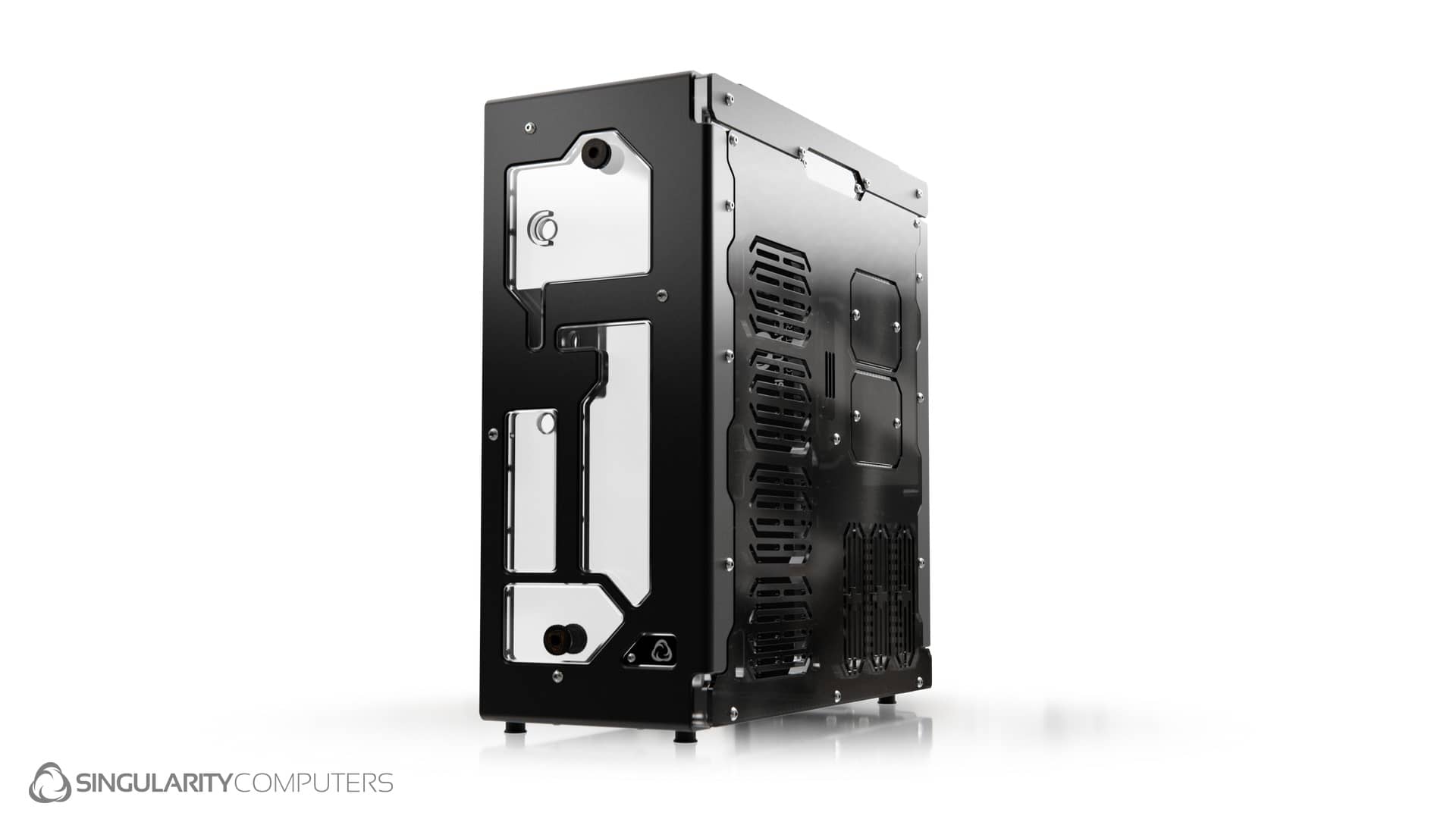

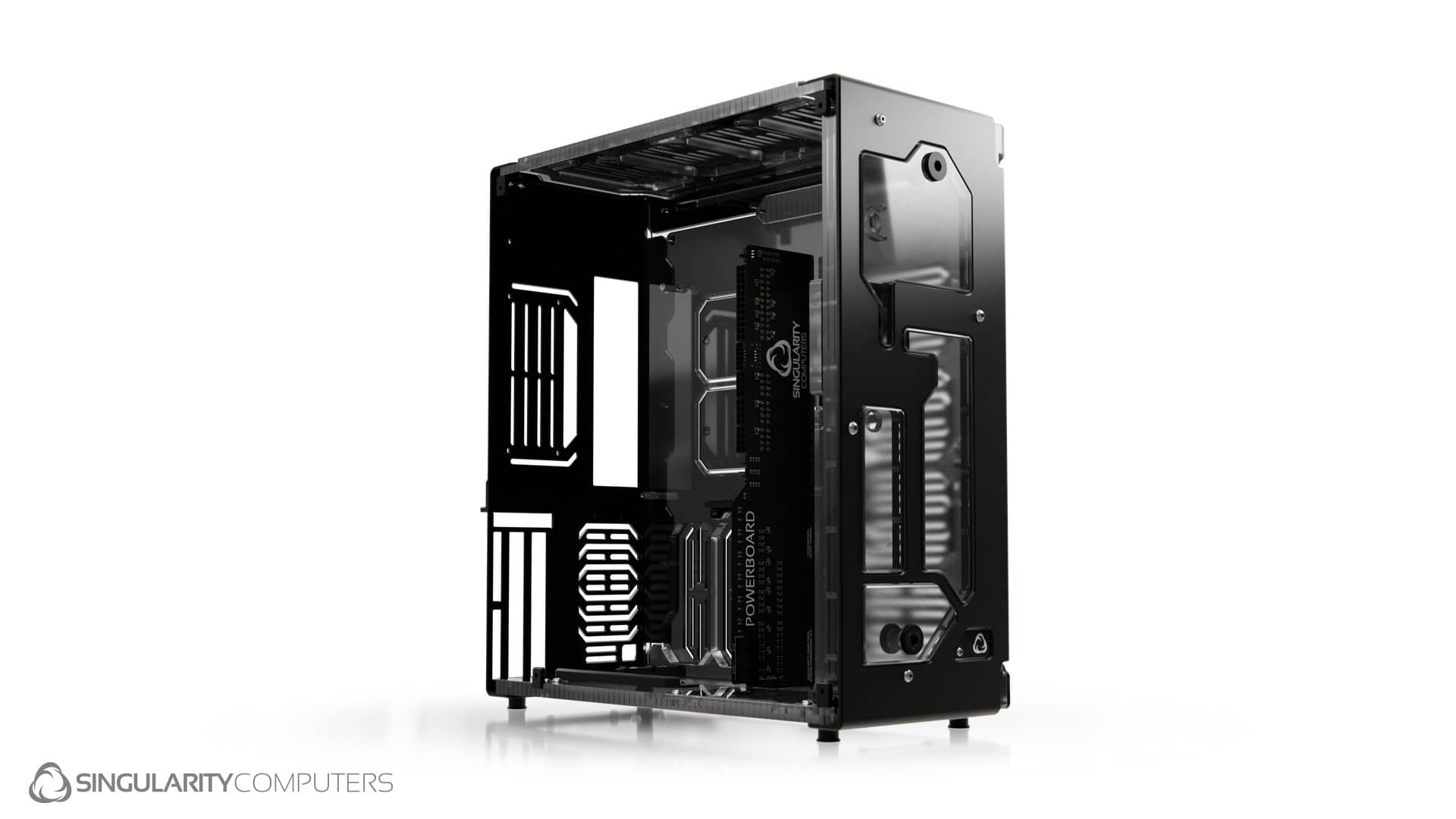

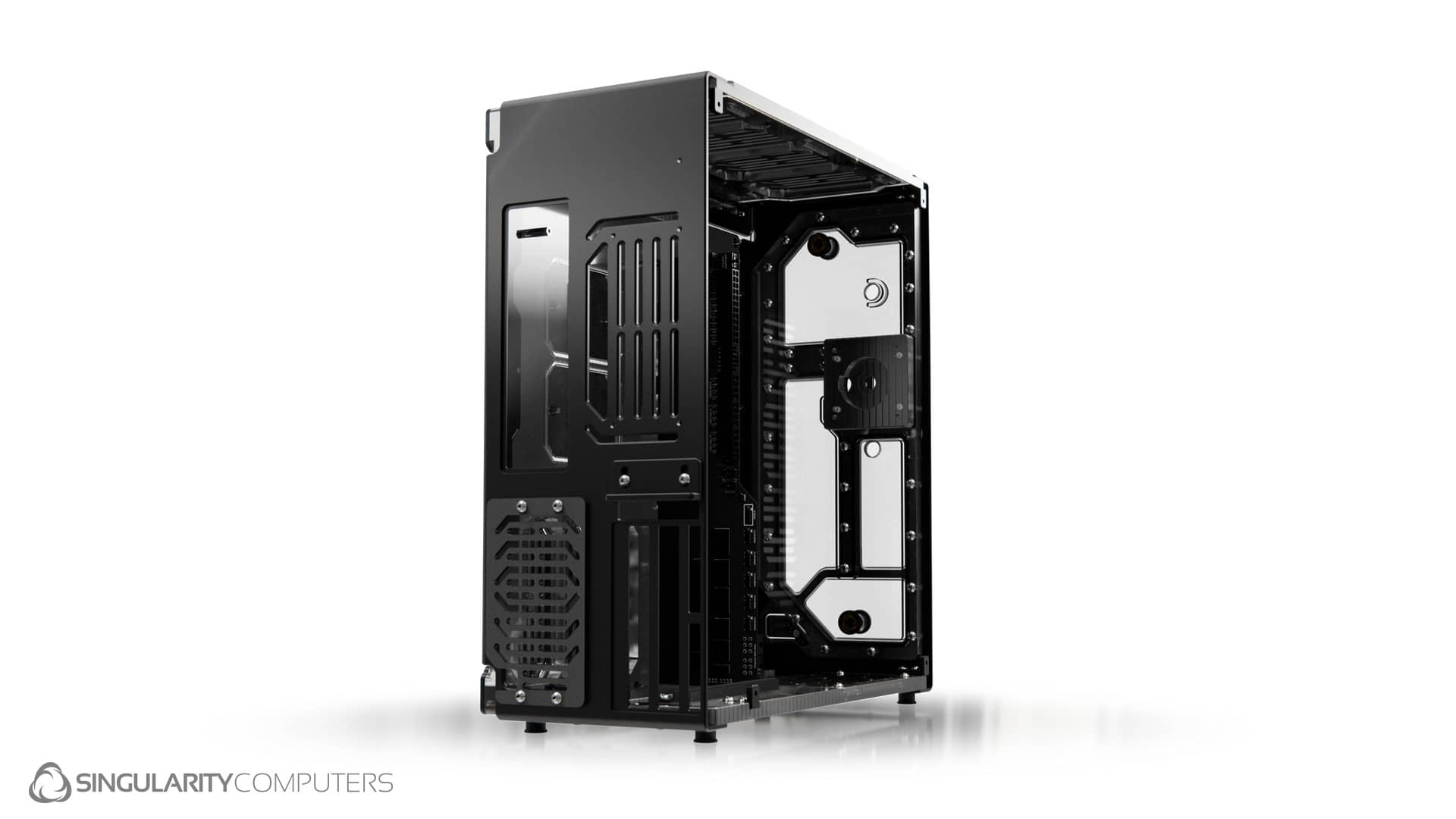

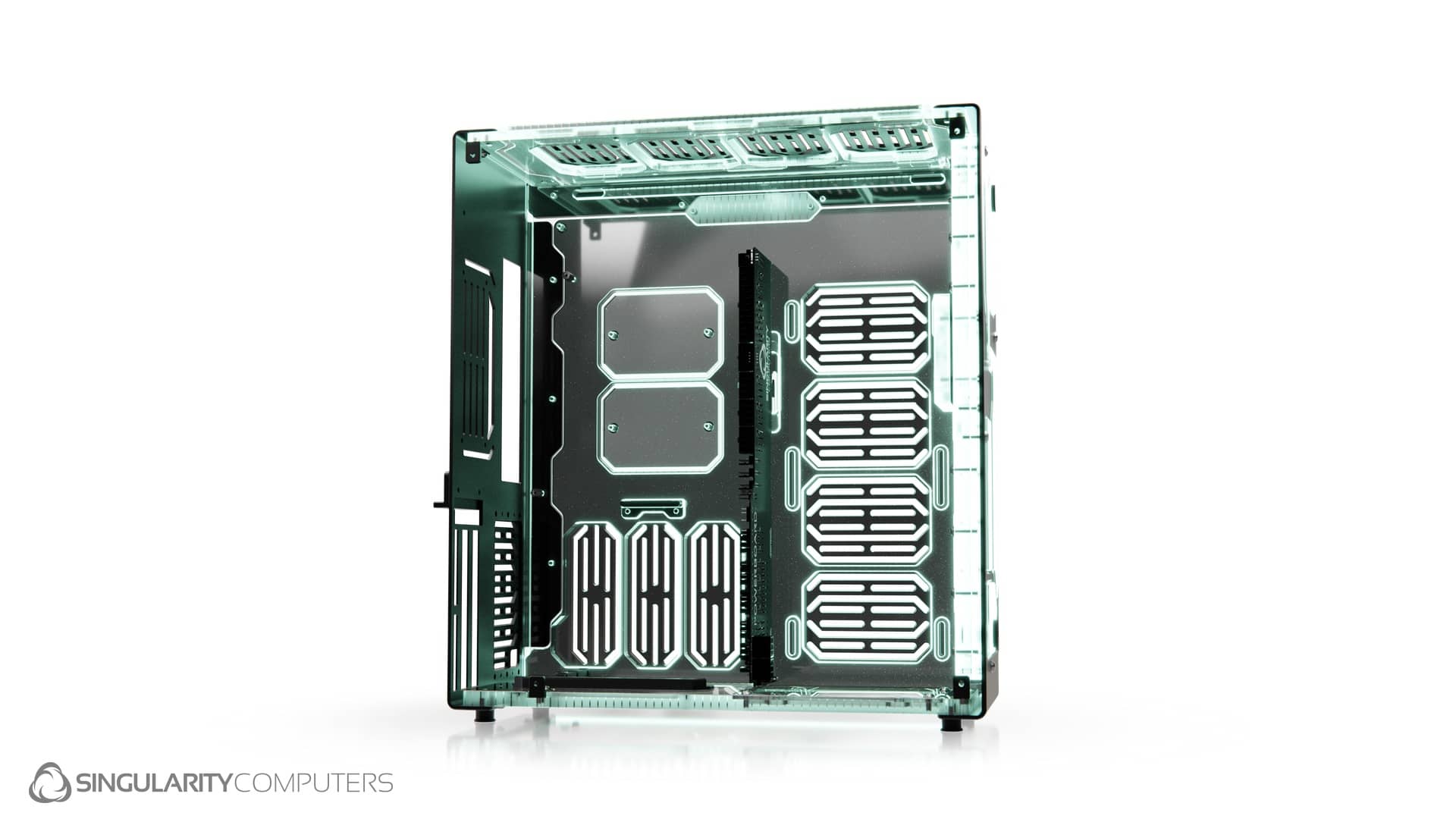

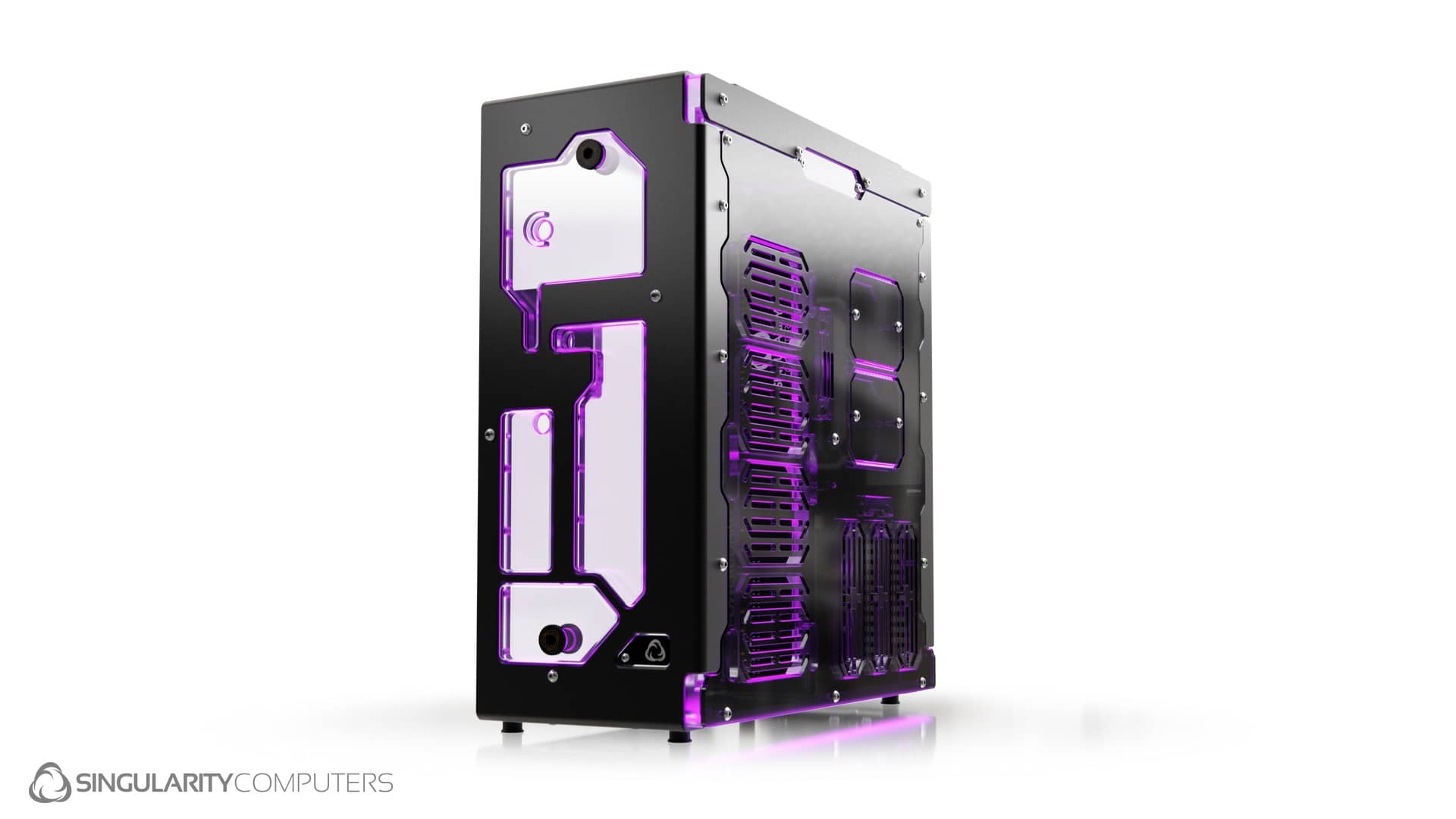

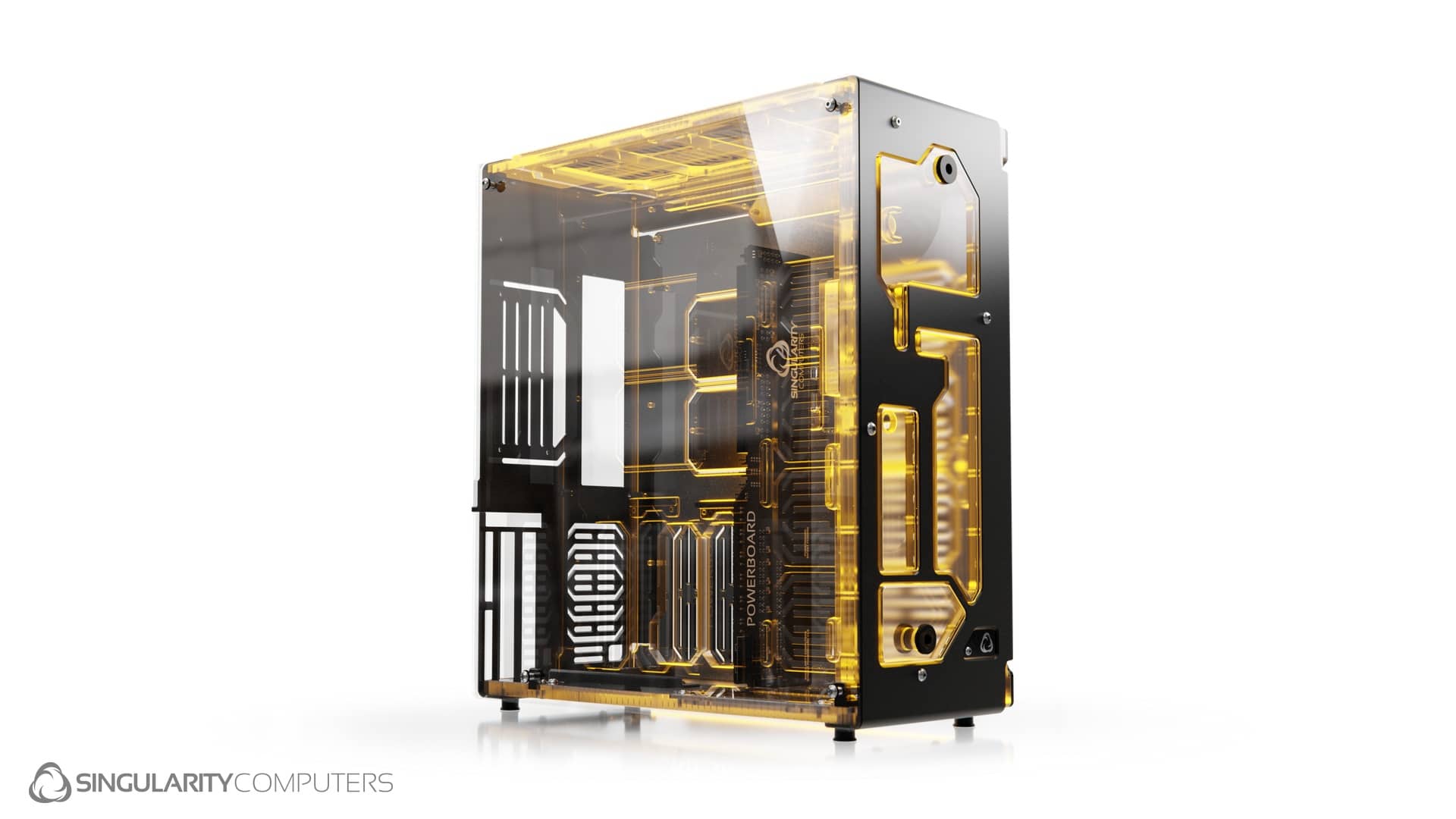

Stream-S is an SFF case designed for water-cooling. It has a distribution plate on the front panel which integrates a pump and reservoir. It fits x2 240mm radiators, a full sized GPU and 2x 2.5” drives. Stream-S is the first case which does not need wires for the main cables. It has a PowerBoard which connects directly to the PSU and includes flexible PCBs which connect the PowerBoard to the motherboard and GPU. The PowerBoard and flexible PCBs remove the need for cable management and make the cables extremely clean and compact which is particularly important for an SFF case. Stream-S is compatible with Asus Loki series PSUs only.

Youtube video

Youtube video

Case Colour Options

Stream-S PowerBoard

Specifications

Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all DDC pumps.
Electronics Integration:
Core Component Connectors: 24pin x1. 8pin EPS x1. PCIE 8pin x3. 12V2x6/PCIE 5.1 x1. 6pin PSU x2.
Hubs: PWM x4. ARGB x5 (Single input for all).
Extra Power Button.
Inbuilt PSU Jump starter for powering the pump only, for filling the loop.
Cables: PowerBoard Linking FPC Cables: 24pin x1. 8pin EPS x1. Select either 8pin PCIE x3 or 12V2x6/PCIE 5.1 (non FPC) Cable.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
LED Strips: x3 Installed on the Distribution Plate, the Motherboard Tray, and the Top Panel.
Motherboard Form Factor: Mini-ITX.
Expansion Slots: x2.
Case Form Factor: SFF.
Storage: 2x 2.5”.
Radiators: 240mm x 30mm with x1 set of standard 25mm fans.
Maximum GPU Length: 323mm.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: 138mm.
Maximum PSU Length: Compatible only with the Asus ROG Loki series.
Front Panel I/O: No Front I/O. Touch activated button.
Vertical GPU Mount: x1, 2 slot. PCIE 5.0 Vertical GPU Riser Cable 20cm.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Aluminium Folding, PCB.
Assembly: Distribution Plate Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 346mm x W: 165mm x H: 381mm.
Case Weight: 6kg.
Packaged Dimensions: L: 406mm x W: 225mm x H: 441mm (Case comes fully assembled).
Packaged Weight: 6.5kg.
