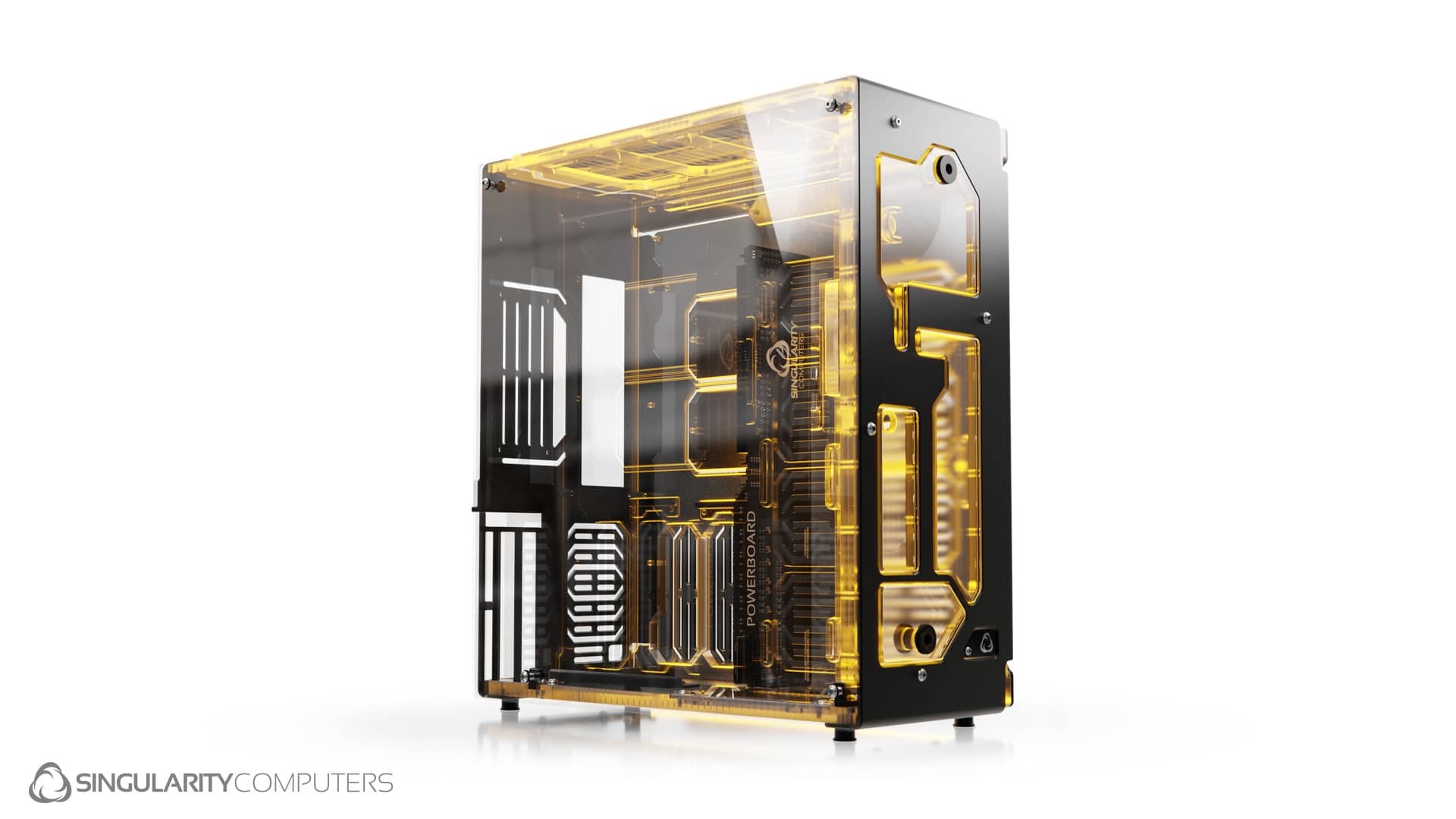

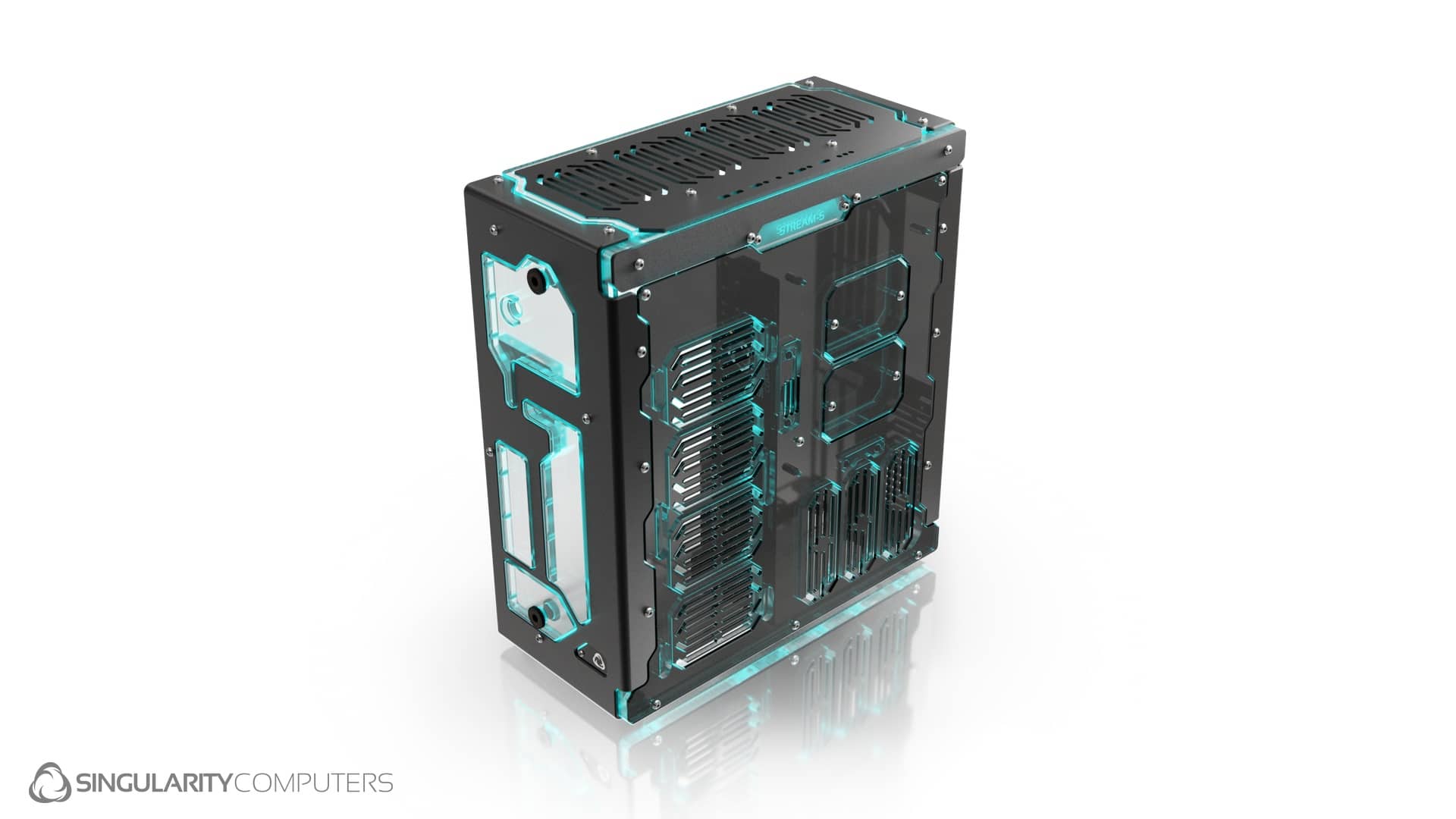

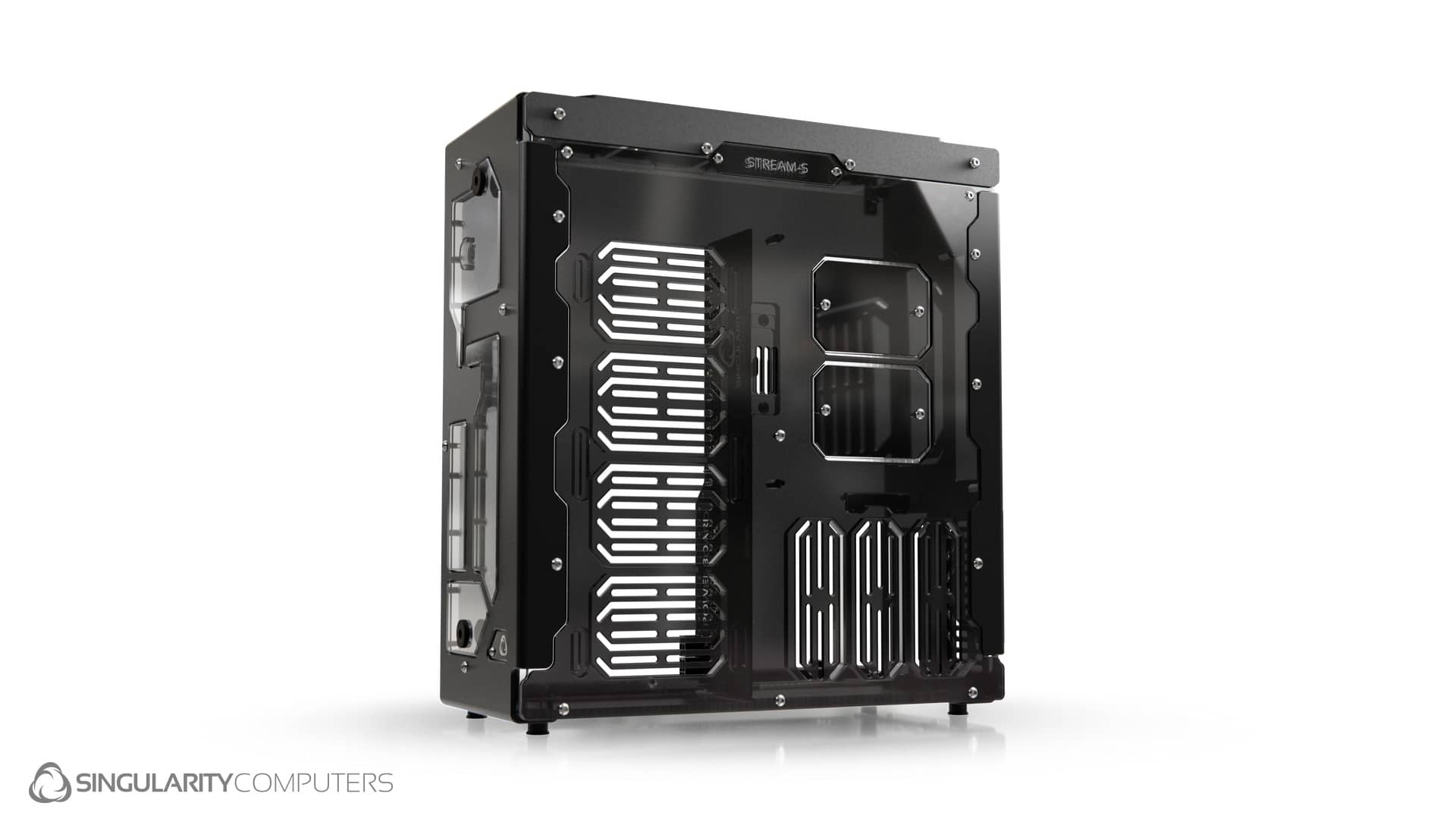

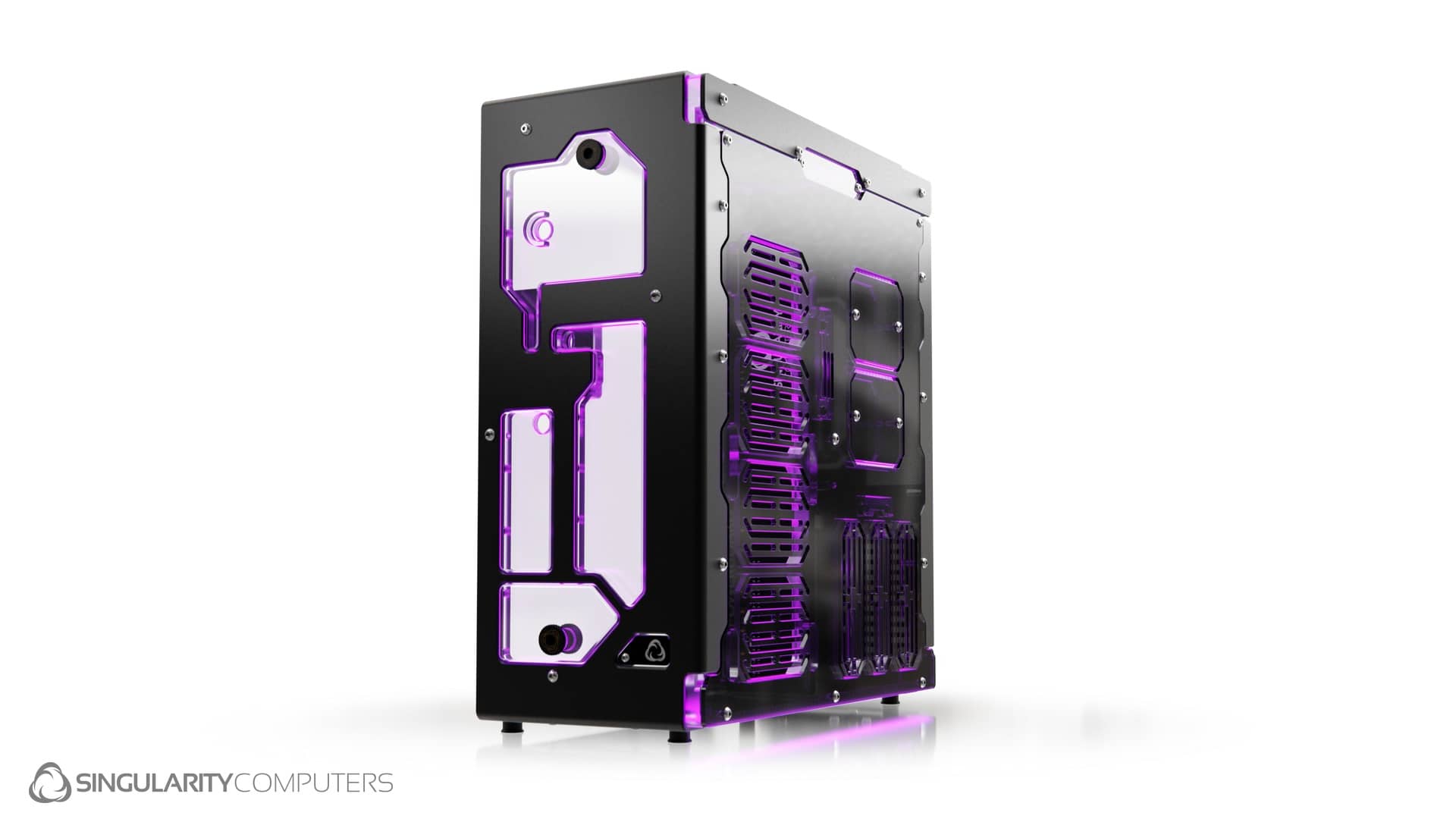

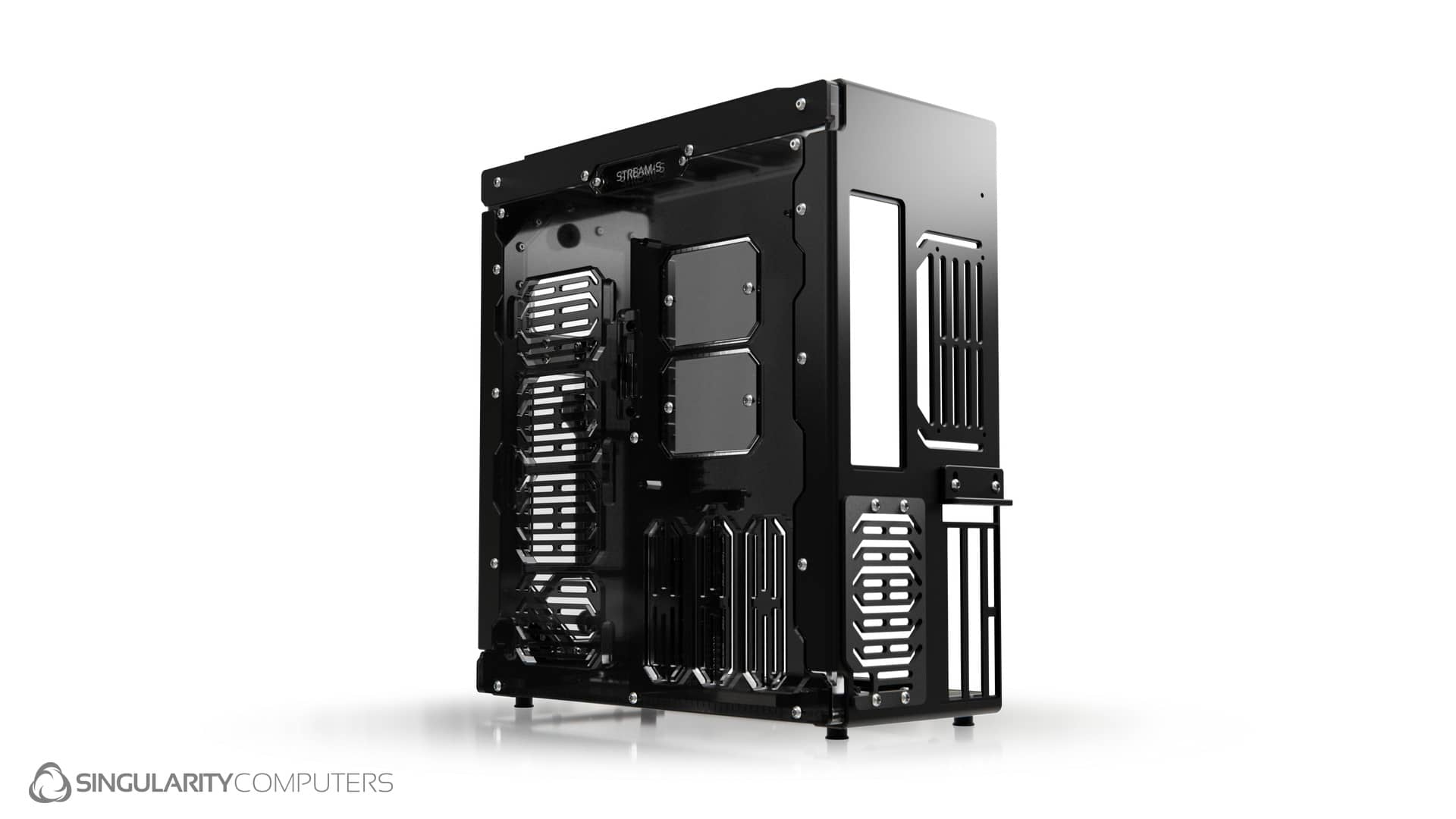

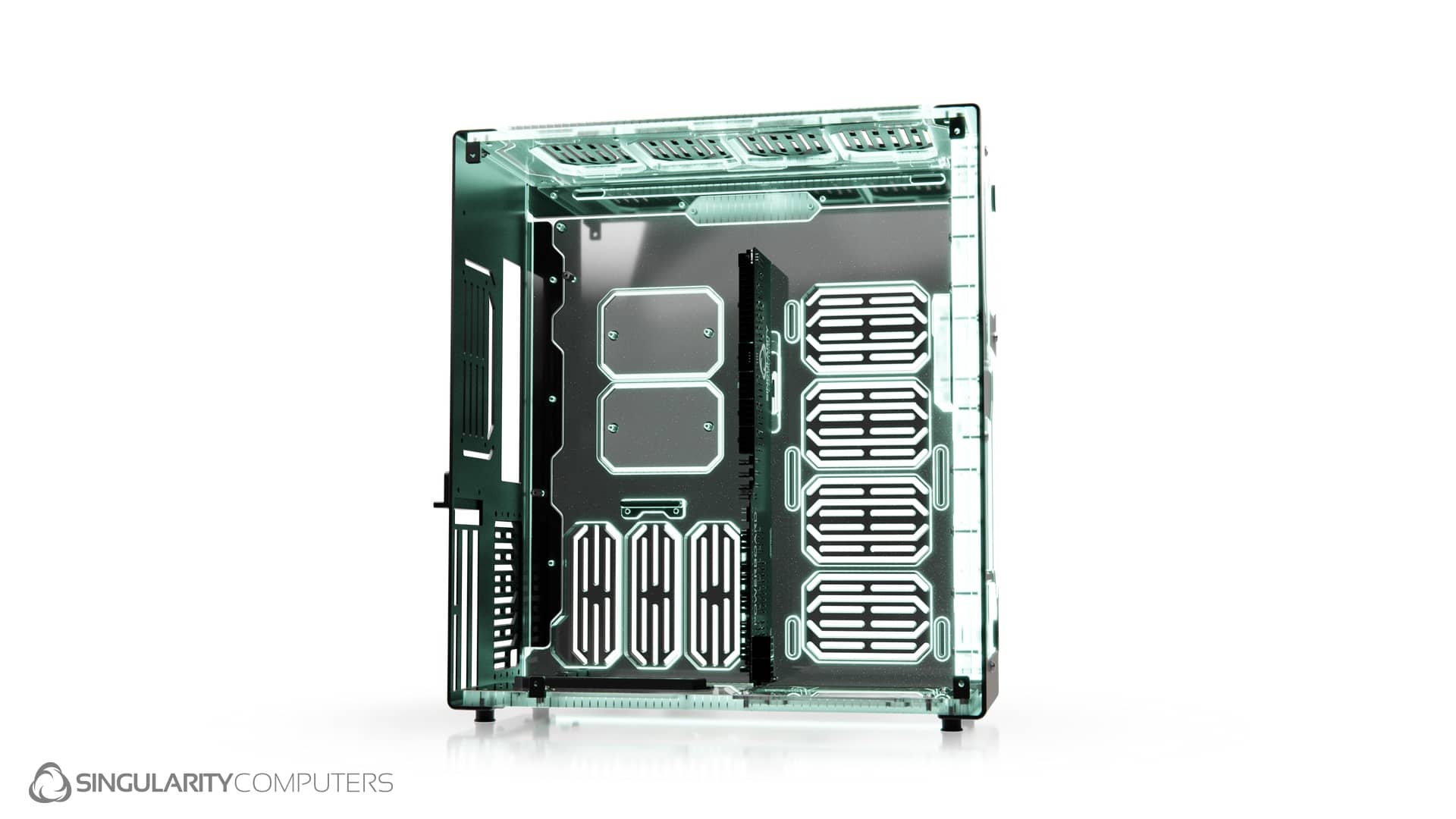

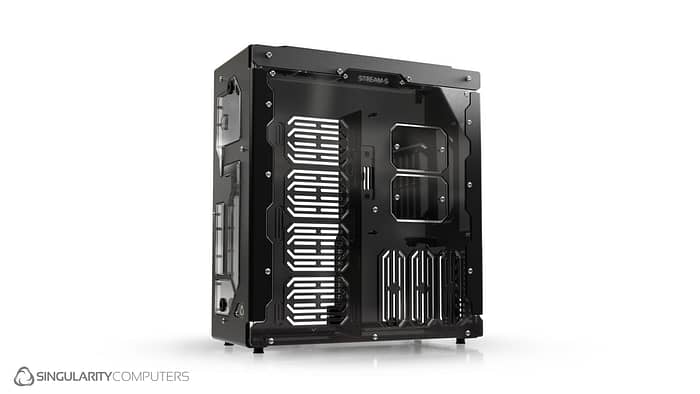

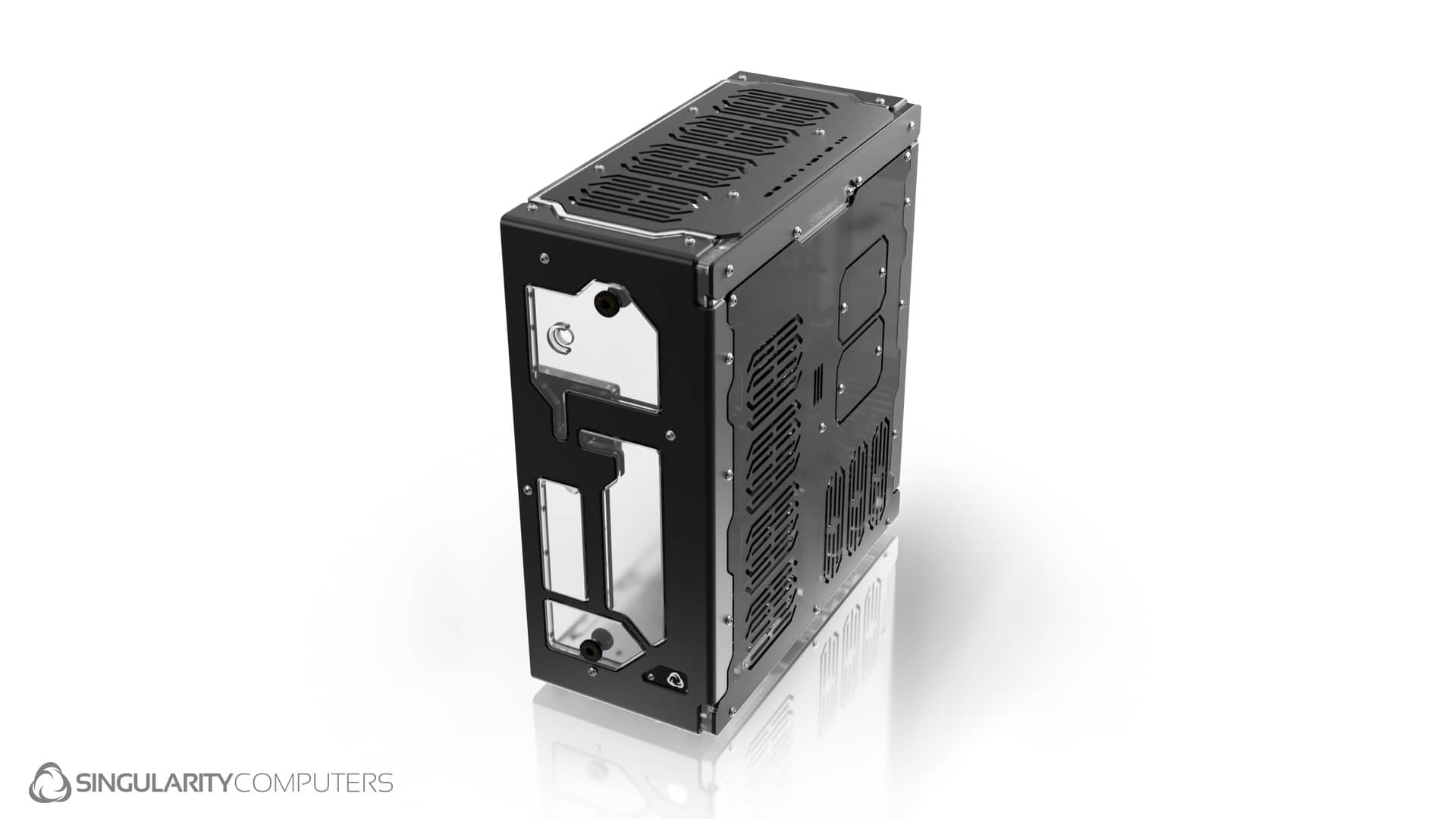

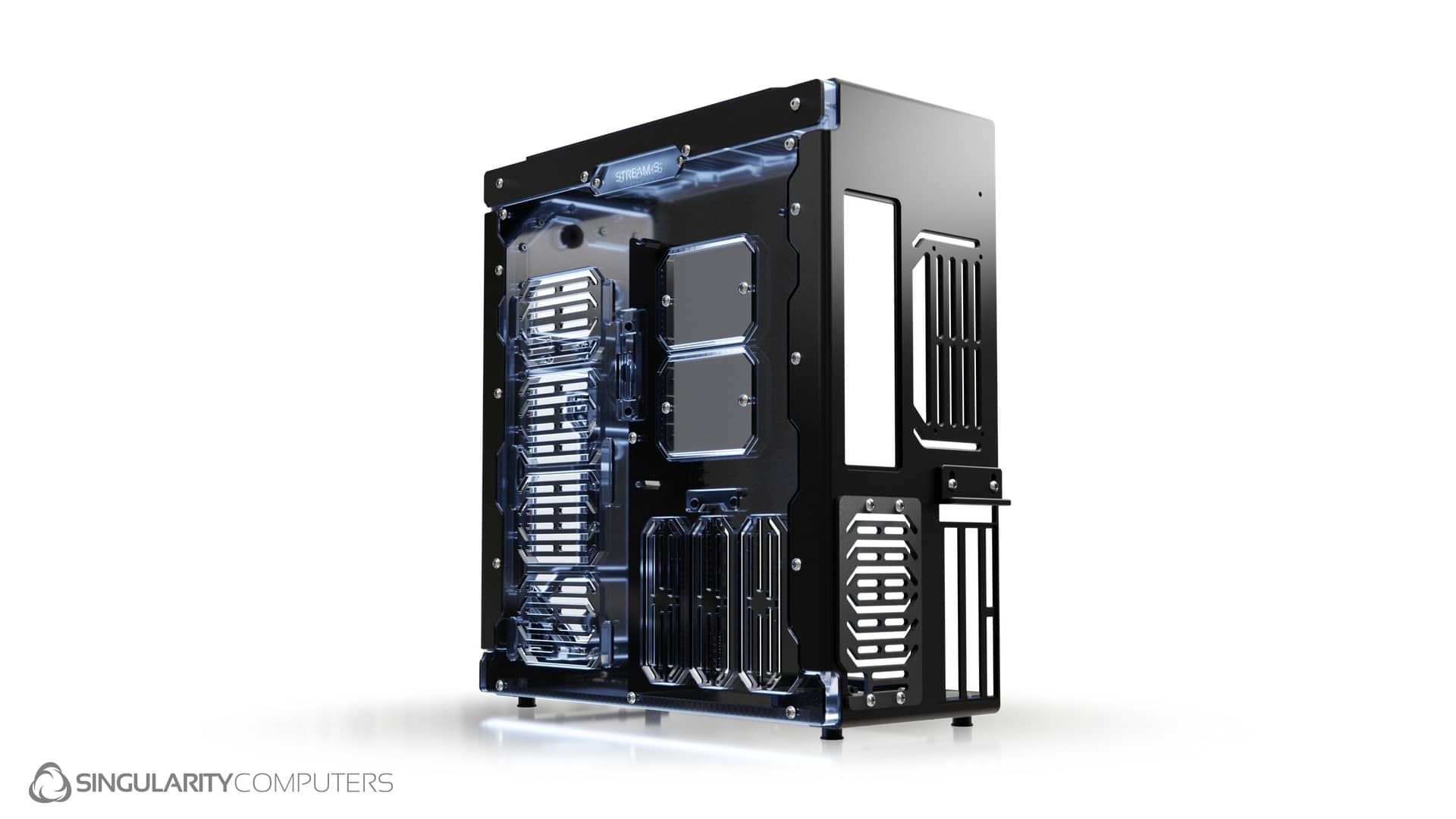

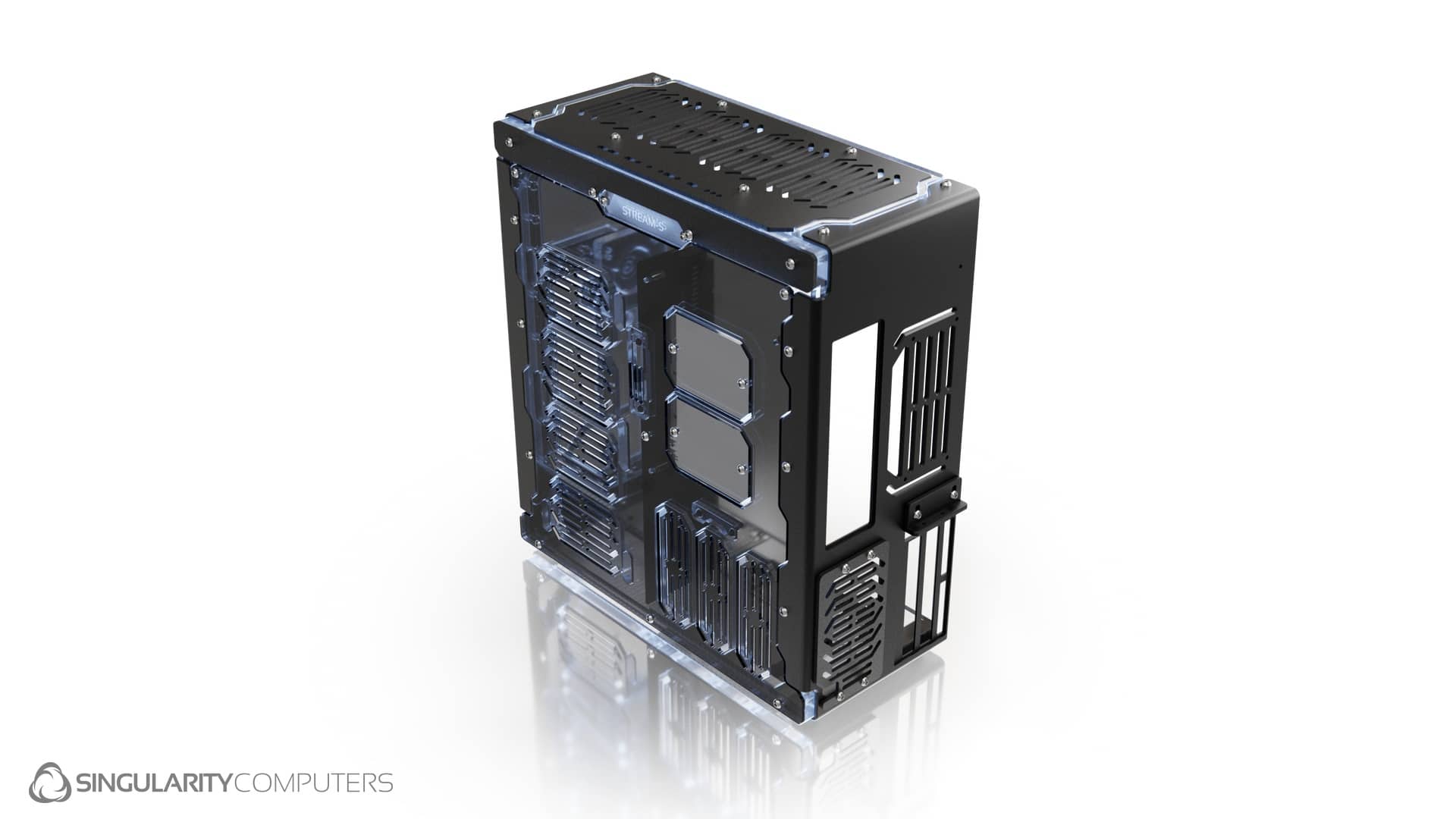

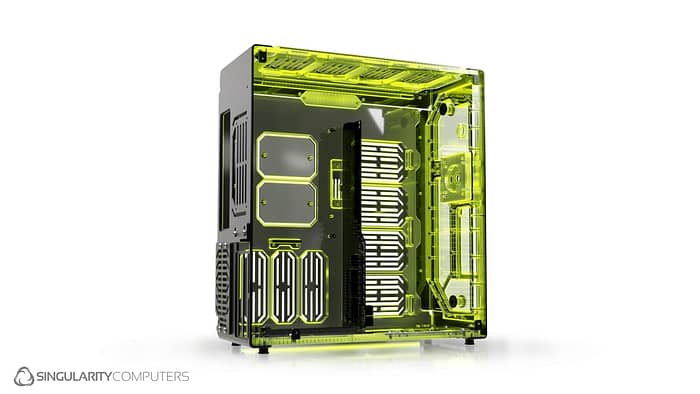

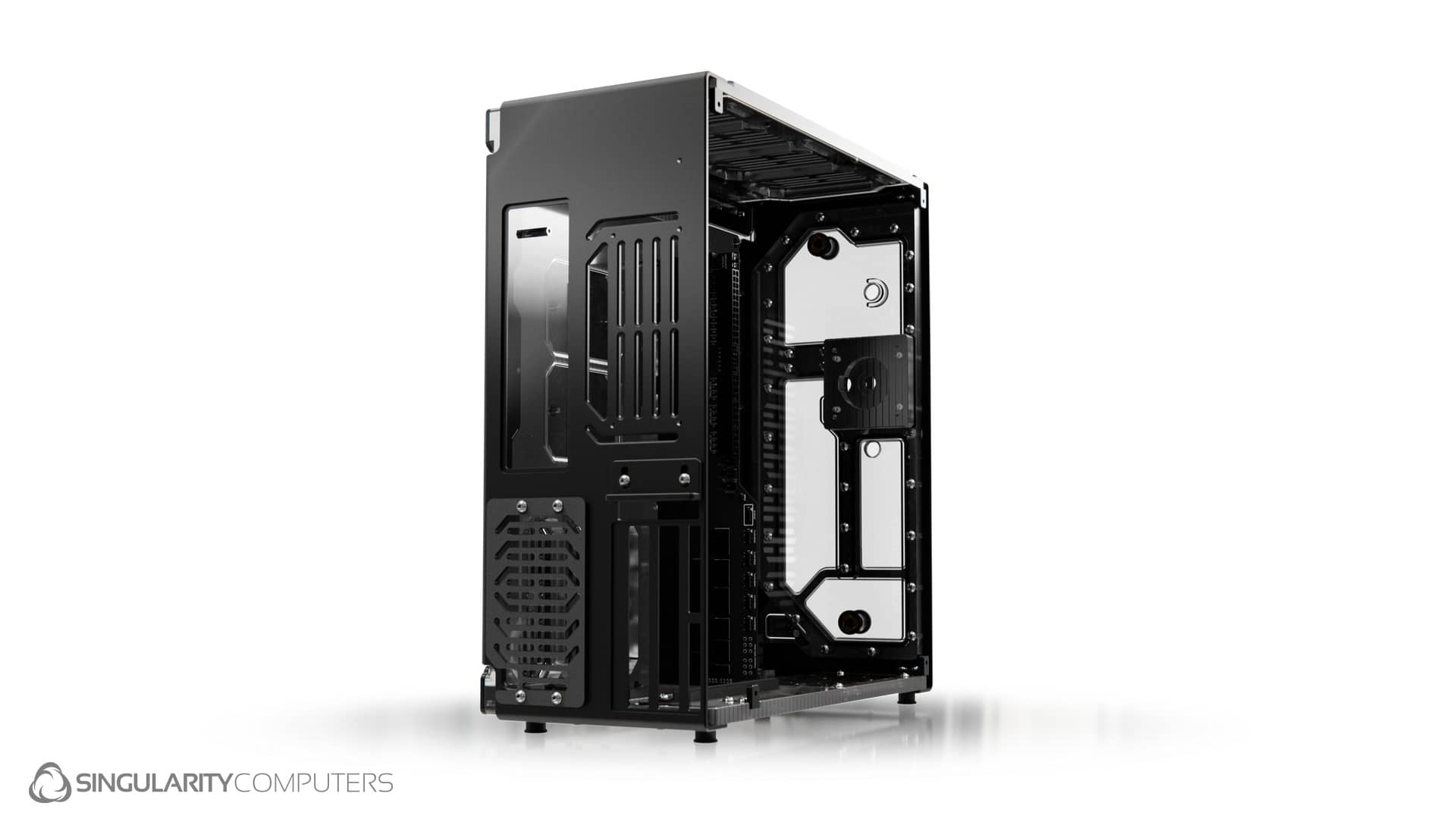

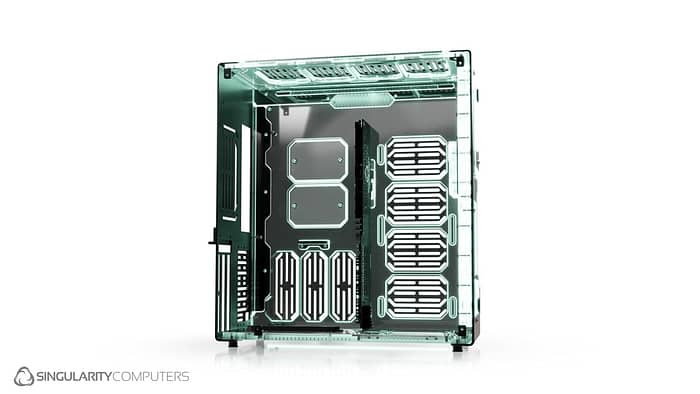

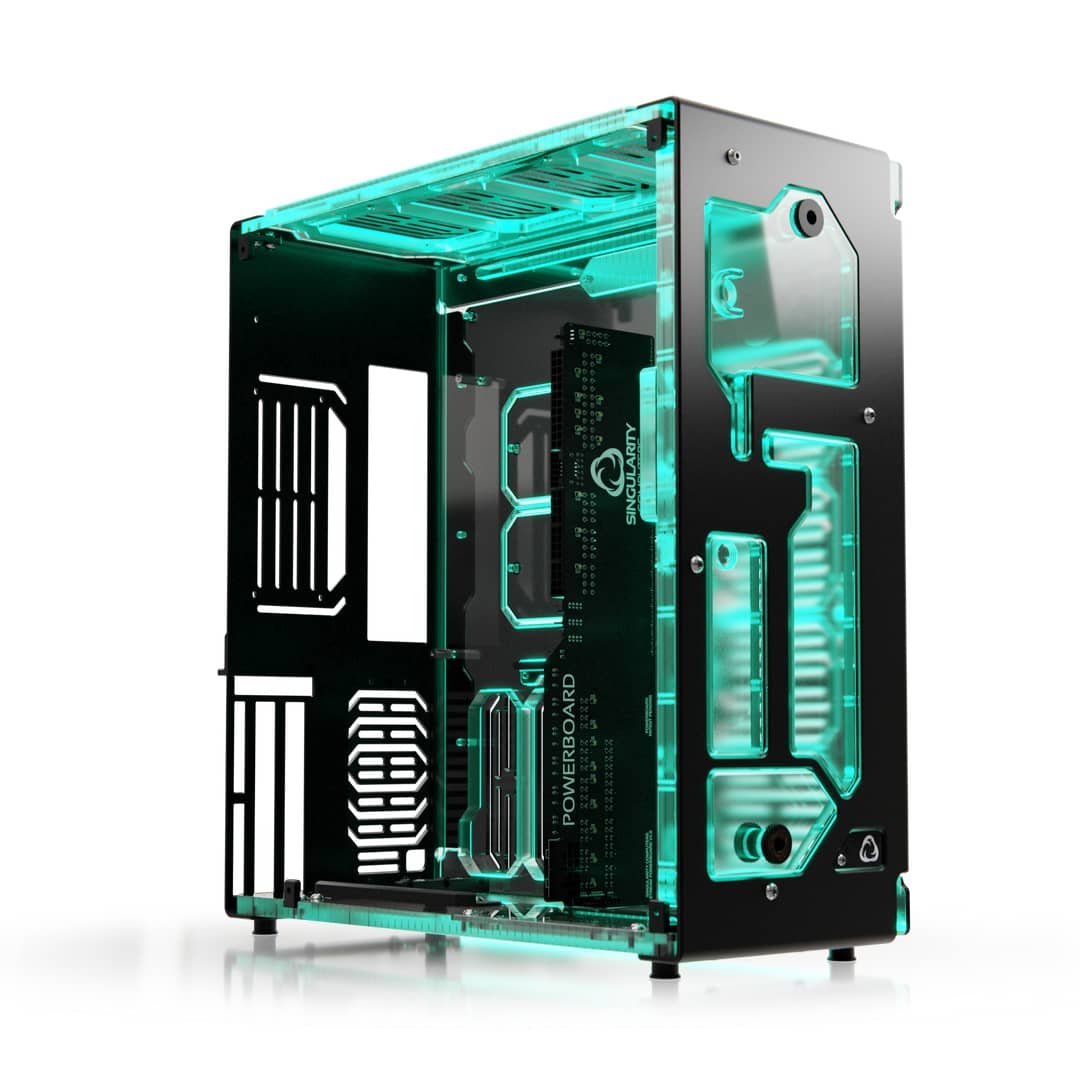

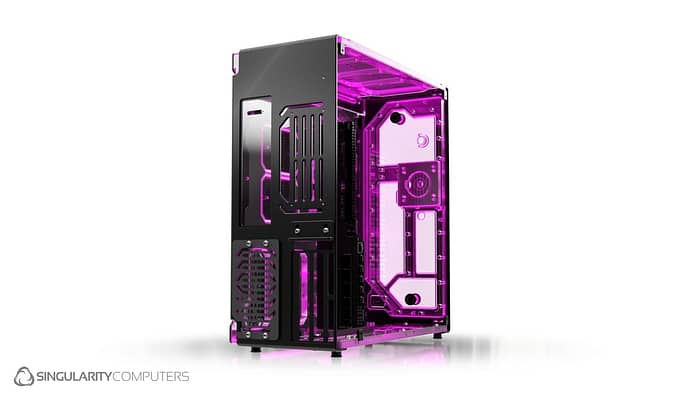

Stream-S ITX Water-cooling Case

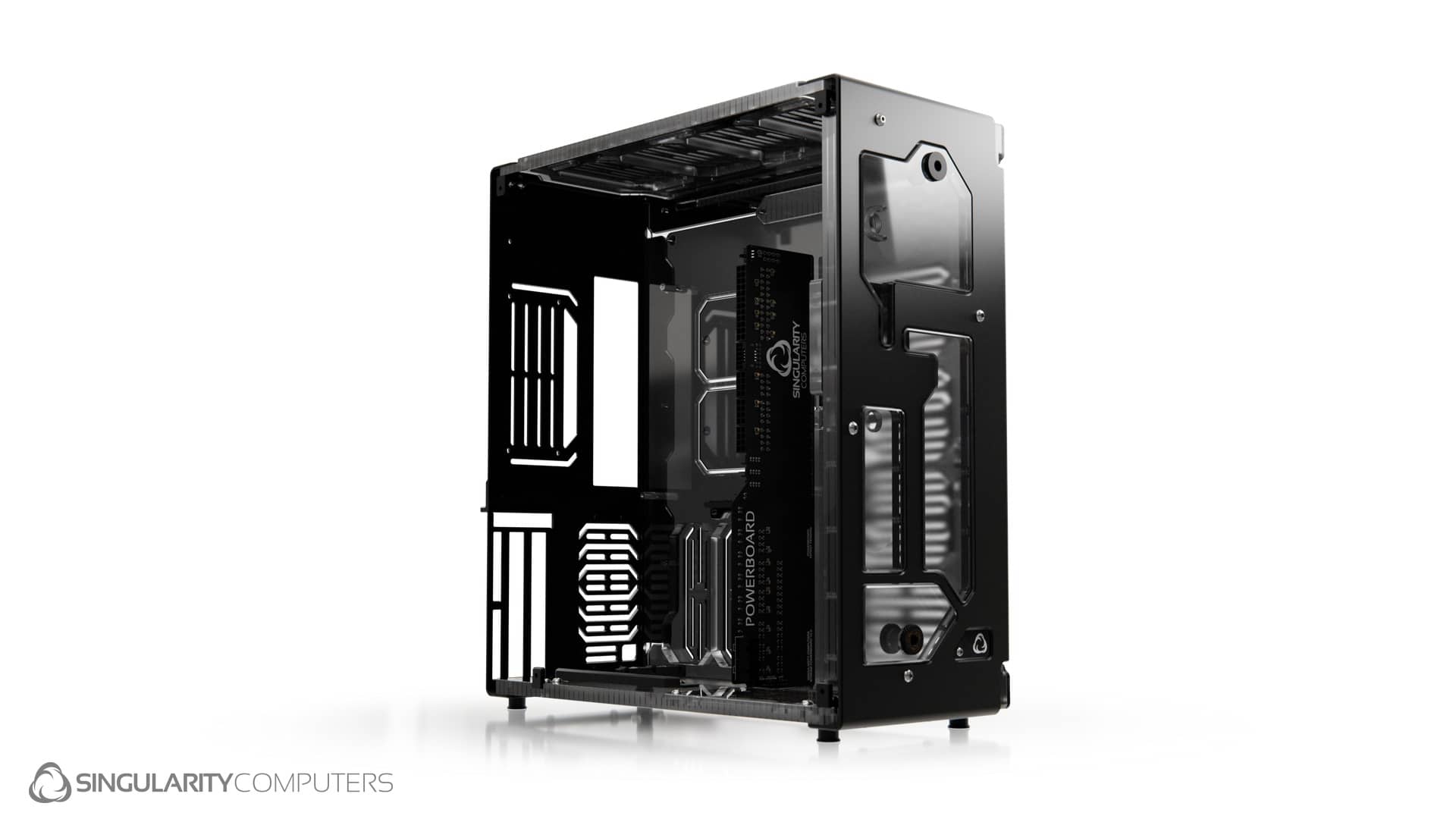

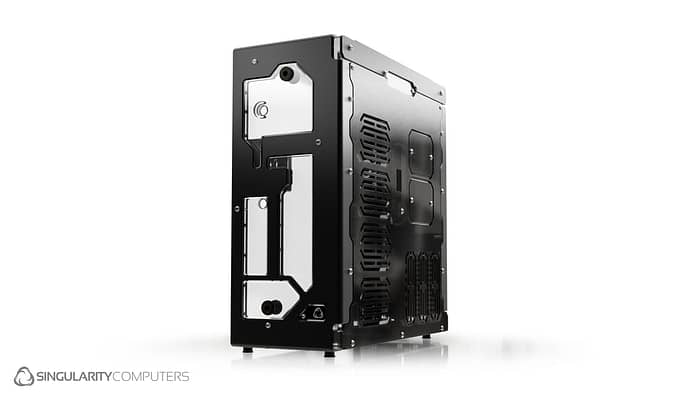

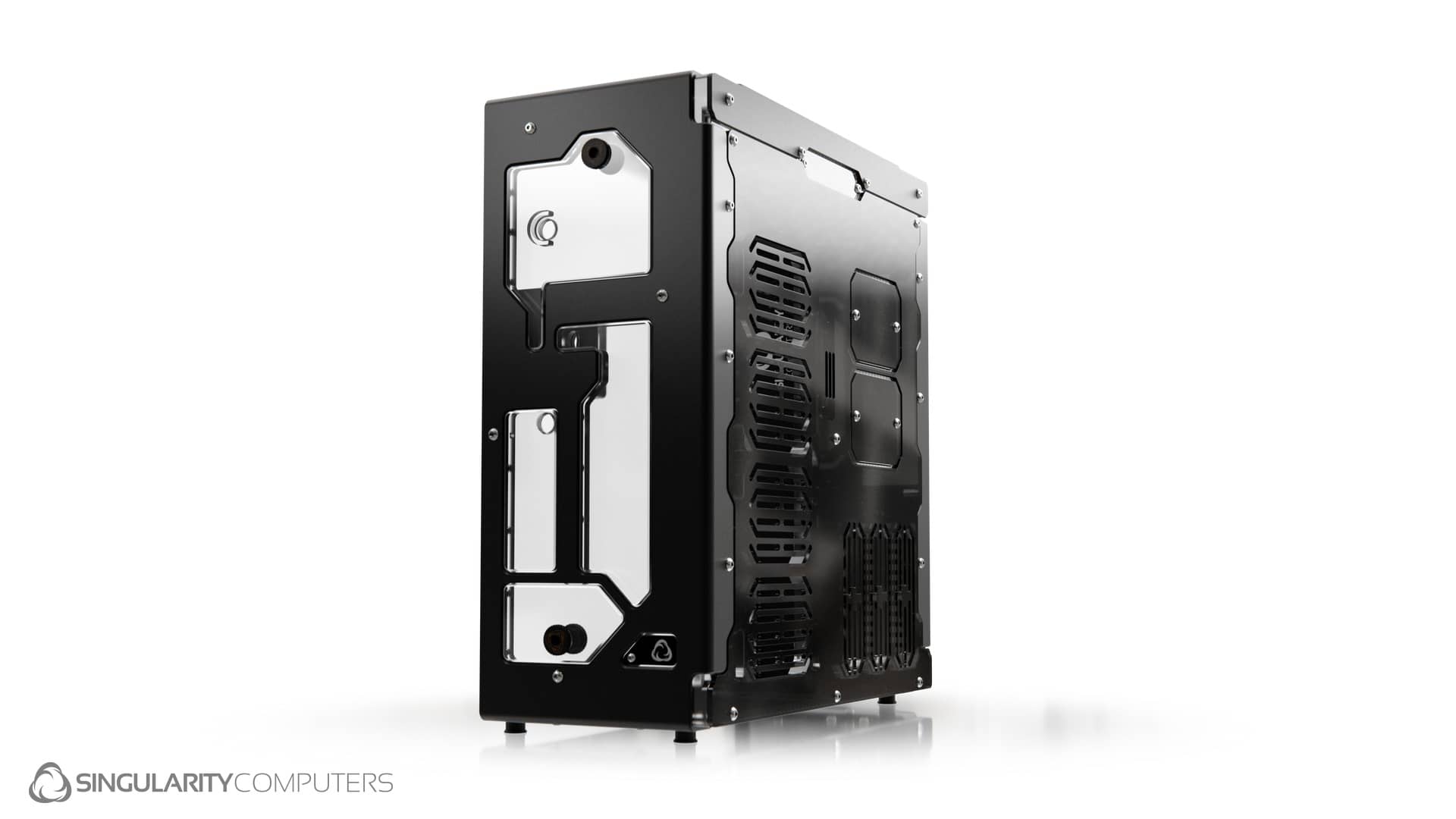

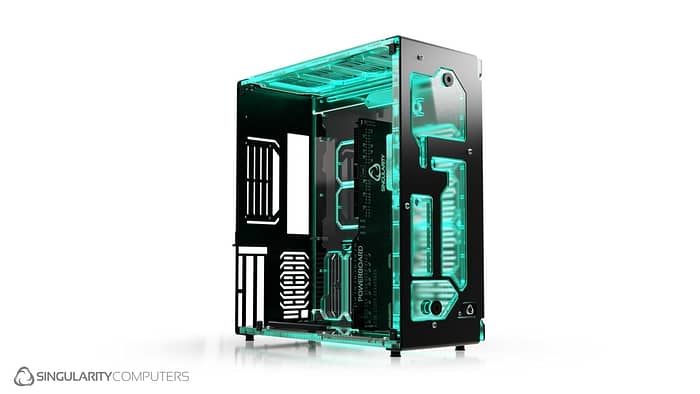

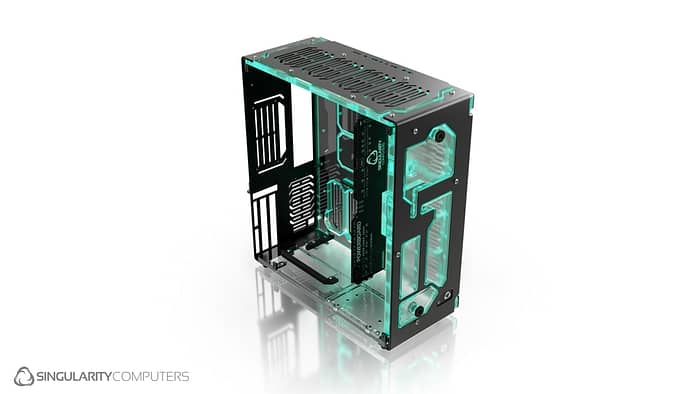

Stream-S is an SFF case designed for high end water-cooling. It has a distribution plate on the front panel which integrates a pump and reservoir. It fits x2 240mm radiators, a full sized GPU and 2x 2.5” drives. Stream-S is the first case which does not need wires for the main cables. It has a PowerBoard which connects directly to the PSU and includes flexible PCBs which connect the PowerBoard to the motherboard and GPU. The PowerBoard and flexible PCBs remove the need for cable management and make the cables extremely clean and compact which is particularly important for an SFF case.
IMPORTANT: Only compatible with Asus Loki series PSUs up to 1000W.
Pump not included. Compatible with any DDC Pump.
Original price was: US$499.00.US$424.15Current price is: US$424.15.
DDC to D5 Conversion Kit Manual
Specifications
Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all DDC pumps.

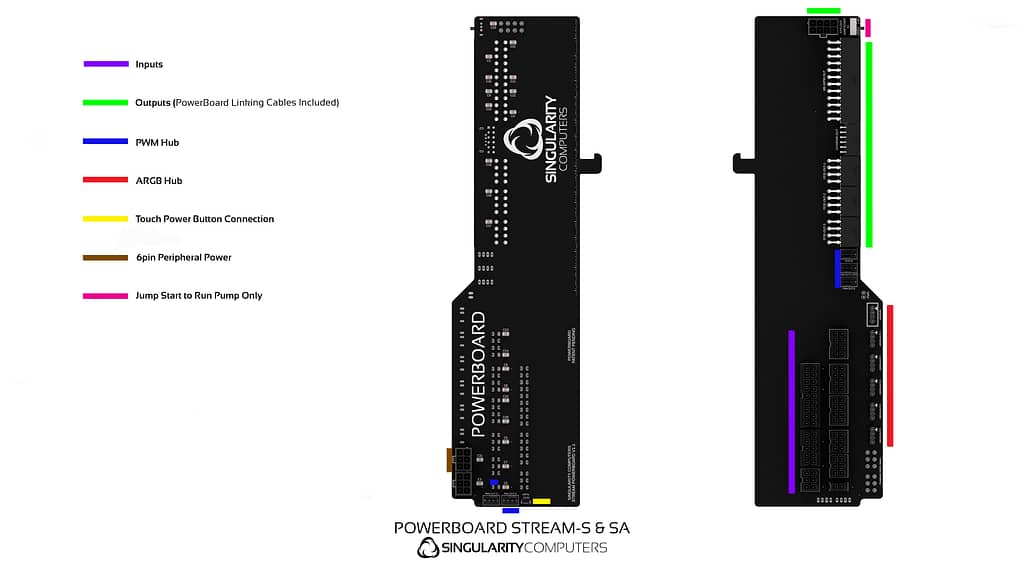

Electronics Integration:
Core Component Connectors: 24pin x1. 8pin EPS x1. PCIE 8pin x3. 12V2x6/PCIE 5.1 x1. 6pin PSU x2.
Hubs: PWM x4. ARGB x5 (Single input for all).
Extra Power Button.
Inbuilt PSU Jump starter for powering the pump only, for filling the loop.
Cables: PowerBoard Linking FPC Cables: 24pin x1. 8pin EPS x1. Select either 8pin PCIE x3 or 12V2x6/PCIE 5.1 (non FPC) Cable.
PWM Female to Female 50cm Black Sleeved x1.
ARGB Female to Female 50cm Black Sleeved x1.
LED Strips: x3 Installed on the Distribution Plate, the Motherboard Tray, and the Top Panel.
Motherboard Form Factor: Mini-ITX.
Expansion Slots: x2.
Case Form Factor: SFF.
Storage: 2x 2.5”.
Radiators: 240mm x 30mm with x1 set of standard 25mm fans.
Maximum GPU Length: 323mm.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: 138mm.
Maximum PSU Length: Compatible only with the Asus ROG Loki series.
Front Panel I/O: No Front I/O. Touch activated button.
Vertical GPU Mount: x1, 2 slot. PCIe 4.0 Vertical GPU Riser Cable 20cm.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Aluminium Folding, PCB.
Assembly: Distribution Plate Assembled by Hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Case Dimensions: L: 346mm x W: 165mm x H: 381mm.
Case Weight: 6kg.
Packaged Dimensions: L: 406mm x W: 225mm x H: 441mm (Case comes fully assembled).
Packaged Weight: 6.5kg.
Addon Information
DDC Pump Cover: The Singularity Computers DDC Pump Cover is built from CNC machined anodized aluminum. It covers the DDC to improve aesthetics, but it also has a built in heatsink for extra cooling of the pump motor which is known to run hot and is not cooled by the coolant. The DDC Pump Cover has a Singularity Computers logo on the base. It is compatible with all DDC Pumps and Pump Tops.
