Wires

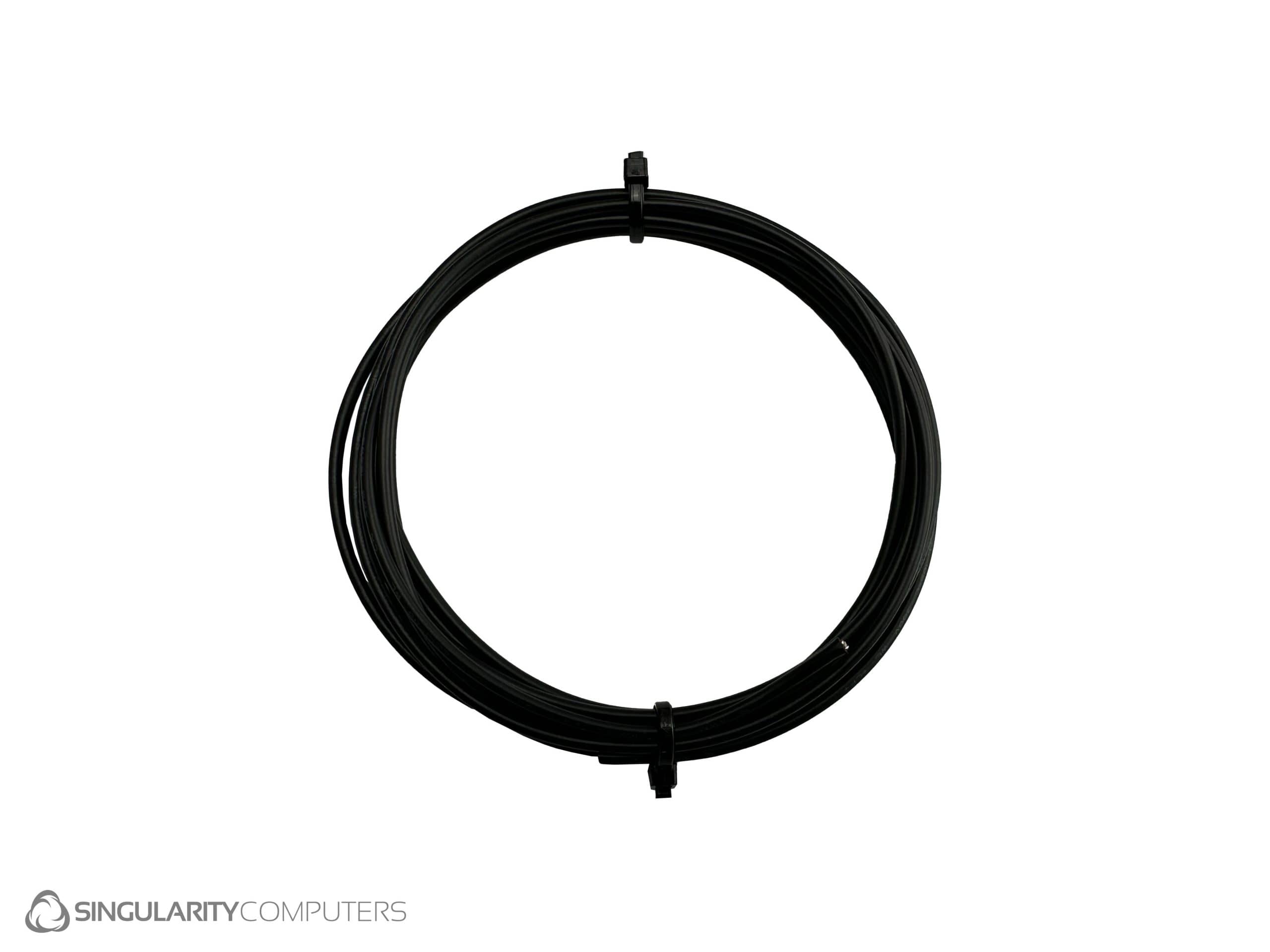

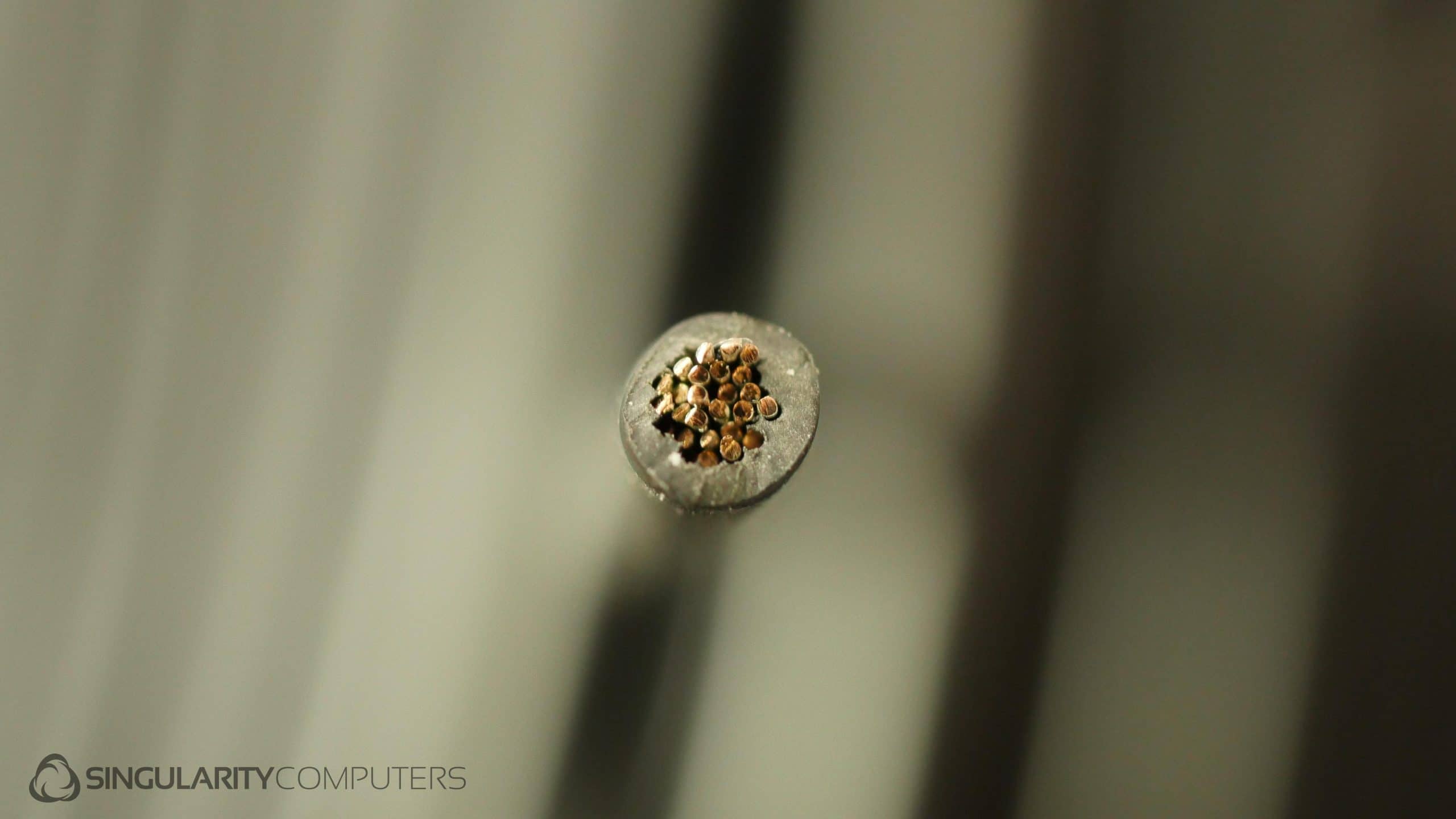

16AWG is used for 24pin, PCIE and EPS. This wire has an outer diameter of 2mm. There is text on the wire but its hardly visible and will not show up through sleeving. The insulation is firm so it creates a good strong crimp . The wire holds its position well so it can be trained easily.

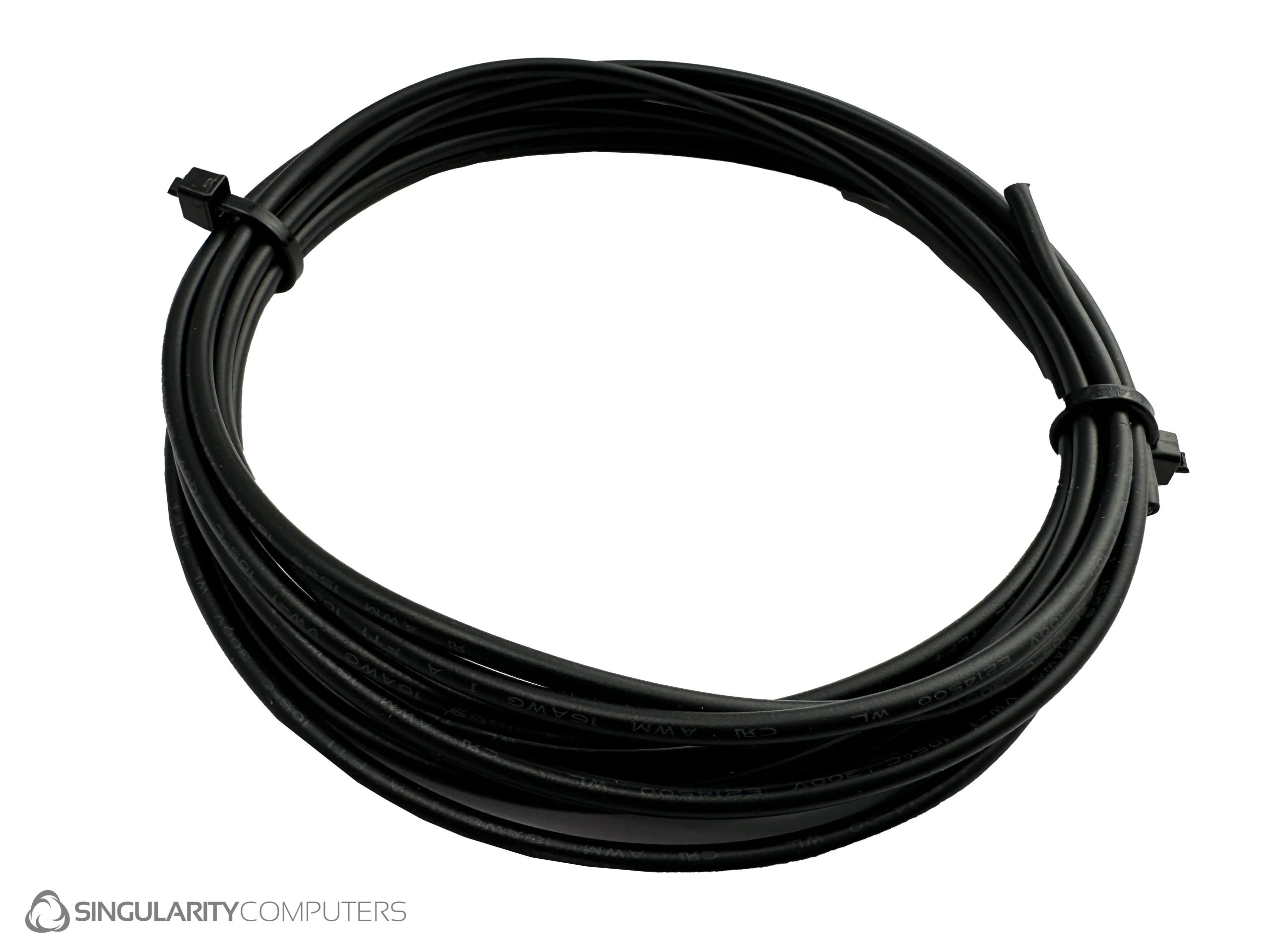

18AWG is used for 24pin, PCIE, EPS, Molex, SATA. This wire has an outer diameter of 1.75mm. There is text on the wire but its hardly visible and will not show up through sleeving. The insulation is firm so it creates a good strong crimp. The wire holds its position well so it can be trained easily.

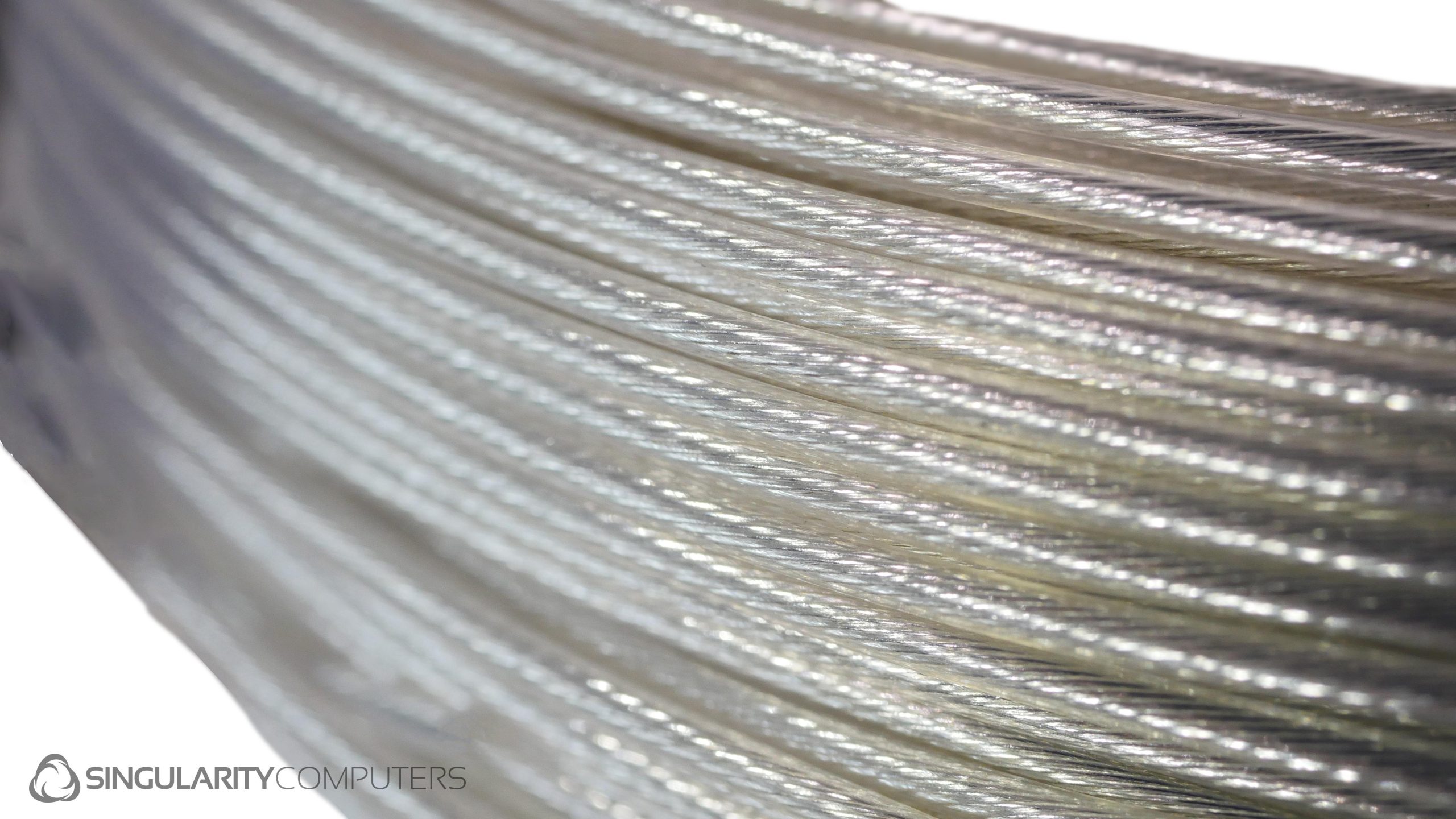

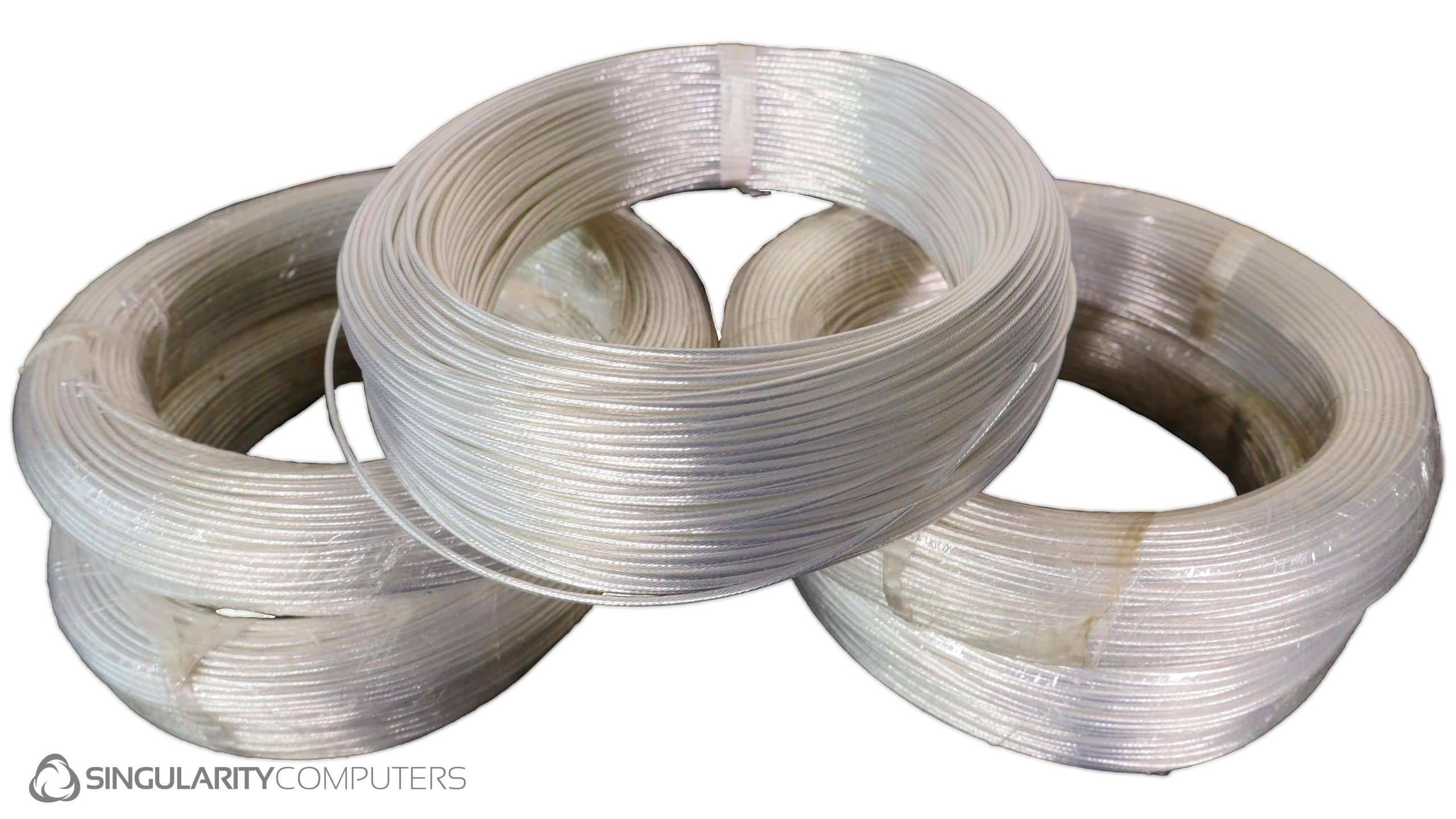

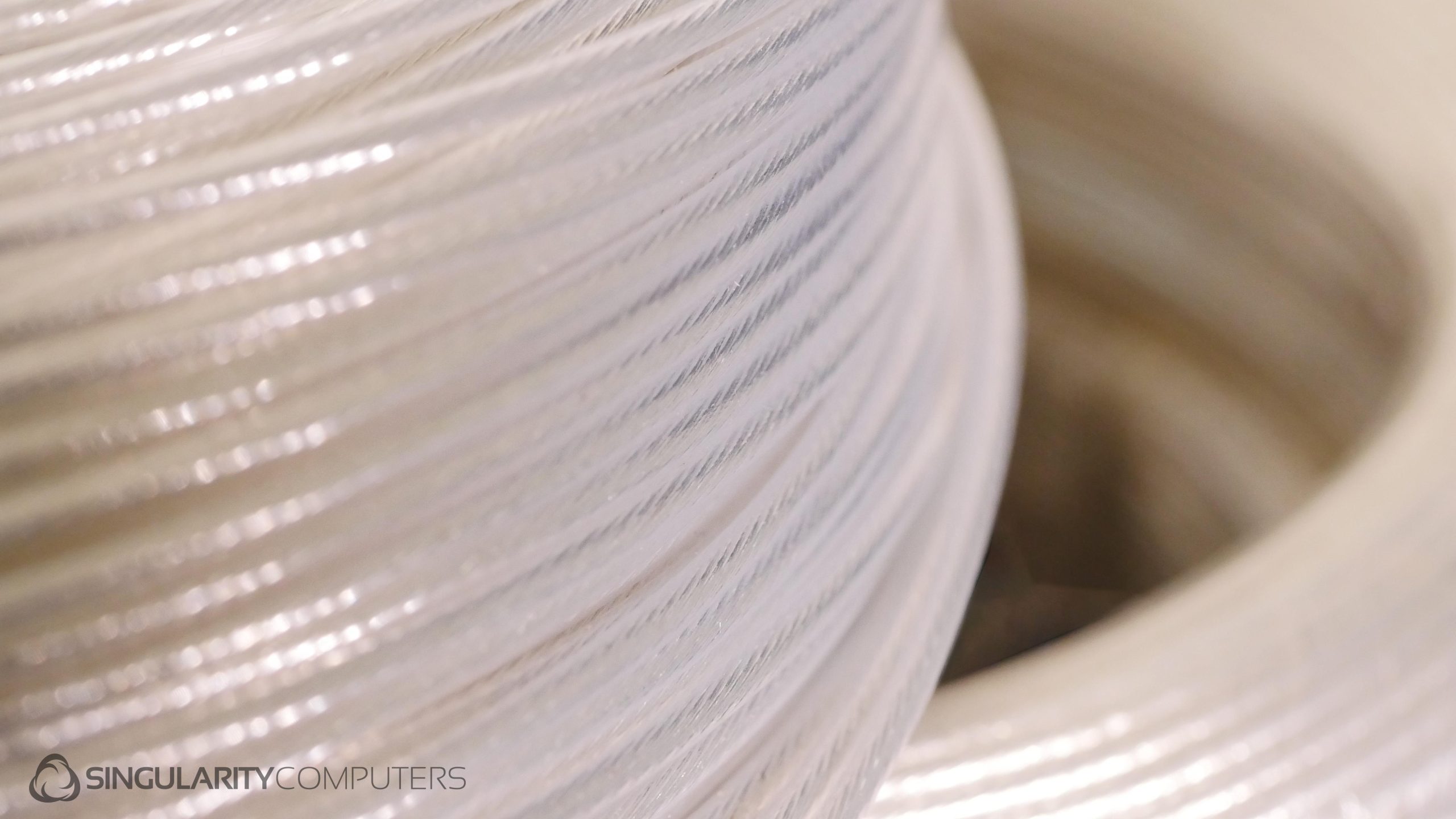

18AWG Silver Plated Wire
AWG : 18
Diameter : 1.50 mm
Conductor Construction : 19 x 0.32 mm
Insulator Thickness : 0.40 mm
Overall Diameter : 2.30 mm
Nominal Voltage : 600 v
Temperature range : -65 ~ +200 c.

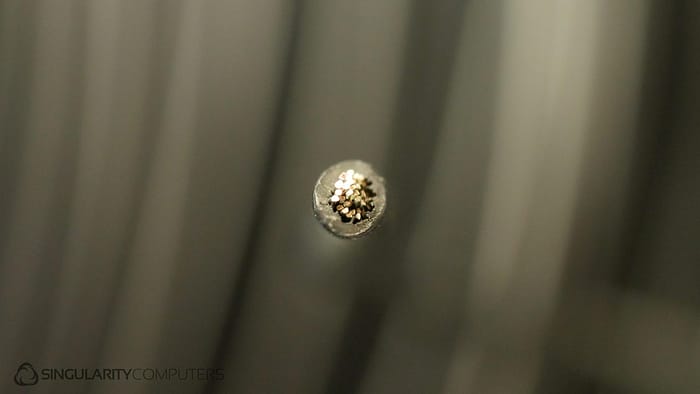

22AWG is used for fans, lighting, power/reset, front I/O. This wire has an outer diameter of 1.3mm. There is text on the wire but its hardly visible and will not show up through sleeving. The insulation is firm so it creates a good strong crimp. The wire holds its position well so it can be trained easily.

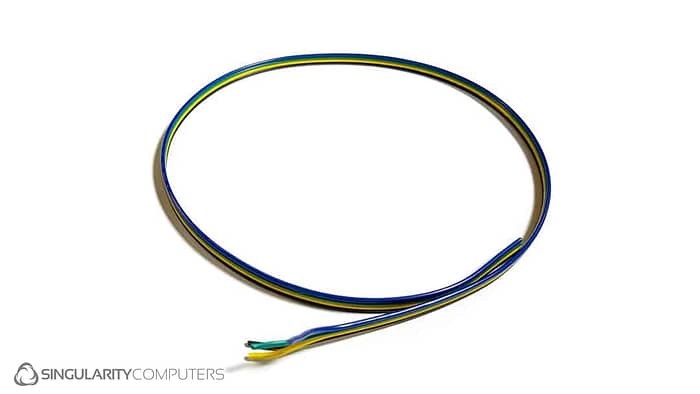

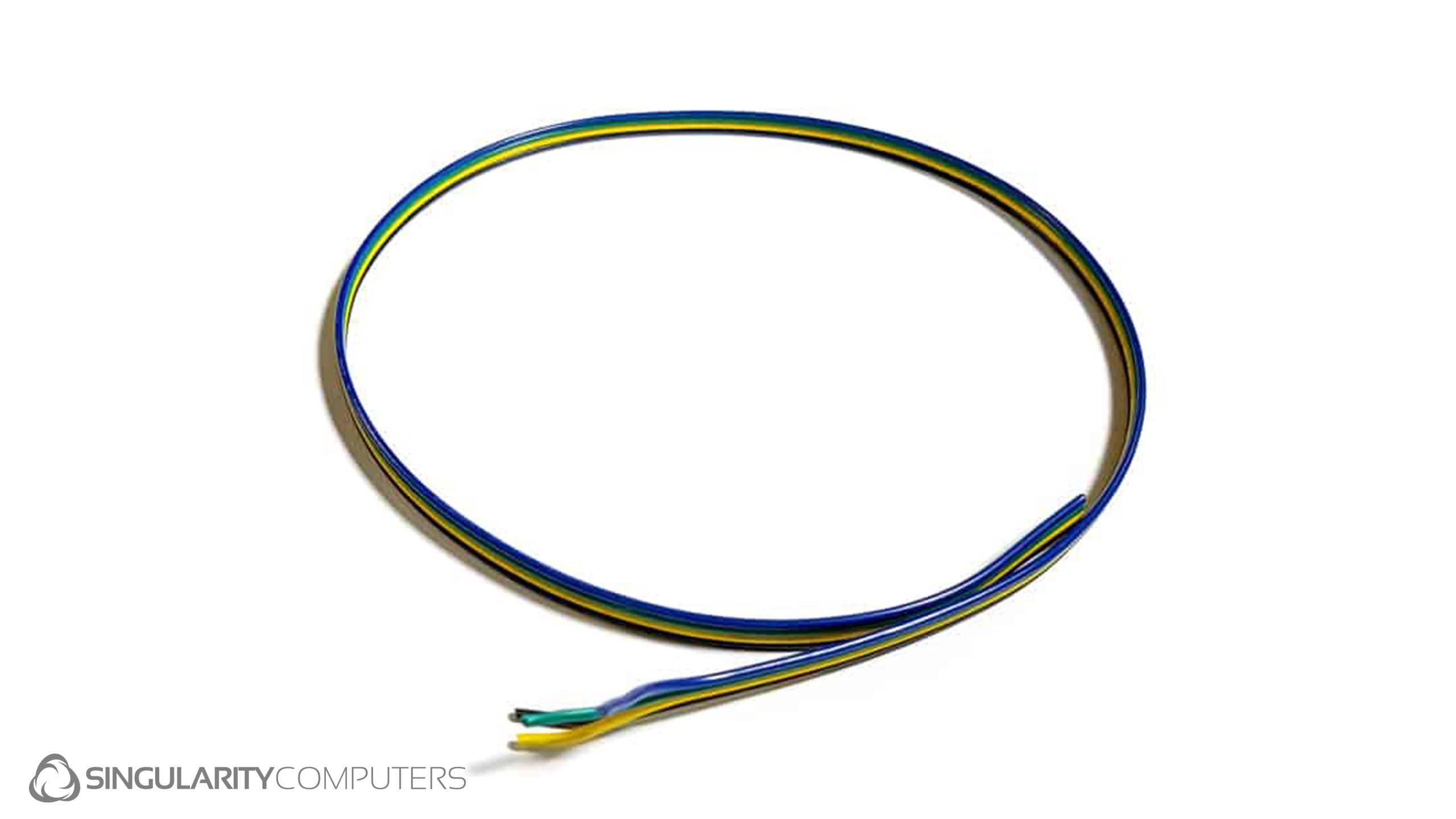

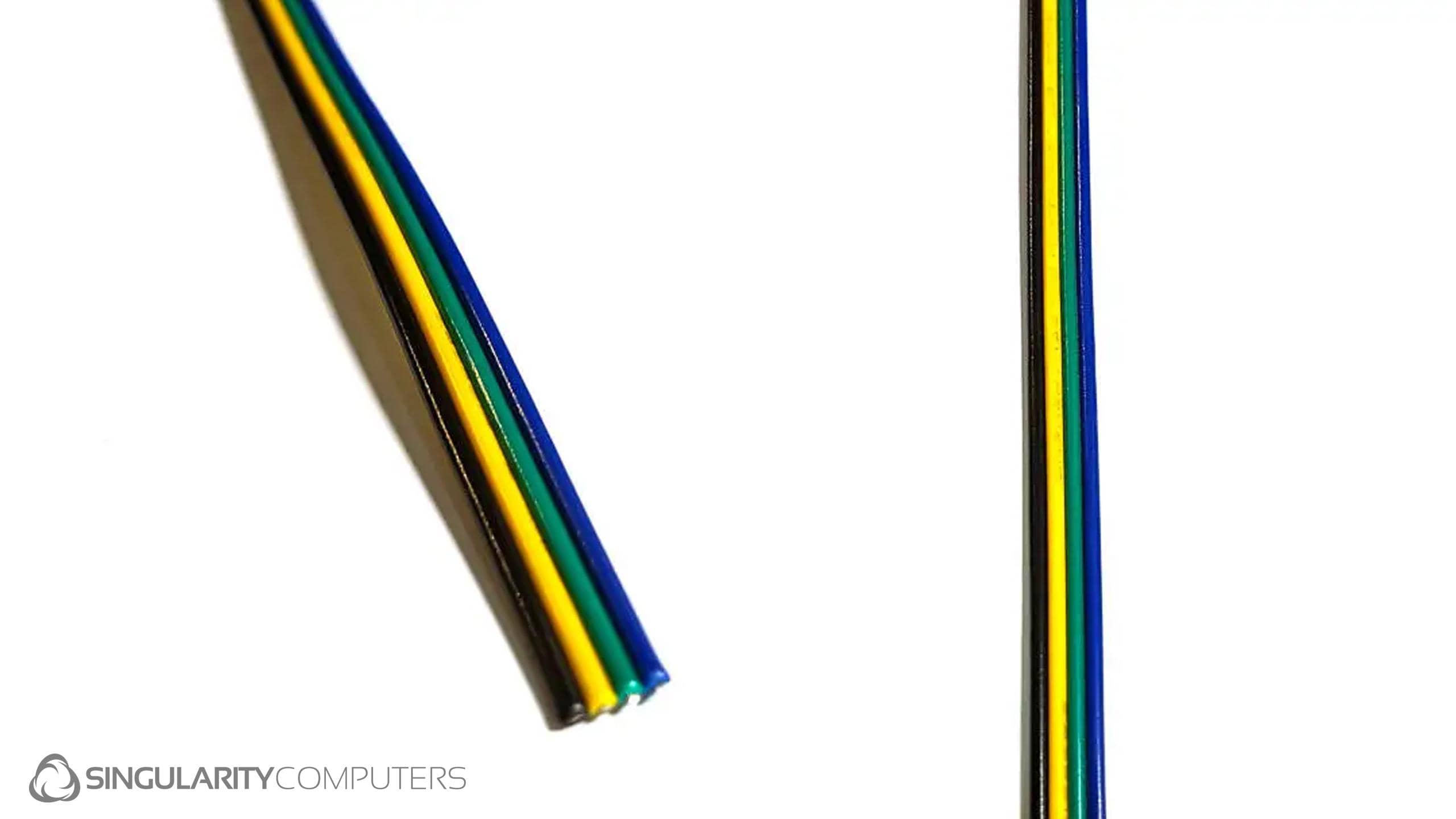

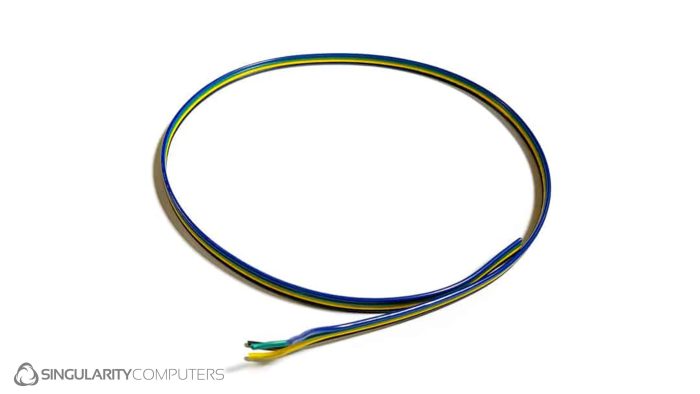

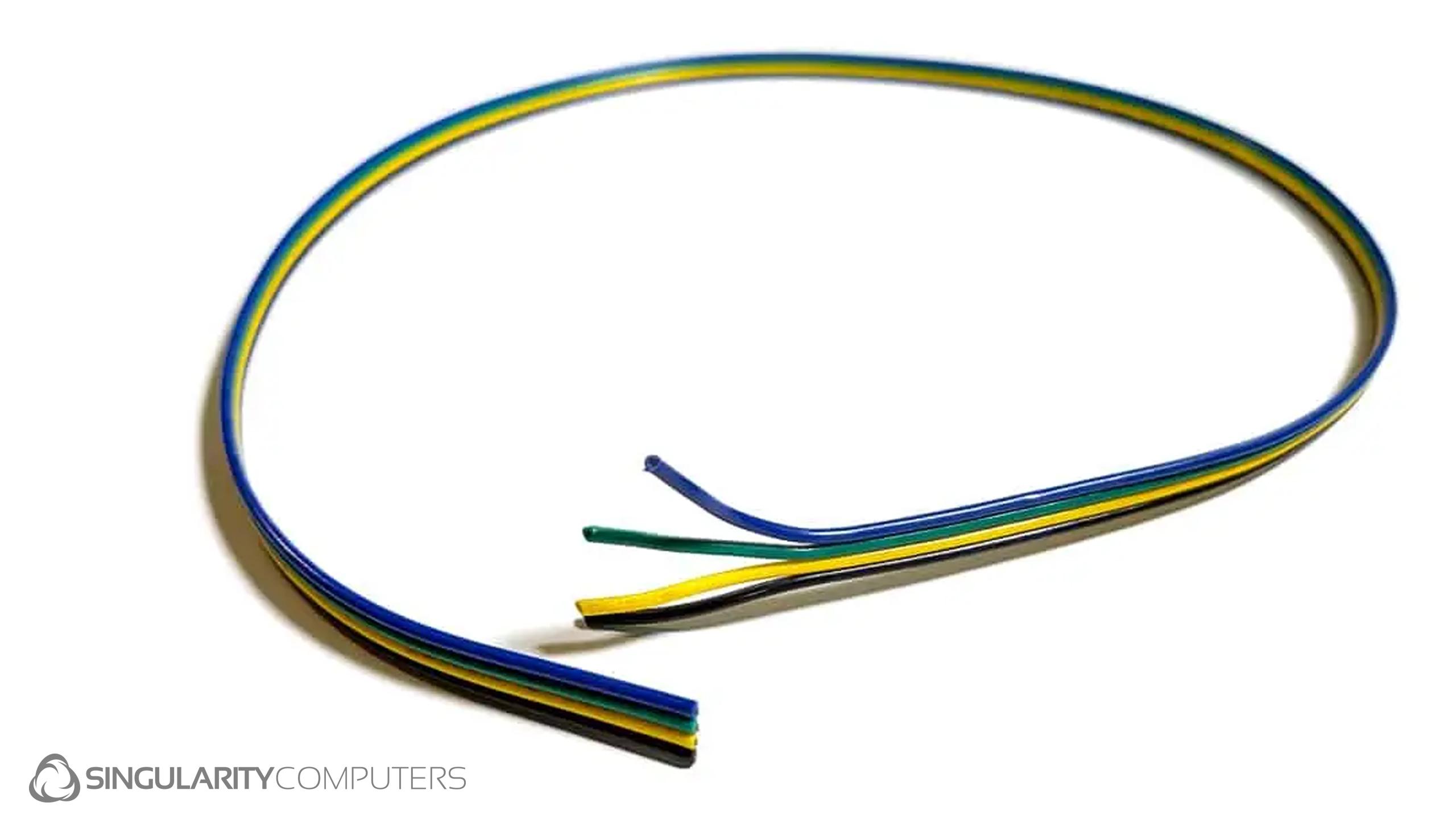

22AWG Colour Coded Wire is for making custom fan and lighting cables. It is colour coded so that there is no need to mark the pin out.
