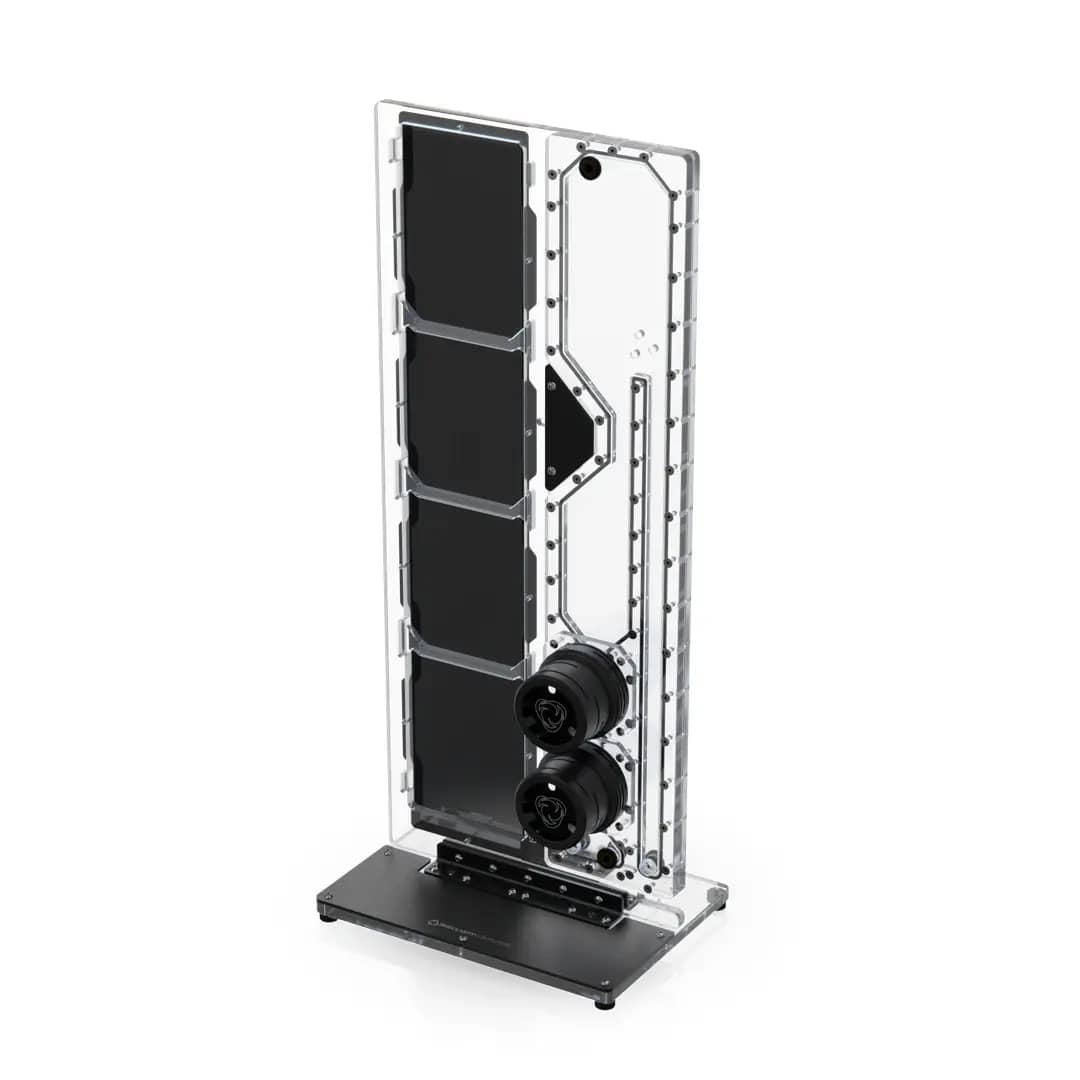

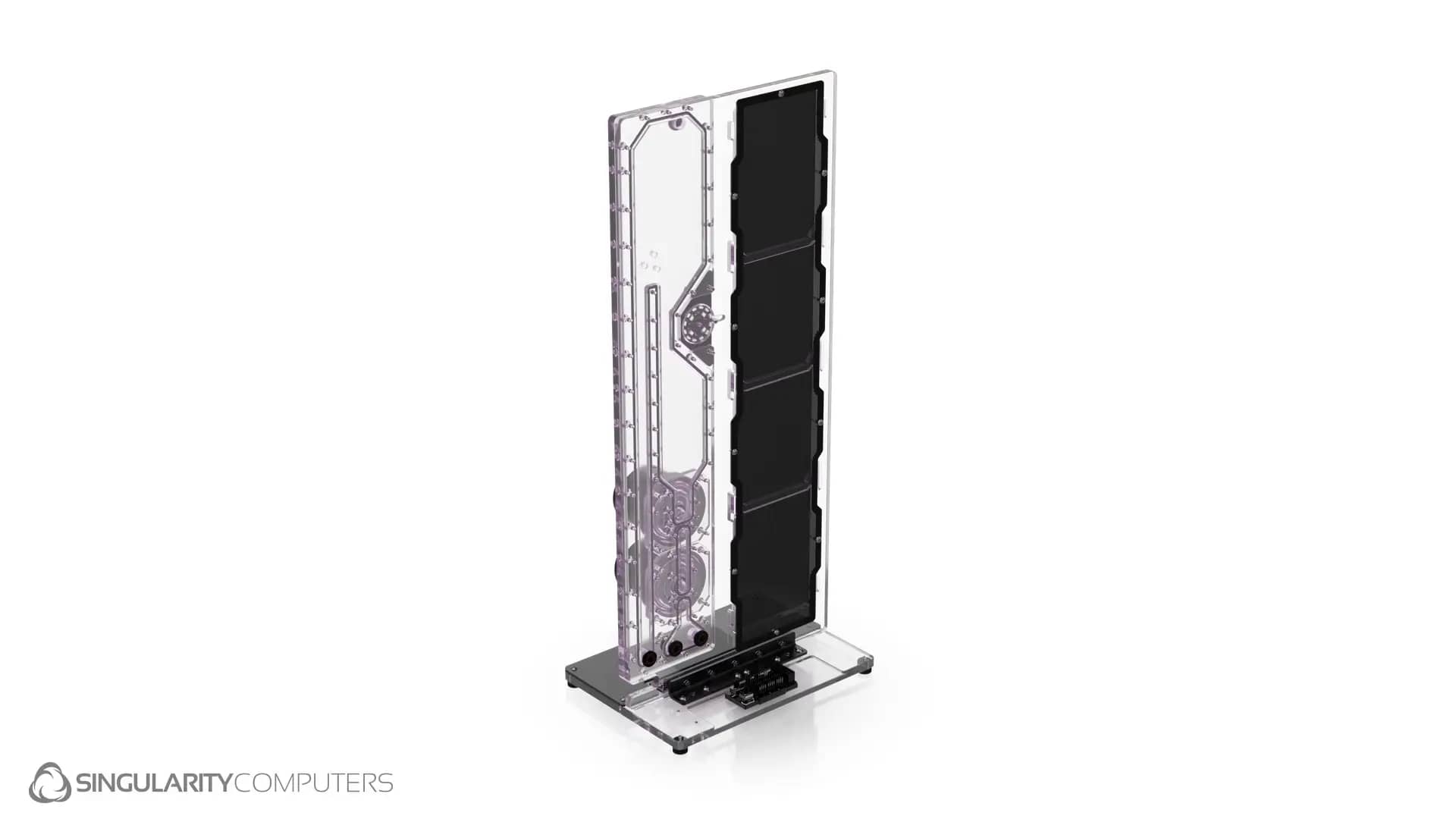

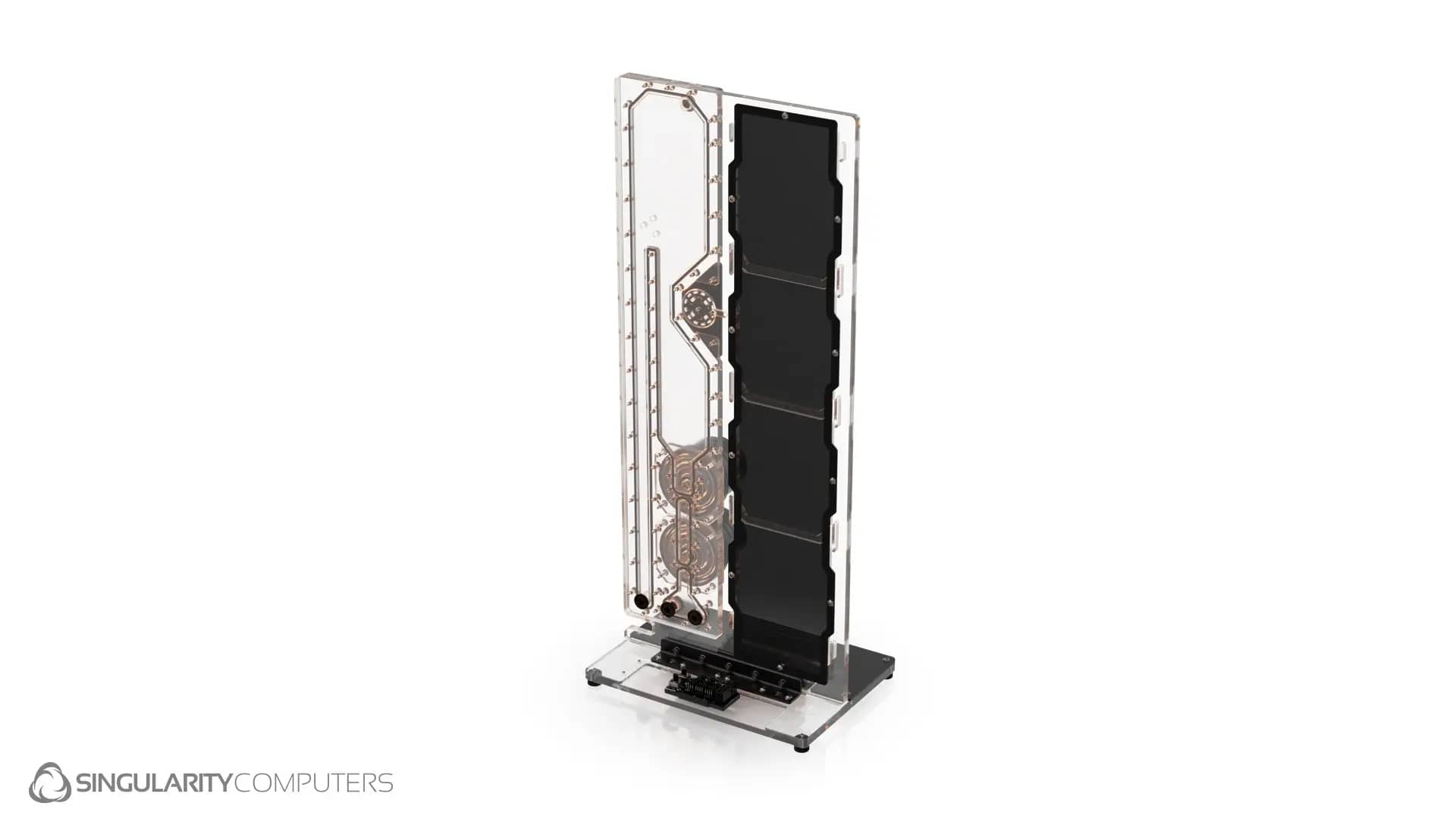

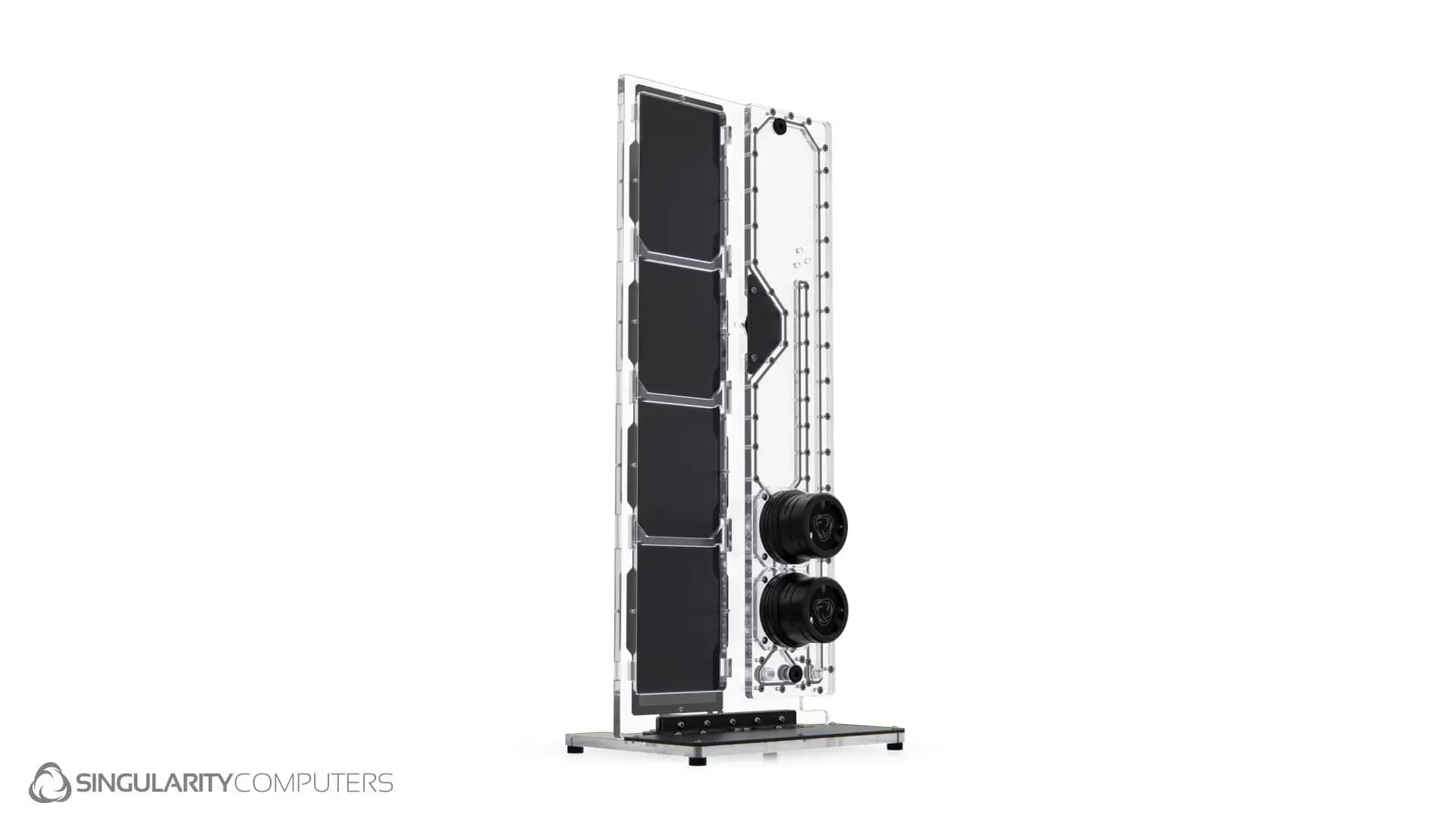

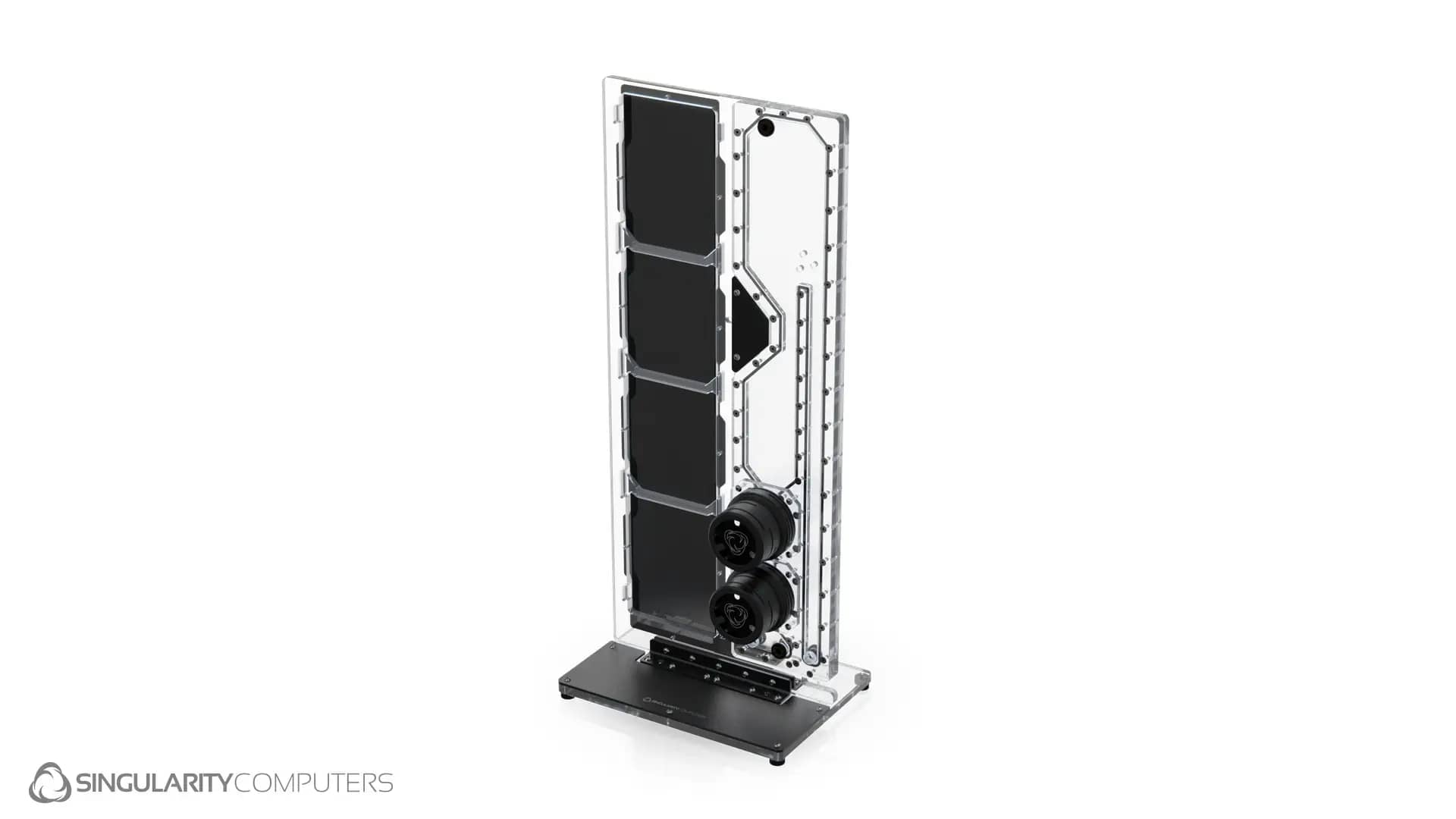

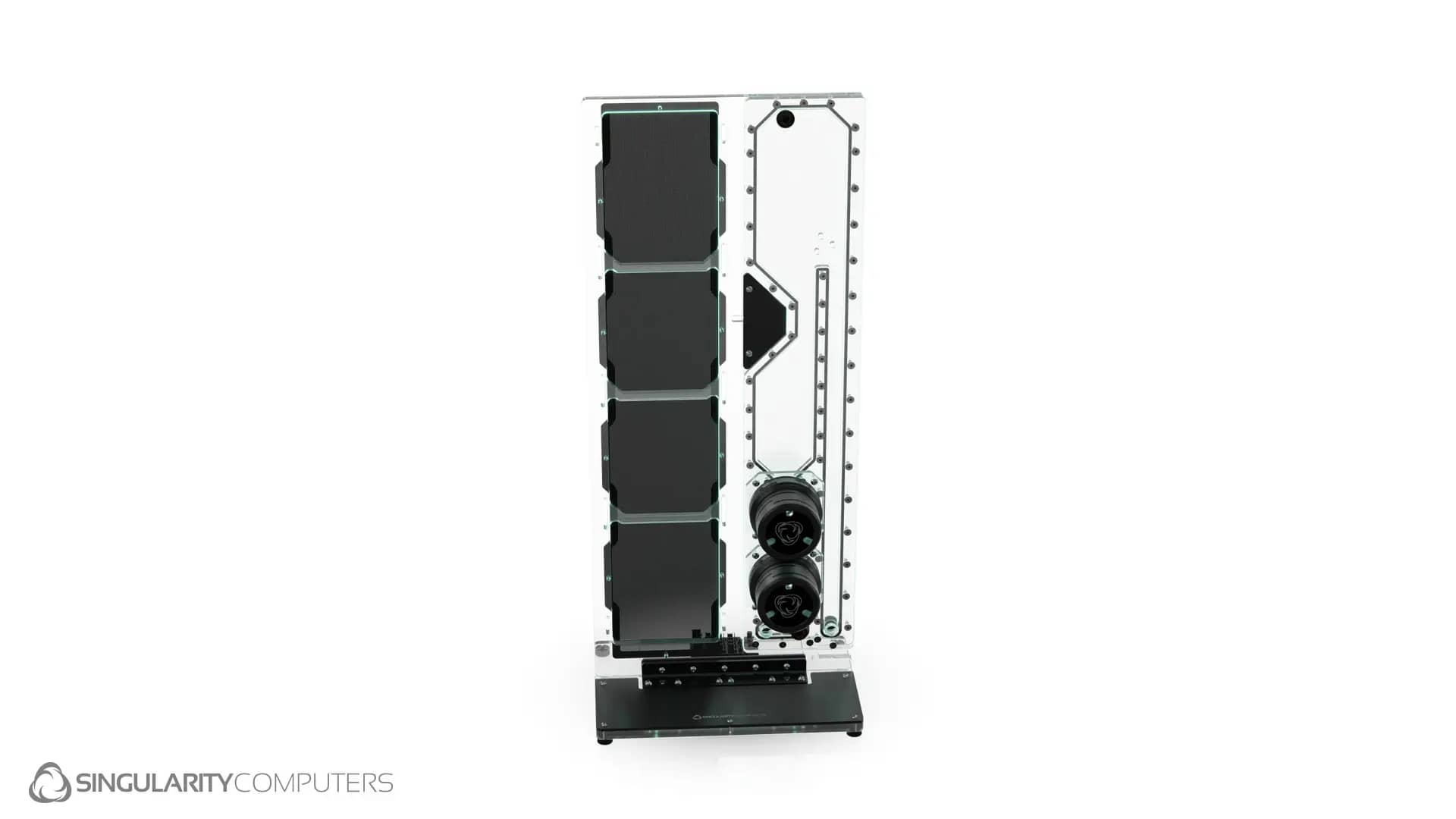

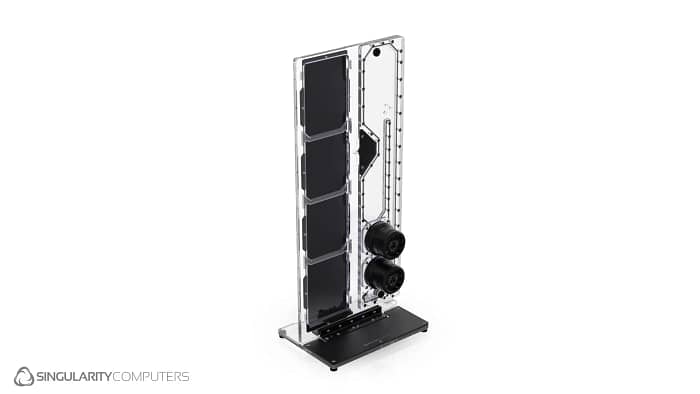

Arterial 2 560mm External Water-cooling System

In stock

Order processing time 1-2 days.

  • 560mm external water-cooling system
  • Supports unlimited radiator thickness and push-pull fan configurations
  • Integrated distribution plate with reservoir, pump tops and pump covers
  • Hub with temperature-based RPM control and adjustable pump and fan curves
  • Integrated PCB lighting for the distribution plate
  • CNC-machined components with cast acrylic distribution plate
  • Stainless steel fasteners for durable assembly

Manuals

US$399.00

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror Silver Mirror Gold Mirror Satin Black

The distribution plate will remain transparent, this colour is only for the case and distribution plate cover panels.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour x2 (included)
None Black Silver Black

 Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options x2 (optional) USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

  • 1x Arterial 2 560mm External Water-cooling System
    US$399.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182005941 SKU: SC-ART2-560-EWS Category:

Description

Read More +Read Less − full description

Arterial 2 560mm External Water-cooling System. It fits up to a 560mm radiator of unlimited thickness and can fit push pull fans. It has a distribution plate which integrates a reservoir, pump tops and pump covers. It comes included with a hub which has temperature-based RPM control with adjustable RPM curves for the pumps and fans. There is an integrated PCB which lights up the distribution plate. All components are CNC machined, the distribution plate is made from cast acrylic and the fasteners are stainless steel.

Youtube video

Youtube video

Specifications

Distribution Plate. Clear Cast Acrylic. CNC Machined.
D5 Pump Tops. X2. Clear Cast Acrylic. CNC Machined.
D5 Pump Covers Black. x2. Clear Cast Acrylic. CNC Machined.
D5 O-rings. X2. Clear Silicone.
Mini-Node Hub. Black Dual Layer PCB.
Plastic tray with adhesive for attachment.
Inputs: PWM x2 (1x FAN 1x PUMP). PCIE 8pin x1. T-sensor (10K NTC thermistor).
Outputs: PWM x9 (8x FAN 1x PUMP). 4Pin ATX.
The maximum output per PWM header is 3A.
Cables: PWM 500mm Black Sleeved x2. Pump Power Cable 4pin ATX to 2x SATA & Molex.
A PCIE 8pin power connector can supply up to 150W of power to the fans and pumps.
Dimensions: L: 550mm x W: 385mm x H: 200mm.
Weight: 8kg.
Packaged Dimensions: L: 600mm x W: 400mm x H: 200mm.
Packaged Weight: 9kg.
