Arterial 2 360mm External Water-cooling System

In stock

Order processing time 1-2 days.

  • 360mm external water-cooling system with unlimited radiator thickness
  • Supports push-pull fan configurations
  • Integrated distribution plate with reservoir, pump tops and pump covers
  • Integrated PCB with distribution plate lighting
  • CNC-machined components with cast acrylic distribution plate and stainless steel fasteners

Manuals

US$329.00

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror Silver Mirror Gold Mirror Satin Black

The distribution plate will remain transparent, this colour is only for the case and distribution plate cover panels.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour x2 (included)
None Black Silver Black

 Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options x2 (optional) USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Case Accessories

Mini-Node Hub (optional) USD $39
None Yes +US$39.00

Mini-Node Hub
A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-OUT displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need for a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps. The Mini-Node has 8 fan outputs and 1 pump output.

Mega-Node Hub (optional) USD $49
None Yes +US$49.00

Mega-Node Hub
A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-1-OUT-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need of a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature-based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps. The Mega-Node has 16 fan outputs and 1 pump output.

Ultra-Node Hub (optional) USD $69
None Yes +US$69.00

Ultra-Node Hub
A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The Ultra-Node is similar to the Mega-Node except that it has a connection for the FanGuardian PowerBoard Controller, and it has three ARGB connections. From the FanGuardian you can control ARGB lighting and you can monitor all RPMs, temperatures and voltages. Combined with the FanGuardian the Ultra-Node is a standalone management and monitoring system for a water-cooling loop, and it is an ARGB controller. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-OUT-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need of a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature-based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps.

FanGuardian PowerBoard Controller (optional) USD $149
None Yes +US$149.00

Fanguardian PowerBoard Controller
The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.

  • 1x Arterial 2 360mm External Water-cooling System
    US$329.00

Subtotal excludes shipping & tax

All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188000946 SKU: SC-ART2-360-EWS Category:

Description

Read More +Read Less − full description

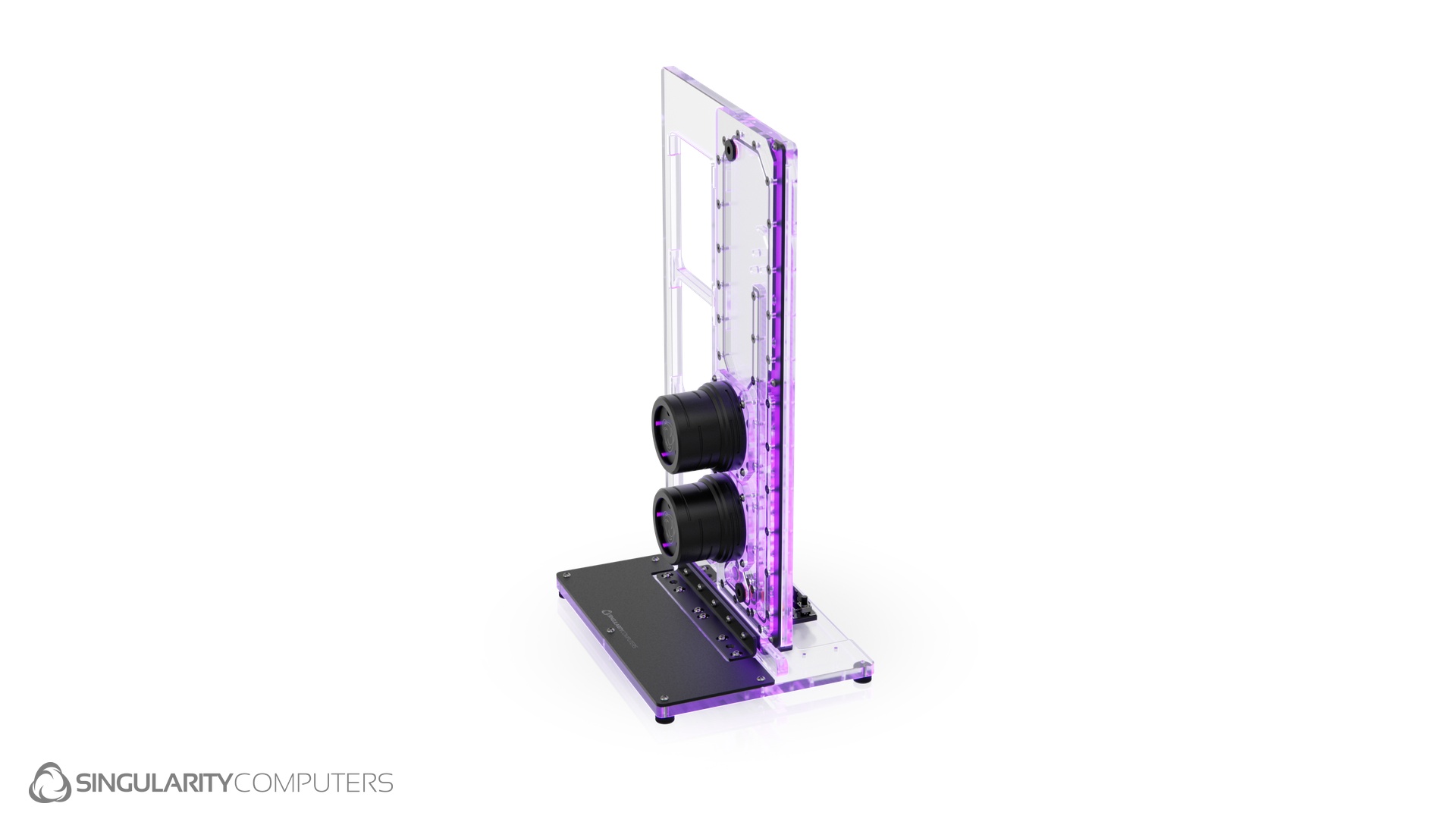

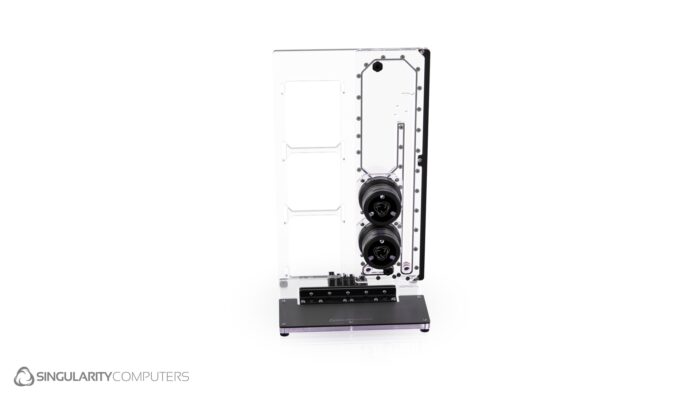

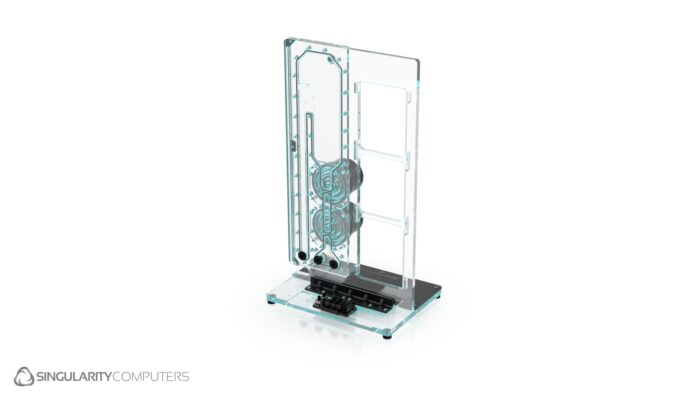

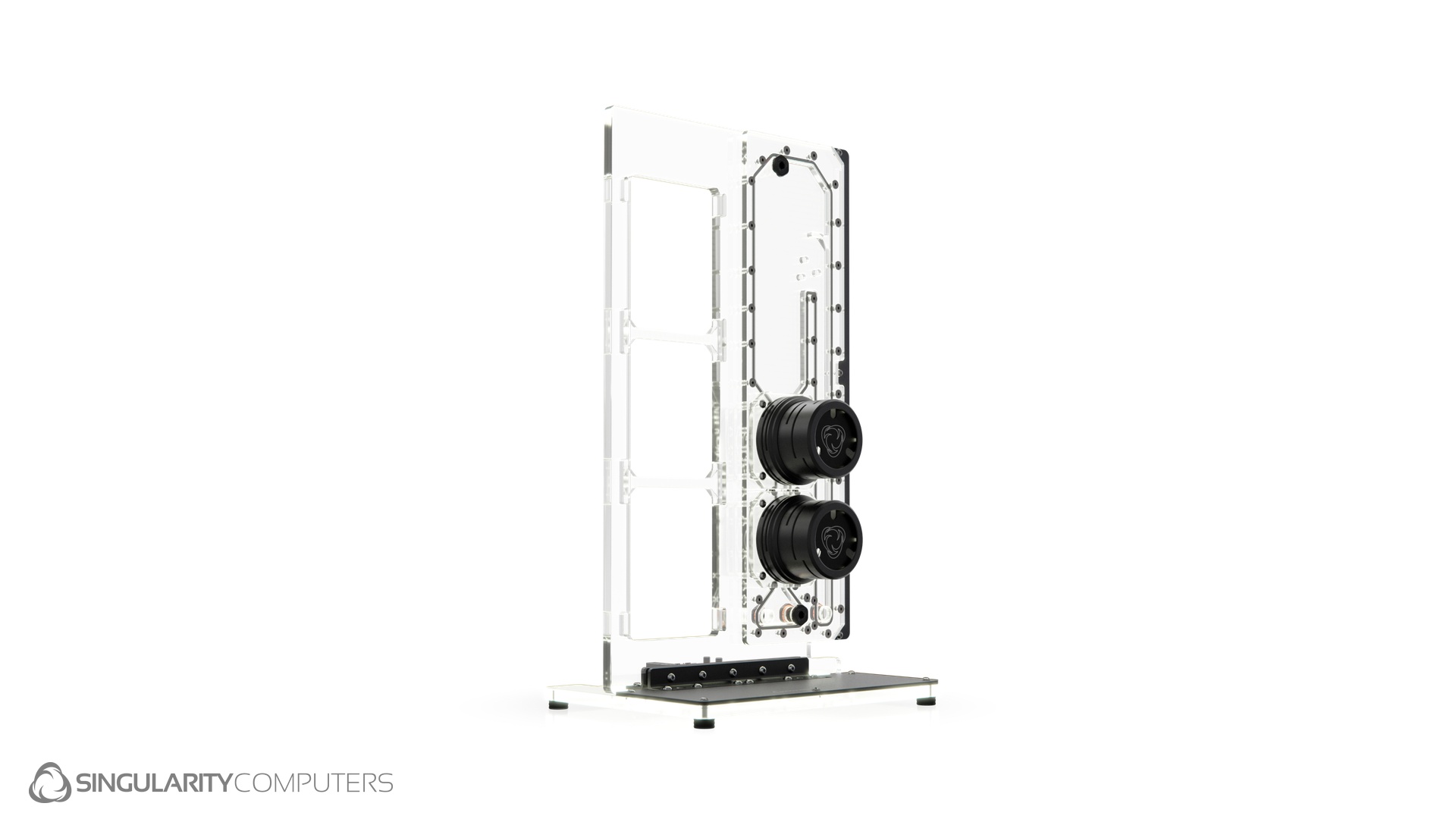

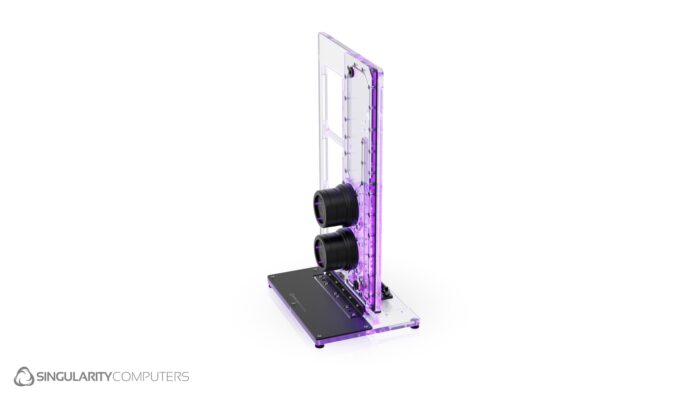

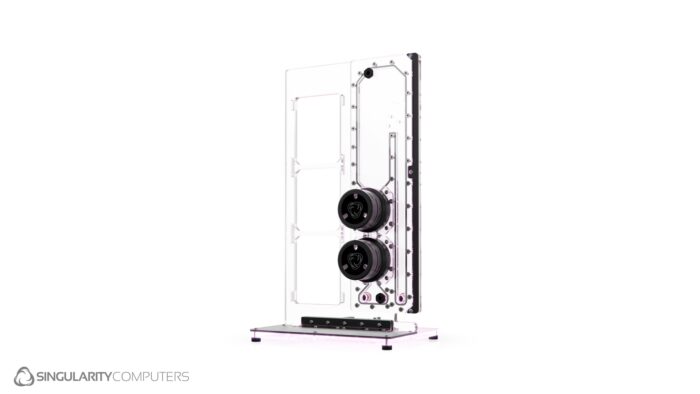

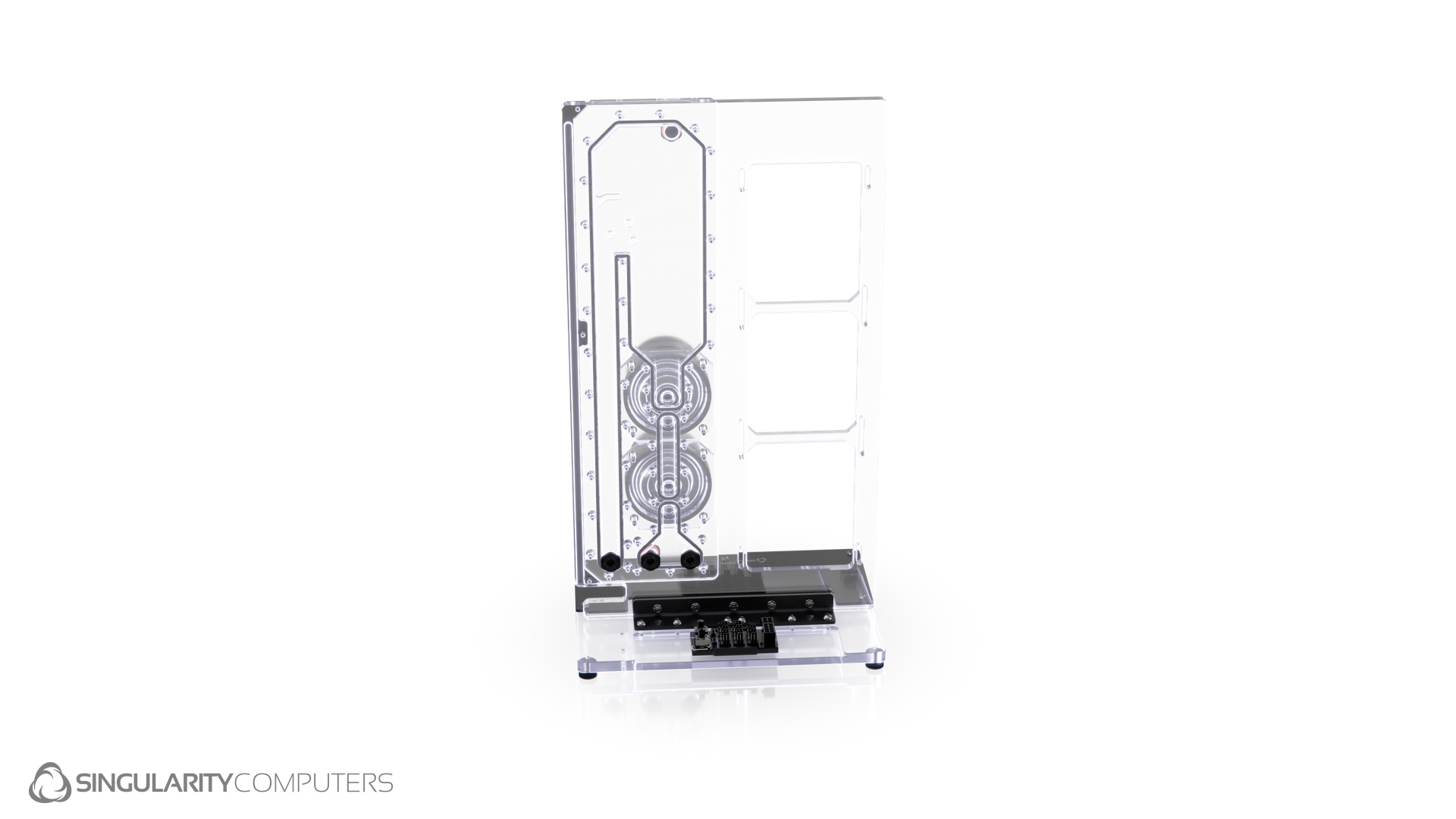

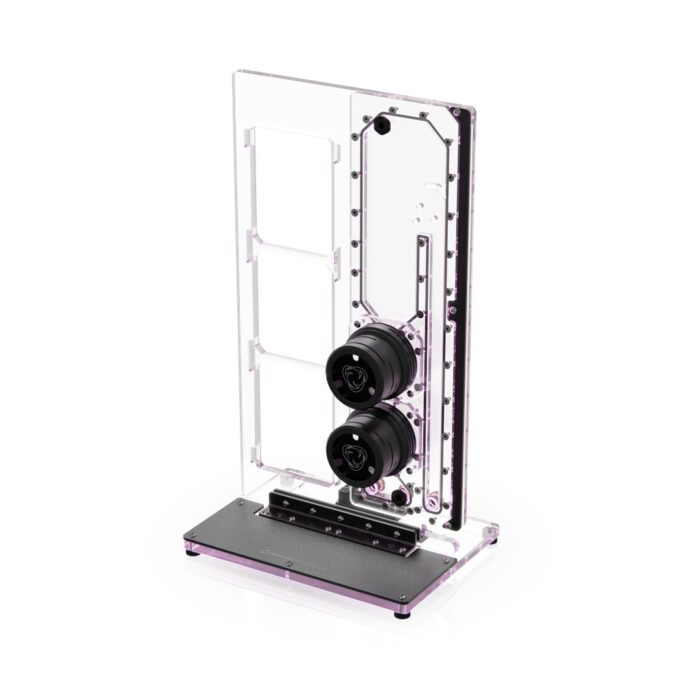

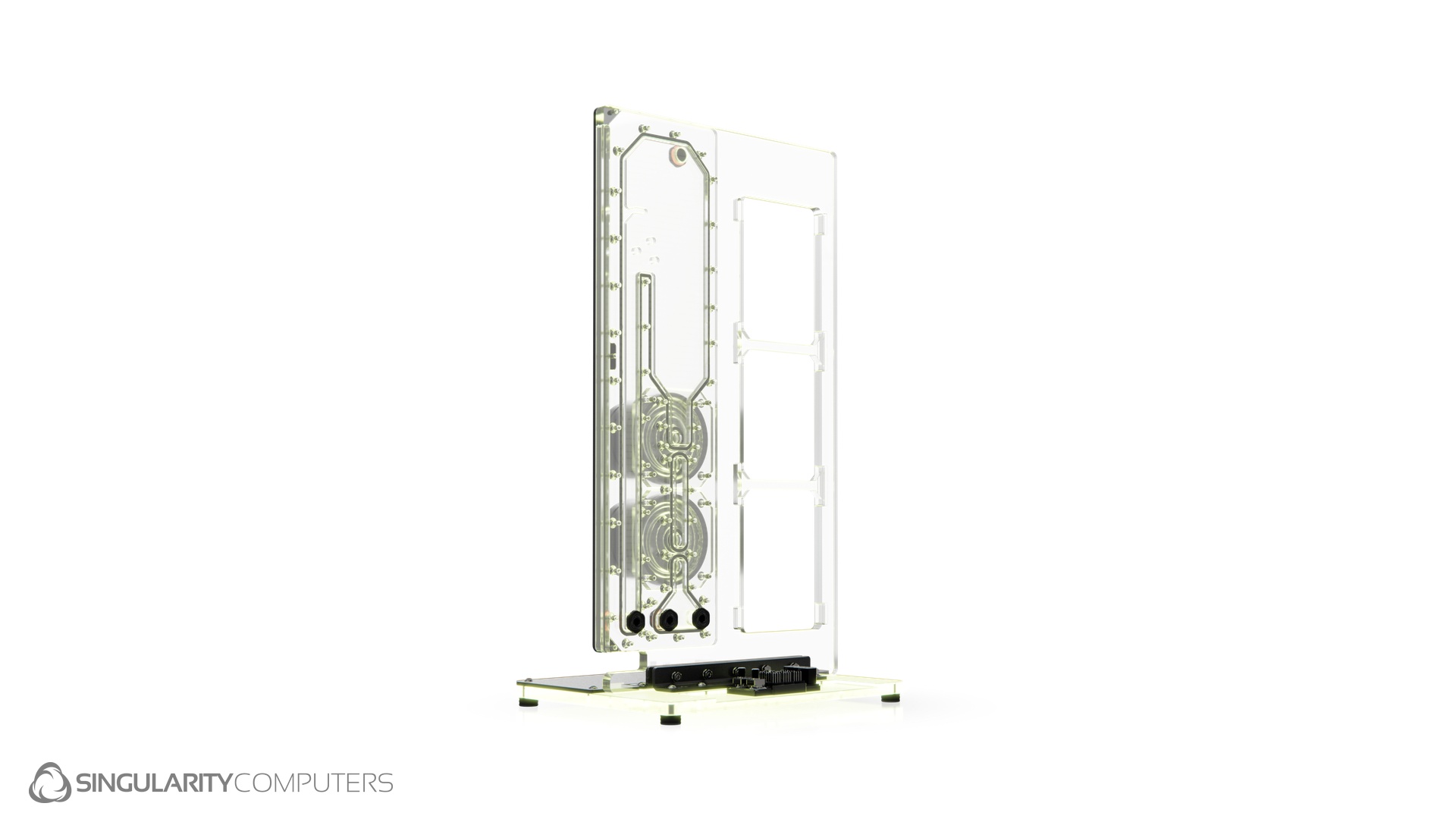

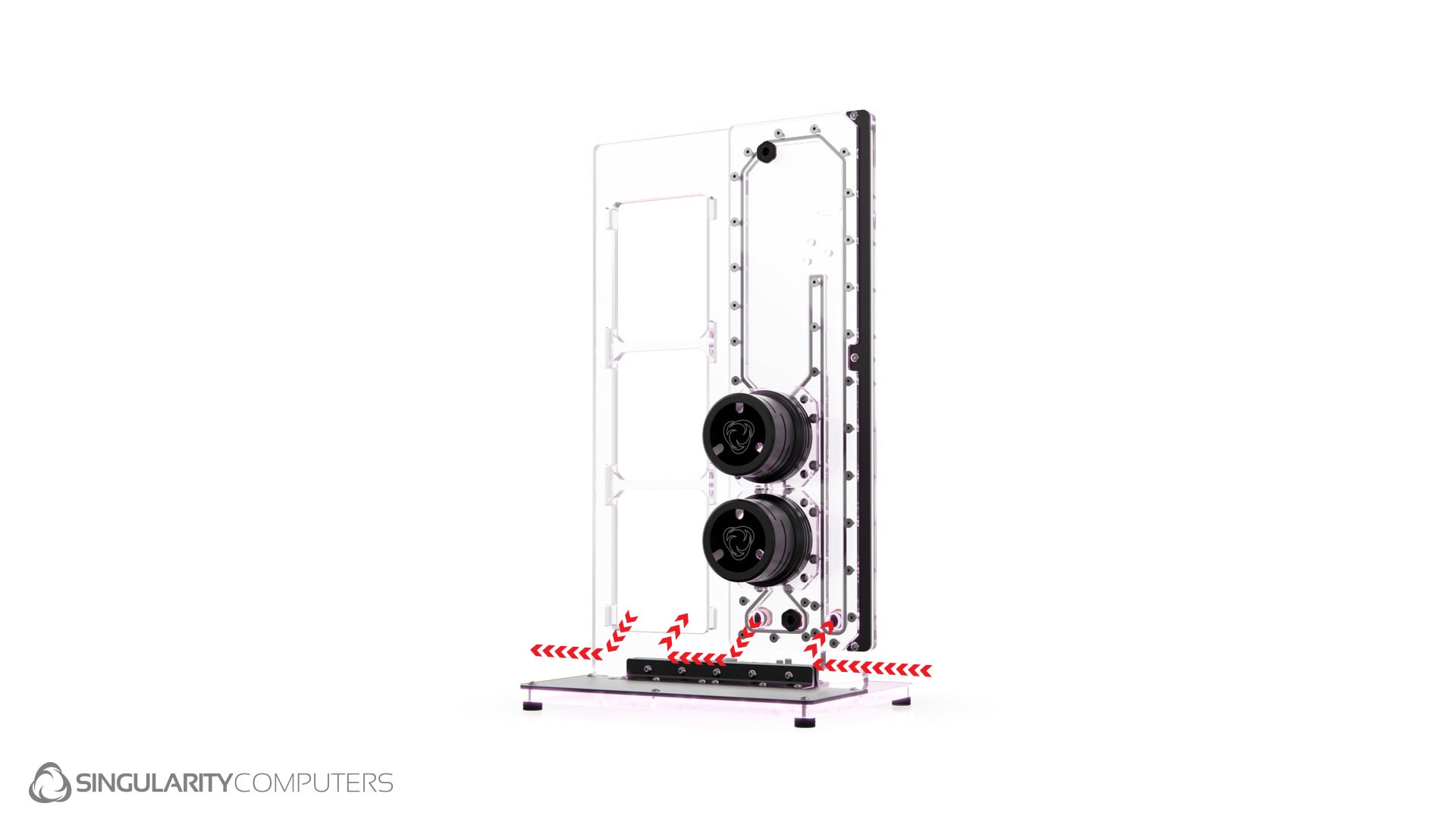

Arterial 2 360mm External Water-cooling System fits up to a 360mm radiator of unlimited thickness and can fit push pull fans. It has a distribution plate which integrates a reservoir, pump tops and pump covers. There is an integrated PCB which lights up the distribution plate. All components are CNC machined, the distribution plate is made from cast acrylic and the fasteners are stainless steel.

Specifications

Distribution Plate. Clear Cast Acrylic. CNC Machined.
D5 Pump Tops. X2. Clear Cast Acrylic. CNC Machined.
D5 Pump Covers Black. x2. Clear Cast Acrylic. CNC Machined.
D5 O-rings. X2. Clear Silicone.
SC Stop Fittings. X5. Brass. Powder Coated. Laser Etched.
Dimensions: L: 450mm x W: 385mm x H: 200mm.Weight: 6kg.Packaged Dimensions: L: 450mm x W: 400mm x H: 200mm.Packaged Weight: 7kg.

Installation:
See manual link above.
