Arterial 2 Dual 560mm Water-box

In stock

Order processing time 1-2 days.

  • High-end 560mm external water-cooling system for high heat output systems
  • Can supplement an existing cooling system or operate as a dedicated cooling system
  • Supports dual 85mm thick 560mm radiators with push-pull fan configurations
  • Integrated distribution plate with reservoir, dual D5 pump tops and pump covers
  • Dual D5 pumps in series for increased flow and performance
  • Redesigned folded aluminum enclosure for improved strength and streamlined aesthetics
  • 3mm 6061 aluminum construction
  • Redesigned distribution plate with increased fluid volume
  • Fully dust-filtered ventilation
  • CNC-machined components with cast acrylic distribution plate
  • Stainless steel fasteners for durable assembly

Manuals

US$599.00 US$899.00Price range: US$599.00 through US$899.00

Select D5 Retention Ring Colour x2 (included)
None Black Silver Black

 Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump Cover Options x2 (optional) USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

SC Fittings Package Arterial Dual 560mm Radiator Water-box (optional) USD $156.40
None Yes +US$156.40

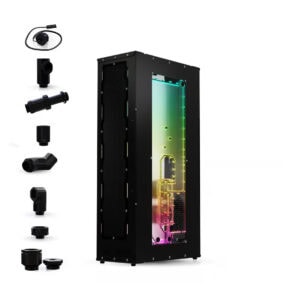

SC Fittings Package Arterial Dual 560mm Radiator Water-box
All fittings needed to build into Arterial Dual 560mm Radiator Water-box.
Included Fittings:
– 16mm Hardline Compression Fittings: x4.
– Telescopic Large Fitting: x2.
– 90 Degree Dual Rotary: x4.
– 90 Degree Single Rotary: x2.
– T Rotary Fitting: x1.
– Temperature Sensor Fitting: x1.
– Extension Fitting 20mm: x1.
– Low Profile Drain Fitting: x1.

SC Cerakote Fittings Package Arterial Dual 560mm Radiator Water-box (optional) USD $51.20
None Armour Black +US$51.20 Cobalt +US$51.20 Gold +US$51.20 Midnight Bronze +US$51.20 Polar Blue +US$51.20 Ruby Red +US$51.20 Shimmer Aluminum +US$51.20 Sniper Grey +US$51.20 Stormtrooper White +US$51.20

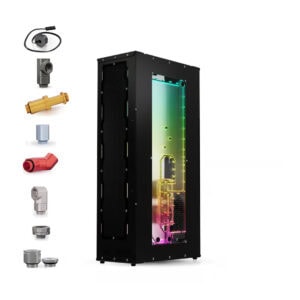

SC Cerakote Fittings Package Arterial Dual 560mm Radiator Water-box
Tough heat treated Ceramic coating available in various colours. Order processing time 1 week.

SC Fittings Package Arterial Quad 560mm Radiator Water-box (optional) USD $181.60
None Yes +US$181.60

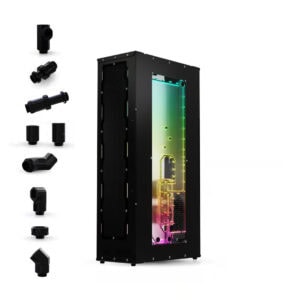

SC Fittings Package Arterial Quad 560mm Radiator Water-box
All fittings needed to build into Arterial Quad 560mm Radiator Water-box.
Included Fittings:
– 16mm Hardline Compression Fitting: x2.
– T Rotary Fitting: x1.
– Telescopic Fitting Small: x1.
– Telescopic Large Fitting: x3.
– 90 Degree Fitting: x6.
– 90 Degree Dual Rotary Fitting: x1.
– 45 Degree Fitting: x1.
– 25mm Extension Fitting: x4.
– 20mm Extension Fitting: x2.

SC Cerakote Fittings Package Arterial Quad 560mm Radiator Water-box (optional) USD $67.2
None Armour Black +US$67.20 Cobalt +US$67.20 Gold +US$67.20 Midnight Bronze +US$67.20 Polar Blue +US$67.20 Ruby Red +US$67.20 Shimmer Aluminum +US$67.20 Sniper Grey +US$67.20 Stormtrooper White +US$67.20

SC Cerakote Fittings Package Arterial Dual 560mm Radiator Water-box
Tough heat treated Ceramic coating available in various colours. Order processing time 1 week.

Case Accessories

Mini-Node Hub (optional) USD $39
None Yes +US$39.00

Mini-Node Hub
A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-OUT displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need for a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps. The Mini-Node has 8 fan outputs and 1 pump output.

Mega-Node Hub (optional) USD $49
None Yes +US$49.00

Mega-Node Hub
A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-1-OUT-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need of a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature-based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps. The Mega-Node has 16 fan outputs and 1 pump output.

Ultra-Node Hub (optional) USD $69
None Yes +US$69.00

Ultra-Node Hub
A custom designed Singularity Computers active powered PWM hub with high quality components and a dual layer PCB. The Ultra-Node is similar to the Mega-Node except that it has a connection for the FanGuardian PowerBoard Controller, and it has three ARGB connections. From the FanGuardian you can control ARGB lighting and you can monitor all RPMs, temperatures and voltages. Combined with the FanGuardian the Ultra-Node is a standalone management and monitoring system for a water-cooling loop, and it is an ARGB controller. The PCB and connectors are black with white logos and labeling. It has PWM inputs for the fans and pumps. Only the outputs labeled FAN-1-OUT-RPM and PUMP-OUT-RPM displays RPM so there are no RPM conflicts from the other PWM connections. The hub has 2 active PWM control circuits to adjust the speed of the connected fans and pumps based on the temperature of the coolant without the need of a motherboard. The potentiometers adjust the PWM speed response to the temperature reading while the switches allow choosing between motherboard and temperature-based local PWM speed control. It also has a dedicated 4pin ATX connector to power up to 2x pumps.

FanGuardian PowerBoard Controller (optional) USD $149
None Yes +US$149.00

Fanguardian PowerBoard Controller
The FanGuardian PowerBoard Controller can be used with many of our newer PowerBoards. It is a 3.5” touch screen in a hard case. It controls ARGB lighting colors and has different effects and functions. It monitors RPMs, temperatures and voltages. It has an inbuilt Ambient Temperature Monitor. A low RPM warning can be set on all PWM channels. It has updateable Software/Firmware and we will continue adding features.

  • 1x Arterial 2 Dual 560mm Water-box
    US$599.00 US$899.00Price range: US$599.00 through US$899.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
SKU: N/A Category:

Description

Read More +Read Less − full description

Arterial 2 560mm Water-box is designed for high heat output systems which need more cooling than what can fit inside of the case. It can be used to supplement an existing cooling system or as a complete dedicated cooling system. It is a high-end water-cooling enclosure with a distribution plate which integrates a reservoir, pump tops and pump covers. It fits dual 85mm thick 560mm radiators, push pull fans and a dual D5 configuration in series. All components are CNC machined, the enclosure is built from 3mm 6061 aluminum, the distribution plate from cast acrylic and the fasteners are stainless steel.
Arterial 2 has been completely redesigned. The enclosure is now built from folded aluminum which greatly improves strength and gives a more streamlined aesthetic. All ventilation is now dust filtered. The distribution plate has been re designed for increased fluid volume.

Specifications

Arterial Water-box Enclosure. 6061 Aluminum. CNC Machined. Anodized.

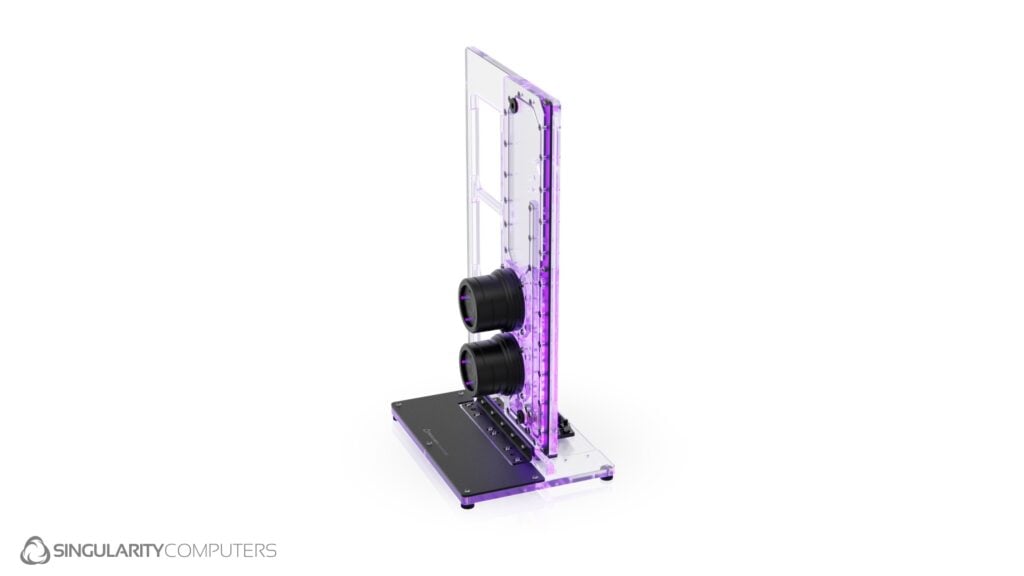

Distribution Plate. Clear Cast Acrylic. CNC Machined.
D5 Pump Tops. X2. Clear Cast Acrylic. CNC Machined.
Protium 3.0 D5 Pump Covers Black. x2. Clear Cast Acrylic. CNC Machined.
D5 O-rings. X2. Clear Silicone.
Acrylic Side Panel Window. X1. Clear Cast Acrylic. CNC Machined.
Spectrum 2.0 50cm 5V D-RGB LED Strip. X1.
Arterial Dual 560mm Radiator Water-box Dimensions: L: 730mm x W: 370mm x H: 180mm.
Weight: 9kg.
Packaged Dimensions: L: 780mm x W: 400mm x H: 185mm.
Packaged Weight: 10kg.
Arterial Quad 560mm Radiator Water-box Dimensions: L: 730mm x W: 370mm x H: 360mm.
Weight: 11kg.
Packaged Dimensions: L: 780mm x W: 400mm x H: 220mm.
Packaged Weight: 12kg.

Installation:
See installation manual at the link above.
