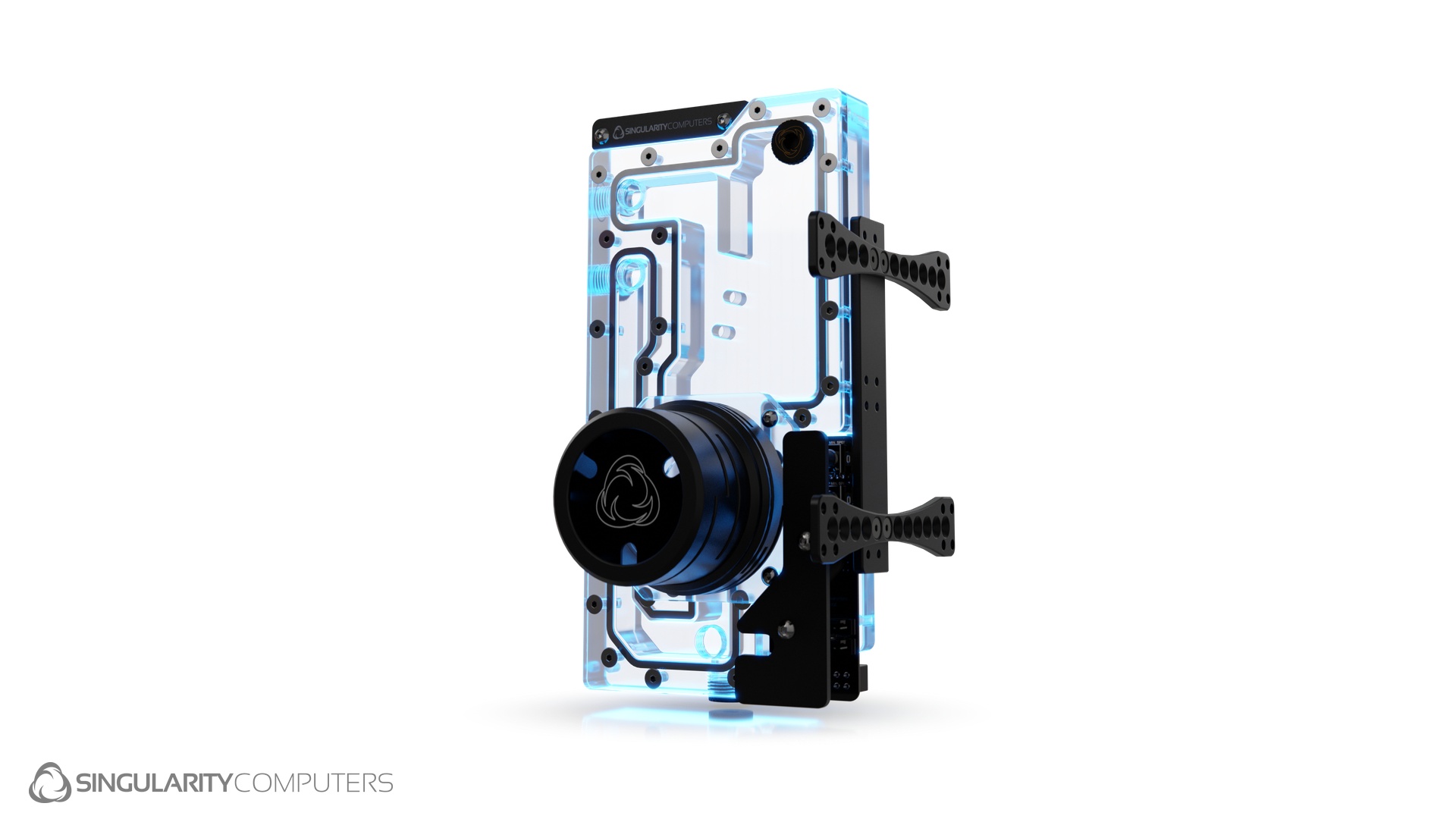

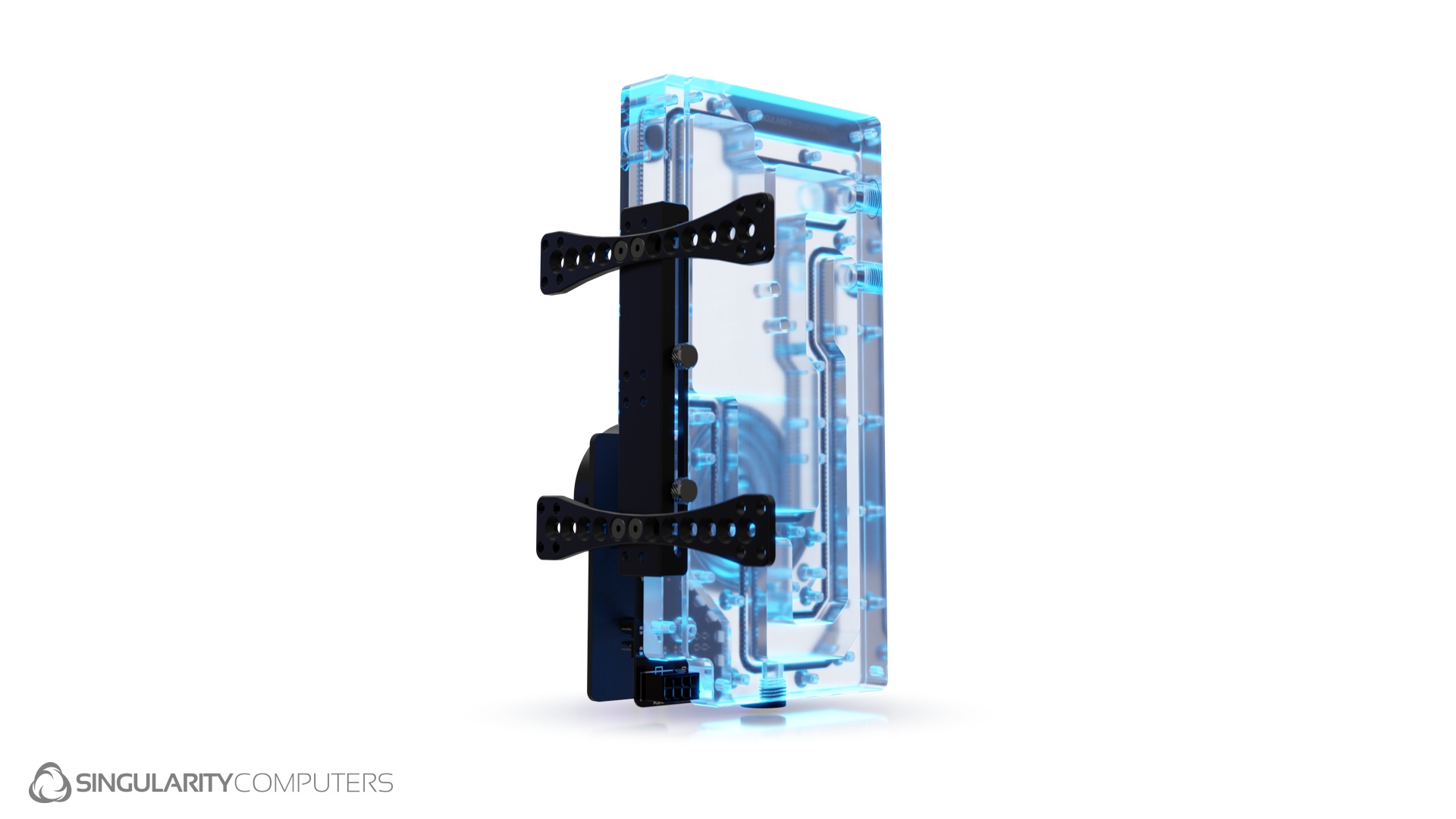

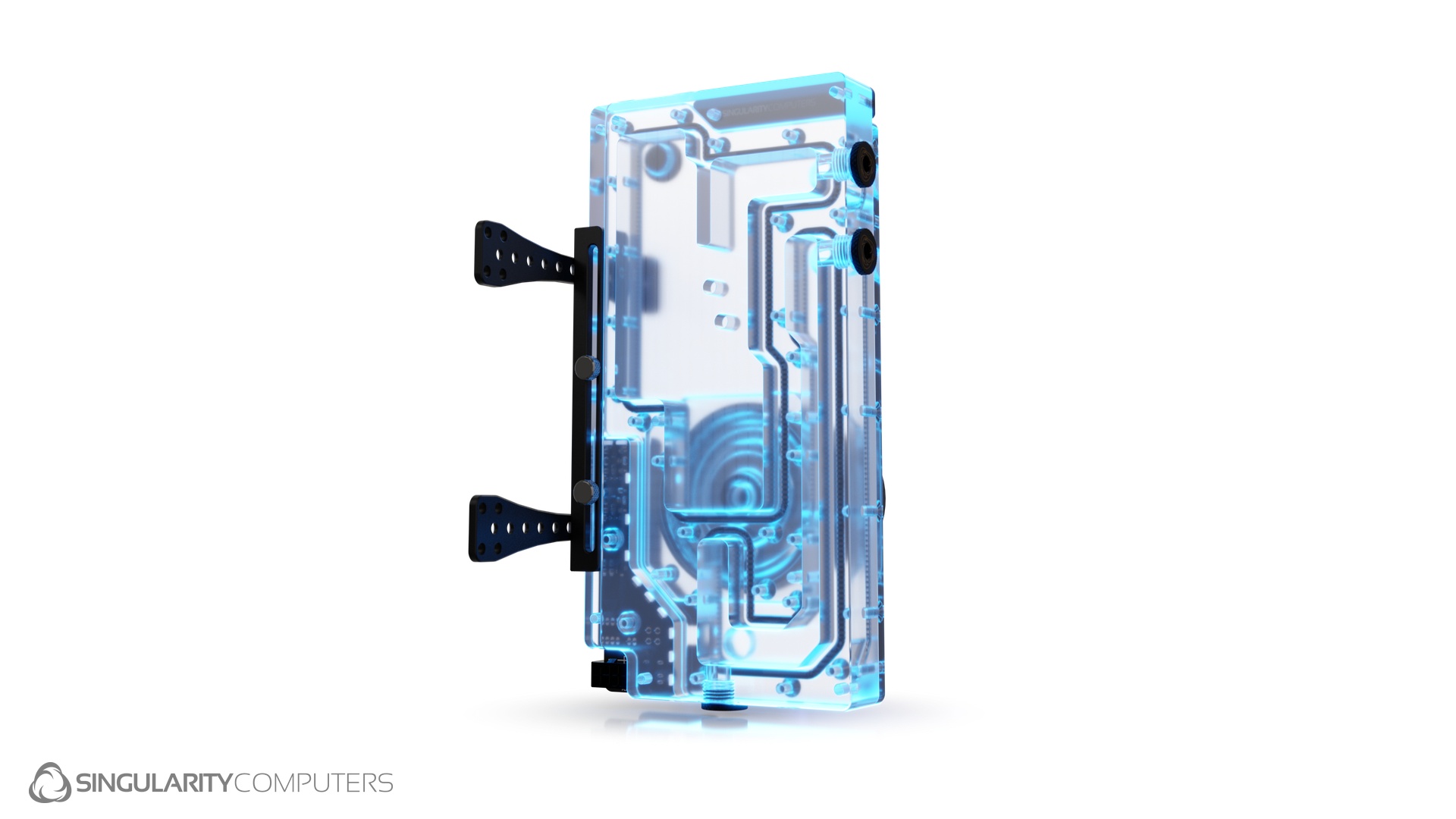

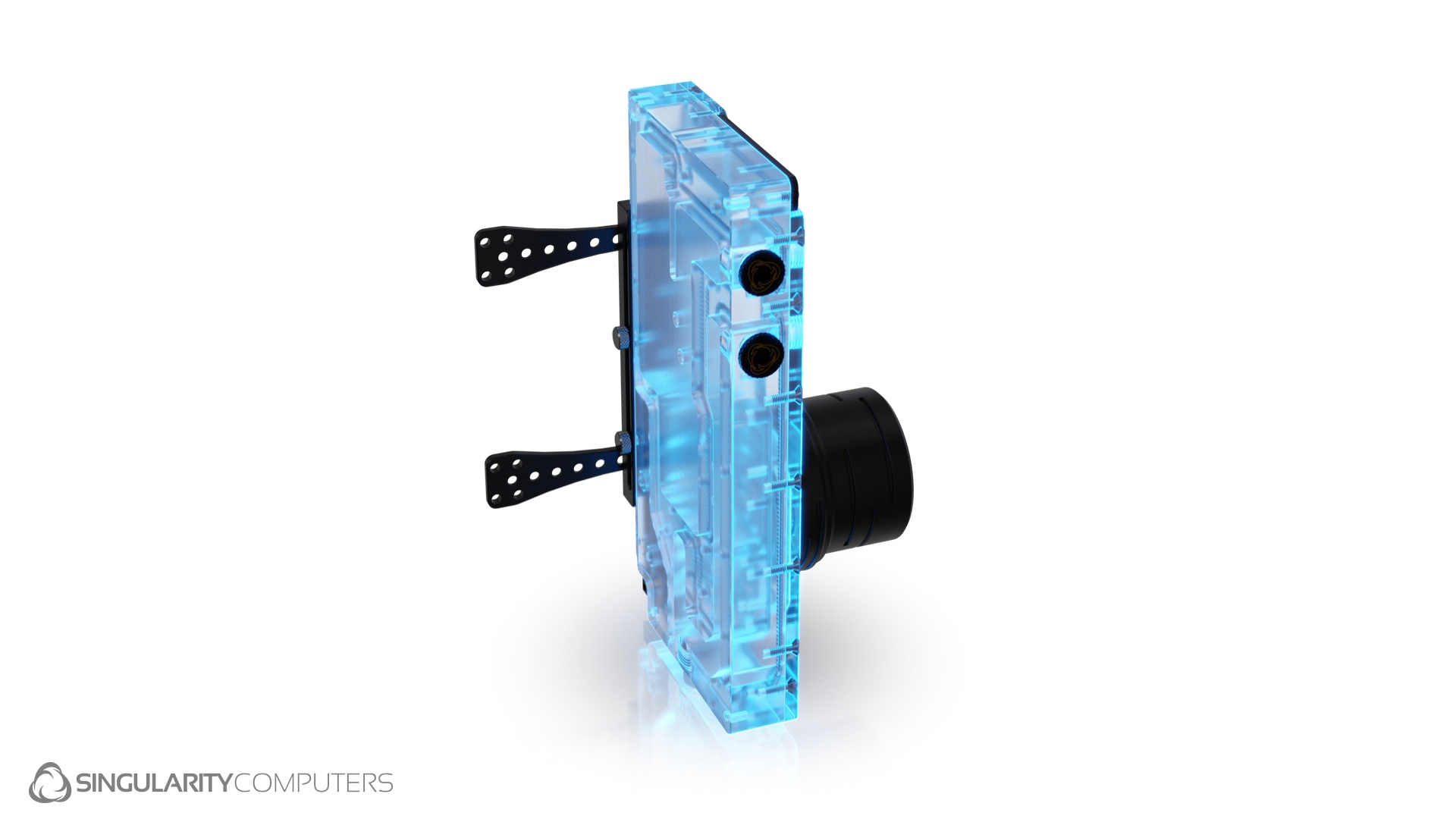

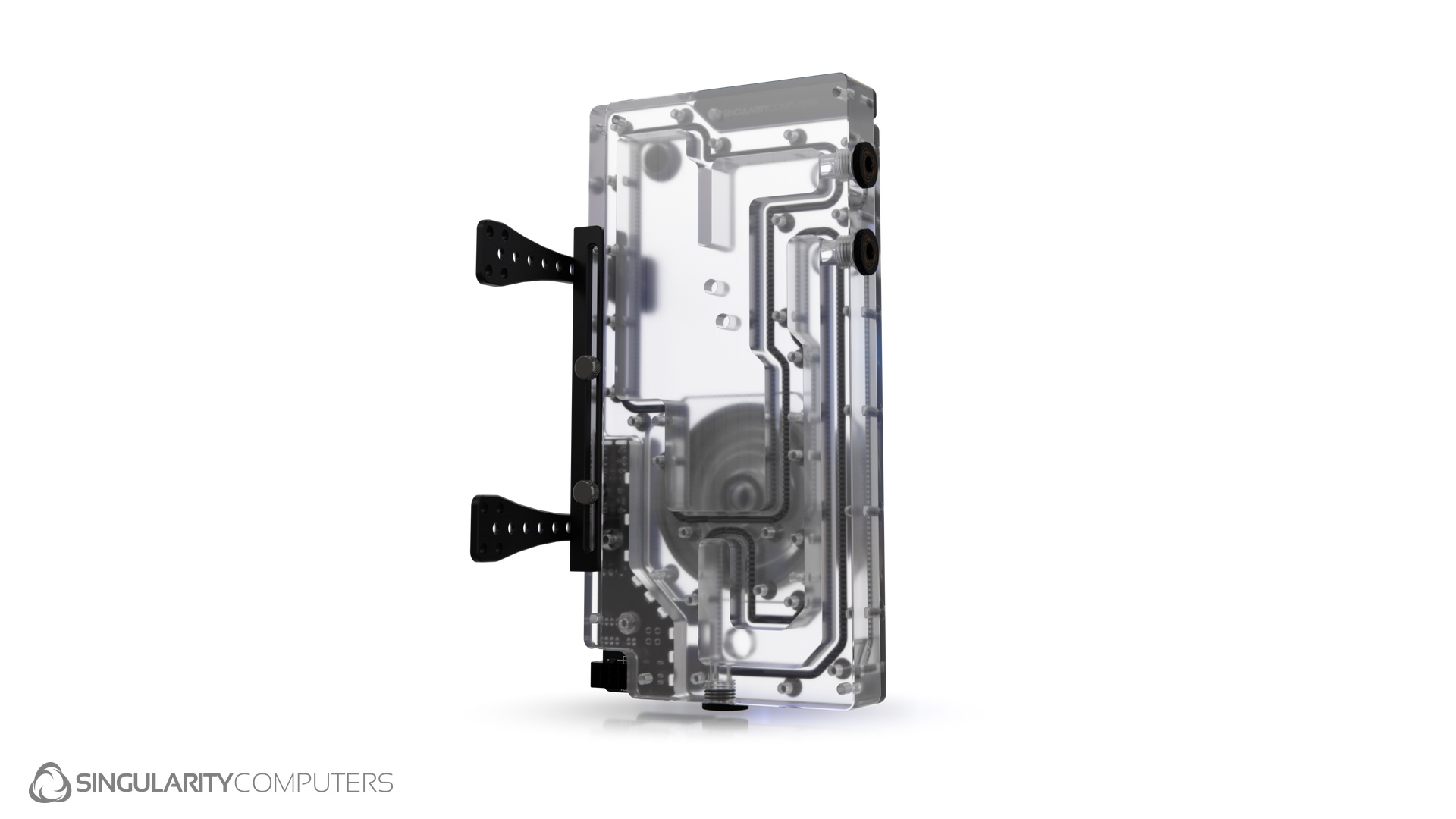

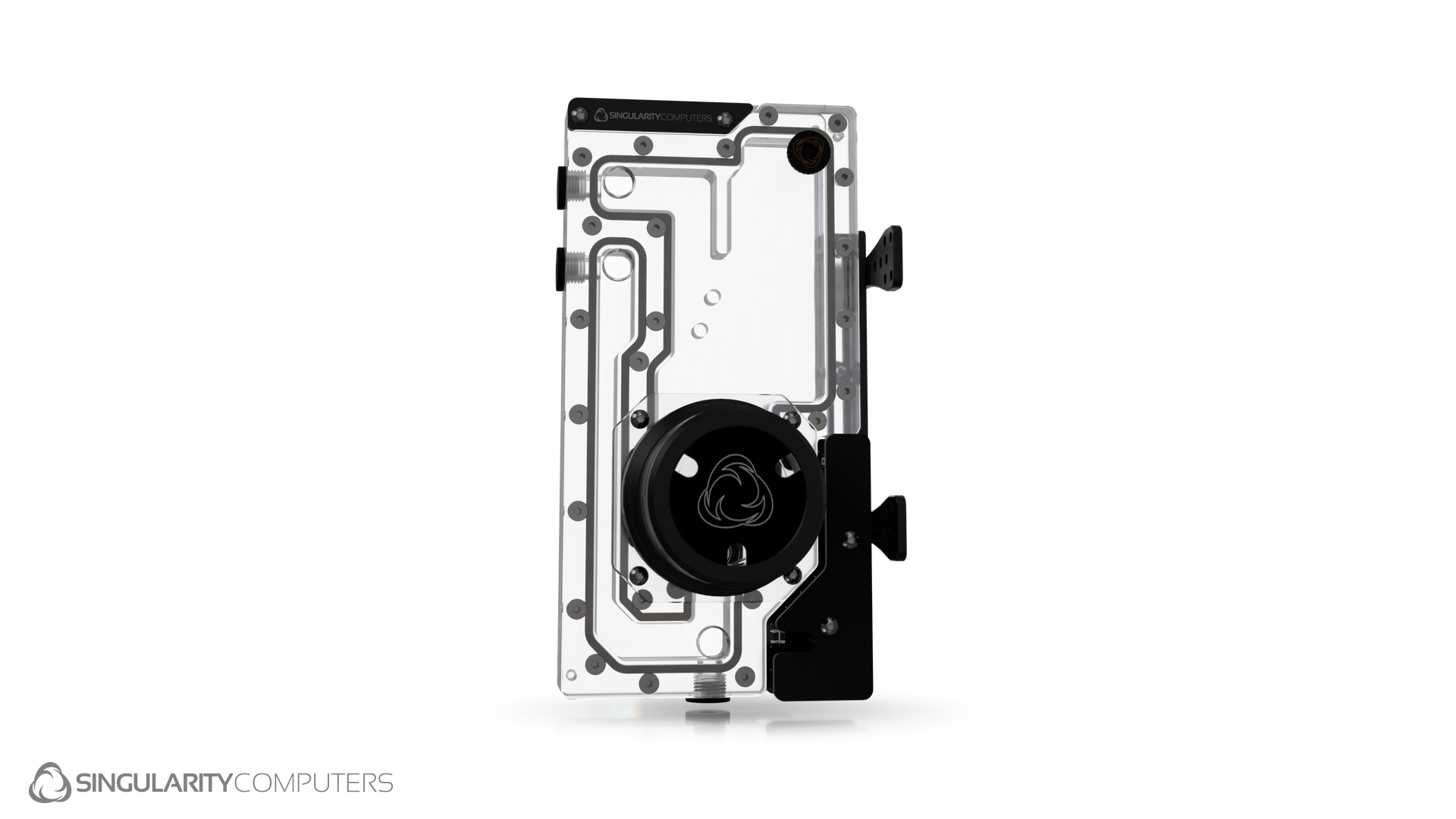

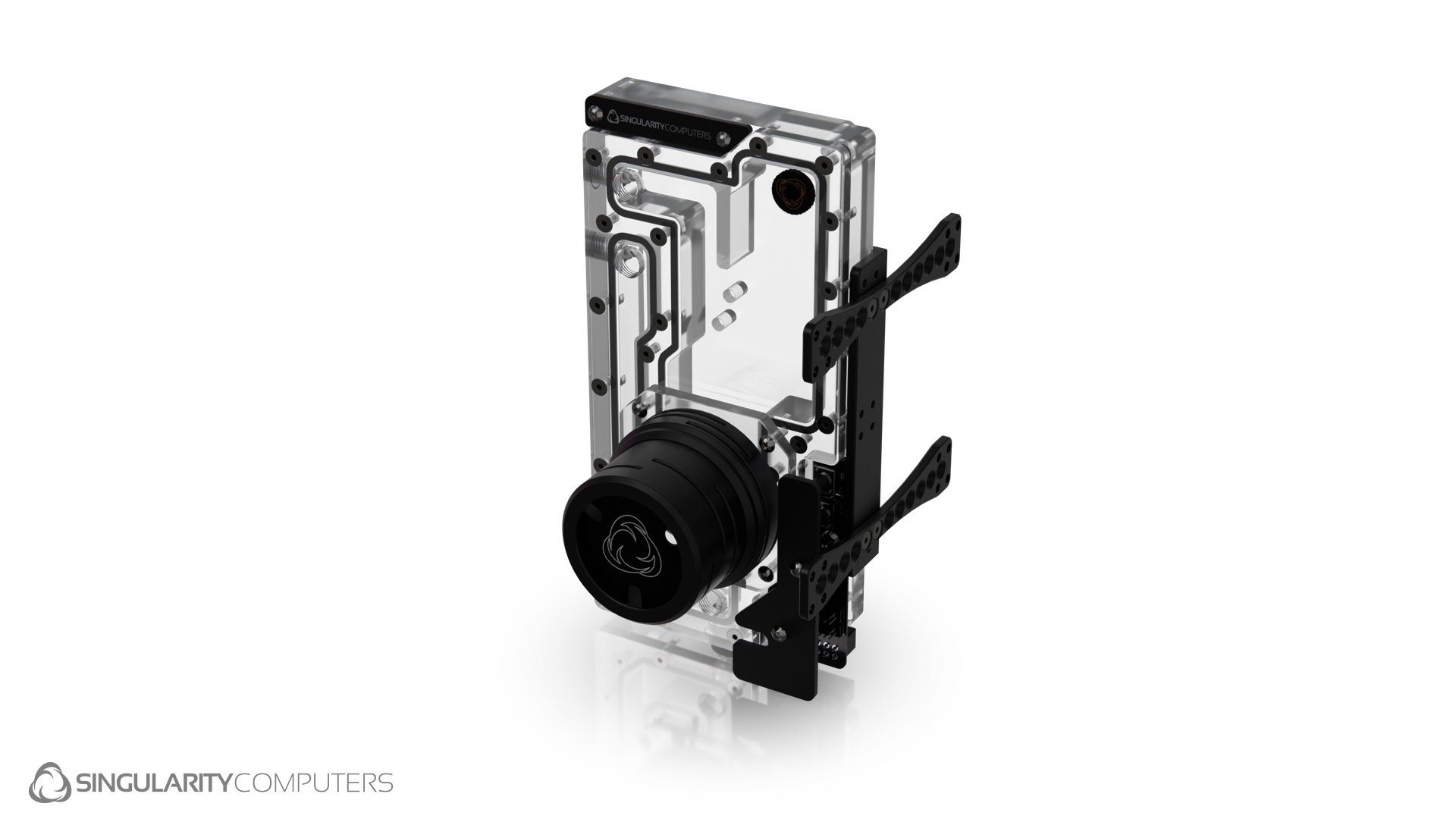

Axiom ARGB D5 Reservoir Combo Distribution Plate

In stock

Order processing time 1-2 days.

  • Universal ARGB D5 pump and reservoir distribution plate
  • Mounts to 120mm or 140mm wide radiators from 120mm to 560mm
  • Multiple inlet and outlet ports for flexible loop routing
  • Maximum fluid volume for easy filling of large water-cooling systems
  • Integrated fill and drain ports
  • Integrated D5 pump top and ARGB-lit D5 pump cover
  • Integrated ARGB lighting for distribution plate illumination
  • Temperature-based RPM control with separate pump and fan curves
  • Customizable acrylic covers with logo and integrated PCB cover

Manuals

Current price is: US$159.20. Original price was: US$199.00.

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$15.92 Silver Mirror +US$15.92 Gold Mirror +US$15.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring & Mounting Component Options (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.
For the Mounting Rail and Back Plates.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x5 (optional) USD $20
None Yes +US$20.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

Additional options

Select D5 Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

  • 1x Axiom ARGB D5 Reservoir Combo Distribution Plate
    Current price is: US$159.20. Original price was: US$199.00.

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182005415 SKU: SC-AXI-D5RES-C-DIST Categories: , ,

Description

Read More +Read Less − full description

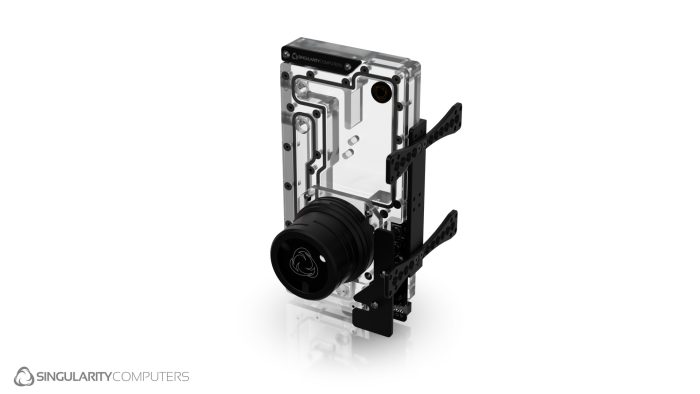

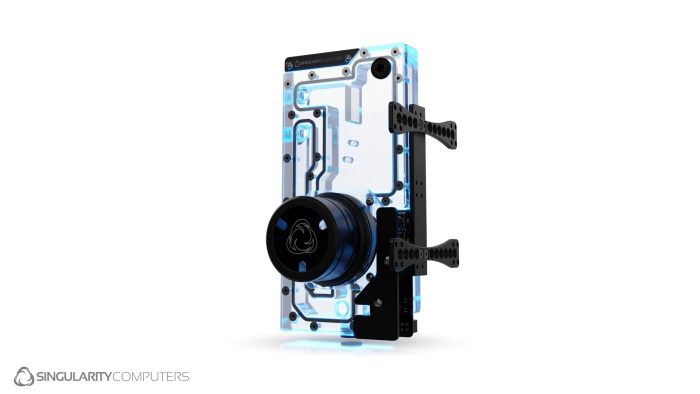

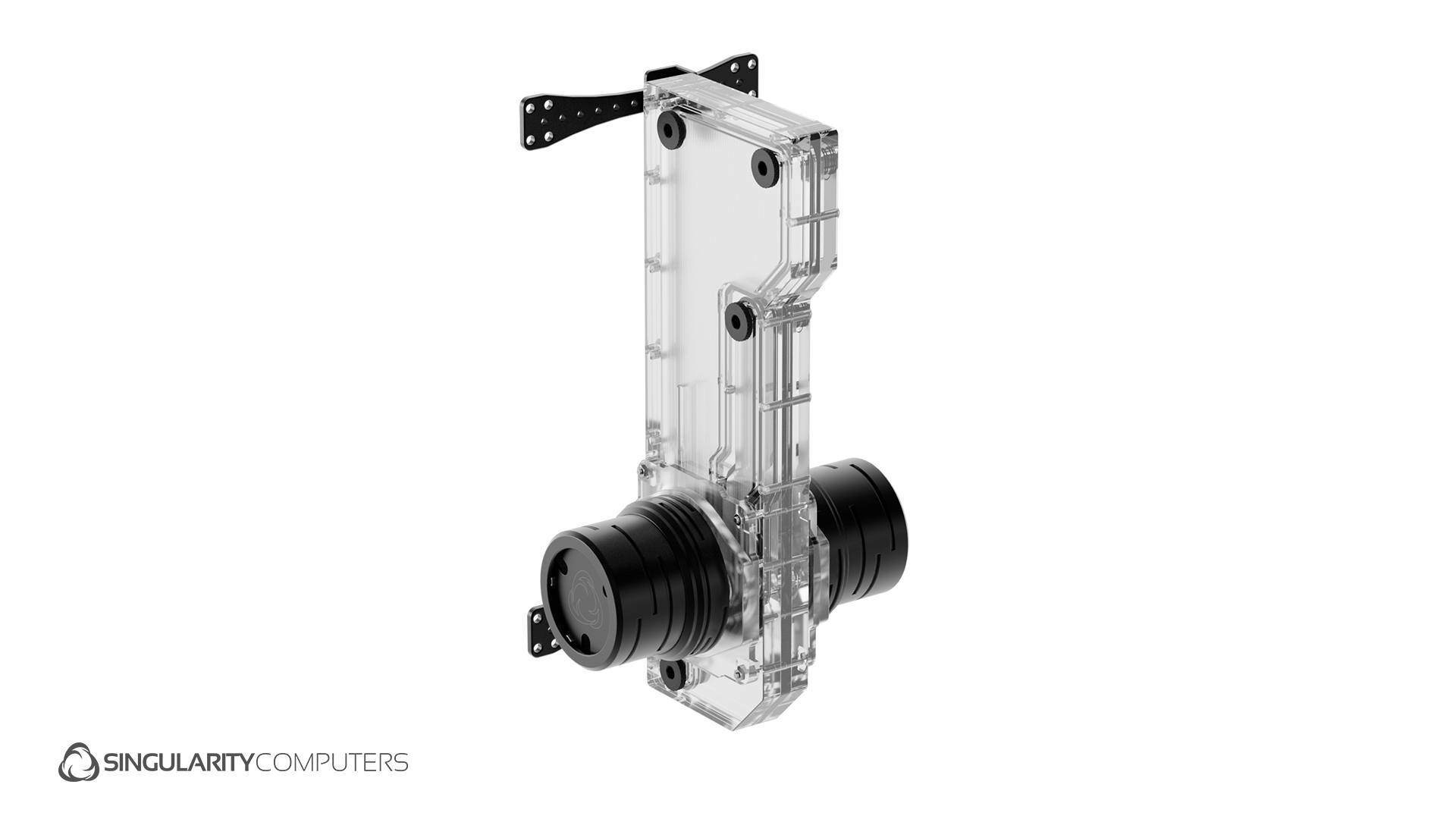

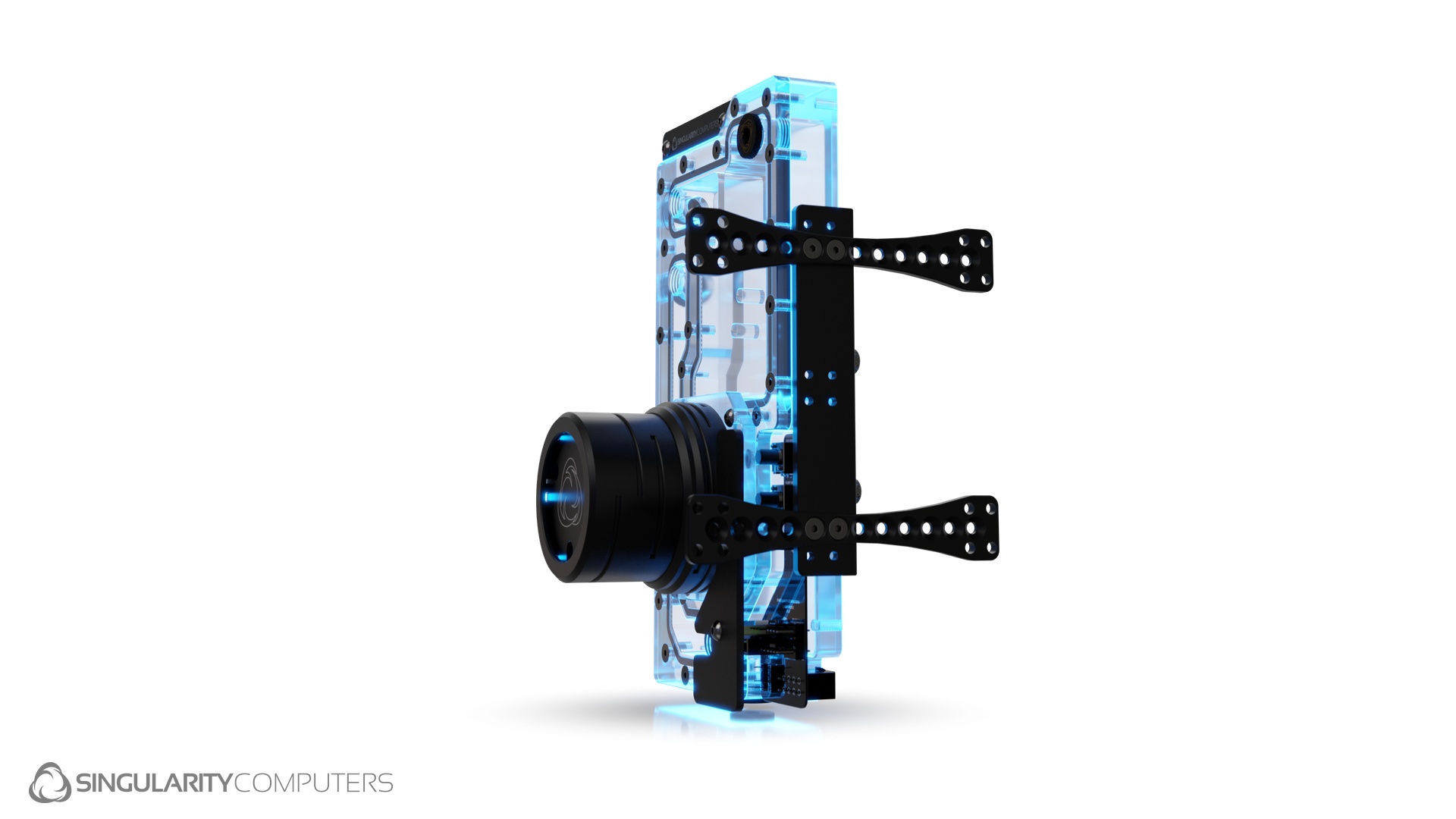

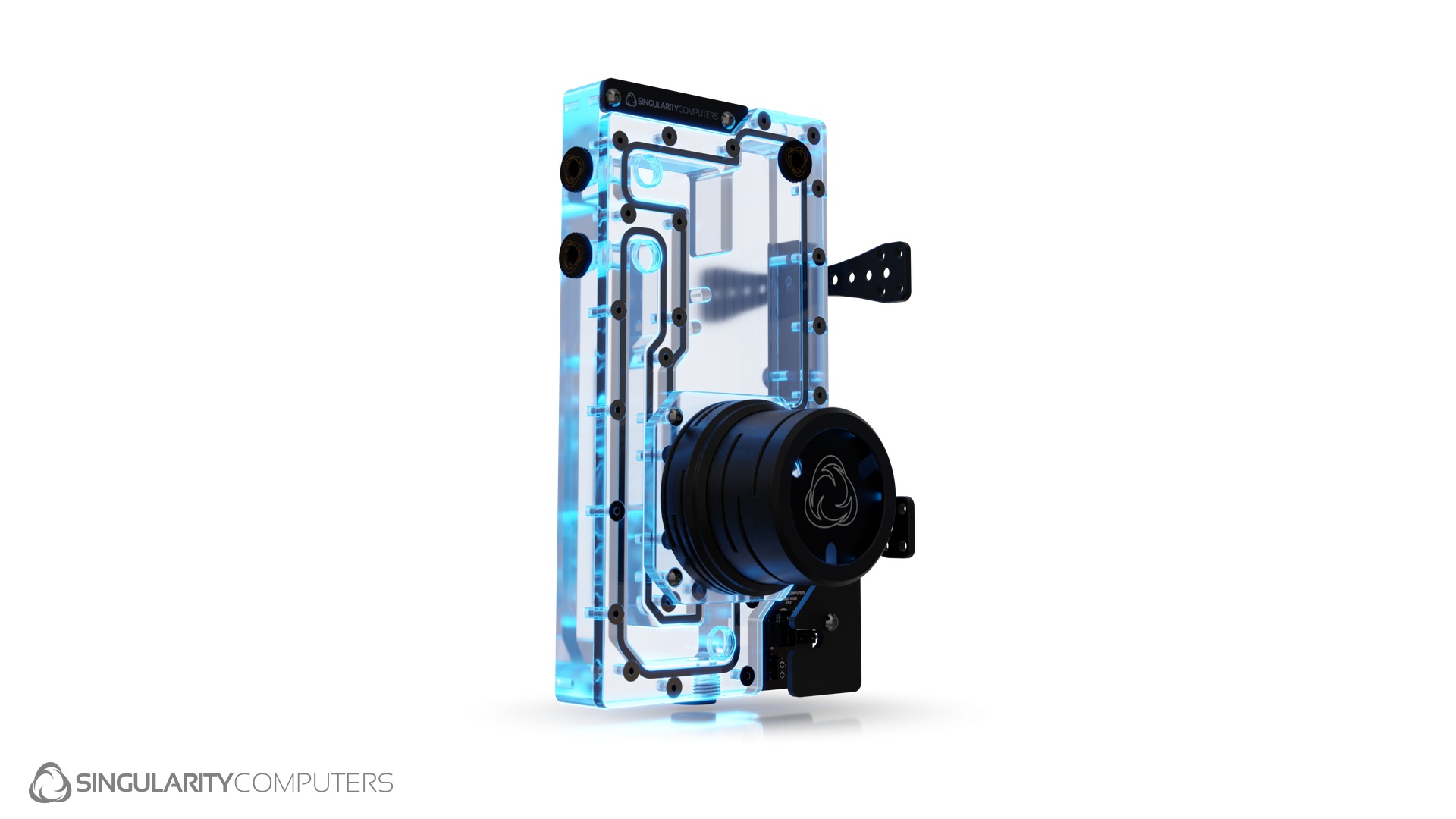

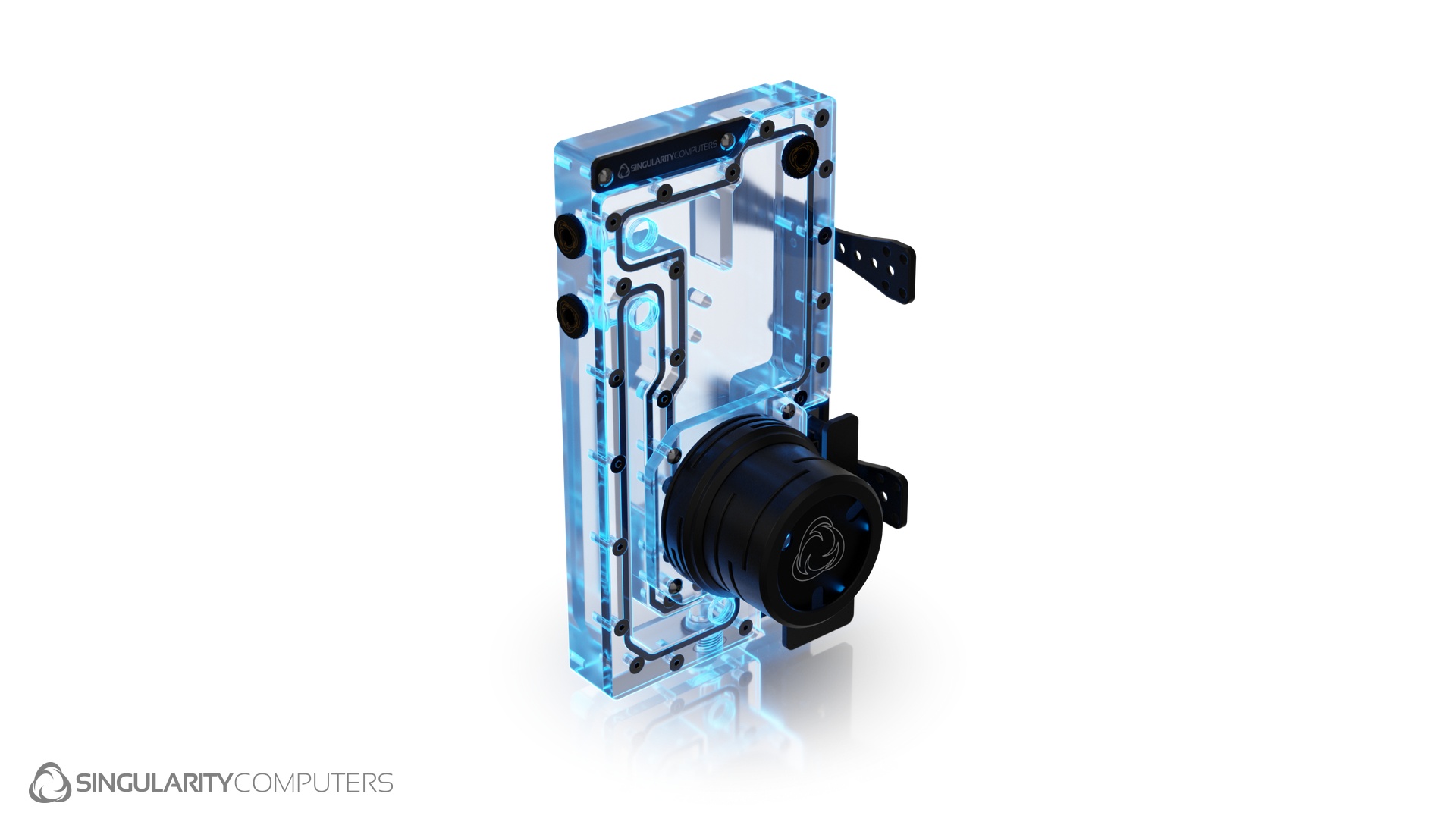

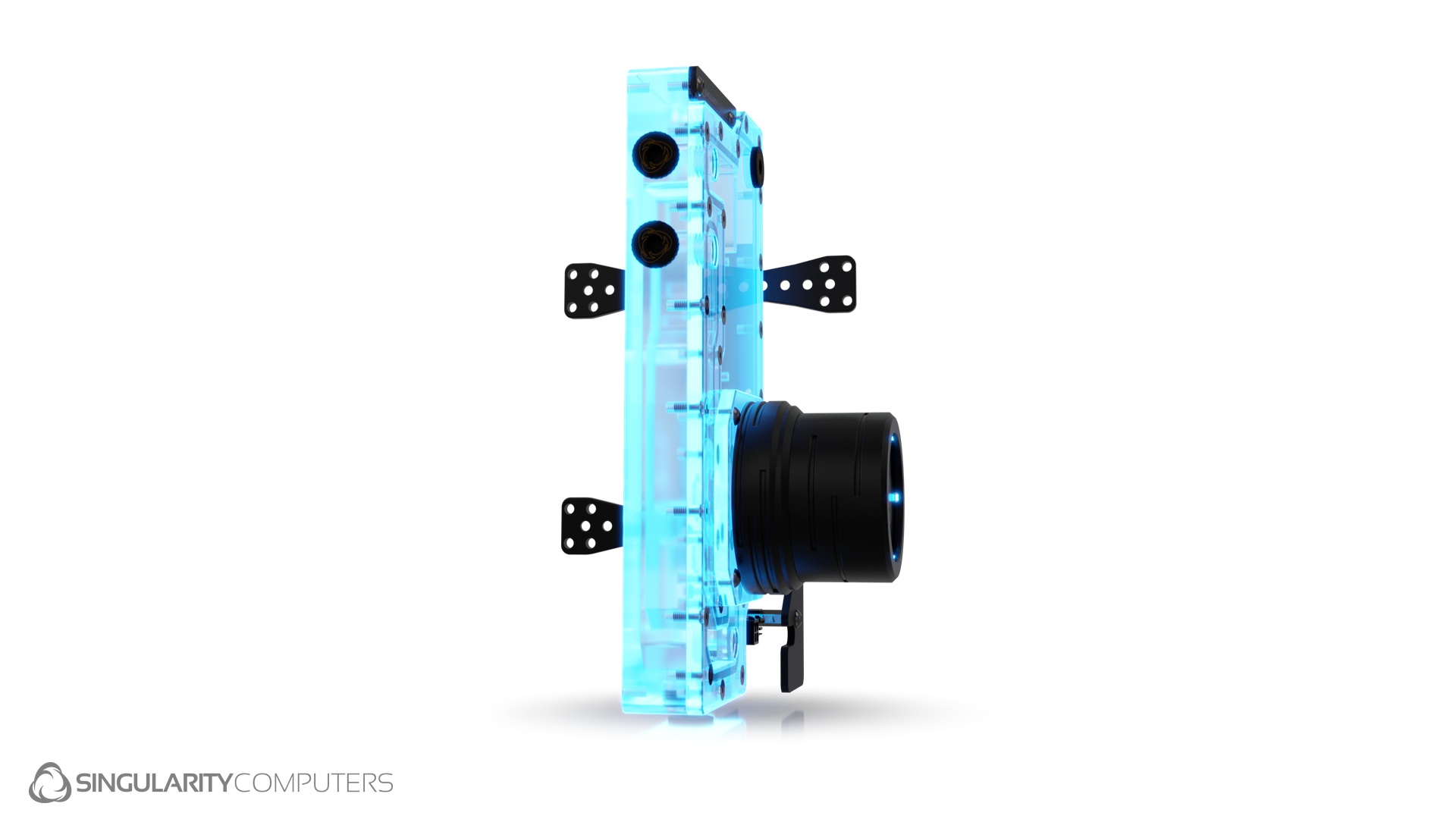

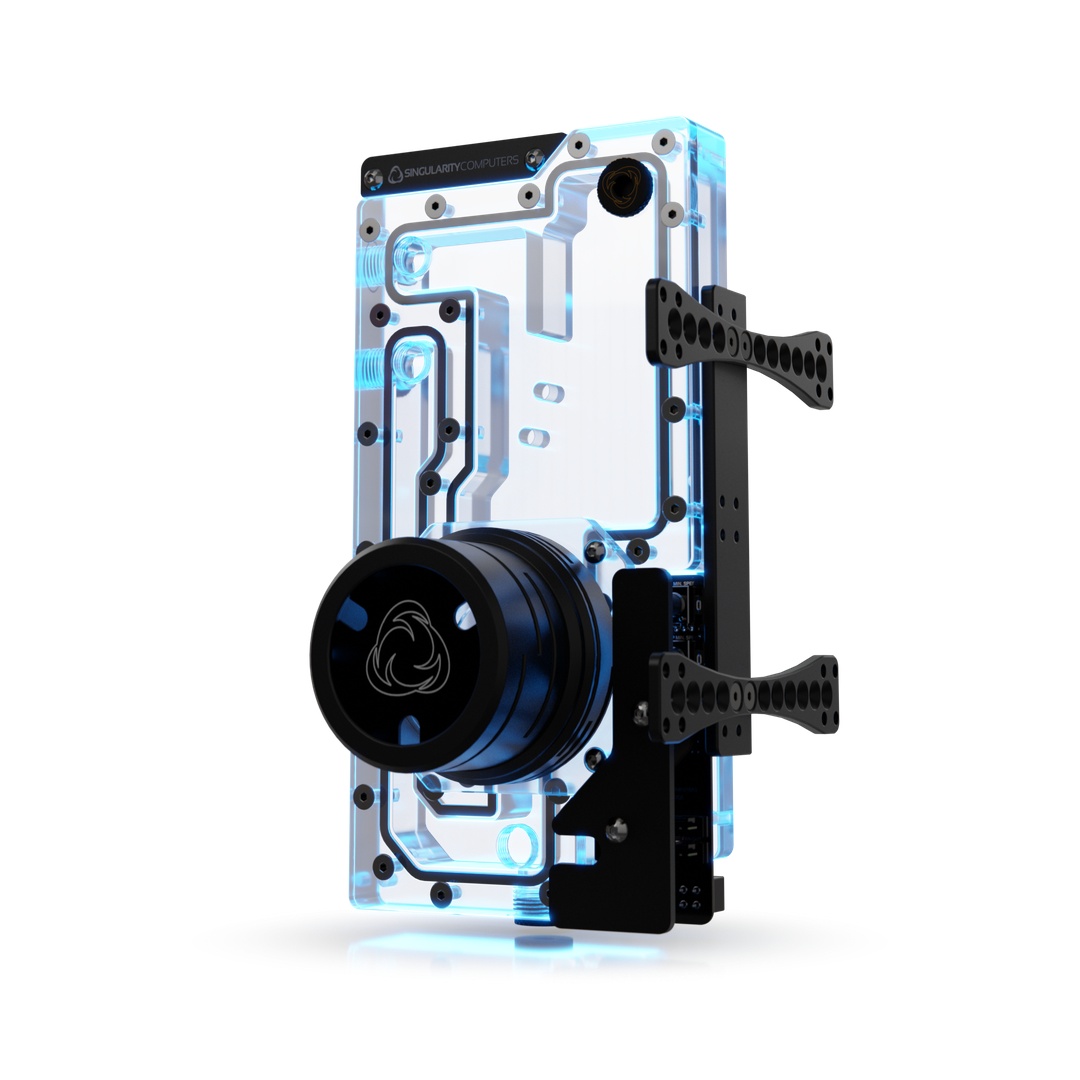

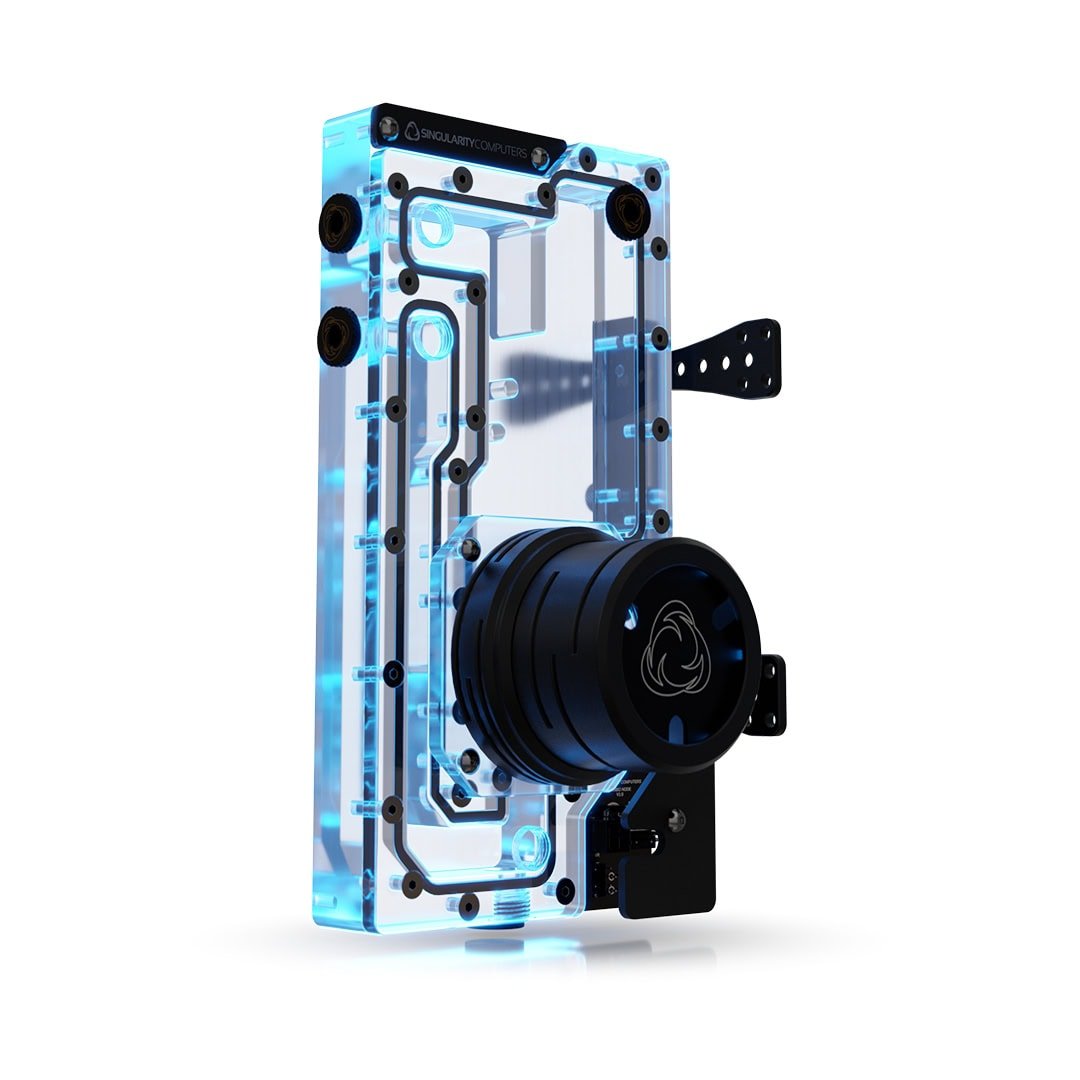

The Axiom ARGB D5 Reservoir Combo Distribution plate is a pump and reservoir combination designed to fit into any water-cooled build. It has maximum versatility with enough inlet and outlet ports for many different loop routes. It fits onto a 120mm or 140mm wide radiator and can fit on any radiator from 120mm all the way up to 560mm. It has been designed for maximum fluid volume for easy filling even in large water-cooling systems and has fill and drain ports built in. It has an integrated D5 Pump Top and D5 Pump Cover with ARGB lighting. It has electronics integration, which includes integrated ARGB LEDs to light up the distribution plate. It also includes temperature-based RPM control with separately adjustable RPM curves for the pump and fans. Select from the different color/finish options below for the acrylic covers, which includes the logo and integrated PCB cover next to the pump.

Specifications

Axiom ARGB D5 Reservoir Combo Distribution Plate.

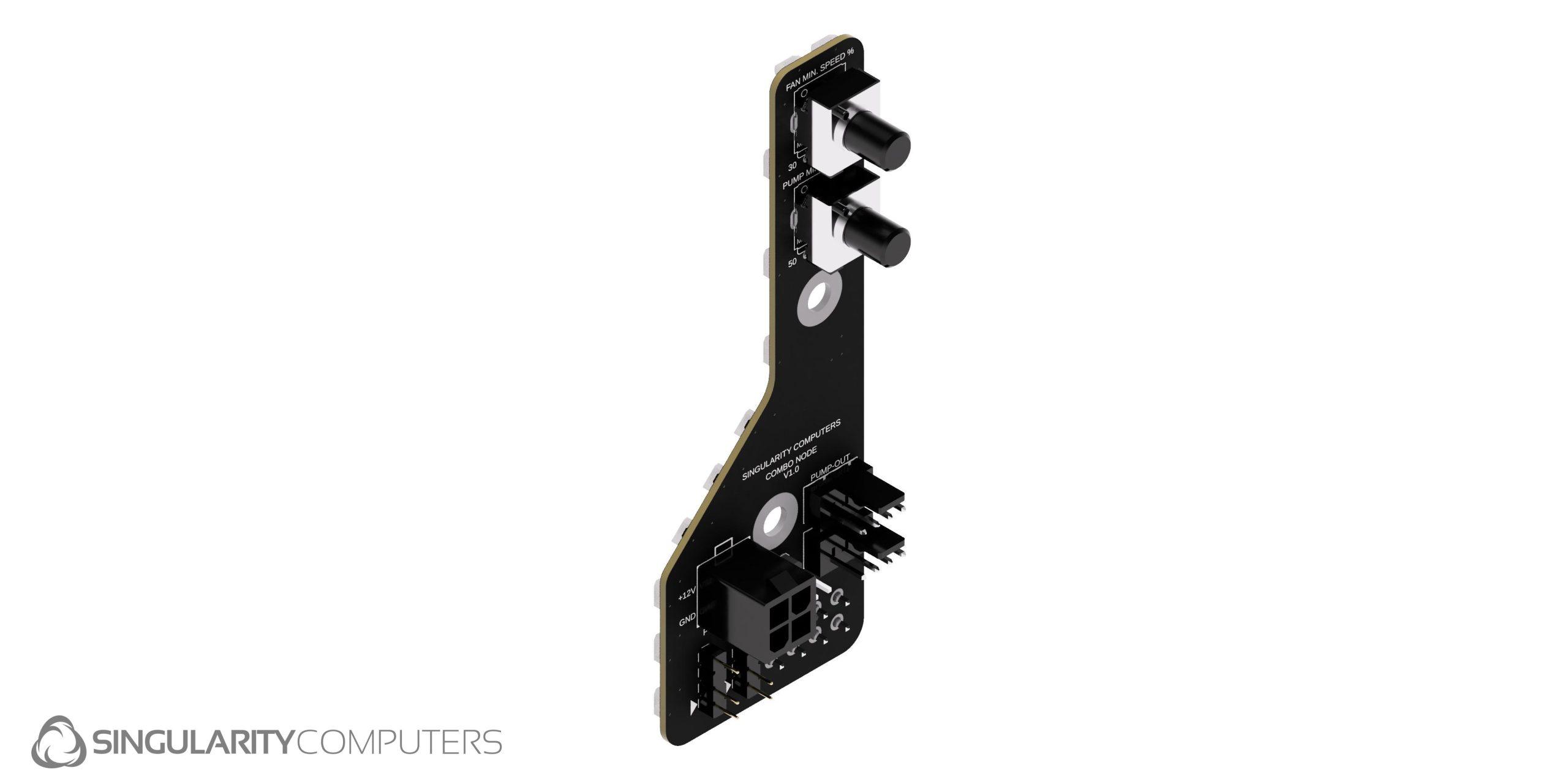

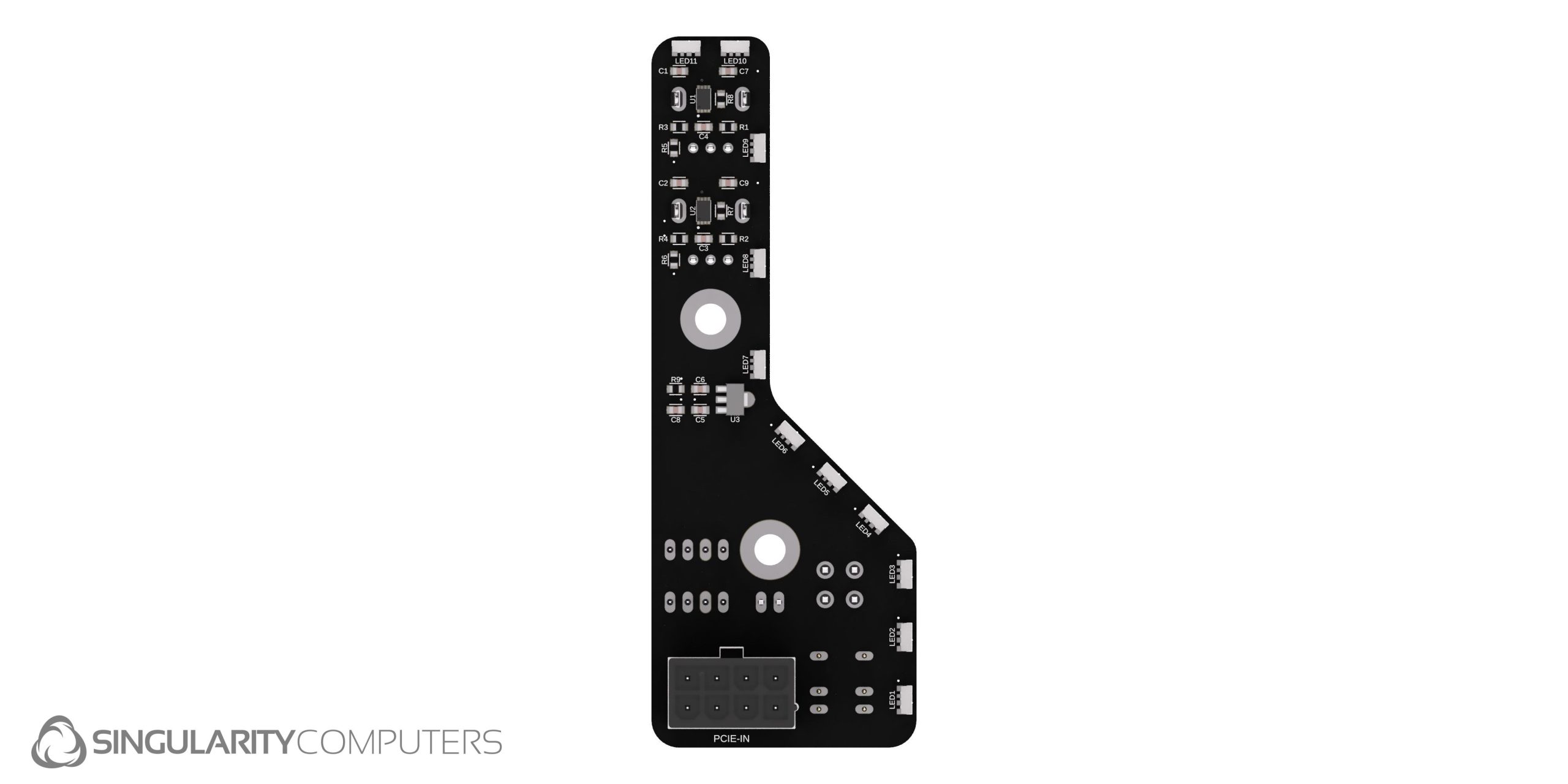

Electronics Integration: PWM outputs x2 with coolant temperature-based RPM control. Each PWM output hub has separate coolant temperature-based RPM control. The built-in RPM control on the is independent of the motherboard and no software is needed. PWM Control: 2x potentiometers to set the minimum PWM speed of the RPM curve.
ARGB LEDs: x11.
Pump Power for up to x2 D5 Pumps.
8pin PCIE input.
Cables: 4pin ATX to 2x Molex & 2x SATA Pump Power Adaptor Black.
ARGB Linking Cable 50cm. Black.
Universal Back Plates 120/140: CNC machined 6061 anodized aluminum black.
Mounting Rail: CNC machined 6061 anodized aluminum black.
Fasteners: Stainless Steel.
Gaskets: Silicone.
O-rings: D5, Silicone x2.
Pump Top: D5.
Pump Cover: ARGB D5 Pump Cover: CNC machined 6061 anodized aluminum black.
Dimensions: L: 240mm x W: 100mm x H: 100mm.
Weight: 1.5kg.
Packaged Dimensions: L: 300mm x W: 100mm x H: 100mm.
Packaged Weight: 2kg.

Installation:
Installs onto any radiator or fan mounting location which is 240mm or larger. Fits on 120mm and 140mm wide radiators or fan mounting locations. See installation manual link above.
