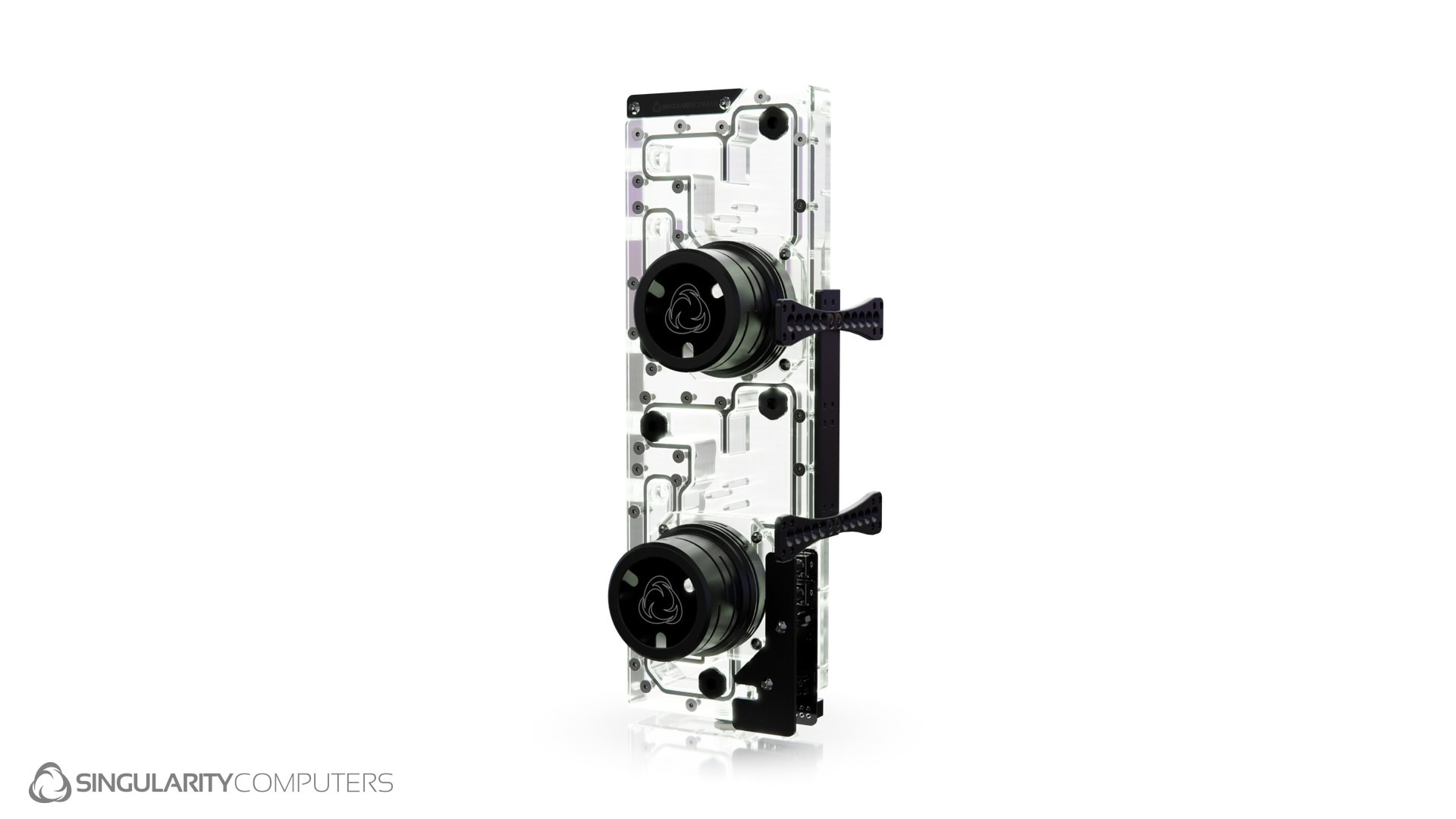

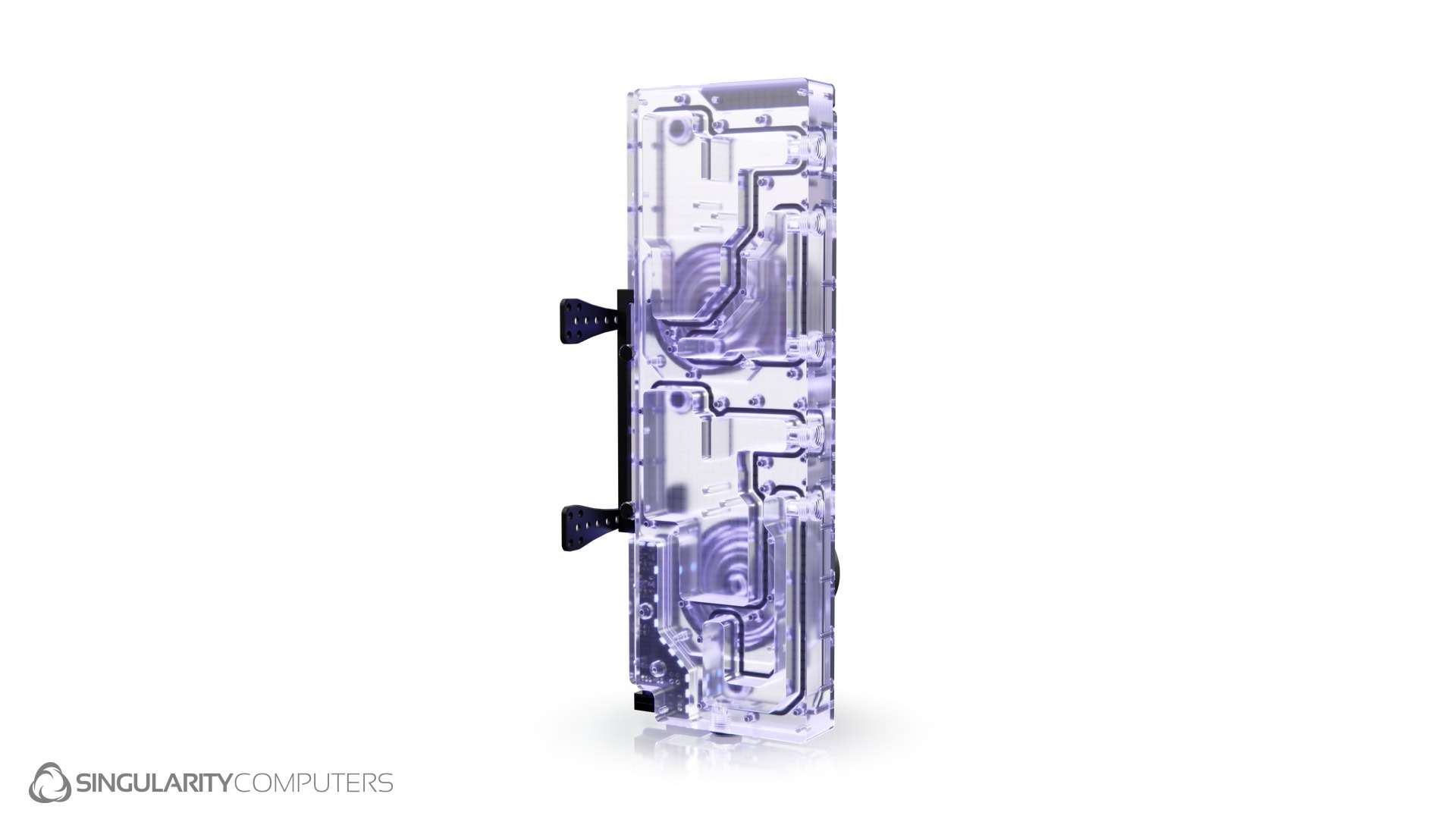

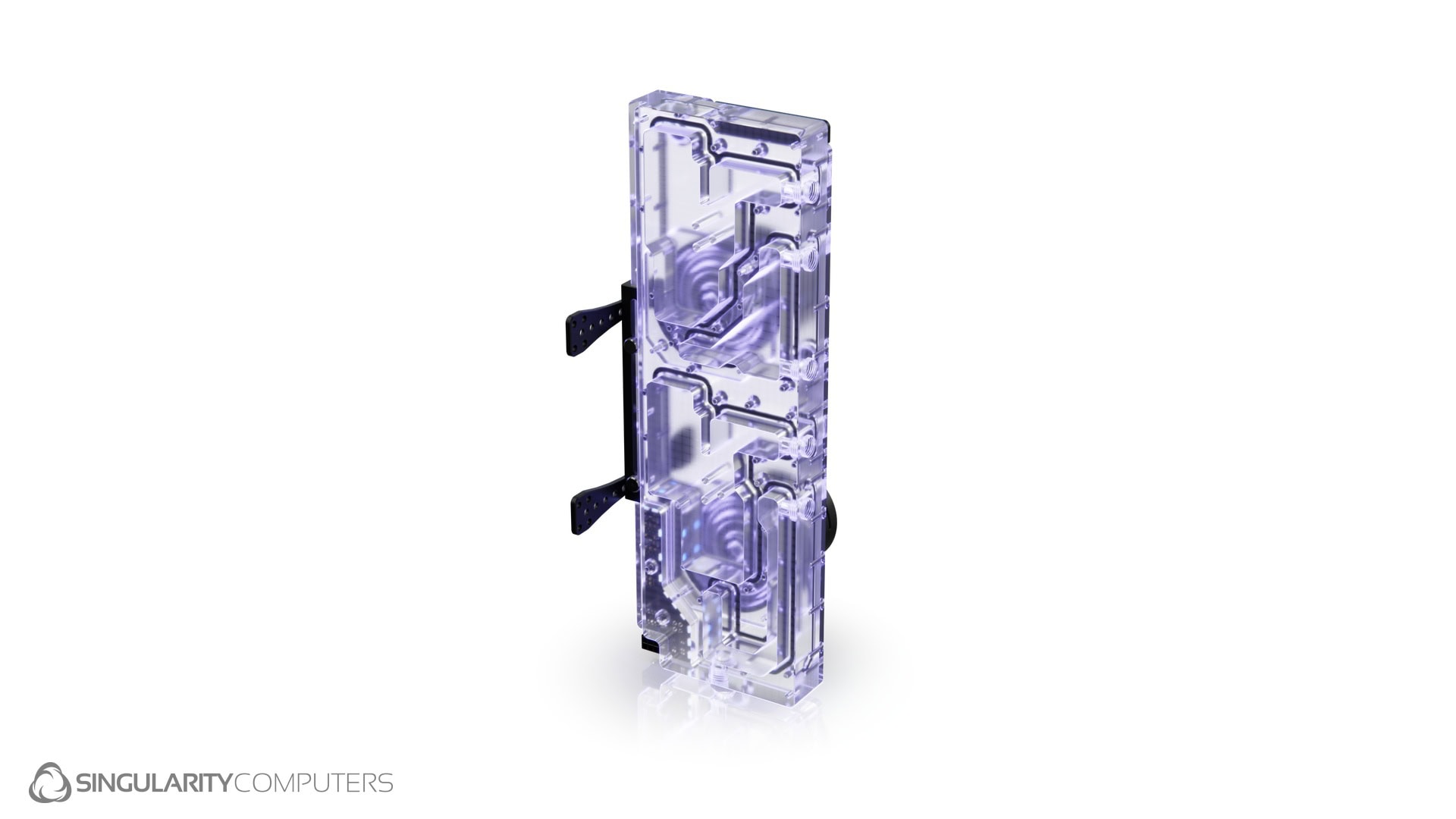

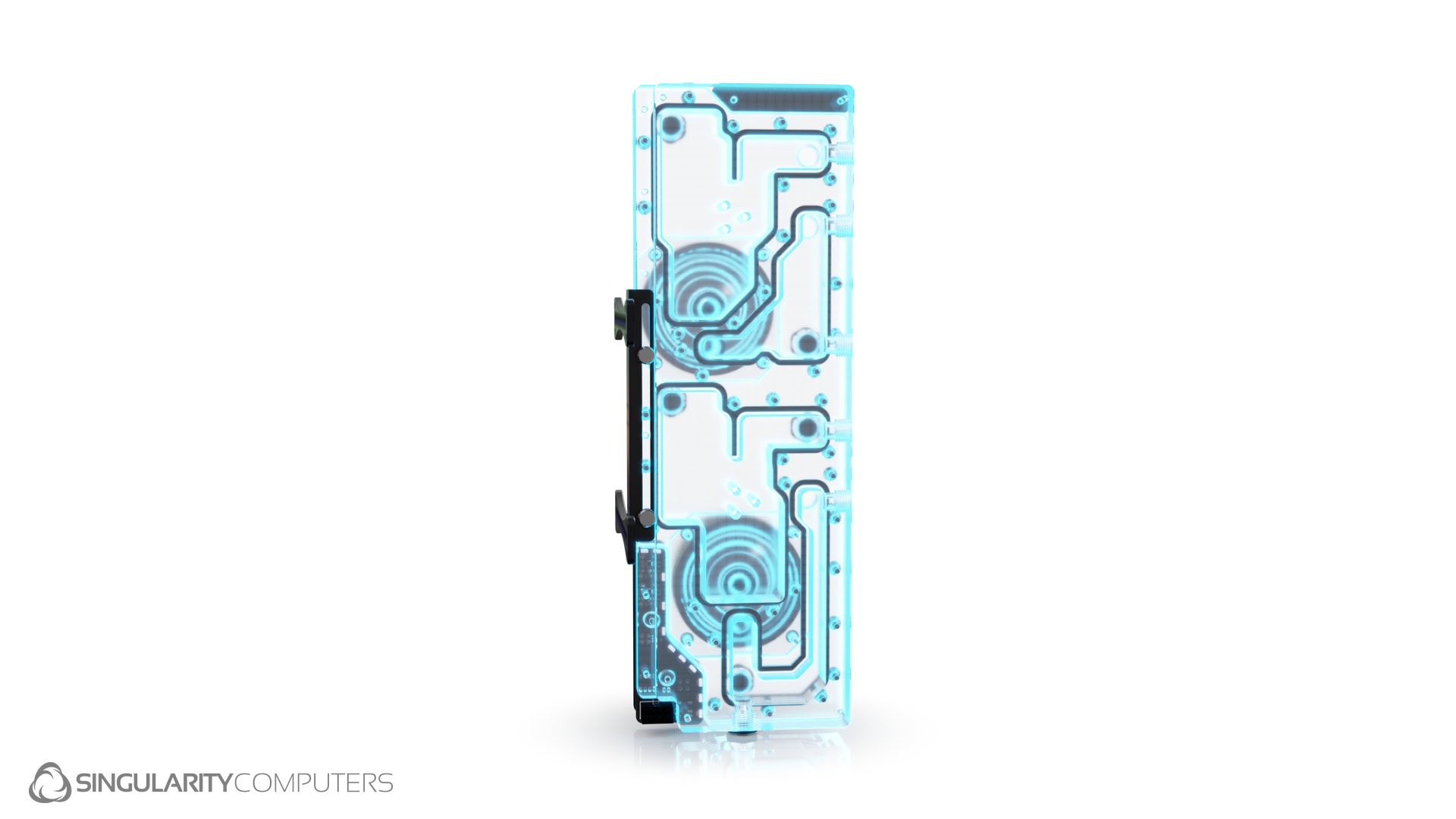

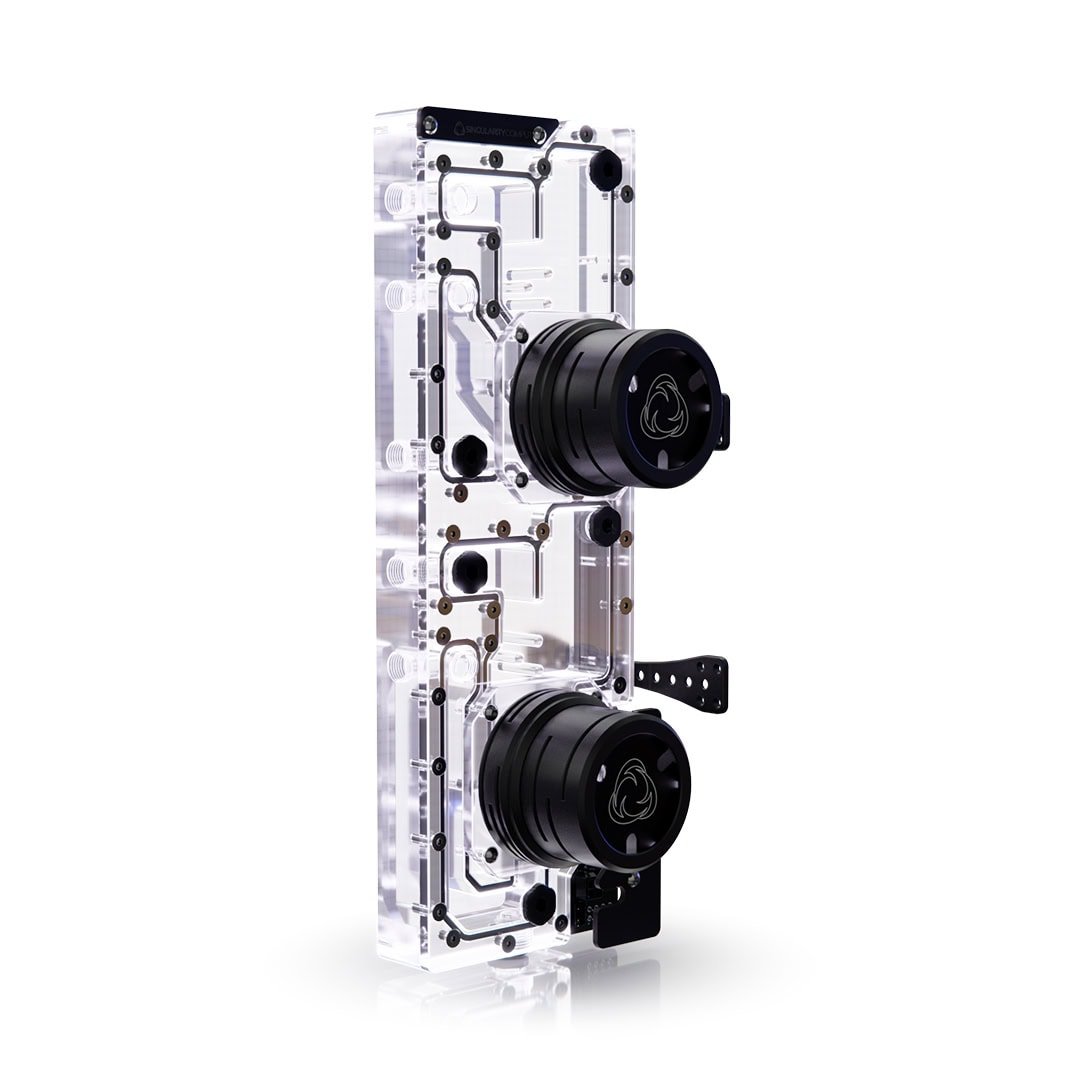

Axiom Dual Loop ARGB D5 Reservoir Combo Distribution Plate

In stock

Order processing time 1-2 days.

  • Dual-loop distribution plate with two integrated reservoirs
  • Dual D5 pump tops and D5 pump covers with ARGB lighting
  • Compatible with 120mm and 140mm wide radiators from 120mm to 560mm
  • Multiple inlet and outlet ports for flexible loop routing
  • High fluid volume with integrated fill and drain ports
  • Integrated ARGB lighting for distribution plate illumination
  • Temperature-based RPM control with independent pump and fan curves

Manuals

US$249.00

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$19.92 Silver Mirror +US$19.92 Gold Mirror +US$19.92 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring & Mounting Component Options x2 (included)
None Black Silver Black

Protium D5 Pump Cover
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.
For the Mounting Rail and Back Plates.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x10 (optional) USD $40
None Yes +US$40.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

Additional options

Select D5 Cover Options x2 (optional) USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

  • 1x Axiom Dual Loop ARGB D5 Reservoir Combo Distribution Plate
    US$249.00

Subtotal excludes shipping & tax

Free shipping on orders over US$2,000
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188002414 SKU: SC-AXI-DUAL-D5RES-C-DIST Categories: ,

Description

Read More +Read Less − full description

The Axiom Dual Loop ARGB D5 Reservoir Combo Distribution plate is a pump and reservoir combination designed to fit into water-cooled builds which have a 360mm, 420mm radiator or larger. It has maximum versatility with enough inlet and outlet ports for many different loop routes. It fits onto a 120mm or 140mm wide radiator and can fit on any radiator from 120mm all the way up to 560mm. It has been designed for maximum fluid volume for easy filling even in large water-cooling systems and has fill and drain ports built in. This is the Dual Loop version which has two integrated Reservoirs, D5 Pump Tops and D5 Pump Covers with ARGB lighting. It has electronics integration which includes integrated ARGB LEDs to light up the distribution plate. It also includes temperature-based RPM control with separately adjustable RPM curves for the pump and fans.

Specifications

Axiom Dual Loop ARGB D5 Reservoir Combo Distribution Plate.
Electronics Integration: PWM outputs x2 with coolant temperature-based RPM control. Each PWM output hub has separate coolant temperature-based RPM control. The built-in RPM control on the is independent of the motherboard and no software is needed. PWM Control: 2x potentiometers to set the minimum PWM speed of the RPM curve.
ARGB LEDs: x11.
Pump Power for up to x2 D5 Pumps.
8pin PCIE input.
Cables: 4pin ATX to 2x Molex & 2x SATA Pump Power Adaptor Black.
ARGB Linking Cable 50cm. Black.
Universal Back Plates 120/140: CNC machined 6061 anodized aluminum black.
Mounting Rail: CNC machined 6061 anodized aluminum black.
Fasteners: Stainless Steel.
Gaskets: Silicone.
O-rings: D5, Silicone x2.
Pump Top: D5 x2.
Pump Cover: ARGB D5 Pump Cover x2: CNC machined 6061 anodized aluminum black.
Dimensions: L: 100mm x W: 100mm x H: 360mm.
Weight: 3kg.
Packaged Dimensions: L: 120mm x W: 120mm x H: 400mm.
Packaged Weight: 3.5kg.

Installation:
Installs onto any radiator or fan mounting location which is 360mm or larger. Fits on 120mm and 140mm wide radiators or fan mounting locations. See installation manual link above.
