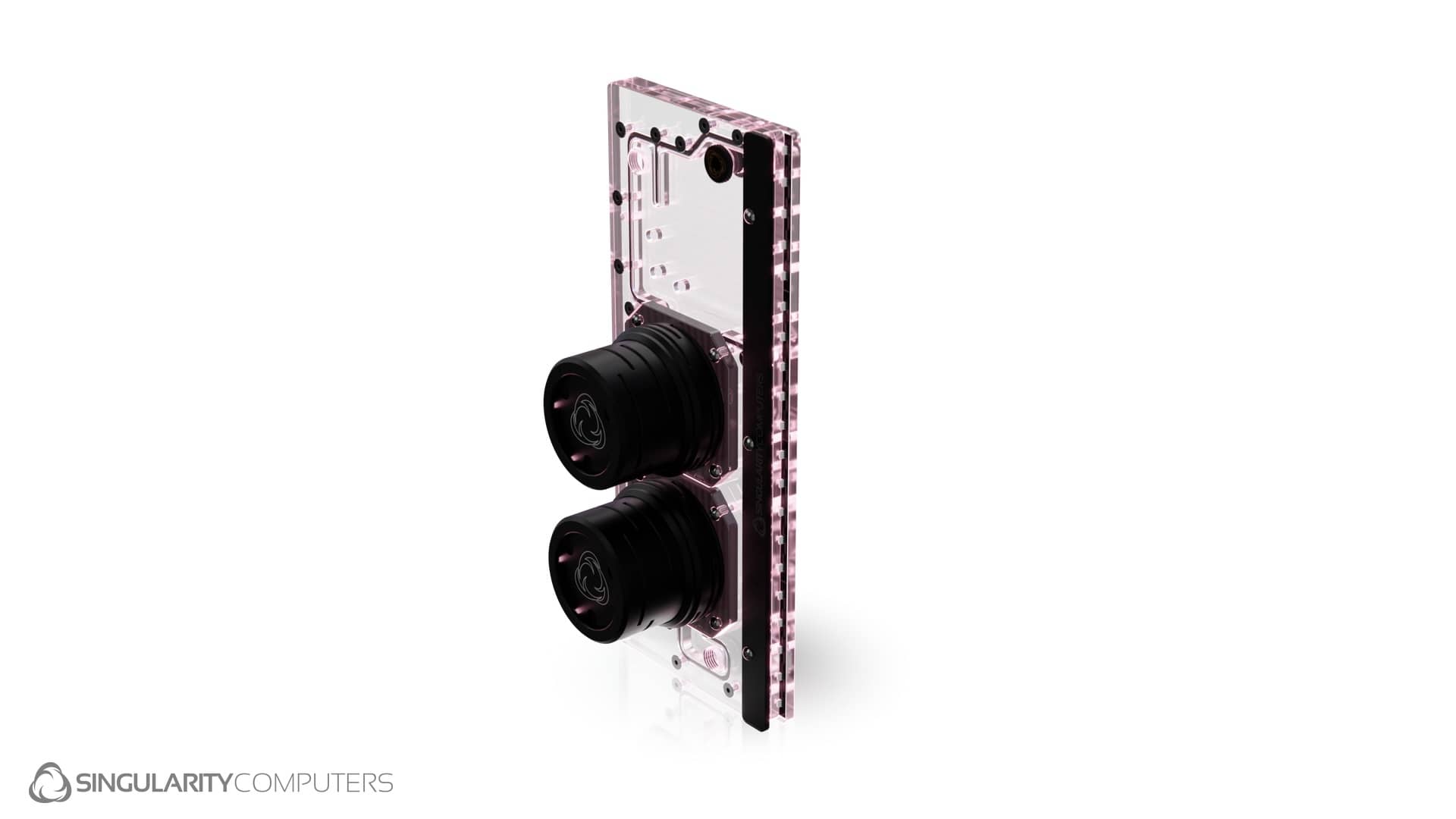

360mm Dual D5 Reservoir Combo Distribution Plate

In stock

Order processing time 1-2 days.

  • Fits any 360mm radiator or radiator mounting location

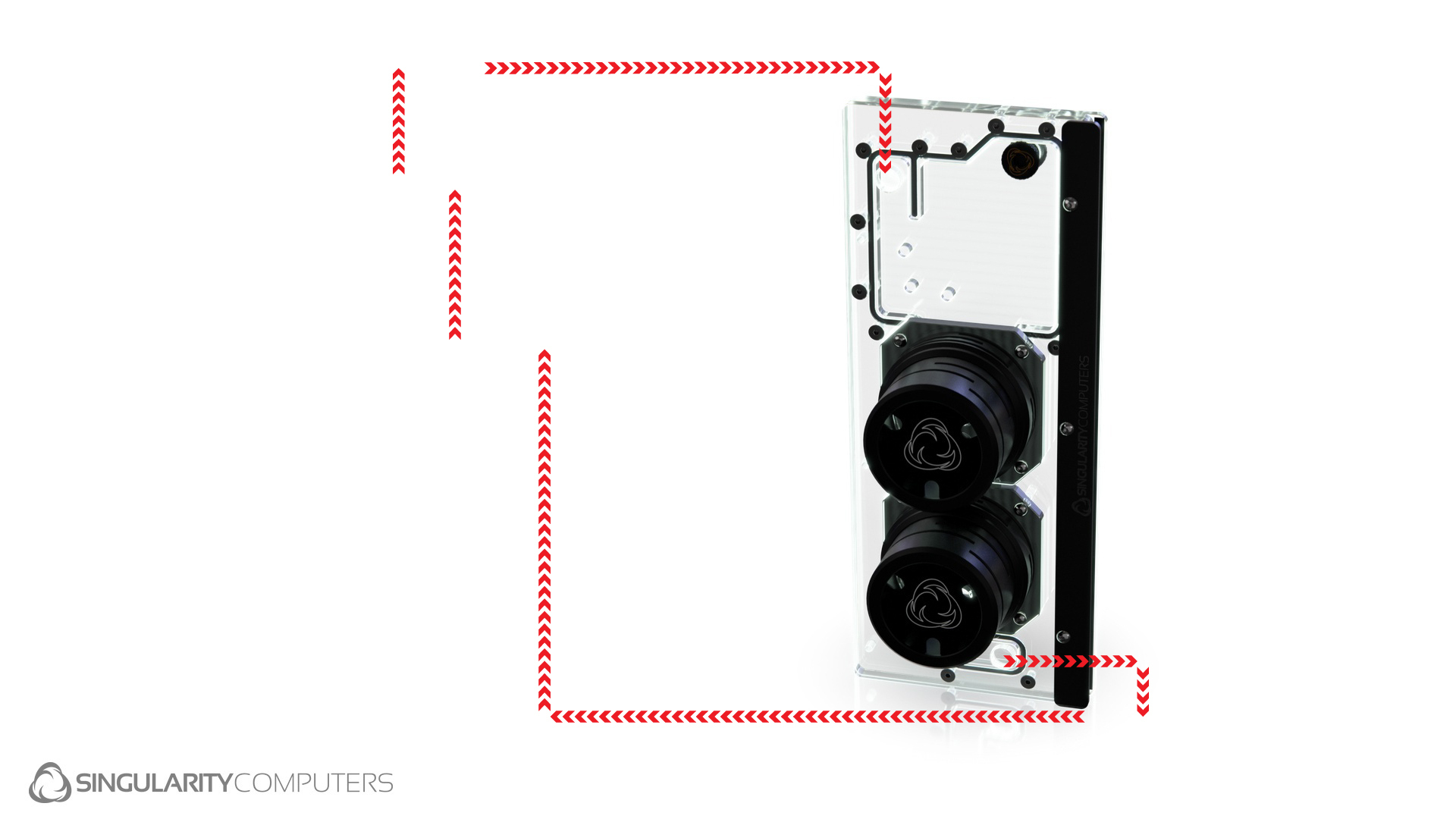

  • Dual D5 pumps in series for single-loop operation
  • Integrated reservoir, dual D5 pump tops and pump covers
  • Maximum reservoir volume for easier filling and air removal
  • Integrated fill port for convenient filling
  • CNC-machined clear cast acrylic with durable gasket seals
  • Integrated ARGB LED strip with customizable cover
  • Includes Back Plate to conceal the rear of the distribution plate
  • Hand assembled with stainless steel fasteners

Manuals

US$269.00

For mounting to a radiator mount select ‘Standard mounting’. For mounting to fans select ‘Fans’. For mounting to a radiator select the fastener size your radiator uses.

Select Acrylic Cover and Back Plate Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$21.52 Silver Mirror +US$21.52 Gold Mirror +US$21.52 Satin Black

The distribution plate will remain transparent, this colour option is for the covers and back plates.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour x2 (included)
None Black Silver Black

 Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options x2 (optional) USD $78
None Black +US$78.00 Silver +US$78.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump x2 (optional) USD $208
None Yes +US$208.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting x2 (optional) USD $8
None Yes +US$8.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x 360mm Dual D5 Reservoir Combo Distribution Plate
    US$269.00

Subtotal excludes shipping & tax

25% off Storewide With SCHAL | All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9351182005705 SKU: SC-360-DL-DIST Categories: ,

Description

Read More +Read Less − full description

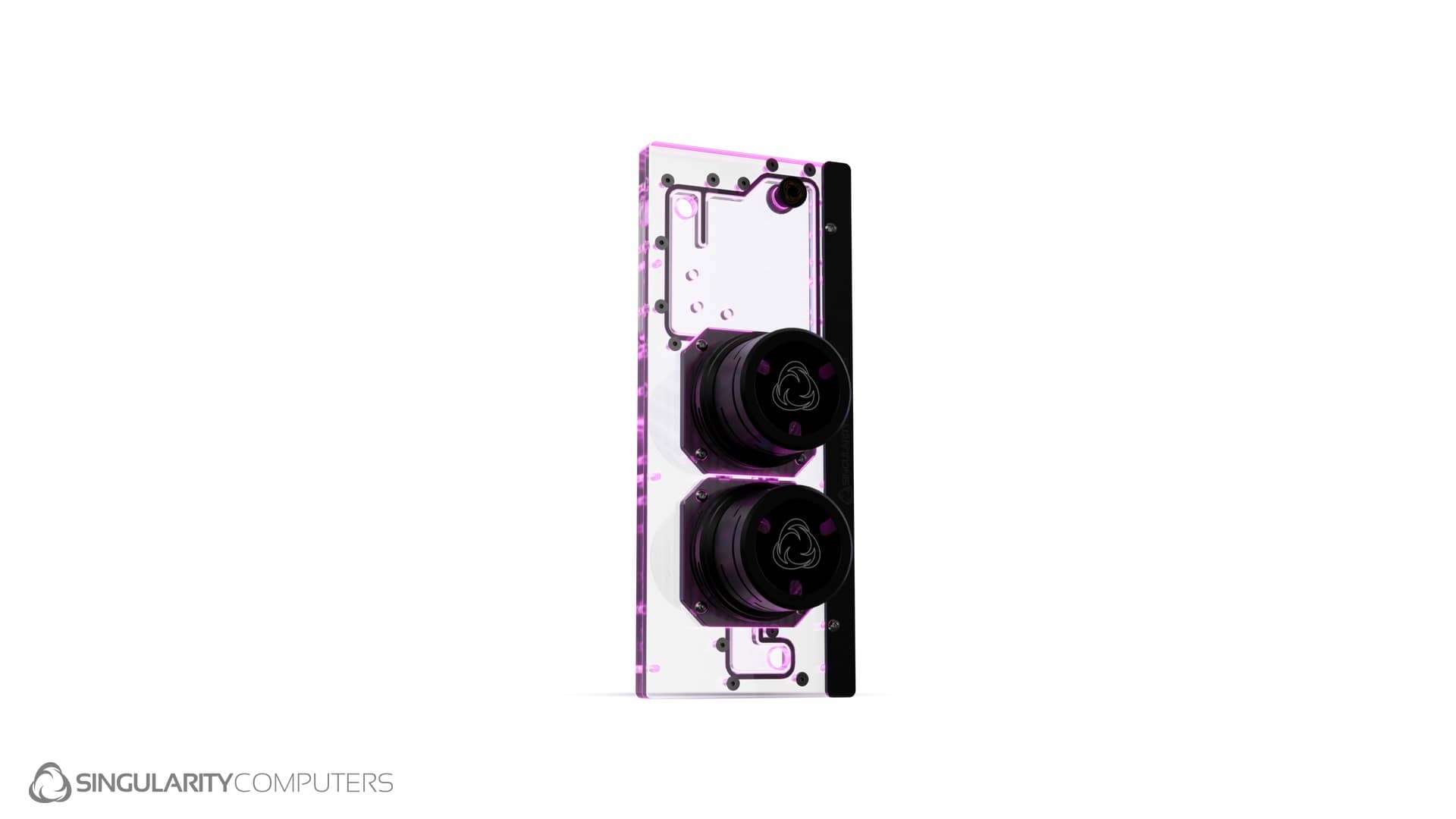

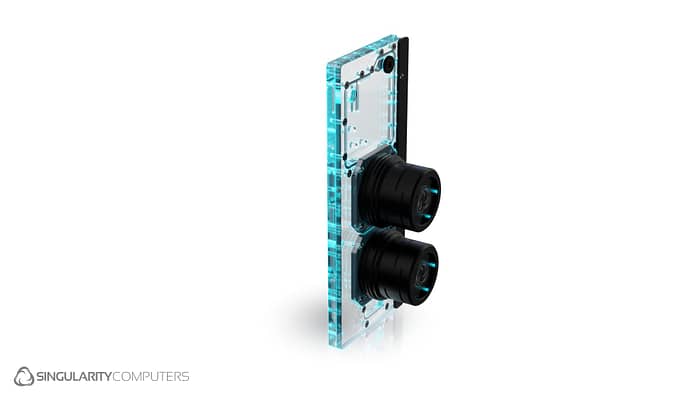

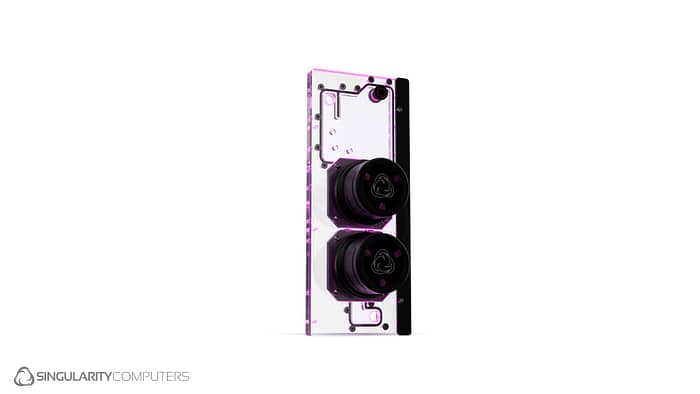

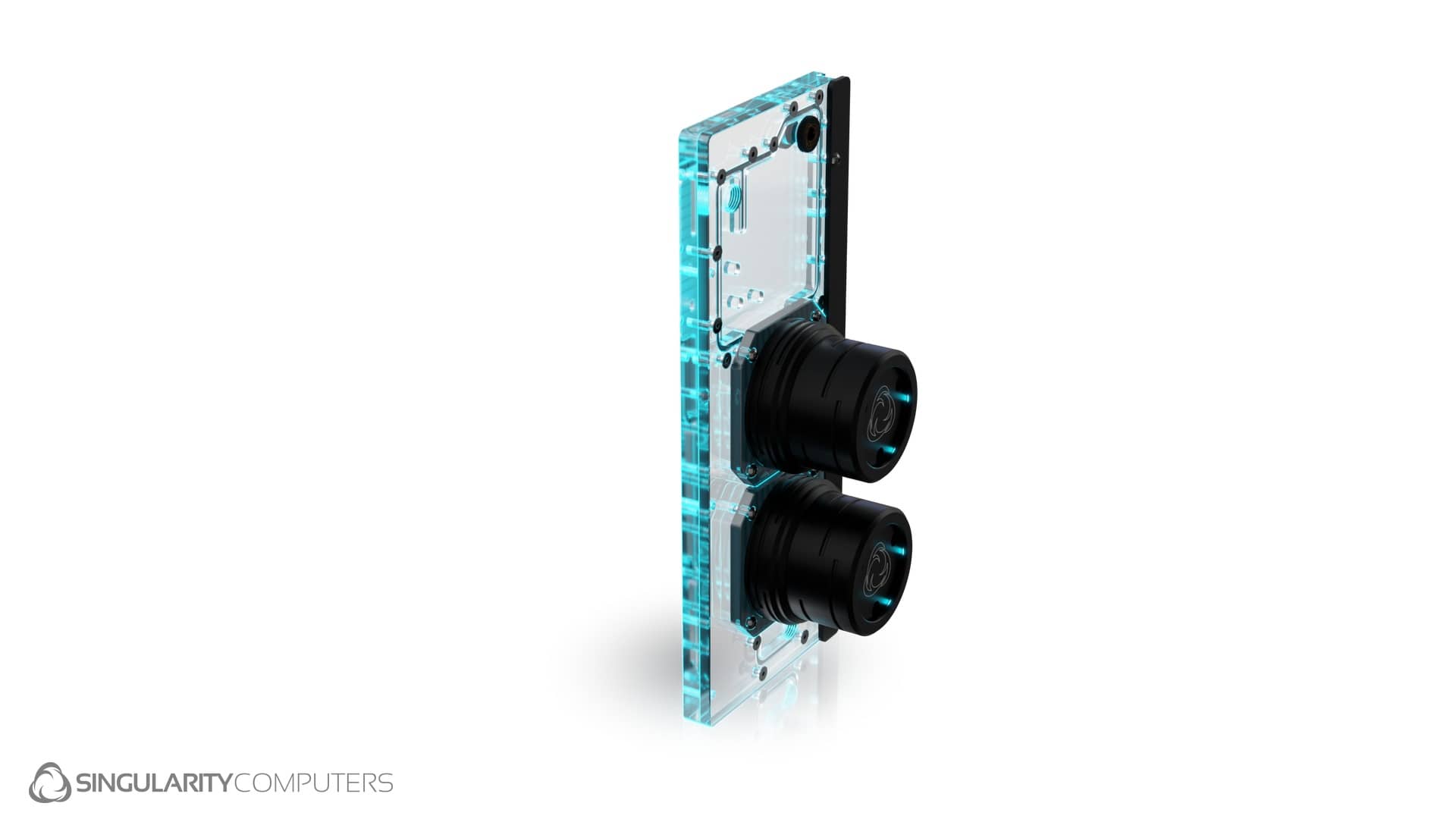

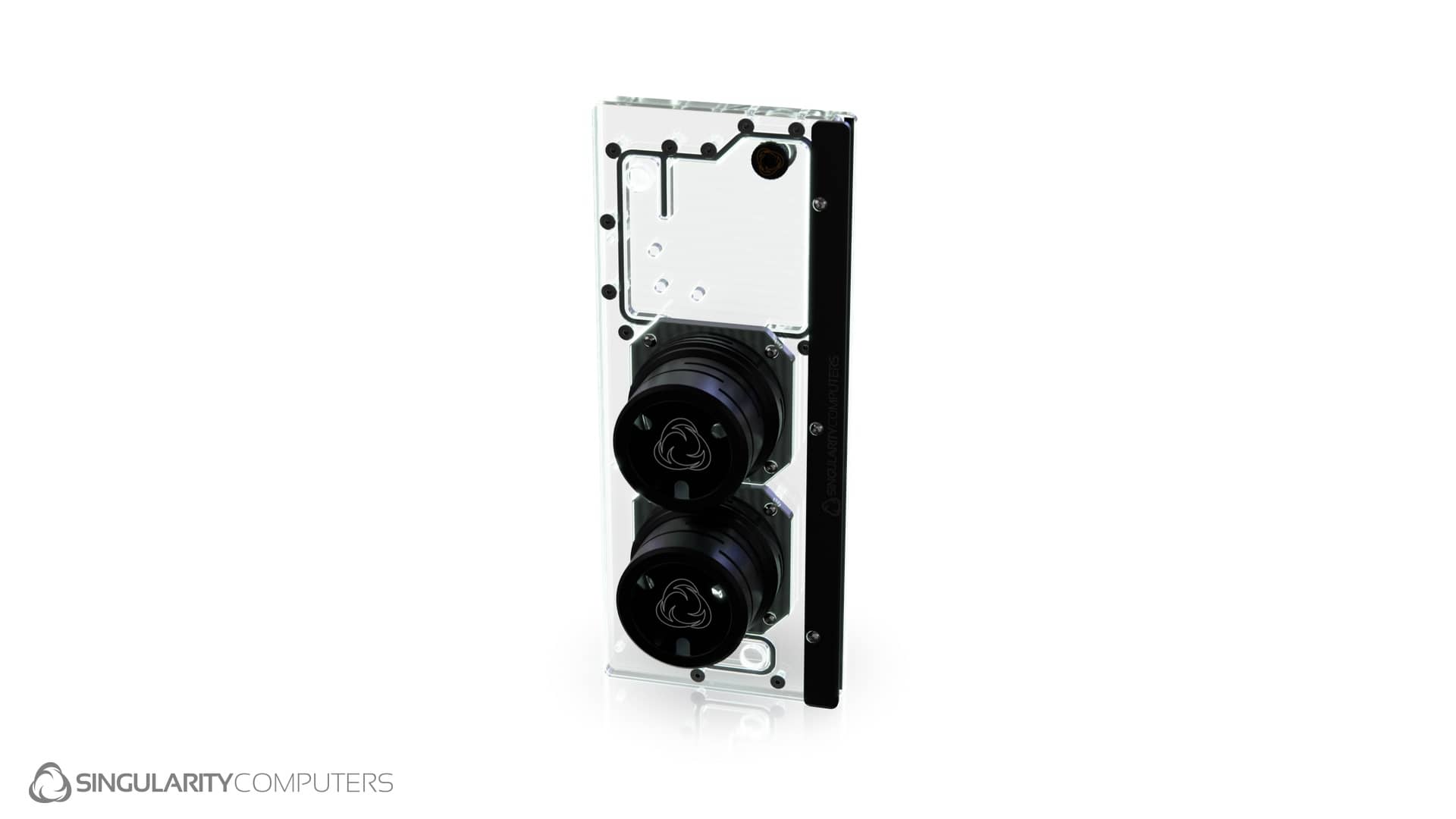

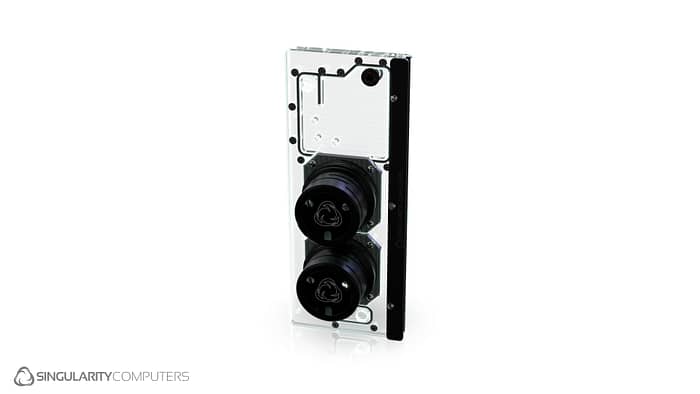

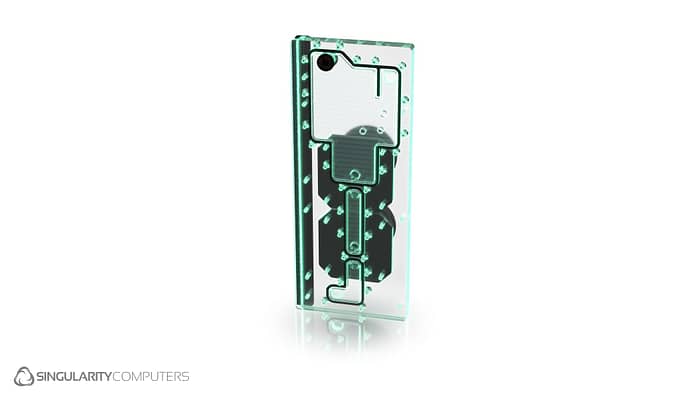

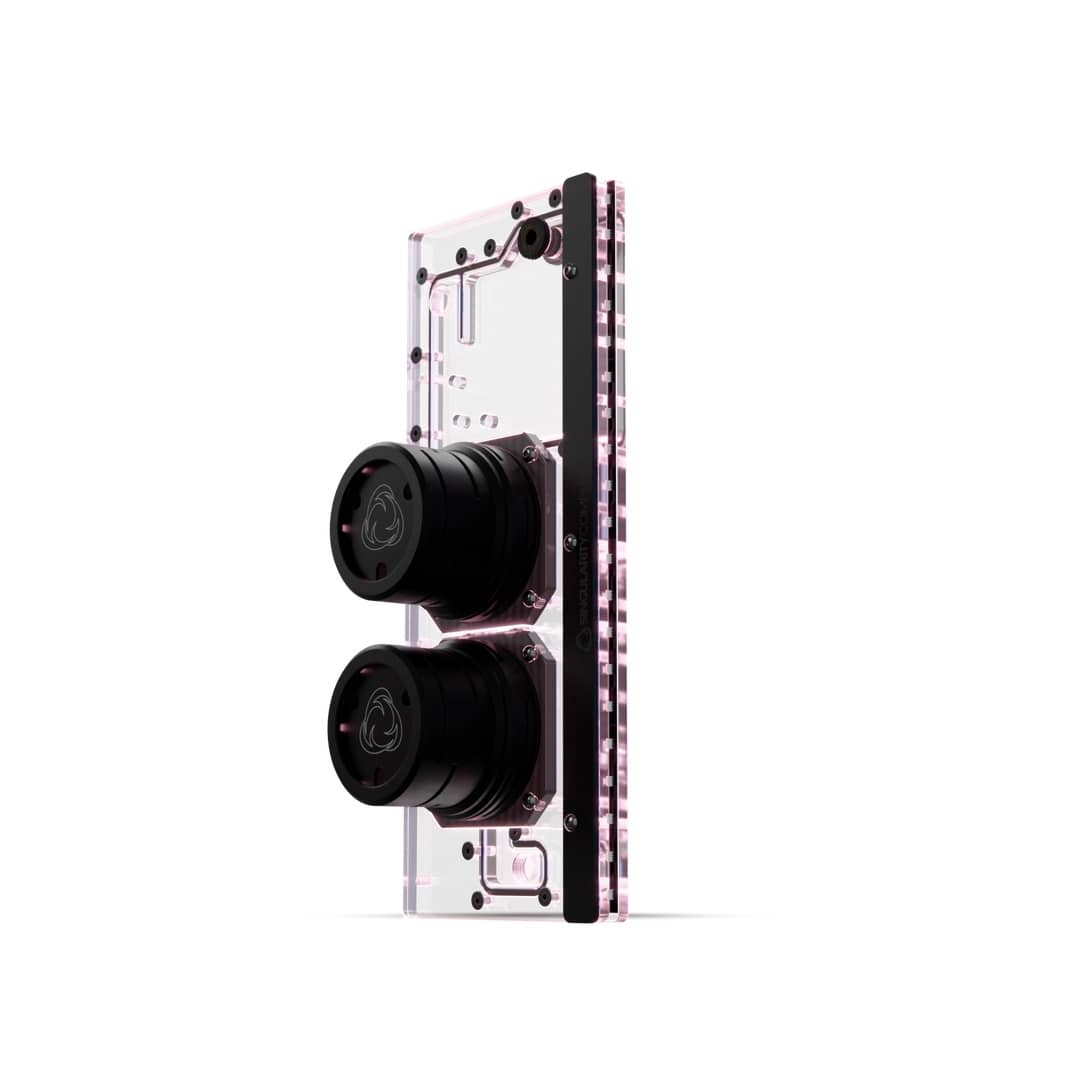

The 360mm Dual D5 Reservoir Combo Distribution Plate fits onto any 360mm radiator or radiator mount. The D5 pumps are in series for a single loop configuration. It has an integrated reservoir, Dual D5 Pump Tops and Pump Covers and a Fill Port. It is built from CNC machined clear cast acrylic and use gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners. Designed for maximum reservoir volume to make filling and air removal easier.  It has an integrated ARGB LED strip with a cover, there is also a Back Plate included to cover the rear side of the Rear Distribution Plate, select from the colour options below for the covers.

Specifications

360mm Dual D5 Reservoir Combo Distribution Plate
360mm Dual D5 Reservoir Combo Distribution Plate Back Cover (select color/finish above).
Integrated Reservoir.
Integrated D5 Pump Top x2.
D5 Pump Cover CNC Machined Anodized Aluminum x2 (select color above).
Integrated LED Strip: ARGB 5V with 50cm cable.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 360mm x W: 120mm x H: 110mm.
Weight: 2kg.
Packaged Dimensions: L: 420mm x W: 170mm x H: 150mm.
Packaged Weight: 2.5kg.

Installation:
Installs onto any 360mm radiator or radiator mount.
