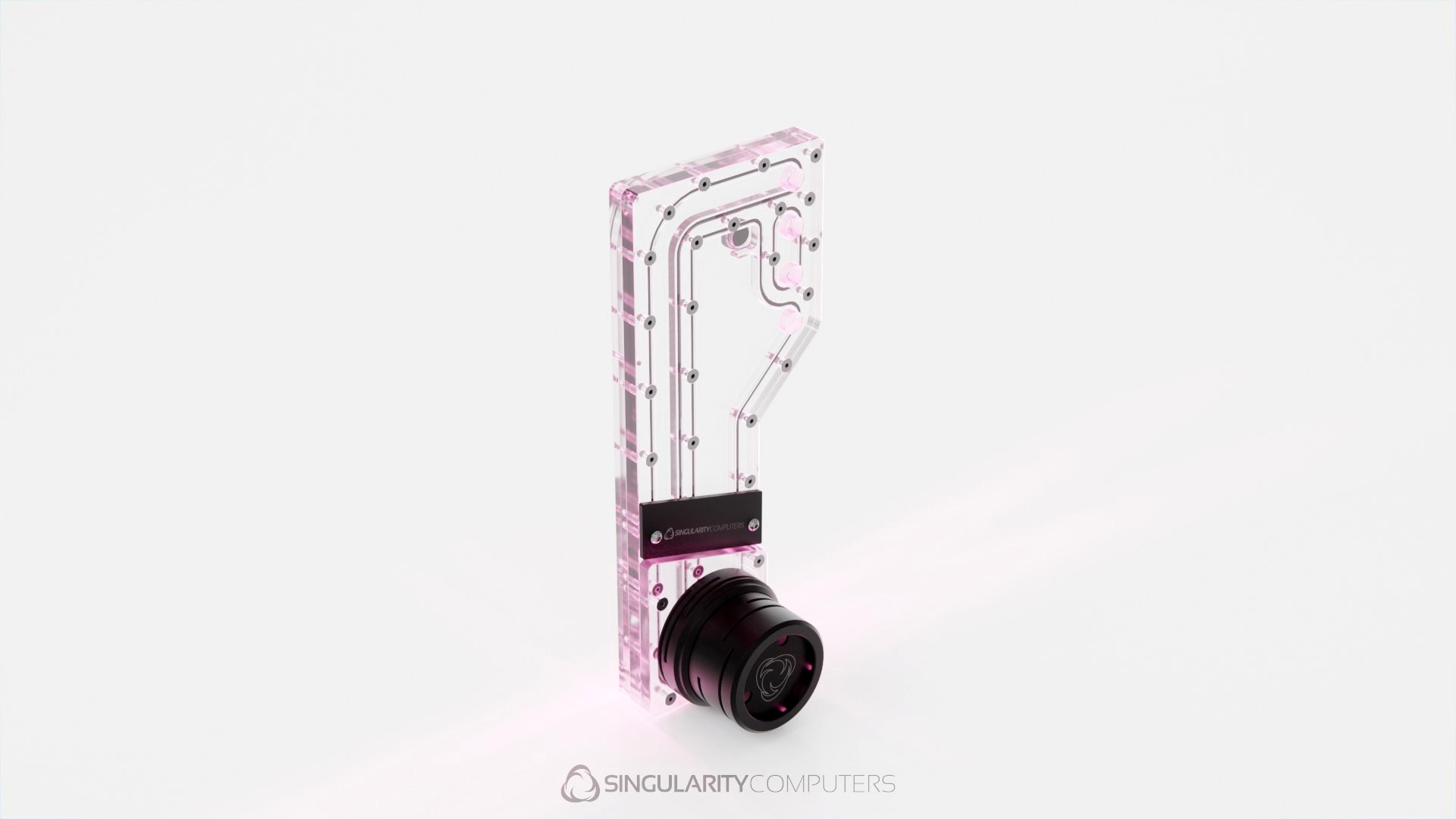

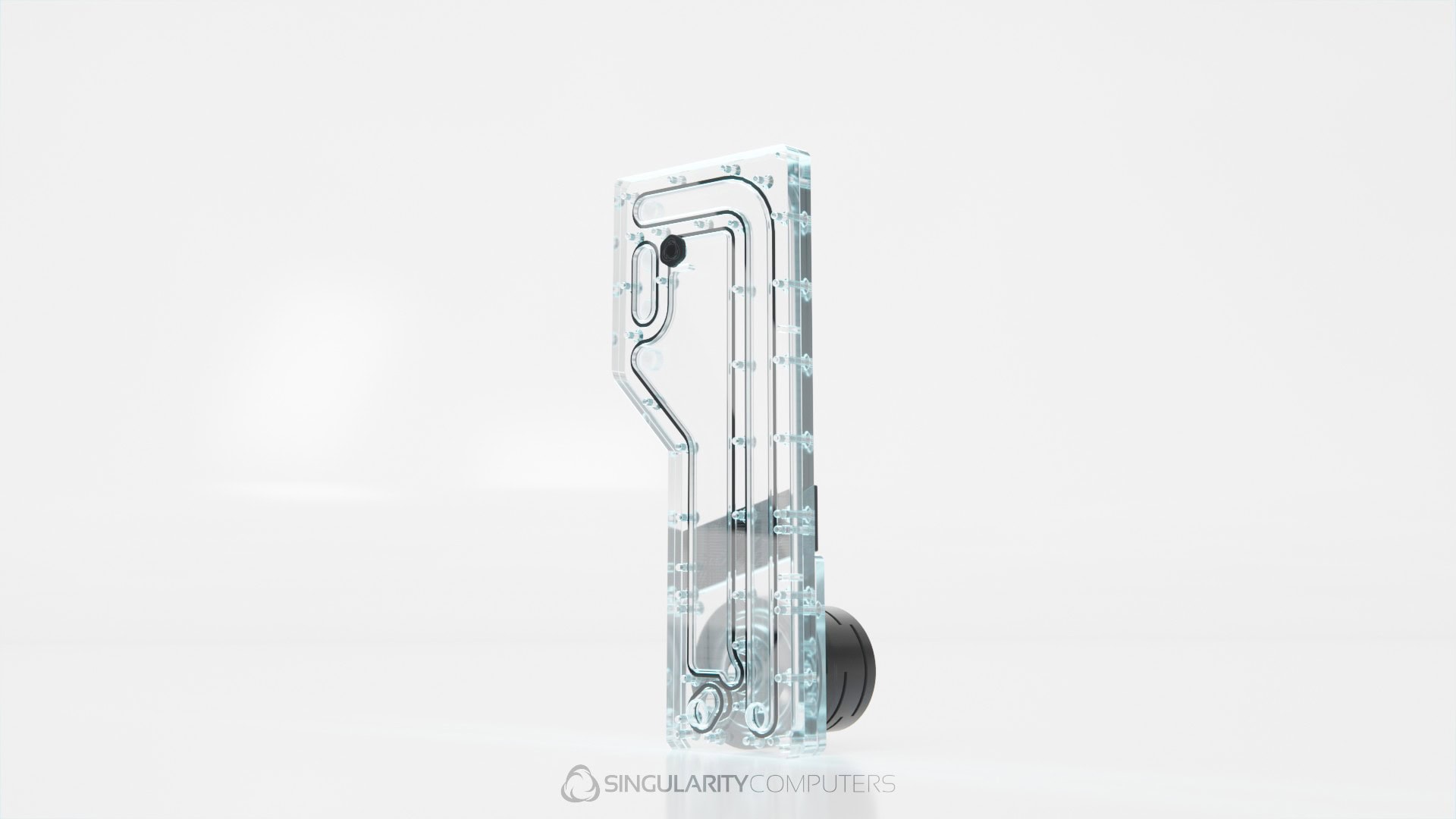

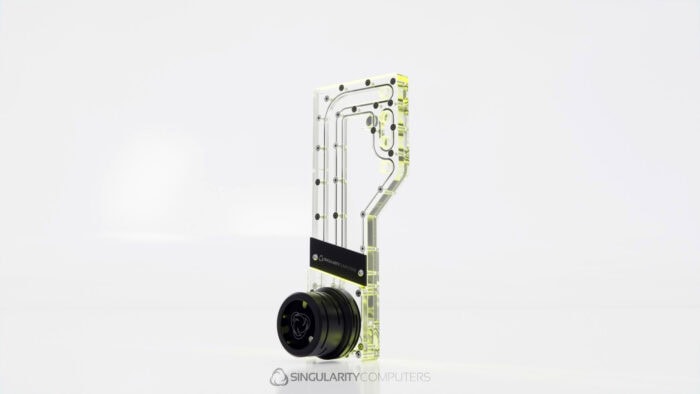

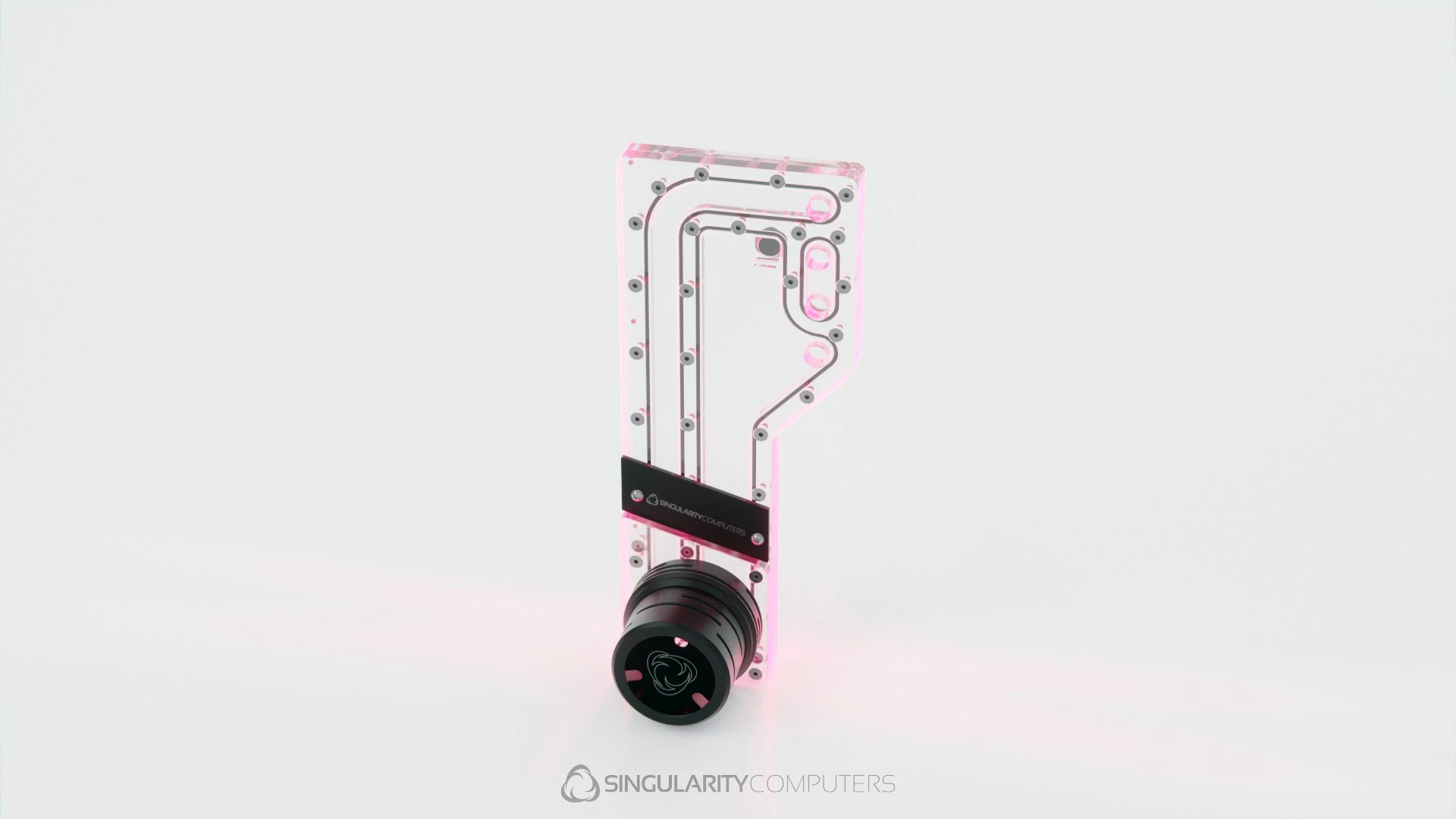

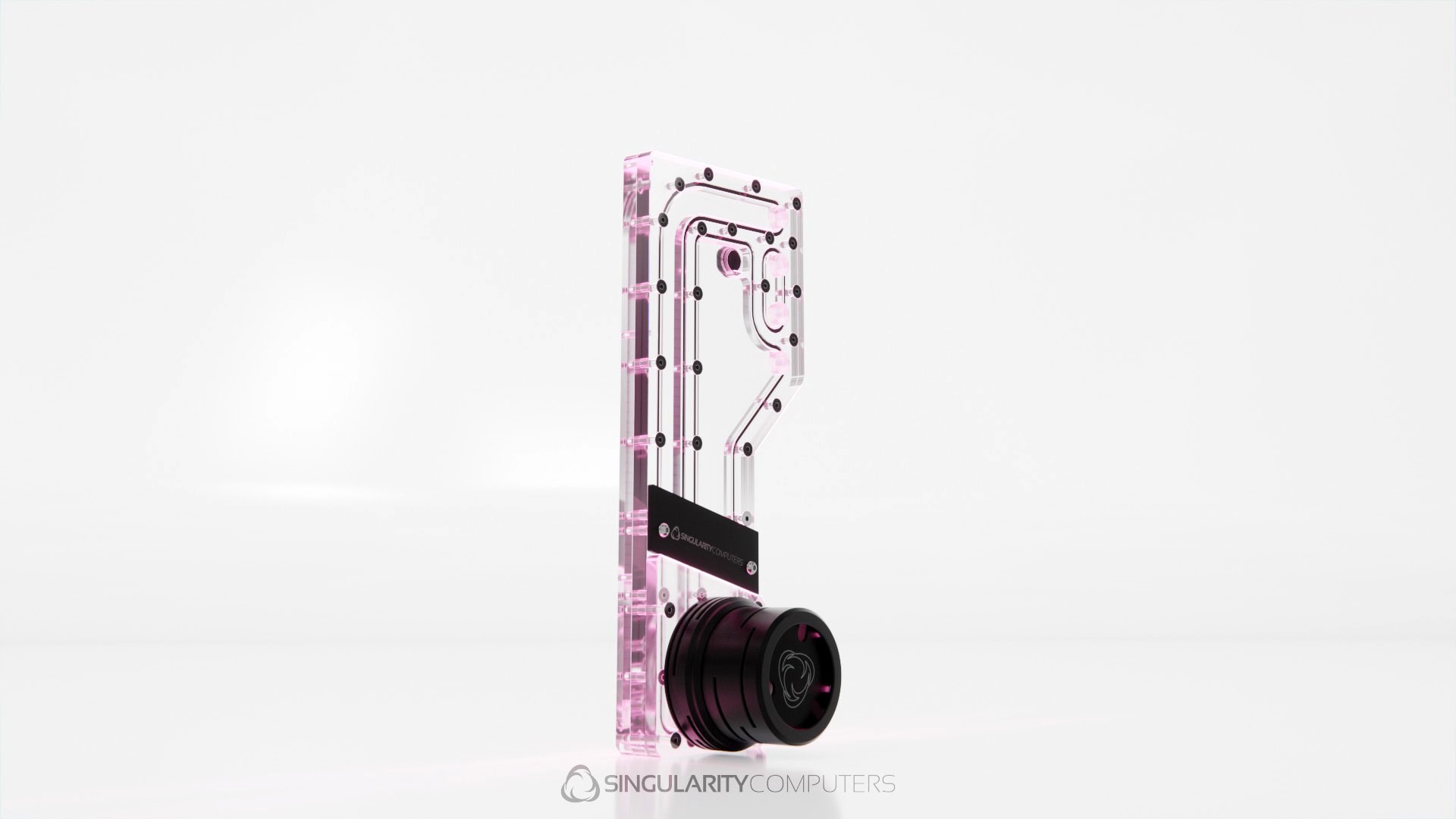

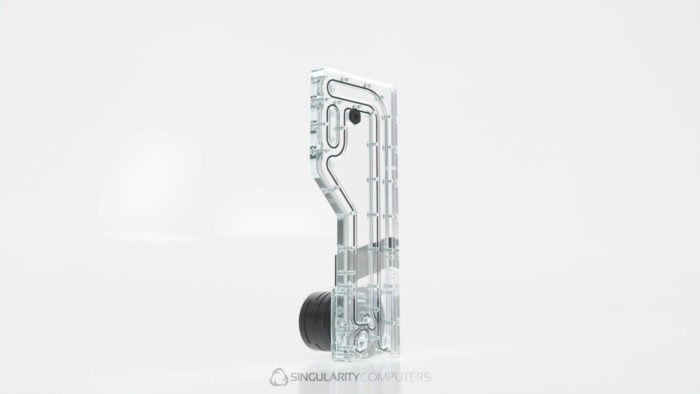

Canvas SFF Case D5 Reservoir Distribution Plate

In stock

Order processing time 1-2 days.

  • D5 reservoir distribution plate for the Canvas SFF Case
  • Mounts to the right side of the case
  • Integrated reservoir, D5 pump top and fill port
  • CNC-machined clear cast acrylic with durable gasket seals
  • Integrated ARGB LED strip
  • Customizable Accent Cover color options
  • Hand assembled with stainless steel fasteners

Manuals

US$169.00

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$13.52 Silver Mirror +US$13.52 Gold Mirror +US$13.52 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour (included)
None Black Silver Black

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting (optional) USD $4
None Yes +US$4.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Canvas SFF Case D5 Reservoir Distribution Plate
    US$169.00

Subtotal excludes shipping & tax

25% off Storewide With SCHAL | All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188003367 SKU: SC-CAN-DIST Categories: ,

Description

Read More +Read Less − full description

The Canvas SFF Case D5 Reservoir Distribution Plate mounts onto the right side of the Canvas SFF Case.  It has an integrated reservoir, D5 pump top and fill port. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners. It has an integrated ARGB LED strip. Select from the different color options below for the Accent Cover.

Specifications

Canvas SFF Case D5 Reservoir Distribution Plate.
Canvas SFF Case D5 Reservoir Distribution Plate Cover (select color/finish above).
D5 Pump Cover CNC Machined Aluminum (select color above).
Integrated D5 Pump Top.
Integrated Reservoir.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 240mm x W: 120mm x H: 58mm.
Weight: 0.5kg.
Packaged Dimensions: L: 290mm x W: 170mm x H: 108mm.
Packaged Weight: 0.52kg.

Installation:
Installs onto the right side of the Canvas SFF Case.
