Canvas SFF Case

In stock
  • Open-air SFF built to show hardware
  • Side rails take 240 or 280 radiators
  • 120/140mm mount for a reservoir or fan
  • Removable panel for back plate access
  • Vertical GPU mount, no length limit

Manuals

US$216.00

Optional Add-Ons

Enhance your purchase with these recommended extras

Distribution Plates

Canvas SFF Case D5 Reservoir Distribution Plate (optional) USD $169
None Yes +US$169.00

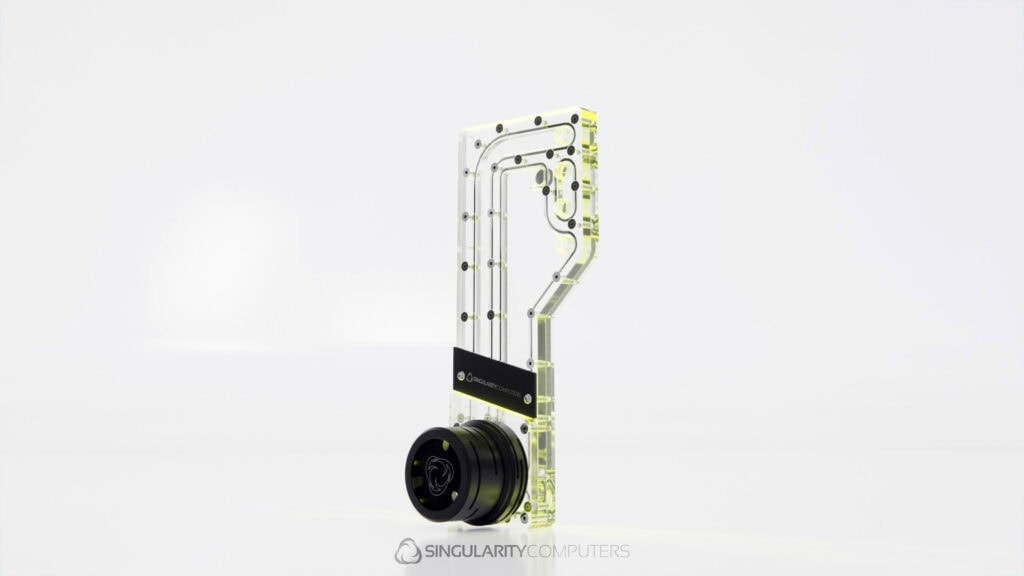

Canvas SFF Case D5 Reservoir Distribution Plate
The Canvas SFF Case D5 Reservoir Distribution Plate mounts onto the right side of the Canvas SFF Case.

Select D5 Retention Ring Colour (included)
None Black Silver

Protium Retention Ring
Protium 3.0 uses a retention ring design instead of threaded caps. This allows for 360-degree rotation of the reservoir caps, and it is far more durable than caps which thread onto the inside of the reservoir tube. They are built from CNC Machined Anodized Aluminum and do not contact the fluid. They are compatible with Protium 3.0 ARGB 150 D5 Reservoir Combos, Protium 3.0 Reservoir 200mm and backwards compatible with Protium 1.0 and 2.0.

Select D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

Protium D5 Pump Cover
The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

D5 Pump (optional) USD $104
None Yes +US$104.00

Protium D5 Pump
The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It has a Molex connector for power and a PWM connector to control the RPM.

Stop Fitting (optional) USD $4
None Yes +US$4.00

Stop Fitting
Singularity Computers Fittings have been designed based on our extensive experience building water-cooled systems. They are built from CNC machined brass and powder coated in matte black and have silicone O-Rings. Our goal was to create something which is aesthetically subtle, and easy and effective to use. The fittings are compact enough to fit into the tight places fittings are needed, while allowing for a wide variety of different configurations.

  • 1x Canvas SFF Case
    US$216.00

Subtotal excludes shipping & tax

25% off Storewide With SCHAL | All US Tariff Costs Covered By Singularity Computers
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
Category:

Description

Read More +Read Less − full description



Specifications

Motherboard: Mini-ITX.
PSU: SFX and SFX-L.
GPU: Vertical mount. No limit on GPU length or thickness. PCIe Gen4 riser cable included.
Radiators: Left and right rails mount any radiator. 240mm and 280mm work well visually; height is unlimited.
Accessory mount: 120mm and 140mm fan spacing behind the motherboard tray, for fans, reservoirs or an additional radiator.
Motherboard back panel: Removable for back plate access.
Mounting holes: 90-degree chamfered on the front, for flat M4 or M5 screws.

GPU:

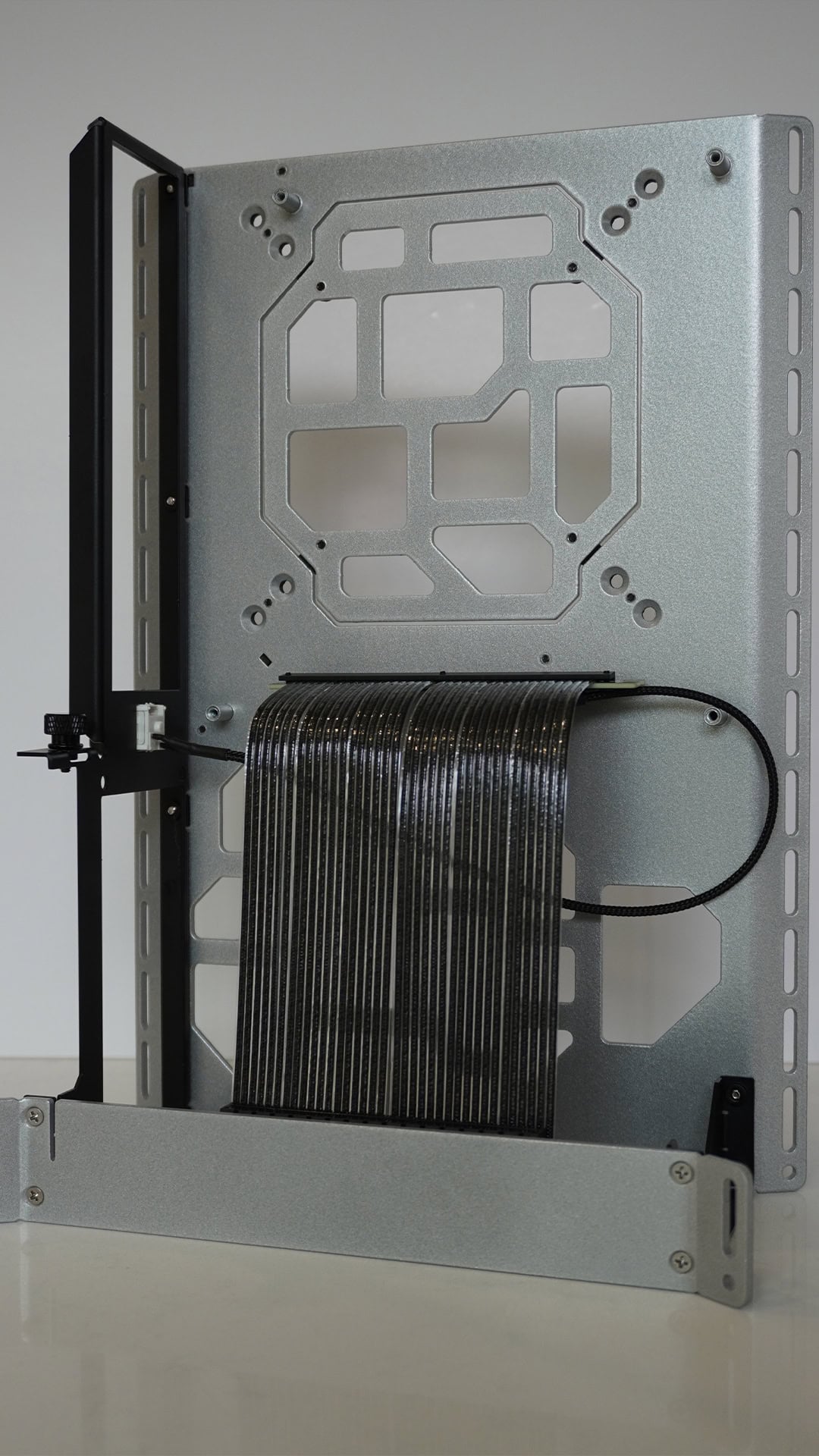

There are no limitations to the size of GPU that can be mounted. The length and thickness of the GPU are unbounded. The vertical orientation slots the GPU directly into the riser cable which is screwed into the case. Some care has to be taken with very thick, heavy GPUs as it is only secured to the case with 1 thumb screw. A PCIe gen4 riser cable is included with the case.

PSU & Motherboard:
The Canvas is designed for both SFX and SFX-L units. There are routing clips on the back of the case for the EPS cable. Although stock cables reach, custom sleeved are recommended :)
The motherboard for this case is a mini-ITX.

Accessory Mount:
Behind the motherboard there is a square hole pattern that aligns to 120mm and 140mm fan spacing. This is to mount any accessories, such as 120 or 140mm fans, reservoirs, or even another radiator.
The motherboard back panel is removable to allow back plate access. On the front of the case, these holes are 90 degree chamfered. This allows accessories to be mounted with flat M4 or M5 screws, preventing any protrusions towards the back of the motherboard.

Radiators:
The left and right rails are designed to mount any radiator. 240 and 280 radiators work well visually, however the height is unlimited. It is recommended to mount the radiator with at least 3 screws, loosely, and place the assembly on the desk such that the radiator touches the desk. Then tighten the screws. This way, the radiator acts as its own support preventing the case from possibly tipping backwards. If you would like to mount the radiators higher, it is recommended to 3d print and install some feet to extend support towards the back.
